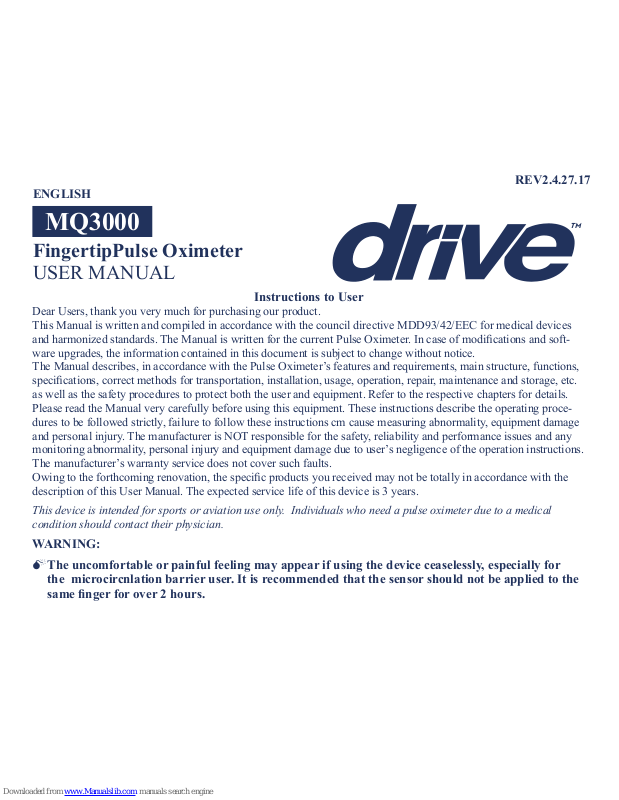

Drive MQ3000 User Manual
MQ3000
FingertipPulse Oximeter
USER MANUAL
ENGLISH
Instructions to User
Dear Users, thank you very much for purchasing our product.
This Manual is written and compiled in accordance with the council directive MDD93/42/EEC for medical devices
and harmonized standards. The Manual is written for the current Pulse Oximeter. In case of modications and software upgrades, the information contained in this document is subject to change without notice.
The Manual describes, in accordance with the Pulse Oximeter’s features and requirements, main structure, functions,
specications, correct methods for transportation, installation, usage, operation, repair, maintenance and storage, etc.
as well as the safety procedures to protect both the user and equipment. Refer to the respective chapters for details.
Please read the Manual very carefully before using this equipment. These instructions describe the operating procedures to be followed strictly, failure to follow these instructions cm cause measuring abnormality, equipment damage
and personal injury. The manufacturer is NOT responsible for the safety, reliability and performance issues and any
monitoring abnormality, personal injury and equipment damage due to user’s negligence of the operation instructions.
The manufacturer’s warranty service does not cover such faults.
Owing to the forthcoming renovation, the specic products you received may not be totally in accordance with the
description of this User Manual. The expected service life of this device is 3 years.
This device is intended for sports or aviation use only. Individuals who need a pulse oximeter due to a medical
condition should contact their physician.
WARNING:
M The uncomfortable or painful feeling may appear if using the device ceaselessly, especially for
the microcircnlation barrier user. It is recommended that the sensor should not be applied to the
same nger for over 2 hours.
REV2.4.27.17
M For the individual user, there should be a more prudent inspecting in the placing process. The
device can not be clipped on the edema and tender tissue.
M The light (the infrared is invisible) emitted from the device is harmful to the eyes, so the user and
the maintenance man, can not stare at the light.
M User can not use enamel or other makeup.
M User’s ngernail can not be too long.
M Please peruse the relative content about the user restrictions and caution.
M This device is not intended for treatment.
The User Manual is published by our company. All rights reserved.
1 Safety
1.1 Instructions for Safe Operations
Check the main unit and all accessories periodically to make sure that there is no visible damage that may affect
user’s safety and monitoring performance about cables and transducers. It is recommended that the device
should be inspected once a week at least. When there is obvious damage, stop using the monitor.
Necessary maintenance must be performed by qualied service engineers ONLY. Users are not permitted to
maintain it by themselves.
The oximeter cannot be used together with devices not specied in User’s Manual.Only the accessory that
appointed or recommendatory by manufacture can be used with this device.
This product is calibrated before leaving factory.
1.2 Warnings
Explosive hazard-DO NOT use the oximeter in environment with ammable gas such as ignitable anesthetic
agents.
DO NOT use the oximeter while the user measured by MRI and CT.
Caution: This product contains natural rubber latex which may cause allergic reactions.
The disposal of scrap instrument and its accessories and packings (including batteries, plastic bags, foams and
paper boxes) should follow the local laws and regulations.
Please check the packing before use to make sure the device and accessories are totally in accordance with the
packing list, or else the device may have the possibility of working abnormally.
Please don’t measure this device with function test paper for the device’s related information.
1.3 Attentions
Keep the oximeter away from dust, vibration, corrosive substances, explosive materials, high temperature and
moisture.
If the oximeter gets wet, please stop operating it.
When it is carried from cold environment to warm or humid environment, please do not use it immediately.
DO NOT operate keys on front panel with sharp materials.
High temperature or high pressure steam disinfection of the oximeter is not permitted. Refer to User Manual in
the relative chapter for instructions of cleaning and disinfection.
Do not have the oximeter immerged in liquid. When it needs cleaning, please wipe its surface with medical
alcohol by soft material. Do not spray any liquid on the device directly.
When cleaning the device with water, the temperature should be lower than 60°C.
As to the ngers which are too thin or too cold, it would probably affect the normal measure of the users’ SpO2,
and pulse rate, please clip the thick nger such as thumb and middle nger deeply enough into the probe.
Do not use the device on infant or neonatal user.
The product is suitable for children above four years old and adults (Weight should be between 15kg to 110kg).
The device may not work for all users. If you are unable to achieve stable readings, discontinue use.
The update period of data is less than 5 seconds, which is changeable according to different individual pulse rate.
The waveform is normalized. Please read the measured value when the waveform on screen is equably and
steady-going. Here this measured value is optimal value. And the waveform at the moment is the standard one.
If some abnormal conditions appear on the screen during test process, pull out the nger and reinsert to restore
normal use.
The device has normal useful life for three years since the rst electried use.
The lanyard attached to the product is made from Non-allergy material, if particular group are sensitive to the
lanyard, stop using it. In addition, pay attention to the use of the lanyard, do not wear it around the neck avoiding
cause harm to the user.
The instrument has a visible low-voltage indicator, please change the batteries when the voltage is low.
The instrument dose not have low-voltage alarm function. Do not use the device in situations where alarms are
required.
Batteries must be removed if the device is going to be stored for more than one month, or else batteries may
leak.
A exible circuit connects the two parts of the device. Do not twist or pull on the connection.
2 Overview
The pulse oxygen saturation is the percentage of HbO, in the total Hb in the blood, so-called the 0, concentration in
the blood. It is an important bio-parameter for the respiration. For the purpose of measuring the SpO2, more easily
and accurately, our company developed the Pulse Oximeter. At the same time, the device can measure the pulse rate
simultaneously.
The Pulse Oximeter features in small volume, low power consumption, convenient operation and being portable. It
is only necessary for user to put one of his ngers into a ngertip photoelectric sensor for diagnosis, and a display
screen will directly show measured value of Sp0.
2.1 Classication:
Class II b(MDD93/42/EEC IX Rule 10) Class II (U.S.FDA)
2.2 Features
Operation of the product is simple and convenient.
The product is small in volume, light in weight (total weight is about 50g including batteries) and
convenient in carrying.
Power consumption of the product is low and the two originally equipped AAA batteries can be operat-
ed continuously for 20 hours.
The product will automatically be powered off when no signal is in the product within 5 seconds.
2.3 Major Applications and Scope of Application
The Pulse Oximeter can be used to measure human Hemoglobin Saturation and pulse rate through nger, and indicate the pulse intensity by the bar-display. The product is suitable for use in with sporting and elavation activities.
The product is not suitable for use in continuous supervision for user.
The problem of overrating would emerge when the is suffering from toxicosis which caused by
carbon monoxide, the device is not recommended to be used under this circumstance.
2.4 Environment Requirements
Storage Environment Operating Environment
a) Temperature: -40°C--,60°C a) Temperature: 10°C-40°C
b) Relative humidity ≥95% b) Relative Humidity: ≥75%
c) Atmospheric pressure :500hPa-1060hPa c) Atmospheric pressure: 700hPa-1060hPa
3 Principle and Caution
3.1 Principle of Measurement
Principle of the Oximeter is as follows: An experience formula of data process is established taking use of Lambert
Beer Law according to Spectrum Absorption Characteristics of Reductive Hemoglobin (11b) and Oxyhemoglobin
(HbO,) in glow & near-infrared zones. Operation principle of the instrument is: Photoelectric Oxyhemoglobin
Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology, so that two
beams of different wavelength of lights can be focused onto human nail tip through perspective clamp nger-type
sensor. Then measured signal can be obtained by a photosensitive element, information acquired through which will
be shown on screen through treatment in electronic circuits and microprocessor.
3.2 Caution
1. The nger should be placed properly (see the attached illustration of this manual ,Figure 5), or else it may cause
inaccurate measurement.
2. The SpO2, sensor and photoelectric receiving tube should be arranged in a way with the subject’s arteriole in a
position there between.
3. The SpO2, sensor should not be used at a location or limb tied with arterial canal or blood pressure cuff or receiv-
ing intravenous injection.
4. Make sure the optical path is free from any optical obstacles like rubberized fabric.
5. Excessive ambient light may affect the measuring result. It includes uorescent lamp, dual ruby light, infrared
heater, direct sunlight and etc.
6. Strenuous action of the subject or extreme electrosurgical interference may also affect the accuracy.
7. User can not use enamel or other makeup.
3.3 User Restrictions
1. As the measure is taken on the basis of arteriole pulse, substantial pulsating blood ow of subject is required. For
a subject with weak pulse due to shock, low ambient/body temperature, major bleeding, or use of vascular contracting drug, the SpO2, waveform (PLETH) will decrease. In this case, the measurement will be more sensitive
to interference.
2. For those with a substantial amount of staining dilution drug (such as methylene blue, indigo green and acid
indigo blue), or carbon monoxide hemoglobin (COHb), or methionine (Me+Hb) or thiosalicylic hemoglobin, and
some with icteros problem, the Sp0a determination by this monitor may be inaccurate.
3. The drugs like dopamine, procaine, prilocaine, lidocaine and butacaine may also be a major factor blamed for
serious error of SpO2, measure.
4. As the SpO2, value serves as a reference value for judgement of anemic anoxia and toxic anoxia, some users with
serious anemia may also report good SpO2, measurement
4 Technical Specications
1. Display Format: LED Display;
Spl; Measuring Range: 0% - 100%;
Pulse Rate Measuring Range: 30 bpm - 250 bpm;
Pulse Wave Display: columniation display and the waveform display.
2. Power Requirements: 2 .1.5V AAA alkaline battery(or using the rechargeable battery instead), adaptable
range: 2.6V-3.6V.
3. Power Consumption: Smaller than 30mA.
4. Resolution: 1% for SpO2, and 1 bpm for Pulse Rate.
Button
Pulse waveform
5. Measurement Accuracy: ±2% in stage of 70%-100% Sp0,, and meaningless when stage being smaller than
70%. ±2 bpm or-,2% (select larger) for Pulse Rate.
6. Measurement Performance in Weak Filling Condition: SpO2, and pulse rate can be shown correctly
when pulse-lling ratio is 0.4%. SpO2, error is ±-4%, pulse rate error is ±2 bpm or +2% (select larger).
7. Resistance to surrounding light: The deviation between the value measured in the condition of man-made
light or indoor natural light and that of darkroom is less than ±1%.
8. It is equipped with a function switch. The Oximeter can be powered off in case no nger is the Oximeter within
5 seconds.
9. Optical Sensor
Red light (wavelength is 660nm, 6.65mW)
Infrared (wavelength is 880nm, 6.75mW)
5 Accessories
One lanyard;
Two batteries (optional);
One User Manual.
6 Installation
6.1 View of the Front Panel
6.2 Battery
Step 1. Refer to Figure 3. and insert the two AAA size batteries properly in
the right direction.
Step 2. Replace the cover.
Please take care when you insert the batteries for the
improper insertion may damage the device.
6.3 Mounting the lanyard
Step 1. Put the end of the lanyard through the hole.
Step 2. Put another end of the lanyard through the
rst one and then tighten it.
7 Operation Guide
7.1 Insert the two batteries properly to the direction, and then replace the cover.
7.2 Open the clip as shown in Figure 5.
7.3 Let the user’s nger put into the rubber cushions of the clip
(make sure the nger is in the right position), and then clip the nger.
7.4 Press the switch button once on front panel.
7.5 Do not shake the nger and keep the user at ease during the process.
Meanwhile, human body is not recommended in movement status.
7.6 Get the information directly from screen display.
8 Reparing and Maintenance
Please change the batteries when the low-voltage displayed on the screen.
Please clean the surface of the device before using. Wipe the device with medical alcohol rst, and then let it dry
in air or clean it by dry clean fabric.
Using the medical alcohol to disinfect the product after use, prevent from cross infection for next time use.
Please take out the batteries if the oximeter is not in use for a long time.
The best storage environment of the device is - 40°C to 60°C ambient temperature and not higher than 95%
relative humidity
High-pressure sterilization cannot be used on the device.
Do not immerse the device in liquid.
It is recommended that the device should be kept in a dry environment. Humidity may reduce
the useful life of the device, or even damage it.
9 Troubleshooting
Trouble Possible Reason Solution
The SpO2 and Pulse Rate can not be
displayed normally
1. The nger is not properly positioned.
2. The user’s SpO2, is too low to be
detected.
1. Place the nger properly and try again.
2. Try again; Go to a hospital for a diagnosis if you
are sure the device works all right
The SpO2 and Pulse Rate are not be
displayed stably
1. The nger is not placed inside deep enough.
2. The nger is shaking or the user is moving.
1. Place the nger properly and try again.
2. Let the user keep calm
The device can not be turned on
1. The batteries are drained or ahnost drained.
2. The batteries are not inserted properly.
3. The malfunction of the device.
1. Change batteries.
2. Reinstall batteries.
3. Please contact the local service center.
The display is off suddenly
1. The device will power off automatically when
it e no signal within 5 seconds.
2. The batteries are almost drained.
1. Normal.
2. Change batteries.
10 Key Symbols
Symbol Description
Type BF
Warning — See User Manual
The pulse oxygen saturation (%)
Pulse rate (bpm)
The battery voltage indication is decient (change the battery in time avoiding the inexact measure)
1. No nger inserted 2. An indicator of signal inadequacy
Battery positive electrode
Battery cathode
Power switch
Serial number
Alarm inhibit
WEEE (2002/96/EC)
Ingress of liquids ranks
11 Function Specication
Display Information Display Mode
The Pulse Oxygen Saturation (SpO2) LED
Pulse Rate (PR) LED
Pulse Intensity (bar-graph) LED bar-graph display
Pulse wave LED
SPO2 Specication
Measuring range 0%~100%, (the resolutionis 1%)
Accuracy 70%-100%; ±2% ,Below 70% unspecied.
Optical Sensor Red light (wavelength is 660mn) Infrared (wavelength is 880nm)
Pulse Parameter Specication
Measuring range 30bpm-250bpm (the resolution is 1 bpm)
Accuracy ±2bpm or- ±2% select larger
Pulse Intensity Display Mode
Range Continuous bar-graph display, the higher display indicate the stronger pulse.
Battery Requirement
1.5V (AAA size) alkaline batteries x 2 or rechargeable battery
Battery Useful Life
Two batteries can work continually for 20 to 30 hours.
Dimensions and Weight
Dimensions 57(L) x 31(W) x 32(H) mm
Weight About 50g (with the batteries)
Appendix
Guidance and manufacture’s declaration-electromagnetic emission for all EQUIPMENT and SYSTEMS
Guidance and manufacture’s declaration —electromagnetic emission
The MQ3000 Pulse Oximeter is tended for me in the electromagnetic environment specied below. The customer of the
user of the MQ3000 Pulse Oximeter should assure that it isused in such an environment.
Emission test Compliance Electromagnetic environment-guidance
RF emissions CISPR 11 Group 1
The MQ3000 Pulse Oximeter uses RF energy only for their internal
function. Therefore, its RF emissions are very low and are not likely
to cause any interference in nearby electronic equipment.
RF emissions CISPR 11 Class B
The MQ3000 Pulse Oximeter is suitable for use in all estab-
lishments,including domestic establishments and those directly
connected to the public low-voltage power supply network that
supplies buildings used for domestic purposes.
Harmonic emissions IEC
61000-3-2
Not applicable
Voltage uctuations/ icker
emission IEC 61000-3-3
Not applicable
Guidance and manufacture’s declaration-electromagnetic immunity for all EQUIPMENT and SYSTEMS
Guidance and manufacture’s declaration-electromagnetic immunity
The MQ3000 Pulse Oximeter is intended for use in the electromagnetic environment specified specified below.
The the user of MQ3000 Pulse Oximeter should assure that it is used in such an environment.
Immunity test IEC60601 test level Compliance level Electromagnetic environment-guidance
Electrostatic discharge (ESD) IEC
61000-4-2
±6KV contact
±8KV air
±6KV contact
±8KV air
Floors should be wood, concrete or ceramic tile.
If oor are covered with synthetic material, the
relative humidity should be at least 30%.
Power frequency
(5 0Hz ) magnetic
eld IEC 61000-4-8
3A/m 3A/m Power frequency magnetic elds should be at
levels characteristic of a typical location in a
typical commercial or hospital environment
Guidance and manufacture’s declaration-electromagnetic immunity for
EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacture’s declaration-electromagnetic immunity
The MQ3000 Pulse Oximeter is intended for use in the electromagnetic environment specied below. The customer or
the user of MQ3000 Pulse Oximeter should assure that it is used in such an environment.
Immunity
test
IEC60601
test level
Compliance
level
Electromagnetic environment -guidance
Radiated
RF
ICE
61000-4-3
3V/m
80MHz to
2.5GHz
3V/m
Portable and mobile RF communication equipment should be used no
closer to any part of the MQ3000 Pulse Oximeter, including cables,
than the recommended separation distance calculated from the equation
applicable to the frequency of the transmitter.
recommended separation distance
Where P is the maximum output power rating
of the transmitter in watts (W) according to the
transmitter manufacturer and d is the recommended separation distance
in meters (m).
Field strengths from xed RF transmitters, as determined by an electromagnetic site survey ‘should be less than the compliance level in each
frequency range .b
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE 1 At 80MHz and 800MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio
broadcast and TV broadcastcannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured eld strength in the location in which The MQ3000 Pulse Oximeter is used exceeds the applicable RF compliance
level above, the MQ3000 Pulse Oximeter should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such
as reorienting or relocating the MQ3000 Pulse Oximeter.
b Over the frequency range 150 KHz to 80 MHz, eld strengths should be less than 3V/m.
Recommended separation distances between portable and mobile RF communications equipment and
the EQUIPMENT or SYSTEM for EQUIPMENT or SYSTEM that not LIFE-SUPPORTING
Recommended separation distances between
portable and mobile RF communications equipment and the MQ3000 Pulse Oximeter
The MQ3000 Pulse Oximeter is intended for use in the electromagnetic environment in which radiated RF distur-
bances are controlled. The customer or the user of the MQ3000 Pulse Oximeter can help prevent electromagnetic
interference by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the MQ3000 Pulse Oximeter as recommended below, according to the maximum output power of
the communications equipment.
Rated maximum output
power of transmitter
(W)
Separation distance according to frequency of transmitter (m)
150KHz to 800MHz 80MHz to 800MHz 800MHz to 2.5GHz
For transmitters rated at a maximum output power not listed above, the recommended separation distanced in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum
output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
Loading...
