Page 1

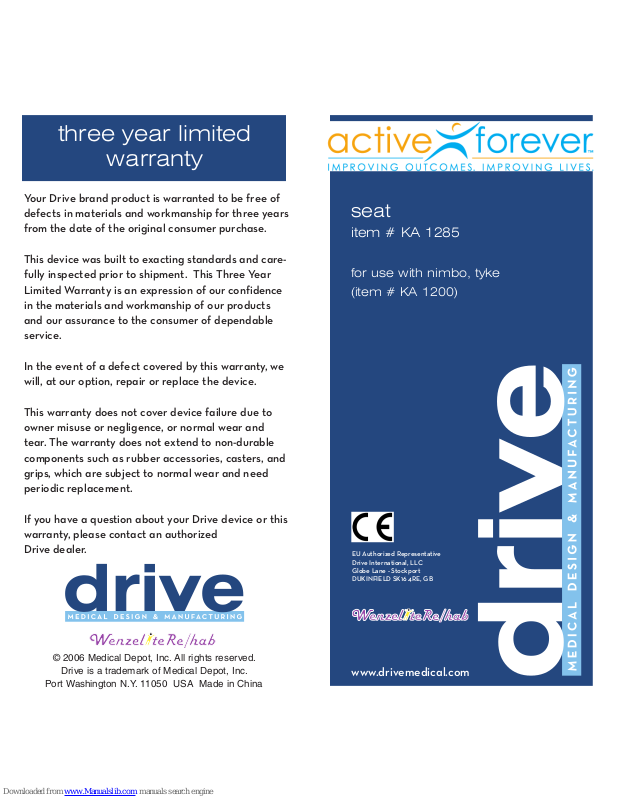

seat
item # KA 1285
for use with nimbo, tyke
(item # KA 1200)
www.drivemedical.com
three year limited
warranty
Your Drive brand product is warranted to be free of
defects in materials and workmanship for three years
from the date of the original consumer purchase.
This device was built to exacting standards and carefully inspected prior to shipment. This Three Year
Limited Warranty is an expression of our confidence
in the materials and workmanship of our products
and our assurance to the consumer of dependable
service.
In the event of a defect covered by this warranty, we
will, at our option, repair or replace the device.
This warranty does not cover device failure due to
owner misuse or negligence, or normal wear and
tear. The warranty does not extend to non-durable
components such as rubber accessories, casters, and
grips, which are subject to normal wear and need
periodic replacement.
If you have a question about your Drive device or this
warranty, please contact an authorized
Drive dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
EU Authorized Representative
Drive International, LLC
Globe Lane - Stockport
DUKINFIELD SK16 4RE, GB
Page 2

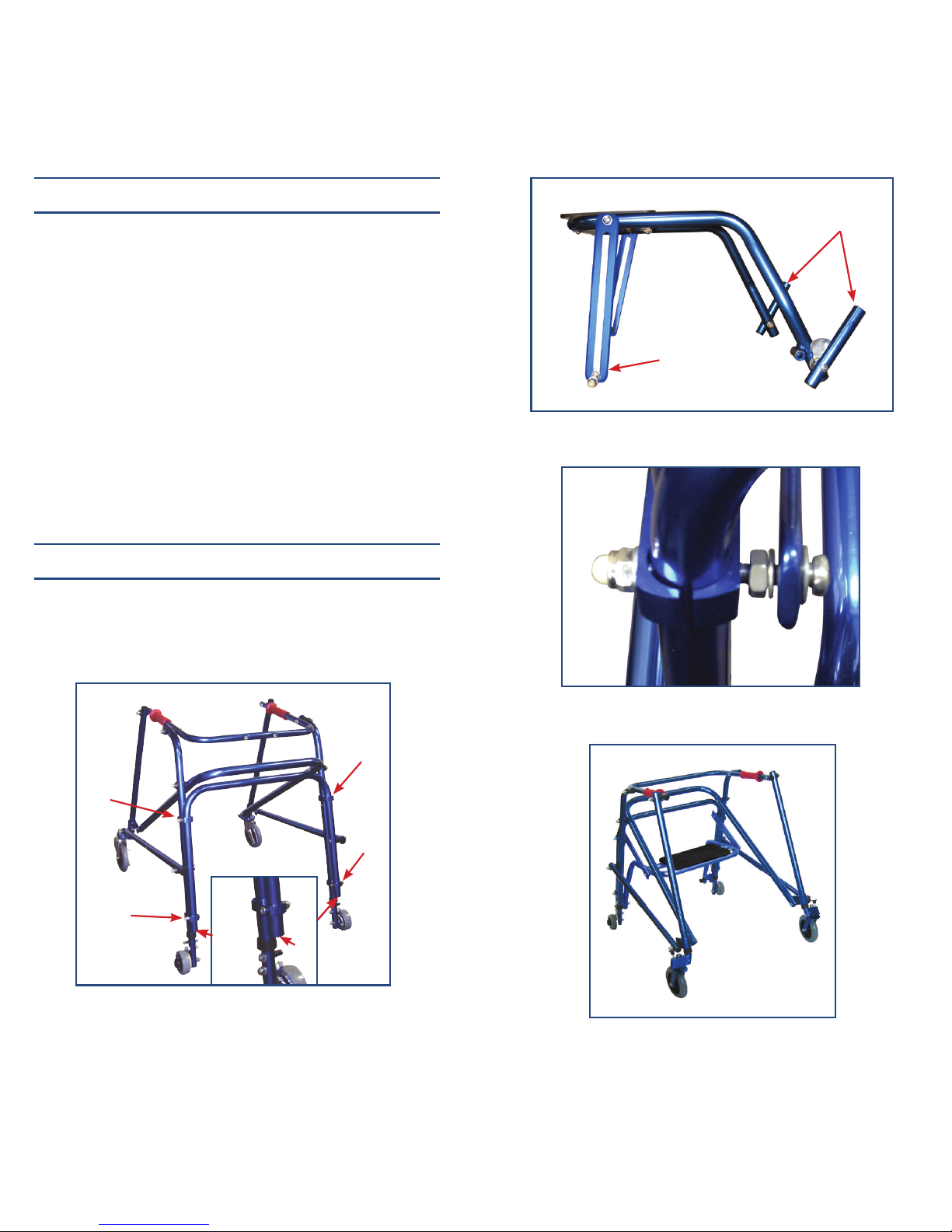

installation
1. Remove bolts (A).
2. Drop outside frame connecting tube (B)
3. Lift horizontal U-tube (E).
4. Slide seat mounting brackets (C) onto horizontal
U-tube and push towards the rear.
5. Tighten knobs (D) under seat mounting brackets.
6. Reinstall bolts (A).
operation
Flip up seat when standing and walking and fold
down seat for sitting and resting. Seat should be in
the up position when folding walker.
D
C
figure 1
figure 2
figure 3
D
C
A
B
A
E
B
Page 3
seat
item # KA 2285
for use with nimbo, junior
(item # KA 2200)
www.drivemedical.com
three year limited
warranty
Your Drive brand product is warranted to be free of
defects in materials and workmanship for three years
from the date of the original consumer purchase.
This device was built to exacting standards and carefully inspected prior to shipment. This Three Year
Limited Warranty is an expression of our confidence
in the materials and workmanship of our products
and our assurance to the consumer of dependable
service.
In the event of a defect covered by this warranty, we
will, at our option, repair or replace the device.
This warranty does not cover device failure due to
owner misuse or negligence, or normal wear and
tear. The warranty does not extend to non-durable
components such as rubber accessories, casters, and
grips, which are subject to normal wear and need
periodic replacement.
If you have a question about your Drive device or this
warranty, please contact an authorized
Drive dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
EU Authorized Representative
Drive International, LLC
Globe Lane - Stockport
DUKINFIELD SK16 4RE, GB
Page 4

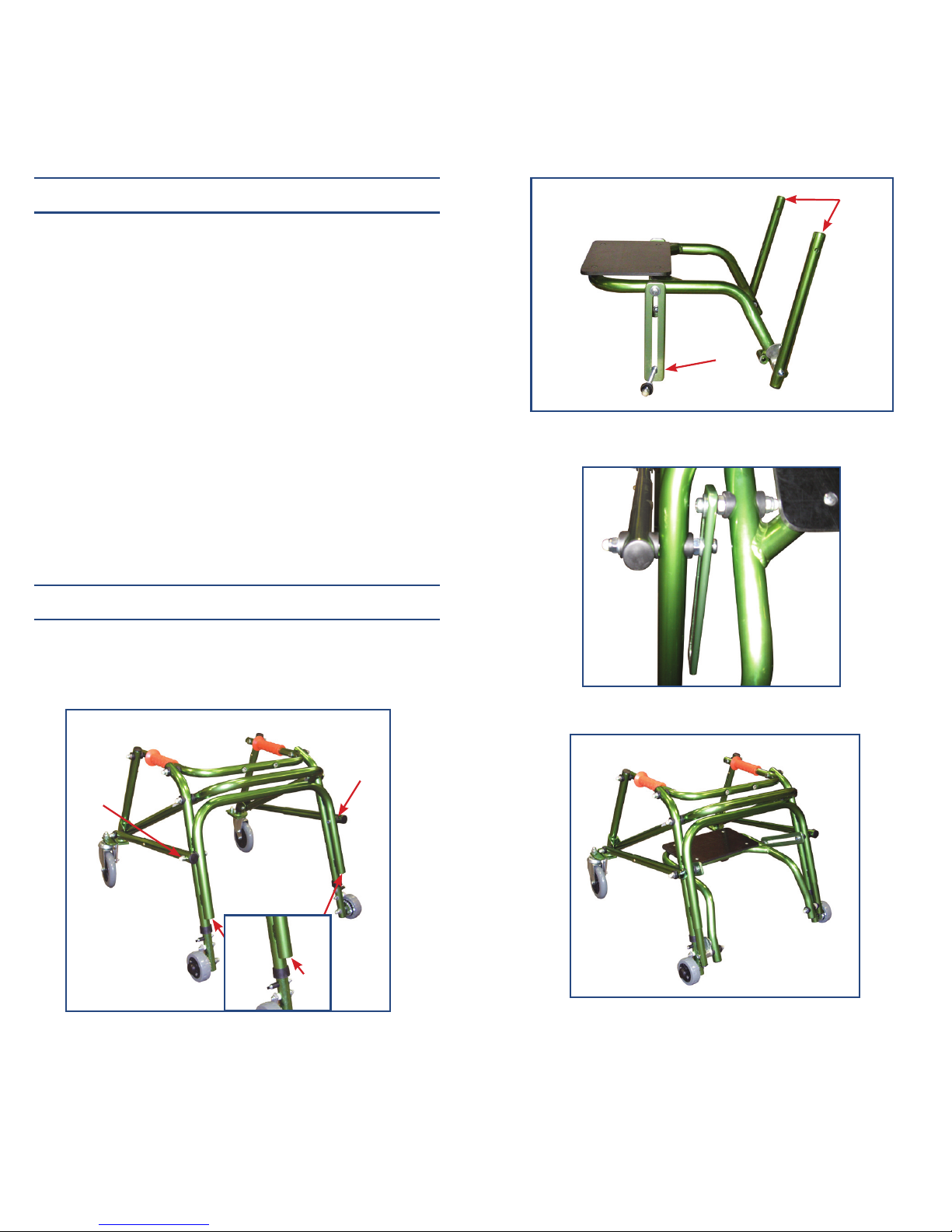

installation
1. Remove and discard bolts (A) on rear U-Bar.
2. Remove all mounting hardware (C) from
sliding bracket.
3. Insert mounting tubes (B) into opening on the
bottom of rear U-Bar (D) and align U-Bar and
mounting tube holes.
4. Install mounting hardware (C) at position
where bolts (A) were removed. When assembled,
the hardware components should be positioned
in the following order: Starting from the inside
of the walker – bolt, washer, sliding bracket,
washer, nut, black plastic washer, U-Bar, black
plastic washer, outside frame connecting tube,
black washer and end nut (figure 3).
5. Tighten nuts and allow for slight play for the
sliding bracket.
operation
Flip up seat when standing and walking and fold
down seat for sitting and resting. Seat should be in
the up position when folding walker.
B
C
figure 1
figure 2
figure 3
figure 4
A
A
D
Page 5
seat
item # KA 3285
for use with nimbo, youth
(item # KA 3200)
www.drivemedical.com
three year limited
warranty
Your Drive brand product is warranted to be free of
defects in materials and workmanship for three years
from the date of the original consumer purchase.
This device was built to exacting standards and carefully inspected prior to shipment. This Three Year
Limited Warranty is an expression of our confidence
in the materials and workmanship of our products
and our assurance to the consumer of dependable
service.
In the event of a defect covered by this warranty, we
will, at our option, repair or replace the device.
This warranty does not cover device failure due to
owner misuse or negligence, or normal wear and
tear. The warranty does not extend to non-durable
components such as rubber accessories, casters, and
grips, which are subject to normal wear and need
periodic replacement.
If you have a question about your Drive device or this
warranty, please contact an authorized
Drive dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
EU Authorized Representative
Drive International, LLC
Globe Lane - Stockport
DUKINFIELD SK16 4RE, GB
Page 6

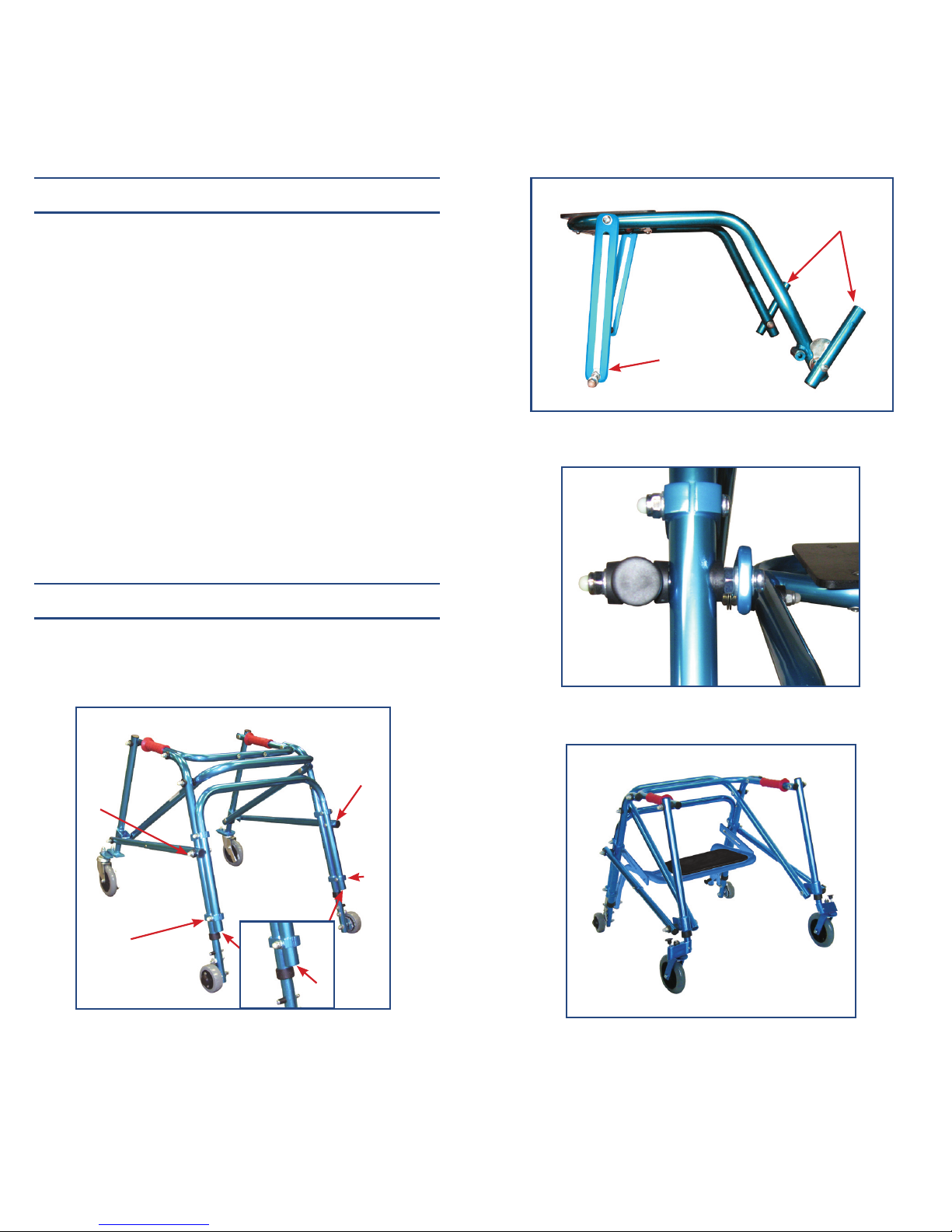

installation
1. Remove bolts (A) on rear U-Bar.
2. Remove all mounting hardware (C) from
sliding bracket.
3. Insert mounting tubes (B) into opening on the
bottom of rear U-Bar (E), align U-Bar and
mounting tube holes, insert bolts (A) and tighten.
4. Remove and discard bolts (D). Replace with
mounting hardware (C). When assembled, the
hardware components should be positioned in
the following order: Starting from the inside of
the walker – bolt, washer, sliding bracket, washer,
nut, black plastic washer, U-Bar, black plastic
washer, outside frame connecting tube, black
washer and end nut (figure 3).
5. Tighten nuts and allow for slight play for the
sliding bracket.
operation
Flip up seat when standing and walking and fold
down seat for sitting and resting. Seat should be in
the up position when folding walker.
B
C
D
A
D
A
figure 1
figure 2
figure 3
figure 4
E
Page 7
seat
item # KA 4285
for use with nimbo, young adult
(item # KA 4200)
www.drivemedical.com
three year limited
warranty
Your Drive brand product is warranted to be free of
defects in materials and workmanship for three years
from the date of the original consumer purchase.
This device was built to exacting standards and carefully inspected prior to shipment. This Three Year
Limited Warranty is an expression of our confidence
in the materials and workmanship of our products
and our assurance to the consumer of dependable
service.
In the event of a defect covered by this warranty, we
will, at our option, repair or replace the device.
This warranty does not cover device failure due to
owner misuse or negligence, or normal wear and
tear. The warranty does not extend to non-durable
components such as rubber accessories, casters, and
grips, which are subject to normal wear and need
periodic replacement.
If you have a question about your Drive device or this
warranty, please contact an authorized
Drive dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
EU Authorized Representative
Drive International, LLC
Globe Lane - Stockport
DUKINFIELD SK16 4RE, GB
Page 8
installation
1. Remove bolts (A) on rear U-Bar.
2. Remove all mounting hardware (C) from
sliding bracket.
3. Insert mounting tubes (B) into opening on the
bottom of rear U-Bar (E), align U-Bar and
mounting tube holes, insert bolts (A) and tighten.
4. Remove and discard bolts (D). Replace with
mounting hardware (C). When assembled, the
hardware components should be positioned in
the following order: Starting from the inside of
the walker – bolt, washer, sliding bracket,
washer, nut, U-Bar, washer and end nut (figure 3).
5. Tighten nuts and allow for slight play for the
sliding bracket.
operation
Flip up seat when standing and walking and fold
down seat for sitting and resting. Seat should be in
the up position when folding walker.
B
C
D
A
D
A
figure 1
figure 2
figure 3
figure 4
E
Page 9
seat
item # KA 5285
for use with nimbo, adult
(item # KA 5200N)
www.drivemedical.com
three year limited
warranty
Your Drive brand product is warranted to be free of
defects in materials and workmanship for three years
from the date of the original consumer purchase.
This device was built to exacting standards and carefully inspected prior to shipment. This Three Year
Limited Warranty is an expression of our confidence
in the materials and workmanship of our products
and our assurance to the consumer of dependable
service.
In the event of a defect covered by this warranty, we
will, at our option, repair or replace the device.
This warranty does not cover device failure due to
owner misuse or negligence, or normal wear and
tear. The warranty does not extend to non-durable
components such as rubber accessories, casters, and
grips, which are subject to normal wear and need
periodic replacement.
If you have a question about your Drive device or this
warranty, please contact an authorized
Drive dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
EU Authorized Representative
Drive International, LLC
Globe Lane - Stockport
DUKINFIELD SK16 4RE, GB
Page 10

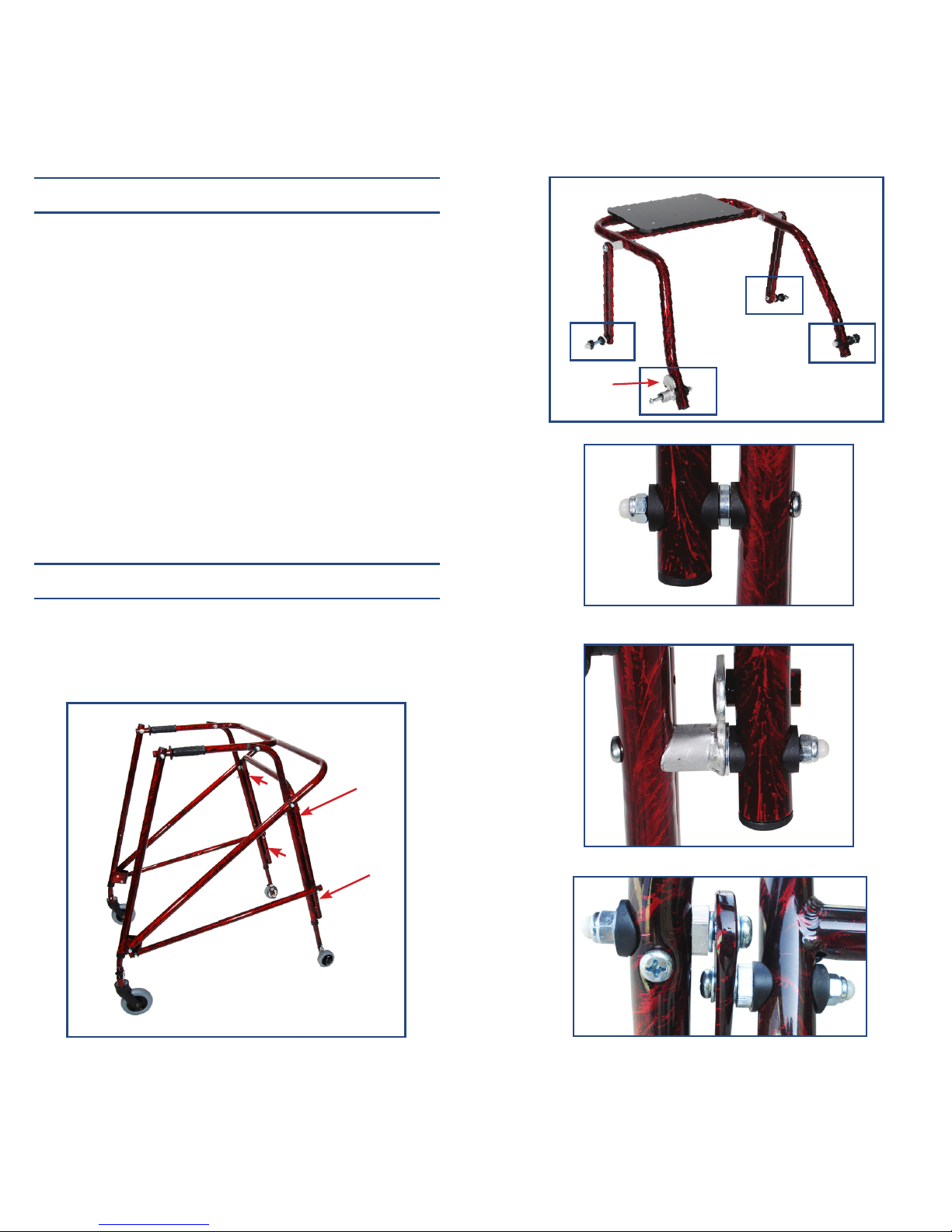

installation
1. Remove mounting hardware (A).
2. Mount seat tube into receiving hole (D) on rear
U-Bar and install hardware as per Diagram 1.
3. Remove mounting hardware (B).
4. Mount seat tube into receiving hole (E) on rear
U-Bar and install hardware as per Diagram 2.
PLEASE NOTE: Aluminum plate (G) must be
positioned facing upwards. This is to ensure that
the seat stays in the upright position when walking.
5. Remove nut and black plastic washer (C) on one
side and install into receiving hole (F) on rear
U-Bar as per Diagram 3.
6. Tighten nut but allow sufficient play for the sliding
bracket.
7. Repeat on other side.
operation
Flip up seat when standing and walking and fold
down set for sitting and resting. Seat should be in
the up position when folding walker.
B
F
F
E
D
C
C
A
G
diagram 1
diagram 2
diagram 3
