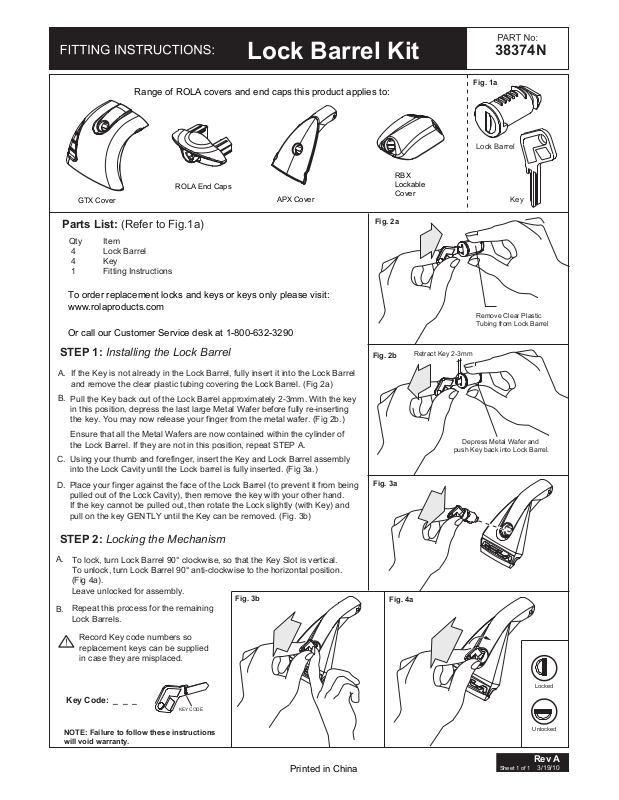

Draw-Tite ROOF RACK ACCESSORY User Manual

Lock Barrel Kit

38374N

Range of ROLA covers and end caps this product applies to:

ROLA End Caps

GTX Cover

APX Cover

Parts List: (Refer to Fig.1a)

Qty Item

4 Lock Barrel
4 Key

1 Fitting Instructions

To order replacement locks and keys or keys only please visit:
www.rolaproducts.com

Or call our Customer Service desk at 1-800-632-3290

STEP 1: Installing the Lock Barrel

If the Key is not already in the Lock Barrel, fully insert it into the Lock Barrel

A.

and remove the clear plastic tubing covering the Lock Barrel. (Fig 2a)

B.

Pull the Key back out of the Lock Barrel approximately 2-3mm. With the key
in this position, depress the last large Metal Wafer before fully re-inserting
the key. You may now release your finger from the metal wafer. (Fig 2b.)

Ensure that all the Metal Wafers are now contained within the cylinder of
the Lock Barrel. If they are not in this position, repeat STEP A.

Using your thumb and forefinger, insert the Key and Lock Barrel assembly

C.

into the Lock Cavity until the Lock barrel is fully inserted. (Fig 3a.)

Place your finger against the face of the Lock Barrel (to prevent it from being

D.

pulled out of the Lock Cavity), then remove the key with your other hand.
If the key cannot be pulled out, then rotate the Lock slightly (with Key) and
pull on the key GENTLY until the Key can be removed. (Fig. 3b)

Fig. 2a

Fig. 2b

Fig. 3a

RBX
Lockable
Cover

Retract Key 2-3mm

Fig. 1a

Lock Barrel

Key

Remove Clear Plastic
Tubing from Lock Barrel

Depress Metal Wafer and

push Key back into Lock Barrel.

STEP 2: Locking the Mechanism

A.

To lock, turn Lock Barrel 90° clockwise, so that the Key Slot is vertical.
To unlock, turn Lock Barrel 90° anti-clockwise to the horizontal position.
(Fig 4a).
Leave unlocked for assembly.

Repeat this process for the remaining

B.

Lock Barrels.

Record Key code numbers so
replacement keys can be supplied
in case they are misplaced.

Key Code: _ _ _

NOTE: Failure to follow these instructions
will void warranty.

KEY CODE

Fig. 3b

Prin

in

hin

Fig. 4a

Sheet 1 of 1

Locked

Unlocked

Rev A

3/19/10
