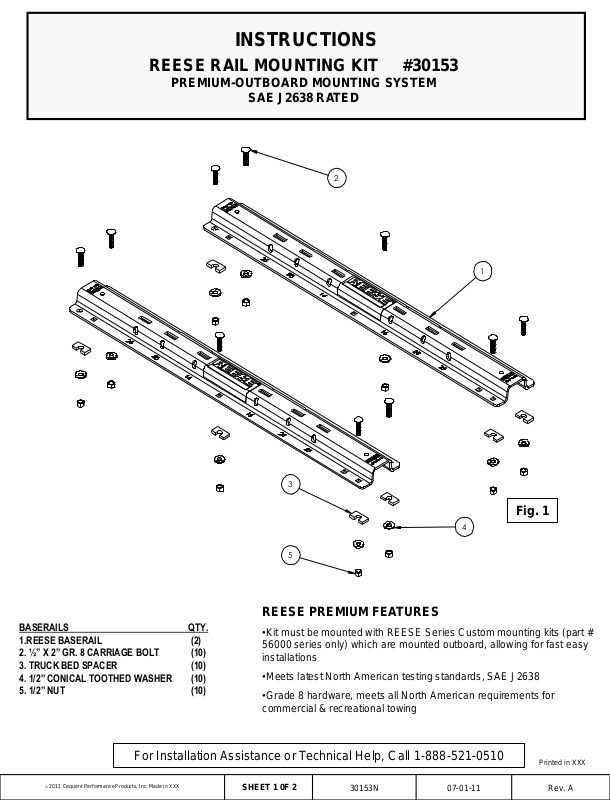

INSTRUCTIONS

REESE RAIL MOUNTING KIT #30153

PREMIUM-OUTBOARD MOUNTING SYSTEM

SAE J2638 RATED

BASERAILS QTY.

1.REESE BASERAIL (2)

2. ½” X 2” GR. 8 CARRIAGE BOLT (10)

3. TRUCK BED SPACER (10)

4. 1/2” CONICAL TOOTHED WASHER (10)

5. 1/2” NUT (10)

Fig. 1

REESE PREMIUM FEATURES

•Kit must be mounted with REESE Series Custom mounting kits (part # 56000 series only) which are mounted outboard, allowing for fast easy installations

•Meets latest North American testing standards, SAE J2638

•Grade 8 hardware, meets all North American requirements for

commercial & recreational towing

For Installation Assistance or Technical Help, Call 1-888-521-0510

SHEET 1 0F 2

Printed in XXX

30153N 07-01-11 Rev. A

The following information is an overview of the installation of a fifth wheel above bed mounting kit, and meant as supplemental information only. For detailed instructions refer to the instructions given with the corresponding REESE Series Custom mounting kits (part # 56000 series only). Check parts supplied in kit against parts list (Fig 1) to become familiar with parts in this kit.

For Installers

For corresponding Custom Quick Install Mounting Kit part number as well as latest revision of installation instructions please refer to (www.REESEPROD.COM).

1. Do not install mounting rails over plastic bed liners. Plastic bed liners must be cut out of the way. Base rails may be installed on spray in liner. Note: Consult installer for recommended curing time.

2. Use only CEQUENT PERFORMANCE PRODUCTS, INC. supplied bolts, nuts, and washers to install this kit. All bolts are Grade 8 hardware.

3. See that owner receives and fills out warranty information page.

Owner Responsibilities

•Refer to rail label and rail markings for correct weight capacity

•Check mounting system bolt tightness once per year

•Save warranty sheet and receipt for any future support

LIMITED LIFETIME WARRANTY

Part No:_______________________________ Date of Original Purchase:____________

Original Owner:_________________________ Original Installer:____________________

1. Limited Lifetime Warranty (“Warranty”). Cequent Performance Products, Inc. ("We" or “Us”) warrants to the original consumer purchaser only ("You") that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted; provided that installation and use of the product is in accordance with product instructions. There are no other warranties, express or implied, including the warranty of merchantability or fitness for a particular purpose. This warranty is not transferable.

2. Limitations on the Warranty. This Warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage from misapplication, overloading,

or improper installation; (d) improper maintenance and repair; and (e) product alteration in any manner by anyone

other than Us, with the sole exception of alterations made pursuant to product instructions and in a workmanlike manner.

3. Obligations of Purchaser. To make a Warranty claim, contact Us, at our principal address of 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-888-521-0510, identify the product by model number, and follow the claim instructions that will be provided. Any returned product that is replaced by Us becomes our property. You will be responsible for return shipping costs. Please retain your purchase receipt to verify date of purchase and that You are the original consumer purchaser. The product and the purchase receipt must be provided to Us in order to process Your Warranty claim.

4. Remedy Limits. Product replacement is Your sole remedy under this Warranty. We shall not be liable for service or labor charges incurred in removing or replacing a product or any incidental or consequential damages of any kind.

5. Assumption of Risk. You acknowledge and agree that any use of the product for any purpose other than the specified use(s) stated in the product instructions is at Your own risk.

6. Governing Law. This Warranty gives You specific legal rights, and You also may have other rights which vary from state to state. This Warranty is governed by the laws of the State of Michigan, without regard to rules pertaining to conflicts of law. The state courts located in Oakland County, Michigan shall have exclusive jurisdiction for any disputes relating to this Warranty.

Cequent Performance Products, Inc. 47912 Halyard Dr. Suite 100 Plymouth, MI 48170

Printed in XXX

SHEET 2 0F 2

30153N 07-01-11 Rev. A
