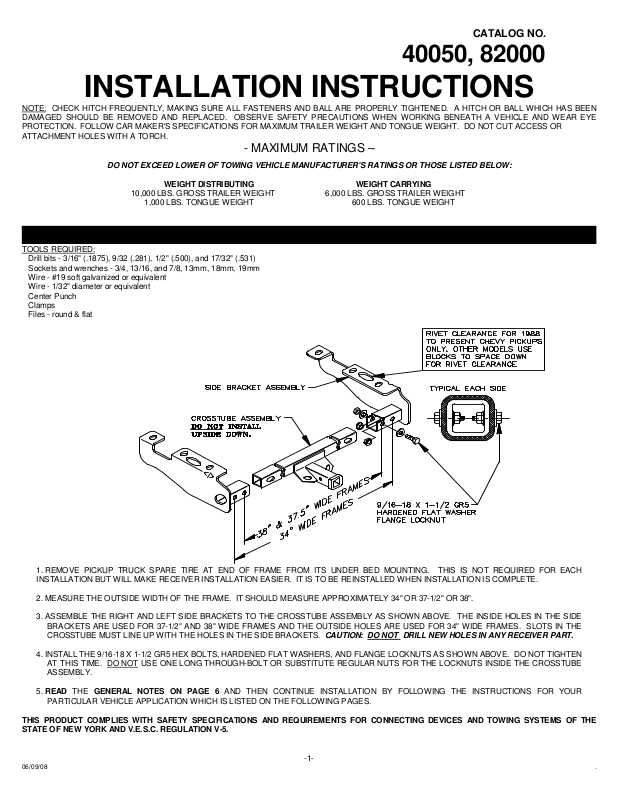

CATALOG NO.
40050, 82000
INSTALLATION INSTRUCTIONS
NOTE: CHECK HITCH FREQUENTLY, MAKING SURE ALL FASTENERS AND BALL ARE PROPERLY TIGHTENED. A HITCH OR BALL WHICH HAS BEEN
DAMAGED SHOULD BE REMOVED AND REPLACED. OBSERVE SAFETY PRECAUTIONS WHEN WORKING BENEATH A VEHICLE AND WEAR EYE
PROTECTION. FOLLOW CAR MAKER'S SPECIFICATIONS FOR MAXIMUM TRAILER WEIGHT AND TONGUE WEIGHT. DO NOT CUT ACCESS OR
ATTACHMENT HOLES WITH A TORCH.
- MAXIMUM RATINGS –
DO NOT EXCEED LOWER OF TOWING VEHICLE MANUFACTURER'S RATINGS OR THOSE LISTED BELOW:
WEIGHT DISTRIBUTING WEIGHT CARRYING
10,000 LBS. GROSS TRAILER WEIGHT 6,000 LBS. GROSS TRAILER WEIGHT
1,000 LBS. TONGUE WEIGHT 600 LBS. TONGUE WEIGHT
TOOLS REQUIRED:
Drill bits - 3/16" (.1875), 9/32 (.281), 1/2" (.500), and 17/32" (.531)
Sockets and wrenches - 3/4, 13/16, and 7/8, 13mm, 18mm, 19mm
Wire - #19 soft galvanized or equivalent
Wire - 1/32" diameter or equivalent
Center Punch
Clamps
Files - round & flat
1. REMOVE PICKUP TRUCK SPARE TIRE AT END OF FRAME FROM ITS UNDER BED MOUNTING. THIS IS NOT REQUIRED FOR EACH
INSTALLATION BUT WILL MAKE RECEIVER INSTALLATION EASIER. IT IS TO BE REINSTALLED WHEN INSTALLATION IS COMPLETE.
2. MEASURE THE OUTSIDE WIDTH OF THE FRAME. IT SHOULD MEASURE APPROXIMATELY 34" OR 37-1/2" OR 38".
3. ASSEMBLE THE RIGHT AND LEFT SIDE BRACKETS TO THE CROSSTUBE ASSEMBLY AS SHOWN ABOVE. THE INSIDE HOLES IN THE SIDE
BRACKETS ARE USED FOR 37-1/2" AND 38" WIDE FRAMES AND THE OUTSIDE HOLES ARE USED FOR 34" WIDE FRAMES. SLOTS IN THE
CROSSTUBE MUST LINE UP WITH THE HOLES IN THE SIDE BRACKETS. CAUTION: DO NOT DRILL NEW HOLES IN ANY RECEIVER PART.
4. INSTALL THE 9/16-18 X 1-1/2 GR5 HEX BOLTS, HARDENED FLAT WASHERS, AND FLANGE LOCKNUTS AS SHOWN ABOVE. DO NOT TIGHTEN
AT THIS TIME. DO NOT USE ONE LONG THROUGH-BOLT OR SUBSTITUTE REGULAR NUTS FOR THE LOCKNUTS INSIDE THE CROSSTUBE
ASSEMBLY.
5. READ THE GENERAL NOTES ON PAGE 6 AND THEN CONTINUE INSTALLATION BY FOLLOWING THE INSTRUCTIONS FOR YOUR
PARTICULAR VEHICLE APPLICATION WHICH IS LISTED ON THE FOLLOWING PAGES.
THIS PRODUCT COMPLIES WITH SAFETY SPECIFICATIONS AND REQUIREMENTS FOR CONNECTING DEVICES AND TOWING SYSTEMS OF THE
STATE OF NEW YORK AND V.E.S.C. REGULATION V-5.
-1-
06/09/08 .
CHEVROLET & GMC PICKUP TRUCKS WITH 34" FRAMES
DOES NOT FIT UNITS WITH 6' BED OR 4WD WITH HEAVY DUTY SUSPENSION
1. TIGHTEN THE 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS
SHOWN ON PAGE 1 TO 110 LB.-FT.
2. NOTE: 1981 AND LATER CHEVROLET & GMC APPLICATIONS
WITH STEP BUMPERS REQUIRE THE REMOVAL OF SUPPORT
BRACKETS TO THE FRAME. THESE BRACKETS MUST BE
RETAINED FOR REINSTALLATION UPON REMOVAL OF THE
RECEIVER. THE STEP BUMPER SHOULD NOT BE USED FOR
TOWING WITH THESE SUPPORT BRACKETS REMOVED.
3. POSITION AND CENTER THE RECEIVER ASSEMBLY ON
VEHICLE FRAME. REARMOST SLOT IN RECEIVER SHOULD
NOT BE LOCATED CLOSER THAN 3/4" FROM THE END OF THE
FRAME. TO CLEAR RIVETS IN THE FRAME, PLACE A BLOCK
BETWEEN SIDE BRACKETS AND VEHICLE FRAME AT EACH
ATTACHMENT. CLAMP RECEIVER TO THE FRAME.
NOTE: ON SOME UNITS EVEN WITH BLOCKS IN PLACE, THE
TOP OF THE RIVETS MAY HAVE TO BE GROUND OR FILED
OFF TO ENSURE THAT THE ATTACHING SURFACES SIT FLAT
ON THE FRAME.
4. USING THE SLOTS IN THE SIDE BRACKETS AS TEMPLATES,
CENTER PUNCH AND DRILL SIX (6) 1/2" DIAMETER HOLES.
SEE GENERAL NOTES REGARDING THE USE OF EXISTING
HOLES.
5. INSTALL FASTENERS IN EACH SIDE AS SHOWN.
TIGHTEN 1/2-13 GR5 CARRIAGE BOLTS TO 75 LB.-FT.
TIGHTEN M12 X 1.75 CL 10.9 HEX BOLTS TO 75 LB.-FT.
TIGHTEN 9/16-18 GR5 HEX BOLTS TO 110 LB.-FT.
1988 & LATER MODEL CHEVROLET & GMC PICKUP TRUCKS WITH 37-1/2" FRAMES
NOTE: ON UNITS EQUIPPED WITH 6' BED, THE SPARE TIRE
1. ON 6' BED UNITS, REMOVE AND RELOCATE GROUND WIRE
2. IF VEHICLE IS EQUIPPED WITH FACTORY INSTALLED STEP
3. RAISE RECEIVER INTO POSITION, CENTERING REARMOST
4. VEHICLES W/FACTORY INSTALLED STEP BUMPER:
INSTALL M12 X 1.75 X 45MM CL10.9 HEX BOLT AND CONICAL
5. VEHICLES W/0 FACTORY INSTALLED STEP BUMPER:
INSTALL M12 X 1.75 X 45MM CL10.9 HEX BOLT AND CONICAL
6. CENTER RECEIVER CROSSTUBE ASSEMBLY ON VEHICLE
7. DUE TO VEHICLE VARIATION, CENTER ATTACHMENT HOLE
8. INSTALL FASTENERS IN CENTER AND FORWARD
TIGHTEN 1/2-13 GR5 CARRIAGE BOLTS TO 75 LB.-FT.
TIGHTEN M12 X 1.75 CL 10.9 HEX BOLTS TO 75 LB.-FT.
TIGHTEN 9/16-18 GR5 HEX BOLTS TO 110 LB.-FT.
WILL HAVE TO BE RELOCATED ELSEWHERE ON THE
VEHICLE.
AND GROUND WIRE BOLT LOCATED ON DRIVER'S SIDE
FRAME RAIL.
BUMPER, REMOVE THE M12 HEX BOLTS FROM EACH END
OF THE FRAME AND DISCARD.
SLOT OVER EXISTING HOLES IN FRAME. ON UNITS WITH A
6' BED, THE LARGE 1" X 2" SLOT WILL BE POSITIONED
OVER A BOLT ON THE PASSENGER'S SIDE AND A RIVET ON
THE DRIVER'S SIDE.
TOOTHED WASHER THROUGH SIDE BRACKET INTO FRAME,
THREADING INTO EXISTING WELDNUT AS SHOWN.
TOOTHED WASHER THROUGH SIDE BRACKET AND FRAME
AND FASTEN WITH BLOCK, LOCK WASHER AND M12 X 1.75
NUT.
AND TIGHTEN THE 9/16-18 GR5 HEX BOLTS INSTALLED
LOOSELY AS SHOWN ON PAGE 1 TO 110 LB.-FT.
IN FRAME MAY HAVE TO BE ENLARGED TO 1/2". SEE
GENERAL NOTES REGARDING USE OF EXISTING HOLES.
HOLES ON EACH SIDE AS SHOWN.
-2-
DODGE PICKUP TRUCK - FULL SIZE - 1967-1993
SPARE TIRE CARRIER WILL HAVE TO BE MODIFIED TO RETAIN UNDER VEHICLE STOWAGE.
SPARE TIRE CAN ALSO BE RELOCATED ELSEWHERE ON THE VEHICLE.
INSTALLATION DEPENDS ON VEHICLE CONFIGURATION:
CONFIGURATION 1: 8' BED, 2 & 4 WHEEL DRIVE, REGULAR &
EXTENDED CAB
CONFIGURATION 2: 6' BED, 2 & 4 WHEEL DRIVE
CONFIGURATION 1 - ALL HOLES REQUIRE DRILLING
1. POSITION AND CENTER THE RECEIVER ASSEMBLY ON VEHICLE
FRAME. LOCATE REARMOST SLOT IN RECEIVER 1" FORWARD
FROM THE EDGE OF THE LARGE EXISTING HOLE AT THE END OF
THE FRAME. THIS IS REQUIRED SO THAT THE FORWARD
ATTACHING FLANGE DOES NOT RIDE ON THE CROSSMEMBER
RIVET. CLAMP RECEIVER TO THE FRAME.
2. CENTER RECEIVER CROSSTUBE ASSEMBLY ON VEHICLE AND
TIGHTEN THE 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS
SHOWN ON PAGE 1 TO 110 LB.-FT.
3. USING SLOTS IN BRACKETS AS TEMPLATES, CENTER PUNCH AND
DRILL SIX (6) 1/2" DIAMETER HOLES IN FRAME. INSTALL
FASTENERS AS SHOWN FOR CONFIGURATION 1.
CONFIGURATION 2 - USES EXISTING HOLES
1. POSITION AND CENTER RECEIVER OVER LARGE EXISTING HOLE AT
THE END OF THE FRAME. CENTER AND FORWARD SLOTS WILL
MATCH WITH EXISTING HOLES. SECURE WITH FASTENERS AS
SHOWN FOR CONFIGURATION 2.
2. CENTER RECEIVER CROSSTUBE ASSEMBLY ON VEHICLE AND
TIGHTEN THE 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS
SHOWN ON PAGE 1 TO 110 LB.-FT.
TIGHTEN 1/2-13 GR5 CARRIAGE BOLTS TO 75 LB.-FT.
TIGHTEN M12 X 1.75 CL 10.9 HEX BOLTS TO 75 LB.-FT.
TIGHTEN 9/16-18 GR5 BOLTS TO 110 LB.-FT.
DODGE RAMCHARGER & PLYMOUTH TRAILDUSTER
DOES NOT FIT UNITS WITH STEEL SIDED FUEL TANK/SKID SHIELD
1. CENTER PUNCH THE HEAD OF THE RIVET LOCATED AT THE END OF
EACH FRAME RAIL. USE A 3/16" DIAMETER DRILL TO DRILL A PILOT HOLE
UP THROUGH THE CENTER OF THE RIVET. CHANGE TO A 1/2" DIAMETER
DRILL AND DRILL UP THROUGH THE PILOT HOLE TO REMOVE THE RIVET.
CAUTION - THE BODY OF THE RIVET IS 7/16" DIAMETER, TAKE CARE
WHEN DRILLING THROUGH BOTTOM AND TOP HEADS OF
THE RIVET SO THAT THE DRILL DOES NOT TWIST OUT OF
YOUR GRIP.
IMPORTANT: IF RECEIVER IS REMOVED, REINSTALL 1/2-13 GR5 BOLTS
THROUGH HOLE FROM WHICH RIVETS W ERE REMOVED
AND SECURE WITH LOCK WASHERS AND NUTS
TIGHTENED TO 75 LB.-FT.
2. POSITION THE RECEIVER ASSEMBLY OVER THE DRILLED OUT RIVET
HOLES AND INSTALL M12 X 1.75 X 45MM BOLT AND HARDENED FLAT
WASHER THROUGH FRAME AND CROSSMEMBER AND SECURE WITH
CONICAL TOOTHED WASHER AND NUT. REPEAT FOR OTHER SIDE.
TIGHTEN M12 X 1.75 X 45MM CL10.9 HEX BOLTS TO 75 LB.-FT.
3. CENTER RECEIVER CROSSTUBE ASSEMBLY ON VEHICLE AND TIGHTEN
THE 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS SHOWN ON
PAGE 1 TO 110 LB.-FT.
4. USING THE SLOTS IN THE SIDE BRACKETS AS TEMPLATES, CENTER
PUNCH AND DRILL FOUR (4) 17/32" DIAMETER HOLES. SEE GENERAL
NOTES REGARDING DRILLED HOLES.
5. SLIDE 1/4" X 1-1/2" X 2" BLOCKS BETWEEN BOTTOM EDGE OF FRAME AND
THE GAS TANK AND POSITION INSIDE THE VEHICLE FRAME OVER THE
FORWARD AND CENTER DRILLED HOLES. FISHWIRE A 24" LONG PIECE
OF SOFT WIRE UP THROUGH THE DRILLED HOLE LETTING IT EXIT ABOVE
AND BETWEEN FRAME AND THE GAS TANK. ATTACH A THIN WIRE W ITH A MAXIMUM DIAMETER OF 1/32" (.030") AROUND THE END OF A 1/2-13 X 2" GR5
CARRIAGE BOLT. THE THIN WIRE IS THEN ATTACHED TO THE 24" LENGTH OF WIRE. THE CARRIAGE BOLT IS GENTLY FED AND PULLED INTO POSITION
THROUGH THE BLOCK AND FRAME AND SECURED W ITH A CONICAL TOOTHED WASHER AND NUT. SEE GENERAL NOTES, FISHWIRING FIGURE, ON PAGE 6.
REPEAT FOR OTHER SIDE.
TIGHTEN 1/2-13 GR5 CARRIAGE BOLTS TO 75 LB.-FT. TIGHTEN M12 X 1.75 CL10.9 HEX BOLTS TO 75 LB.-FT. TIGHTEN 9/16-18 GR5 HEX BOLTS TO 110 LB.-FT.
-3-
DODGE RAM PICKUP TRUCK - FULL SIZE - 1994-PRESENT
FORWARD HOLES TO BE DRILLED ON 6 FT. BED
NO DRILLING REQUIRED - (8 Ft. BED ONLY) - USES ALL EXISTING HOLES
NOTE: ON UNITS EQUIPPED WITH 6’ BED, THE SPARE TIRE WILL HAVE
TO BE RELOCATED ELSEWHERE ON THE VEHICLE.
NOTE: HITCH DOES NOT FIT WITH HEAVY DUTY SUSPENSION.
1. REMOVE EXHAUST HANGER BRACKET FROM SIDE OF FRAME FOR ALL
MODELS EXCEPT 1995 TO PRESENT 8' BED MODELS.
2. RAISE RECEIVER INTO POSITION, CENTERING REARMOST HOLE OVER
EXISTING .531 DIAMETER HOLE (NOT LARGE HOLE) AT END OF THE
FRAME. TO CLEAR LIP OF THE FRAME, PLACE 2 BLOCKS BETWEEN
SIDE BRACKETS AND VEHICLE FRAME AT EACH ATTACHMENT. CLAMP
RECEIVER TO THE FRAME.
3. 6' BED VEHICLES ONLY - USING THE SLOTS IN THE SIDE BRACKETS AS
TEMPLATES, CENTER PUNCH AND DRILL TWO (2) 1/2" DIAMETER
HOLES FOR FORWARD ATTACHMENT. SEE GENERAL NOTES
REGARDING THE USE OF EXISTING HOLES.
4. 1999 UNITS – THE CENTER HOLE IN SIDE BRACKET MISSES LINING UP
WITH EXISTING HOLE IN THE FRAME BY ½ A HOLE. THE HOLE IN THE
FRAME WILL HAVE TO BE ENLARGED TO MATCH THE HOLE IN THE
SIDE BRACKET.
5. INSTALL FASTENERS IN EACH SIDE AS SHOWN.
6. CENTER RECEIVER CROSSTUBE ASSEMBLY ON THE VEHICLE AND
TIGHTEN 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS SHOWN ON
PAGE 1 TO 110 LB.-FT.
7. EXHAUST REINSTALLATION:
1994 8' BED UNITS - DRILL HOLE IN EXHAUST BRACKET TO REPOSITION
BRACKET 1" FORW ARD AS SHOW N BELOW. REINSTALL BRACKET.
1994 6' BED UNITS - REINSTALL EXHAUST HANGER BRACKET AND
BEND INBOARD TO CLEAR EXHAUST AS SHOW N BELOW.
1995 TO 1997 6' BED UNITS -
1. A NEW HANGER MUST BE FABRICATED AS SHOWN BELOW .
2. ATTACH NEW HANGER TO EXISTING HOLE IN FRAME WITH 5/16 OR M8 FASTENERS.
3. ATTACH RUBBER EXHAUST HANGER TO FABRICATED BRACKET AS SHOW N BELOW.
TIGHTEN 1/2-13 GR5 HEX AND CARRIAGE BOLTS TO 75 LB.-FT.
TIGHTEN 9/16-18 GR5 BOLTS TO 110 LB.-FT.
-4-
FORD F-SERIES - FULL SIZE PICKUP TRUCKS
1979 AND EARLIER 34" & 38" WIDE FRAMES
FORD CAB & CHASSIS
NOTE: CAB & CHASSIS ONLY
TO INSTALL THIS RECEIVER THERE MUST BE 18" OF UNOBSTRUCTED
FRAME ALONG WITH CLEARANCE FOR THE CROSSTUBE ASSEMBLY AT
THE CENTER OF THE VEHICLE.
1. TIGHTEN THE 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS SHOWN
ON PAGE 1 TO 110 LB.-FT.
2. POSITION AND CENTER THE RECEIVER ASSEMBLY ON VEHICLE FRAME.
REARMOST SLOT IN RECEIVER SHOULD NOT BE LOCATED CLOSER THAN
3/4" FROM THE END OF THE FRAME. TO CLEAR THE RIVETS IN THE FRAME
PLACE A BLOCK BETWEEN SIDE BRACKETS AND VEHICLE FRAME AT EACH
ATTACHMENT. CLAMP RECEIVER TO THE FRAME.
NOTE: ON SOME UNITS EVEN WITH BLOCKS IN PLACE, THE TOP OF THE
3. USING THE SLOTS IN THE SIDE BRACKETS AS TEMPLATES, CENTER PUNCH
4. INSTALL FASTENERS IN EACH SIDE AS SHOWN.
TIGHTEN 1/2-13 GR5 CARRIAGE BOLTS TO 75 LB.-FT.
TIGHTEN M12 X 1.75 CL10.9 HEX BOLTS TO 75 LB.-FT.
TIGHTEN 9/16-18 GR5 HEX BOLTS TO 110 LB.-FT.
RIVETS MAY HAVE TO BE GROUND OR FILED OFF TO ENSURE THAT
THE ATTACHING SURFACES SIT FLAT ON THE FRAME.
AND DRILL SIX (6) 1/2" DIAMETER HOLES. SEE GENERAL NOTES REGARDING
THE USE OF EXISTING HOLES.
FORD F-SERIES FULL SIZE PICKUP TRUCKS
1980 AND LATER 38" WIDE FRAMES
DOES NOT FIT FLARESIDE UNITS WITH FIBER GLASS VALANCE PANELS
1
. POSITION AND CENTER THE RECEIVER ASSEMBLY ON VEHICLE FRAME.
TO CLEAR RIVETS IN THE FRAME, PLACE TWO (2) BLOCKS BETWEEN
SIDE BRACKETS AND VEHICLE FRAME AT FIRST AND CENTER
ATTACHMENTS. CLAMP RECEIVER TO THE FRAME.
2. USING THE REARMOST SLOTS IN THE SIDE BRACKETS AS TEMPLATES,
CENTER PUNCH AND DRILL TWO (2) 1/2" DIAMETER HOLES. SEE
GENERAL NOTES REGARDING DRILLING HOLES.
3. INSTALL FASTENERS IN REARMOST SLOT EACH SIDE AS SHOWN
MAKING SURE THAT TWO (2) BLOCKS ARE PLACED BETWEEN SIDE
BRACKET AND FRAME. TIGHTEN TO 75 LB.-FT.
4. CENTER RECEIVER CROSSTUBE ASSEMBLY ON VEHICLE AND TIGHTEN
THE 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS SHOWN ON PAGE
1 TO
110 LB.-FT.
5. WITH BOLTS IN REARMOST HOLES TIGHTENED, FORCE FORWARD
ATTACHMENT FLANGES OUTBOARD SUCH THAT INBOARD PORTION OF
THE SLOTS ARE CENTERED ON THE FRAME. USING THE FORWARD
ATTACHING SLOTS AS TEMPLATES, CENTER PUNCH AND DRILL TWO (2)
1/2" DIAMETER HOLES. IT IS IMPORTANT THAT DRILLED HOLE IS
CENTERED ON THE FRAME FLANGE TO ENSURE ADEQUATE MATERIAL
BETWEEN HOLE AND INSIDE EDGE OF FRAME.
6. INSTALL FASTENERS IN FORWARD ATTACHMENT AS SHOWN.
7. USING THE CENTER ATTACHING SLOTS AS TEMPLATES, CENTER PUNCH
AND DRILL TWO (2) 1/2" DIAMETER HOLES. INSTALL FASTENERS
THROUGH CENTER ATTACHMENT AS SHOWN MAKING SURE THAT THE
TWO (2) BLOCKS ARE BETWEEN SIDE BRACKETS AND FRAME.
8. TO RETAIN UNDER VEHICLE SPARE TIRE STOWAGE:
OR - RELOCATE J-BOLT ON ON PASSENGER'S SIDE TO
CROSSMEMBER BY DRILLING HOLE IN CROSSMEMBER.
TIGHTEN 1/2-13 GR5 CARRIAGE BOLTS TO 75 LB.-FT.
TIGHTEN M12 X 1.75 CL10.9 HEX BOLTS TO 75 LB.-FT.
TIGHTEN 9/16-18 GR5 HEX BOLTS TO 110 LB.-FT.
- REMOVE TUBE ON END OF SPARE TIRE CARRIER
INCLUDES 1999 AND LATER F350 SUPER DUTY CAB & CHASSIS
-5-
FORD BRONCO - FULL SIZE
1. RAISE RECEIVER INTO POSITION, CENTERING THE LARGE 1" X 2" SLOT IN
THE SIDE BRACKET ASSEMBLY OVER THE RIVET NEAR THE END OF THE
FRAME. CLAMP RECEIVER TO FRAME.
2. CENTER RECEIVER CROSSTUBE ASSEMBLY ON VEHICLE AND TIGHTEN
THE 9/16-18 GR5 HEX BOLTS INSTALLED LOOSELY AS SHOWN ON
PAGE 1 TO 110 LB.-FT.
3. USING THE SLOTS IN THE SIDE BRACKETS AS TEMPLATES, CENTER
PUNCH AND DRILL SIX (6) 17/32" DIAMETER HOLES. SEE GENERAL
NOTES REGARDING DRILLED HOLES.
4. INSTALL M12 X 1.75 X 45MM CL10.9 HEX BOLT THROUGH HARDENED FLAT
WASHER, BLOCK AND FRAME AND SECURE WITH A CONICAL TOOTHED
WASHER AND M12 X 1.75 NUT AS SHOWN. REPEAT FOR OTHER SIDE.
5. SLIDE 1/4" X 1-1/2" X 2" BLOCKS BETW EEN BOTTOM EDGE OF FRAME AND
THE GAS TANK AND POSITION INSIDE THE VEHICLE FRAME OVER THE
FORWARD AND CENTER DRILLED HOLES. FISHWIRE A 24" LONG PIECE
OF SOFT W IRE UP THROUGH THE DRILLED HOLE LETTING IT EXIT ABOVE
AND BETWEEN FRAME AND THE GAS TANK. ATTACH A THIN WIRE WITH
A MAXIMUM DIAMETER OF 1/32" (.030") AROUND THE END OF A 1/2-13 X 2"
GR5 CARRIAGE BOLT. THE THIN WIRE IS THEN ATTACHED TO THE 24"
LENGTH OF WIRE. THE CARRIAGE BOLT IS GENTLY FED AND PULLED
INTO POSITION THROUGH THE BLOCK AND FRAME AND SECURED W ITH
A CONICAL TOOTHED WASHER AND NUT. SEE GENERAL NOTES,
FISHWIRING FIGURE, AT THE BOTTOM OF THIS PAGE. REPEAT FOR
REMAINING HOLE AND OTHER SIDE.
TIGHTEN 1/2-13 GR5 CARRIAGE BOLTS TO 75 LB.-FT.
TIGHTEN M12 X 1.75 CL10.9 HEX BOLTS TO 75 LB.-FT.
TIGHTEN 9/16-18 GR5 HEX BOLTS TO 110 LB.-FT.
GENERAL NOTES
1. ATTACHMENT HOLES MUST BE DRILLED FOR MOST APPLICATIONS. IN SOME CASES EXISTING HOLES IN FRAME MAY LINE UP WITH SOME OF THE HOLES
IN THE RECEIVER SIDE BRACKETS. WHEN HOLES DO NOT MATCH PRECISELY, FILE OR GRIND MATERIAL FROM THE VEHICLE FRAME TO MATCH THE HOLE
IN THE RECEIVER SIDE BRACKET.
! WARNING: DO NOT CORRECT HOLE MISMATCH BY DRILLING, BECAUSE DRILL CAN SUDDENLY BIND CAUSING DRILL MOTOR TO "KICK BACK"
2. W HEN POSITIONING RECEIVER ON VEHICLE FRAME, MAKE SURE THAT THE CROSSTUBE ASSEMBLY DOES
NOT CONTACT ANY GAS TANK SUPPORTS OR SPARE TIRE HANGER BRACKETS IF VEHICLE IS SO
EQUIPPED.
3. BE CAREFUL TO AVOID DRILLING INTO THE FUEL TANK, WIRES AND FUEL OR BRAKE LINES THAT ARE
SOMETIMES LOCATED INSIDE THE VEHICLE FRAME SECTIONS.
4. DEBURR ALL EDGES OF ANY HOLES DRILLED THROUGH FRAME AND/OR CROSSMEMBERS. PROPER
DEBURRING WILL ENSURE THAT FASTENERS AND SIDE BRACKETS WILL SIT FLAT.
5. ALW AYS WEAR SAFETY GLASSES WHEN DRILLING.
6. LICENSE PLATE MOUNTING BRACKET WILL HAVE TO BE RELOCATED ON VEHICLES WITHOUT A FACTORY
INSTALLED BUMPER.
OR DRILL BIT TO BREAK, POSSIBLY RESULTING IN PERSONAL INJURY.
-6-
Loading...
