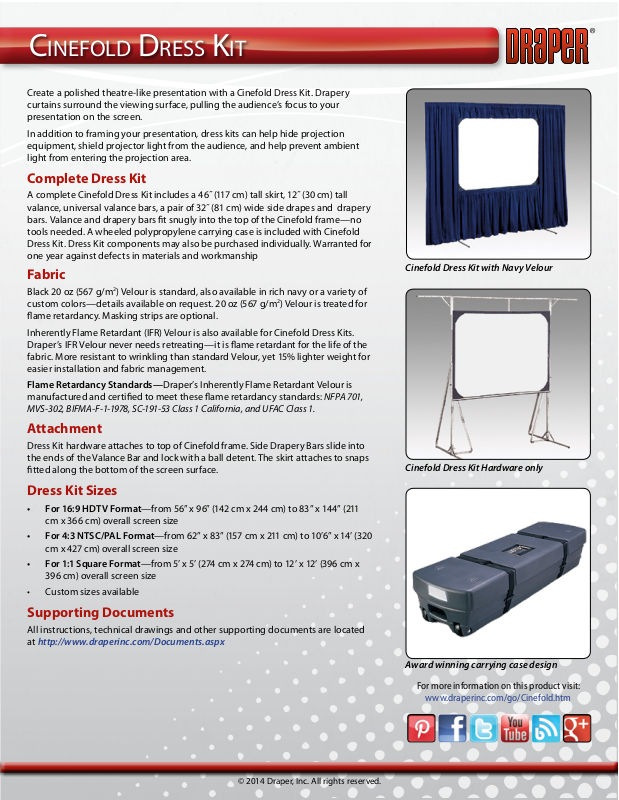

Cinefold dress Kit
Create a polished theatre-like presentation with a Cinefold Dress Kit. Drapery
curtains surround the viewing surface, pulling the audience’s focus to your
presentation on the screen.
In addition to framing your presentation, dress kits can help hide projection
equipment, shield projector light from the audience, and help prevent ambient
light from entering the projection area.
Complete Dress Kit
A complete Cinefold Dress Kit includes a 46˝ (117 cm) tall skirt, 12˝ (30 cm) tall
valance, universal valance bars, a pair of 32˝ (81 cm) wide side drapes and drapery
bars. Valance and drapery bars fit snugly into the top of the Cinefold frame—no
tools needed. A wheeled polypropylene carrying case is included with Cinefold
Dress Kit. Dress Kit components may also be purchased individually. Warranted for
one year against defects in materials and workmanship
Fabric
Black 20 oz (567 g/m2) Velour is standard, also available in rich navy or a variety of
custom colors—details available on request. 20 oz (567 g/m2) Velour is treated for
flame retardancy. Masking strips are optional.
Inherently Flame Retardant (IFR) Velour is also available for Cinefold Dress Kits.
Draper’s IFR Velour never needs retreating—it is flame retardant for the life of the
fabric. More resistant to wrinkling than standard Velour, yet 15% lighter weight for
easier installation and fabric management.
Flame Retardancy Standards—Draper’s Inherently Flame Retardant Velour is
manufactured and certified to meet these flame retardancy standards: NFPA 701,
MVS-302, BIFMA-F-1-1978, SC-191-53 Class 1 California, and UFAC Class 1.
Cinefold Dress Kit with Navy Velour
Attachment
Dress Kit hardware attaches to top of Cinefold frame. Side Drapery Bars slide into
the ends of the Valance Bar and lock with a ball detent. The skirt attaches to snaps
fitted along the bottom of the screen surface.
Dress Kit Sizes
• For 16:9 HDTV Format—from 56” x 96” (142 cm x 244 cm) to 83” x 144” (211
cm x 366 cm) overall screen size
• For 4:3 NTSC/PAL Format—from 62” x 83” (157 cm x 211 cm) to 10’6” x 14’ (320
cm x 427 cm) overall screen size
• For 1:1 Square Format—from 5’ x 5’ (274 cm x 274 cm) to 12’ x 12’ (396 cm x
396 cm) overall screen size
• Custom sizes available
Supporting Documents
All instructions, technical drawings and other supporting documents are located
at http://www.draperinc.com/Documents.aspx
Cinefold Dress Kit Hardware only
Award winning carrying case design
For more information on this product visit:
www.draperinc.com/go/Cinefold.htm
© 2014 Draper, Inc. All rights reserved.
