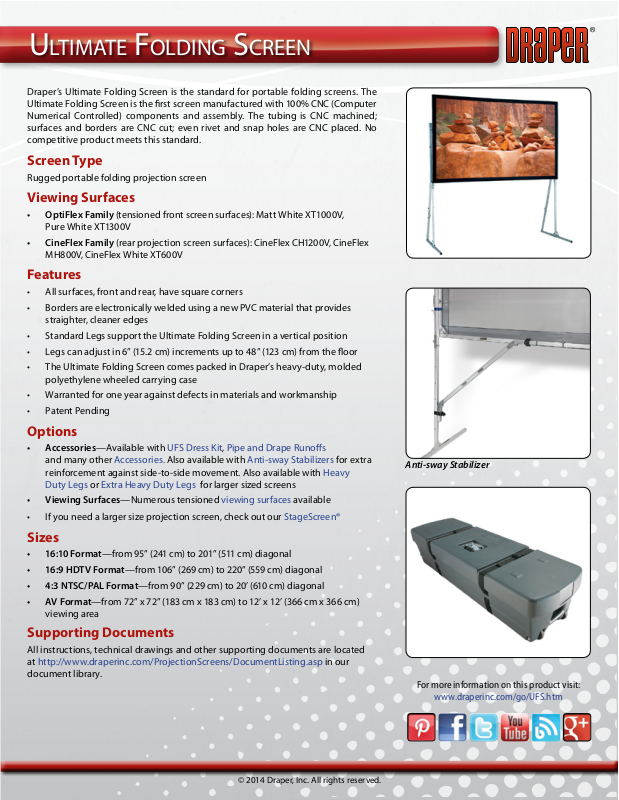

Ultimate Folding Screen
Draper’s Ultimate Folding Screen is the standard for portable folding screens. The
Ultimate Folding Screen is the first screen manufactured with 100% CNC (Computer
Numerical Controlled) components and assembly. The tubing is CNC machined;
surfaces and borders are CNC cut; even rivet and snap holes are CNC placed. No
competitive product meets this standard.
Screen Type
Rugged portable folding projection screen
Viewing Surfaces
• OptiFlex Family (tensioned front screen surfaces): Matt White XT1000V,
Pure White XT1300V
• CineFlex Family (rear projection screen surfaces): CineFlex CH1200V, CineFlex
MH800V, CineFlex White XT600V
Features
• All surfaces, front and rear, have square corners
• Borders are electronically welded using a new PVC material that provides
straighter, cleaner edges
• Standard Legs support the Ultimate Folding Screen in a vertical position
• Legs can adjust in 6” (15.2 cm) increments up to 48” (123 cm) from the floor
• The Ultimate Folding Screen comes packed in Draper’s heavy-duty, molded
polyethylene wheeled carrying case
• Warranted for one year against defects in materials and workmanship
• Patent Pending
Options
• Accessories—Available with UFS Dress Kit, Pipe and Drape Runoffs
and many other Accessories. Also available with Anti-sway Stabilizers for extra
reinforcement against side-to-side movement. Also available with Heavy
Duty Legs or Extra Heavy Duty Legs for larger sized screens
• Viewing Surfaces—Numerous tensioned viewing surfaces available
• If you need a larger size projection screen, check out our StageScreen®
Sizes
• 16:10 Format—from 95” (241 cm) to 201” (511 cm) diagonal
• 16:9 HDTV Format—from 106” (269 cm) to 220” (559 cm) diagonal
• 4:3 NTSC/PAL Format—from 90” (229 cm) to 20’ (610 cm) diagonal
• AV Format—from 72” x 72” (183 cm x 183 cm) to 12’ x 12’ (366 cm x 366 cm)
viewing area
Supporting Documents
All instructions, technical drawings and other supporting documents are located
at http://www.draperinc.com/ProjectionScreens/DocumentListing.asp in our
document library.
Anti-sway Stabilizer
For more information on this product visit:
www.draperinc.com/go/UFS.htm
