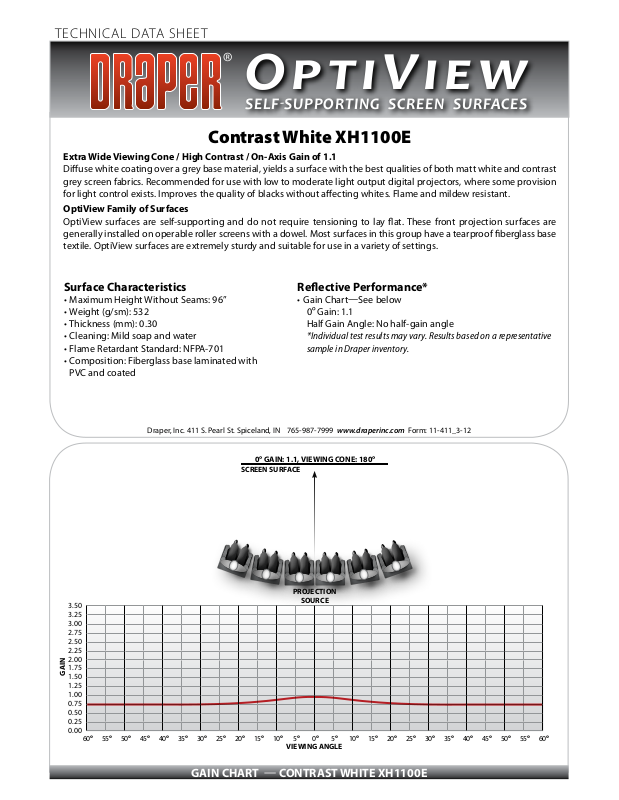

TECHNICAL DATA SHEET
OptiView
SELF-SUPPORTING SCREEN SURFACES
Contrast White XH1100E
Extra Wide Viewing Cone / High Contrast / On-Axis Gain of 1.1
Diuse white coating over a grey base material, yields a surface with the best qualities of both matt white and contrast
grey screen fabrics. Recommended for use with low to moderate light output digital projectors, where some provision
for light control exists. Improves the quality of blacks without aecting whites. Flame and mildew resistant.
OptiView Family of Surfaces
OptiView surfaces are self-supporting and do not require tensioning to lay at. These front projection surfaces are
generally installed on operable roller screens with a dowel. Most surfaces in this group have a tearproof berglass base
textile. OptiView surfaces are extremely sturdy and suitable for use in a variety of settings.
Surface Characteristics
• Maximum Height Without Seams: 96”
• Weight (g/sm): 532
• Thickness (mm): 0.30
• Cleaning: Mild soap and water
• Flame Retardant Standard: NFPA-701
• Composition: Fiberglass base laminated with
PVC and coated
Draper, Inc. 411 S. Pearl St. Spiceland, IN 765-987-7999 www.draperinc.com Form: 11-411_3-12
SCREEN SURFACE
Reective Performance*
• Gain Chart—See below
0º Gain: 1.1
Half Gain Angle: No half-gain angle
*Individual test results may vary. Results based on a representative
sample in Draper inventory.
0º GAIN: 1.1, VIEWING CONE: 180
º
PROJECTION
3.50
3.25
3.00
2.75
2.50
2.25
2.00
1.75
GAIN
1.50
1.25
1.00
0.75
0.50
0.25
0.00
60º55º50º45º40º35º30º25º20º15º10º5º0º5º10º15º20º25º30º35º40º45º50º55º60
SOURCE
VIEWING ANGLE
GAIN CHART — CONTRAST WHITE XH1100E
º
