Dometic RM5385, RM5380, RM5330, RM5310 User Manual
EN
REFRIGERATION
5 SERIES
RM5310, RM5330, RM5380, RM5385
Absorber refrigerator
Installation Manual
EN
RM53xx
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Installing the refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

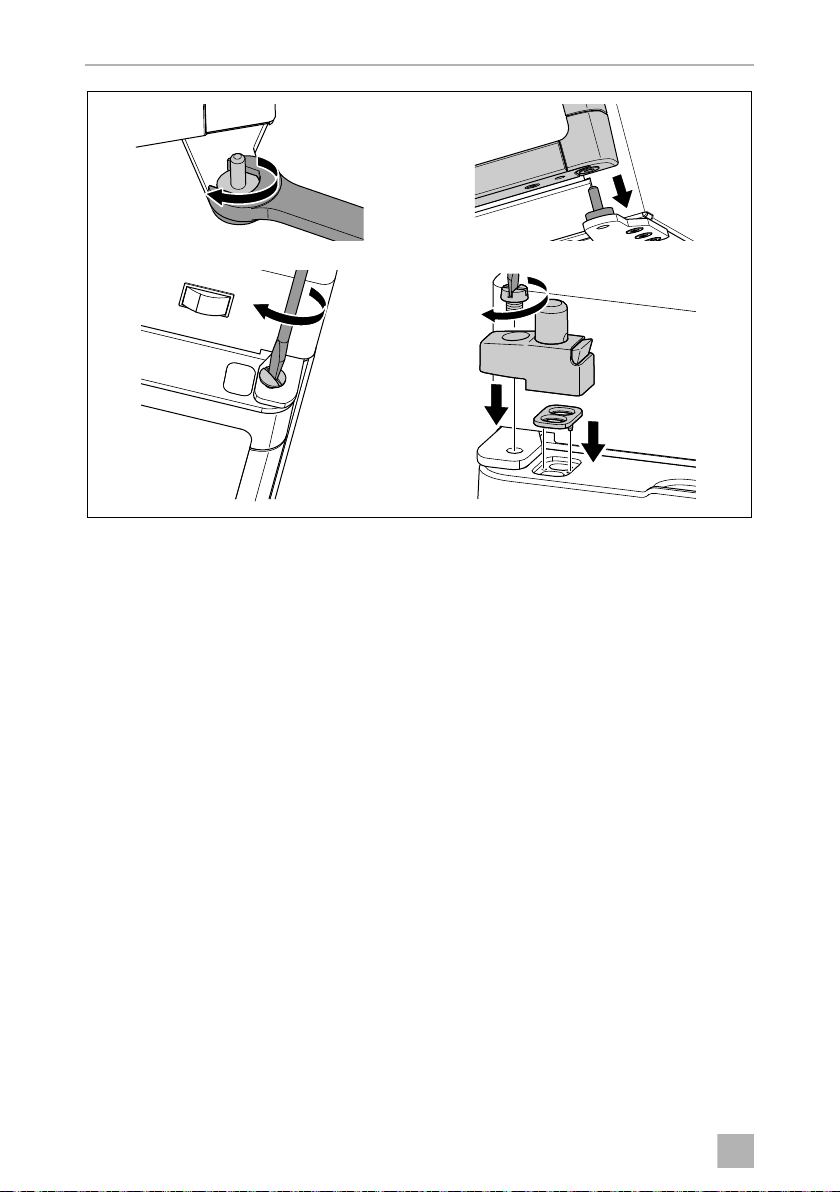

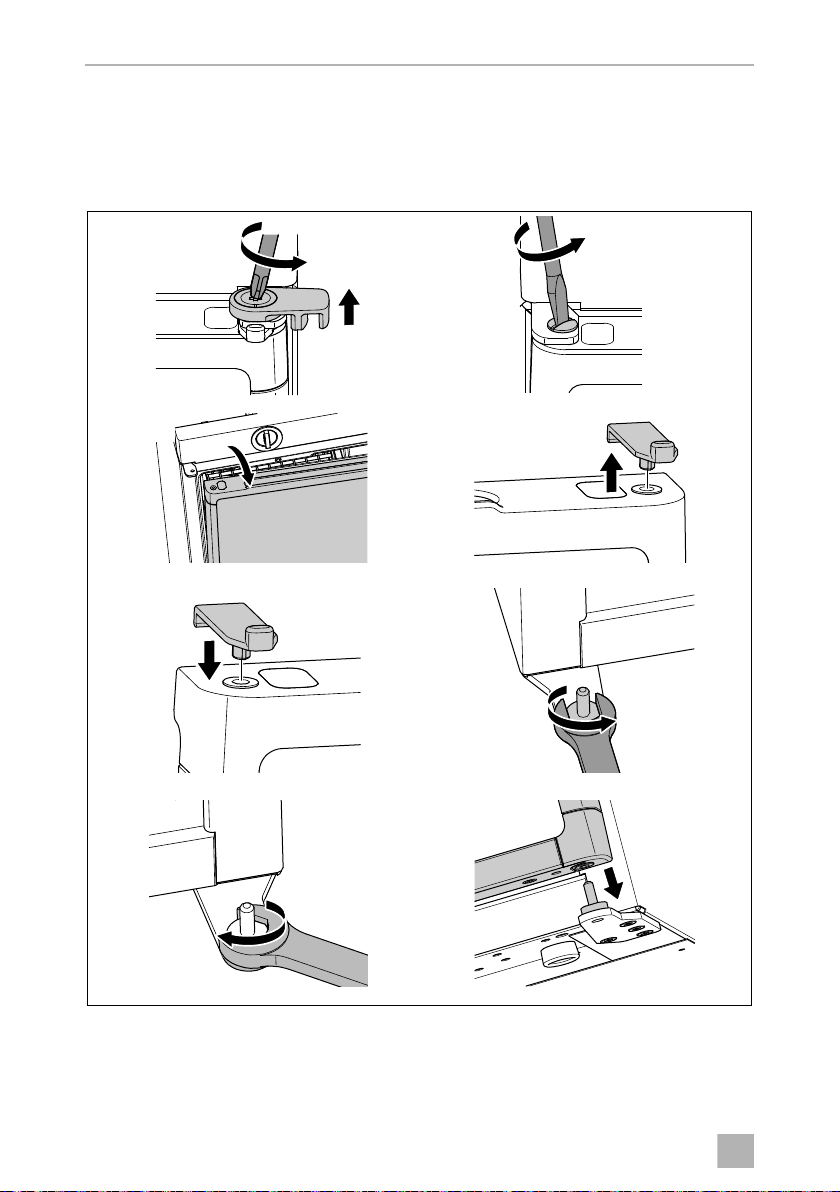

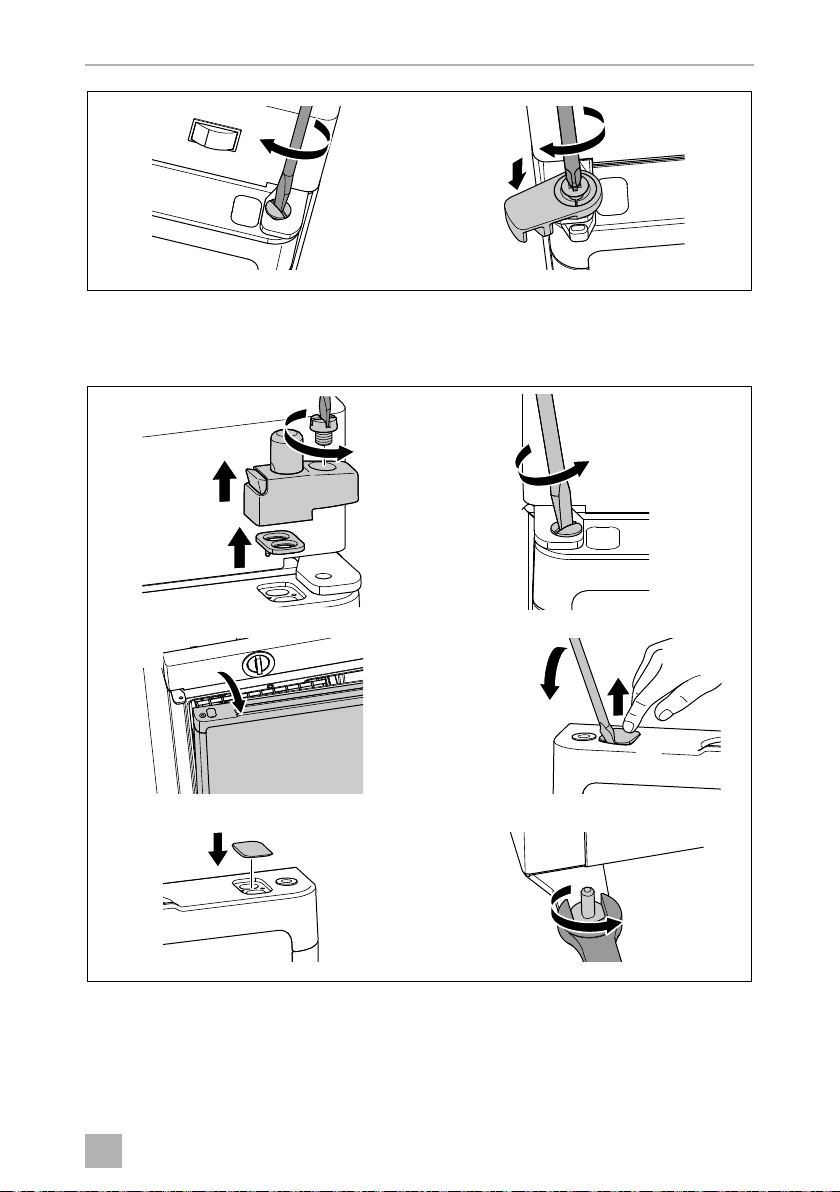

7 Reversing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

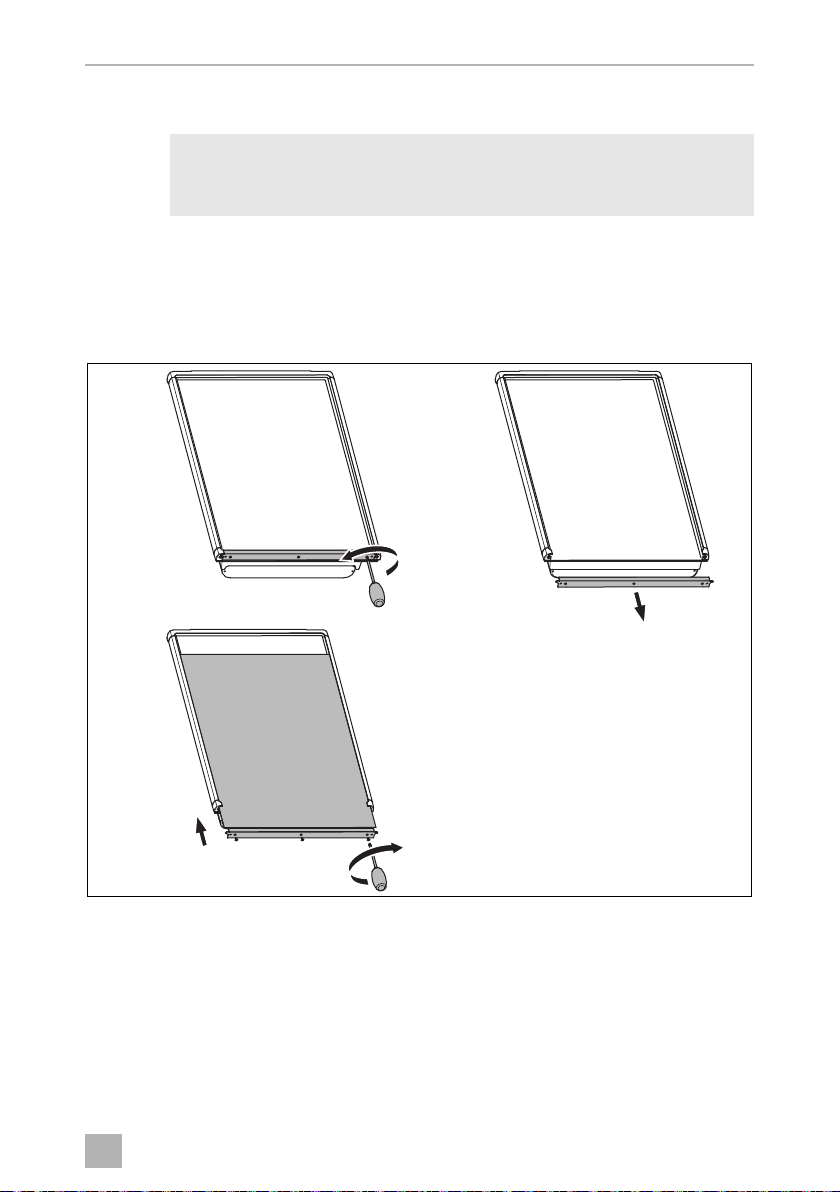

8 Put on the door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

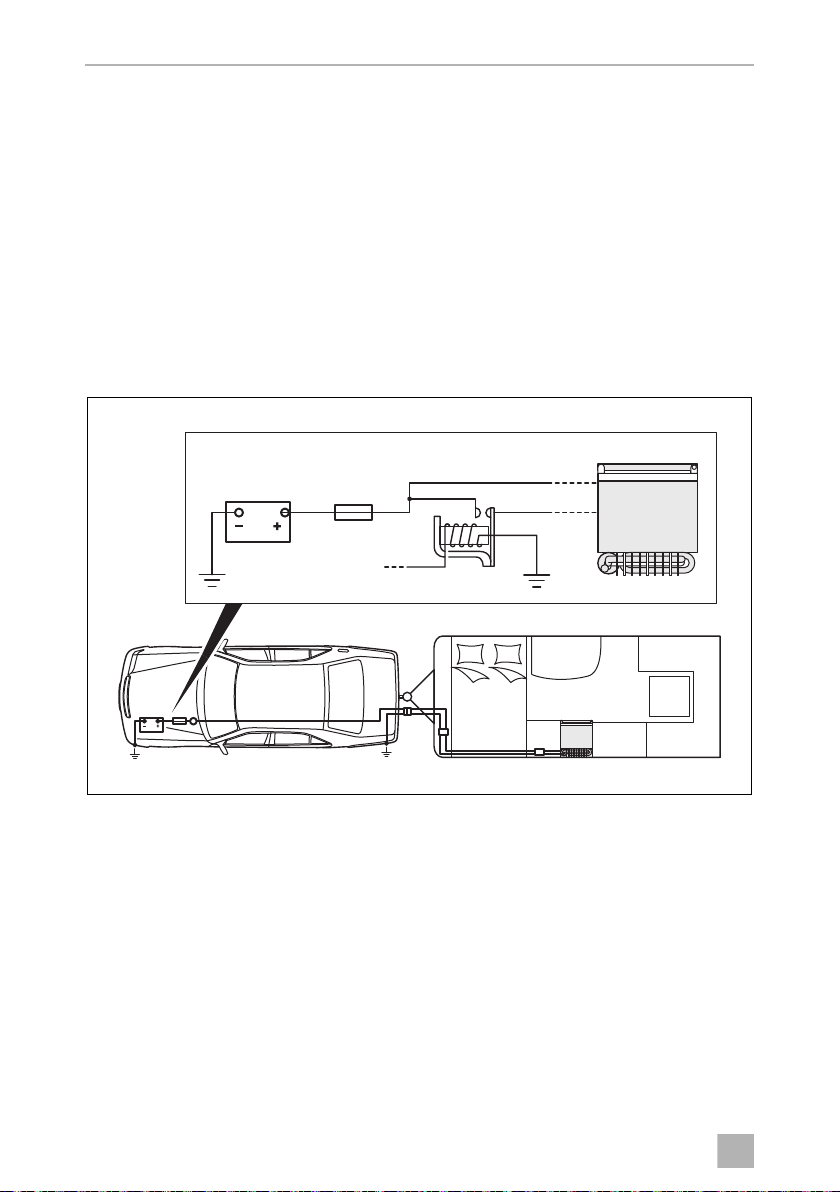

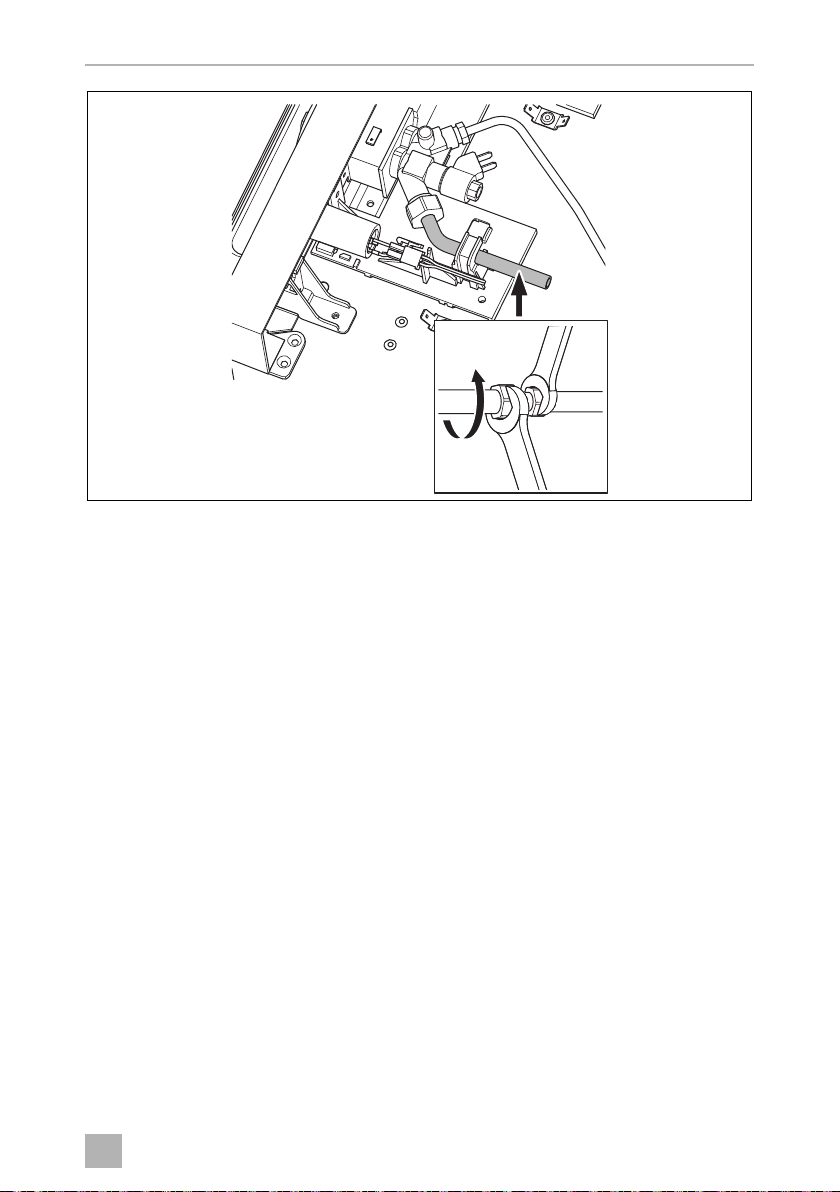

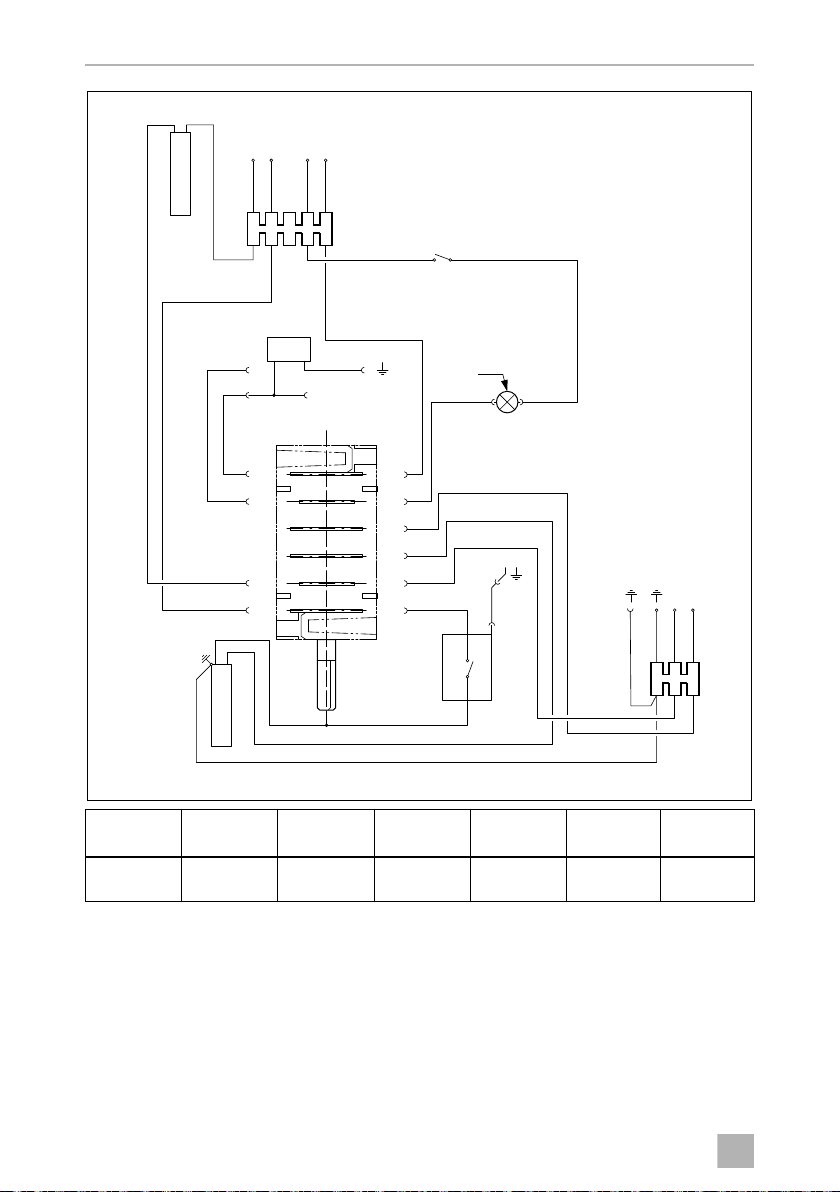

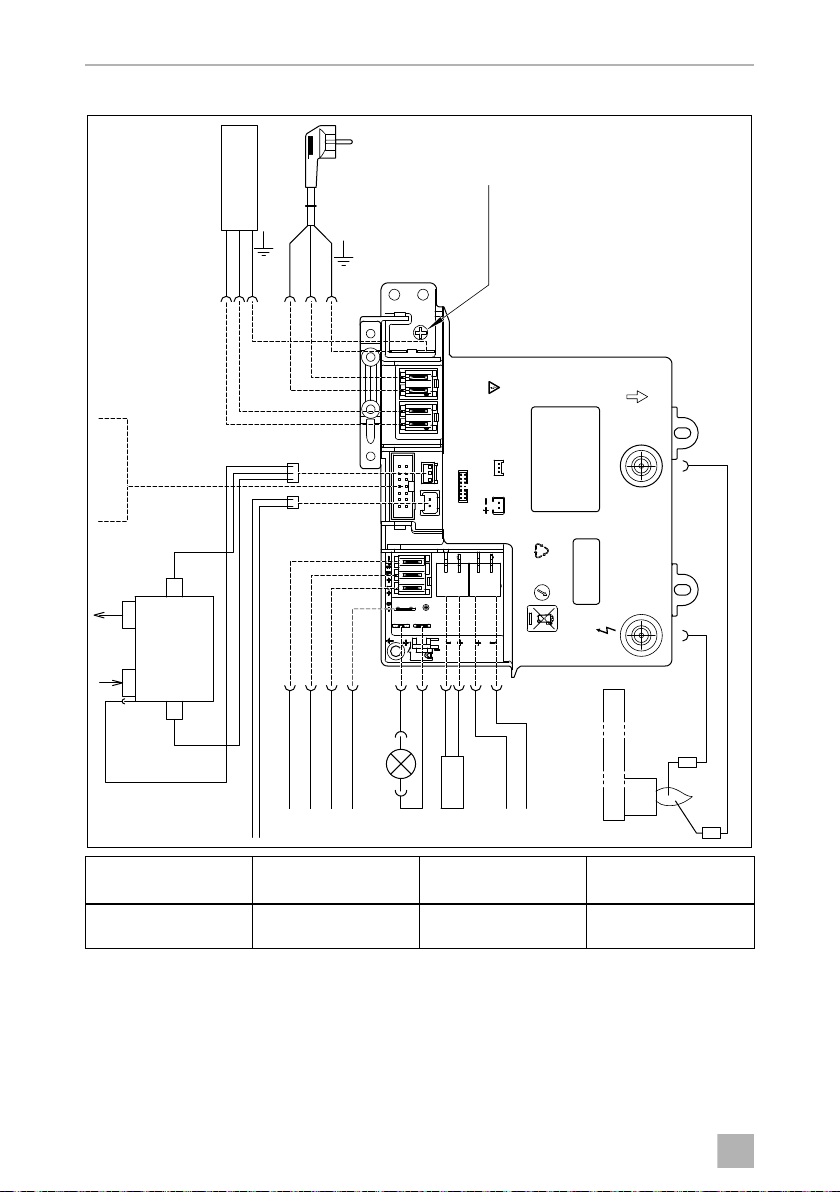

9 Connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3
EN
Explanation of symbols RM53xx
1 Explanation of symbols
WARNING!
!
!
A
I
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and excess voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
!
4
WARNING!
• Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
• Ensure clean and residue-free handling if silicon sealant or similar is
used. There is a risk of fire if silicone filaments come into contact with
hot parts or naked flames.
• Do not operate the refrigerator if it is visibly damaged.
• If the AC power cable for this refrigerator is damaged, it must be
replaced by the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
• Never use a naked flame to check the refrigerator for leaks.
EN
RM53xx Safety instructions
• This refrigerator may only be repaired by qualified personnel. Inade-
quate repairs may cause serious hazards.
• Only use propane or butane gas (not natural gas).
• Only operate the refrigerator at the pressure shown on the type
plate. Only use pressure controllers with a fixed setting which comply
with the national regulations (in Europe EN 12864).
• Dismantle all refrigerator doors for the disposal of the old refrigerator
and leave the shelves in the refrigerator to prevent accidental enclosure and suffocation.
CAUTION!
!
A
• Danger of crushing! Do not put your fingers into the hinge.
• Before starting the device, ensure that the power supply line and the
plug are dry.
NOTICE!
• Only hold the refrigerator at the body of the refrigerator during trans-
port. Never hold the refrigerator at the absorber unit, the cooling fins,
the gas pipes, the door or the control panel.
• Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit (smell of ammonia):
– Switch off the refrigerator if applicable.
– Avoid naked flames and sparks.
– Air the room well.
• Do not install the refrigerator near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
• Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the refrigerator is sufficiently
far away from walls and other objects so that the air can circulate.
• Check that the voltage specification on the type plate is the same as
that of the power supply.
• Do not open the refrigerant circuit under any circumstances.
• Only use the AC connection cable supplied to connect the refrigera-
tor to the AC mains.
• Only use cables with a suitable size.
• Never pull the plug out of the socket by the connection cable.
5
EN
Scope of delivery RM53xx
• The refrigerator may not be exposed to rain.
3Scope of delivery
• Refrigerator
• Caps
• Ice-cube tray
• Operating manual
• Installation manual
4Accessories
Available as accessories (not included in the scope of delivery):
Description Ref. no.
Fan kit 9105900007

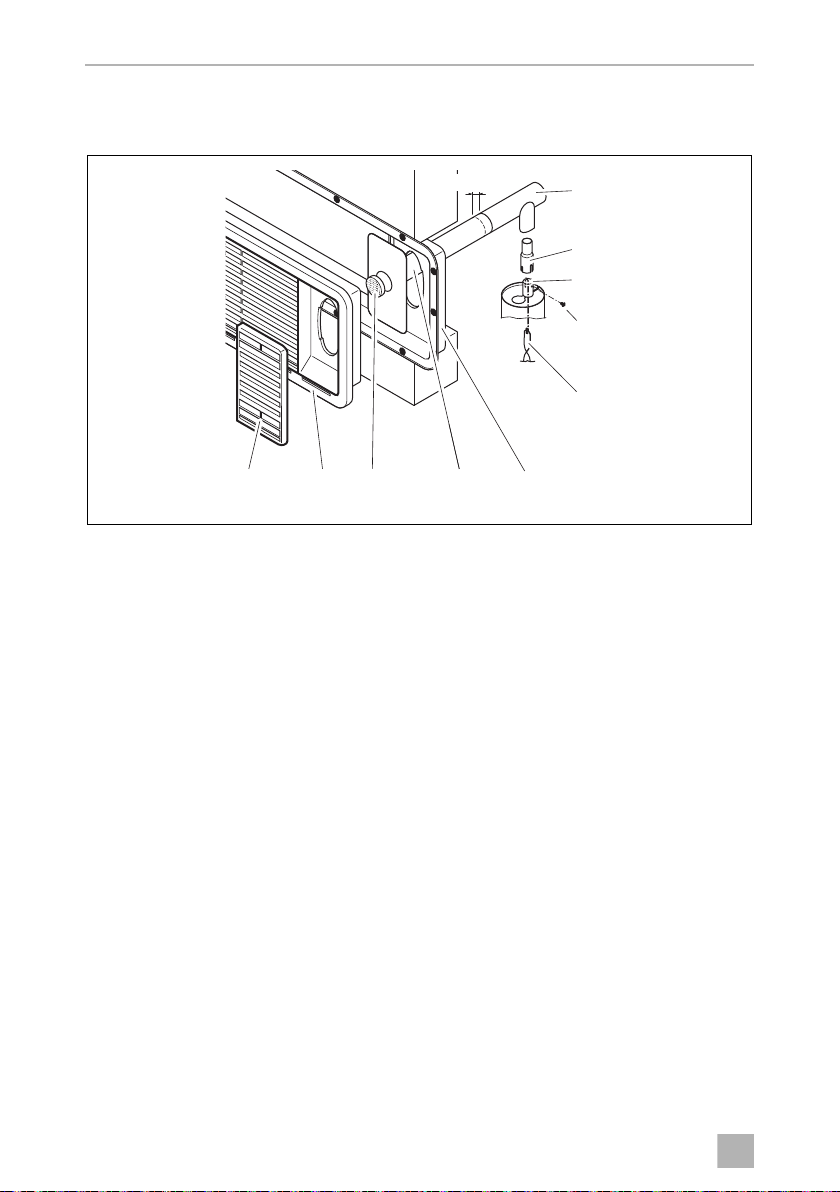

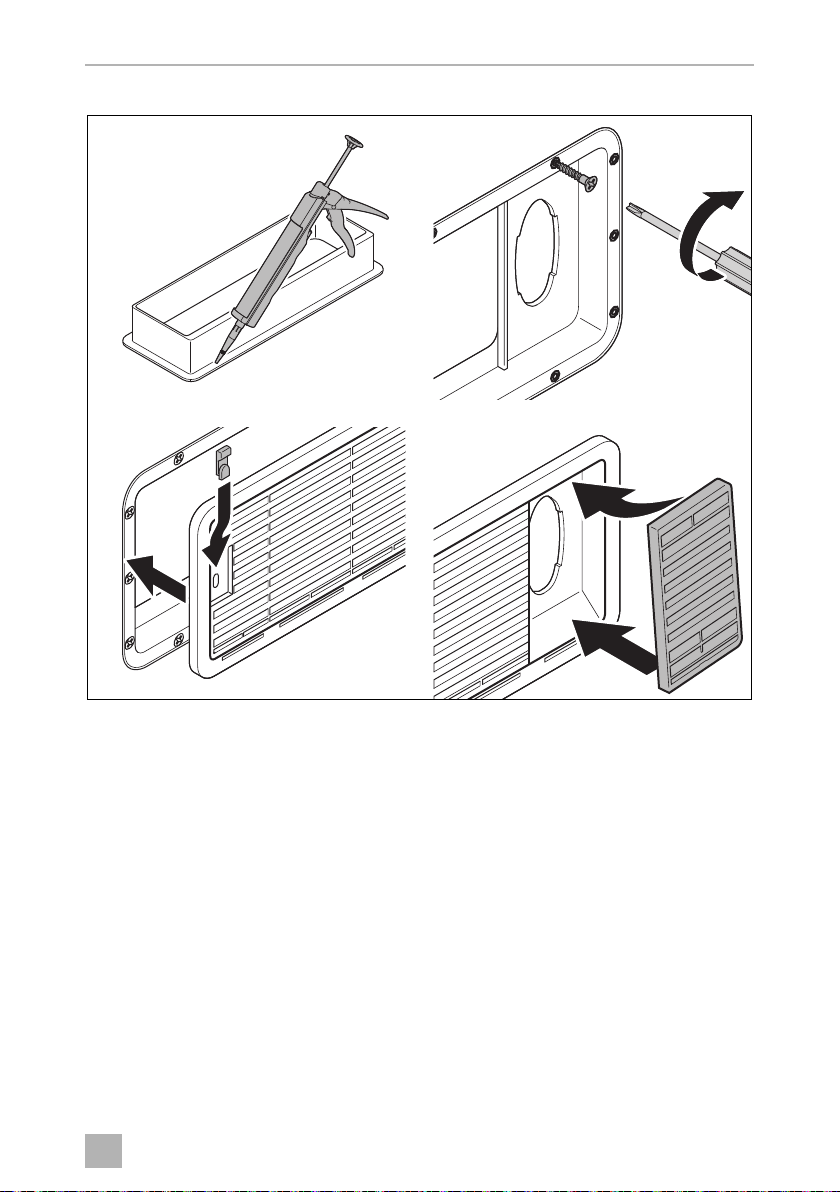

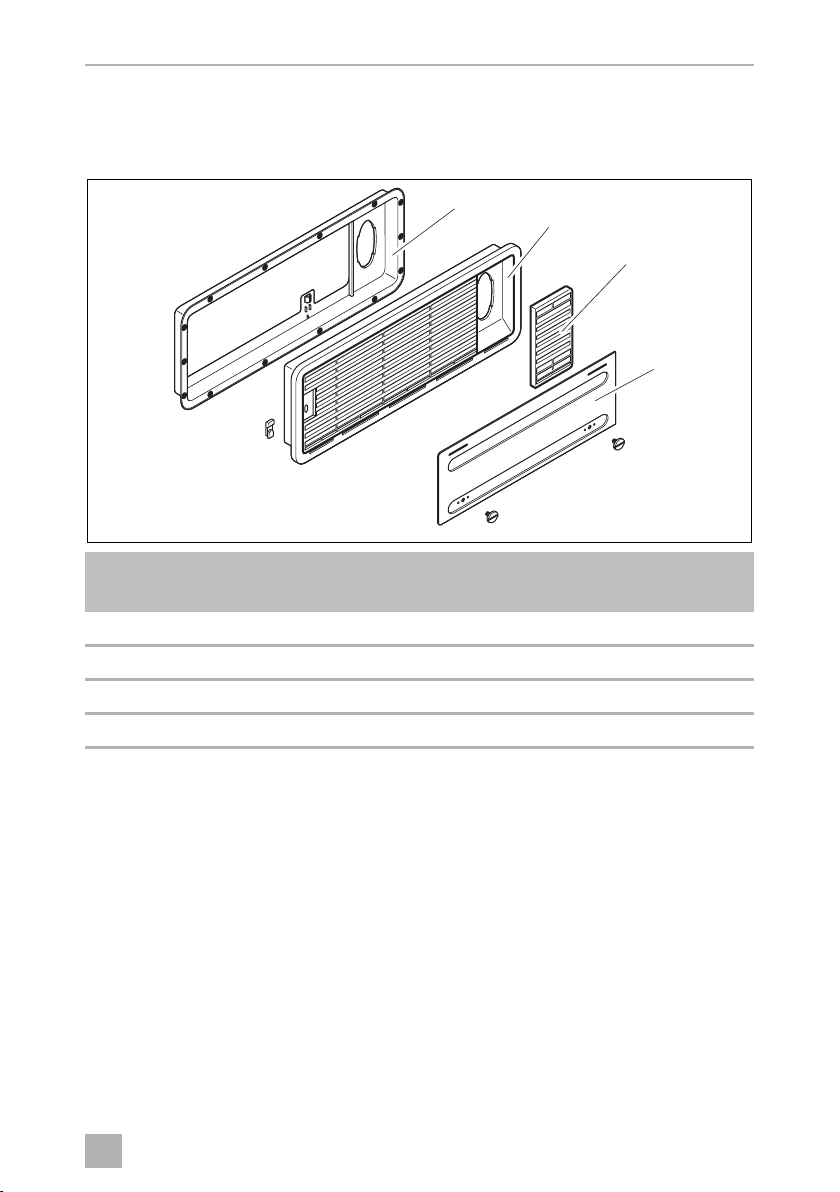

LS100 ventilation grille
with flue duct and winter cover
White 9105900012
Beige 9105900011

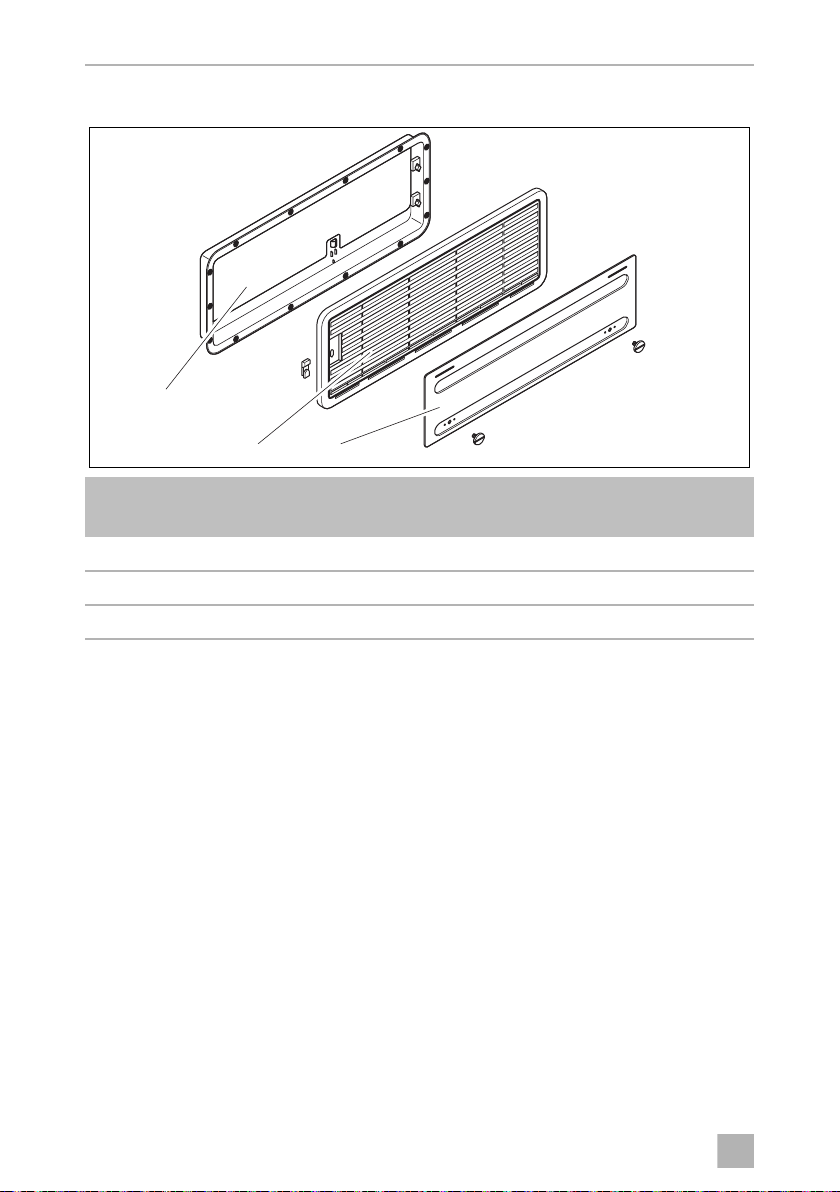

LS200 ventilation grille
without flue duct and winter cover
White 9105900014
Beige 9105900013
If you have questions regarding the accessories, please contact your local service
partner.
6
EN
RM53xx Intended use
5 Intended use
The refrigerator is designed for installation in caravans or motorhomes. It is only
suitable for cooling, freezing and storing foodstuffs. The refrigerator is not intended
for the proper storage of medicine.
The refrigerator is designed to be operated on a DC power supply and an AC socket
and can be powered by liquid gas (propane or butane). The refrigerator may not be
run on natural gas or city gas. The RM 5385 refrigerator also always requires a
permanent DC supply.

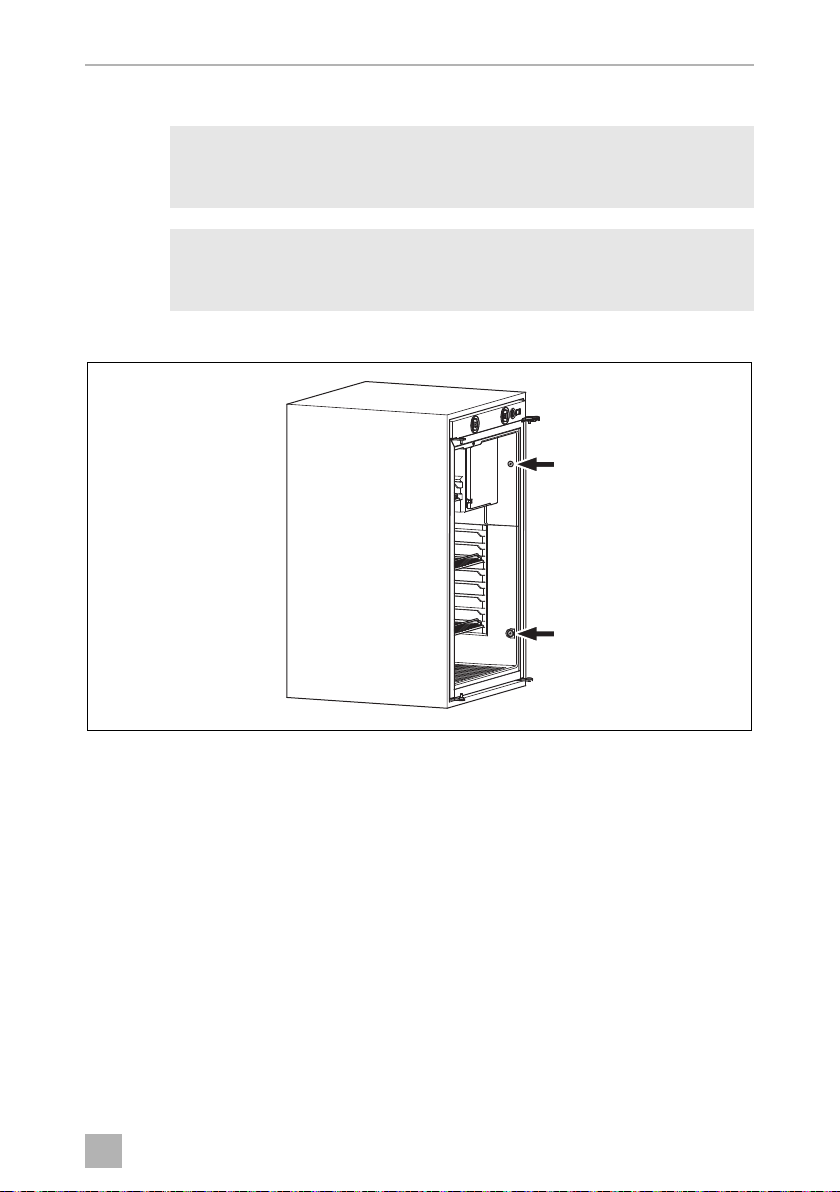

6 Installing the refrigerator
6.1 Preparing the installation
When installing the refrigerator, note the following:
• To enable the refrigerant to circulate properly, the refrigerator may not exceed an
angle of 3°.
Park the vehicle on a level surface with the help of a spirit level.
• The refrigerator must be installed so that it is easily accessible for service work,
easy to de-install and install and can be easily removed from the vehicle.
7
EN
Installing the refrigerator RM53xx
15 – 25 mm
> 25 mm
> 25 mm
1

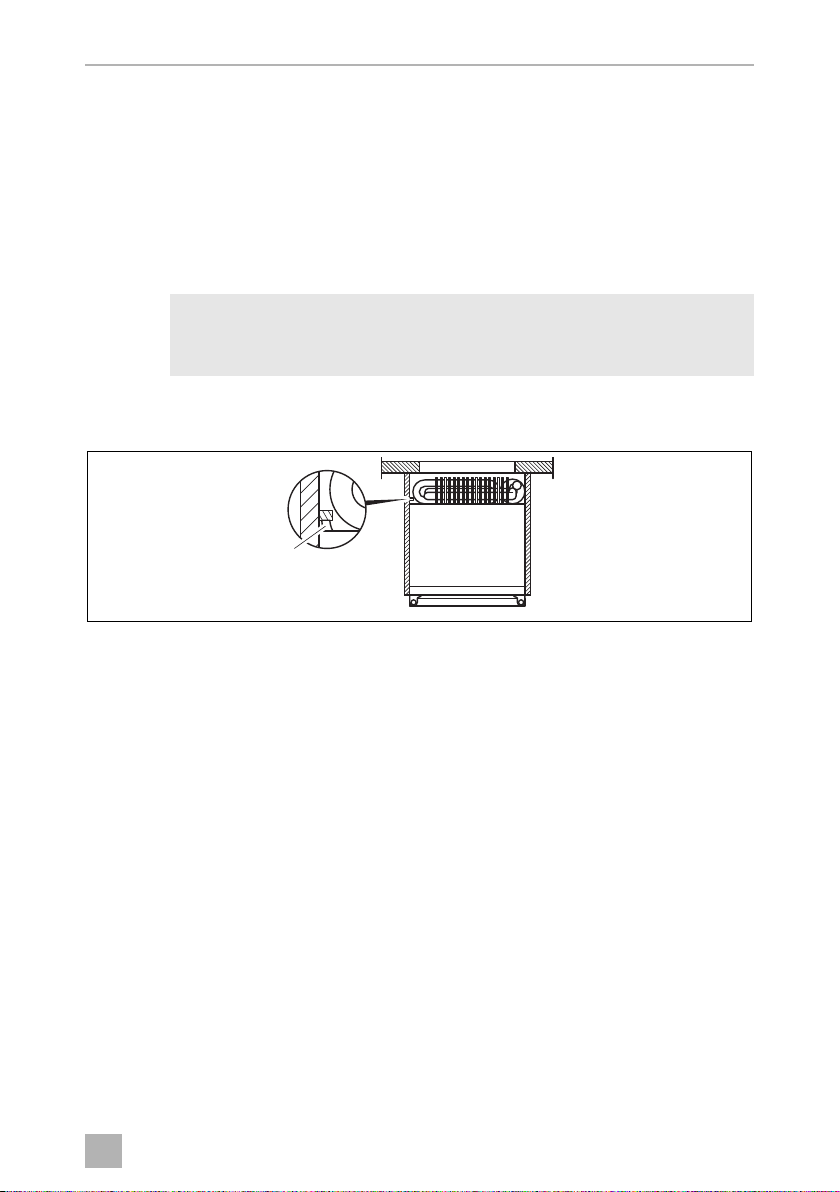

• The distance between the refrigerator and the rear wall must be min. 15 mm –
max. 25 mm (fig. 2, page 9).
8
EN
RM53xx Installing the refrigerator
2
486 mm 474 mm
RM 5310
RM 5330
RM 5380
486 mm
486 mm
618 mm
474 mm
821 mm
216 mm218 mm218 mm
118 mm
474 mm
821 mm
RM 5385
486 mm
474 mm
821 mm
9
EN
Installing the refrigerator RM53xx
• The refrigerator must be installed in a recess so that it stands firm when the vehicle
is in motion. Note the following dimensions here (H x W x D in mm, fig. 2,
page 9):
– RM5310: 618 x 486 x 474
– RM5330: 821 x 486 x 474
– RM5380: 821 x 486 x 474
– RM5385: 821 x 486 x 474
10
EN
RM53xx Installing the refrigerator
> 660 mm
> 660 mm > 660 mm
> 660 mm
3
5
4
RM 5310 RM 5330
5
5
4
4
RM 5380
3
3
5
4
RM 5385
3
2
2
2
1 1
1
2
1
3
11
