Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Description and Operation > Sentry Key Immobilizer Module
(SKREEM) - Description

Alarm Module: Description and Operation Sentry Key Immobilizer Module (SKREEM) - Description

DESCRIPTION
When a PCM and the SKREEM are replaced at the same time, perform the following steps in

order:

1. Program the new PCM. 2. Program the new SKREEM. 3. Replace all ignition keys and program
them to the new SKREEM.See: Keyless Entry Module/Testing and Inspection/Programming and
Relearning

The Sentry Key REmote Entry Module (SKREEM) is sometimes referred to as the Wireless Control
Module (WCM). The SKREEM/WCM is the primary component of the Sentry Key Immobilizer
System (SKIS). It is also the receiver for the Remote Keyless Entry (RKE) system and the Tire
Pressure Monitor (TPM) system. The SKREEM/WCM is located on the steering column, around the
ignition lock cylinder housing and is concealed beneath the steering column shrouds. The molded

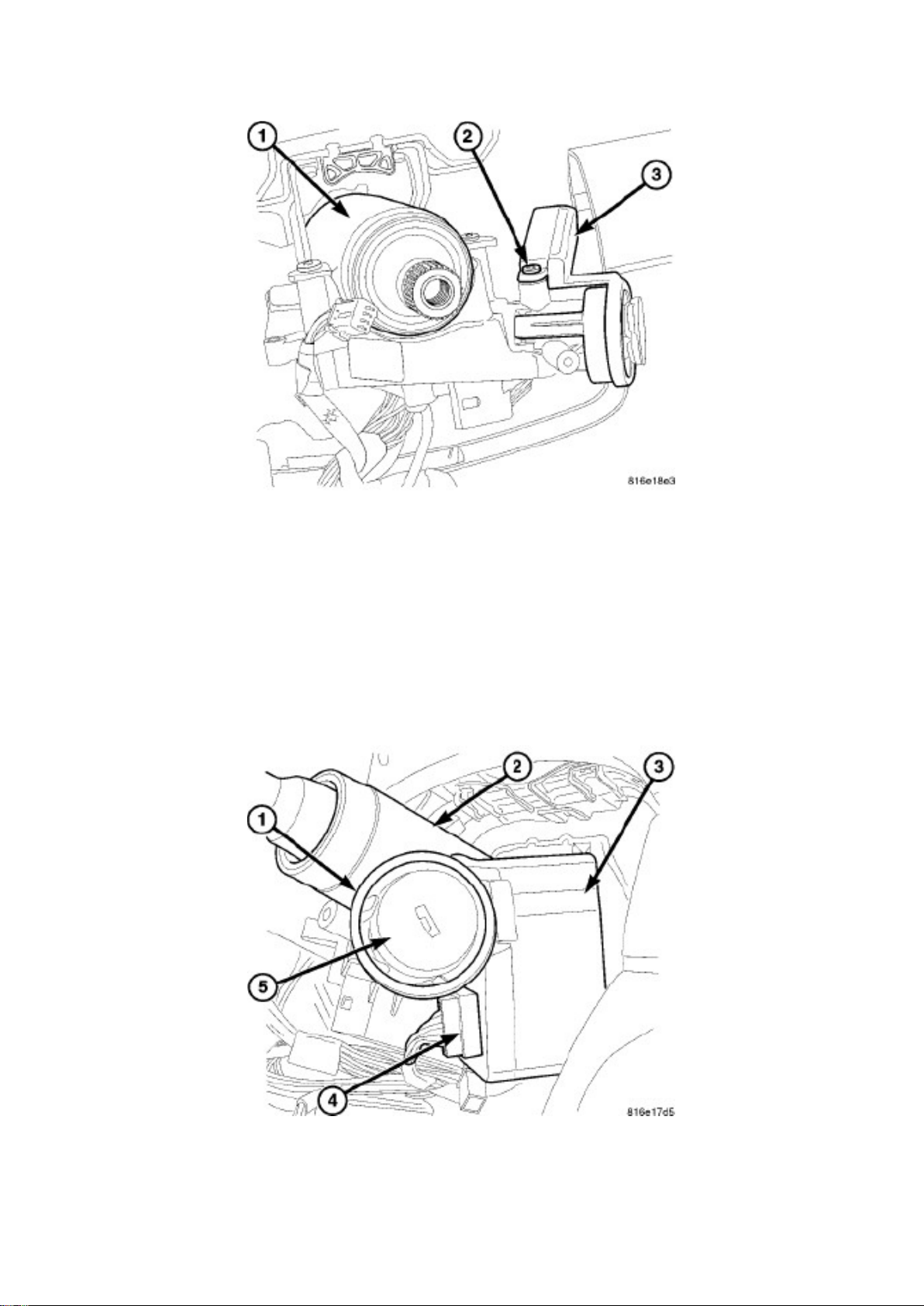

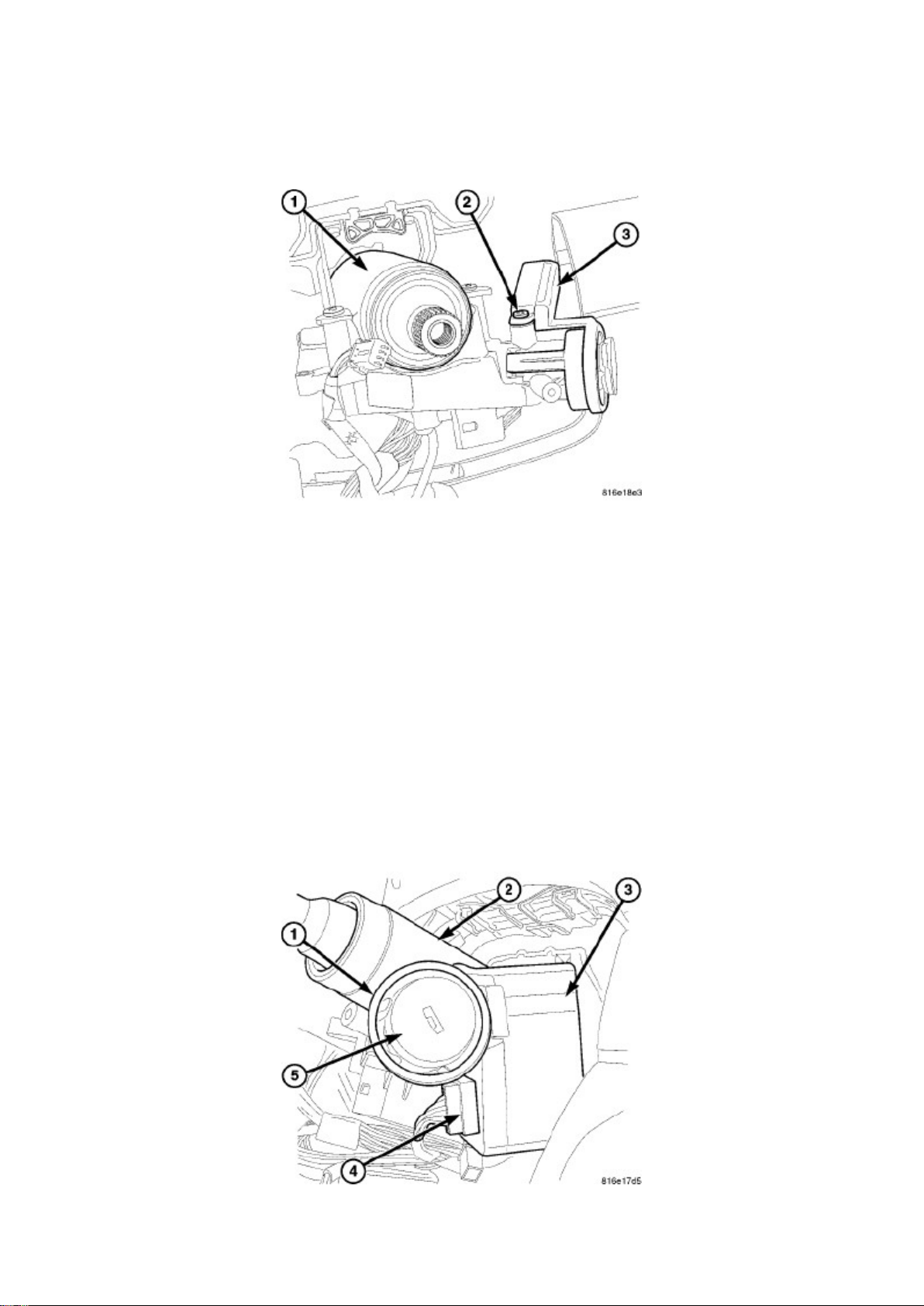

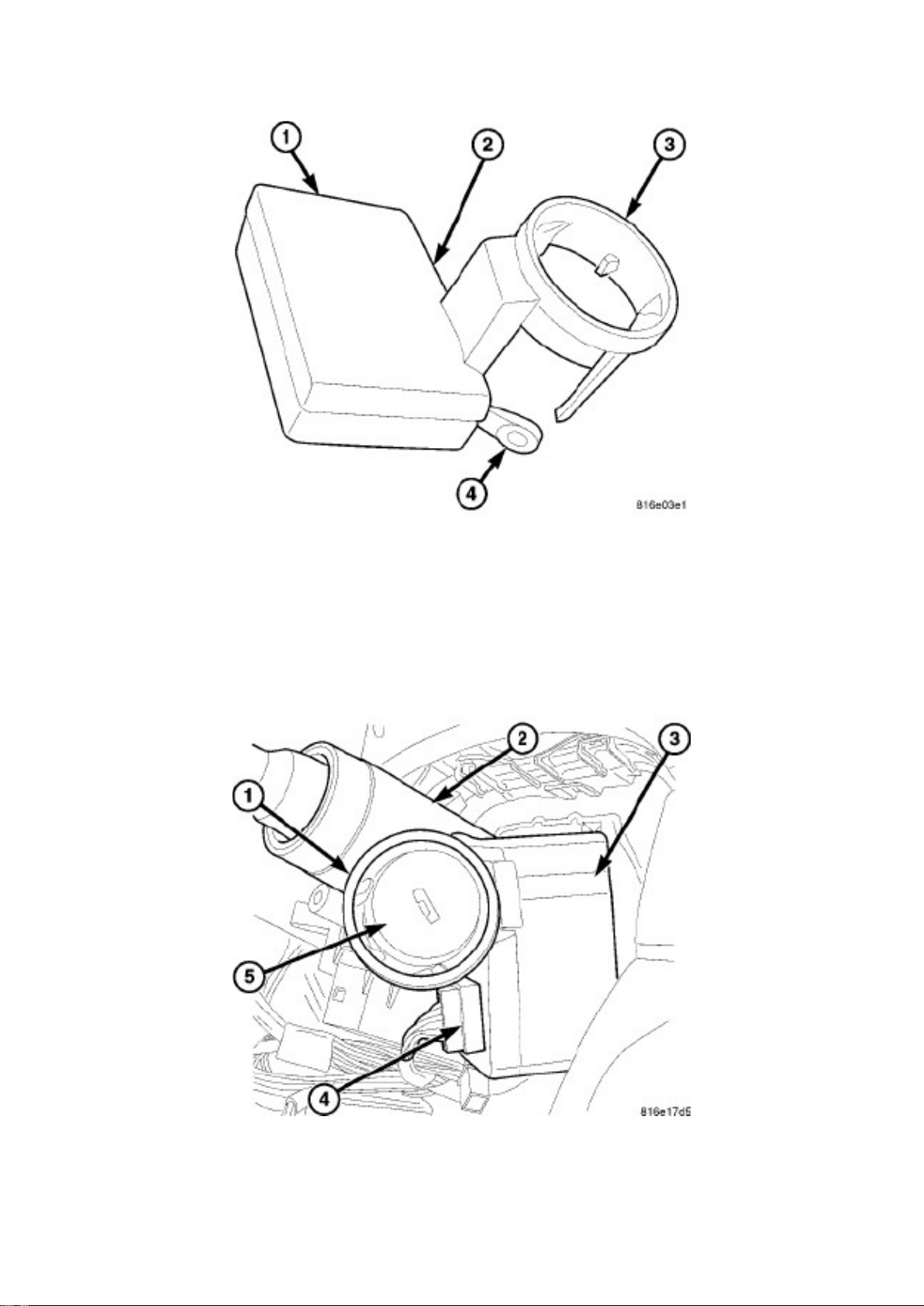

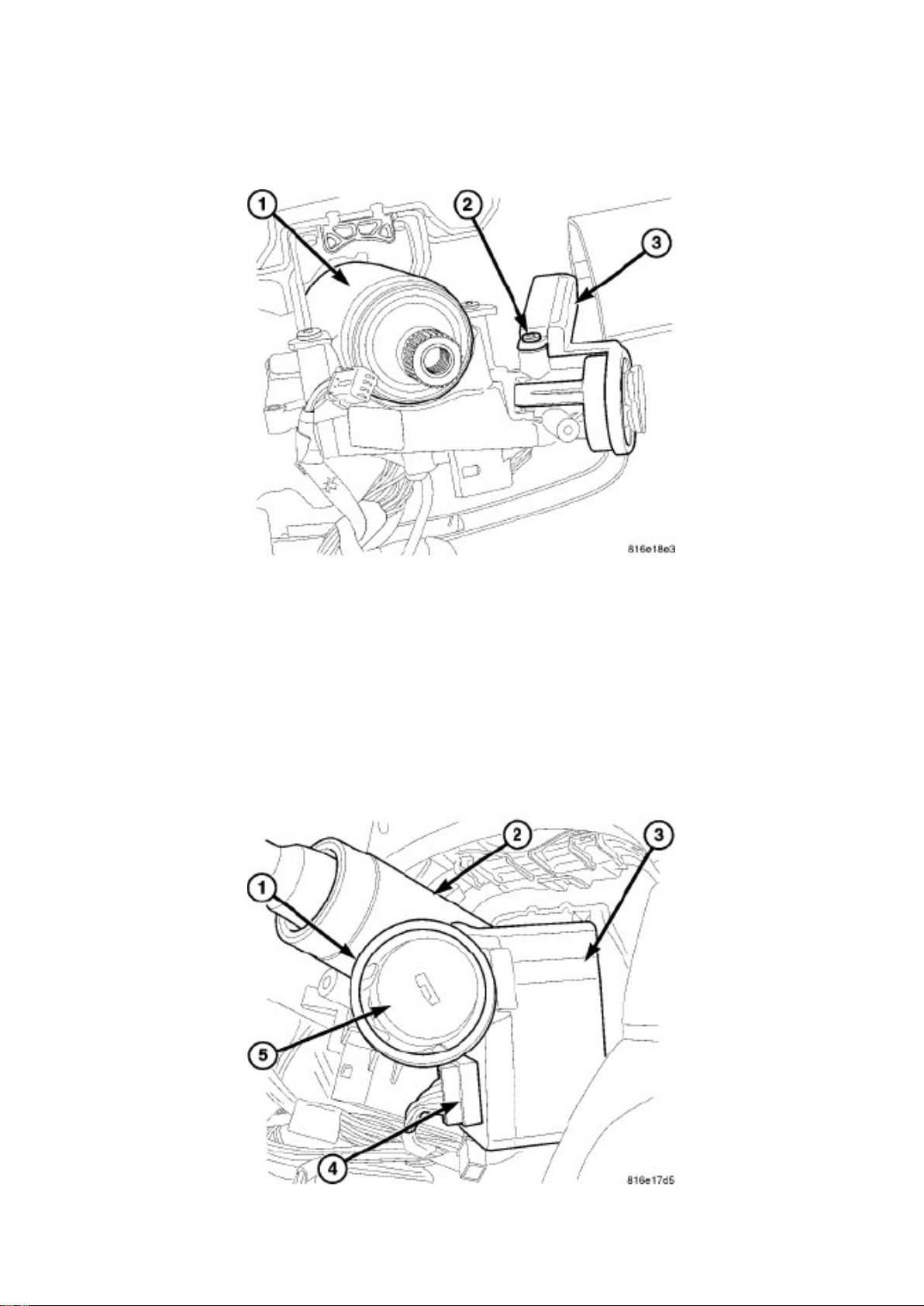

black plastic housing for the SKREEM/WCM has an integral molded plastic halo-like antenna ring
(3) that extends from one side. When the SKREEM/WCM is properly installed, the antenna ring is
oriented around the ignition lock cylinder housing.

A single connector (4) is located next to the antenna ring on the SKREEM/WCM housing (3). A
molded plastic mounting tab (2) on the SKREEM/WCM housing secures the unit to the steering
column. The SKREEM/WCM is connected to the vehicle electrical system through the instrument
panel wire harness.

The SKREEM/WCM cannot be adjusted or repaired. If faulty or damaged, the entire SKREEM unit
must be replaced.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Description and Operation > Sentry Key Immobilizer Module
(SKREEM) - Description > Page 8

Alarm Module: Description and Operation Sentry Key Immobilizer Module (SKREEM) - Operation

OPERATION
The Sentry Key REmote Entry Module (SKREEM), sometimes referred to as the Wireless Control

Module (WCM), contains a Radio Frequency (RF) transceiver and a microprocessor. The
SKREEM/WCM transmits RF signals to, and receives RF signals from the Sentry Key transponder
through a tuned antenna enclosed within the molded plastic antenna ring integral to the
SKREEM/WCM housing. If this antenna ring is not mounted properly around the ignition lock
cylinder housing, communication problems between the SKREEM/WCM and the transponder may
arise. These communication problems will result in Sentry Key transponder-related faults.

The SKREEM also serves as the Remote Keyless Entry (RKE) RF receiver and, if the vehicle is so
equipped, the receiver for the Tire Pressure Monitoring (TPM) system. See: Body and
Frame/Locks/Power Locks/Description and Operation/Power Locks - Description or See:
Instrument Panel, Gauges and Warning Indicators/Tire Monitoring System/Description and
Operation/Tire Pressure Monitoring (TPM) - Description. The SKREEM/WCM communicates over
the Controller Area Network (CAN) data bus with the Electro Mechanical Instrument Cluster (EMIC)
(sometimes referred to as the Cab Compartment Node (CCN), the Powertrain Control Module
(PCM), and/or the diagnostic scan tool.

The SKREEM/WCM retains in memory the ID numbers of any Sentry Key transponder that is
programmed into it. A maximum of eight Sentry Key transponders can be programmed into the
SKREEM/WCM. For added system security, each SKREEM/WCM is programmed with a unique
Secret Key code. This code is stored in memory, sent over the CAN data bus to the PCM, and is
encoded to the transponder of every Sentry Key that is programmed into the SKREEM/WCM.
Therefore, the Secret Key code is a common element that is found in every component of the
Sentry Key Immobilizer System (SKIS). Another security code, called a PIN, is used to gain access
to the SKREEM/WCM Secured Access Mode. The Secured Access Mode is required during
service to perform the SKIS initialization and Sentry Key transponder programming procedures.
See: Accessories and Optional Equipment/Antitheft and Alarm Systems/Service and Repair See:
Accessories and Optional Equipment/Antitheft and Alarm Systems/Alarm System
Transponder/Testing and Inspection The SKREEM/WCM also stores the Vehicle Identification
Number (VIN) in its memory, which it learns through a CAN data bus message from the PCM
during SKIS initialization.

NOTE: After a SKREEM/WCM is replaced, the ignition/transponder keys need to be programmed
to the new SKREEM/WCM. Follow the

directions on the diagnostic scan tool. The transponder key for the SKREES/SKIM and the RKE will
both be programmed during this operation. There is no need to program the fob of the key for RKE
functionality once the transponder key is programmed to the new SKREEM/WCM.

In the event that a SKREEM/WCM replacement is required, the Secret Key code can be
transferred to the new SKREEM/WCM from the PCM using the diagnostic scan tool and the SKIS
initialization procedure. Proper completion of the SKIS initialization will allow the existing Sentry
Keys to be programmed into the new SKREEM/WCM so that new keys will not be required. In the
event that the original Secret Key code cannot be recovered, SKREEM/WCM replacement will also
require new Sentry Keys. The diagnostic scan tool will alert the technician during the SKIS
initialization procedure if new Sentry Keys are required.

When the ignition switch is turned to the On position, the SKREEM/WCM transmits an RF signal to
the transponder in the ignition key. The SKREEM/WCM then waits for an RF signal response from
the transponder. If the response received identifies the key as valid, the SKREEM/WCM sends a
valid key message to the PCM over the CAN data bus. If the response received identifies the key
as invalid or if no response is received from the key transponder, the SKREEM/WCM sends an
invalid key message to the PCM. The PCM will enable or disable engine operation based upon the
status of the SKREEM/WCM messages. It is important to note that the default condition in the PCM
is an invalid key; therefore, if no message is received from the SKREEM/WCM by the PCM, the
engine will be disabled and the vehicle immobilized after two seconds of running.

The SKREEM/WCM also sends security indicator status messages to the EMIC/CCN over the CAN
data bus to tell the EMIC/CCN how to operate the security indicator. The security indicator status
message from the SKREEM/WCM tells the EMIC/CCN to turn the indicator on for about three
seconds each time the ignition switch is turned to the On position as a bulb test. After completion of
the bulb test, the SKREEM/WCM sends security indicator status messages to the EMIC/CCN to
turn the indicator off, turn the indicator on, or to flash the indicator on and off. If the security
indicator flashes or stays on solid after the bulb test, it signifies a SKIS fault. If the SKREEM/WCM
detects a system malfunction and/or the SKIS has become inoperative, the security indicator will
stay on solid. If the SKREEM/WCM detects an invalid key or if a key transponder-related fault
exists, the security indicator will flash. If the vehicle is equipped with the Customer Learn
transponder programming feature, the SKREEM/WCM will also send messages to the EMIC/CCN
to flash the security indicator whenever the Customer Learn programming mode is being utilized .
See: Accessories and Optional Equipment/Antitheft and Alarm Systems/Alarm System
Transponder/Testing and Inspection

The SKIS performs a self-test each time the ignition switch is turned to the On position, and will
store fault information in the form of a Diagnostic Trouble Code (DTC) in SKREEM/WCM memory if
a system malfunction is detected. The SKREEM/WCM can be diagnosed, and any stored DTC can
be retrieved using a diagnostic scan tool. Refer to the appropriate diagnostic information.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) ­Removal

Alarm Module: Service and Repair Sentry Key Immobilizer Module (SKREEM) - Removal

REMOVAL
NOTE: The steering wheel does not have to be removed to service the SKREEM/WCM.
NOTE: The Steering Column Control Module (SCCM) assembly, which consists of the left/right

multi-function switches and the clockspring,
does not have to be removed to service the SKREEM/WCM. There is an access hole in the top of

the right multi-function switch to access the mounting screw (2).

1. Disconnect and isolate the battery negative cable.
WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before

beginning any airbag system or component service.
Failure to do so may result in accidental airbag deployment, personal injury or death.

2. Remove the upper and lower steering column shrouds See: Steering and
Suspension/Steering/Steering Column/Steering Column Cover/Service

and Repair/Steering Column Shroud - Removal and See: Steering and
Suspension/Steering/Steering Column/Steering Column Cover/Service and Repair/Steering
Column Shroud - Removal.

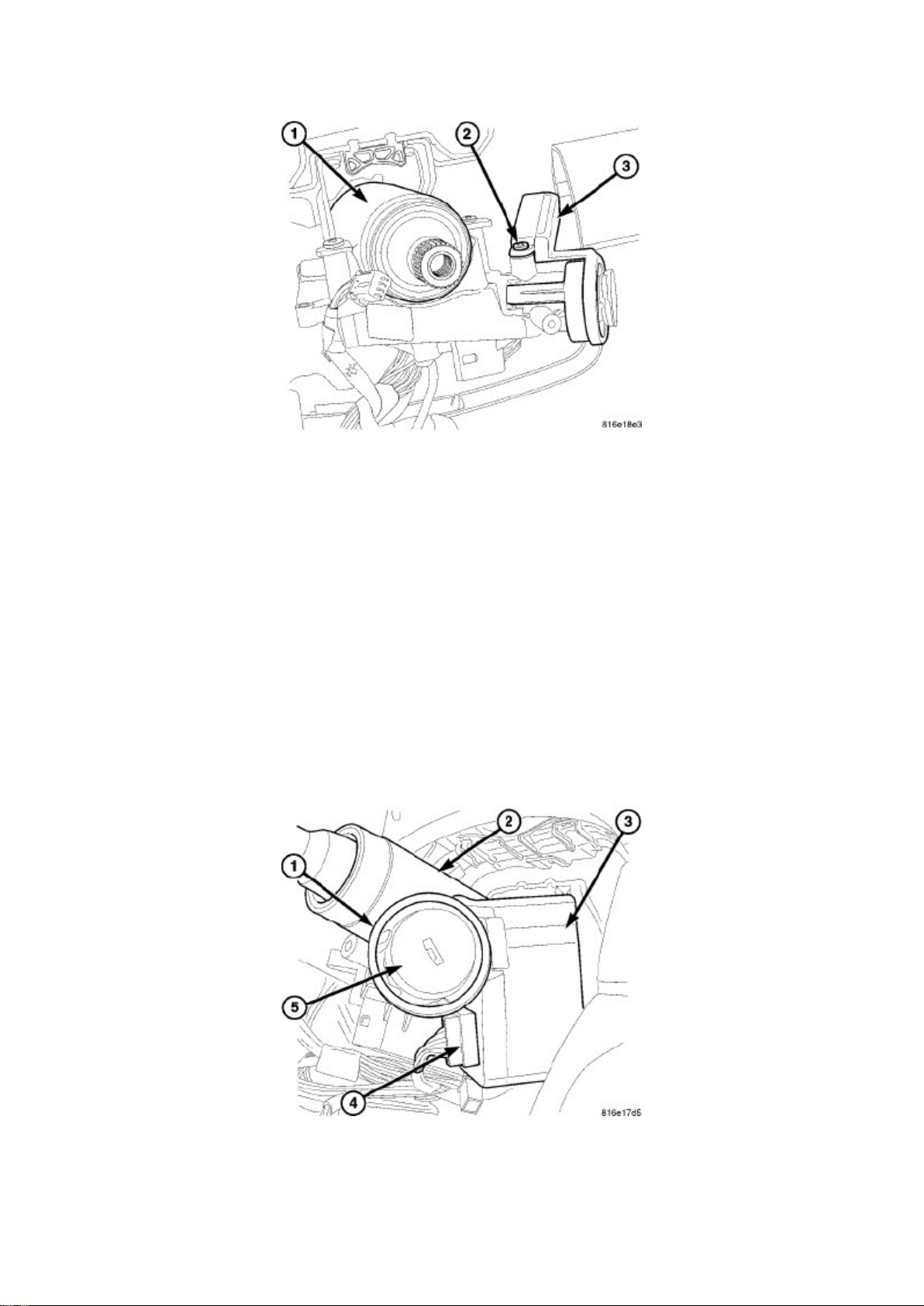

3. Remove the SKREEM/WCM mounting screw (2) on the ignition lock assembly and separate the
SKREEM/WCM (3) from the ignition lock

assembly.

4. Disconnect the SKREEM/WCM electrical connector (4). 5. Remove SKREEM/WCM (1 and 3)
from column (2).

When a PCM and the SKREEM/WCM are replaced at the same time, perform the following steps in
order See: Keyless Entry Module/Testing and Inspection/Programming and Relearning.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) ­Removal > Page 11

- Program the new PCM.

- Program the new SKREEM/WCM.

- Replace all ignition keys and program them to the new SKREEM/WCM.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm
Module, (Vehicle Antitheft) > Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) ­Removal > Page 12

Alarm Module: Service and Repair Sentry Key Immobilizer Module (SKREEM) - Installation

INSTALLATION
When a PCM and the SKREEM/WCM are replaced at the same time, perform the following steps in

order See: Keyless Entry Module/Testing and Inspection/Programming and Relearning.

- Program the new PCM.

- Program the new SKREEM/WCM.

- Replace all ignition keys and program them to the new SKREEM/WCM.

1. Position the SKREEM/WCM (3) on the ignition lock housing and install the retaining screw (2).

2. Connect the SKREEM/WCM electrical connector (4).
NOTE: On vehicles equipped with the optional Sentry Key Immobilizer System (SKIS), when the

SKREEM is replaced with a new unit, a
diagnostic scan tool MUST be used to initialize the new SKREEM and to program at least two

Sentry Key transponders before the vehicle can be operated . See: Accessories and Optional
Equipment/Antitheft and Alarm Systems/Alarm System Transponder/Testing and Inspection

3. Connect the battery negative cable.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless

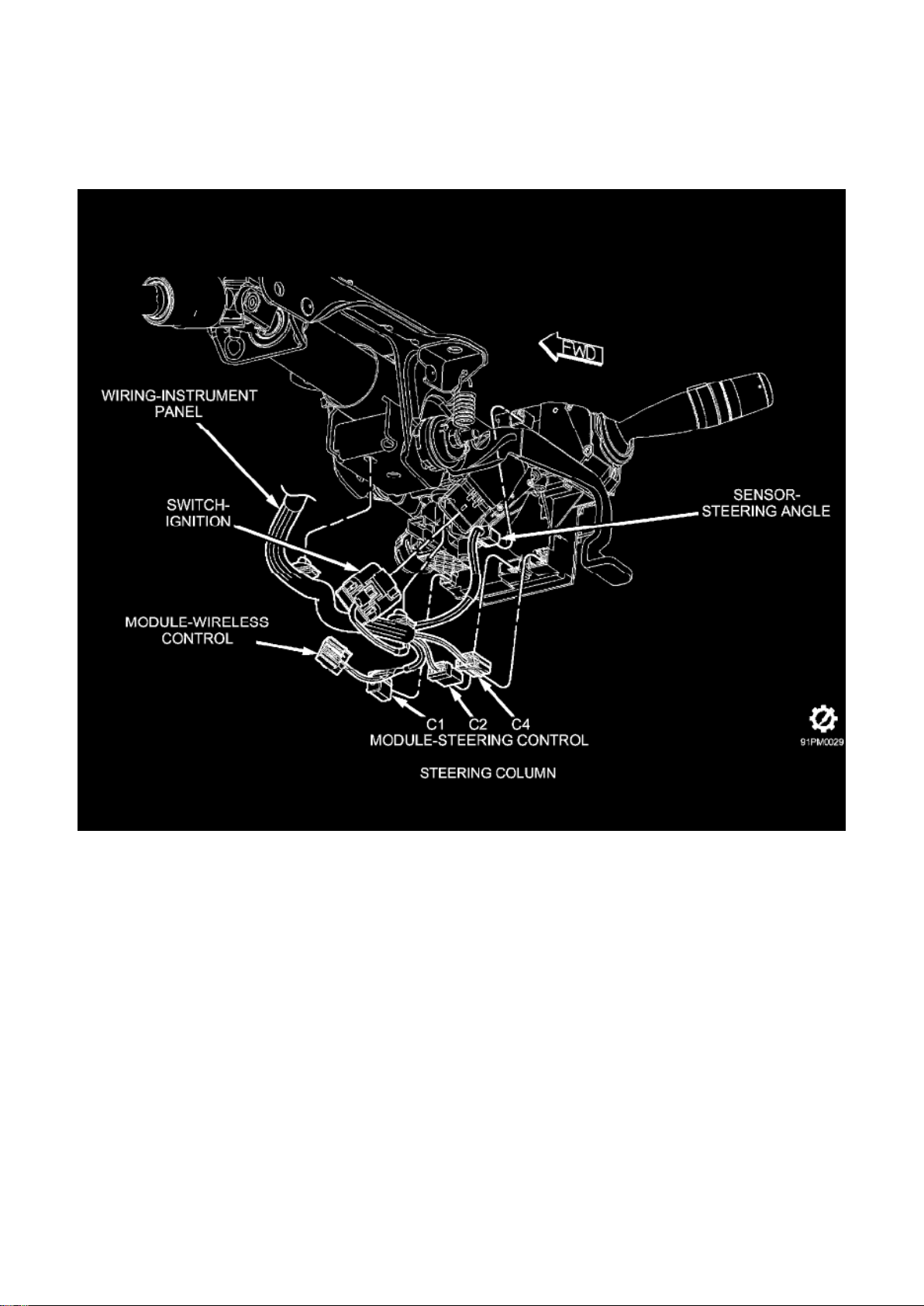

Entry Module > Component Information > Locations

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Locations > Page 16

Keyless Entry Module: Diagrams

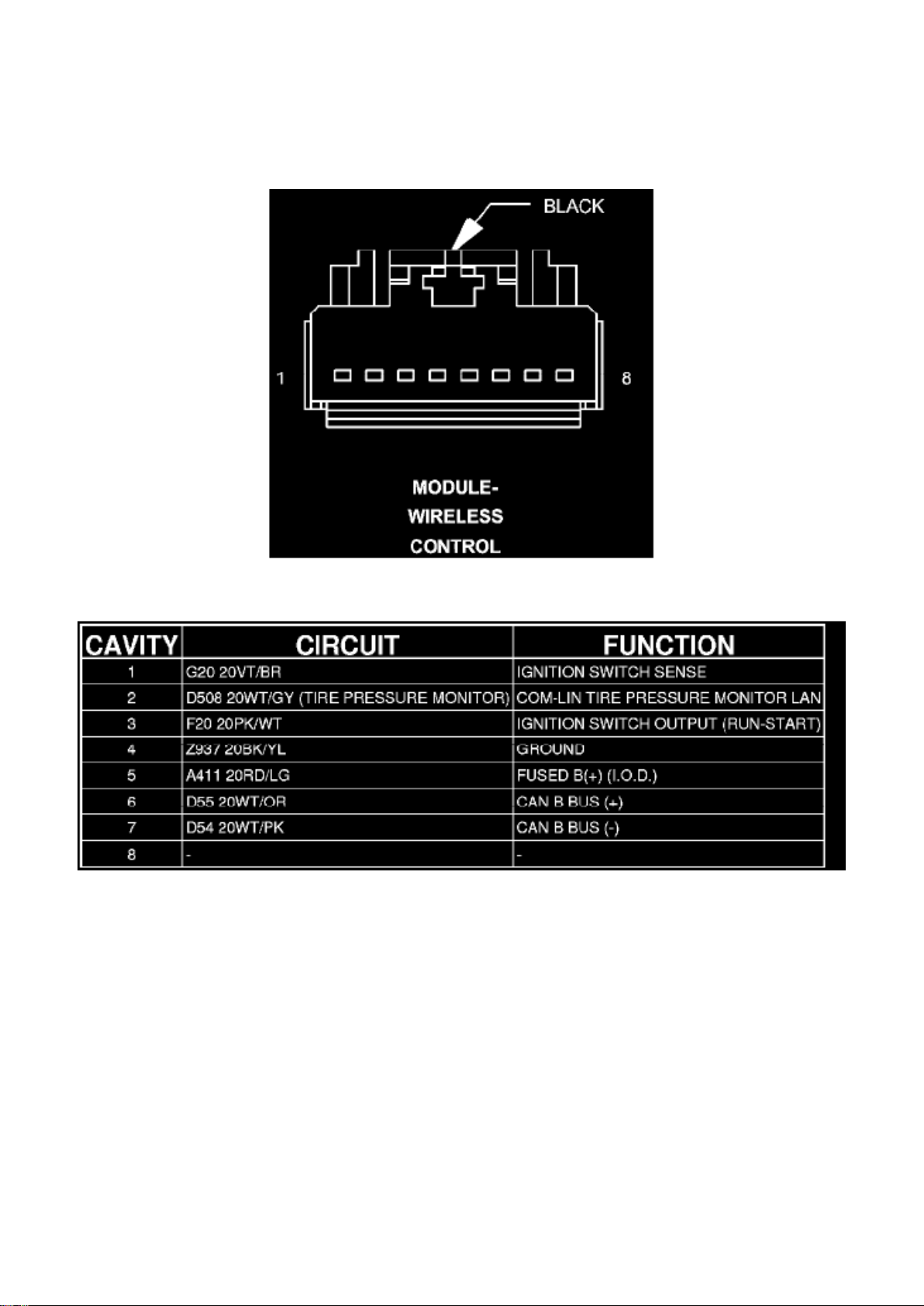

Connector - (INSTRUMENT PANEL) 8 WAY

MODULE-SENTRY KEY REMOTE ENTRY/WCM - (INSTRUMENT PANEL) 8 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Testing and Inspection > Initial Inspection and Diagnostic Overview

Keyless Entry Module: Initial Inspection and Diagnostic Overview
REMOTE KEYLESS ENTRY MODULE
The most reliable, efficient, and accurate means to diagnose the power lock system requires the

use of a scan tool and the proper Diagnostic information.
Refer to the appropriate wiring information.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Testing and Inspection > Initial Inspection and Diagnostic Overview > Page 19

Keyless Entry Module: Programming and Relearning
SKREEM PROGRAMMING
When a Powertrain Control Module (PCM) for a gasoline engine, or an Engine Control Module

(ECM) for a diesel engine and the Sentry Key Remote Entry Module (SKREEM) (also known as the
Wireless Control Module/WCM) on vehicles equipped with the Sentry Key Immobilizer System
(SKIS) are replaced at the same time, perform the following steps in order:

NOTE: If the PCM and the SKREEM are replaced at the same time, program the PCM VIN into the
PCM first.

1. If applicable first replace the PCM/ECM with the original WCM still connected to the vehicle. 2.
Using the appropriate service information program the new PCM/ECM. (This will ensure the Secret
Key Transfer from the original WCM into the

new PCM/ECM).

3. Now replace and program the WCM. This will retain the Secret Key from the PCM/ECM back
into the new WCM. 4. With the scan tool, select Miscellaneous Functions, WCM/Wireless Control
Module. Then select the desired procedure and follow the display on

the scan tool.

5. If the vehicle is equipped with Tire Pressure Monitoring System program the Placard Pressure
Values into the WCM/SKREEM. 6. Ensure all the customer's keys have been programmed into the
new module if necessary.

NOTE: If the original keys do not successfully program to the new SKREEM after the proper
procedures are followed correctly,

programming new keys will be necessary.
PROGRAMMING THE SKREEM
The SKIS Secret Key is an ID code that is unique to each SKREEM/WCM. This code is

programmed and stored in the SKREEM/WCM, the PCM/ECM, and each ignition key transponder
chip. When the PCM/ECM or SKREEM/WCM is replaced, it is necessary to program the Secret
Key into the new module using a diagnostic scan tool. Follow the programming steps outlined in
the diagnostic scan tool for PCM REPLACED, ECM REPLACED, WCM REPLACED, or
GATEWAY REPLACED under MISCELLANEOUS FUNCTIONS for the WIRELESS CONTROL
MODULE/WCM menu item as appropriate.

NOTE: Programming the PCM/ECM or SKREEM is done using a diagnostic scan tool and a PIN to
enter secure access mode. If three

attempts are made to enter secure access mode using an incorrect PIN, secure access mode will
be locked out for one hour. To exit this lockout mode, turn the ignition to the RUN position for one
hour then enter the correct PIN. Be certain that all accessories are turned OFF. Also monitor the
battery state and connect a battery charger if necessary.

NOTE: Before replacing the ECU for a failed driver, control circuit or ground circuit, be sure to
check the related component/circuit integrity

for failures not detected due to a double fault in the circuit. Most ECM driver/control circuit failures
are caused by internal component failures (i.e. relay and solenoids) and shorted circuits (i.e.
pull-ups, drivers and switched circuits). These failures are difficult to detect when a double fault has
occurred and only one DTC has set.

ECM/SKIM/WCM PROGRAMMING
When a ECM and the SKIM are replaced at the same time perform the following steps in order:

1. Program the new SKIM 2. Program the new ECM 3. Replace all ignition keys and program them
to the new SKIM.

ECM/SKIM/WCM PROGRAMMING
When an ECM (Bosch) and the SKIM are replaced at the same time perform the following steps in

order:

1. Program the new SKIM 2. Program the new ECM (Bosch) 3. Replace all ignition keys and
program them to the new SKIM.

PROGRAMMING THE SKIM
CAUTION: Read all notes and cautions for programming procedures.

1. Connect a battery charger to the vehicle. 2. Connect the StarSCAN(R).
CAUTION: If the ECM/PCM and SKREEM/WCM are replaced at the same time, the ECM/PCM

MUST be programmed before the
SKREEM/WCM.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Testing and Inspection > Initial Inspection and Diagnostic Overview > Page 20

3. Select "ECU View". 4. Select "WCM Wireless Control Module". 5. Select "Miscellaneous
Functions". 6. Select WCM replaced. 7. Enter the PIN when prompted. 8. Verify the correct
information.

NOTE: If the ECM and the SKIM are replaced at the same time, all vehicle keys will need to be
replaced and programmed to the new SKIM.

PROGRAMMING IGNITION KEYS TO THE SKREEM
Each ignition key transponder also has a unique ID code that is assigned at the time the key is

manufactured. When a key is programmed into the SKREEM/WCM, the transponder ID code is
learned by the module and the transponder acquires the unique Secret Key ID code from the
SKREEM/WCM. To program ignition keys into the SKREEM/WCM, follow the programming steps
outlined in the diagnostic scan tool for PROGRAM IGNITION KEYS OR KEY FOBS under
MISCELLANEOUS FUNCTIONS for the WIRELESS CONTROL MODULE/WCM menu item.

NOTE: If the original keys do not successfully program to the new SKREEM after the proper
procedures are followed correctly,

programming new keys will be necessary.
NOTE: A maximum of eight keys can be learned to each SKREEM. Once a key is learned to a

SKREEM, that key has acquired the Secret
Key for that SKREEM and cannot be transferred to any other SKREEM or vehicle.
If ignition key programming is unsuccessful, the scan tool will display one of the following error

messages:

­PROGRAMMING NOT ATTEMPTED - The scan tool attempts to read the programmed key status

and there are no keys programmed into SKREEM memory.

- PROGRAMMING KEY FAILED (POSSIBLE USED KEY FROM WRONG VEHICLE) - SKREEM is
unable to program an ignition key transponder due to one of the following:

- The ignition key transponder is ineffective.

- The ignition key transponder is or has been already programmed to another vehicle.

- 8 KEYS ALREADY LEARNED, PROGRAMMING NOT DONE - The SKREEM transponder ID
memory is full.

- LEARNED KEY IN IGNITION - The ID for the ignition key transponder currently in the ignition lock
cylinder is already programmed into SKREEM memory.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) - Removal

Keyless Entry Module: Service and Repair Sentry Key Immobilizer Module (SKREEM) - Removal
REMOVAL
NOTE: The steering wheel does not have to be removed to service the SKREEM/WCM.
NOTE: The Steering Column Control Module (SCCM) assembly, which consists of the left/right

multi-function switches and the clockspring,
does not have to be removed to service the SKREEM/WCM. There is an access hole in the top of

the right multi-function switch to access the mounting screw (2).

1. Disconnect and isolate the battery negative cable.
WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before

beginning any airbag system or component service.
Failure to do so may result in accidental airbag deployment, personal injury or death.

2. Remove the upper and lower steering column shrouds See: Steering and
Suspension/Steering/Steering Column/Steering Column Cover/Service

and Repair/Steering Column Shroud - Removal and See: Steering and
Suspension/Steering/Steering Column/Steering Column Cover/Service and Repair/Steering
Column Shroud - Removal.

3. Remove the SKREEM/WCM mounting screw (2) on the ignition lock assembly and separate the
SKREEM/WCM (3) from the ignition lock

assembly.

4. Disconnect the SKREEM/WCM electrical connector (4). 5. Remove SKREEM/WCM (1 and 3)
from column (2).

When a PCM and the SKREEM/WCM are replaced at the same time, perform the following steps in
order See: Testing and Inspection/Programming and Relearning.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) - Removal >
Page 23

- Program the new PCM.

- Program the new SKREEM/WCM.

- Replace all ignition keys and program them to the new SKREEM/WCM.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Keyless
Entry Module > Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) - Removal >
Page 24

Keyless Entry Module: Service and Repair Sentry Key Immobilizer Module (SKREEM) - Installation

INSTALLATION
When a PCM and the SKREEM/WCM are replaced at the same time, perform the following steps in

order See: Testing and Inspection/Programming and Relearning.

- Program the new PCM.

- Program the new SKREEM/WCM.

- Replace all ignition keys and program them to the new SKREEM/WCM.

1. Position the SKREEM/WCM (3) on the ignition lock housing and install the retaining screw (2).

2. Connect the SKREEM/WCM electrical connector (4).
NOTE: On vehicles equipped with the optional Sentry Key Immobilizer System (SKIS), when the

SKREEM is replaced with a new unit, a
diagnostic scan tool MUST be used to initialize the new SKREEM and to program at least two

Sentry Key transponders before the vehicle can be operated . See: Accessories and Optional
Equipment/Antitheft and Alarm Systems/Alarm System Transponder/Testing and Inspection

3. Connect the battery negative cable.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Voice
Activation Module > Component Information > Locations

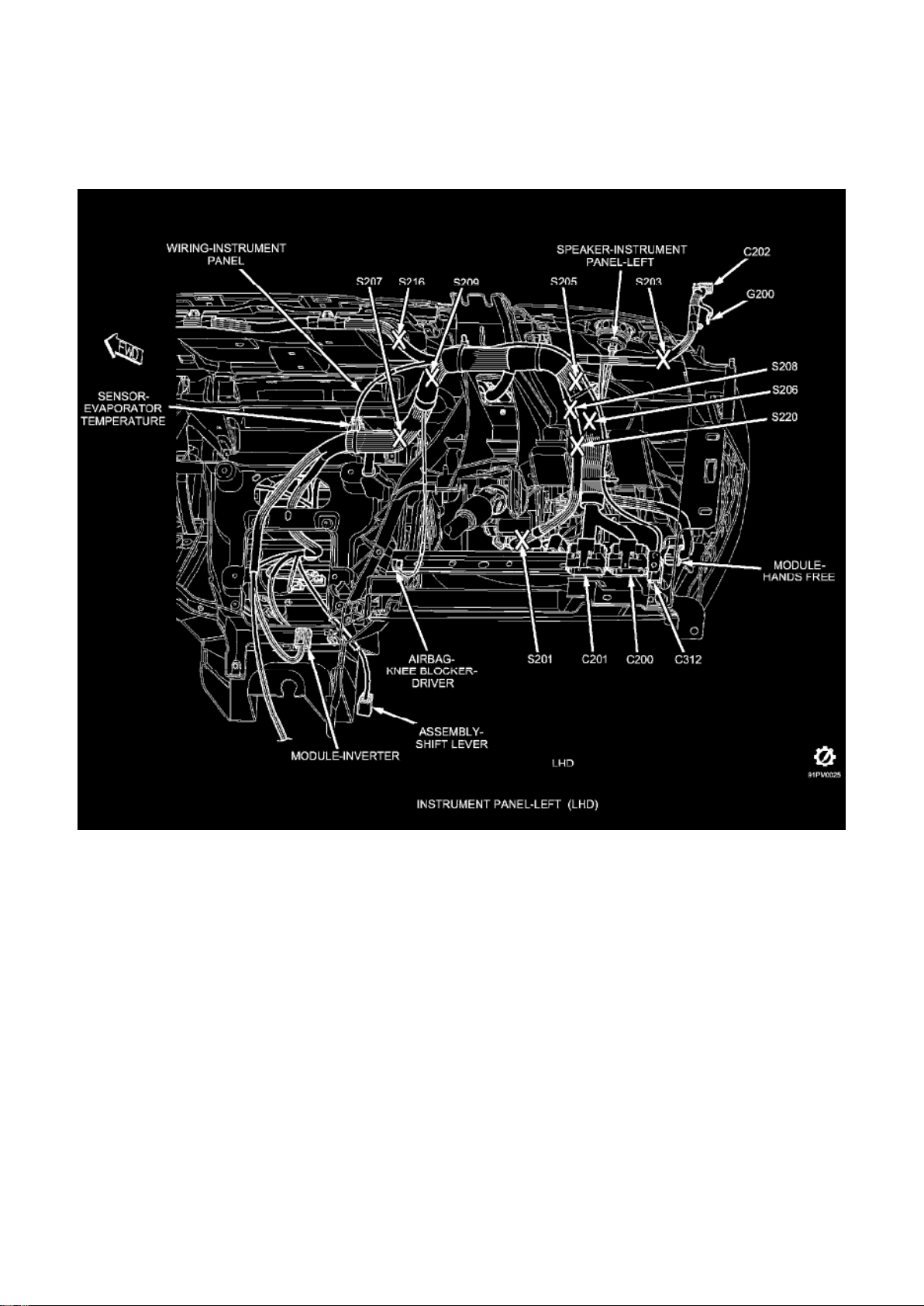

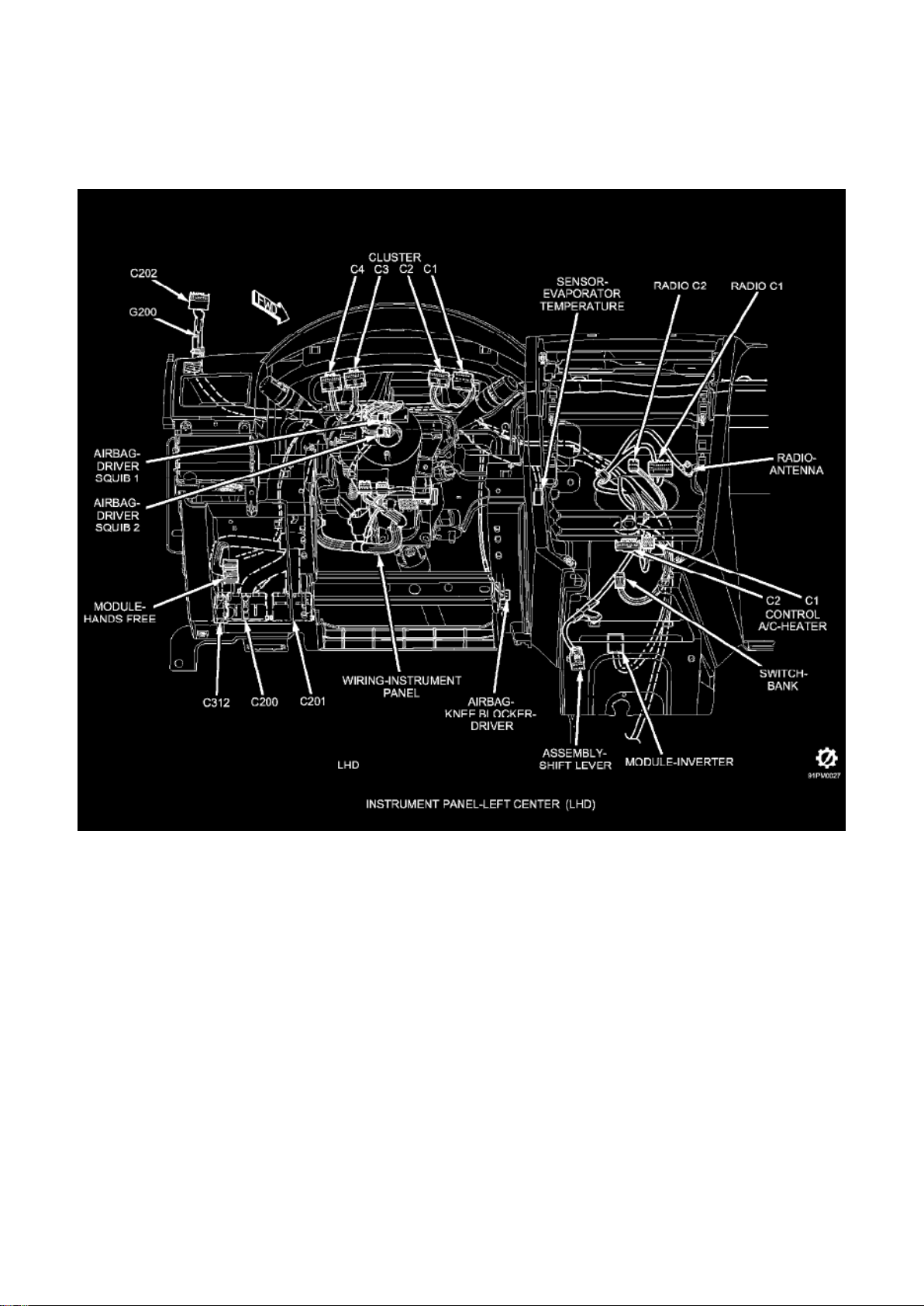

Voice Activation Module: Locations

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Voice
Activation Module > Component Information > Locations > Page 28

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Voice
Activation Module > Component Information > Locations > Page 29

Voice Activation Module: Diagrams
Connector - (INSTRUMENT PANEL) 22 WAY

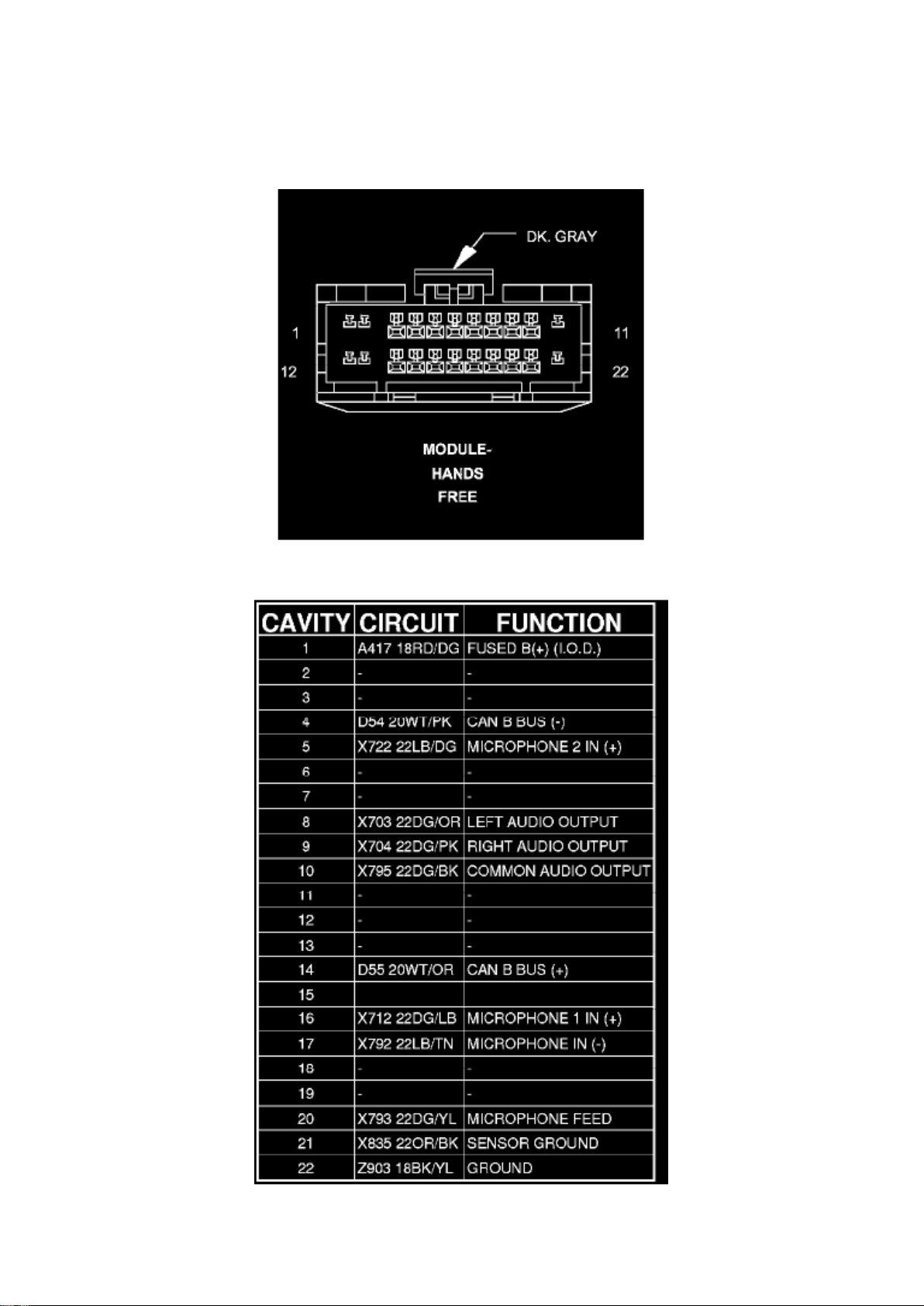

MODULE-HANDS FREE - (INSTRUMENT PANEL) 22 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Locations

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Locations > Page 34

Keyless Entry Module: Diagrams
Connector - (INSTRUMENT PANEL) 8 WAY

MODULE-SENTRY KEY REMOTE ENTRY/WCM - (INSTRUMENT PANEL) 8 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Testing and Inspection > Initial Inspection and Diagnostic Overview

Keyless Entry Module: Initial Inspection and Diagnostic Overview
REMOTE KEYLESS ENTRY MODULE
The most reliable, efficient, and accurate means to diagnose the power lock system requires the

use of a scan tool and the proper Diagnostic information.
Refer to the appropriate wiring information.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Testing and Inspection > Initial Inspection and Diagnostic Overview > Page 37

Keyless Entry Module: Programming and Relearning
SKREEM PROGRAMMING
When a Powertrain Control Module (PCM) for a gasoline engine, or an Engine Control Module

(ECM) for a diesel engine and the Sentry Key Remote Entry Module (SKREEM) (also known as the
Wireless Control Module/WCM) on vehicles equipped with the Sentry Key Immobilizer System
(SKIS) are replaced at the same time, perform the following steps in order:

NOTE: If the PCM and the SKREEM are replaced at the same time, program the PCM VIN into the
PCM first.

1. If applicable first replace the PCM/ECM with the original WCM still connected to the vehicle. 2.
Using the appropriate service information program the new PCM/ECM. (This will ensure the Secret
Key Transfer from the original WCM into the

new PCM/ECM).

3. Now replace and program the WCM. This will retain the Secret Key from the PCM/ECM back
into the new WCM. 4. With the scan tool, select Miscellaneous Functions, WCM/Wireless Control
Module. Then select the desired procedure and follow the display on

the scan tool.

5. If the vehicle is equipped with Tire Pressure Monitoring System program the Placard Pressure
Values into the WCM/SKREEM. 6. Ensure all the customer's keys have been programmed into the
new module if necessary.

NOTE: If the original keys do not successfully program to the new SKREEM after the proper
procedures are followed correctly,

programming new keys will be necessary.
PROGRAMMING THE SKREEM
The SKIS Secret Key is an ID code that is unique to each SKREEM/WCM. This code is

programmed and stored in the SKREEM/WCM, the PCM/ECM, and each ignition key transponder
chip. When the PCM/ECM or SKREEM/WCM is replaced, it is necessary to program the Secret
Key into the new module using a diagnostic scan tool. Follow the programming steps outlined in
the diagnostic scan tool for PCM REPLACED, ECM REPLACED, WCM REPLACED, or
GATEWAY REPLACED under MISCELLANEOUS FUNCTIONS for the WIRELESS CONTROL
MODULE/WCM menu item as appropriate.

NOTE: Programming the PCM/ECM or SKREEM is done using a diagnostic scan tool and a PIN to
enter secure access mode. If three

attempts are made to enter secure access mode using an incorrect PIN, secure access mode will
be locked out for one hour. To exit this lockout mode, turn the ignition to the RUN position for one
hour then enter the correct PIN. Be certain that all accessories are turned OFF. Also monitor the
battery state and connect a battery charger if necessary.

NOTE: Before replacing the ECU for a failed driver, control circuit or ground circuit, be sure to
check the related component/circuit integrity

for failures not detected due to a double fault in the circuit. Most ECM driver/control circuit failures
are caused by internal component failures (i.e. relay and solenoids) and shorted circuits (i.e.
pull-ups, drivers and switched circuits). These failures are difficult to detect when a double fault has
occurred and only one DTC has set.

ECM/SKIM/WCM PROGRAMMING
When a ECM and the SKIM are replaced at the same time perform the following steps in order:

1. Program the new SKIM 2. Program the new ECM 3. Replace all ignition keys and program them
to the new SKIM.

ECM/SKIM/WCM PROGRAMMING
When an ECM (Bosch) and the SKIM are replaced at the same time perform the following steps in

order:

1. Program the new SKIM 2. Program the new ECM (Bosch) 3. Replace all ignition keys and
program them to the new SKIM.

PROGRAMMING THE SKIM
CAUTION: Read all notes and cautions for programming procedures.

1. Connect a battery charger to the vehicle. 2. Connect the StarSCAN(R).
CAUTION: If the ECM/PCM and SKREEM/WCM are replaced at the same time, the ECM/PCM

MUST be programmed before the
SKREEM/WCM.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Testing and Inspection > Initial Inspection and Diagnostic Overview > Page 38

3. Select "ECU View". 4. Select "WCM Wireless Control Module". 5. Select "Miscellaneous
Functions". 6. Select WCM replaced. 7. Enter the PIN when prompted. 8. Verify the correct
information.

NOTE: If the ECM and the SKIM are replaced at the same time, all vehicle keys will need to be
replaced and programmed to the new SKIM.

PROGRAMMING IGNITION KEYS TO THE SKREEM
Each ignition key transponder also has a unique ID code that is assigned at the time the key is

manufactured. When a key is programmed into the SKREEM/WCM, the transponder ID code is
learned by the module and the transponder acquires the unique Secret Key ID code from the
SKREEM/WCM. To program ignition keys into the SKREEM/WCM, follow the programming steps
outlined in the diagnostic scan tool for PROGRAM IGNITION KEYS OR KEY FOBS under
MISCELLANEOUS FUNCTIONS for the WIRELESS CONTROL MODULE/WCM menu item.

NOTE: If the original keys do not successfully program to the new SKREEM after the proper
procedures are followed correctly,

programming new keys will be necessary.
NOTE: A maximum of eight keys can be learned to each SKREEM. Once a key is learned to a

SKREEM, that key has acquired the Secret
Key for that SKREEM and cannot be transferred to any other SKREEM or vehicle.
If ignition key programming is unsuccessful, the scan tool will display one of the following error

messages:

­PROGRAMMING NOT ATTEMPTED - The scan tool attempts to read the programmed key status

and there are no keys programmed into SKREEM memory.

- PROGRAMMING KEY FAILED (POSSIBLE USED KEY FROM WRONG VEHICLE) - SKREEM is
unable to program an ignition key transponder due to one of the following:

- The ignition key transponder is ineffective.

- The ignition key transponder is or has been already programmed to another vehicle.

- 8 KEYS ALREADY LEARNED, PROGRAMMING NOT DONE - The SKREEM transponder ID
memory is full.

- LEARNED KEY IN IGNITION - The ID for the ignition key transponder currently in the ignition lock
cylinder is already programmed into SKREEM memory.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) - Removal

Keyless Entry Module: Service and Repair Sentry Key Immobilizer Module (SKREEM) - Removal
REMOVAL
NOTE: The steering wheel does not have to be removed to service the SKREEM/WCM.
NOTE: The Steering Column Control Module (SCCM) assembly, which consists of the left/right

multi-function switches and the clockspring,
does not have to be removed to service the SKREEM/WCM. There is an access hole in the top of

the right multi-function switch to access the mounting screw (2).

1. Disconnect and isolate the battery negative cable.
WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before

beginning any airbag system or component service.
Failure to do so may result in accidental airbag deployment, personal injury or death.

2. Remove the upper and lower steering column shrouds See: Steering and
Suspension/Steering/Steering Column/Steering Column Cover/Service

and Repair/Steering Column Shroud - Removal and See: Steering and
Suspension/Steering/Steering Column/Steering Column Cover/Service and Repair/Steering
Column Shroud - Removal.

3. Remove the SKREEM/WCM mounting screw (2) on the ignition lock assembly and separate the
SKREEM/WCM (3) from the ignition lock

assembly.

4. Disconnect the SKREEM/WCM electrical connector (4). 5. Remove SKREEM/WCM (1 and 3)
from column (2).

When a PCM and the SKREEM/WCM are replaced at the same time, perform the following steps in
order See: Testing and Inspection/Programming and Relearning.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) - Removal > Page 41

- Program the new PCM.

- Program the new SKREEM/WCM.

- Replace all ignition keys and program them to the new SKREEM/WCM.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Keyless Entry Module >
Component Information > Service and Repair > Sentry Key Immobilizer Module (SKREEM) - Removal > Page 42

Keyless Entry Module: Service and Repair Sentry Key Immobilizer Module (SKREEM) - Installation
INSTALLATION
When a PCM and the SKREEM/WCM are replaced at the same time, perform the following steps in

order See: Testing and Inspection/Programming and Relearning.

- Program the new PCM.

- Program the new SKREEM/WCM.

- Replace all ignition keys and program them to the new SKREEM/WCM.

1. Position the SKREEM/WCM (3) on the ignition lock housing and install the retaining screw (2).

2. Connect the SKREEM/WCM electrical connector (4).
NOTE: On vehicles equipped with the optional Sentry Key Immobilizer System (SKIS), when the

SKREEM is replaced with a new unit, a
diagnostic scan tool MUST be used to initialize the new SKREEM and to program at least two

Sentry Key transponders before the vehicle can be operated . See: Accessories and Optional
Equipment/Antitheft and Alarm Systems/Alarm System Transponder/Testing and Inspection

3. Connect the battery negative cable.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Seat Heater Control Module >
Component Information > Locations

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Seat Heater Control Module >
Component Information > Locations > Page 46

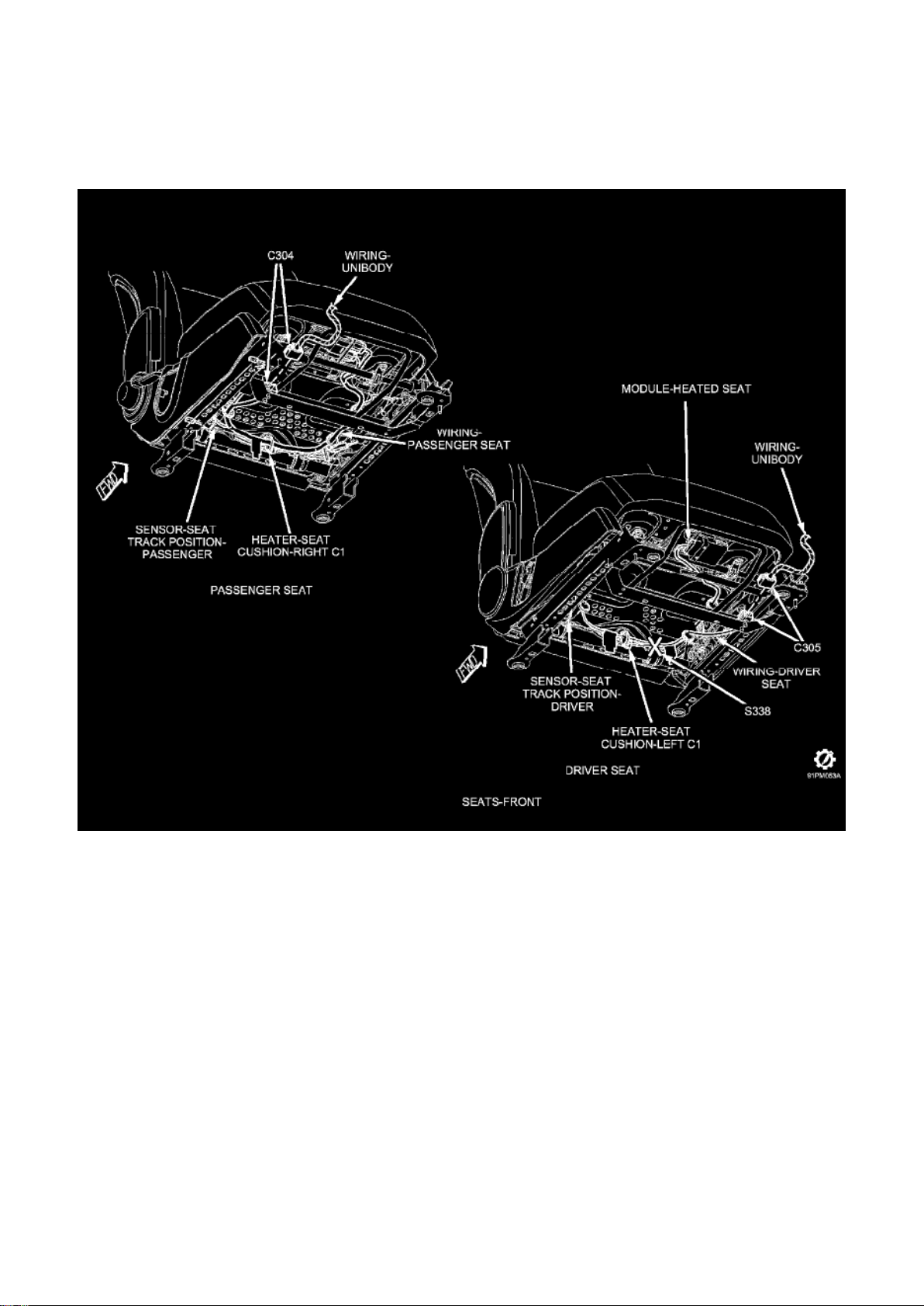

Seat Heater Control Module: Diagrams

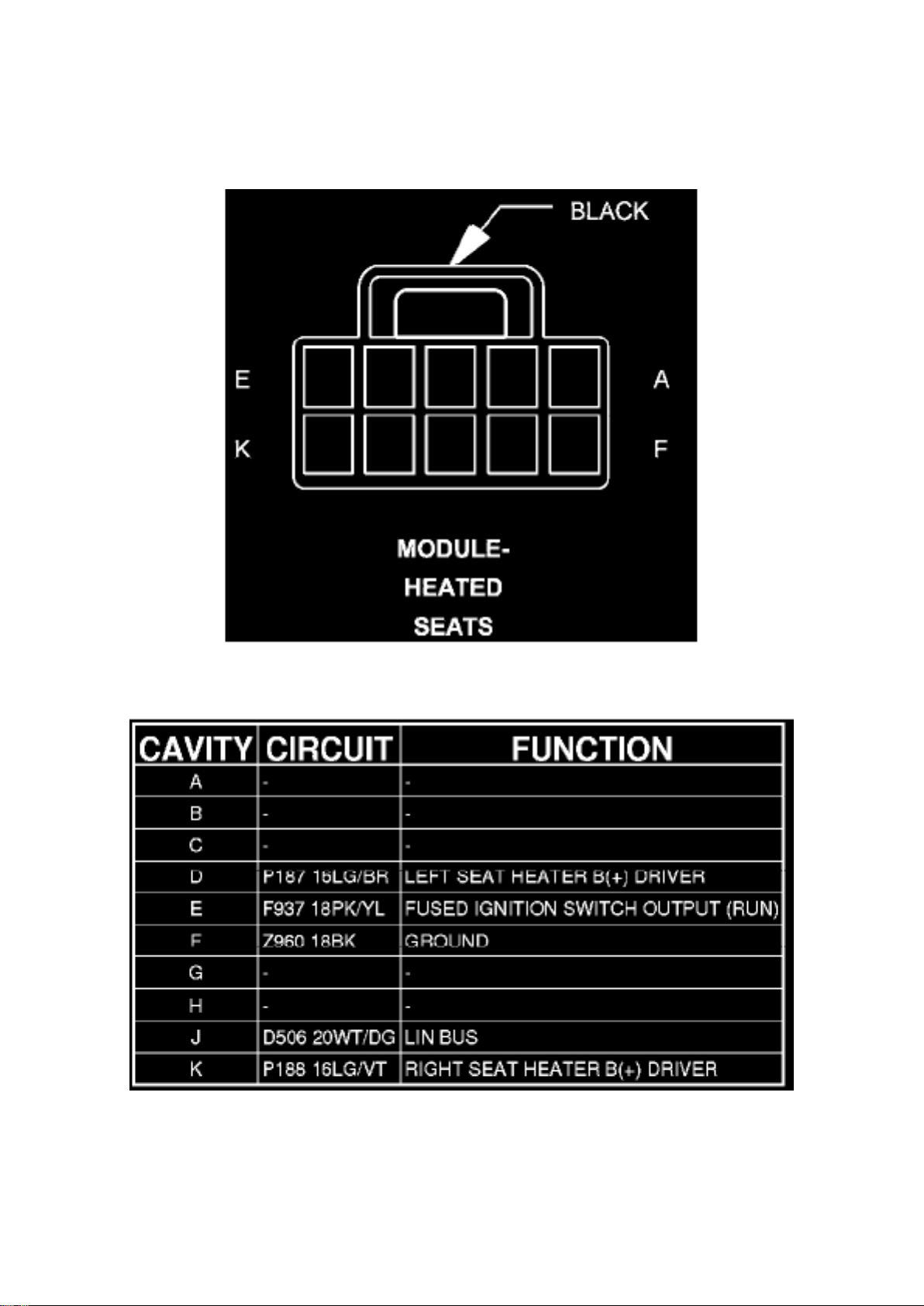

Connector - (DRIVER SEAT) 10 WAY

MODULE-HEATED SEATS - (DRIVER SEAT) 10 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Seat Heater Control Module >
Component Information > Description and Operation > Heated Seat Module - Description

Seat Heater Control Module: Description and Operation Heated Seat Module - Description
DESCRIPTION

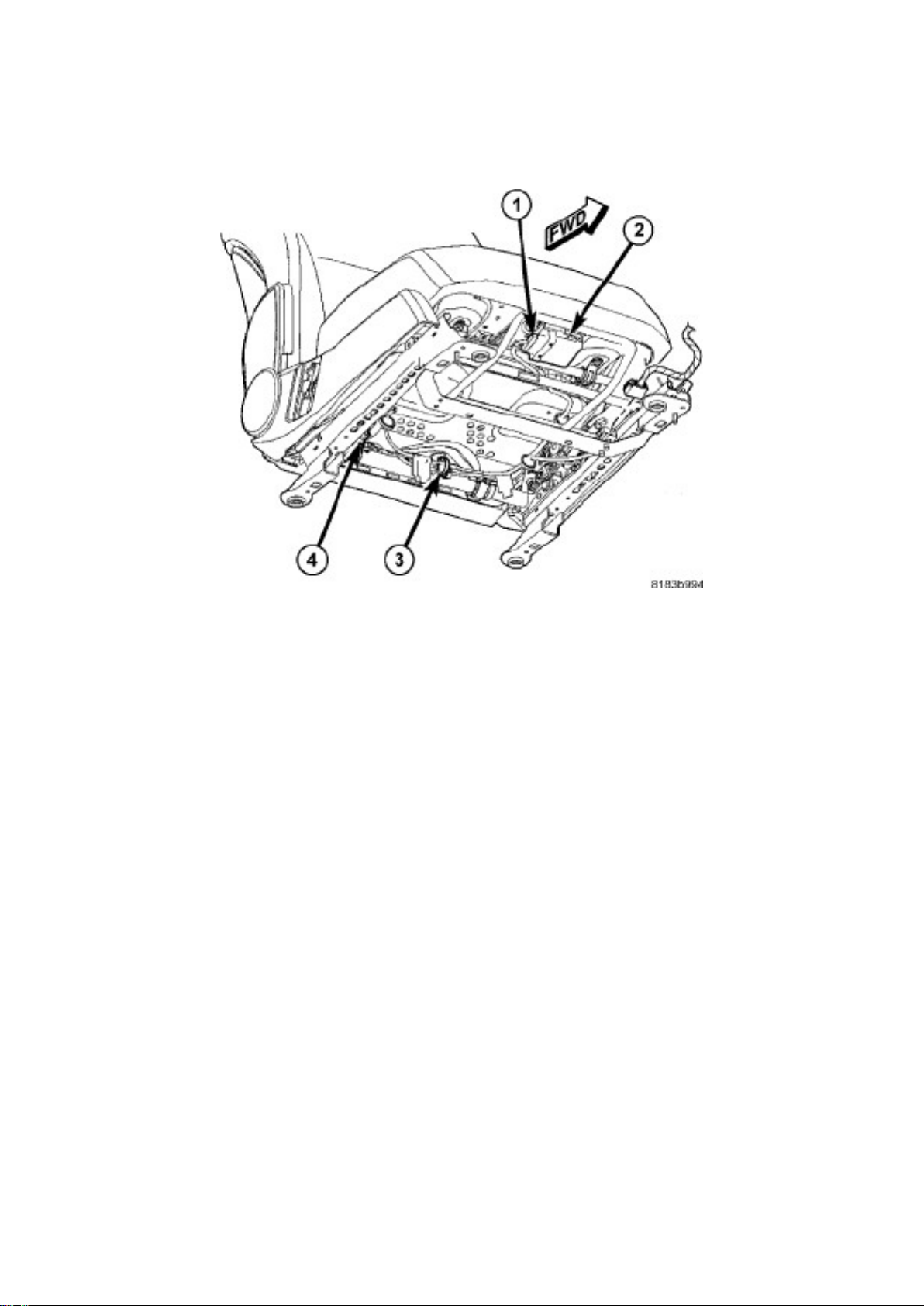

The heated seat module (2) is located under the left front seat. It has a single electrical connector

(1) and a push pin style retainer that secures it to the seat pan. The module can be accessed from
under the front left seat with the seat in the full back position.

The heated seat module is a microprocessor designed to use the Local Interface Network (LIN)
data bus messages from the instrument cluster also known as the Cabin Compartment Node
(CCN). The CCN receives inputs from the heated seat switches and in turn signals the heated seat
module to operate the heated seat elements for both front seats.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Seat Heater Control Module >
Component Information > Description and Operation > Heated Seat Module - Description > Page 49

Seat Heater Control Module: Description and Operation Heated Seat Module - Operation
OPERATION
The heated seat module operates on fused battery current received from the ignition switch. The

module is grounded to the body at all times through the electrical connector. Inputs to the module
include Local Interface Network (LIN) data bus messages and standard hardwired 12 volt power
and ground. In response to the LIN inputs the heated seat module will control the battery current to
the appropriate heated seat elements.

When a heated seat switch LIN data bus signal is received by the heated seat module, the module
energizes the selected heated seat element. The Low heat set point is about 38° C (100.4° F), and
the High heat set point is about 42° C (107.6° F).

In addition to operating the heated seat elements, the heated seat module sends LED illumination
messages to the CCN via the LIN data bus. The CCN then sends the LED illumination message to
the accessory switch bank so that the appropriate LEDs are illuminated for any given heating level.
Pressing the switch once will select high-level heating. Pressing the switch a second time will
select low-level heating. Pressing the switch a third time will shut the heating elements off.

If the heated seat module detects a heated seat element OPEN or SHORT circuit, it will record and
store the appropriate diagnostic trouble code (DTC).

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Seat Heater Control Module >
Component Information > Description and Operation > Page 50

Seat Heater Control Module: Testing and Inspection
HEATED SEAT MODULE
In order to obtain conclusive testing, the heated seat system and the Local Interface Network (LIN)

data bus circuit must be checked. Any diagnosis of the heated seat system should begin with, the
use of a scan tool and the appropriate diagnostic service information.

Refer to the appropriate wiring information for complete circuit schematic or connector pin-out
information.

NOTE: Vehicles equipped with the heated seat option utilize a low voltage cut-off feature. This
feature turns off power to the heated seat

system anytime vehicle voltage is below 11.7v or above 15.5v. Be certain to check the vehicle
electrical system for proper voltage anytime the power seat system appears inoperative.

Before any testing of the heated seat system is attempted, the battery should be fully-charged.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Seat Heater Control Module >
Component Information > Service and Repair > Heated Seat Module - Removal

Seat Heater Control Module: Service and Repair Heated Seat Module - Removal
REMOVAL
CAUTION: The Heated Seat Module mounting tab can be damaged during module removal and

installation. Use care to properly align tab to
prevent binding that could result in tab breakage.

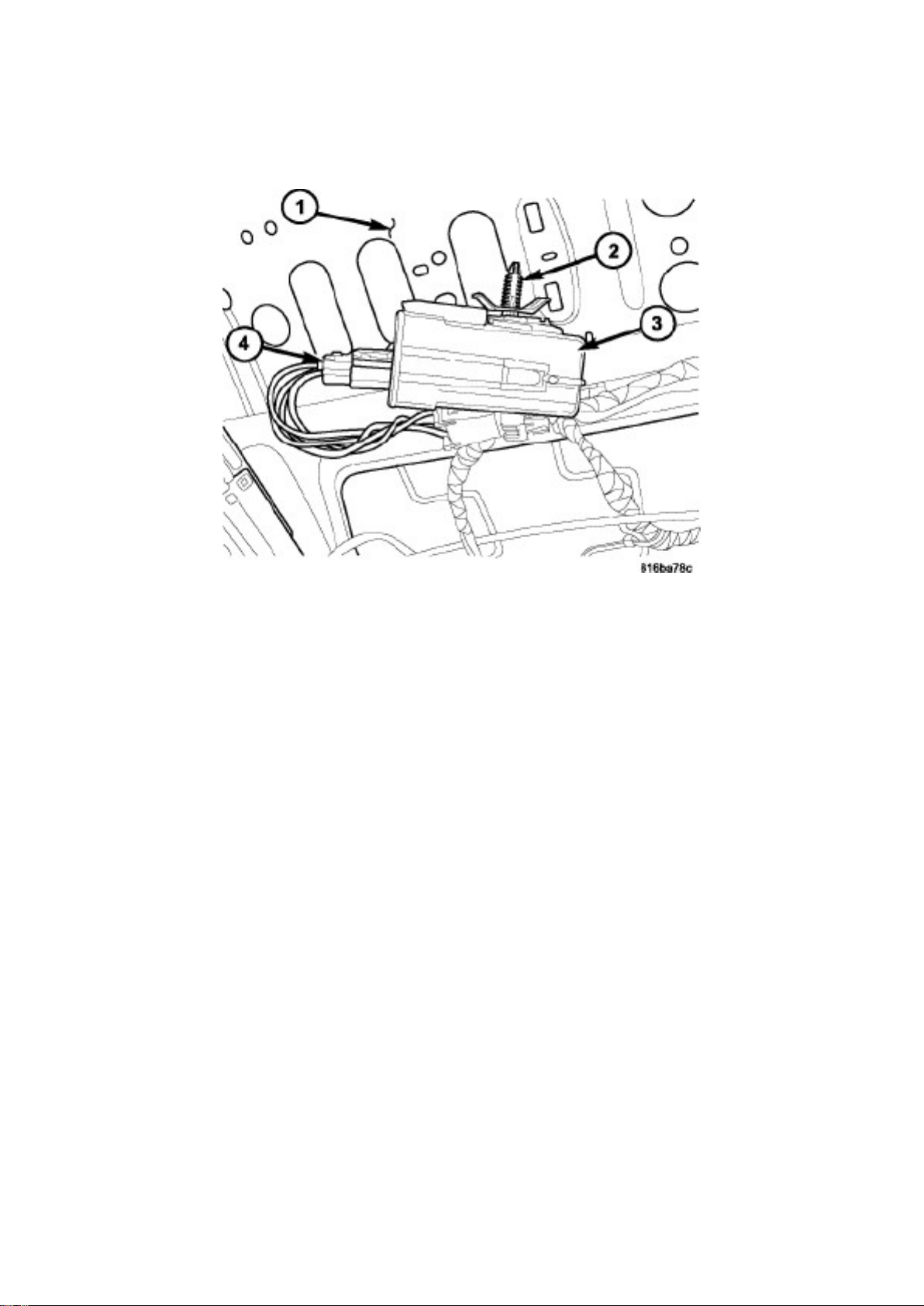

1. Position the left front seat to the full rearward position. 2. Disconnect and isolate the battery
negative cable. 3. Disconnect the wire harness connector (4) from the heated seat module (3). 4.
Unsnap the heated seat module retaining tab (2) from the seat pan (1). 5. Remove the heated seat
module (3) from the vehicle.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Seat Heater Control Module >
Component Information > Service and Repair > Heated Seat Module - Removal > Page 53

Seat Heater Control Module: Service and Repair Heated Seat Module - Installation
INSTALLATION
CAUTION: The Heated Seat Module mounting tab can be damaged during module removal and

installation. Use care to properly align tab to
prevent binding that could result in tab breakage.

1. Install the heated seat module (3) into the vehicle. 2. Position the retaining tab (2) with the
mounting hole in the seat pan (1). Firmly apply even pressure to the module (3) until the mounting
tab is

fully seated.

3. Connect the wire harness connector (4) to the heated seat module (3). 4. Connect the battery
negative cable. 5. Check for proper heated seat system operation.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Trailer Towing Relay >

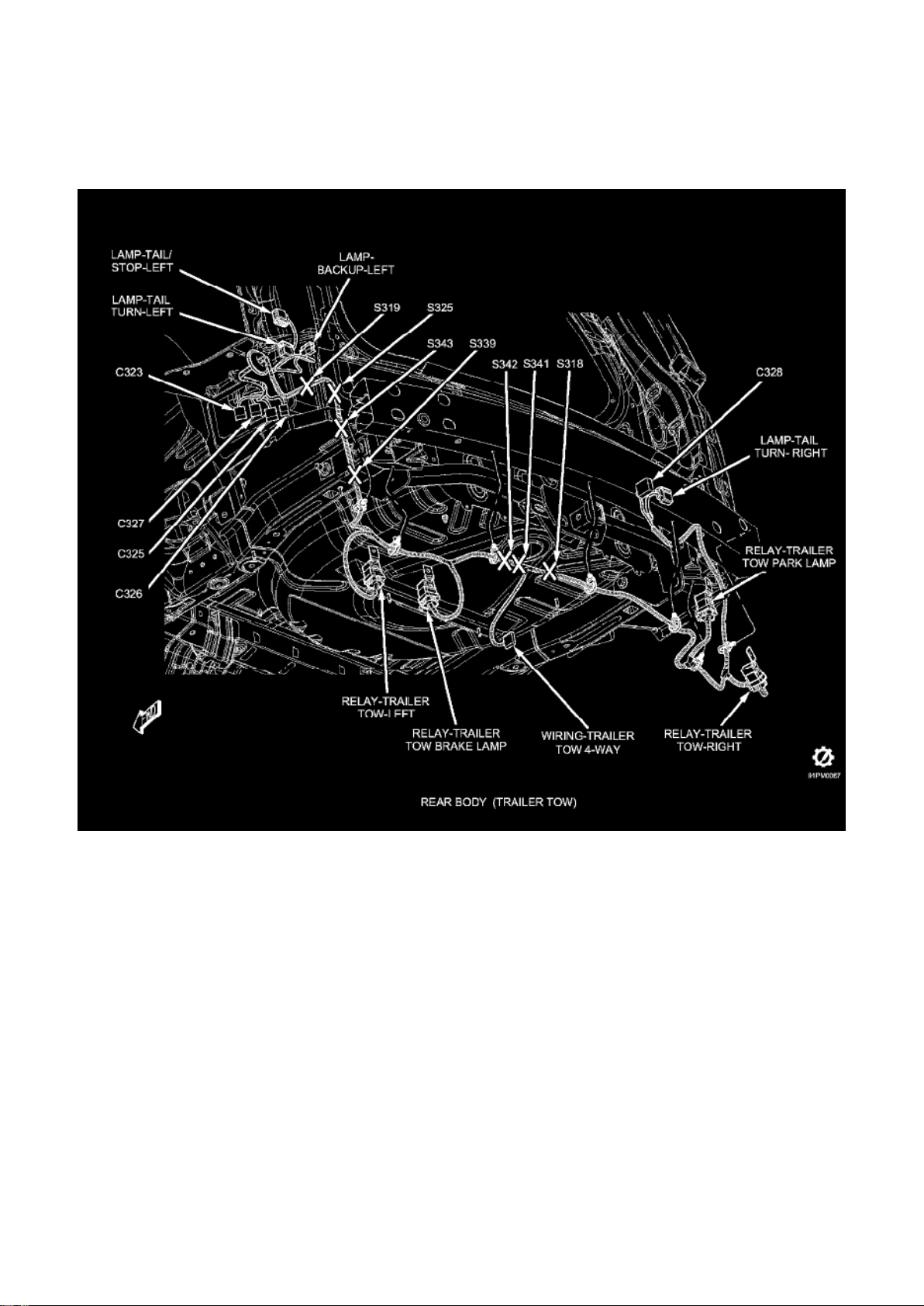

Component Information > Locations

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Trailer Towing Relay >
Component Information > Diagrams > Trailer Tow Lamp Relay (Trailer Tow) 4 Way

Trailer Towing Relay: Diagrams Trailer Tow Lamp Relay (Trailer Tow) 4 Way
Connector - (TRAILER TOW) 4 WAY

RELAY-TRAILER TOW BRAKE LAMP - (TRAILER TOW) 4 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Trailer Towing Relay >
Component Information > Diagrams > Trailer Tow Lamp Relay (Trailer Tow) 4 Way > Page 59

Trailer Towing Relay: Diagrams Left Trailer Tow Relay (Trailer Tow) 5 Way
Connector - (TRAILER TOW) 5 WAY

RELAY-TRAILER TOW-LEFT - (TRAILER TOW) 5 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Body and Frame > Trailer Towing Relay >
Component Information > Diagrams > Trailer Tow Lamp Relay (Trailer Tow) 4 Way > Page 60

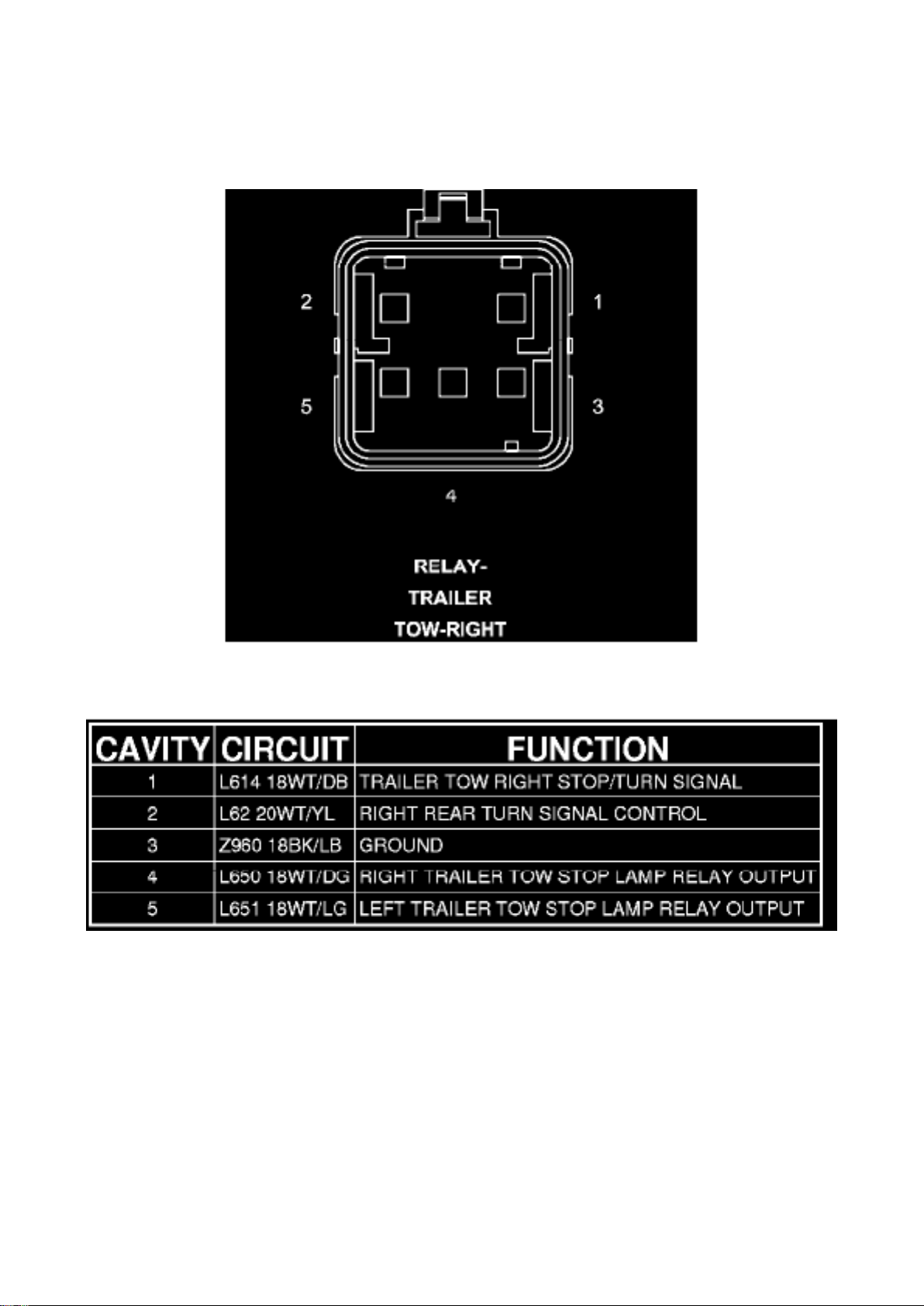

Trailer Towing Relay: Diagrams Right Trailer Tow Relay (Trailer Tow) 5 Way
Connector - (TRAILER TOW) 5 WAY

RELAY-TRAILER TOW-RIGHT - (TRAILER TOW) 5 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake
Control Module > Component Information > Locations

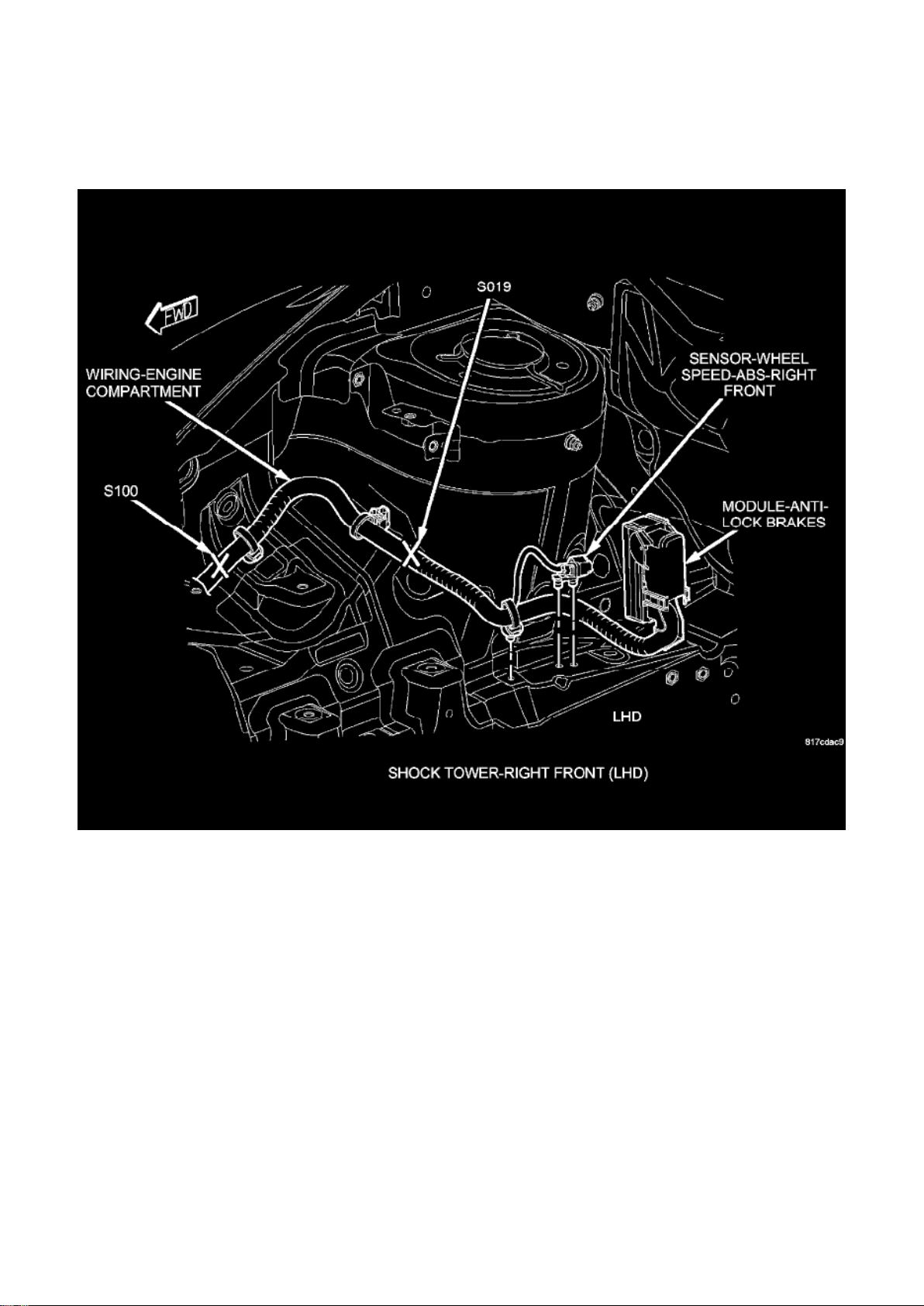

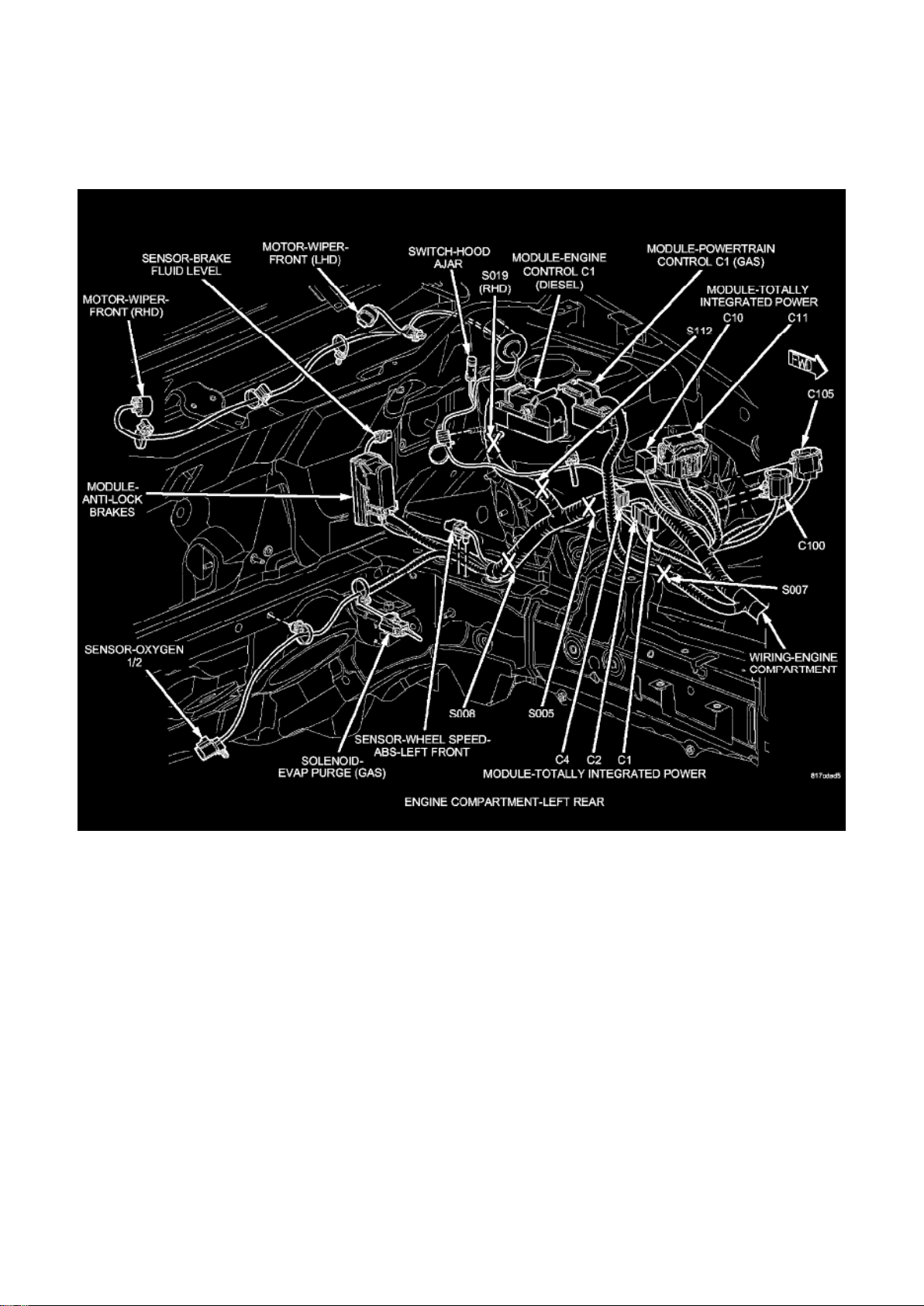

Electronic Brake Control Module: Locations

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake
Control Module > Component Information > Locations > Page 65

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake
Control Module > Component Information > Locations > Page 66

Electronic Brake Control Module: Diagrams
Connector - (ENGINE COMPARTMENT) 47 WAY

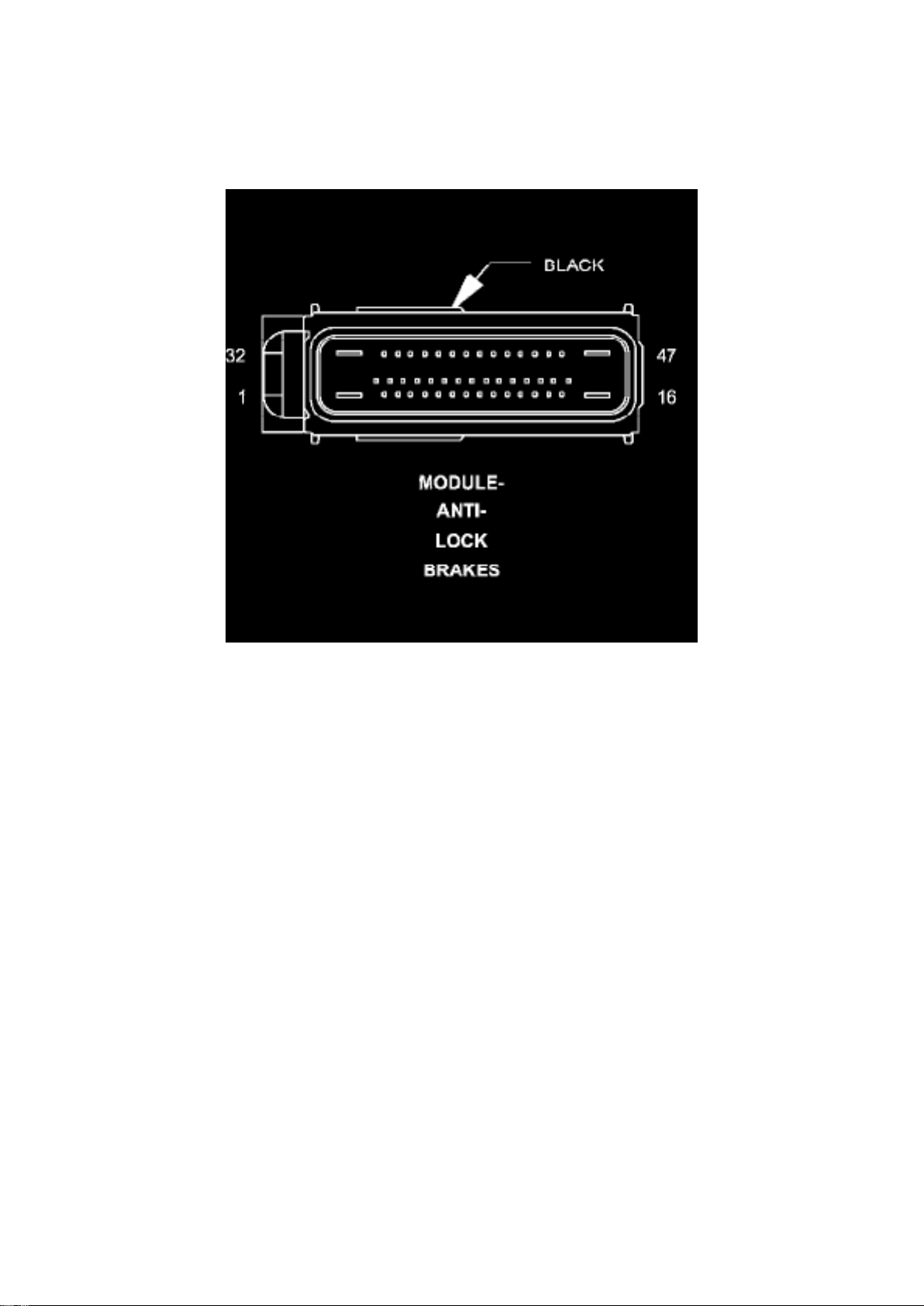

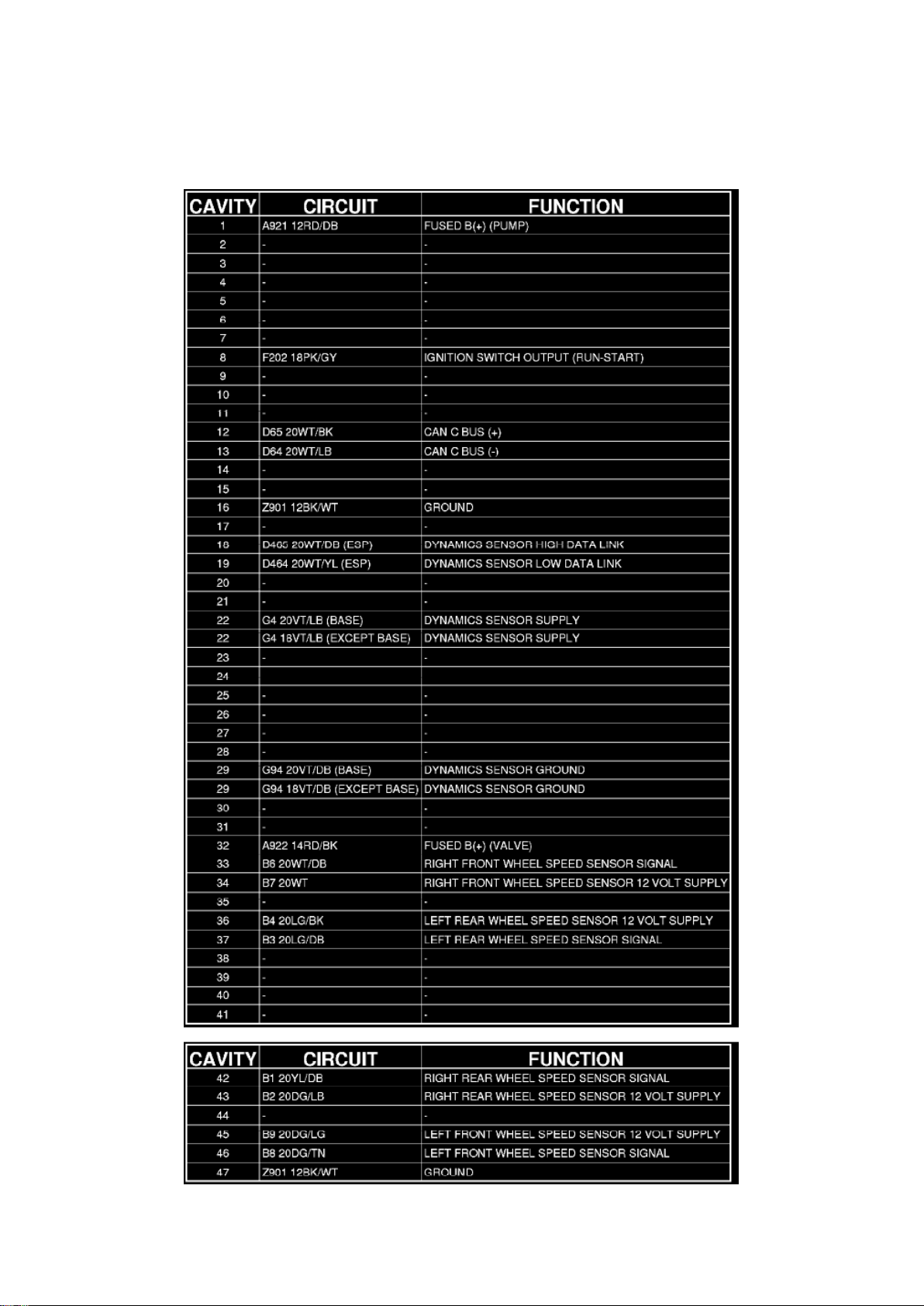

MODULE-ANTI-LOCK BRAKES - (ENGINE COMPARTMENT) 47 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake
Control Module > Component Information > Locations > Page 67

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake
Control Module > Component Information > Description and Operation > Anti-Lock Brake System Module - Description

Electronic Brake Control Module: Description and Operation Anti-Lock Brake System Module ­Description

DESCRIPTION
The Antilock Brake Module (ABM) is a microprocessor-based device which monitors the antilock

brake system (ABS) during normal braking and controls it when the vehicle is in an ABS stop or
when in a traction control or Electronic Stability Program (ESP) situation. The ABM utilizes a
47-way electrical connector on the vehicle wiring harness. The power source for the ABM is
through the ignition switch in the RUN or ON position.

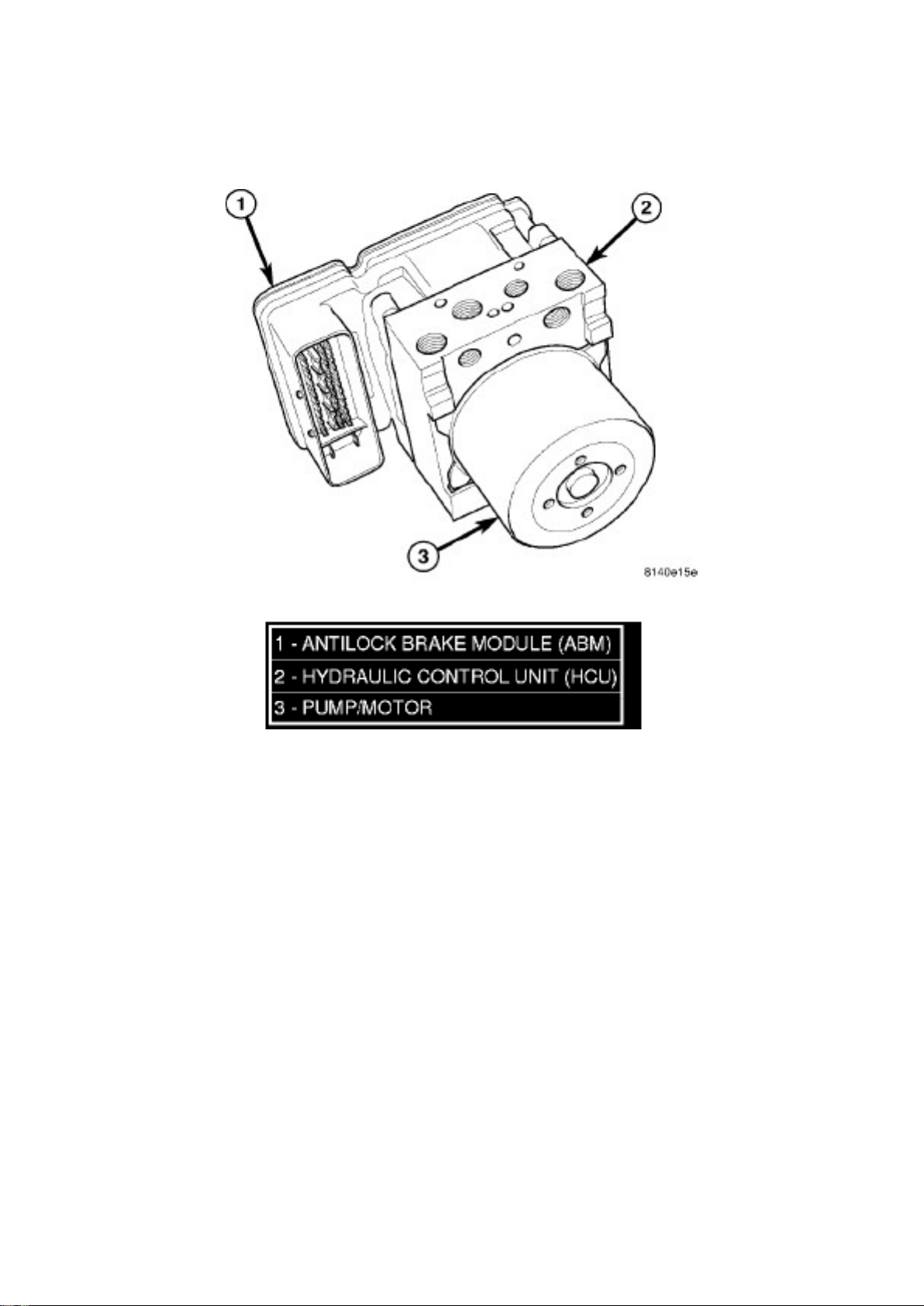

The ABM (1) is mounted to the HCU (2) as part of the Integrated Control Unit (ICU). The ICU is
located in the engine compartment on the inboard side of the right body frame rail behind the strut
tower. For information on the ICU, See: Brakes and Traction Control/Antilock Brakes / Traction
Control Systems/Hydraulic Control Assembly - Antilock Brakes/Description and
Operation/Integrated Control Unit (ICU) - Description - DESCRIPTION).

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake
Control Module > Component Information > Description and Operation > Anti-Lock Brake System Module - Description >
Page 70

Electronic Brake Control Module: Description and Operation Anti-Lock Brake System Module ­Operation

OPERATION
The primary functions of the Antilock Brake Module (ABM) are to:

- Monitor the Antilock Brake System (ABS) and Electronic Stability Program (ESP) for proper
operation.

- Detect wheel locking or wheel slipping tendencies by monitoring the speed of all four wheels of
the vehicle.

- Control fluid modulation to the wheel brakes while the system is in ABS or traction control mode.

- Modulates fluid pressure to the wheel brakes to control vehicle yaw rate in ESP mode.

- Store diagnostic information.

- Provide communication to the scan tool while in diagnostic mode.

- Illuminate the amber ABS indicator in the instrument cluster.

- Illuminate the yellow ESP/BAS indicator in the instrument cluster (if equipped).
The ABM constantly monitors the ABS and ESP (if equipped) for proper operation. If the ABM

detects a fault, it will turn on the amber ABS and yellow ESP/BAS indicators and disable the ABS
or ESP if so equipped. The normal base braking system will remain operational at that time.

The ABM continuously monitors the speed of each wheel through the signals generated by the
wheel speed sensors to determine if any wheel is beginning to lock. When a wheel locking
tendency is detected, the ABM commands the ABM solenoid coils to actuate. The coils then open
and close the valves in the HCU that modulate brake fluid pressure in some or all of the hydraulic
circuits. The ABM continues to control pressure in individual hydraulic circuits until a locking
tendency is no longer present.

Dodge Caliber Workshop Manual (L4-2.4L (2009))

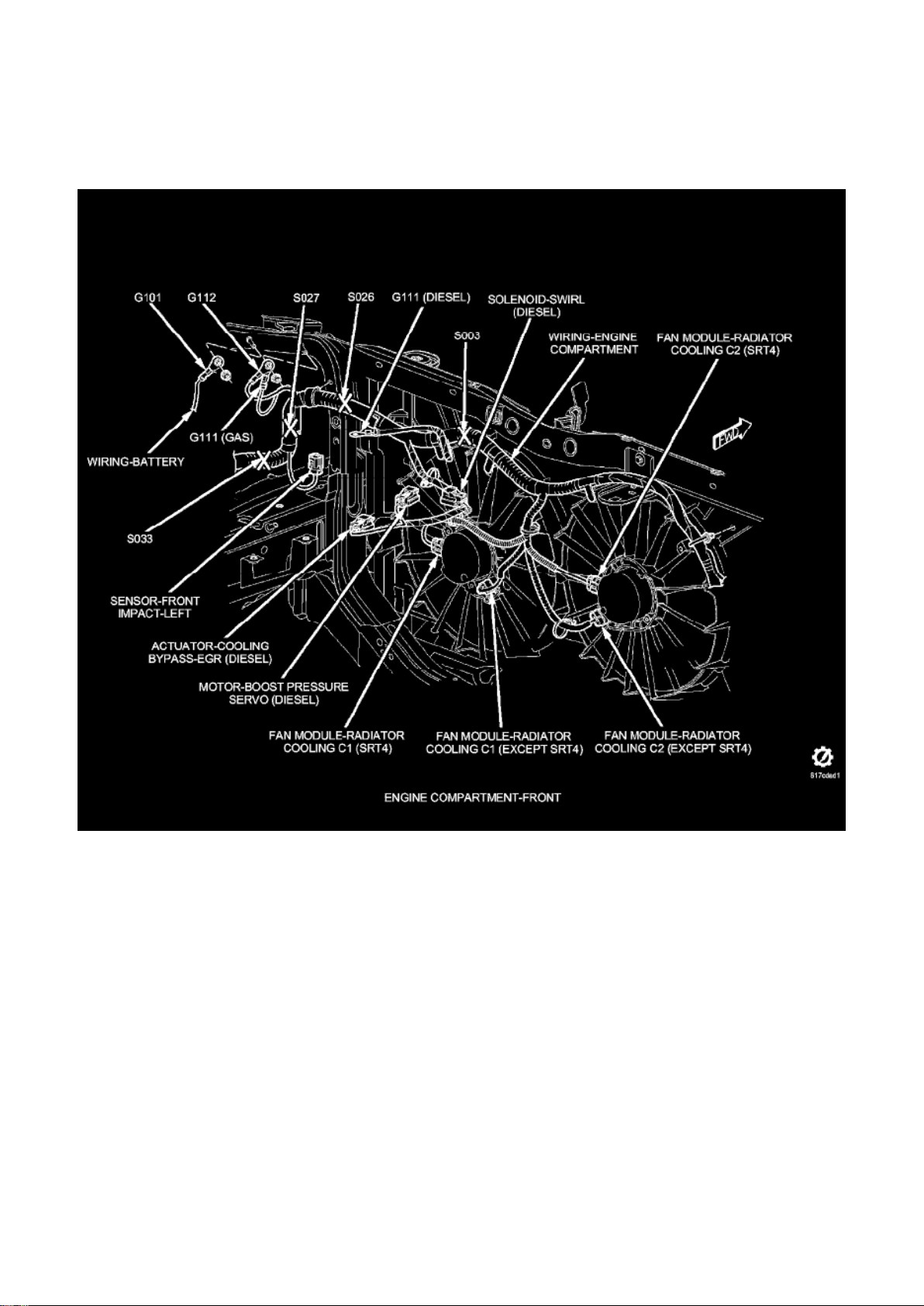

Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Control
Module > Component Information > Locations

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Control
Module > Component Information > Diagrams > Radiator Cooling Fan Module C1 (Engine Compartment) 2 Way

Radiator Cooling Fan Control Module: Diagrams Radiator Cooling Fan Module C1 (Engine
Compartment) 2 Way

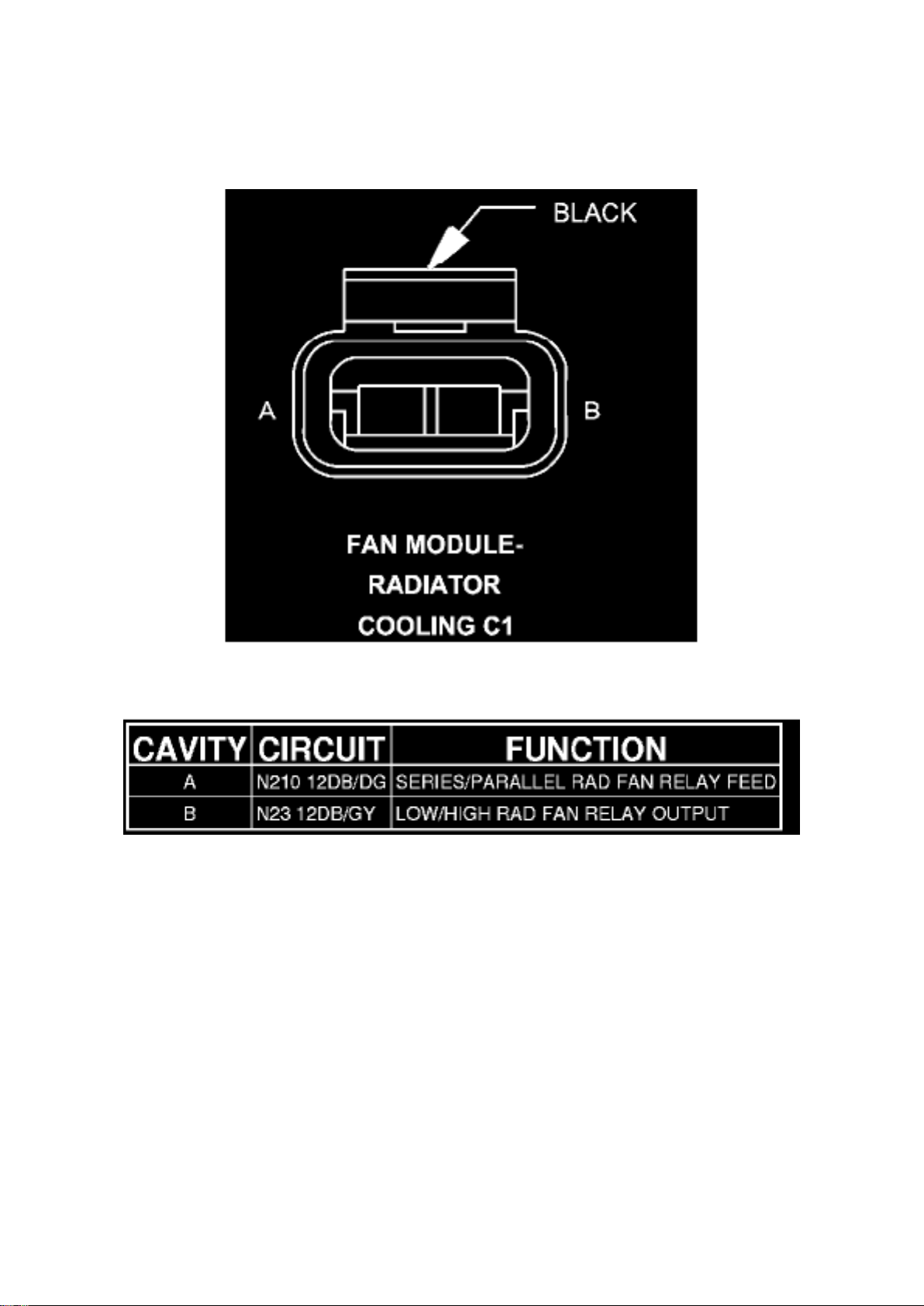

Connector C1 - (ENGINE COMPARTMENT) 2 WAY

FAN MODULE-RADIATOR COOLING - (ENGINE COMPARTMENT) 2 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Control
Module > Component Information > Diagrams > Radiator Cooling Fan Module C1 (Engine Compartment) 2 Way > Page 77

Radiator Cooling Fan Control Module: Diagrams Radiator Cooling Fan Module C2 (Engine
Compartment) 2 Way

Connector C2 - (ENGINE COMPARTMENT) 2 WAY

FAN MODULE-RADIATOR COOLING - (ENGINE COMPARTMENT) 2 WAY

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor
Relay > Component Information > Locations

Radiator Cooling Fan Motor Relay: Locations

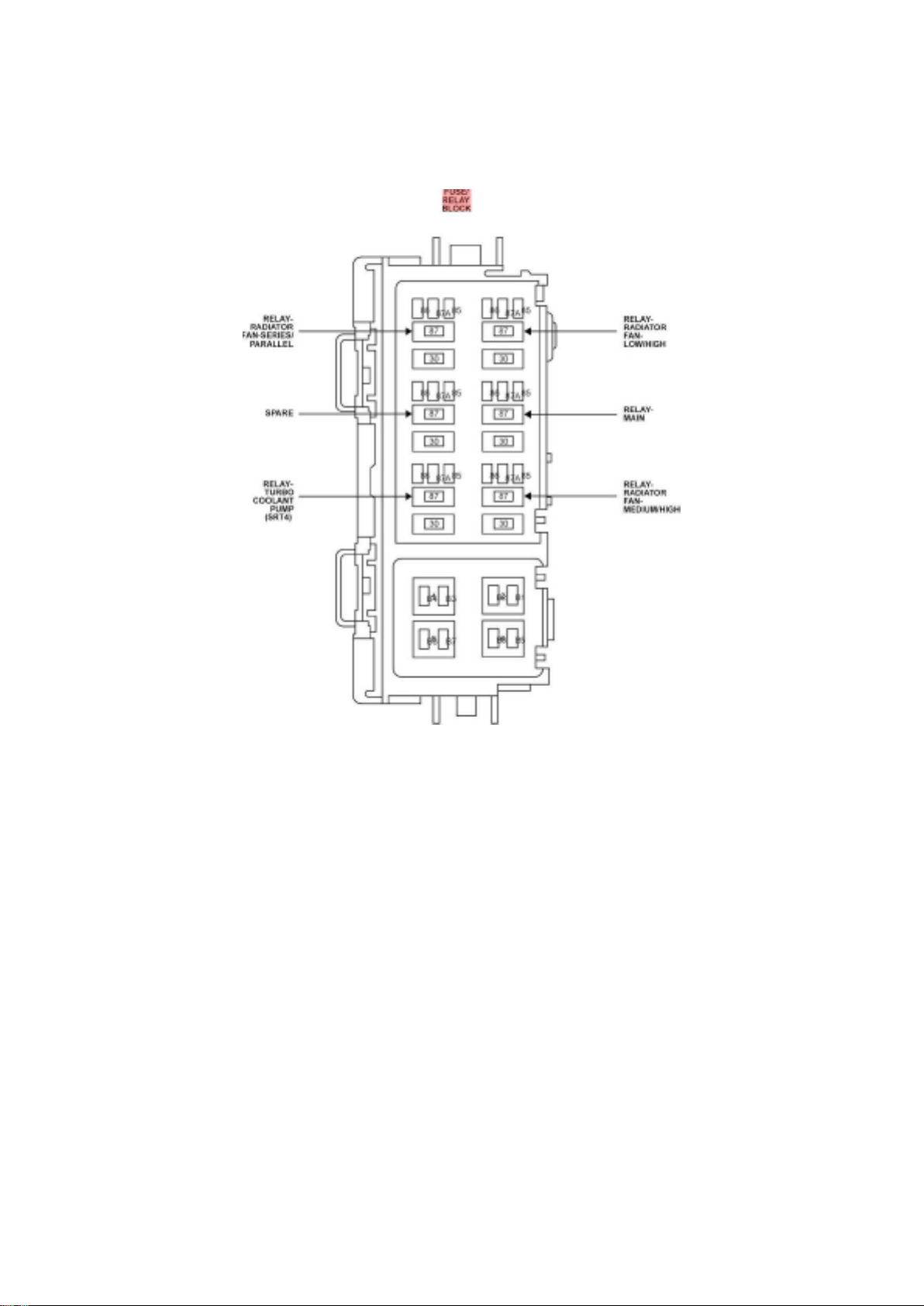

Radiator Fan Relays are located in the Fuse/Relay block.
Fuse/Relay Block

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor
Relay > Component Information > Diagrams > Relay-Radiator Fan-Low/High

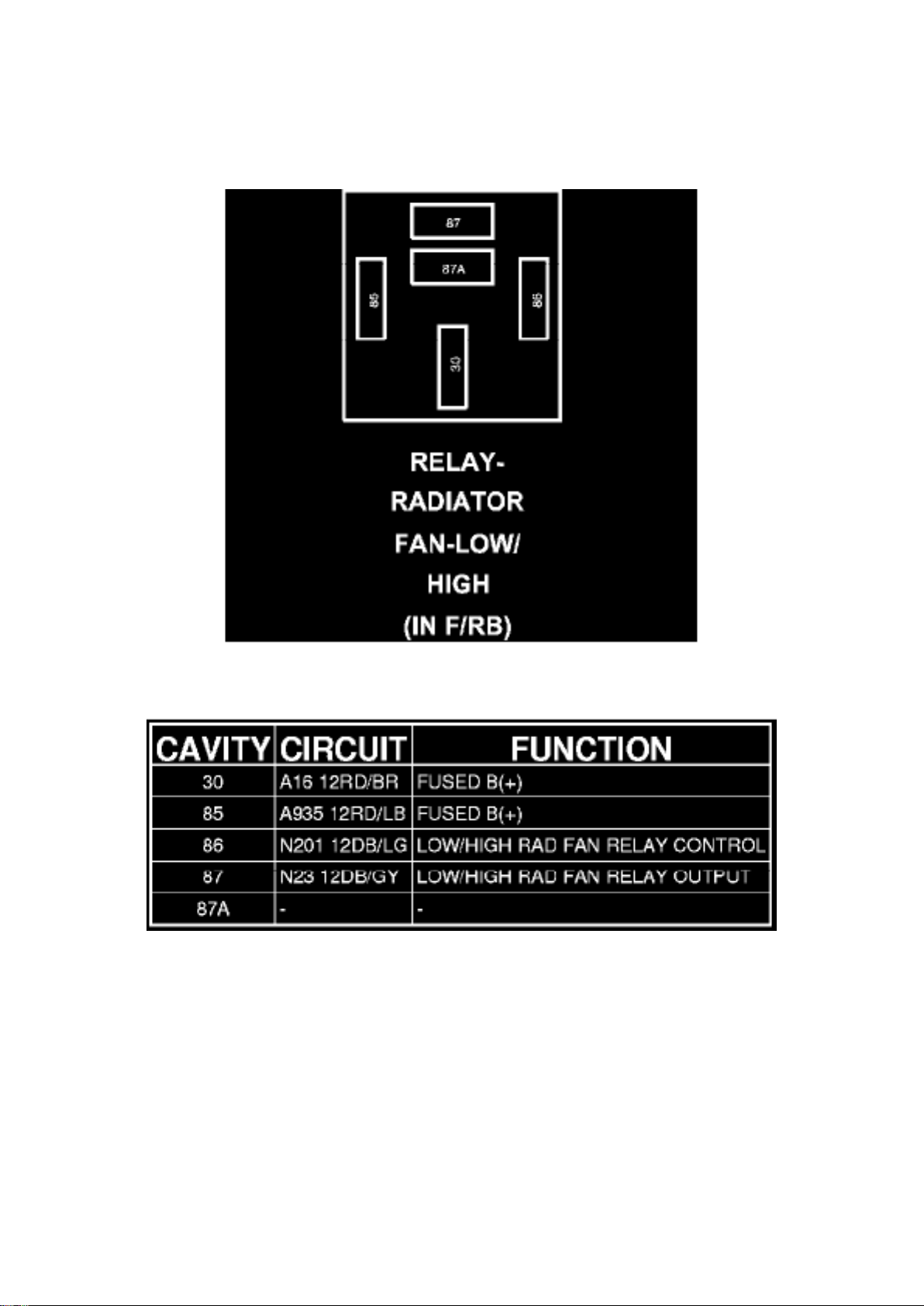

Radiator Cooling Fan Motor Relay: Diagrams Relay-Radiator Fan-Low/High
Connector - (IN F/RB)

RELAY-RADIATOR FAN-LOW/HIGH - (IN F/RB)

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor
Relay > Component Information > Diagrams > Relay-Radiator Fan-Low/High > Page 83

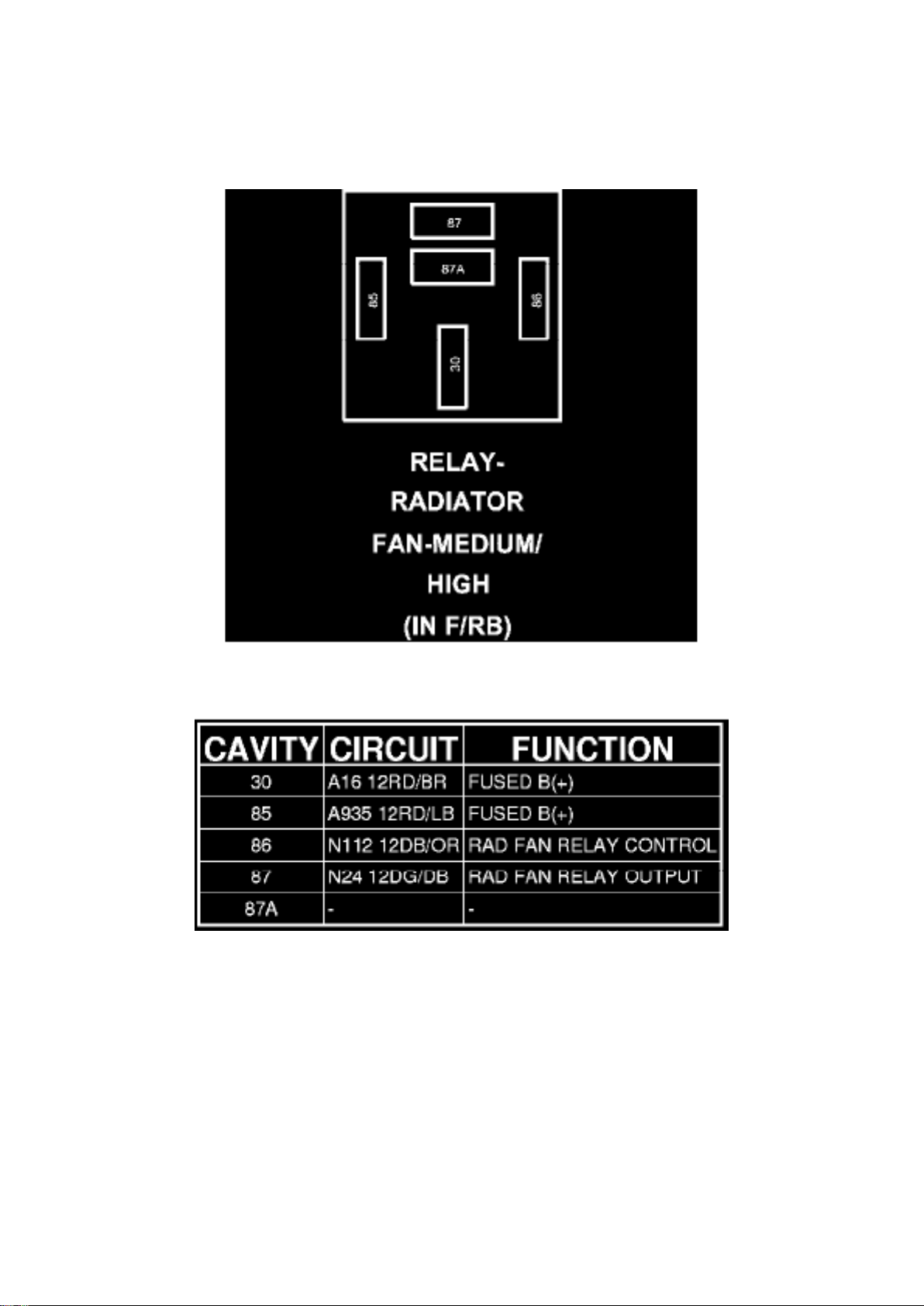

Radiator Cooling Fan Motor Relay: Diagrams Relay-Radiator Fan-Medium/High
Connector - (IN F/RB)

RELAY-RADIATOR FAN-MEDIUM/HIGH - (IN F/RB)

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor
Relay > Component Information > Diagrams > Relay-Radiator Fan-Low/High > Page 84

Radiator Cooling Fan Motor Relay: Diagrams Relay-Radiator Fan-Series/Parallel
Connector - (IN F/RB)

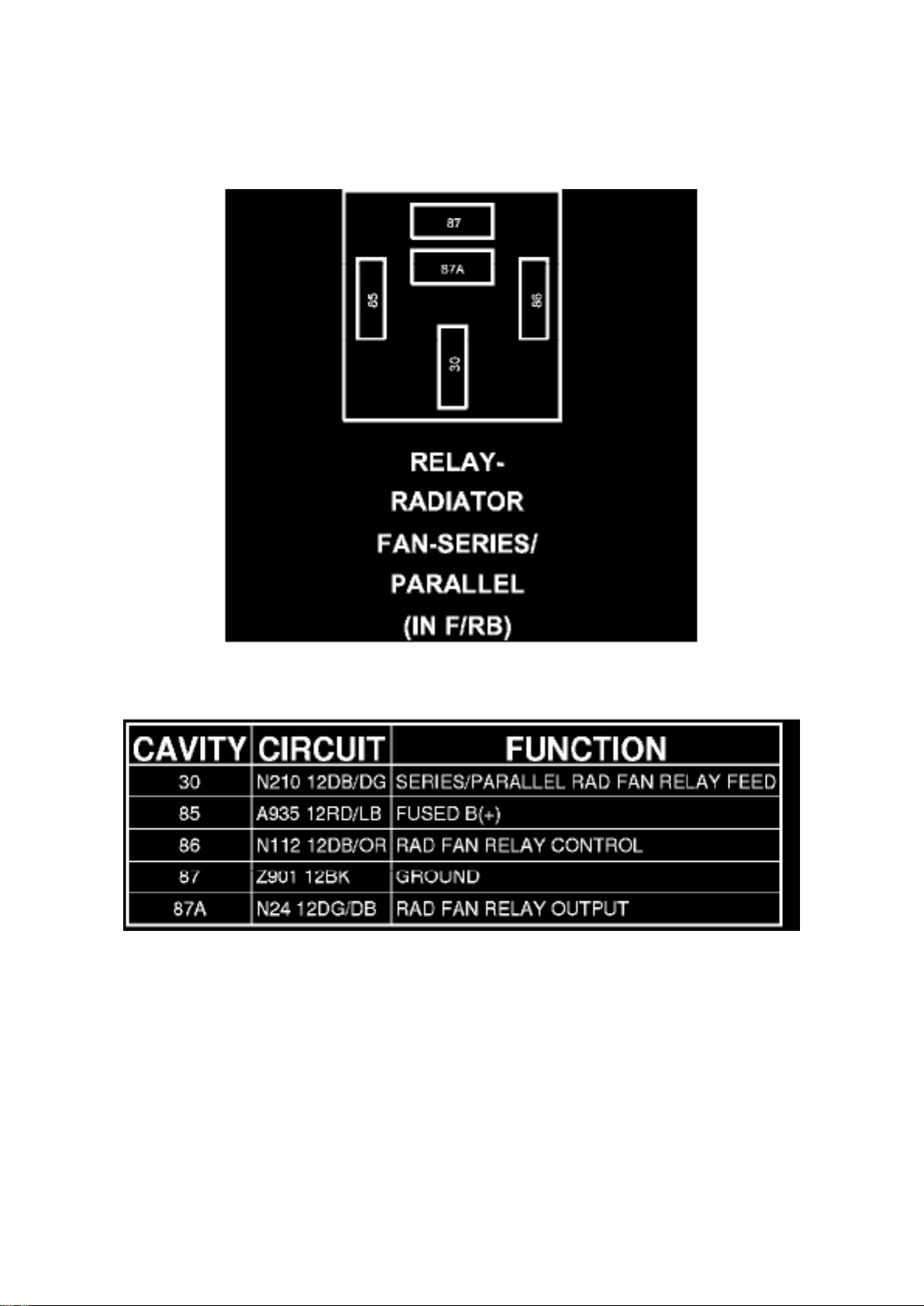

RELAY-RADIATOR FAN-SERIES/PARALLEL - (IN F/RB)

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module >
Component Information > Technical Service Bulletins > Customer Interest for Fuel Gauge Module: > 08-024-10 > Sep > 10
> Instruments - Fuel Gauge Fluctuation

Fuel Gauge Module: Customer Interest Instruments - Fuel Gauge Fluctuation
NUMBER: 08-024-10
GROUP: Electrical
DATE: September 22, 2010
SUBJECT: Fuel Gauge Fluctuation
OVERVIEW: This Bulletin involves replacing the fuel sending unit, clocking the fuel module and

installing a fuel jumper hose.
MODELS:
2007 - 2010 (PM) Caliber (FWD Only)
2007 - 2010 (MK) Compass / Patriot (FWD Only)
SYMPTOM/CONDITION:
The customer may complain that the fuel gauge is not accurate or fluctuates at 3/4 of a tank or

above.
DIAGNOSIS: Some customers may experience the condition described above. Preform the repair

as described below.

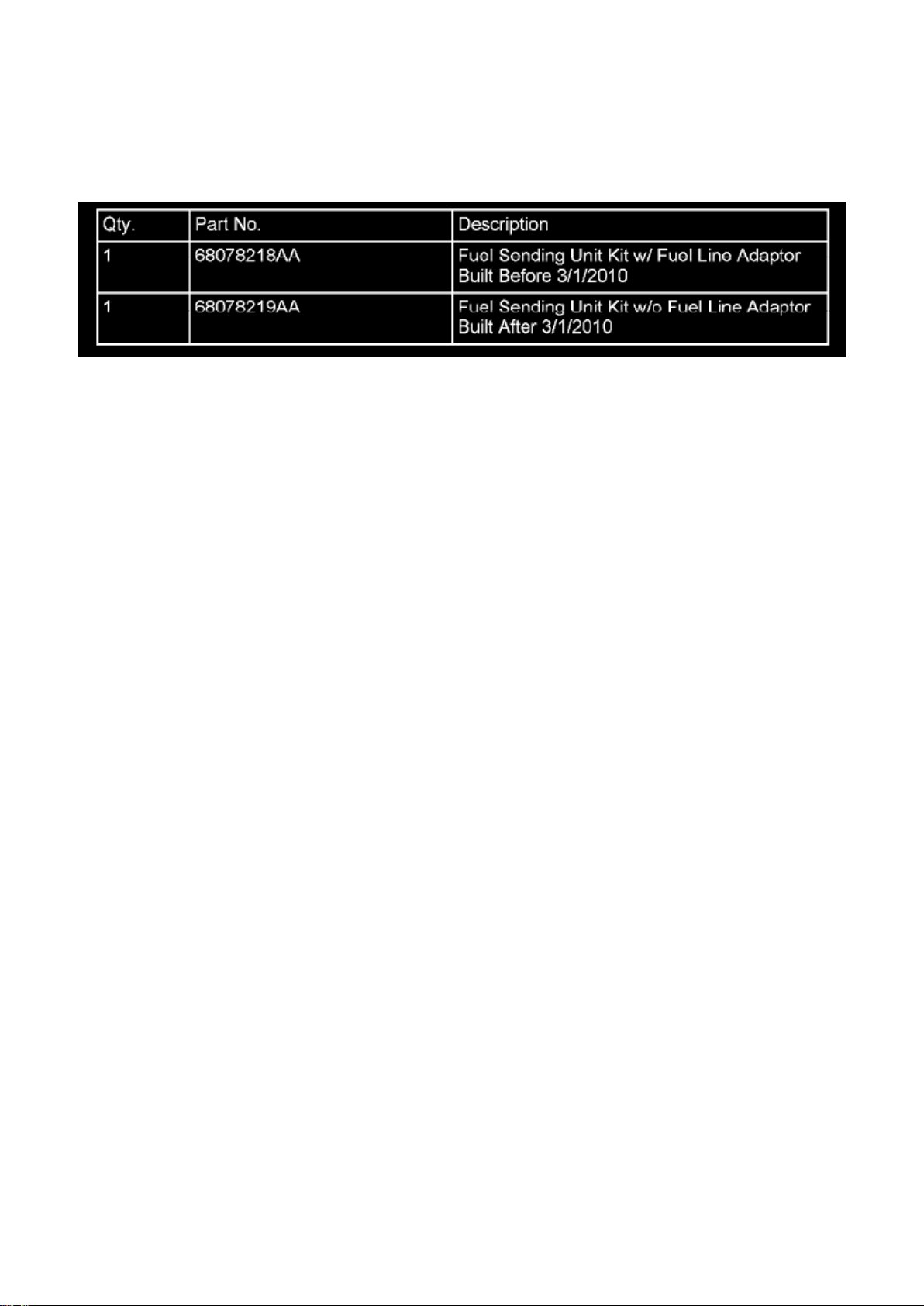

PARTS REQUIRED:
REPAIR PROCEDURE:

1. Remove the Fuel Pump Module using procedures found in DealerConnect > TechConnect >
14-Fuel System > Fuel Delivery, Gas > Module, Fuel

Pump > Removal > Front Wheel Drive

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module >
Component Information > Technical Service Bulletins > Customer Interest for Fuel Gauge Module: > 08-024-10 > Sep > 10
> Instruments - Fuel Gauge Fluctuation > Page 94

NOTE:

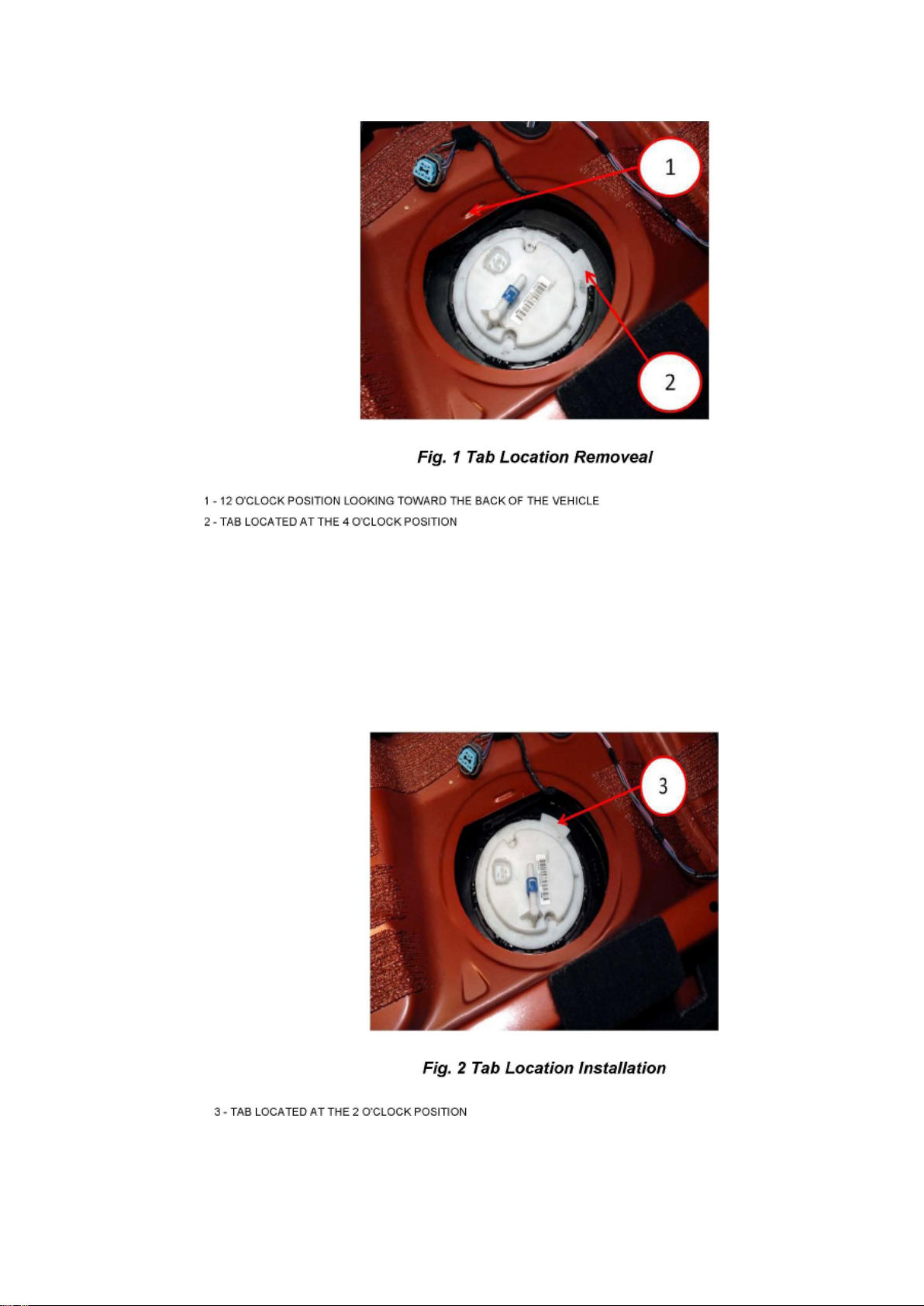

Mark the sending unit at the 4:00 position with 12:00 pointing to the rear of the vehicle.

2. Remove the fuel pump sending unit from the Pump module.

3. Install New Sender to the Fuel Pump Module.

4. Install Fuel Pump Module using procedures found in DealerConnect > TechConnect > 14-Fuel
System > Fuel Delivery, Gas > Module, Fuel Pump >

Installation > Front Wheel Drive
NOTE:
Clock the Fuel Module to the 2:00 position

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module >
Component Information > Technical Service Bulletins > Customer Interest for Fuel Gauge Module: > 08-024-10 > Sep > 10
> Instruments - Fuel Gauge Fluctuation > Page 95

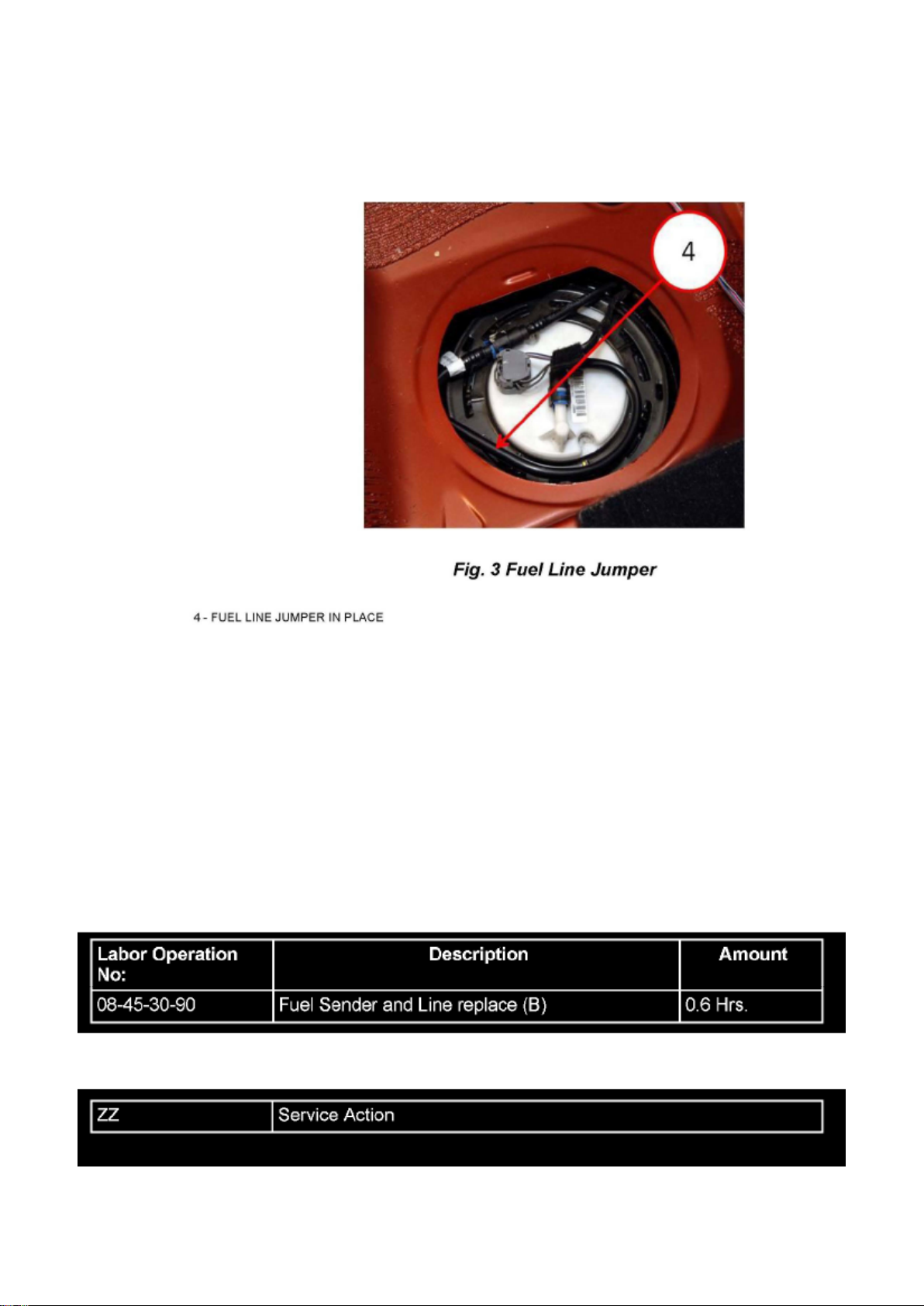

5. Install the jumper hose kit

6. Re-Connect battery

7. Start vehicle and check for leaks

8. Re-install Fuel Pump Cover

9. Re-install padding and rear seat bottom

10. Return vehicle to customer.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module >
Component Information > Technical Service Bulletins > All Technical Service Bulletins for Fuel Gauge Module: > 08-024-10
> Sep > 10 > Instruments - Fuel Gauge Fluctuation

Fuel Gauge Module: All Technical Service Bulletins Instruments - Fuel Gauge Fluctuation
NUMBER: 08-024-10
GROUP: Electrical
DATE: September 22, 2010
SUBJECT: Fuel Gauge Fluctuation
OVERVIEW: This Bulletin involves replacing the fuel sending unit, clocking the fuel module and

installing a fuel jumper hose.
MODELS:
2007 - 2010 (PM) Caliber (FWD Only)
2007 - 2010 (MK) Compass / Patriot (FWD Only)
SYMPTOM/CONDITION:
The customer may complain that the fuel gauge is not accurate or fluctuates at 3/4 of a tank or

above.
DIAGNOSIS: Some customers may experience the condition described above. Preform the repair

as described below.
PARTS REQUIRED:
REPAIR PROCEDURE:

1. Remove the Fuel Pump Module using procedures found in DealerConnect > TechConnect >
14-Fuel System > Fuel Delivery, Gas > Module, Fuel

Pump > Removal > Front Wheel Drive

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module >
Component Information > Technical Service Bulletins > All Technical Service Bulletins for Fuel Gauge Module: > 08-024-10
> Sep > 10 > Instruments - Fuel Gauge Fluctuation > Page 101

NOTE:

Mark the sending unit at the 4:00 position with 12:00 pointing to the rear of the vehicle.

2. Remove the fuel pump sending unit from the Pump module.

3. Install New Sender to the Fuel Pump Module.

4. Install Fuel Pump Module using procedures found in DealerConnect > TechConnect > 14-Fuel
System > Fuel Delivery, Gas > Module, Fuel Pump >

Installation > Front Wheel Drive
NOTE:
Clock the Fuel Module to the 2:00 position

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module >
Component Information > Technical Service Bulletins > All Technical Service Bulletins for Fuel Gauge Module: > 08-024-10
> Sep > 10 > Instruments - Fuel Gauge Fluctuation > Page 102

5. Install the jumper hose kit

6. Re-Connect battery

7. Start vehicle and check for leaks

8. Re-install Fuel Pump Cover

9. Re-install padding and rear seat bottom

10. Return vehicle to customer.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component
Information > Service and Repair > Horn Relay - Removal

Horn Relay: Service and Repair Horn Relay - Removal
REMOVAL

1. Disconnect and isolate the battery negative cable. 2. Remove cover from Totally Integrated

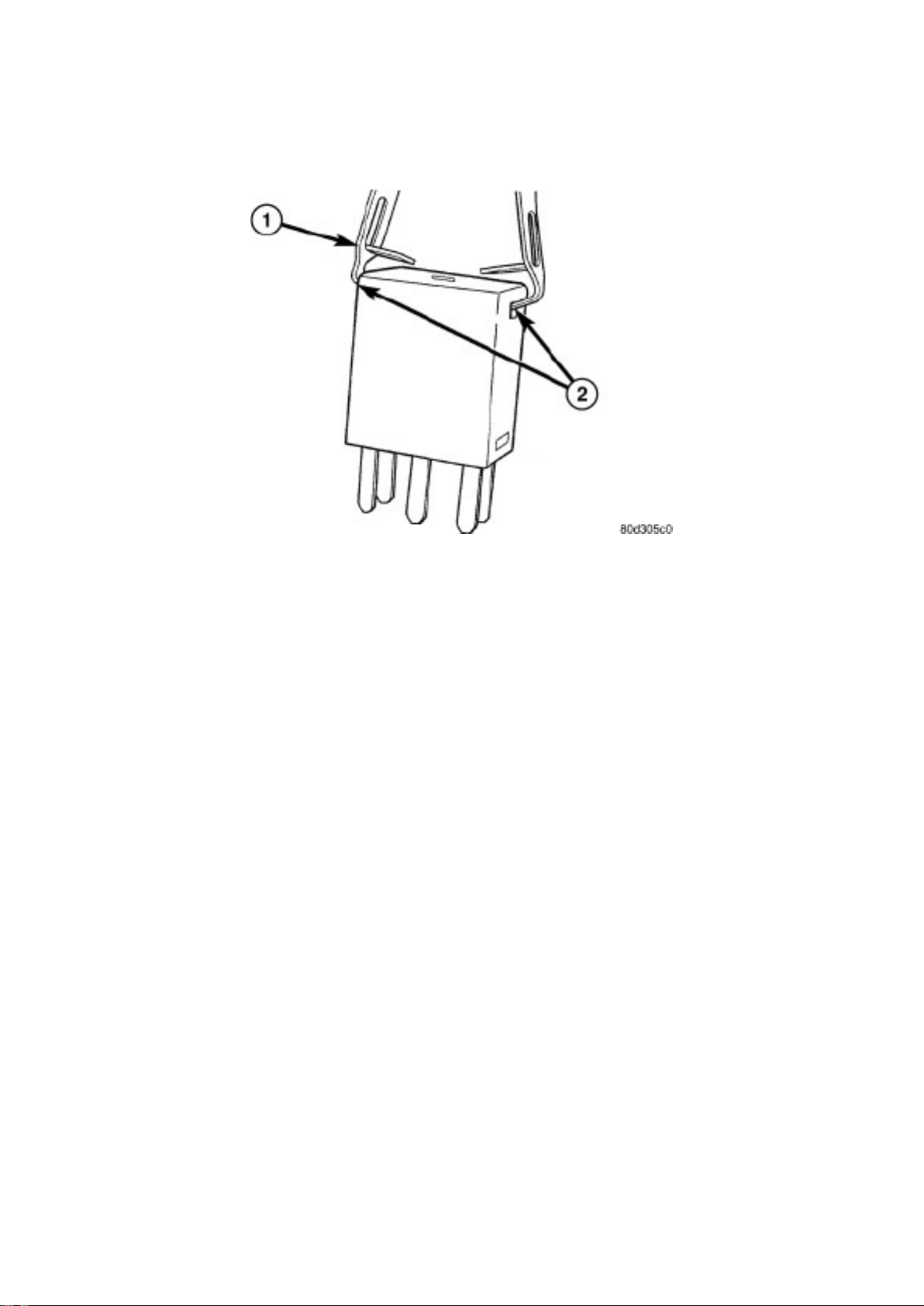

Power Module (TIPM). 3. Using special tool C-4817 (1), grip the relay (2) by the sides and pull
upward with an even effort.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component
Information > Service and Repair > Horn Relay - Removal > Page 108

Horn Relay: Service and Repair Horn Relay - Installation
INSTALLATION

1. Align relay (2) with Totally Integrated Power Module (TIPM) and press into position. 2. Install
cover to TIPM. 3. Connect battery negative cable.

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Power and Ground Distribution > Power
Distribution Module > Component Information > Locations > Totally Integrated Power Module C1

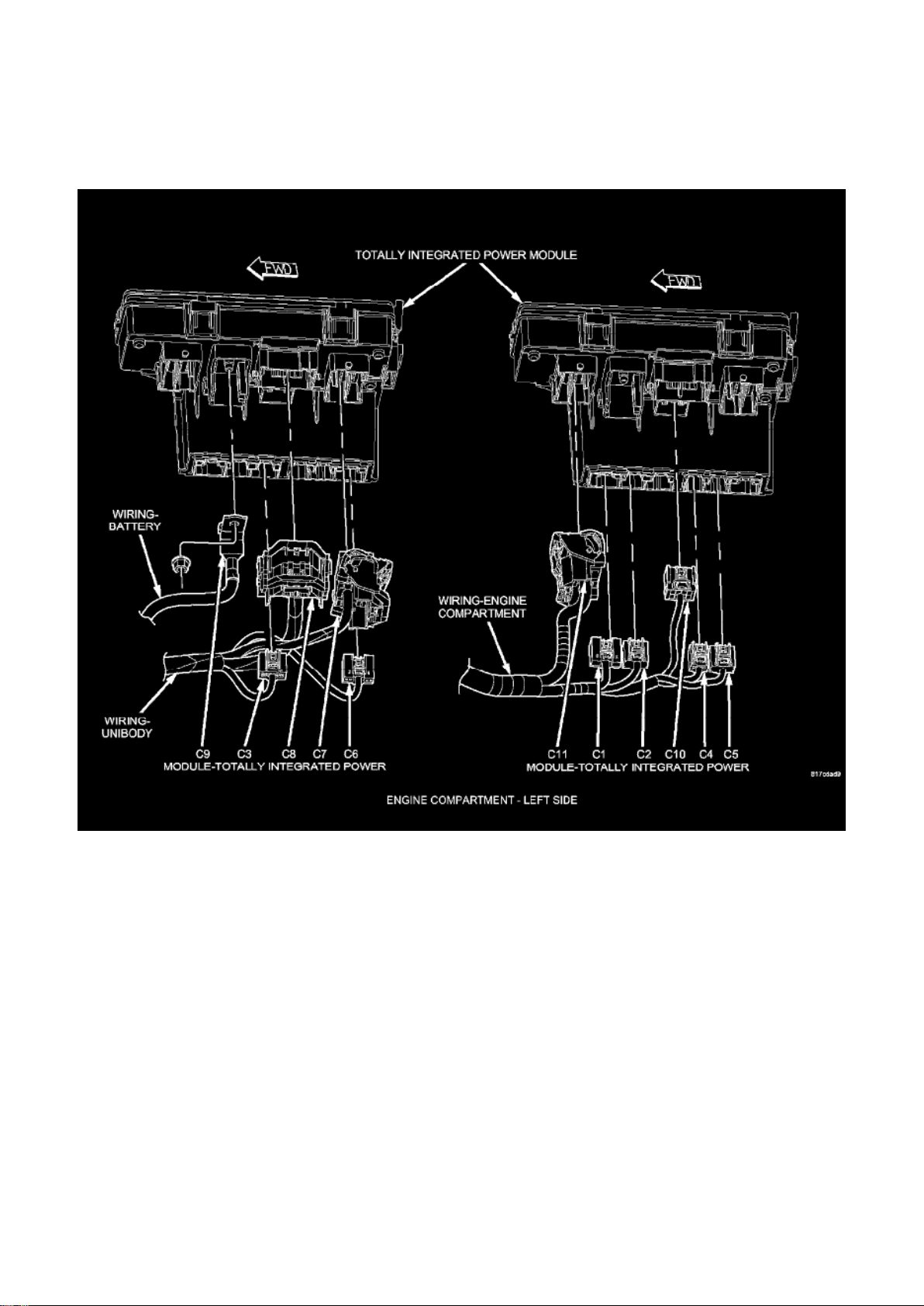

Power Distribution Module: Locations Totally Integrated Power Module C1

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Power and Ground Distribution > Power
Distribution Module > Component Information > Locations > Totally Integrated Power Module C1 > Page 114

Dodge Caliber Workshop Manual (L4-2.4L (2009))
Dodge Workshop Manuals > Relays and Modules > Relays and Modules - Power and Ground Distribution > Power
Distribution Module > Component Information > Locations > Totally Integrated Power Module C1 > Page 115
