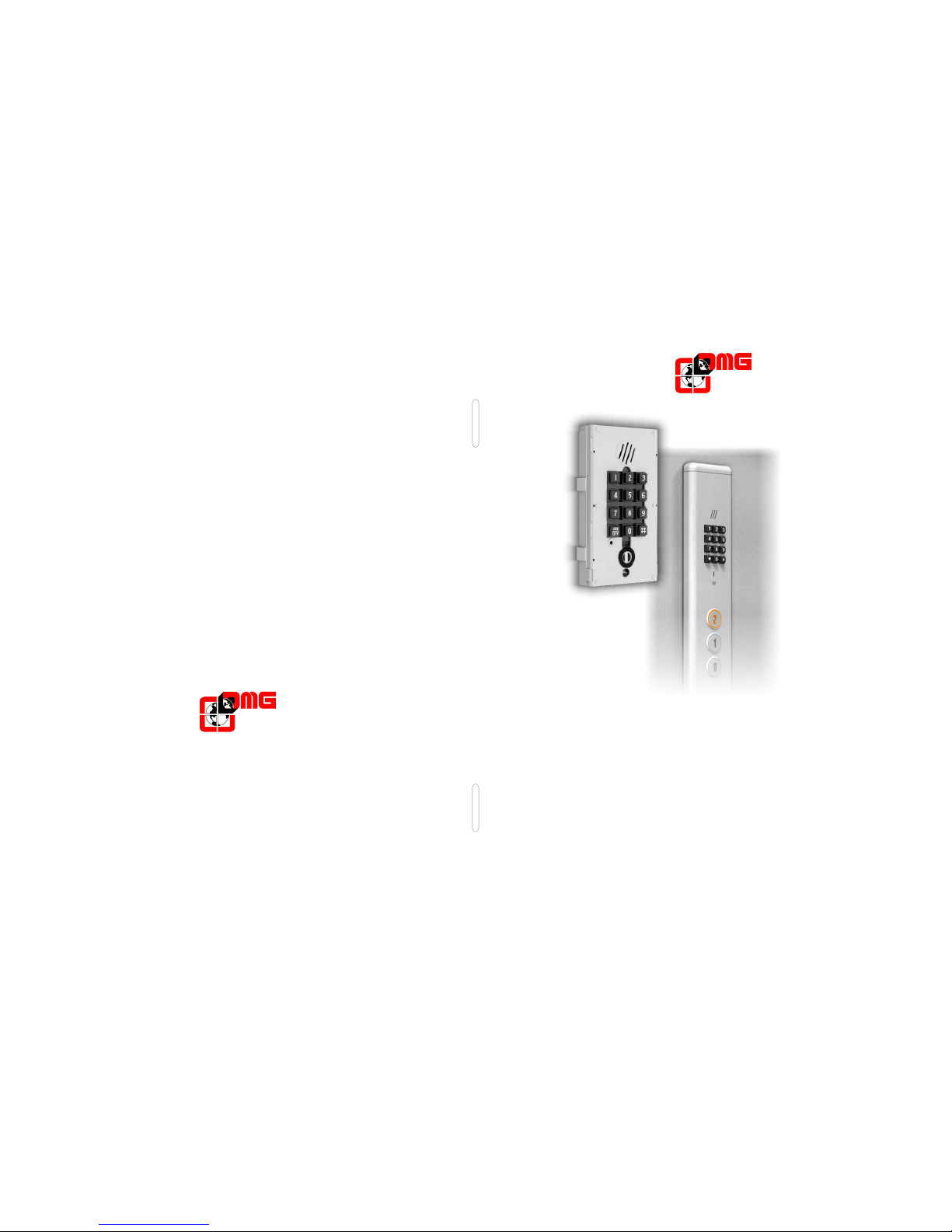

Amigo

Emergency Telephone

U.S. version

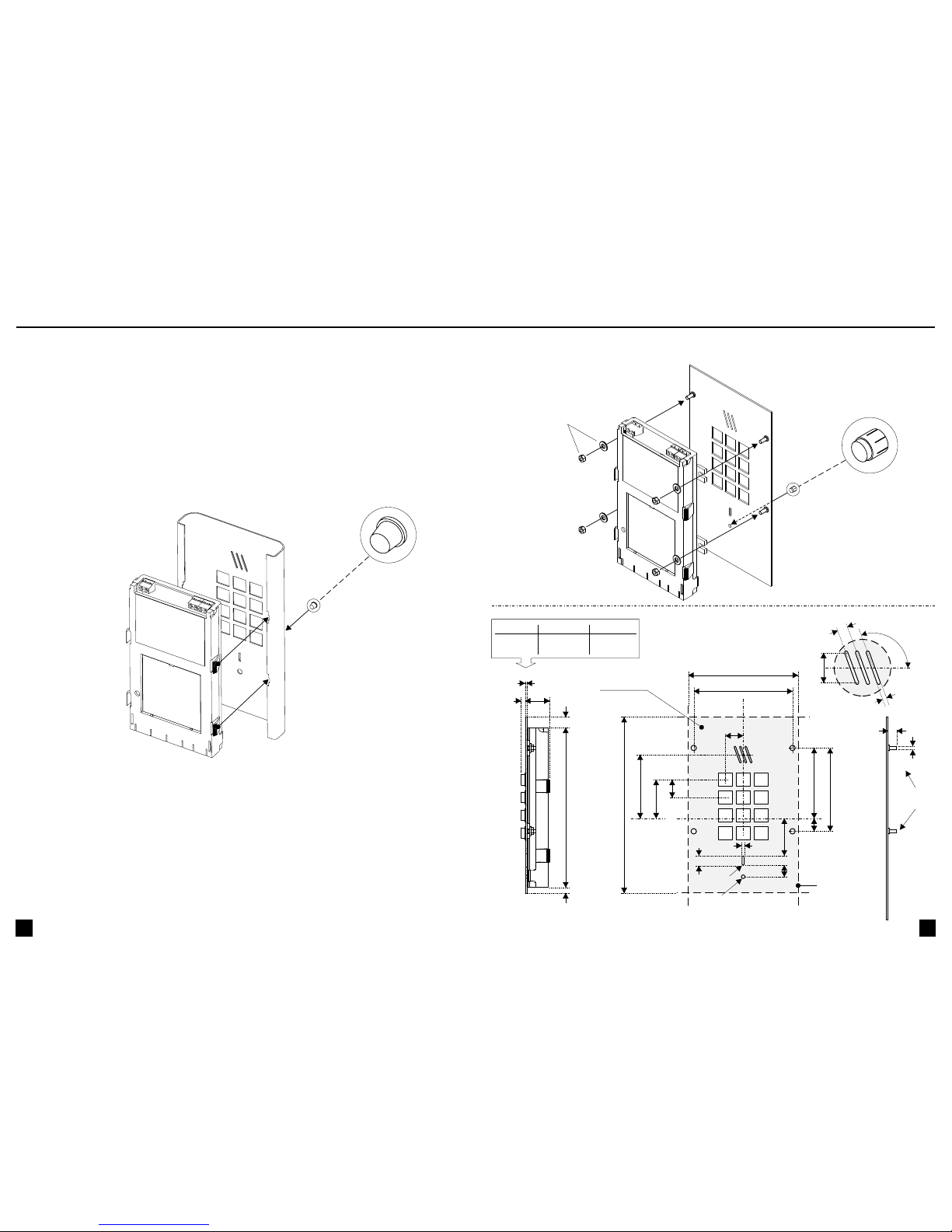

Installation manual

2 7

Amigo - Emergency Telephone Amigo - Emergency Telephone

2.3) Operations

After power and line connections, the AMIGO emergency telephone is ready to be used. No other configuration is
required.

2.3.1 Making a call

In case of emergency, to make a phone call, press the ON/OFF button on the front keypad, wait of the dialing
tone and then dial the desired phone number.
In case of no answer or line busy, the user can press the ON/OFF button and try again, otherwise the line will
be automatically disconnected after three minutes.
Once the two-way conversation with the receiving party is established, the user can speak freely for the preset
conversation time (5 minutes). A warning beep will advise that the conversation time is about to expire (30
seconds, 15 seconds and 5 seconds before expiration). To extend the conversation time, press any key,
otherwise the line will be automatically disconnected and the phone will get back to stand by.
To terminate the phone call, just press the ON/OFF button.
During the conversation the volume can be adjusted by repeatedly pressing the # key (3 volume levels
available).
When the phone is in stand-by mode, by pressing the # key, the last dialed number is being called.

2.3.2 Receiving a call

Under normal conditions, once the AMIGO is connected to the phone line it works exactly as any other device
in the house phone loop: upon an incoming call from the outside, it will beep shortly at each ring. To answer the
external call, just press the ON/OFF button and talk freely. To close the call, press ON/OFF again.

2.4) Advanced Configurations

2.4.1 Advanced Phone Line Connection

AMIGO can be wired to the phone line in a way that allows it to take the line with priority for all outgoing and
incoming calls, thereby excluding any other device from the phone line upon pressure of the ON/OFF button.
This configuration is recommended when devices such as automatic answering machine and/or PC modems
are connected to the phone line as their presence may cause busy phone line (PC modem) or conflict during
incoming calls (answering machine). Generally speaking, this configuration enhances the level of safety of
the whole emergency system.
To enable the priority feature, connect the two telephone line wires (Line In) to terminals 7 and 8 of the AMIGO
(see figure B) and then use terminals 5 and 6 to connect the following phone device in the loop. Upon pressure
of the ON/OFF button and during “Wait for call” mode, an internal switch will automatically disconnect all other
devices connected to the line and will give priority to all outgoing and incoming calls from/to the AMIGO
emergency phone.

2.4.2 Priority Operations

All operations are identical to what described in §2.3. The only difference is that when the ON/OFF button is
pressed to make a call, any other device connected to the phone line is automatically disconnected from the
line (Priority on outgoing calls).

FCC NOTICE FOR PART 68

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the outside surface of this
equipment there is a label that contains, among other information, a product identifier in the format US:PUM TD 01B ETSHOM10. If
requested, this number must be provided to the telephone company.

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone
line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not
exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact
the local telephone company.

If this equipment ETSHOM10 causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the
customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of
the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications
to maintain uninterrupted service.

If trouble is experienced with this equipment ETSHOM10, for repair or warranty information, please contact the service center listed
below (see SERVICE CENTER). If the equipment is causing harm to the telephone network, the telephone company may request
that you disconnect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or
corporation commission for information.

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this ETSHOM10 does
not disable your alarm equipment.
Note that this equipment can be wired to the phone line in a way that allows it to take the line with priority for all outgoing and
incoming calls, thereby excluding any other device from the phone line upon pressure of the ON/OFF button. Please refer to §2.4.1
of this installation manual for more information. If you have questions about what will disable alarm equipment, consult your
telephone company or a qualified installer.

FCC NOTICE FOR PART 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.

-

-

-

-

-

-

-

-

SERVICE

MAD Elevator Fixtures Inc.
115 City View Dr.
Etobicoke, Ontario M9W 5A8 Canada
Telephone: [phone]
Fax: [phone]
E-Mail: [e-mail]

REGISTRATION

The DMG ETSHOM10 series meets FCC part 15, ACTA part 68.

FCC Registration US:PUM TD 01B ETSHOM10

Ringer Equivalence Number (REN) = 0.1B

-

-

-

-

-

CAUTION:

To reduce the risk of fire, use only No. 26 AWG or larger
telecommunication line cord.

ATTENTION:

Pou réduire les risques d'incendie, utiliser uniquement
des conducteurs de télécommunications 26 AWG au
de section supérieure.
