D Link WR730B1 User Manual

V
ersion 1.0 | 10/15/2013
HSP
ser Manual
U
A+ Mobile Router
WR-730
D

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Manual Revisions

Revision Date Description
1.0 October 15, 2013 • Initial release

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2013 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 1
Introduction ...................................................................................2
Hardware Overview ..................................................................... 3
Left Side....................................................................................3
OLED Display .......................................................................... 4
Installation ......................................................................... 6
Connect to Your Network ..........................................................6
Insert a microSD Card .................................................................6
Driver Installation .........................................................................7
Wireless Installation Considerations ......................................8
Conguration ..................................................................... 9
Initial Connection to the Router .............................................9
Connect via USB .................................................................... 9
Connect via Wi-Fi ................................................................10
Web-based Conguration .......................................................12
Conguration Utility ..........................................................12
Home ..............................................................................................13
Navigation .............................................................................13
Device Status ........................................................................14
Home .......................................................................................15
Wizard .............................................................................................16
Internet ...........................................................................................18
Connection ...........................................................................18

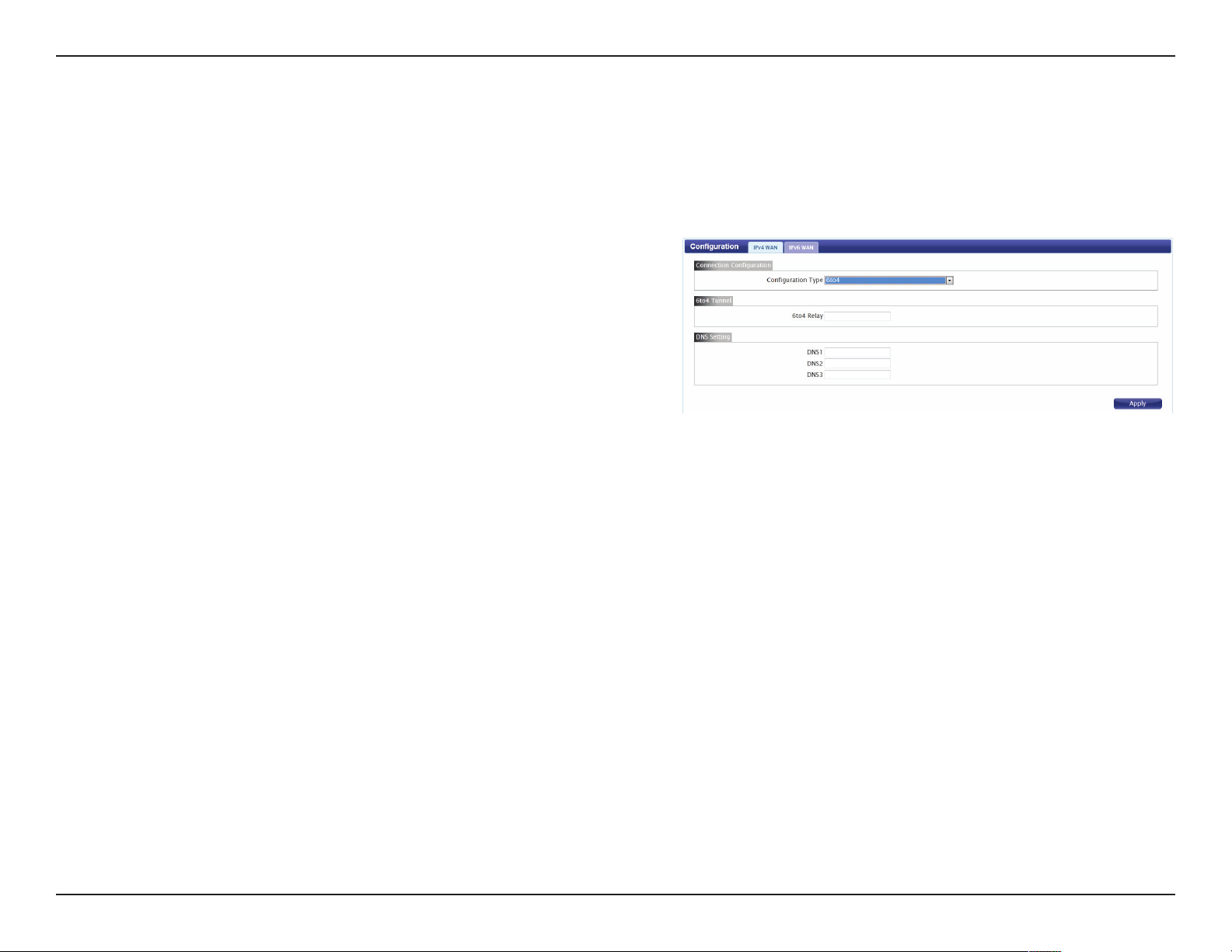

Conguration .......................................................................20
IPv4 - PDP Context .........................................................20
IPv4 - Static Setting .......................................................21
IPv4 - 4to6 .........................................................................22
IPv6 - PDP Context .........................................................23

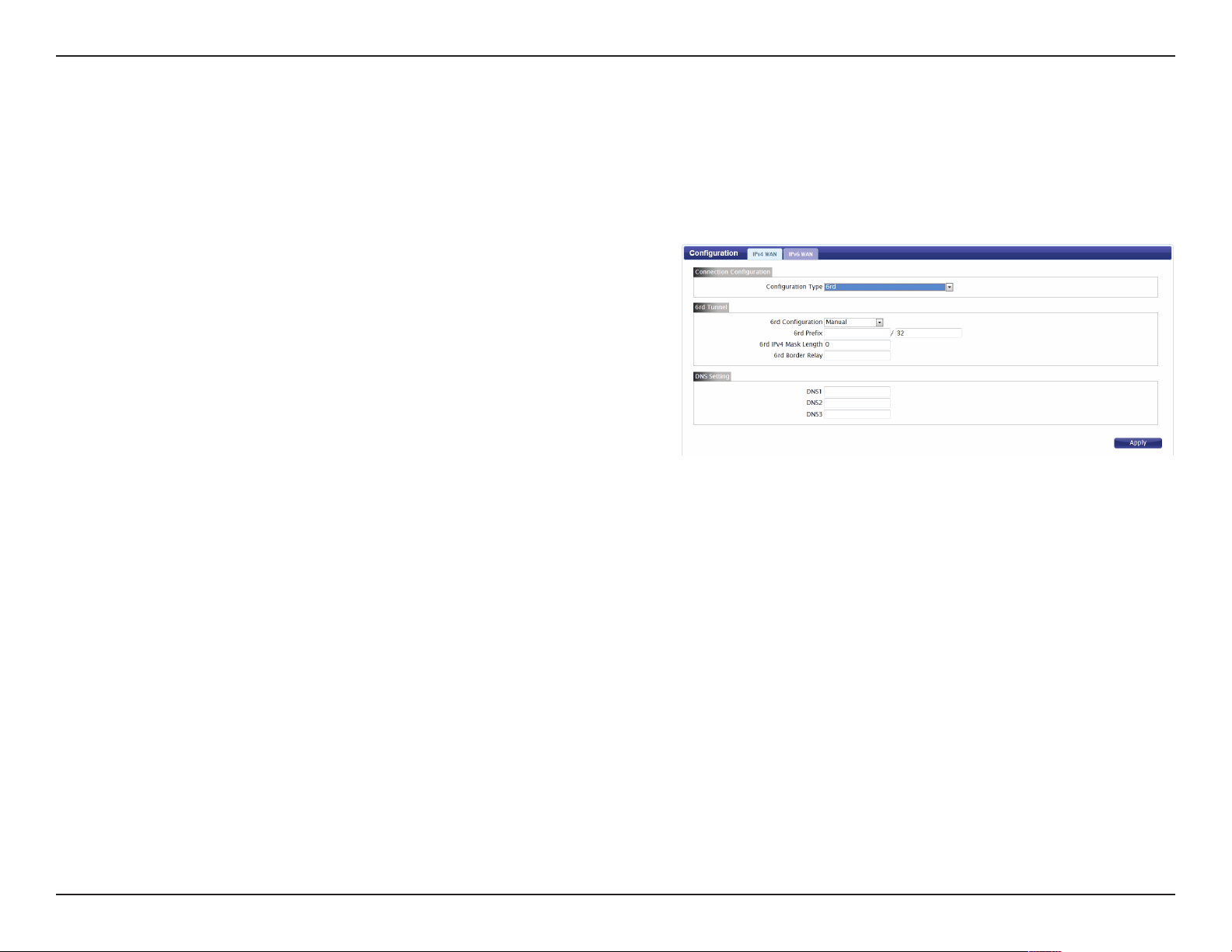

IPv6 - Static Setting .......................................................24
IPv6 - DHCPv6 .................................................................25
IPv6 - Tethering ...............................................................26
IPv6 - 6to4 .........................................................................27
IPv6 - 6rd ...........................................................................28

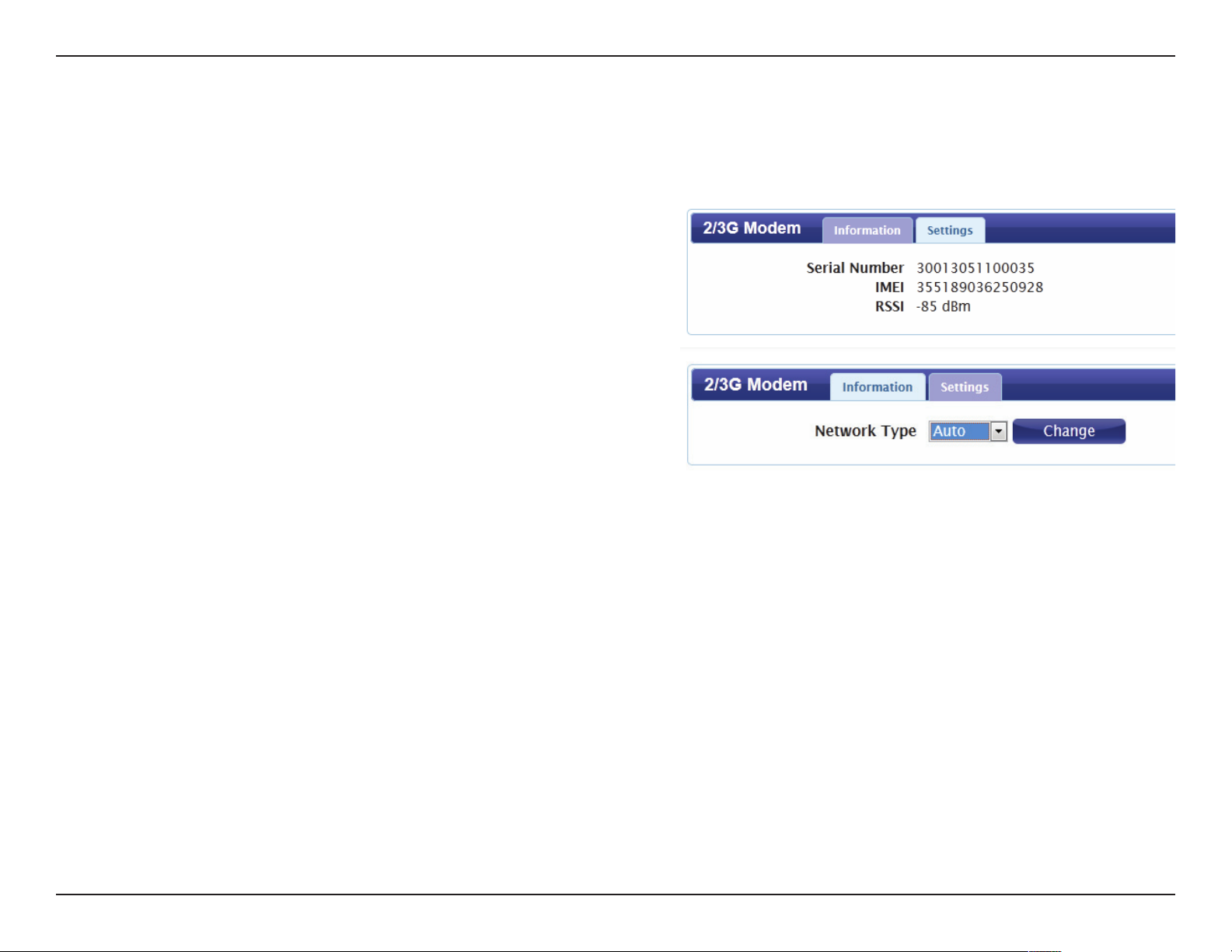

2G/3G Modem .....................................................................29
SIM ...........................................................................................30

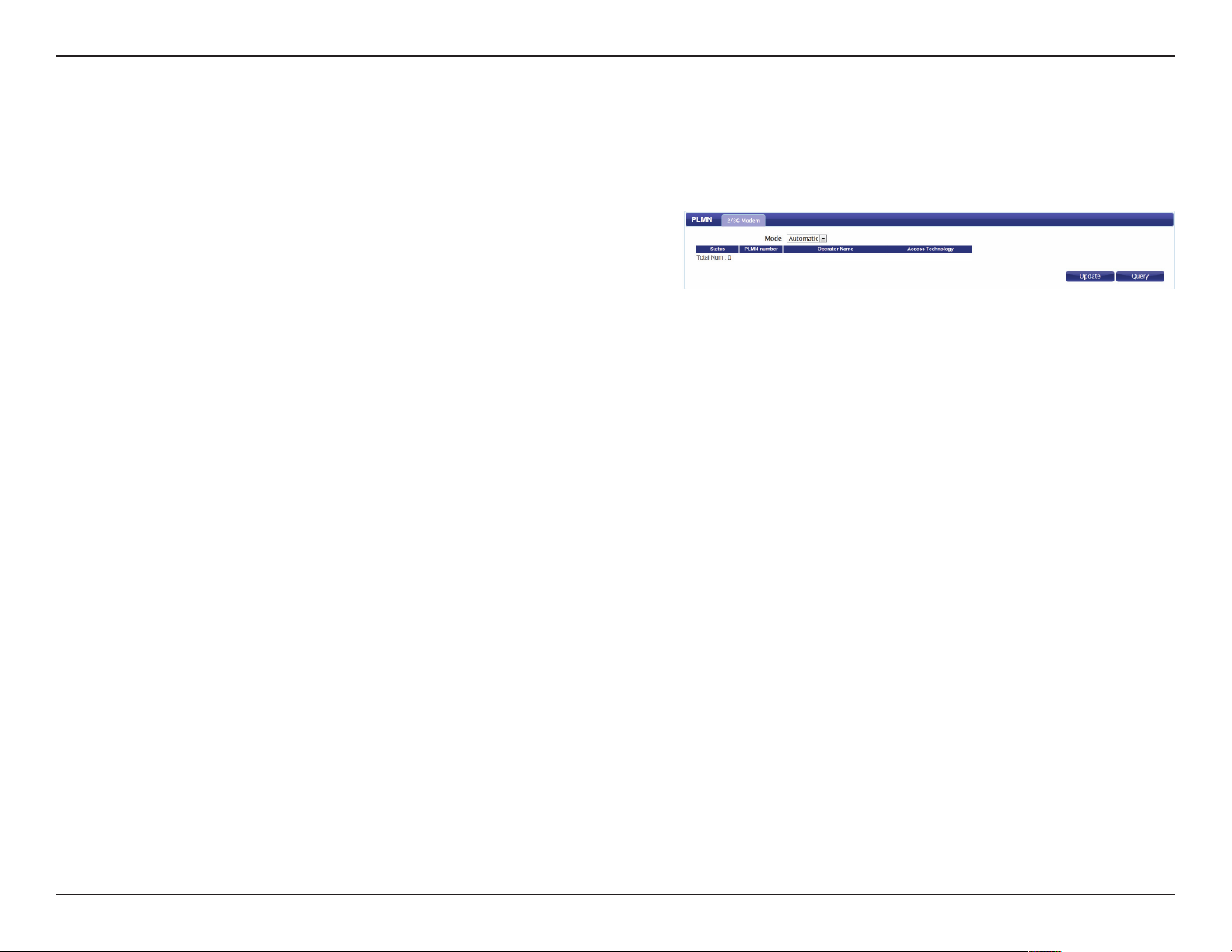

PLMN .......................................................................................31
Network .........................................................................................32

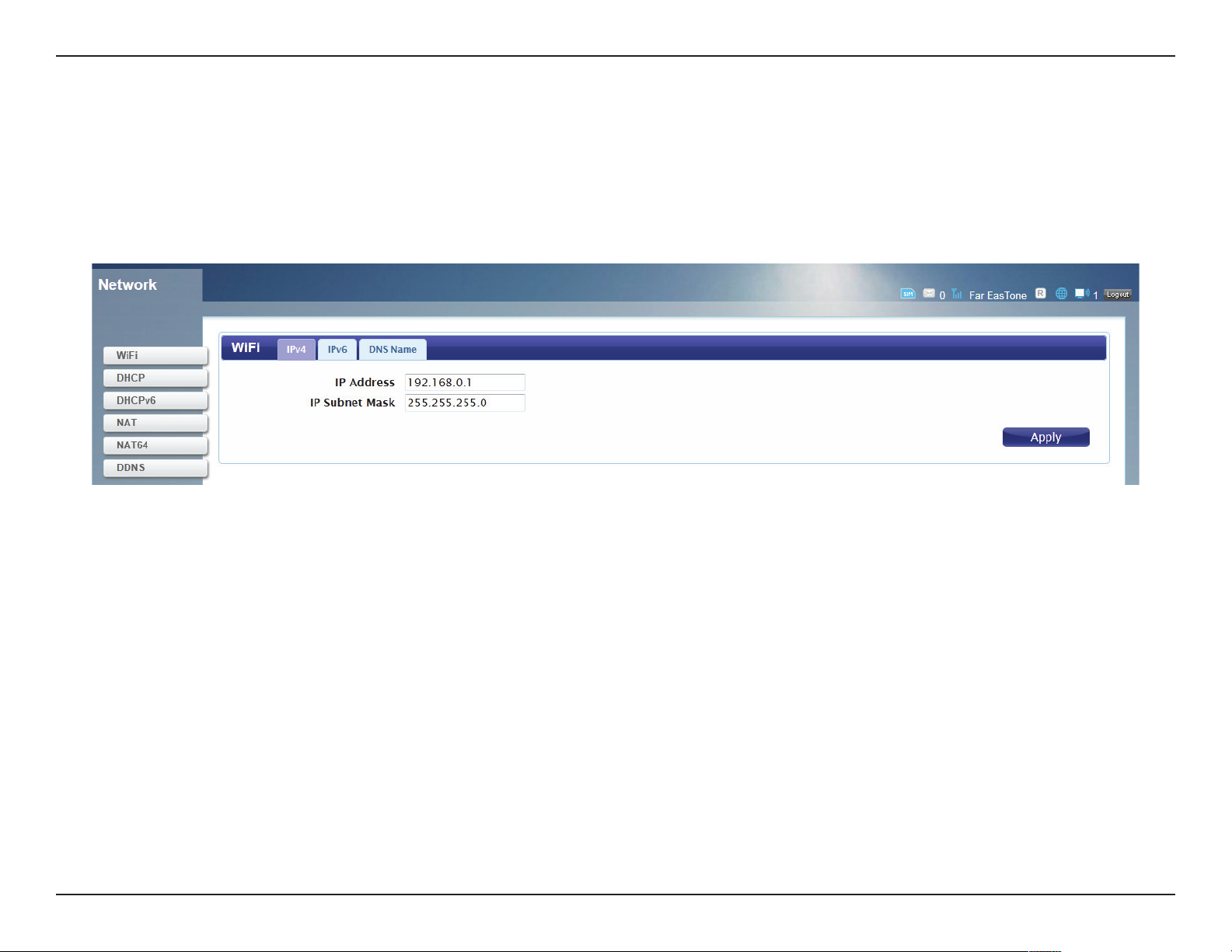

Wi-Fi .........................................................................................33

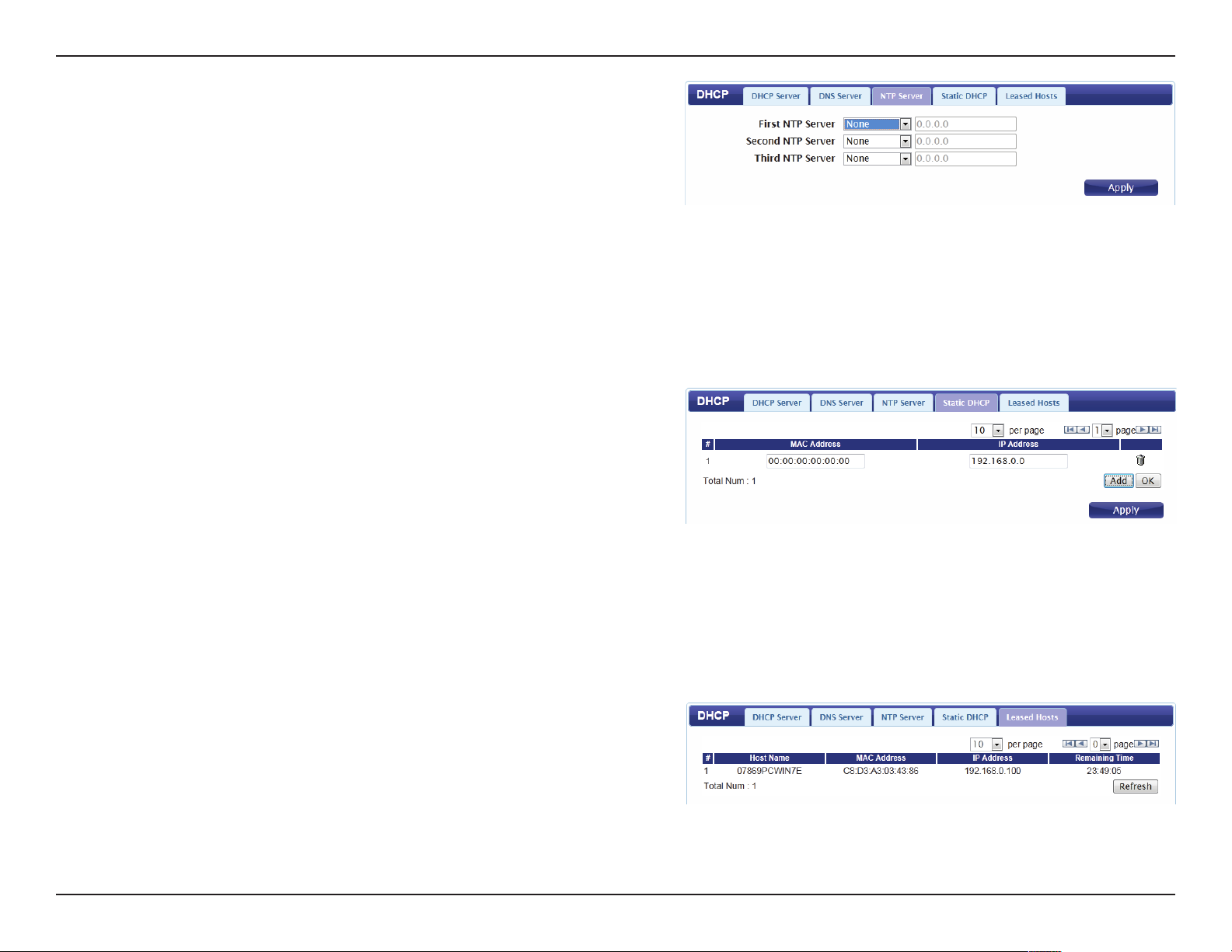

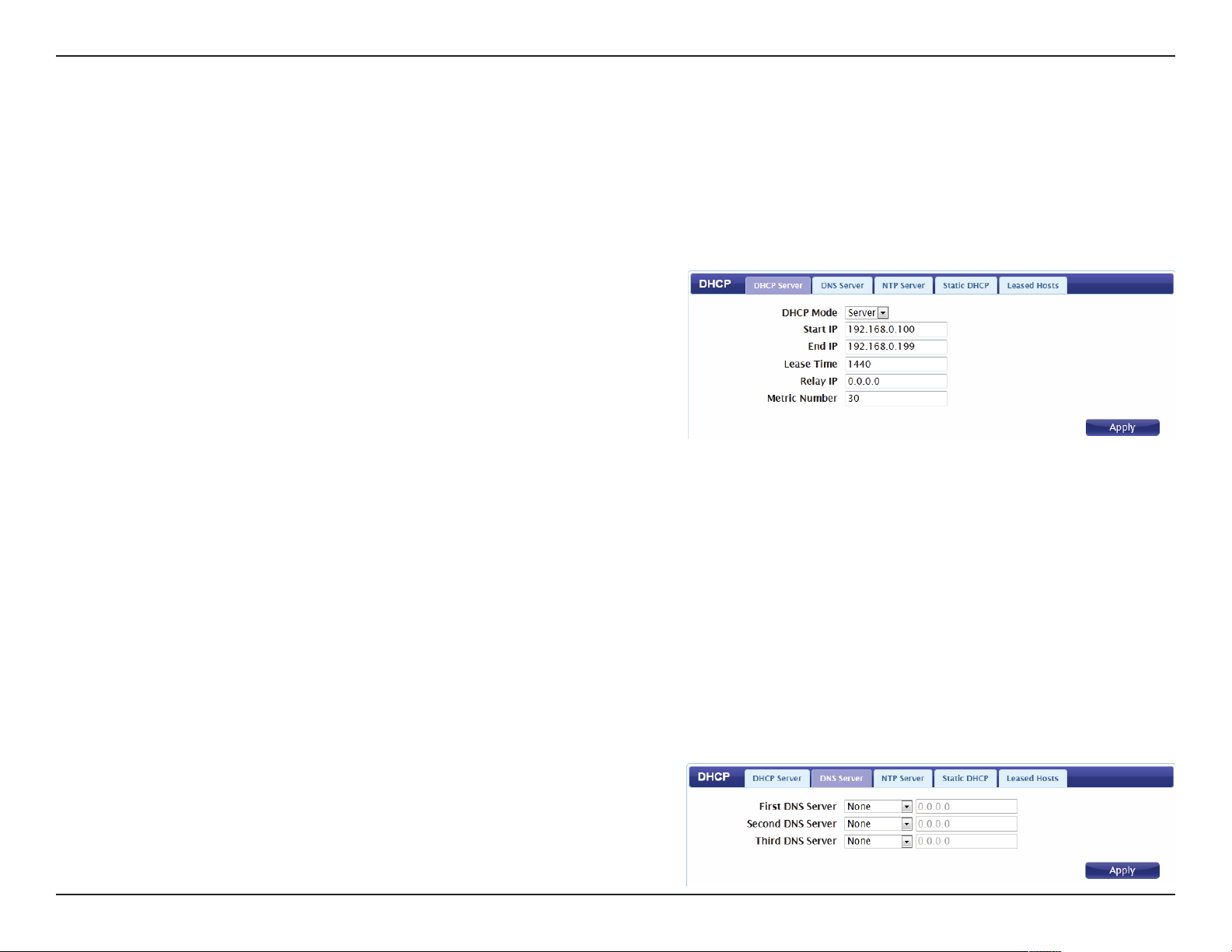

DHCP .......................................................................................34

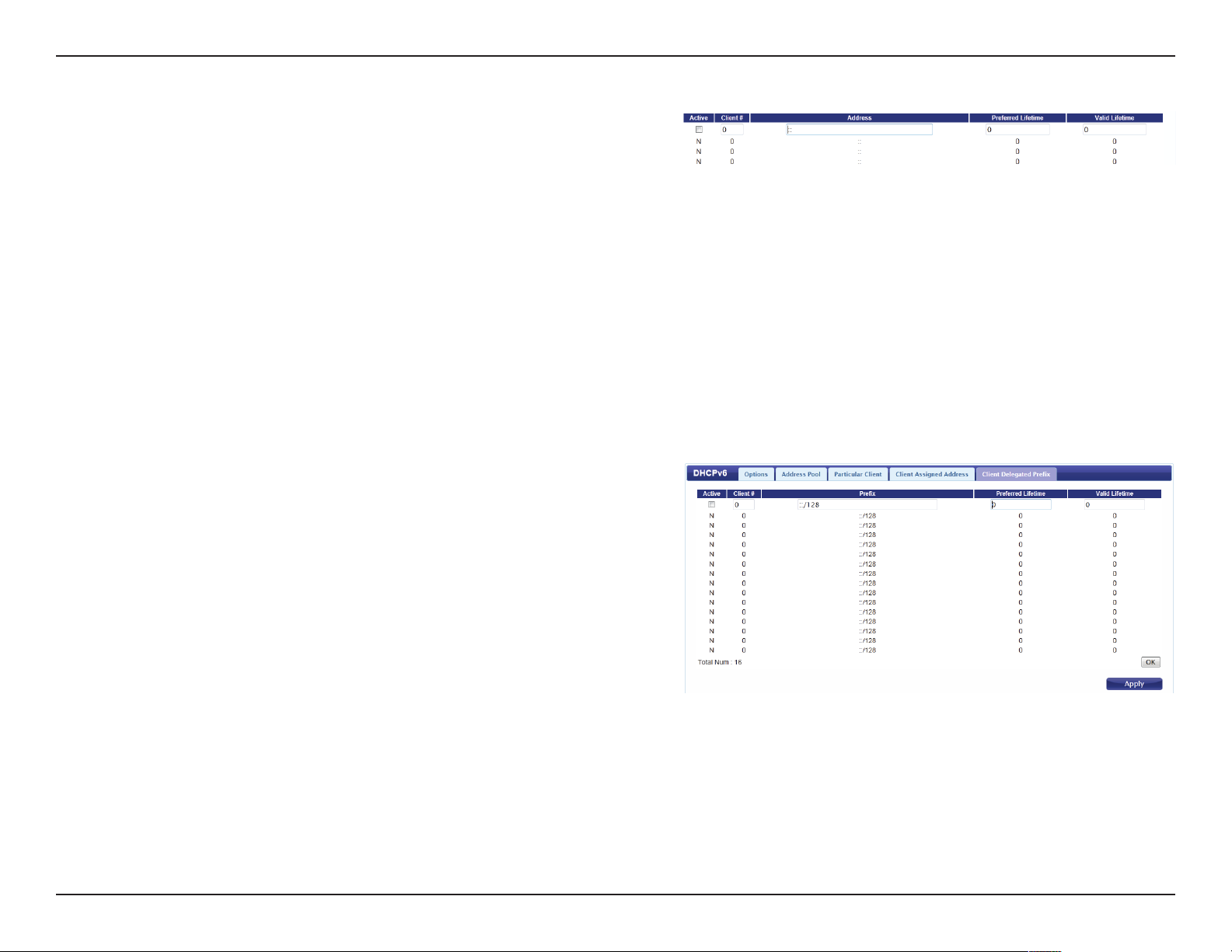

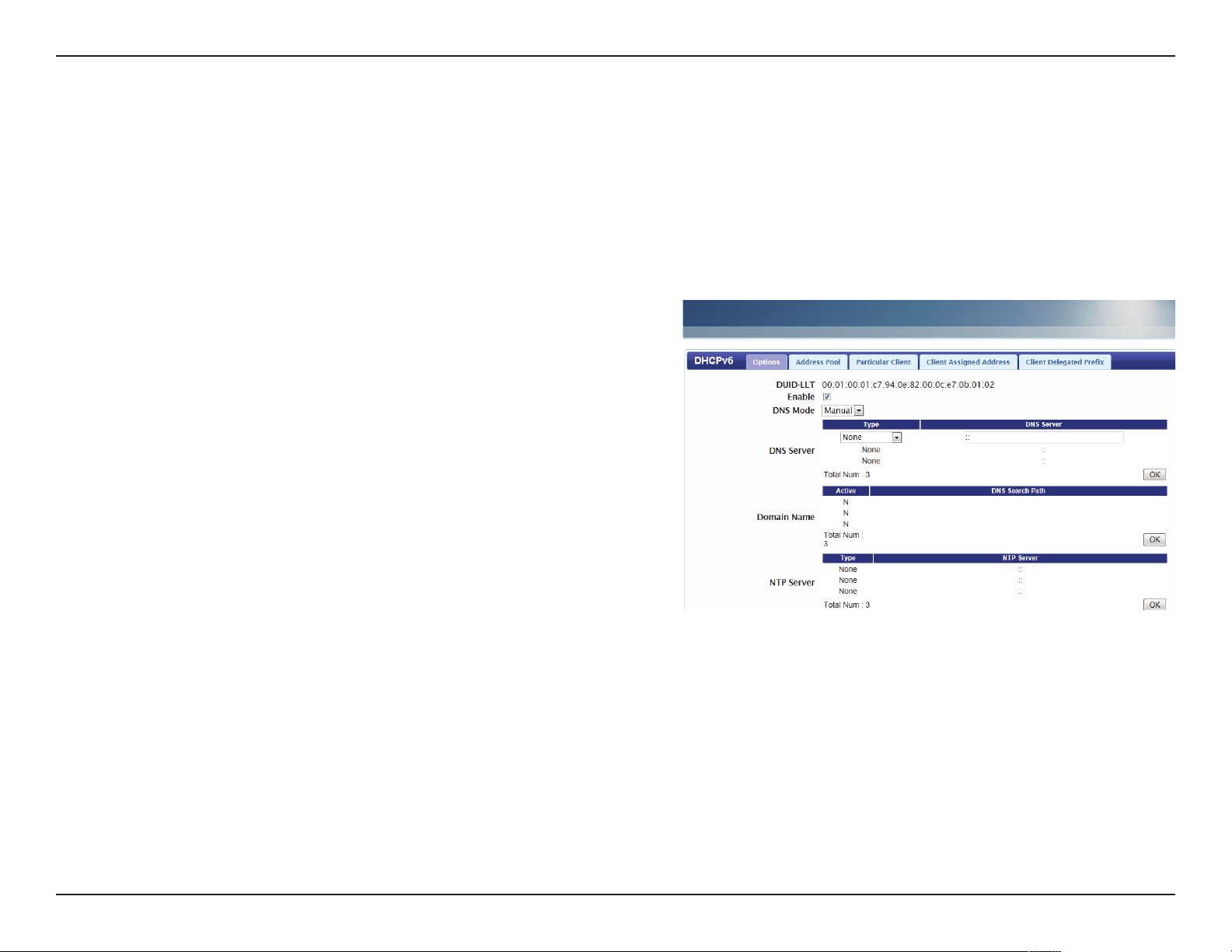

DHCPv6 ..................................................................................36

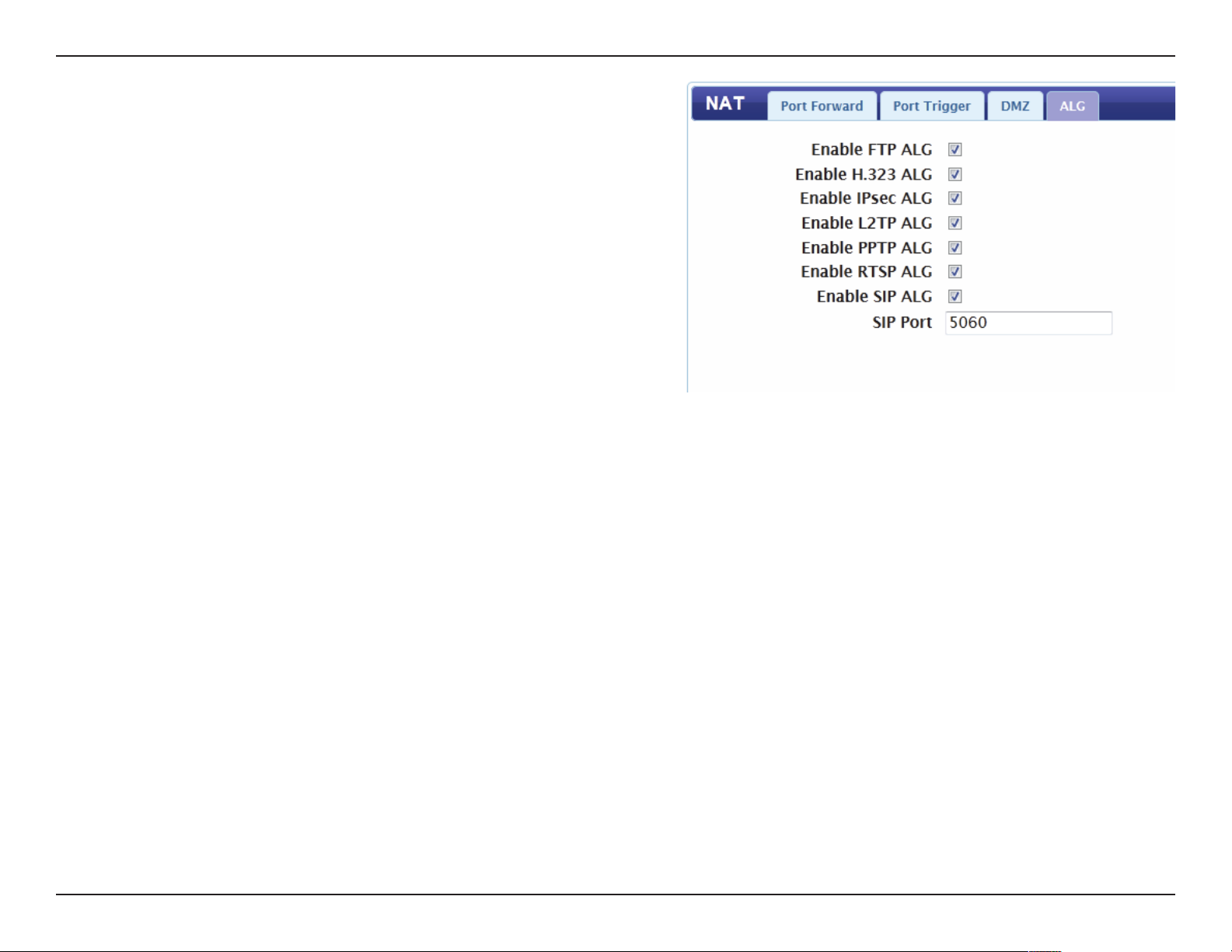

NAT ...........................................................................................40

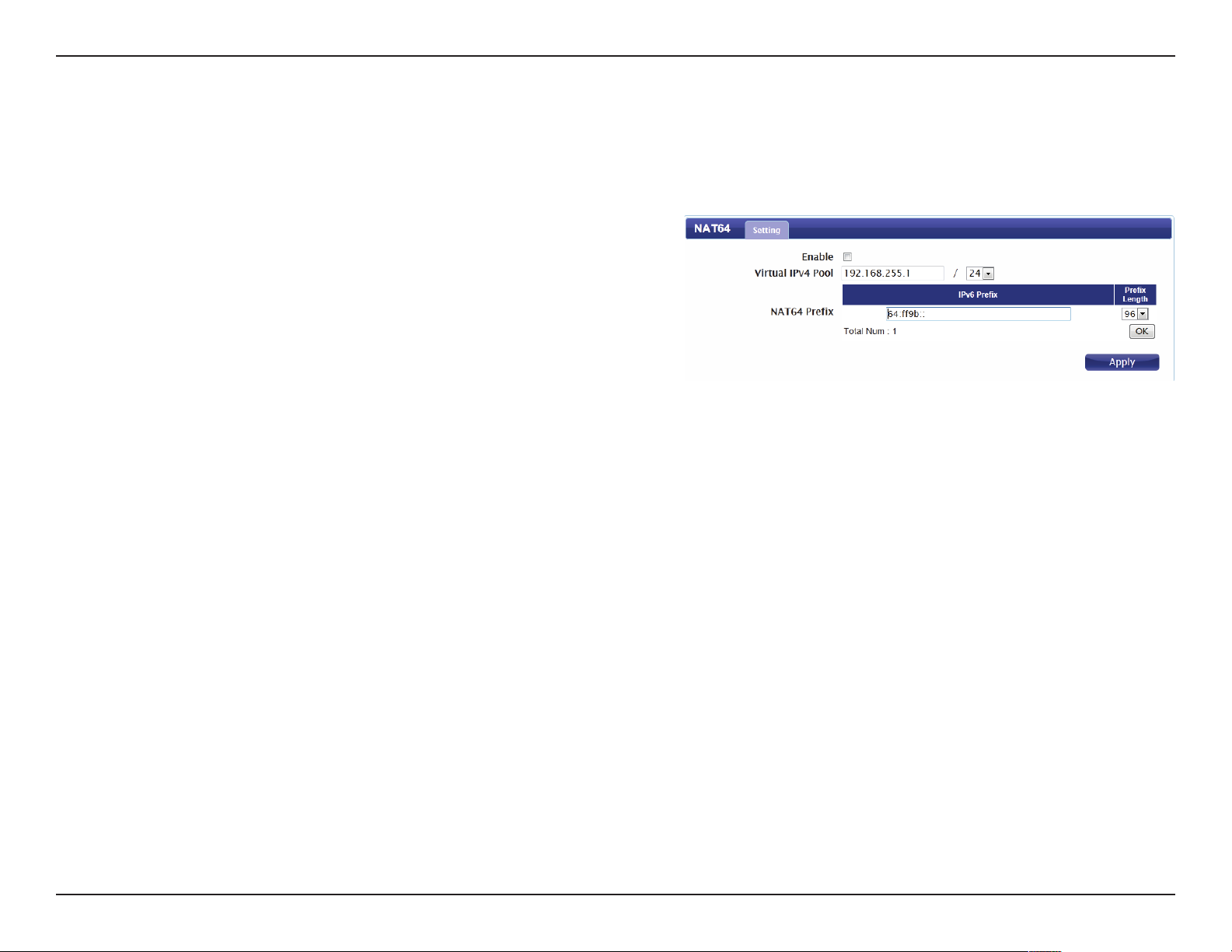

NAT 64 .....................................................................................42
SMS ..................................................................................................43

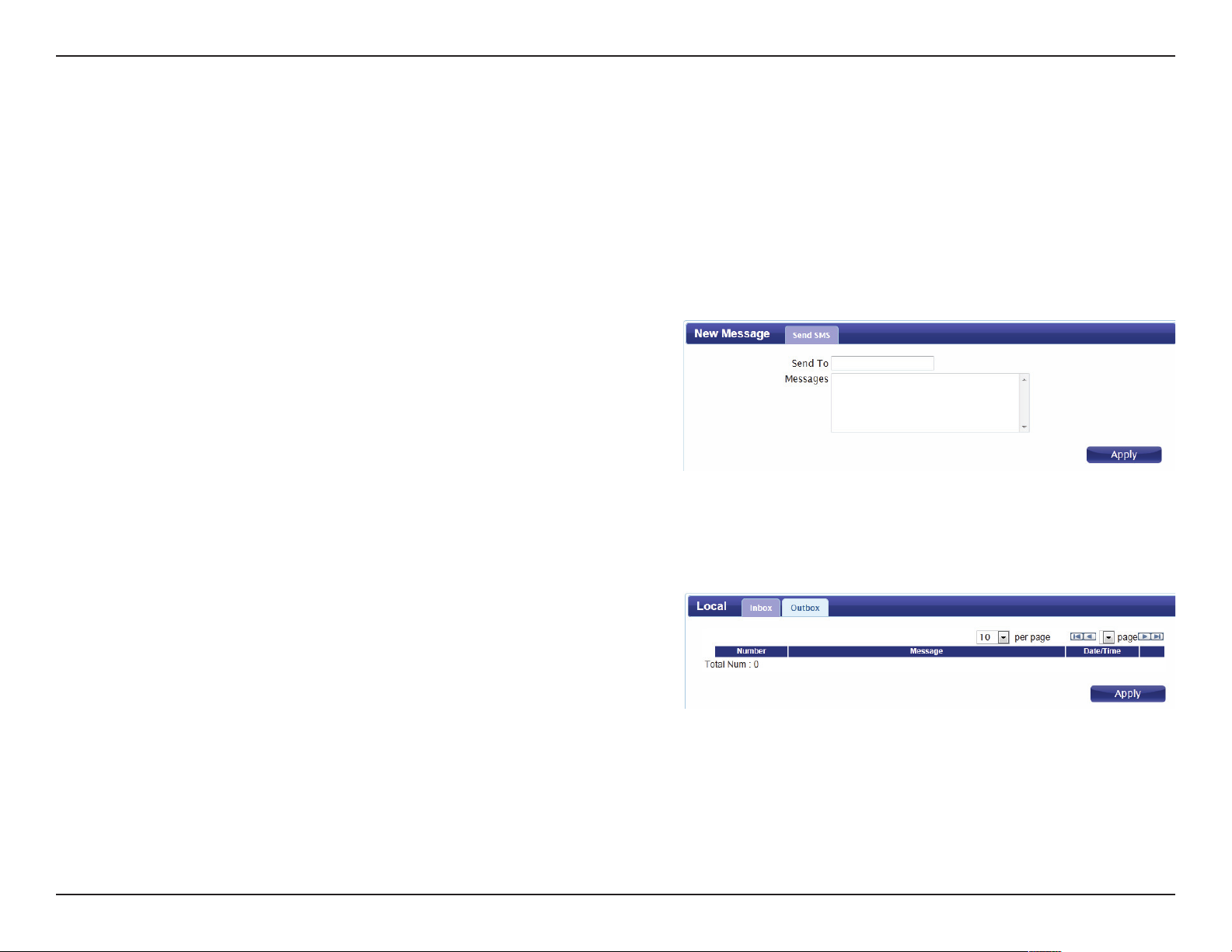

New Message .......................................................................43
Local ........................................................................................43
iiD-Link DWR-730 User Manual
Table of Contents
Wi-Fi .................................................................................................44

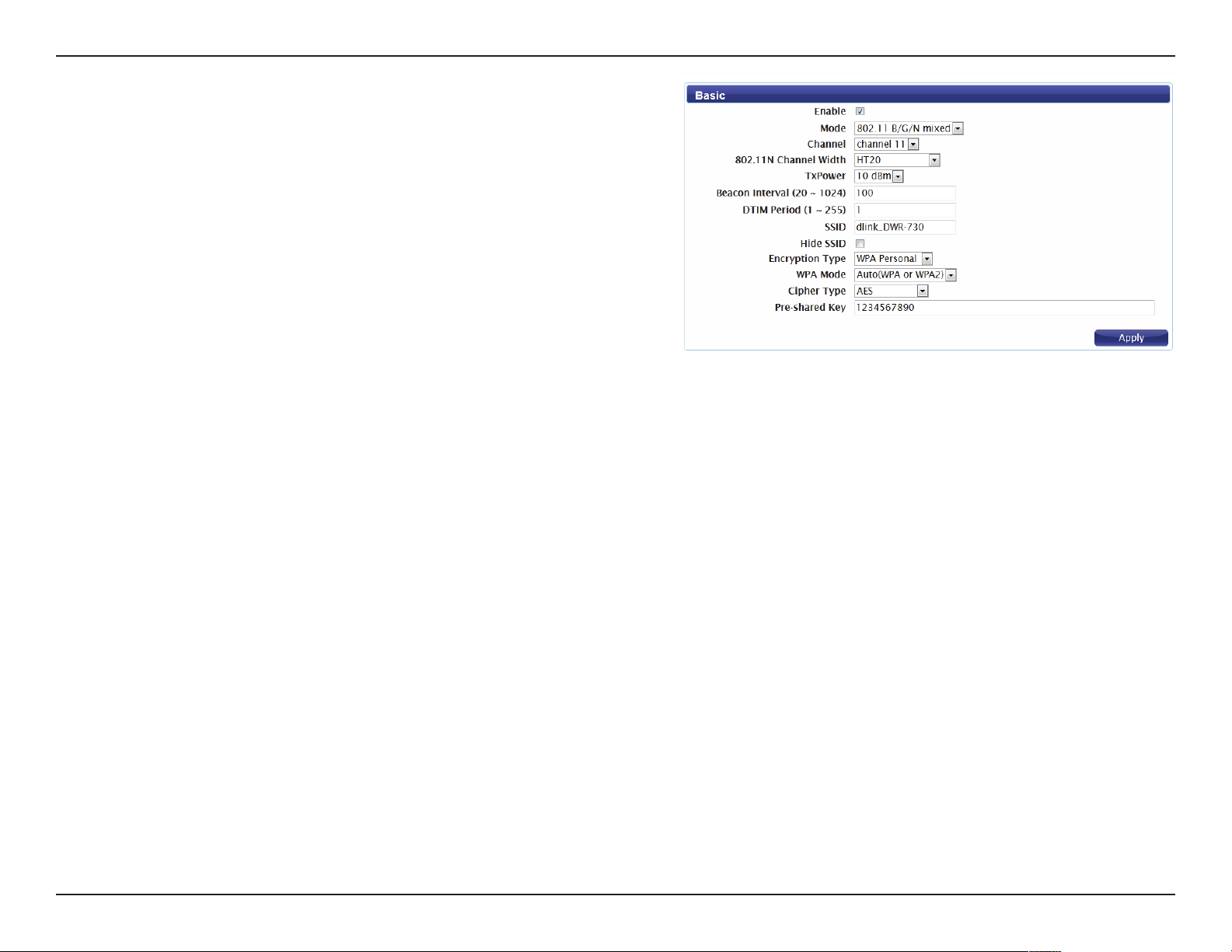

Basic .........................................................................................44
Wireless Security .................................................................46

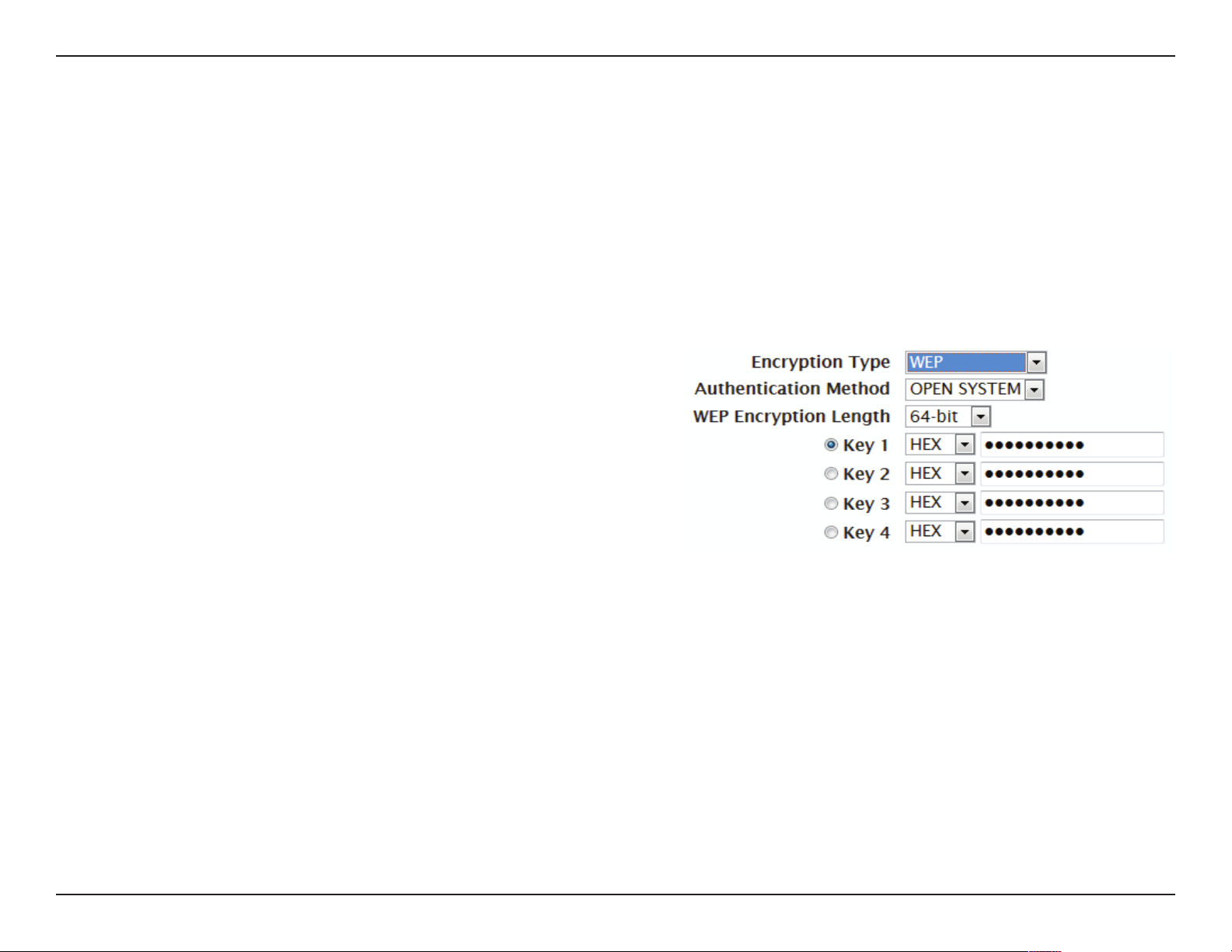

Wired Equivalent Privacy (WEP) ...............................46
Wi-Fi Protected Access (WPA) ....................................47
WLAN Authentication and Privacy Infrastructure
(WAPI).................................................................................48

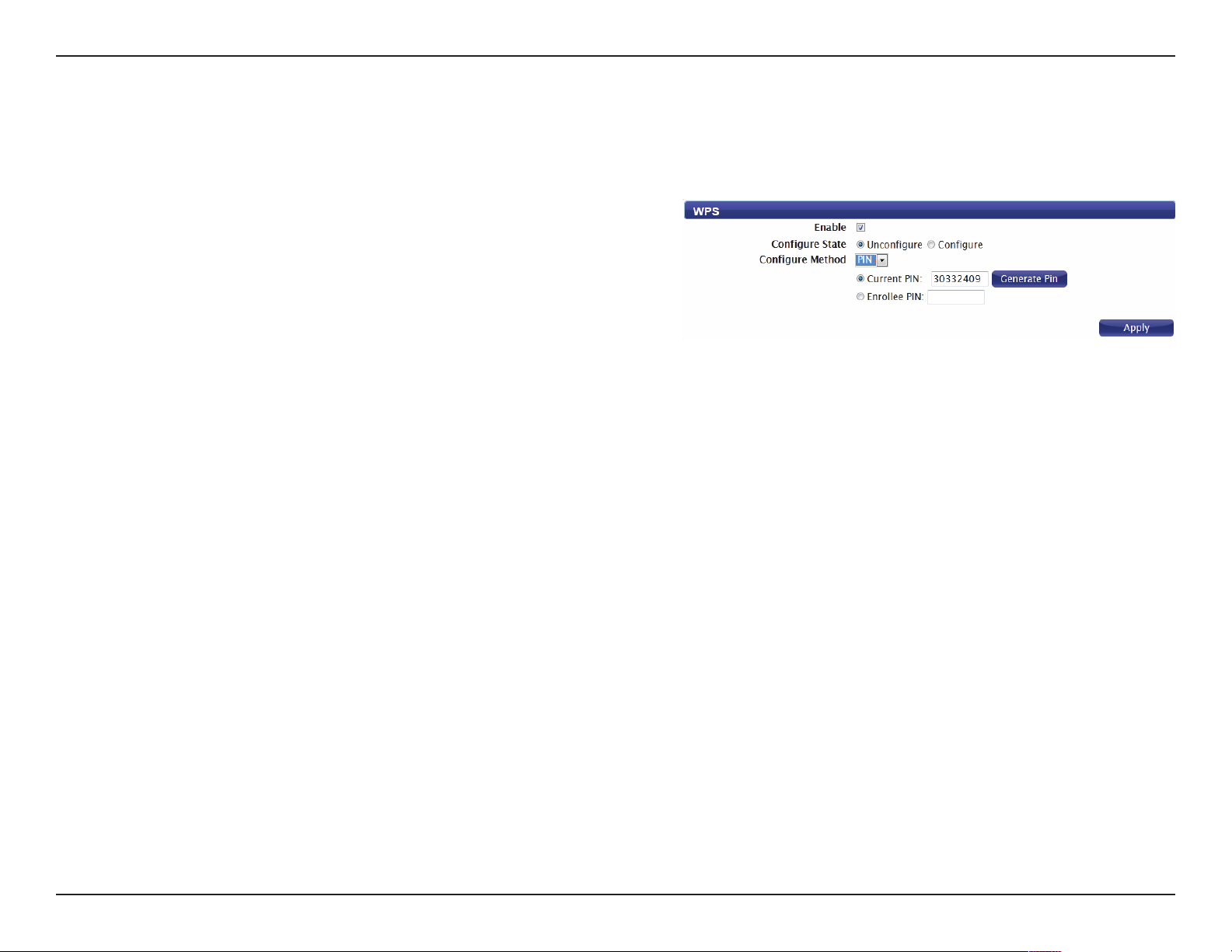

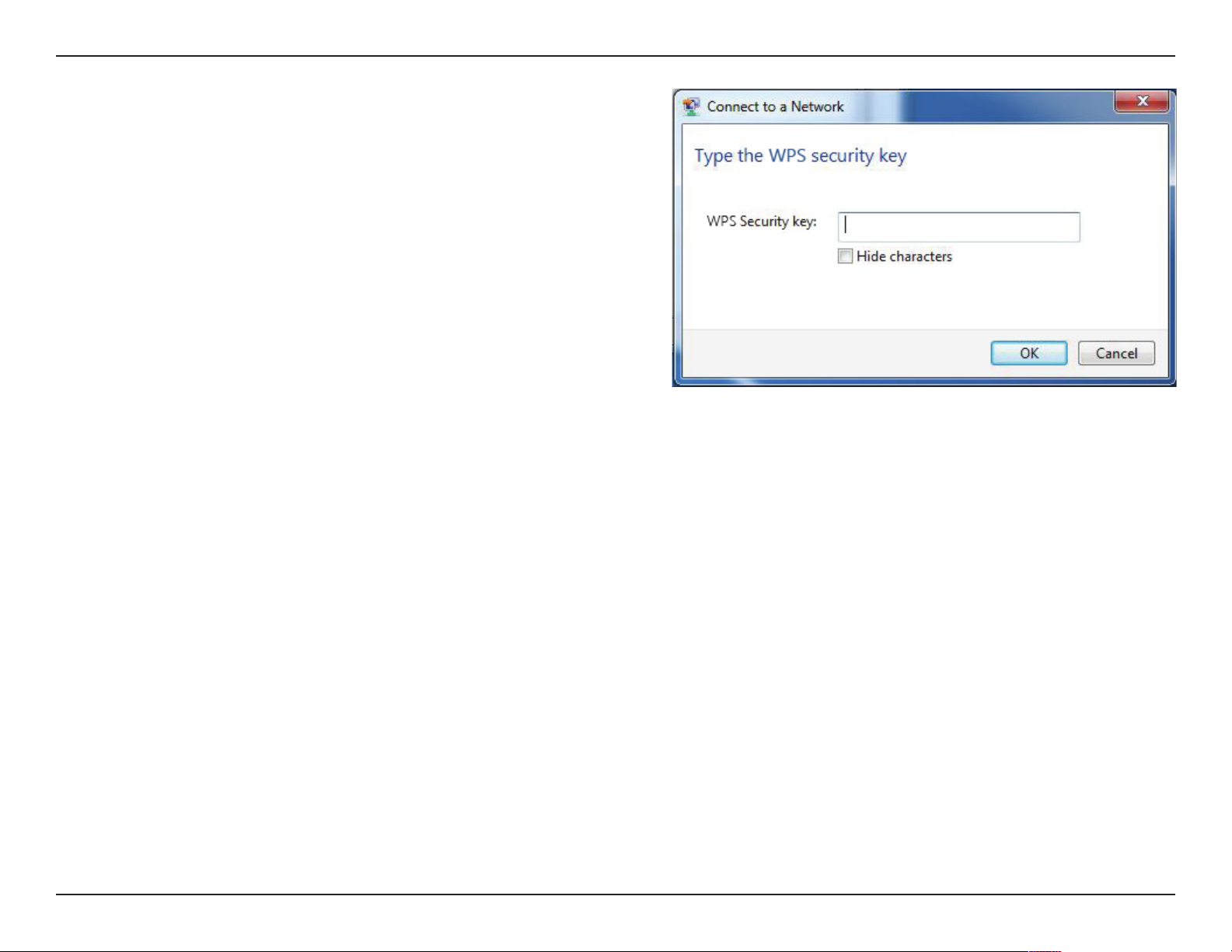

Wi-Fi Protected Setup (WPS) .....................................49

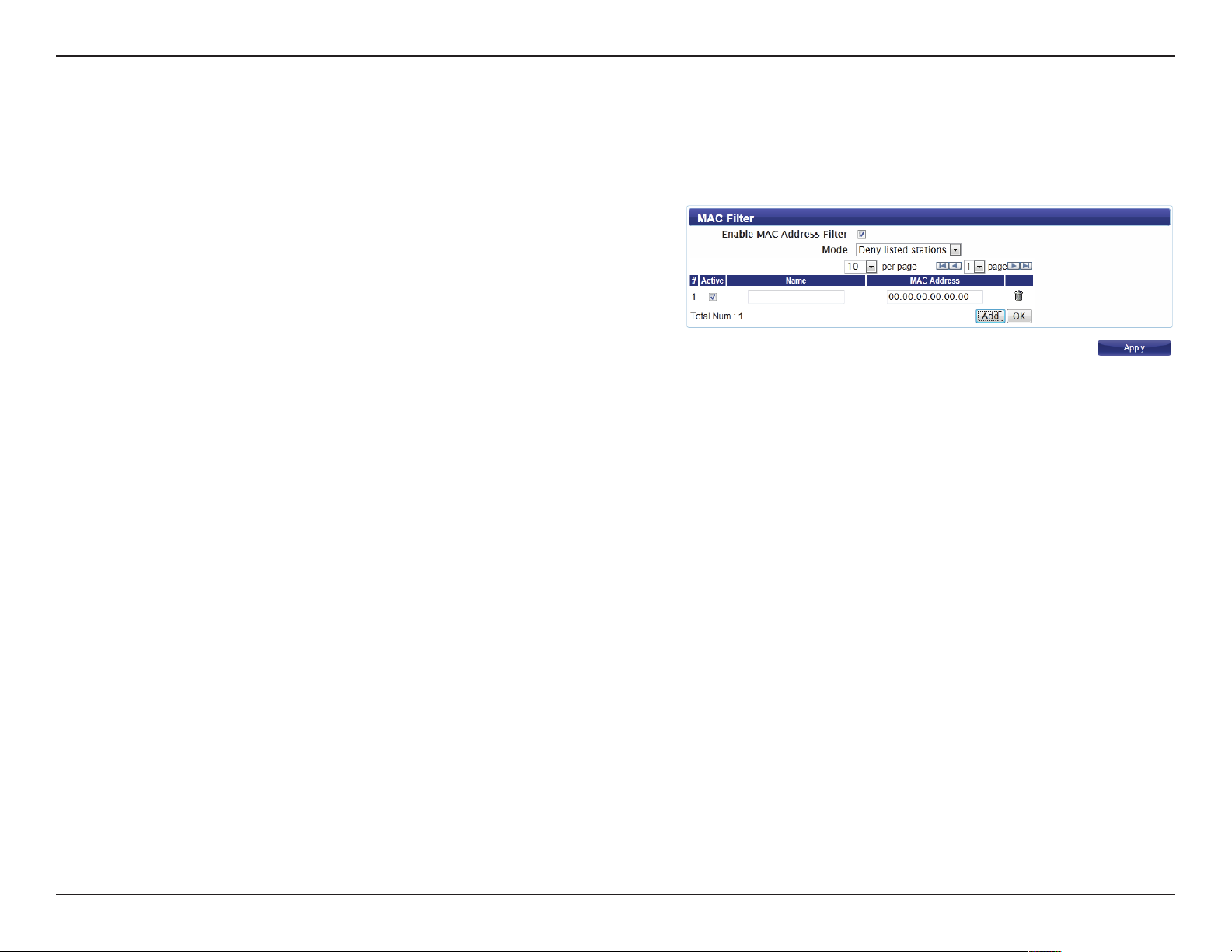

MAC Filter ..............................................................................50

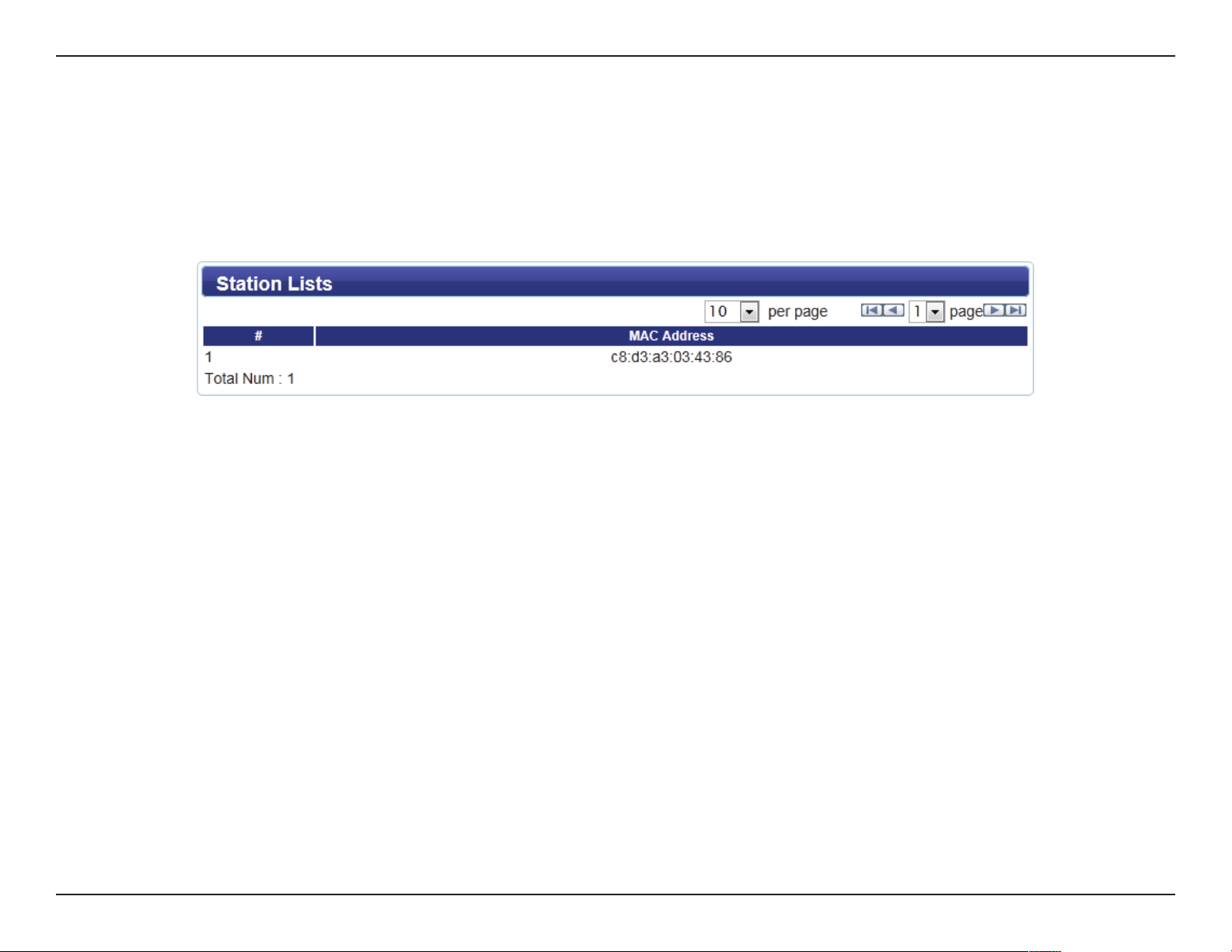

Station Lists ...........................................................................51
Advanced ......................................................................................52
IPv4 .....................................................................................52
IPv6 .....................................................................................53

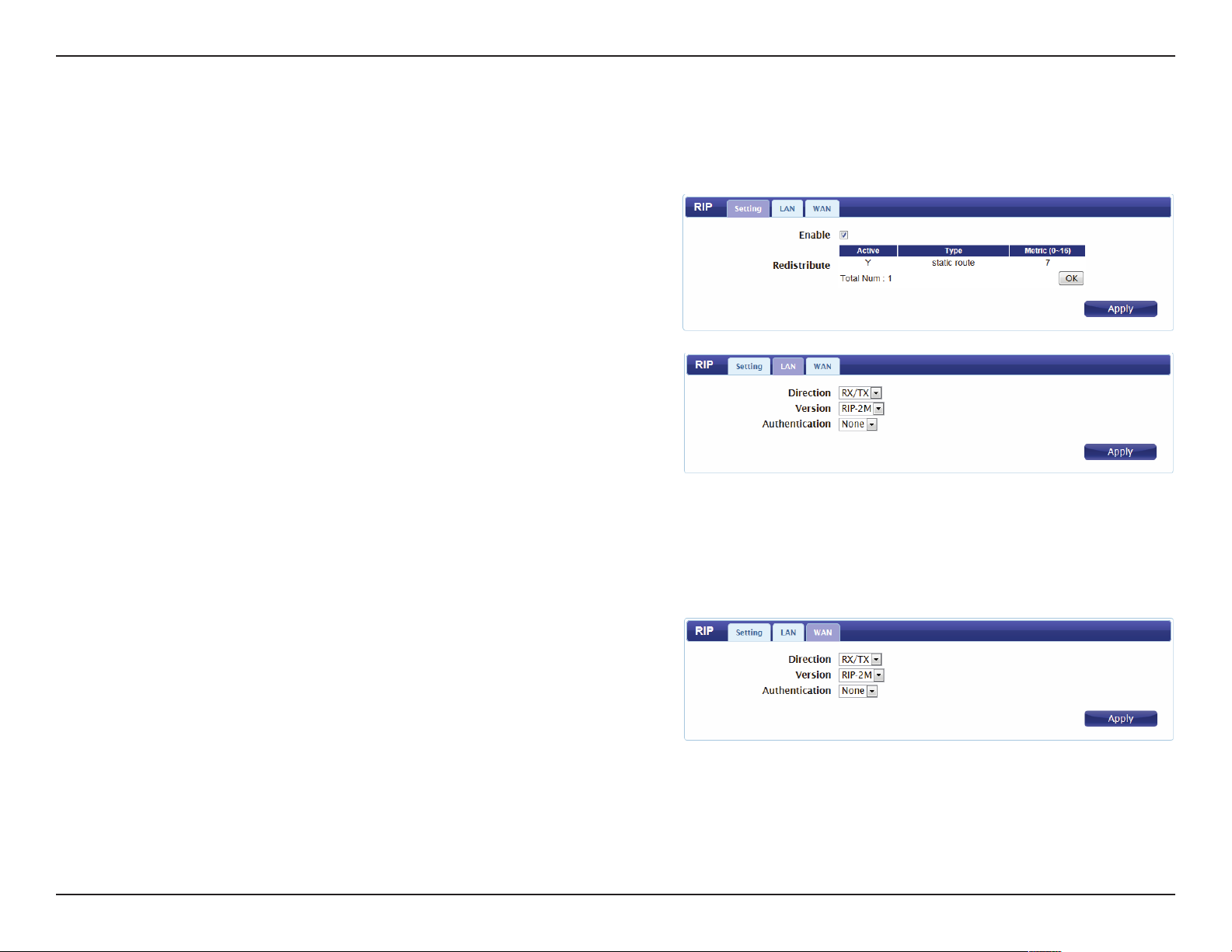

RIP .............................................................................................54

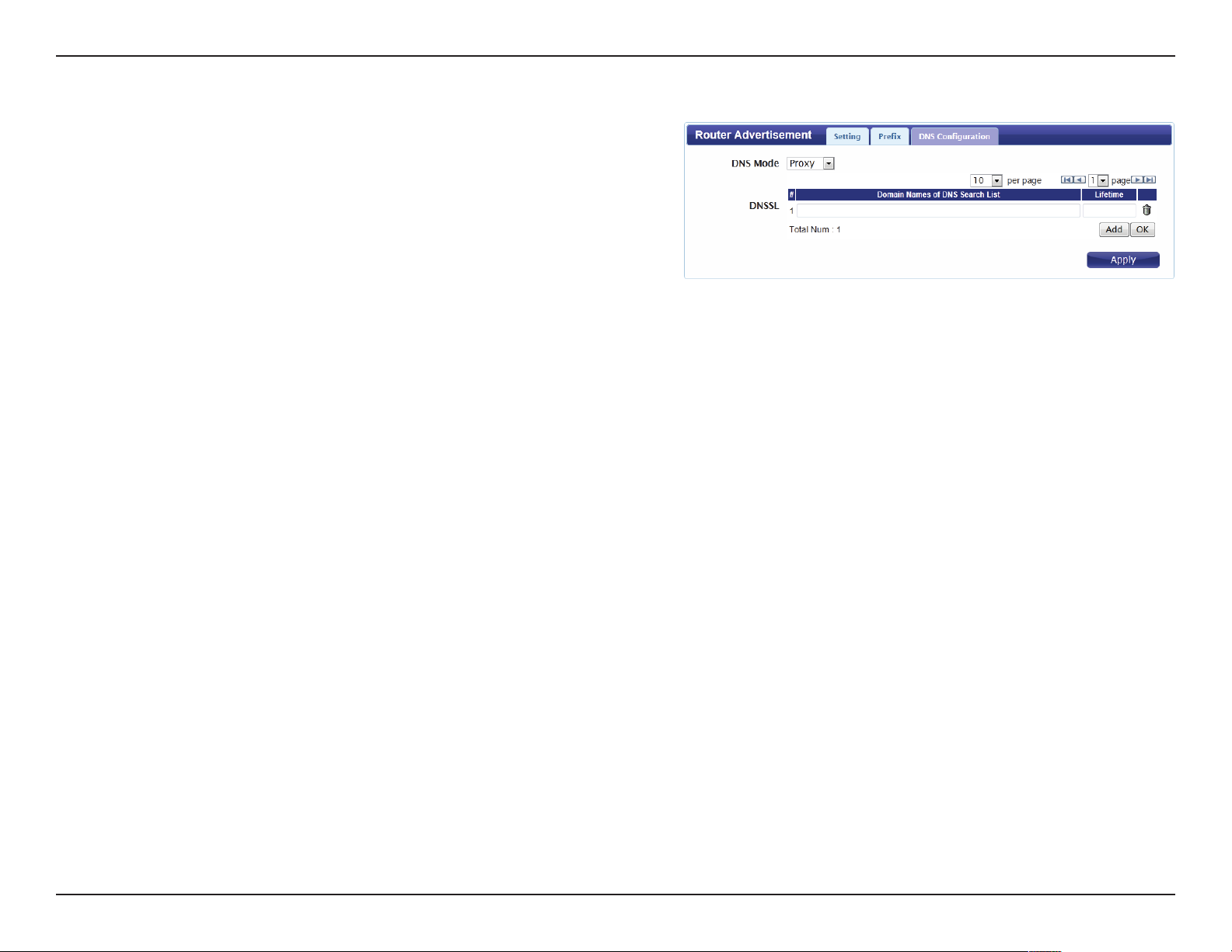

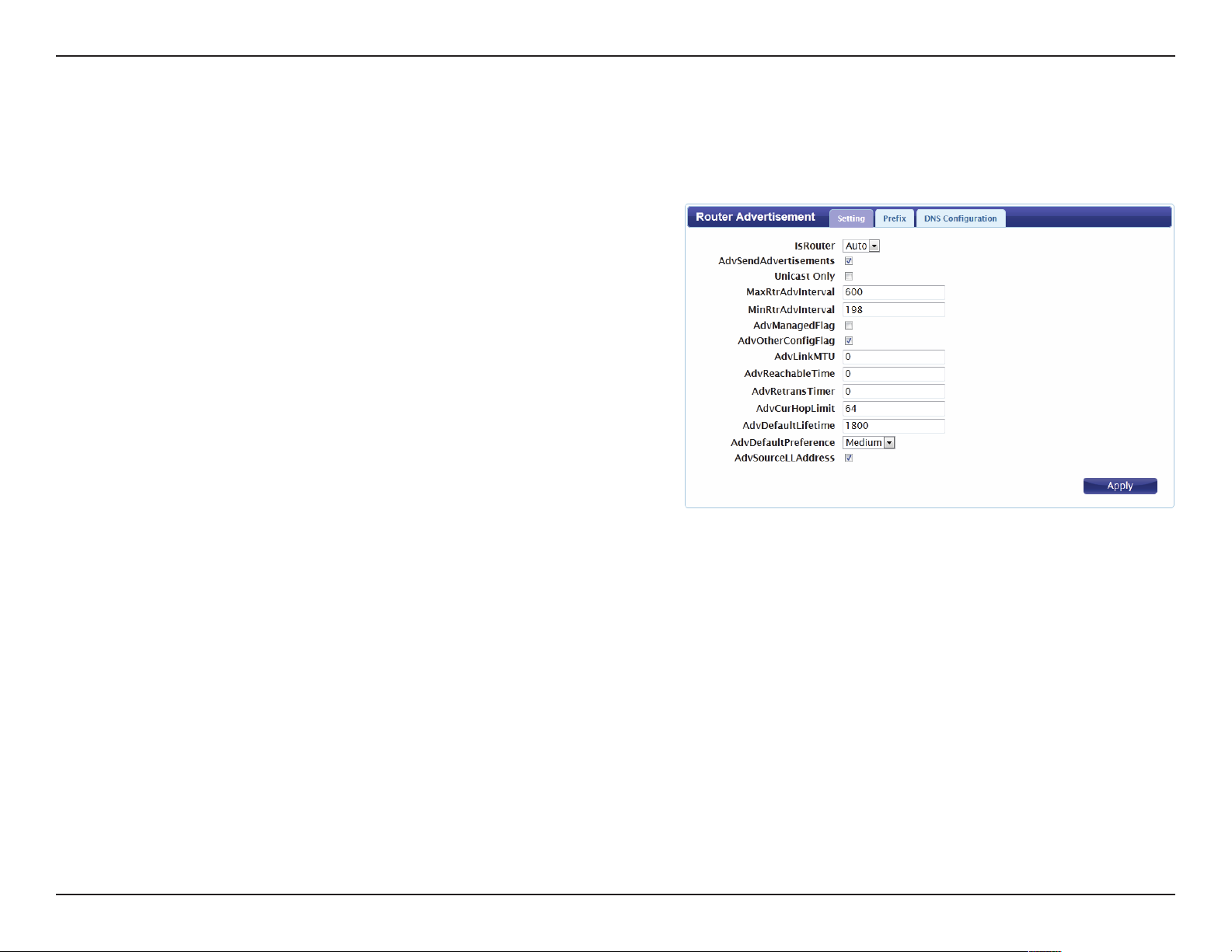

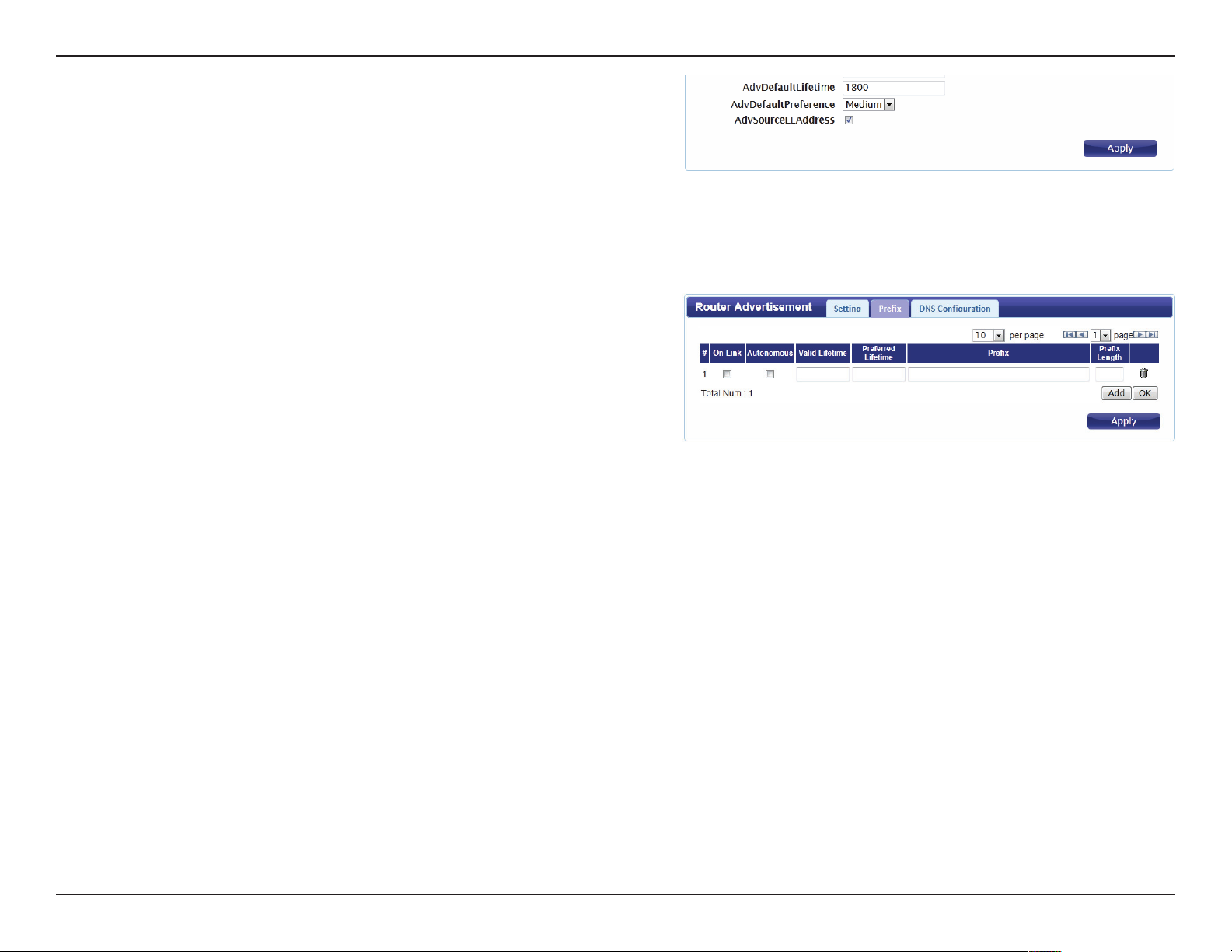

LAN IPv6 RA ..........................................................................55

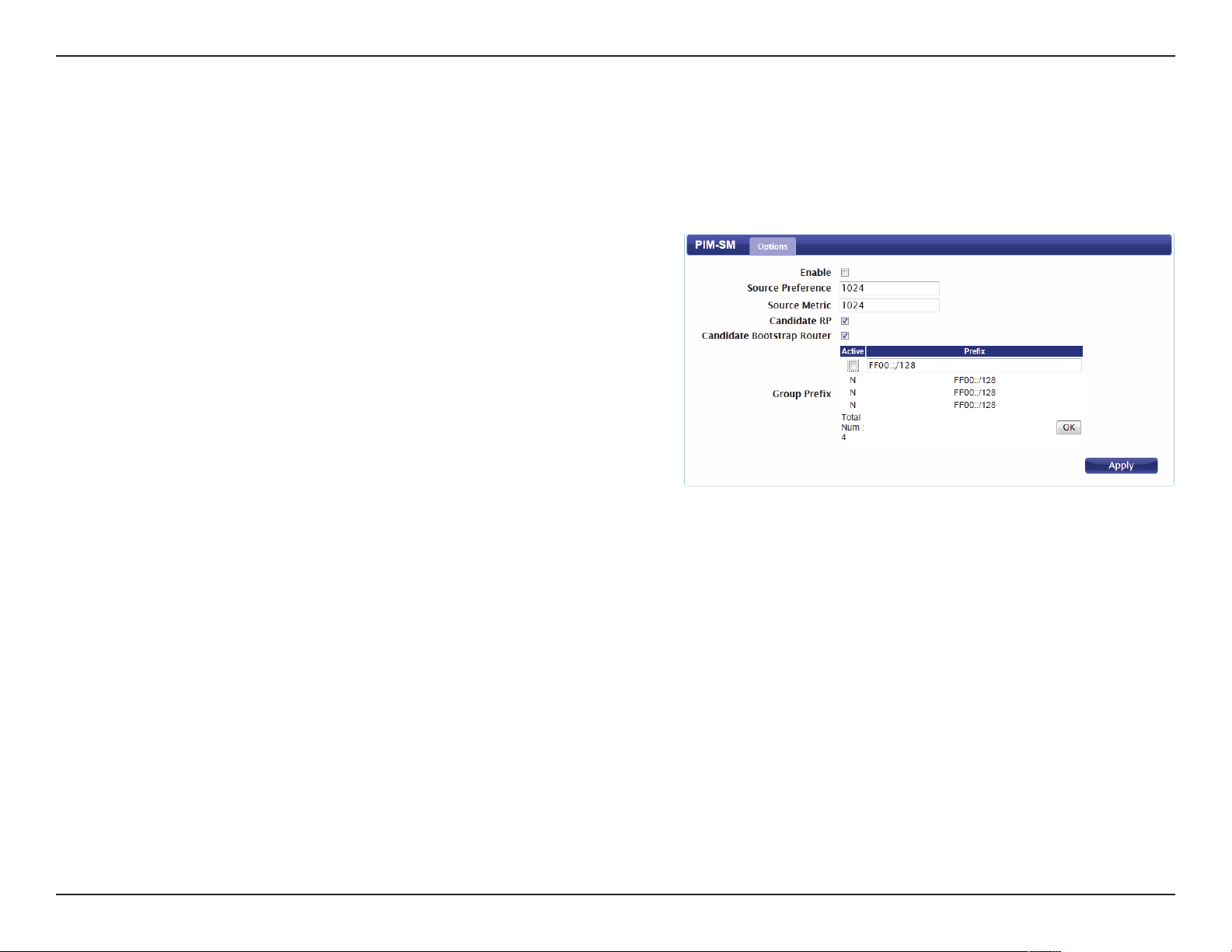

IPv6 Multicast .......................................................................58
Security ..........................................................................................59
Firewall ...................................................................................59

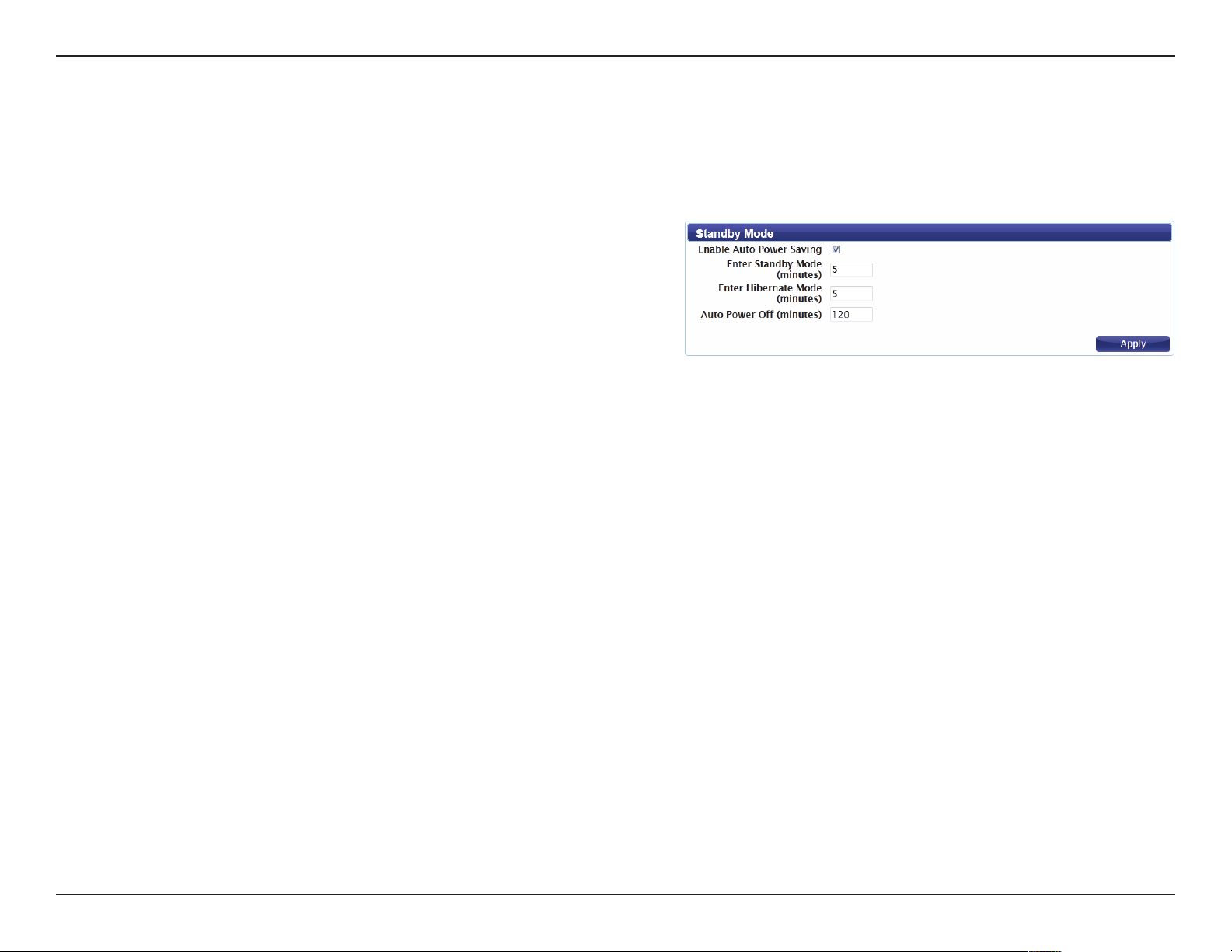

Standby Mode .....................................................................67

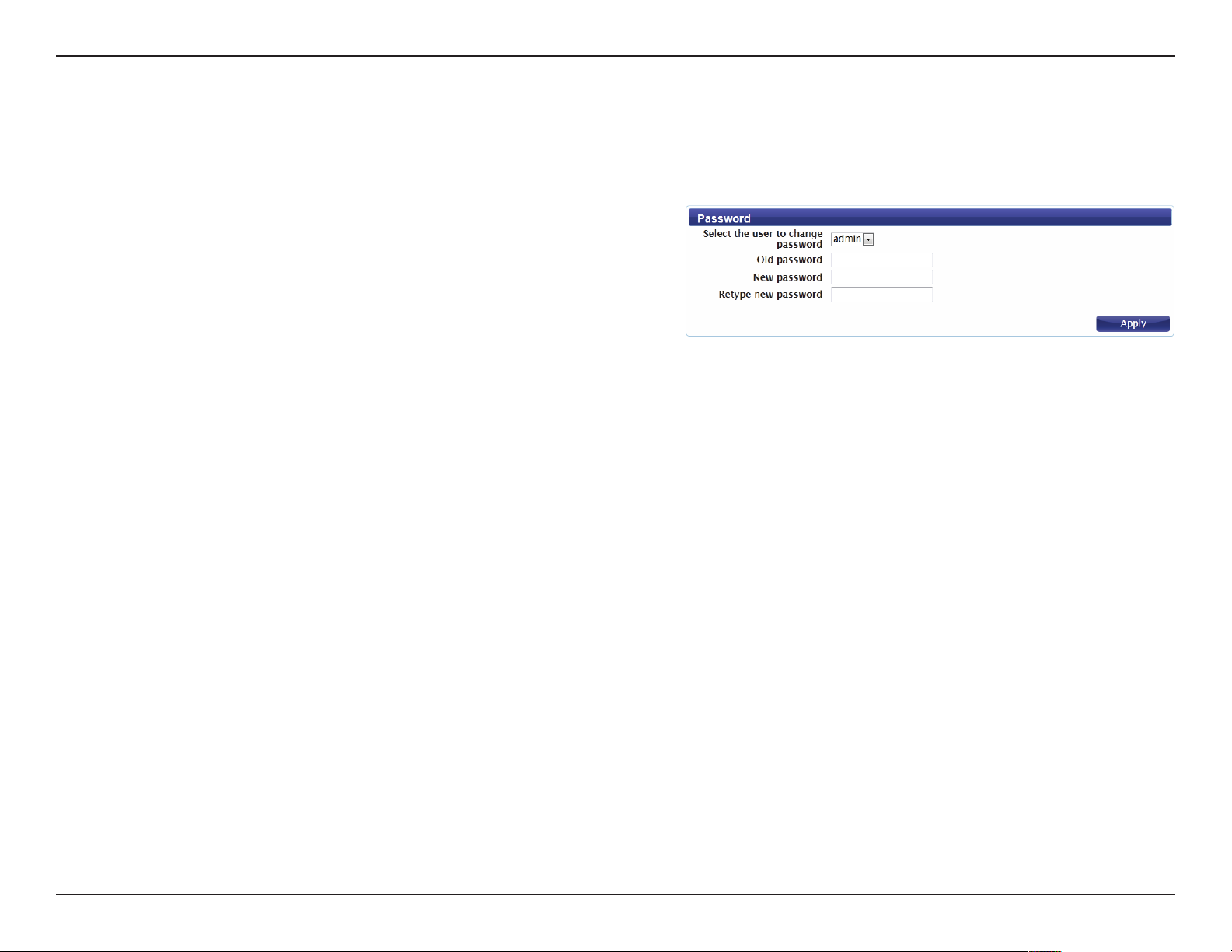

Password ................................................................................68

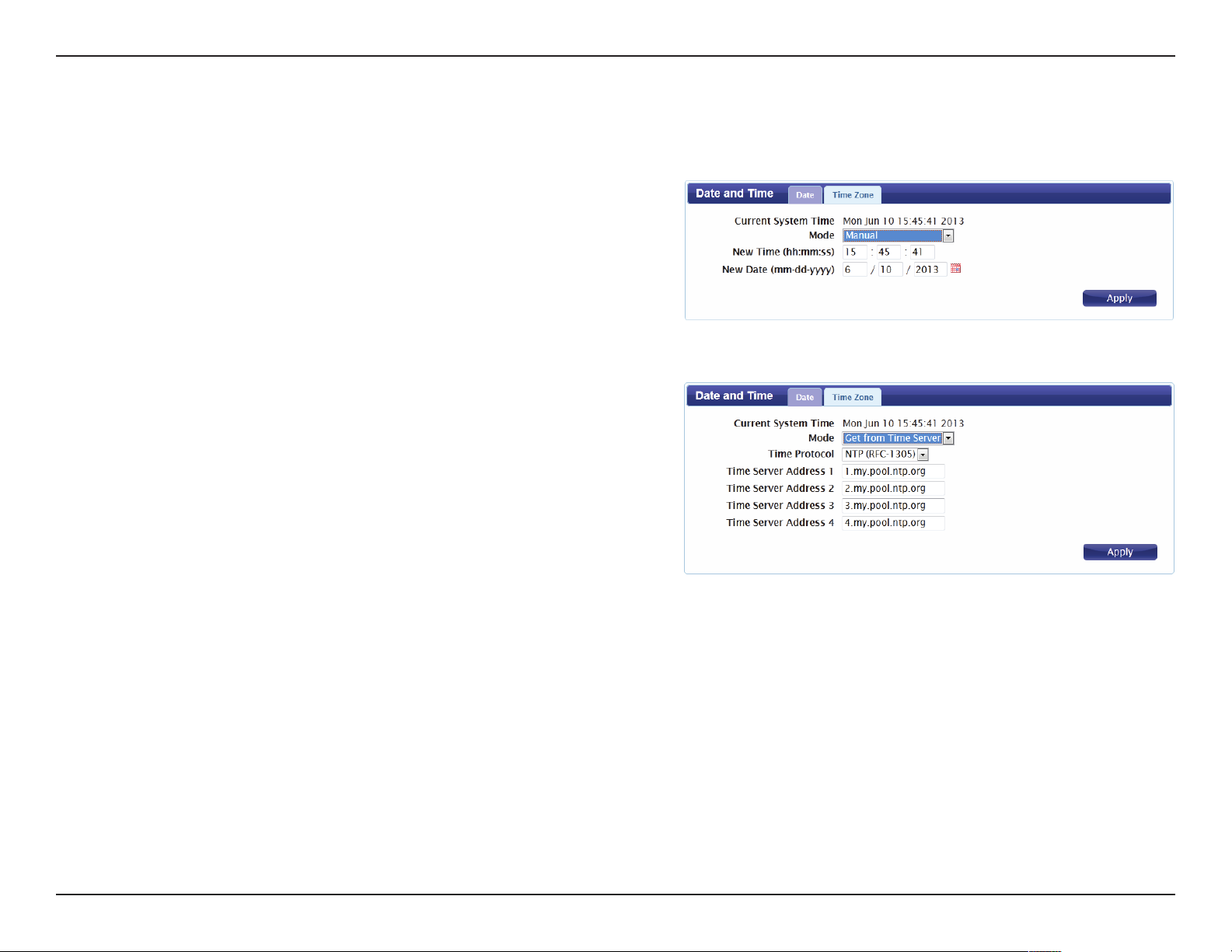

Date and Time ......................................................................69

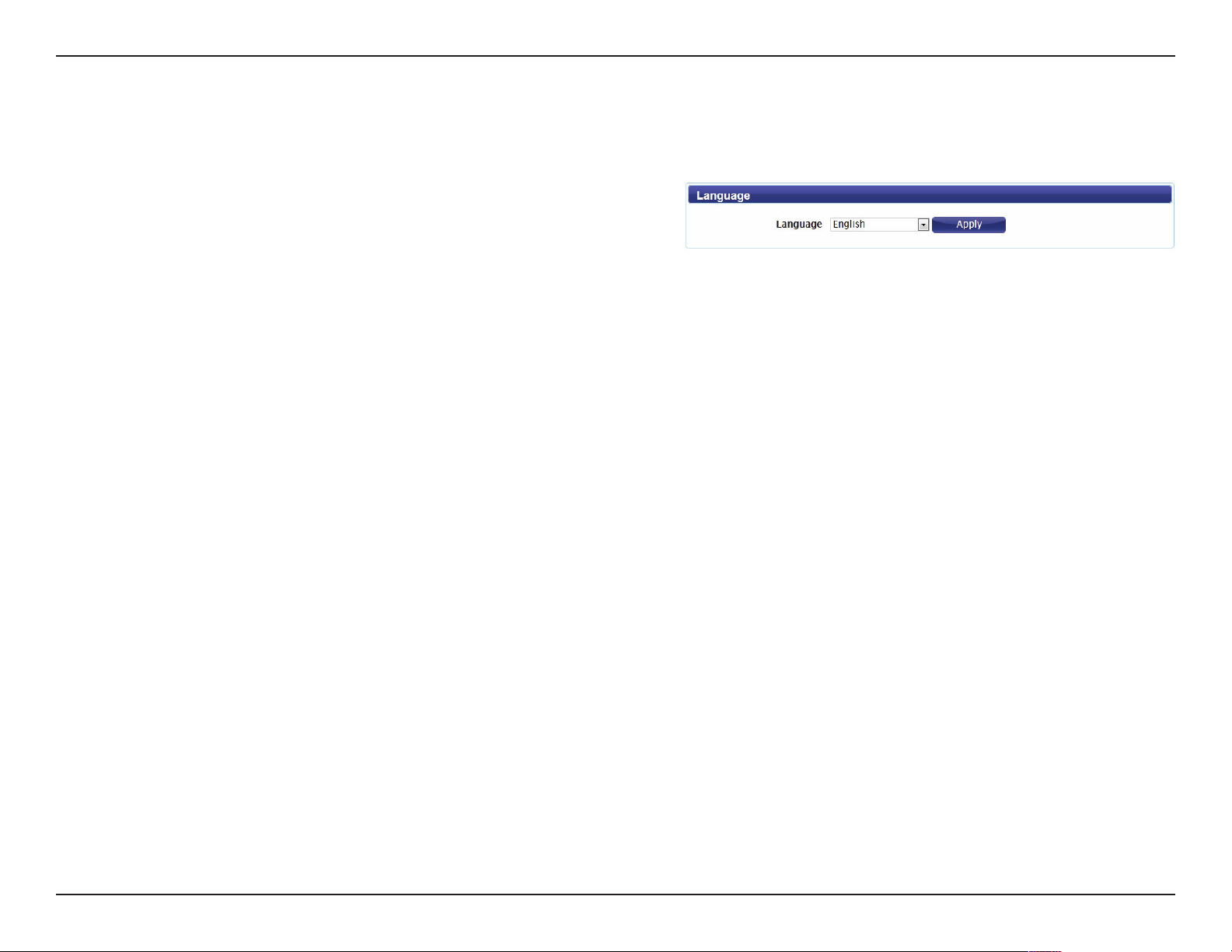

Language ...............................................................................71

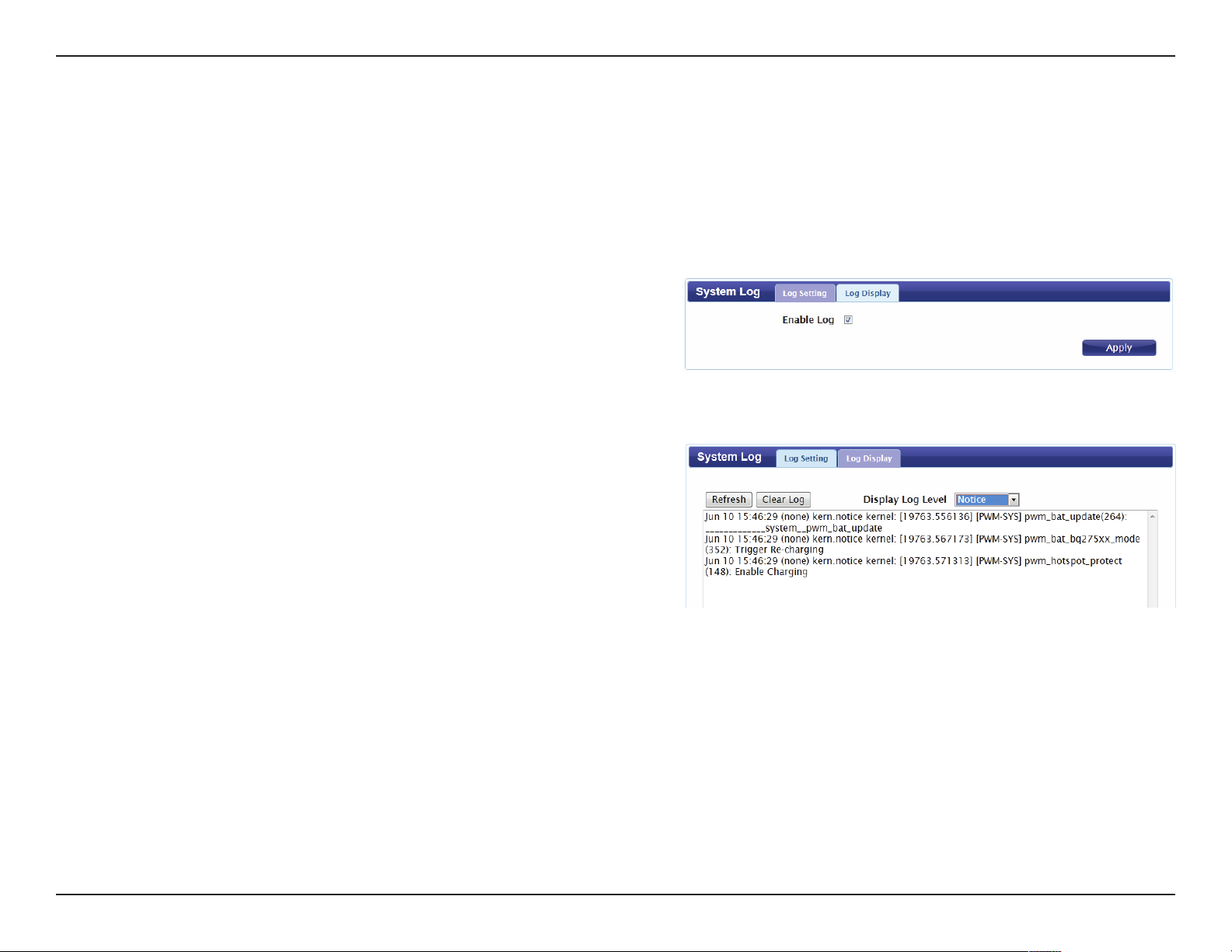

System Log ............................................................................72
Connecting to a Wireless Network .................................73

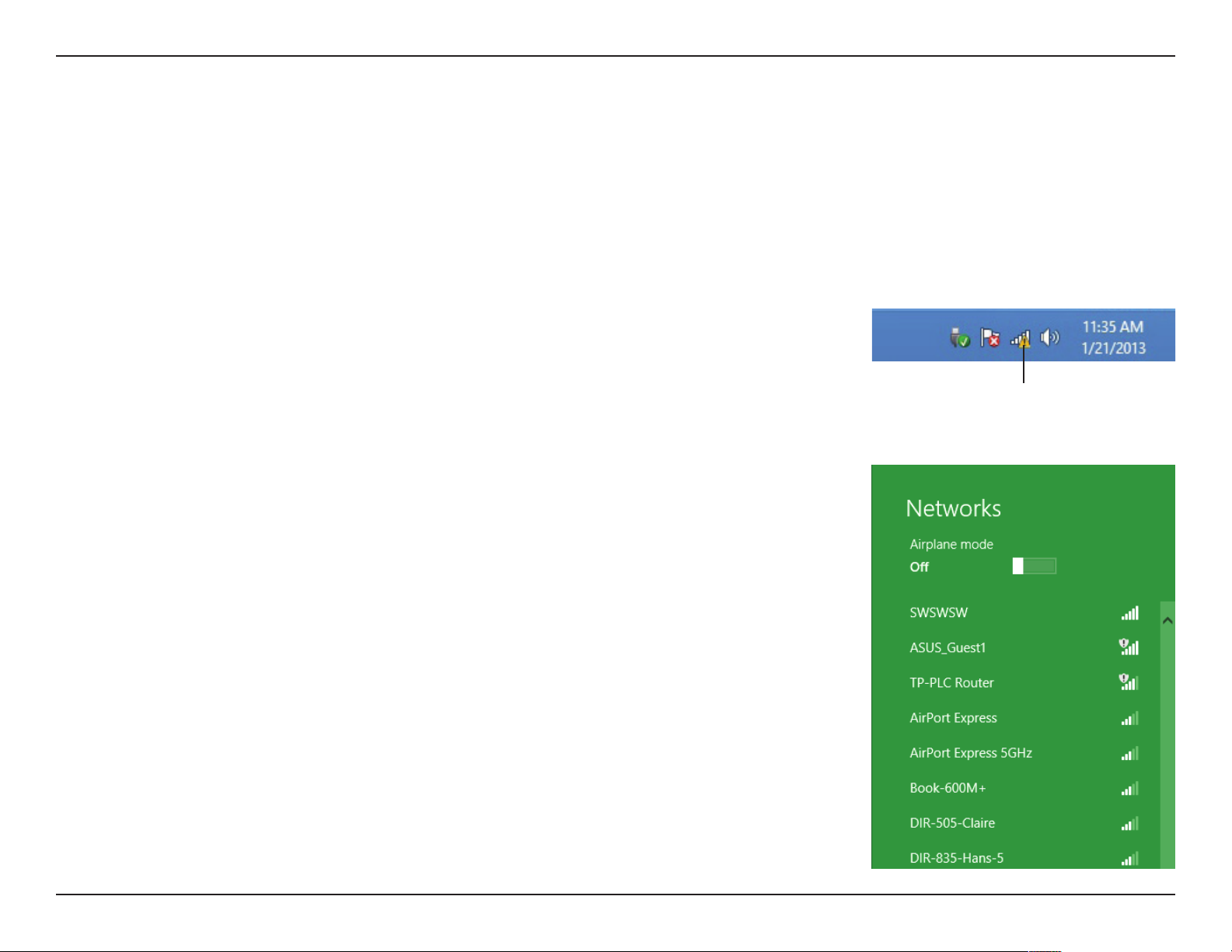

Using Windows 8 .......................................................................73

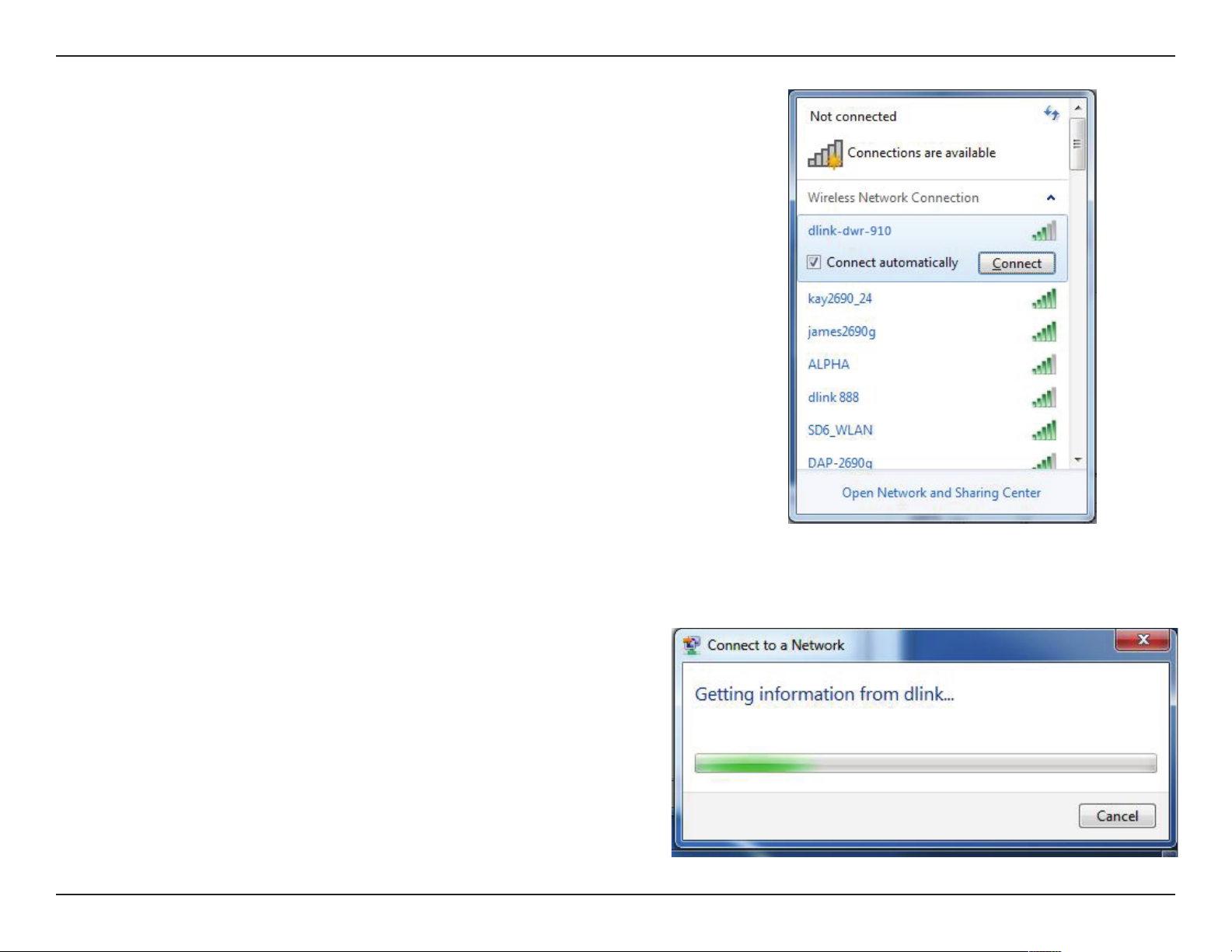

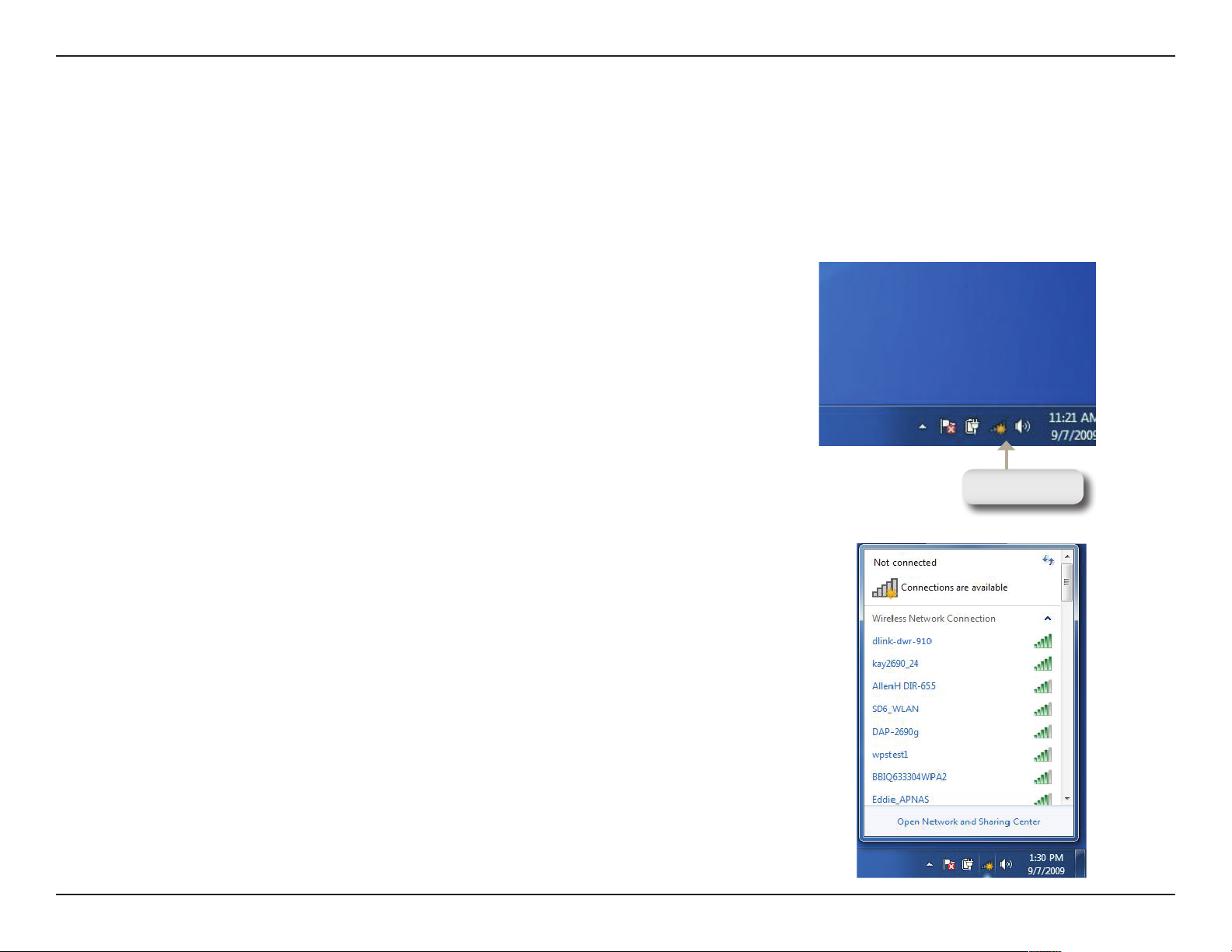

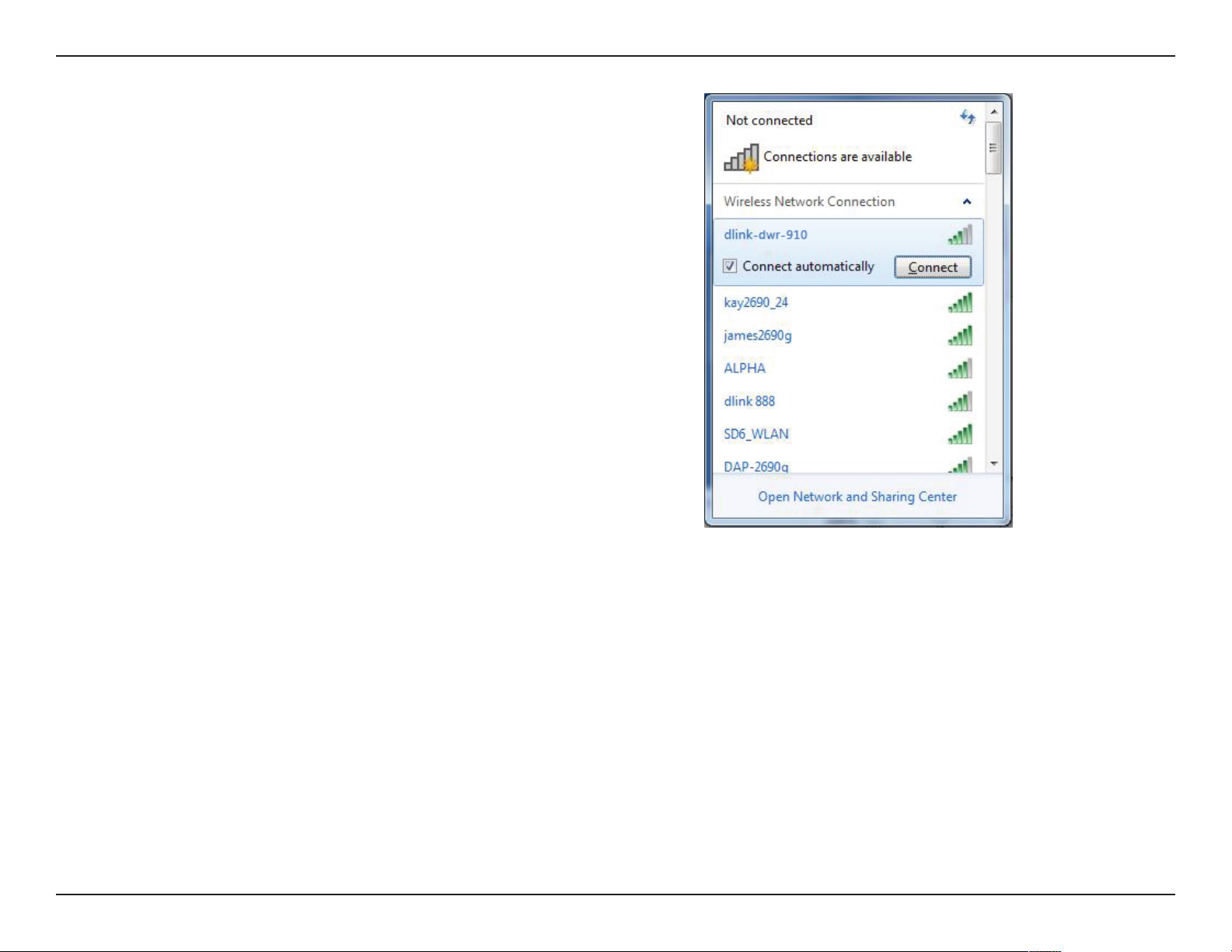

Connecting to a Wireless Network .................................75

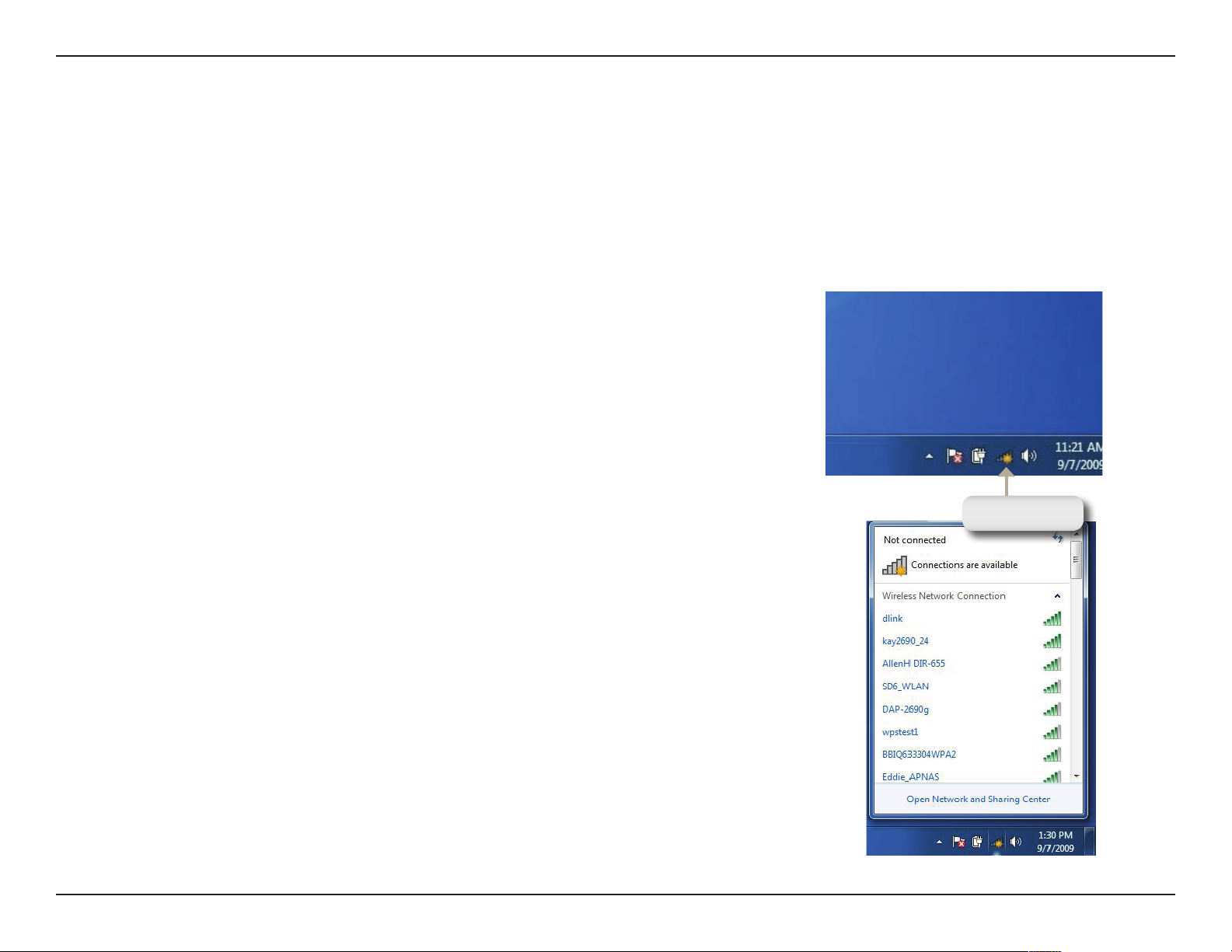

Using Windows 7 .......................................................................75
Conguring Wireless Security ........................................77

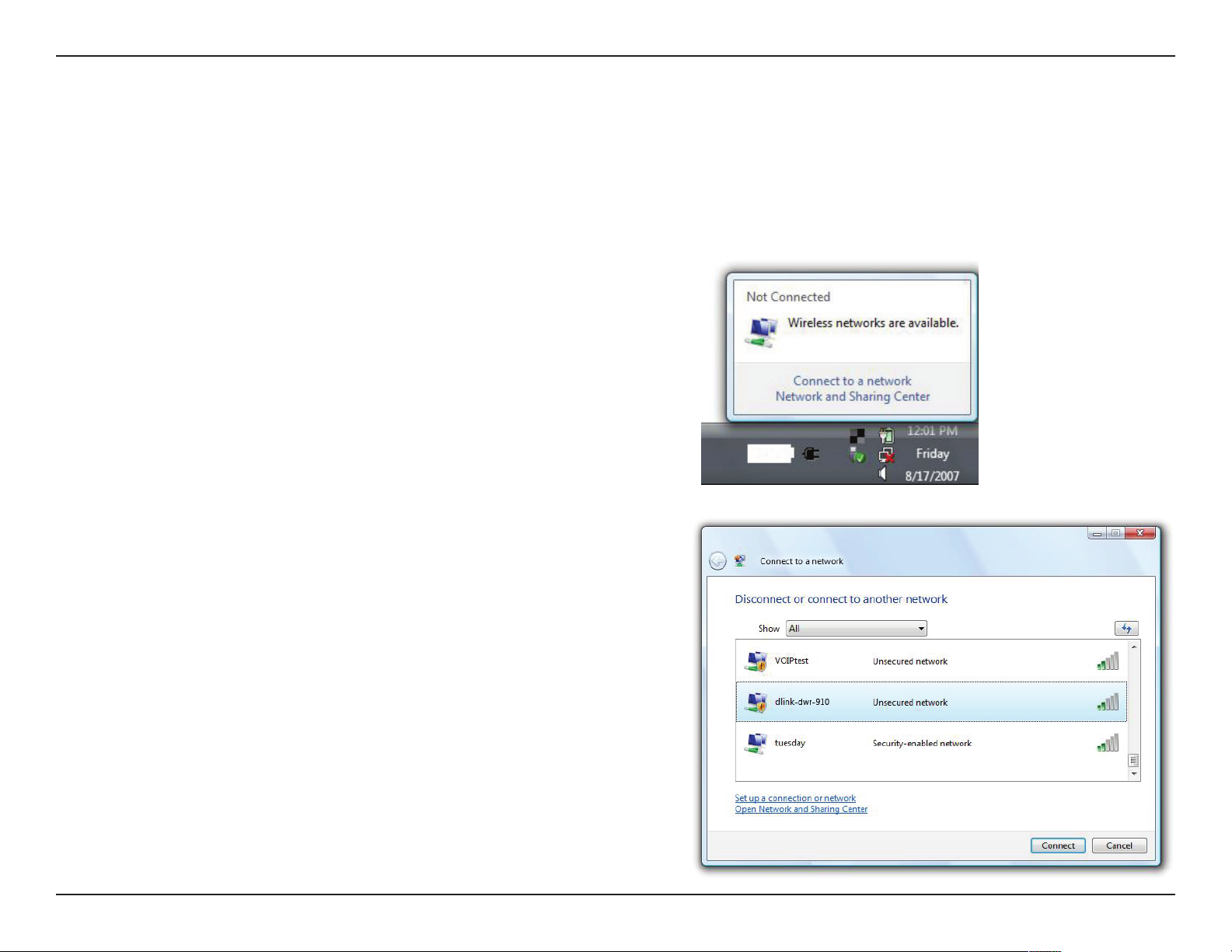

Using Windows Vista™ ..............................................................80
Conguring Wireless Security ........................................81
®
Using Windows
XP ....................................................................83

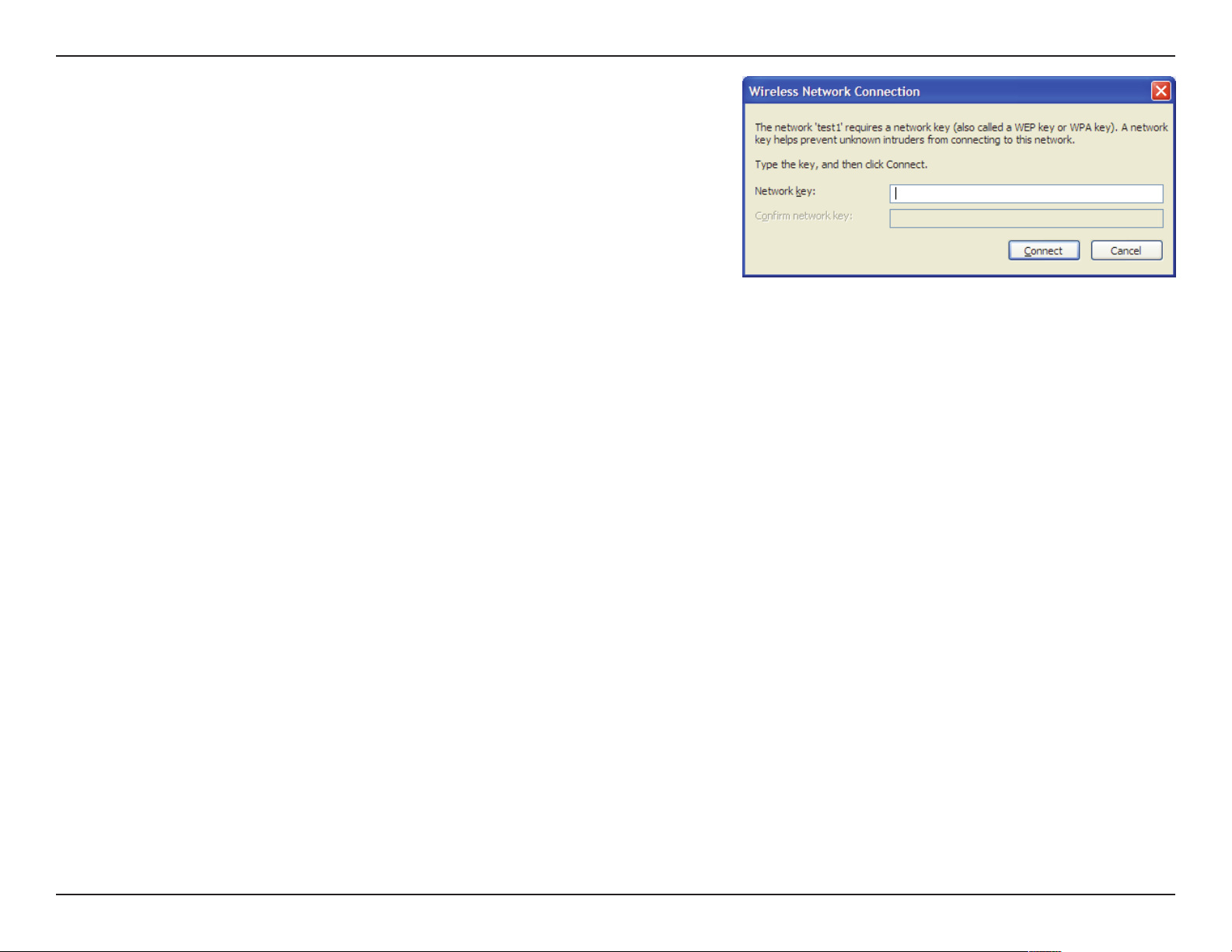

Congure WEP .....................................................................84
Congure WPA-PSK ............................................................86
Troubleshooting .............................................................. 88
IP Filter ...............................................................................59

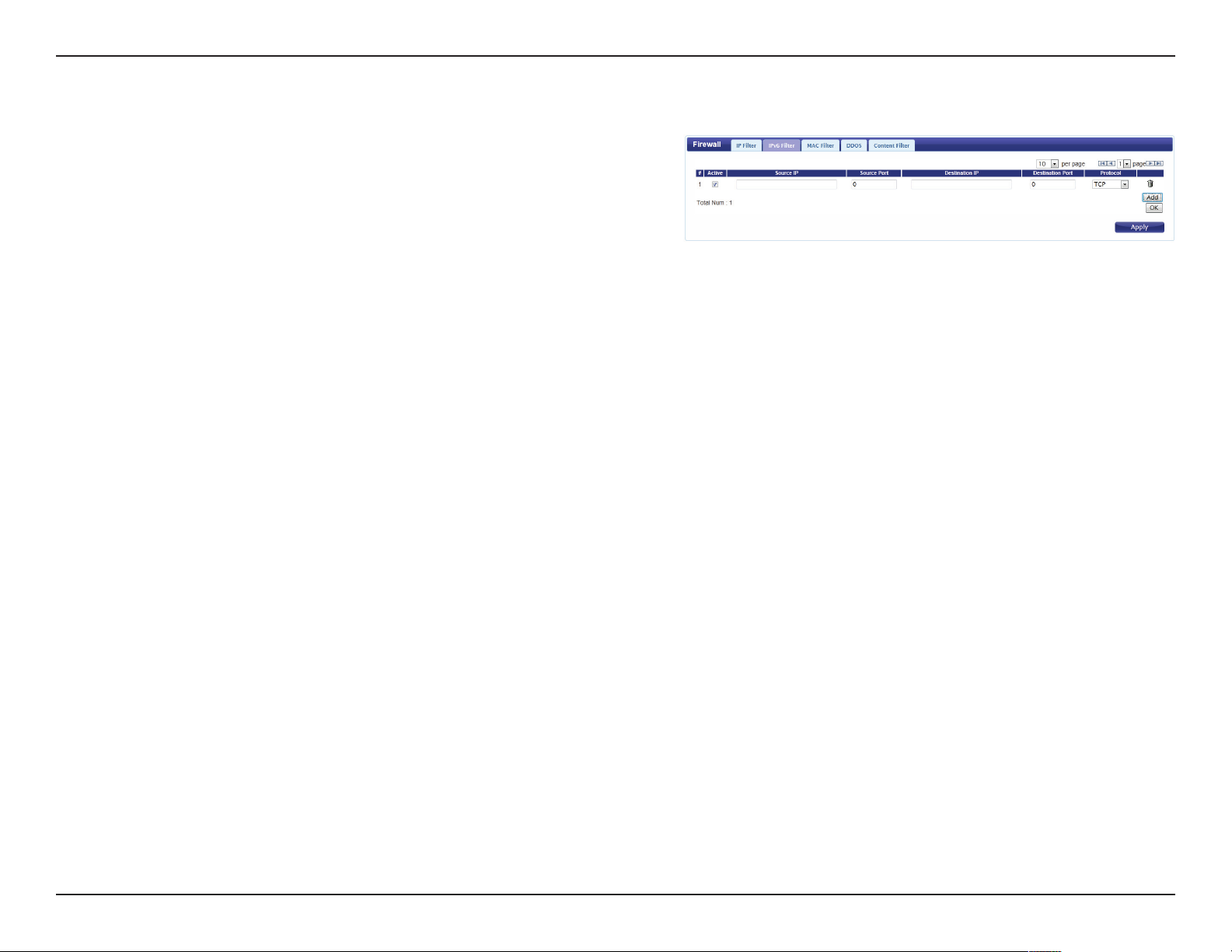

IPv6 Filter ..........................................................................60
MAC Filter .........................................................................61
DDOS ..................................................................................62

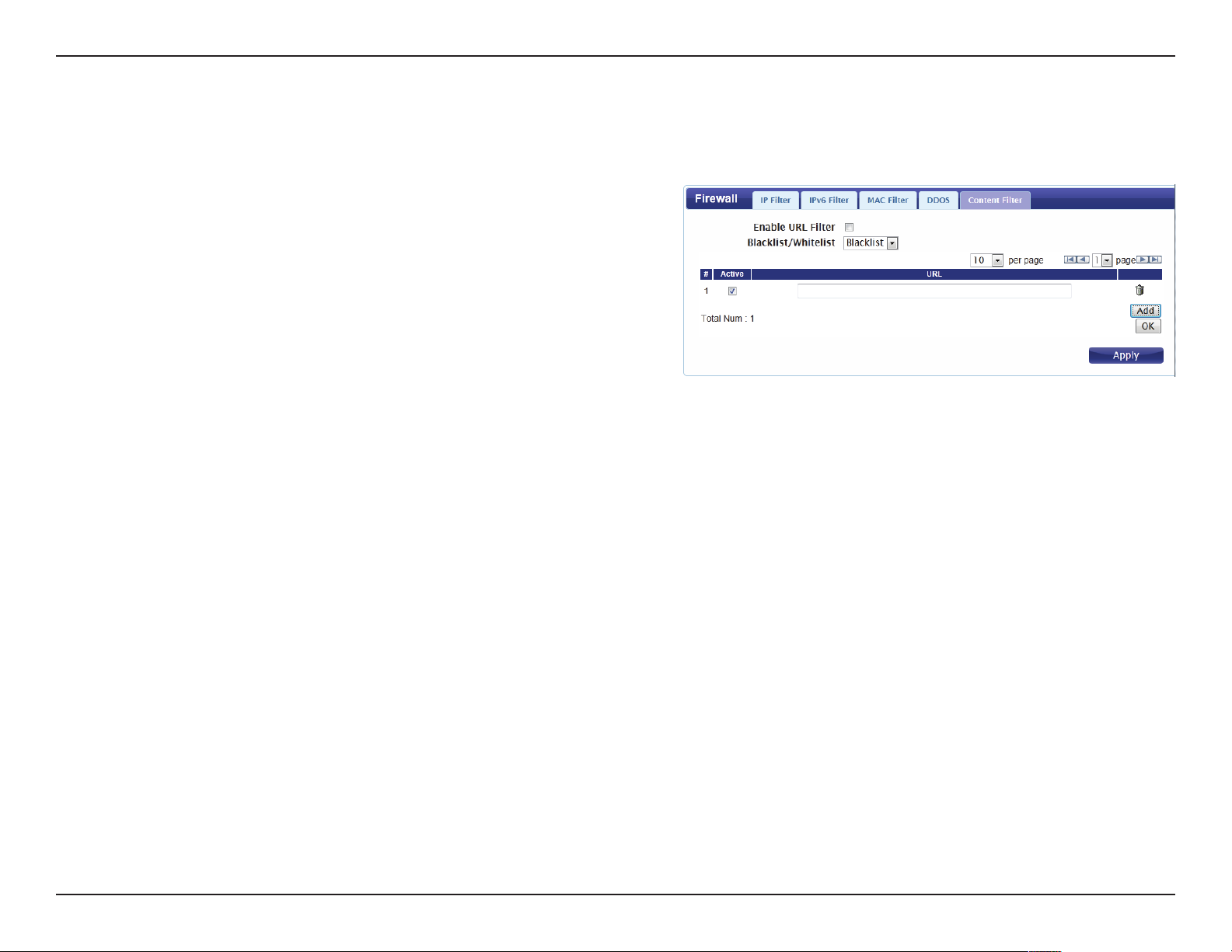

URL Filter ...........................................................................63
Application ...................................................................................64

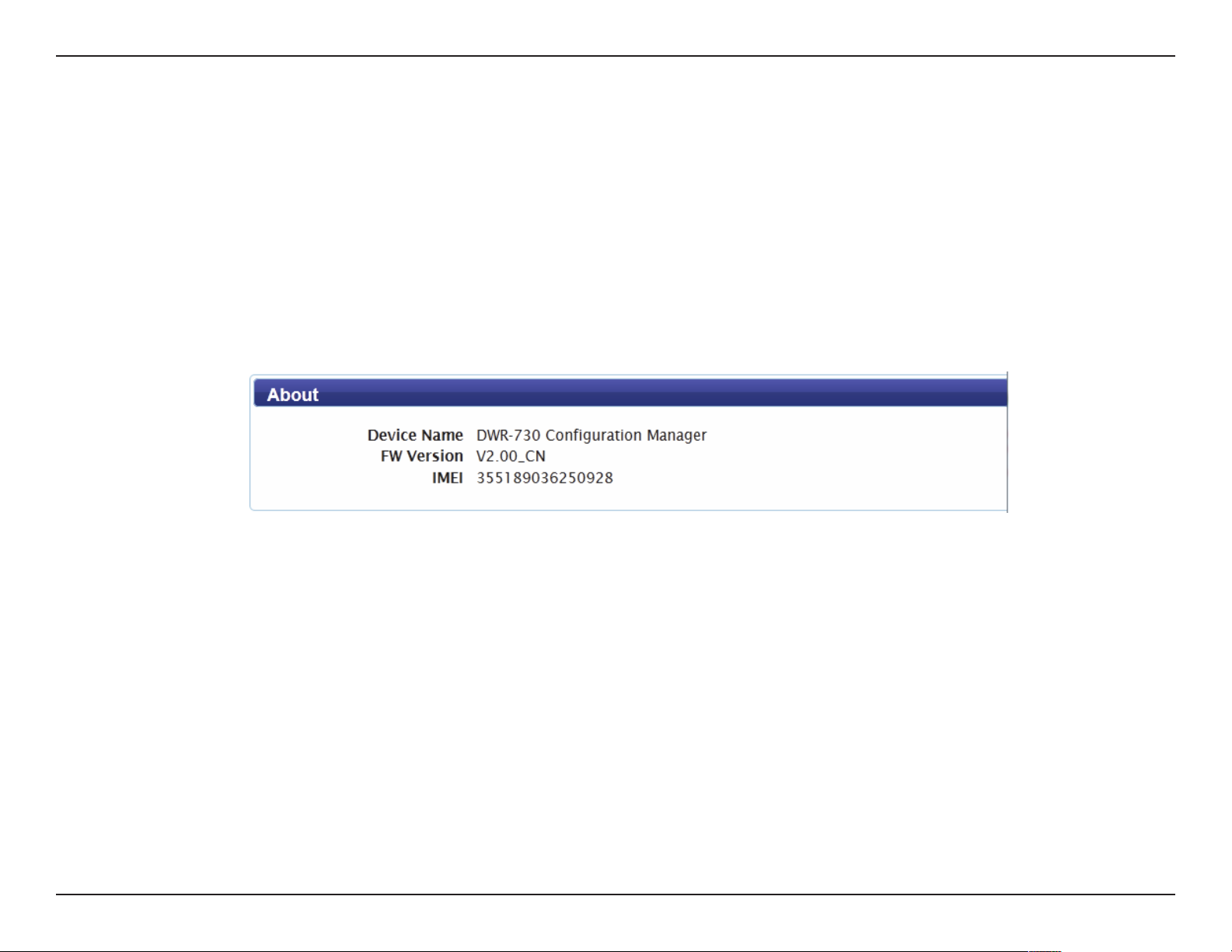

About ......................................................................................64

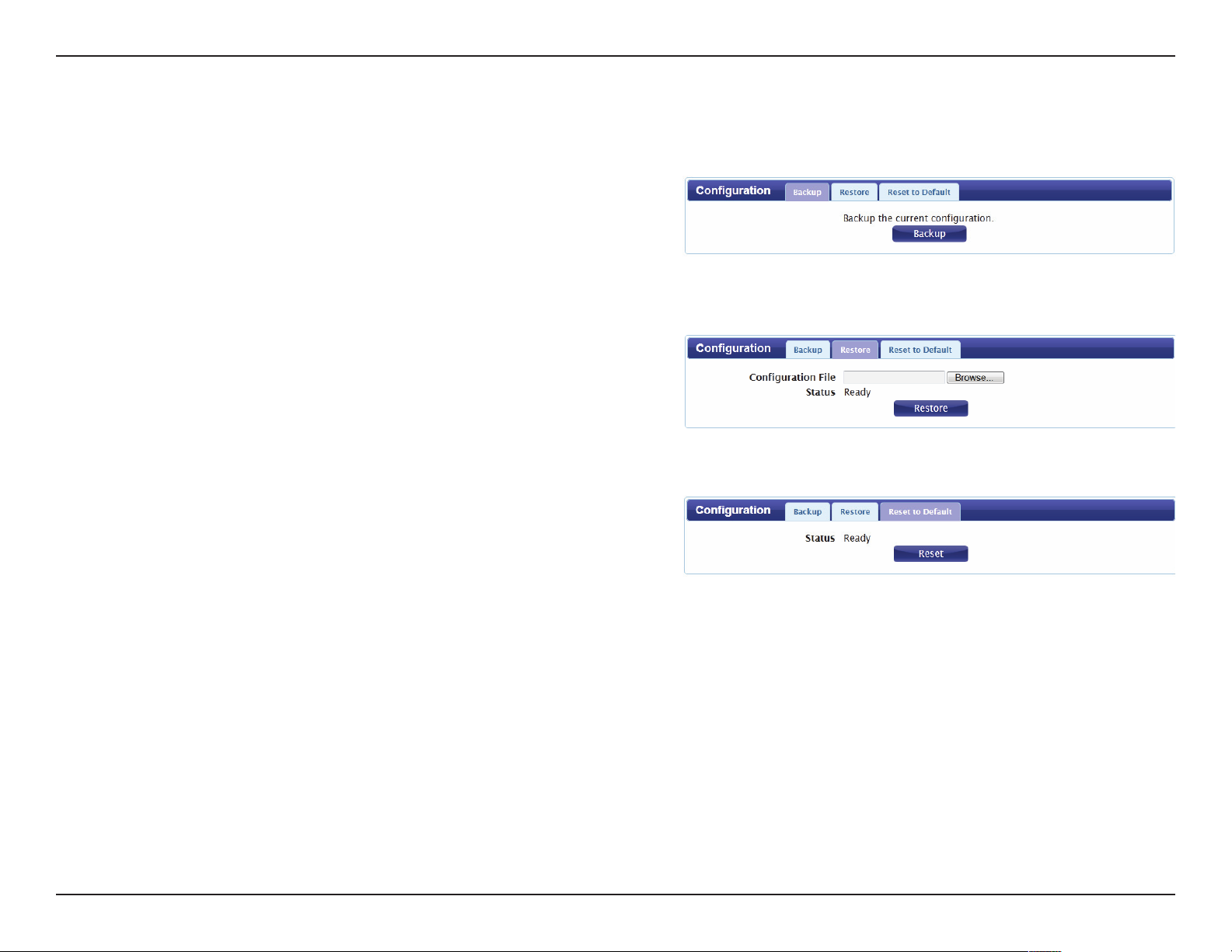

Conguration .......................................................................65

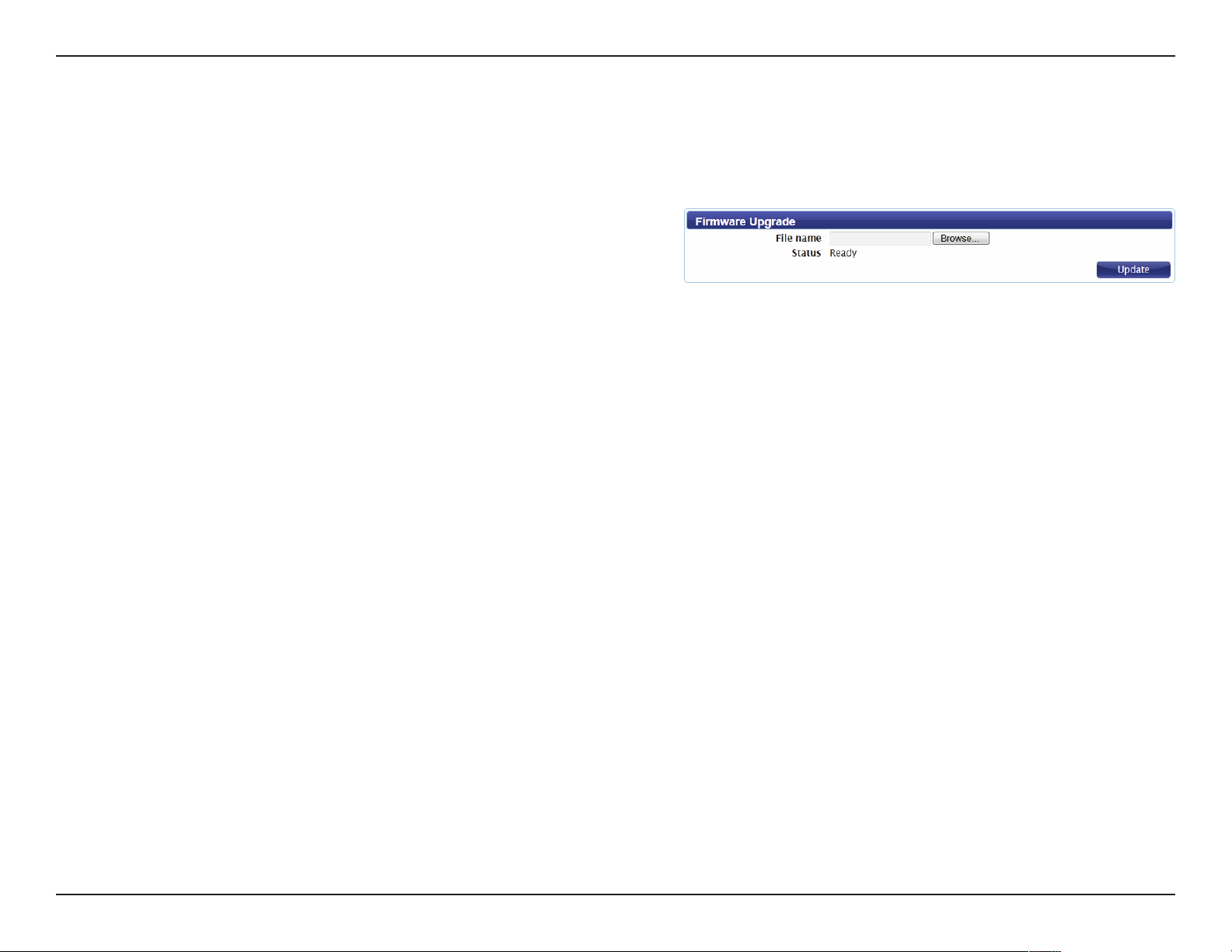

Firmware Upgrade ..............................................................66
Networking Basics ...........................................................90

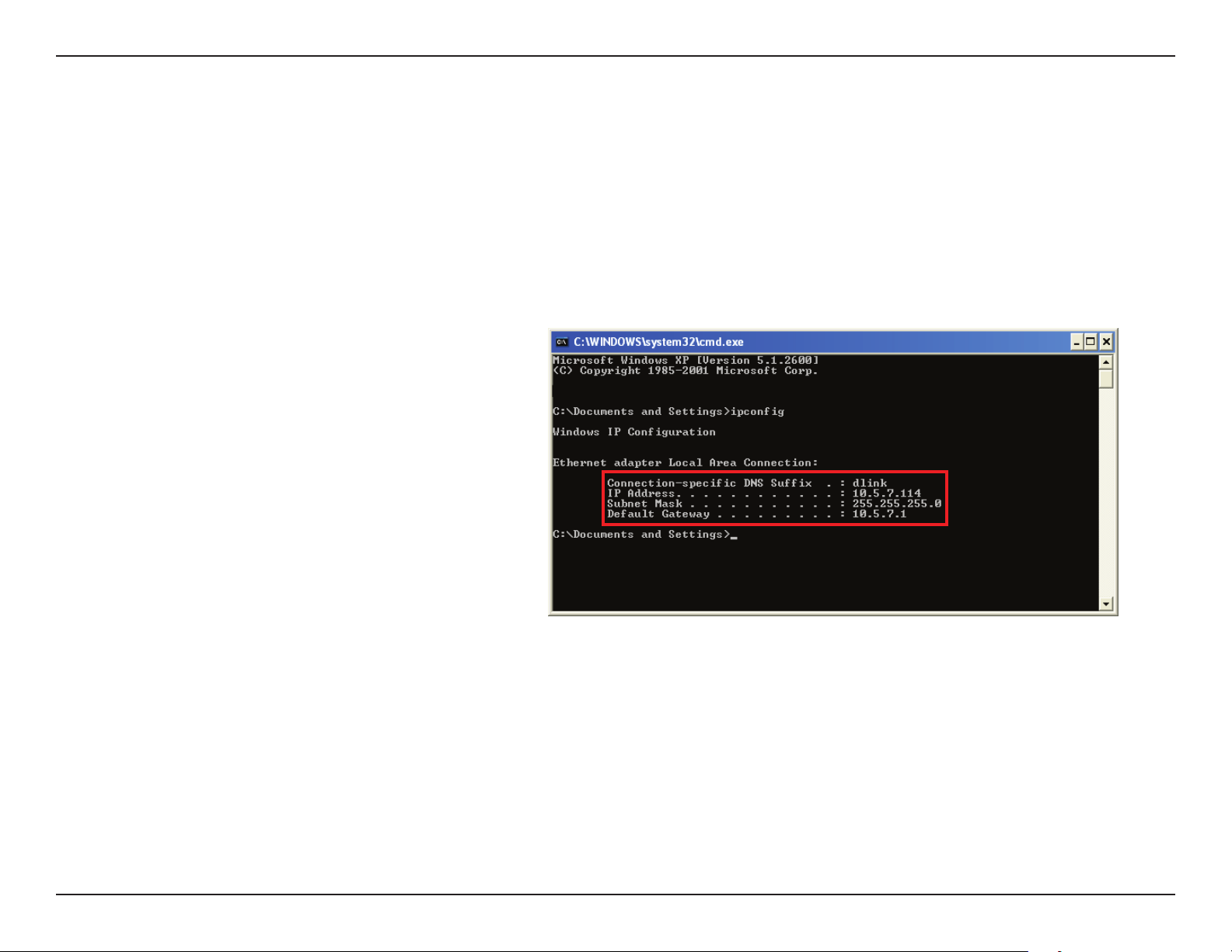

Check your IP address ...............................................................90
Statically Assign an IP address ...............................................91
Technical Specications ..................................................92
Warnings and Declarations ............................................93
iiiD-Link DWR-730 User Manual
Section 1 - Product Overview

Product Overview

Package Contents

D-Link DWR-730 HSPA+ Mobile Router
Battery
USB Cable
Power Adapter
If any of the above items are missing from your package, please contact your reseller.

System Requirements

• A compatible (U)SIM card with mobile data service
• A computer a with Windows®, Macintosh® , or Linux-based operating systems
• Internet Explorer 8, Firefox 12.0, Chrome 20.0 , or Safari 4.0
1
Subject to services and service terms available from your carrier.
1
1D-Link DWR-730 User Manual
Section 1 - Product Overview

Introduction

The D-Link DWR-730 HSPA+ Mobile Router lets you share a fast mobile Internet connection with multiple PCs and mobile devices wherever you go. It oers 3G HSPA+ compatibility for fast downlink and uplink data rates, so you get the high-speed upload and download speeds even when you’re on the go. Set up a personal mobile network anywhere, anytime allowing you and those around you to access the Internet, and share les.
High-Speed Mobile Internet with 3G Connectivity
The DWR-730 HSPA+ Mobile Router gives you high-speed access to the Internet wherever you are and lets you share it on the go. Using HSPA+
1
technology, you can achieve download speeds of up to 21.6 Mbps and upload speeds of up to 5.76 Mbps connection to your 3G service provider, and a separate Wi-Fi antenna gives extended coverage to the computers and mobile devices connected to
the DWR-730.
Mobile Internet for All of Your Devices
The HSPA+ Mobile Router lets you share your fast mobile connection over Wi-Fi from a device small enough to t in your pocket. With the DWR-730, you can get online with your notebook, smartphone, tablet, or any other wireless device using a single 3G mobile connection. The DWR-730 provides high-speed Wireless N coverage to give high-speed wireless access to everybody – whether you are with colleagues on a business trip, or travelling
with friends and family.
. The built-in 3G antenna provides a reliable
Built-in Software for Instant Access Anywhere
The DWR-730 is truly plug and play, with drivers built right into the router so you can connect without the need to install anything. Open a browser, connect the router, and you can set up your network right from a web interface. This means that notebooks and netbooks without a CD-ROM drive can connect and get up and running in no time. Once the device is set up, you can simply power it on to start up your portable mobile network, meaning
that you can share your mobile Internet connection without even needing a computer.
Designed for True Portability
The DWR-730 HSPA+ Mobile Router is small and slim enough to carry around in your purse, bag, or pocket. It features a microSD card slot for optional removable storage (up to 32 GB), allowing you to always have your les and contacts on hand. The built-in 2380 mAh rechargeable Li-Ion battery can provide up to six hours of mobile usage, meaning that you can share your mobile Internet connection in the car, in the park, or anywhere, and work or play longer without needing to recharge.
1
All references to speed are for comparison purposes only. Actual speeds will vary depending on a range of factors including mobile network coverage, signal strength, network activity, and environmental conditions.
2D-Link DWR-730 User Manual
Section 1 - Product Overview

Hardware Overview

Left Side

Power Button
WPS Button
microSD Card Slot
microUSB Port
Power Button Press and hold this button for 6 seconds to power on/o the device.
Press this button to add new wireless devices quickly and easily using Wi-Fi Protected
WPS Button
Setup (WPS). Press and hold for more than 5 seconds to turn the wireless function on/o.
microSD Card Slot Insert a microSD Card (up to 32GB) to access and share les and media wherever you go.
Use the included cable to connect to a powered USB port to charge the device, or to
micro USB Connector
access the conguration utility.
3D-Link DWR-730 User Manual
Section 1 - Product Overview
Hardware Overview

OLED Display

The current status of the DWR-730’s functions including mobile network, Wi-Fi, security, Internet status, signal strength, and battery level will be shown on the OLED display. Please refer to the table below for the specic indications which are shown on the display.
1 2 3
8
Number Function Icon Indication
1 Network Strength 0-5 Bars
H+ Currently connected to DC-HSPA or HSPA+ mobile network H Currently connected to HSPA mobile network
2 Network Type
3G Currently connected to WCDMA mobile network 2G Currently connected to GPRS/EDGE network No SIM No SIM card detected in device
Indicates the strength of the current mobile network connection
4
9
5 6
7
10
4D-Link DWR-730 User Manual
Section 1 - Product Overview
Indicates that the Wi-Fi network is currently tuned on
3 Wi-Fi & Clients
Number
Internet Connection
4
Internet
Status
5 SMS Number
6 Battery Status Empty-Full
7 Wi-Fi Protected Setup WPS
A
8 Connection Method
M
D = On Demand
9 Operator Name
10 Roaming R
Indicates the number of clients currently connected to the device by Wi-Fi
If this icon is displayed, there is an Internet connection present
There are unread SMS messages in the inbox Displays the current battery level. If charging, the animation will
indicate charging status and current battery level The device is ready for WPS association with wireless clients
The device is set to connect to the mobile network automatically
The device is set to connect to the mobile network manually The device will connect to the preferred mobile network when
internet access is required. The name of the mobile network operator to which device is
currently connected The device is currently roaming on a network other than the
home network
5D-Link DWR-730 User Manual
Section 2 - Installation

Installation

This section will guide you through the installation process.

Connect to Your Network

1. Ensure that your DWR-730 HSPA+ Mobile Router is powered o.

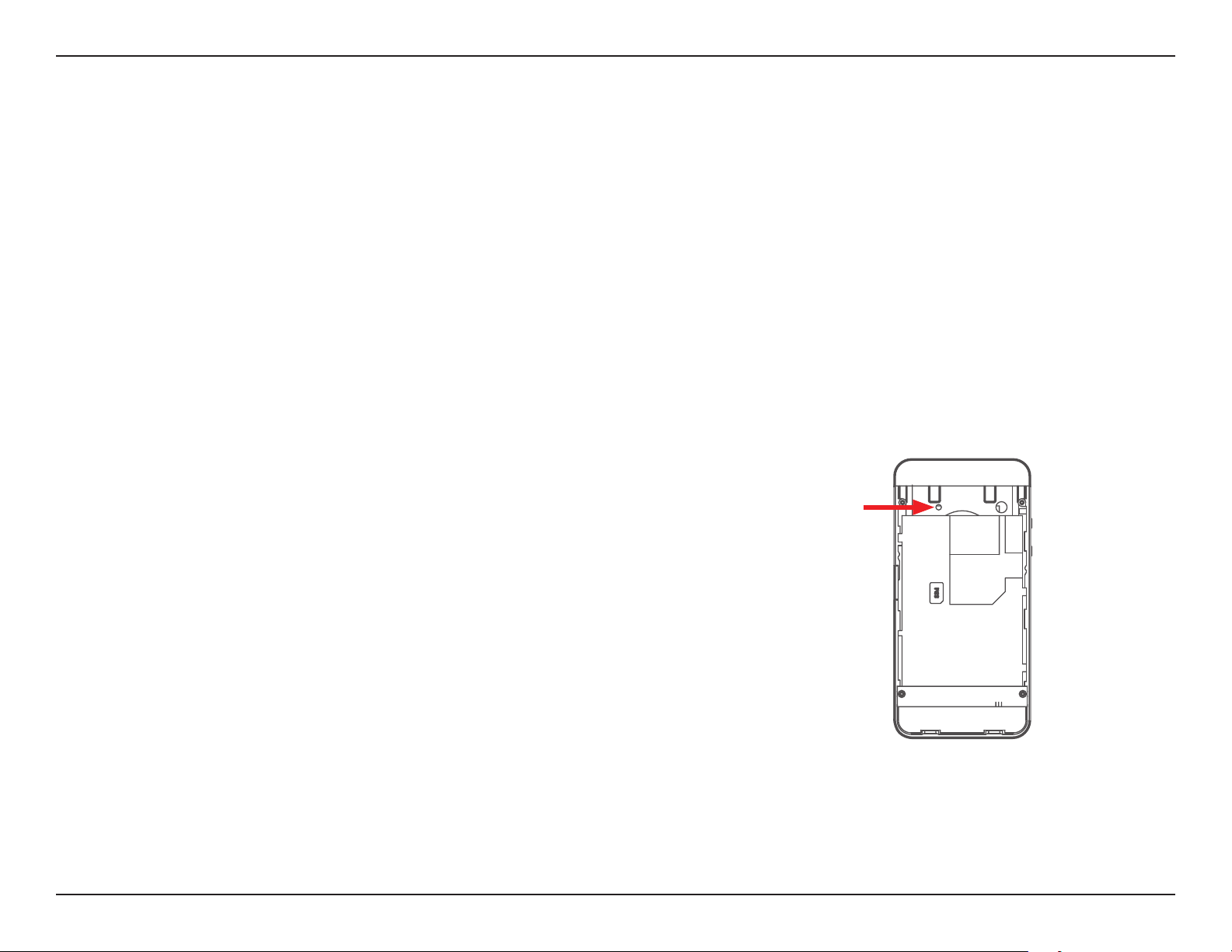

2. Remove the back cover and take out the battery. Slide your (U)SIM card into the slot provided, ensuring that the alignment is the same as indicated by the logo next to the
slot. The gold contacts on the card should be facing downwards.
Caution: Always unplug and turn o the router before installing or removing the SIM card.
Never insert or remove the SIM card while the router is in use.
3. Press and hold the power button on the side of the router.
a. “D-Link” will be displayed on the screen as the router performs its initialization processes.
b. After a few moments, the OLED display will show the current status of the router’s various
functions. For more details on the OLED display, please refer to “OLED Display” on page 4.

Insert a microSD Card

1. Ensure that your DWR-730 HSPA+ Mobile Router is powered o.
2. Open the cover of the microSD slot on the side of the router.
3. Insert the microSD card into the slot and push it in until it locks into place.
6D-Link DWR-730 User Manual
Section 2 - Installation

Driver Installation

When you plug the DWR-730 into your computer, any necessary drivers will immediately install (with your permission).
Note: These drivers are Windows-only. Mac and Linux users will still be able to congure the DWR-730 using the web conguration utility described in “Conguration Utility” on page 12.
7D-Link DWR-730 User Manual
Section 2 - Installation

Wireless Installation Considerations

The DWR-730 can be accessed using a wireless connection from anywhere within the operating range of its wireless network. Keep in mind that the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may adversely aect wireless signals. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the router and other network devices. Each wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters) appears to be almost 3 feet (1 meter) thick at a 45-degree angle. At a 2-degree angle it appears over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal doors, and aluminum studs may also have a negative eect on range.
4. If you are using a 2.4 GHz cordless phone, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.
8D-Link DWR-730 User Manual
Section 2 - Installation
Conguration
This section will show you how to congure your new D-Link mobile router using the conguration utility that can be obtained through a software interface or a web-based user interface.

Initial Connection to the Router

When conguring the router for the rst time, you will need to establish a direct connection with the router in order to access the web-based conguration utility. This can be done using the included USB cable, or by connecting wirelessly to the DWR-730. Once you have congured your router, you will be able to connect using the Wi-Fi settings that you have specied in the conguration process. Ensure that the router is powered on and has sucient battery power before commencing the setup process.

Connect via USB

To connect to the router via USB, plug the provided micro USB cable into the micro USB port on the bottom of the router, and plug the other end into an available USB port on your computer. Your router is now ready for conguration, please refer to “Conguration Utility” on page 12 to continue the setup process.
9D-Link DWR-730 User Manual
Section 2 - Installation

Connect via Wi-Fi

Note: The following example uses Windows 7’s built-in wireless connection utility. If you are using a dierent operating system, or a third party connection utility, the process may be dierent. Please refer to the documentation that came with your operating system or wireless client for further information on how to connect to a wireless network.
To connect to the router using Wi-Fi, open your operating system’s wireless networking utility and scan for available networks to connect to. By default, the network name (SSID) of the DWR-730 will be in the format dlink_DWR-730xxxx, where “xxxx” represents the last four character’s of the router’s MAC address.
Once you have located this network with your wireless utility, connect to the network using your wireless networking utility.
10D-Link DWR-730 User Manual
Section 2 - Installation

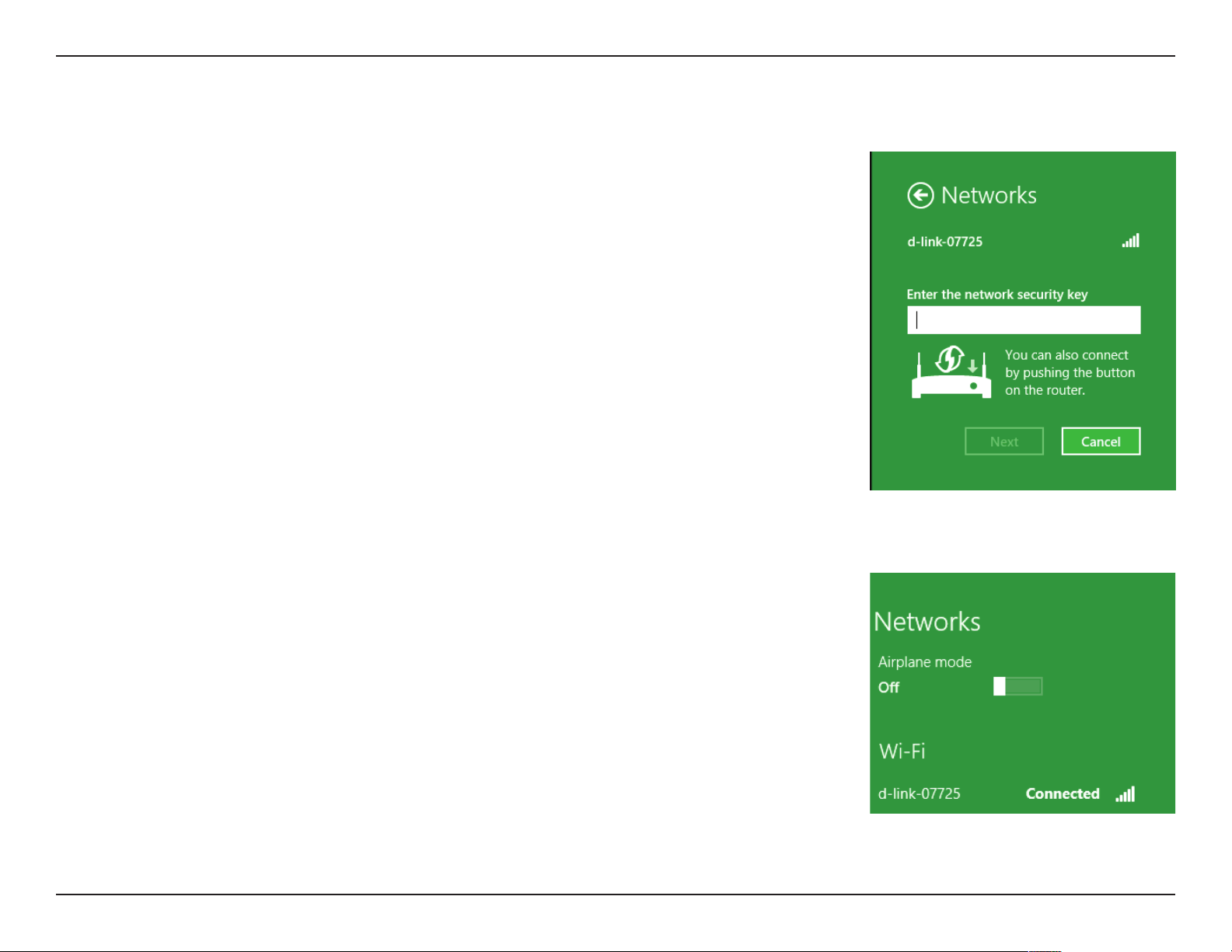

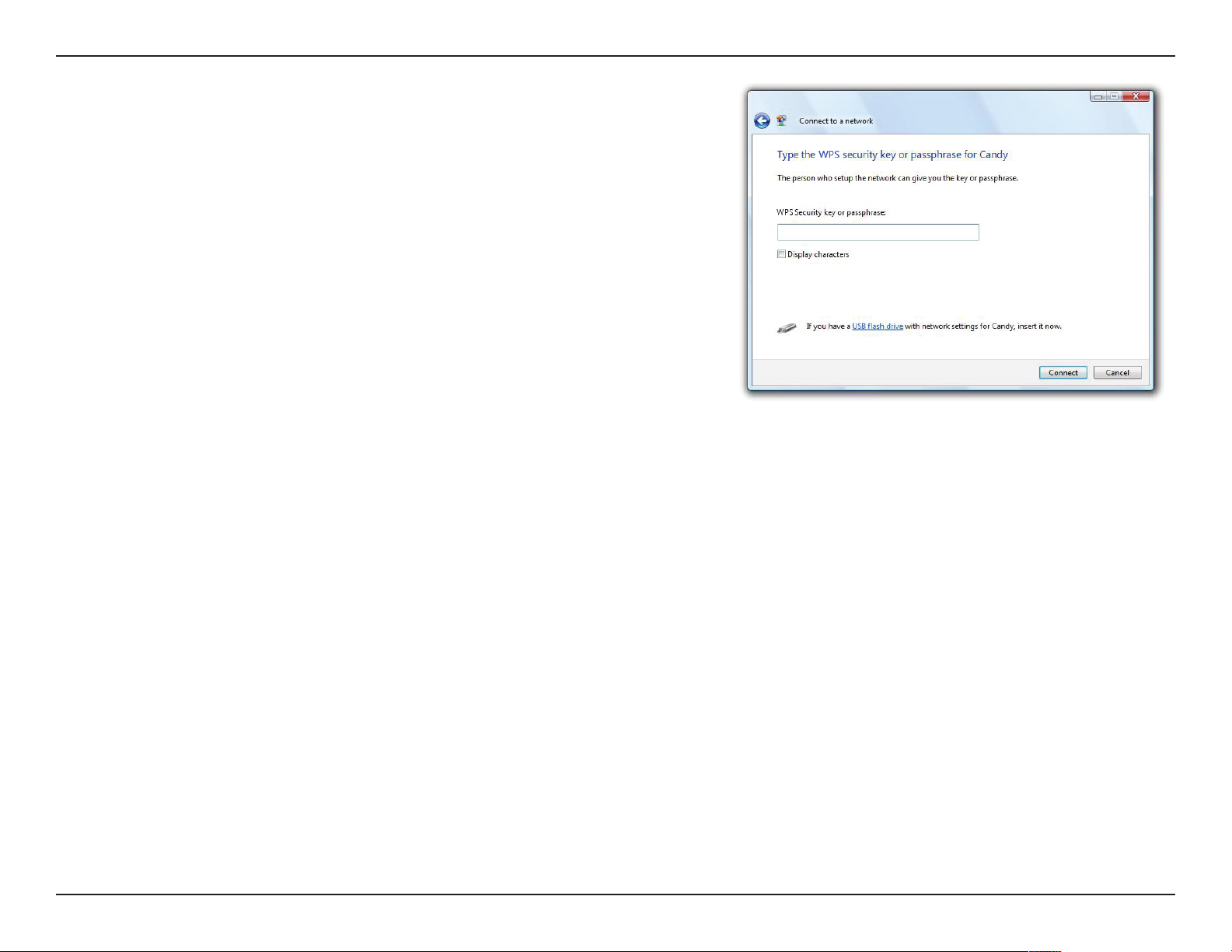

You will then be prompted to enter the network security key for your router. The unique security key for your router will be displayed on a sticker in the router’s battery bay. Enter the security key in the box provided and click OK. Your wireless connection utility should conrm that the connection is successful, and you can move to the next step to continue to conguration process.
11D-Link DWR-730 User Manual
Section 3 - Conguration
Web-based Conguration
To access the conguration utility, open a web browser (such as Internet Explorer) and enter the IP address of the router, which is 192.168.0.1 by default.
Conguration Utility
Once you have reached the conguration utility through the installed software or your web browser, you will need to log in. Enter admin as the username, and then enter the password. By default, the password is blank. You can also select your language from the drop-down menu.
Click Login to continue.
12D-Link DWR-730 User Manual
Section 3 - Conguration

Home

Navigation

Throughout the interface you will nd a menu bar at the top of the page which includes tabs for easy navigation, and a summary bar in the upper right corner with a quick view of essential information.
Home
Wizard:
Internet:
Network:
SMS:
Wi-Fi:
Advanced:
Security:
Application:
The Home tab will return you the home page, where a summary of the system information is shown.
Click on this tab to start the setup wizard, which will guide you through the basic setup process.
The Internet tab gives you Internet setup and settings options.
The Network tab allows you to congure the network settings for your Local Area Network (LAN).
From the SMS you can view and send SMS messages via your mobile network.
The Wi-Fi allows you to congure your Wi-Fi network, as well as add new devices using WPS.
Use this tab to congure advanced network settings such as routing and IPv6.
The Security tab allows you to congure rewall and security settings to protect your network from WAN-side intrusions.
From this tab, you can manage the administrative conguration of your router, such as time and date, rmware, language, and remote management.
13D-Link DWR-730 User Manual
Section 3 - Conguration

Device Status

A summary of the device’s current status will be displayed on the information panel at the top of the right-hand side of the navigation bar. The following is a description of the indications, from left to right.
SIM:
This icon shows whether or not a compatible (U)SIM card has been inserted into the device.
SMS:
The number to the right of this icon indicates the number of unread messages in the SMS inbox.
Signal Strength:
Operator Name:
Roaming:
Internet:
Wi-Fi Network:
Logout:
Indicates the current strength of the mobile network signal being received.
The name of the mobile network operator to which the device is currently connected.
Indicates that the device is connected to a network other than your service provider’s home network.
Indicates that there is an Internet connection present.
Indicates that the router’s Wi-Fi network is currently active. The number to the right of this icon indicates the number of wireless clients currently connected to the router’s Wi-Fi network.
Click this button to log out of the conguration interface.
14D-Link DWR-730 User Manual
Section 3 - Conguration

Home

The Home page acts as a dashboard to quickly display your conguration settings and provide a summary of the current status of your network’s status.
System Resources:
LAN:
2G/3G Modem:
WAN:
Trac Statistics:
This area displays the percentage of the router’s memory and CPU currently being used by the system.
This area displays a summary of the current settings for the router’s LAN.
This area shows the current status of your 2G or 3G mobile network connection.
This area displays a summary of the router’s current WAN settings. These details will reect the mobile network connection which is being received from the service provider.
This area shows the amount of data which has been sent (TX) and received (RX) over the mobile network. This information may not reect the amount recorded by your mobile service provider.
15D-Link DWR-730 User Manual
Section 3 - Conguration

Wizard

The Wizard page will guide you through the steps required to congure the basic settings of your router such as the IP address, network name (SSID), and password. Click on the Wizard button on the navigation bar to commence the wizard.
LAN CoNfigurAtioN
IP Address:
IP Subnet Mask:
If you wish to change the router’s IP address, enter the new address here. If you change the IP address from the default, you will need to enter the new address in your Internet browser’s address bar in order to access the web-based conguration utility.
If you wish to change the router’s subnet mask, enter it here.
Click Next to continue.
2/3g CoNfigurAtioN
If you wish to change the 2G or 3G service provider or connection type, click on a prole in the list to highlight it, and click Set to set that prole as the default.
Click Next to continue, or Back to return to the previous step.
16D-Link DWR-730 User Manual
Section 3 - Conguration
Wi-fi CoNfigurAtioN
Password Setting:
SSID:
Choose a password for your wireless security. Clients will need this password in order to access your network wirelessly. If you are currently connected to the router using Wi-Fi, you will need to reconnect to the router using your new password once the wizard has been completed.
If you wish to change your wireless network name (SSID), enter a new name in the eld provided. If you change the SSID, you may need to re-connect to the router using the new SSID before you can access your network or the conguration utility.
Click Done to complete the wizard, or click Back to return to the previous page.
After you have clicked Done, a conrmation window will appear. Click OK to save the conguration.
17D-Link DWR-730 User Manual
Section 3 - Conguration

Internet

Connection

This page allows you to congure the Internet settings for your mobile network connection. Use the tabs in the left-hand column to navigate through the dierent settings categories.
CoNNeCtioN operAtioN
Flight Mode:
Preferred Cellular
Network:
Roaming Mode:
Flight mode turns o all communications so that the device can be powered on safely when in an aircraft. Select whether you want to Enable or Disable ight mode from the drop­down menu, and click Change to eect the change.
Select your preferred cellular network connection mode: Auto Mode - The router will automatically connect to your preferred mobile network and remain connected while the device is powered on. Manual Mode - You must manually connect to the preferred mobile network. On Demand - The router will connect to the preferred mobile network when Internet access is required.
Click Change to eect the change.
Select whether you would like to Enable or Disable mobile network roaming from the drop-down menu.
Caution: Roaming on networks other than your own may incur additional usage charges.
18D-Link DWR-730 User Manual
Section 3 - Conguration
Connection:
Proles:
Name:
APN:
Shows the type and status of the current mobile connection. To change the connection prole, select a user prole from the table below and click Set to activate the prole. Click Disconnect to manually disconnect the current mobile data service.
The proles table shows the details of currently congured user proles. To add a new user prole, navigate to the User Prole tab at the top of this section.
user profiLe
Click Add to add a new user prole.
Enter a name to identify the new user prole.
Enter the Access Point Name (APN) for the connection. If you do not know this information, please contact your service provider.
Protocol:
User:
Password:
Delete:
Select the protocol to be used for the connection from the drop-down menu.
Enter the username to be used for this connection.
Enter the password to be used for this connection.
Click the delete icon to delete this prole from the list.
Click OK to save the prole.
Click Apply to apply the prole settings and return to the Internet menu.
19D-Link DWR-730 User Manual
Section 3 - Conguration
Conguration
This section allows you to specify the settings for your Internet connection depending on the type of connection you wish to use, or as specied by your Internet Service Provider. Use the IPv4 and IPv6 tabs at the top of the section to select the IP address mode.
IPv4 - PDP Context
Connection
Type:
DNS Setting:
Select PDP Context from the drop-down menu.
Enter up to three DNS servers as provided to you by your service provider.
Click Apply to apply the changes.
20D-Link DWR-730 User Manual
Section 3 - Conguration
IPv4 - Static Setting
Use this setting if your Internet Service Provider has supplied you with a static (non-changing) IPv4 address. If you are missing any of the information required in this section, please contact your ISP.
Connection
Type:
IP Address:
Mask:
Gateway:
MTU:
DNS Setting:
Select Static Setting from the drop-down menu.
Enter the static IP address provided to you by your ISP.
Enter the subnet mask provided to you by your ISP.
Enter the default gateway provided to you by your ISP.
Enter the maximum transmission unit for this connection. The default MTU is 1400.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
21D-Link DWR-730 User Manual
Section 3 - Conguration
Use this setting if you wish to use IPv4 through an IPv6 tunnel.
IPv4 - 4to6
Connection
Type:
Remote IPv6
Address:
Remote IPv4
Address:
Local IPv6
Address:
Local IPv4
Address:
DNS Setting:
Select 4to6 from the drop-down menu.
Enter the remote IPv6 address for your connection.
Enter the remote IPv4 address for your connection.
Select User Dene from the drop-down menu to dene your own local IPv6 address, or select WAN IPv6 Address to use the remote IPv6 address.
Enter the local IPv4 address for your connection.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
22D-Link DWR-730 User Manual
Section 3 - Conguration
IPv6 - PDP Context
Connection
Type:
DNS Setting:
Select PDP Context from the drop-down menu.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
23D-Link DWR-730 User Manual
Section 3 - Conguration
IPv6 - Static Setting
Use this setting if your Internet Service Provider has supplied you with a static (non-changing) IPv6 address. If you are missing any of the information required in this section, please contact your ISP.
Connection
Type:
Static IP
Gateway:
MTU:
DNS Setting:
Select Static Setting from the drop-down menu.
Enter the static IPv6 address that has been supplied to you by your service provider.
Enter the IPv6 gateway that has been supplied to you by your service provider.
Enter the maximum transmission unit for this connection. The default MTU is 1280.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
24D-Link DWR-730 User Manual
Section 3 - Conguration
IPv6 - DHCPv6
Use this setting if your Internet connection settings and IP address are to be obtained automatically from your ISP.
Connection
Type:
DNS Setting:
Select DHCPv6 from the drop-down menu.
Enter up to three DNS servers as provided to you by your service provider.
Click Apply to apply the changes.
25D-Link DWR-730 User Manual
Section 3 - Conguration
Use this option to tether an IPv6 connection.
IPv6 - Tethering
Connection
Type:
DNS Setting:
Select Tethering from the drop-down menu.
Enter up to three DNS servers as provided to you by your service provider.
Click Apply to apply the changes.
26D-Link DWR-730 User Manual
Loading...
+ 70 hidden pages
