D Link WR512A1 Users Manual

Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2011 by D-Link Corporation, Inc.
iD-Link DWR-512 User Manual
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.
iiD-Link DWR-512 User Manual
Table of Contents
Table of Contents
Preface...........................................................................i
Trademarks .............................................................. i
FCC Regulations ..................................................... ii
Product Overview ........................................................ 1
Package Contents ...................................................1
System Requirements ............................................. 1
Introduction ..............................................................2
Hardware Overview .................................................3
Rear Panel .........................................................3
Front Panel ........................................................ 4
LEDs .................................................................. 5
Installation ....................................................................6
Connect to Your Network ........................................6
Connect a Telephone ..............................................7
Wireless Installation Considerations ........................ 8
Conguration ............................................................... 9
Web-based Conguration Utility .............................. 9
Setup .....................................................................10
Internet ............................................................. 10

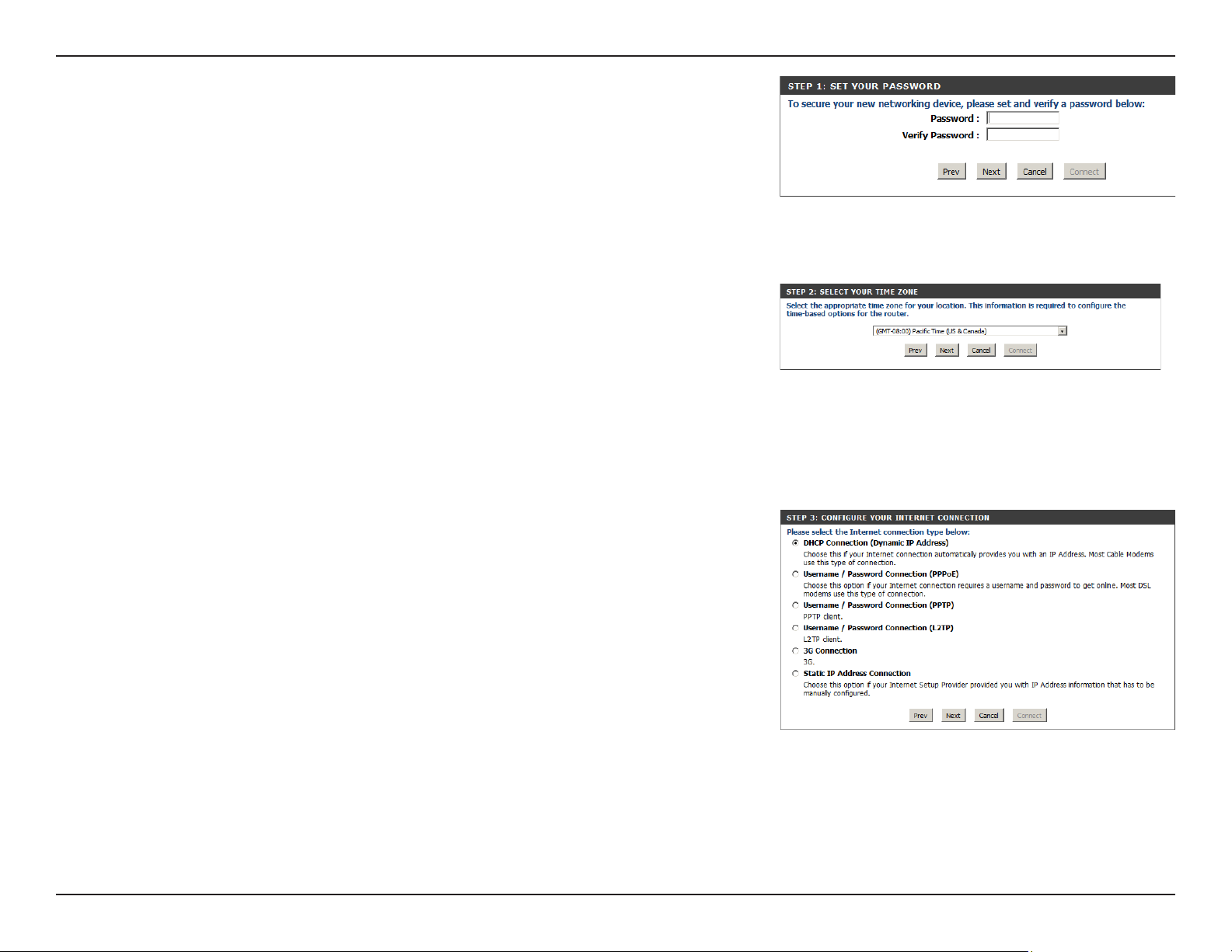

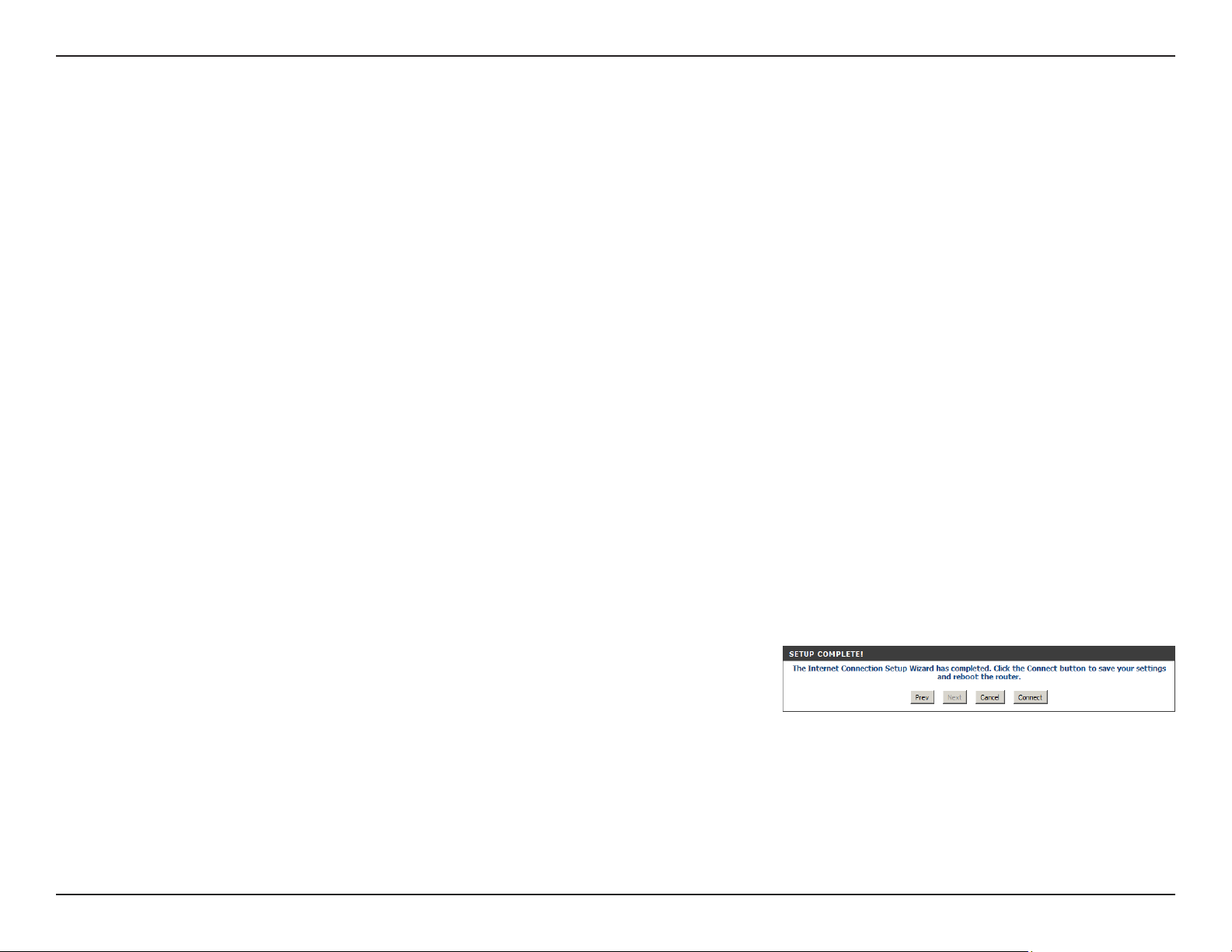

Internet Connection Setup Wizard ............... 10

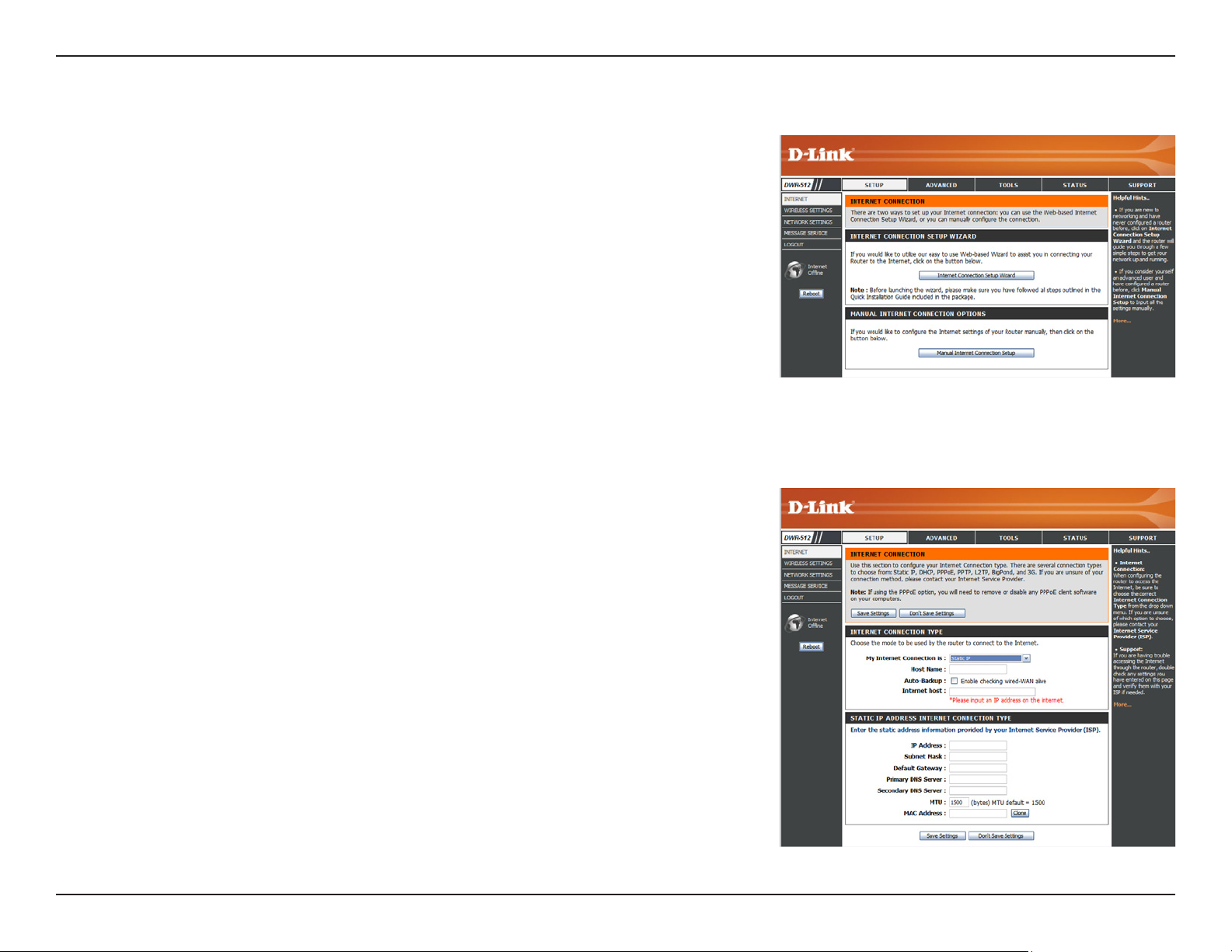

Manual Internet Connection Setup ............... 13
Internet Connection ......................................13

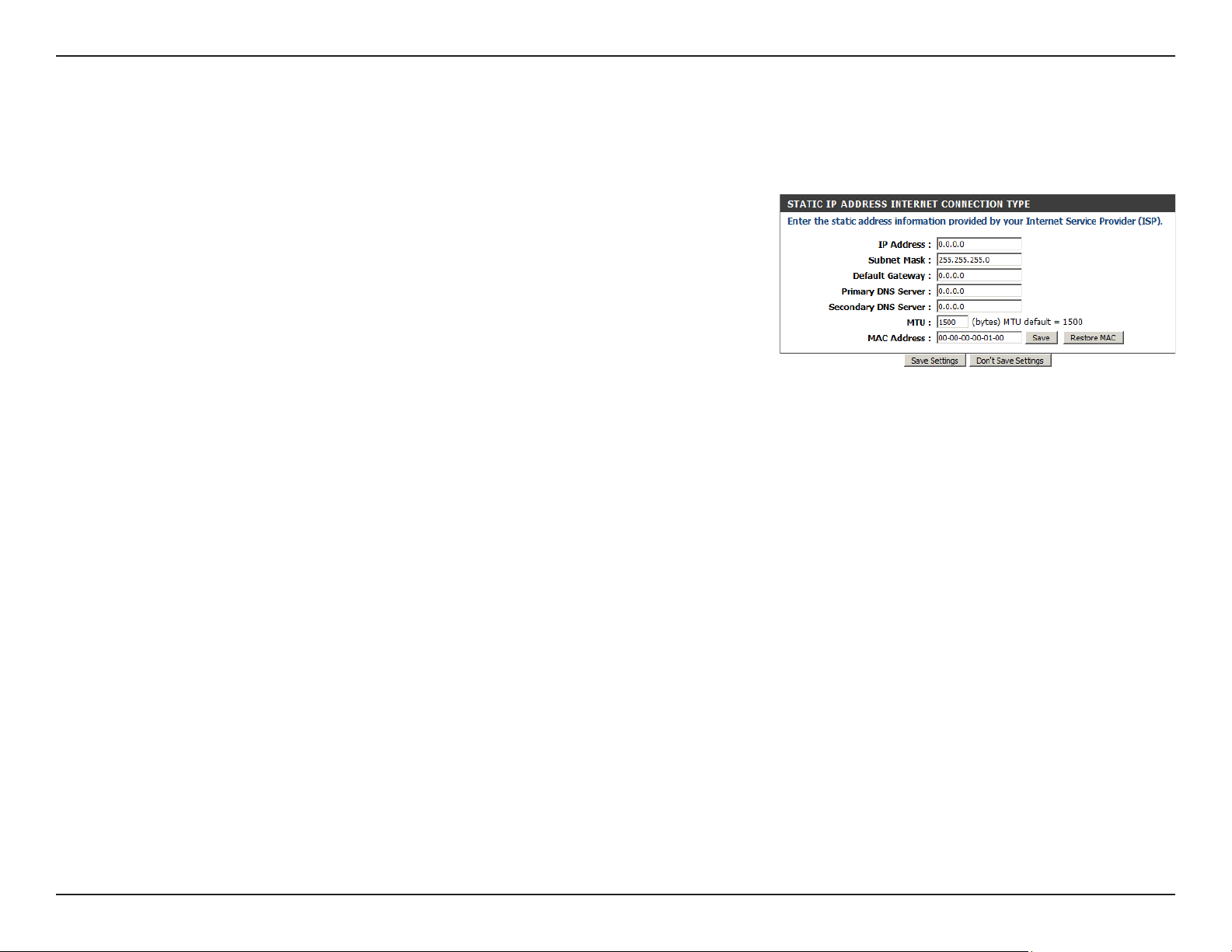

Static IP ........................................................14

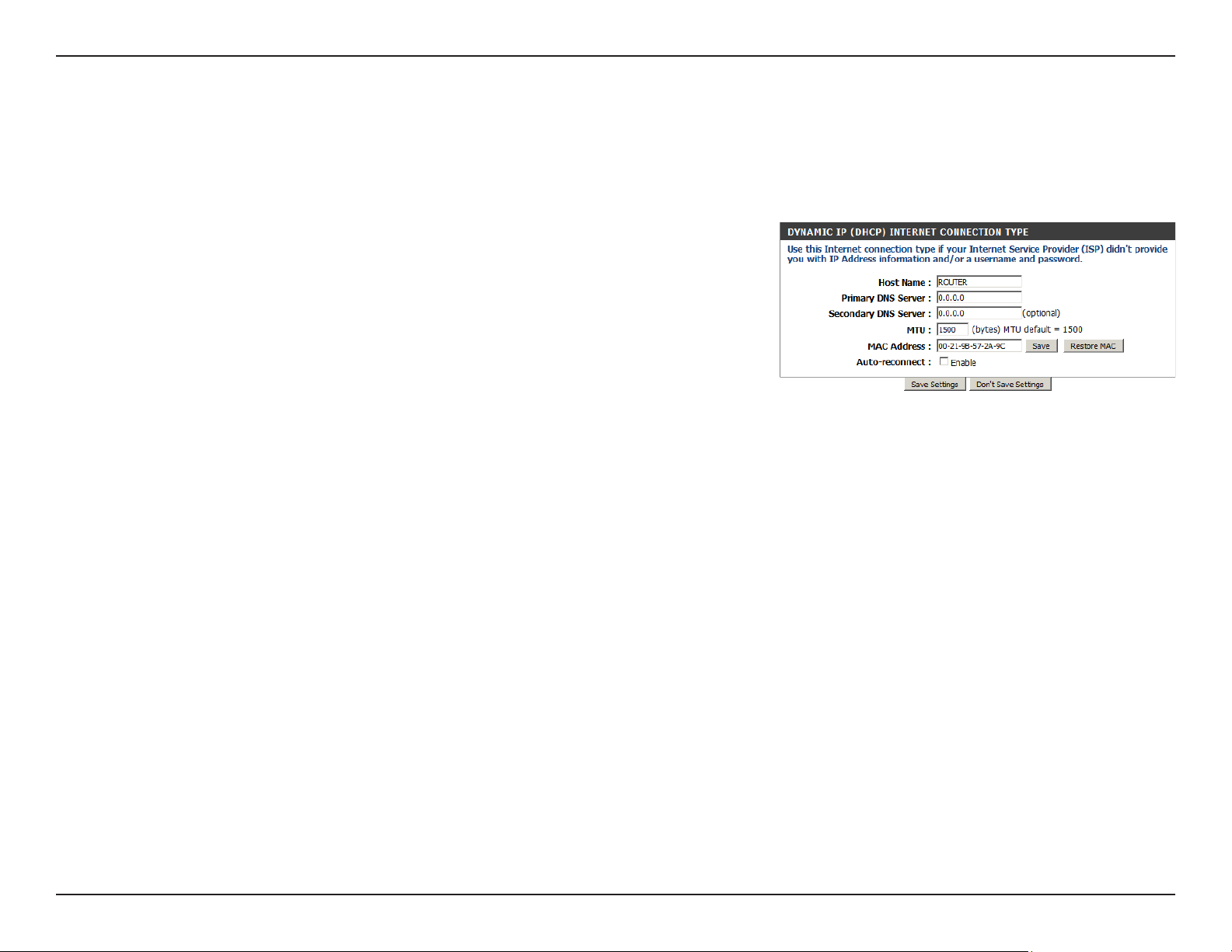

Dynamic IP (DHCP) ..................................... 15

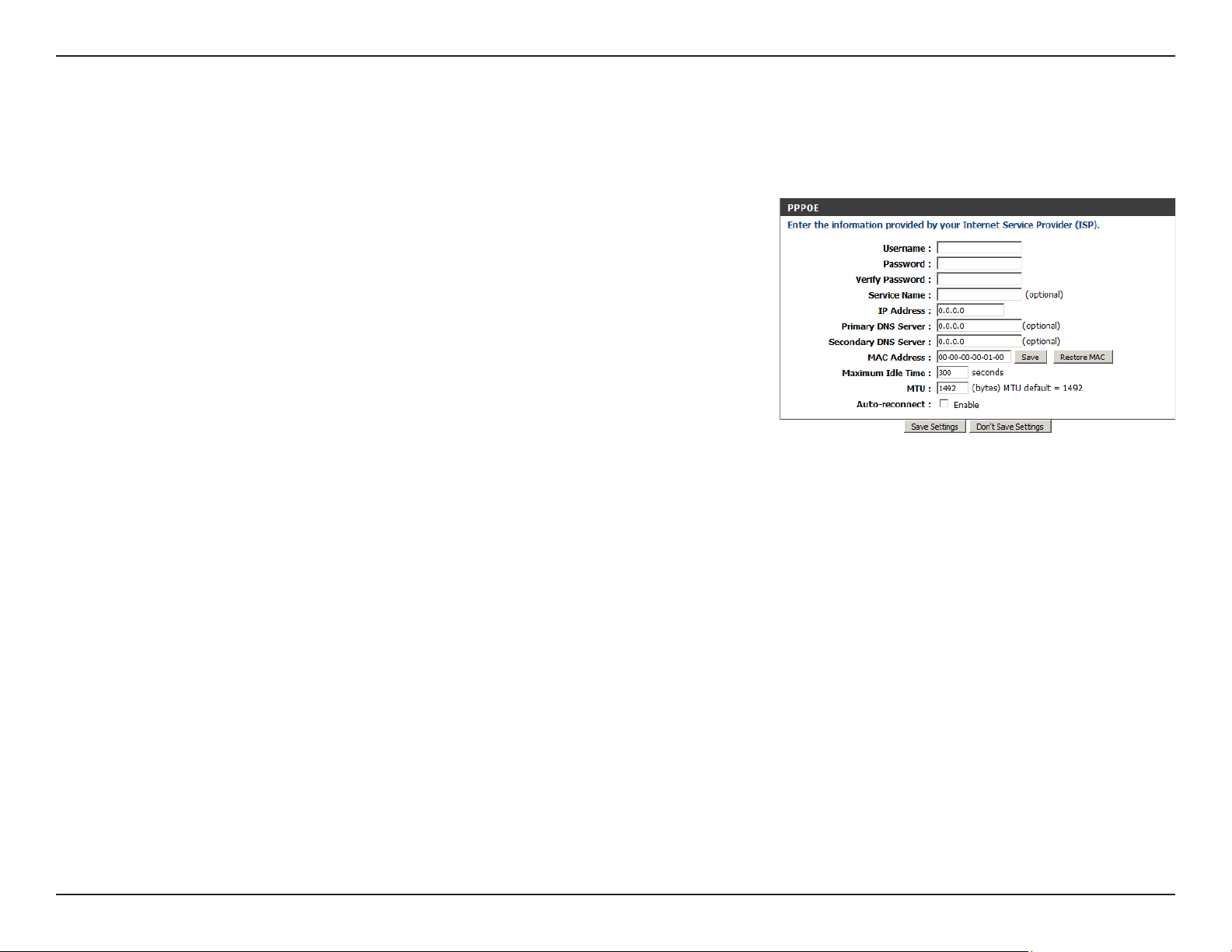

PPPoE .......................................................... 16

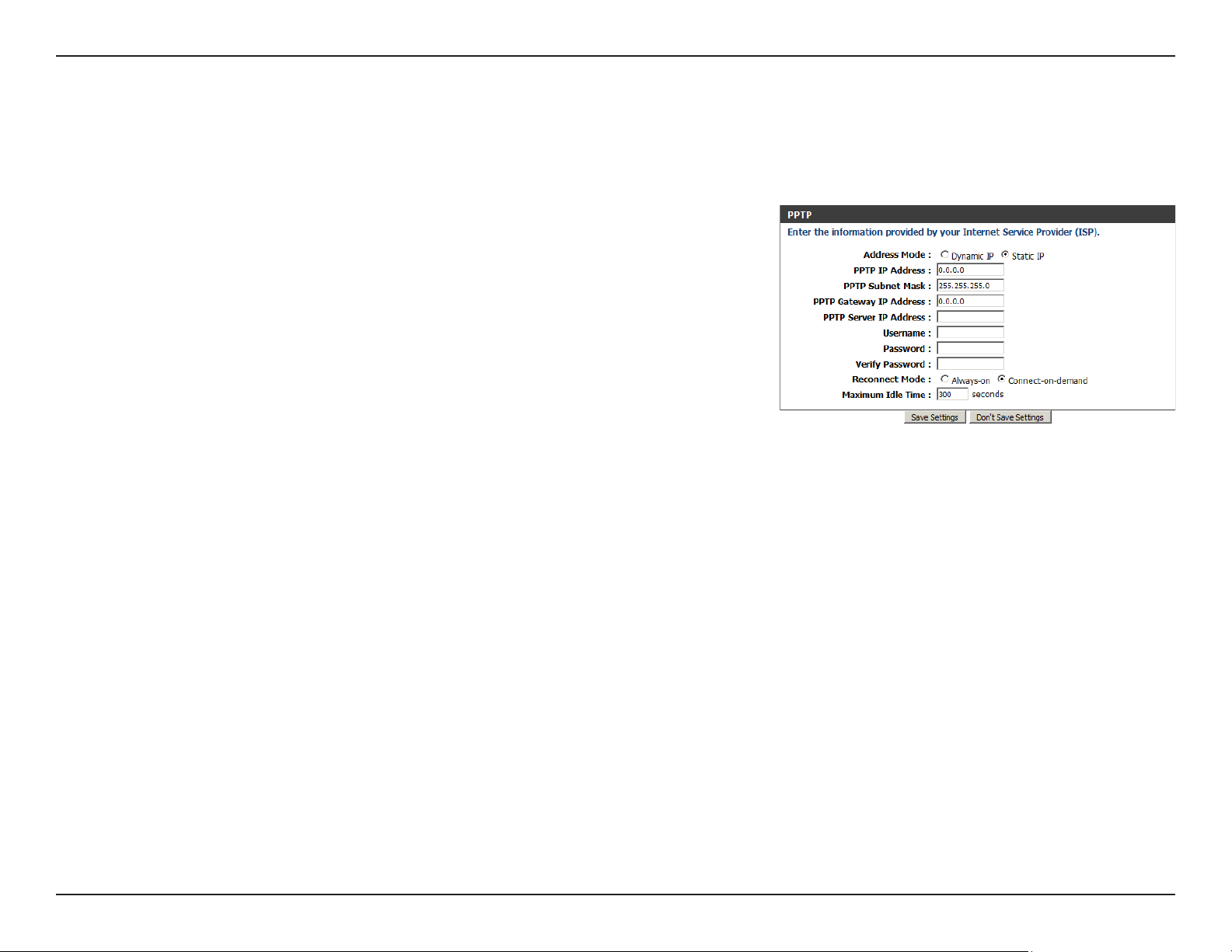

PPTP ............................................................17

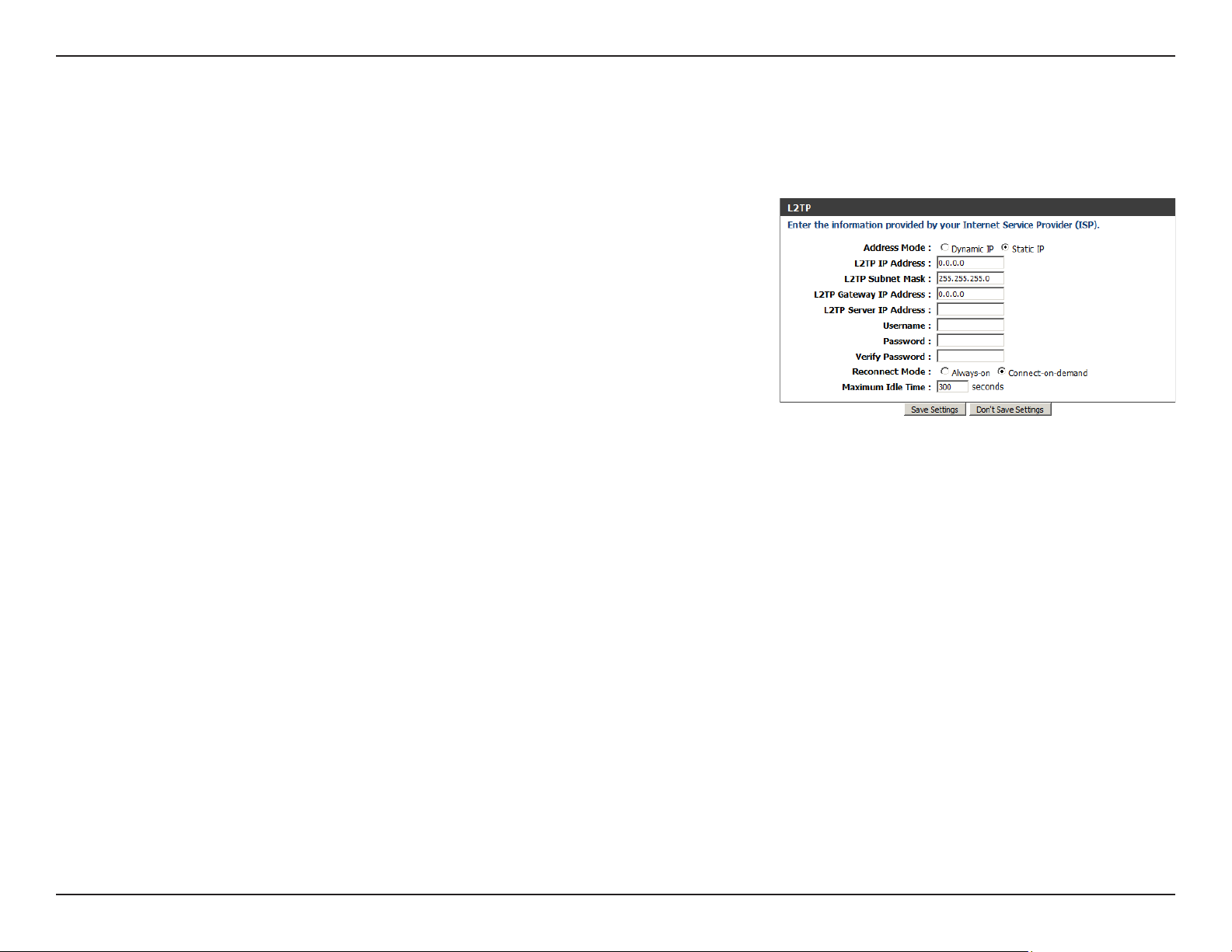

L2TP ............................................................. 18

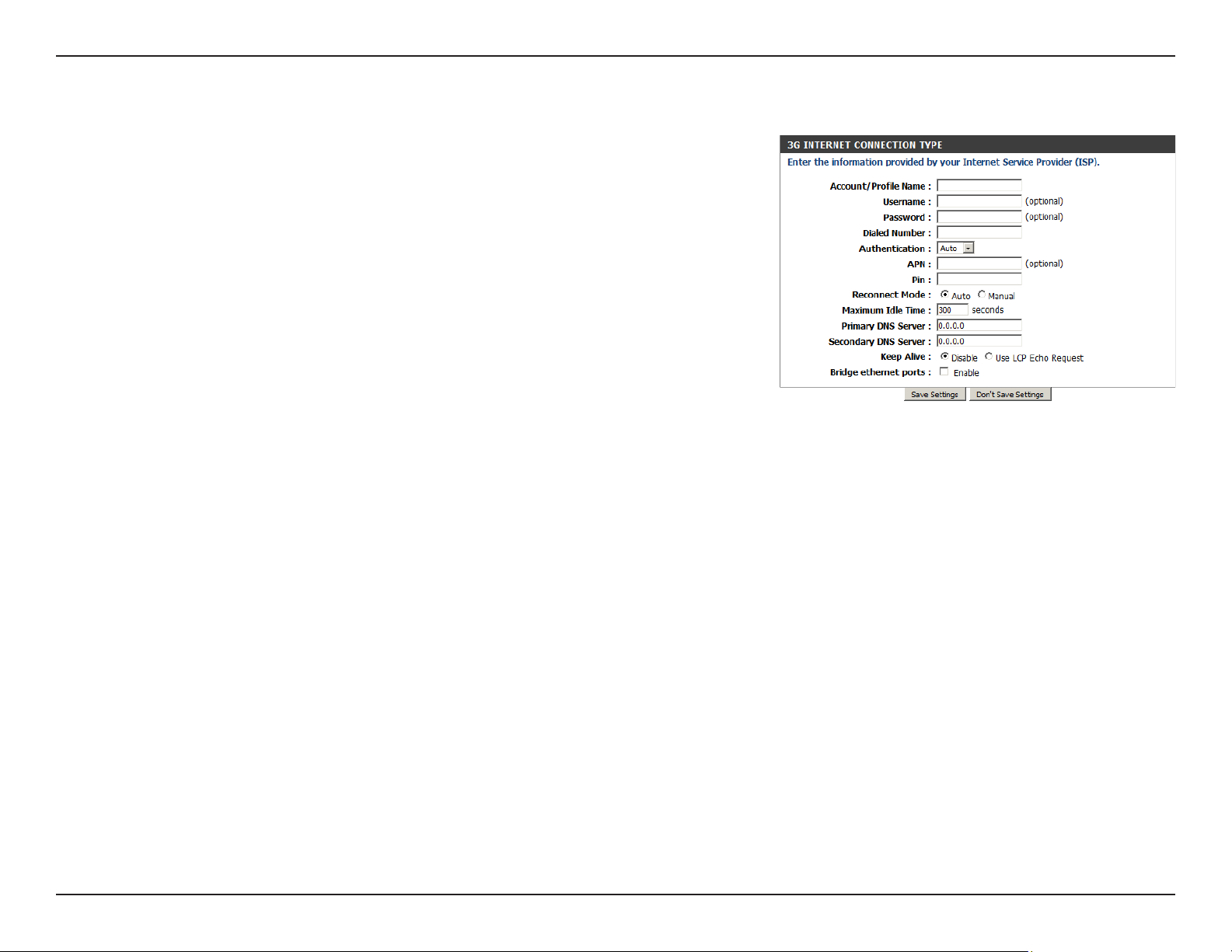

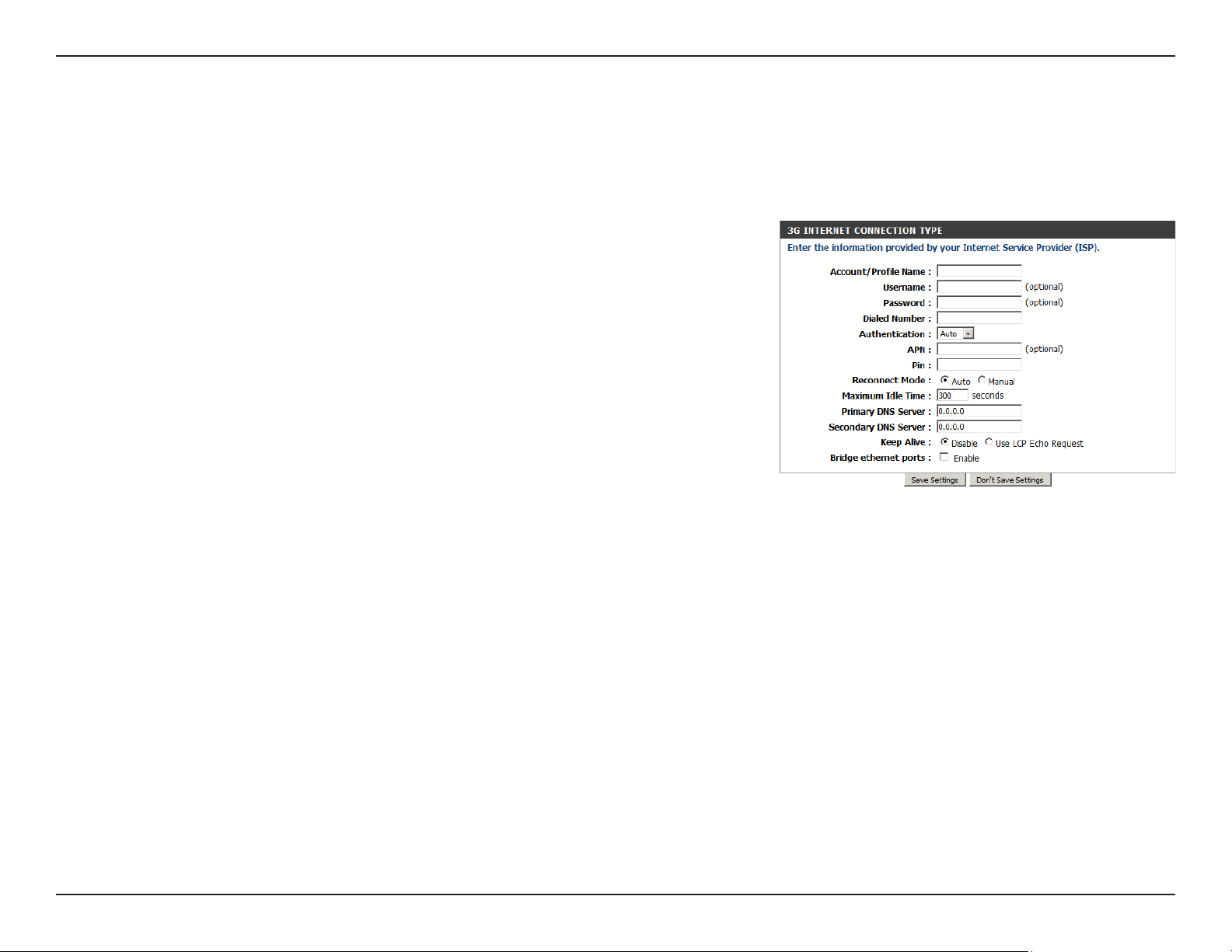

3G ................................................................19

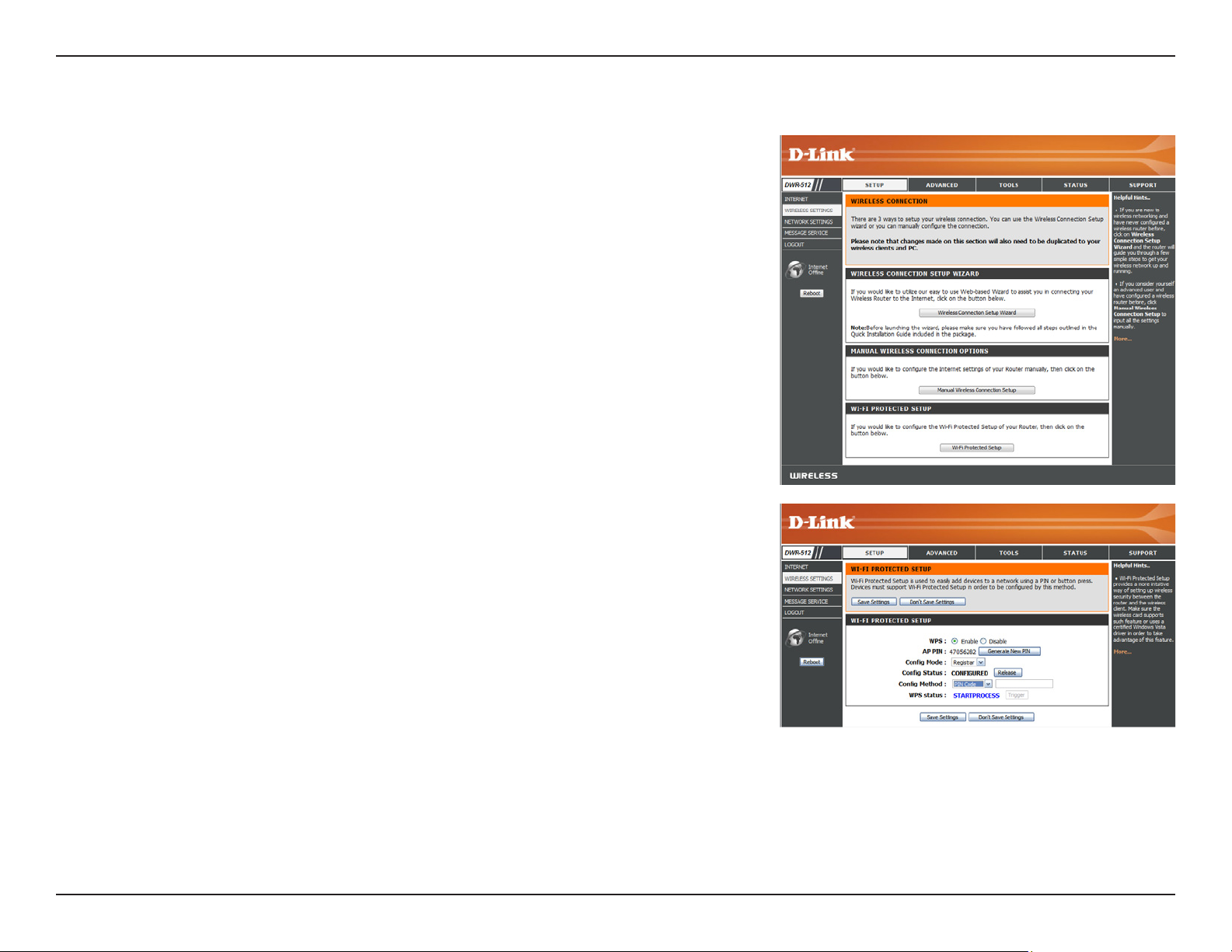

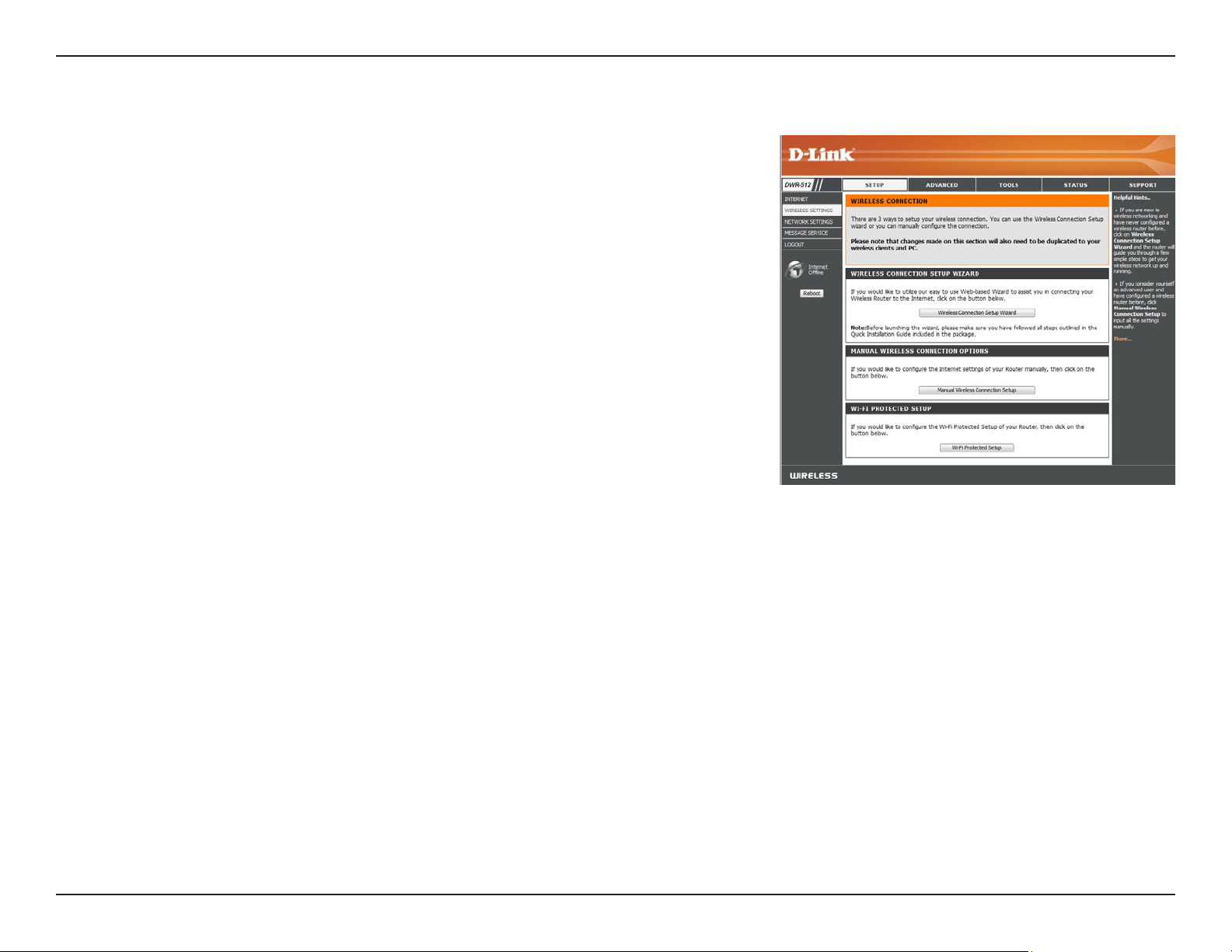

Wireless Settings ............................................. 21

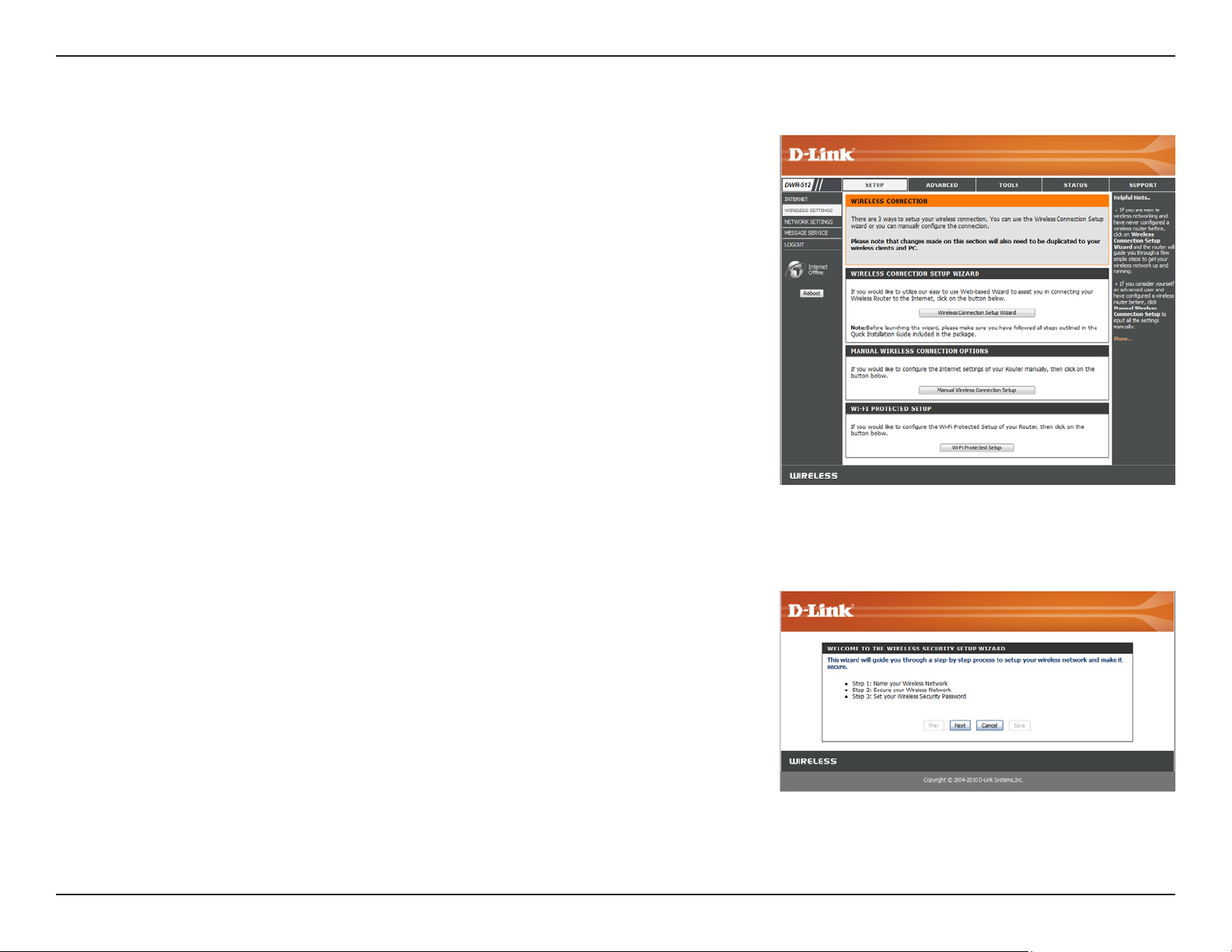

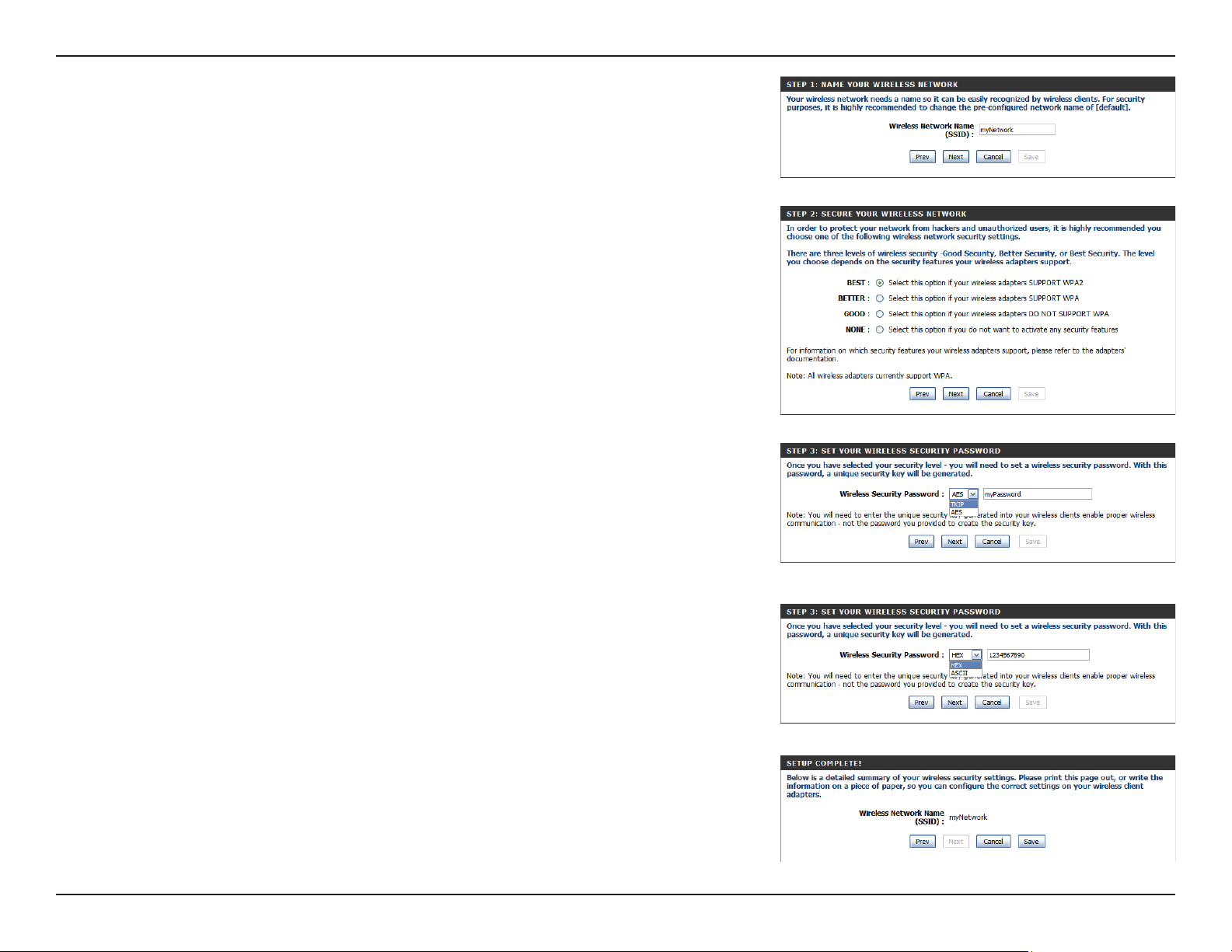

Wireless Connection Setup Wizard .............. 21
Manual Wireless Connection Setup ............. 23

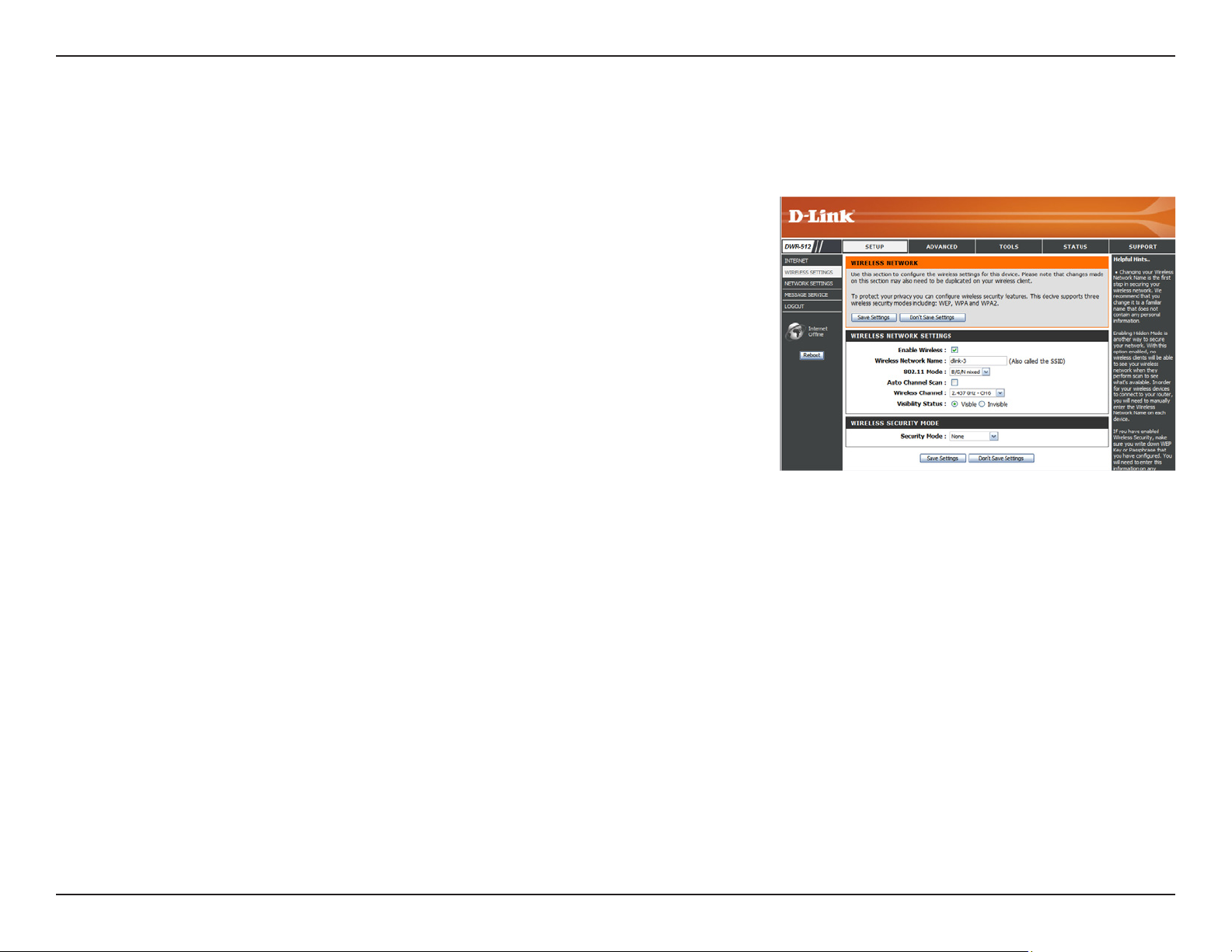

Wireless Settings .........................................24

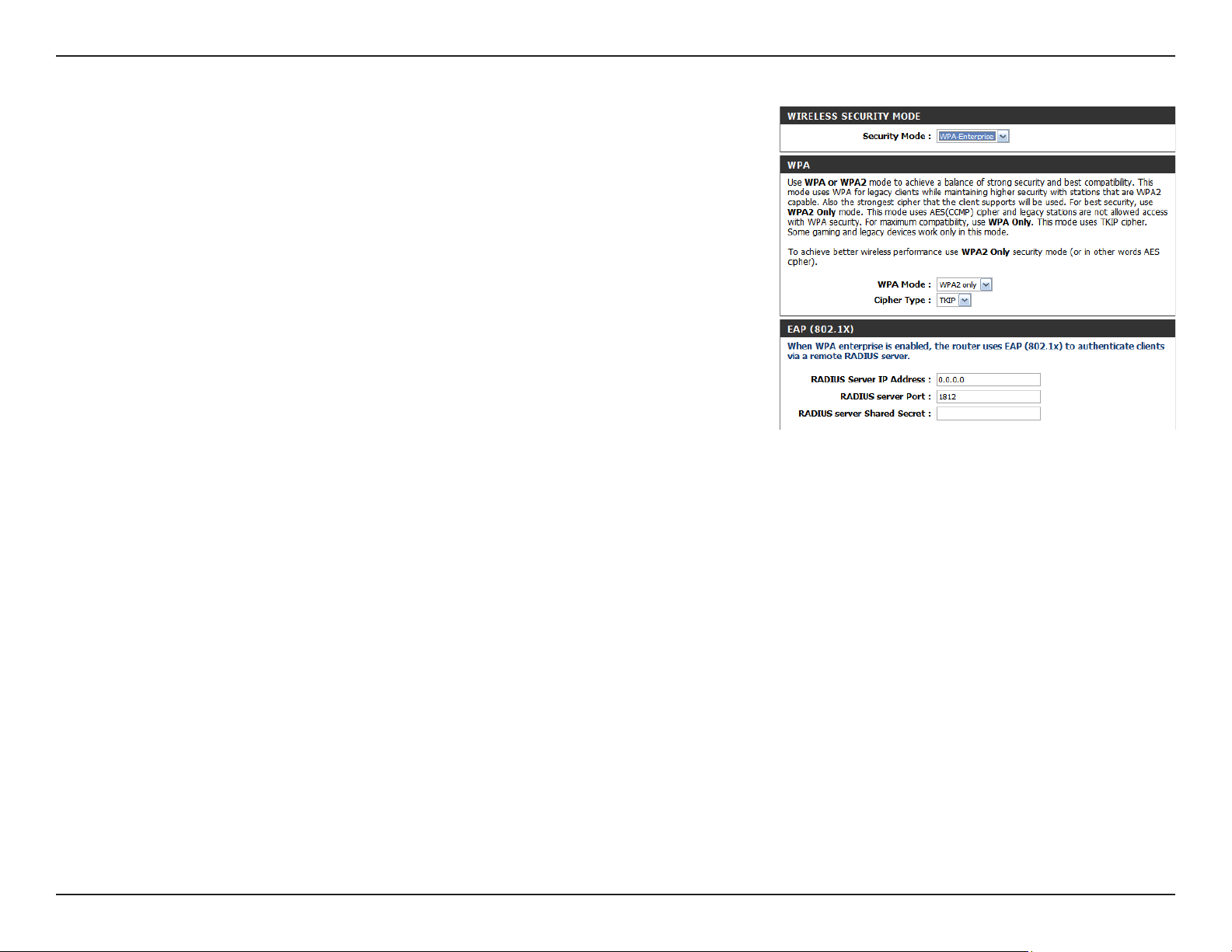

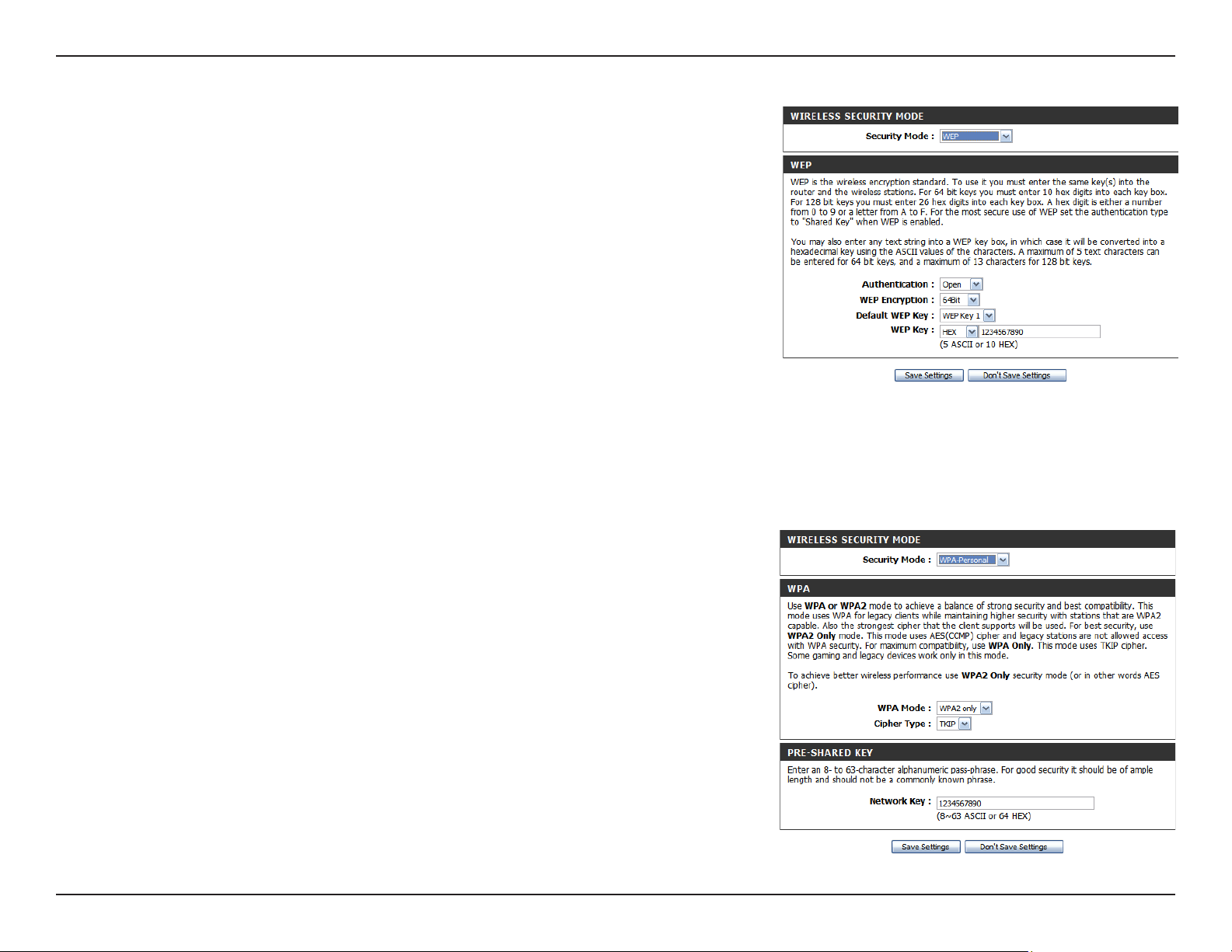

Wireless Security Mode ...............................25

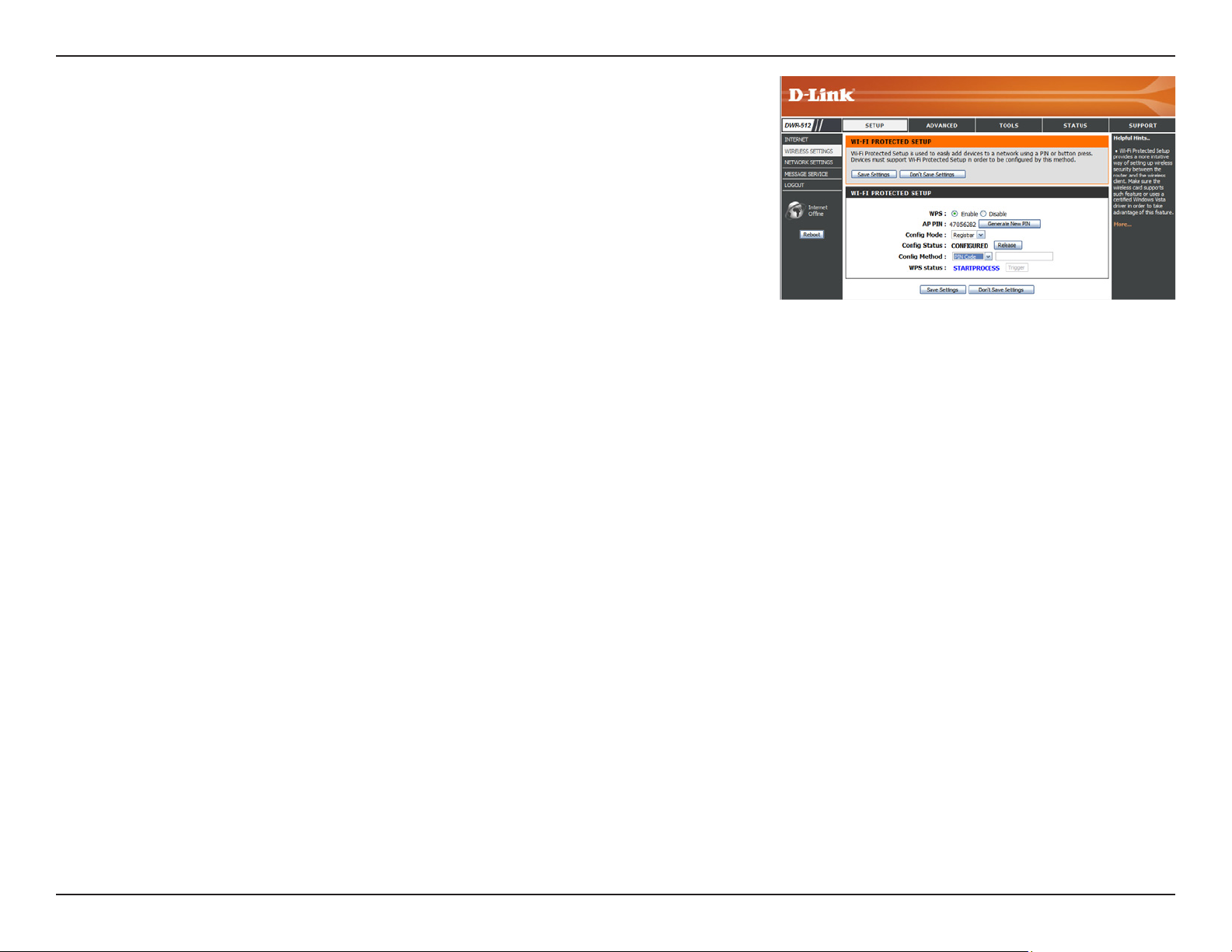

Wi-Fi Protected Setup ...................................... 28

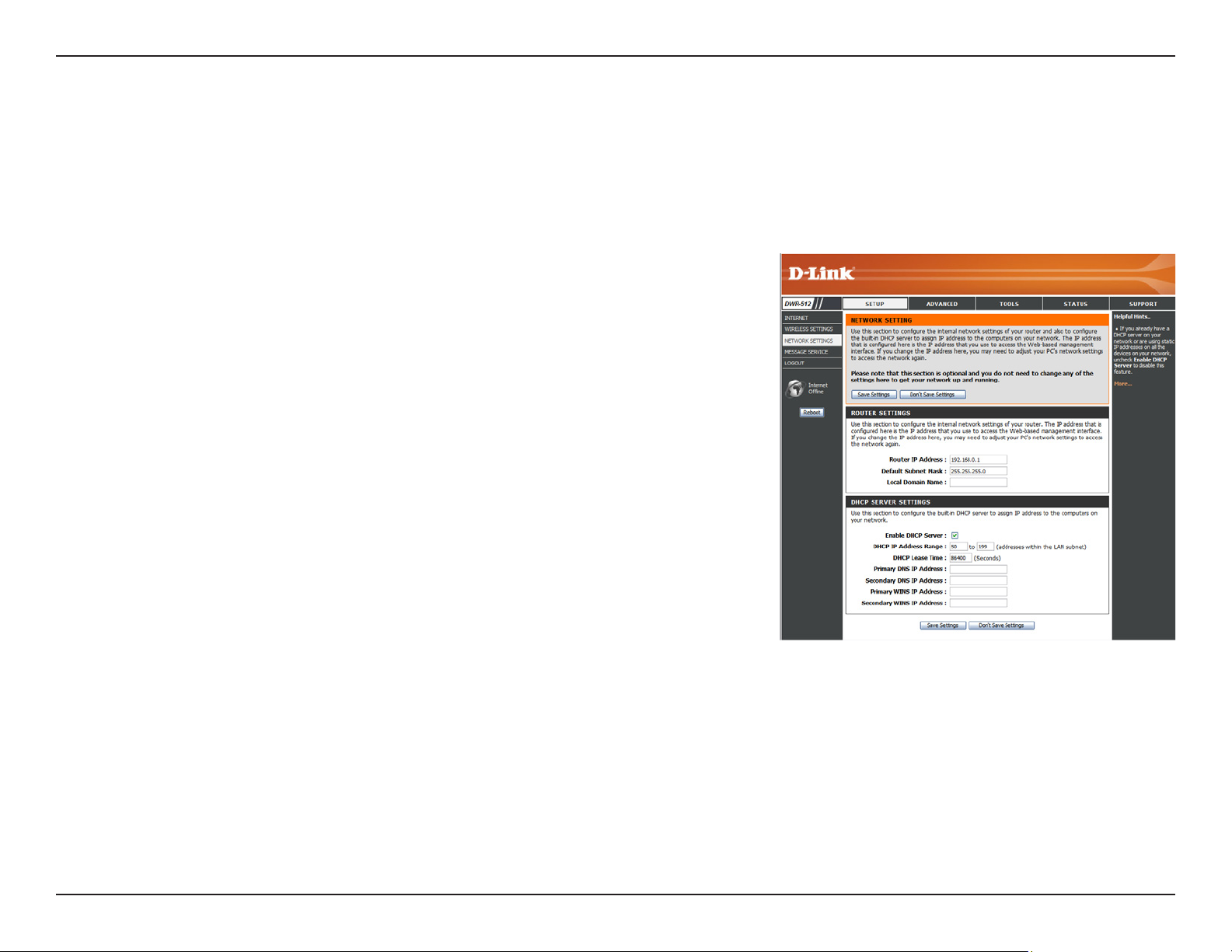

Network Settings .............................................. 30
Router Settings ............................................30

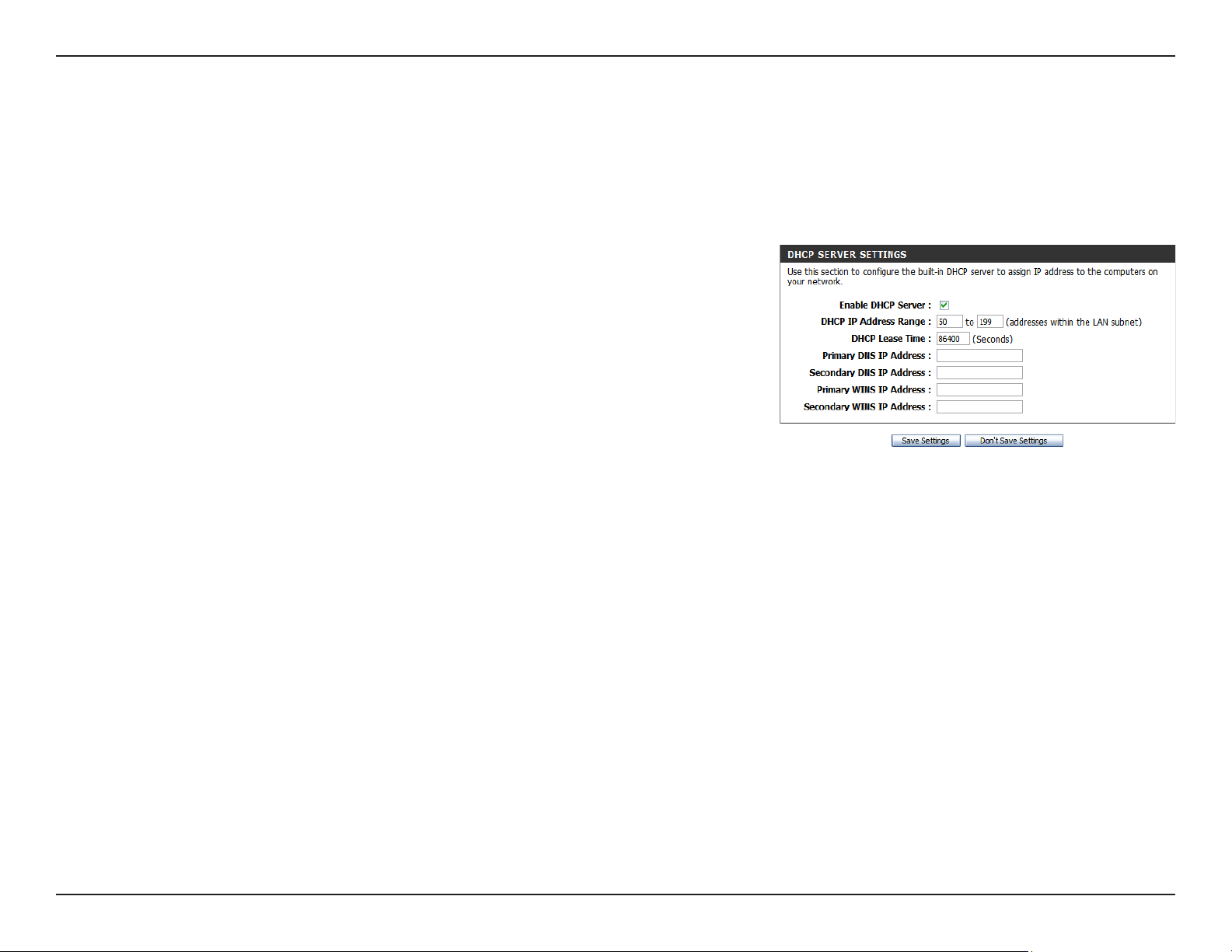

DHCP Server Settings .................................31

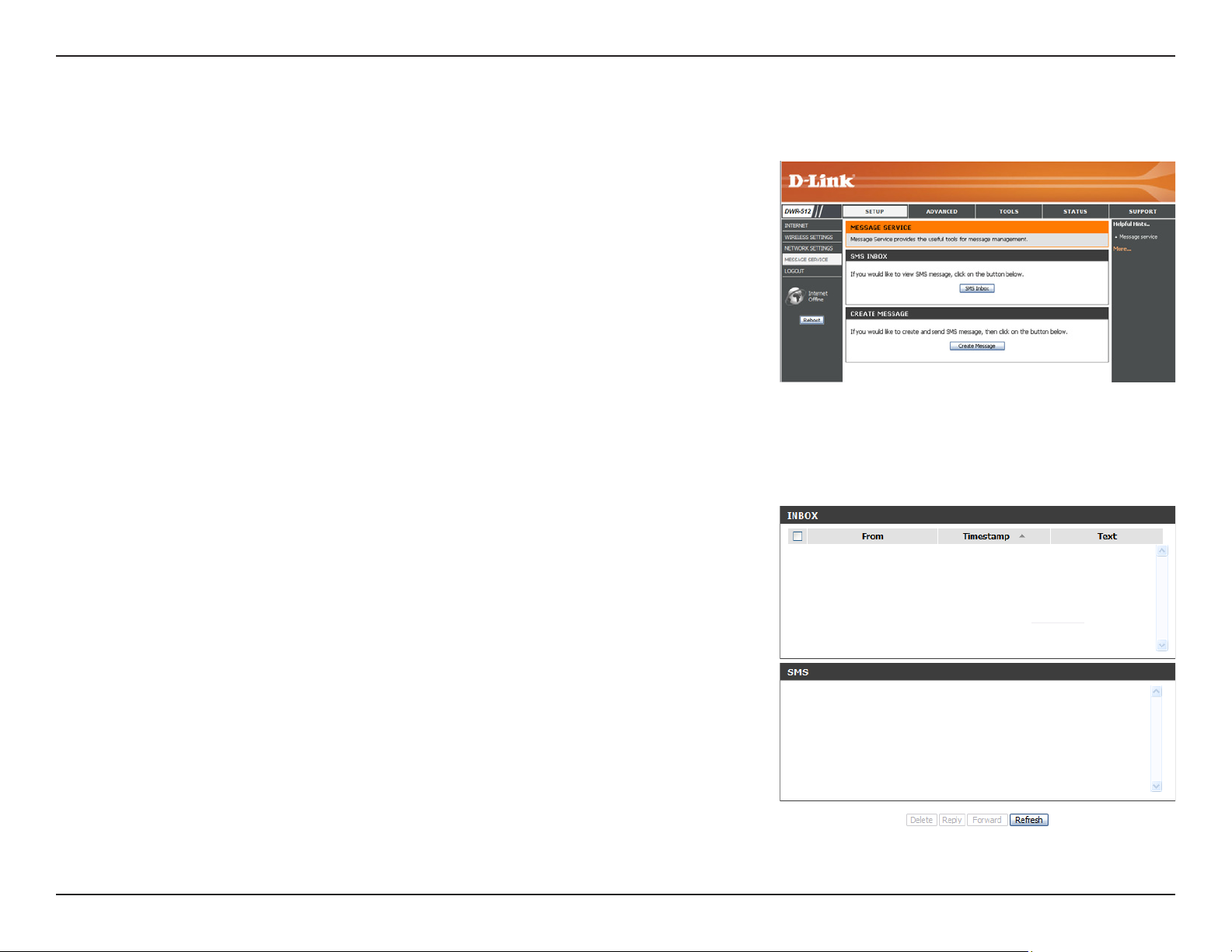

Message Service ............................................. 32
SMS Inbox .................................................... 32

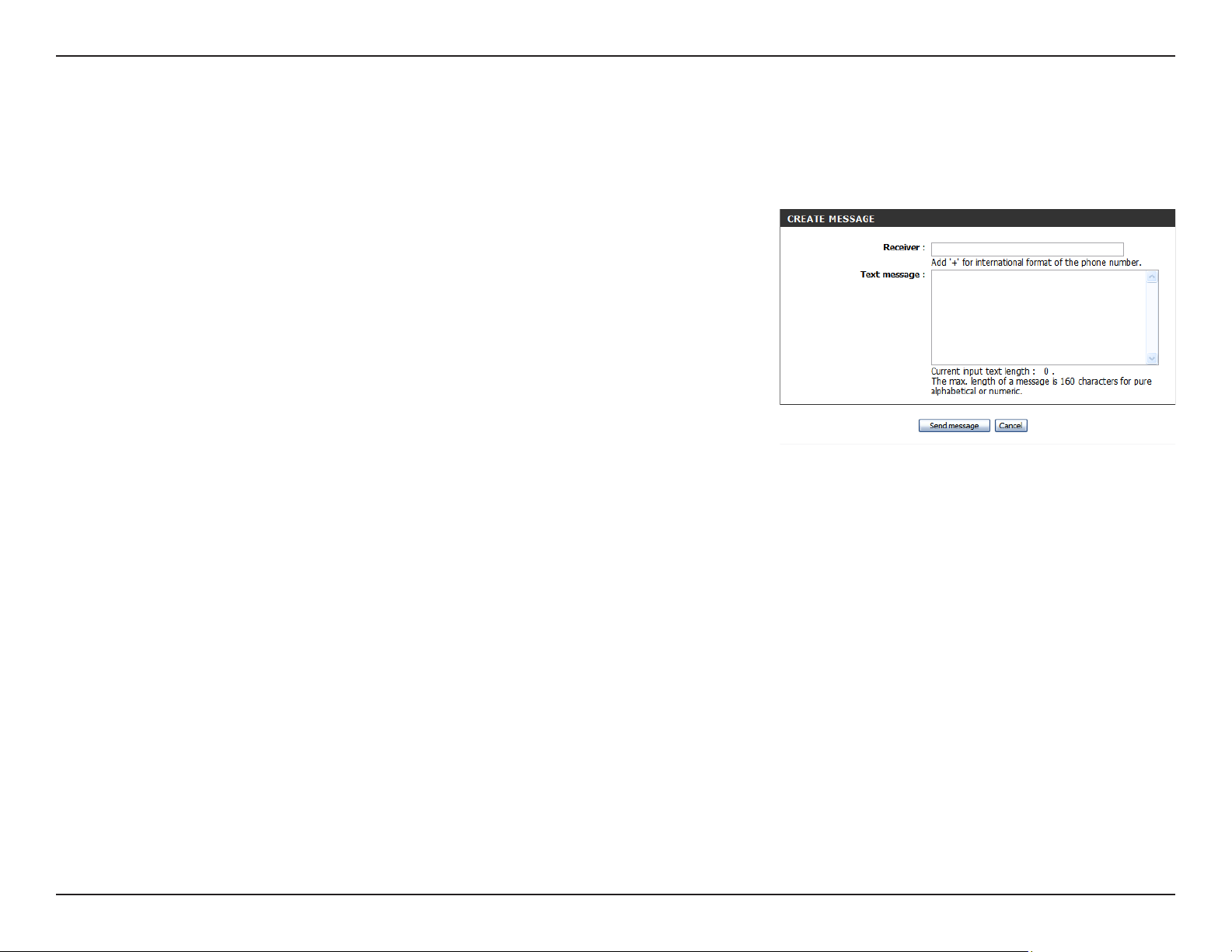

Create Message ...........................................33
Advanced ............................................................... 34

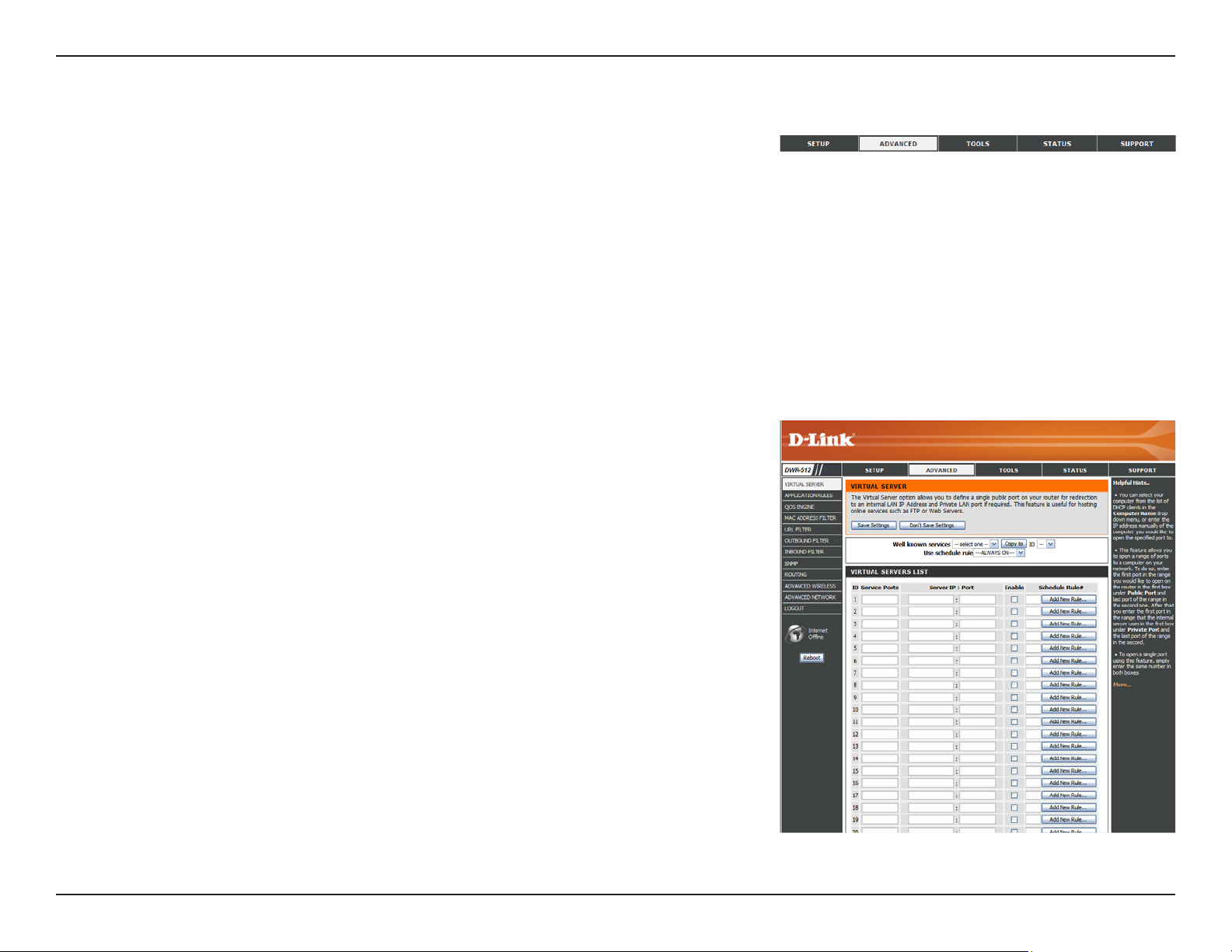

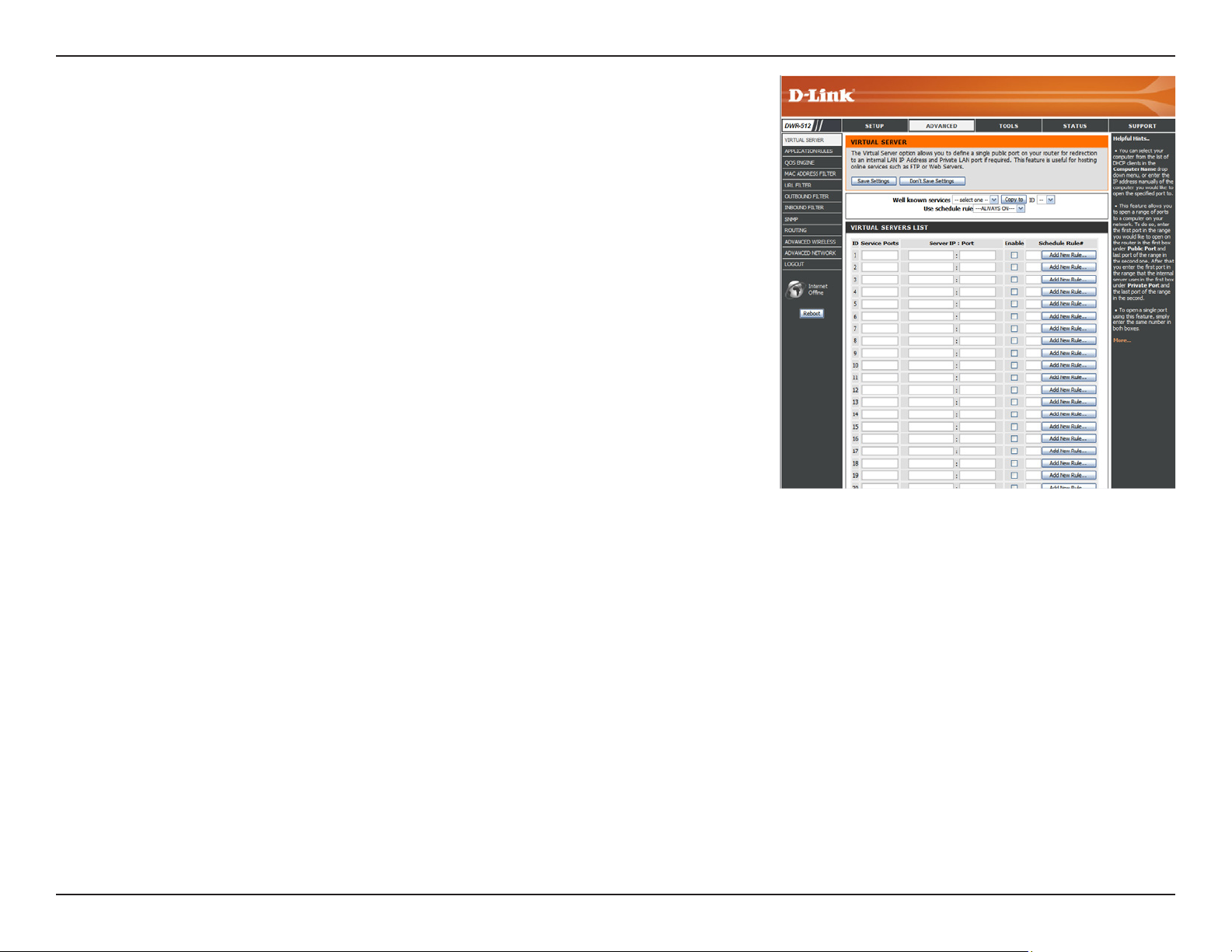

Virtual Server ................................................... 34

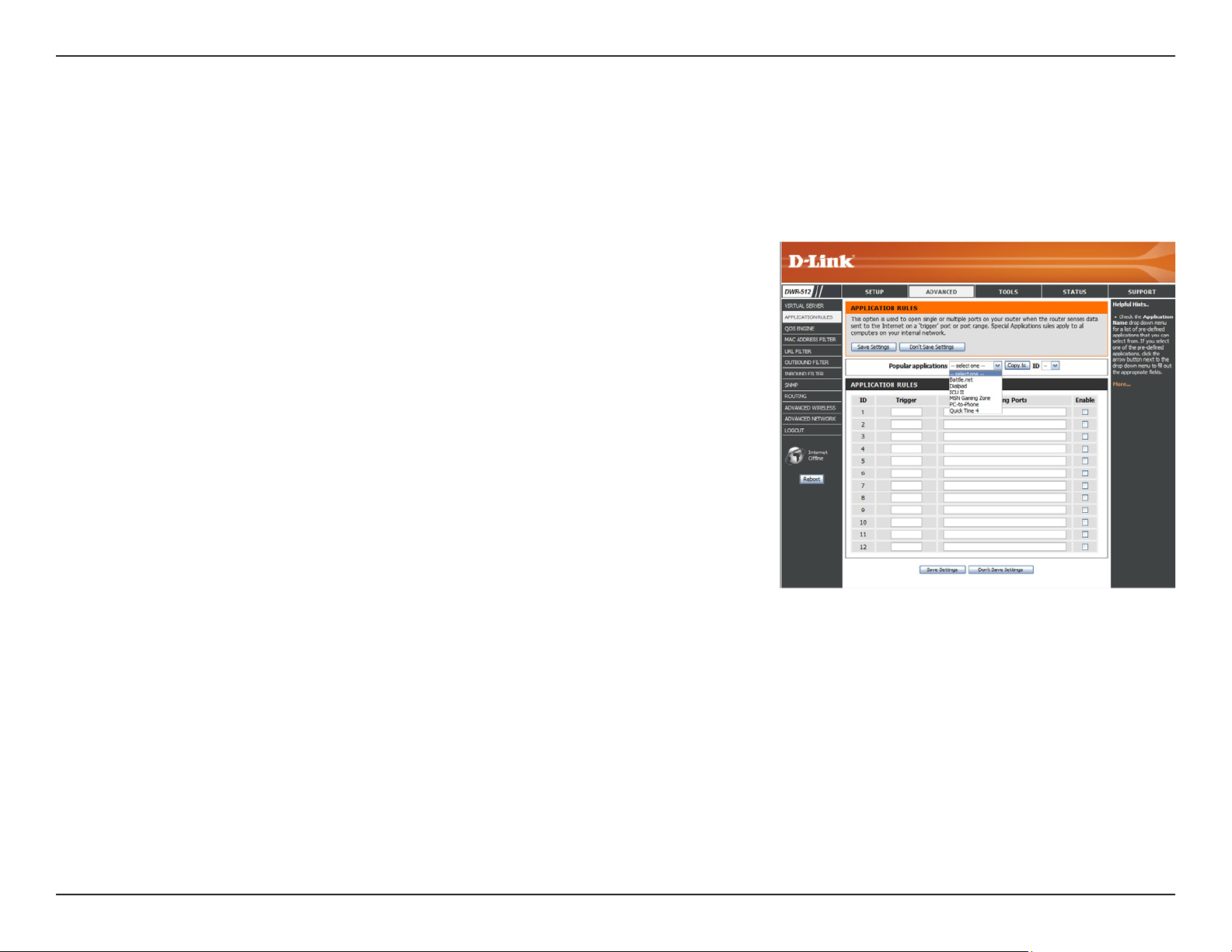

Application Rules ............................................. 36

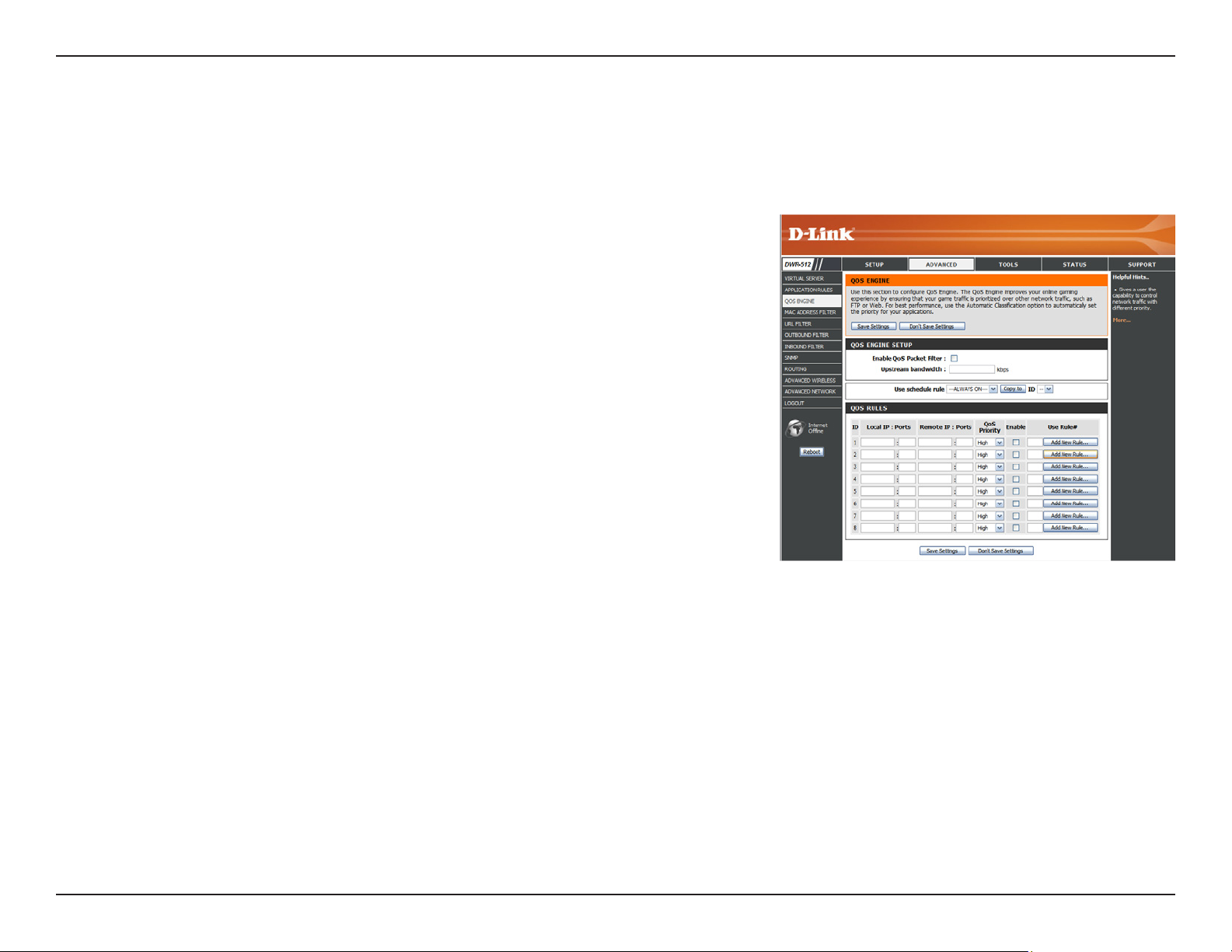

QoS Engine .....................................................37

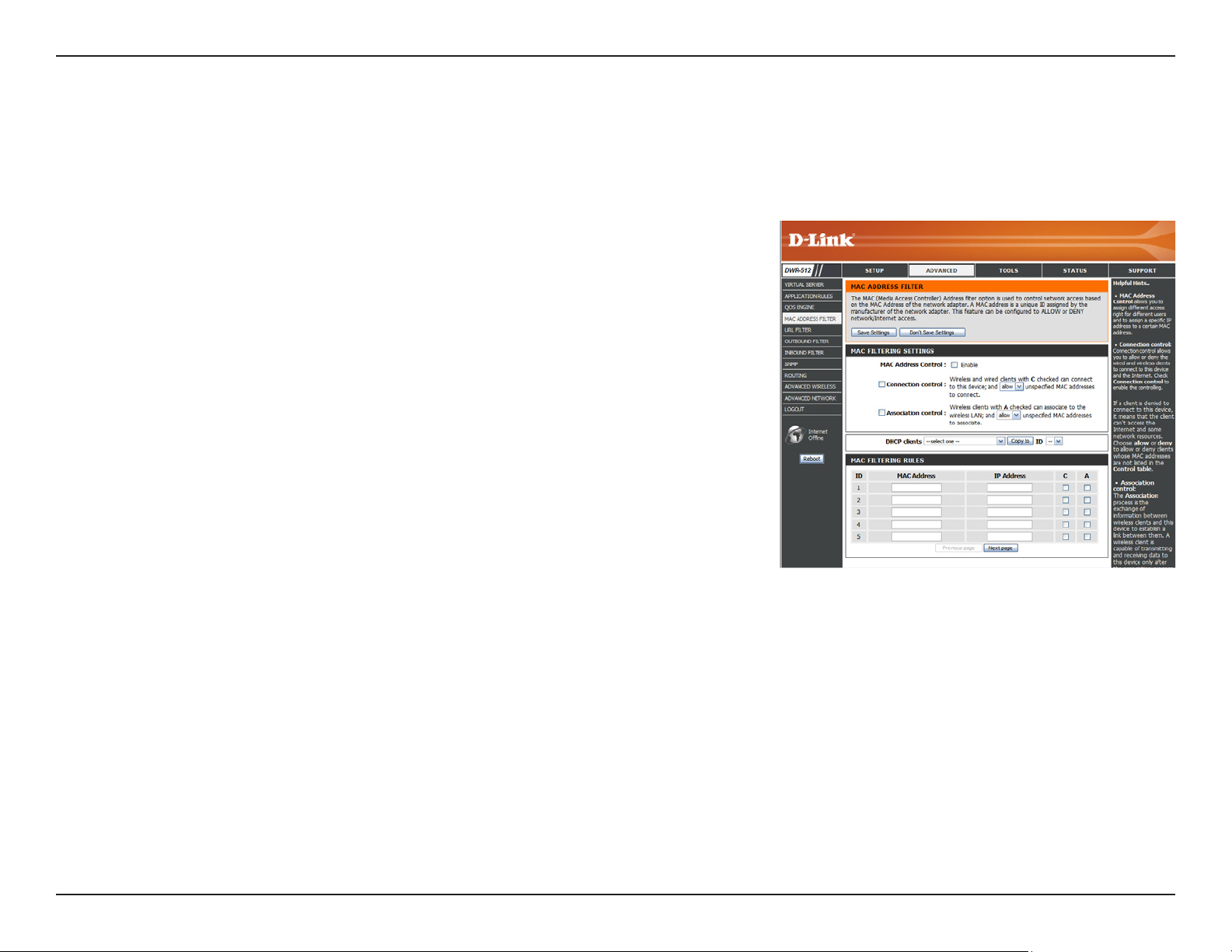

MAC Address Filter .......................................... 38

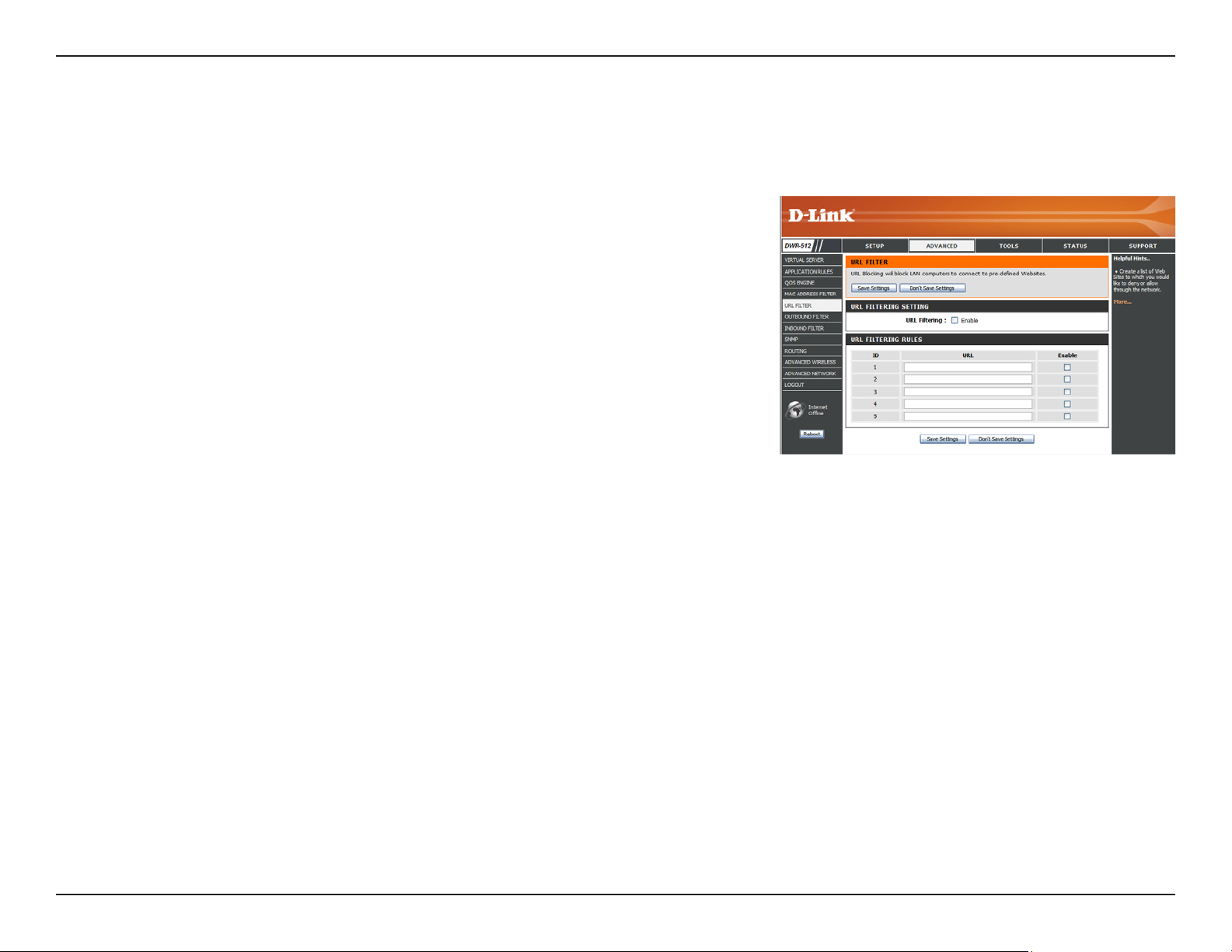

URL Filter ......................................................... 39

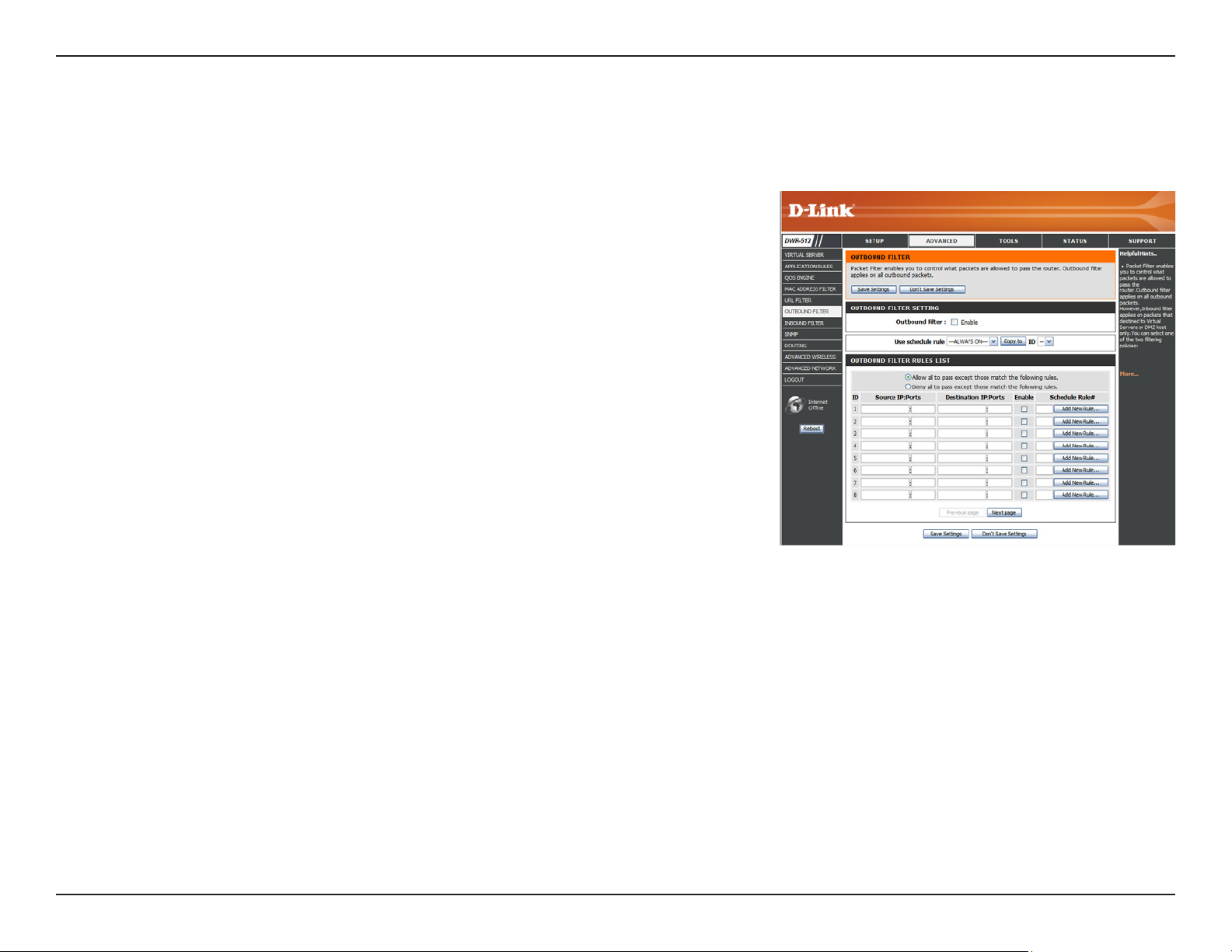

Outbound Filter ................................................ 40
Inbound Filter ...................................................41
SNMP ..............................................................42

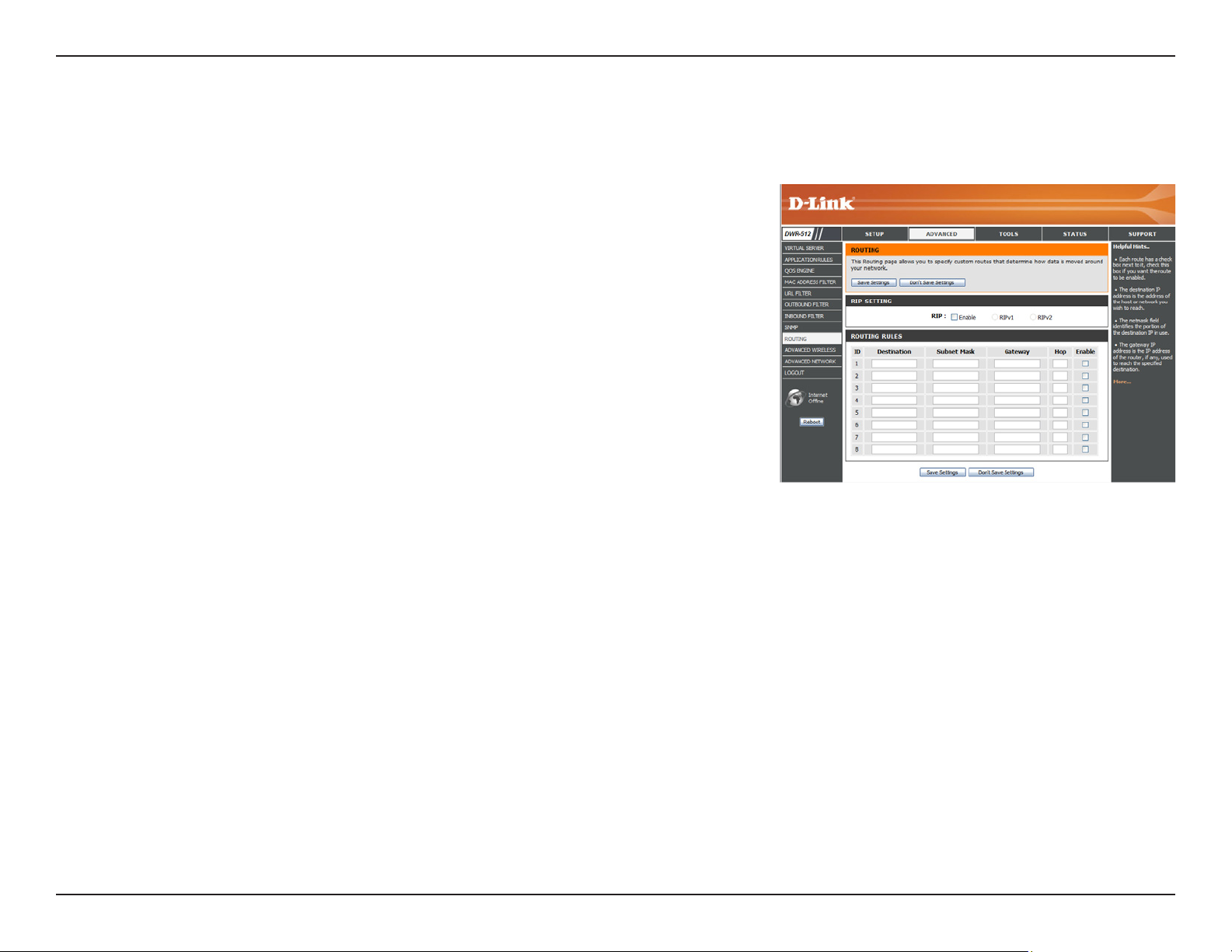

Routing ............................................................43
iiiD-Link DWR-512 User Manual
Table of Contents
Advanced Wireless .......................................... 44
Advanced Network ........................................... 45
Tools ......................................................................46
Admin ............................................................... 46
Time .................................................................47
Syslog .............................................................. 48
E-mail Settings ................................................. 49
System .............................................................50
Firmware ..........................................................51
Dynamic DNS .................................................. 52
System Check .................................................. 53
Schedules ........................................................ 54
Status ....................................................................55
Device Info .......................................................55
Log ...................................................................56
Statistics ..........................................................57
Wireless ........................................................... 58
Wireless Basics ......................................................... 75
What is Wireless? ..................................................76
Tips ........................................................................78
Wireless Modes .....................................................79
Networking Basics .................................................... 80
Check your IP address .......................................... 80
Statically Assign an IP address ............................. 81
Technical Specications........................................... 82
Support .................................................................. 59
Connecting to a Wireless Network .......................... 60
Using Windows 7 ..................................................60
Conguring Wireless Security .......................... 62
Using Windows Vista™ ......................................... 65
Conguring Wireless Security .......................... 66
Using Windows® XP ............................................... 68
Congure WEP ................................................ 69
Congure WPA-PSK ........................................ 71
Troubleshooting ........................................................ 73
ivD-Link DWR-512 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
• D-Link DWR-512 HSUPA 3G Router
• Power Adapter
• Manual and Warranty on CD
• 3G Antenna
Note: Using a power supply with a different voltage rating than the one included with the DWR-512 will cause damage and void the
warranty for this product.
System Requirements
• A compatible (U)SIM card with service.*
• Computers with Windows®, Macintosh®, or Linux-based operating system with an installed Ethernet adapter
• Internet Explorer 6 or Netscape Navigator™ Version 6.0 and above (for conguration)
*Subject to services and service terms available from your carrier.
1D-Link DWR-512 User Manual
Section 1 - Product Overview
Introduction
The D-Link HSUPA 3G Router allows users to access worldwide mobile broadband networks. Once connected, users can transfer data, stream media, send SMS messages, and make mobile phone calls. Simply insert your UMTS/HSUPA SIM card, and share your 3G Internet connection through a secure 802.11n wireless network or using any of the four 10/100 Ethernet ports.
While accessing your 3G Internet connection, you will still have the ability to answer incoming mobile calls and respond to SMS messages. An RJ-11 jack allows you to attach a standard analog phone for high-quality mobile calls over a GSM network. Enjoy the comfort and convenience of your favorite ofce phone anywhere you go.
Keep your wireless network safe with WPA/WPA2 wireless encryption. The DWR-512 utilizes dual-active rewalls (SPI and NAT) to prevent potential attacks across the Internet, and includes MAC address ltering to control access to your network.
The HSUPA 3G Router can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable. The DWR-512 can even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting.
2D-Link DWR-512 User Manual
Section 1 - Product Overview
Hardware Overview
Rear Panel
Power ConnectorWAN Port
Phone Jack
LAN Ports
Port Function LAN Ports
(RJ-45) WAN (RJ-45) Connects to a DSL/Cable modem or router through an
SIM Accepts a standard (U)SIM card for 3G connectivity. Power Connects to the included power adapter. Power Switch Turns the device on or off. Phone (RJ-11) Connects to a telephone through a standard RJ-11 telephone
Connects to a network device such as a desktop or notebook computer through an Ethernet cable.
Ethernet cable.
cable.
SIM Card Slot Power Switch
3D-Link DWR-512 User Manual
Section 1 - Product Overview
Hardware Overview
Front Panel
WAN LAN1 LAN2 LAN3 LAN4
Status 2G 3G SMS WLAN
Signal Strength Reset Button WPS Button
Button Name Function Reset Press this button with an unfolded paperclip to
reset the device.
WPS Press this button to initiate a new WPS connection.
4D-Link DWR-512 User Manual
Section 1 - Product Overview
LED Name Function Status Blinking Green: Device is working WAN Solid Green: Ethernet connection has been established
LAN 1-4 Solid Green: Ethernet connection has been established
Hardware Overview
LEDs
Blinking Green: Data is being transferred
Blinking Green: Data is being transferred
Signal Strength
WPS Slow Blinking Green: WPS is functioning normally
2G Solid Green: EDGE or GPRS connection has been established
3G Solid Green: UMTS/HSDPA/HSUPA connection is established
SMS Solid Green: SMS storage is full
WLAN Solid Green: WLAN is active and available
Blinking Red: No SIM card / signal or unveried PIN code Solid Red: Signal strength is at level one (weak) Solid Amber: Signal strength is at level two or three (medium) Solid Green: Signal strength is at level four or ve (strong)
Fast Blinking Green: WPS is functioning in PBC mode
Blinking Green: Data is being transferred via 2G/2G
Blinking: Data is being transferred via 2G
Blinking Green: There is an unread SMS message
Blinking Green: Data is being transferred over the WLAN
5D-Link DWR-512 User Manual
Section 2 - Installation
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in an attic or garage.
Connect to Your Network
1. Ensure that your DWR-512 HSUPA 3G Router is disconnected and powered off.
2. Insert a standard (U)SIM card into the SIM card slot on the back of the router as indicated by the SIM card logo next to the slot. The gold contacts should face downwards.
Caution: Always unplug/power down the router before installing or removing the SIM card. Never insert or remove the SIM card while
the router is in use.
3. Insert your Internet/WAN network cable into the WAN port on the back of the router.
Note: The 3G connection can also be used as a backup WAN. Once a backup is congured, the router will automatically use 3G for the
Internet connection if the Ethernet WAN is not available.
4. Insert the Ethernet cable into the LAN Port 1 on the back panel of the DWR-512 HSUPA 3G Router and an available Ethernet port on the network adapter in the computer you will use to congure the router.
Note: The DWR-512 HSUPA 3G Router LAN Ports are Auto-MDI/MDIX, so both patch and crossover Ethernet cables can be used.
5. Connect the power adapter to the socket on the back panel of your DWR-512 HSUPA 3G Router. Plug the other end of the power adapter into a wall outlet or power strip and turn the device on.
a. The Status LED will light up to indicate that power has been supplied to the router.
b. The LEDs on the front panel will ash on and off as the DWR-512 HSUPA 3G Router performs initialization and Internet connection
processes.
c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Status, WAN, WLAN,
and any LAN Port LEDs that are connected computers or other devices.
6D-Link DWR-512 User Manual
Section 2 - Installation
Connect a Telephone
The RJ-11 jack on the back of the router allows you to connect a standard analog telephone for voice calls.
Simply plug the phone cable into the RJ-11 jack.
You can then use your handset to dial out as you typically would with a standard landline phone.
Your attached phone will also ring for any incoming voice calls.
Note: Calls made will be charged at a rate determined by your mobile service provider.
7D-Link DWR-512 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-512 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind that the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range of the wireless signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or ofce. The key to maximizing the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as glass, metal, brick, insulation, concrete, and water can affect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal doors, and aluminum studs may also have a negative effect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.
8D-Link DWR-512 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link mobile router using the web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.0.1 by default).
To log in to the conguration utility, enter admin as the username, and then enter the password. By default, the password is blank.
If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.
The conguration utility will open to the STATUS > DEVICE INFO page. You can view different conguration pages by clicking on the categories at the top of the screen (SETUP/ADVANCED/TOOLS/STATUS/SUPPORT), and then selecting a conguration page from the bar on the left side.
The following pages will describe each section in detail, starting with the SETUP pages.
9D-Link DWR-512 User Manual
Section 3 - Conguration
Setup
The SETUP pages allow you to congure your Internet and wireless settings, as well as manage your SMS inbox. To view the Setup conguration pages, click on SETUP at the top of the screen.
Internet
The Internet page allows you to congure how your router connects to the Internet. There are two ways to set up your Internet connection.
You can click on the Internet Connection Setup Wizard button to start a wizard that will guide you through setting up your Internet settings.
If you want to manually congure your settings, click Manual Internet Connection Setup and skip to “Manual Internet Connection Setup” on page 13.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your D-Link router to connect to the Internet.
Click Next to continue.
Note: While using the wizard, you can click Prev to go back to the previous page or
you can click Cancel to close the wizard.
10D-Link DWR-512 User Manual
Section 3 - Conguration
Create a new password and then click Next to continue.
Select your time zone from the drop-down box and then click Next to continue.
Select the Internet connection type you use. The connection types are explained on the following page. If you are unsure which connection type you should use, contact your Internet Service Provider (ISP).
Click Prev to go back to the previous page or click Cancel to close the wizard.
Note: The DWR-512 has a WAN Failover feature that allows the router to switch to a
3G connection if the WAN connection is down or unavailable. To congure this feature, please refer to “Internet Connection” on page 13.
11D-Link DWR-512 User Manual
Section 3 - Conguration
The subsequent conguration pages will differ depending on the selection you make on this page.
DHCP Connection
(Dynamic IP Address):
Username / Password
Connection (PPPoE):
Username / Password
Connection (PPTP):
Username / Password
Connection (L2TP):
3G Connection:
Static IP Address
Connection:
Choose this if your Internet connection automatically provides you with an IP Address. Most cable modems use this type of connection. See “Dynamic IP (DHCP)” on page 15 for information about how to congure this type of connection.
Choose this option if your Internet connection requires a username and password to connect. Most DSL modems use this style of connection. See “PPPoE” on page 16 for information about how to congure this type of connection.
Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP). See “PPTP” on page 17 for information about how to congure this type of connection.
Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP). See “L2TP” on page 18 for information about how to congure this type of connection.
Choose this connection if you have installed a SIM card into the DWR-512. See “3G” on page 19 for information about how to congure this type of connection.
Choose this option if your Internet Setup Provider provided you with IP Address information that has to be manually congured. See “Static IP” on page 14 for information about how to congure this type of connection.
After entering the requested information,click Next to continue.
This completes the Internet Connection Setup Wizard. Click Connect to save your changes and reboot the router.
12D-Link DWR-512 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
To set up your Internet connection manually, click Manual Internet Connection Setup.
Internet Connection
Several different Internet Connection types can be selected depending upon the specications of your Internet Service Provider (ISP). You can also set up the Auto-Backup feature, which allows you to use a 3G connection for your Internet connection if your main connection fails.
My Internet Connection
is:
Host Name:
Auto-Backup:
Internet Host:
Select the Internet Connection type specied by your Internet Service Provider (ISP). The corresponding settings will be displayed below. Please see the following pages for details on how to congure these different connection types.
If the Internet Host you are using for the Auto-Backup feature requires you to enter a Host Name, enter it here. In most cases, you may leave this blank.
When this box is checked, the router will switch over to a 3G connection if the Internet Host (specied below) is unreachable.
Enter an IP address for the router to use to check if it is connected to the Internet. If Auto-Backup is enabled and the IP address cannot be reached, the router will switch over to a 3G connection.
13D-Link DWR-512 User Manual
Section 3 - Conguration
Static IP
Choose this Internet connection if your ISP assigns you a static IP address. After modifying any settings, click Save Settings to save your changes.
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS Server:
Secondary DNS
Server:
MTU:
MAC Address:
Enter the IP address assigned to your network connection.
Enter the subnet mask.
Enter the default gateway.
Enter the primary DNS server.
Enter the secondary DNS server.
You may need to change the Maximum Transmission Unit (MTU) for optimal performance. The default value is 1500.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
14D-Link DWR-512 User Manual
Section 3 - Conguration
Dynamic IP (DHCP)
This section will help you to obtain IP Address information automatically from your ISP. Use this option if your ISP didn’t provide you with IP Address information and/or a username and password. After modifying any settings, click Save Settings to save your changes.
Host Name:
Primary DNS Server:
Secondary DNS
Server:
MTU (Maximum
Transmission Unit):
MAC Address:
Auto-reconnect:
(Optional) Required by some ISPs.
(Optional) Fill in with IP address of primary DNS server.
(Optional) Fill in with IP address of secondary DNS server.
You may need to change the Maximum Transmission Unit (MTU) for optimal performance. The default value is 1500.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your PC.
This feature enables this product to renew the WAN IP address automatically when the lease time has expired.
15D-Link DWR-512 User Manual
Section 3 - Conguration
PPPoE
Choose this Internet connection if your ISP provides you PPPoE account. After modifying any settings, click Save Settings to save your changes.
Username:
Password:
Verify Password:
Service Name:
IP Address:
Primary DNS Server:
Secondary DNS
Server:
MAC Address:
The username/account name that your ISP provides to you for PPPoE dial-up.
Password that your ISP provides to you for PPPoE dial-up.
Fill in with the same password in Password eld.
(Optional) Fill in if provided by your ISP.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
MAC address of WAN interface. You can also copy MAC address of your PC to its WAN interface by pressing Clone Your PC’s MAC button. The Restore
MAC button will reset the router to its default MAC address.
Maximum Idle Time:
Maximum
Transmission Unit
(MTU):
Auto-reconnect:
The amount of time of inactivity before disconnecting established PPPoE session. Set it to zero or enable Auto-reconnect will disable this feature.
The default setting of PPPoE is 1492.
The device will dial-up PPPoE connection automatically.
16D-Link DWR-512 User Manual
Section 3 - Conguration
PPTP
Choose this Internet connection if your ISP provides you PPTP account. After modifying any settings, click Save Settings to save your changes.
Address Mode:
PPTP IP Address:
PPTP Subnet Mask:
PPTP Gateway IP
Address:
PPTP Server IP
Address:
Username:
Password:
Verify Password:
Choose Static IP only if your ISP assigns you an IP address. Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP. (Only applicable for Static IP PPTP.)
Enter the information provided by your ISP. (Only applicable for Static IP PPTP.)
Enter the information provided by your ISP. (Only applicable for Static IP PPTP.)
IP address of PPTP server.
User/account name that your ISP provides to you for PPTP dial-up.
Password that your ISP provides to you for PPTP dial-up.
Fill in with the same password in Password eld.
Reconnect Mode:
Maximum Idle Time:
Choose Always-on when you want to establish PPTP connection all the time. If you choose Connect-on-demand, the device will establish PPTP connection when local users want to surf Internet, and disconnect if no trafc after time period of Maximum Idle Time.
The time of no activity to disconnect your PPTP session. Set it to zero or choose Always-on to disable this feature.
17D-Link DWR-512 User Manual
Section 3 - Conguration
L2TP
Choose this Internet connection if your ISP provides you L2TP account. After modifying any settings, click Save Settings to save your changes.
Address Mode:
L2TP IP Address:
L2TP Subnet Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
Username:
Password:
Verify Password:
Choose Static IP only if your ISP assigns you an IP address. Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP. (Only applicable for Static IP L2TP.)
Enter the information provided by your ISP. (Only applicable for Static IP L2TP.)
Enter the information provided by your ISP. (Only applicable for Static IP L2TP.)
IP address of L2TP server.
User/account name that your ISP provides to you for L2TP dial-up.
Password that your ISP provides to you for L2TP dial-up.
Fill in with the same password in Password eld.
Reconnect Mode:
Maximum Idle Time:
Choose Always-on when you want to establish L2TP connection all the time. Choose Connect-on-demand the device will establish L2TP connection when local users want to surf Internet, and disconnect if no trafc after time period of Maximum Idle Time.
The time of no activity to disconnect your L2TP session. Set it to 0 or choose Always-on to disable this feature.
18D-Link DWR-512 User Manual
Section 3 - Conguration
3G
Choose this Internet connection if you already use a SIM card for 3G Internet service from your Telecom company. The elds here may not be necessary for your connection. The information on this page should only be used if required by your service provider. After modifying any settings, click Save Settings to save your changes.
Account/Prole Name:
Username:
Password:
Dialed Number:
Authentication:
APN:
PIN:
Reconnect Mode:
Maximum Idle Time:
Primary DNS Server:
Fill in a name to identify the following 3G conguration.
(Optional) Fill in only if requested by ISP.
(Optional) Fill in only if requested by ISP.
Enter the number to be dialed.
Select PAP, CHAP, or Auto detection. The default authentication method is Auto.
(Optional) Enter the APN information.
Enter the PIN associated with your SIM card.
Select Auto or Manual to decide whether the routher should reconnect to your 3G network automatically or manually.
Set the maximum time your connection can be idle before disconnecting. Set it to 0 or choose Auto in Reconnect Mode to disable this feature.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
Secondary DNS
Server:
(Optional) Fill in if provided by your ISP. If not, keep the default value.
19D-Link DWR-512 User Manual
Section 3 - Conguration
Keep Alive:
Bridge Ethernet Ports:
Select Disable or Use LCP Echo Request depending on the settings required by your ISP.
Activate this feature to use the Ethernet WAN port as an additional LAN port.
20D-Link DWR-512 User Manual
Section 3 - Conguration
Wireless Settings
This section will help you to manually congure the wireless settings of your router. Please note that changes made on this section may also need to be duplicated on your Wireless Client.
The Wireless Settings page allows you to congure how your router connects to the Internet. There are several ways to set up your wireless connection.
You can click on the Wireless Connection Setup Wizard button to start a wizard that will guide you through setting up your wireless settings.
If you want to manually congure your settings, click the Manual Wireless Connection Setup button and skip to “Manual Wireless Connection Setup” on page 23.
You can als o set up a wireless co nne cti on t o a de vic e au tom ati cal ly, o r c o n f i g u r e y o u r r o u t e r a u t o m a t i c a l l y f r o m a b y c l i c k i n g t h e
Wi-Fi Protected Setup button. This is described in “Wi-Fi Protected Setup” on page 28.
Wireless Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your D-Link router’s wireless .
Click Next to continue.
Note: While using the wizard, you can click Prev to go back to the previous page or
you can click Cancel to close the wizard.
21D-Link DWR-512 User Manual
Section 3 - Conguration
Enter a name for your wireless network, then click Next to continue.
Select a level of wireless security to use, then click Next to continue.
If you chose BEST or BETTER, select whether to use TKIP or AES encryption, then enter a password to use for your wireless network. It is recommended that you use AES if your wireless computers and devices support it, as it is more secure. Click Next to continue.
If you chose GOOD, select whether to use a HEX or ASCII password, then enter a password to use for your wireless network. If you choose HEX, you will need to enter a 10 or 26 digit password using only hex characters (0-9, A-F). If you choose ASCII, the password can be up to 5 or 13 alphanumeric characters. Click Next to continue.
This completes the Wireless Connection Setup Wizard. Click Save to save your changes and reboot the router.
22D-Link DWR-512 User Manual
Section 3 - Conguration
Manual Wireless Connection Setup
To set up your wireless connection manually, click Manual Wireless Connection Setup.
23D-Link DWR-512 User Manual
Section 3 - Conguration
Wireless Settings
This page lets you set up your wireless network and choose a wireless security mode. After modifying any settings, click Save Settings to save your changes.
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Auto Channel Scan:
Wireless Channel:
Select this checkbox to enable wireless access. When you set this option, the following parameters take effect.
Also known as the SSID (Service Set Identier), this is the name of your Wireless Local Area Network (WLAN). Enter a name using up to 32 alphanumeric characters. The SSID is case-sensitive.
B/G mixed: Enable this mode if your network contains a mix of 802.11b and 802.11g devices. N only: Enable this mode if your network only has 802.11n devices. B/G/N mixed: Enable this mode if you have a mix of 802.11n, 802.11g, and 802.11b clients.
Enabling this feature will allow the router to scan for the best channel to use automatically.
A wireless network uses specic channels in the wireless spectrum to handle communication between clients. Some channels in your area may experience interference from other electronic devices. Choose the clearest channel to help optimize the performance and coverage of your wireless network, or enable Auto Channel Scan for the router to automatically select the best channel.
Visibility Status:
This setting determines whether the SSID will be Visible or Invisible to wireless clients looking for wireless networks. Setting this to Invisible can increase the security of your network by hiding it, but clients will need to manually enter the SSID of your network to connect.
24D-Link DWR-512 User Manual
Section 3 - Conguration
Wireless Security Mode
You can choose from several different wireless security modes. After selecting a mode, the settings for that mode will appear. After modifying any settings, click Save Settings to save your changes.
Security Mode:
You can choose from 4 different security modes.
• None: No security will be used. This setting is not recommended.
• WEP: WEP encryption will be used. This setting is only recommended if your wireless devices cannot support WPA or WPA2.
• WPA-Personal: WPA-PSK encryption will be used. This setting is recommended for most users.
• WPA-Enterprise: WPA-EAP encryption will be used. This setting is only recommended if you have a RADIUS authentication server. Otherwise, WPA-Personal should be used.
25D-Link DWR-512 User Manual
Section 3 - Conguration
If you choose WEP, the following options will appear:
Authentication:
WEP Encryption:
Default WEP Key:
WEP Key:
If you choose WPA-Personal, the following options will appear:
WPA Mode:
Select whether to use Open or Shared authentication.
Select whether to use 64-bit or 128-bit encryption.
Select which WEP key (1-4) to use as the default key. This will also change the WEP Key text box to that WEP key for your to congure(1-4).
Set the WEP key/password for your wireless network. Based on whether you are using 64 or 128-bit encryption, and whether you are using a HEX or ASCII key, you will need to enter different numbers of characters for your key, as indicated below the WEP Key text box. ASCII keys may use letters and numbers only, and HEX keys may use numbers 0-9 and letters A-F only.
Select whether to use WPA2 only or WPA only. WPA2 only is the most secure, provided that all of your clients can support it.
Cipher Type:
Network Key:
Select whether to use the TKIP or AES cipher. The AES cipher is the most secure, provided that all of your clients can support it.
Enter the key/password you want to use for your wireless network. The key must be 8 to 63 characters long, and may only contain letters and numbers.
26D-Link DWR-512 User Manual
Section 3 - Conguration
If you choose WPA-Enterprise, the following options will appear:
WPA Mode:
Cipher Type:
RADIUS Server IP
Address:
RADIUS Server Port:
RADIUS Server Shared
Secret:
Select whether to use WPA2 only or WPA only. WPA2 only is the most secure, provided
that all of your clients can support it.
Select whether to use the TKIP or AES cipher. The AES cipher is the most secure, provided that all of your clients can support it.
Enter the IP address of your RADIUS server.
Enter the port used for your RADIUS server.
Enter the Shared Secret/password for your RADIUS server.
27D-Link DWR-512 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
To open the Wi-Fi Protected Setup page, click Wi-Fi Protected Setup.
The Wi-Fi Protected Setup page allows you to create a wireless connection between your router and a device automatically by simply pushing a button or entering a PIN code.
You can also use Windows 7 to do initial conguration of your router by using the Connect to a network wizard in Windows, and entering the WPS PIN/AP PIN of the router when prompted. After modifying any settings, click Save Settings to save your changes.
28D-Link DWR-512 User Manual
Section 3 - Conguration
WPS:
AP PIN (also known as
WPS PIN):
Cong Mode:
Cong Status:
Select whether you would like to enable or disable WPS features.
If you use Windows 7’s Connect to a network wizard to do initial conguration of the router, you will need to enter the WPS PIN/AP PIN into the wizard when prompted. The factory default WPS PIN/ AP PIN is printed on a label located on the bottom of the router. You can click the Generate New PIN button to change it to a randomly generated PIN.
Select whether the WPS cong mode should be set to Registrar or Enrollee. In most cases, this should be set to Registrar so that you can use WPS to connect new wireless clients.
If this is set to CONFIGURED, the router will be marked as “already congured” to computers that try to use WPS conguration, such as Windows 7’s Connect to a network wizard. You can click the Release button to change the status to UNCONFIGURED to allow for WPS conguration of the router.
Cong Method:
WPS Status:
If this is set to UNCONFIGURED, you can click the Set button to change the status to CONFIGURED
to block WPS conguration of the router.
This lets you choose whether to use the Push Button connection method (PBC) or PIN method to connect to a wireless client when the Trigger button is clicked. If you choose the PIN method, you will need to enter a 8-digit PIN number that the wireless client need to use to connect to your router.
This will show the current WPS connection process status. Click the Trigger button to initiate a WPS connection.
29D-Link DWR-512 User Manual
Section 3 - Conguration
Network Settings
This section will help you to change the internal network settings of your router and to congure the DHCP Server settings. After modifying any settings, click Save Settings to save your changes.
Router Settings
Router IP Address:
Default Subnet Mask:
Local Domain Name:
Enter the IP address you want to use for the router. The default IP address is 192.168.0.1. If you change the IP address, you will need to enter the new IP address in your browser to get into the conguration utility.
Enter the Subnet Mask of the router. The default subnet mask is 255.255.255.0.
Enter the local domain name for your network.
30D-Link DWR-512 User Manual
Section 3 - Conguration
DHCP Server Settings
The DWR-512 has a built-in DHCP (Dynamic Host Control Protocol) server. The DHCP server assigns IP addresses to devices on the network that request them. By default, the DHCP Server is enabled on the device. The DHCP address pool contains a range of IP addresses, which is automatically assigned to the clients on the network. After modifying any settings, click Save Settings to save your changes.
Enable DHCP Server:
DHCP IP Address
Range:
DHCP Lease Time:
Primary DNS IP
Address:
Secondary DNS IP
Address:
Primary WINS IP
Address:
Secondary WINS IP
Address:
Select this box to enable the DHCP server on your router.
Enter the range of IPs for the DHCP server to use to assign IP addresses to devices on your network.
Enter lease time for IP address assignments.
Enter the primary DNS IP Address that will be assigned to DHCP clients.
Enter the secondary DNS IP Address that will be assigned to DHCP clients.
Enter the primary WINS IP Address that will be assigned to DHCP clients.
Enter the secondary WINS IP Address that will be assigned to DHCP clients.
31D-Link DWR-512 User Manual
Section 3 - Conguration
Message Service
If your ISP provides SMS service, you can check and send messages from this page.
SMS Inbox:
Click this button to view SMS messages that you have received.
Create Message:
Click this button to create a new message to send.
SMS Inbox
This page shows all messages that are stored on the SIM card. Select a message to display its contents in the SMS window. After you read it, you can delete it, or reply to the sender. Click the Refresh button to update the list.
Delete:
Reply:
Forward:
Deletes the selected SMS message.
Opens a Create Message window to reply to the selected SMS message.
Opens a Create Message windows to forward the selected SMS message to another recipient.
Refresh:
Click this button to check for new messages.
32D-Link DWR-512 User Manual
Section 3 - Conguration
Create Message
This page allows you to send an SMS to your contacts. Just ll in the phone number of the recipient, and type the content of message. Then push the “Send Message” button to send out this message. If you would like to add more than one recipient, you must put a semicolon (;) between each of the phone numbers.
Receiver:
Text Message:
Sent Message:
Cancel:
Type the phone number of the recipient.
Type the message that you would like to send.
Click this button to send the message.
Click this button to clear the message.
33D-Link DWR-512 User Manual
Section 3 - Conguration
Advanced
The ADVANCED pages allow you to congure the more advanced settings of the router, such as Virtual Server(Port Forwarding), MAC and URL ltering, and advanced wireless and network settings. To view the Advanced conguration pages, click on ADVANCED at the top of the screen.
Virtual Server
The device can be congured as a virtual server so that users can access services such as Web or FTP via the public (WAN) IP address of the router. You can also allow the settings to run on a specied schedule. The Virtual Server function is also known as Port Forwarding. After modifying any settings, click Save Settings to save your changes.
Well-known Services:
ID:
Use schedule rule:
This contains a list of pre-dened services. You can select a service, select a rule ID, then click the Copy to button to copy the default settings for that service to the specied rule ID.
Species which rule to copy the selected Well known service settings to when you click the Copy to button.
Select a schedule to use and copy to the specied rule ID when you click the Copy to button. You may select Always On or use a specic schedule that you have dened. To create and edit schedules, please refer to “Schedules” on page 54.
34D-Link DWR-512 User Manual
Section 3 - Conguration
ID:
VIRTUAL SERVERS LIST
This identies the rule.
Server IP: Port:
Enable:
Schedule Rule #:
Enter the last digits of the IP address of the computer on your local network that you want to allow the incoming service. In the next box, enter the port number that you would like to open.
Tick the checkbox to enable the specied rule.
Specify the schedule rule number. To create schedules, please refer to “Schedules” on page 54.
35D-Link DWR-512 User Manual
Section 3 - Conguration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony among others. These applications may have difculty working through NAT (Network Address Translation). Application Rules allow some of these applications work with the DWR-512 by opening ports after detecting trafc being sent through a trigger port. After modifying any settings, click Save
Settings to save your changes.
Popular Applications:
ID:
ID:
Trigger:
Incoming Ports:
Enable:
Select from a list of popular applications. You can select a service, select a rule ID, then click the Copy to button to copy the default settings for that service to the specied rule ID.
Species which rule to copy the selected Popular
application settings to when you click the Copy to button.
APPLICATION RULES
This identies the rule.
Enter the port to listen to in order to trigger the rule.
Specify the incoming port(s) to open when trafc comes over the Trigger port.
Tick the checkbox to enable the specied rule.
36D-Link DWR-512 User Manual
Section 3 - Conguration
QoS Engine
The QoS Engine improves your online gaming or streaming media experience by ensuring that your game or media trafc is prioritized over other network trafc, such as FTP or Web. For best performance, use the Automatic Classication option to automatically set the priority for your applications. After modifying any settings, click Save Settings to save your changes.
QOS ENGINE SETUP
Enable QOS Packet
Filter:
Upstream Bandwidth:
Use Schedule Rule:
ID:
Local IP : Ports:
Remote IP : Ports:
QoS Priority:
Select this box to enable the QoS feature.
Specify the maximum upstream bandwidth here (e.g. 400 kbps).
Select a schedule to use and copy to the specied rule ID when you click the Copy to button. You may select Always On or use a specic schedule that you have dened. To create and edit schedules, please refer to “Schedules” on page 54.
QOS RULES
This identies the rule.
Specify the local IP address(es) and port(s) for the rule to affect.
Specify the remote IP address(es) and port(s) for the rule to affect.
Select what priority level to use for trafc affected by the rule: Low, Normal, or High.
Enable:
Use Rule #:
Tick the checkbox to enable the specied rule.
Specify the schedule rule number. To create schedules, please refer to “Schedules” on page 54.
37D-Link DWR-512 User Manual
Section 3 - Conguration
MAC Address Filter
The MAC (Media Access Controller) Address Filter option is used to control network access based on the MAC Address of the network adapter. A MAC address is a unique ID assigned by the manufacturer of the network adapter. This feature can be congured to ALLOW or DENY network/Internet access. After modifying any settings, click Save Settings to save your changes.
MAC FILTERING SETTINGS
MAC Address Control:
Connection Control:
Association Control:
ID:
MAC Address:
IP Address:
Wake On LAN:
C:
Tick this box to enable MAC Filtering.
Wireless and wired clients with C selected can connect to this device and allow/deny connections from unspecied MAC addresses.
Wireless clients with A selected can associate to the wireless LAN and allow/deny connections from unspecied MAC addresses.
MAC FILTERING RULES
This identies the rule.
Specify the MAC Address of the computer to be ltered.
Specify the last section of the IP address.
Click Trigger to congure Wake On LAN.
If this box is ticked, the rule will follow the connection control setting specied in MAC ltering settings specied above.
If this box is ticked, the rule will follow the
A:
association control setting specied in MAC ltering settings specied above.
38D-Link DWR-512 User Manual
Section 3 - Conguration
URL Filter
URL Filter allows you to set up a list of websites that will be blocked from users on your network. After modifying any settings, click Save Settings to save your changes.
URL Filtering:
ID:
URL:
Enable:
Select this box to enable URL Filtering.
URL FILTERING RULES
This identies the rule.
Enter URL that you would like to block. All URLs that begin with this URL will be blocked.
Tick the checkbox to enable the specied rule.
39D-Link DWR-512 User Manual
Section 3 - Conguration
Outbound Filter
Outbound Filter enables you to control what packets are allowed to be sent out to the Internet. The outbound lter applies to all outbound packets. After modifying any settings, click Save Settings to save your changes.
OUTBOUND FILTER SETTING
Outbound Filter:
Use Schedule Rule:
ID:
Source IP : Ports:
Destination IP : Ports:
Enable:
Select this box to Enable outbound ltering.
Select a schedule to use and copy to the specied rule ID when you click the Copy to button. You may select Always On or use a specic schedule that you have dened. To create and edit schedules, please refer to “Schedules” on page 54.
OUTBOUND FILTER RULES LIST
Here, you can select whether to Allow or Deny all outgoing trafc except for trafc that matches the listed rules.
This identies the rule.
Specify the local IP address and then specify the port after the colon.
Specify the remote IP address and then the port after the colon.
Tick the checkbox to enable the specied rule.
Schedule Rule #:
Previous Page:
Next Page:
Specify the schedule rule number.
Go back to the previous lter page.
Advance to the next lter page.
40D-Link DWR-512 User Manual
Section 3 - Conguration
Inbound Filter
Inbound Filter enables you to control what packets are allowed to come in to your network from the Internet. The inbound lter only applies to packets that are destined for Virtual Servers or DMZ hosts. After modifying any settings, click Save Settings to save your changes.
INBOUND FILTER SETTING
Inbound Filter:
Use Schedule Rule:
ID:
Source IP : Ports:
Destination IP : Ports:
Enable:
Schedule Rule #:
Select this box to Enable the lter.
Select a schedule to use and copy to the specied rule ID when you click the Copy to button. You may select Always On or use a specic schedule that you have dened. To create and edit schedules, please refer to “Schedules” on page 54.
INBOUND FILTER RULES LIST
This identies the rule.
Specify the local IP address and then specify the port after the colon.
Specify the remote IP address and then the port after the colon.
Tick the checkbox to enable the specied rule.
Specify the schedule rule number.
Previous Page:
Next Page:
Go back to the previous lter page.
Advance to the next lter page.
41D-Link DWR-512 User Manual
Section 3 - Conguration
SNMP
SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each
network device to the administrator of the network. SNMP can be used to monitor trafc and statistics of the DWR-512. The DWR-512 supports SNMP v1 and v2c. After modifying any settings, click Save Settings to save your changes.
SNMP
SNMP Local:
SNMP Remote:
Get Community:
Set Community:
IP 1, IP 2, IP 3, IP 4:
SNMP Version:
WAN Access IP
Address
Select whether to Enable or Disable local SNMP administration.
Select whether to Enable or Disable remote SNMP administration.
Enter the password public in this eld to allow read-only access to network administration using SNMP. You can view the network, but no conguration is possible with this setting.
Enter the password private in this eld to enable read/write access to the network using SNMP.
Enter up to 4 IP addresses to use as trap targets for your network.
Select the SNMP version of your system.
If you want to limit remote access SNMP access, enter the IP address of the remote computer you will use to access this device. All other IP addresses will be denied remote SNMP access.
42D-Link DWR-512 User Manual
Section 3 - Conguration
Routing
The Routing page allows you to specify custom routes that determine how data is moved around your network. After modifying any settings, click Save Settings to save your changes.
RIP SETTING
RIP:
ID:
Destination:
Subnet Mask:
Gateway:
Select this box to enable routing, then select which routing protocol to use:
• RIPv1: Protocol in which the IP address is routed through the internet.
• RIPv2: Enhanced version of RIPv1 with added features such as Authentication, Routing Domain, Next Hop Forwarding, and Subnet­mask Exchange.
ROUTING RULES
This identies the rule.
Enter in the IP of the specied network that you want to access using the static route.
Enter in the subnet mask to be used for the specied network.
Enter in the gateway IP address for the specied network.
Hop:
Enable:
Enter in the amount of hops it will take to reach the specied network.
Note: In a transmission path, each link is terminated at a network device such as a router or gateway. The number of hops equals the number of routers or gateways that data must pass through before reaching the destination.
Select this box to enable the rule.
43D-Link DWR-512 User Manual
Section 3 - Conguration
Advanced Wireless
Advanced Wireless contains settings which can negatively affect the performance of your router if congured improperly. Do not change
these settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After modifying any settings, click Save Settings to save your changes.
Beacon Interval:
Transmit Power:
RTS Threshold:
Fragmentation:
DTIM Interval:
WMM Capable:
TX Rates:
Specify a value for the beacon interval. Beacons are packets sent by an Access Point to synchronize a wireless network. 100 is the default setting and is recommended.
Set the transmit power of the antennas.
This value should remain at its default setting of 2347. If inconsistent data ow is a problem, only a minor modication should be made.
The fragmentation threshold, which is specied in bytes, determines whether packets will be fragmented. Packets exceeding the 2346 byte setting will be fragmented before transmission. 2346 is the default setting.
Set the interval for DTIM. A Delivery Trafc Indication Message (DTIM) is a countdown informing clients of the next window for listening to broadcast and multicast messages. The default interval is 3.
WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system for your wireless network. Enable this option to improve the quality of video and voice applications for your wireless clients.
Select the basic transfer rates based on the speed of wireless adapters on your wireless network. It is strongly recommended to keep this setting to Auto.
44D-Link DWR-512 User Manual
Loading...
