D Link WM800AA1 User Guide

DWM-800A

HW User

Guide

CONTENT

1. INTRODUCTION ............................................................................................................................................... 3

1.1. OVERVIEW ............................................................................................................................................................................3

1.2. APPLICATION TYPE ...............................................................................................................................................................3

1.3. INSTALLATION GUIDELINES .................................................................................................................................................4

1.4. APPLICATION SCENARIO .......................................................................................................................................................4

2. DWM-800A INTERFACES ........................................................................................................................... 5

2.1.

2.2. APPLICATION NOTE OF DWM-800A INTERFACES ..............................................................................................................7

DWM-800A INTERFACE SUMMARY

2.1.1. RF interface ...............................................................................................................................................................5

2.2.1. Power supply and Ground ............................................................................................................................................7

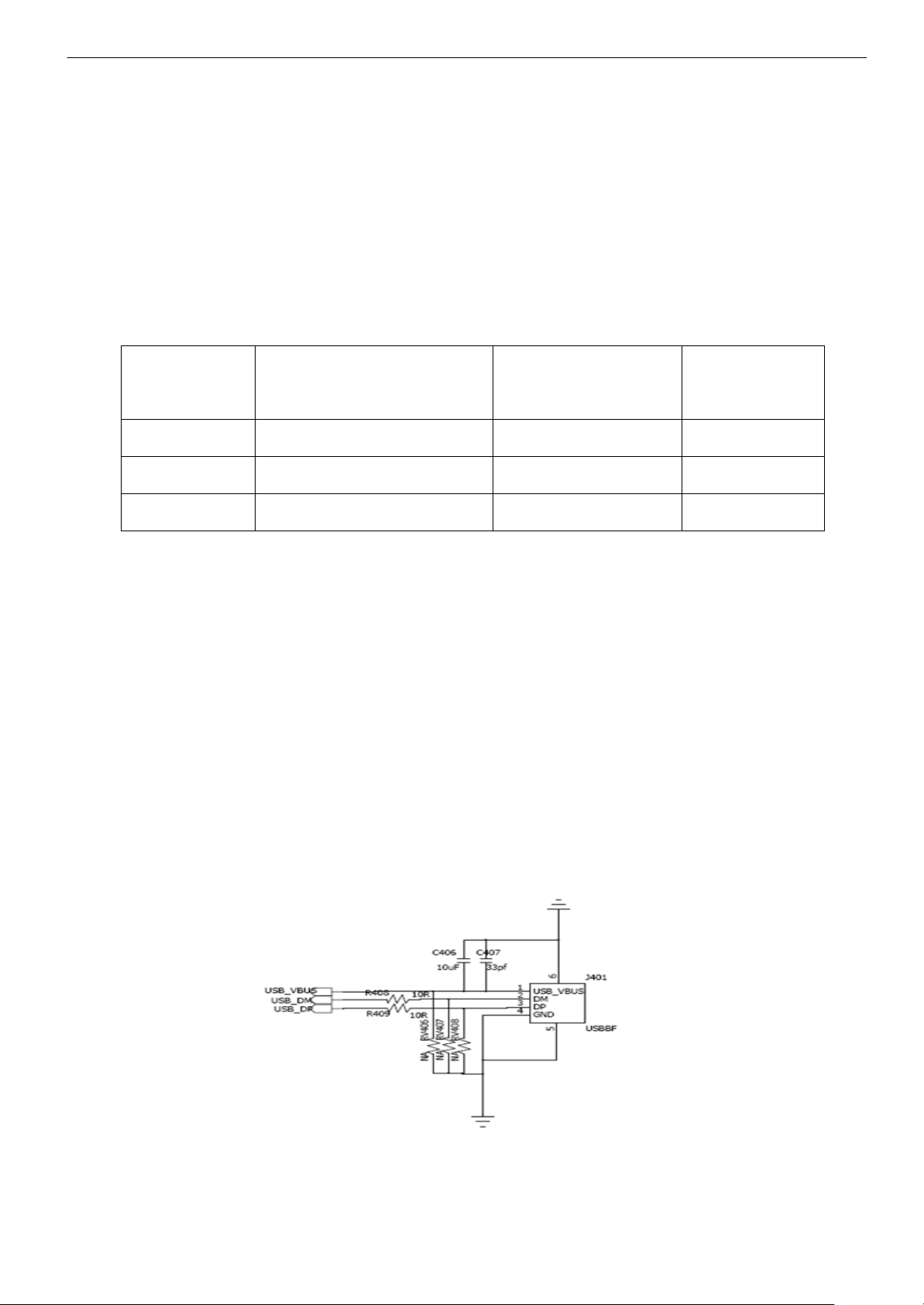

2.2.2. USB interface ...............................................................................................................................................................8

2.2.2.1. Description ...................................................................................................................................................................8

2.2.3. USIM interface ............................................................................................................................................................9

2.2.4. PCM interface ...........................................................................................................................................................10

2.2.5. SD card tntreface .......................................................................................................................................................11

2.2.6. Others .........................................................................................................................................................................11

....................................................................................................................................5

3. ELECTRICAL CHARACTERISTICS AND SAFETY INFORMATION ..................................................... 12

3.1. ABSOLUTE MAXIMUM RATINGS .........................................................................................................................................12

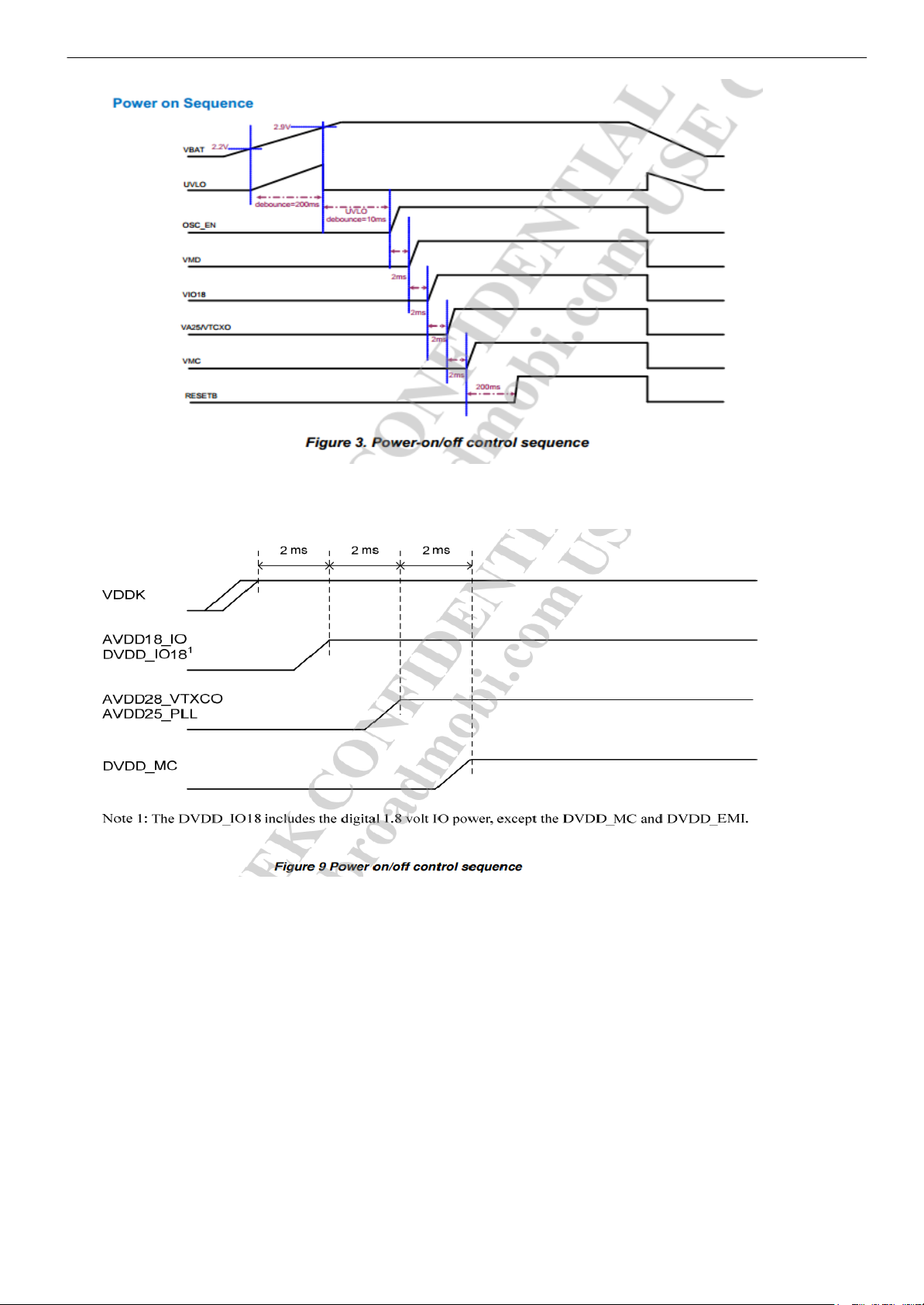

3.2. POWER-UP AND POWER-DOWN SEQUENCE .......................................................................................................................12

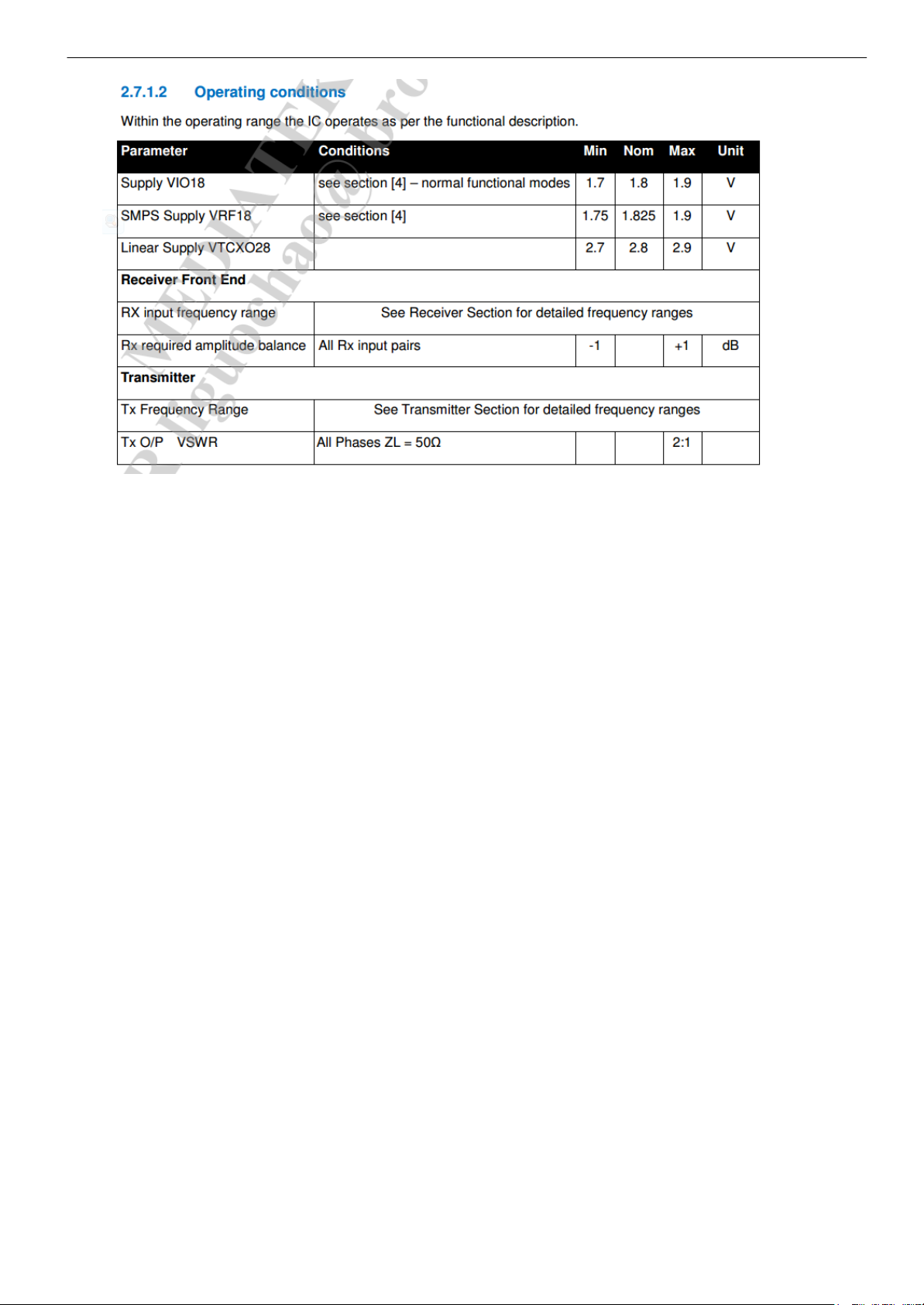

3.3. OPERATING CONDITIONS ...................................................................................................................................................13

3.4. RF EXPOSURE COMPLIANCE .............................................................................................................................................14

4. PINS DESCRIPTION OF MINI PCIE CONNECTOR ................................................................................. 15

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ......................................... 16

2

Item

Description

Air Interface

HSPA+/UMTS/EDGE/GPRS/GSM/WCDMA

Transmit speed

DL 21 Mbps, UL 11 Mbps

Frequency

GSM Band : 850/900/1800/1900MHz
UMTS Band: 2100/1900/850 MHz

Operating temperature range

Normal Operation: 0°C to +45°C
Storage: -20°C to +65°C

Size

51mm*30mm*4.7mm

Voltage range

Power Supply: 3.3V-3.6V

1. Introduction

1.1. Overview

The HSPA+ Mini PCIe module DWM-800A , powered by MT6280 chipset, can be integrated into any devices for
3G mobile applications. It provides SMS, MMS, Call as well as high speed internet access to HSPA+and UMTS
networks worldwide. Main features of DWM-800A is listed in table 1-1

Table 1-1 Main Features of DWM-800A

1.2. Application Type

The application type of the module is shown as bellow:

All instructions relating to the integration of the module described on the FCC Grant notes must be followed.

3

1.3. Installation Guidelines

Careful planning and preparation of any installation will always benefit the end result, always read and follow all installation
instructions. Follow ESD precautions and prepare an SD safe workspace for installation. Turn the power to the host off and ground
yourself to dissipate static charge.

Mount only in sockets and locations intended for Mini PCIe cards consult manufacturer on thermal management
recommendations for the module mounted within the host.

1.4. Application scenario

The HSPA module DWM-800A supports Voice Call, SMS, MMS and internet access functions. The block diagram of
DWM-800A is as follows:

Figure1-1 DWM-800A block diagram

4

2. DWM-800A interfaces

2.1.

DWM-800A interface summary

The module DWM-800A supports multimode operation: HSPA+, UMTS (850/1900/2100 MHz) and quad-band
GSM (850/900/1800/1900 MHz). The size of DWM-800A is 51mm*30mm*4.7mm. The appearance is shown in Figure
2-1 and Figure 2-2.

Figure 2-1 The front view of DWM-800A Figure 2-2 The rear view of DWM-800A

The MINI PCI-E is shown as in Figure , which is the main interface for application. RF antenna pad connector is

shown as in Figure 2-1 .

2.1.1. RF interface

The DWM-800A module provides an interface for RF antenna by Connector: DWM-800A uses HRS’s U.FL-R-SMT
RF connector on the rear side.

Solder pad mode: The antenna can also be soldered to the pad on the module which has a ground pad close to the
antenna pad.

The ground impedance of RF antenna is 50Ω. The RF connector is shown in Figure 2-3.

5

Figure 2-3 The sketch map of RF connector

It’s required to use RF cable of which the insertion loss should comply with:

• GSM850/900<1dB

• DCS1800/PCS1900<1.5dB

• UMTS2100/ UMTS1900/ UMTS850<1.5Db

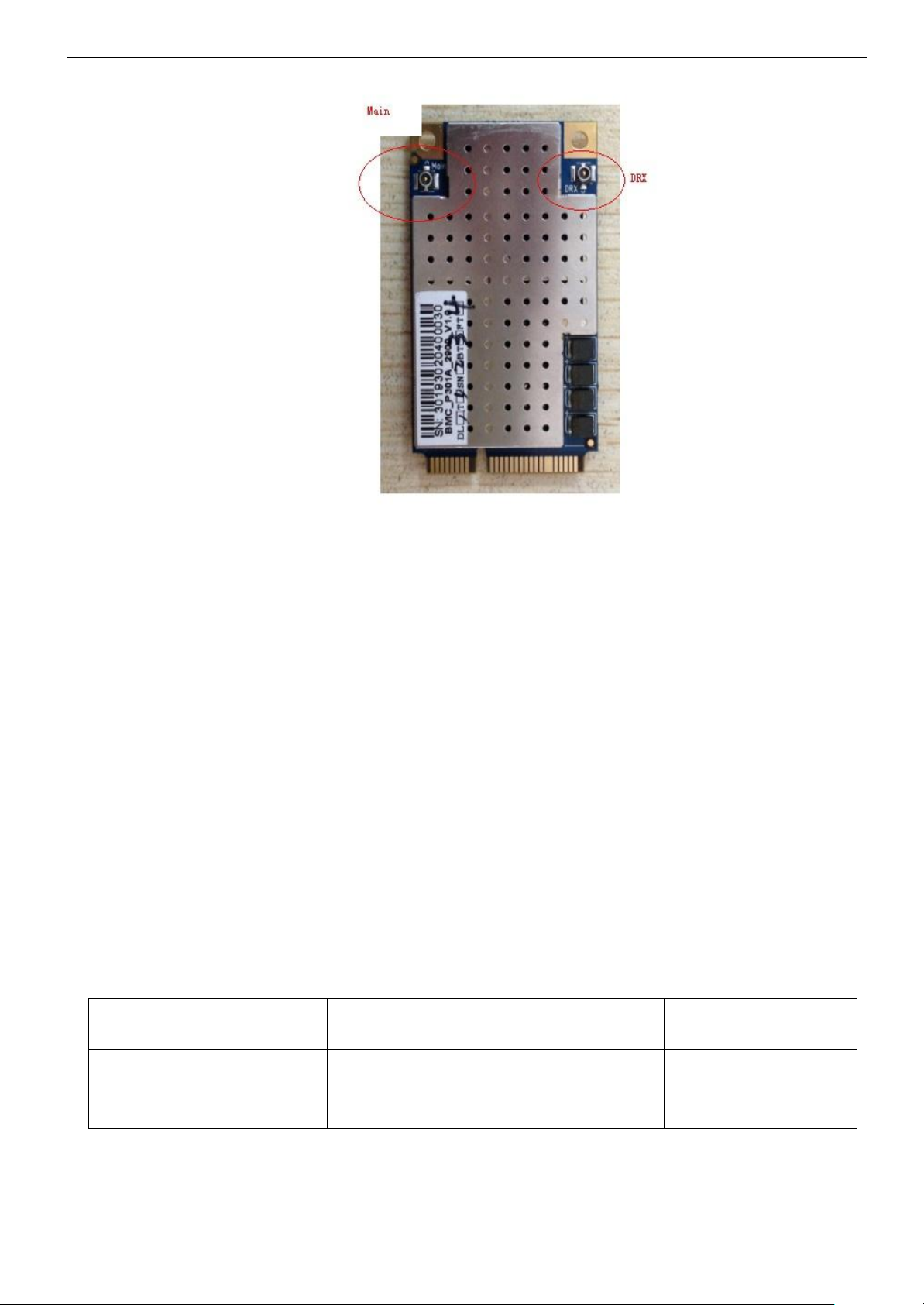

There are two RF connectors in DWM-800A ,the description of them is shown in Figure 2-4 below:

6
