D-Link WBR-1310 G User Manual

2D-Link WBR-1310 User Manual

Table of Contents

Product Overview ........................................................4

Package Contents ...................................................4

System Requirements .............................................4

Introduction ..............................................................5

Features ...................................................................6

Hardware Overview ................................................. 7

Connections .......................................................7

LEDs .................................................................. 8

Installation .................................................................... 9

Before you Begin ..................................................... 9

Wireless Installation Considerations ......................10

Connect to Cable/DSL/Satellite Modem ................ 11

Connect to Another Router ....................................12

Configuration .............................................................14

Web-based Configuration Utility ............................ 14

Setup Wizard ...................................................15

Internet Setup ..................................................19

Dynamic (Cable) ..........................................19

PPPoE (DSL) ...............................................20

PPTP ............................................................21

L2TP ............................................................. 22

Big Pond ....................................................... 23

Static (assigned by ISP) ...............................24

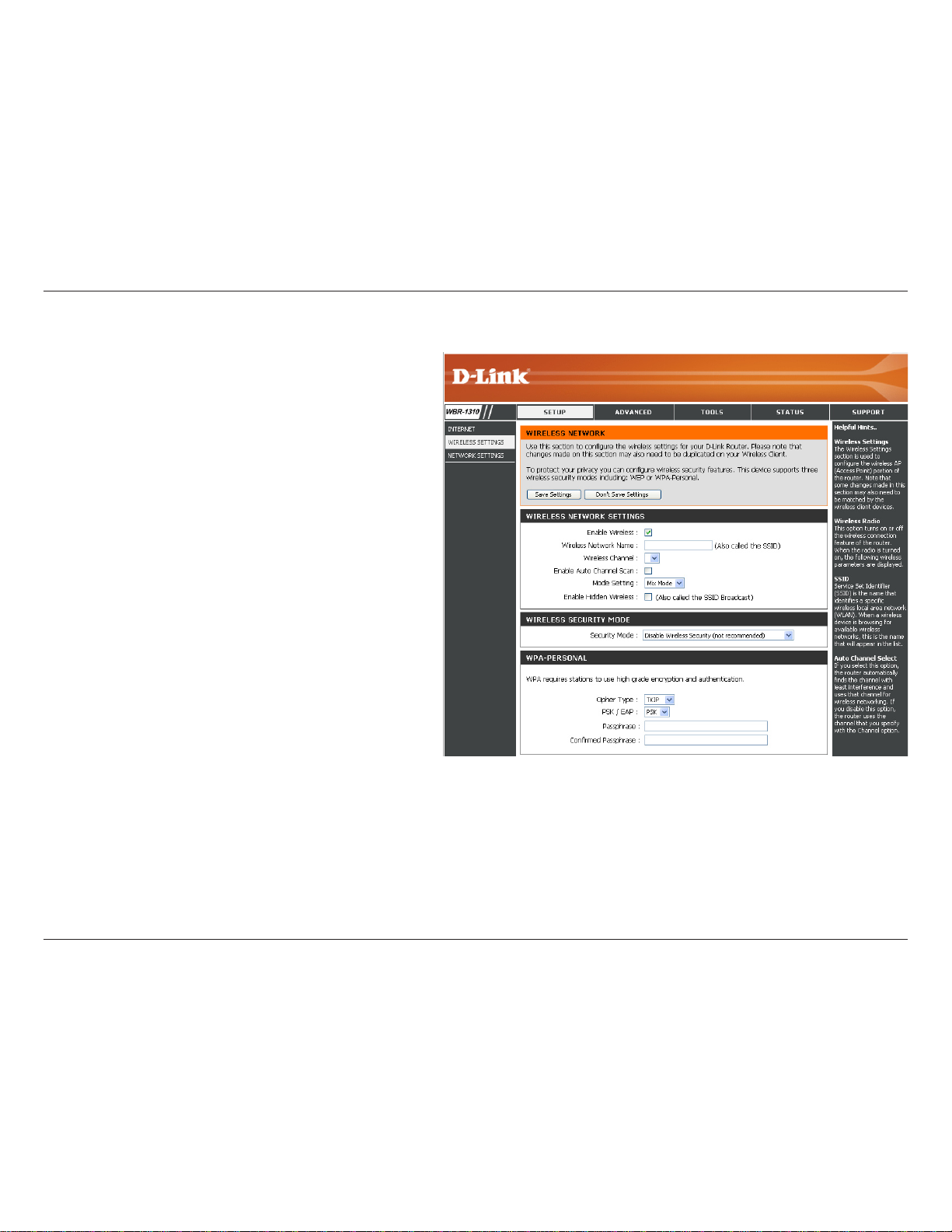

Wireless Settings ............................................. 25

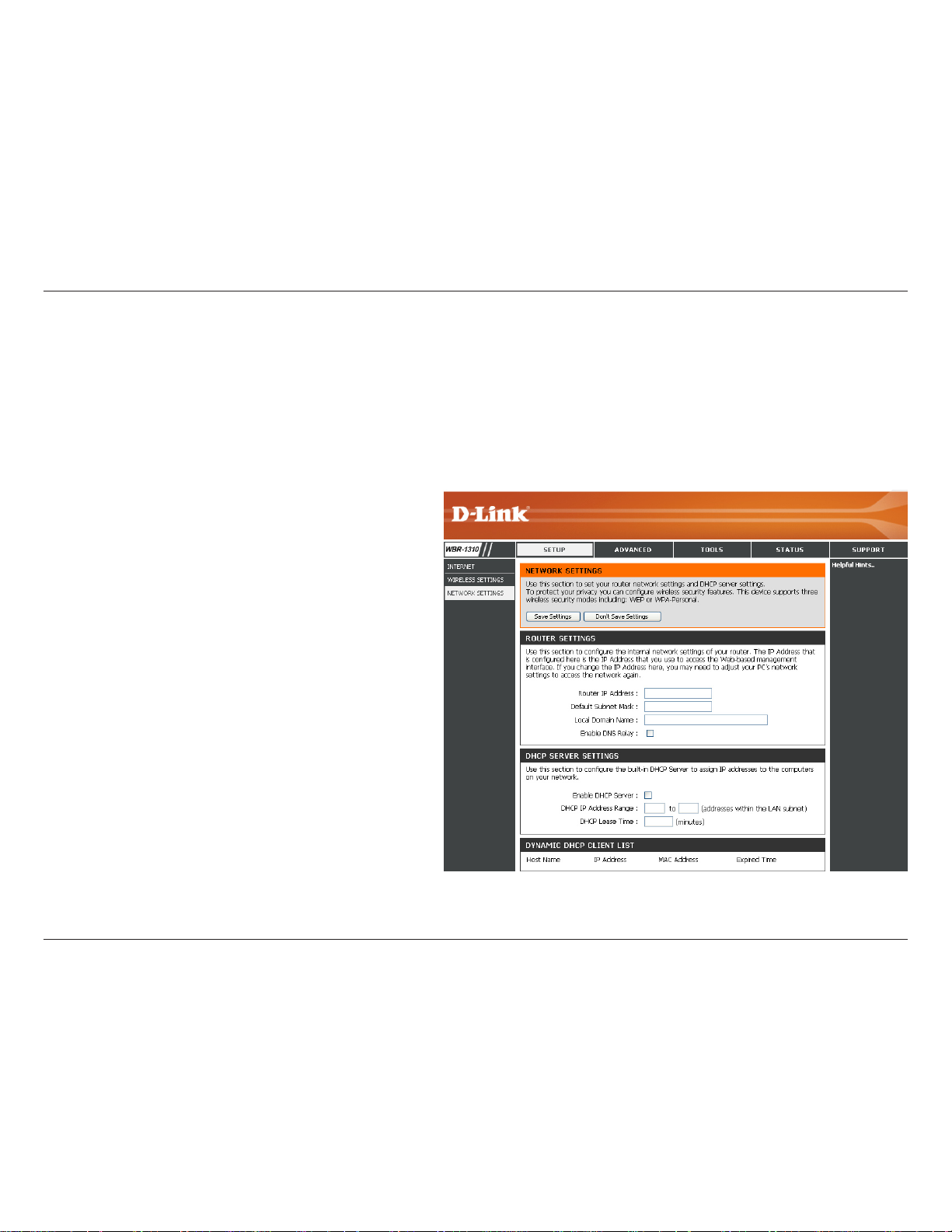

Network Settings .............................................. 26

DHCP Server Settings ..................................... 27

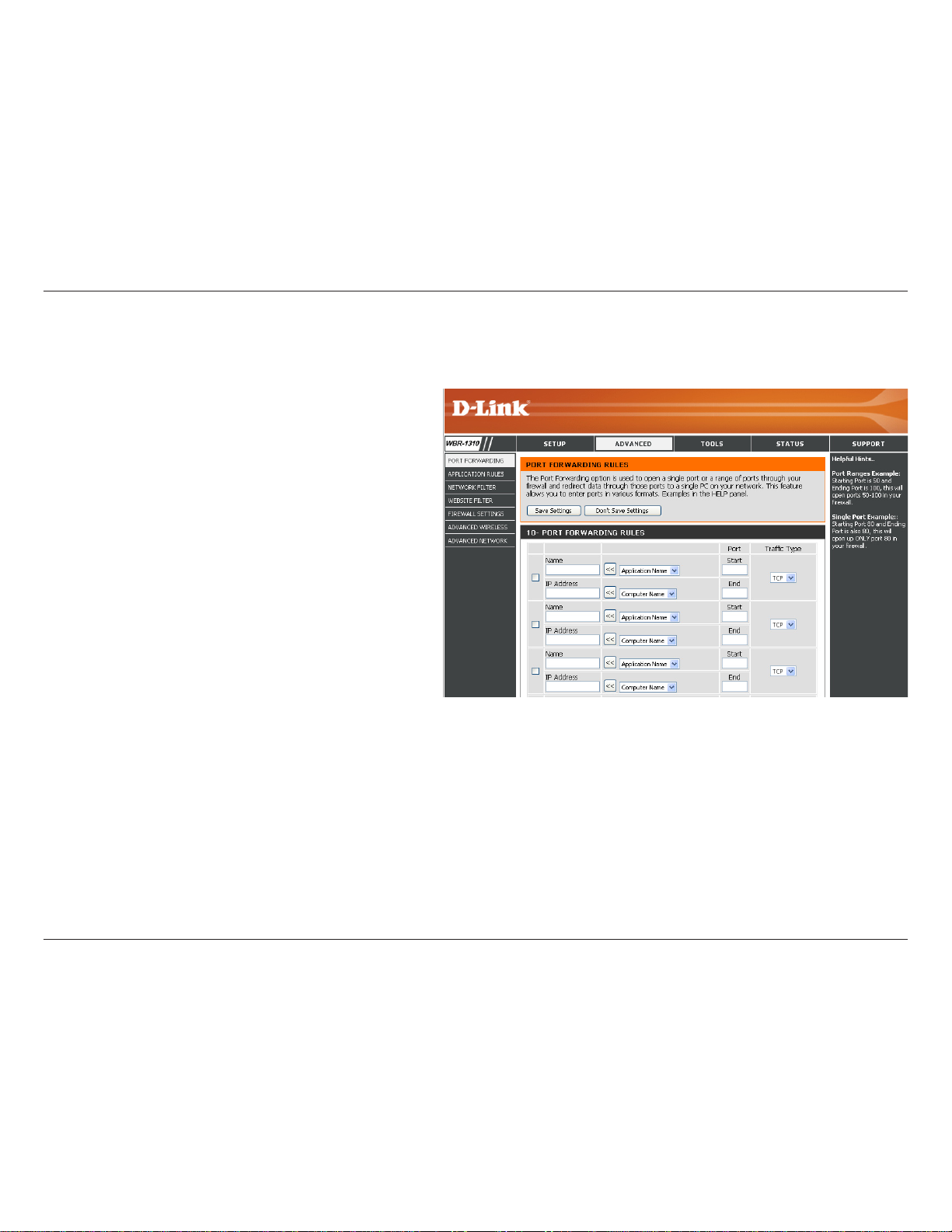

Port Forwarding Rules ..................................... 28

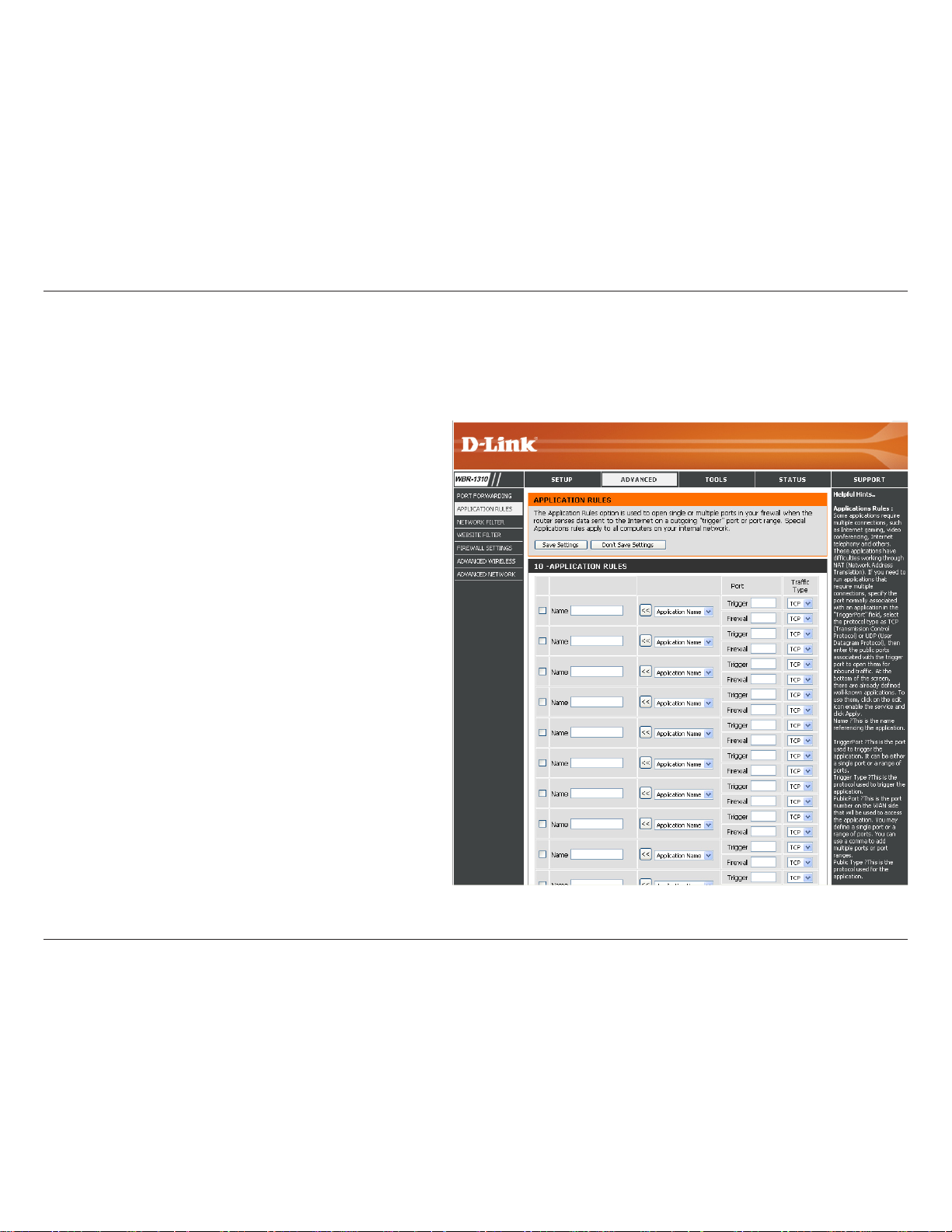

Application Rules ............................................. 29

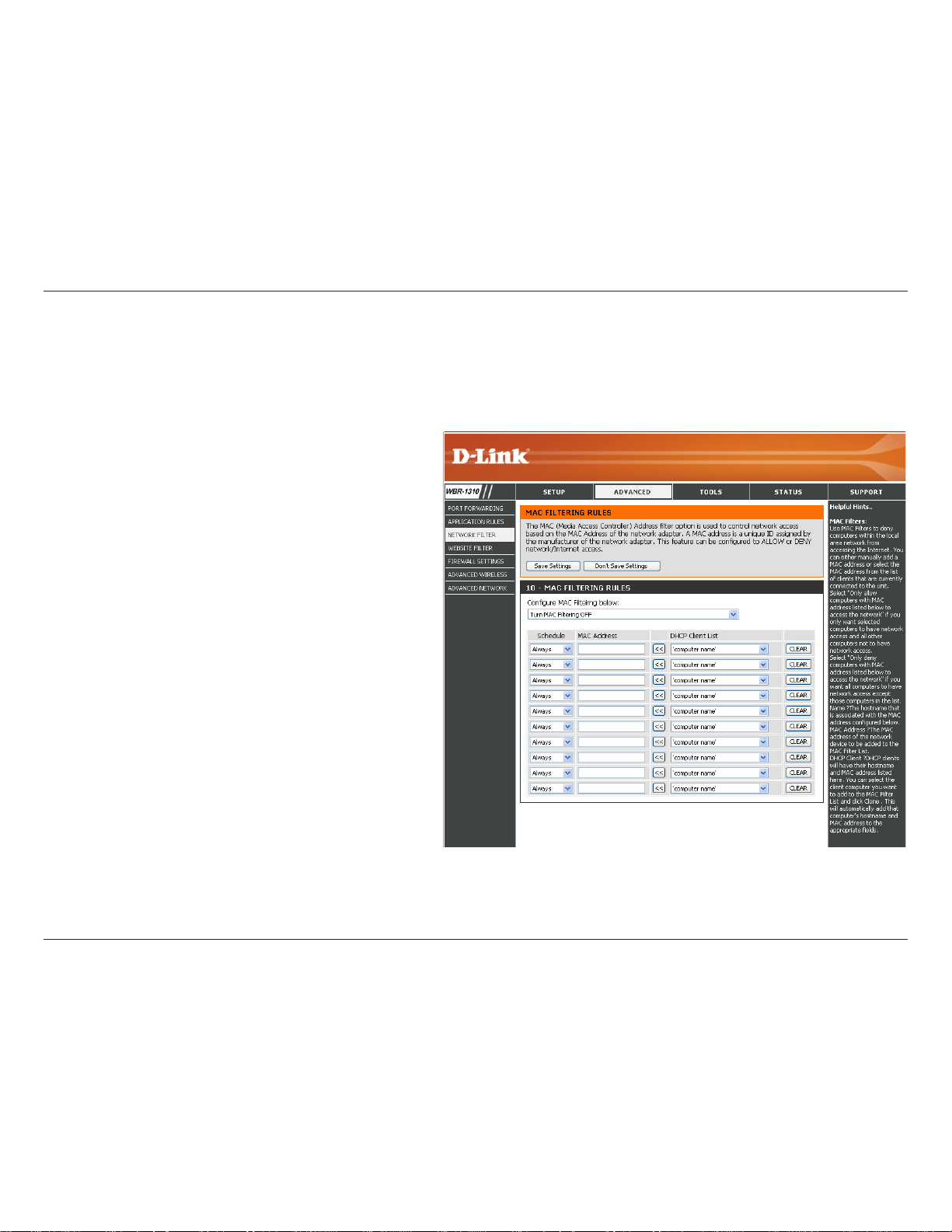

Network Filter ................................................... 30

Website Filter ...................................................31

Firewall Settings ...............................................32

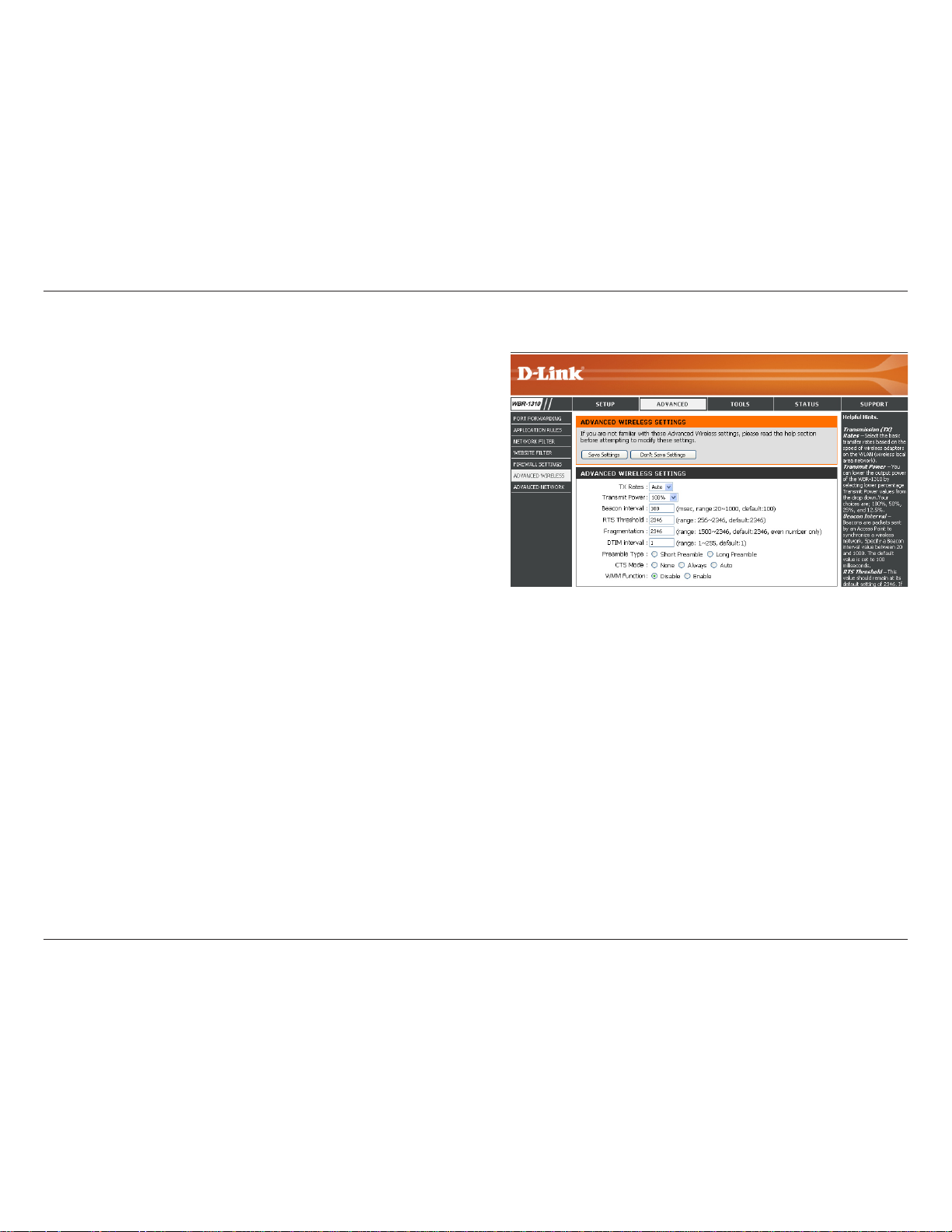

Advanced Wireless Settings ............................33

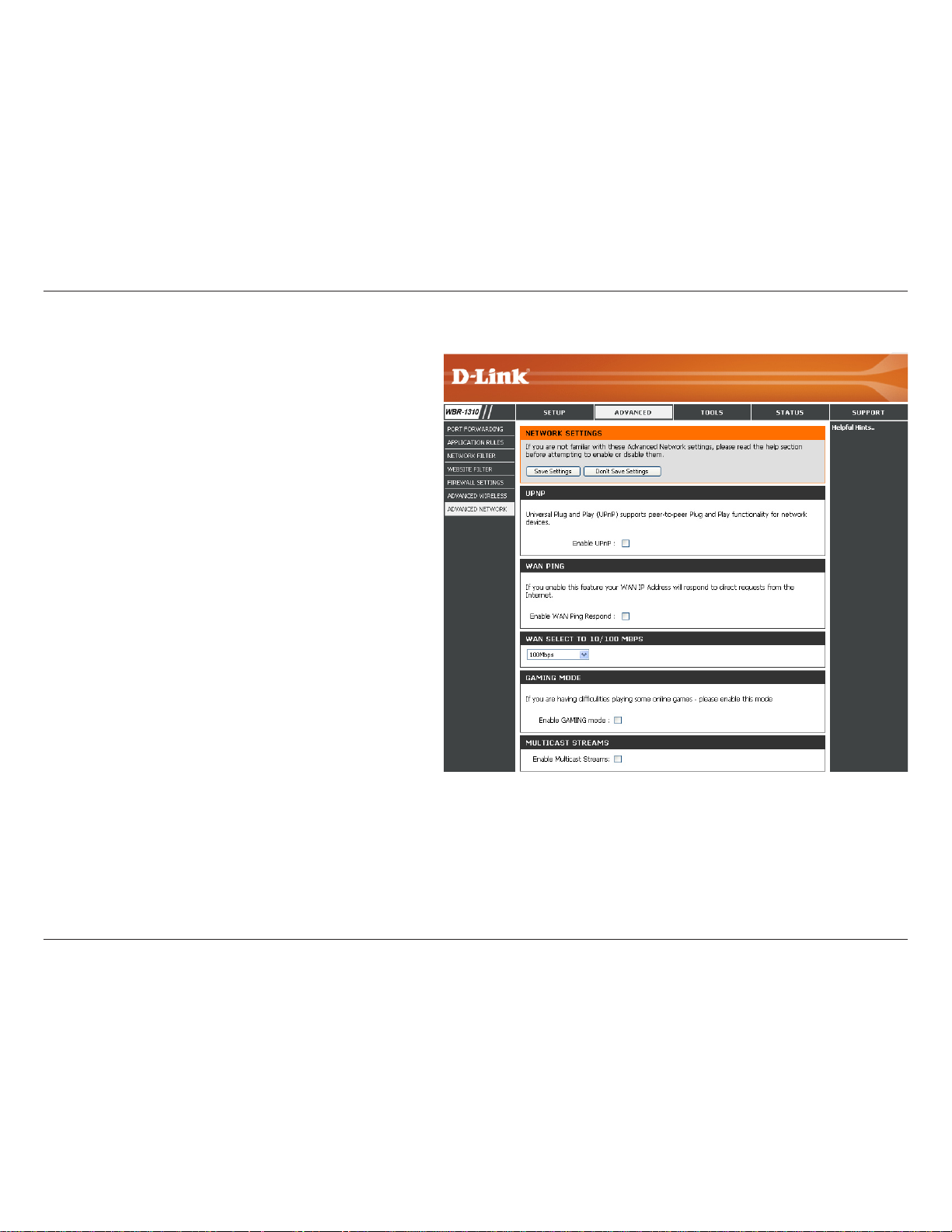

Advanced Network Settings

.............................34

Administrator Login Name: ........................... 35

Administrator Password: ............................... 35

Remote Management: .................................. 35

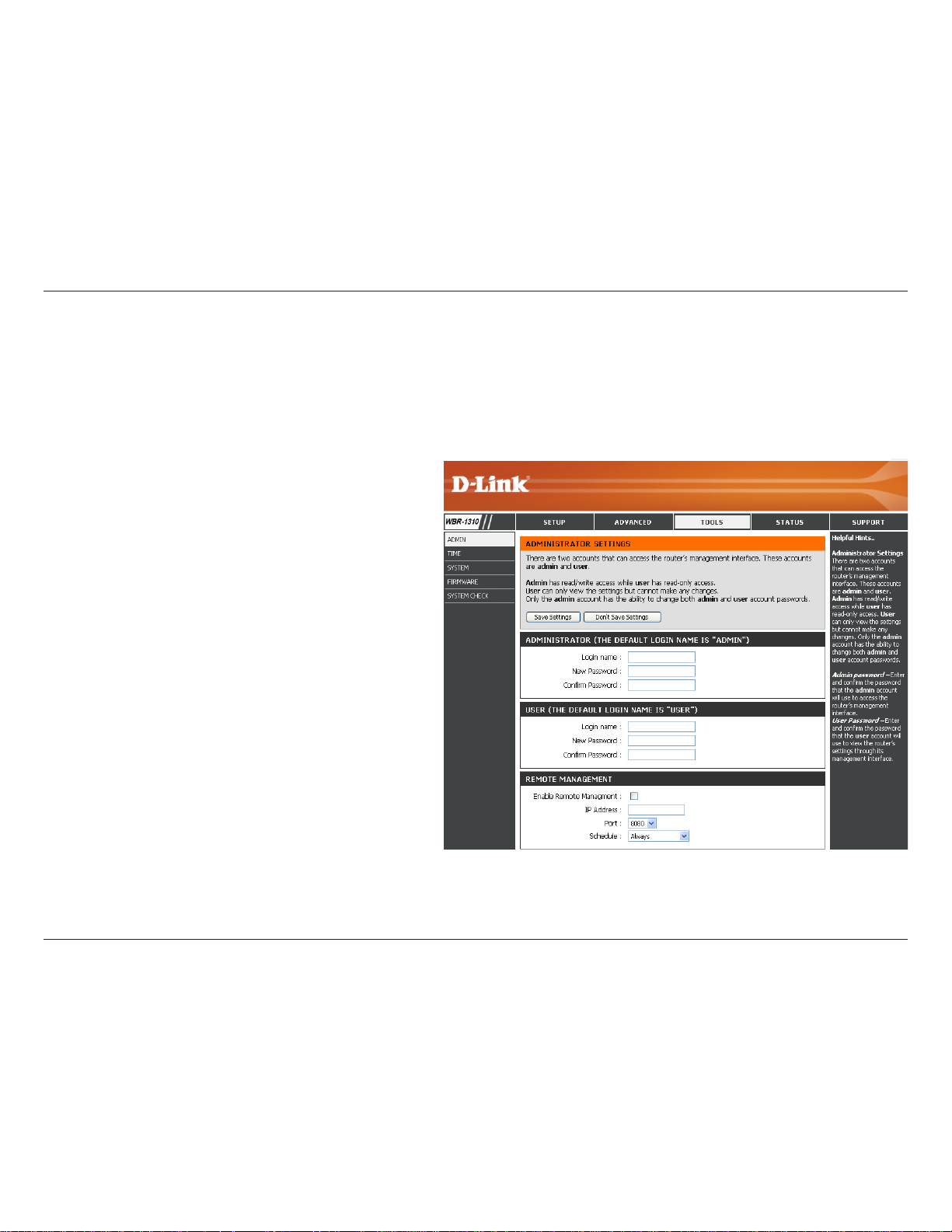

Administrator Settings ...................................... 35

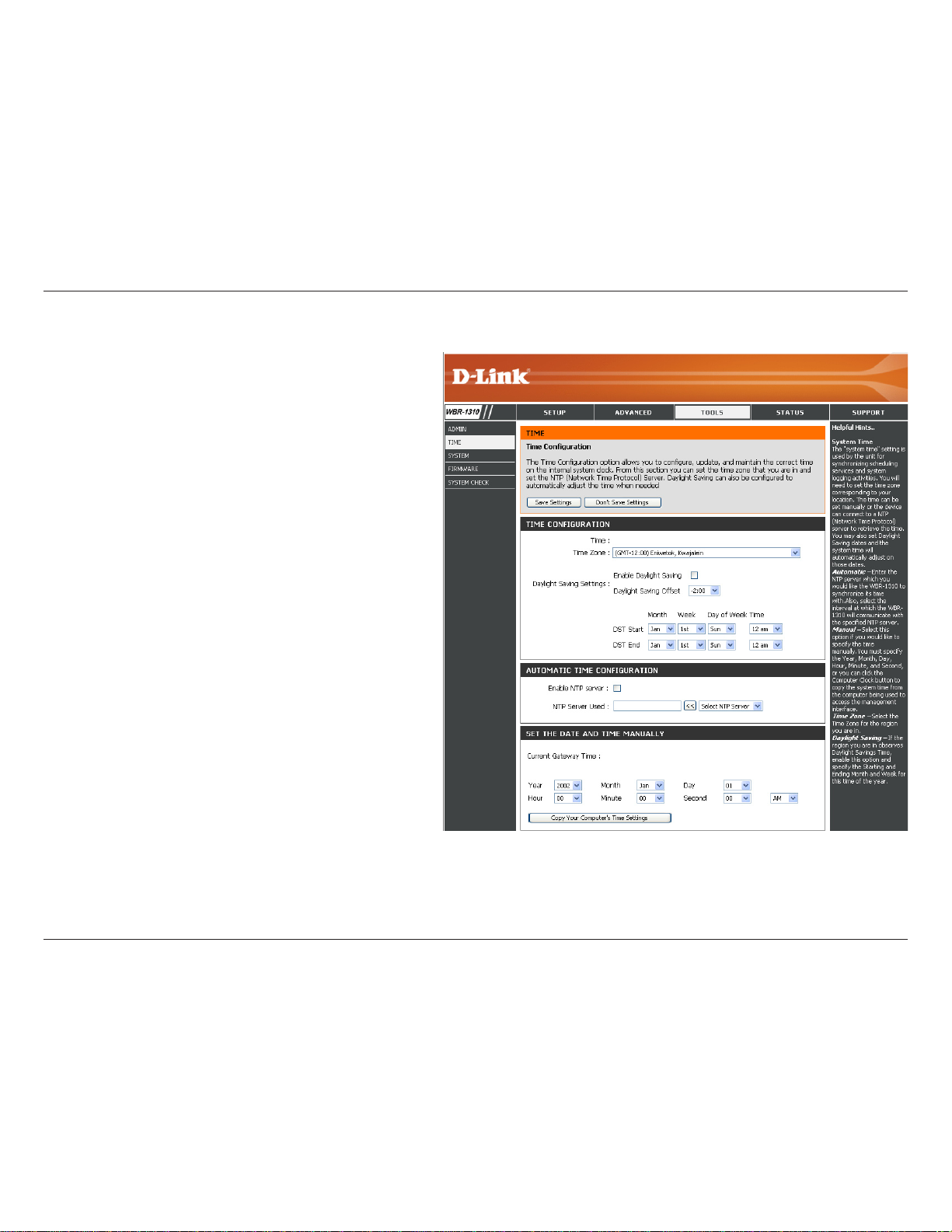

Time Settings ...................................................36

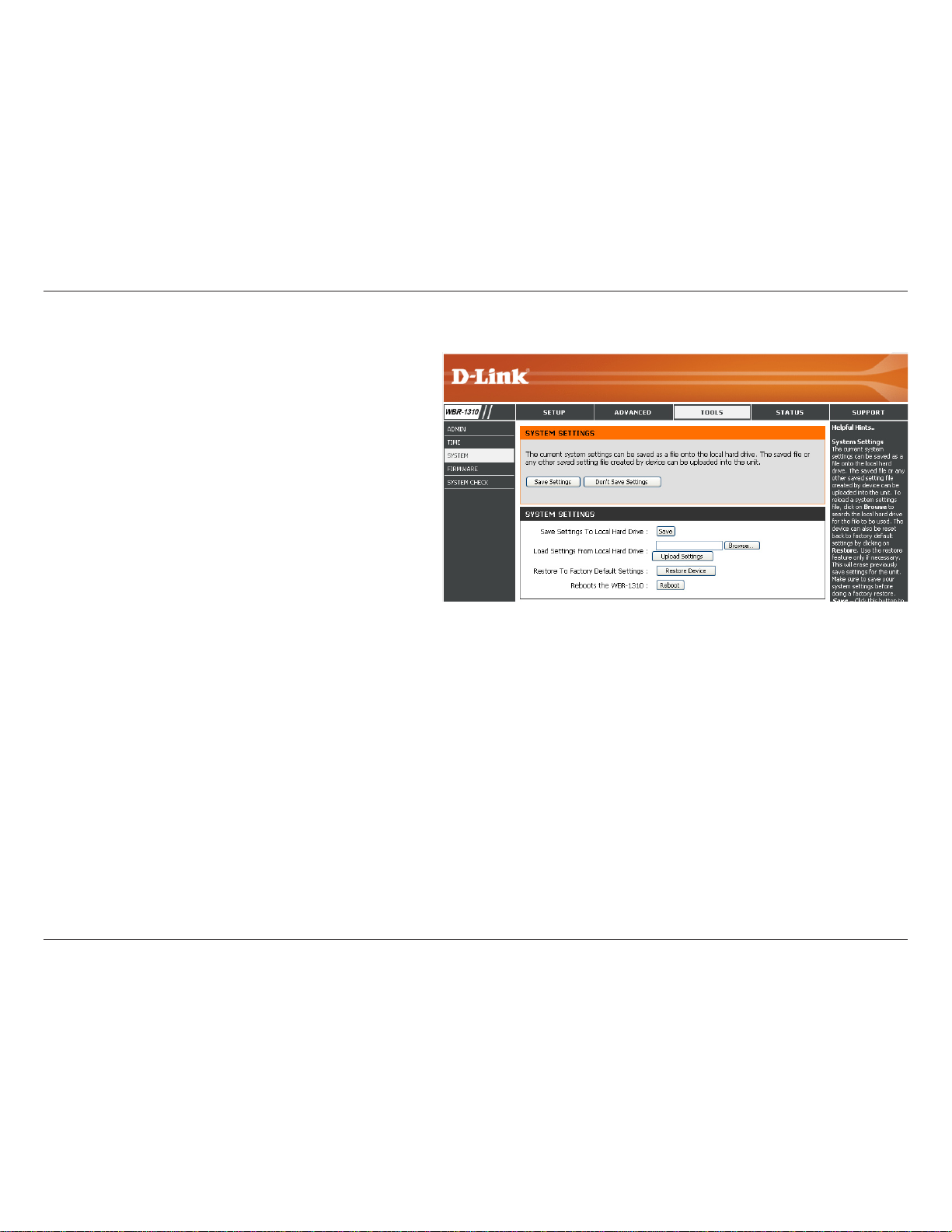

System Settings ...............................................37

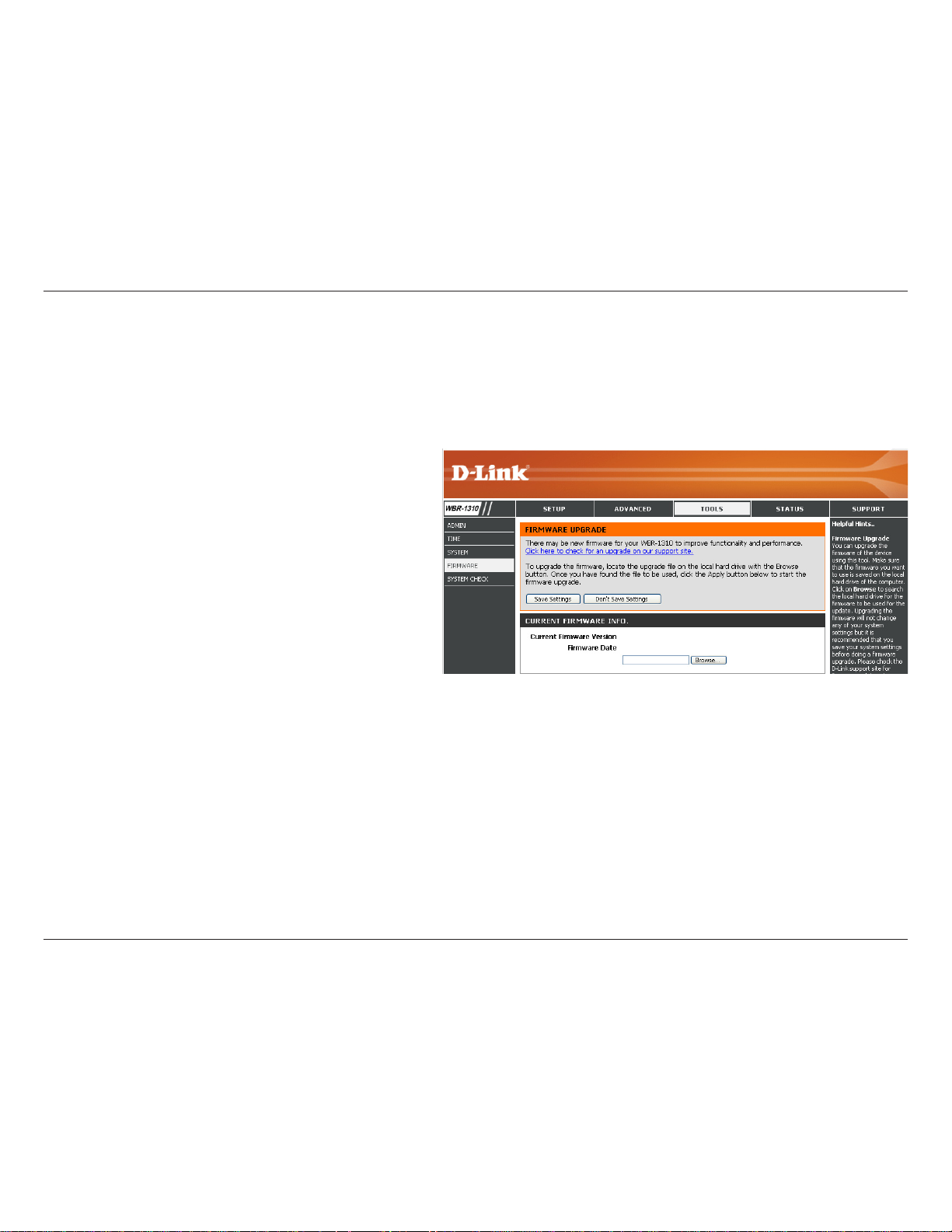

Firmware Upgrade ........................................... 38

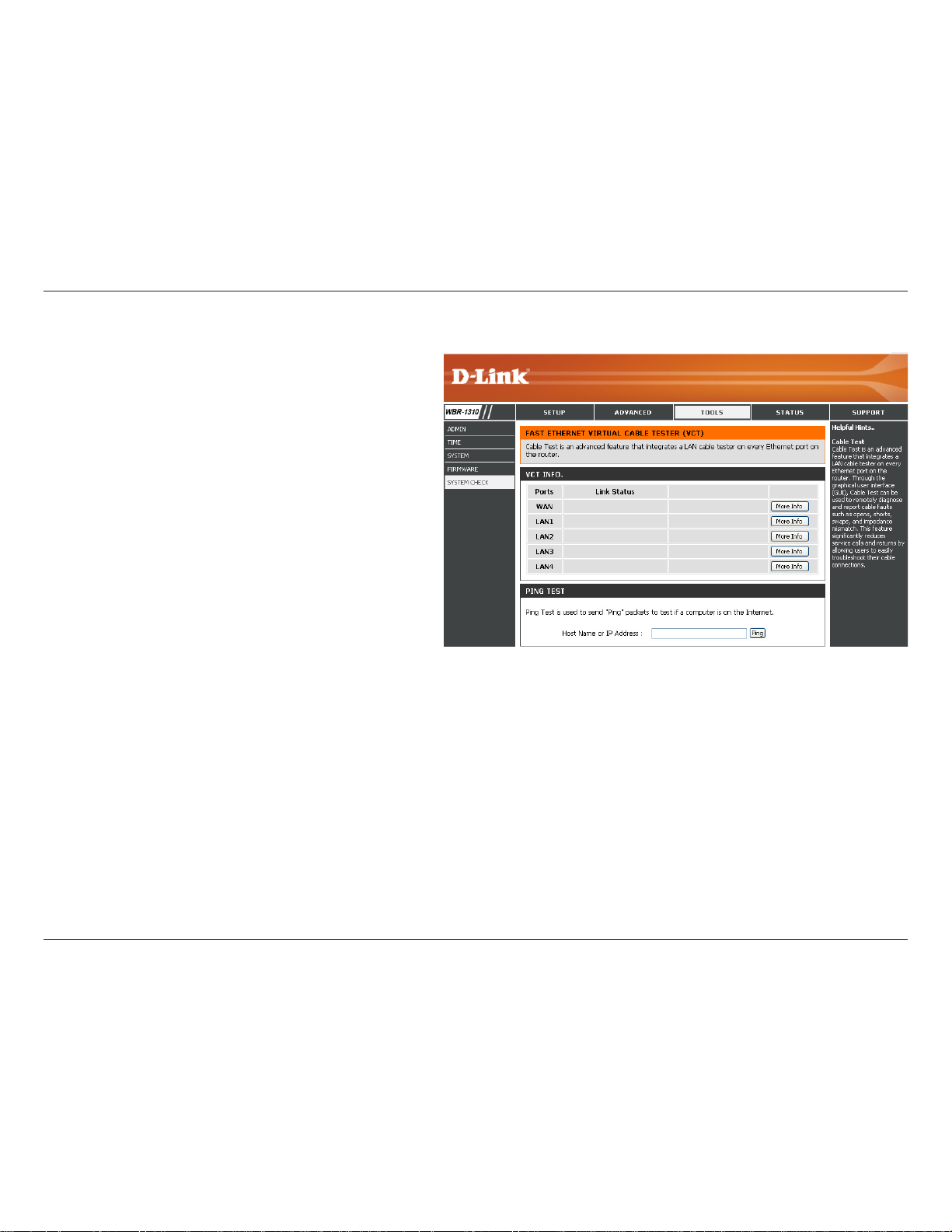

System Check .................................................. 39

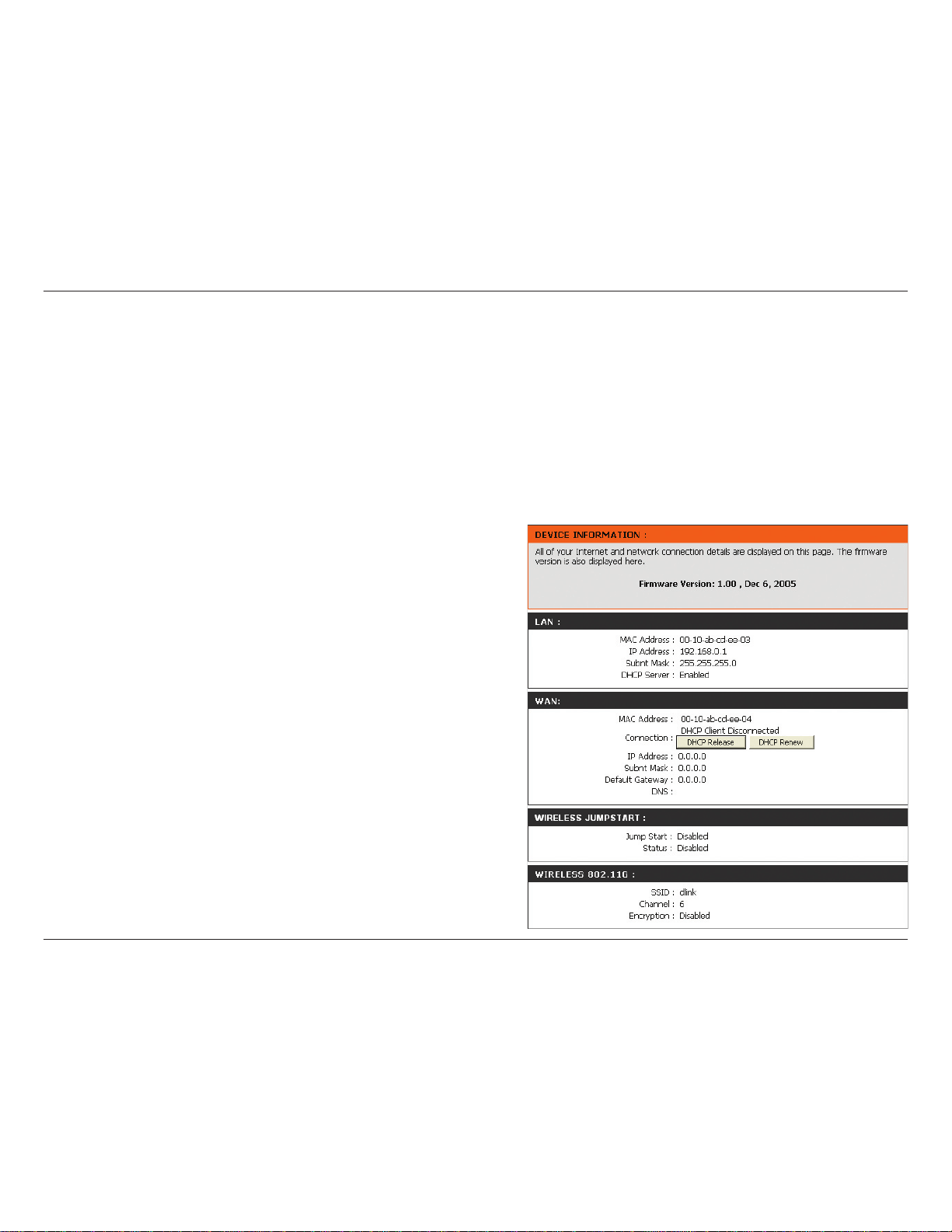

Device Information ...........................................40

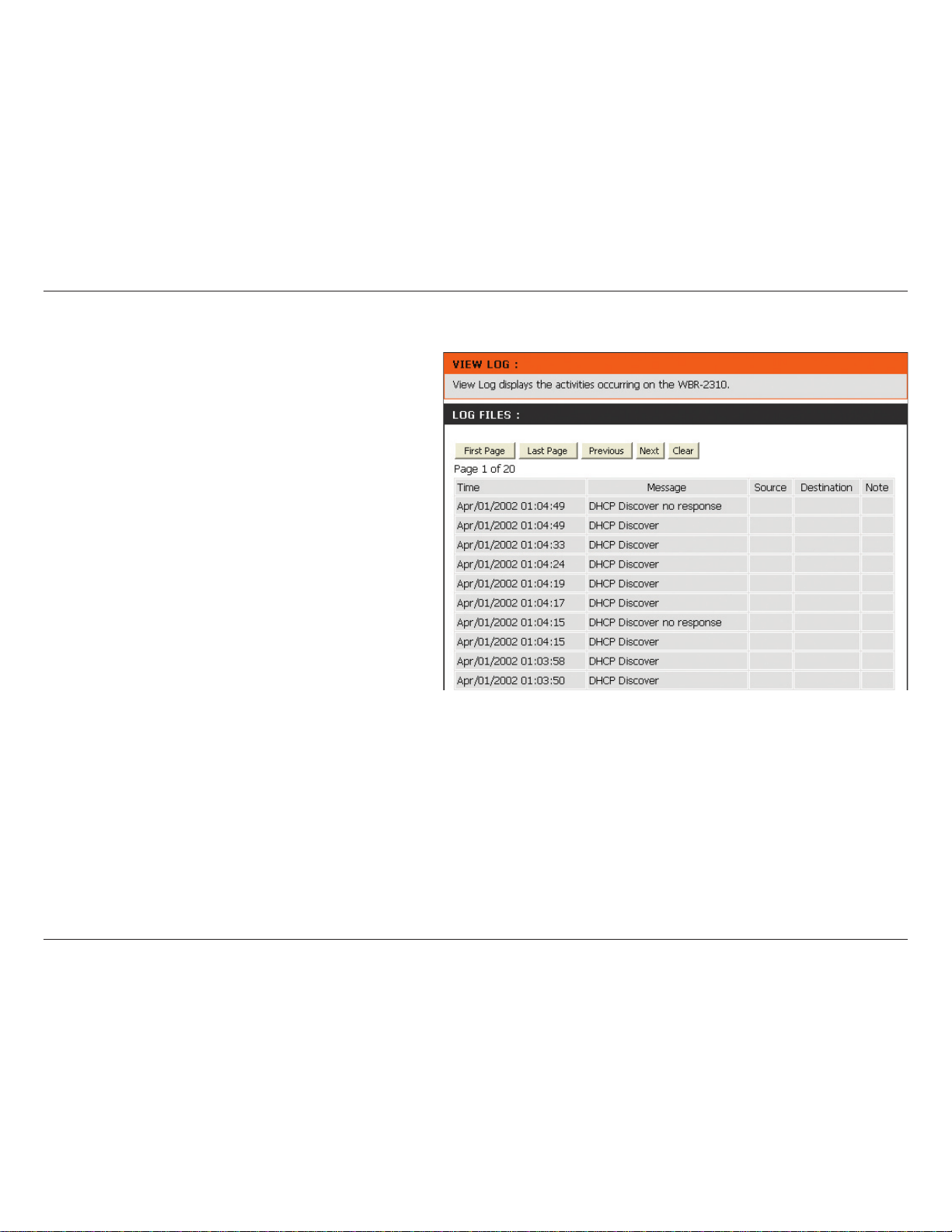

Log ...................................................................41

Stats ................................................................. 42

Wireless Stats ..................................................42

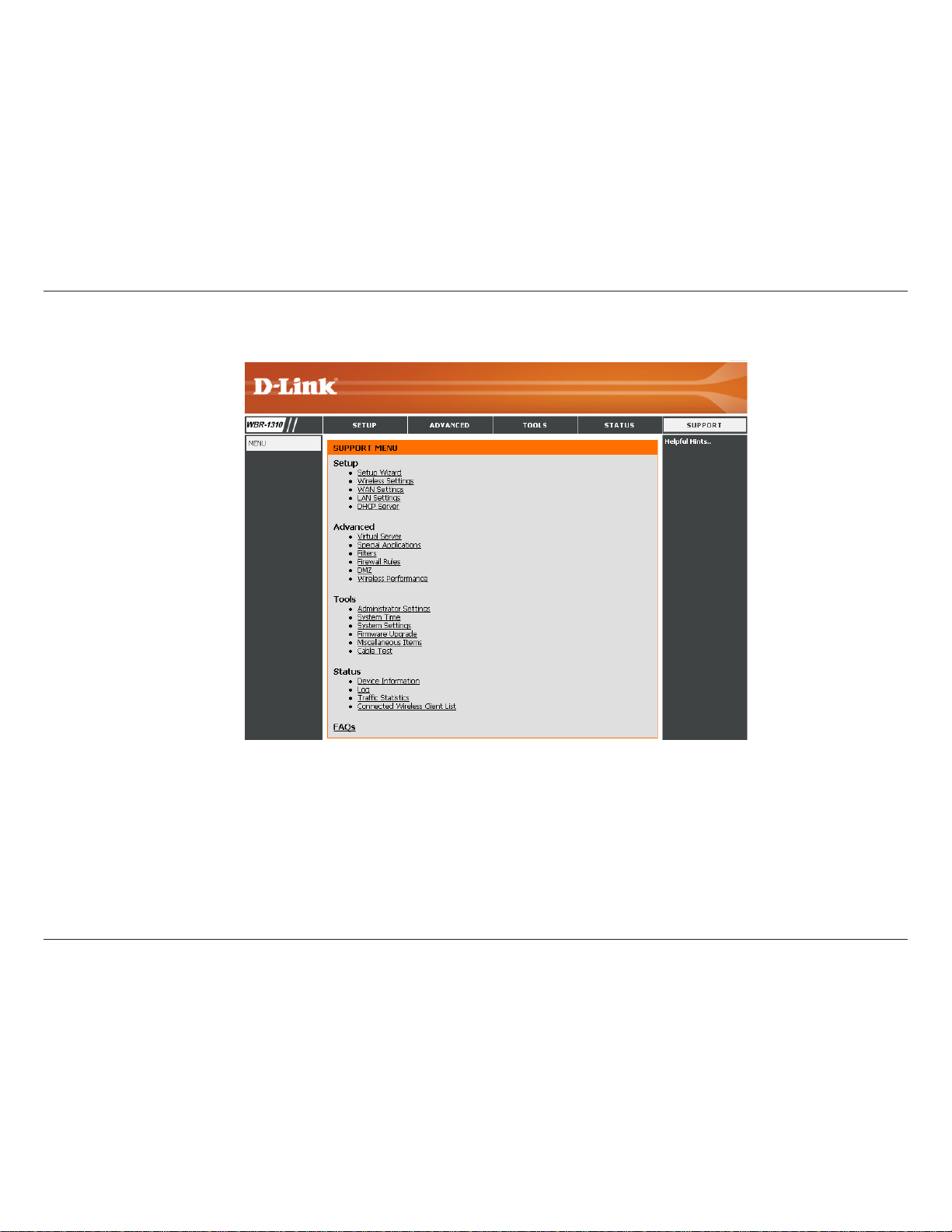

Support ............................................................43

Table of Contents

3D-Link WBR-1310 User Manual

Table of Contents

Wireless Security ....................................................... 44

What is WEP? ........................................................44

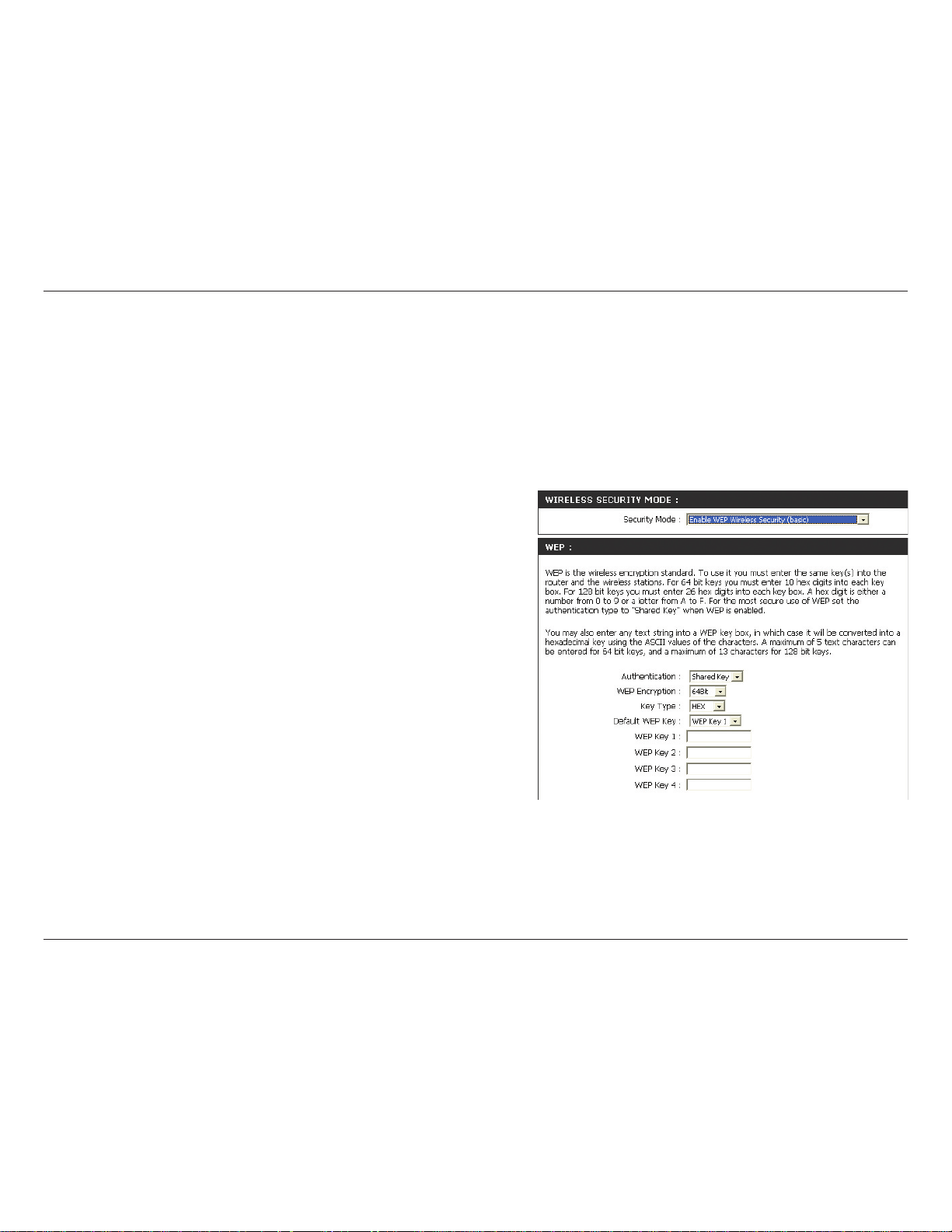

Configure WEP ......................................................45

What is WPA? ........................................................ 46

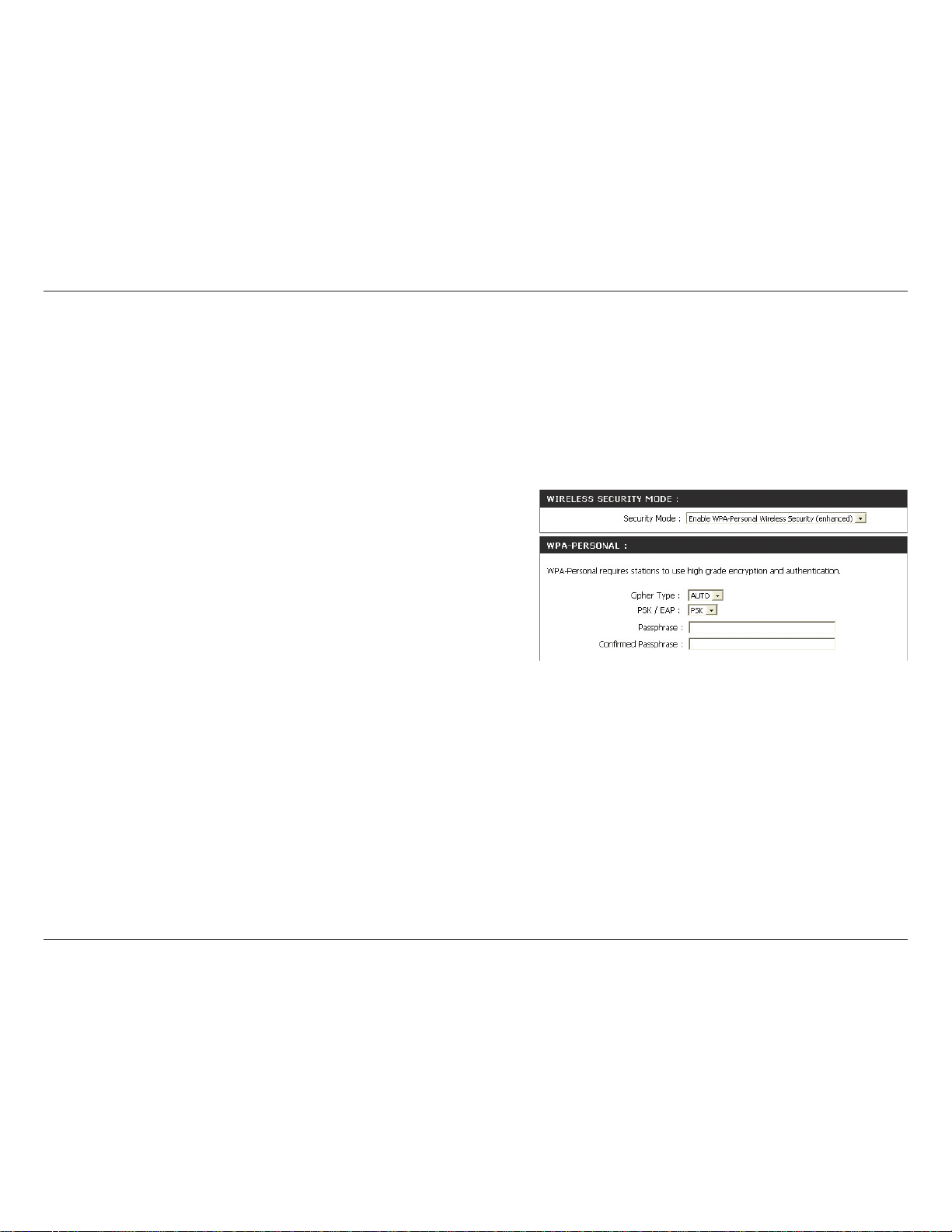

Configure WPA-PSK .............................................. 47

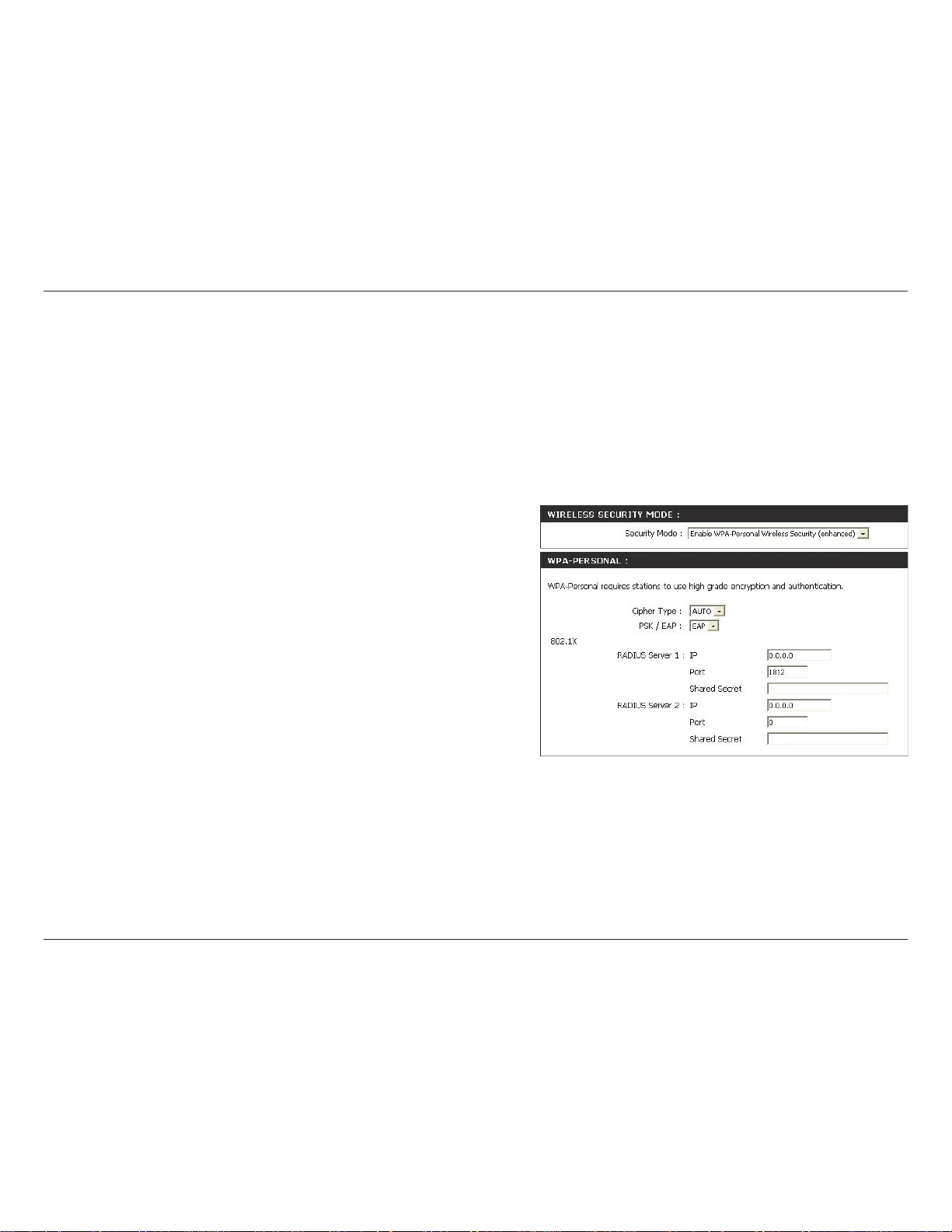

Configure WPA (RADIUS) .....................................48

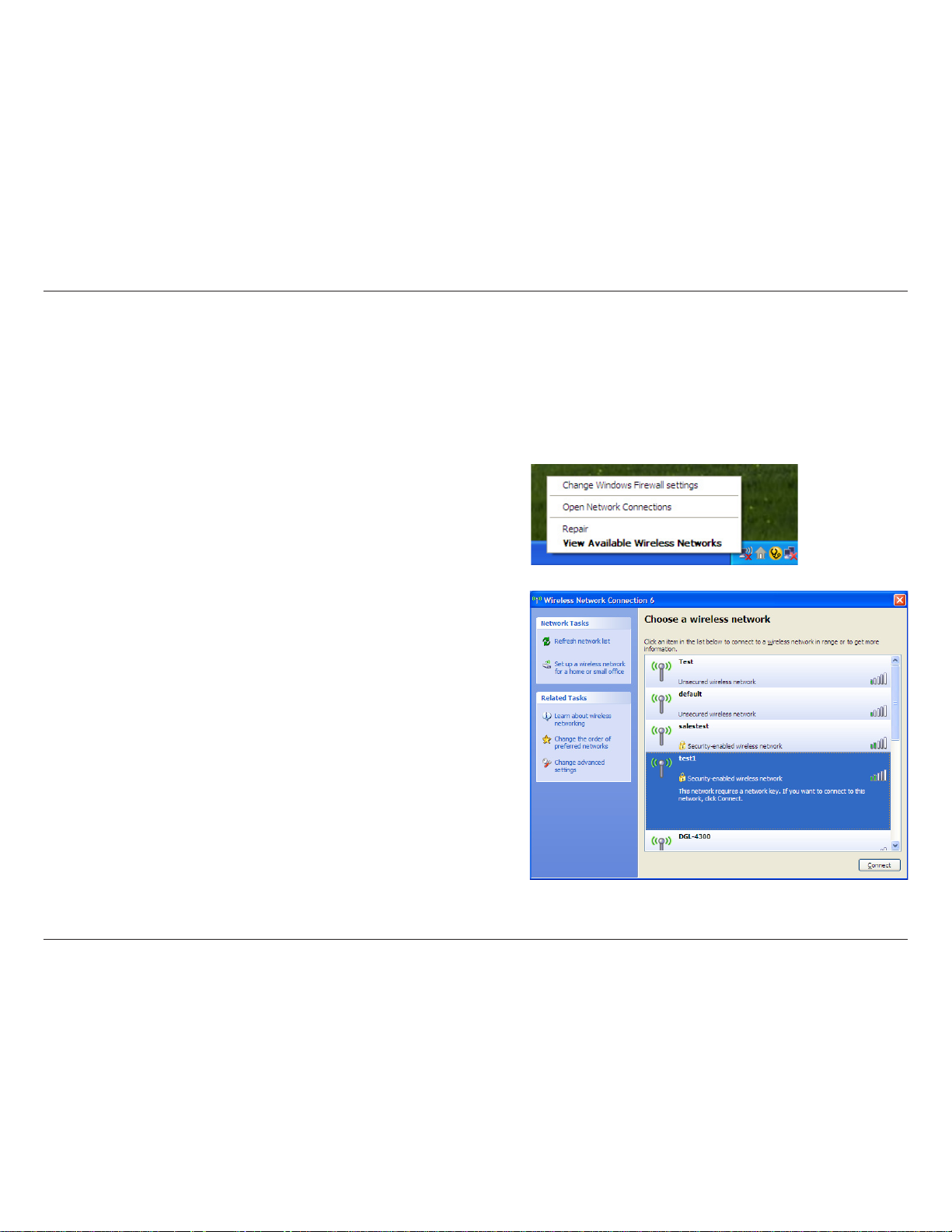

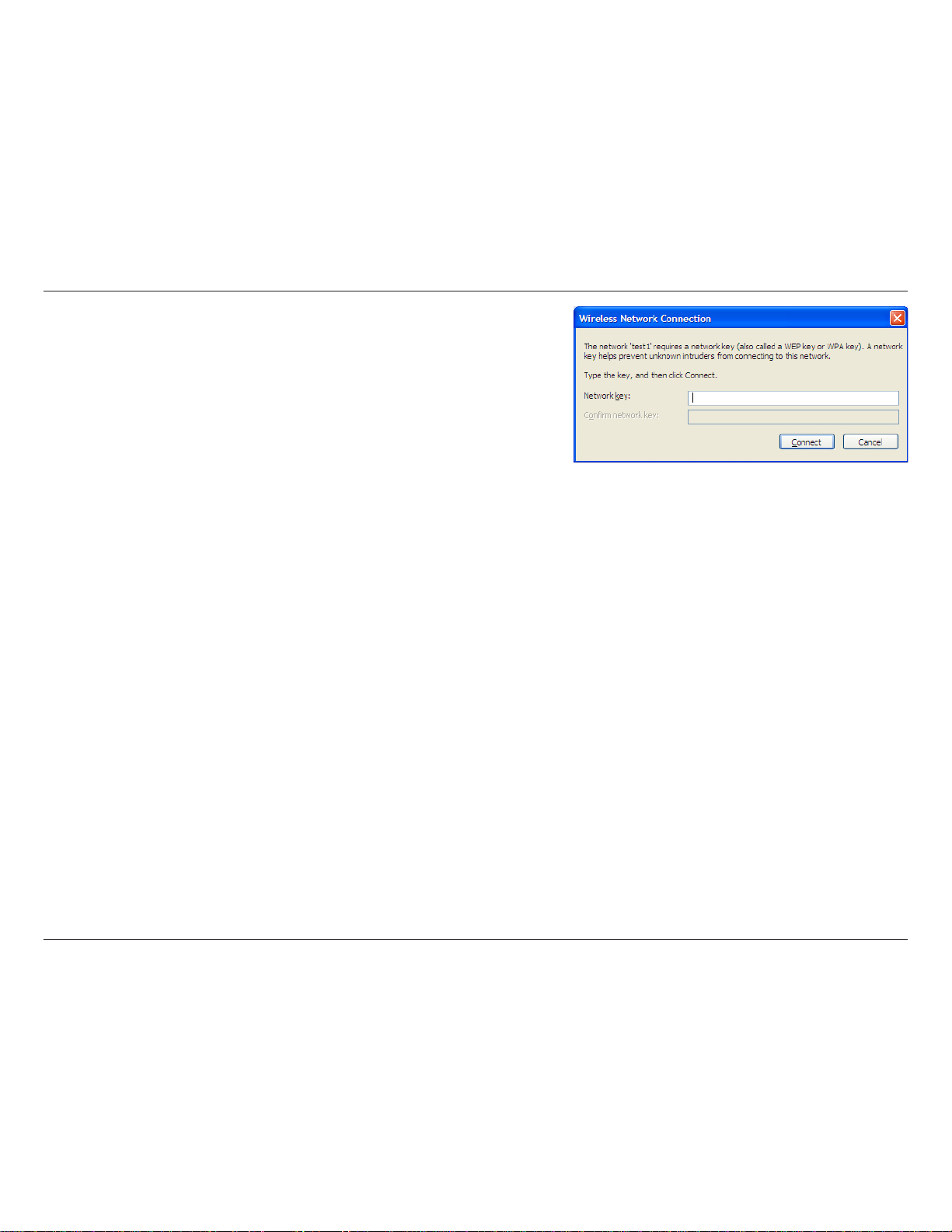

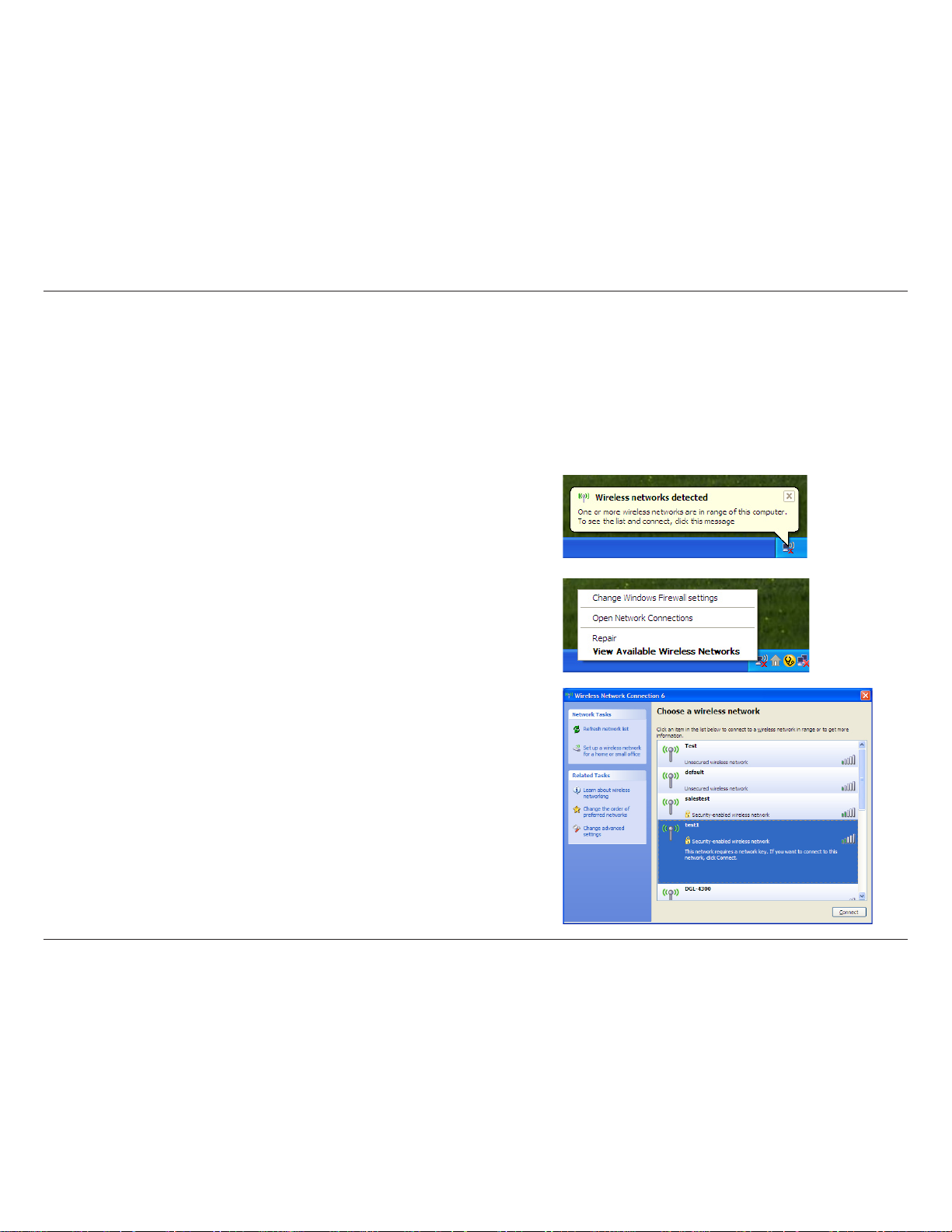

Connect to a Wireless Network ................................ 49

Using Windows

®

XP ...............................................49

Configure WEP ......................................................50

Configure WPA-PSK .............................................. 52

Troubleshooting .........................................................54

Wireless Basics ......................................................... 58

What is Wireless? ..................................................59

Tips ........................................................................61

Wireless Modes ..................................................... 62

Networking Basics ....................................................63

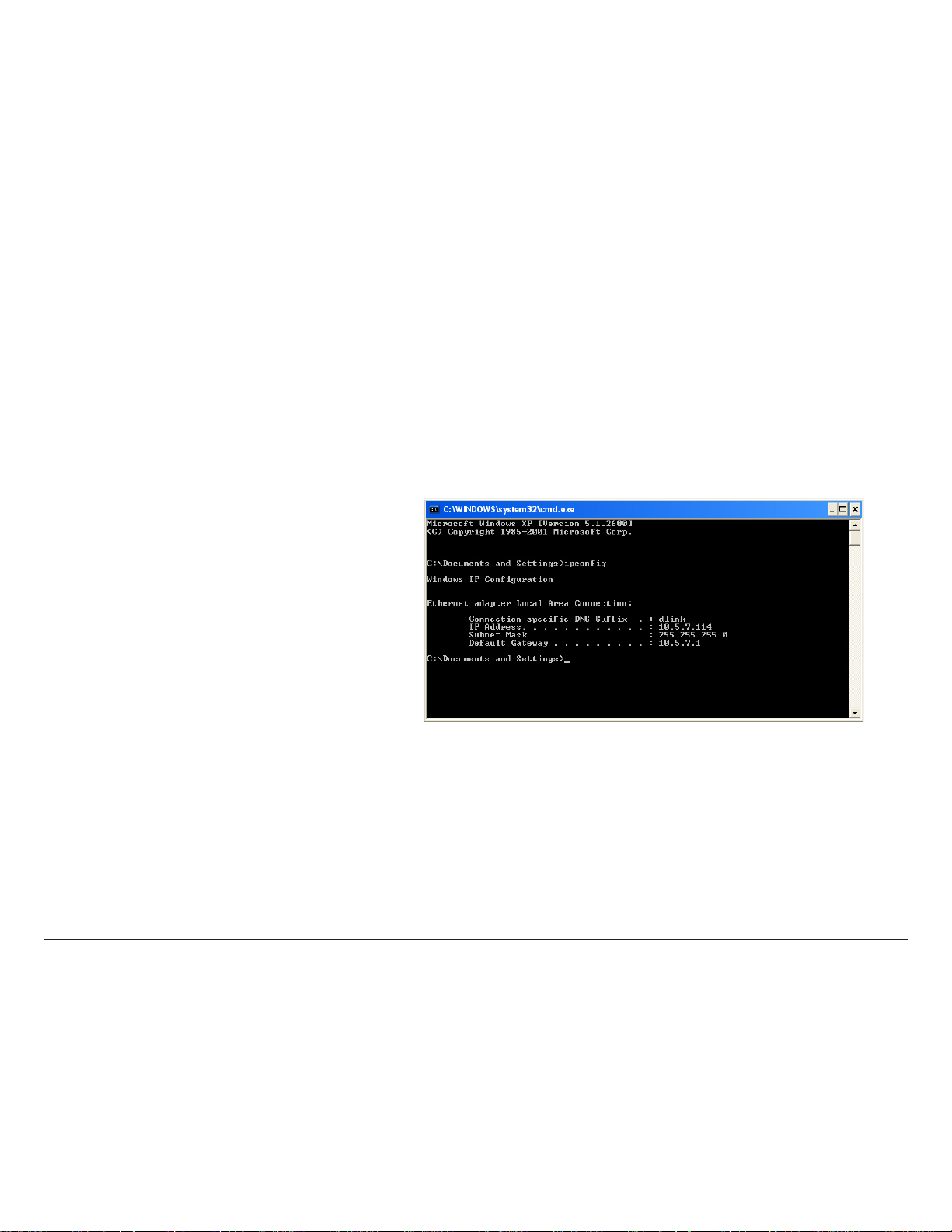

Check your IP address ..........................................63

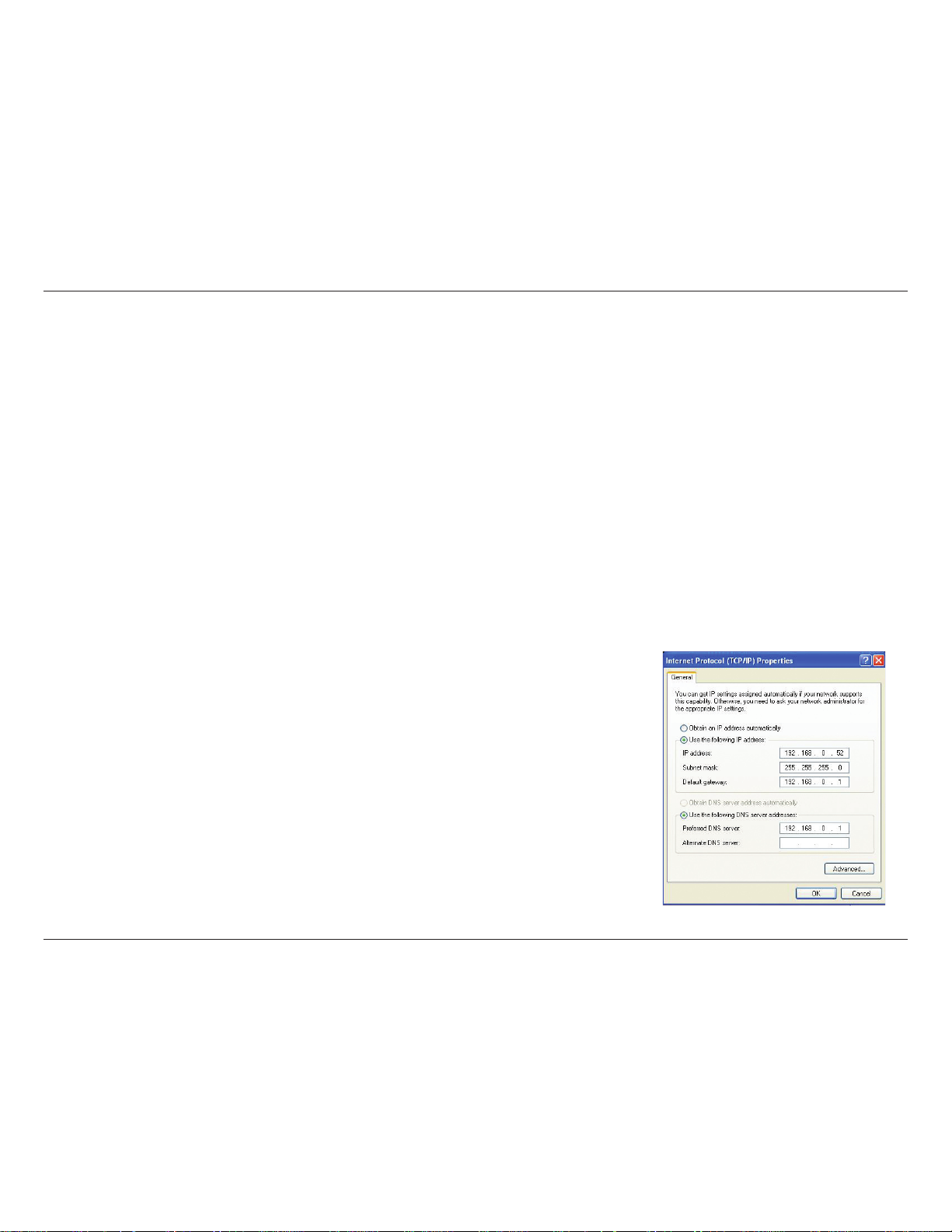

Statically Assign an IP address .............................64

Technical Specifications ...........................................65

Contacting Technical Support ..................................67

Warranty .....................................................................68

Registration ................................................................ 74

4D-Link WBR-1310 User Manual

Section 1 - Product Overview

• D-Link WBR-1310 Wireless Router

• Power Adapter

• Ethernet Cable

• Manual and Warranty on CD

System Requirements

• Ethernet-based Cable or DSL Modem

• Computers with Windows

®

, Macintosh®, or Linux-based operating systems with an installed Ethernet

adapter

• Internet Explorer Version 6.0 or Netscape Navigator

™

Version 6.0 and above (for configuration)

Product Overview

Package Contents

Note: Using a power supply with a different voltage rating than the one included
with the WBR-1310 will cause damage and void the warranty for this product.

5D-Link WBR-1310 User Manual

Section 1 - Product Overview

Introduction

D-Link, the industry leader in wireless networking, introduces another breakthrough in wireless connectivity. The
D-Link Wireless G WBR-1310 Router which is capable of transferring data with a maximum wireless signal rate of up
to 54Mbps* in the 2.4GHz frequency — the same wireless frequency as 802.11b. The D-Link WBR-1310 Wireless
Router also offers four Ethernet ports to support multiple computers.

The advanced wireless technology built into the WBR-1310 Wireless Router offers data transfer speeds with a maximum
wireless signal rate of up to 54Mbps* through its wireless channels allowing streaming videos and other high bandwidth
applications, such as online gaming events, to operate without the hassle of Ethernet cables. The ability to use high
bandwidth applications also makes streaming real-time programs more enjoyable and more efficient.

With the WBR-1310 Wireless Router’s built-in advanced firewall, threats of hackers penetrating your network are
minimized. Some firewall features include functions that allow or disallow certain ports to be open for certain applications.
Features like content filtering, MAC filtering, URL blocking, and domain blocking are useful tools to prevent other
unwanted intruders from connecting to your network or browsing restricted sites.

The easy-to-use configuration wizard takes only minutes to setup and guides users step-by-step through configuring
the WBR-1310. With all the versatile features and an user-friendly utility, the WBR-1310 Wireless Router provides an
enhanced networking experience.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental conditions will adversely affect wireless signal range.

6D-Link WBR-1310 User Manual

Section 1 - Product Overview

• Faster Wireless Networking - The WBR-1310 provides up to 54Mbps* wireless connection with other

802.11g wireless clients. This capability allows users to participate in real-time activities online, such as
video streaming, online gaming, and real-time audio. The performance of this 802.11g wireless router
gives you the freedom of wireless networking at speeds 5x faster than 802.11b.

• Compatible with 802.11b and 802.11g Devices - The WBR-1310 is still fully compatible with the IEEE

802.11b standard, so it can connect with existing 802.11b PCI, USB and Cardbus adapters.

• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:

• Content Filtering - Easily applied content filtering based on MAC Address, URL, and/or
Domain Name.

• Secure Multiple/Concurrent Sessions - The WBR-1310 can pass through VPN sessions. It
supports multiple and concurrent IPSec and PPTP sessions, so users behind the WBR-1310
can securely access corporate networks.

• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the WBR-1310 lets
you control what information is accessible to those on the wireless network, whether from the Internet or
from your company’s server. Configure your router to your specific settings within minutes.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental conditions will adversely affect wireless signal range.

Features

7D-Link WBR-1310 User Manual

Section 1 - Product Overview

Hardware Overview

Connections

Pressing the Reset Button restores
the router to its original factory
default settings.

Receptor for the Power Adapter.

The Auto MDI/MDIX WAN
port is the connection for
the Ethernet cable to the
Cable or DSL modem.

LAN Ports

Connect Ethernet devices such as
computers, switches, and hubs.

8D-Link WBR-1310 User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

WAN LED

A solid light indicates connection
on the WAN port. This LED blinks
during data transmission.

WLAN LED

A solid light indicates that the wireless
segment is ready. This LED blinks during
wireless data transmission.

Local Network LEDs

A solid light indicates a connection to an
Ethernet-enabled computer on ports 1-4.
This LED blinks during data transmission.

Status LED

A blinking light indicates that the
WBR-1310 is ready.

Power LED

A solid light indicates a proper
connection to the power supply.

9D-Link WBR-1310 User Manual

Section 2 - Installation

Before you Begin

Installation

This section will walk you through the installation process. Placement of the router is very important. Do not place the
router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Please configure the router with the computer that was last connected directly to your modem. Also, you can only use
the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn off
your modem, disconnect the USB cable and connect an Ethernet cable to the WAN port on the router, and then turn
the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).

If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.

10D-Link WBR-1310 User Manual

Section 2 - Installation

Wireless Installation Considerations

The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within
the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum

- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices
so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a

45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on

range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that

generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and

home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.

11D-Link WBR-1310 User Manual

Section 2 - Installation

If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:

1. Place the router in an open and central location. Do not plug the power adapter into the router.

2. Turn the power off on your modem. If there is no on/off switch, then unplug the modem’s power adapter. Shut down
your computer.

3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the
WAN port on the router.

4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your
computer.

5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).

6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router
to boot.

7. Turn on your computer.

8. Verify the link lights on the router. The power light, WAN light, and the LAN light (the port that your computer is
plugged into) should be lit. If not, make sure your computer, modem, and router are powered on and verify the cable
connections are correct.

9. Skip to page 14 to configure your router.

Connect to Cable/DSL/Satellite Modem

12D-Link WBR-1310 User Manual

Section 2 - Installation

If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have
to do the following before connecting the router to your network:

• Disable UPnP

™

• Disable DHCP

• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot
accept a DHCP address from your other router.

To connect to another router, please follow the steps below:

1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable.
Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the
Networking Basics section for more information. If you need to change the settings, write down your existing settings
before making any changes. In most cases, your computer should be set to receive an IP address automatically in
which case you will not have to do anything to your computer.

2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user
name to admin and leave the password box empty. Click OK to continue.

3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings
to continue.

4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server server checkbox. Click Save
Settings to continue.

5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to
save your settings. Use this new IP address to access the configuration utility of the router in the future. Close the
browser and change your computer’s IP settings back to the original values as in Step 1.

Connect to Another Router

13D-Link WBR-1310 User Manual

Section 2 - Installation

6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.

7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug
anything into the WAN port of the D-Link router.

8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To configure your wireless
network, open a web browser and enter the IP address you assigned to the router. Refer to the Configuration and
Wireless Security sections for more information on setting up your wireless network.

14D-Link WBR-1310 User Manual

Section 3 - Configuration

Configuration

This section will show you how to configure your new D-Link wireless router using the web-based configuration
utility.

Web-based Configuration Utility

To access the configuration utility, open a web-browser
such as Internet Explorer and enter the IP address of
the router (192.168.0.1).

Enter the user name (admin) and your password. Leave
the password blank by default.

If you get a Page Cannot be Displayed error, please
refer to the Troubleshooting section for assistance.

15D-Link WBR-1310 User Manual

Section 3 - Configuration

Setup Wizard

You may run the setup wizard to quickly setup your router. Click Setup
Wizard to launch the wizard.

Click Launch Internet Connection Setup Wizard to begin.

16D-Link WBR-1310 User Manual

Section 3 - Configuration

Click Next to continue.

Create a new password and then click Next to continue.

Select your time zone from the drop-down menu and then click Next
to continue.

Select the type of Internet connection you use and then click Next
to continue.

17D-Link WBR-1310 User Manual

Section 3 - Configuration

If you selected Dynamic, you may need to enter the MAC address of the
computer that was last connected directly to your modem. If you are currently
using that computer, click Clone Your PC’s MAC Address and then click
Next to continue.

The Host Name is optional but may be required by some ISPs. The default
host name is the device name of the Router and may be changed.

If you selected PPPoE, enter your PPPoE username and password. Click
Next to continue.

Select Static if your ISP assigned you the IP address, subnet mask, gateway,
and DNS server addresses.

Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.

If you selected PPTP, enter your PPTP username and password. Click Next
to continue.

18D-Link WBR-1310 User Manual

Section 3 - Configuration

If you selected L2TP, enter your L2TP username and password. Click Next
to continue.

If you selected Static, enter your network settings supplied by your Internet
provider. Click Next to continue.

Click Connect to save your settings. Once the router is finished rebooting,
click Continue. Please allow 1-2 minutes to connect.

Close your browser window and reopen it to test your Internet connection.
It may take a few tries to initially connect to the Internet.

19D-Link WBR-1310 User Manual

Section 3 - Configuration

Choose Dynamic IP Address to obtain IP Address
information automatically from your ISP. Select this option
if your ISP does not give you any IP numbers to use. This
option is commonly used for Cable modem services.

The Host Name is optional but may be required by some
ISPs. The default host name is the device name of the
Router and may be changed.

The default MAC Address is set to the WAN’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address
unless required by your ISP.

The default MAC address is set to the WAN’s physical
interface MAC address on the Broadband Router. You
can use the “Clone MAC Address” button to copy the
MAC address of the Ethernet Card installed by your ISP
and replace the WAN MAC address with the MAC address of the router. It is not recommended that you change the default
MAC address unless required by your ISP.

Enter the Primary DNS (Domain Name Server) server IP address assigned by your ISP.

This is optional.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1500 is the
default MTU.

Dynamic IP

Address:

Host Name:

MAC Address:

Internet Setup

Dynamic (Cable)

Clone MAC

Address:

Primary DNS

Addresses:

Secondary DNS

Address:

MTU:

20D-Link WBR-1310 User Manual

Section 3 - Configuration

Select Dynamic (most common) or Static.
Select Static if your ISP assigned you the IP
address, subnet mask, gateway, and DNS server
addresses.

Enter your PPPoE user name.

Enter your PPPoE password and then retype the
password in the next box.

Enter the ISP Service Name (optional).

Enter the IP address (Static PPPoE only).

Enter the Primary and Secondary DNS Server
Addresses (Static PPPoE only).

Enter a maximum idle time during which the
Internet connection is m a inta ined dur i ng
in activity. To disable this feature, enabl e
Auto-re connect.

Maximum Transmission Unit - you may need to
change the MTU for optimal performance with
your specific ISP. 1492 is the default MTU.

Select either Always-on, Manual, or Connect-on demand.

PPPoE:

User Name:

Password:

Service Name:

IP Address:

DNS Addresses:

Maximum Idle

Time:

MTU:

Connection Mode

Select:

Internet Setup

PPPoE (DSL)

Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide
you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE
software from your computer. The software is no longer needed and will not work through a router.

21D-Link WBR-1310 User Manual

Section 3 - Configuration

Select Dynamic (most common) or Static. Select
Static if your ISP assigned you the IP address, subnet

mask, gateway, and DNS server addresses.

Enter the IP address (Static PPTP only).

Enter the Primary and Secondar y DNS Server
Addresses (Static PPTP only).

Enter the Gateway IP Address provided by your ISP.

The DNS server information will be supplied by your
ISP (Internet Service Provider.)

Enter the Server IP provided by your ISP (optional).

Enter your PPTP account name.

Enter your PPTP password and then retype the
password in the next box.

Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1492 is the
default MTU.

Select either Always-on, Manual, or Connect-on demand.

PPTP:

IP Address:

Subnet Mask:

Gateway:

DNS:

Internet Setup

PPTP

Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with
a username and password. This option is typically used for DSL services.

Server IP:

PPTP Account:

PPTP Password:

Maximum Idle

Time:

MTU:

Connect Mode:

22D-Link WBR-1310 User Manual

Section 3 - Configuration

Select Dynamic (most common) or Static. Select Static
if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses.

Enter the IP address (Static L2TP only).

Enter the Primary and Secondary DNS Server Addresses
(Static L2TP only).

Enter the Gateway IP Address provided by your ISP.

The DNS server information will be supplied by your ISP
(Internet Service Provider.)

Enter the Server IP provided by your ISP (optional).

Enter your L2TP account name.

Enter your L2TP password and then retype the password
in the next box.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1492 is the
default MTU.

Select either Always-on, Manual, or Connect-on demand.

L2TP:

IP Address:

Subnet Mask:

Gateway:

DNS:

Server IP:

L2TP Account:

L2TP Password:

Maximum Idle

Time:

MTU:

Connect Mode:

Internet Setup

L2TP

Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services.

23D-Link WBR-1310 User Manual

Section 3 - Configuration

Enter your Big Pond user name.

Enter your Big Pond password and then retype
the password in the next box.

Enter the IP address of the login server.

Enter the IP address of the login server.

The default MAC Address is set to the WAN’s
phys ic al interface MAC ad dr ess on th e
Broadband Router. It is not recommended that
you change the default MAC address unless
required by your ISP.

The default MAC address is set to the WAN’s
phys ic al interface MAC ad dr ess on th e
Broadband Router. You can use the “Clone
MAC Address” button to copy the MAC address
of the Ethernet Card installed by your ISP and
replace the WAN MAC address with the MAC
address of the router. It is not recommended
that you change the default MAC address unless
required by your ISP.

User Name:

Password:

Auth Server:

Login Server IP:

MAC Address:

Clone MAC

Address:

Internet Setup

Big Pond
