2D-Link DWA-125 User Manual
Section 1 - Product Overview
D-Link DWA-125 Wireless N 150 USB Adapter
Cradle (only available in some regions)
CD with drivers and user manual
Quick install Guide
Product Overview
Package Contents
System Requirements
• Windows® 8, 7, Vista®, or XP (32/64-bit)
• CD-ROM Drive (must support 80mm Mini CD)
• An 802.11n, 802.11g, wireless network
• 20MB hard drive space
• An available USB port
3D-Link DWA-125 User Manual
Section 1 - Product Overview
Introduction
The DWA-125 Wireless N 150 USB Adapter is a convenient wireless connectivity solution for desktop or notebook PCs. Instead of stringing Ethernet
cables to your PC or dismantling your desktop computer case, the DWA-125 can enable 802.11n wireless connectivity by simply utilizing your
desktop or notebook PC’s USB port.
Powered by RangeBooster N® technology, the DWA-125 provides a faster wireless connection and superior reception than 802.11g*. The DWA-125
is designed for use in bigger homes and for those that demand higher bandwidth networking. Maximize wireless performance by connecting this
USB Adapter to a Wireless N™ router and stay connected from virtually anywhere in the home. This USB Adapter supports WPA and WPA2 encryption
to prevent outside intrusion and protect your personal information from being exposed.This USB Adapter supports WPA™ and WPA2™ encryption
to prevent outside intrusion and protect your personal information from being exposed.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of
network trac, building materials and construction, and network overhead, lowers actual data throughput rate. Environmental conditions will adversely aect wireless signal range.
4D-Link DWA-125 User Manual
Section 1 - Product Overview
• Compact size for placement anywhere.
• Fully 802.11g compatible.
• 802.11n compliant.
• Powered by the USB port; no external power source required.
• USB 2.0 standard*.
• You can securely connect to a wireless network using WPA™ / WPA2™ (Wi-Fi® Protected Access) providing you a much higher level
of security for your data and communication than has previously been available.
• Position the DWA-125 almost anywhere in your workspace to achieve the best reception possible.
• Supports Infrastructure networks via an access point or wireless router.
Features
* Using a USB 1.1 port will adversely aect throughput.
5D-Link DWA-125 User Manual
Section 1 - Product Overview
Hardware Overview
1
1 LED
2 WPS Button
2
A blinking blue light indicates the adapter is installed and working correctly. A fast blinking light indicates
the adapter is scanning for an available wireless network. If the light is o, the adapter is not properly
installed.

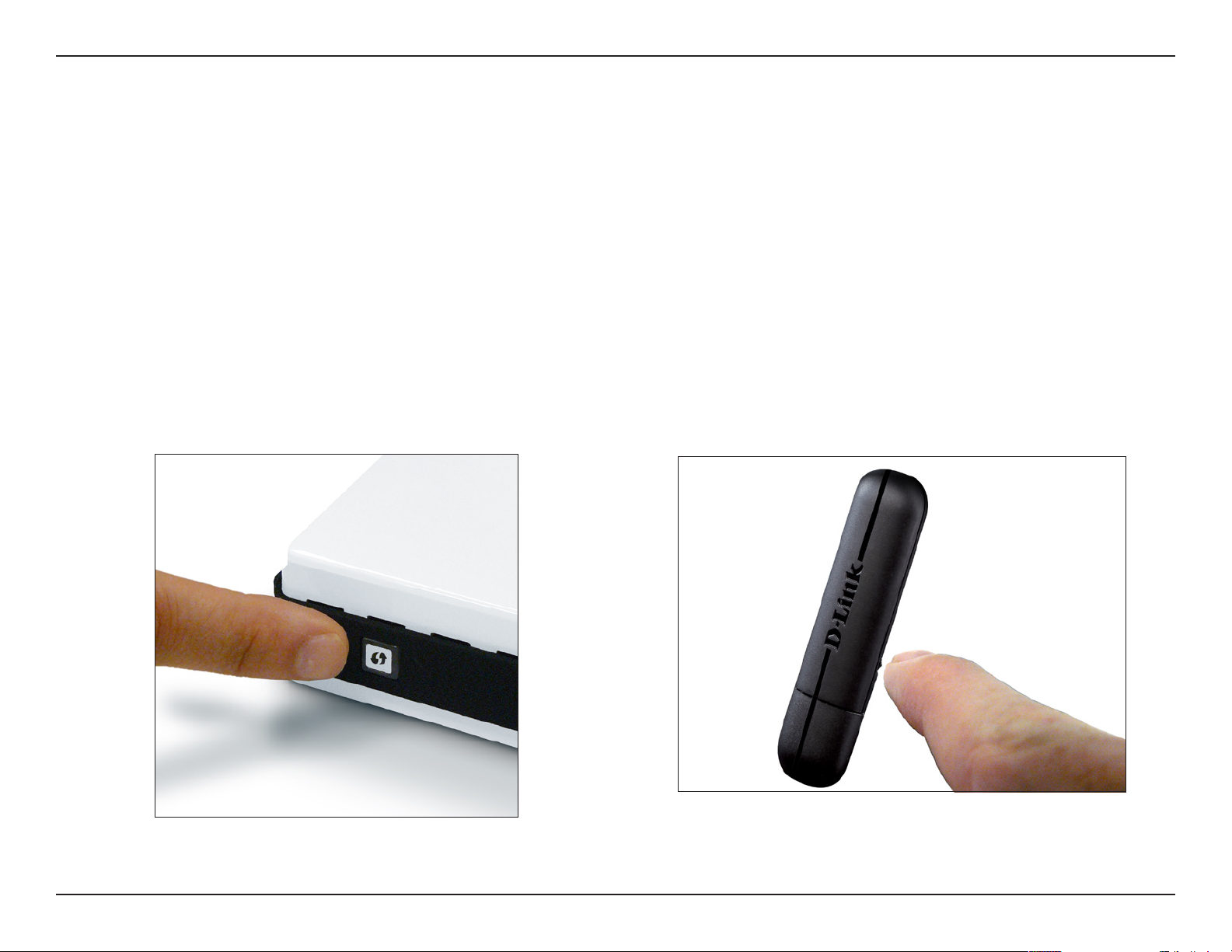

Press the WPS button to automatically connect to a WPS-enabled wireless router or access point and
establish connectivity. Refer to page 15.
6D-Link DWA-125 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in device manager before installing
your D-Link adapter. Also, if you have previously installed another wireless adapter, please make sure any software is uninstalled.
Getting Started
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters.
• Disable any built-in wireless and Ethernet adapters.
• Verify the settings such as the SSID and security settings of the network(s) you want to connect to.
Remove Existing Installations
If you’ve installed a dierent manufacture’s adapter or a dierent model D-Link adapter, make sure the software is uninstalled before installing
the new software. Some utilities may cause a conict with the new software. If you plan to use multiple adapters at dierent times, make sure the
utilities are not set to load when your computer boots up. Windows® users may use the built-in wireless utility for all adapters.
To remove any old software:
Windows® 8 users: Press Windows Key + Q > Control Panel > Uninstall Programs.
Windows® 7 users: Click Start > Control Panel > Uninstall Programs.
Windows Vista® users: Click Start > Control Panel > Add or Remove Programs.
Windows® XP users: Click Start > Control Panel > Add or Remove Programs.
7D-Link DWA-125 User Manual
Section 2 - Installation
Disable Other Adapters
Most newer laptops may include a built-in wireless adapter. To prevent any conicts with the D-Link wireless adapter, it is recommended to disable
the wireless adapter (as well as any unused Ethernet adapters).

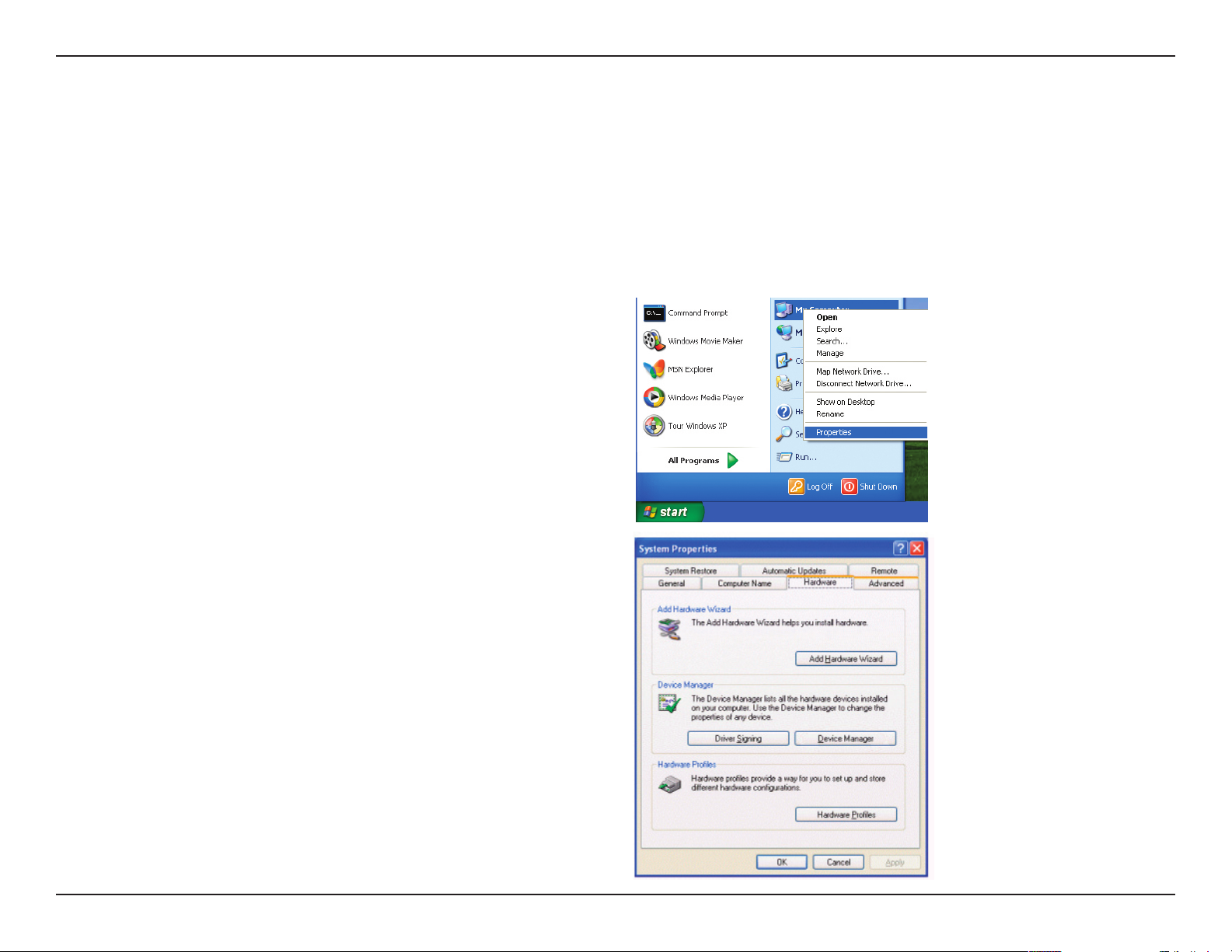

Windows XP - Go to Start > My Computer > Properties > Hardware > Device Manager.
Windows Vista/7 - Go to Start > Device Manager.
Windows 8 - Press the Windows key and X together and then click Device Manager.
Click the Hardware tab and then click Device Manager. Scroll down the list and click
the + sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select Disable.
8D-Link DWA-125 User Manual
Section 2 - Installation
Click Yes to disable the adapter.
When the adapter is disabled, a down arrow or a grayed icon will be displayed.
Disabling the adapter will not remove the drivers. If you would like to use the
adapter, simply right-click it and select Enable.
9D-Link DWA-125 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone in not in use.
10D-Link DWA-125 User Manual
Section 2 - Installation
Adapter Installation
Warning: Do NOT connect the DWA-125 Wireless N 150 USB Adapter to your computer before installing the driver software from the D-Link
CD.
Turn on the computer and insert the D-Link DWA-125 Driver CD in the CD-ROM drive.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\autorun.exe” (where D:
represents the drive letter of your CD-ROM drive).
When the autorun screen appears, click Install.
11D-Link DWA-125 User Manual
Section 2 - Installation
The InstallShield Wizard window will appear.
Once the Welcome screen appears, click Next to continue.
Connect the DWA-125 adapter to an available USB slot on your computer.
Click Next to continue.
12D-Link DWA-125 User Manual
