D-Link TM-G5240 User Manual
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
T-Mobile TM-G5240
Wireless Router
User Manual
Table of Contents
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
INTRODUCTION........................................................................................ ....................................................1
What is unique about the TM-G5240.....................................................................................................1
TM-G5240 F
ECHNICAL SPECIFICATIONS
T
ACKAGE CONTENTS
P
ANEL COMPONENTS ............................................................ ................................................................ .......6
P
EATURES
............................................................. ................................................................ ....2
............................................................ ............................................................3
............................................................ ................................................................ .......5
Back panel............................................... ... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ..........................6
Front panel................................................................. ............................................................................6
Front panel................................................................. ............................................................................7
GETTING STARTED ................................................................................................. ........................ ............8
THER INSTALLATION CONSIDERATIONS
O
............................................................. ..........................................8
CONFIGURING TM-G5240 ............................................... ................................ ............................. ............ 10
Physical connection of hardware components.................. ................................ ................................ .11
Configuration of TM-G5240 ................................................................................................................ 21
Encryption for your wireless computers............................................... ...... .. ... ..... ... ... ..... ... .. ...... .. ....... 27
ADVANCED SETTINGS........................................................... ................................ ..................... ............ 29
OME TAB
H
............................................................. ................................................................ ....................31
Home > Wizard ............................ ................................ ................................ ....................................... 31
Home > Wireless............................................. ................................................................ ....................32
Home > WAN ............................................................................................................. ........................ .35
Home > LAN............................ ................................ ......................................................... ................... 40
Home > DHCP ................................ ................................................................ ........................ ............ 41
Home > Bridge Mode......................... .. ... ..... ... ..... ... ... ..... ... .. ...... .. ... ..... ... ..... ... ... ..... ... .. ...... .. ............... 42
A
DVANCED TAB.. ................................................................ ....................................................................... 43
Advanced > Virtual Server.............................................................................. .................................... 43
Advanced > Applications .................................................................................................................... 46
Advanced > Filters .......................................... ........................................................... .........................48
Advanced > Parental Control.............................................................................................................. 51
Advanced > Firewall............................................................................................................................ 52
Advanced > DMZ ................................................................................................................................54

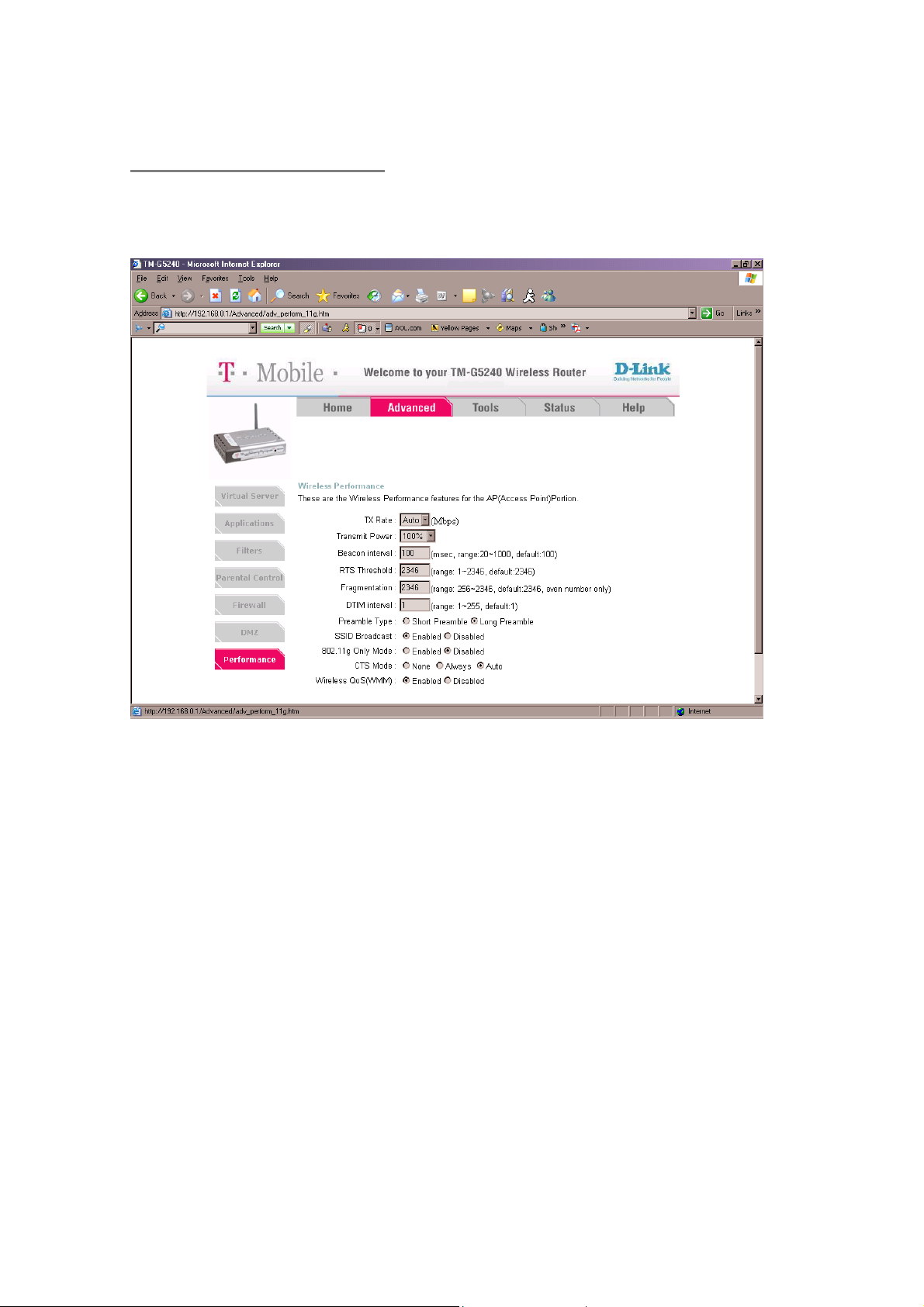

Advanced > Performance ................................................................................................................... 55
OOLS TAB
T
.............................................................. ................................................................ .................57
Tools > Admin .............................................. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... ....................57

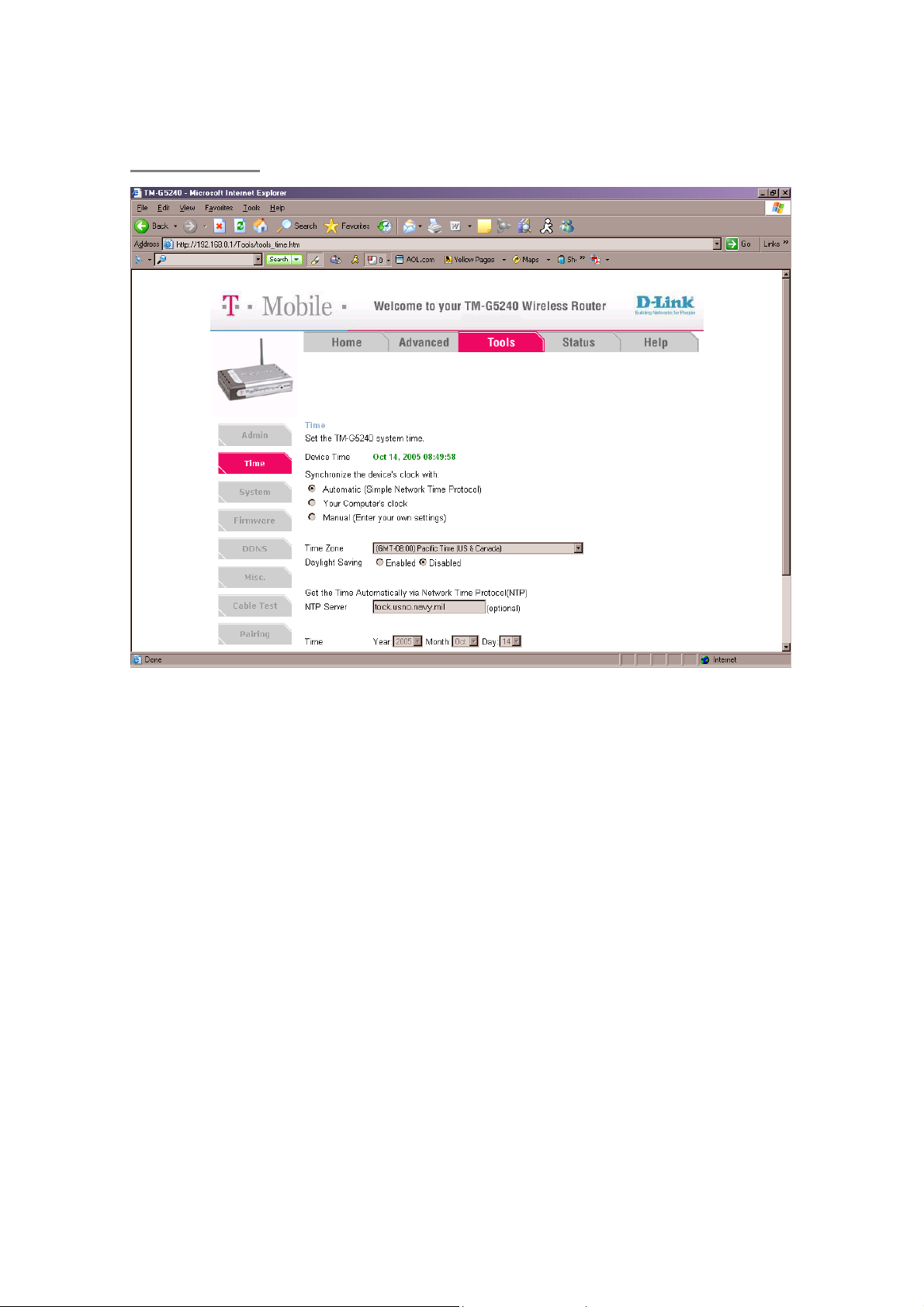

Tools > Time ........................................ ... ..... ... ... ..... ... ..... ... ..... ... .. ...... .. ...... .. ...... .. ... ..... .......................59

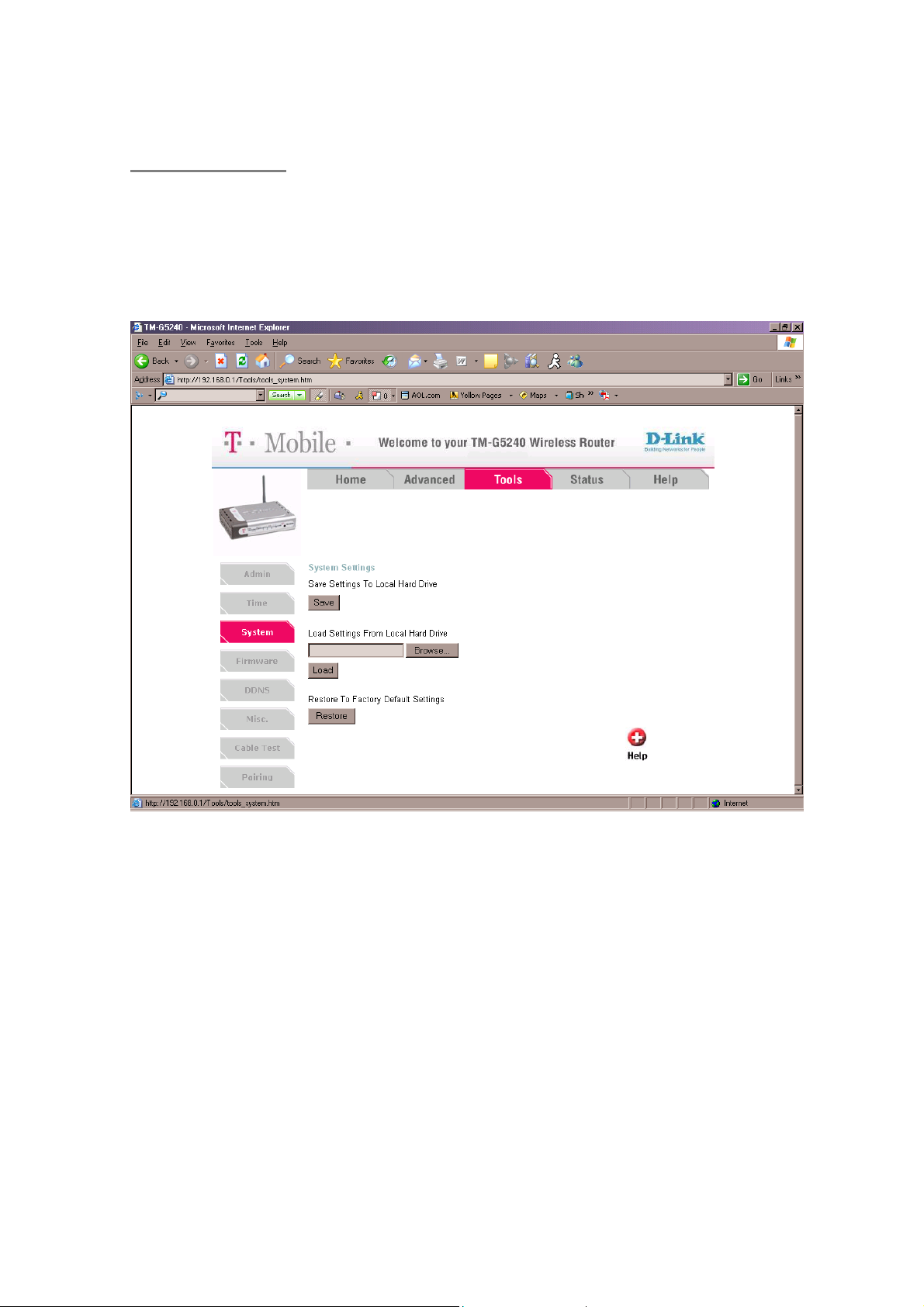

Tools > System ............................ ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... .................... 60
Tools > Firmware ......................... ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. ... ..... ... ..... ... ....................61
Tools > DDNS .............................................. ... ..... ... ..... ... ... ..... ... ..... ... ..... ... .. ...... .. ...... .. .......................62
Tools > Misc......................... ... ..... ... ... ..... ... ..... ... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. .......................63
Tools > Cable Test.......... ... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. ...... .. ... .................... 65
Tools > Pairing ........................................... .. ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. .......................66
TATUS TAB
S
............................................................. ................................................................ .................67
Status > Device Info........................................................................................ .................................... 67
Status > Log......................... ...... .. ... ..... ... ..... ... ... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... ... ......................... 69
Status > Statistics ........................................................ ... ... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... ....................70

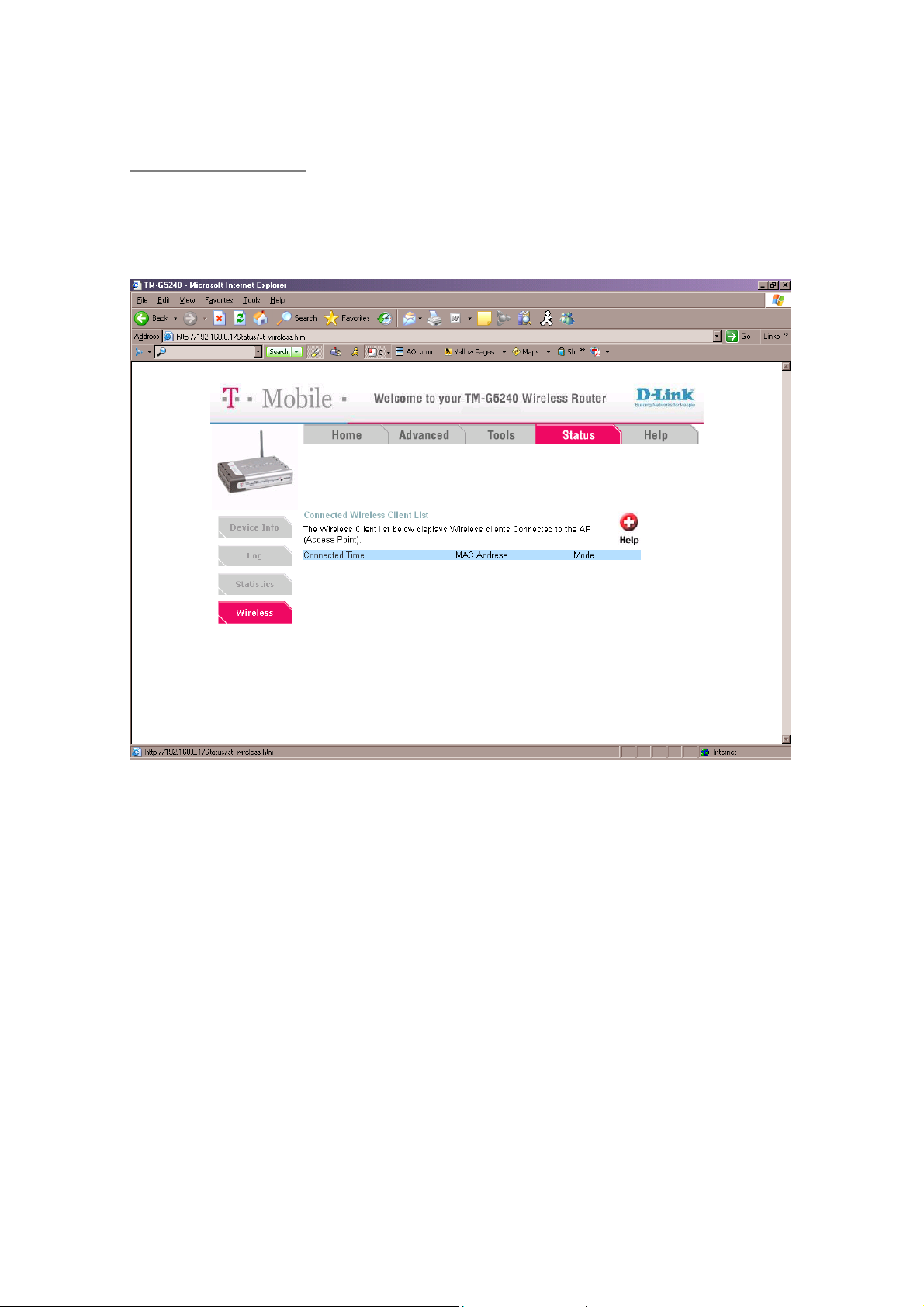

Status > Wireless....................................... ..... ... ..... ... .. ...... .. ...... .. ... ..... ... ..... ... ... ..... ... ..... ....................71

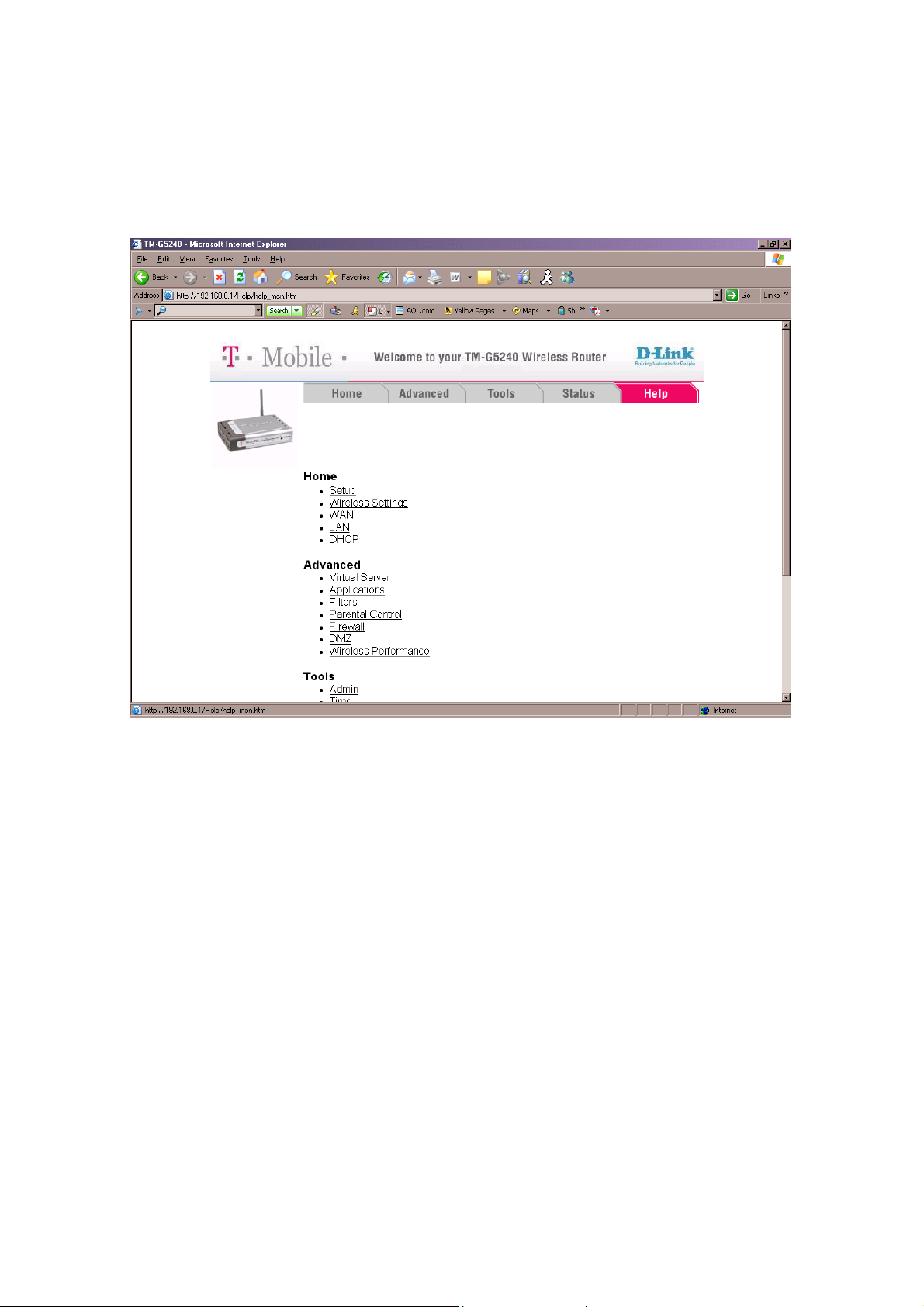

ELP TAB
H
........................................................... ................................................................ ...................... .72
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
TROUBLESHOOTING ........................................................................... ................................ .................... 73
I
CAN’T CONNECT TO THE INTERNET........................................... ...............................................................73
HEN RUNNING THE
W
M PROMPTED FOR A USERNAME AND PASSWORD WHEN OPENING MY WEB BROWSER
I’
WANT TO USE A BROADBAND MODEM WITH A
I
HE
T
I
CAN’T WIRELESSLY CONNECT TO THE TM-G5240.................................................................................... 75
ELEPHONE CABLE OR COAXIAL CABLE WILL NOT WORK WITH
T
WANT TO MODIFY
I

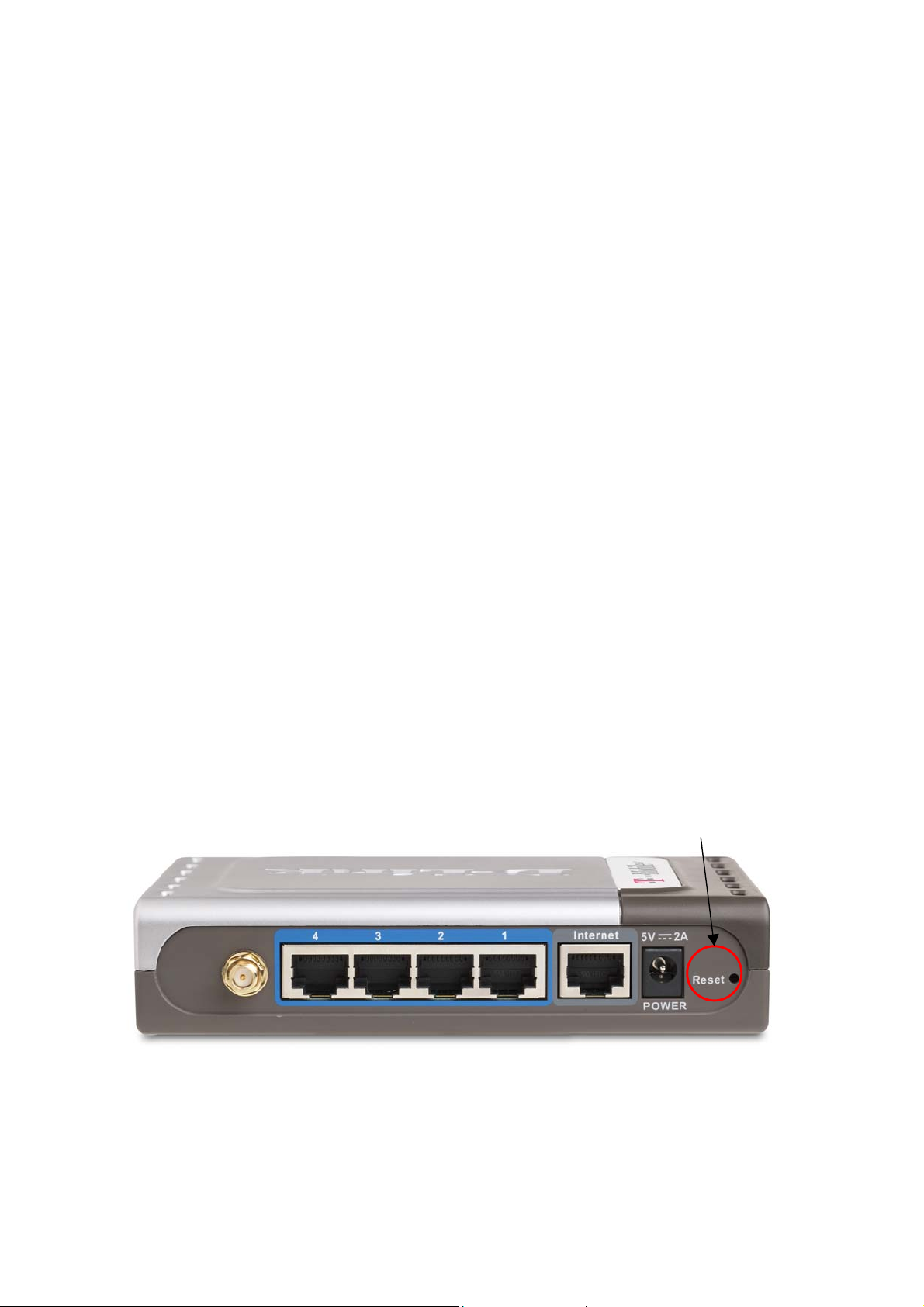

ESET TO FACTORY DEFAULT SETTING
R
OW DO I FIND THE
H
WILL NOT RUN WHEN I INSERT IT INTO THE
CD
TM-G5240
NSTALL WIZARD I CAN’T GET PAST THE CABLING STEPS
CD I
CONNECTION
USB
CD-ROM
............................. ................................ .74
DRIVE
TM-G5240.................................................. 75
SETTINGS
........................... ................................ ................................ ....... 76
............................. ................................ ................................ ......... 76
ADDRESS
IP
.............................................................. ................................................. 77
............................ ......... 74
.............................. .74
............................. ............................74
Windows 95, 98, and ME..................... ............................................................................................... 77
Windows Vista............................................................................................ ......................................... 78
Windows 2000 and XP............................................................................................... ........................ .78
OW DO I ASSIGN A STATIC
H
ADDRESS
IP
............................ ................................ ................................ ....... 79
Windows Vista............................................................................................ ......................................... 79
Windows XP.................................... ............................................................. ...................... ................. 79
Windows 2000.............................. .............................................................. ....................... .................. 79
Windows 98 and ME............................................................... ................................ ............................ 79
OW CAN I SET UP
H
TM-G5240
TO WORK WITH A CABLE MODEM
............................ ................................ .... 81
Dynamic cable connection.................................................................................................................. 81
Static cable connection................... ..................................................................................... ............... 82
OW CAN I SET UP MY ROUTER TO WORK WITH EARTHLINK
H
OW DO I OPEN PORTS ON THE
H
OW DO I OPEN A RANGE OF PORTS ON THE
H
TM-G5240 ............................... ............................................................... 86
TM-G5240
USING FIREWALL RULES
DSL
OR ANY
PPPOE
CONNECTION
................ 83
............................. ......... 88
LIMITED WARRANTY......................................... ... ..... ... ... ..... ... ..... ... .. ...... .. ...... .. ...... .. ... ..... ... .................... 90
TM-G5240 Wireless Router
Congratulations on your purchase of the T-Mobile TM-G5240 wireless router (also
referred to as TM-G5240).
The TM-G5240 supports high-speed wireless networking at home, at work, and in public
places. The TM-G5240 wireless router uses the new 802.11g standard. The IEEE
802.11g standard is an extension of the 802.11b standard. It increases the data rate up
to 54 Mbps within the 2.4GHz band, utilizing OFDM technology.
In addition to offering fast data transfer speeds, the TM-G5240 has the newest, strongest,
and most advanced security features available today (WPA and 802.1x):
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
Introduction
• WPA: Wi-Fi Protected Access authorizes and identifies users based on a secret
key that changes automatically at a regular interval. WPA uses TKIP (Temporal
Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet
is a kind of message transmitted over a network.) This insures much greater
security than the standard WEP security. By contrast, the older WEP encryption
required the keys to be changed manually.
•
Authentication: Authentication is a first line of defense against intrusion. In the
authentication process, the server verifies the identity of the client attempting to
connect to the network. Unfamiliar clients would be denied access.
What is unique about the TM-G5240
The TM-G5240 is unique in that it has been optimized to work with a compatible T-Mobile
phone so that you can use your phone for calling via your Wi-Fi network or the T-Mobile
GSM network.
1
TM-G5240 Features
•
Fully compatible with the 802.11g standard to provide a wireless data rate of up to
54Mbps.*
• Backwards compatible with the 802.11b standard to provide a wireless data rate of
up to 11Mbps.
•
WPA (Wi Fi Protected Access) authorizes and identifies users based on a secret
key that changes automatically at a regular interval, for example:
o TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS
server, changes the temporal key every 10,000 packets, ensuring greater
security.
o Pre Shared Key mode means that the home user, without a RADIUS
server, can connect securely via a pre-shared key, vastly improving the
safety of communications on the network.
•
802.1x Authentication in conjunction with the RADIUS server verifies the identity of
would be clients.
• Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
• User-friendly configuration and diagnostic utilities.
• Operates in the 2.4GHz frequency range.
• Connects multiple computers to a Broadband (Cable or DSL) modem to share the
Internet connection.
•
Advanced firewall features:
Supports NAT with VPN pass-through, providing added security
o
MAC Filtering
o
o IP Filtering
o URL Filtering
Domain Blocking
o
o Scheduling
•
DHCP server enables all networked computers to automatically receive IP
addresses.
• Web-based interface for Managing and Configuring.
• Access Control to manage users on the network.
• Supports special applications that require multiple connections.
• Equipped with 4 10/100 Ethernet ports, 1 WAN port, Auto MDI/MDIX.
*Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network traffic, building materials and construction, and network
overhead lower actual data throughput rate.
2
Technical specifications
Standards
• IEEE 802.11g
•
IEEE 802.11b
•
IEEE 802.3
•
IEEE 802.3u
VPN Pass Through
• PPTP
• L2TP
• IPSec
Device Management
•
Web-Based- Internet Explorer v6 or later; Netscape Navigator v6 or later; or other
Java-enabled browsers
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
• DHCP Server and Client
Advanced Firewall Features
NAT with VPN Passthrough (Network Address Translation)
MAC Filtering
IP Filtering
URL Filtering
Domain Blocking
Scheduling
Wireless Operating Range
Indoor – Up to 300 feet
Outdoor – Up to 2000 feet
Operating Temperature
32°F to 104°F (-0°C to 40°C)
Safety and Emissions
FCC
Wireless Frequency Range
2.412 GHz to 2.462 GHz
3
Status Lights
Power
Internet
Wireless
Ports 1-4 (LAN 10/100)
Encryption
Physical Dimensions
L = 5.6 inches (142mm)
W = 4.3 inches (109mm)
H = 1.2 inches (31mm)
Wireless Transmit Power
19 dBm +1/-1.5 dBm
Security
Wi-Fi Protected Access (WPA)
(WEP with TKIP, MIC, IV Expansion, Shared Key Authentication)
WPA2
Multimedia
WMM
WMM power save
External Antenna Type
Single detachable reverse SMA
Modulation Technology
Orthogonal Frequency Division Multiplexing (OFDM)
Power Input
Ext. Power Supply DC 5V, 2A
Weight
7.8 oz. (0.22kg)
Warranty
1 year
Wireless Data Rates* with Automatic Fallback
54 Mbps
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
4
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
48 Mbps
36 Mbps
24 Mbps
18 Mbps
12 Mbps
11 Mbps
9 Mbps
6 Mbps
5.5 Mbps
2 Mbps
1 Mbps
Receiver Sensitivity
• Better than -92dBm @ 6, 9Mbps
•
Better than -92dBm @ 12Mbps
• Better than -88dBm @ 18Mbps
• Better than -84dBm @ 24Mbps
•
Better than -81dBm @ 36Mbps
• Better than -74dBm @ 48Mbps & 54Mbps
*Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual
data throughput rate.
Package contents
Contact your reseller if you are missing any items:
•
T-Mobile TM-G5240 wireless router
•
Power adapter - DC 5V, 2A
NOTE: Using a power supply with a different voltage rating than the one included with the TMG5240 will cause damage and void the warranty for this product.
• Blue Ethernet cable
•
Antenna (attach on the back of the router)
•
Installation CD (includes Installation Wizard, user manual)
•
Quick Installation Guide
•
Frequently Asked Questions (FAQ’s)
5
Panel components
g
Back panel
T-Mobile TM-G5240 Wireless Router User Manual
Internet Port
Plug the network cable used to
connect to the Internet into the TMG5240.
Version 0.7 041807
Reset Button
Press and hold for 10
seconds to restore to
ori
inal factory settings.
Antenna
Screw in the included
antenna here.
Ports (1-4)
Plug the blue network cable that
comes with this router into one of
the ports (1-4).
Power
Plug the power adaptor
to power on the TMG5240.
6
Front panel
g
T-Mobile TM-G5240 Wireless Router User Manual
Get Security Key or Secure Button
In the phone go to Get Security Key to share the router’s
security key/passphrase with a T-Mobile phone.
• Off - no encryption
•
Blinking amber – in securing process
• Solid green – encryption enabled
Version 0.7 041807
Power Light
reen if the power adaptor is plugged
Solid
into an electrical outlet and is receiving
adequate power.
Internet Light
Blinking green if the modem is plugged
into the Internet port and connection is
good.
Wireless Light
Blinking green when there is connection
and data activity
Port Lights (1-4)
Light is on for the port that is connected to the
computer (via blue cable).
• Solid green – No activity but has good connection
•
Blinking green – Data activity
7
T-Mobile TM-G5240 Wireless Router User Manual
Getting Started
What you need before installing the TM-G5240
Before you install and use the TM-G5240, you must have:
•
Broadband Internet access
(a cable or DSL-subscriber line into your home or office)
NOTE: Consult with your Cable or DSL provider for proper installation of the modem.
Version 0.7 041807
• Computer with Windows, Macintosh*, or Linux-based operating system with an
installed Ethernet adapter.
*
The CD wizard is not compatible with Mac/Apple computers (See page 10).
•
Internet Explorer Version 6.0 or Netscape Navigator Version 6.0 or above
Other installation considerations
The TM-G5240 lets you access your network, using a wireless connection, from virtually
anywhere within its operating range. Keep in mind, however, that the number, thickness
and location of walls, ceilings, or other objects that the wireless signals must pass
through, may limit the range. Typical ranges vary depending on the types of materials
and background RF (radio frequency) noise in your home or business. The key to
maximizing wireless range is to follow these basic guidelines:
• Each wall or ceiling can reduce your TM-G5240’s range from 3-90 feet (1-30
meters). Position the TM-G5240 so that the number of walls or ceilings is
minimized.
• Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a
2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the
signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
8
T-Mobile TM-G5240 Wireless Router User Manual
•
Building materials can impede the wireless signal - a solid metal door or aluminum
Version 0.7 041807
studs may have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or
open doorways and not other materials.
•
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or
appliances that generate extreme radio frequency noise (example, microwave).
9
T-Mobile TM-G5240 Wireless Router User Manual
Configuring
TM-G5240
Configure the TM-G5240
The configuration of the TM-G5240 involves the following:
1. The Installation Wizard walks you through the steps to physically connect the
hardware components (computer, TM-G5240, modem, cables).
Note: The CD wizard is not compatible with Mac/Apple computers. Please use the
step-by-step image instructions (steps 1 – 9) provided on pages 12 through 15
in this User Manual, or the steps outlined in the QIG.
2. After connecting the hardware, the Wizard walks you through the configuration steps
for the TM-G5240.
Note: The CD wizard is not compatible with Mac/Apple computers. For Mac/Apple
users, once the cabling instructions are completed:
a. Open an Internet browser, i.e. Safari, Fire fox, etc.
b. Type in 192.168.0.1 in the address bar.
c. When asked for password, type in “admin” in the password field and leave
the user name field empty.
d. Click “Setup Wizard” to continue with the configuration process.
3. After configuring the TM-G5240, you will see Congratulations. At this point either go
to your phone to connect to your network or you can choose Security Settings on the
bottom left of the install screen to enable encryption.
Version 0.7 041807
10
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
Physical connection of hardware components
To start the Installation Wizard, insert the CD into your computer that is connected to
your modem and click the
Note:
If the CD does not auto-start, try inserting the CD again, or you can go to your
Installation Wizard
computer’s file browser to view the files on the CD.
button. Follow the instructions on screen.
11
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
1. Power off your modem, by unplugging the power cord. When done, click the Next
button on the Wizard.
12
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
2. Unplug the network cable from your computer and plug the network cable into the
TM-G5240‘s Internet port. When done, click the Next button on the Wizard.
3. Plug in the power adapter to your modem. The lights on your modem should start
flashing. When done, click the
button on the Wizard.
Next
13
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
4. Connect one end of the blue cable that came with the TM-G5240 to any of the
Ports (1-4) on the back of the TM-G5240. Connect the other end of the blue cable
to the computer’s network port. When done, click the Next button on the Wizard.
5. Plug the power adapter into the back of the TM-G5240 and plug the other end into
an electrical outlet or power strip. When done, click the Next button on the Wizard.
14
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
6. Observe the status lights on the front of the router. The lights for Power, Internet,
Wireless, and one of the numbered ports (1-4) should be lit. If not lit, make sure
that all cables are securely connected and if necessary select back to check your
cabling. When done, click the Next button on the Wizard.
Your cables should look similar to the image shown below after you have finished
connecting all hardware components. Remember to attach the Antenna.
15
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
If you want to replace the existing router with the TM-G5240, click the Yes button on
the Wizard.
1. Power off your modem, by unplugging the power cord. When done, click the Next
button on the Wizard.
16
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
2. Unplug the network cable connected to your computer from your old router and
plug it into any of the Ports (1-4) on the TM-G5240. When done, click the Next
button on the Wizard.
3. Unplug the cable connected to your modem from your old router and plug it into
the TM-G5240’s Internet port. When done, click the Next button on the Wizard.
17
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
4. Plug in the power adapter to your modem. The lights on your modem should start
flashing. When done, click the Next button on the Wizard.
5. Plug the power adapter into the back of the TM-G5240. When done, click the Next
button on the Wizard.
18
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
6. Observe the status lights on the front of the router. The lights for Power, Internet,
Wireless, and one of the numbered ports (1-4) should be lit. If not lit, make sure
that all cables are securely connected and if necessary select back to check your
cabling. When done, click the Next button on the Wizard.
7. Your cables should look similar to the image shown below after you have finished
connecting all hardware components. Remember to attach the Antenna.
19
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
Checks Internet Connection Type
After you have finished connecting the cables, the Installation Wizard will check
your Internet connection and display the following screen while detecting the type
of internet connection you have..
If you do not get this screen that means something is wrong with the
Note:
connection between the computer running the CD and your wireless router. See
the Troubleshooting section of this User Guide or the FAQ’s document.
20
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
Configuration of TM-G5240
7. After successfully detecting your Internet type you will see one of the following
three screens. If you are unsure of the setting, DO NOT change it.
• Most Cable users should have DHCP (Cable)
• Most DSL users will have either PPPOE (DSL) or DHCP (Cable)
• Typically if you have a static IP, you know it.
DHCP (Cable)
If you select
DHCP (Cable)
the Next button on the Wizard.
from the drop-down box, then all you need is to click
21
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
Static IP
If you select Static IP from the drop-down box, you must complete the information
on this screen. Refer to your Internet Service Provider (ISP) for information on IP
address, subnet mask, and so on.
When done, click the Next button on the Wizard.
PPPOE (DSL)
If you select PPPOE (DSL) from the drop-down box, then type your username and
password to log in to the Internet.
When done, click the Next button on the Wizard.
22
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
8. Create a unique name to identify your wireless network from other wireless
networks around you. This name will also display on your T-Mobile phone’s main
screen under “T-Mobile” when you are connected to your Wi-Fi network.
When done, click the Next button on the Wizard.
9. Select a channel for your network, or auto detect if you’d like the router to pick the
best one for you. When done, click the Next button on the Wizard.
23
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
10. To protect your router settings from un-authorized access, change the
administrative password. You will see a confirmation of settings page where you
can print this information for future reference. When done, click the Next button on
the Wizard. Please note that passwords are limited to 15 characters.
11. To Review your settings and either print or save a copy for your records.
•
Click the Save a copy button to save your security settings to your
computer. You will see a pop-up with open, save, cancel. Select save.
• Click the Print Settings button to print your security settings to an attached
printer.
When done, click the Next button on the Wizard
24
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
12. You will see saving settings and restarting while the router stores all your settings.
You may see the router lights blinking and pop-ups on your computer screen task
bar mentioning Internet connectivity. This is all normal.
13. When the router is setup you will see this Congratulations screen. You can learn
more about your phone and how it works by click on “Learn More about Wi-Fi”
Your other two choices are:
• Select Done, and go to your Get Started poster for your T-Mobile phone and
follow the steps to connect your wireless network.
- Or -
• Select “Security Settings” to turn encryption on for your TM-G5240.
25
T-Mobile TM-G5240 Wireless Router User Manual
Version 0.7 041807
26
Loading...
