D Link SL2740BF1 Users Manual

Table of Content

D-Link DSL-2740B User Manual 1

Table of Content

Table of Contents

ACKAGE CONTENTS

YSTEM REQUIREMENTS

NTRODUCTION

EATURES

ARDWARE OVERVIEW

......................................................................................................................7

Connections ...........................................................................8

LEDs........................................................................................9

INSTALLATION............................................................................10

EFORE YOU BEGIN

NSTALLATION NOTES

NFORMATION YOU WILL NEED FROM YOUR

NFORMATION YOU WILL NEED ABOUT

IRELESS INSTALLATION CONSIDERATIONS

EVICE INSTALLATION

OWER ON ROUTER

ETWORK CONNECTIONS

1. CONFIGURATION....................................................................21

1-1 WEB-

SETUP .......................................................................................................................23

BASED CONFIGURATION UTILITY

WIZARD.................................................................................23

INTERNET SETUP................................................................28

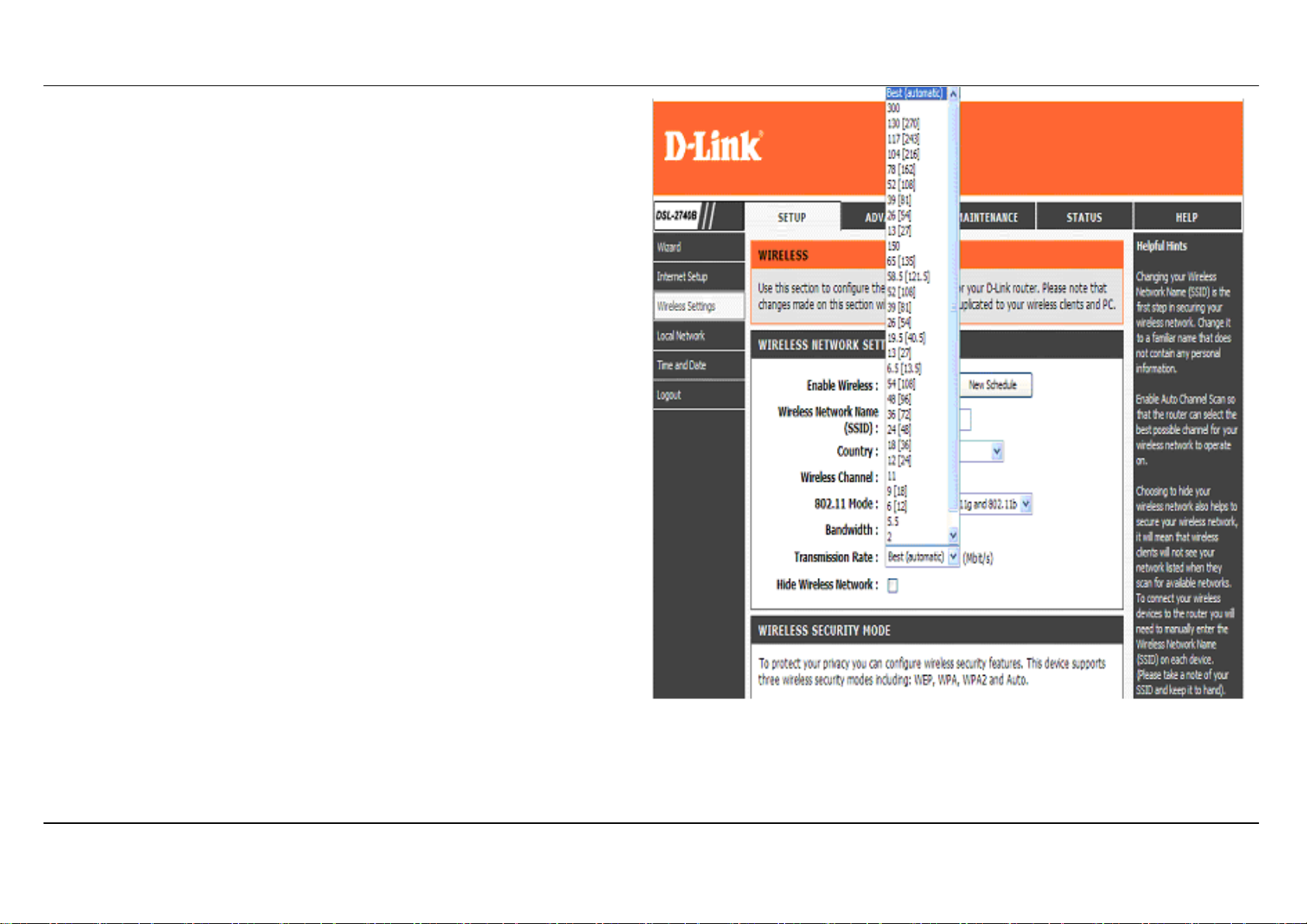

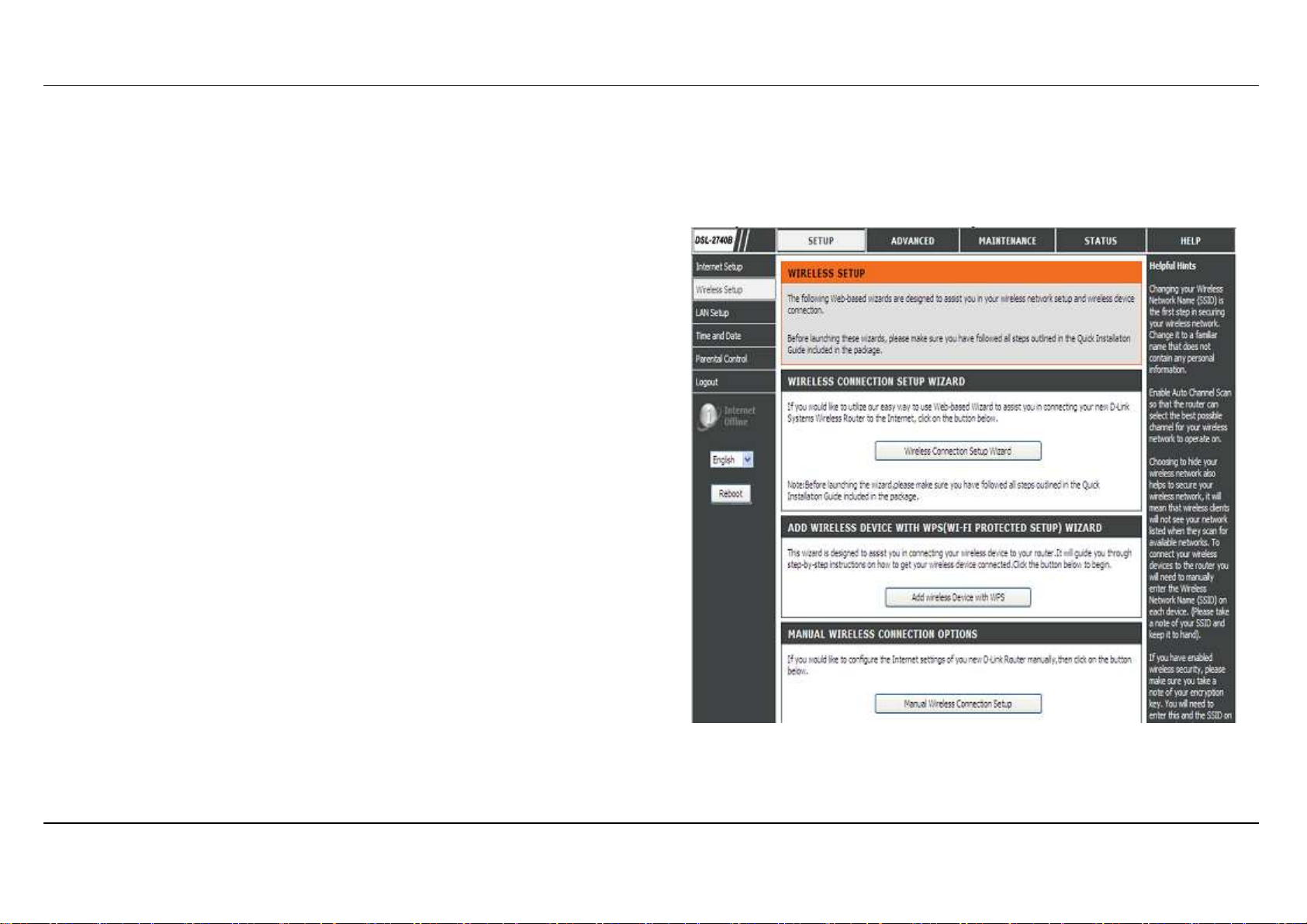

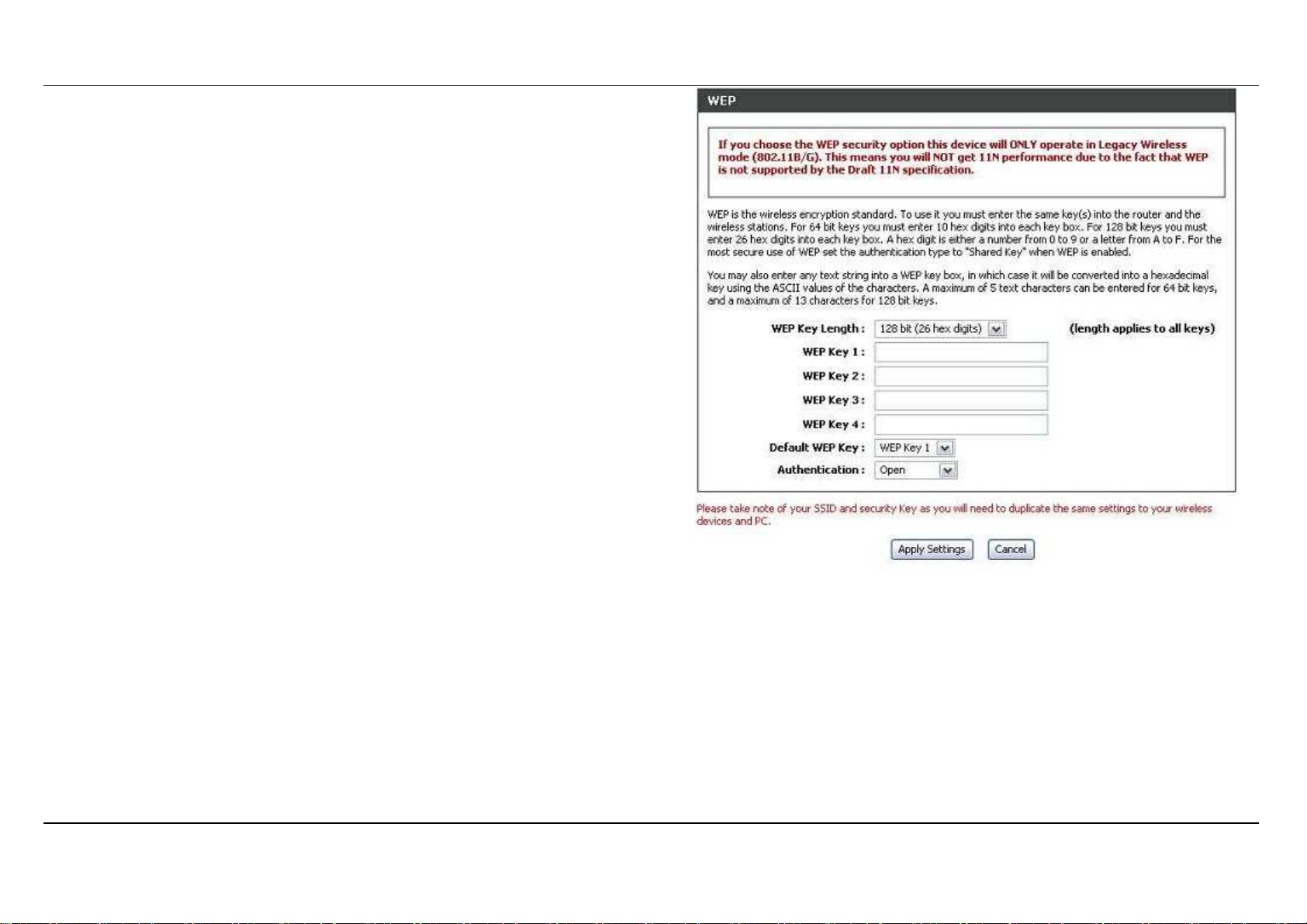

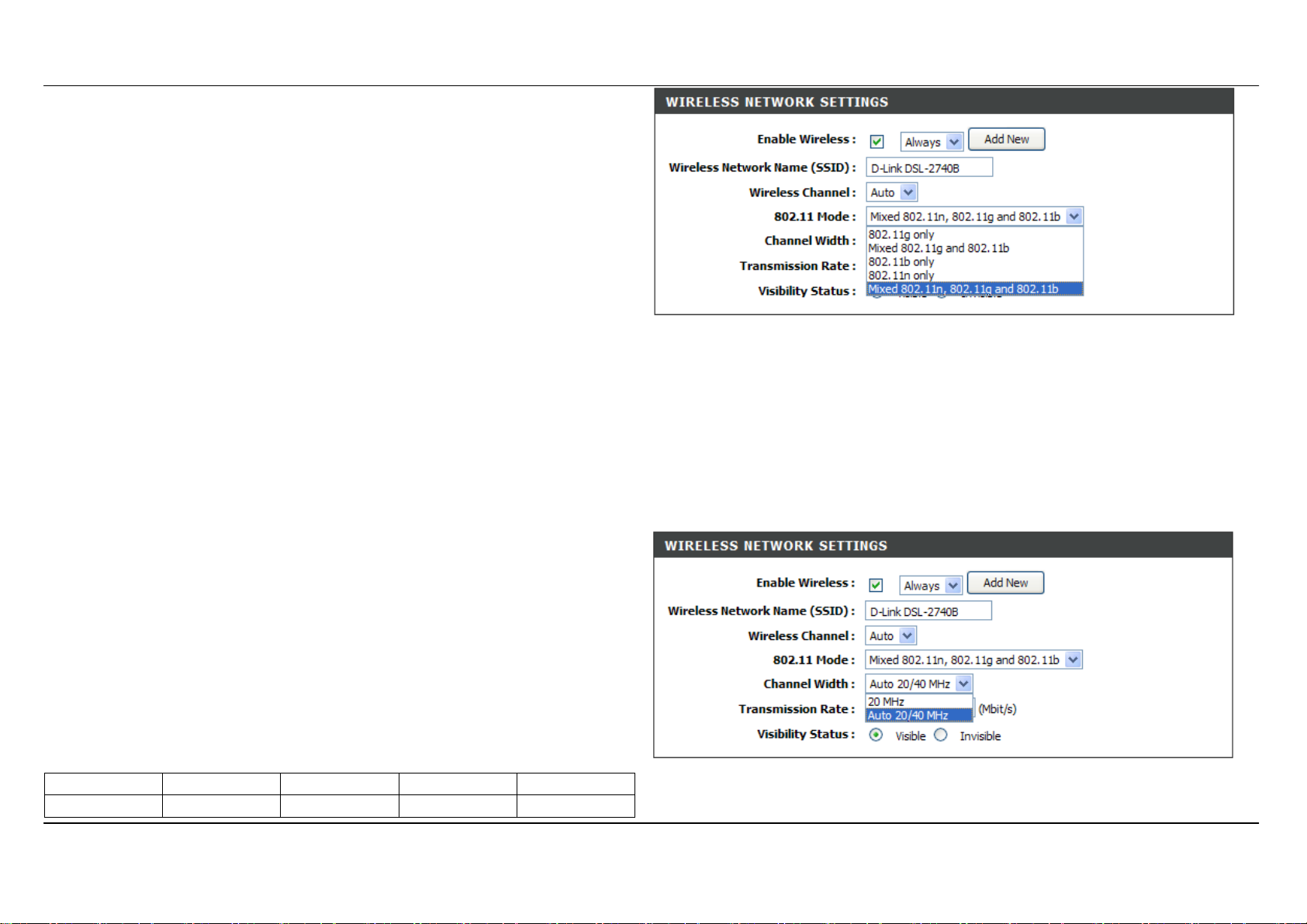

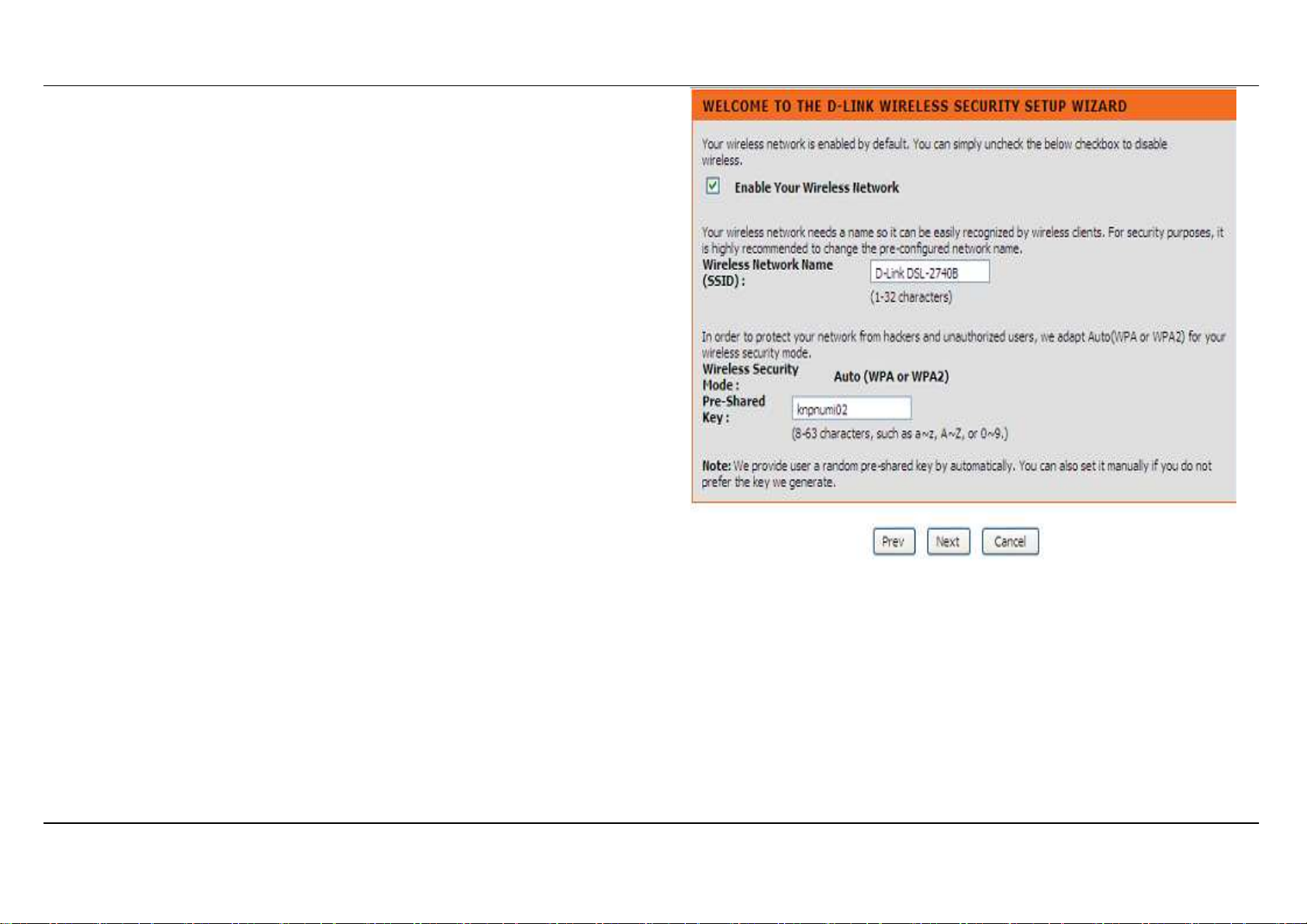

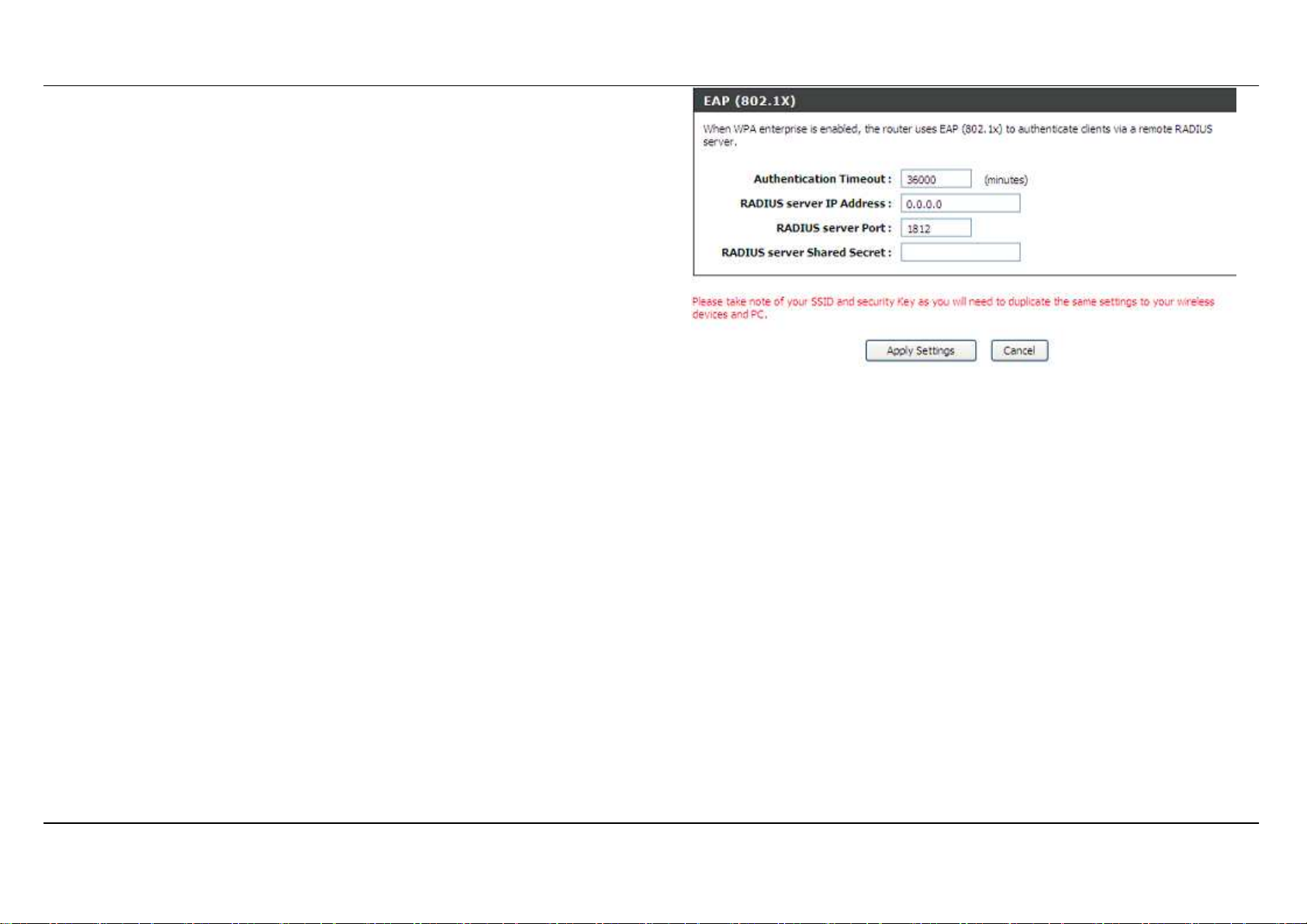

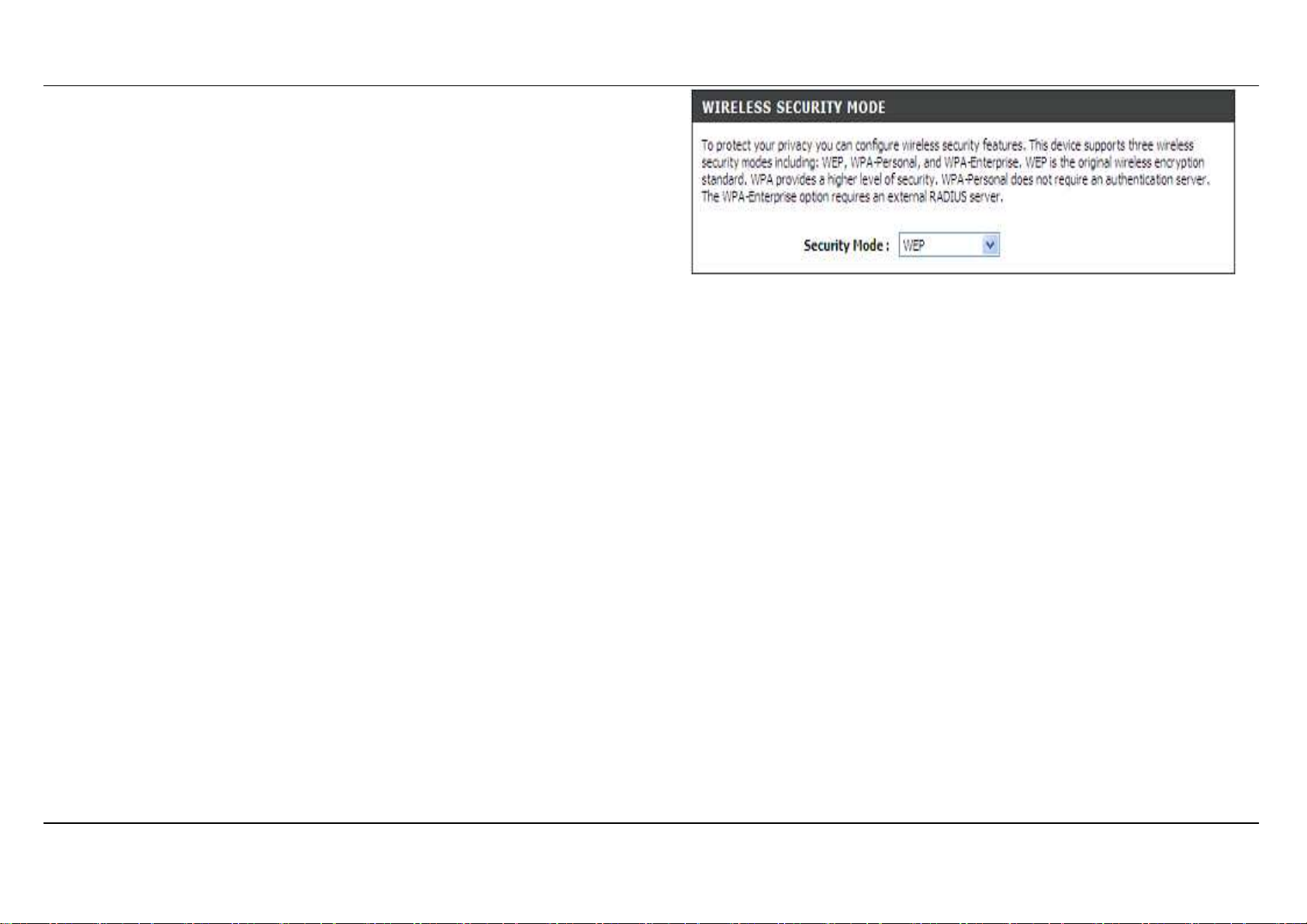

WIRELESS.............................................................................31

ADVANCED ..............................................................................................................49

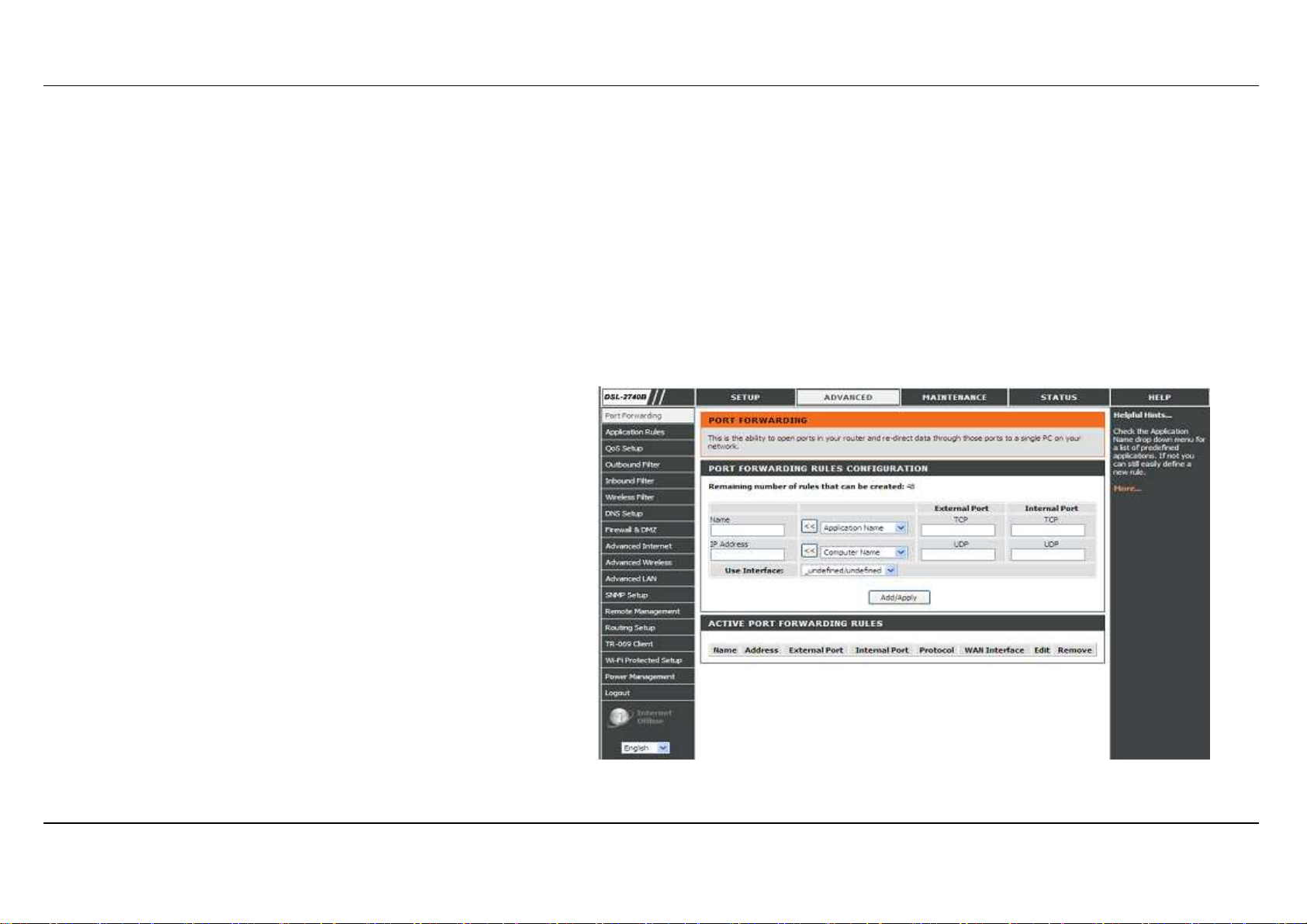

PORT FORWARDING............................................................49

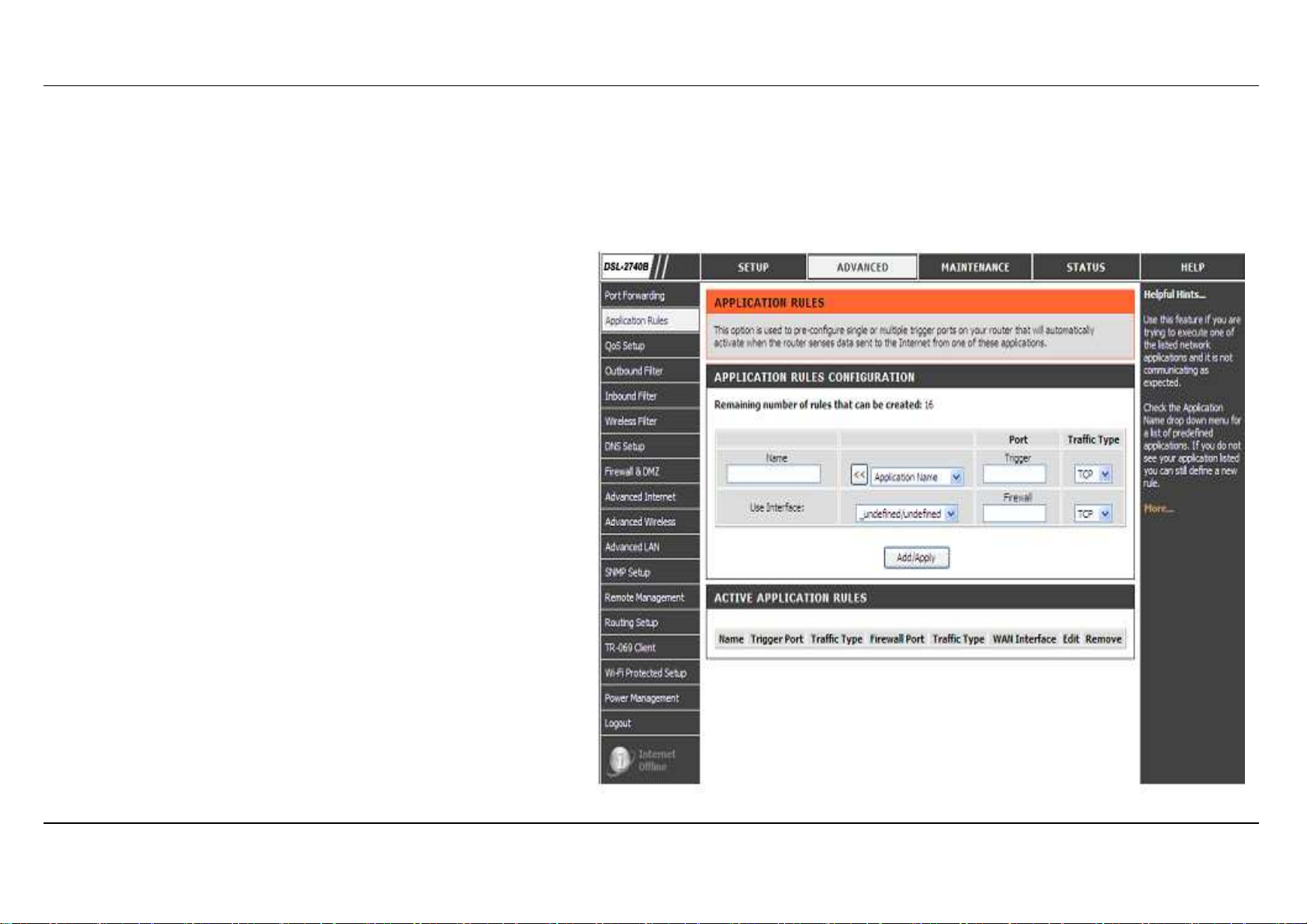

APPLICATION RULES...........................................................50

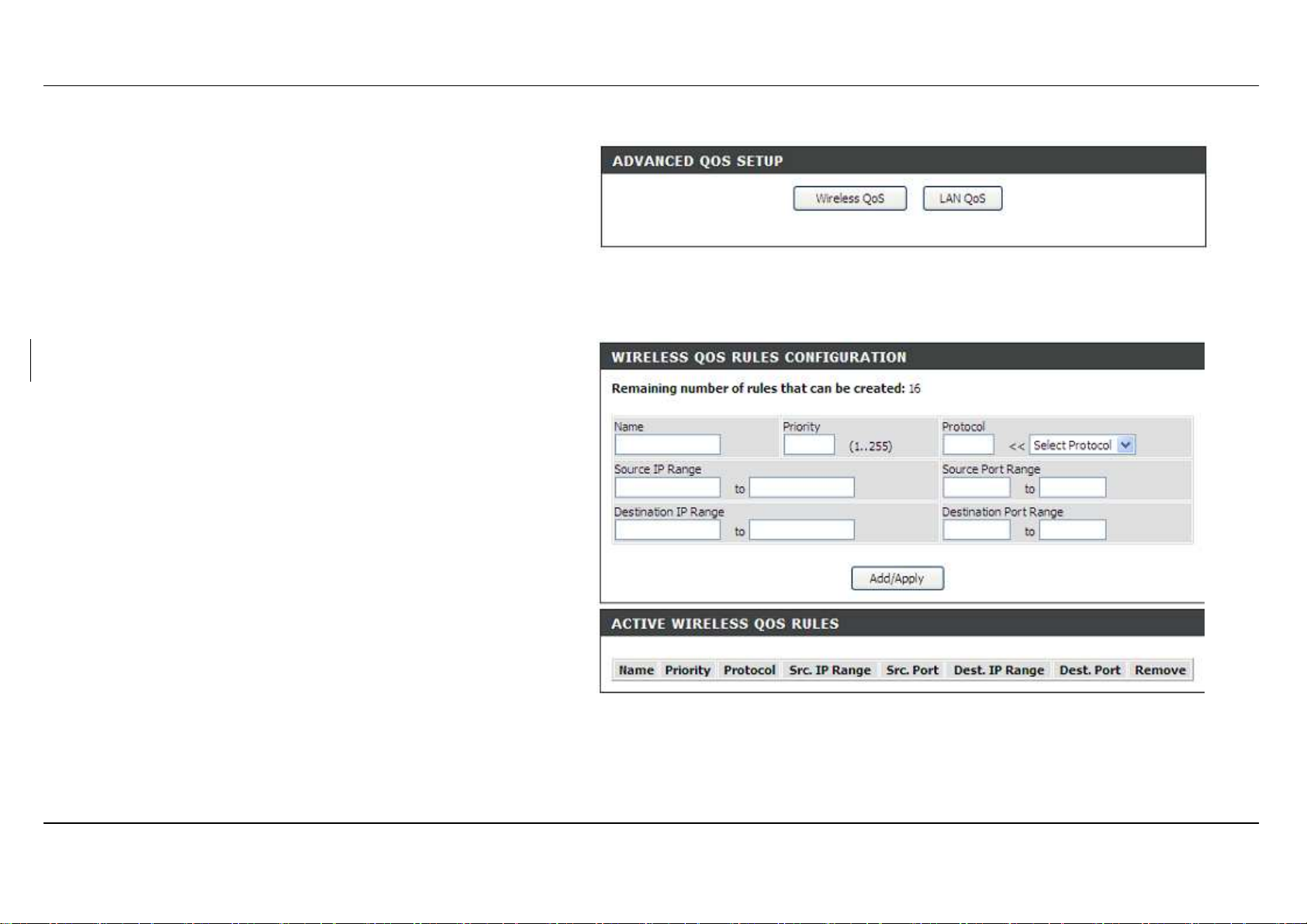

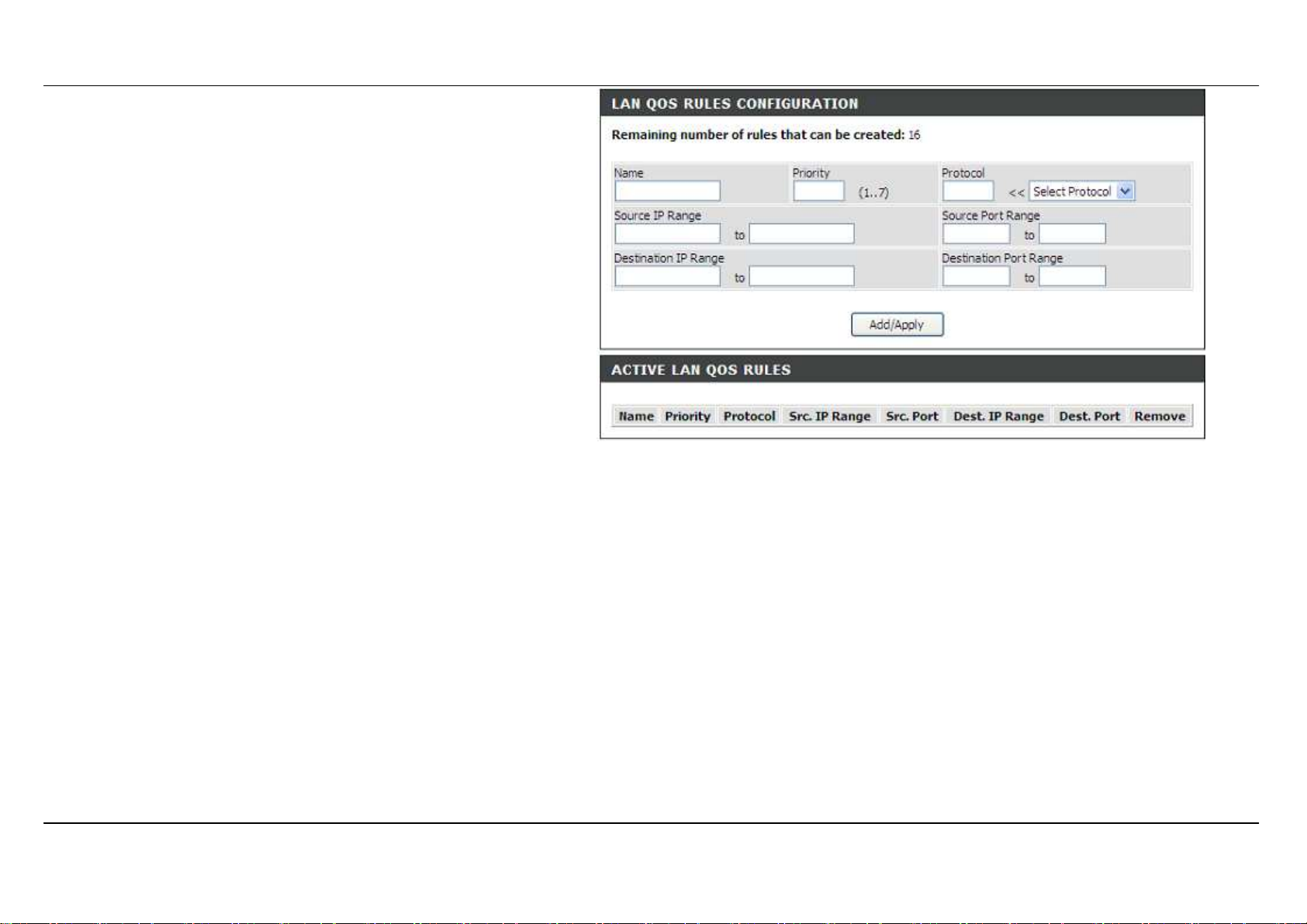

QOS SETUP..........................................................................51

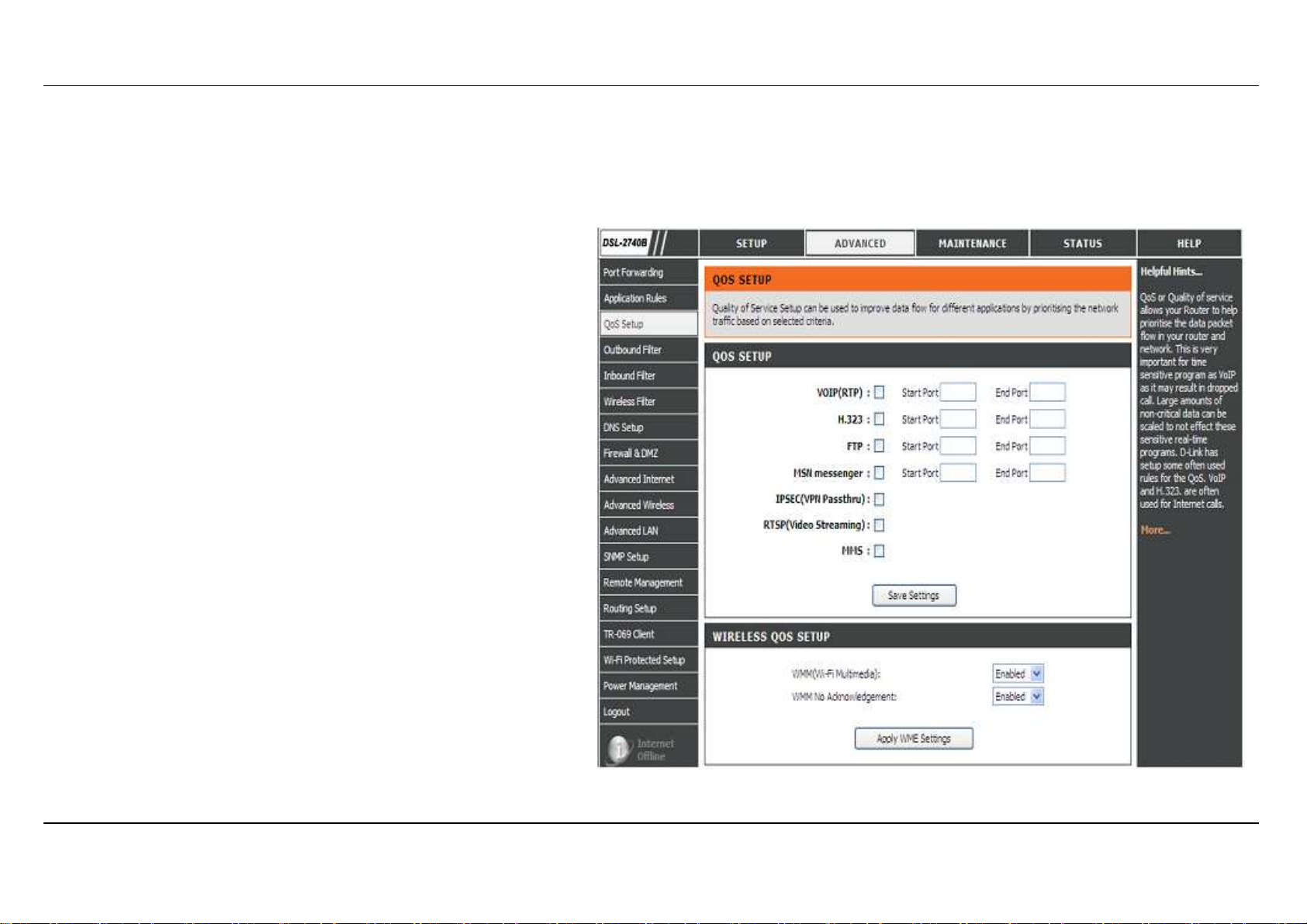

Quality of Service Setup can be used to improve data flow for different applications by prioritizing the network traffic based on

selected criteria......................................................................51

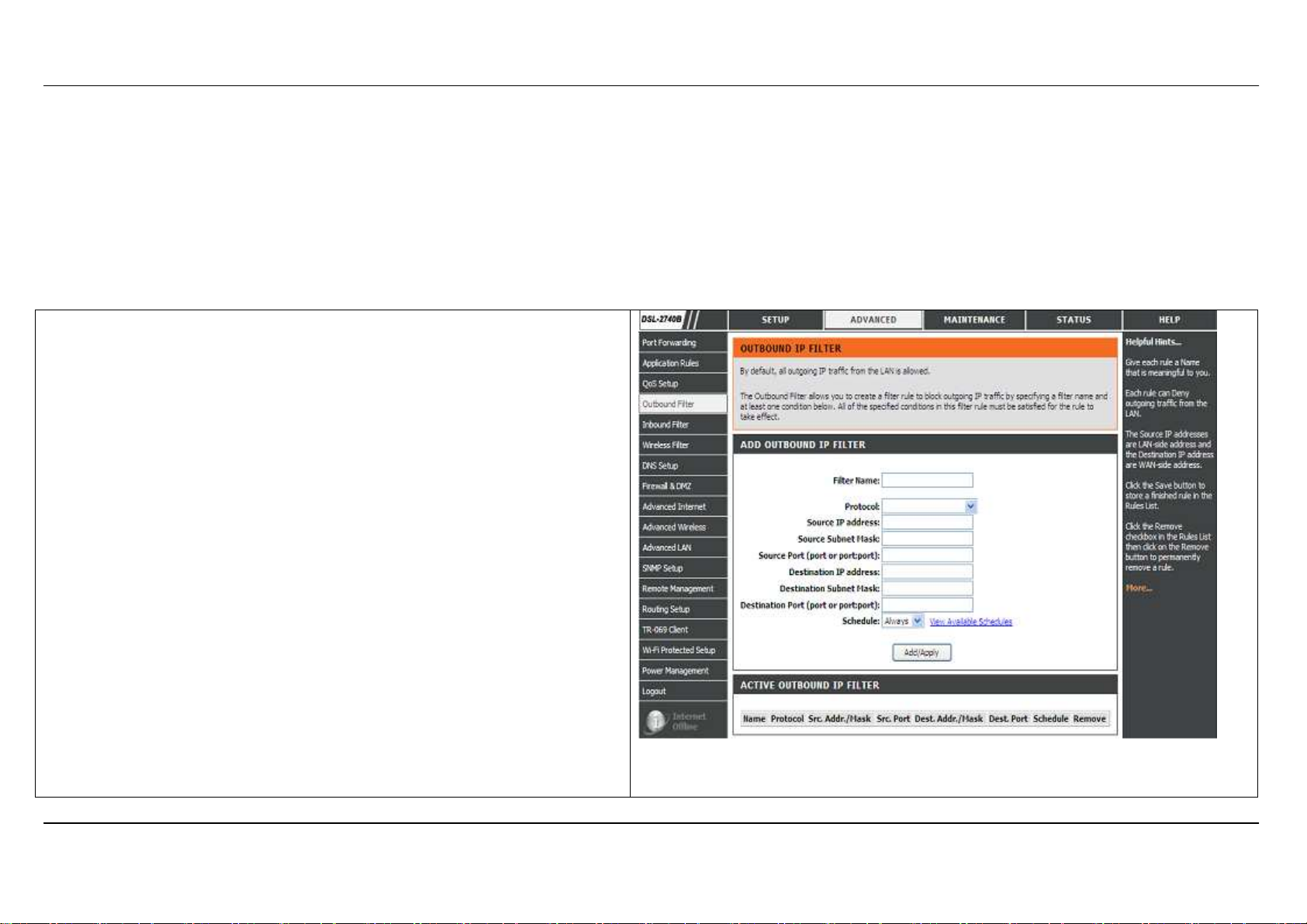

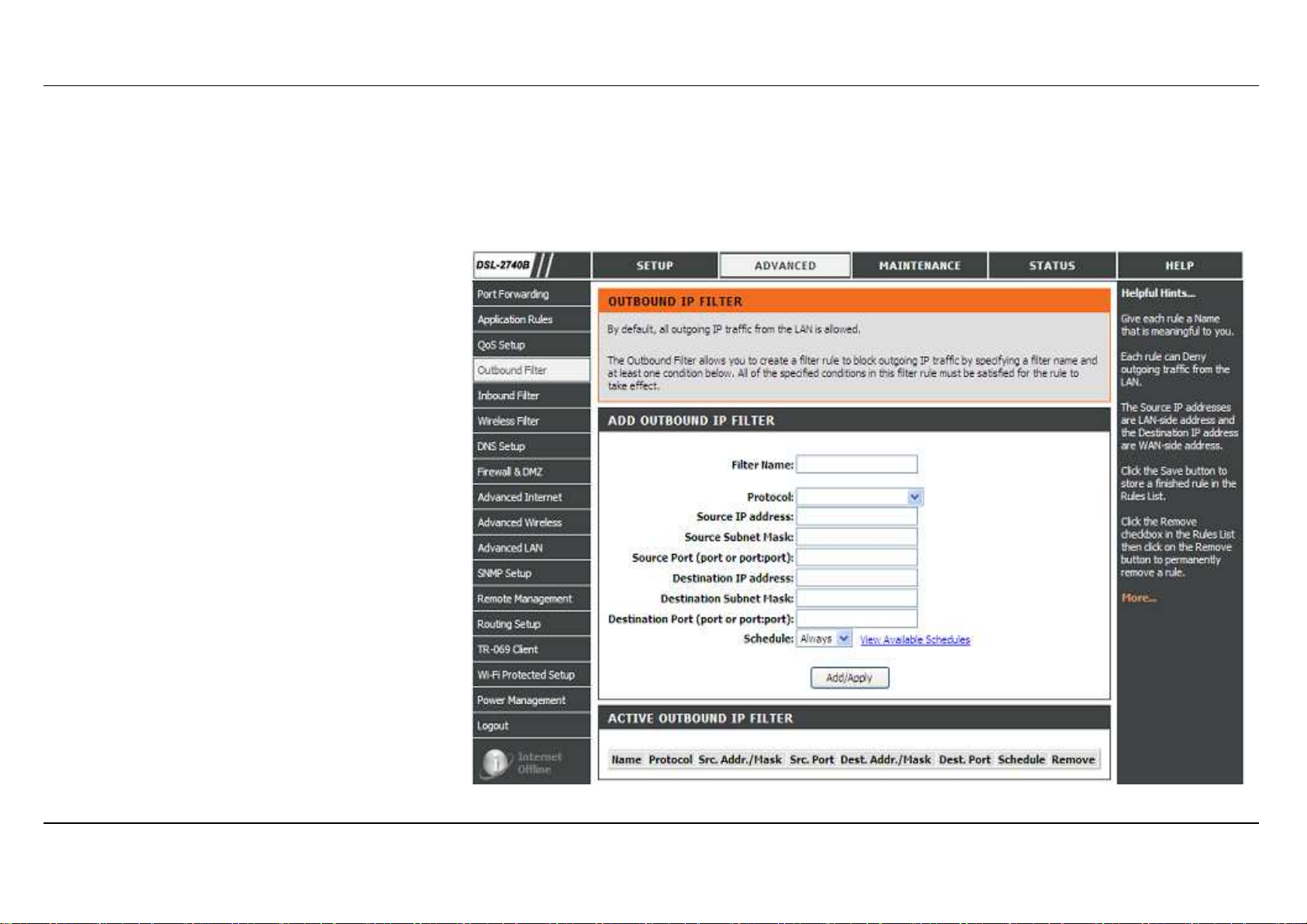

OUTBOUND FILTER..............................................................54

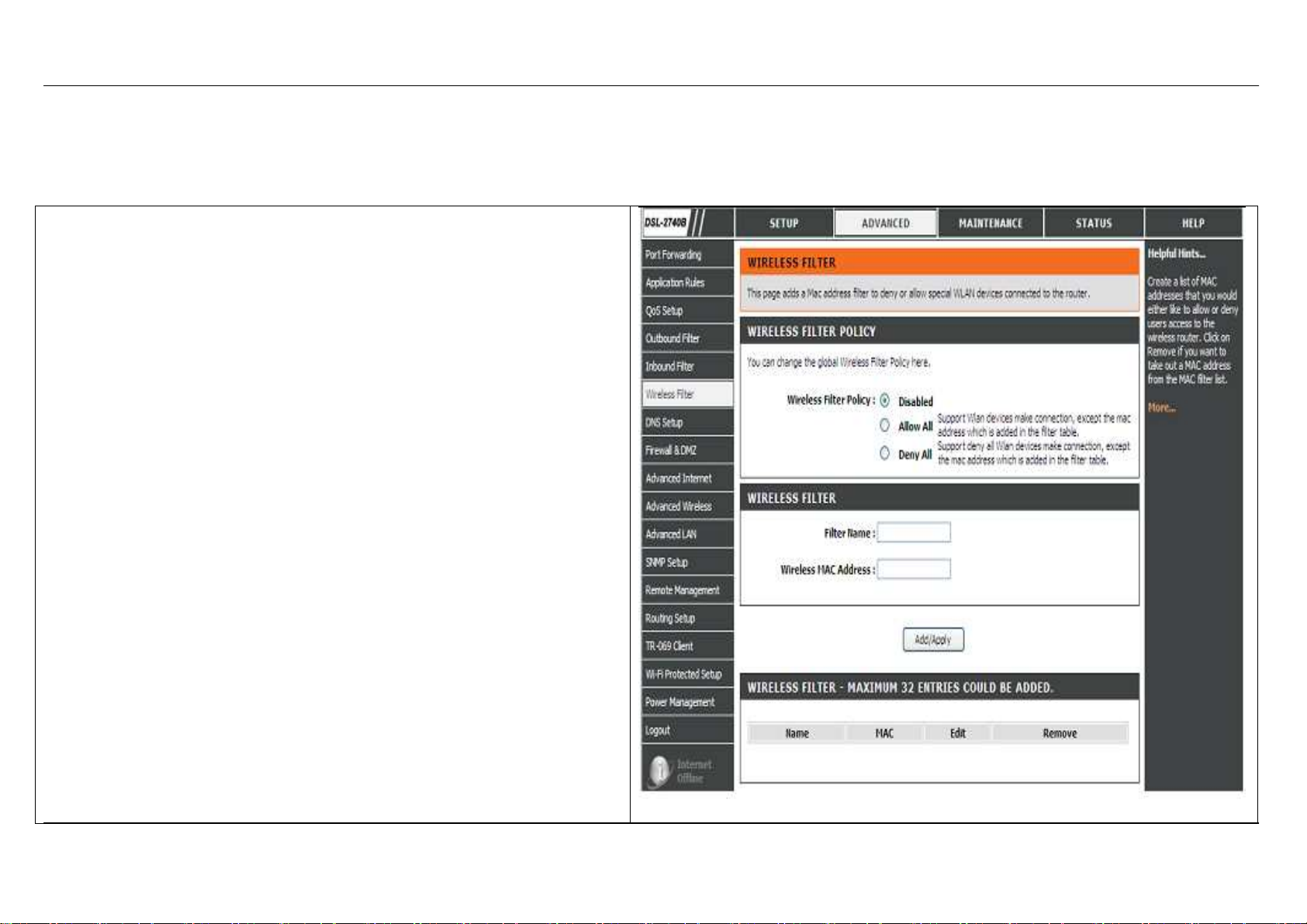

WIRELESS FILTER ...............................................................56

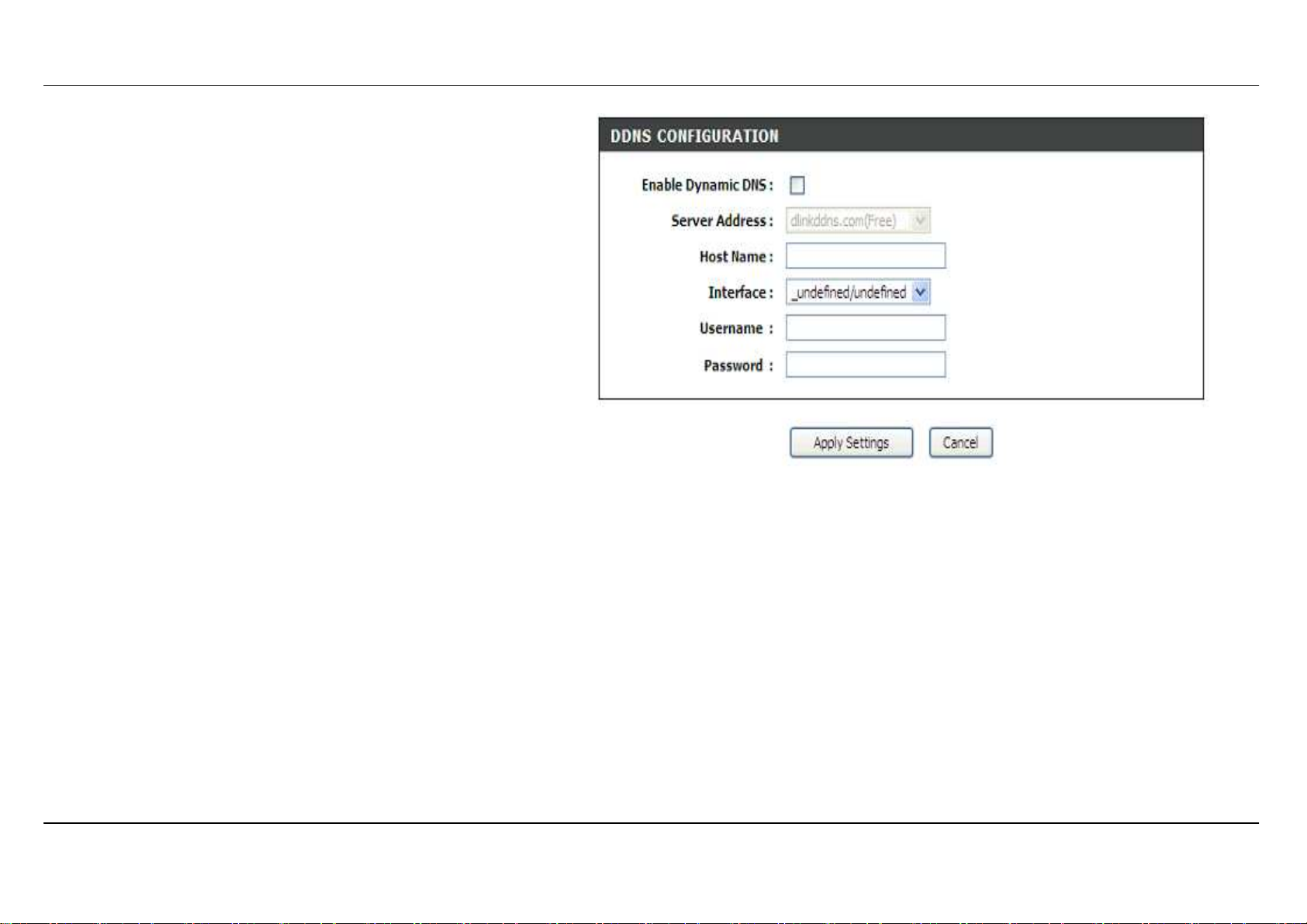

DNS SETUP...........................................................................57

.....................................................................................................4

................................................................................................5

..............................................................................................................6

.................................................................................................8

...................................................................................................10

.................................................................................................11

ADSL

SERVICE PROVIDER

DSL-2740B..................................................15

.............................................................17

................................................................................................18

....................................................................................................18

...........................................................................................19

................................................................21

....................13

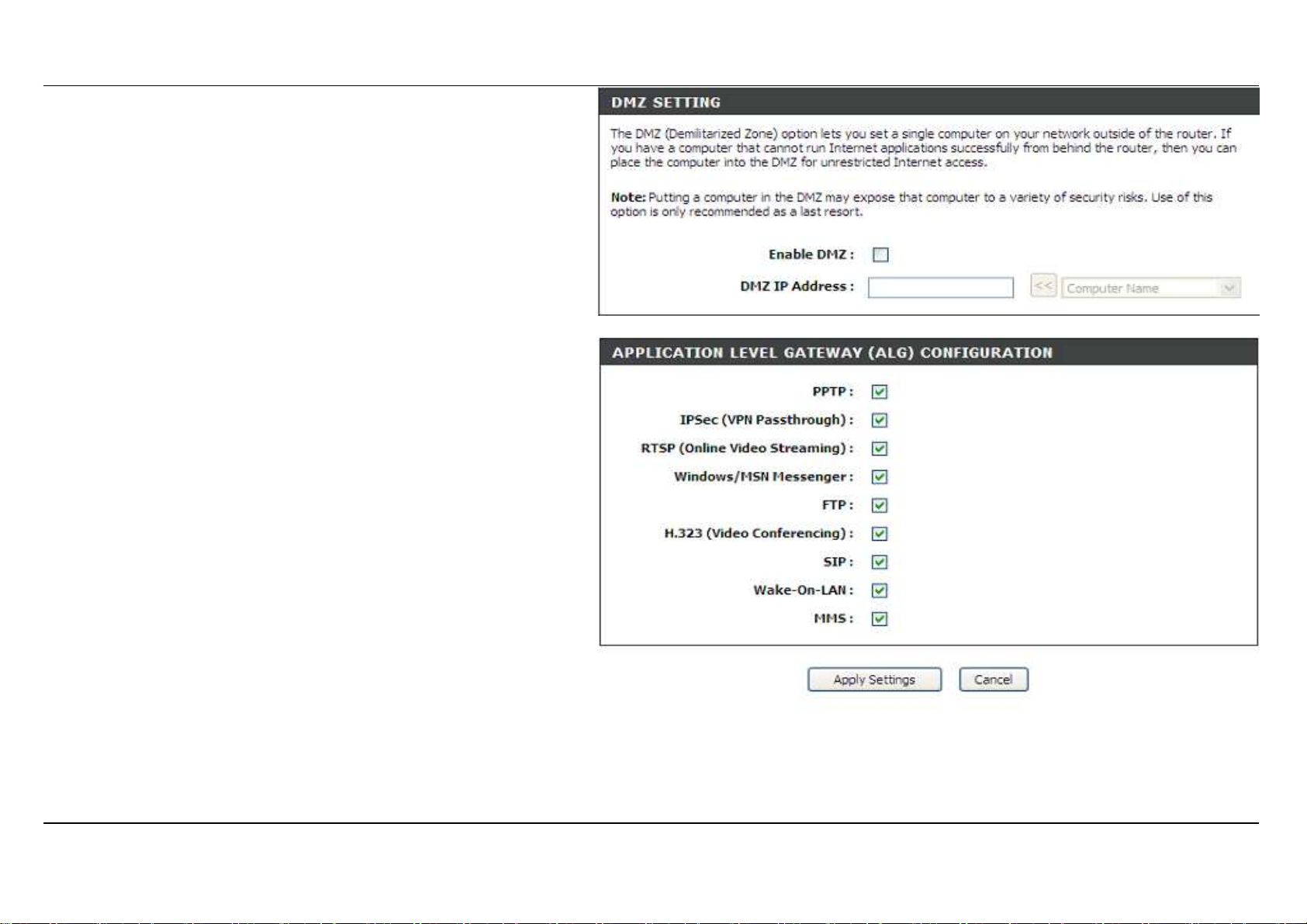

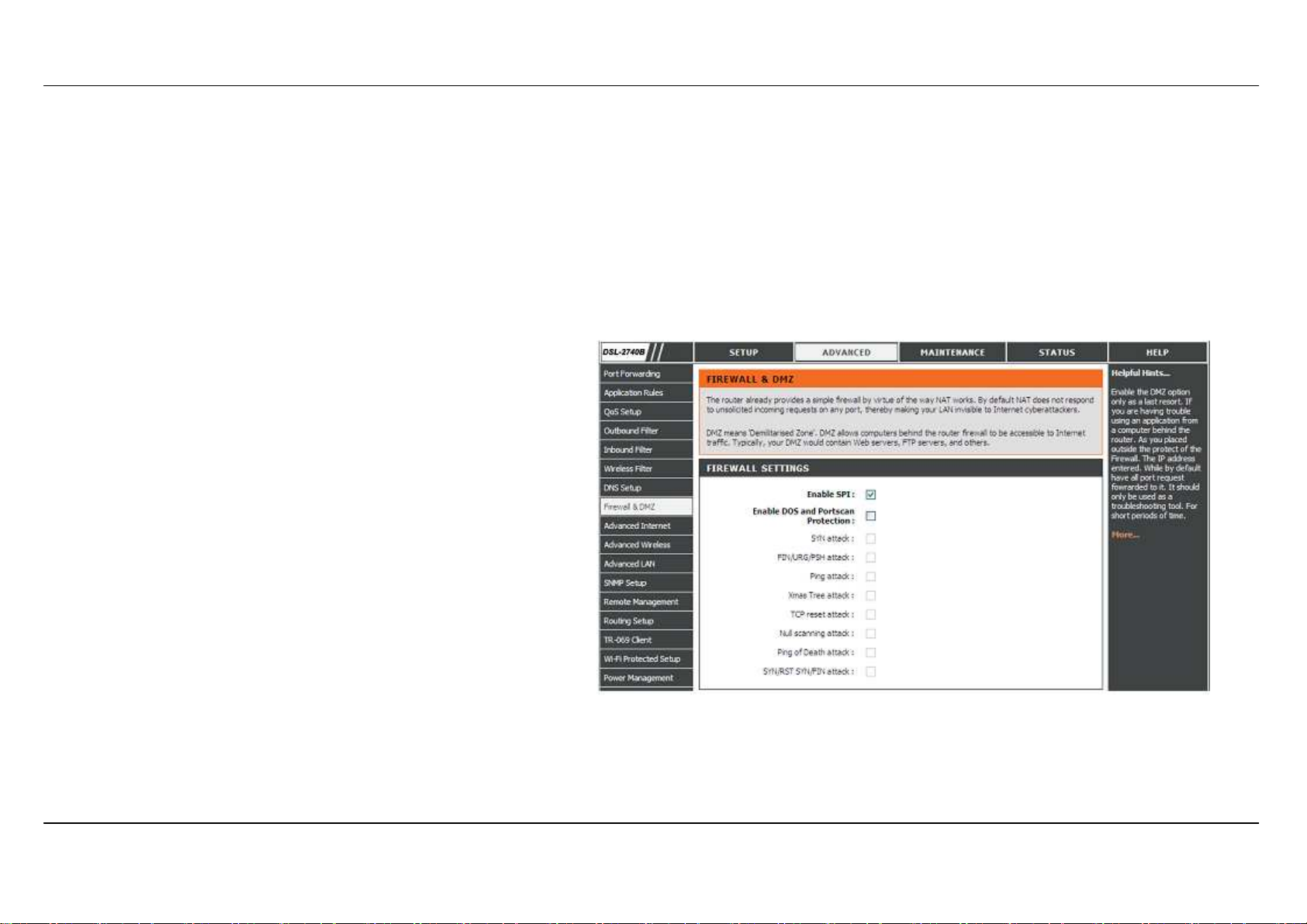

FIREWALL & DMZ ................................................................59

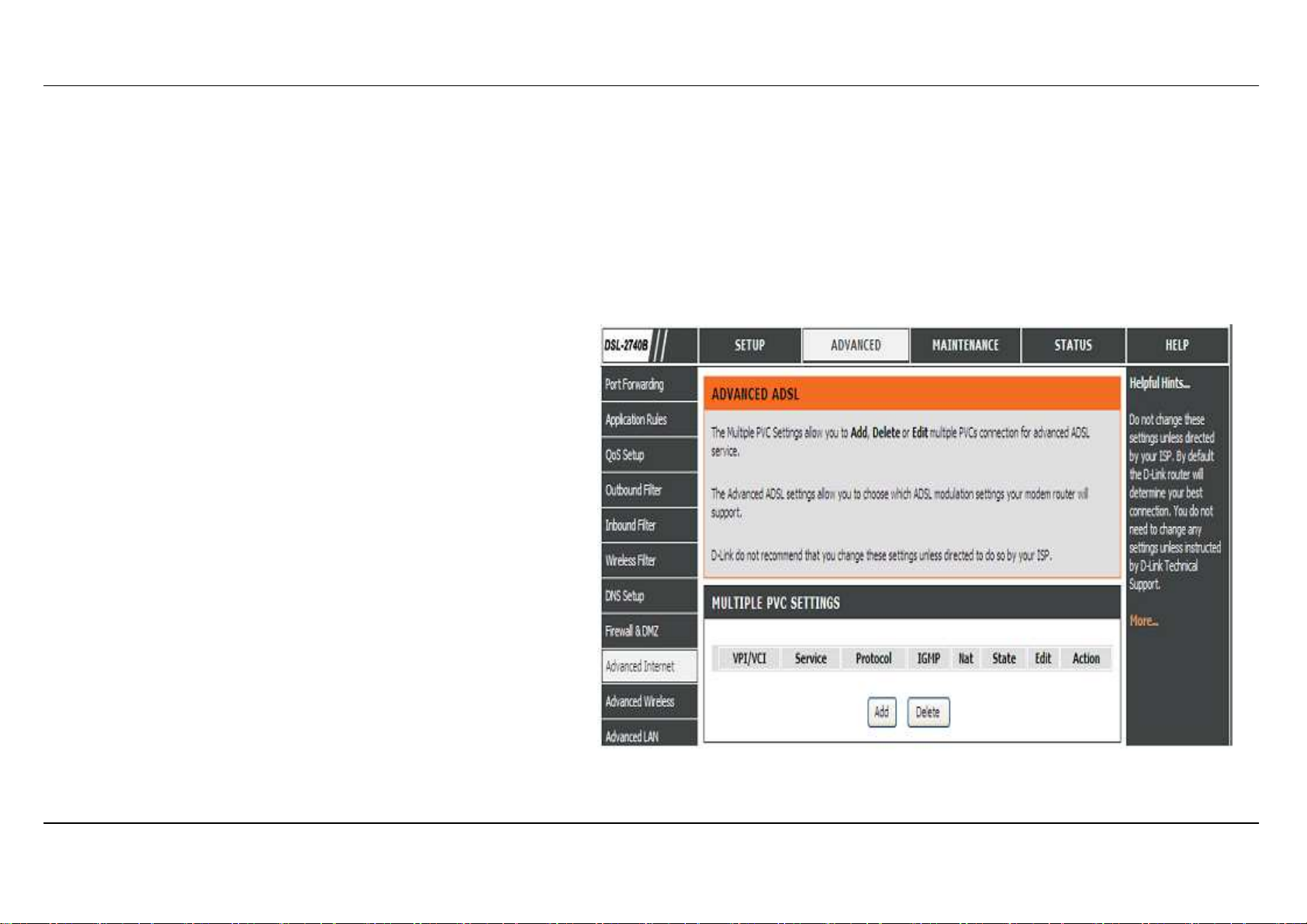

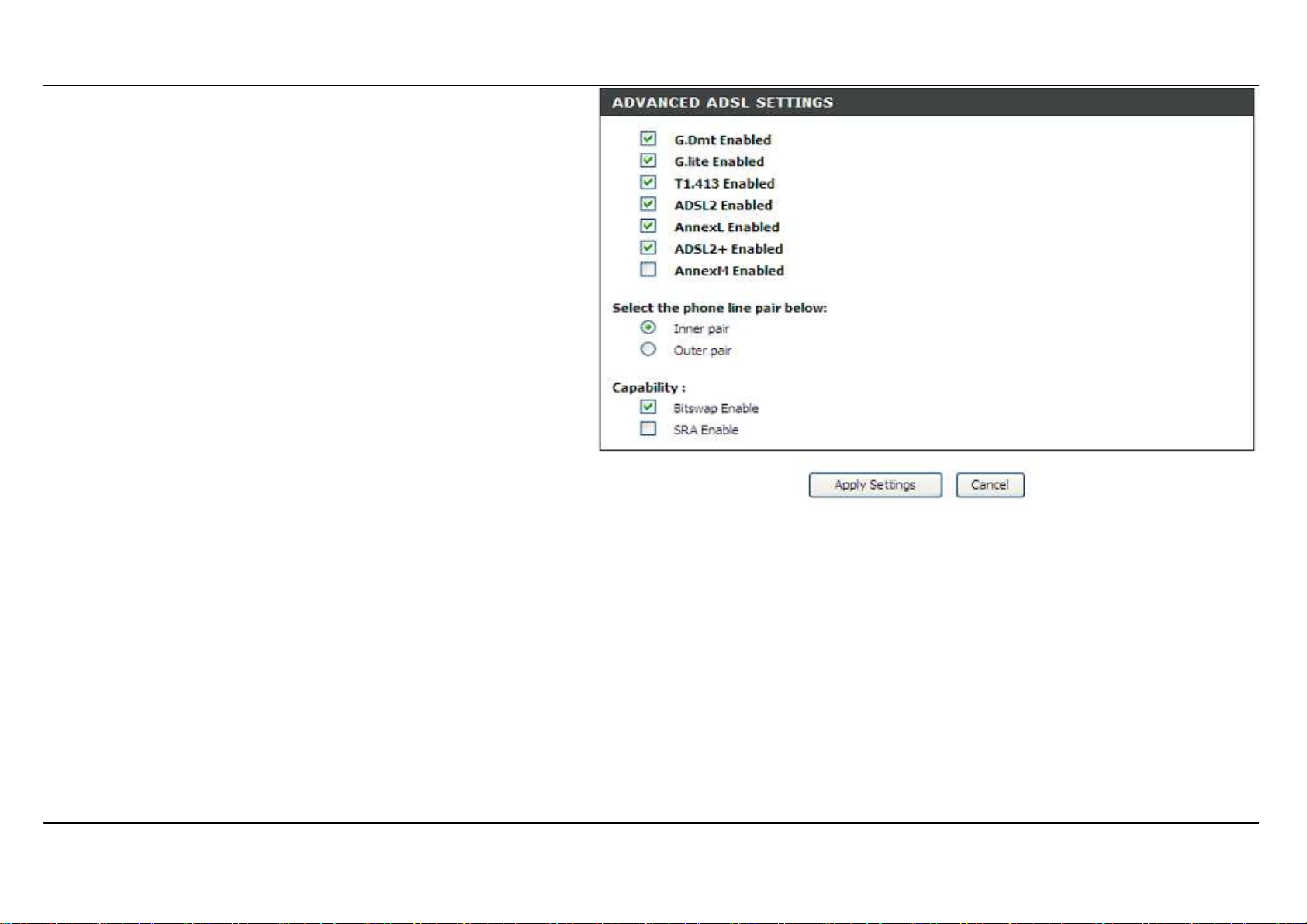

ADVANCED INTERNET........................................................61

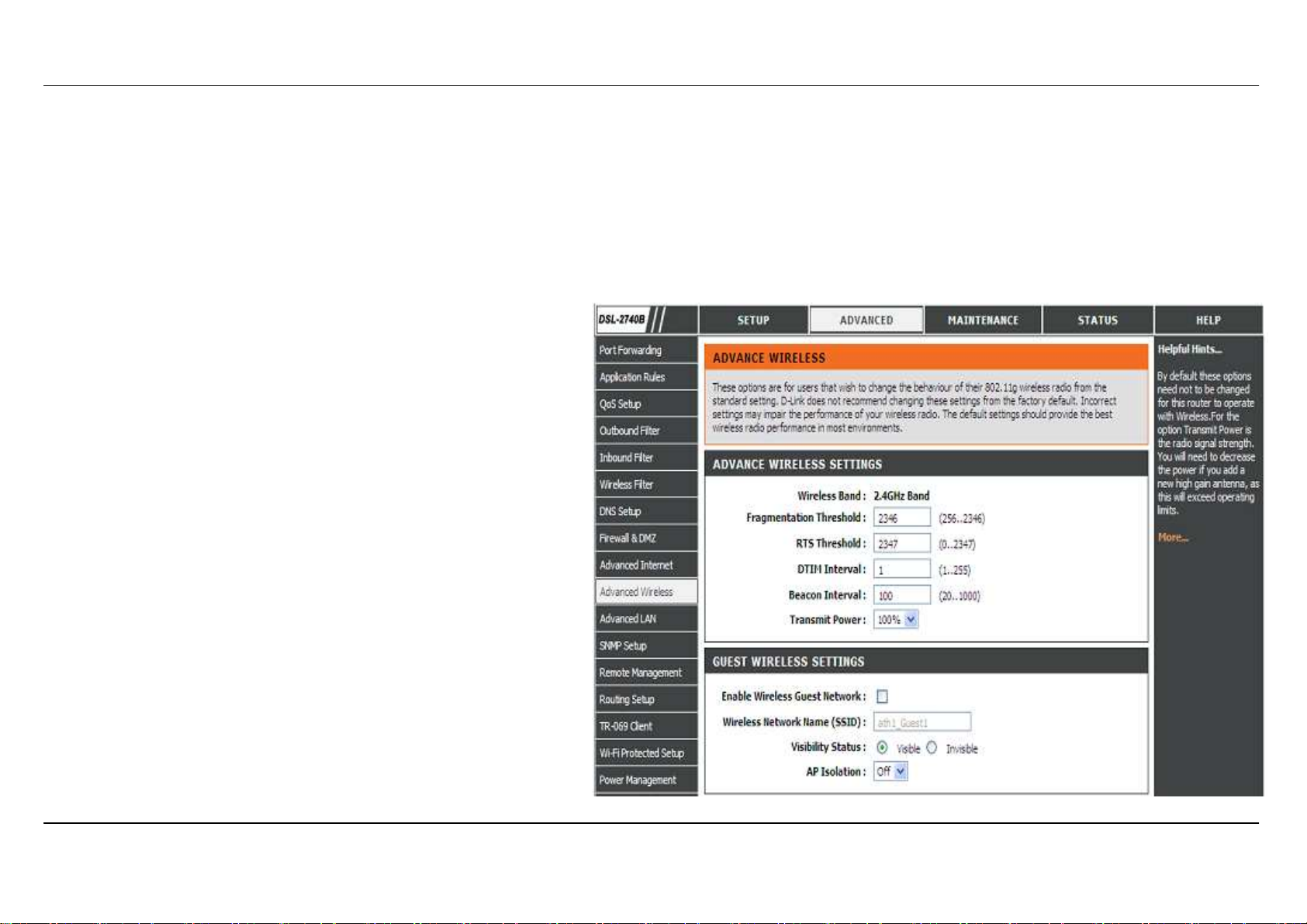

ADVANCED WIRELESS .......................................................63

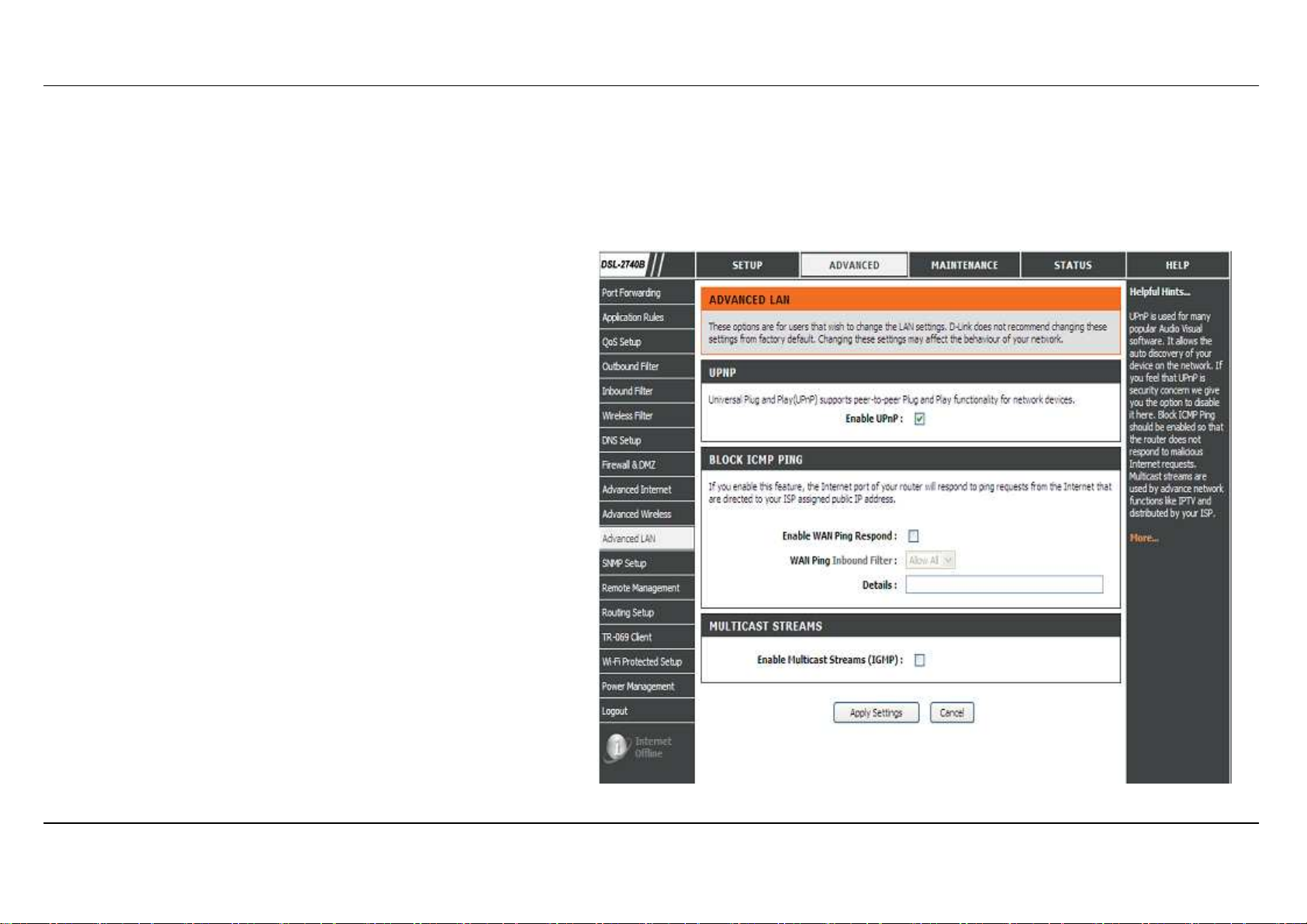

ADVANCED LAN...................................................................65

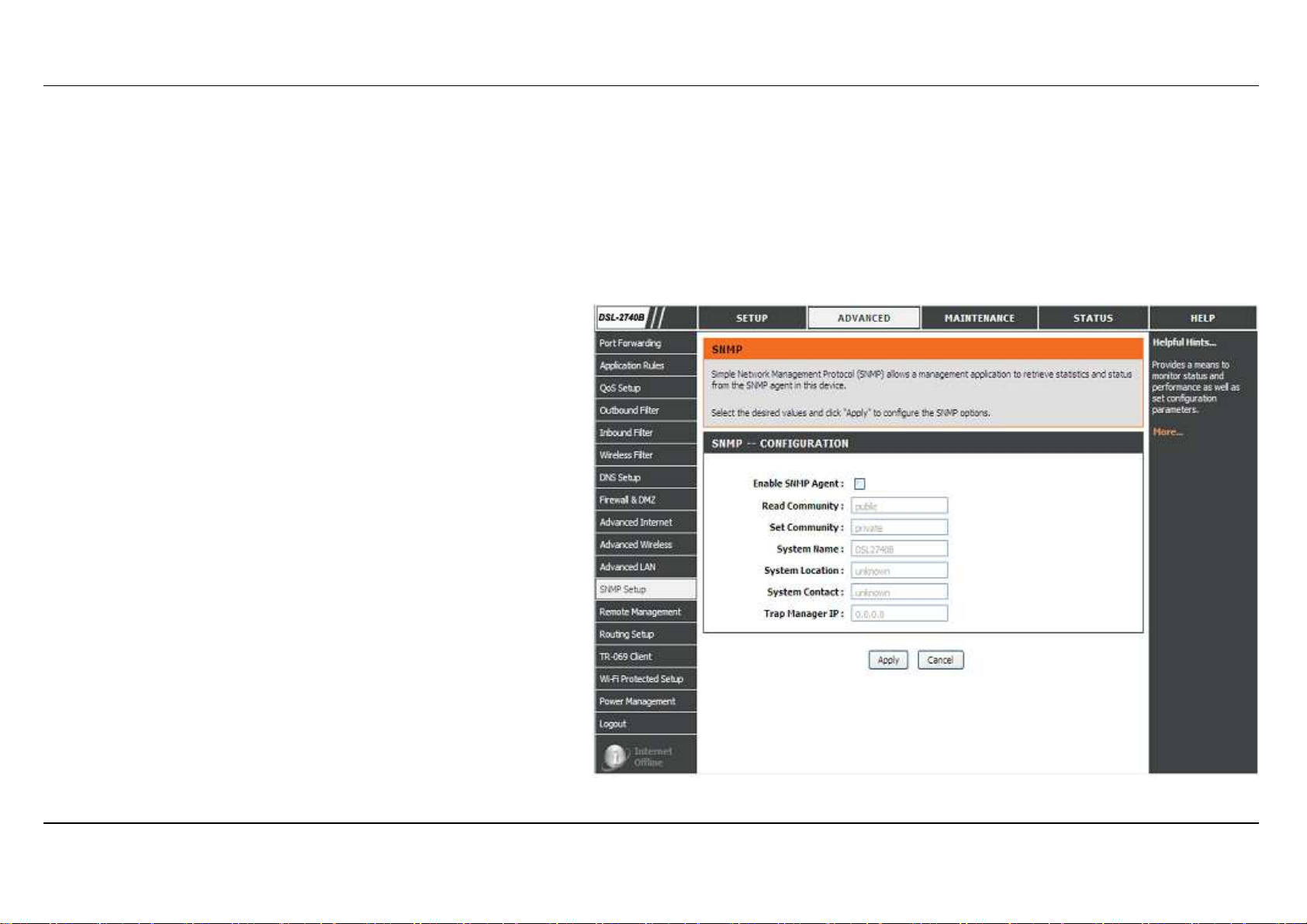

SNMP SETUP.......................................................................66

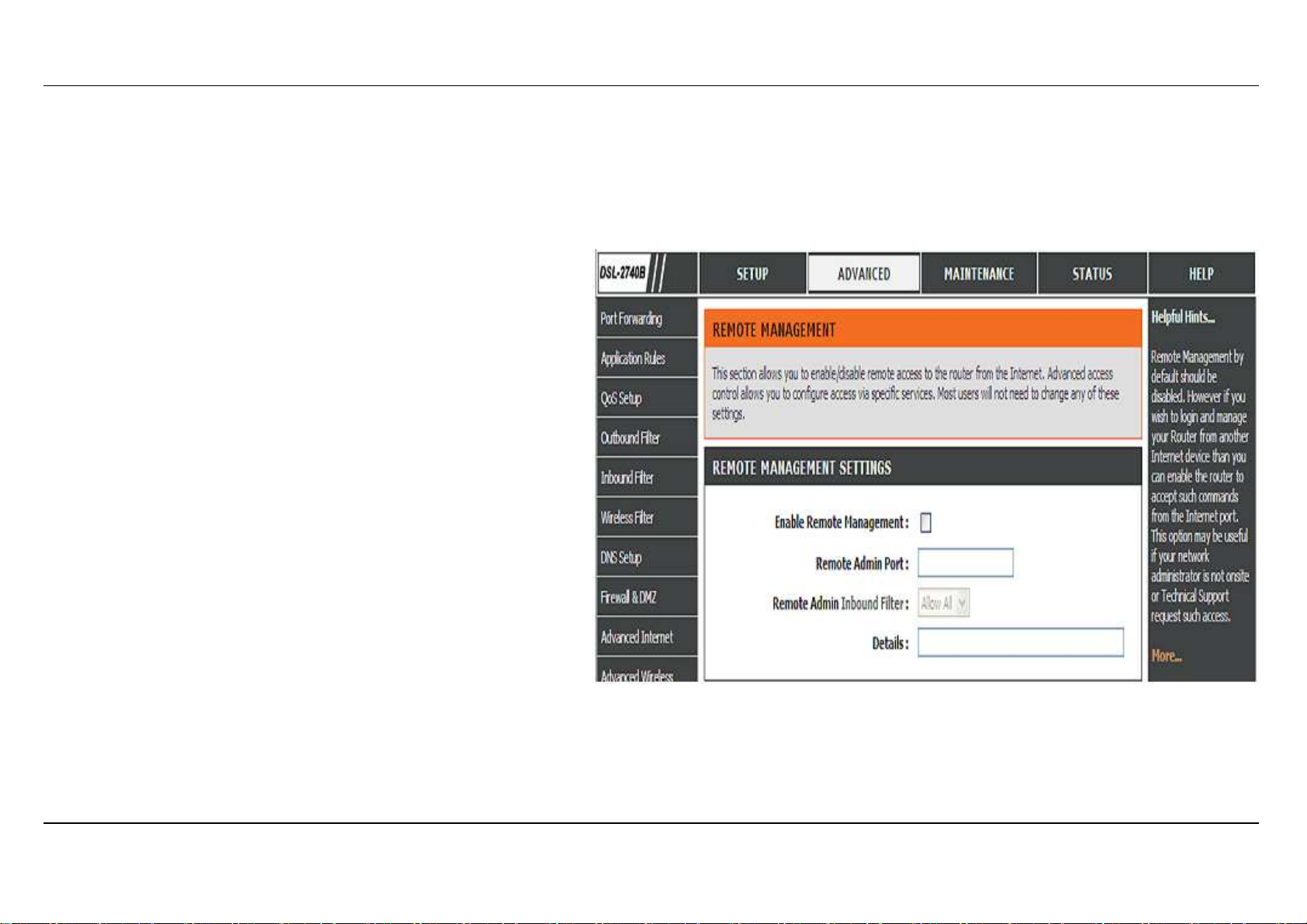

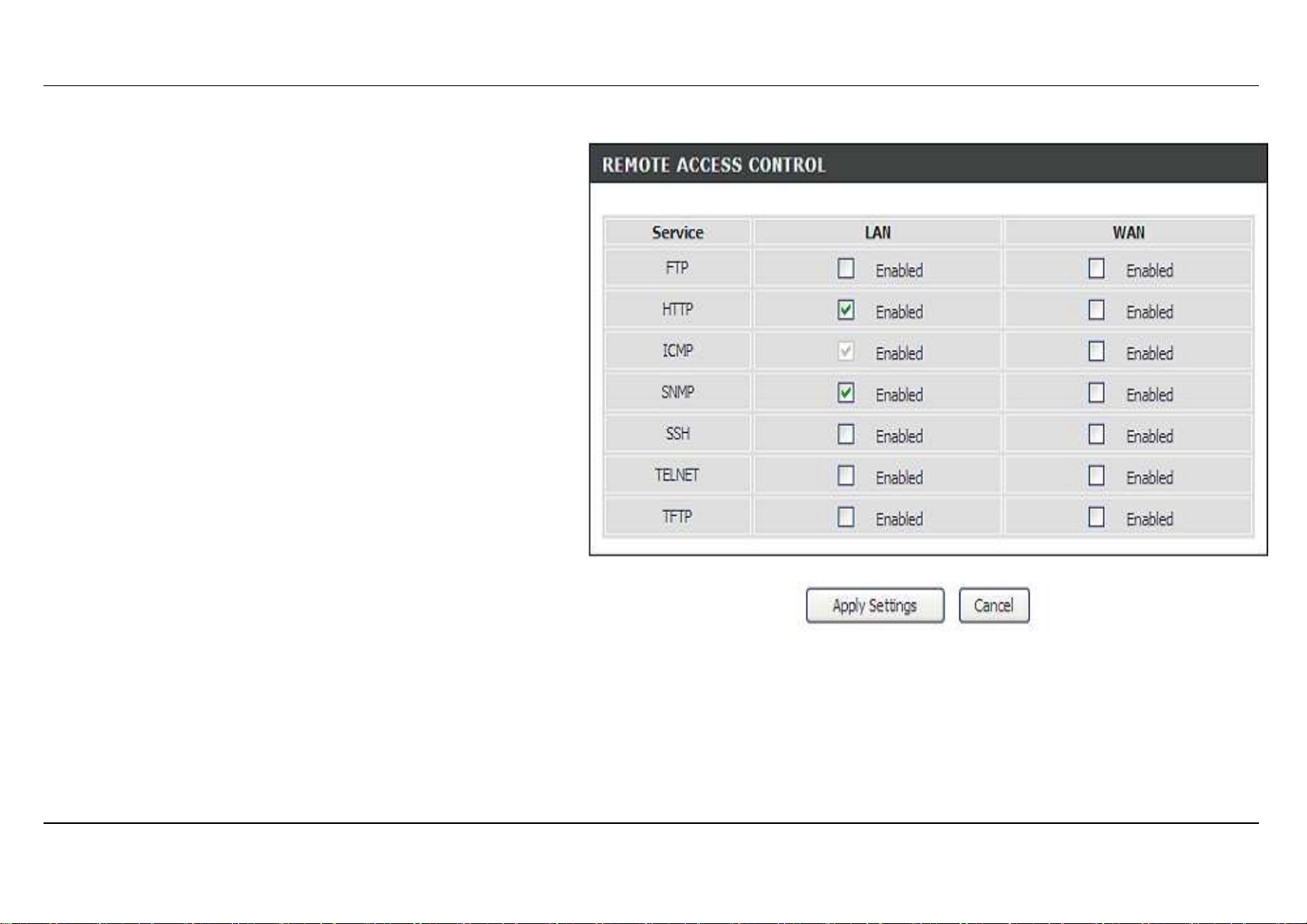

REMOTE MANAGEMENT.....................................................67

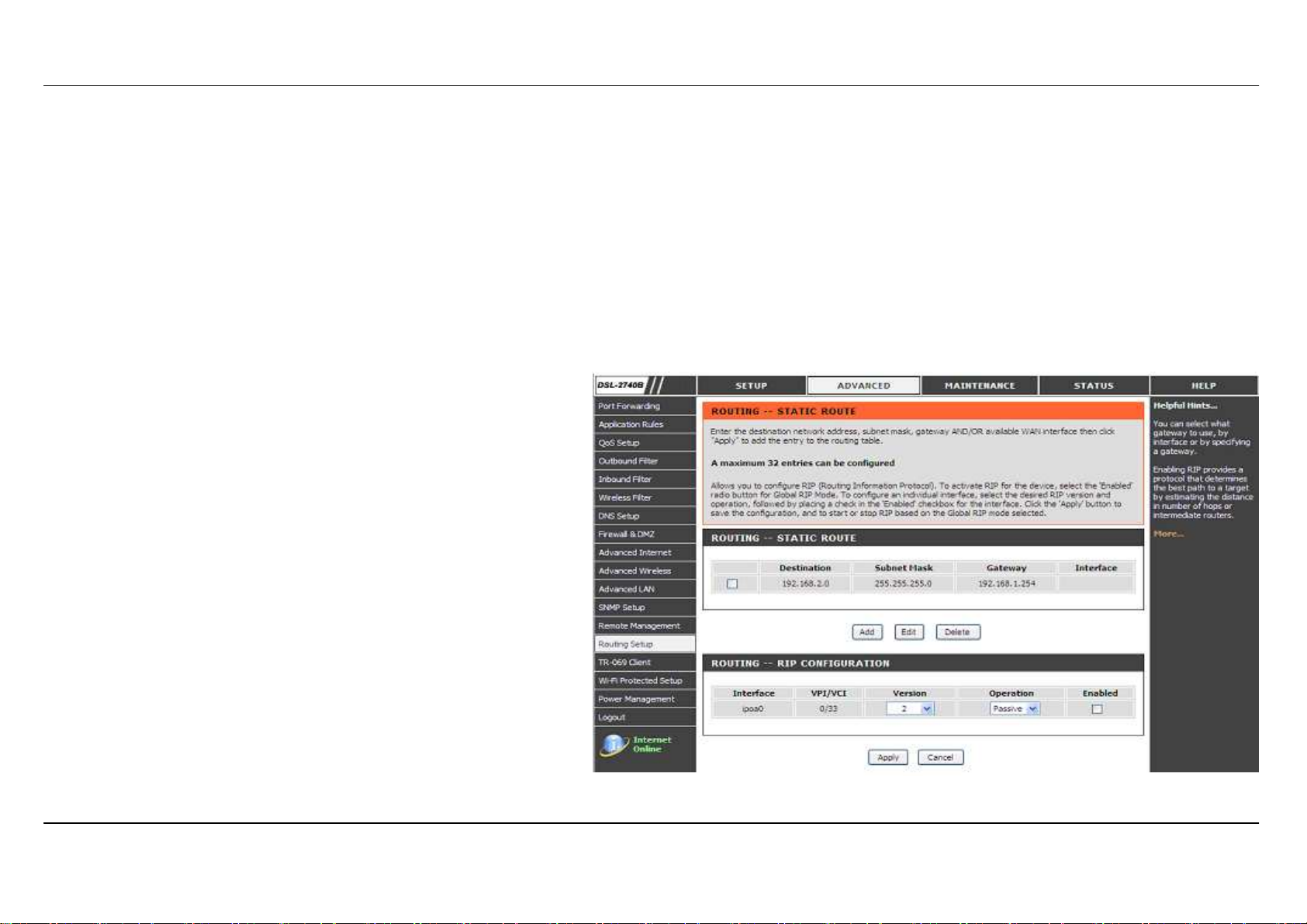

ROUTING SETUP.................................................................69

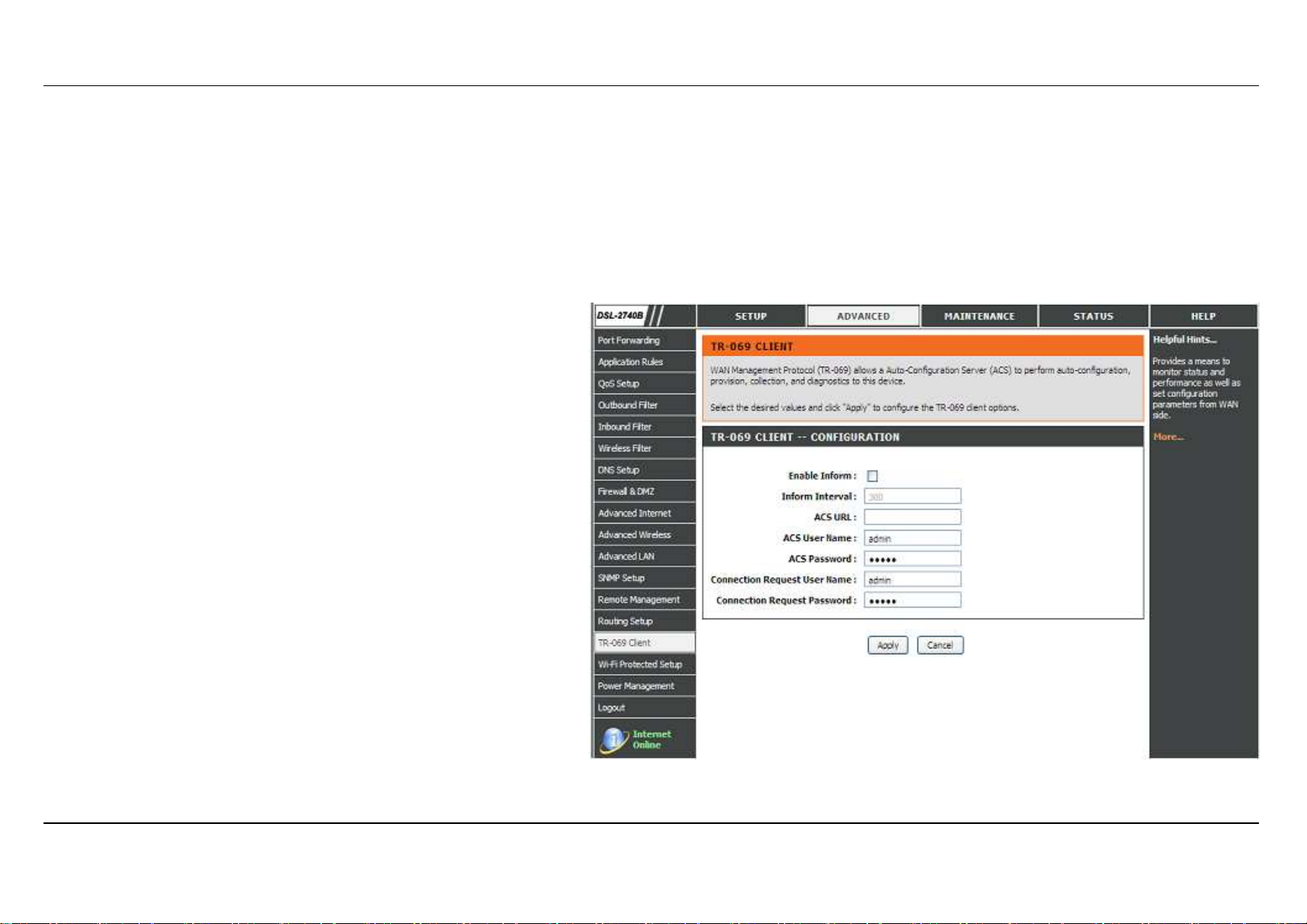

TR-069 ..................................................................................70

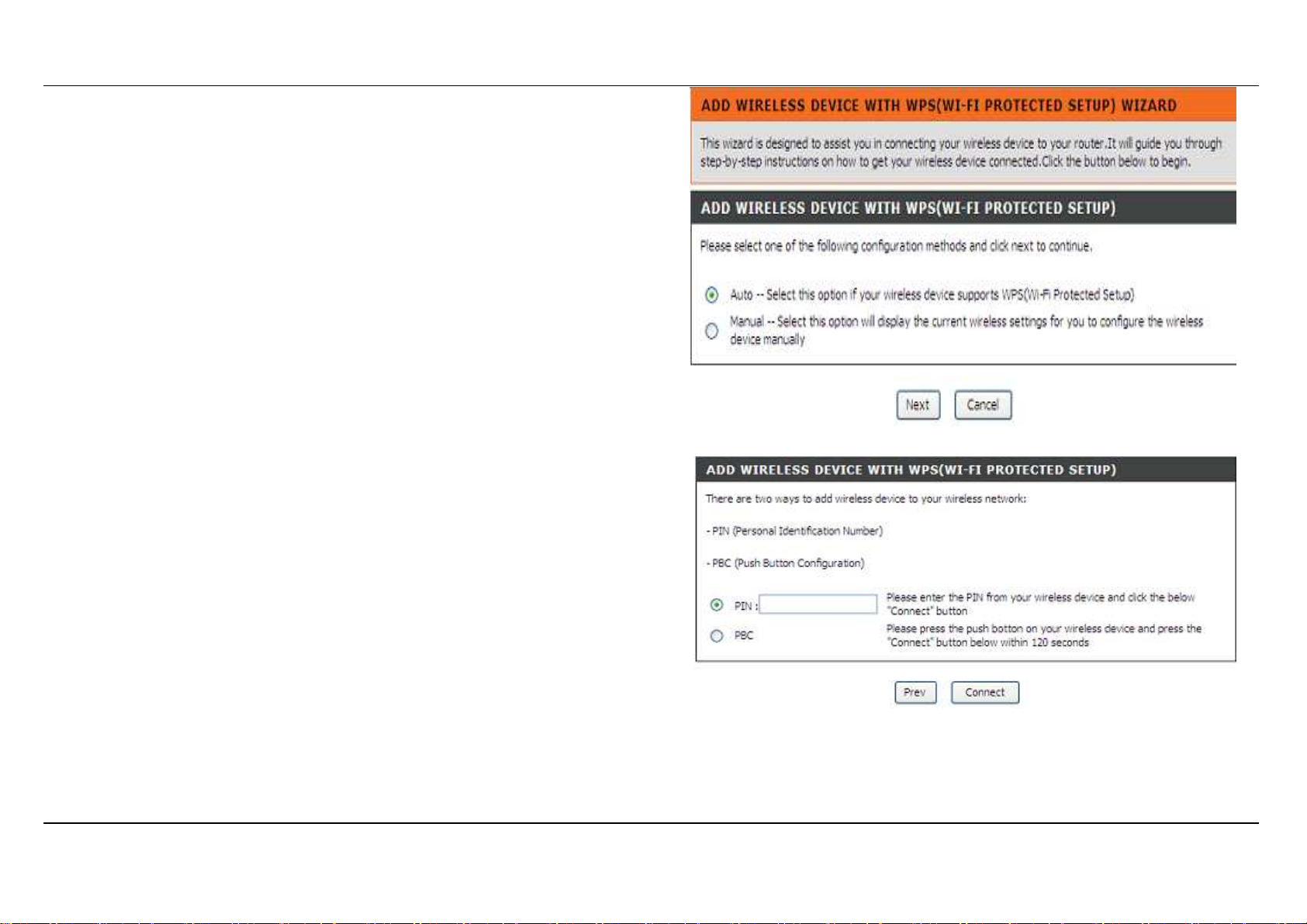

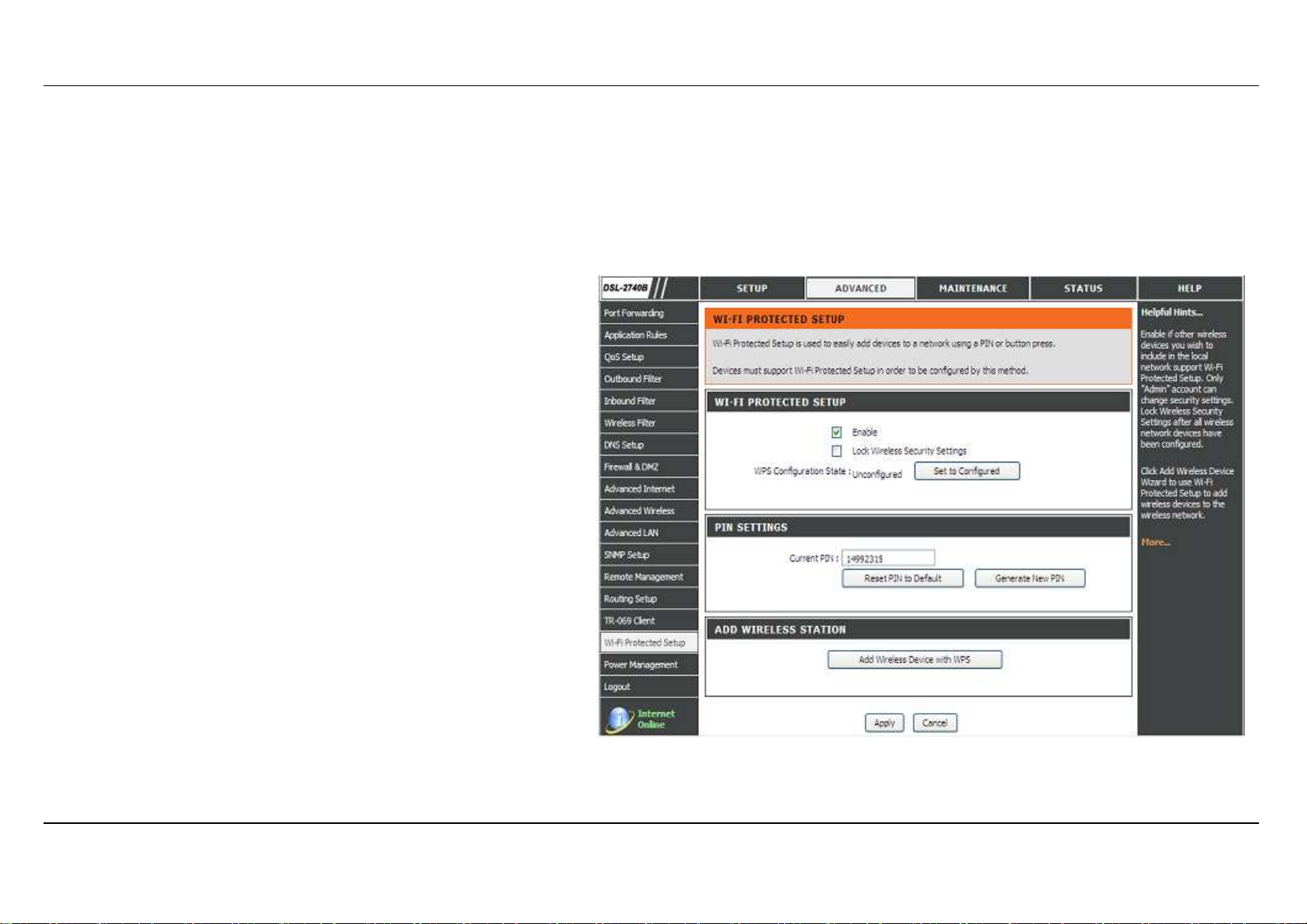

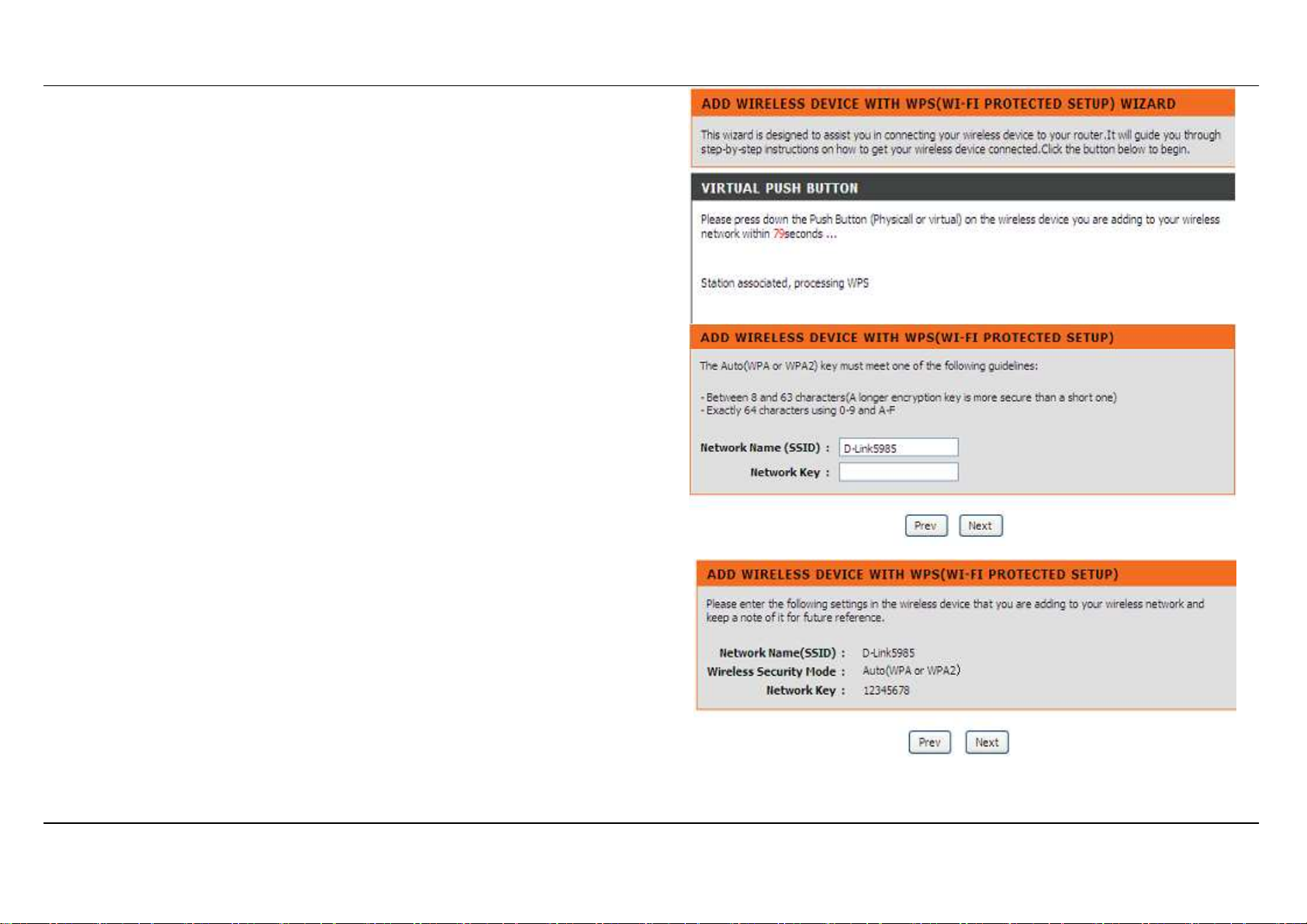

WIFI PROTECTED SETUP...................................................71

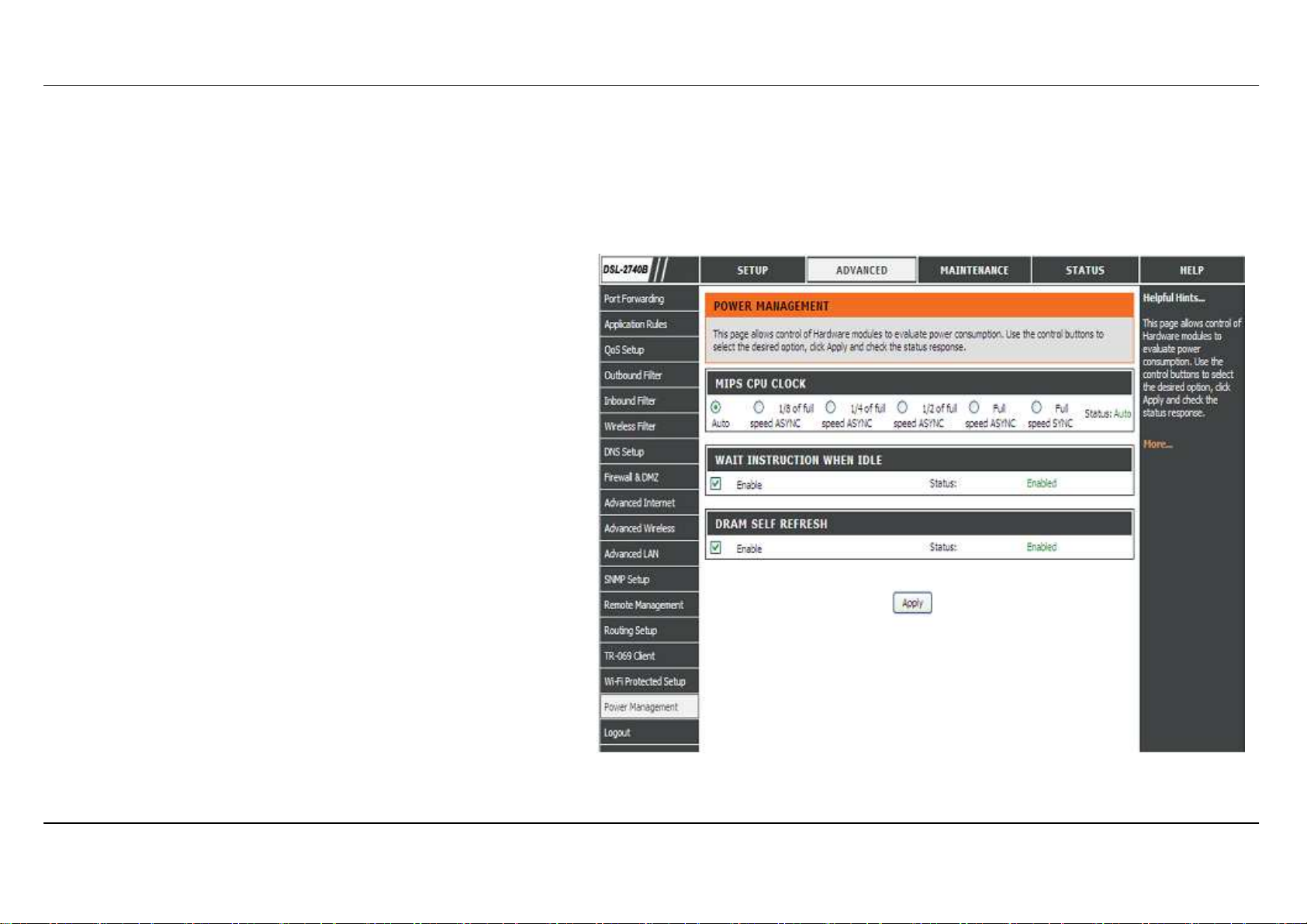

POWER MANAGEMENT......................................................72

MAINTENANCE .......................................................................................................73

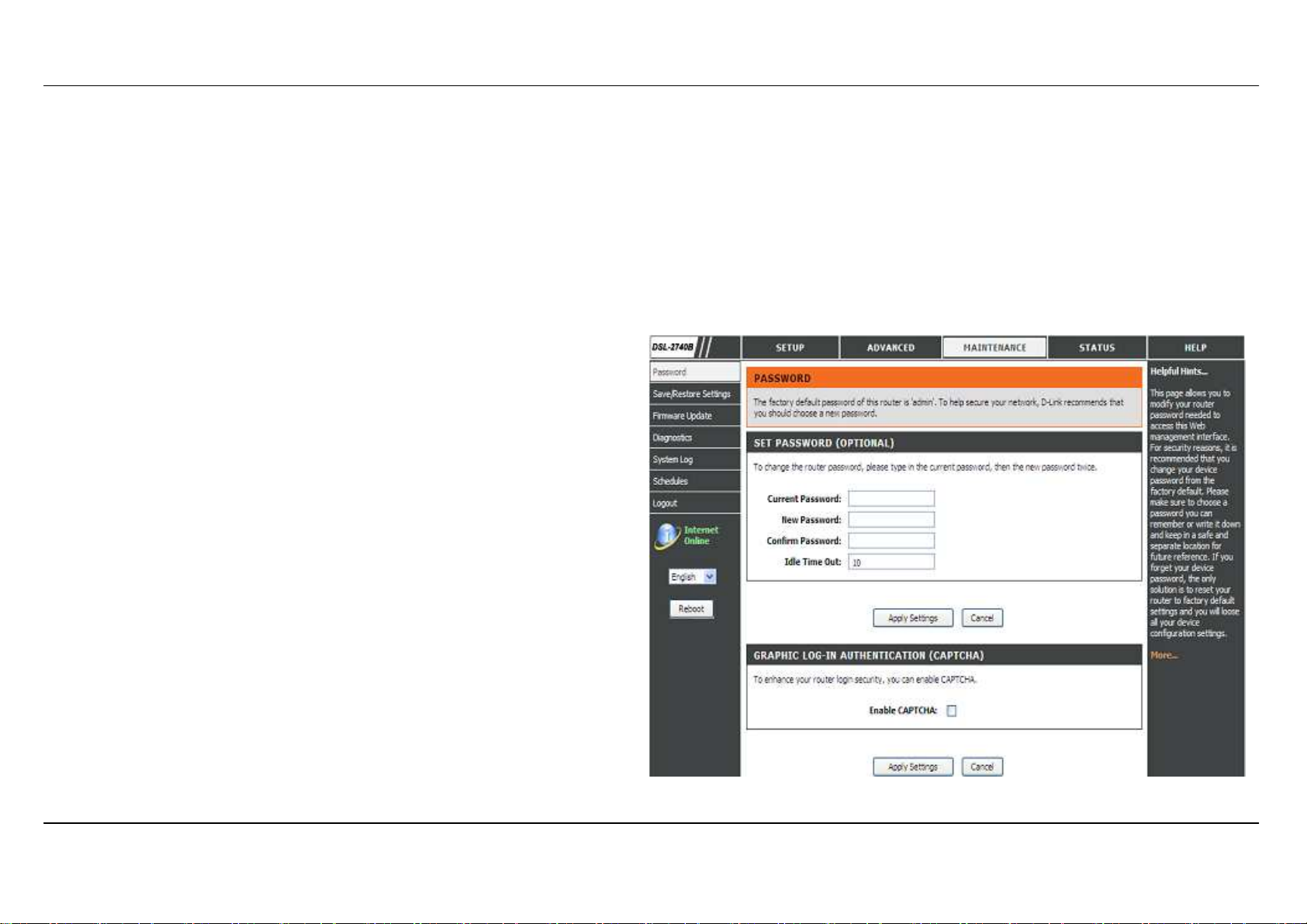

PASSWORD..........................................................................73

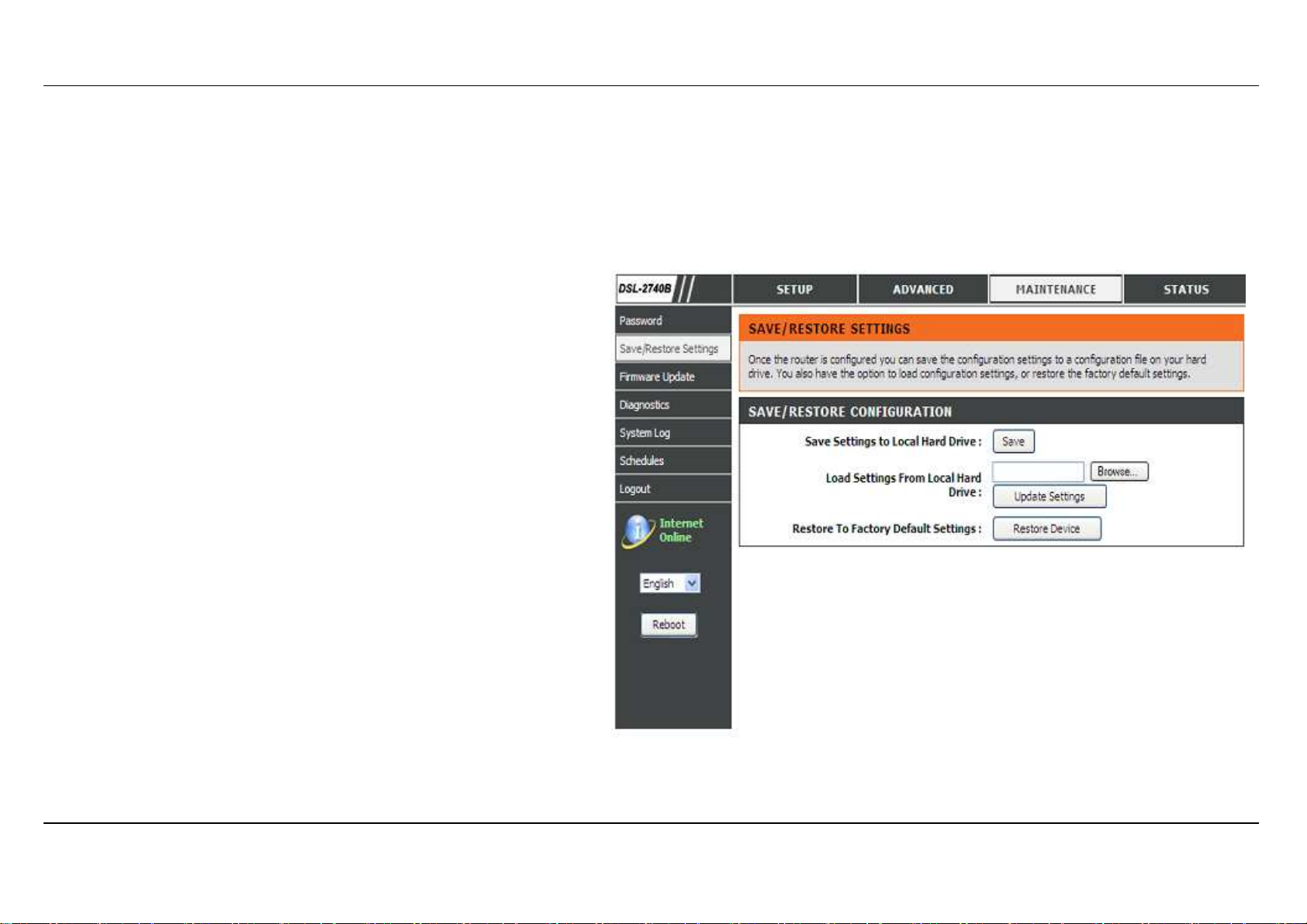

SAVE/RESTORE SETTINGS................................................74

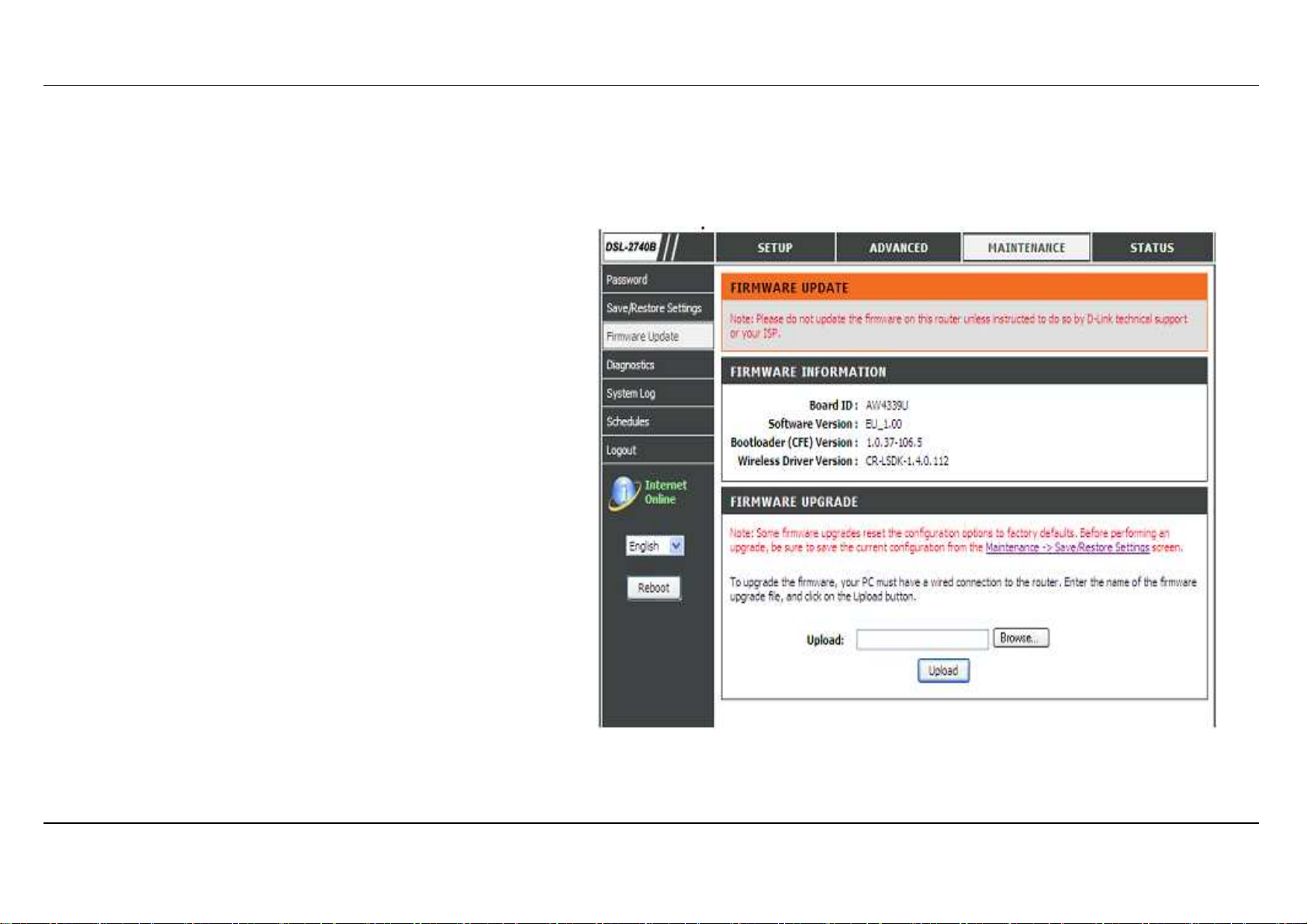

FIRMWARE UPDATE............................................................75

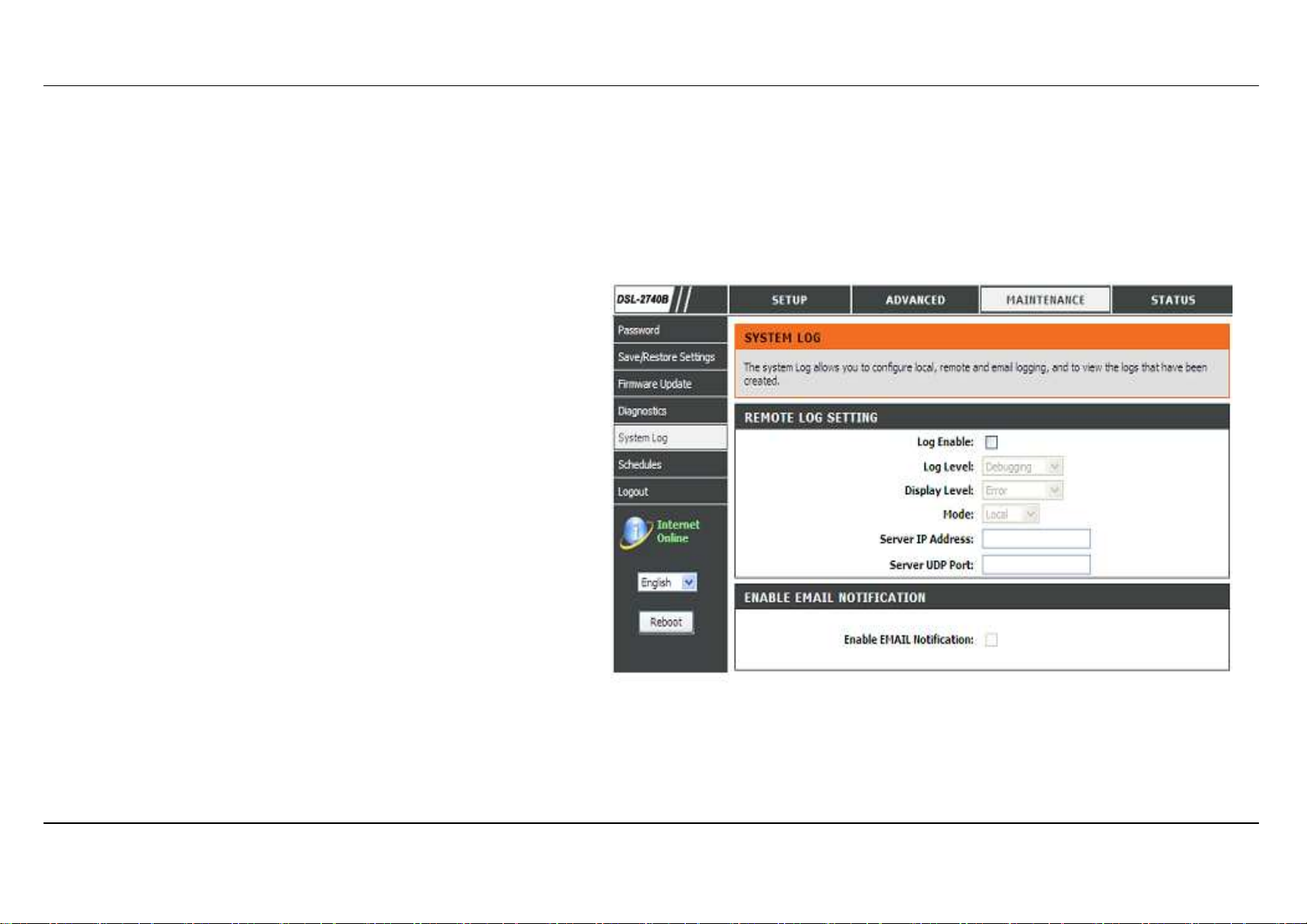

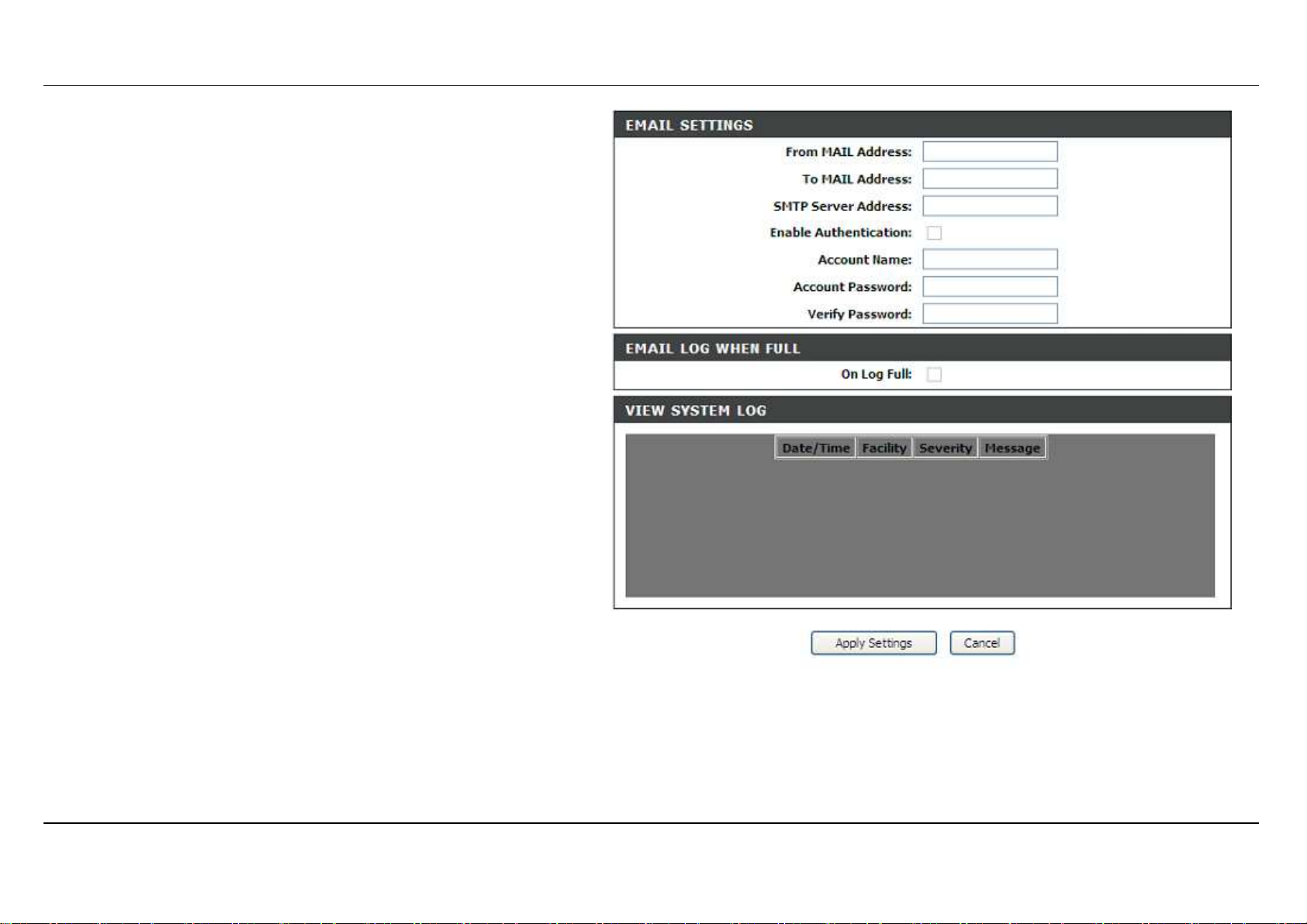

SYSTEM LOG.......................................................................77

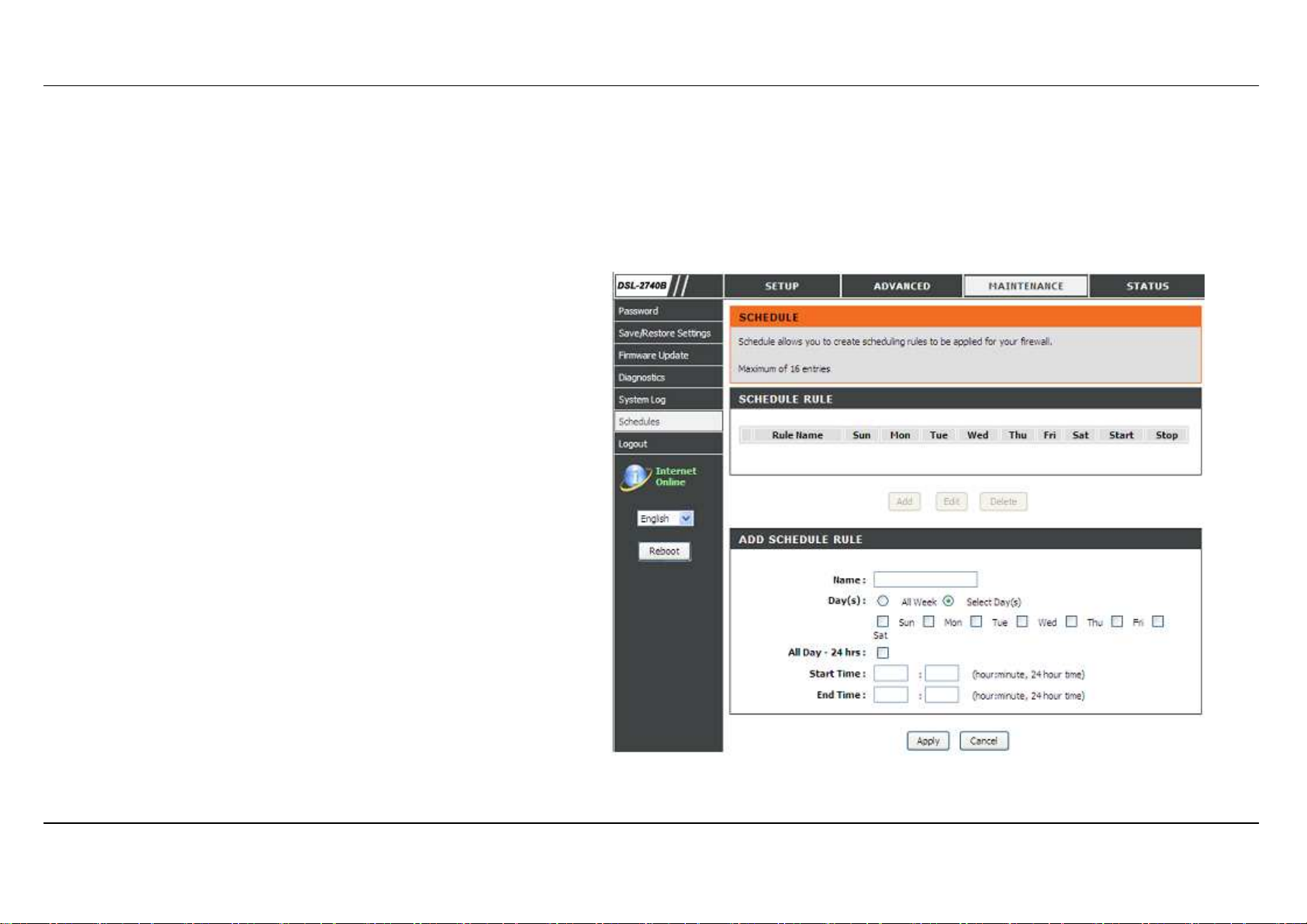

SCHEDULE................................................................................................................79

STATUS...................................................................................................................... 80

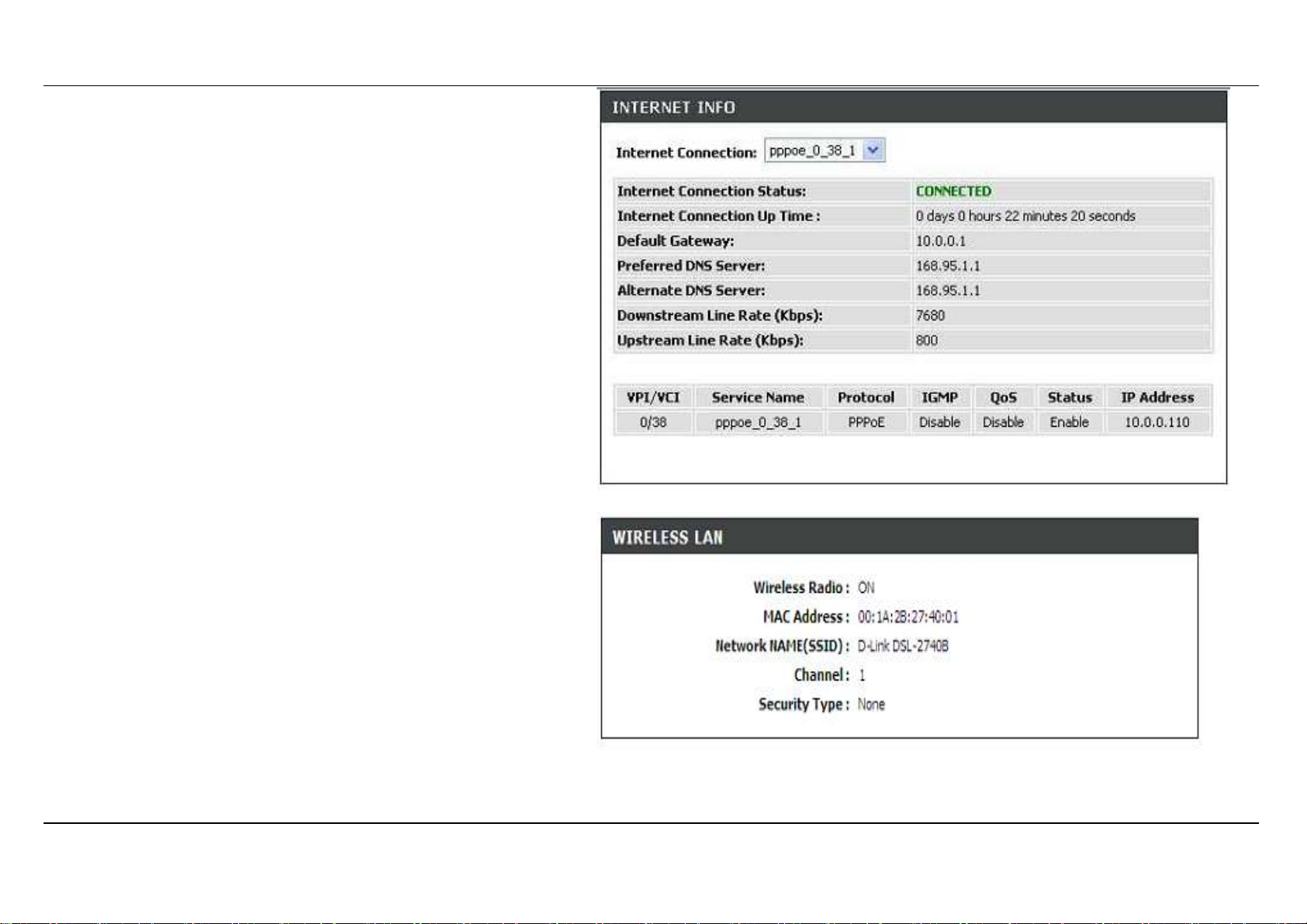

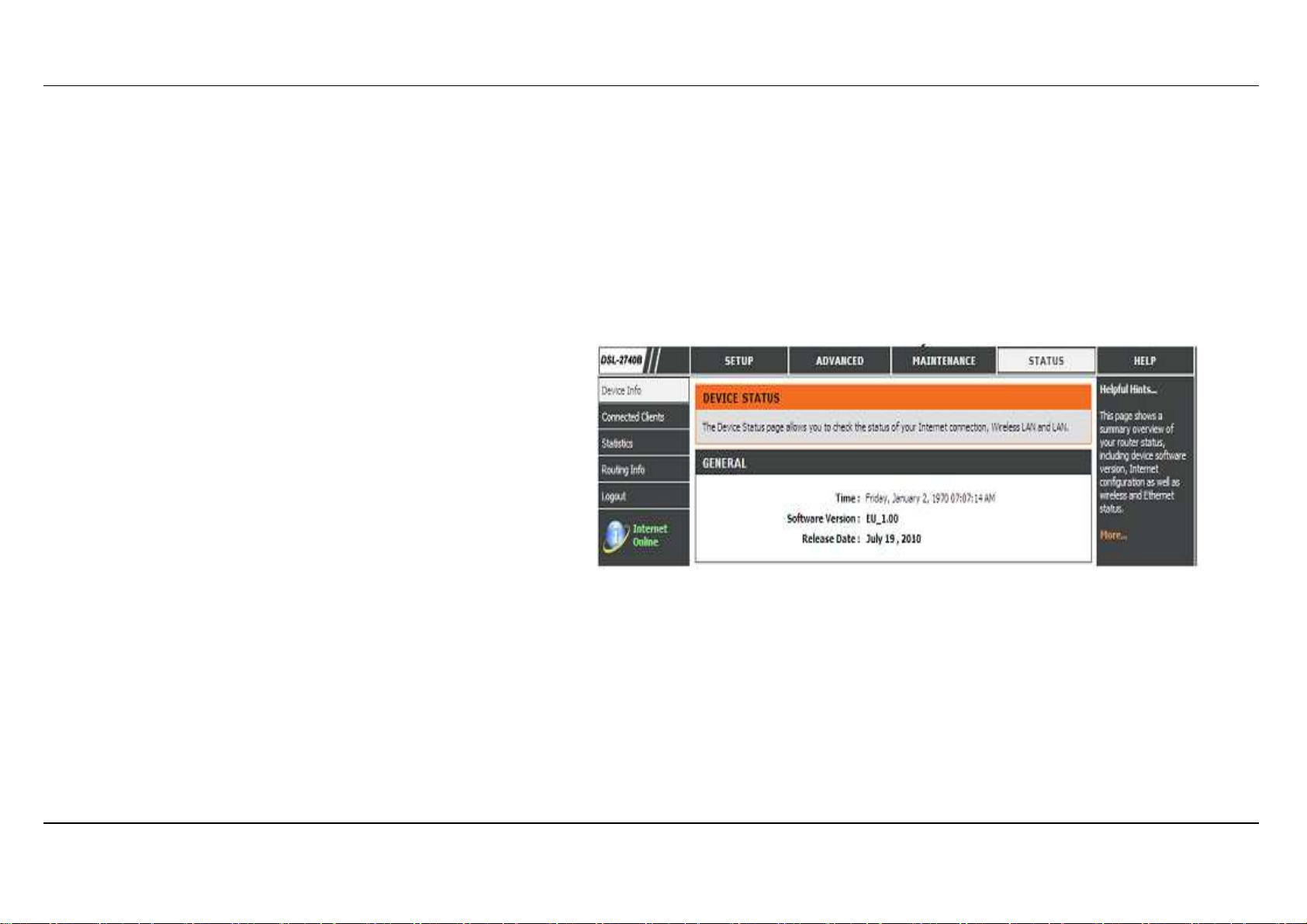

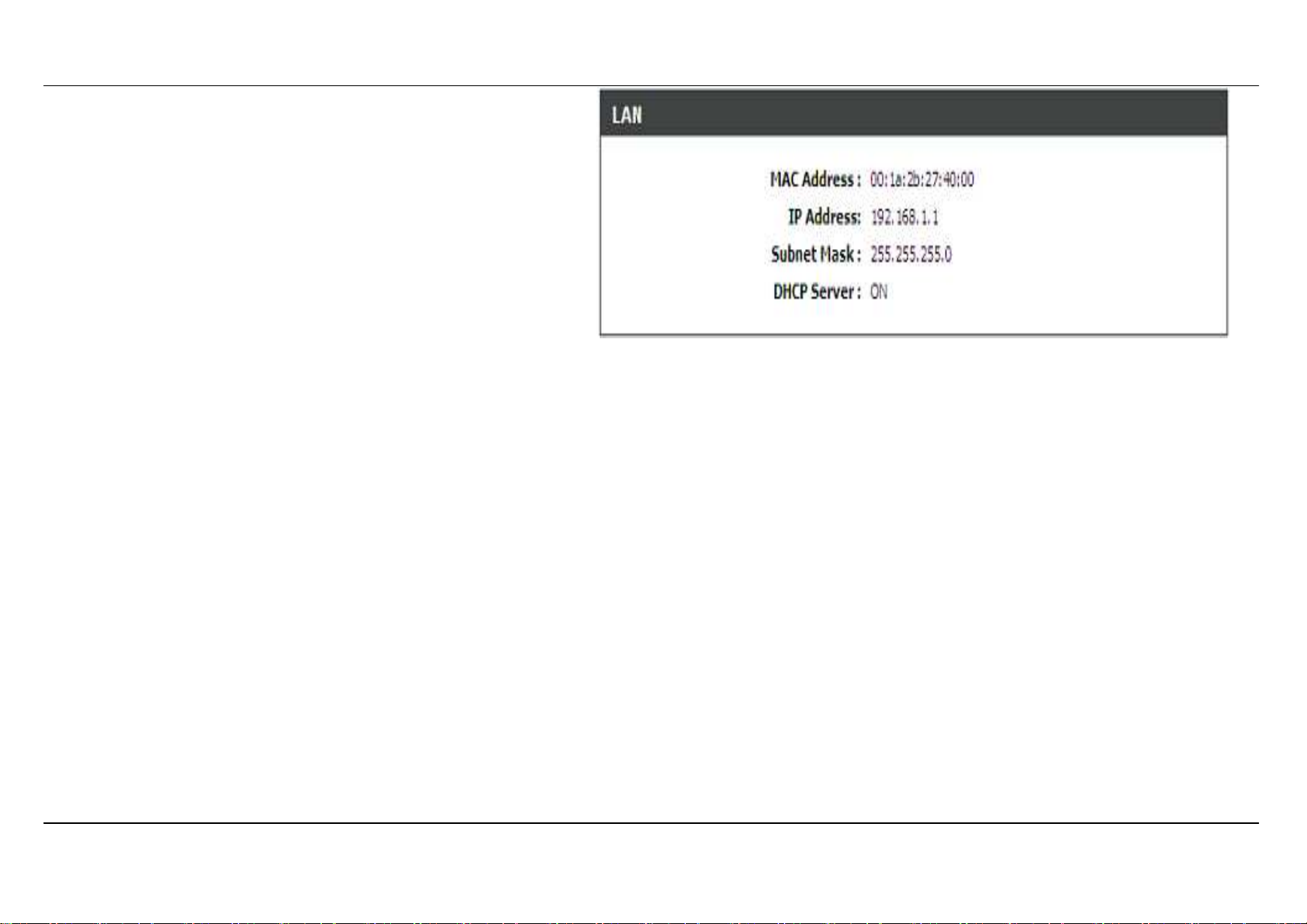

DEVICE INFO........................................................................80

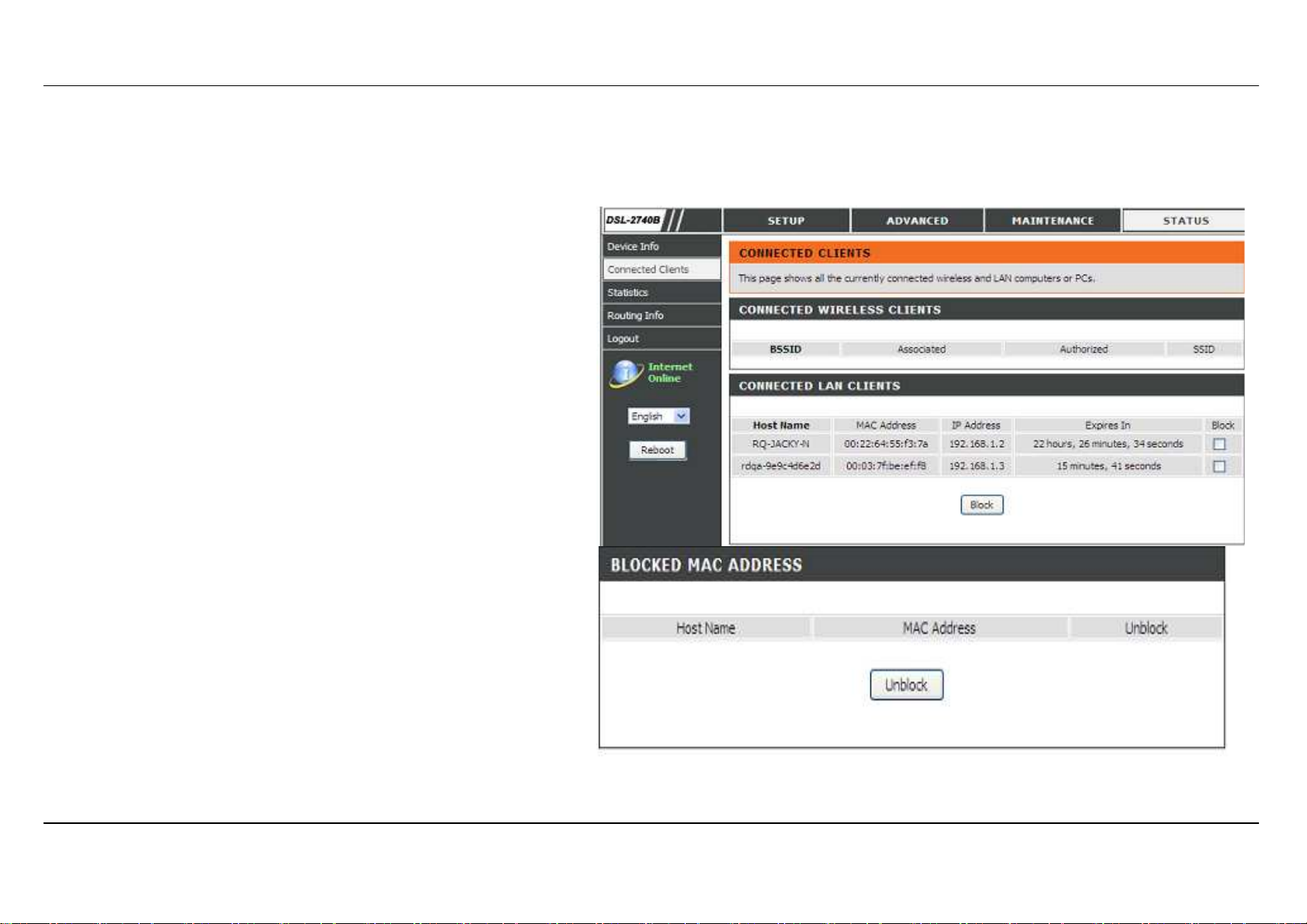

CONNECTED CLIENTS........................................................83

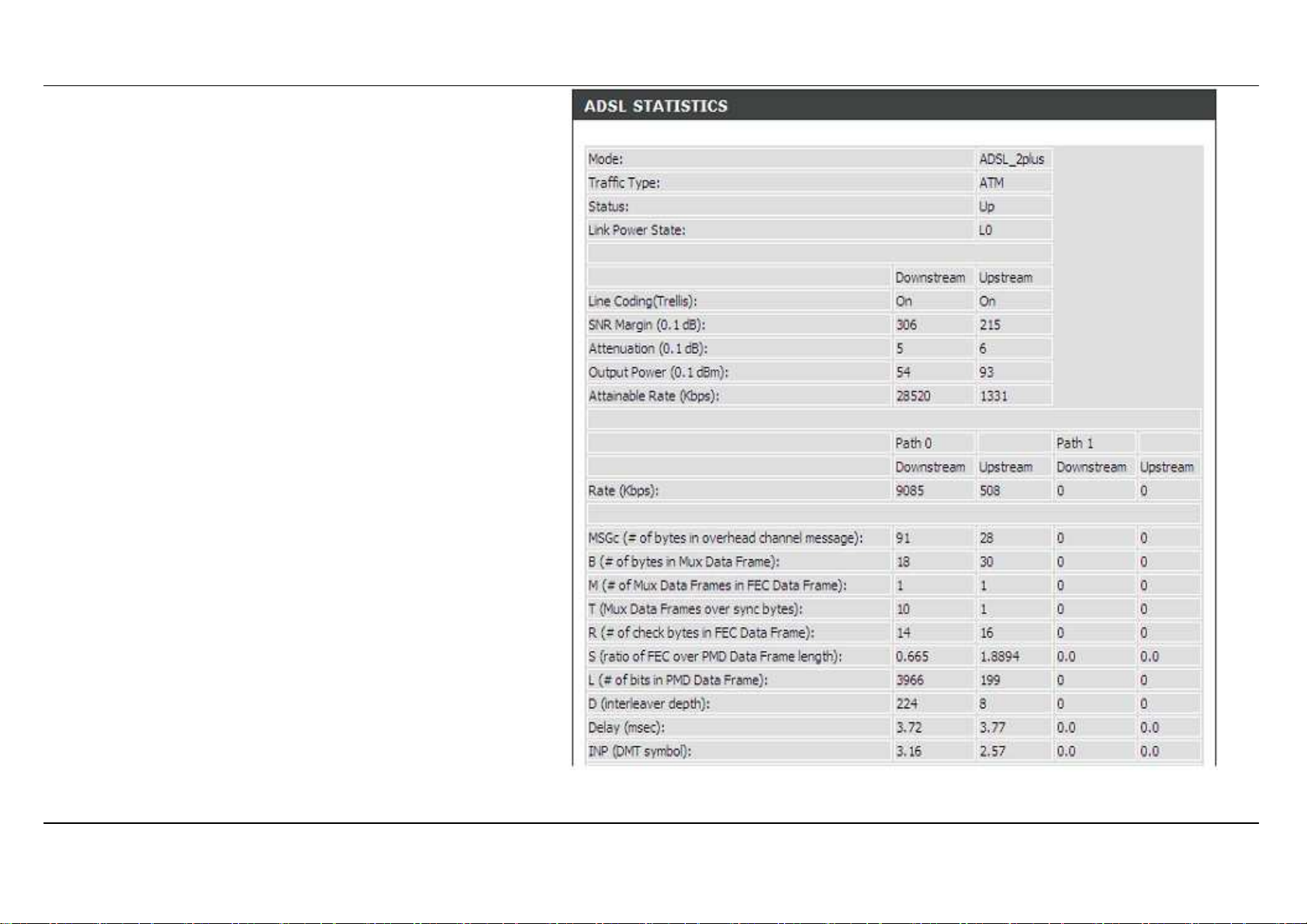

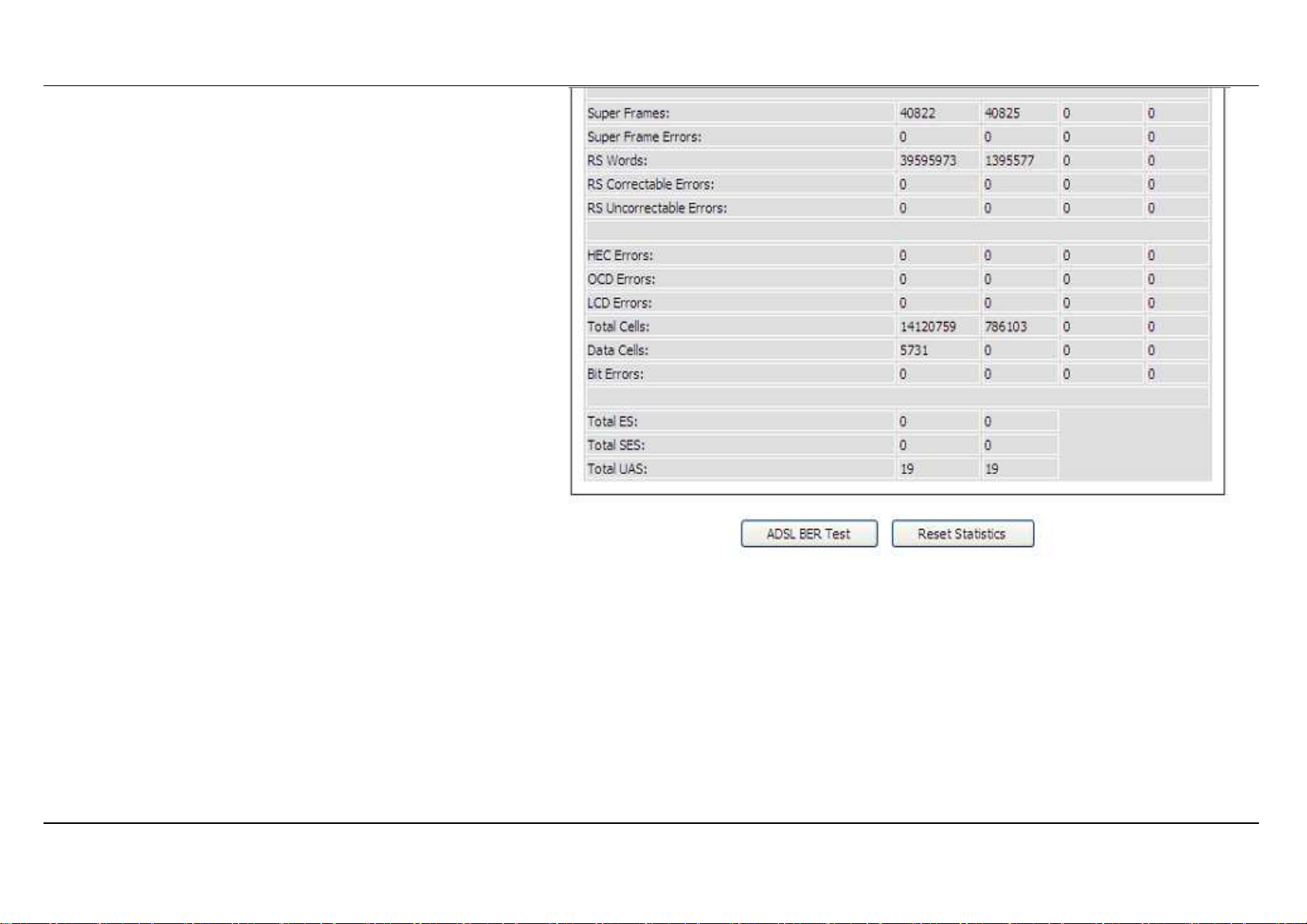

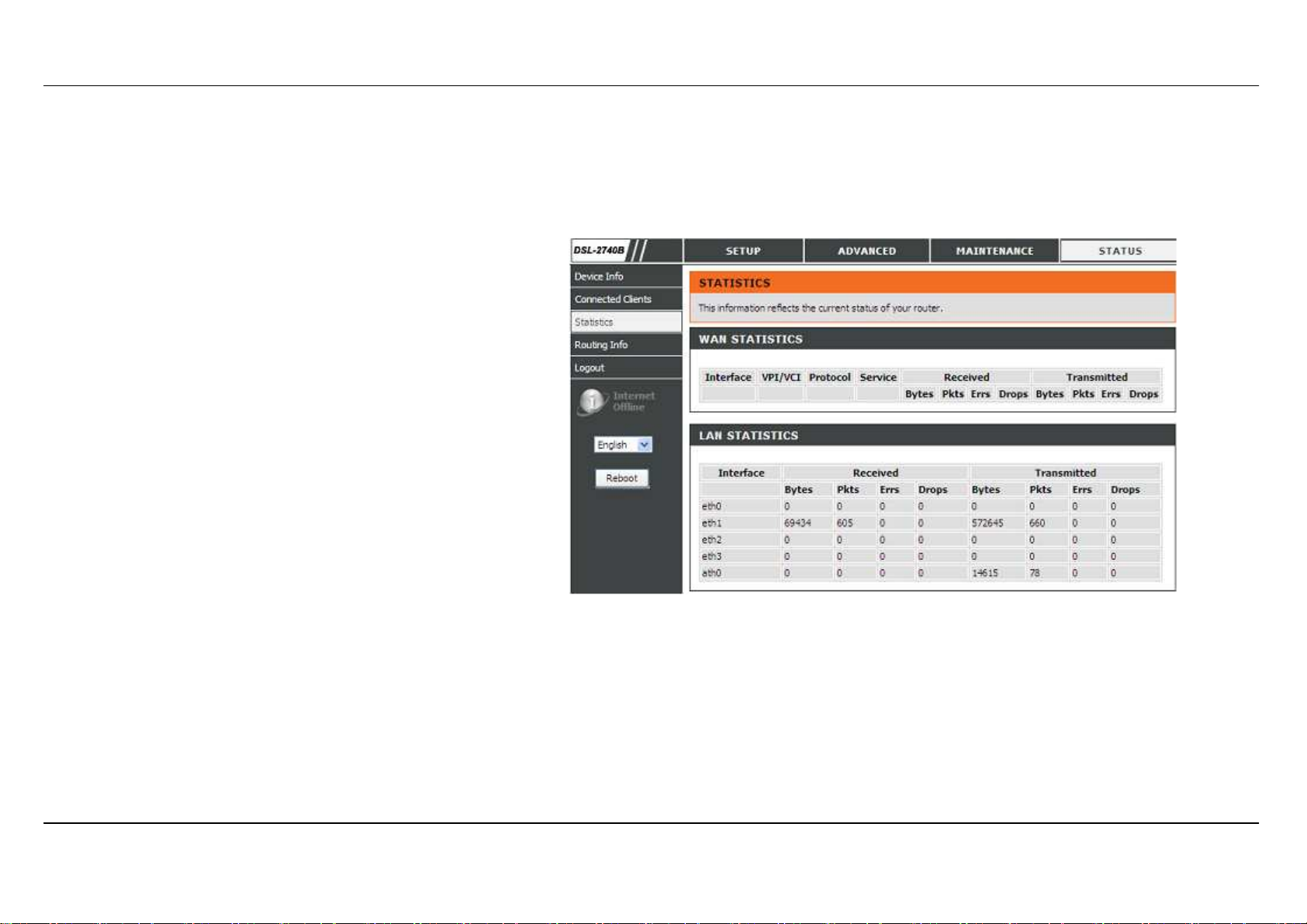

STATISTICS.......................................................................... 84

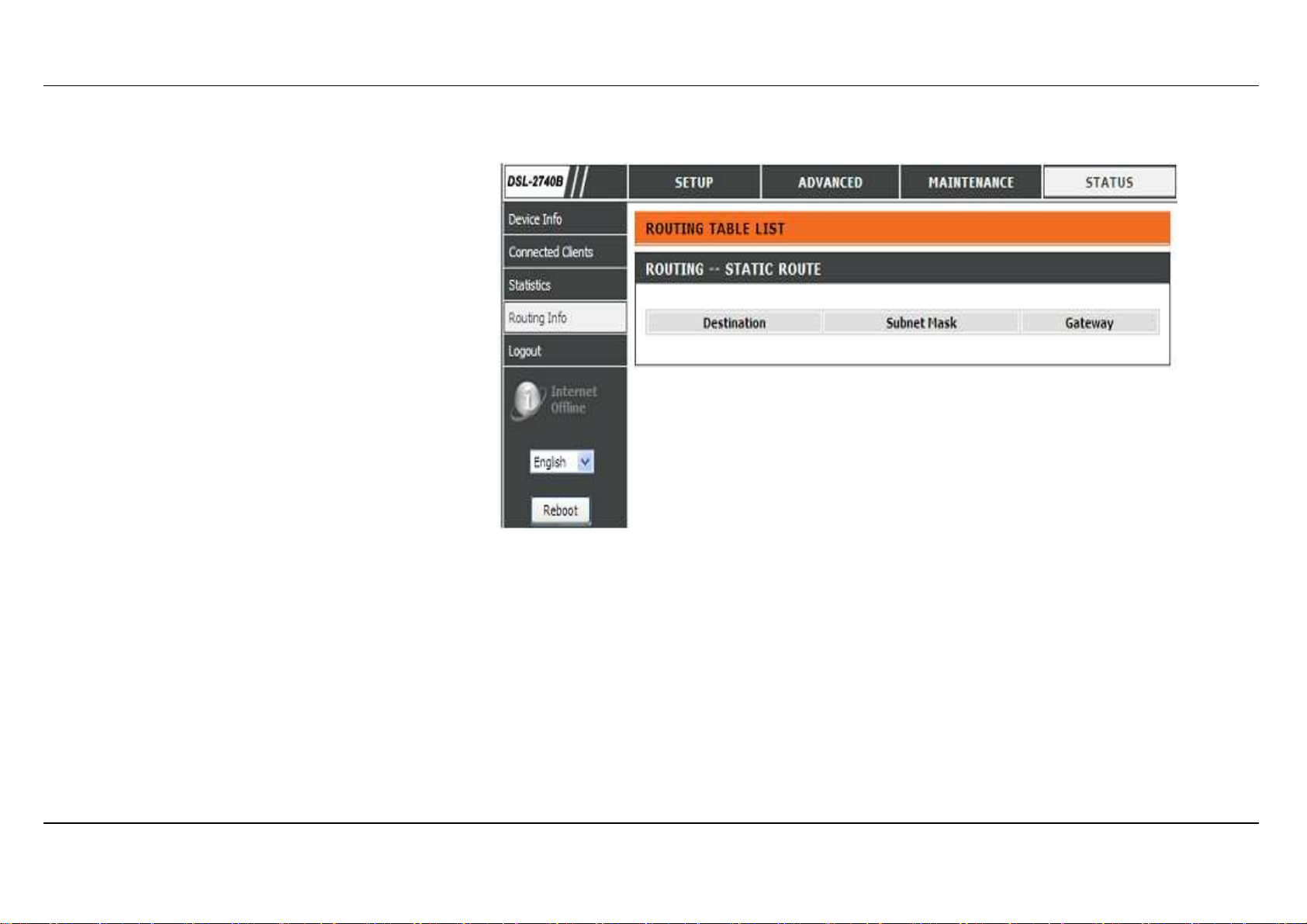

ROUTE INFO ........................................................................87

TROUBLESHOOTING.................................................................88

WIRELESS BASICS ....................................................................90

NETWORKING BASICS..............................................................93

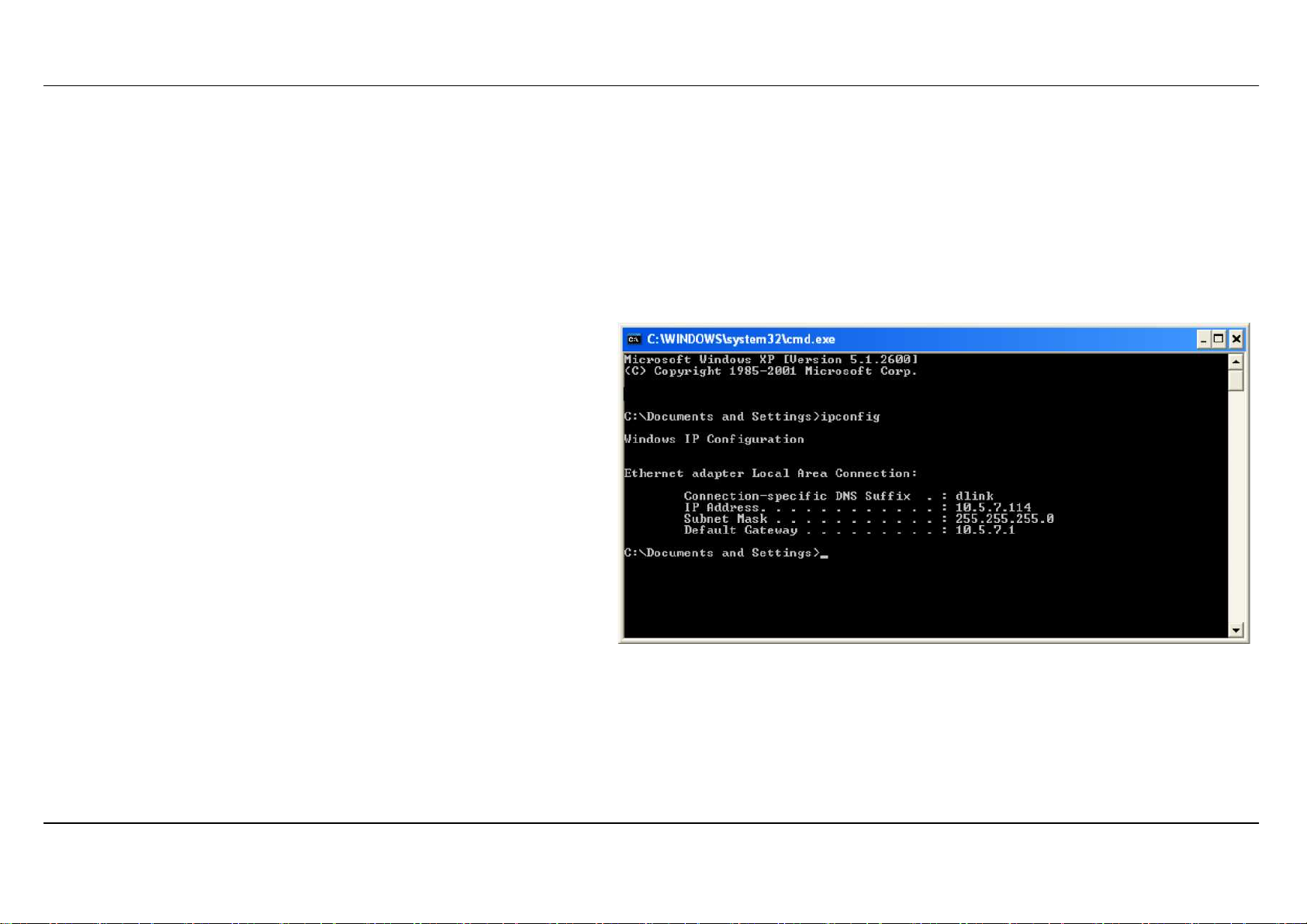

HECK YOUR IP ADDRESS

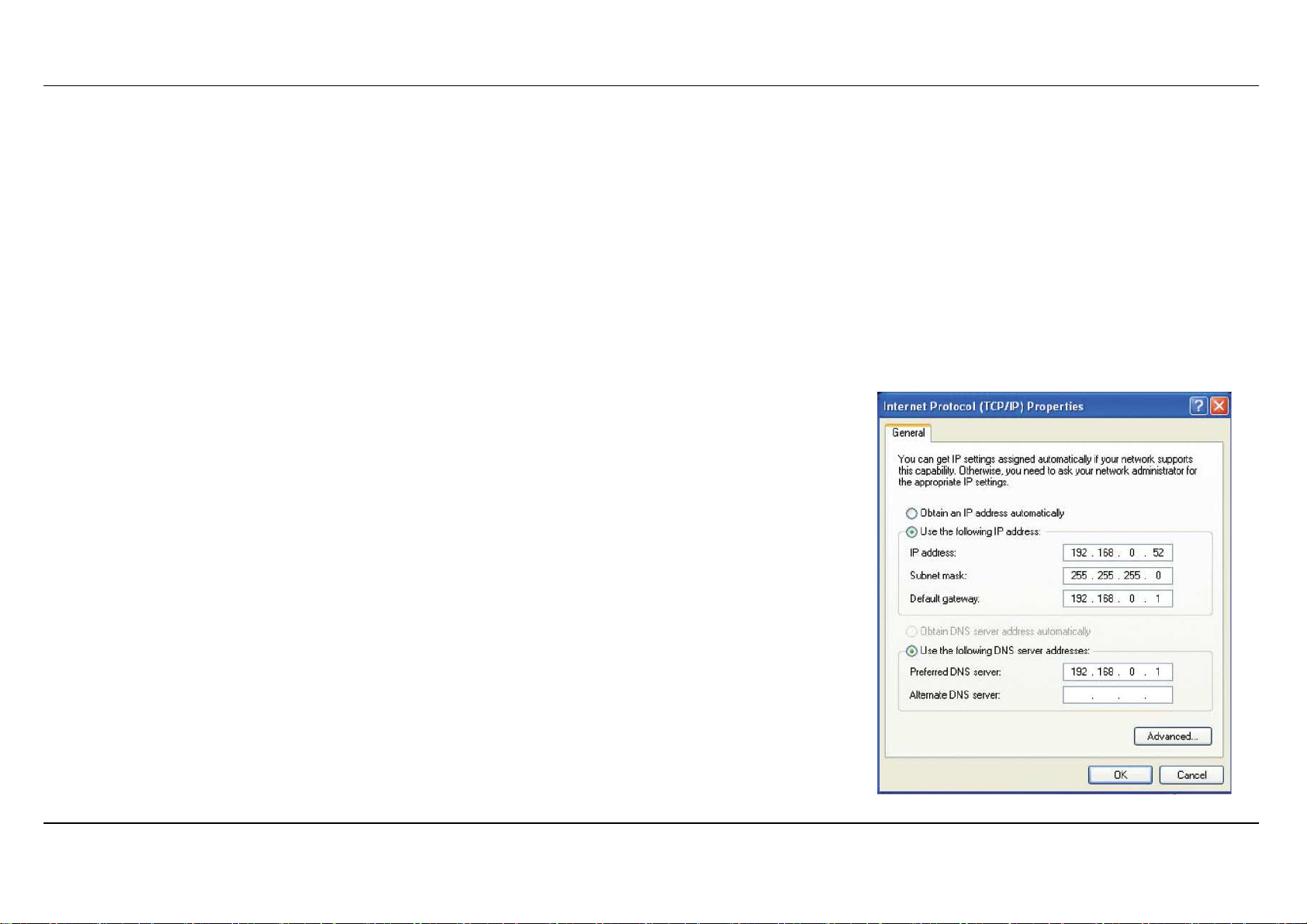

TATICALLY ASSIGN AN IP ADDRESS

............................................................................................93

...........................................................................94

TECHNICAL SPECIFICATIONS..................................................95

FCC CAUTION.............................................................................96

IC CAUTION.................................................................................97

D-Link DSL-2740B User Manual 2

Table of Content

CONTACTING TECHNICAL SUPPORT.......................................98

D-Link DSL-2740B User Manual 3

Section 1 - Product Overview

Package Contents

• DSL-2740B Wireless ADSL Router

• 2 non-detachable Antennas(MIMO 2x2)

• Power Adapter

• CD-ROM with Installation Wizard, User Manual, and Special Offers

• One twisted-pair telephone cable used for ADSL connection

• One straight-through Ethernet cable

• One Quick Installation Guide

Note: Using a power supply with a different voltage rating than the one included with the DSL-2740B will cause damage and void the warranty for this product.

D-Link DSL-2740B User Manual 4

Section 1 - Product Overview

1. ADSL Internet service Computer with:

• 200MHz Processor

• 64MB Memory

• CD-ROM Drive

• Ethernet Adapter with TCP/IP Protocol Installed

• Windows win7/vista/XP/2000

• MAC OS

• Internet Explorer v6 or later, FireFox v1.5

2. D-Link Click's Connect Utility Computer with:

• Windows win7/vista/XP/2000

System Requirements

D-Link DSL-2740B User Manual 5

Section 1 - Product Overview

Introduction

HIGH-SPEED ADSL2/2+ INTERNET CONNECTION

Latest ADSL2/2+ standards provide Internet transmission of up to 24Mbps downstream, 1Mbps upstream.

HIGH-PERFORMANCE WIRELESS

Embedded 802.11n technology for high-speed wireless connection, complete compatibility with 802.11b/g wireless devices

TOTAL SECURITY

Firewall protection from Internet attacks, user access control, WPA/WPA2 wireless security.

ULTIMATE INTERNET CONNECTION

The DSL-2740B ADSL2+ router is a versatile, high-performance remote router for home and the small office. With integrated ADSL2/2+ supporting up to 24Mbps download speed, firewall protection, Quality of Service (QoS), 802.11n wireless LAN and 4 Ethernet switch ports, this router provides all the functions that a home or small office needs to establish a secure and high-speed remote link to the outside world.

ULTIMATE WIRELESS CONNECTION WITH MAXIMUM SECURITY

This router provides maximize wireless performance by connecting this router to computer interfaces and stay connected from virtually anywhere at home and in the office. The router can be used with 802.11b/g/n wireless networks to enable significantly improved reception. It supports WPA/WPA2 and WEP for flexible user access security and data encryption methods.

FIREWALL PROTECTION & QoS

Security features prevents unauthorized access to the home and office network, be it from the wireless devices or from the Internet. The router provides firewall security using Stateful Packet Inspection (SPI) and hacker attack logging for Denial of Service (DoS) attack protection. SPI inspects the contents of all incoming packet headers before deciding what packets are allowed to pass through. Router access control is provided with packet filtering based on port and source/destination MAC/IP addresses. For Quality of Service (QoS), the router supports multiple priority queues to enable a group of home or office users to experience the benefit of smooth network connection of inbound and outbound data without concern of traffic congestion. This QoS support allows users to enjoy high ADSL transmission for applications such as VoIP and streaming multimedia over the Internet.

*Maximum wireless signal rate derived from IEEE standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

D-Link DSL-2740B User Manual 6

Section 1 - Product Overview

Features

• Faster Wireless Networking - The DSL-2740B provides up to 300Mbps* wireless connection with other 802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio.

• Compatible with 802.11b and 802.11g Devices - The DSL-2740B is still fully compatible with the IEEE 802.11b and g standards, so it can connect with existing 802.11b and g PCI, USB and Cardbus adapters.

• DHCP Support - Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP settings to each host on your network. This eliminates the need to reconfigure every host whenever changes in network topology occur.

• Network Address Translation (NAT) - For small office environments, the DSL-2740B allows multiple users on the LAN to access the Internet concurrently through a single Internet account. This provides Internet access to everyone in the office for the price of a single user. NAT improves network security in effect by hiding the private network behind one global and visible IP address. NAT address mapping can also be used to link two IP domains via a LAN-to-LAN connection.

• Precise ATM Traffic Shaping - Traffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the Quality of Service for ATM data transfer.

• High Performance - Very high rates of data transfer are possible with the Router. Up to 24Mbps downstream bit rate using the G.dmt standard. (For ADSL2+)

• Full Network Management - The DSL-2740B incorporates SNMP (Simple Network Management Protocol) support for web-based management and text-based network management via Telnet connection.

• Easy Installation - The DSL-2740B uses a web-based graphical user interface program for convenient management access and easy set up. Any common web browser software can be used to manage the Router.

D-Link DSL-2740B User Manual 7

Section 1 - Product Overview

Power insert

Power button

Ethernet ports

ADSL port

Reset button

Wireless On/Off switch

Hardware Overview

Use the ADSL cable to connect to the your telephone line (RJ-11 port)

Connections

button

Please press and hold on for 3 seconds to turn on/turn off.

To manually reset, depress button with the power on for between ten and fifteen seconds

Use the Ethernet ports to connect the Router to your Ethernet LAN or Ethernet devices

D-Link DSL-2740B User Manual 8

Push in to power-on the Router. Push again to power-off the Router

Use the adapter shipped with the Router to connect to power source

Section 1 - Product Overview

Power

WLAN

DSL

LAN

Internet

Hardware Overview

Steady green light indicates the unit is powered on. When the device is powered off this remains dark.

Steady green light indicates a wireless connection. A blinking green light indicates activity on the WLAN

LEDs

Steady green light indicates a valid ADSL connection. This will light after the ADSL negotiation process has been settled. A blinking green light indicates activity on the WAN (ADSL) interface.

A solid green light indicates a valid link on startup. These lights blink when there is activity currently passing through the Ethernet port.

D-Link DSL-2740B User Manual 9

Steady green light indicates a successful Internet connection. Steady red light indicates failed Internet connection. Dark if no WAN protocol is configured.

Section 2 - Installation

Installation

This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Before you Begin

Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and equipment on hand before beginning the installation.

D-Link DSL-2740B User Manual 10

Section 2 - Installation

Installation Notes

In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some users, only their account information (Username and Password) is required. For others, various parameters that control and define the Internet connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all the information needed to setup the Router. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be sure to keep this information safe and private.

Low Pass Filters

Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass filters with your installation.

Operating Systems

The DSL-2740B uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, and Windows XP.

Web Browser

Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to work best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 6.0, Netscape Navigator® version 6.2.3, or later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.

Ethernet Port (NIC Adapter)

Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.

D-Link DSL-2740B User Manual 11

Section 2 - Installation

802.11 Wireless LAN Configuration

All the 802.11 wireless LAN settings may be configured on a single page using the web-based manager. For basic wireless communication you need to decide what channel to use and what SSID to assign. These two settings must be the same for any wireless workstations or other wireless access point that communicate with the DSL-2740B through the wireless interface. Security for wireless communication can be accomplished in a number of ways. The DSL-2740B supports WPA (Wi-Fi Protected Access), WPA2, and mixed WPA/WPA2. Wireless access can also be controlled by selecting MAC addresses that are allowed to associate with the device. Please read the section on Wireless Configuration.

Additional Software

It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using the device a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored on another computer or gateway device, not in the Router itself. If your ADSL service is delivered through a PPPoE or PPPoA connection, the information needed to establish and maintain the Internet connection can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some settings in the device, including account information used to identify and verify the connection. All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled device on the LAN side of the bridge, such as a PC, a server, a gateway device such as a router or similar firewall hardware. The IP address can be assigned in a number of ways. Your network service provider will give you instructions about any additional connection software or NIC configuration that may be required.

D-Link DSL-2740B User Manual 12

Section 2 - Installation

Information you will need from your ADSL service

provider

Username

This is the Username used to log on to your ADSL service provider’s network. It is commonly in the form  user@isp.co.uk. Your ADSL service provider uses this to identify your account.

Password

This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the identity of your account.

WAN Setting / Connection Type

These settings describe the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use the default settings. You may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed in parenthesis):

• PPPoE/PPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-Mux)

• Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC Mux)

• IPoA/MER (Static IP Address) (Bridged IP LLC, 1483 Bridged IP VC Mux, 1483 Routed IP LLC, 1483 Routed IP VC-Mux or IPoA)

• MER (Dynamic IP Address) (1483 Bridged IP LLC or 1483 Bridged IP VC-Mux)

Modulation Type

ADSL uses various standardized modulation techniques to transmit data over the allotted signal frequencies. Some users may need to change the type of modulation used for their service. The default DSL modulation (ADSL2+ Multi-Mode) used for the Router automatically detects all types of ADSL, ADSL2, and ADSL2+ modulation. However, if you are instructed to specify the modulation type used for the Router, you may choose among the numerous options available on the Modulation Type drop-down menu on the ADSL Configuration window (Advanced > ADSL)

Security Protocol

This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Router supports the PAP and CHAP protocols.

D-Link DSL-2740B User Manual 13

Section 2 - Installation

VPI

Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI) to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface.

VCI

Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface.

D-Link DSL-2740B User Manual 14

Section 2 - Installation

Information you will need about DSL-2740B

Username

This is the Username needed access the Router’s management interface. When you attempt to connect to the device through a web browser you will be prompted to enter this Username. The default Username for the Router is “admin.” The user cannot change this.

Password

This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is “admin.” The user may change this.

LAN IP addresses for the DSL-2740B

This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI) using a web browser. The default IP address is 192.168.1.1. This may be changed to suit any IP address scheme the user desires. This address will be the base IP address used for DHCP service on the LAN when DHCP is enabled.

LAN Subnet Mask for the DSL-2740B

This is the subnet mask used by the DSL-2740B, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be changed later.

D-Link DSL-2740B User Manual 15

Section 2 - Installation

Information you will need about your LAN or computer

Ethernet NIC

If your computer has an Ethernet NIC, you can connect the DSL-2740B to this Ethernet port using an Ethernet cable. You can also use the Ethernet ports on the DSL-2740B to connect to other computer or Ethernet devices.

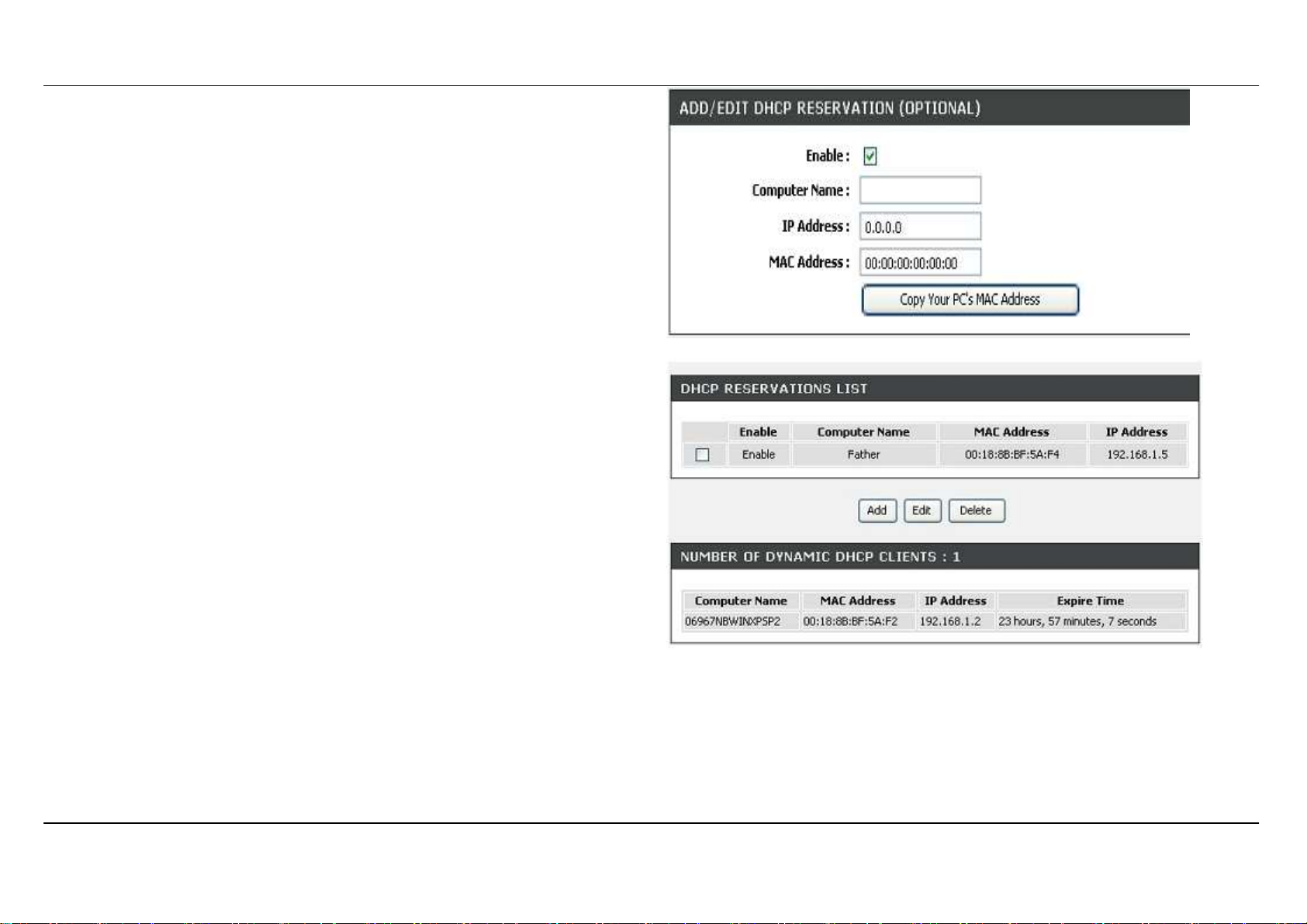

DHCP Client status

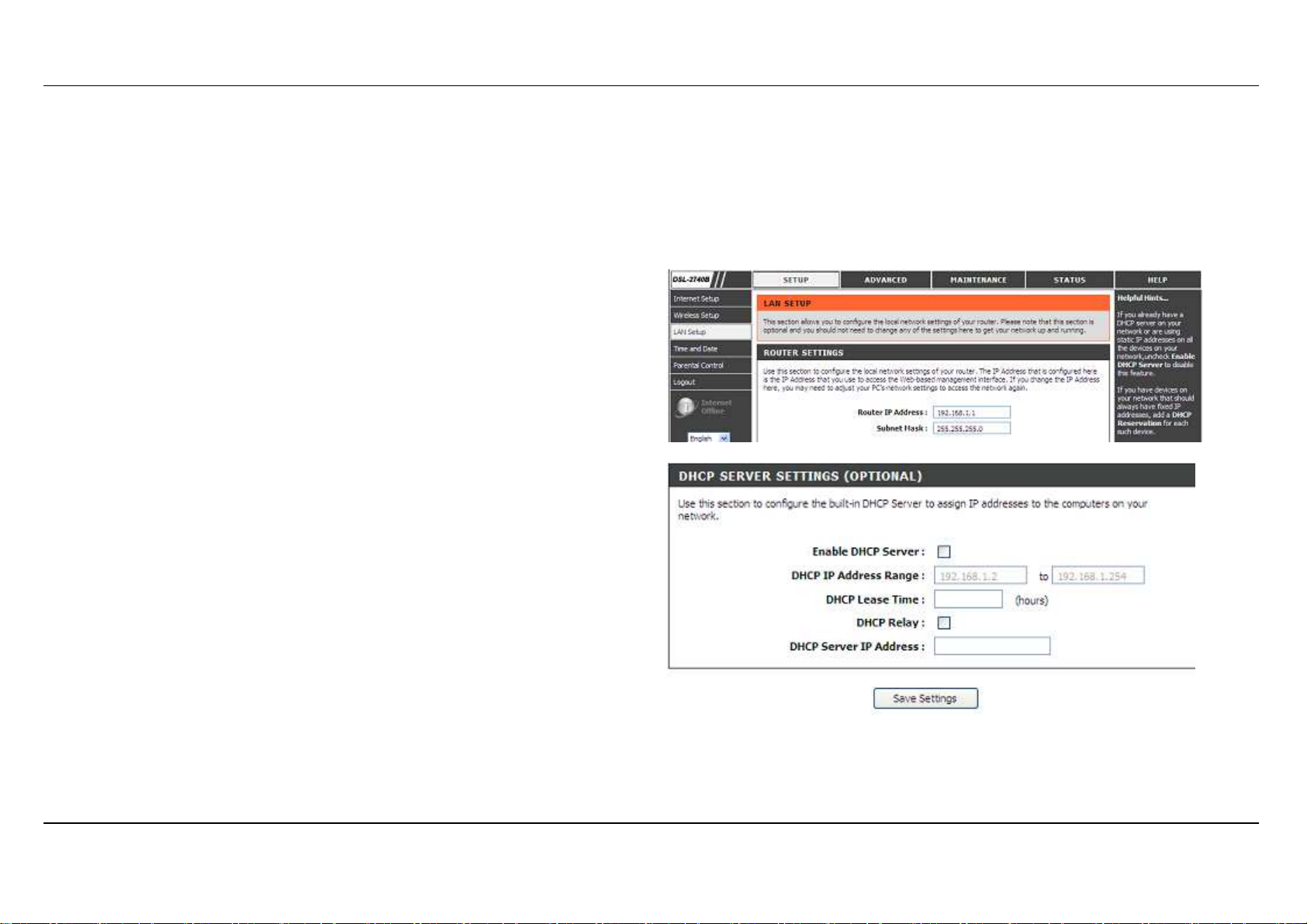

Your DSL-2740B ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address to computers on your LAN. The default range of IP addresses the DSL-2740B will assign are from 192.168.1.2 to

192.168.1.254. Your computer (or computers) needs to be configured to Obtain an IP address automatically (that is, they need to be configured as DHCP clients.)

It is recommended that your collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL connection in the future. Once you have the above information, you are ready to setup and configure your DSL-2740B Wireless ADSL Router.

D-Link DSL-2740B User Manual 16

Section 2 - Installation

Wireless Installation Considerations

DSL-2740B lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling can reduce your

1.1.

adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1

2.2.

meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try to position access points,

3.3.

wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.

4.4.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless

5.5.

connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.

D-Link DSL-2740B User Manual 17

Section 2 - Installation

Device Installation

The DSL-2740B Wireless ADSL Router maintains three separate interfaces, an Ethernet LAN, a wireless LAN and an ADSL Internet (WAN) connection. Carefully consider the Router’s location suitable for connectivity for your Ethernet and wireless devices. You must have a functioning broadband connection via a bridge device such as a Cable or ADSL modem in order to use the Router’s WAN function.

Place the Router in a location where it can be connected to the various devices as well as to a power source. The Router should not be located where it will be exposed to moisture, direct sunlight or excessive heat. Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard. As with any electrical appliance, observe common sense safety procedures. The Router can be placed on a shelf, desktop, or other stable platform. If possible, you should be able to see the LED indicators on the front if you need to view them for troubleshooting.

Power on Router

The Router must be used with the power adapter included with the device.

1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Router and plug the adapter into a suitable nearby

1.1.

power source.

2. Push down the Power button, and you should see the Power LED indicator light up and remain lit.

2.2.

3. If the Ethernet port is connected to a working device, check the Ethernet Link/Act LED indicators to make sure the connection is valid. The

3.3.

Router will attempt to establish the ADSL connection, if the ADSL line is connected and the Router is properly configured this should light up after several seconds. If this is the first time installing the device, some settings may need to be changed before the Router can establish a connection.

D-Link DSL-2740B User Manual 18

Section 2 - Installation

Factory Reset Button

The Router may be reset to the original factory default settings by using a ballpoint or paperclip to gently push down the reset button in the following sequence:

1. Press and hold the reset button while the device is powered off.

1.1.

2. Turn on the power.

2.2.

3. Wait for 10~15 seconds and then release the reset button.

3.3.

Remember that this will wipe out any settings stored in flash memory including user account information and LAN IP settings. The device settings will be restored to the factory default IP address 192.168.1.1 and the subnet mask is 255.255.255.0, the default management Username is “admin” and the default Password is “admin.”

Network Connections

Connect ADSL Line

Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with the device or given to you by your service provider. The ADSL connection represents the WAN interface, the connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to the Internet.

Connect Router to Ethernet

The Router may be connected to a single computer or Ethernet device through the 10BASE-TX Ethernet port on the rear panel. Any connection to an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is capable of operating at speeds higher than 10Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port. Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a normal straight-through cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a normal straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch. The rules governing Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters.

D-Link DSL-2740B User Manual 19

Section 2 - Installation

Hub or Switch to Router Connection

Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable as shown in this diagram. If you wish to reserve the uplink port on the switch or hub for another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.

Computer to Router Connection

You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided as shown in this diagram.

D-Link DSL-2740B User Manual 20

Section 3 - Configuration

1. Configuration

This section will show you how to configure your new D-Link wireless router using the web-based configuration utility.

1-1 Web-based Configuration Utility

Connect to the Router

To configure the WAN connection used by the Router it is first necessary to communicate with the Router through its management interface, which is HTML-based and can be accessed using a web browser. The easiest way to make sure your computer has the correct IP settings is to configure it to use the DHCP server in the Router. The next section describes how to change the IP configuration for a computer running a Windows operating system to be a DHCP client.

To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.1.1).

Picture a -1

D-Link DSL-2740B User Manual 21

Section 3 - Configuration Type “admin” for the User Name and “admin” in the Password field. If you get a Page

Cannot be Displayed error, please refer to the Troubleshooting section for assistance.

Picture a-2

D-Link DSL-2740B User Manual 22

Section 3 - Configuration

SETUP

This chapter is concerned with using your computer to configure the WAN connection. The following chapter describes the various windows used to configure and monitor the Router including how to change IP settings and DHCP server setup.

WIZARD

ADSL SETUP Click on the Setup Wizard button to launch the Setup Wizard.

WELCOME TO D-LINK SETUP WIZARD

There are four steps to configuring your router. Click on the Next button to continue.

D-Link DSL-2740B User Manual 23

Section 3 - Configuration

STEP 1: CHANGE YOUR DSL-2740B PASSWORD

The default password is "admin", in order to secure your network, please modify the password. Note: Confirm Password must be same as "New

Password". Of course, you can click on the Skip to ignore the step.

STEP 2: SELECT INTERNET CONNECTION TYPE

Please select your Country and ISP Provider, VPI/VCI, Connection Type.

If you can not find the country and ISP in the list below; you can select "Others", and then input the "VPI" and "VCI” and Connection Type.

Please enter the VPI/VCI numbers if provided by the ISP.

Click on the Next button to go to the next Setup Wizard window.

D-Link DSL-2740B User Manual 24

Section 3 - Configuration

STEP 2: SELECT INTERNET CONNECTION TYPE

Please Type IP Address, Subnet Mask and Default Gateway which are provided by your ISP.

Select to Enable or Disable in the Obtain default gateway automatically option.

If you choose Disable in the Obtain default gateway automatically option, please type Primary DNS Server and Secondary DNS Server which could also be provided by your ISP.

D-Link DSL-2740B User Manual 25

Section 3 - Configuration

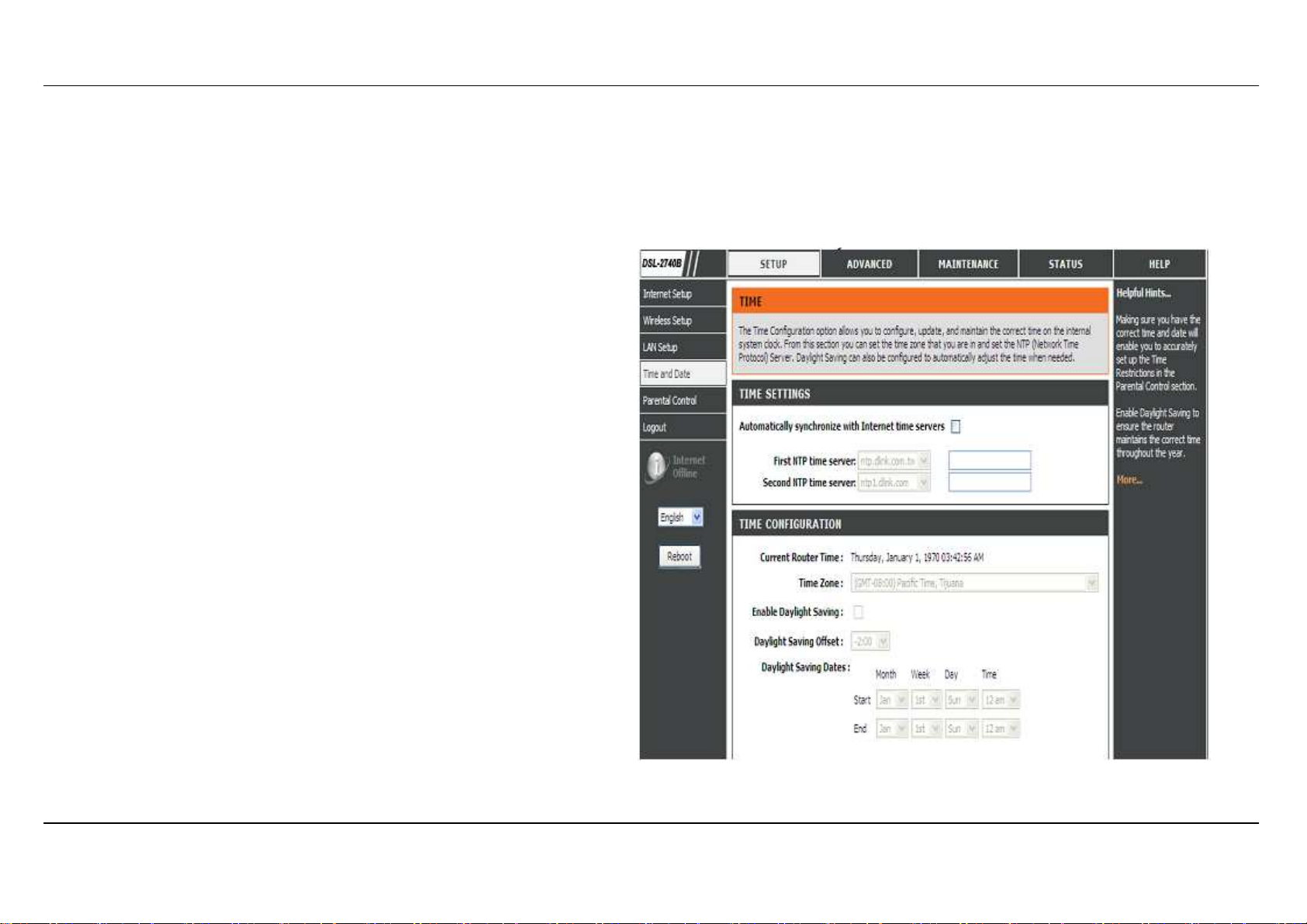

STEP 3: SET TIME AND DATE

TIME SETTING: Please enable the Automatically synchronize with Internet time

servers if you want to use time server.

You can use the default time server web site or type any web server name you want on the First NTP time server and the Second NTP time server.

Please select the time zone of your country on the Time Zone option. If you need to use the daylight saving, just choose the Enable Daylight

Saving. Daylight saving is a period from late Spring to early Fall. Set how many hours to change the time for Daylight saving Offset. Configure Daylight Saving Dates,

Daylight Saving time starts in the most parts of the United States on the second Sunday of March. Each time zone in the United States starts Daylight Saving time at 2 A.M. Thus, in the United States you must use March, Second, Sunday, at 2:00 A.M.

Daylight Saving time starts in the European Union on the last Sunday of March. Thus, in European Union, you must select March, Last, Sunday. The time must depend on your country’s time zone. For example, In Germany you must type 2 because Germany’s time zone is 1 hour ahead of GMT or UTC (GMT+1). Thus, in Germany you must use March, Last, Sunday, at 1:00 A.M.

Daylight Saving time ends in the most parts of the United States on the First Sunday of November. Each time zone in the United States must use

D-Link DSL-2740B User Manual 26

Section 3 - Configuration

, in the United States you must set

Daylight Saving time at 2:00 A.M. Thus November, First, Sunday, at 2:00 A.M.

Daylight Saving time ends in the European Union on the Last Sunday of October. For instance, in Germany you must type 2 because Germany’s time zone is 1 hour ahead of GMT (GMT+1). Thus, in Germany you must use March, Last, Sunday, at 1:00 A.M.

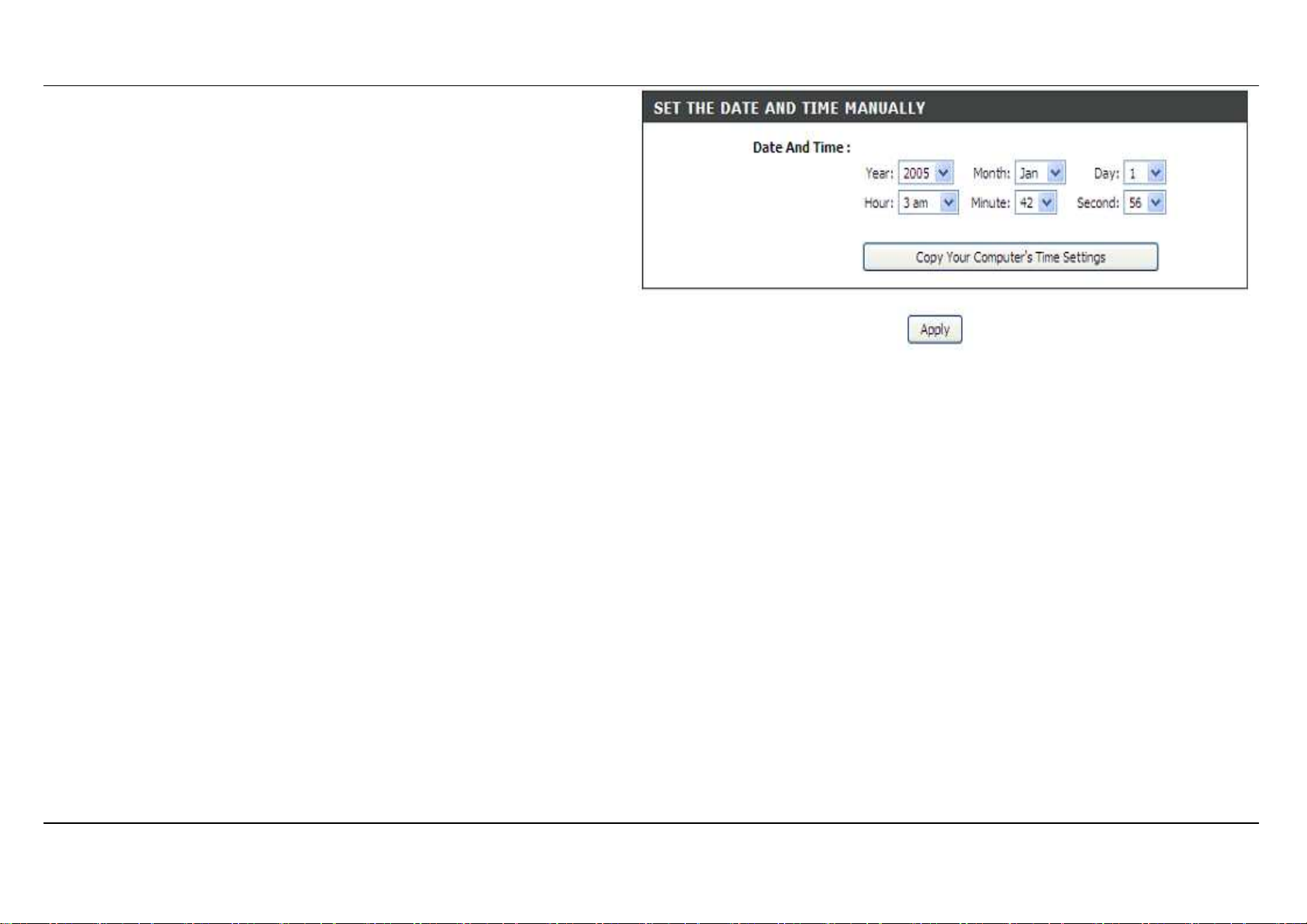

SET THE DATE AND TIME MANAULLY

You can also use the Copy Your Computer’s Time Settings to synchronize the Date and Time to your local PC. Or, you also can adjust Year/Month/Day/Hour/Minute/Second manually.

Please click the Apply button to save the configuration.

STEP 4: CONNECT TO INTERNET

Push the APPLY

APPLY button to use the configuration.

APPLYAPPLY

D-Link DSL-2740B User Manual 27

Section 3 - Configuration

INTERNET SETUP

To access the INTERNET SETUP (WAN) settings window, click on the INTERNET Setup button in the SETUP directory and select the Manual Setup to configure the MANUAL ADSL interface in this page: INTERNET SETUP

If you want to type connection configuration for various types, please enable the Manual Setup.

MANUAL ADSL CONNECTION SETUP

PPPoE/PPPoA

PPPoE/PPPoA PPPoE/PPPoA

Choose this option if your ISP uses PPPoE/PPPoA.(For most DSL

users’

Dyna

Dynamic IP Address

mic IP Address

DynaDyna

mic IP Addressmic IP Address

Choose this option if your ISP uses Dynamic IP Address over DSL.

Static IP Address

Static IP AddressStatic IP Address

Choose this option if your ISP uses Static IP assignments.

Bridge

BridgeBridge

Choose this option if your ISP uses Bridge.

D-Link DSL-2740B User Manual 28

Section 3 - Configuration

For PPPoE/PPPoA connection

Type in the Username and Password (and PPPoE Service Name, if required by your ISP).

Type service name which is from your ISP on the Servername

Choose PPPoE LLC/Snap-Bridging, PPPoE VC-mux, PPPoA LLC/encapsulation and PPPoA VC-mux.

Set MTU value which you want but should be less than 1492 on the MTU

Set the time which your data doesn’t pass through the connection, it will be disconnected on the Idle Time Out. The default time is 0 and it means it is always on.

PPP IP Extension:

Router passes the obtained IP address to the local PC and acts as a bridge only modem.

Click on the Next button to go to the next window.

Servername

ServernameServername

option.

D-Link DSL-2740B User Manual 29

Section 3 - Configuration

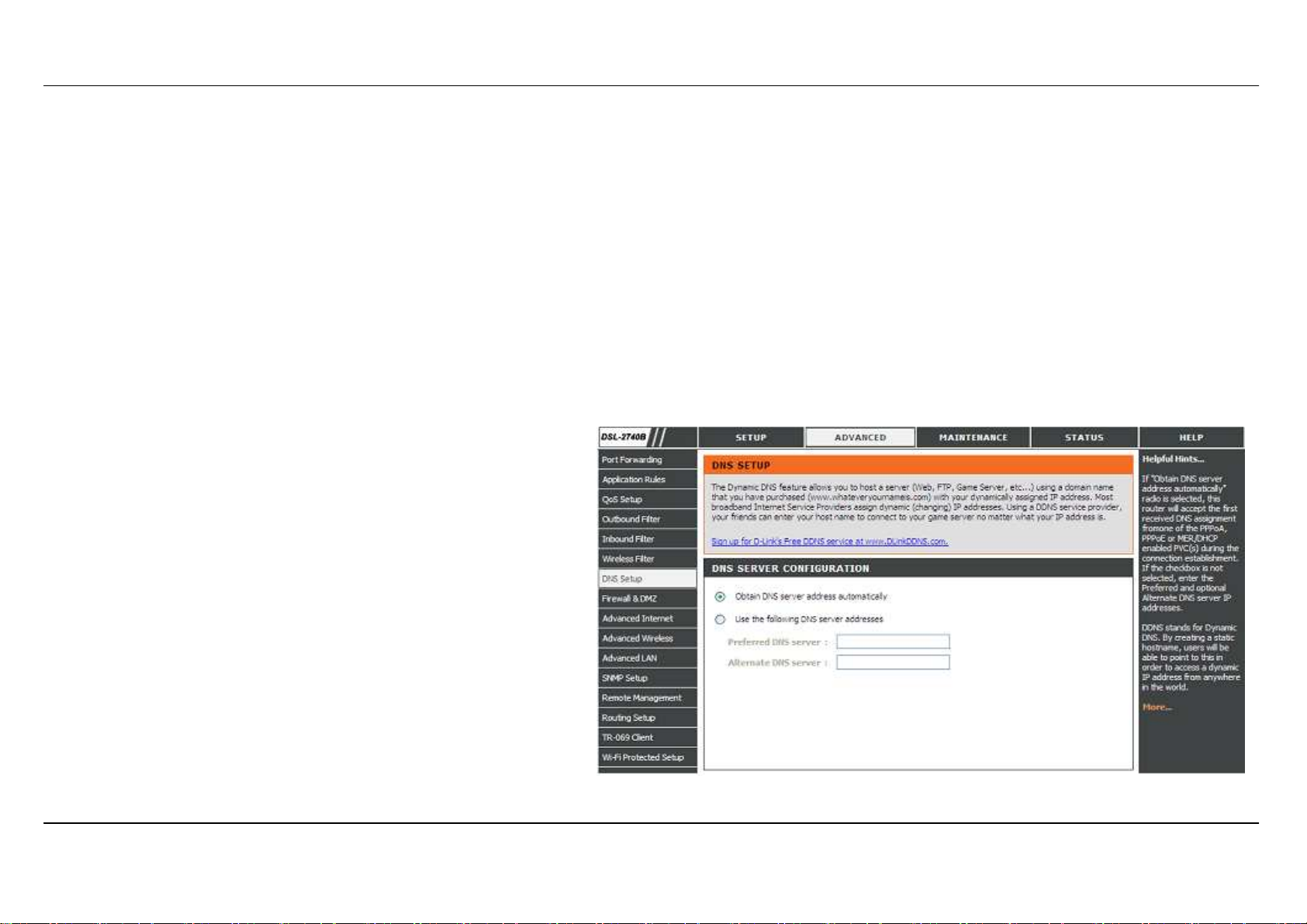

DNS AND DEFAULT GATEWAY

Select Obtain DNS server address automatically to get DNS from your ISP.

Or Select Use the following DNS server addresses to type the DNS IPs

in the Preferred DNS server and Alternate DNS server.

Set PVC values which are from your ISP on VPI/VCI Enable the Enable NAT when you want to have WAN and LAN. Enable the Enable Firewall when you want to have the basic filter

function, for example, ICMP ping to DSL-2740B. Enable the Enable IGMP Proxy when you want to let IAD to play as a

IGMP proxy which can help proxy server to send IGMP query packets to the IPTV clients.

Enable VLAN and type the VLAN ID (0-4095) which your ISP assigns. Click on the Apply button.

D-Link DSL-2740B User Manual 30

+ 68 hidden pages

D Link SL2740BF1 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
