D Link IR815C1 User Manual

Quick Installation Guide

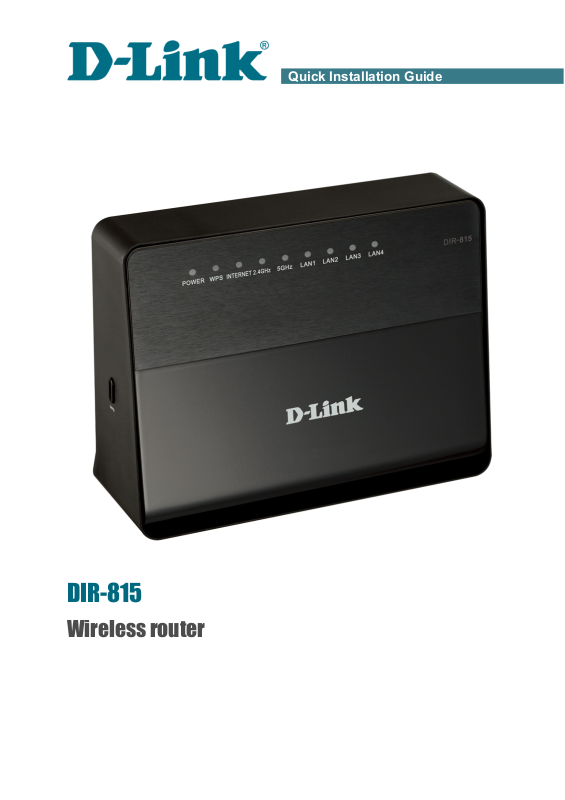

DIR-815

Wireless router

BEFORE YOU BEGIN

Delivery Package

• Wireless router DIR-815

• Power adapter DC 12V

• Ethernet cable (CAT 5E)

• “Quick Installation Guide” (brochure).

If any of the items are missing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” documents in Russian and English are
available on D-Link website (see ftp.dlink.ru/pub/Router/DIR-815/Description/RevC/).

!

Using a power supply with a different voltage rating than the one included will
cause damage and void the warranty for this product.

Default Settings

IP address of router

192.168.0.1

Username (login)

admin

Password

admin

Name of wireless network (SSID)

2.4GHz

DIR-815

5GHz

DIR-815-5G

System Requirements and Equipment

• A computer with any operating system that supports a web browser.

• A web browser to access the web-based interface of the router: Windows Internet

Explorer, Mozilla Firefox, or Opera.

• A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

• An 802.11a, b, g, or n Wi-Fi adapter to create a wireless network.

CONNECTION AND CONFIGURATION

1. Connect the power cord to the power connector port on the back panel of the router, then
plug the power adapter into an electrical outlet or power strip.

2. Connect the router to your PC.

• PC with Ethernet adapter: connect an Ethernet cable between an available Ethernet

port of the router and the Ethernet port of your PC. Turn on the router by pressing the
ON/OFF button on its back panel. Turn on your PC and wait until your operating
system is completely loaded.

• PC with Wi-Fi adapter: turn on the router by pressing the ON/OFF button on its

back panel. Turn on your PC and wait until your operating system is completely
loaded. Then turn on your Wi-Fi adapter and connect to the network DIR-815 (for
operating in the 2.4GHz band) or DIR-815-5G (for operating in the 5GHz band).

3. Start a web browser. In the address bar of the web browser, enter the IP address of the
router (by default, 192.168.0.1). Press the Enter key.

4. On the opened page, enter the username and password for the administrator account in the
Login and Password fields correspondingly (by default, the following username and
password are specified: admin, admin). Then click the Enter link.

After the first access to the web-based interface you are forwarded to the page for changing the
administrator password specified by default. Enter the new password in the Password and
Confirmation fields. Then click the Save link. Remember or write down the new password
for the administrator account.

After successful registration the router's quick settings page opens.

The web-based interface of the router is multilingual. Select a needed language from the menu
displayed when the mouse pointer is over the Language caption.

On the quick settings page, you can run a needed Wizard (use the links on the left side of the
page), quickly get to some pages of the web-based interface, find a specific page via search, or
switch to the advanced settings section (click the Advanced settings link in the bottom right
corner of the page).

To configure connection to the Internet, click the Click'n'Connect link in the Net section on
the quick settings page or go to the advanced settings page and click the WAN link in the Net
section.

To change settings of the LAN, left-click the IP address of the local interface (right column of
the LAN IP line on the Network information section on the quick settings page) or go to the
advanced settings page and click the LAN link in the Net section.

To configure the wireless network, click the Wireless network settings wizard link in the

Wi-Fi section on the quick settings page or go to the advanced settings page and click the Basic
settings link in the Wi-Fi section.

For detailed description of every page of the web-based interface, see the “User Manual”
document on D-Link website (ftp.dlink.ru/pub/Router/DIR-815/Description/RevC/).

TROUBLESHOOTING

Question 1. How do I reset the router to the factory default settings?

You can restore the factory default settings via the hardware RESET button located on the back
panel of the router.

1. Use a small paperclip to activate the button; insert it into the hole (with the device turned
on), push, and hold for 7 seconds.

2. Release the button and wait until the router is rebooted (about 30 seconds).

This procedure wipes out all settings that you have configured for your router. You can access
the web-based interface of the router and configure all needed settings using the default IP
address, username, and password (see the Connection and Configuration chapter of the present
document).

Question 2. What can I do if my router is not working correctly?

Below are some steps applicable to the most common issues.

1. Check the LEDs on the front panel of the router. The following LEDs should be solid or
blinking green: POWER, INTERNET, LAN (corresponding to the LAN ports of the
router to which devices from the router's local area network are connected), 2.4GHz and
5GHz (if the 2.4GHz or 5GHz wireless network correspondingly is on and in use).

2. Make sure that all cables are connected properly.

3. Power off the router for 20 seconds, then power it on again.

Question 3. Why am I unable to connect to the Internet?

Contact your ISP to make sure that the relevant service is available and that you use correct
connection settings.
