D Link IR645A1 Users Manual

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2011 by D-Link Systems, Inc.
iD-Link DIR-645 User Manual
Table of Contents
Preface ............................................................................i
Trademarks ...................................................................................................... i
Product Overview ............................................................... 1
Package Contents ........................................................................................... 1
System Requirements ..................................................................................... 1
About this Product ..........................................................................................2
Features ..........................................................................................................2
Hardware Overview ......................................................................................... 3
Front Panel............................................................................................. 3
Back Panel ............................................................................................. 4
Bottom Panel ......................................................................................... 5
Hardware Installation .......................................................... 6
Before You Begin ............................................................................................6
Wireless Installation Considerations .............................................................. 6
Connect to Cable/DSL/Satellite Modem ......................................................... 7
Connect to Another Router.............................................................................. 7
Software Configuration ......................................................... 8
Connect to the Web User Interface .................................................................. 8
Web User Interface .......................................................................................... 8
Setup Category ............................................................................................... 9
Internet (Setup Wizard) ........................................................................ 10
Internet (Manual) ................................................................................. 17
Wireless Settings ................................................................................. 24
Network Settings .................................................................................. 32
IPv6...................................................................................................... 35
Advanced Category .......................................................................................53
Virtual Server ....................................................................................... 55
Port Forwarding ................................................................................... 56
Application Rules ................................................................................. 57
QoS Engine .......................................................................................... 58
Network Filter .......................................................................................60
Access Control .....................................................................................61
Website Filter ....................................................................................... 64
Parental Control ................................................................................... 65
Inbound Filter....................................................................................... 66
Firewall Settings .................................................................................. 67
Routing ................................................................................................ 69
Advanced Wireless ............................................................................... 70
Wi-Fi Protected Setup .......................................................................... 71
Advanced Network ............................................................................... 73
DLNA Settings ..................................................................................... 75
iTunes Server .......................................................................................76
Guest Zone ...........................................................................................77
IPv6 Firewall ........................................................................................ 78
IPv6 Routing ........................................................................................ 79
Tools Category.............................................................................................. 80
Admin .................................................................................................. 81
Time .....................................................................................................83
Syslog ..................................................................................................84
Email Settings ...................................................................................... 85
System ................................................................................................. 87
Firmware .............................................................................................. 88
Dynamic DNS ...................................................................................... 89
System Check ...................................................................................... 91
Schedules ............................................................................................ 92
Status Category ............................................................................................ 93
Device Info ........................................................................................... 94
Logs .....................................................................................................96
Statistics .............................................................................................. 97
Internet Sessions ................................................................................. 98
Wireless ............................................................................................... 98
IPv6...................................................................................................... 99
IPv6 Routing ........................................................................................ 99
Support Category ....................................................................................... 100
Knowledge Base ............................................................. 101
Wireless Basics .......................................................................................... 101
Wireless Modes ..........................................................................................103
Wireless Security ........................................................................................104
What is WPA? .................................................................................... 104
iiD-Link DIR-645 User Manual
Networking Basics ...................................................................................... 105
Connect to a Wireless Network ................................................................... 107
Using Window 7 ................................................................................ 107
Using Window 7 and WPS ................................................................. 109
Using Window Vista ...........................................................................112
Using Window XP .............................................................................. 113
Troubleshooting .............................................................. 114
Technical Specifications .................................................... 116
Warranty ...................................................................... 117
Contacting Technical Support .............................................. 123
Registration................................................................... 124
iiiD-Link DIR-645 User Manual
Section 1 - Product Overview

Product Overview

Package Contents

Check for the supplied accessories below:
• Wireless 802.11b/g/n Dual Band Router
• Power Adapter with extra Power Cable
• Ethernet Cable
• CD-ROM (with installation software and manuals)
• Quick Installation Guide
• Stand
• Mounting Kit
Note: Using a power supply with a different voltage rating than the one included with the product, will cause damage and void the warranty for this product.

System Requirements

Computer Requirements:
• Window 7/Vista/XP (with SP3), 10/100/1000Mbps Ethernet LAN adapter, CD-ROM drive.
Network Requirements:
• 10/100/1000Mbps Ethernet LAN adapter, 802.11b/g/n Wireless Adapter, Ethernet-based Cable or DSL Modem.
Software Requirements:
• Operating System like Microsoft Windows, Macintosh, or Linux.
• Browser like Internet Explorer (6 or higher), Mozilla Firefox (3.0 or higher), Safari (3.0 or higher), or Chrome (2.0 or higher)
1D-Link DIR-645 User Manual
Section 1 - Product Overview

About this Product

This user’s guide provides a wonderful insight into the functionality of the product called the D-Link DIR-645 Wireless Internet Router. This guide is based on the current running firmware/software version available for this product and might touch on some new and exciting topics never seen on this product line before providing a rewarding reading experience and in the end acts as a guide when installing and maintaining this product.

Features

The D-Link DIR-645 wireless router is packed with a load of features. Most of these features are what is expected from an Internet Wireless router, and then there are the features that are unique to D-Link products.
Internet Connectivity. In conjunction with a DSL or Cable Modem, this device can act as the Internet Gateway to your local network. Connections like, PPPoE, Static
and Dynamic IP Connections, PPTP, and L2TP connection can be made.
Wireless LAN functionality. This router supports the full package of what the 802.11n protocol has to offer. Other remarkable features are WMM, Automatic Fallback,
RF Output Level Control, Latest Wireless Security requirements, WPS and much more.
Networking. This router is equipped with 4 LAN ports, running at a speed of 10/100/1000Mbps, and 1 Internet port, running and the speed of 10/100/1000Mbps. This
device can handle a network of up to 1000 MAC addresses.
Multicasting. Supports IGMPv2.
DHCP. This device supports both Server and Client functionality.
Quality of Service. QoS rules can be created to shape traffic based on weight or priority. IP Pools can be managed based on application port numbers.
Advanced Security. The router supports also a list of security features like Network Filtering, Access Control, Website Filtering, Inbound Filtering and SPI.
IPv6. One of the most attractive features of this router is the fact that not only does it support local IPv6 support, but also IPv6 Internet Connection support. This is truly
an Internet Gateway ahead of it’s time.
More. Other features like DDNS, System Checking, Firmware Updates, Email Settings (for notification), and Schedules are also available on this device.
2D-Link DIR-645 User Manual
Section 1 - Product Overview
Internet Light
A solid green light indicates that the Internet connection
negotiation has successfully been completed.

Hardware Overview

Front Panel

WPS Light and Button
Press the WPS button for 1 second to initiate the WPS process. The button will flash green while a WPS connection is being established. The button will light green for 5 seconds if a successful WPS connection has
been made.
Wireless Light
A solid green light indicates a link has been established. A blinking green indicates the device is fail to connect
to the AP.
Power Light and Button
Press the button to power on the device. The LED lights solid green to indicate the power is on. Press the
button again to turn it off.
3D-Link DIR-645 User Manual
Section 1 - Product Overview
USB Port
The USB port can be used for WPS enabled Wireless
USB adapters.

Back Panel

Internet Port
The Internet (WAN) port can be used for connections like
a DSL/Cable modem.
Ethernet Ports
The four LAN ports can be used for 10/100/1000Mbps
LAN connections.
Power Receptor
Receptor for the supplied power adapter.
4D-Link DIR-645 User Manual
Section 1 - Product Overview
Reset Button
Press the button to restore the device to its original factory default settings.

Bottom Panel

5D-Link DIR-645 User Manual
Section 2 - Hardware Installation

Hardware Installation

This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, attic or garage.

Before You Begin

• The router is designed for use with the Ethernet port on your broadband modem. If you were using the USB connection before using the router, you must turn off your modem and disconnect the USB cable. Connect an Ethernet cable to the WAN/Internet port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change your connection type (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, be sure to disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer. Otherwise you will not be able to connect to the Internet.
• When running the Setup Wizard from the D-Link CD, make sure your computer is connected to the Internet and is online, otherwise the wizard will not work. If you have disconnected any hardware, first re-connect your computer to the modem and make sure you are online.

Wireless Installation Considerations

The router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or office. The key to maximizing the wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum. Each wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters.) Position your devices so that the number of walls and/or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as glass, metal, brick, insulation, concrete and water can affect wireless performance. Large objects such as fish tanks, mirrors, file cabinets, metal doors and aluminum studs may also have a negative effect on range.
4. Keep your product at least 3 to 6 feet (1-2 meters) away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones, make sure that the 2.4GHz phone base is as far away from your wireless device as possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling fans, fluorescent lights, and home security systems may dramatically degrade wireless connectivity.
6D-Link DIR-645 User Manual
Section 2 - Hardware Installation

Connect to Cable/DSL/Satellite Modem

If you are connecting the router to a Cable/DSL/Satellite Modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power off on your modem. If there is no on/off switch, unplug the modem’s power adapter. Shut down your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the WAN port on the router.
4. Plug an Ethernet cable into one of the LAN ports on the router. Plug the other end into the Ethernet port on your computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter into the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot up.
7. Turn on your computer.
8. Verify that the Power LED on the router are lit. If the Power LED does not light up, make sure your computer, modem, and router are powered, on and verify that the cables connected correctly.
9. In a later section in this manual we’ll discuss the Web GUI configuration of the router in more detail..

Connect to Another Router

If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have to do the following before connecting the router to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address from another router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect a computer to the router (LAN port) using an Ethernet cable. Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). If you need to change the settings, write down your existing settings before making any changes. In most cases, your computer should be set to receive an IP address automatically, in which case you will not have to do anything to your computer.
2. Open a web browser, type http://192.168.0.1 into the address bar, and press Enter. When the login window appears, set the username to ADMIN and leave the password box empty. Click Login to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server server checkbox. Click Save Settings to continue.
5. Under Router Settings, enter an available Router IP address and the subnet mask of your network. Click Save Settings to save your settings. Use this new IP address to access the configuration utility of the router in the future. Close the browser and change your computer’s IP settings back to the original values as in Step 1.
7D-Link DIR-645 User Manual
Section 3 - Software Configuration
Software Configuration
This section will guide you through how to configure and use your D-Link wireless router using the Web graphical user interface..

Connect to the Web User Interface

To access the configuration utility, open a web-browser application such as Internet Explorer and enter the IP address of the router in the address bar and click on Go.
Note: The default IP address for the router is 192.168.0.1
Log into the Router as follows:
• Select the ADMIN option from the drop-down menu and then enter your password. By default the password field is blank.
• Click the Login button to log into the Router.

Web User Interface

After successfully logging into the Web User Interface, you should see this page. This Web User Interface is divided into categories, found in the top menu, and pages, found in the left menu.
The categories found on this router are Setup, Advanced, Tools, Status, and Support. We will discuss these categories and their underlying pages in extensive details later on in this manual.
8D-Link DIR-645 User Manual
Section 3 - Software Configuration

Setup Category

In the Setup Category users will be able to configure features that are essential to the functionality of this router.
The pages found in the Setup Category are: Internet: On the Internet page, users can configure the method this router uses to connect to the Internet. There are two types of configuration methods to choose from, the Internet Connection Setup Wizard and the Manual Internet Connection Setup. Wireless Settings: On the Wireless Settings page the user can configure the Wireless settings for this device. There are 3 ways to configure the Wireless connection on this router. Firstly, the user can choose to make use of the quick and easy Wireless Connection Setup Wizard. Secondly, the user can choose to make use of the Wi-Fi Protected Setup. Lastly, the user can configure the Wireless settings manually. Network Settings: On the Network Settings page the user can configure the internal network settings of the router and also be able to configure the built-in DHCP server to assign IP addresses to computers on the network. The IP address that is configured here is the IP address that is used to access the Web-based management interface. If you change the IP address in this section, you may need to adjust your PC’s network settings to access the network again. IPv6: On the IPv6 page, the user can configure the IPv6 connection type. There are two ways to set up the IPv6 Internet connection. You can use the Web-based IPv6 Internet Connection Setup Wizard, or you can manually configure the connection.
9D-Link DIR-645 User Manual
Section 3 - Software Configuration

Internet (Setup Wizard)

When configuring the router for the first time, we recommend that you click use the Internet Connection Setup Wizard, and follow the instructions on the screen. This wizard is designed to assist user with a quick and easy method to configure the Internet Connectivity of this router.
Anytime during the Internet Connection Setup Wizard, the user can click on the Cancel button to discard any changes made and return to the main Internet page. Also the user can click on the Prev button, to return to the previous window for re­configuration.
Welcome:
This wizard will guide you through a step-by-step process to configure your new D-Link router and connect to the Internet. Click Next to continue.
Step 1: Set Your Password
By default, the D-Link Router does not have a password configured for administrator access to the Web-based configuration pages. To secure your new networking device, please enter and verify a password in the spaces provided. The two passwords must match.
Click Next to continue.
10D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 2: Select Your Time Zone
Select the appropriate time zone for your location. This information is required to configure the time-based options for the router.
Click Next to continue.
Step 3: Internet Connection
Here the user will be able to configure the Internet Connectivity used by this device. If your ISP connection is listed in the drop-down menu select it and click Next. If your ISP connection is not listed then you can proceed to select any of the other manual Internet Connection methods listed below.
The following parameters will be available for configuration:
Dynamic IP
Address:
PPPoE:
PPTP:
L2TP:
Static IP Address:
Choose this if your Internet connection automatically provides you with an IP Address. Most Cable Modems use this type of connection.
Choose this option if your Internet connection requires a PPPoE username and password to get online. Most DSL modems use this type of connection.
Choose this option if your Internet connection requires a PPTP username and password to get online.
Choose this option if your Internet connection requires an L2TP username and password to get online.
Choose this option if your Internet Setup Provider provided you with IP Address information that has to be manually configured.
11D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 3: Internet Connection (Dynamic IP Address)
After selecting the Dynamic IP Address Internet connection method, the following page will appear.
The following parameters will be available for configuration:
MAC Address:
Clone Button:
Host Name:
Primary DNS
Address:
Secondary DNS
Address:
Click Next to continue.
Enter the MAC address of the Internet gateway (plugged into the Internet port of this device) here.
If the configuration PC also acts as the Internet gateway, then click on the Clone Your PC’s MAC Address button to copy the PC’s MAC address into the space provided. If you’re not sure, leave the MAC Address field blank.
Enter the host name used here. You may also need to provide a Host Name. If you do not have or know this information, please contact your ISP.
Enter the Primary DNS IP address used here.
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
12D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 3: Internet Connection (PPPoE)
After selecting the PPPoE Internet connection method, the following page will appear:
The following parameters will be available for configuration:
Address Mode:
IP Address:
User Name:
Password:
Verify Password:
Service Name:
Primary DNS
Address:
Secondary DNS
Address:
Click Next to continue.
Here the user can specify whether this Internet connection requires the use of a Dynamic or Static IP address. PPPoE usually requires a Dynamic IP configuration.
Enter the PPPoE IP address used here. This option is only available if Static IP is selected.
Enter the PPPoE account user name used here. This information is given by the ISP.
Enter the PPPoE account password used here. This information is given by the ISP.
Re-enter the PPPoE account password used here. This optional field enables the user to enter a service name
to identify this Internet connection here. Enter the Primary DNS IP address used here.
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
13D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 3: Internet Connection (PPTP)
After selecting the PPTP Internet connection method, the following page will appear:
The following parameters will be available for configuration:
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway IP
Address:
PPTP Server IP
Address:
User Name:
Password:
Verify Password:
Primary DNS
Address:
Secondary DNS
Address:
Here the user can specify whether this Internet connection requires the use of a Dynamic or Static IP address. PPTP usual requires a Dynamic IP configuration.
Enter the PPTP IP address used here. This option is only available if Static IP is selected.
Enter the PPTP Subnet Mask used here.
Enter the PPTP Gateway IP address used here.
Enter the PPTP Server IP address used here. This is normally the same a the PPTP Gateway IP address.
Enter the PPTP username used here. Enter the PPTP password used here. Re-enter the PPTP password used here.
Enter the Primary DNS IP address used here.
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
Click Next to continue.
14D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 3: Internet Connection (L2TP)
After selecting the L2TP Internet connection method, the following page will appear:
The following parameters will be available for configuration:
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
User Name:
Password:
Verify Password:
Primary DNS
Address:
Secondary DNS
Address:
Here the user can specify whether this Internet connection requires the use of a Dynamic or Static IP address. L2TP usual requires a Dynamic IP configuration.
Enter the L2TP IP address used here. This option is only available if Static IP is selected.
Enter the L2TP Subnet Mask used here.
Enter the L2TP Gateway IP address used here.
Enter the L2TP Server IP address used here. This is normally the same a the L2TP Gateway IP address.
Enter the L2TP username used here. Enter the L2TP password used here. Re-enter the L2TP password used here.
Enter the Primary DNS IP address used here.
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
Click Next to continue.
15D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 3: Internet Connection (Static IP Address)
After selecting the Static IP Address Internet connection method, the following page will appear:
The following parameters will be available for configuration:
IP Address:
Subnet Mask:
Gateway Address:
Primary DNS
Address:
Secondary DNS
Address:
Click Next to continue.
Setup Complete!
This is the last page of the Internet Connection Setup Wizard.
Click the Connect button to save your settings.
Enter the Static IP address provided by the ISP here. Enter the Subnet Mask provided by the ISP here. Enter the Gateway IP address provided by the ISP here. Enter the Primary DNS IP address used here.
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
16D-Link DIR-645 User Manual
Section 3 - Software Configuration

Internet (Manual)

On this page the user can configure the Internet Connection settings manually. To access the Manual Internet Connection Setup page, click on the Manual Internet Connection Setup button. On this page there a multiple parameters that can be configured regarding the Internet Connection setup. We’ll discuss them from top to bottom.
At any given point the user can save the configuration done, on this page, by clicking on the Save Settings button. If you choose to discard the changes made, click on the Don’t Save Settings button.
Internet Connection Type
In this section, the user can select from a list of Internet Connection types that can be configured and used on this router. Options to choose from are Static IP, Dynamic IP, PPPoE, PPTP, L2TP, and DS-Lite. After selecting a specific Internet Connection type, this page will automatically refresh and provide unique fields to configure related to the specified Internet Connection type.
My Internet Connection is: Dynamic IP (DHCP)
The default WAN configuration for this router is Dynamic IP (DHCP). This option allows the router to obtain an IP address automatically from the device that is connected to the Internet port.
Note: If you’re not sure about the type of Internet Connection you have, please contact your Internet Service Provider (ISP) for assistance.
After selecting Dynamic IP, the following parameters will be available for configuration:
Host Name:
Use Unicasting:
Primary DNS:
The Host Name is optional but may be required by some ISPs. Leave blank if you are not sure.
Tick this option if you ISP uses the unicast method to provide IP addresses.
Enter the Primary DNS IP address used here.
17D-Link DIR-645 User Manual
Section 3 - Software Configuration
Secondary DNS:
MTU:
MAC Address:
My Internet Connection is: Static IP
Another Internet Connection type is Static IP. This option allows the user to manually configure the Static IP Internet Connection type. Normally the information entered will be supplied by your ISP.
After selecting Static IP, the following parameters will be available for configuration:
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS:
Secondary DNS:
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1500 is the default MTU. The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change
the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Enter the Static IP address provided by the ISP here. Enter the Subnet Mask provided by the ISP here. Enter the Gateway IP address provided by the ISP here. Enter the Primary DNS IP address used here. Enter the Secondary DNS IP address used here. This field
is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
MTU:
MAC Address:
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1500 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
18D-Link DIR-645 User Manual
Section 3 - Software Configuration
My Internet Connection is: PPPoE (Username/Password)
Another Internet Connection type is PPPoE. This option is typically used if you have a DSL Internet Connection. Make sure to remove the PPPoE software installed on your computer first before using this connection type. Most of the information needed for this connection type is provided to you by your ISP.
After selecting PPPoE, the following parameters will be available for configuration:
Address Mode:
IP Address:
Username:
Password:
Verify Password:
Service Name:
Reconnect Mode:
Maximum Idle
Time:
Here the user can specify whether this Internet connection requires the use of a Dynamic or Static IP address. PPPoE usually requires a Dynamic IP configuration.
Enter the PPPoE IP address used here. This option is only available if Static IP is selected.
Enter the PPPoE account user name used here. This information is given by the ISP.
Enter the PPPoE account password used here. This information is given by the ISP.
Re-enter the PPPoE account password used here. This optional field enables the user to enter a service name
to identify this Internet connection here. Use the radio buttons to specify the reconnect mode. The user
can specify a custom schedule or specify the On Demand, or Manual option. To specify a custom schedule, use the drop-down menu to select one of the schedules that has been defined in the Schedules page. To create a new schedule, click the New Schedule button to open the Schedules page. Schedules will be discussed later.
Enter a maximum idle time during which the Internet connection is maintained during inactivity.
DNS Mode: This option allow the router to obtain the DNS IP addresses from the ISP, when Receive DNS from ISP is selected, or allows the user to enter DNS
IP address manually, when Enter DNS Manually is selected.
Primary DNS
Server:
Enter the Primary DNS IP address used here.
19D-Link DIR-645 User Manual
Section 3 - Software Configuration
Secondary DNS
Server:
MTU:
MAC Address:
My Internet Connection is: PPTP (Username/Password)
Another Internet Connection type is PPTP. This option is typically used if you have a secure DSL Internet Connection. Most of the information needed for this connection type is provided to you by your ISP.
After selecting PPTP, the following parameters will be available for configuration:
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1492 is the default MTU. The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change
the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Here the user can specify whether this Internet connection requires the use of a Dynamic or Static IP address. PPTP usually requires a Dynamic IP configuration.
Enter the PPTP IP address used here. This option is only available if Static IP is selected.
Enter the PPTP Subnet Mask used here.
PPTP Gateway IP
Address:
PPTP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect Mode:
Enter the PPTP Gateway IP address used here.
Enter the PPTP Server IP address used here. This is normally the same a the PPTP Gateway IP address.
Enter the PPTP username used here. Enter the PPTP password used here. Re-enter the PPTP password used here. Use the radio buttons to specify the reconnect mode. The user
can specify a custom schedule or specify the On Demand, or Manual option. To specify a custom schedule, use the drop-down menu to select one of the schedules that
20D-Link DIR-645 User Manual
Section 3 - Software Configuration
has been defined in the Schedules page. To create a new schedule, click the New Schedule button to open the Schedules page. Schedules will be discussed later.
Maximum Idle
Time:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address:
My Internet Connection is: L2TP (Username/Password)
Another Internet Connection type is L2TP. This option is typically used if you have a secure DSL Internet Connection. Most of the information needed for this connection type is provided to you by your ISP.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
Enter the Primary DNS IP address used here.
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1400 is the default MTU. The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change
the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
21D-Link DIR-645 User Manual
Section 3 - Software Configuration
After selecting L2TP, the following parameters will be available for configuration:
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect Mode:
Here the user can specify whether this Internet connection requires the use of a Dynamic or Static IP address. L2TP usual requires a Dynamic IP configuration.
Enter the L2TP IP address used here. This option is only available if Static IP is selected.
Enter the L2TP Subnet Mask used here.
Enter the L2TP Gateway IP address used here.
Enter the L2TP Server IP address used here. This is normally the same a the L2TP Gateway IP address.
Enter the L2TP username used here. Enter the L2TP password used here. Re-enter the L2TP password used here. Use the radio buttons to specify the reconnect mode. The user
can specify a custom schedule or specify the On Demand, or Manual option. To specify a custom schedule, use the drop-down menu to select one of the schedules that has been defined in the Schedules page. To create a new schedule, click the New Schedule button to open the Schedules page. Schedules will be discussed later.
Maximum Idle
Time:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
Enter the Primary DNS IP address used here.
Enter the Secondary DNS IP address used here. This field is normally optional. Only one DNS address is required for a functional Internet connection, but using a second DNS address provides more stability.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specific ISP. 1400 is the default MTU. The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change
the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
22D-Link DIR-645 User Manual
Section 3 - Software Configuration
My Internet Connection is: DS-Lite)
Another Internet Connection type is DS-Lite.
After selecting DS-Lite, the following parameters will be available for configuration:
DS-Lite
Configuration:
AFTR IPv6
Address:
B4 IPv4 Address:
WAN IPv6
Address:
IPv6 WAN Default
Gateway
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Select the DS-Lite DHCPv6 Option to let the router allocate the AFTR IPv6 address automatically. Select the Manual Configuration to enter the AFTR IPv6 address in manually.
After selecting the Manual Configuration option above, the user can enter the AFTR IPv6 address used here.
Enter the B4 IPv4 address value used here. Once connected, the WAN IPv6 address will be displayed
here. Once connected, the IPv6 WAN Default Gateway address will
be displayed here.
23D-Link DIR-645 User Manual
Section 3 - Software Configuration

Wireless Settings

On this page the user can configure the Wireless settings for this device. There are 3 ways to configure Wireless using this router. Firstly, the user can choose to make use for the quick and easy Wireless Connection Setup Wizard. Secondly, the user can choose to make use Wi-Fi Protected Setup. Lastly, the user can configure the Wireless settings manually.
Wireless Settings: Wireless Connection Setup Wizard
The Wireless Connection Setup Wizard is specially designed to assist basic network users with a simple, step-by-step set of instructions to configure the wireless settings of this router. It is highly recommended to customized the wireless network settings to fit into your environment and to add higher security.
To initiate the Wireless Connection Setup Wizard click on the Wireless Connection Setup Wizard button.
Step 1: In this step, the user must enter a custom Wireless Network Name or SSID . Enter the new SSID name in the appropriate space provided. Secondly the user can choose between two wireless security wizard configurations. The user can select ‘Automatically assign a network key’, by which the router will automatically generate a WPA/WPA2 pre-shared key using the TKIP and AES encryption methods; or the user can select ‘Manually assign a network key’, by which the user will be prompt to manually enter a WPA/WPA2 pre-shared key using the TKIP and AES encryption methods.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page.
24D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 2: This step will only be available if the user selected ‘Manually assign a network key’ in the previous step. Here the user can manually enter the WPA/WPA2 pre-shared key in the Wireless Security Password space provided. The key entered must be between 8 and 63 characters long. Remember, this key will be used when wireless clients wants to connect to this device. So please remember this key to prevent future troubleshooting.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page.
Setup Complete: On this page the user can view the configuration made and verify whether they are correct.
Click on the Prev button to return to the previous page. Click on the Cancel button to discard the changes made and return to the main wireless page. Click on the Save button to accept the changes made.
After click the Save button the device will save the settings made and return to the main wireless page.
25D-Link DIR-645 User Manual
Section 3 - Software Configuration
Wireless Settings: Wi-Fi Protected Setup Wizard
If your Wireless Clients support the WPS connection method, this Wi-Fi Protected Setup Wizard can be used to initiate a wireless connection between this device and Wireless clients with a simple click of the WPS button. The Wi-Fi Protected Setup Wizard is specially designed to assist basic network users with a simple, step-by-step set of instructions to connect wireless clients to this router using the WPS method.
To initiate the Wi-Fi Protected Setup Wizard click on the Add Wireless Device
with WPS button.
Step 1: In this step the user have two options to choose from. You can choose Auto
if the wireless client supports WPS, or Manual if the wireless client does not support WPS.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page.
Step 2: After selecting Auto, the following page will appear. There are two ways to add a wireless device, that supports WPS. Firstly, there is the Personal Identification Number (PIN) method. Using this method will prompt the user to enter a PIN code. This PIN code should be identical on the wireless client. Secondly, there is the Push Button Configuration (PBC) method. Using this method will allow the wireless client to connect to this device by similarly pressing the PBC button on it.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page.
26D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 2: After selecting Manual, the following page will appear. On this page to user can view the wireless configuration of this router. The wireless clients should configure their wireless settings to be identical to the settings displayed on this page for a successful connection. This option is for wireless clients that can’t use the WPS method to connect to this device.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page. Click on the Wireless Status button to navigate to the Status > Wireless page to view what wireless client are connected to this device.
Wireless Settings: Manual Wireless Network Setup
The manual wireless network setup option allows users to configure the wireless settings of this device manually. This option is for the more advanced user and includes all parameters that can be configured for wireless connectivity.
To initiate the Manual Wireless Setup page, click on the Manual Wireless Connection Setup button.
On this page the user can configure all the parameters related to the wireless connectivity of this router.
27D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Wireless Band:
Enable Wireless:
Wireless Network
Name:
802.11 Mode: Enable Auto
Channel Scan:
Wireless
Channel:
Transmission
Rate:
Displays the wireless band being configured. In this option we find that the following parameters will be regarding the
2.4GHz band. Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all the wireless functions. Select the time frame that you would like your wireless network enabled. The schedule may be set to Always. Any schedule you create will be available in the drop-down menu. Click New Schedule to create a new schedule.
The Service Set Identifier (SSID) is the name of your wireless network. Create a name using up to 32 characters. The SSID is case-sensitive. Enable Auto Channel
Here the user can manually select the preferred frequency band to use for this wireless network. The auto channel selection setting can be selected to allow this device to choose the channel with the least amount of interference.
By default the channel is set to 1. The Channel can be changed to fit the channel setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Selection, this option will be greyed out.
Select the transmit rate. It is strongly suggested to select Best (Automatic) for best performance.
Channel Width:
Visibility Status:
When using the 802.11n frequency band, the user have an option to choose between a 20MHz or 20/40MHz bandwidth. The Invisible option allows you to hide your wireless network. When this option is set to Visible, your wireless network name is broadcasted to anyone
within the range of your signal. If you are not using encryption then they could connect to your network. When Invisible mode is enabled, you must enter the Wireless Network Name (SSID) on the client manually to connect to the network.
28D-Link DIR-645 User Manual
Section 3 - Software Configuration
By default the wireless security of this router will be disabled. In this next option the user can enabled or disable wireless security for the frequency band 2.4GHz. There are two types of encryption that can be used. WEP or WPA/WPA2.
Wireless Security Mode: WEP
Wired Equivalent Privacy (WEP) is the most basic form of encryption that can be used for wireless networks. Even though it is known as a ‘weak’ security method, it is better than no security at all. Older wireless adapter sometimes only supports WEP encryption and thus we still find this encryption method used today.
The following parameters will be available for configuration:
WEP Key Length:
Authentication:
WEP Key 1:
Here the user can specify to either use a 64Bit or a 128Bit encrypted key.
Authentication is a process by which the router verifies the identity of a network device that is attempting to join the wireless network. There are two types authentication for this device when using WEP. Open System allows all wireless devices to communicate with the router before they are required to provide the encryption key needed to gain access to the network. Shared Key requires any wireless device attempting to communicate with the router to provide the encryption key needed to access the network before they are allowed to communicate with the router.
Enter the WEP key used here. For 64-bit keys you must enter 10 hex digits into each key box. For 128-bit keys you must enter 26 hex digits into each key box. A hex digit is either a number from 0 to 9 or a letter from A to F. You may also enter any text string into a WEP key box, in which case it will be converted into a hexadecimal key using the ASCII values of the characters. A maximum of 5 text characters can be entered for 64-bit keys, and a maximum of 13 characters for 128-bit keys.
29D-Link DIR-645 User Manual
Section 3 - Software Configuration
Wireless Security Mode: WPA-Personal
Wi-Fi Protected Access (WPA) is the most advanced and up to date wireless encryption method used today. This is the recommended wireless security option. WPA supports two authentication frameworks. Personal (PSK) and Enterprise (EAP). Personal requires only the use of a pass-phrase (Shared Secret) for security.
The following parameters will be available for configuration:
WPA Mode:
Cipher Type:
Group Key Update
Interval:
Pre-Shared Key:
WPA is the older standard; select this option if the clients that will be used with the router only support the older standard. WPA2 is the newer implementation of the stronger IEEE 802.11i security standard. With the “WPA2” option, the router tries WPA2 first, but falls back to WPA if the client only supports WPA. With the “WPA2 Only” option, the router associates only with clients that also support WPA2 security.
Select the appropriate cipher type to use here. Options to choose from are Temporal Key Integrity Protocol (TKIP), Advanced Encryption Standard (AES), and Both (TKIP and AES).
Enter the amount of time before the group key used for broadcast and multicast data is changed.
Enter the shared secret used here. This secret phrase needs to be the same on all of the wireless clients for them to be able to connect to the wireless network successfully.
30D-Link DIR-645 User Manual
Section 3 - Software Configuration
Wireless Security Mode: WPA-Personal
Wi-Fi Protected Access (WPA) is the most advanced and up to date wireless encryption method used today. This is the recommended wireless security option. WPA supports two authentication frameworks. Personal (PSK) and Enterprise (EAP). Personal requires only the use of a pass-phrase (Shared Secret) for security.
The following parameters will be available for configuration:
WPA Mode:
Cipher Type:
Group Key Update
Interval:
RADIUS Server IP
Address:
RADIUS Server
Port:
RADIUS Server
Shared Secret:
WPA is the older standard; select this option if the clients that will be used with the router only support the older standard. WPA2 is the newer implementation of the stronger IEEE 802.11i security standard. With the “WPA2” option, the router tries WPA2 first, but falls back to WPA if the client only supports WPA. With the “WPA2 Only” option, the router associates only with clients that also support WPA2 security.
Select the appropriate cipher type to use here. Options to choose from are Temporal Key Integrity Protocol (TKIP), Advanced Encryption Standard (AES), and Both (TKIP and AES).
Enter the amount of time before the group key used for broadcast and multicast data is changed.
When the user chooses to use the EAP authentication framework, the RADIUS server’s IP address can be entered here.
When the user chooses to use the EAP authentication framework, the RADIUS server’s port number can be entered here.
Enter the shared secret used here. This secret phrase needs to be the same on all of the wireless clients for them to be able to connect to the wireless network successfully.
31D-Link DIR-645 User Manual
Section 3 - Software Configuration

Network Settings

On this page the user can configure the internal network settings of the router and also able to configure the built-in DHCP server to assign IP addresses to computers on the network. The IP address that is configured here is the IP address that is used to access the Web-based management interface. If you change the IP address in this section, you may need to adjust your PC’s network settings to access the network again.
The following parameters will be available for configuration:
Router IP
Address:
Default Subnet
Mask:
Host Name:
Local Domain
Name:
Enable DNS
Relay:
DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. This device has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the router. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.
Enter the IP address of the router. The default IP address is
192.168.0.1. If you change the IP address, once you click Apply, you will need to enter the new IP address in your browser to get back into the configuration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0. Enter a Host Name to identify this device. Enter the local domain name used here. (Optional).
Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server.
32D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease
Time:
Always
Broadcast:
NetBIOS
announcement:
Learn NetBIOS
from WAN:
Check this box to enable the DHCP server on your router. Uncheck to disable this function.
Enter the starting and ending IP addresses for the DHCP server’s IP assignment.
The length of time for the IP address lease. Enter the Lease time in minutes.
If all the computers on the LAN successfully obtain their IP addresses from the router’s DHCP server as expected, this option can remain disabled. However, if one of the computers on the LAN fails to obtain an IP address from the router’s DHCP server, it may have an old DHCP client that incorrectly turns off the broadcast flag of DHCP packets. Enabling this option will cause the router to always broadcast its responses to all clients, thereby working around the problem, at the cost of increased broadcast traffic on the LAN.
Check this box to allow the DHCP Server to offer NetBIOS configuration settings to the LAN hosts. NetBIOS allow LAN hosts to discover all other computers within the network, e.g. within Network Neighborhood.
If NetBIOS announcement is switched on, it will cause WINS information to be learned from the WAN side, if available. Turn this setting off to configure manually.
NetBIOS Scope:
NetBIOS node
type:
This is an advanced setting and is normally left blank. This allows the configuration of a NetBIOS ‘domain’ name under which network hosts operate. This setting has no effect if the ‘Learn NetBIOS information from WAN’ is activated.
This field indicates how network hosts are to perform NetBIOS name registration and discovery. H-Node, this indicates a Hybrid-State of operation. First WINS servers are tried, if any, followed by local network broadcast. This is generally the preferred mode if you have configured WINS servers. M-Node (default), this indicates a Mixed-Mode of operation. First Broadcast operation is performed to register hosts and discover other hosts, if broadcast operation fails, WINS servers are tried, if any. This mode favours broadcast operation which may be preferred if WINS servers are reachable by a slow network link and the majority of network services such as servers and printers are local to the LAN. P-Node, this indicates to use WINS servers ONLY. This setting is useful to force all NetBIOS operation to the configured WINS servers. You must have configured at least the primary WINS server IP to point to a working WINS server. B-Node, this indicates to use local network broadcast ONLY. This setting is useful where there are no WINS servers available, however, it is preferred you try M-Node operation first. This setting has no effect if the ‘Learn NetBIOS information from WAN’ is activated.
33D-Link DIR-645 User Manual
Section 3 - Software Configuration
Primary WINS
Server IP
address:
Secondary
WINS Server IP
address:

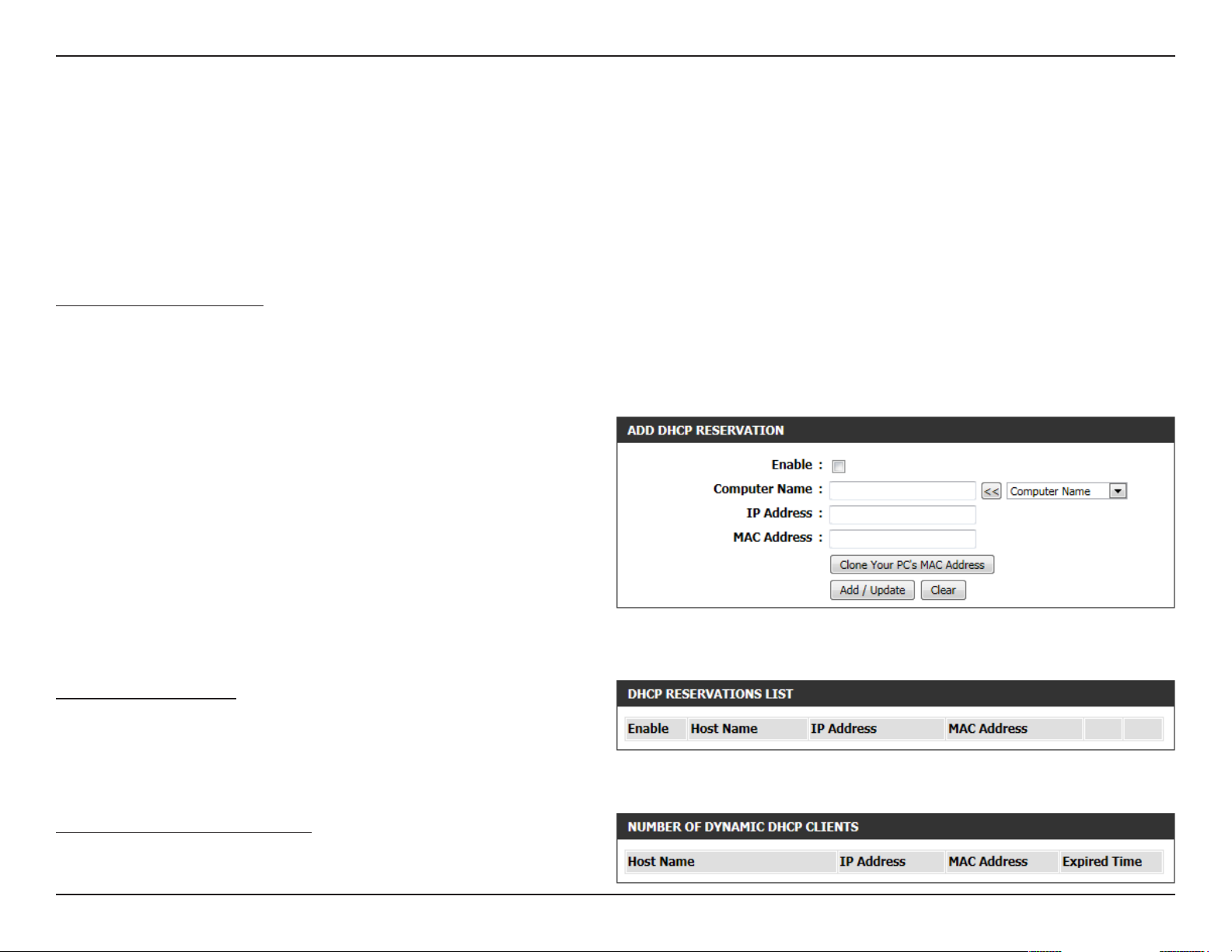

Add/Edit DHCP Reservation
This option lets you reserve IP addresses, and assign the same IP address to the network device with the specified MAC address any time it requests an IP address. This is almost the same as when a device has a static IP address except that the device must still request an IP address from the D-Link router. The D-Link router will provide the device the same IP address every time. DHCP Reservations are helpful for server computers on the local network that are hosting applications such as Web and FTP. Servers on your network should either use a static IP address or use this option.
The following parameters will be available for configuration:
Enable:
Computer Name:
IP Address:
Configure the IP address of the preferred WINS server. WINS Servers store information regarding network hosts, allowing hosts to ‘register’ themselves as well as discover other available hosts, e.g. for use in Network Neighborhood. This setting has no effect if the ‘Learn NetBIOS information from WAN’ is activated.
Configure the IP address of the backup WINS server, if any. This setting has no effect if the ‘Learn NetBIOS information from WAN’ is activated.
Check this box to enable the reservation. Enter the computer name. Alternatively, select a computer
that currently has a DHCP lease from the drop down menu and click << to automatically populate the Computer Name, IP Address, and MAC Address fields.
Enter the IP address you want to assign to the computer or device. This IP Address must be within the DHCP IP Address Range.
MAC Address:
DHCP Reservations List
This shows clients that you have specified to have reserved DHCP addresses. An entry can be changed by clicking the Edit icon, or deleted by clicking the Delete icon. When you click the Edit icon, the item is highlighted, and the ‘Edit DHCP Reservation’ section is activated for editing.
Number of Dynamic DHCP Clients
In this section you can see what LAN devices are currently leasing IP addresses.
Enter the MAC address of the computer or device.
34D-Link DIR-645 User Manual
Section 3 - Software Configuration

IPv6

On this page, the user can configure the IPv6 Connection type. There are two ways to set up the IPv6 Internet connection. You can use the Web-based IPv6 Internet Connection Setup Wizard, or you can manually configure the connection.
IPv6 Internet Connection Setup Wizard For the beginner user that have not configured a router before, click on the IPv6 Internet Connection Setup Wizard button and the router will guide you through
a few simple steps to get your network up and running.
After clicking on the IPv6 Internet Connection Setup Wizard button, this page will appear.
Welcome to the D-Link IPv6 Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to configure your new D-Link router and connect to the IPv6 Internet.
Click Next to continue to the next page. Click Cancel to discard the changes made and return to the main page.
Step 1: Configure Your IPv6 Internet Connection
The router will try and detect whether its possible to obtain the IPv6 Internet Connection type automatically. If this succeeds then the user will be guided through the input of the appropriate parameters for the connection type found.
However, if the automatic detection fails, the user will be prompt to either Try again or to click on the Guide me through the IPv6 settings button to initiate the manual continual of the wizard.
35D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 1: Configure Your IPv6 Internet Connection
There are several connection types to choose from. If you are unsure of your connection method, please contact your IPv6 Internet Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed or disabled. The 3 options available on this page is IPv6 over PPPoE, Static IPv6 address and Route, and Tunneling Connection.
Choose the required IPv6 Internet Connection type and click on the Next button to continue. Click on the Prev button to return to the previous page. Click on the
Cancel button to discard all the changes made and return to the main page.
Set Username and Password Connection (PPPoE)
After selecting the IPv6 over PPPoE option, the user will be able to configure the IPv6 Internet connection that requires a username and password to get online. Most DSL modems use this type of connection.
The following parameters will be available for configuration:
PPPoE Session:
User Name:
Password:
Verify Password:
Service Name:
Click on the Next button to continue. Click on the Prev button to return to the previous page. Click on the Cancel button to discard all the changes made and return to the main page.
Select the PPPoE Session value used here. This option will state that this connection shares it’s information with the already configured IPv6 PPPoE connection, or the user can create a new PPPoE connection here.
Enter the PPPoE username used here. This information is obtainable from the ISP.
Enter the PPPoE password used here. This information is obtainable from the ISP.
Re-enter the PPPoE password used here. Enter the service name for this connection here. This option is optional.
36D-Link DIR-645 User Manual
Section 3 - Software Configuration
Set Static IPv6 Address Connection
This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your IPv6 configuration settings. You must enter the IPv6 address, Subnet Prefix Length, Default Gateway, Primary DNS Server, and Secondary DNS Server. Your ISP provides you with all this information.
The following parameters will be available for configuration:
Use Link-Local
Address:
IPv6 Address:
Subnet Prefix
Length:
Default Gateway:
Primary IPv6 DNS
Address:
Secondary IPv6
DNS Address:
LAN IPv6
Address:
Click on the Next button to continue. Click on the Prev button to return to the previous page. Click on the Cancel button to discard all the changes made and return to the main page.
The Link-local address is used by nodes and routers when communicating with neighboring nodes on the same link. This mode enables IPv6-capable devices to communicate with each other on the LAN side.
Enter the WAN IPv6 address for the router here. Enter the WAN subnet prefix length value used here.
Enter the WAN default gateway IPv6 address used here. Enter the WAN primary DNS Server address used here.
Enter the WAN secondary DNS Server address used here.
These are the settings of the LAN (Local Area Network) IPv6 interface for the router. The router’s LAN IPv6 Address configuration is based on the IPv6 Address and Subnet assigned by your ISP. (A subnet with prefix /64 is supported in LAN.)
37D-Link DIR-645 User Manual
Section 3 - Software Configuration
Tunneling Connection (6rd)
After selecting the Tunneling Connection (6rd) option, the user can configure the IPv6 6rd connection settings.
The following parameters will be available for configuration:
6rd IPv6 Prefix:
IPv4 Address:
Mask Length:
Assigned IPv6
Prefix:
6rd Border Relay
IPv4 Address:
IPv6 DNS Server:
Click on the Next button to continue. Click on the Prev button to return to the previous page. Click on the Cancel button to discard all the changes made and return to the main page.
Setup Complete
The IPv6 Internet Connection Setup Wizard was completed.
Click on the Connect button to continue. Click on the Prev button to return to the previous page. Click on the Cancel button to discard all the changes made and return to the main page.
Enter the 6rd IPv6 address and prefix value used here. Enter the IPv4 address used here. Enter the IPv4 mask length used here. Displays the IPv6 assigned prefix value here.
Enter the 6rd border relay IPv4 address used here.
Enter the primary DNS Server address used here.
38D-Link DIR-645 User Manual
Section 3 - Software Configuration
Manual IPv6 Internet Connection Option For the advanced user that have configured a router before, click on the Manual IPv6 Internet Connection Setup button to input all the settings manually.
On this page the user can manually configure the mode that the Router will use to access an IPv6 Internet connection. There are several connection types to choose from: Link-local, Static IPv6, DHCPv6, Stateless Auto-Configuration, PPPoE, IPv6 over IPv4 Tunnel and 6to4. If you are unsure of your connection method, please contact your IPv6 ISP.
IPv6 Connection Type: Link-Local Only
The Link-local address is used by nodes and routers when communicating with neighboring nodes on the same link. This mode enables IPv6-capable devices to communicate with each other on the LAN side.
The following parameters will be available for configuration:
LAN IPv6 Link-
Local Address:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
IPv6 Connection Type: Auto Detection
In the following section we’ll discuss the parameters that can be configured when setting up an Auto Detection (Stateless/DHCPv6) connection. This is a method of connection where the ISP assigns your IPv6 address when your router requests one from the ISP’s server. Some ISP’s require you to make some settings on your side before your router can connect to the IPv6 Internet.
Displays the LAN IPv6 Link-Local address used here.
39D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Obtain IPv6 DNS Server
automatically:
Use the following
IPv6 DNS
Servers:
Primary DNS:
Secondary DNS:
Use the section to configure the internal network settings of your router. The LAN IPv6 Link-Local Address is the IPv6 Address that you use to access the Web-based management interface. If you change the LAN IPv6 Address here, you may need to adjust your PC’s network settings to access the network again. DHCP-PD can be used to acquire a IPv6 prefix for the LAN interface.
The following parameters will be available for configuration:
Enable DHCP-PD:
LAN IPv6
Address:
LAN IPv6 Link­Local Address:
Select this option to obtain the DNS Server addresses automatically.
Select this option to manually enter the DNS Server addresses used.
Enter the primary DNS Server address used here. Enter the secondary DNS Server address used here.
Select this option to enable DHCP PD. Enter the LAN IPv6 address used here. This address must be
in the ‘/64’ subnet. Displays the LAN IPv6 Link-Local address used here.
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
The user can tick this option to enable the auto-configuration feature.
Tick this option to enable the automatic DHCP-PD on the LAN.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateless. Enter the router advertisement lifetime value used here.
40D-Link DIR-645 User Manual
Section 3 - Software Configuration
IPv6 Address
Range (Start):
IPv6 Address Range (End):
IPv6 Address
Lifetime:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
IPv6 Connection Type: Static IPv6
In the following section we’ll discuss the parameters that can be configured when setting up an Static IPv6 connection. This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your IPv6 configuration settings. You must enter the IPv6 address, Subnet Prefix Length, Default Gateway, Primary DNS Server, and Secondary DNS Server. Your ISP provides you with all this information.
This option is only available when the auto-configuration type is set to Stateful. Enter the start IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the end IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the IPv6 Address Lifetime (in minutes).
The following parameters will be available for configuration:
Use Link-Local
Address:
IPv6 Address:
Subnet Prefix
Length:
Default Gateway:
The Link-local address is used by nodes and routers when communicating with neighboring nodes on the same link. This mode enables IPv6-capable devices to communicate with each other on the LAN side.
Enter the WAN IPv6 address for the router here.
Enter the WAN default gateway IPv6 address used here.
41D-Link DIR-645 User Manual
Section 3 - Software Configuration
Primary DNS
Server:
Secondary DNS
Server:
The following parameters will be available for configuration:
LAN IPv6
Address:
LAN IPv6 Link­Local Address:
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
Enter the WAN primary DNS Server address used here.
Enter the WAN secondary DNS Server address used here.
Enter the LAN (local) IPv6 address for the router here.
Displays the Router’s LAN Link-Local Address here.
The user can tick this option to enable the auto-configuration feature.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateless. Enter the router advertisement lifetime value used here.
IPv6 Address
Range (Start):
IPv6 Address Range (End):
IPv6 Address
Lifetime:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
This option is only available when the auto-configuration type is set to Stateful. Enter the start IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the end IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the IPv6 Address Lifetime (in minutes).
42D-Link DIR-645 User Manual
Section 3 - Software Configuration
IPv6 Connection Type: Autoconfiguration (SLAAC/DHCPv6)
In the following section we’ll discuss the parameters that can be configured when setting up an Autoconfiguration (SLAAC/DHCPv6) connection. This is a method of connection where the ISP assigns your IPv6 address when your router requests one from the ISP’s server. Some ISP’s require you to make some settings on your side before your router can connect to the IPv6 Internet.
The following parameters will be available for configuration:
Obtain IPv6
DNS Servers
automatically:
Use the following
IPv6 DNS
Servers:
Primary DNS
Server:
Secondary DNS
Server:
The following parameters will be available for configuration:
Enable DHCP-PD:
LAN IPv6
Address:
LAN IPv6 Link­Local Address:
Select this option to obtain the DNS Server addresses automatically.
Select this option to manually enter the DNS Server addresses used.
Enter the WAN primary DNS Server address used here.
Enter the WAN secondary DNS Server address used here.
Select this option to enable DHCP PD. Enter the LAN IPv6 address used here. This address must be in the ‘/64’ subnet.
Displays the LAN IPv6 Link-Local address used here.
43D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
IPv6 Address
Range (Start):
IPv6 Address Range (End):
IPv6 Address
Lifetime:
The user can tick this option to enable the auto-configuration feature.
Tick this option to enable the automatic DHCP-PD on the LAN.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateless. Enter the router advertisement lifetime value used here.
This option is only available when the auto-configuration type is set to Stateful. Enter the start IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the end IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the IPv6 Address Lifetime (in minutes).
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
44D-Link DIR-645 User Manual
Section 3 - Software Configuration
IPv6 Connection Type: PPPoE
Select this option if your ISP requires you to use a PPPoE (Point to Point Protocol over Ethernet) connection to IPv6 Internet. DSL providers typically use this option. This method of connection requires you to enter a Username and Password (provided by your Internet Service Provider) to gain access to the IPv6 Internet. The supported authentication protocols are PAP and CHAP.
The following parameters will be available for configuration:
PPPoE Session:
Address Mode:
IP Address:
Username:
Password:
Verify Password:
Service Name:
MTU:
The following parameters will be available for configuration:
Obtain IPv6:
Select the PPPoE Session value used here. This option will state that this connection shares it’s information with the already configured IPv6 PPPoE connection, or the user can create a new PPPoE connection here.
Select the appropriate address mode used here. Select Dynamic IP if the ISP’s servers assign the router’s WAN IPv6 address upon establishing a connection. If your ISP has assigned a fixed IPv6 address, select Static IP. The ISP provides the value for the IPv6 Address.
Enter the ISP PPPoE IP address in here. Enter the PPPoE username used here. This information is obtainable from the ISP. Enter the PPPoE password used here. This information is obtainable from the ISP. Re-enter the PPPoE password used here. Enter the service name for this connection here. This option is optional. Enter the MTU value used here. The default value is 1492.
Select this option to obtain the DNS Server addresses automatically.
Use IPv6:
Primary DNS:
Secondary DNS:
Select this option to manually enter the DNS Server addresses used.
Enter the primary DNS Server address used here. Enter the secondary DNS Server address used here.
45D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Enable DHCP-PD:
LAN IPv6
Address:
LAN IPv6 Link­Local Address:
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
IPv6 Address
Range (Start):
Select this option to enable DHCP PD. Enter the LAN IPv6 address used here. This address must be
in the ‘/64’ subnet. Displays the LAN IPv6 Link-Local address used here.
The user can tick this option to enable the auto-configuration feature.
Tick this option to enable the automatic DHCP-PD on the LAN.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateless. Enter the router advertisement lifetime value used here.
This option is only available when the auto-configuration type is set to Stateful. Enter the start IPv6 Address for the DHCPv6 range for your local computers.
IPv6 Address Range (End):
IPv6 Address
Lifetime:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
This option is only available when the auto-configuration type is set to Stateful. Enter the end IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the IPv6 Address Lifetime (in minutes).
46D-Link DIR-645 User Manual
Section 3 - Software Configuration
IPv6 Connection Type: IPv6 in IPv4 Tunnel
In section to the user can configure the IPv6 connection to run in IPv4 Tunnel mode. IPv6 over IPv4 tunneling encapsulates IPv6 packets in IPv4 packets so that IPv6 packets can be sent over an IPv4 infrastructure.
The following parameters will be available for configuration:
Remote IPv4
Address:
Remote IPv6
Address:
Local IPv4
Address:
Local IPv6
Address:
Subnet Prefix
Length:
The following parameters will be available for configuration:
Obtain IPv6
DNS Servers
automatically:
Use the following
IPv6 DNS
Servers:
Primary DNS
Server:
Enter the remote IPv4 address used here.
Enter the remote IPv6 address used here.
Enter the local IPv4 address used here.
Enter the local IPv6 address used here.
Enter the Subnet prefix length value used here.
Select this option to obtain the DNS Server addresses automatically.
Select this option to manually enter the DNS Server addresses used.
Enter the WAN primary DNS Server address used here.
Secondary DNS
Server:
Enter the WAN secondary DNS Server address used here.
47D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Enable DHCP-PD:
LAN IPv6
Address:
LAN IPv6 Link­Local Address:
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
IPv6 Address
Range (Start):
Select this option to enable DHCP PD. Enter the LAN IPv6 address used here. This address must be
in the ‘/64’ subnet. Displays the LAN IPv6 Link-Local address used here.
The user can tick this option to enable the auto-configuration feature.
Tick this option to enable the automatic DHCP-PD on the LAN.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateless. Enter the router advertisement lifetime value used here.
This option is only available when the auto-configuration type is set to Stateful. Enter the start IPv6 Address for the DHCPv6 range for your local computers.
IPv6 Address Range (End):
IPv6 Address
Lifetime:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
This option is only available when the auto-configuration type is set to Stateful. Enter the end IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the IPv6 Address Lifetime (in minutes).
48D-Link DIR-645 User Manual
Section 3 - Software Configuration
IPv6 Connection Type: 6to4
In this section the user can configure the IPv6 6to4 connection settings. 6to4 is an IPv6 address assignment and automatic tunneling technology that used to provide unicast IPv6 connectivity between IPv6 sites and hosts across the IPv4 Internet.
The following parameters will be available for configuration:
6to4 Address:
6to4 Relay:
Primary DNS
Server:
Secondary DNS
Server:
The following parameters will be available for configuration:
LAN IPv6
Address:
LAN IPv6 Link­Local Address:
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
Here the 6to4 configured address will be displayed. Enter the 6to4 relay address used here. Enter the primary DNS Server address used here.
Enter the secondary DNS Server address used here.
Enter the LAN IPv6 address used here. This address must be in the ‘/64’ subnet.
Displays the LAN IPv6 Link-Local address used here.
The user can tick this option to enable the auto-configuration feature.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateless. Enter the router advertisement lifetime value used here.
49D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Autoconfiguration
Type:
IPv6 Address
Range (Start):
IPv6 Address Range (End):
IPv6 Address
Lifetime:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
The user can tick this option to enable the auto-configuration feature.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateful. Enter the start IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the end IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the IPv6 Address Lifetime (in minutes).
50D-Link DIR-645 User Manual
Section 3 - Software Configuration
IPv6 Connection Type: 6rd
In this section the user can configure the IPv6 6rd connection settings.
The following parameters will be available for configuration:
6rd Configuration:
6rd IPv6 Prefix:
IPv4 Address:
Mask Length:
Assigned IPv6
Prefix:
6rd Border Relay
IPv4 Address:
Primary DNS
Server
Secondary DNS
Server:
The following parameters will be available for configuration:
LAN IPv6
Address:
LAN IPv6 Link­Local Address:
Select the desired 6rd configuration option here. Enter the 6rd IPv6 address and prefix value used here. Enter the IPv4 address used here. Enter the IPv4 mask length used here. Displays the IPv6 assigned prefix value here.
Enter the 6rd border relay IPv4 address used here.
Enter the primary DNS Server address used here.
Enter the secondary DNS Server address uses here.
Enter the LAN IPv6 address used here. This address must be in the ‘/64’ subnet.
Displays the LAN IPv6 Link-Local address used here.
51D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Enable Automatic
IPv6 address:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
IPv6 Address
Range (Start):
IPv6 Address Range (End):
IPv6 Address
Lifetime:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
The user can tick this option to enable the auto-configuration feature.
The user can select the auto-configuration type used here.
This option is only available when the auto-configuration type is set to Stateless. Enter the router advertisement lifetime value used here.
This option is only available when the auto-configuration type is set to Stateful. Enter the start IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the end IPv6 Address for the DHCPv6 range for your local computers.
This option is only available when the auto-configuration type is set to Stateful. Enter the IPv6 Address Lifetime (in minutes).
52D-Link DIR-645 User Manual
Section 3 - Software Configuration

Advanced Category

In this category the user will be able to configure the more advanced features that can be done by this router. Features like Port Forwarding, Firewall settings, Quality of Service settings and more.
The pages found in the Setup Category are: Virtual Server: This router can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network). Port Forwarding: The Port Forwarding option gives Internet users access to services on your LAN. This feature is useful for hosting online services such as FTP, Web or game servers. Application Rules: Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have difficulties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the router. If you need to run applications
that require multiple connections, specify the port normally associated with an application in the “Trigger Port” field, select the protocol type as TCP or UDP, then enter
QoS Engine: The QoS Engine option helps improve your network gaming performance by prioritizing applications. Network Filter: The MAC (Media Access Controller) Address filter option is used to control network access based on the MAC Address of the network adapter. This feature
can be configured to ALLOW or DENY network/Internet access.
Access Control: The Access Control option allows you to control access in and out of your network. Website Filter: Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network. Parental Control: Parental control is a free security option that provides Anti-Phishing to protect your Internet connection from fraud and navigation improvements such as
auto-correction of common URL types. Inbound Filter: The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can configure inbound data filtering rules that control data based on an IP address range. Firewall Settings: The router offers a firewall type functionality. The SPI feature helps prevent cyber attacks. If you choose to expose a computer, you can enable DMZ. Routing: The Routing option is an advanced method of customizing specific routes of data through your network.
Advanced Wireless: These options are for users that wish to change the behavior of their 802.11n wireless radio from the standard settings. Wi-Fi Protected Setup: Wi-Fi Protected Setup (WPS) System is a simplified method for securing your wireless network during the “Initial setup” as well as the “Add New
Device” processes.
Advanced Network: This section contains settings which can change the way the router handles certain types of traffic. DLNA Settings: DLNA (Digital Living Network Alliance) is the standard for the interoperability of Network Media Devices (NMDs). The user can enjoy multi-media applications
(music, pictures and videos) on your network connected PC or media devices. If you agree to share media with devices, any computer or device that connects to your network can play your shared music, pictures and videos.
53D-Link DIR-645 User Manual
Section 3 - Software Configuration
iTunes Server: The router features an iTunes Server. This server provides the ability to share music and videos to computers on the local network running iTunes. If the server is enabled, the router will be automatically detected by the iTunes program and the music and videos contained in the specified directory will be available to stream over the network.
Guest Zone: On this page, the user will be able to configure the Guest Zone, settings. The guest zone provide a separate network zone for guest to access Internet. IPv6 Firewall: On this page the user can configure the IPv6 firewall settings. The firewall settings section is an advance feature that is used to allow or deny traffic from
passing through the device. It works in the same way as IP Filters with additional settings. IPv6 Routing: On this page the user can specify custom routes that determine how data is moved around your IPv6 network.
54D-Link DIR-645 User Manual
Section 3 - Software Configuration

Virtual Server

This router can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network). The router’s firewall feature filters out unrecognized packets to protect the LAN network so all computers networked with the router are invisible to the outside world. The user can make some of the LAN computers accessible from the Internet by enabling Virtual Server. Depending on the requested service, the router redirects the external service request to the appropriate server within the LAN network. The router is also capable of port­redirection, meaning that incoming traffic to a particular port may be redirected to a different port on the server computer.
The following parameters will be available for configuration:
Checkbox:
Name:
IP Address:
Port:
Traffic Type:
Schedule:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Check the box on the left side to enable the Virtual Server rule.
Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the fields.
Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the Computer Name drop-down menu. Select your computer and click <<.
Enter the port that you want to open next to Public Port and Private Port. The public and private ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network.
Select TCP, UDP, or All from the Protocol drop-down menu. Use the drop-down menu to schedule the time that the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the
particular service to always be enabled. You can create your own times in the Schedules page.
55D-Link DIR-645 User Manual
Section 3 - Software Configuration

Port Forwarding

The Port Forwarding option gives Internet users access to services on your LAN. This feature is useful for hosting online services such as FTP, Web or game servers. For each entry, you define a public port on your router for redirection to an internal LAN IP Address and LAN port. This option is used to open multiple ports or a range of ports in your router and redirect data through those ports to a single PC on your network. This feature allows you to enter ports in the format, Port Ranges (100-150), Individual Ports (80, 68, 888), or Mixed (1020-5000, 689). This option is only applicable to the INTERNET session.
The following parameters will be available for configuration:
Checkbox:
Name:
IP Address:
Ports to Open:
Schedule:
Inbound Filter:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Tick the checkbox on the left side to enable the Port Forwarding rule.
Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the fields.
Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the Computer Name drop-down menu. Select your computer and click <<.
Enter the external port number in the appropriate space provided. If the port number is TCP then enter the number in the TCP space, and if the port number is UDP than enter it in the UDP space.
Use the drop-down menu to schedule the time that the Port Forwarding rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Schedules page.
Select the inbound filter rule here. Options to choose from are Allow All, Deny All, and any other custom rule created.
56D-Link DIR-645 User Manual
Section 3 - Software Configuration

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have difficulties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the router. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” field, select the protocol type as TCP or UDP, then enter
the firewall (public) ports associated with the trigger port to open them for inbound traffic.
The following parameters will be available for configuration:
Checkbox:
Name:
Application:
Port (Trigger):
Port (Firewall):
Traffic Type:
Schedule:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Check the box on the left side to enable the Application Rule. Enter a name for the rule. You may select a predefined
application from the Application drop-down menu and click <<.
Displays a list of predefined application to use in the rules. This is the port used to trigger the application. It can be
either a single port or a range of ports. This is the port number on the Internet side that will be used
to access the application. You may define a single port or a range of ports. You can use a comma to add multiple ports or port ranges.
Select the protocol of the firewall port (TCP, UDP, or All). The schedule of time when the Application Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always
be enabled. You can create your own times in the Schedules page.
57D-Link DIR-645 User Manual
Section 3 - Software Configuration

QoS Engine

The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are disabled and application priority is not classified automatically. The QoS section contains a queuing mechanism, traffic shaping and classification. It supports two kinds of queuing mechanisms. Strict Priority Queue (SPQ) and Weighted Fair Queue (WFQ). SPQ will process traffic based on traffic priority. Queue1 has the highest priority and Queue4 has the lowest priority. WFQ will process traffic based on the queue weight. Users can configure each queue’s weight. The sum of all the queue’s weight must be 100. When surfing the Internet, the system will do traffic shaping based on the uplink and downlink speed. The classification rules can be used to classify traffic to different queues, then SPQ or WFQ will do QoS based on the queue’s priority or weight.
The following parameters will be available for configuration:
Enable QoS:
Uplink Speed:
Downlink Speed:
Queue Type:
Queue ID:
Queue Priority:
This option is disabled by default. Enable this option for better performance and experience with online games and other interactive applications, such as VoIP.
The speed at which data can be transferred from the router to your ISP. This is determined by your ISP. ISP’s often define speed as a download/upload pair. For example,
1.5Mbits/284Kbits. Using this example, you would enter
284. Alternatively you can test your uplink speed with a service such as www.dslreports.com.
The speed at which data can be transferred from the ISP to the router. This is determined by your ISP. ISP’s often define speed as a download/upload pair. For example,
1.5Mbits/284Kbits. Using this example, you would enter 1500. Alternatively you can test your downlink speed with a service such as www.dslreports.com.
Here the user can specify the queue type used. When choosing the option Strict Priority Queue, the router will apply QoS based on the internal specification for the queue ID’s listed. When choosing the option Weight Fair Queue, the router will apply QoS based on the user defined percentage in the Queue Weight column.
In this column the Queue ID used will be displayed. In this column the Queue Priority used will be displayed.
Queue Weight:
After choosing to use the Weight Fair Queue option, under Queue Type, the user will be able to manual enter the Queue Weight for each individual Queue ID.
58D-Link DIR-645 User Manual
Section 3 - Software Configuration
After specifying the QoS framework used, in the QoS setup section, the user can now create individual rules for scenarios that require the use of traffic control and data priority manipulation.
The following parameters will be available for configuration:
Checkbox:
Name:
Queue ID:
Protocol:
Local IP Range:
Remote IP
Range:
Application Port:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Tick this option to enable the rule specified. Enter a custom name for the rule being created here. This
name is used for identification. Select the appropriate priority requirement from the drop-
down menu that will be applied to this rule. Option to choose from are Highest, Higher, Normal, and Best Effort.
Select the protocol used for the application for in the drop­down menu and it will automatically place it in the Protocol field.
Enter the local IP range used here. This is the IP range of you Local Area Network. The Router’s IP cannot be included in this range.
Enter the remote IP range used here. This is the IP range of the public network from the Internet Port side. To apply this rule to any IP addresses from the public side, enter the range
0.0.0.1 to 255.255.255.254. Enter the application port number used here.
59D-Link DIR-645 User Manual
Section 3 - Software Configuration

Network Filter

The MAC (Media Access Controller) Address filter option is used to control network access based on the MAC Address of the network adapter. A MAC address is a unique ID assigned by the manufacturer of the network adapter. This feature can be configured to ALLOW or DENY network/Internet access.
In the MAC Filtering Rules section, the user can create and edit Network filter rules. This maximum amount of rules that can be created are 24 rules.
The following parameters will be available for configuration:
Configure MAC
Filtering below:
Checkbox:
MAC Address:
DHCP Client List:
Schedule:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Select Turn MAC Filtering OFF, Turn MAC Filtering ON and ALLOW computers listed to access the network, or Turn MAC Filtering ON and DENY computers listed to access the network from the drop-down menu.
Check the box on the left side to enable the Network Filter. Enter the MAC address you would like to use in this filtering
rule. Select a DHCP client from the Computer Name drop-down
menu and click << to copy that MAC Address. The schedule of time when the Network Filter will be enabled.
The schedule may be set to Always, which will allow the particular service to always be enabled. Click the New Schedule button to create your own times in the Schedules page.
60D-Link DIR-645 User Manual
Section 3 - Software Configuration

Access Control

The Access Control option allows you to control access in and out of your network. Use this feature as Access Controls to only grant access to approved sites, limit web access based on time or dates, and/or block internet access for applications like P2P utilities or games.
The following parameters will be available for configuration:
Enable Access
Control:
Add Policy:
After clicking on the Add Policy button, the add policy wizard will guide you through the step-by-step process in adding a new policy. The first window explains the process.
Throughout this wizard the user will be able to: Click on the Prev button to return to the previous window. Click on the Next button to continue to the next window. Click on the Cancel button to discard the changes made and return to the main Access Control window.
Step 1: In the first step, the user can enter the policy name used.
The following parameters will be available for configuration:
Policy Name:
Tick this option to enable the Access Control feature.
Click on this button to add a new Access Control Policy.
Enter the new policy name used for this rule here.
61D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 2: In the second step, the user can configure the schedule settings for this rule.
The following parameters will be available for configuration:
Details:
Step 3: In the third step, the user can configure the address type and IP address of
the machines used in this rule.
The following parameters will be available for configuration:
Address Type:
IP Address:
Machine Address:
Select the appropriate predefined schedule rule to apply to this rule from the drop-down menu.
Specify a machine with its IP or MAC address, or select ‘Other Machines’ for machines that do not have a policy.
After selecting the IP address type, the user can enter the IP address of the machines used in this rule here. Alternatively, the user can select a Computer from the Computer Name list.
After selecting the MAC address type, the user can enter the MAC address of the machine used in this rule here. Alternatively, the used can select a Computer from the Computer Name list.
Click on this button to add the machine to the list.
Add:
Update:
Delete:
Step 4: In the fourth step, the user can select the filtering method used for this rule.
The following parameters will be available for configuration:
Method:
After clicking the option, the user will be able to update the machine information. If the user chooses to remove a machine from the list, click on the icon.
Here the user can select the filtering method used. Options to choose from are ‘Log Web Access Only’, ‘Block All Access’, and ‘Block Some Access’.
62D-Link DIR-645 User Manual
Section 3 - Software Configuration
The following parameters will be available for configuration:
Apply Web Filter: After selecting the ‘Block Some Access’ option, the user
will be able to select this option. Selecting this option will allow the web filter access control feature to be applied to this rule.
Apply Advanced
Port Filters:
Click on the Save button to accept the changes made and return to the main Access Control window.
In the Policy Table section a list on access control rules will be displayed.
To edit a specific rule, click on the icon. To remove a specific rule, click on the icon.
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
After selecting the ‘Block Some Access’ option, the user will be able to select this option. Selecting this option will allow the advanced port filters access control feature to be applied to this rule.
63D-Link DIR-645 User Manual
Section 3 - Software Configuration

Website Filter

Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network.
Website Filter is used to allow or deny computers on your network from accessing specific web sites by keywords or specific Domain Names. Select ‘ALLOW computers access to ONLY these sites’ in order only allow computers on your network to access the specified URLs and Domain Names. ‘DENY computers access to ONLY these sites’ in order deny computers on your network to access the specified URLs and Domain Names.
The following parameters will be available for configuration:
Website URL/
Domain:
Click on the Clear the list below... button to remove all the entries from the spaces in the list. Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Enter the URL or Domain name that you want to allow or block here. An example of an URL is: http://www.facebook.com/ An example of a domain name is: facebook.com
64D-Link DIR-645 User Manual
Section 3 - Software Configuration

Parental Control

Parental control is a free security option that provides Anti-Phishing to protect your Internet connection from fraud and navigation improvements such as auto-correction of common URL types.
The following parameters will be available for configuration:
Advanced DNS:
FamilyShield:
Parental Control:
None:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Select this option to enable a fast and reliable DNS with minimal blocking of phishing sites only. No OpenDNS account required.
Select this option to enable a fast and reliable DNS with non­configurable blocking of sites that are inappropriate or risky for children. No OpenDNS account required.
Select this option to enable a fast and reliable DNS with configurable content filtering and phishing protection. This option includes an OpenDNS account. Click on the ‘Register your device’ link to navigate to the OpenDNS account website, where you can either login (if you have an existing account) or you can register a new OpenDNS account. After the registration, a new link will appear, called ‘Configuration of OpenDNS settings’, where the user can freely configure their OpenDNS account to their liking.
Select this option to enable the option to specify the DNS servers provided via DHCP by their ISP or their own preferred DNS servers.
65D-Link DIR-645 User Manual
Section 3 - Software Configuration

Inbound Filter

The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can configure inbound data filtering rules that control data based on an IP address range. Inbound Filters can be used for limiting access to a server on your network to a system or group of systems. Filter rules can be used with Virtual Server, Port Forwarding, or Remote Administration features. The user can add new Inbound filter rule in the next section.
The following parameters will be available for configuration:
Name:
Action:
Enable:
Remote IP Start:
Remote IP End:
Cancel:
In the Inbound Filter Rules List section, the user can view a list of the inbound filter rules already created. To edit a specific rule, click on the icon. The delete a specific rule, click on the icon.
The user can enter a custom name for the inbound filter rule here.
Select an action that will take place when this rule is initiated. Options to choose from are Allow and Deny.
Tick this option to enable the specified IP range for this rule. Enter the remote starting IP address here in the range. Enter the remote ending IP address here in the range. Click this button to add the new inbound filter rule.
Add:
Click this button to discard the new inbound filter rule.
66D-Link DIR-645 User Manual
Section 3 - Software Configuration

Firewall Settings

A firewall protects your network from the outside world. The router offers a firewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.
The following parameters will be available for configuration:
Enable SPI: Check the Enable SPI box to enable the SPI (Stateful
Packet Inspection, also known as dynamic packet filtering) feature. Enabling SPI helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the session conforms to the protocol.
The following parameters will be available for configuration:
UDP Endpoint
Filtering:
TCP Endpoint
Filtering:
The following parameters will be available for configuration:
Enable anti-spoof
checking:
Select the appropriate NAT UDP endpoint filtering method here. Options to choose from are ‘Endpoint Independent’, ‘Address Restricted’, and ‘Port And Address Restricted’.
Select the appropriate NAT TCP endpoint filtering method here. Options to choose from are ‘Endpoint Independent’, ‘Address Restricted’, and ‘Port And Address Restricted’.
Tick this option to enable the anti-spoof checking feature.
67D-Link DIR-645 User Manual
Section 3 - Software Configuration
Firewall rules can be used to allow or deny traffic passing through the router. You can specify a single port by utilizing the input box at the top or a range of ports by utilizing both input boxes. DMZ means “Demilitarized Zone”. DMZ allows computers behind the router firewall to be accessible to Internet traffic. Typically, your DMZ would contain Web servers, FTP servers and others.
The following parameters will be available for configuration:
Enable DMZ:
DMZ IP Address:
The following parameters will be available for configuration:
PPTP:
IPSec (VPN):
RSTP:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Tick this option to enable the DMZ feature. Enter the IP address of the computer on the LAN that you
want to have unrestricted Internet communication in the DMZ IP address field. To specify an existing DHCP client,
use the Computer Name drop-down to select the computer that you want to make a DMZ host. If selecting a computer that is a DHCP client, be sure to make a static reservation in the Setup > Network Settings page so that the IP address of the DMZ machine does not change.
Tick this option to allow PPTP access to the LAN network. Tick this option to allow IPSec (VPN) access to the LAN
network. Tick this option to allow RSTP access to the LAN network. Tick this option to allow SIP access to the LAN network.
SIP:
68D-Link DIR-645 User Manual
Section 3 - Software Configuration

Routing

The Routing option is an advanced method of customizing specific routes of data through your network.
In the Routing List section, the user can configure routing rules used by this router. The maximum amount of rules that can be configured is 32.
The following parameters will be available for configuration:
Checkbox:
Name:
Destination IP:
Netmask:
Gateway:
Metric:
Interface:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
To enable a route, check the box that is on the left side of the route.
Enter a name for the rule used here. Enter the IP address of the packets that will take this route. Enter the netmask to specify the subnet of the IP packets that
will take this route. Enter the next hop that will be taken if this route is used. Enter the metric value that this route will use here. Use the drop-down menu to specify if the IP packet must use the WAN or LAN interface to transit out of the Router.
69D-Link DIR-645 User Manual
Section 3 - Software Configuration

Advanced Wireless

These options are for users that wish to change the behavior of their 802.11n wireless radio from the standard settings. We do not recommend changing these settings from the factory defaults. Incorrect settings may impact the performance of your wireless radio. The default settings should provide the best wireless radio performance in most environments.
The following parameters will be available for configuration:
Wireless Band:
Transmit Power:
Beacon Period:
RTS Threshold:
Fragmentation:
DTIM Interval:
WMM Enable:
Short GI:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Here the user can view the wireless frequency band being configured. In the case 2.4GHz.
This option sets the transmit power of the antennas. Beacons are packets sent by an Access Point to synchronize
a wireless network. Specify a value. 100 is the default setting and is recommended.
Here the user can enter the RTS threshold value used. This value should remain at its default setting of 2346. If inconsistent data flow is a problem, only a minor modification should be made.
The fragmentation threshold, which is specified in bytes, determines whether packets will be fragmented. Packets exceeding the 2346 byte setting will be fragmented before transmission. 2346 is the default setting.
Here the user can enter the DTIM Interval value. Delivery Traffic Indication Message (DTIM) is a countdown informing clients of the next window for listening to broadcast and multicast messages. The default settings is 1.
Check this box to enable the WMM feature. Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss.
70D-Link DIR-645 User Manual
Section 3 - Software Configuration

Wi-Fi Protected Setup

Wi-Fi Protected Setup (WPS) System is a simplified method for securing your wireless network during the “Initial setup” as well as the “Add New Device” processes. The Wi­Fi Alliance (WFA) has certified it across different products as well as manufactures. The process is just as easy, as depressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin-Code Method. The time reduction in setup and ease of use are quite beneficial, while the highest wireless Security setting of WPA2 is automatically used.
In the Wi-Fi Protected Setup section, the user can enable the WPS feature of this router. The following parameters will be available for configuration:
Enable:
WiFi Protected
Setup:
Lock Wireless
Security Settings:
In the PIN Settings section, the user not only will be able to view the PIN code, but will also be able to reset the PIN to default or to generate a new PIN code. A PIN is a unique number that can be used to add the router to an existing network or to create a new network. The default PIN may be printed on the bottom of the router. For extra security, a new PIN can be generated. You can restore the default PIN at any time. Only the Administrator (“admin” account) can change or reset the PIN.
The following parameters will be available for configuration:
Reset PIN to
Default:
Generate New
Click the ‘Connect your Wireless Device’ button to start Wireless Connection Setup Wizard. This wizard helps you add wireless devices to the wireless network.
Tick this option to enable the Wi-Fi Protected Setup feature. This parameter displays the WPS setup status.
Tick this option to lock the configured wireless security settings.
Shows the current value of the router’s PIN.
PIN:
Click this button to restore the default PIN of the router.
Click this button to create a random number that is a valid PIN. This becomes the router’s PIN. You can then copy this
PIN:
PIN to the user interface of the registrar.
71D-Link DIR-645 User Manual
Section 3 - Software Configuration
Step 1: In this step the user have two options to choose from. You can choose Auto if the wireless client supports WPS, or Manual if the wireless client does not support WPS.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page.
Step 2: After selecting Auto, the following page will appear. There are two ways to add a wireless device, that supports WPS. Firstly, there is the Personal Identification Number (PIN) method. Using this method will prompt the user to enter a PIN code. This PIN code should be identical on the wireless client. Secondly, there is the Push Button Configuration (PBC) method. Using this method will allow the wireless client to connect to this device by similarly pressing the PBC button on it.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page.
Step 2: After selecting Manual, the following page will appear. On this page to user can view the wireless configuration of this router. The wireless clients should configure their wireless settings to be identical to the settings displayed on this page for a successful connection. This option is for wireless clients that can’t use the WPS method to connect to this device.
Click on the Prev button to return to the previous page. Click on the Next button to continue to the next page. Click on the Cancel button to discard the changes made and return to the main wireless page. Click on the Wireless Status button to navigate to the Status > Wireless page to view what wireless client are connected to this device.
72D-Link DIR-645 User Manual
Section 3 - Software Configuration

Advanced Network

This section contains settings which can change the way the router handles certain types of traffic. We recommend that you not change any of these settings unless you are already familiar with them or have been instructed to change them by one of our support personnel.
UPnP
UPnP is short for Universal Plug and Play which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. The device is a UPnP enabled router, meaning it will work with other UPnP devices/software. If you do not want to use the UPnP functionality, it can be disabled by selecting “Disabled”.
The following parameters will be available for configuration:
Enable UPnP:
WAN Ping
When you Enable WAN Ping response, you are causing the public WAN (Wide Area Network) IP address on the device to respond to ping commands sent by Internet users. Pinging public WAN IP addresses is a common method used by hackers to test whether your WAN IP address is valid.
The following parameters will be available for configuration:
Enable WAN Ping
Response:
WAN Port Speed
This allows you to select the speed of the WAN interface of the router. Option to choose from are Auto 10/100/1000Mbps, 10Mbps, 100Mbps, or 1000Mbps.
The following parameters will be available for configuration:
WAN Port Speed: You may set the port speed of the Internet port to Auto
Tick this option to enable the UPnP feature of the router.
Tick this option to enable the WAN Ping Response option of the router.
10/100/1000Mbps, 10Mbps, 100Mbps, or 1000Mbps. Some older cable or DSL modems may require you to set the port speed to 10Mbps.
73D-Link DIR-645 User Manual
Section 3 - Software Configuration
Multicast Streams
This section enables the user to allow Multicast traffic to pass from the Internet to your network more efficiently.
The following parameters will be available for configuration:
Enable Multicast
Streams:
EEE
The goal of Energy Efficient Ethernet (EEE) is to reduce Ethernet power consumption by 50 percent or more. Energy Efficient Ethernet (EEE), also known as IEEE 802.3az, is a set of enhancements to the twisted-pair and backplane Ethernet networking standards that will allow for less power consumption during periods of low data activity.
The following parameters will be available for configuration:
Enable EEE:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Enable this option if you are receiving video on demand type of service from the Internet. The router uses the IGMP protocol to support efficient multicasting transmission of identical content, such as multimedia, from a source to a number of recipients. This option must be enabled if any applications on the LAN participate in a multicast group. If you have a multimedia LAN application that is not receiving content as expected, try enabling this option.
Tick this option to enable the Energy Efficient Ethernet (EEE) feature.
74D-Link DIR-645 User Manual
Section 3 - Software Configuration

DLNA Settings

DLNA (Digital Living Network Alliance) is the standard for the interoperability of Network Media Devices (NMDs). The user can enjoy multi-media applications (music, pictures and videos) on your network connected PC or media devices. If you agree to share media with devices, any computer or device that connects to your network can play your shared music, pictures and videos.
Note: The shared media may not be secure. Allowing any devices to stream is recommended only on secure networks.
The following parameters will be available for configuration:
Name your media
library:
Folder: Simply tick the root option, to use the root directory of
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Enter the name of your media library here. This name will be visible to all the DLNA players on the network.
the storage device plugged into the USB port of the router. To use a specific folder on the storage device, click on the Browse button and navigate to the specific folder. Click on the Apply button to choose the folder.
75D-Link DIR-645 User Manual
Section 3 - Software Configuration

iTunes Server

The router features an iTunes Server. This server provides the ability to share music and videos to computers on the local network running iTunes. If the server is enabled, the router will be automatically detected by the iTunes program and the music and videos contained in the specified directory will be available to stream over the network.
The following parameters will be available for configuration:
iTunes Server:
Folder:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
After enabling the iTunes server on the router, launch iTunes. In your iTunes utility, select the router and enter the iTunes server password if required.
Select to enable or disable the iTunes server. Specifies the folder or directory that will be shared by the
iTunes server. Select root to share all files on all volumes, or click Browse to select a specific folder.
76D-Link DIR-645 User Manual
Section 3 - Software Configuration

Guest Zone

On this page, the user will be able to configure the Guest Zone, settings. The guest zone provide a separate network zone for guest to access Internet.
The following parameters will be available for configuration:
Enable Guest
Zone:
Wireless Band:
Wireless Network
Name:
Enable Routing
Between Zones:
Security Mode:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Tick this option to enable the Guest Zone feature for the frequency band 2.4GHz. Use the drop-down menu to schedule the time that the Firewall rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. Click the New Schedule button to create your own times in the Schedules page.
Displays the frequency band used. The Service Set Identifier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The SSID is case-sensitive.
Tick this option to enable routing between guest zones.
The security mode enables the user to configure wireless security for this wireless guest zone. For more information about wireless security, refer to the Wireless Settings page.
77D-Link DIR-645 User Manual
Section 3 - Software Configuration

IPv6 Firewall

On this page the user can configure the IPv6 firewall settings. The firewall settings section is an advance feature that is used to allow or deny traffic from passing through the device. It works in the same way as IP Filters with additional settings. You can create more detailed rules for the device.
In the IPv6 Firewall Rules section the user can create, enable and disable IPv6 firewall rules used by this device. The following parameters will be available for configuration:
Configure IPv6
Filtering:
Checkbox
Name:
Source Interface:
Destination
Interface:
Schedule:
IP Address
Range:
Protocol:
Port Range:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
This option defines the behavior of all the IPv6 firewall rules created. Option to choose from are ‘Turn IPv6 Filtering
OFF’, ‘Turn IPv6 Filtering ON and ALLOW rules listed’, and ‘Turn IPv6 Filtering ON and DENY rules listed’. Select the appropriate option used here.
Tick this option to used the firewall rules created. Enter a custom firewall rule name here. This name is used
for identification. Select the appropriate source interface used here. Select the appropriate destination interface used here.
Select a time schedule that will be applied to this rules here. Enter the IPv6 address range used here.
Select the protocol used for this rule here. Options to choose from are ALL, TCP, UDP, and ICMP.
Enter the port range used for this rule here.
78D-Link DIR-645 User Manual
Section 3 - Software Configuration

IPv6 Routing

On this page the user can specify custom routes that determine how data is moved around your IPv6 network.
The following parameters will be available for configuration:
Checkbox:
Name:
Metric:
Interface:
Destination IPv6:
Prefix Length:
Gateway:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
To enable a route, check the box that is on the left side of the route.
Enter the IPv6 routing rule name used here. Enter the metric value for this rule here. Use the drop-down menu to specify if the IP packet must use
the WAN or LAN interface to transit out of the Router. Enter the IPv6 address of the packets that will take this route. Enter the IPv6 address prefix length of the packets that will
take this route. Enter the next hop that will be taken if this route is used.
79D-Link DIR-645 User Manual
Section 3 - Software Configuration

Tools Category

In this category the user will be able to configure features that are related to the router itself. Features like the time settings, login accounts, firmware update and more.
The pages found in the Setup Category are: Admin: This page will allow you to change the Administrator password and configure the authentication settings. This window also allows you to enable Remote Management, via the Internet. Time: The Time window allows you to configure, update, and maintain the correct time on the internal system clock. Syslog: The Syslog options allow you to send log information to a System Log Server. Email Settings: The Email feature can be used to send the system log files and router alert messages to your email address. System: This section allows you to manage the router’s configuration settings, reboot the router, and restore the router to the factory default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created. Firmware: Use the Firmware window to upgrade the firmware of the Router and install language packs. If you plan to install new firmware, make sure the firmware you want to use is on the local hard drive of the computer. If you want to install a new language pack, make sure that you have the language pack available. Please check the support site for firmware updates. You can download firmware upgrades to your hard drive from the support site. Dynamic DNS: The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased (www.whateveryournameis. com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to your server no matter what your IP address is.
System Check: This useful diagnostic utility can be used to check if a computer is on the Internet. It sends ping packets and listens for replies from the specific host. Schedules: Schedules can be created for use with enforcing rules.
80D-Link DIR-645 User Manual
Section 3 - Software Configuration

Admin

This page will allow you to change the Administrator password and configure the authentication settings. This window also allows you to enable Remote Management, via the Internet. For security reasons, it is recommended that you change the password for the Admin and User accounts. Be sure to write down the new password to avoid having to reset the router in case they are forgotten.
In the Admin Password section, the user can change the Administrator login password used for this device.
The following parameters will be available for configuration:
Password:
Verify Password:
In the User Password section, the user can change the User login password used for this device.
The following parameters will be available for configuration:
Password:
Verify Password:
In the System Name section, the user can change the gateway name used for this device.
The following parameters will be available for configuration:
Gateway Name:
The following parameters will be available for configuration:
Enable Graphical
Authentication:
Enter the new login password used here. Re-enter the new login password here.
Enter the new login password used here. Re-enter the new login password here.
Enter the router gateway name used here.
Tick this option to enable the graphical image confirmation when the user login to the web configuration.
Enable Remote
Management:
Tick this option to enable remote management. This option will enable the router to be accessible from the Internet port.
81D-Link DIR-645 User Manual
Section 3 - Software Configuration
Remote Admin
Port:
Remote Admin Inbound Filter:
Details:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Enter the remote administration port number used here. Sometimes services like an internal web server will occupy the port number 80. In this option the user can change the remote administration port to 8080 for example.
Select the appropriate remote admin inbound filter behavior here. Options to choose from are Allow All and Deny All.
Enter the remote admin inbound filter detail description used here.
82D-Link DIR-645 User Manual
Section 3 - Software Configuration

Time

The Time window allows you to configure, update, and maintain the correct time on the internal system clock. From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also be configured to automatically adjust the time when needed.
Time and Date Configuration
Here the user can configure the time zone as well as the daylight savings settings used for this router.
The following parameters will be available for configuration:
Time:
Time Zone:
Enable Daylight
Saving:
Daylight Saving
Offset:
Daylight Saving
Dates:
Automatic Time and Date Configuration
Here the user can configure whether this router will automatically synchronize it’s time and date with a public time server.
The following parameters will be available for configuration:
Automatically
synchronize:
NTP Server Used:
Update Now:
Here will be displayed the current time configuration running on this device.
Select the appropriate time zone used on this device here. Check this box if the country your are located in uses
Daylight Saving time. Select the daylight savings offset used here.
Select the start date and end date for daylight saving time.
NTP is short for Network Time Protocol. NTP synchronizes computer clock times in a network of computers. Tick this option to enable automatic time and date synchronizing.
Select the appropriate time server used here. The interval at which the router will communicate with the NTP server is set to 7 days.
After selecting the appropriate time server and enabling the automatic synchronization option, click on this button to update the current time and date of the router.
83D-Link DIR-645 User Manual
Section 3 - Software Configuration
Set the Time and Date Manually
Here the user can configure the time and date values, used by this router, manually. Here the user can also synchronize the router’s time with the configuration computer’s time.
The following parameters will be available for configuration:
Set Manually:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
The Syslog options allow you to send log information to a System Log Server.
The following parameters will be available for configuration:
Enable Logging
To SysLog Server:
Syslog Server IP
Address:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Here the user can manually configure the date and time used by this device. Options to configure are Year, Month, Day, Hour, Minute, and Second.
Tick this option to enable the Syslog feature.
Enter the Syslog Server IP address used here.

Syslog

84D-Link DIR-645 User Manual
Section 3 - Software Configuration

Email Settings

The Email feature can be used to send the system log files and router alert messages to your email address.
Email Notification
When this option is enabled, router activity logs or firmware upgrade notifications can be emailed to a designated email address.
The following parameters will be available for configuration:
Enable Email
Notification:
Email Settings
Here this user can manually enter the email settings required to enable the email notification feature.
The following parameters will be available for configuration:
From Email
Address:
To Email Address:
Email Subject:
SMTP Server
Address:
SMTP Server
Port:
Enable
Authentication:
Tick this option to enable the Email notification feature.
This email address will appear as the sender when you receive a log file or firmware upgrade notification via email.
Enter the email address where you want the email sent. Enter the text that you want to appear in the subject line of
the e-mail that is sent. Enter the SMTP server address for sending email. If your SMTP server requires authentication, select this option.
Enter the SMTP server port number used for sending email.
Tick this option if the SMTP server requires authentication for sending mail.
Account Name:
Password:
Verify Password:
Send Mail Now:
Enter your account for sending email. Enter the password associated with the account. Re-enter the password associated with the account here.
Click this button to send a test email from the Router to verify that the email settings have been configured correctly.
85D-Link DIR-645 User Manual
Section 3 - Software Configuration
Email Log When Full or on Schedule
Normally emails are sent at the starting and ending time defined in the schedule. However, rebooting the router during the schedule period will cause additional emails to be sent.
The following parameters will be available for configuration:
On Log Full:
On Schedule:
Schedule: If you selected the ‘On Schedule’ option, select one of the defined schedule rules. If you do not see the schedule you need in the list of schedules,
Detail:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Select this option if you want logs to be sent by email when the log is full.
Select this option if you want logs to be sent by email according to a schedule.
go to the Tools > Schedules screen and create a new schedule. Enter a detailed description here.
86D-Link DIR-645 User Manual
Section 3 - Software Configuration

System

This section allows you to manage the router’s configuration settings, reboot the router, and restore the router to the factory default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created.
The following parameters will be available for configuration:
Save Settings To
Local Hard Drive:
Load Settings
From Local Hard
Drive:
Restore To
Factory Default
Settings:
Reboot The
Device:
Clear Language
Pack:
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
Use this option to save the current router configuration settings to a file on the hard disk of the computer you are using. First, click the Save button. A file dialog will appear, allowing you to select a location and file name for the settings.
Use this option to load previously saved router configuration settings. First, use the Browse option to find a previously saved file of configuration settings. Then, click the Restore Configuration From File button below to transfer those settings to the router.
This option will restore all configuration settings back to the settings that were in effect at the time the router was shipped from the factory. Any settings that have not been saved will be lost, including any rules that you have created. If you want to save the current router configuration settings, use the Save button above.
Click to reboot the router.
If you previously installed a language pack and want to revert all the menus on the Router interface back to the default language settings, click the Clear button.
87D-Link DIR-645 User Manual
Section 3 - Software Configuration

Firmware

Use the Firmware window to upgrade the firmware of the Router and install language packs. If you plan to install new firmware, make sure the firmware you want to use is on the local hard drive of the computer. If you want to install a new language pack, make sure that you have the language pack available. Please check the support site for firmware updates. You can download firmware upgrades to your hard drive from the support site.
In the Firmware Information section the user can view the Current Firmware Version number running on this device, the Current Firmware Date of this same firmware version running on this device, and a button to click that will Check Online Now for Latest Firmware Version.
In the Firmware Upgrade section the user can physically upgrade the firmware of this device clicking on the Browse button and navigating to the firmware file, saved on the local hard drive. After locating the file, click on the Upload button to initiate the firmware upgrade.
Note: Some firmware upgrades will reset the configuration, of the device, to factory defaults. Be sure to save the current configuration first before any firmware update.
In the Language Pack Upgrade section, the user can change the router’s language pack by clicking on the Browse button and navigating to the language pack, downloaded to the computer. After navigating to the language pack file, click on the Upload button to initiate the language pack upload and configuration. Always keep a close lookout on the local vendor’s website for new firmware upgrades and language packs.
Note: Always update the firmware or language packs for this device using the wired connection. Never upgrade using a wireless connection.
88D-Link DIR-645 User Manual
Section 3 - Software Configuration

Dynamic DNS

The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased (www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to your server no matter what your IP address is.
The following parameters will be available for configuration:
Enable Dynamic
DNS:
Server Address:
Host Name:
Username or Key:
Password or Key:
Verify Password
or Key:
Timeout:
Status:
The following parameters will be available for configuration:
Enable:
IPv6 Address:
Dynamic Domain Name System is a method of keeping a domain name linked to a changing IP Address. Check the box to enable DDNS.
Choose your DDNS provider from the drop down menu. Enter the Host Name that you registered with your DDNS
service provider. Enter the Username or Key for your DDNS account. Enter the Password or Key for your DDNS account. Re-enter the Password or Key for your DDNS account.
Enter the timeout value used for the DDNS account here. Displays the DDNS connection status here.
Tick this option to enable the Dynamic DNS feature for IPv6 hosts.
Enter the IPv6 Address used here. Alternatively, the user can select the Computer Name for the drop-down list and click on the << button to add it the IPv6 Address field.
Host Name:
Click on the Save button to add the IPv6 host to the IPv6 Dynamic DNS List. Click on the Clear button to clear the information entered in the fields.
Enter the IPv6 host name used for the DDNS account here.
89D-Link DIR-645 User Manual
Section 3 - Software Configuration
In the IPv6 Dynamic DNS List section, a list of IPv6 hosts will be displayed. Tick the Enable checkbox to make the host active. To edit a specific entry click on the icon. To remove a specific entry, click on the icon.
Click on the Save Settings button to accept the changes made. Click on the Don’t Save Settings button to discard the changes made.
90D-Link DIR-645 User Manual
Section 3 - Software Configuration

System Check

This useful diagnostic utility can be used to check if a computer is on the Internet. It sends ping packets and listens for replies from the specific host.
In the Ping Test section the user can test the Internet connectivity by entering in a host name or the IP address that you want to Ping and click on the Ping button. The status of your Ping attempt will be displayed in the Ping Result box.
In the IPv6 Ping Test section the user can test the Internet connectivity by entering in a host name or the IPv6 address that you want to Ping and click on the Ping button. The status of your Ping attempt will be displayed in the Ping Result box.
In the Ping Result section the results of the attempted ping will be displayed.
91D-Link DIR-645 User Manual
Section 3 - Software Configuration

Schedules

Schedules can be created for use with enforcing rules. For example, if you want to restrict web access to Mon-Fri from 3pm to 8pm, you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3pm and End Time of 8pm.
The following parameters will be available for configuration:
Name:
Day(s): To use every day in the week for this rule, select the All
All Day - 24 hrs:
Time Format:
Start Time:
End Time:
Click on the Add button to add this new rule to the schedule rules list. Click on the Cancel button to discard the information and cancel the rule addition.
In the Schedule Rules List section, the user can view the available schedule rules created. To edit an existing rule, click on the icon of the specific entry, To remove an existing rule, click on the icon of the specific entry.
Enter the custom name for the new schedule rule here. This name is used for identification.
Week option. To use only selected days for this rule, select the Select Day(s) option and tick the appropriate days used for this rule.
To enable this rule to run 24 hours instead of only a certain part of the day, tick this option.
Select the appropriate time format to use here. If the All Day option is not selected, the user can enter the
starting time here.
If the All Day option is not selected, the user can enter the ending time here.
92D-Link DIR-645 User Manual
Section 3 - Software Configuration

Status Category

In this category the user will be able to view information regarding the configuration and functionality of this device. Displays like WAN, LAN and Wireless configurations, System, Firewall and Router logs, and more.
The pages found in the Setup Category are: Device Info: This page displays the current information for the router. It will display the LAN, WAN (Internet), and Wireless information. If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP. Logs: The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal memory for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows you to view the router logs. You can define what types of events you want to view and the level of the events to view. This router also has external Syslog Server support so
you can send the log files to a computer on your network that is running a Syslog utility. Statistics: The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through the router on both the WAN, LAN ports and the
802.11n/g (2.4GHz) wireless band. The traffic counter will reset if the device is rebooted. Internet Sessions: The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer. Wireless: The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and MAC address of the connected wireless clients.
IPv6: The IPv6 page displays a summary of the Router’s IPv6 settings and lists the IPv6 address and host name of any IPv6 clients. IPv6 Routing: This page displays IPv6 routing details configured for your router.
93D-Link DIR-645 User Manual
Section 3 - Software Configuration

Device Info

This page displays the current information for the router. It will display the LAN, WAN (Internet), and Wireless information. If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP.
In the General section, information about the time and firmware is being displayed.
In the WAN section, information about the Internet connection is being displayed.
In the LAN section, information about the Local Area Network configuration is being displayed.
94D-Link DIR-645 User Manual
Section 3 - Software Configuration
In the Wireless LAN section, information about the Wireless Local Area Network configuration is being displayed.
In the LAN Computers section, a list of actively connected nodes are being displayed.
In the IGMP Multicast Memberships section, a list of Multicast Group Addresses are being displayed.
95D-Link DIR-645 User Manual
Section 3 - Software Configuration

Logs

The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal memory for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows you to view the router logs. You can define what types of events you want to view and the level of the events to view. This router also has external Syslog Server support so you can send the log files to a computer on your network that is running a Syslog utility.
In the Save Log File section, the user can click on the Save button save the Router’s log entries to a log file on your computer.
The following parameters will be available for configuration:
Log Type:
Log Level:
The following parameters will be available for configuration:
First - Last Page:
Previous - Next:
Clear:
Link to Email Log
Settings:
Use the radio buttons to select the types of messages that you want to display from the log. System, Firewall & Security, and Router Status messages can be selected.
There are three levels of message importance: Critical, Warning, and Information. Select the levels that you want displayed in the log.
Use these buttons to navigate to the first or last page of the router logs.
Use these buttons to navigate to the next or previous page of the router logs.
Click on this button to clear all the contents from the log. Click this button to open the Email Settings screen so that
you can change the Email configuration for sending logs.
96D-Link DIR-645 User Manual
Loading...
