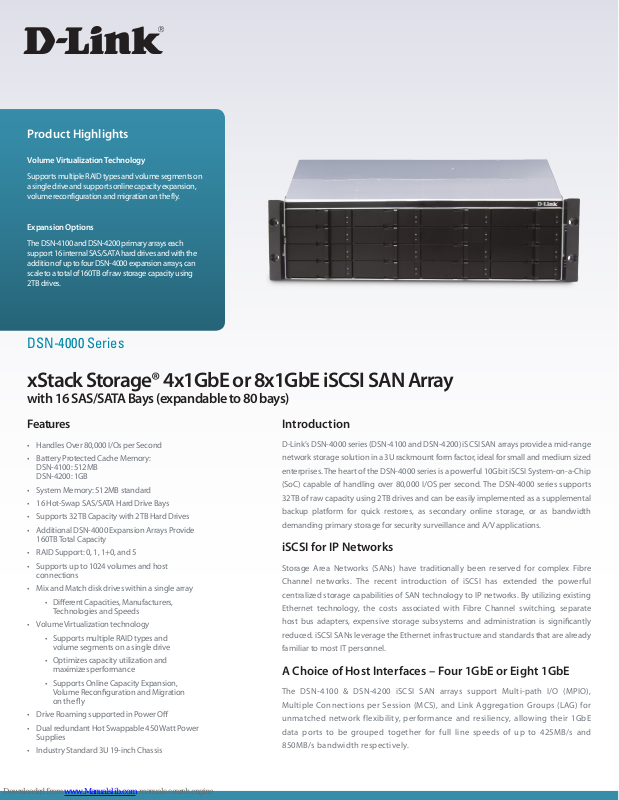

D-Link DSN-4000 Datasheet

Page 1

Product Highlights

Volume Virtualization Technology

Supports multiple RAID types and volume segments on a single drive and supports online capacity expansion, volume reconfiguration and migration on the fly.

Expansion Options

The DSN-4100 and DSN-4200 primary arrays each support 16 internal SAS/SATA hard drives and with the addition of up to four DSN-4000 expansion arrays, can scale to a total of 160TB of raw storage capacity using 2TB drives.

DSN-4000 Series

xStack Storage® 4x1GbE or 8x1GbE iSCSI SAN Array

with 16 SAS/SATA Bays (expandable to 80 bays)

Features

• Handles Over 80,000 I/Os per Second

• Battery Protected Cache Memory: DSN-4100: 512MB DSN-4200: 1GB

• System Memory: 512MB standard

• 16 Hot-Swap SAS/SATA Hard Drive Bays

• Supports 32TB Capacity with 2TB Hard Drives

• Additional DSN-4000 Expansion Arrays Provide 160TB Total Capacity

• RAID Support: 0, 1, 1+0, and 5

• Supports up to 1024 volumes and host connections

• Mix and Match disk drives within a single array

• Dierent Capacities, Manufacturers, Technologies and Speeds

• Volume Virtualization technology

• Supports multiple RAID types and volume segments on a single drive

• Optimizes capacity utilization and maximizes performance

• Supports Online Capacity Expansion, Volume Reconguration and Migration on the y

• Drive Roaming supported in Power O

• Dual redundant Hot Swappable 450 Watt Power Supplies

• Industry Standard 3U 19-inch Chassis

Introduction

D-Link’s DSN-4000 series (DSN-4100 and DSN-4200) iSCSI SAN arrays provide a mid-range

network storage solution in a 3U rackmount form factor, ideal for small and medium sized

enterprises. The heart of the DSN-4000 series is a powerful 10Gbit iSCSI System-on-a-Chip

(SoC) capable of handling over 80,000 I/OS per second. The DSN-4000 series supports

32TB of raw capacity using 2TB drives and can be easily implemented as a supplemental

backup platform for quick restores, as secondary online storage, or as bandwidth

demanding primary storage for security surveillance and A/V applications.

iSCSI for IP Networks

Storage Area Networks (SANs) have traditionally been reserved for complex Fibre

Channel networks. The recent introduction of iSCSI has extended the powerful

centralized storage capabilities of SAN technology to IP networks. By utilizing existing

Ethernet technology, the costs associated with Fibre Channel switching, separate

host bus adapters, expensive storage subsystems and administration is signicantly

reduced. iSCSI SANs leverage the Ethernet infrastructure and standards that are already

familiar to most IT personnel.

A Choice of Host Interfaces – Four 1GbE or Eight 1GbE

The DSN-4100 & DSN-4200 iSCSI SAN arrays support Multi-path I/O (MPIO),

Multiple Connections per Session (MCS), and Link Aggregation Groups (LAG) for

unmatched network flexibility, performance and resiliency, allowing their 1GbE

data por ts to be grouped together for full line speeds of up to 425MB/s and

850MB/s bandwidth respectively.

Page 2

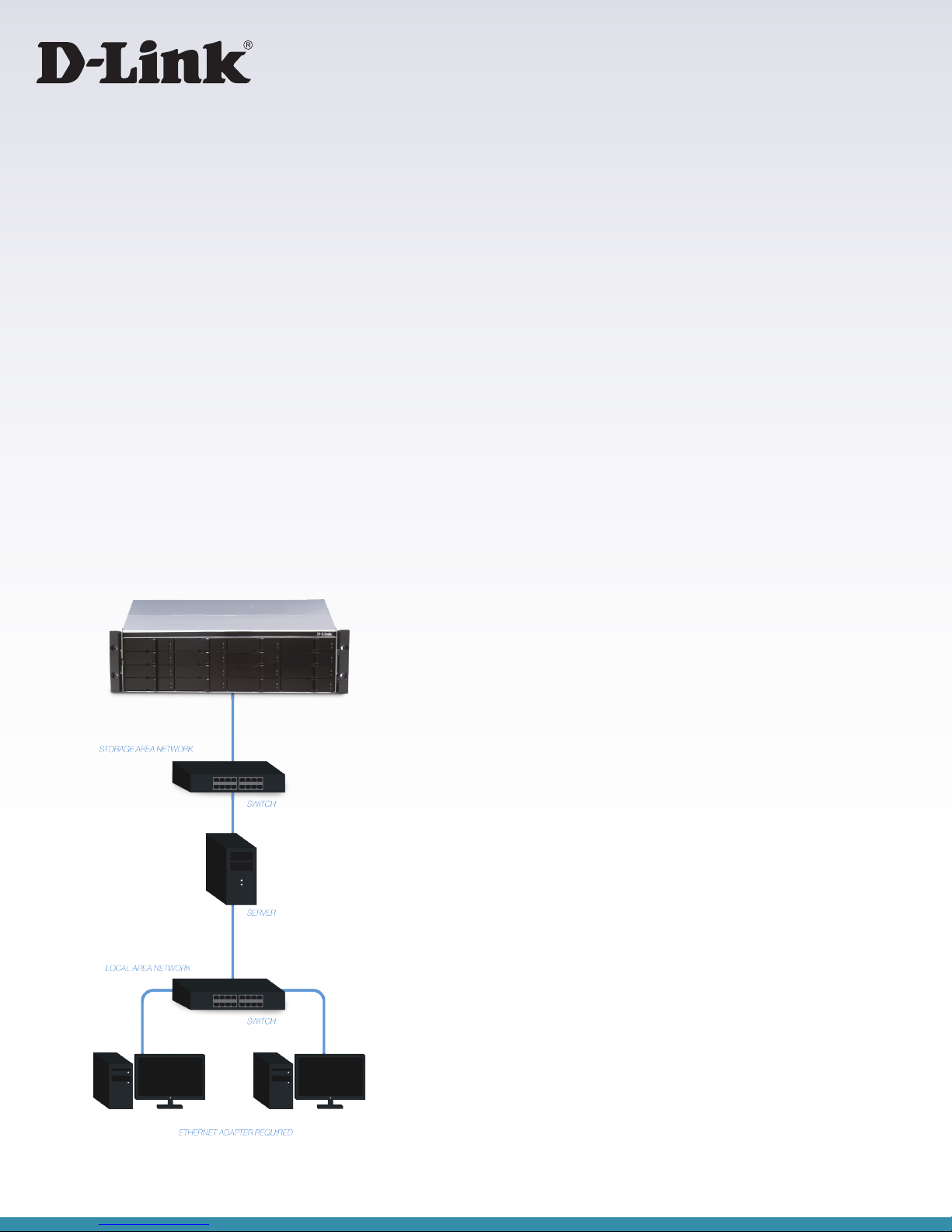

DSN-4000 Series iSCSI SAN Array

Expansion Options

High Performance iSCSI Interface

• DSN-4100: Four 1GbE Data Ports

• DSN-4200: Eight 1GbE Data Ports

Storage Network Management

• Web-based, Wizard-driven IP SAN Device Manager (IDM) for easy Management

• Remote Monitoring and Conguration

• CHAP Authentication Helps Halt Intruders

• SSL Security to Management Console

Drive Expansion

• DSN-4000 Expansion Array

• For use with DSN-4100 and DSN-4200 Primary SAN Arrays

• Provides 16 Hot-Swap Drive Bays

• Up to four expansion arrays supported for 80 drives total

The DSN-4100 and DSN-4200 primary arrays each support 16 internal SAS/SATA hard

drives and with the addition of up to four DSN-4000 expansion arrays, can scale to a

total of 160TB of raw storage capacity using 2TB drives.

System-on-a-Chip (SoC) Implementation

By utilizing a SoC design, the DSN-4000 series combines both networking and storage

functions into a single specialized Application Specic Integrated Circuit (ASIC). This

SoC combines 10Gbps iSCSI, TCP & IP ooad, 12 embedded processors and storage

virtualization rmware onto a single chip. The tight integration of these functions

eliminates interoperability, timing and support issues found in competitive products

that oer a “discrete implementation” wherein various components are selected

separately, then assembled.

RAID support

D-Link’s xStack Storage iSCSI SAN arrays support RAID level 0, 1, 1+0 and 5 congurations

(striped sets, mirrored sets, striped mirrored sets and parity sets) for data protection

and performance.

D-Link’s xStack Storage iSCSI SAN arrays support S.M.A.R.T. disk diagnostics, and non-

destructive data migration to prevent disk failure.

Embedded Centralized Storage Management

The embedded, user-friendly IP-SAN Device Manager (IDM) provides a comprehensive

console for system management. Boasting a rich set of management features, this suite

of utilities allows monitoring and control of the SAN array via the Storage Management

Initiative-Specication (SMI-S) command set. With a secure server, users can remotely

congure and monitor their SAN arrays over the Internet.

Advanced Management Features

The DSN-4000 series also provides an advanced set of features for ecient management

and optimal storage performance.

For the fastest RAID performance oered in the industry, D-Link’s adaptive cache

management provides write coalescing and multi-stream read-ahead on a volume

basis, optimizing cache utilization and performance in an application dependent

manner. Volatile cache data protection is aorded via an on-board battery supporting

cache memory for a minimum of 72 hours. A write-back or write-through cache

memory policy can be selected manually or automatically, depending on the status of

the battery’s charge.

The DSN-4000 series supports jumbo frames and VLAN tagging to segregate trac

into isolated zones for secure access, improving network throughput and reducing

CPU overhead.

Page 3

DSN-4000 Series iSCSI SAN Array

D-Link’s volume virtualization technology utilizes the concept of storage

extents, which are the fundamental building blocks used to enable

features such as RAID, online capacity expansion, volume reconguration

and migration. Each disk drive can contain multiple and divergent RAID

congurations instead of requiring dedication to a single RAID set. This

technology allows for the support of mixed disk drive capacities for volume

creation. Volume capacity expansion, volume reconguration, and RAID level

migration are performed online with minimal impact to users. Users can

quickly deploy a SAN using inexpensive SAS or SATA disk drives and simply

add more drives as needed.

An iSCSI SAN array can prove to be a valuable tool to supplement a network

storage foundation. Whether providing a low-cost block-based solution for data

backup and recovery, replacement of Direct Attached Storage (DAS), providing

secondary online storage, or providing up to 850MB/s bandwidth for security

surveillance and video post-production applications, the DSN-4000 series may

provide the performance and functionality needed.

Technical Specications

DSN-4100 DSN-4200

1GbE Copper • Four 1GbE Copper • Eight 1GbE Copper

Features

Drive Bays • 16, Expandable with DSN-4000 expansion arrays up to 80

Drive Interface Support • SAS/SATA

System Memory • 512MB Standard

Cache Memory • 512MB • 1GB

Battery Backup for Cache • Standard (approximately 72 hours on full charge)

Bandwidth • Up to 425MB/s • Up to 850MB/s

Storage Capacity • Supports 32TB Capacity with 2TB Hard Drives

• Additional DSN-4000 expansion arrays support up to 160TB total capacity

Operating Systems Supported

Please see support.dlink.com for latest support information

Supported NICs, iSCSI Accelerators and iSCSI HBAs

Please see support.dlink.com for latest support information

• Windows Vista® 32-bit & x64 (Ultimate & Enterprise) w/Built-in iSCSI Initiator

• Windows Server® 2003 R2 | SP1 32 & 64-bit (Standard & Enterprise) with v2.07 iSCSI Initiator or later

• Windows Server 2008 Enterprise 32 & 64-bit with Built-in iSCSI Initiator

• Windows XP Pro® 32 & 64-bit with v2.07 iSCSI Initiator or later

• Windows 2000 Advanced Server – No MS iSCSI Initiator support, Qlogic HBA only

• Red Hat® 7.3

• Red Hat Enterprise AS update 5 (64-bit)

• Intel® Pro 1000MT & XT [1GbE]

• Intel Pro 10000 CX4 [10GbE]

• Myricom 10G-PCIE-8A-C+E [10GbE]

• Chelsio® S310X-SR-XFP [10GbE]

• Neterion® Xframe® II & Xframe E [10GbE]

• Red Hat Enterprise 5 update 2 (64-bit)

• SuSE® Professional 9.3 32-bit

• SuSE Enterprise Server 10.2 32-bit

• Sun Solaris® 10 build 6/06

• IBM AIX 5L

• Microsoft Hyper-V

• VMware vSphere® 5

• VMware ESX Server® 3.02 & 3.5

• VMware ESX Server® 4.0 & 4.1

• Virtual Iron v4.2

• Citrix XenServer® v4

• Mac OS X® (10.4 & 10.5)

• Alacritech® SES2104ET (drivers: SNP 9.1.0.1092 & 7.3.1.0)

• Alacritech SES2102ET (drivers: SNP 9.1.0.1092 & 7.3.1.0)

• QLogic® 4010C, 4052C, & 4062C

iSCSI Network Interface

Host Interface • iSCSI Draft 20 Compliant Initiator

Connections • 1,024 hosts

CHAP Authentication • Yes

Page 4

DSN-4000 Series iSCSI SAN Array

Access Control of Management • Yes

iSCSI/TCP/IP Full HW Offload • Yes

Jumbo Frames Support • Yes

LAG Support (Link Aggregation) • Up to four LAGs (Static LAG) • Up to eight LAGs (Static LAG)

Flow Control • Enabled by default

Volume & RAID Support

RAID Controller • Integrated in ASIC chip

RAID Support • RAID Levels 0, 1, 1+0 and 5 (Striped sets, mirrored sets, striped mirrored sets and parity sets)

Volumes • 1,024 Virtual Volumes (256 accessible per initiator)

Target Nodes • 1,024

Online Capacity Expansion • Yes

Hot Swappable Drives • Yes

Instant Volume Access • Yes

Free Space Defragmentation • Yes

Auto-Detection Failed Drive • Yes

Auto-Rebuild Spare Drive • Yes

RAID Level Migration • Yes

Drive Roaming in Power Off (configured drives are not bay-specific)

Micro Rebuilds • Yes

• Yes

Storage Management

Embedded IP-Based Management GUI • Create, manage, expand and monitor storage pool, volumes and RAID

• Event manager to view and persist events

Firmware Field Upgradeable • Yes

SMI-S Version 1.1 • Yes

Event Log • Yes

Power

Supply Type • Dual Redundant Hot-Swappable 450 Watt

Input Voltage: • 90-264 VAC

Input Frequency: • 47-63 Hz

Current • 7 to 8A (100V); 3.5 to 4A(240V)

Power Factor Correction • PFC 80PLUS

Page 5

DSN-4000 Series iSCSI SAN Array

Environmental & Physical

Operating Temperature • 41° to 104°F (5° to 40°C)

Storage Temperature • -4° to 140°F (-20° to 60°C)

Relative Humidity • 10% to 80% (Non-condensing)

Form Factor • 3U industry-standard 19-inch rack

Certifications • CE, FCC Class B, VCCI, BSMI, CB, KCC, C-Tick, UL/cUL, TUV

Weight • 33 lbs (15 kg)

Dimensions • 17.6” x 18.5” x 5.1” (446mm x 471mm x 131mm)

Warranty and Support

Warranty • 3 year limited1 (Manufacturers warranty on Hard Drives)

Extended Warranty • Available (See ordering information below)

Support • 1 year (9 hours per day / 5 days per week Technical Support)

Order Information

Part Number Description

DSN-4100 xStack Storage® 4x1GbE iSCSI SAN Array, 16 Bays, 3U

DSN-4200 xStack Storage® 8x1GbE iSCSI SAN Array, 16 Bays, 3U

DSN-4000 xStack Storage® iSCSI SAN Expansion Array ,16 Bays, 3U

DSN-210-SW SureSync Replication & Synchronization Software

DSN-4100-LW Extended Warranty for DSN-4100

DSN-4200-LW Extended Warranty for DSN-4200

DSN-4000-LW Extended Warranty for DSN-4000

Available in the U.S.A. and Canada only.

All references to speed are for comparison purposes only. Product specications, size and shape are subject to change without notice, and actual product appearance may dier from that depicted herein.

Updated 2/21/12
