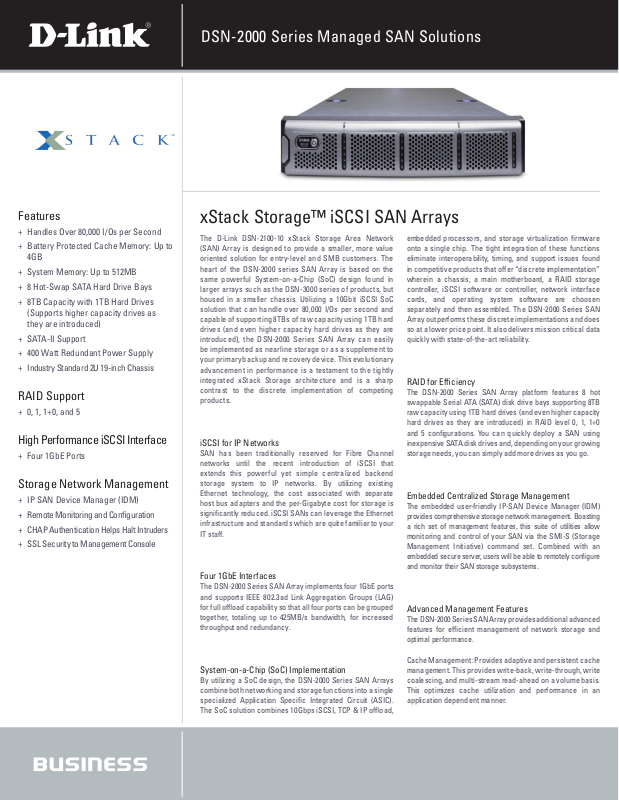

DSN-2000 Series Managed SAN Solutions
Features
+ Handles Over 80,000 I/Os per Second
+ Battery Protected Cache Memory: Up to
4GB
+ System Memory: Up to 512MB
+ 8 Hot-Swap SATA Hard Drive Bays
+ 8TB Capacity with 1TB Hard Drives
(Supports higher capacity drives as
they are introduced)
+ SATA-II Support
+ 400 Watt Redundant Power Supply
+ Industry Standard 2U 19-inch Chassis
RAID Support
+ 0, 1, 1+0, and 5
High Performance iSCSI Interface
+ Four 1GbE Ports
Storage Network Management
+ IP SAN Device Manager (IDM)
+ Remote Monitoring and Configuration
+ CHAP Authentication Helps Halt Intruders
+ SSL Security to Management Console
xStack Storage™ iSCSI SAN Arrays
The D-Link DSN-2100-10 xStack Storage Area Network
(SAN) Array is designed to provide a smaller, more value
oriented solution for entry-level and SMB customers. The
heart of the DSN-2000 series SAN Array is based on the
same powerful System-on-a-Chip (SoC) design found in
larger arrays such as the DSN-3000 series of products, but
housed in a smaller chassis. Utilizing a 10Gbit iSCSI SoC
solution that can handle over 80,000 I/Os per second and
capable of supporting 8TBs of raw capacity using 1TB hard
drives (and even higher capacity hard drives as they are
introduced), the DSN-2000 Series SAN Array can easily
be implemented as nearline storage or as a supplement to
your primary backup and recovery device. This evolutionary
advancement in performance is a testament to the tightly
integrated xStack Storage architecture and is a sharp
contrast to the discrete implementation of competing
products.
iSCSI for IP Networks
SAN has been traditionally reserved for Fibre Channel
networks until the recent introduction of iSCSI that
extends this powerful yet simple centralized backend
storage system to IP networks. By utilizing existing
Ethernet technology, the cost associated with separate
host bus adapters and the per-Gigabyte cost for storage is
significantly reduced. iSCSI SANs can leverage the Ethernet
infrastructure and standards which are quite familiar to your
IT staff.
Four 1GbE Interfaces
The DSN-2000 Series SAN Array implements four 1GbE ports
and supports IEEE 802.3ad Link Aggregation Groups (LAG)
for full offload capability so that all four ports can be grouped
together, totaling up to 425MB/s bandwidth, for increased
throughput and redundancy.
embedded processors, and storage virtualization firmware
onto a single chip. The tight integration of these functions
eliminate interoperability, timing, and support issues found
in competitive products that offer “discrete implementation”
wherein a chassis, a main motherboard, a RAID storage
controller, iSCSI software or controller, network interface
cards, and operating system software are choosen
separately and then assembled. The DSN-2000 Series SAN
Array outperforms these discrete implementations and does
so at a lower price point. It also delivers mission critical data
quickly with state-of-the-art reliability.
RAID for Efficiency
The DSN-2000 Series SAN Array platform features 8 hot
swappable Serial ATA (SATA) disk drive bays supporting 8TB
raw capacity using 1TB hard drives (and even higher capacity
hard drives as they are introduced) in RAID level 0, 1, 1+0
and 5 configurations. You can quickly deploy a SAN using
inexpensive SATA disk drives and, depending on your growing
storage needs, you can simply add more drives as you go.
Embedded Centralized Storage Management
The embedded user-friendly IP-SAN Device Manager (IDM)
provides comprehensive storage network management. Boasting
a rich set of management features, this suite of utilities allow
monitoring and control of your SAN via the SMI-S (Storage
Management Initiative) command set. Combined with an
embedded secure server, users will be able to remotely configure
and monitor their SAN storage subsystems.
Advanced Management Features
The DSN-2000 Series SAN Array provides additional advanced
features for efficient management of network storage and
optimal performance.
System-on-a-Chip (SoC) Implementation
By utilizing a SoC design, the DSN-2000 Series SAN Arrays
combine both networking and storage functions into a single
specialized Application Specific Integrated Circuit (ASIC).
The SoC solution combines 10Gbps iSCSI, TCP & IP offload,
Cache Management: Provides adaptive and persistent cache
management. This provides write-back, write-through, write
coalescing, and multi-stream read-ahead on a volume basis.
This optimizes cache utilization and performance in an
application dependent manner.
Page 2
DSN-2000 Series Managed SAN Solutions
xStack Storage™ iSCSI SAN Arrays
Technical Specifications
Features
Drive Bays 8
Drive Interface Support SATA-II support
System Memory 256MB to 512MB (512MB standard)
Cache Memory 256MB to 4GB (512MB standard)
Battery Backup for Cache Standard (approximately 72 hours on full charge)
Bandwidth Up to 425MB/s
Storage Capacity 8TB capacity with 1TB hard drives (supports for higher capacity drives as they are introduced)
VLAN Zoning: Supports IEEE 802.1q VLAN tagging to segregate
traffic into isolated zones for secure access and jumbo frames
to improve the network throughput and reduce CPU overhead.
Volume Virtualization: The DSN-2000 Series has storage
management software that provides volume virtualization
features by utilizing the concept of storage Extents. Extents are
the fundamental building blocks used to enable features such as
RAID, online capacity expansion and volume migration. Drives
of disimilar size can be used to create volumes. Growth can
occur without volume migration or reconstruction. Single drives
can contain multiple and divergent RAID technologies. Volume
structure can also provide infrastructure for Snapshot copies.
RAID Support: RAID Levels 0, 1, 1+0 and 5 (striped sets,
mirrored sets, striped mirrored sets, and parity sets) are
supported, allowing different storage options.
Online Capacity Expansion and RAID Level Migration:
Volumes can be expanded and/or migrated to other RAID
levels while online and with minimal impact on users. For
example, a mirror volume of two drives can easily be
converted to a parity volume of three or more drives while
users continue to access this storage.
Micro Rebuilds: Provides protection against unresponsive
SATA commands by forcing a response within a preset time limit.
An iSSCSI array can prove to be a valuable tool to supplement
your network storage foundation. Whether providing a lowcost block-based solution for data backup and recovery,
replacement of Direct-Attached Storage (DAS) drives,
or providing a cost-effective entry-level nearline storage
solution, the DSN-2000 Series xStack Storage Area Network
(SAN) Array can meet your immediate needs.
Operating Systems Supported
*Please see www.dlink.com for
latest support information
Windows Vista® 32-bit & x64 (Ultimate & Enterprise) with Built-in iSCSI initiator
Windows® Server 2003® 32-bit & x64 SP1 (Standard & Enterprise) with v2.04 iSCSI initiator
Windows Server 2003 R2 32-bit & x64 (Standard & Enterprise) with v2.04 iSCSI initiator
Windows XP Pro 32-bit & x64 with v2.04 iSCSI initiator
Windows 2000 Advanced Server with v1.6 & v2.01 iSCSI initiator
Fedora® Core® 6 & 7
Red Hat® 7.3
Red Hat 9
Red Hat Enterprise® WS 3 update 4
Red Hat Enterprise ES 4 update 4 & 5 32-bit & x64
Red Hat Enterprise AS update 4
SuSE® Professional 9.3 32-bit & x64
OS X® (10.4.7 | 10.4.8 | 10.4.10) with Intel® and Power PC CPUs
Page 3
DSN-2000 Series Managed SAN Solutions
xStack Storage™ iSCSI SAN Arrays
Supported NICs, iSCSI Accelerators
and iSCSI HBAs
*Please see www.dlink.com for
latest support information
iSCSI Network Interface
iSCSI Network Interface Four (4) 1GbE Copper Ports
Host Interface iSCSI Draft 20 compliant initiator
Connections 1,024 hosts
CHAP Authentication Yes
Access Control of Management Yes
iSCSI/TCP/IP Full HW Offload Yes
Jumbo Frames Support Yes
LAG Support (Link Aggregation) Yes – Up to four (4) LAGs (IEEE802.3ad Link Aggregation Group)
VLAN Support Up to eight (8). 1-to-1 mapping between IP subnet and VLAN. Multiple VLANs per physical port with VLAN tag. All
Volume & RAID Support
RAID Controller Single- Integrated in ASIC
RAID Support RAID Levels 0, 1, 1+0 and 5
Volumes 1,024 Virtual Volumes (256 accessible per initiator)
Target Nodes 1,024
Online Capacity Expansion Yes
Hot Swappable Drives Yes
Instant Volume Access Yes
Free Space Defragmentation Yes
Auto-Detection Failed Drive Yes
Auto-Rebuild Spare Drive Yes
RAID Level Migration Yes
Drive Roaming in Power Off
(configured drives are not bayspecific)
Micro Rebuilds Yes
Intel® Pro 1000MT & XT [1GbE]
Intel Pro 10000 CX4 [10GbE]
Chelsio® S210X-SR-XFP (S2iO) [10GbE]
Neterion® Xframe® II & Xframe E [10GbE]
Alacritech® SES2104ET (drivers: SNP 9.1.0.1092 & 7.3.1.0)
Alacritech SES2102ET (drivers: SNP 9.1.0.1092 & 7.3.1.0)
QLogic® 4010C
QLogic 4052C
physical ports in LAG belong to same VLAN (IEEE802.1Q Tag)
Yes
Page 4
Storage Management
Embedded IP-Based Management
GUI
Firmware Field Upgradeable Yes
SMI-S Version 1.1 Yes
Power
Supply Type Redundant 2U 400 Watt
Input Voltage 100-240 VAC
Input Frequency 47-63 Hz
Input Current 8A Maximum at 100VAC and 4A Maximum at 240VAC
Power Factor Correction 95%@110V, Full load
Power Consumption 360W (full configuration)
Thermal 1260 BTU / hour (full configuration)
DSN-2000 Series Managed SAN Solutions
xStack Storage™ iSCSI SAN Arrays
Create, manage, expand and monitor storage pool, volumes, and RAID
Event manager to view and persist events
(maximum amps vs. voltage varies linearly throughout this voltage range)
Environmental
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 158°F (-20° to 70°C)
Operating Humidity 20% ~ 90% (Non-condensing)
Storage Humidity 10% ~ 95% (Non-condensing)
Physical (approximate)
Form Factor 2U industry-standard 19-inch rack
Dimesnsions (D x W x H) 25in x 17.25in x 3.5in (63.5cm x 43.8cm x 8.9cm) * 18.75in (47.6cm) wide at the mounting brackets
Weight 45 lbs / 20.4 Kg (full configuration)
International Approvals
Emissions CE Class A, FCC Class A, C-Tick Class A, VCCI Class A
Safety CSA 60950-1, UL60950-1, IEC 60950-1, EN 60950-1
Warranty and Support
Warranty 2-Year Limited1 (manufacturer’s warranty on hard drives)
Extended Warranty Available
Support 1 year,* 9 hours per day / 5 days per week Technical Support
Available Configurations
DSN-2100-10 xStack 4x1GbE iSCSI SAN Array, 8 Bays, 2U, w/o Drives, with Trays
12/03/07
1
2-Year Limited Warranty available in the U.S.A and Canada only.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product
appearance may differ from that depicted herein. See inside package for warranty details.
D-Link Systems, Inc. 17595 Mt. Herrmann Street Fountain Valley CA 92708 www.dlink.com
©2006-2007 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the
D-Link logo, the xStack, xStack Storage and xStack logo trademarks are registered
trademarks of D-Link Corporation or its subsidiaries in the United States and/or
other countries. Other trademarks or registered trademarks are the property of their
respective owners.
