DSM-622H/DSM-624H

Wireless Central Home Drive

Before You Begin

Y ou must have at least the following for configuration:

1. A computer with Windows XP, 2000, Me, 98SE, Apple MAC OS X, or Linux based
operating system with an available Ethernet port.

2. Activating UPnP in Windows XP and Me is optional, but is highly recommended for
ease of use.

Check Your Package Contents

DSM-622H 20GB Wireless Central Home Drive
or
DSM-624H 40GB Wireless Central Home Drive

CD-ROM with Manual

Ethernet (CAT5 UTP/Straight-Through) Cable

Antenna

Stacking and Vertical Stands

Using a power supply
with a different voltage

5V DC Power Adapter

If any of the above items are missing, please contact your reseller.

©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and

specifications subject to change without notice. DSM-622H/624H.10072004

rating will damage and void
the warranty of this product.

DSM-622H/624H Overview

When you have completed the steps in this Quick Installation Guide, your connected
network may look similar to this:

A default IP address of 192.168.0.65 is assigned
to the unit if a DHCP server is not found.

2

Hardware Overview

WLAN: A solid light indicates

that the wireless segment is

HDD: Indicates activity

on the hard disk drive.

ready . This LED blinks during
wireless data transmission.

PWR: Solid indicates

a connection to a
good power source.

LAN Port: Connects to your

Ethernet network. The LAN port
supports Auto MDI/MDI-X, allowing
you to connect a straight-through
or crossover cable.

LAN: Solid indicates an

Ethernet connection.
Blinking indicates activity
on the Ethernet network.

USB Port: Used to

connect external USB
storage devices.

USB: A solid light indicates

that a USB drive is connected.

Reset Button: Pressing

this button for 10
seconds restores the
unit to the original
factory default settings.

Connector for

Power Adapter.

3

Hardware Installation

A. Connect an Ethernet

cable to the Ethernet
jack located on the back
of the DSM-622H/624H.

B. Connect the antenna to

the antenna connector
located on the back of
the DSM-622H/624H.

c. Connect the power

adapter to the connector
on the back panel of the
DSM-622H/624H. Then
plug the other end of the
power adapter into a wall
outlet or power strip. The
Power LED will be on to
indicate proper operation.

d. After the Ethernet cable

is securely connected,
connect the other end of
the Ethernet cable to
your network router or
switch.

4

Setting up a Wireless Connection

Open your Web browser and
type http://dsm-622h or http://

dsm-624h into the URL address

box. Then press the Enter or
Return key .

The logon pop-up screen will appear.

Type admin for the
username and leave the
password field blank.

Click OK.

Once you have logged in, the
Home screen will appear. Click
on the LAN tab on the left side of
the screen.

Click No under the
Set as Default
Interface setting.

5

Setting up a Wireless Connection
(continued)

After clicking No, the Wireless
screen will appear.

Click Yes under
the Set as Default
Interface setting.

Select your Wireless Mode and
input your wireless settings.

Click Dynamic IP or click

Static IP and manually input

your Static IP Address, Subnet
Mask, and Gateway Address .

Click Apply.

Y ou can now unplug the Ethernet cable and access the DSM-622H/624H wirelessly .

Note: For information on configuring the DSM-622H/624H as a wireless client or help
with the other features on this page, please refer to the section titled Using the

Configuration Utility in the manual.

Your wireless connection setup is now complete!

6

Accessing the DSM-622H/624H in
Windows Me or XP

For Windows Me or XP users, it is recommended to activate UPnP for ease of
use. To learn how to activate UPnP , please refer to page 9 of the manual.

Double Click My Network Places
on the Windows Desktop.

Once connected, the device will
appear in My Network Places as

UPnP E-Storage, if UPnP is

activated in Windows Me or XP .

Your setup in Windows XP or Me is now complete!

7

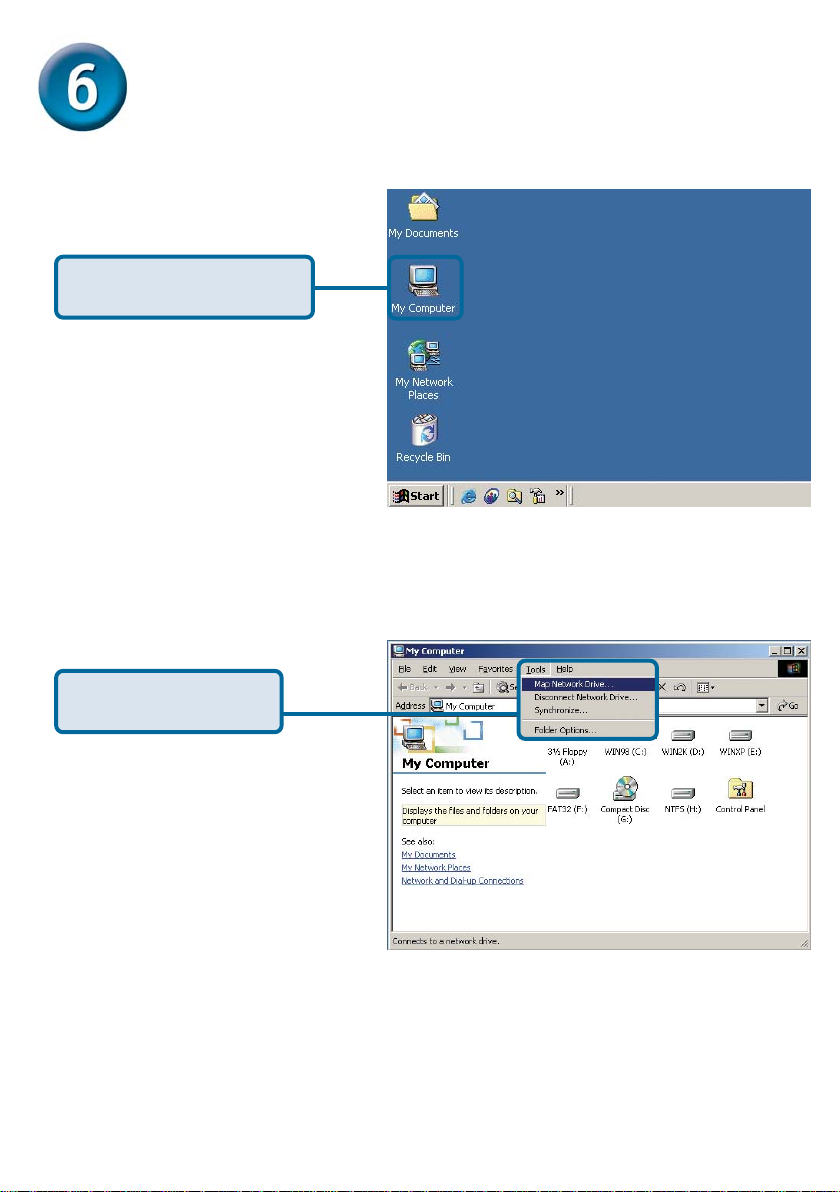

Accessing the DSM-622H/624H in
Windows 2000

Double click My Computer
on the Windows Desktop.

Under Tools, select

Map Network Drive.

8

Accessing the DSM-622H/624H in
Windows 2000 (continued)

Select a drive letter for

the DSM-622H/624H.

Select Browse to find
the DSM-622H/624H on
the network.

Select your

DSM-622H/624H
share folder.

Click OK.

9

Click Finish.

Accessing the DSM-622H/624H in
Windows 2000 (continued)

In the My Computer window,
the DSM-622H/624H will be
displayed with a mapping to
the drive letter you selected.

Your setup in Windows 2000 is now complete!

10

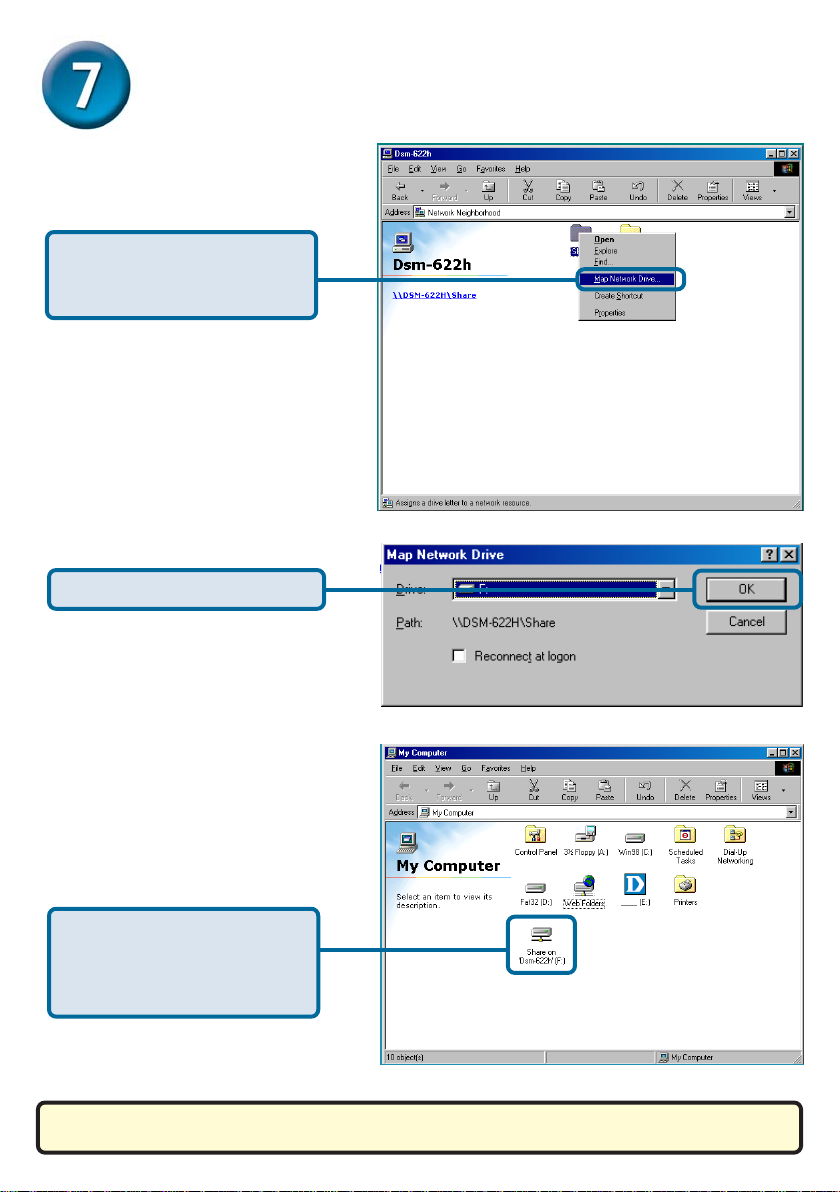

Accessing the DSM-622H/624H in
Windows 98SE

Double click Network

Neighborhood on the

Windows Desktop.

Double click on the DSM-622H/
624H icon in the Network
Neighborhood.

11

Accessing the DSM-622H/624H in
Windows 98SE (continued)

Right click on the share
folder and click Map

Network Drive.

Select the drive and click OK.

In the My Computer window,
the DSM-622H/624H will be
displayed with a mapping to
the drive letter you selected.

Your setup in Windows 98SE is now complete!

12

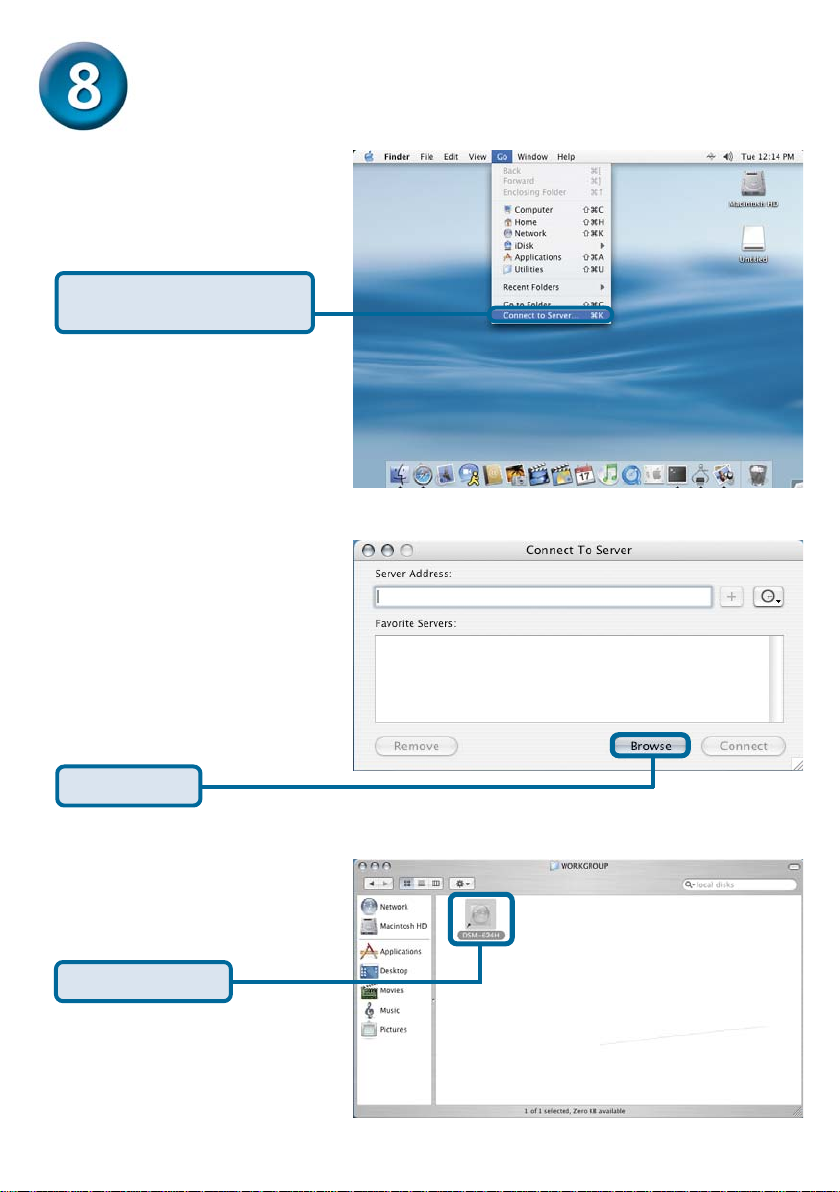

Accessing the DSM-622H/624H in
Macintosh OS X

From the desktop Go menu,
select Connect to Server.

Click Browse .

Click DSM-624H.

13

Accessing the DSM-622H/624H in
Macintosh OS X (continued)

Click OK.

By default, there is no password.

Click OK.

The share window will open.

14

Accessing the DSM-622H/624H in
Macintosh OS X (continued)

The DSM-622H/624H will appear on
your desktop. Double-click on the
shared drive to access your
Wireless Central Home Drive!

Your setup in MAC OS X is now complete!

15

TT

echniechni

T

echni

TT

echniechni
