Introduction

The D-Link MediaLounge
Gigabyte (DSM-622H) or a 40 Gigabyte (DSM-624H) portable HDD (Hard Disk Drive)
device that is accessible both wirelessly , or via an Ethernet connection.

With a built-in USB 2.0 port, the DSM-622H/624H provides access to additional USB
storage drives and supports Microsoft® Windows Connect Now (WCN) standard to
configure WLAN settings. The DSM-600 series Central Home Drive provides a fast and
easy way to add high performance storage capacity to home, small business or school
networks. These Central Home Drive devices are ideal for sharing archived digital photos
of family and friends, digital videos, music, games, important documents or other files
among computers and other devices on your network.

These are true Universal Plug and Play products, providing high data transfer rates over
a wireless or a Fast Ethernet connection and are compatible with Windows, Mac OS X
and Linux-based computers. For supported Windows operating systems, the UPnP
protocol allows for instantaneous discovery with no configuration required.

With Mac OS X, the DSM-622H/624H uses Apple’ s Rendezvous for instant detection
with no configuration.

For added convenience, these digital media storage devices are also hot-swappable and
their Fast Ethernet ports are Auto MDI/MDI-X, meaning that you can use any type of
standard Ethernet cable — either straight-through or crossover cable if you are using an
Ethernet connection.

With the DSM-622H & 624H communicating with your wireless router — all the computers
in your LAN will have instant access to extra data storage and file sharing!

TM

Wireless 802.11g Central Home Drive is a versatile 20

™

3

Features and Benefits

 Enjoy the convenience and flexibility of 1 USB 2.0 port for additional storage
 Instant Network Storage and File Sharing

 Up to 250 Audio CDs
 Up to 20,000 JPEG Images
 Up to 20/40GB of storage space -

The DSM-622H provides up to 20GB of storage space.
The DSM-624H provides up to 40GB of storage space.

 High-speed 802.1 1g wireless data transfer for large media files
 Optional Fast 10/100Base-TX Ethernet Performance
 Instant Discovery of the DSM-622H/624H on UPnP

Networked Computers

 Versatile, Stackable, Compact size
 Optional Configuration via Web browser for Advanced Features

™

or Rendezvous-Enabled

4

Package Contents

D-Link MediaLounge DSM-622H/624H



Central Home Drive
Manual and Warranty on CD



Printed Quick Installation Guide




Vertical Stands (2 pcs.)
Stackable Stands (4 pcs.)



5V DC Power Adapter



Ethernet CA T5 Cable



Detachable antenna



If any of the above items are missing, please contact your reseller.

TM

Minimum System Requirements:

Internet Explorer 5.0 or above; Apple Safari; Linux



Nautilus or Netscape 6.2.x or above
Windows XP/2000/Me/98SE, Mac OS X, Linux



5

Hardware Overview

Front Panel

Power

Indicates when the
DSM-622H/624H is
powered ON.

WLAN

Status light blinks steadily to
indicate activity on the wireless LAN.

HDD

Indicates activity on
the hard disk drive.

Rear Panel

LAN

Displays activity
on the Local Area
Network.

USB

Displays activity
on the USB port.

Reset Button

Pressing this button for 10 seconds
restores the DSM-622H/624H to its
original factory default settings.

USB 2.0 port

One USB 2.0 port offers an increased
capacity for storage and file transfer.

Auto MDI/MDI-X LAN Port

This port allows you to
connect the DSM-622H/624H
to your Ethernet network.

6

Connector for
Power Adapter.

Getting Started

Below is a sample network using the DSM-622H/624H.

The DSM-622H/624H can be installed for wireless and Ethernet access, as shown above.

7

Hardware Installation

11

1

11

22

2

22

33

3

33

Connect the power adapter to the
connector on the back panel of the
DSM-622H/624H. Then plug the
other end of the power adapter into
a wall outlet or power strip. The
Power LED will be ON to indicate
proper operation.

Connect an Ethernet cable to the
Ethernet jack located on the back of
the DSM-622H/624H.

After the Ethernet cable is securely
connected, connect the other end of
the Ethernet cable to your network
router or switch. (The router is
pictured here.)

44

4

44

The antenna is removable and can be
screwed on or off.

8

Enabling UPnP

Please note that UPnP™ is only available in Windows XP and Me.
It is highly recommended that you enable UPnP™ for ease of use,
although it is not required.

To enable UPnP™, go to the Start
menu, select Settings and launch

Control Panel. Inside of the Control
Panel, select Add or Remove
Programs. The screen displayed on

the right will appear.

On the left hand side, click Add/

Remove Windows Components

The Windows Components Wizard
screen will appear, allowing you to add
or remove Windows components.

™

Highlight Networking Services

Click Details

The Networking Services screen
allows you to add or remove networking
components in Windows.

Select Universal Plug and Play

Click OK

9

Enabling UPnP™ (continued)

Click Next

Click Finish

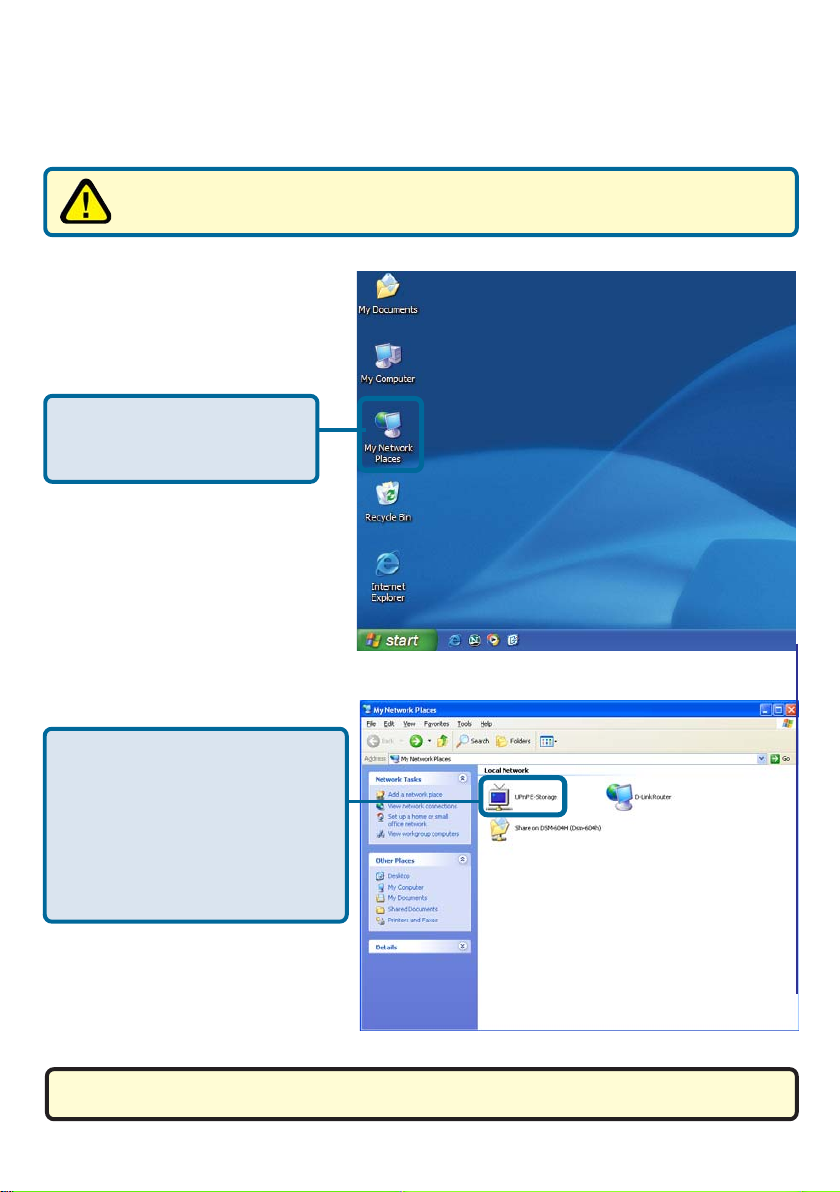

Double-click on My Network
Places on your desktop.

Y our DSM-622H/624H network
hard drive appears as UPnP

E-Storage.

UPnP™ is now enabled!

10

Using the Configuration Utility

The DSM-622H/624H is a true plug and play device. The DSM-622H/624H will be instantly
accessible to network computers with UPnP™ compatible operating systems.

However, if you wish to use the advanced configuration features that include assigning
folder and access rights; or if you want to use the DSM-622H/624H attached directly to
one computer, you can configure it.

The computer that you use for initial configuration must be directly connected
to the DSM-622H/624H with an Ethernet cable.

For Windows OS users:

Start your W eb browser program.



If you do not have a DHCP server in your network:



Type the IP address of the DSM-622H/624H in the address field and press
Enter. Make sure that the IP addresses of the DSM-622H/624H and your
computer are in the same subnet. The default IP address of the
DSM-622H/624H is 192.168.0.65.

If you do have a DHCP server in your network:



Type http://dsm-622h into the address field and press Enter.

The screen below will appear.







For Macintosh OS users:

In Safari, go to Bookmarks > Show all bookmarks



Click on Rendezvouz.



Double-click on DSM-622H/624H.



The login screen will appear.







Enter the user name: admin and leave
the password field blank. Once you’ve
logged in, you can set a password in
the Web-based configuration interface.

Click OK

Once you have logged in, the Home screen, shown on the next page, will appear .

*Although your device may have a different product number than the one on these screens,
these images apply to all of the DSM-600 series of products, including the DSM-622H
and DSM-624H.

11

Using the Configuration Utility (continued)

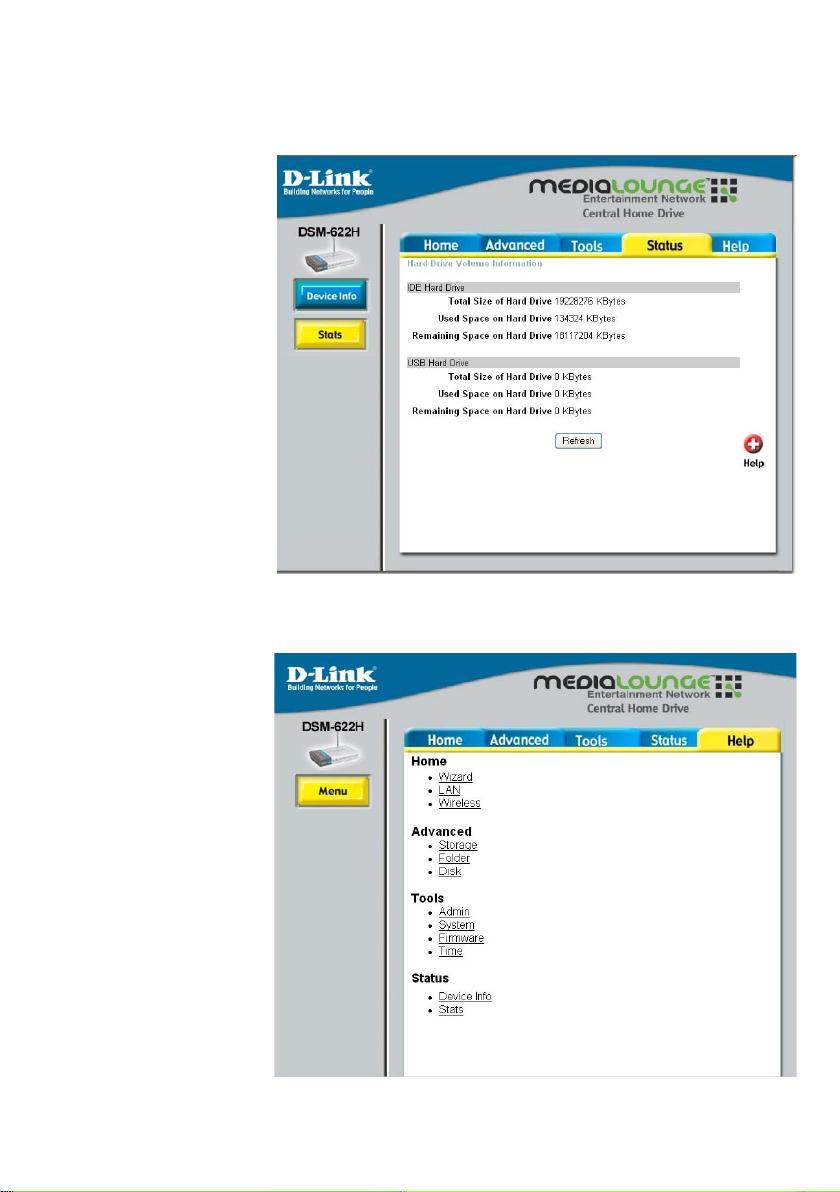

Home

Home > Wizard

This Setup Wizard
screen will appear. Click
Run Wizard and the
utility will guide you
through a simple setup.

Home > LAN

Set as Default Interface:

Select Yes for Wired.
Select No for Wireless.
When you select No, you will
be directed to the Wireless
interface (shown on the next
page).

Dynamic IP: Select to

obtain an IP address from a
DHCP server.

Static IP: Select to manually

assign an IP address.

Static IP Address: Enter the

address here.

Subnet Mask: Enter the

subnet mask here.

Gateway Address: Enter

the address here.

DNS IP Address: Enter the IP address of the Domain Name Service. DNS is an Internet

service that translates domain names into IP addresses

Apply: Click Apply to save the changes.

12

Using the Configuration Utility (continued)

Home > Wireless

Please see the following page for an explanation of the features displayed here.

13

Using the Configuration Utility (continued)

Home > Wireless (continued)

Set as Default Interface: Select Yes for wireless. Select No for wired.

Wireless Mode:

Client: Select this mode to use the DSM-622H/624H in client mode
Access Point: Select this mode to use in access point mode.

SSID: Enter the SSID in access point mode. You may click Site Survey to select an

available wireless AP or router.

Mode: Select 802.1 1g or 802.1 1b mode
Channel: Select the channel here.
WEP: Select Enabled or Disabled.
WEP Encryption: Select the encryption level here.
Key T ype: Select HEX or ASCII.
Keys 1-4: You can input up to 4 encryption keys. Click to select the key you wish to

use.

The Wireless IP Address settings of the DSM-622H/DSM-624H
Dynamic IP: Select to obtain an IP address from a DHCP server
Static IP: Select to manually assign an IP address. When you select this option you

will fill out the fields below.

Static IP Address: Enter the IP address in this field
Subnet Mask: Enter the subnet mask
Gateway Address: Enter the gateway address

Apply: Click Apply to save the changes.

14

Using the Configuration Utility (continued)

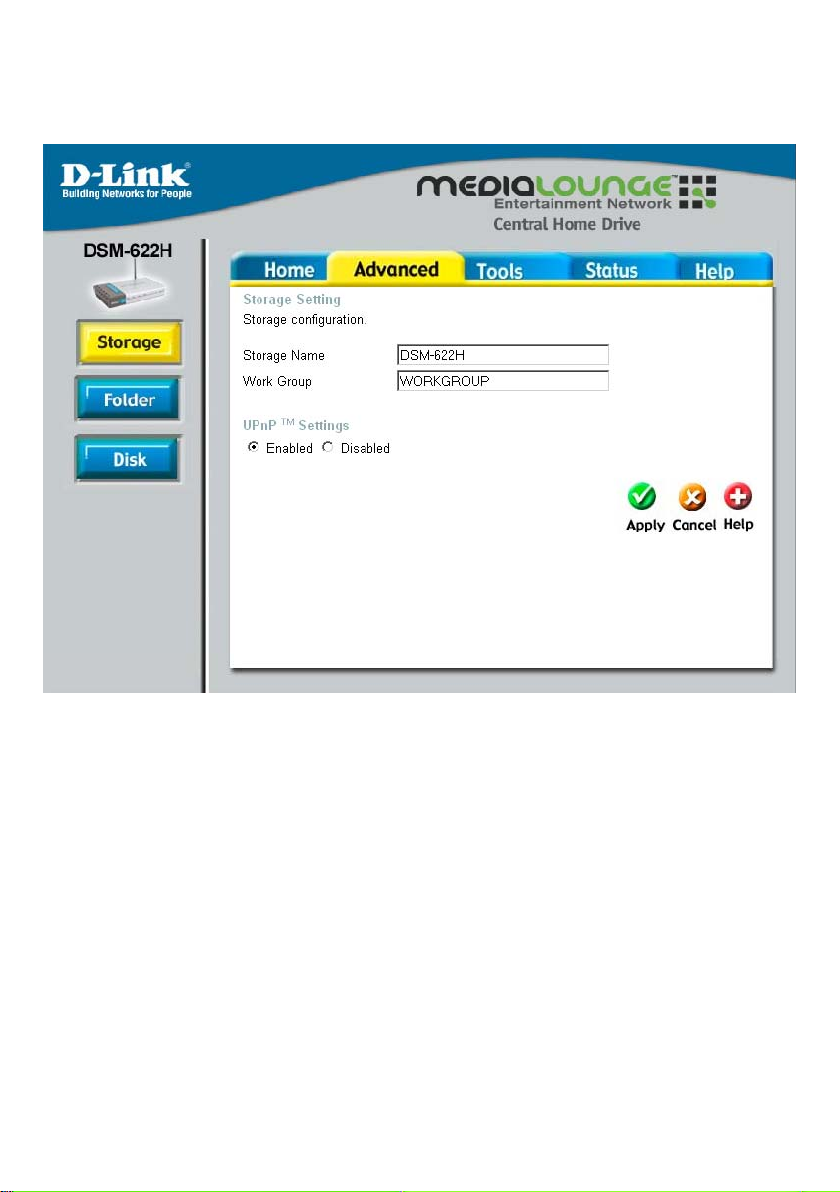

Advanced > Storage

Storage Name: Enter a name for the device.
Work Group: Enter a the workgroup name.
UPnP™ Settings: Enable or Disable UPnP™ here.

15

Using the Configuration Utility (continued)

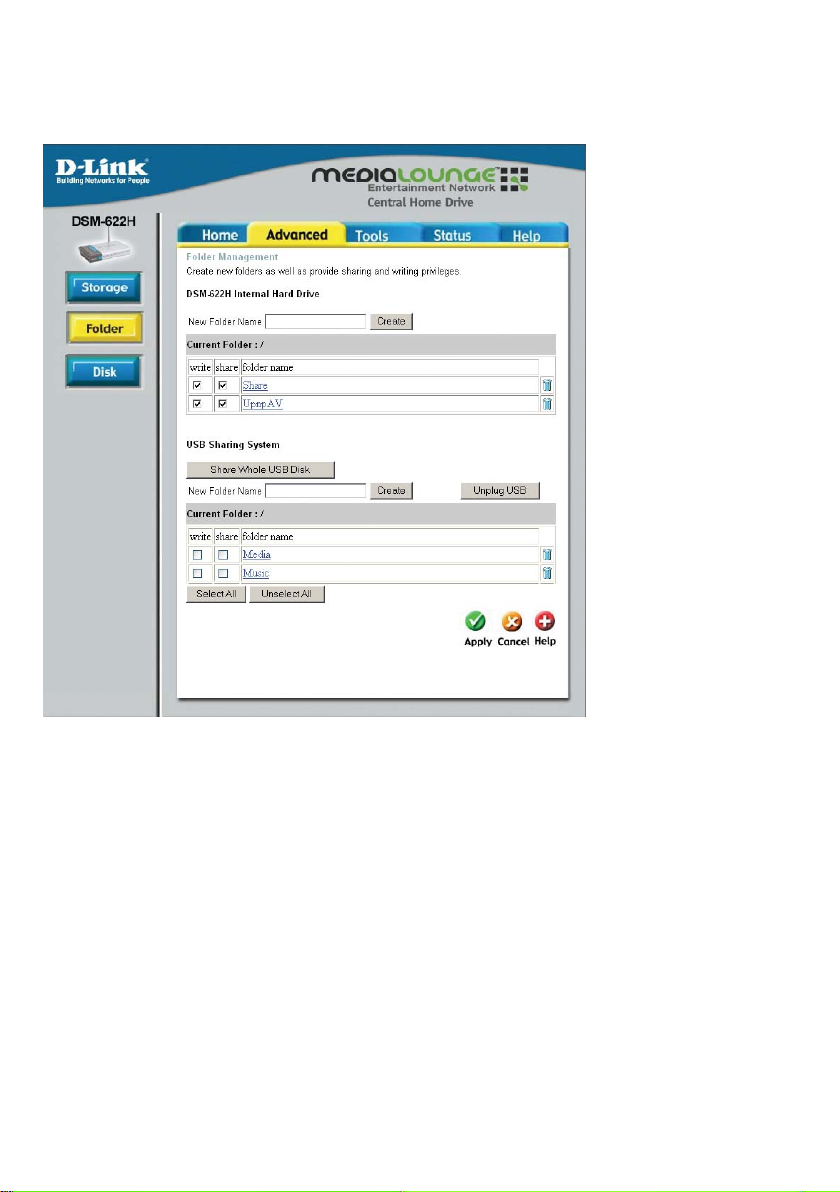

Advanced > Folder

In this window you can create new folders and provide writing or sharing privileges for
them on the DSM-622H/624H and the USB portable drive.

DSM-622H/624H Hard Drive

New Folder Name: Enter a name for the folder. Click Create and the folder will appear

in the list below.

Write: Click to select write privileges for the folder. Read privileges are enabled by

default.

Share: Click to share the folder on the network.

USB Sharing System

Unplug: Click to safely unplug the USB drive from the DSM-622H/624H. A message will

appear indicating that it is safe to remove the USB device.

(When you plug a USB drive into the USB port of the DSM-622H/624H, the USB LED will

light up solidly. When the LED has a solid light, click the Folder button to refresh the
contents of this page.

Share Whole Disk: Click to share all the contents of the USB drive.

16

Using the Configuration Utility (continued)

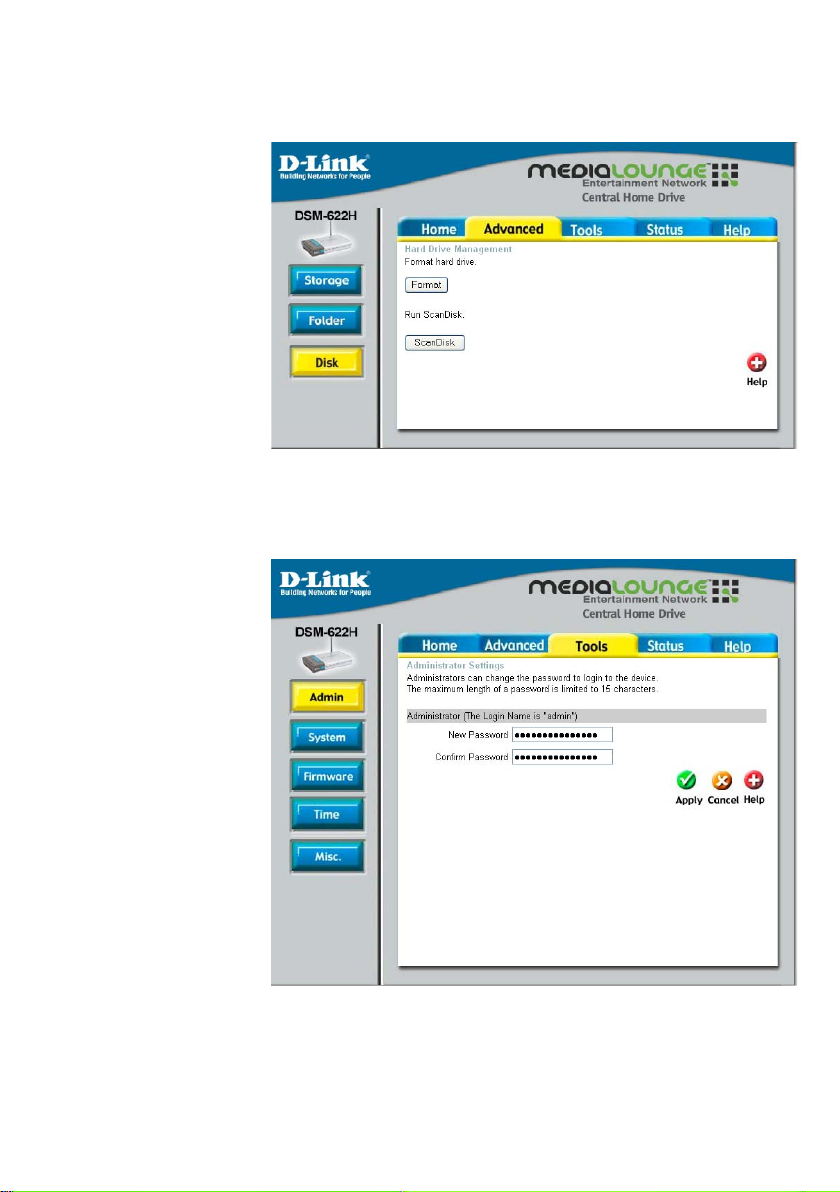

Advanced > Disk

Format: Click to

format the hard drive.

ScanDisk: Click to

check the hard drive
for errors.

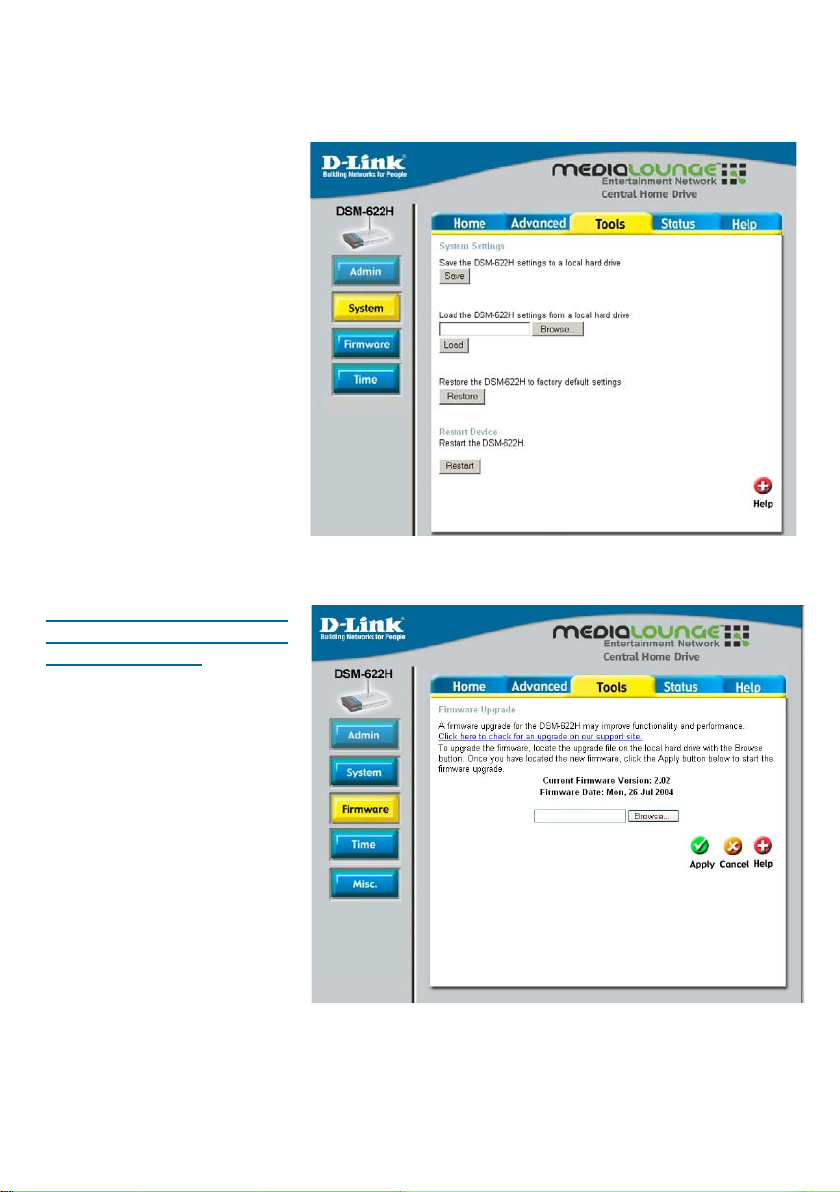

T ools > Admin

New Password: Enter

a new password of up
to 15 characters here.

Confirm Password:

Retype the password.

17

Using the Configuration Utility (continued)

Tools > System

Save: Click to save the

system settings to a local
hard drive.

Browse: Click to browse the

hard drive for the DSM-622H/
624H settings.

Load: Click to load the

selected settings onto the
DSM-622H/624H.

Restore: Click to restore to

factory default settings.

Restart: Click to restart the

device.

T ools > Firmware

Click here to check for any
new firmware upgrade on
our support site: Click on

this link to find information
about firmware upgrades on
D-Link’s support site.
Download the firmware
upgrade from the support
site to your computer’s hard
drive.

Browse: After you have

downloaded the firmware
upgrade to your hard drive,
click Browse to find the
upgrade. When you have
found it, click Open in the
browser window and click
Apply in this screen to begin
the firmware upgrade.

When the upgrade is complete, a message will appear and the DSM-622H/624H will
restart itself.

18

Using the Configuration Utility (continued)

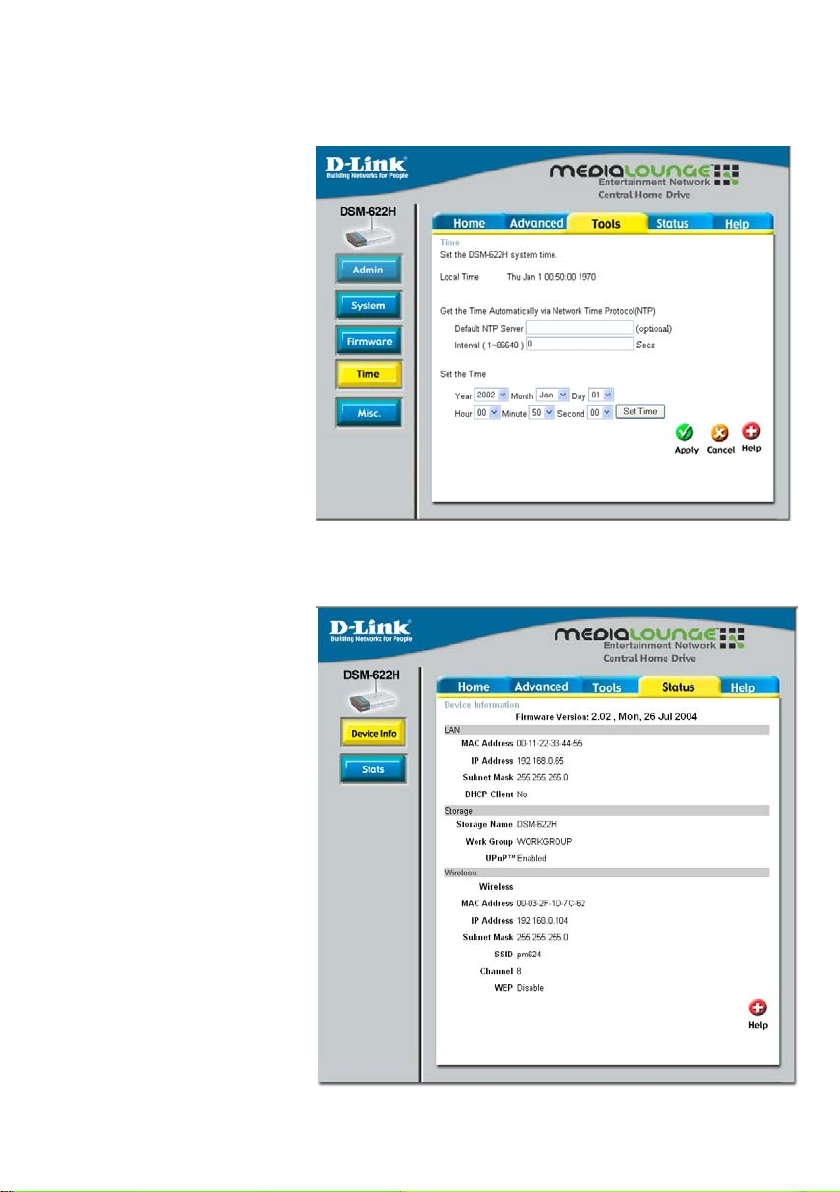

T ools > T ime

Default NTP Server:

Network Time Protocol

synchronizes time on your
network. Input an optional
NTP server address here.

Interval: Select an interval

in seconds before time
resynchronization with the
NTP server .

Set Time:

Enter the time manually and
click Set Time.

Status > Device Info

Device Information: The

device information and the
version of the firmware are
available here.

19

Using the Configuration Utility (continued)

Status > Stats

Hard Drive Volume
Information:

Hard drive information is
available here.

Help > Menu

Help Menu:

Click on an item in the
window above for more
information.

20

Accessing the DSM-622H/624H in Windows XP/Me

For Windows XP or Me users, it is recommended to activate UPnP for ease
of use. To learn how to activate UPnP, please refer to page 9 in this manual.

Double Click My Network

Places on the Windows

Desktop.

The DSM-622H/624H will appear
on the My Network Places
screen as UPnP™ E-Storage

once a connection is established
(if UPnP™ is activated in the
Windows XP/Me operating
system).

Your setup in Windows XP or Me is now complete!

21

Accessing the DSM-622H/624H in Windows 2000

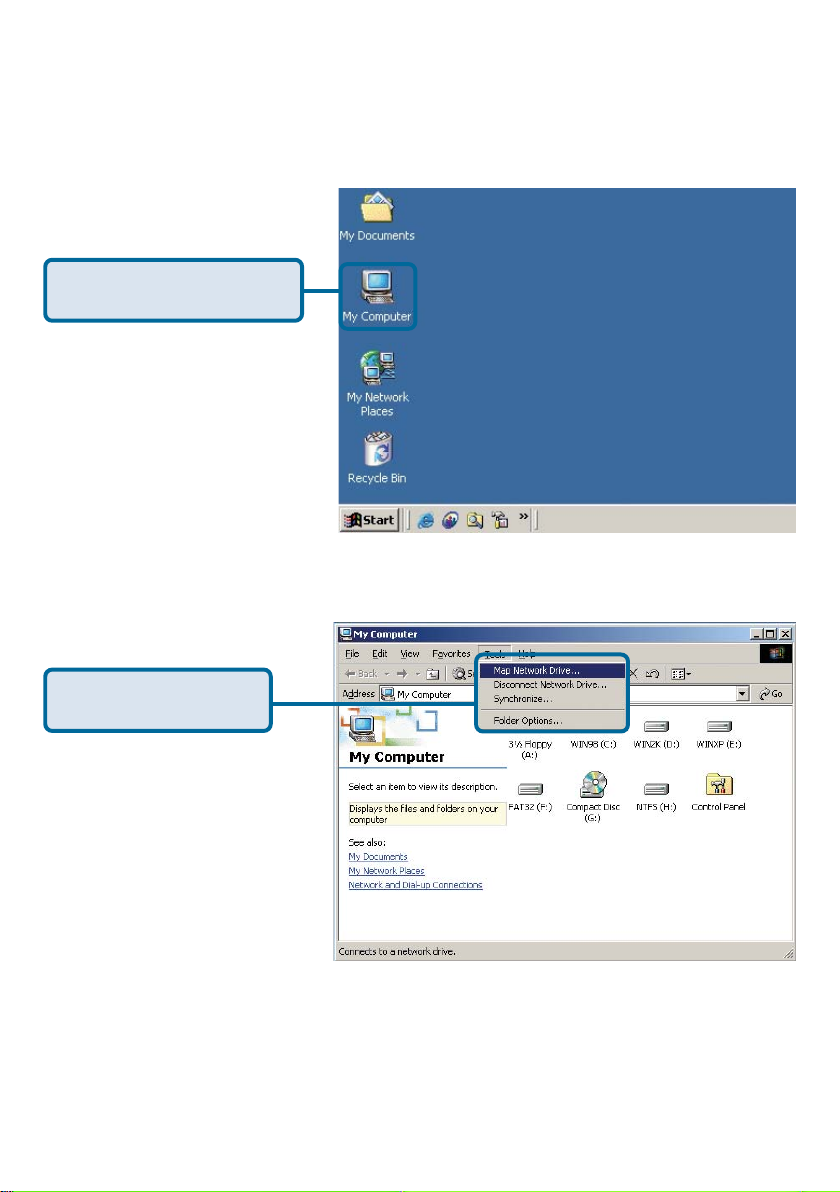

Double Click My Computer
on the Windows Desktop.

Under Tools, select

Map Network Drive.

22

Accessing the DSM-622H/624H in
Windows 2000 (continued)

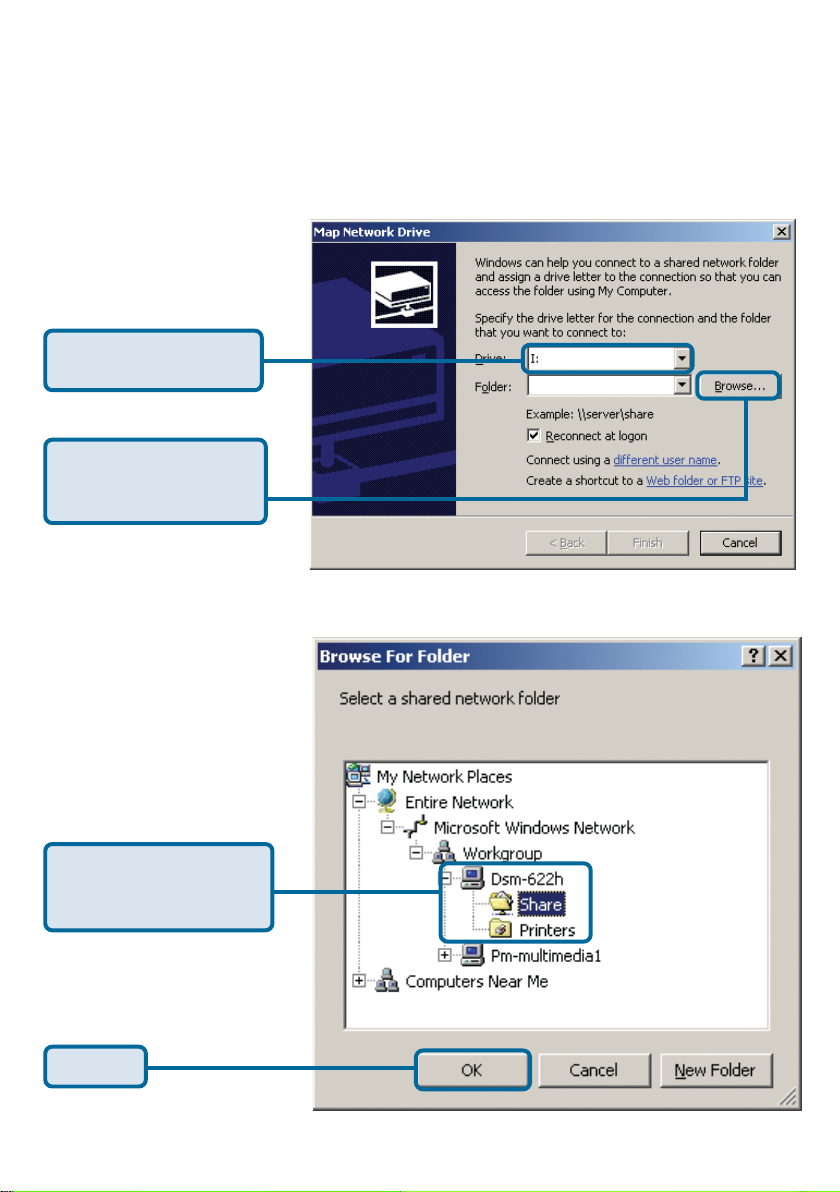

Select a drive letter for

the DSM-622H/624H.

Select Browse to find
the DSM-622H/624H on
the network.

Select your DSM-622H

or DSM-624H shared
folder.

Click OK

23

Accessing the DSM-622H/624H in
Windows 2000 (continued)

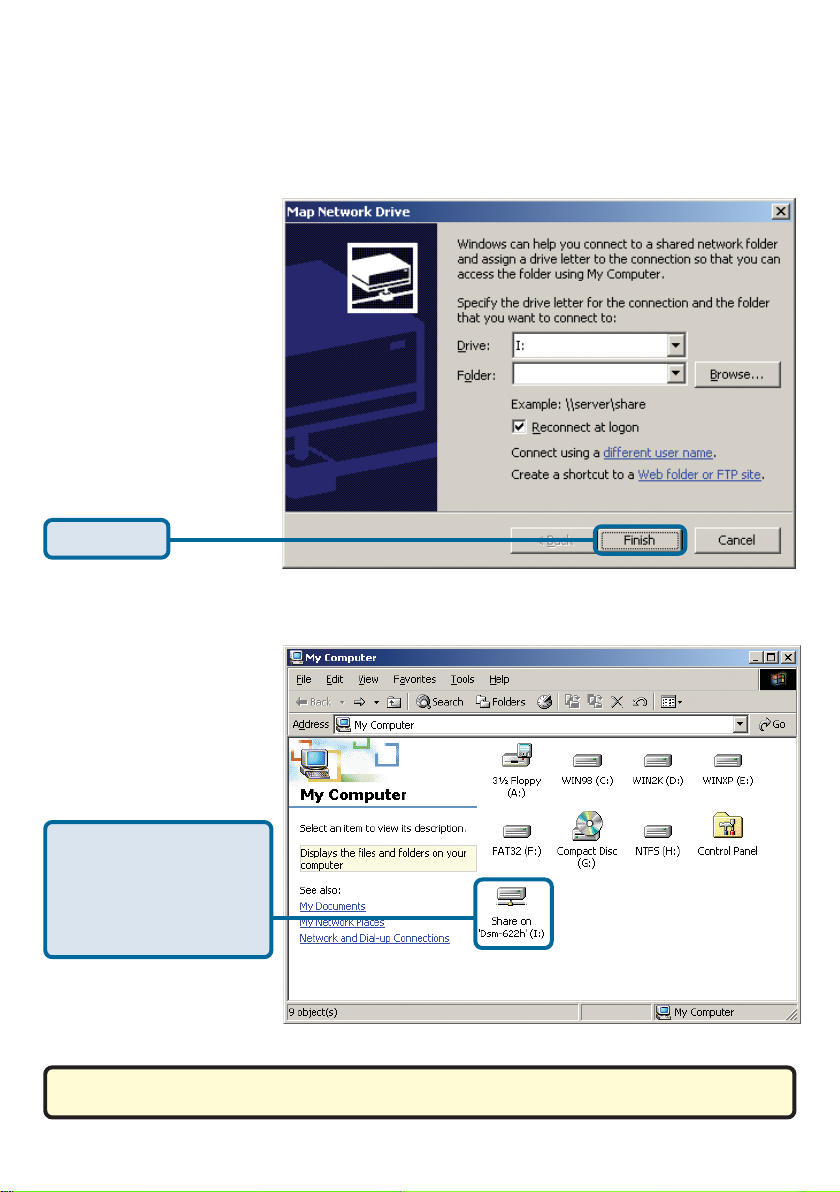

\\DSM-622H\Share

Click Finish

The DSM-622H/624H will
be displayed in the My
Computer window with a
mapping to the drive
letter you selected.

Your setup in Windows 2000 is now complete!

24

Accessing the DSM-622H/624H in Windows 98SE

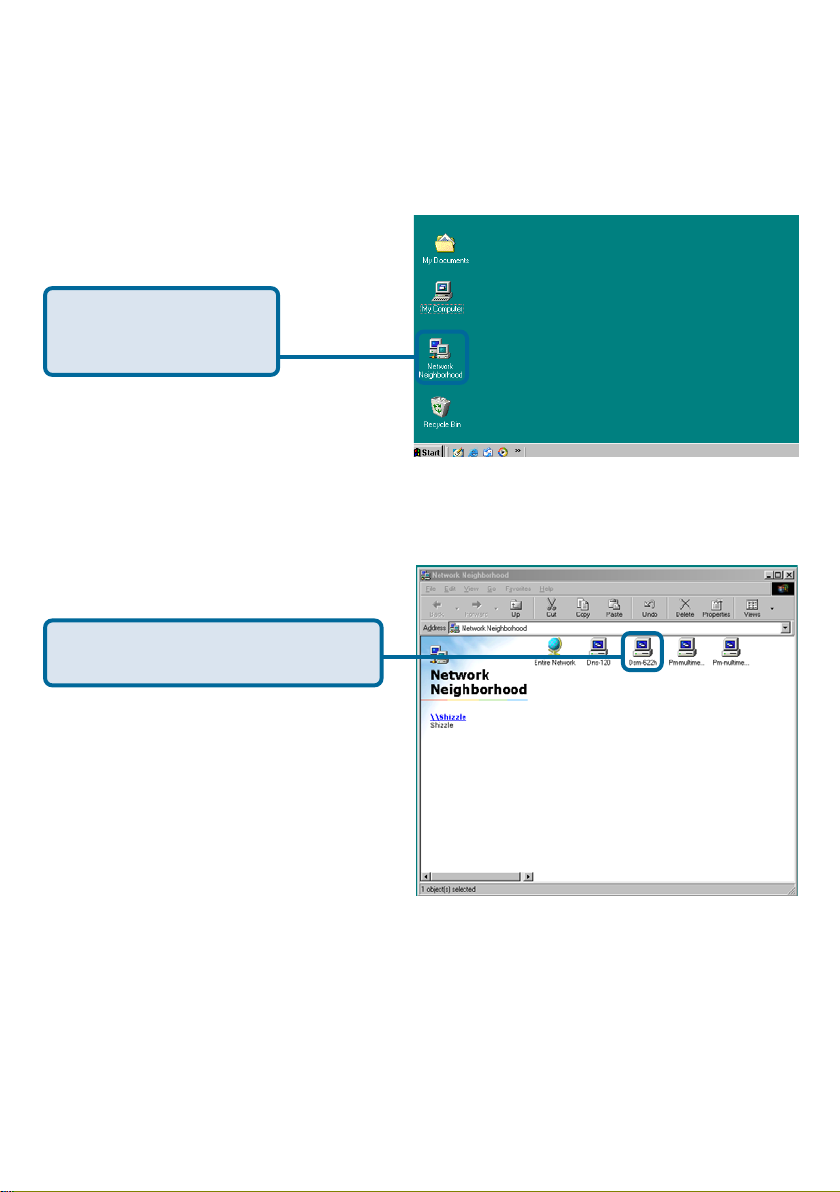

Double-click Network

Neighborhood on the

Windows desktop.

Double-click on the DSM-622H/624H
in the Network Neighborhood.

25

Accessing the DSM-622H/624H
in Windows 98SE (continued)

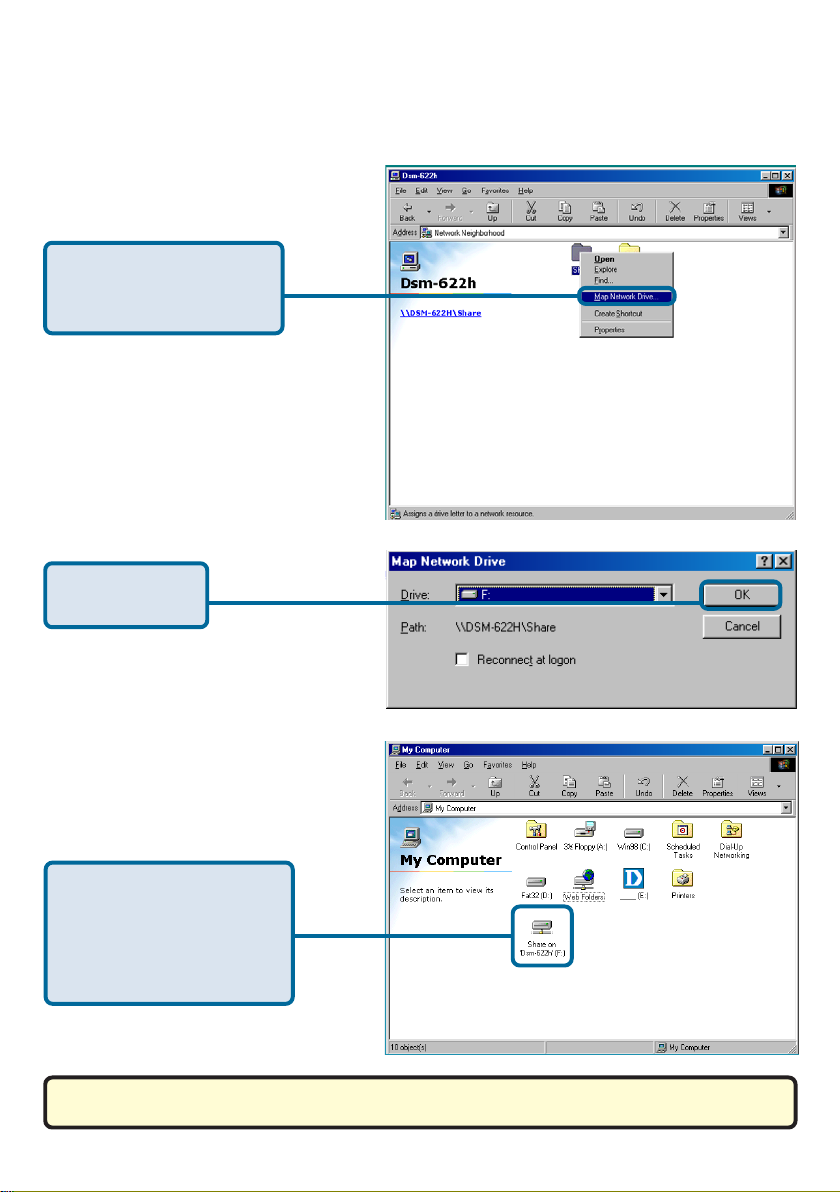

Right-click on the share
folder and click Map

Network Drive.

Select the drive
and click OK.

In the My Computer
window, the DSM-622H/
624H will be displayed
with a mapping to the
drive letter you selected.

Your setup in Windows 98SE is now complete!

26

Accessing the DSM-622H/ 624H in Macintosh OS X

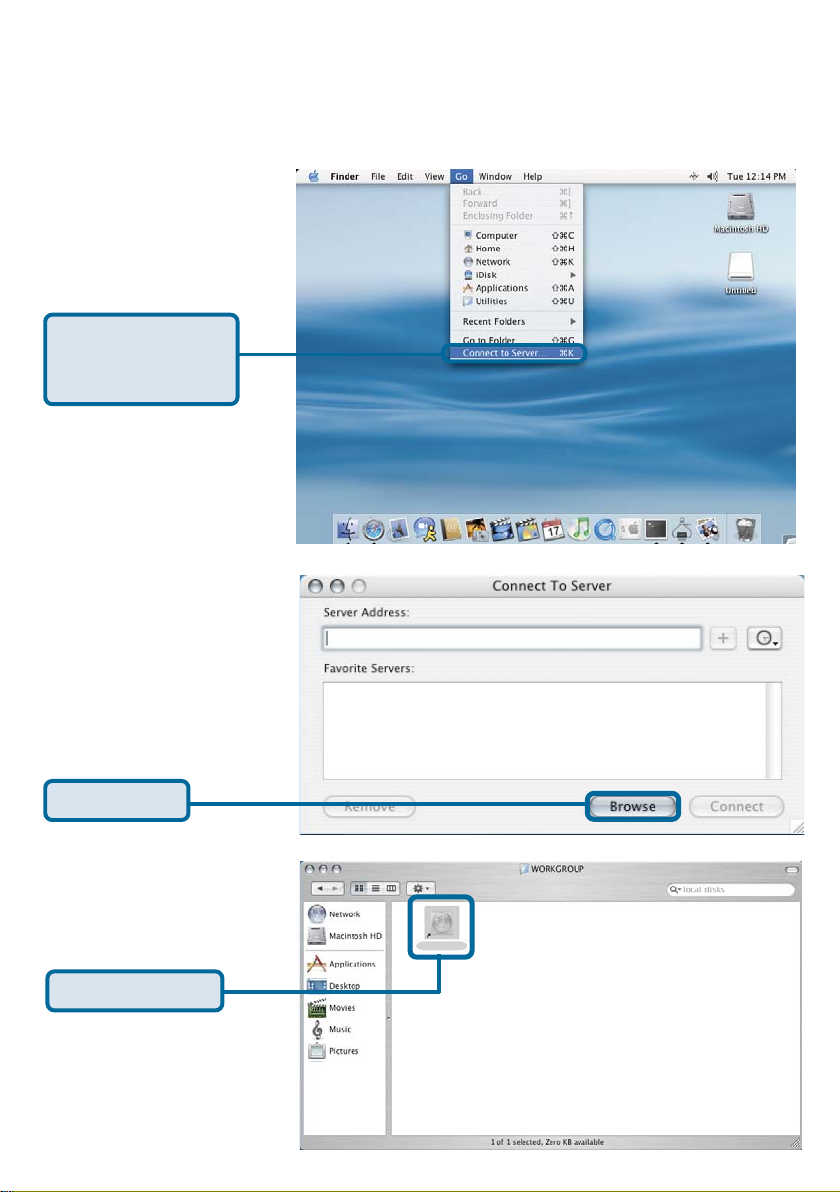

From the desktop

Go menu, select
Connect to Server.

Click Browse

Click DSM-622H

DSM-622H

27

Accessing the DSM-622H/624H in
Macintosh OS X (continued)

Click OK

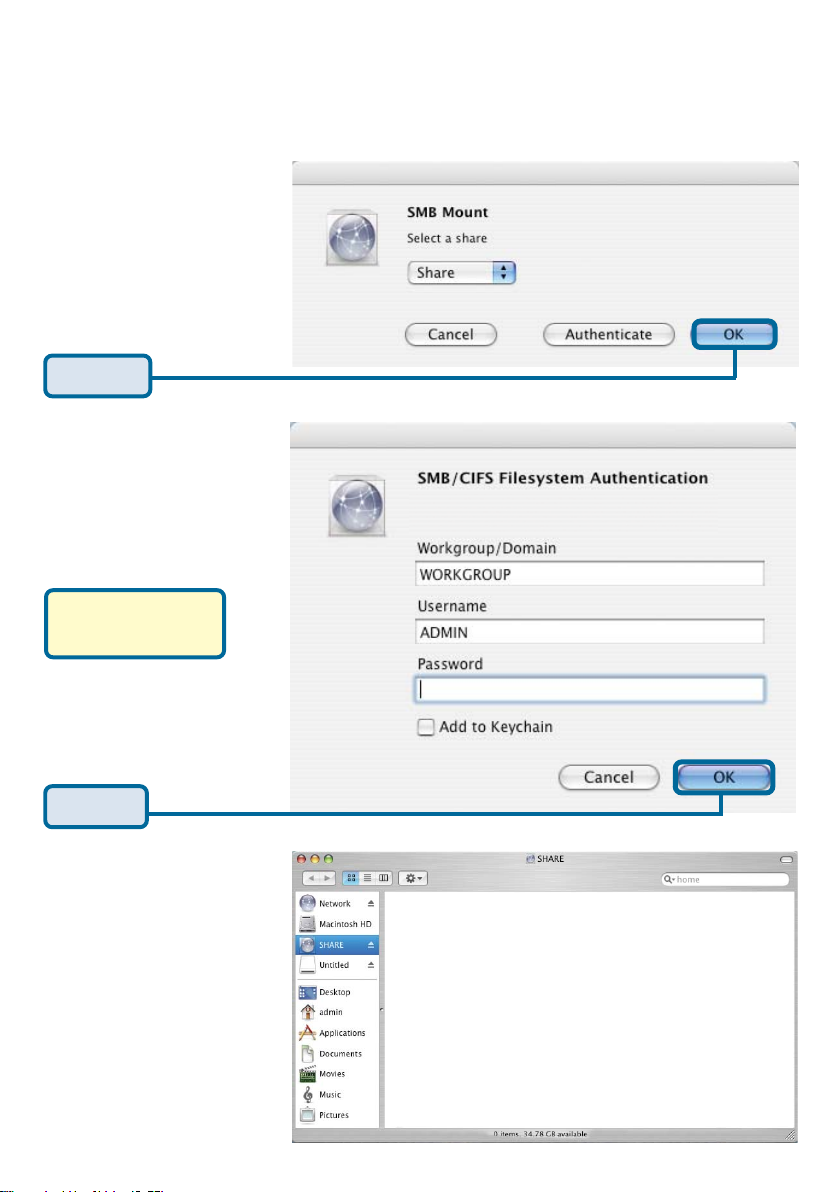

Enter username and password for DSM-622H

By default, there is
no password.

Click OK

The share window will open.

28

Accessing the DSM-622H/624H in
Macintosh OS X (continued)

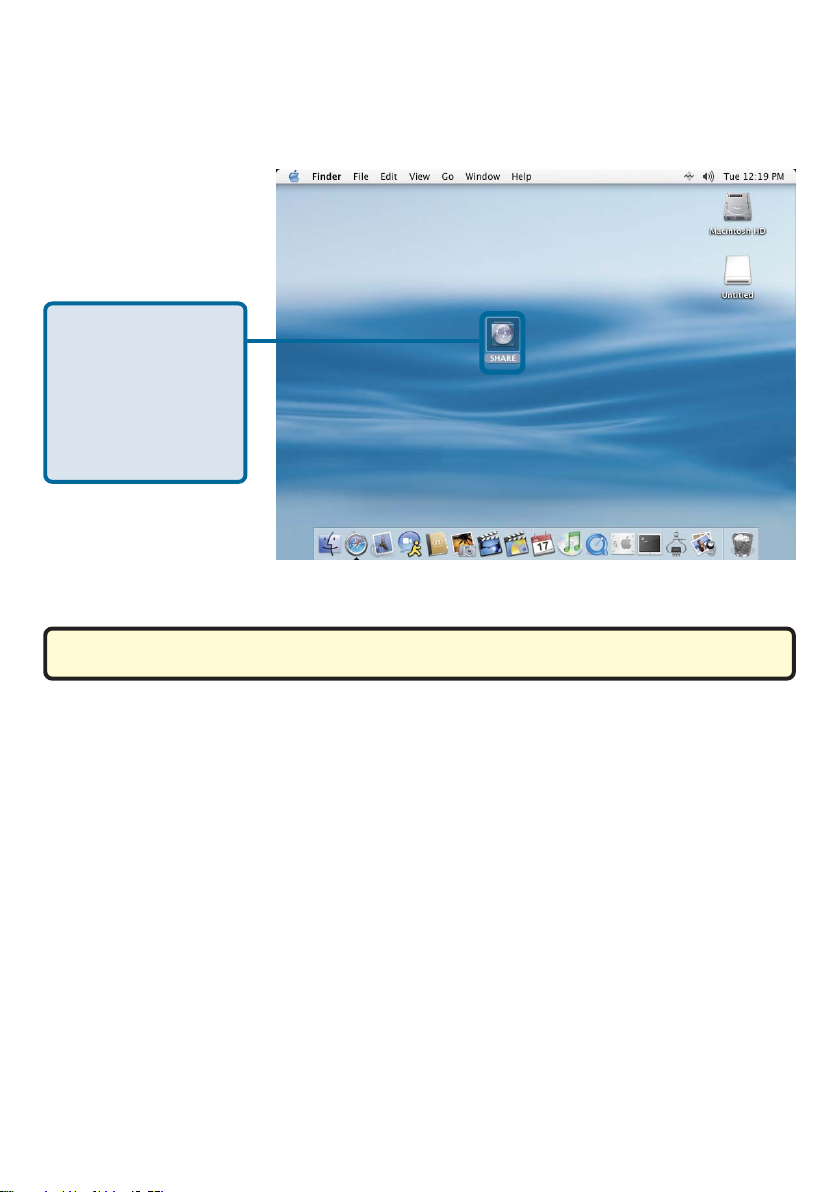

The DSM-622H/624H
will appear on your
desktop.

Double-click on the

shared volume to
access your wireless
Central Home Drive!

Your setup in MAC OS X is now complete!

29

Networking Basics

Using the Network Setup Wizard in Windows XP

In this section, you will learn how to establish a network at home or work, using Microsoft
Windows XP.

Note: For information about networking computers using Windows 2000/Me/98SE, please
refer to websites such as:

http://www.homenethelp.com
http://www.microsof t.com/windows/otherversions/default.mspx

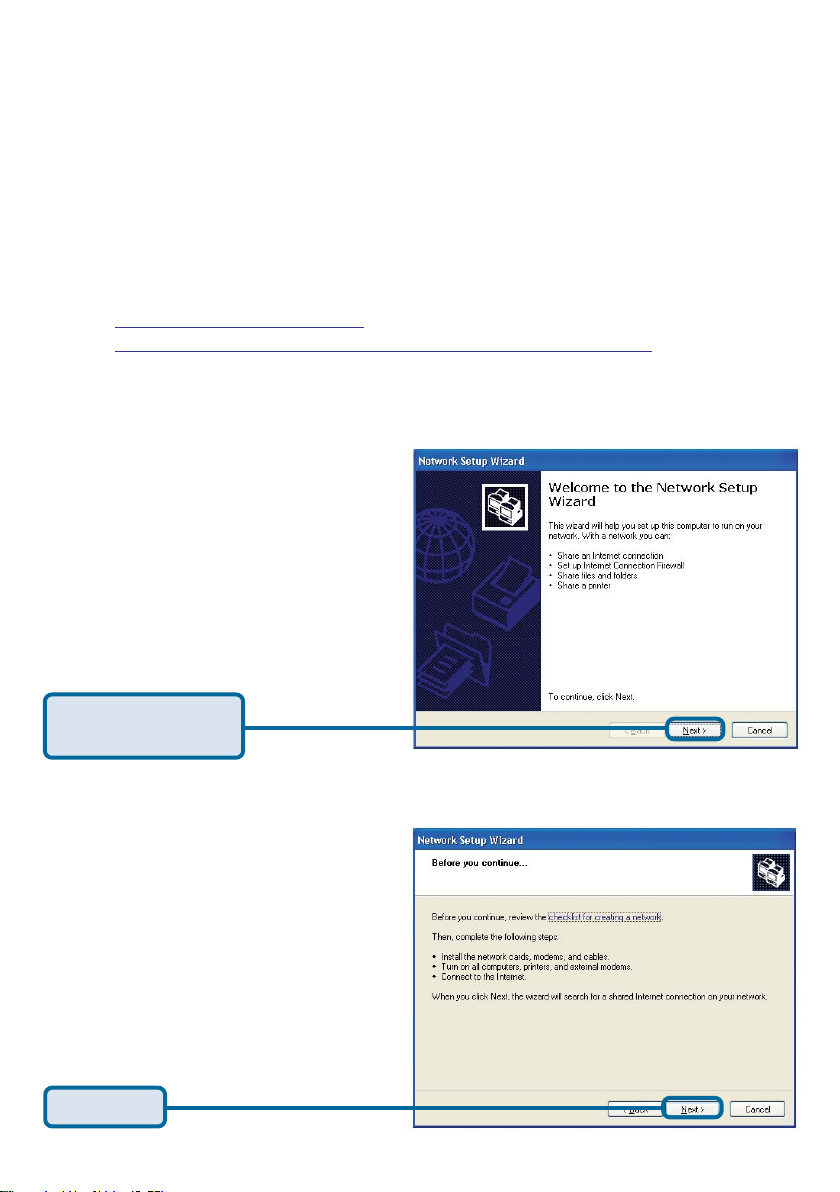

Go to Start>Control Panel>Network Connections
Select Set up a home or small office network

When this screen
appears, click Next

Please follow all the instructions in this window:

Click Next

30

Networking Basics (continued)

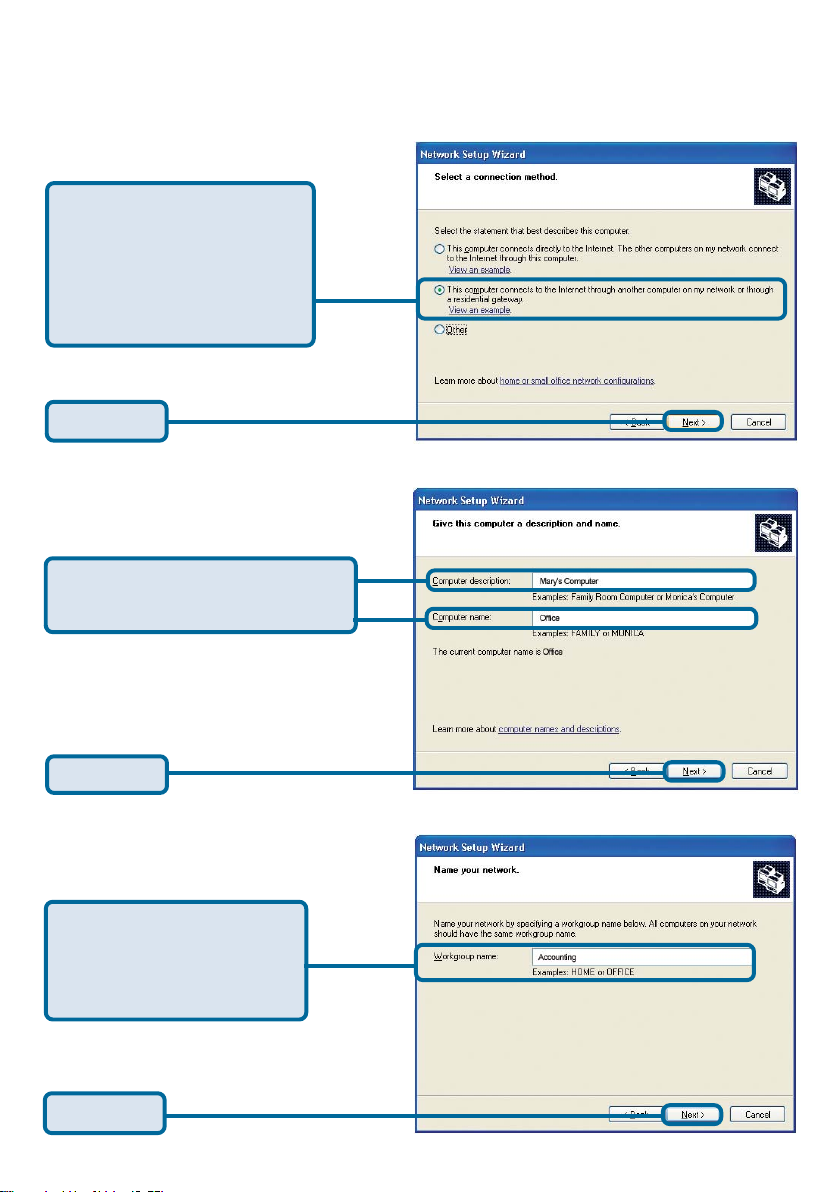

Select the best description
of your computer. If your
computer connects to the
Internet through a gateway/
router, select the second
option as shown.

Click Next

Enter a Computer description
and a Computer name (optional).

Click Next

Enter a Workgroup name.
All computers on your
network should have the
same Workgroup name.

Click Next

31

Networking Basics (continued)

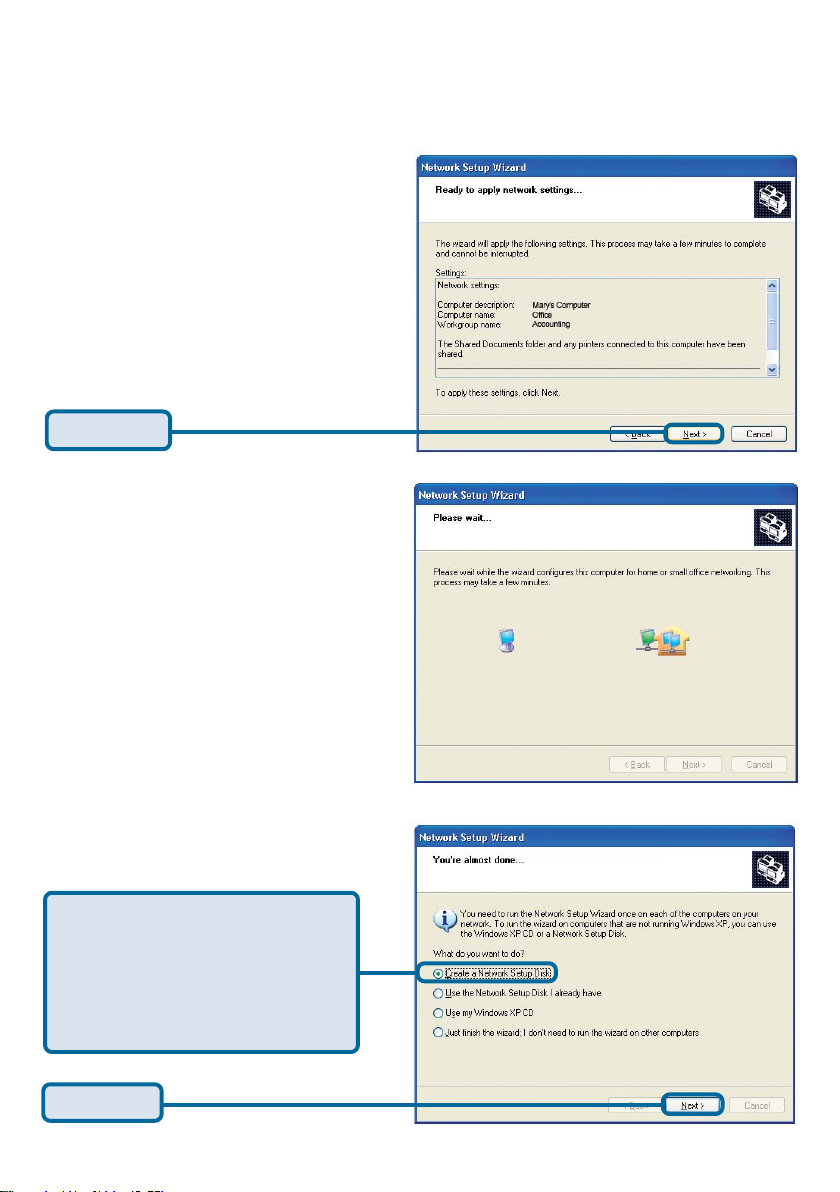

Please wait while the Network
Setup Wizard applies the changes.

When the changes are complete....

Click Next

Please wait while the Network Setup
Wizard configures the computer. This
may take a few minutes.

In this window, select the option
that fits your needs. In this
example, Create a Network
Setup Disk has been selected.
You will run this disk on each of
the computers on your network.

Click Next

32

Networking Basics (continued)

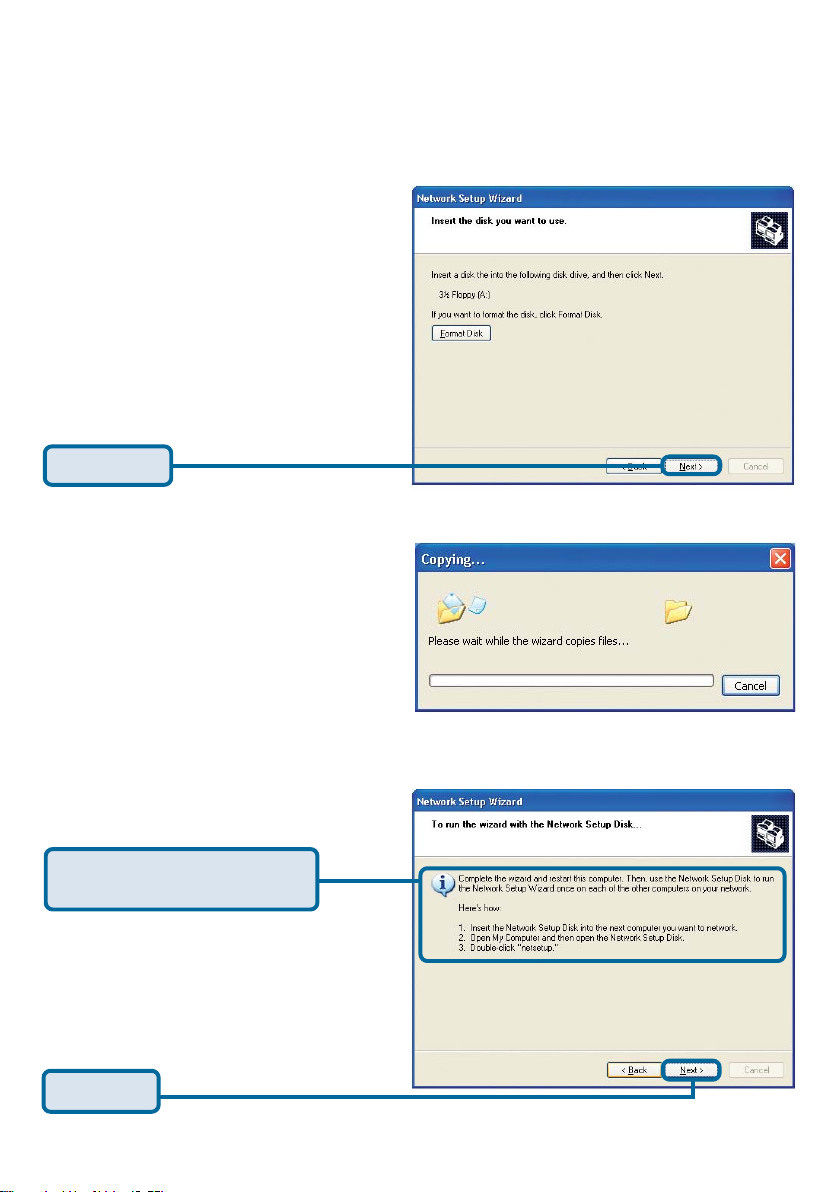

Insert a disk into the disk drive, in
this case drive A.

Click Next

Please read the information
under Here’s how.

After you complete the Network Setup

Wizard, you will use the Network
Setup Disk to run the Network Setup
Wizard once on each of the computers

on your network.

Click Next

33

Networking Basics (continued)

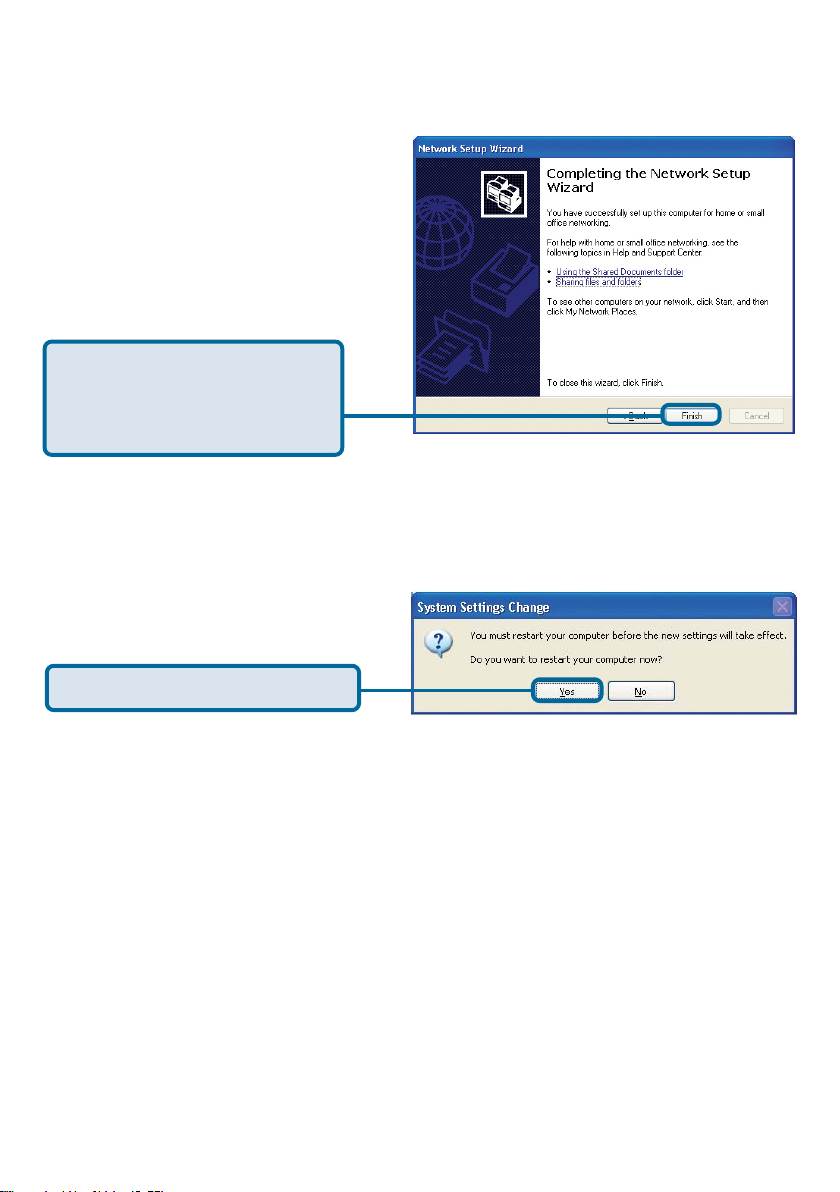

Please read the information on
this screen, then click Finish to
complete the Network Setup
Wizard.

The new settings will take effect when you restart the computer .

Click Yes to restart the computer.

Y ou have completed configuring this computer . Next, you will need to run the Network

Setup Disk on all the other computers on your network. After running the Network
Setup Disk on all your computers, your new network will be ready to use.

34

Networking Basics (continued)

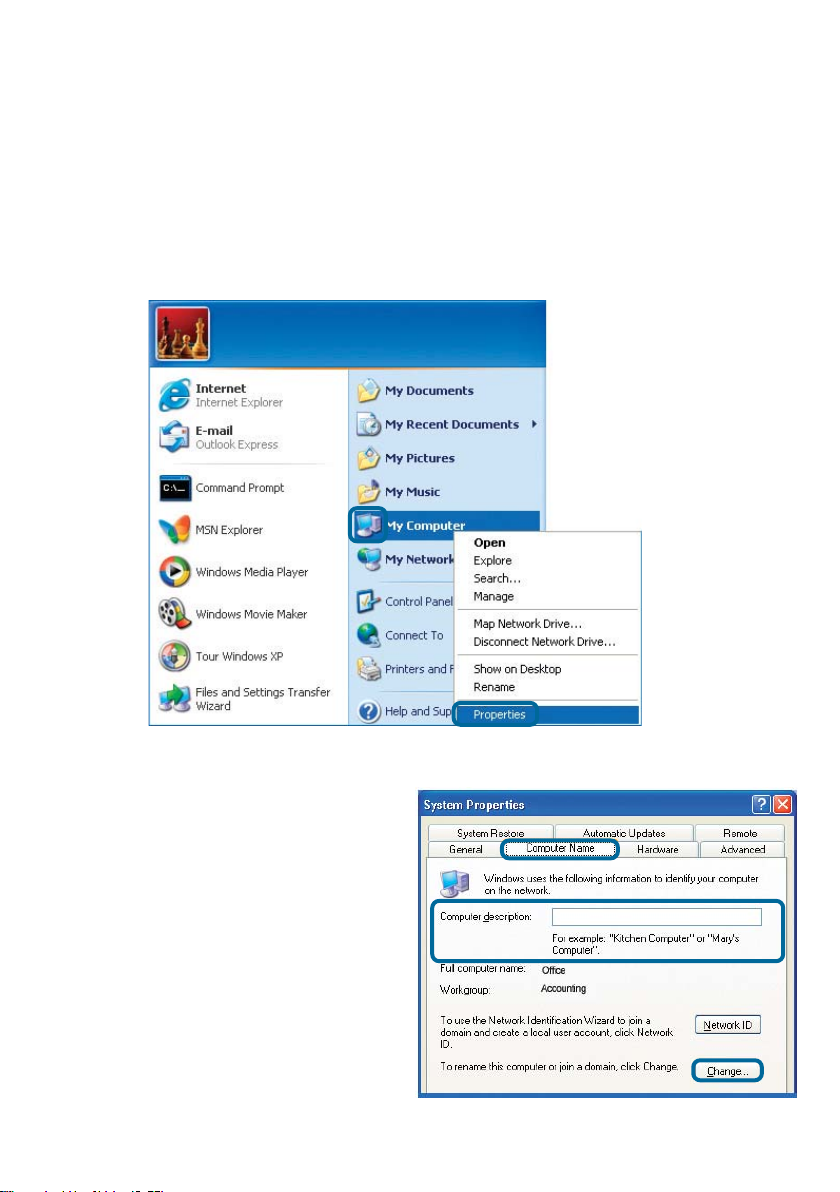

Naming your Computer

T o name your computer in Windows XP, please follow these directions:

 Click Start (in the lower left corner of the screen).
 Right-click on My Computer.
 Select Properties and click.

 Select the Computer Name

Tab in the System Properties
window.

 Y ou may enter a Computer

Description if you wish; this

field is optional.

 T o rename the computer and

join a domain, click Change.

35

Networking Basics (continued)

Naming your Computer

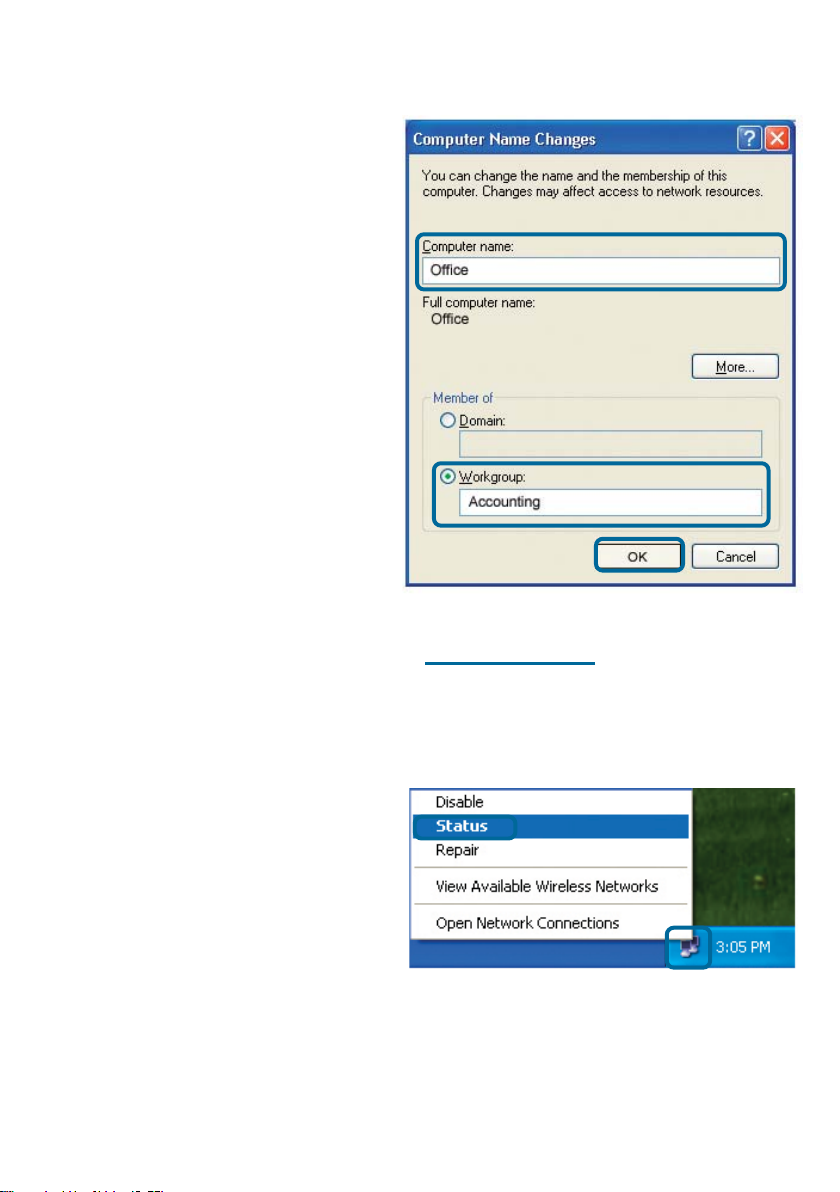

 In this window, enter the

Computer name.

 Select Workgroup and

enter the name of the
Workgroup.

 All computers on the network

must have the same
Workgroup name.

 Click OK.

Checking the IP Address in Windows XP

The wireless adapter-equipped computers in your network must be in the same IP
address range. To check on the IP address of the adapter, please do the following:

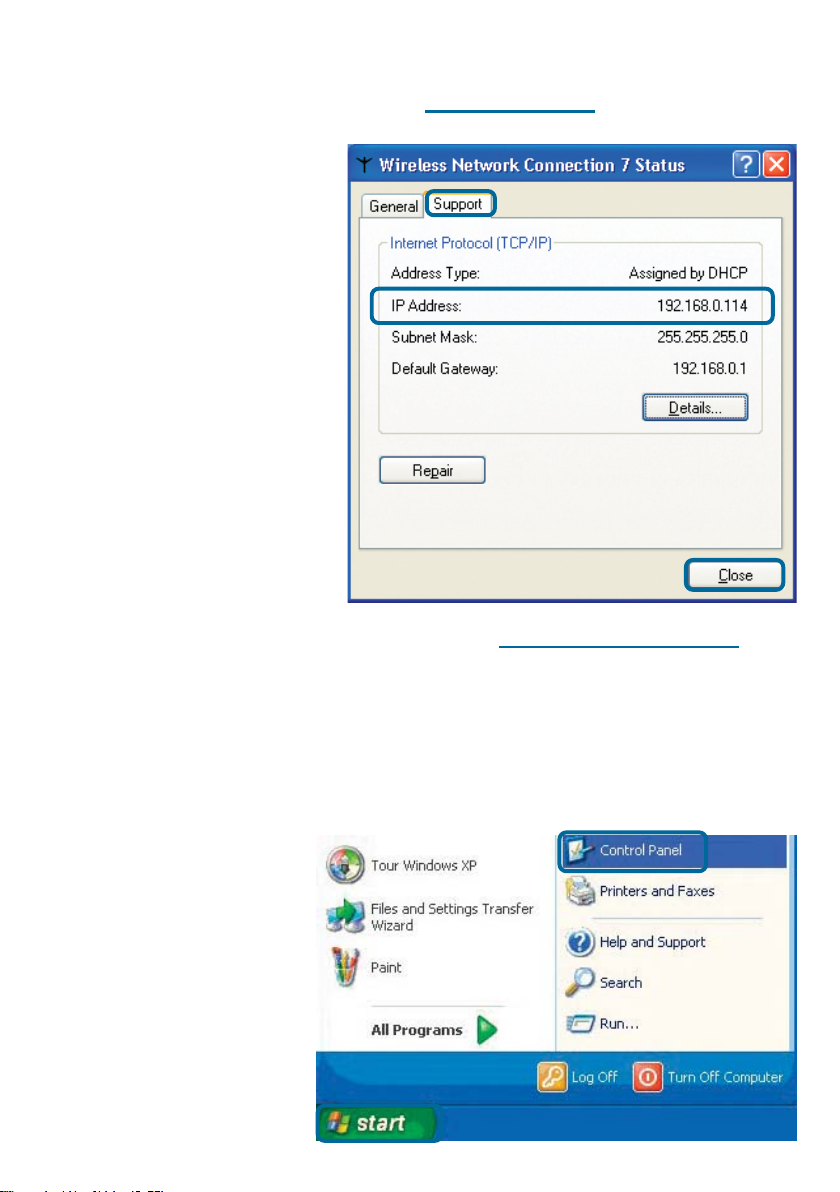

 Right-click on the Local

Area Connection icon in

the task bar .

 Click on Status.

36

Networking Basics (continued)

Checking the IP Address in Windows XP

This window will appear.

 Click the Support tab.
 Click Close.

Assigning a Static IP Address in Windows XP/2000

Note: DHCP-capable gateways/broadband routers will automatically assign IP addresses
to the computers on the network, using DHCP (Dynamic Host Configuration Protocol)
technology . If you are using a DHCP-capable gateway/router you will not need to assign
static IP addresses.

If you are not using a DHCP capable gateway/router, or you need to assign a static IP
address, please follow these instructions:

 Go to Start.
 Double-click on

Control Panel.

37

Networking Basics (continued)

Assigning a Static IP Address in Windows XP/2000

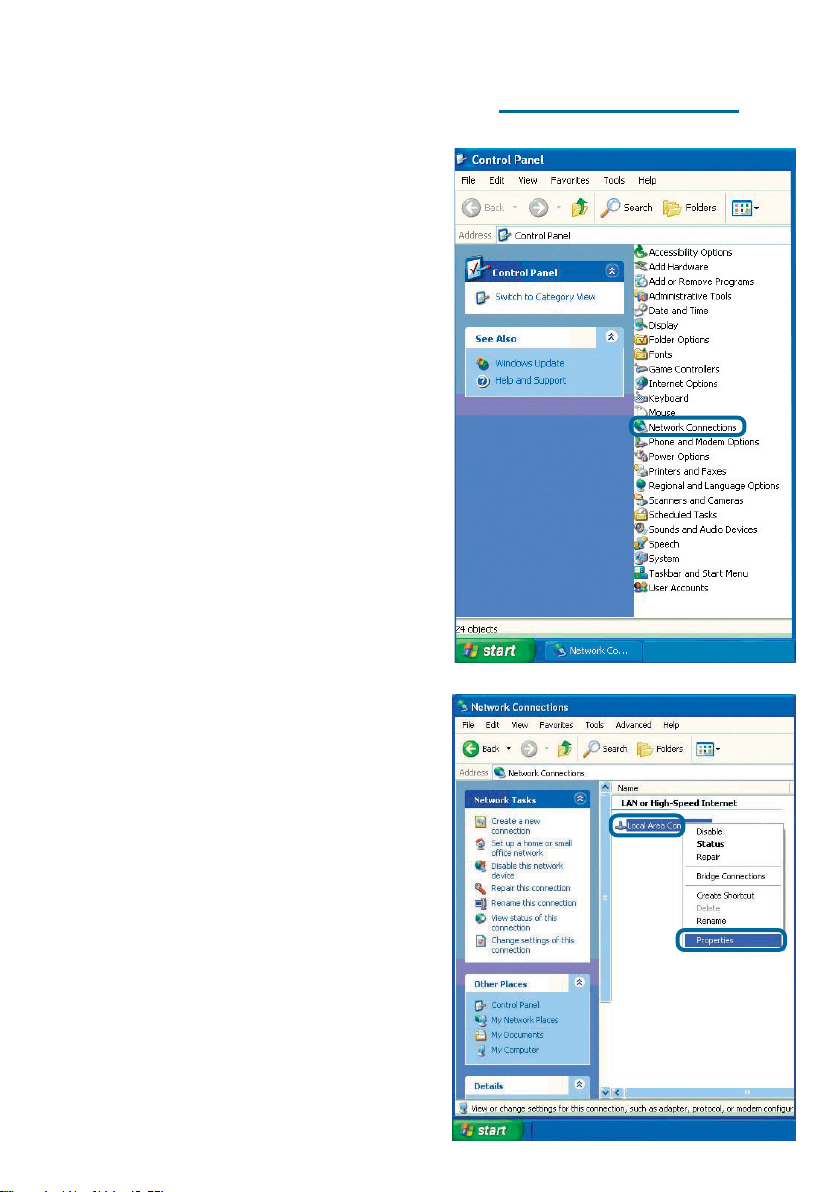

 Double-click on Network

Connections.

 Right-click on Local

Area Connections.

 Click on Properties.

38

Networking Basics
(continued)

Assigning a Static IP
Address
in

Windows XP/2000

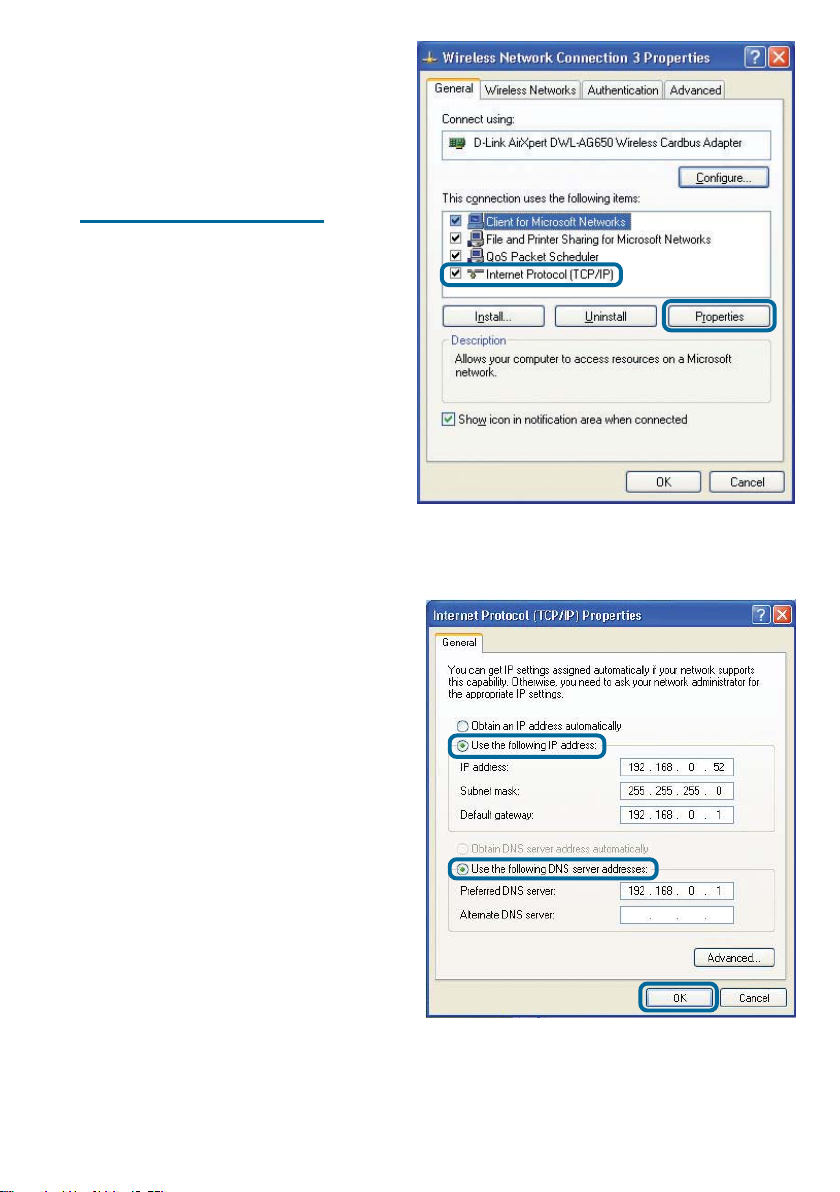

 Click on Internet Protocol

(TCP/IP).

 Click Properties.
 In the Internet Protocol (TCP/IP)

Properties window (shown below),
select Use the following IP

address. Input your IP address
and subnet mask. (The IP

addresses on your network must
be within the same range. For
example, if one computer has an
IP address of 192.168.0.2, the
other computers should have IP
addresses that are sequential, like

192.168.0.3 and 192.168.0.4. The
subnet mask must be the same
for all the computers on the
network).

IP Address: e.g., 192.168.0.2
Subnet Mask: 255.255.255.0

Default Gateway:Enter the LAN

IP address of the router .
Note: D-Link routers have a default

LAN IP address of 192.168.0.1.

 Select Use the following DNS

server addresses. Enter the LAN
IP address of the router. (D-Link
routers have a LAN IP address of

192.168.0.1).

 Click OK.

You have completed the assignment of a
static IP address. (Y ou do not need to assign
a static IP address if you have a DHCP
capable gateway/router).

39

Networking Basics (continued)

Checking the Network Connection by Pinging in
Windows XP/2000

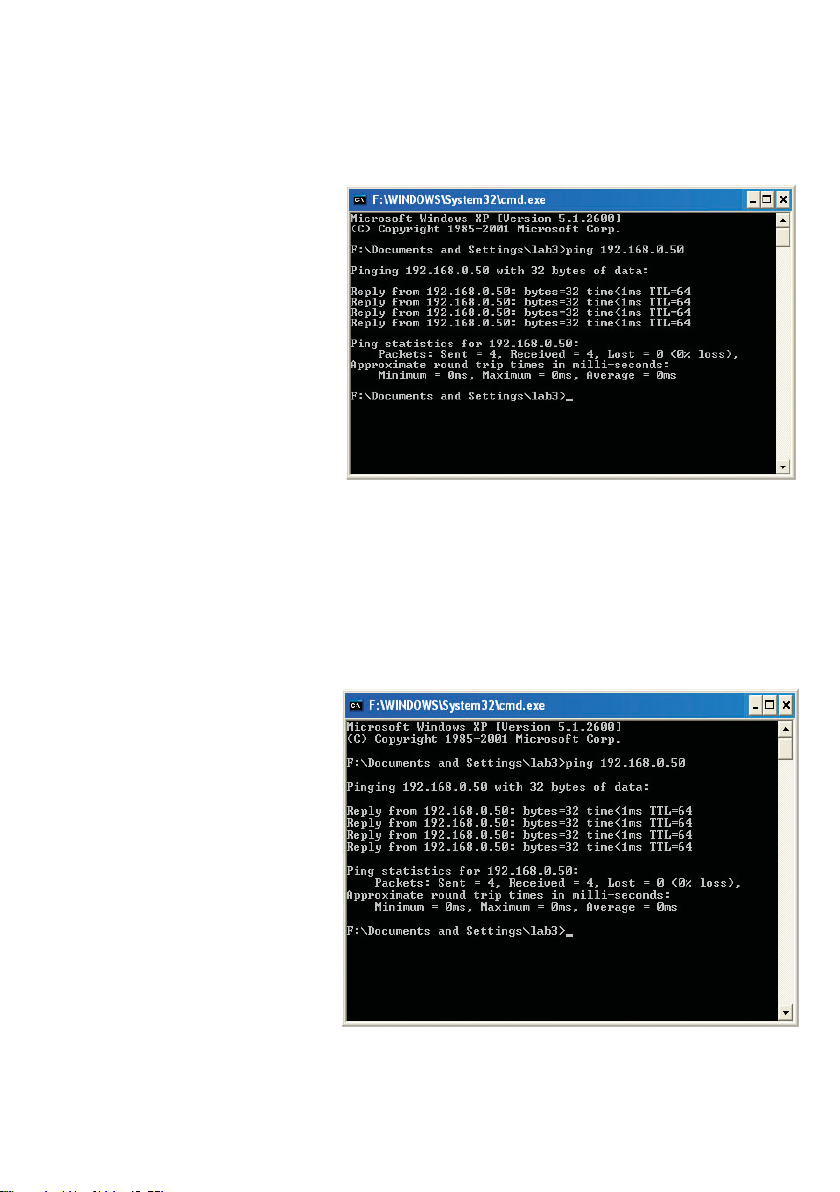

 Go to Start > Run > type

cmd. A window similar to this
one will appear. Type ping
xxx.xxx.xxx.xxx, where
xxx is the IP address of the

router. A good network
connection will show four
replies from the router, as
shown.

Checking the Network Connection by Pinging in
Windows Me/98SE

 Go to Start > Run > type

command. A window similar
to this will appear. T ype ping
xxx.xxx.xxx.xxx where
xxx is the IP address of the

router. A good network
connection will show four
replies from the router, as
shown.

40

Technical Specifications

Standards

IEEE 802.3



IEEE 802.3u



UPnPTM (Windows/UPnPTM-enabled)



Rendezvous (Mac OS X)



Management



Web-based - Internet Explorer 5.0 or above, Apple Safari, Linux
Nautilus, or Netscape 6.2.x or above.

LEDs

Power




HDD (Hard Drive Disk)

LAN



WLAN



USB



Temperature:

Operating Temperature: 32°F to 149°F (0°C to 55°C)



Storing Temperature: -4°F to 158°F (-20~70°C)



Humidity:

IEEE 802.1 1g



IEEE 802.1 1b



5%~90% non-condensing



Power Input:

External Power Supply DC 5V, 3A



Safety & Emissions:

FCC Part 15 Class B



UL



Physical Dimensions:

L = 7.56 inches (192mm)



W = 4.57 inches (116mm)



H = 1.18 inches (30mm)



Weight:

0.86 lbs (388g)



Warranty:

One year



41

Technical Support

Y ou can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

[phone]
24 hours a day , seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com
email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

[phone]
Monday to Friday 7:30am to 12:00am EST

D-Link Technical Support over the Internet:

http://support.dlink.ca
email:[email protected]

42

Warranty

(USA only)

Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited
warranty for its product only to the person or entity that originally purchased the product from:

• D-Link or its authorized reseller or distributor and

• Products purchased and delivered within the fifty states of the United States, the District of

Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an
APO or FPO.

Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described
below will be free from material defects in workmanship and materials from the date of original retail
purchase of the product, for the period set forth below applicable to the product type (“Warranty
Period”), except as otherwise stated herein.

1-Year Limited Warranty for the Product(s) is defined as follows:

• Hardware (excluding power supplies and fans) One (1) Year

• Power Supplies and Fans One (1) Year

• Spare parts and spare kits Ninety (90) days

D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period
at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will
be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be
new or have an identical make, model or part. D-Link may in its sole discretion replace the defective
Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is
substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or
replacement Hardware will be warranted for the remainder of the original Warranty Period from the date
of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole
discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original
purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective
Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is
refunded, shall become the property of D-Link upon replacement or refund.

Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)
will substantially conform to D-Link’s then current functional specifications for the Software, as set forth
in the applicable documentation, from the date of original retail purchase of the Software for a period of
ninety (90) days (“Warranty Period”), provided that the Software is properly installed on approved
hardware and operated as contemplated in its documentation. D-Link further warrants that, during the
Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical
defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)
with software that substantially conforms to D-Link’s functional specifications for the Software or to
refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement
Software is provided only to the original licensee, and is subject to the terms and conditions of the
license granted by D-Link for the Software. Software will be warranted for the remainder of the original
Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of
correction, or if D-Link determines in its sole discretion that it is not practical to replace the non­conforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned
to D-Link. The license granted respecting any Software for which a refund is given automatically
terminates.

Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software
of D-Link’s products will not be applied to and does not cover any refurbished product and any product
purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,
the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the
Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.

Submitting A Claim: The customer shall return the product to the original purchase point based on its
return policy. In case the return policy period has expired and the product is within warranty, the
customer shall submit a claim to D-Link as outlined below:

43

• The customer must submit with the product as part of the claim a written description of the
Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm
the same.

• The original product owner must obtain a Return Material Authorization (“RMA”) number from
the Authorized D-Link Service Office and, if requested, provide written proof of purchase of
the product (such as a copy of the dated purchase invoice for the product) before the
warranty service is provided.

• After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in transit, and
the RMA number must be prominently marked on the outside of the package. Do not include any
manuals or accessories in the shipping package. D-Link will only replace the defective portion
of the Product and will not ship back any accessories.

• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery
(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the
property of D-Link. Products shall be fully insured by the customer. D-Link will not be held
responsible for any packages that are lost in transit to D-Link. The repaired or replaced
packages will be shipped to the customer via UPS Ground or any common carrier selected by
D-Link, with shipping charges prepaid. Expedited shipping is available if shipping charges are
prepaid by the customer and upon request.

• Return Merchandise Ship-To Address

USA: 17595 Mt. Herrmann, Fountain Valley, CA 92708-4160
Canada: 2180 Winston Park Drive, Oakville, ON, L6H 5W1 (Visit http://www.dlink.ca for detailed

warranty information within Canada)

D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The
product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product
that is not packaged and shipped in accordance with the foregoing requirements, or that is determined
by D-Link not to be defective or non-conforming.

What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s
judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,
faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the
documentation for the product, or if the model or serial number has been altered, tampered with, defaced
or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance;
Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;
Any hardware, software, firmware or other products or services provided by anyone other than D­Link; Products that have been purchased from inventory clearance or liquidation sales or other sales in
which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the
product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this
Warranty.

Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE
PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY W ARRANTY OF ANY KIND WHA TSOEVER INCLUDING ,
WITHOUT LIMIT ATION, ANY W ARRANTY OF MERCHANT ABILITY , FITNESS FOR A P ARTICULAR PURPOSE
AND NON-INFRINGEMENT . IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY
WHERE A PRODUCT IS SOLD, THE DURA TION OF SUCH IMPLIED W ARRANTY SHALL BE LIMITED TO
NINETY (90) DA YS. EXCEPT AS EXPRESSL Y COVERED UNDER THE LIMITED W ARRANTY PROVIDED
HEREIN, THE ENTIRE RISK AS TO THE QUALITY , SELECTION AND PERFORMANCE OF THE PRODUCT IS

WITH THE PURCHASER OF THE PRODUCT .
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE
UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUIT ABLE THEORY
FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER,
WHETHER DIRECT , SPECIAL, INCIDENT AL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO,
DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT , WORK STOPP AGE, COMPUTER
FAILURE OR MALFUNCTION, F AILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D­LINK’S PRODUCT IS CONNECTED WITH, LOSS OF INFORMA TION OR DAT A CONT AINED IN, STORED ON,
OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESUL TING

FROM THE USE OF THE PRODUCT, RELA TING TO W ARRANTY SERVICE, OR ARISING OUT OF ANY

BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS

REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT . THE MAXIMUM

44

LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT

COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR

STATUTORY.

Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some

states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited

warranty provides specific legal rights and the product owner may also have other rights which vary

from state to state.

Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered

trademarks are the property of their respective manufacturers or owners.

Copyright Statement: No part of this publication or documentation accompanying this Product may

be reproduced in any form or by any means or used to make any derivative such as translation,

transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as

stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior

notice. Copyright© 2002 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.

CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communication. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

For detailed warranty outside the United States, please contact corresponding local

D-Link office.

45

Registration

Register your D-Link product online at http://support.dlink.com/register/

46
