Page 1
Version 1.0 | 08/28/2012
DNS-320LW
User Manual
ShareCenter™ 2-Bay Cloud Network Storage Enclosure
Page 2
iD-Link ShareCenter DNS-320LW User Manual
Table of Contents
Table of Contents
Product Overview .............................................................. 1
Before you Begin ........................................................................... 2
System Requirements ................................................................. 2
Package Contents ......................................................................... 2
Features ............................................................................................ 3
Checking the Hardware Requirements ................................ 6
Hardware Overview ..................................................................... 7
Front Panel ..............................................................................7
LED Description ................................................................ 8
Rear Panel (Connections) ................................................... 9
Bottom Panel ........................................................................10
Top Panel (Levers) ...............................................................11
Getting Started ................................................................12
Hardware Setup ..........................................................................12
D-Link Storage Utility ................................................................15
Installation .......................................................................17

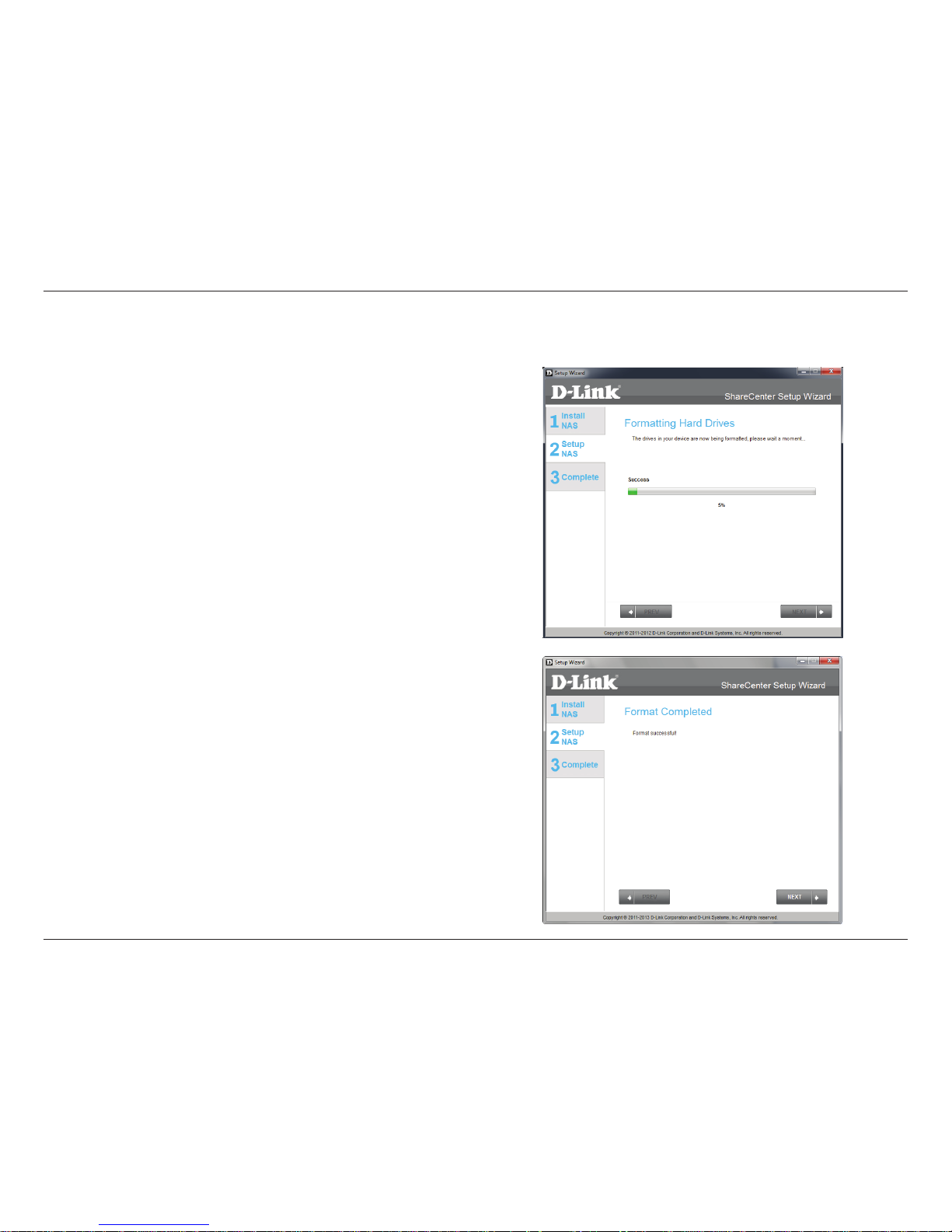

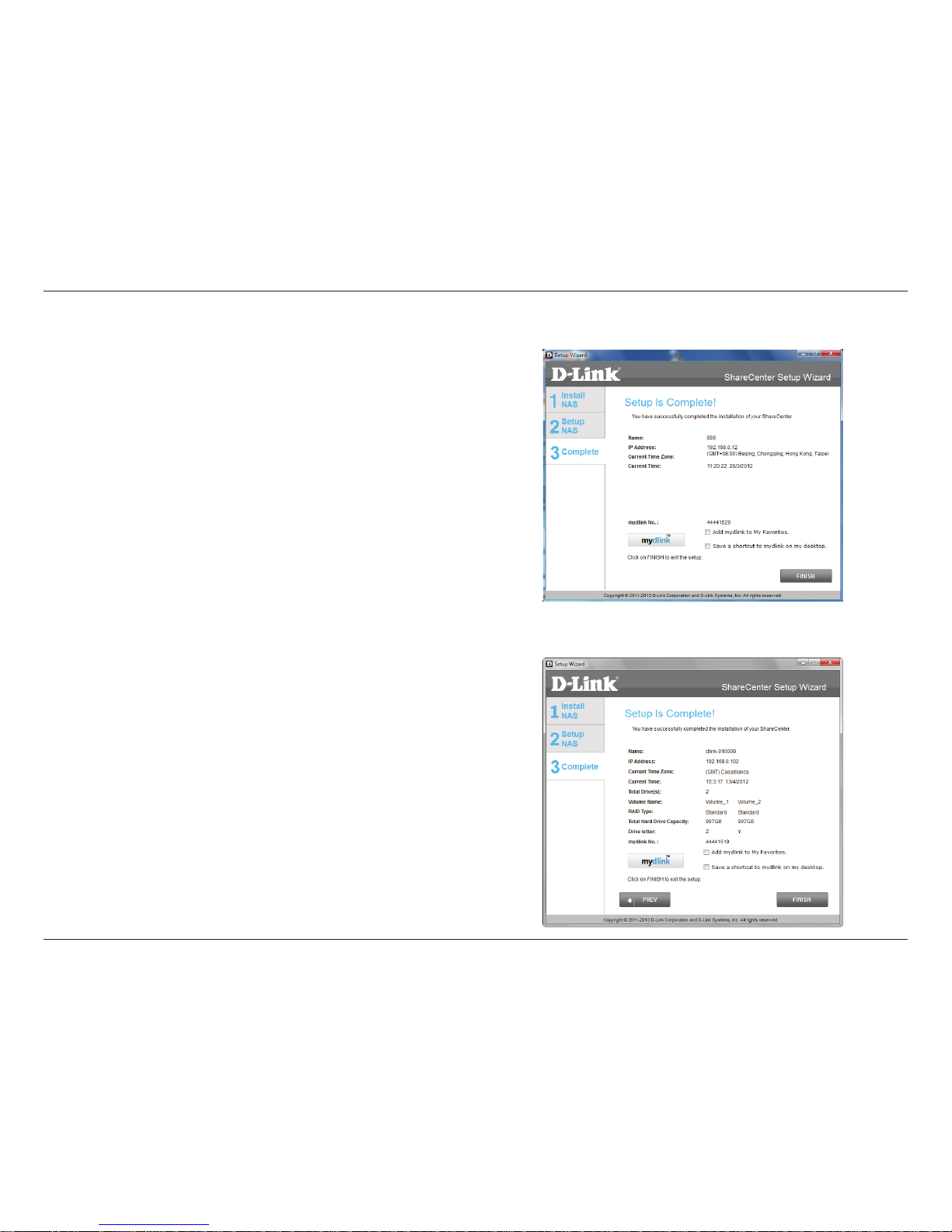

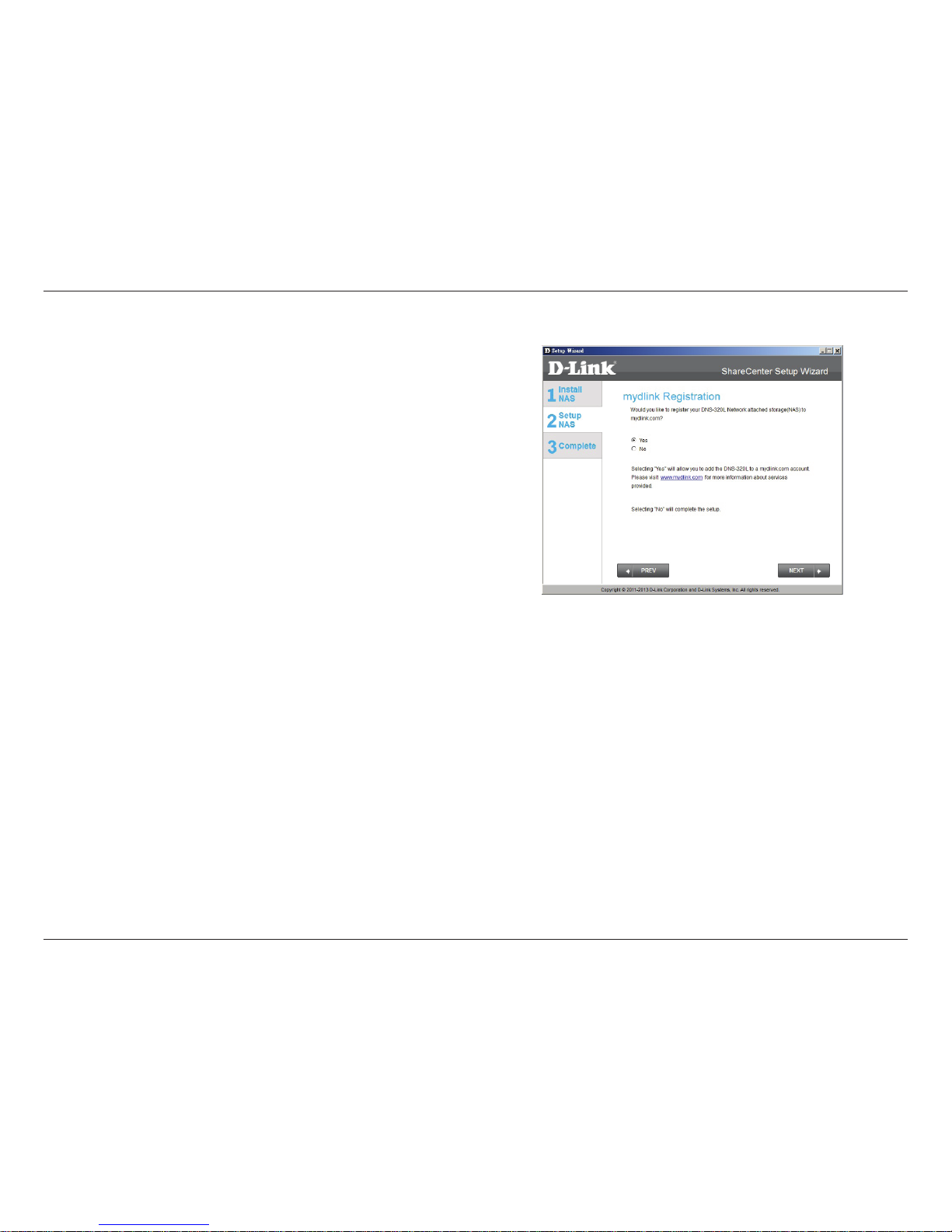

Setup Wizard ................................................................................17

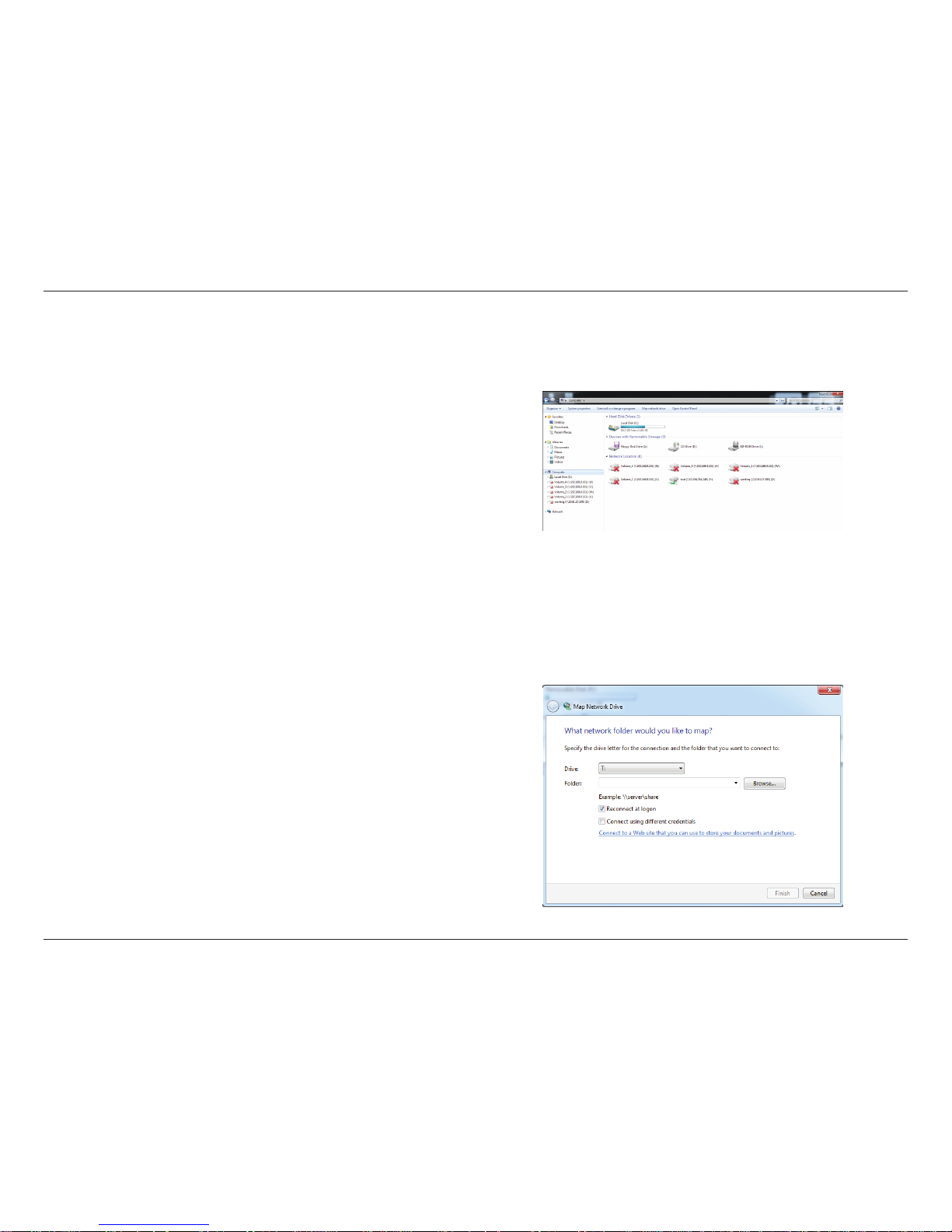

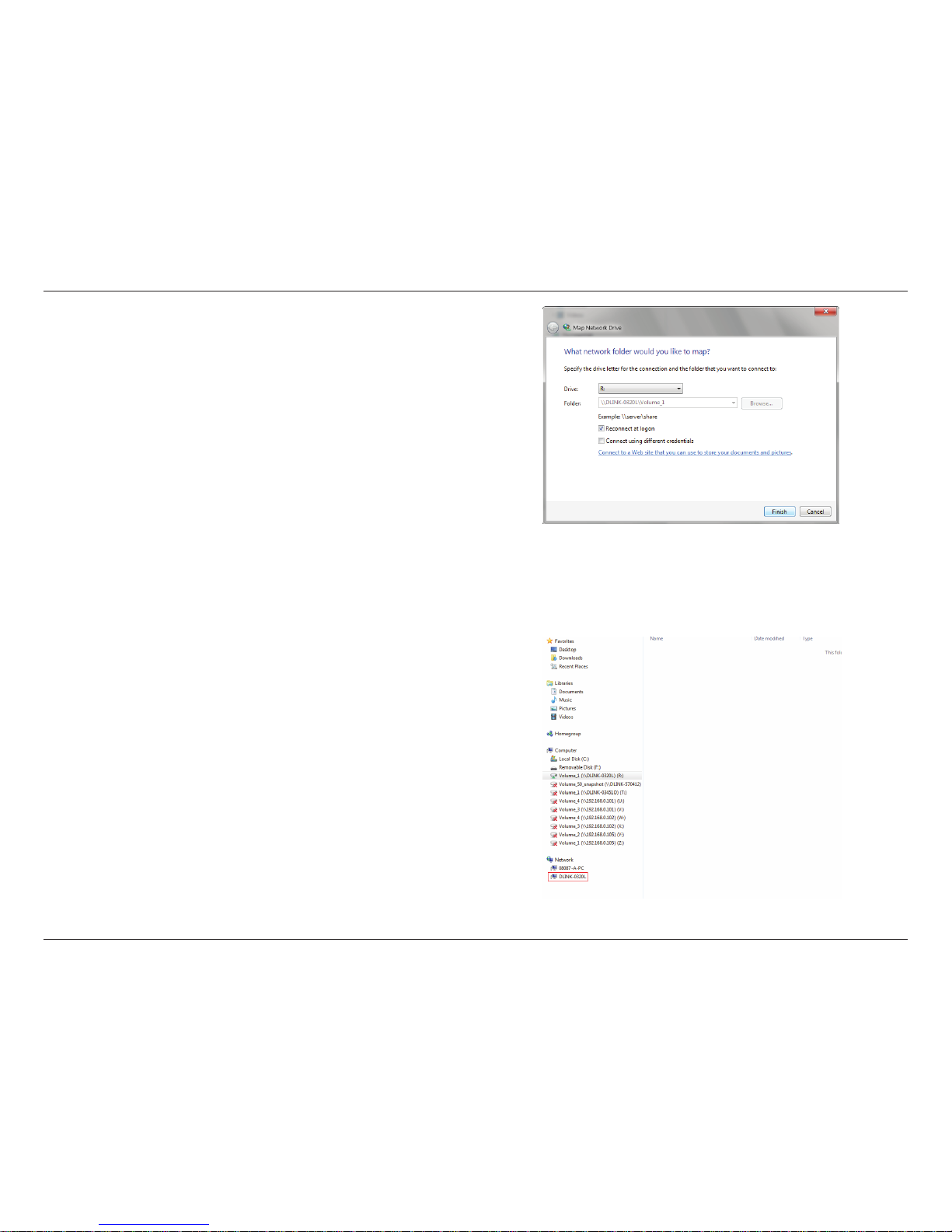

Mapping a Drive ..................................................................37
Conguration ................................................................... 40
Managing your DNS-320LW ...................................................40
Web UI Login ................................................................................41
Web UI General Layout .....................................................42
Home ..................................................................................42
Applications .....................................................................43
Management ...................................................................44
Management ........................................................................45

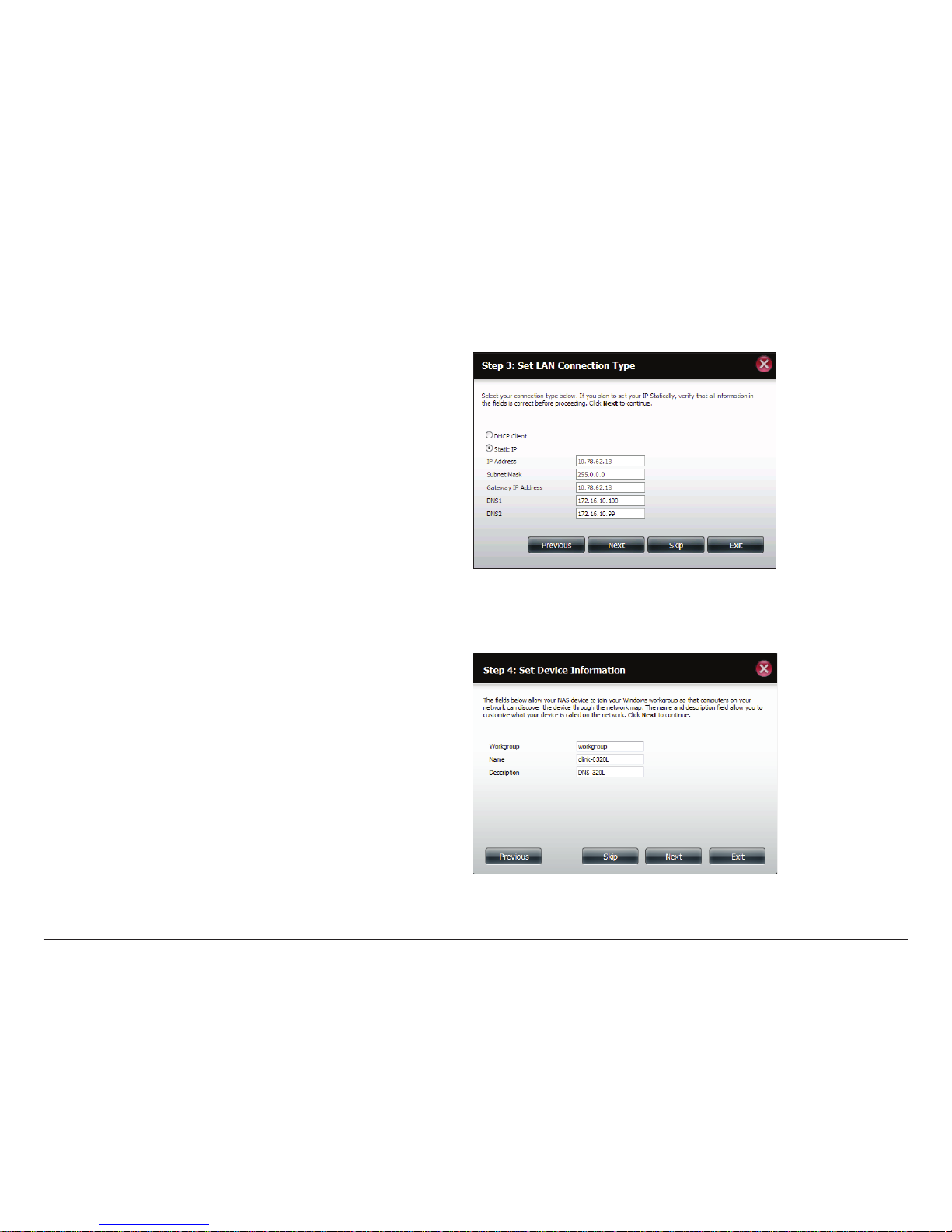

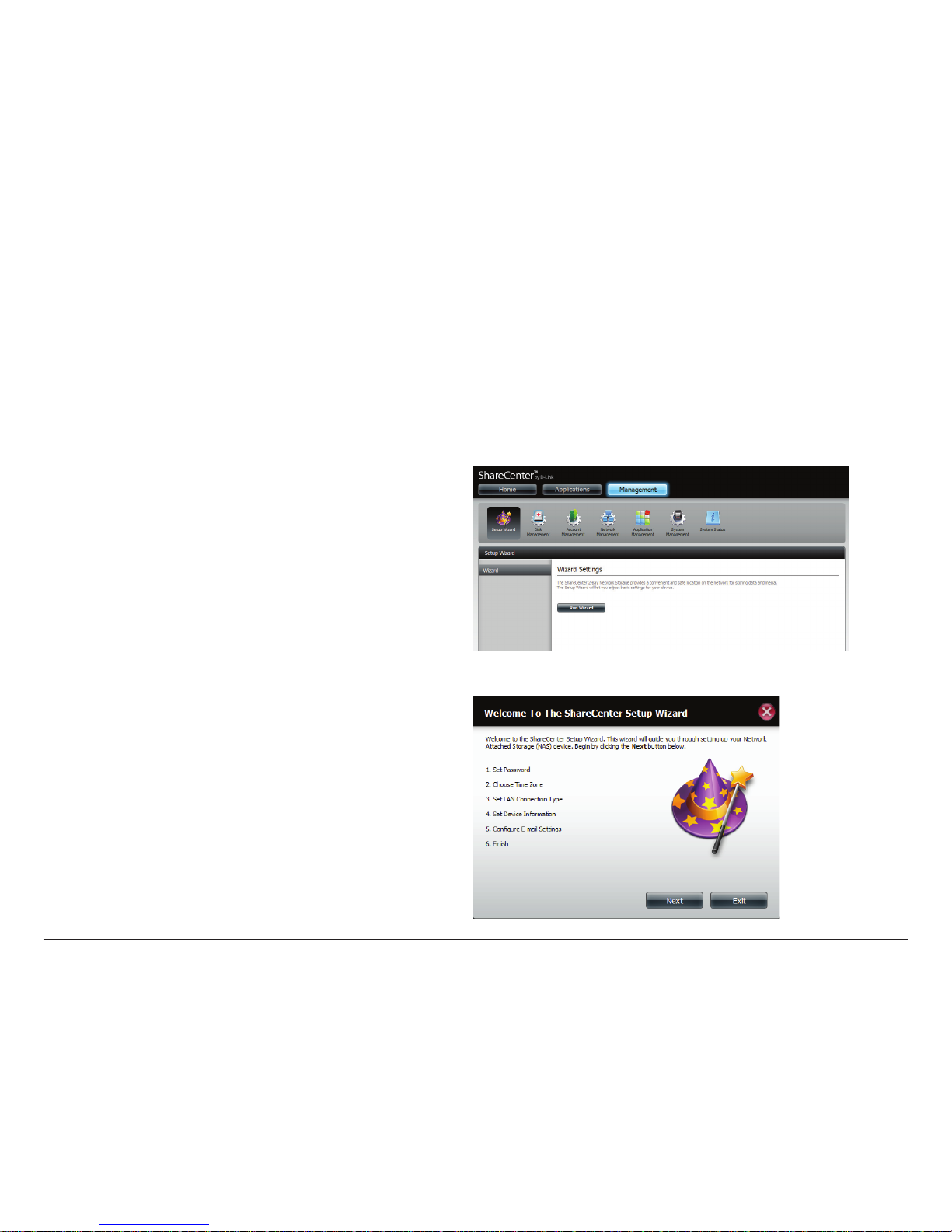

Setup Wizard (Web UI) .................................................45

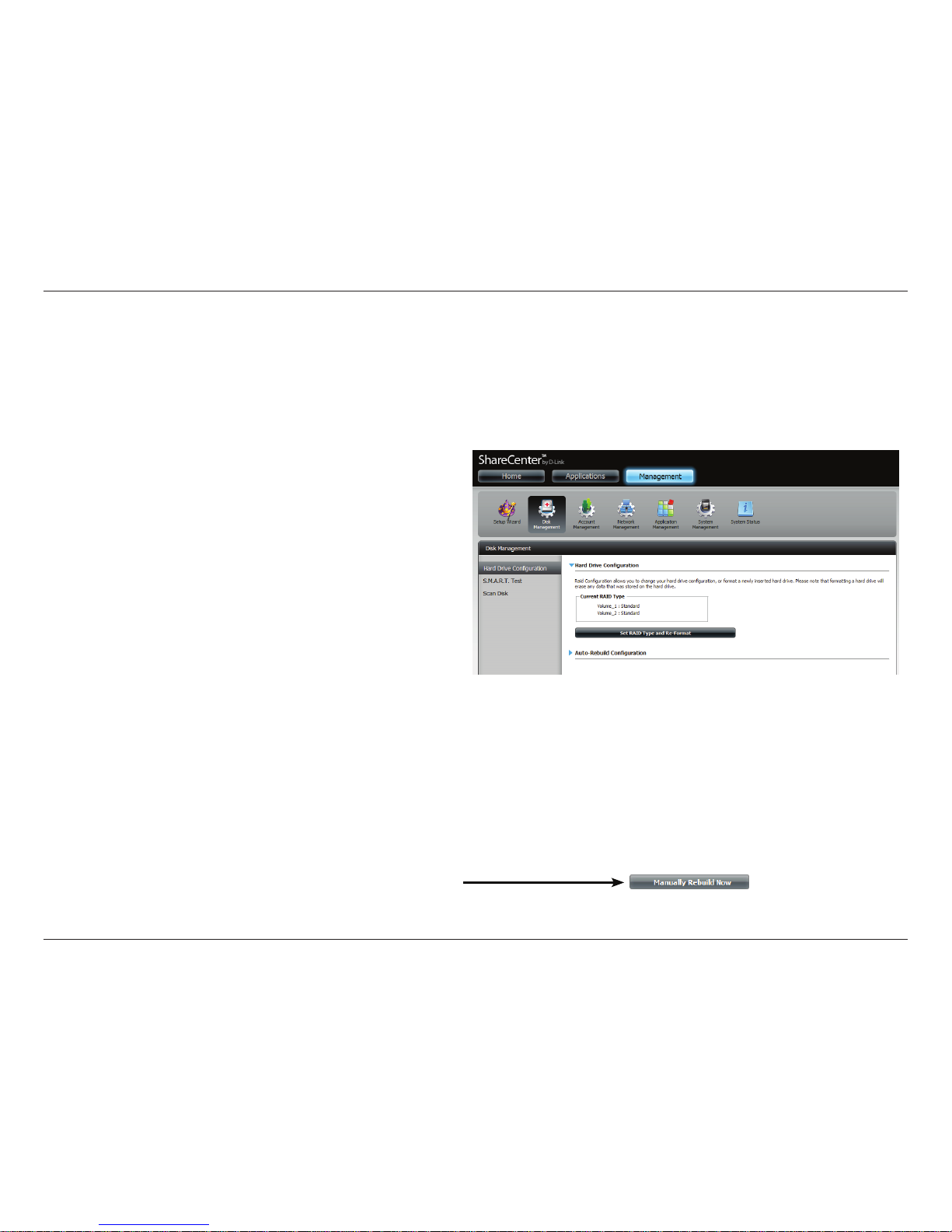

Disk Management .........................................................49

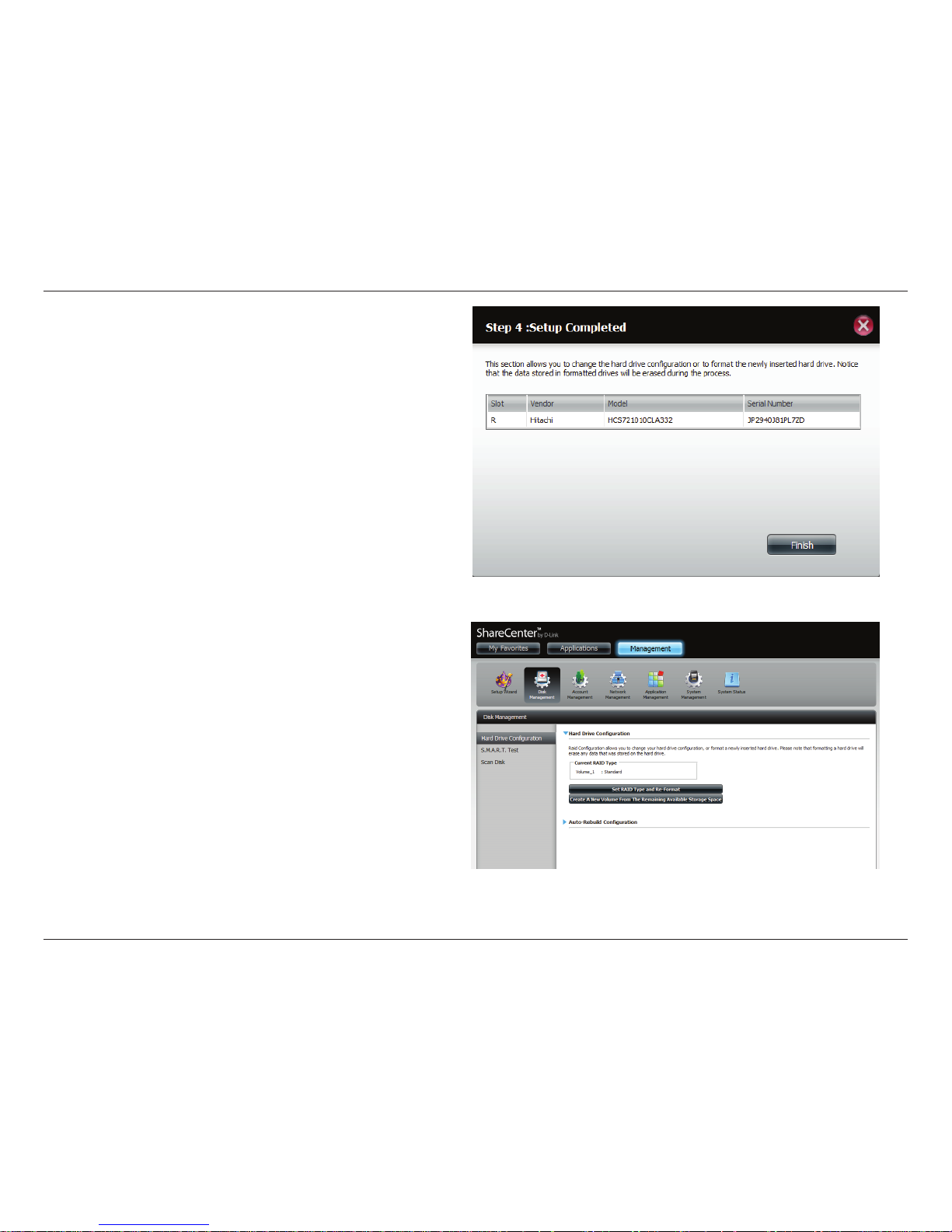

Hard Drive Conguration ......................................49

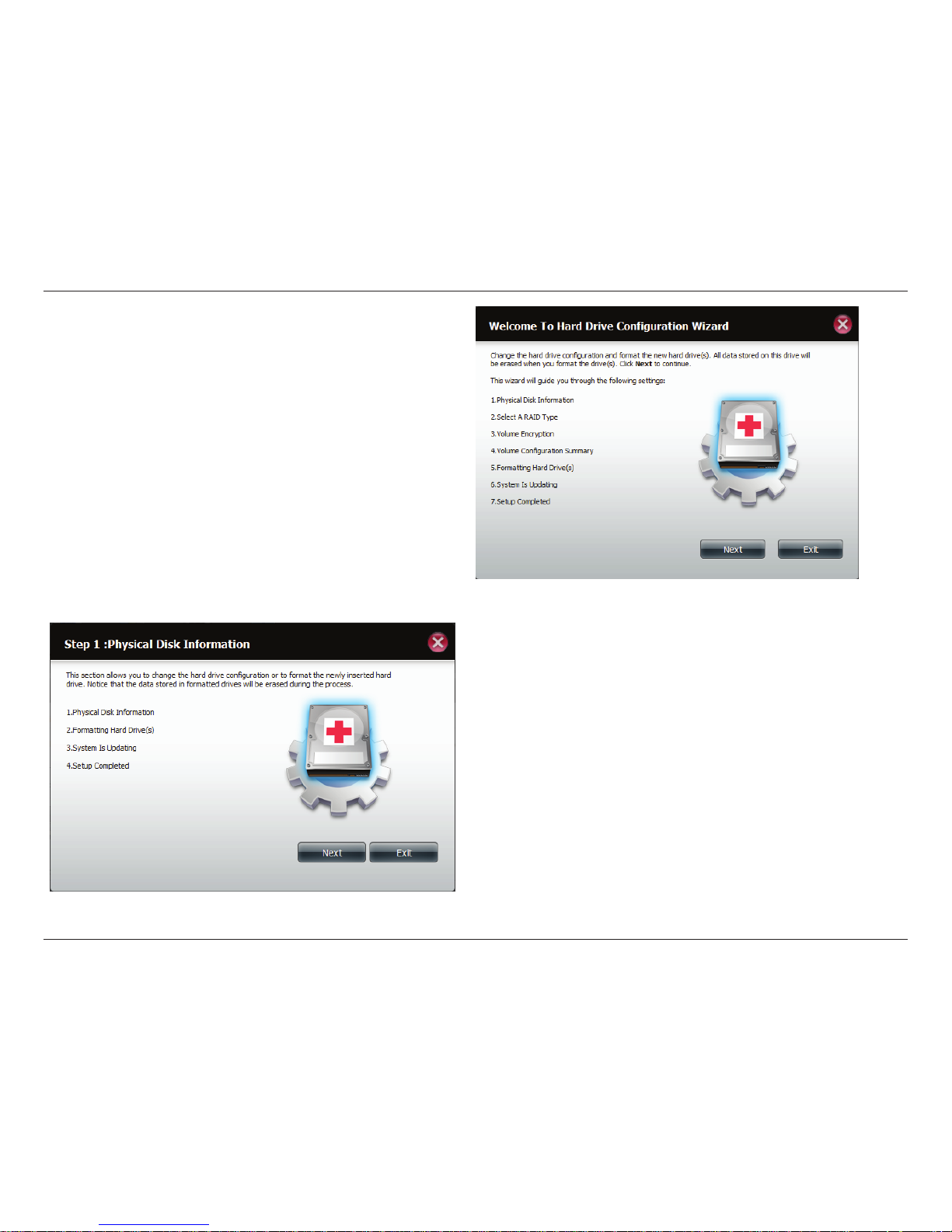

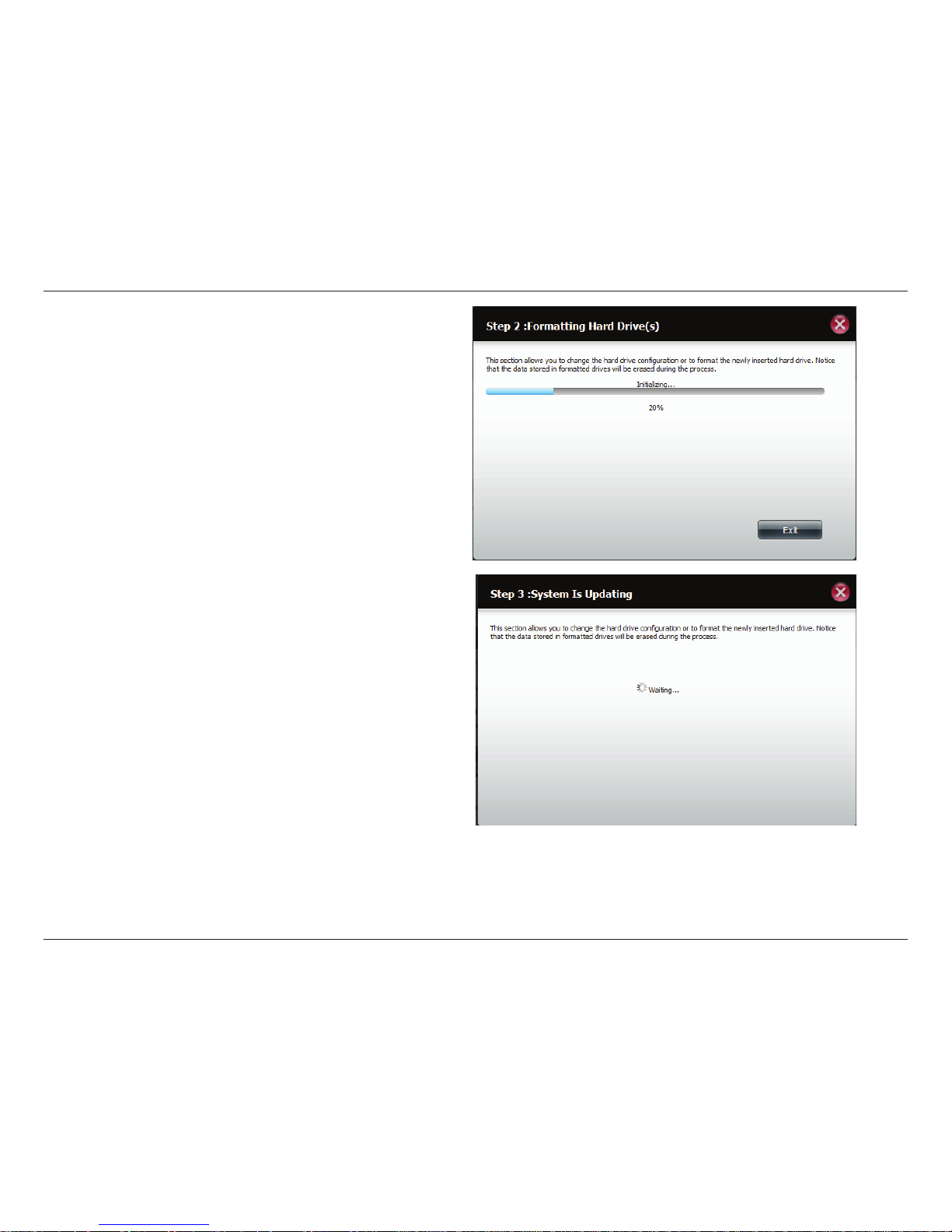

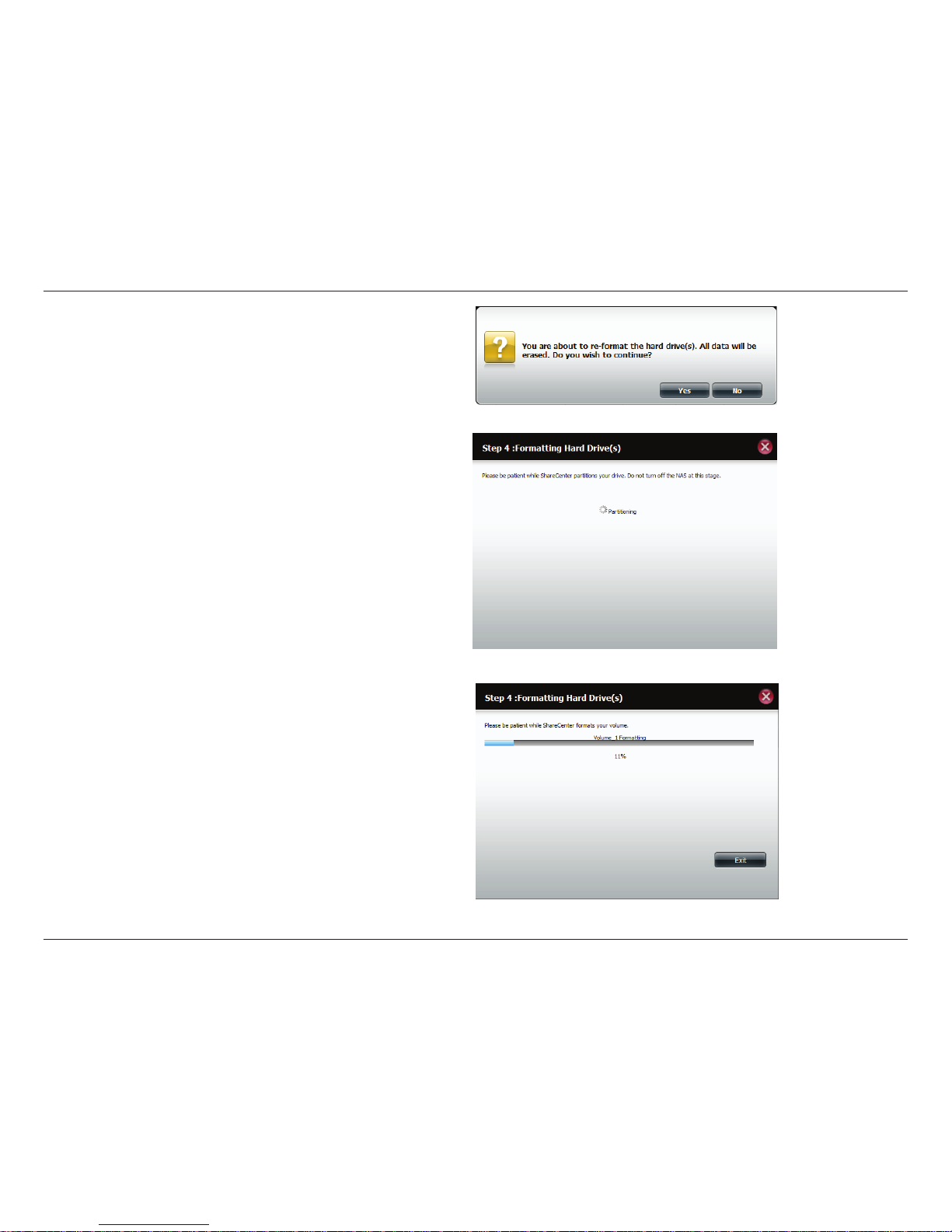

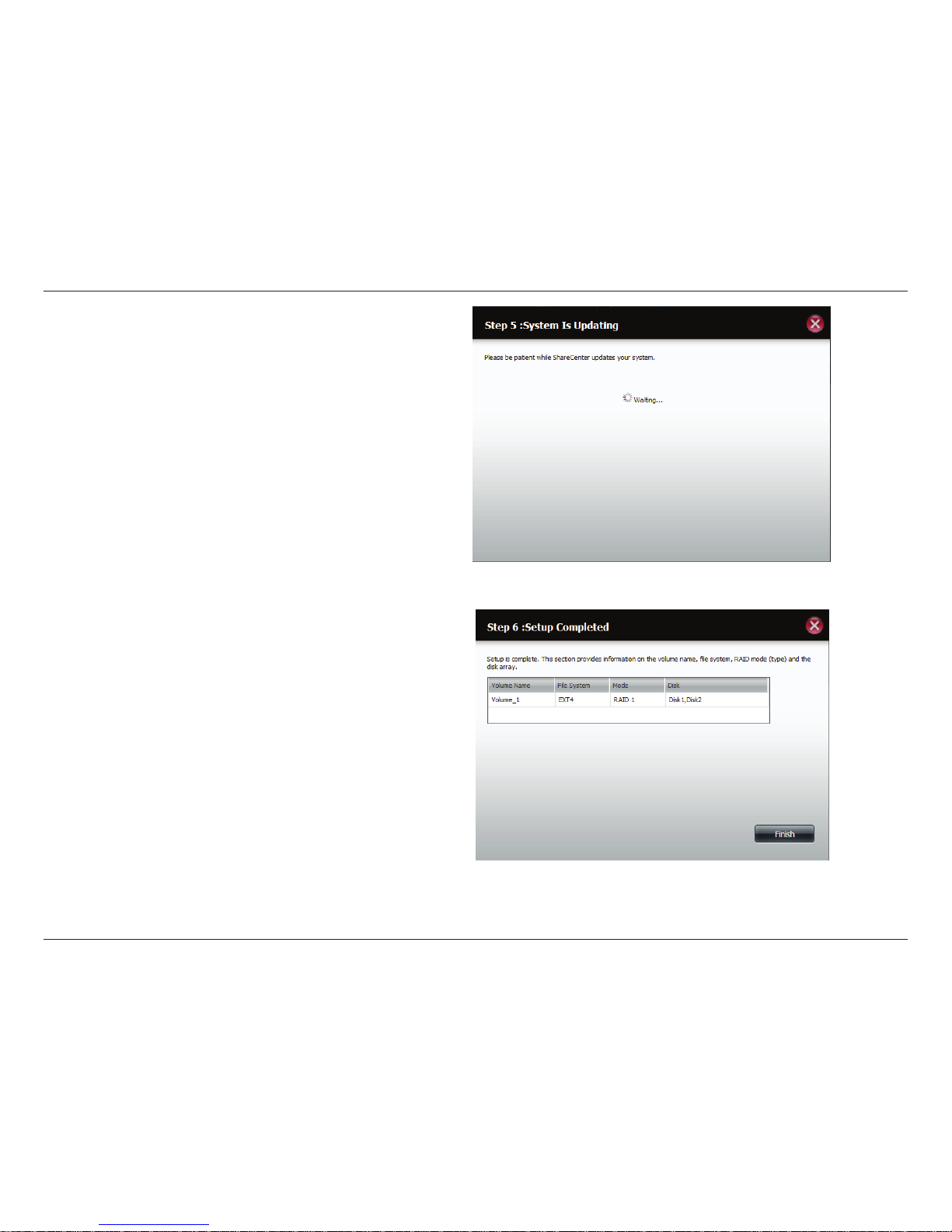

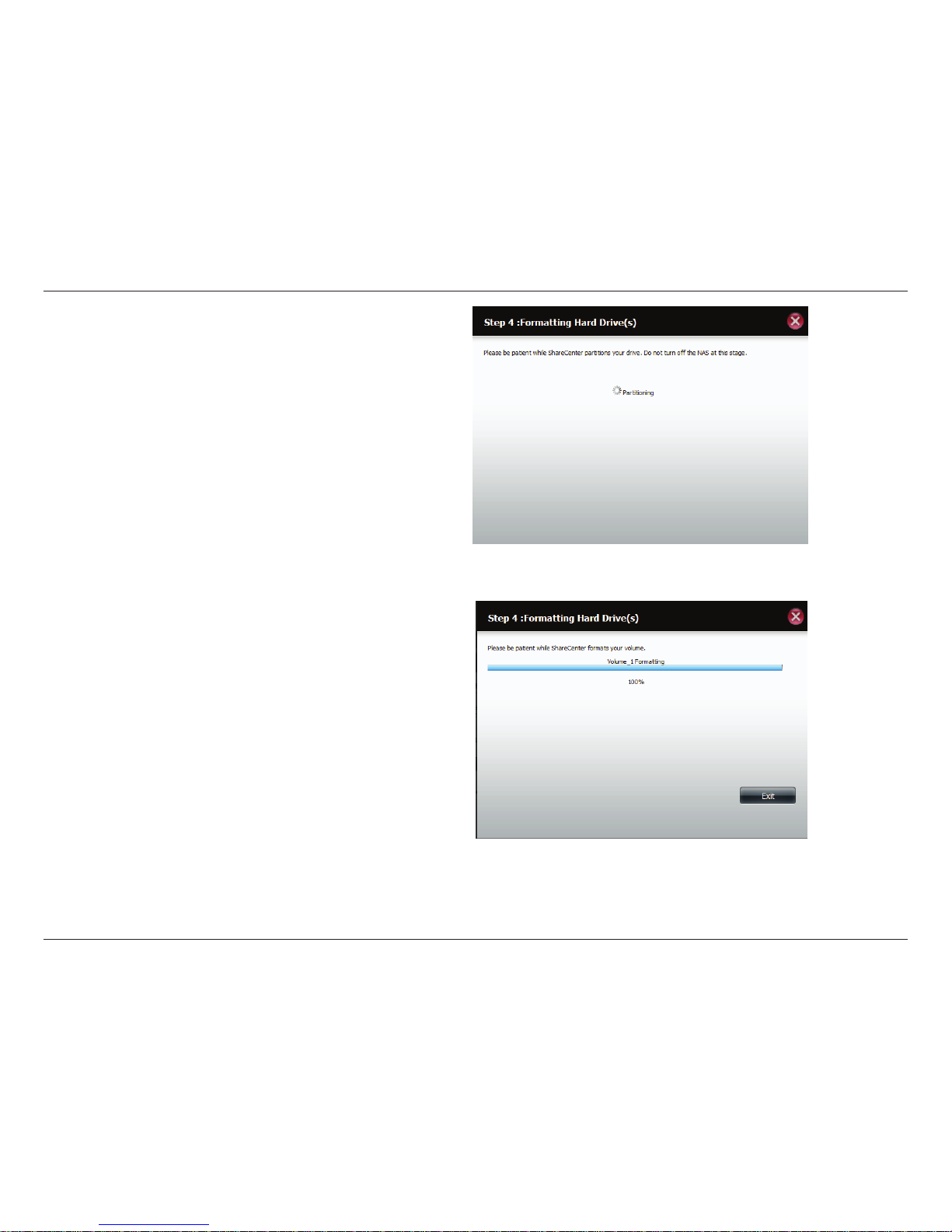

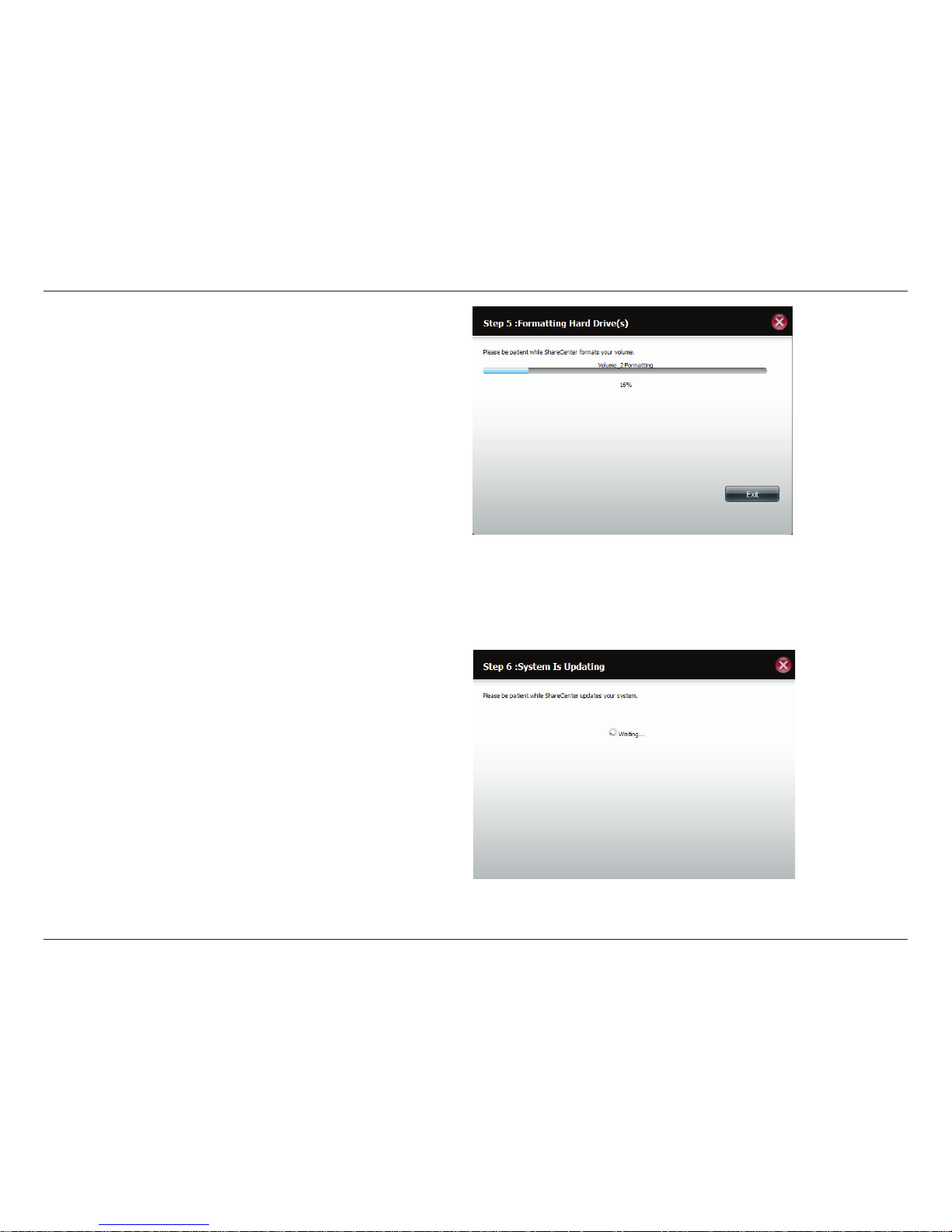

Hard Drive Conguration Wizard .................50
JBOD .......................................................................56

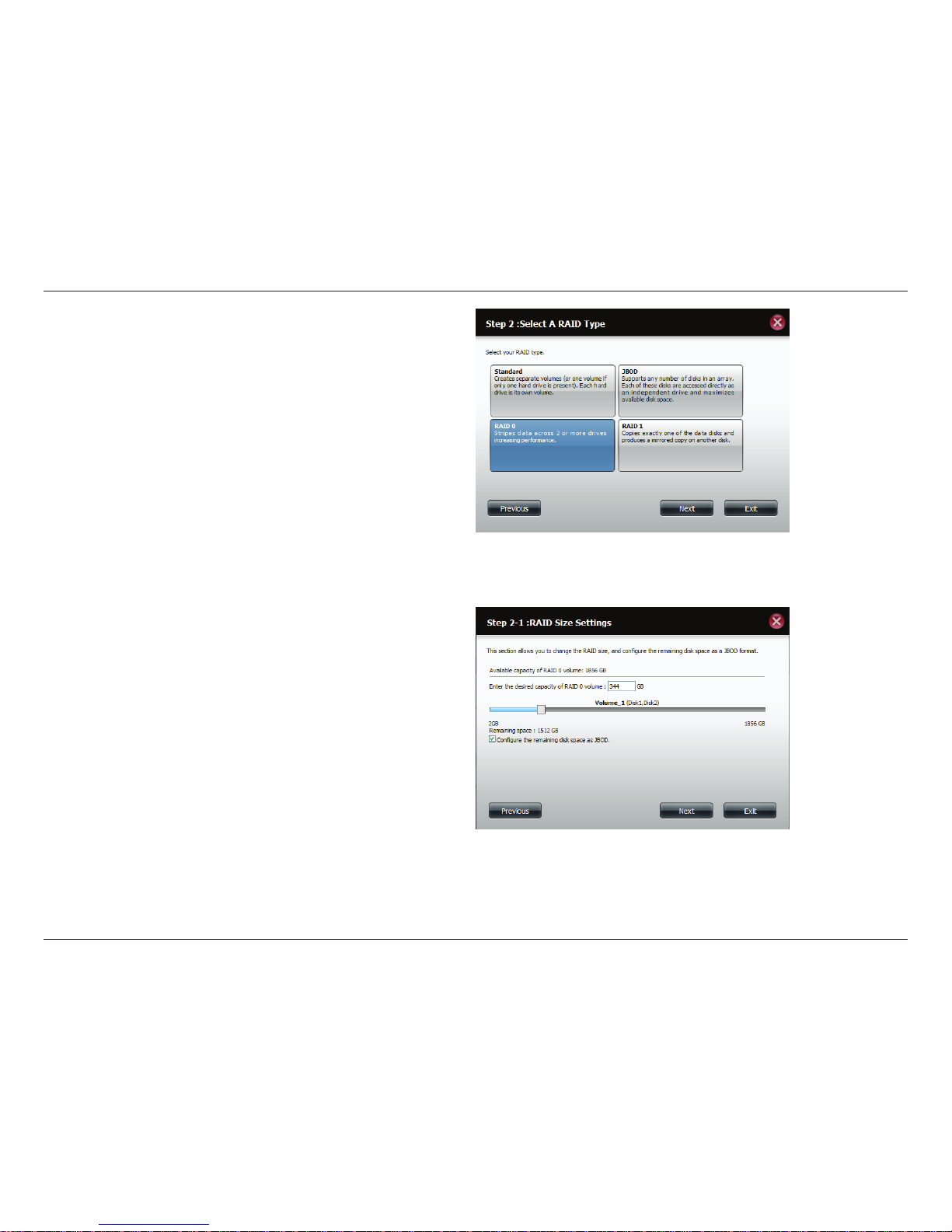

RAID 0 .....................................................................60
RAID 1 .....................................................................66
Upgrade from Standard Mode to RAID 1 ........72

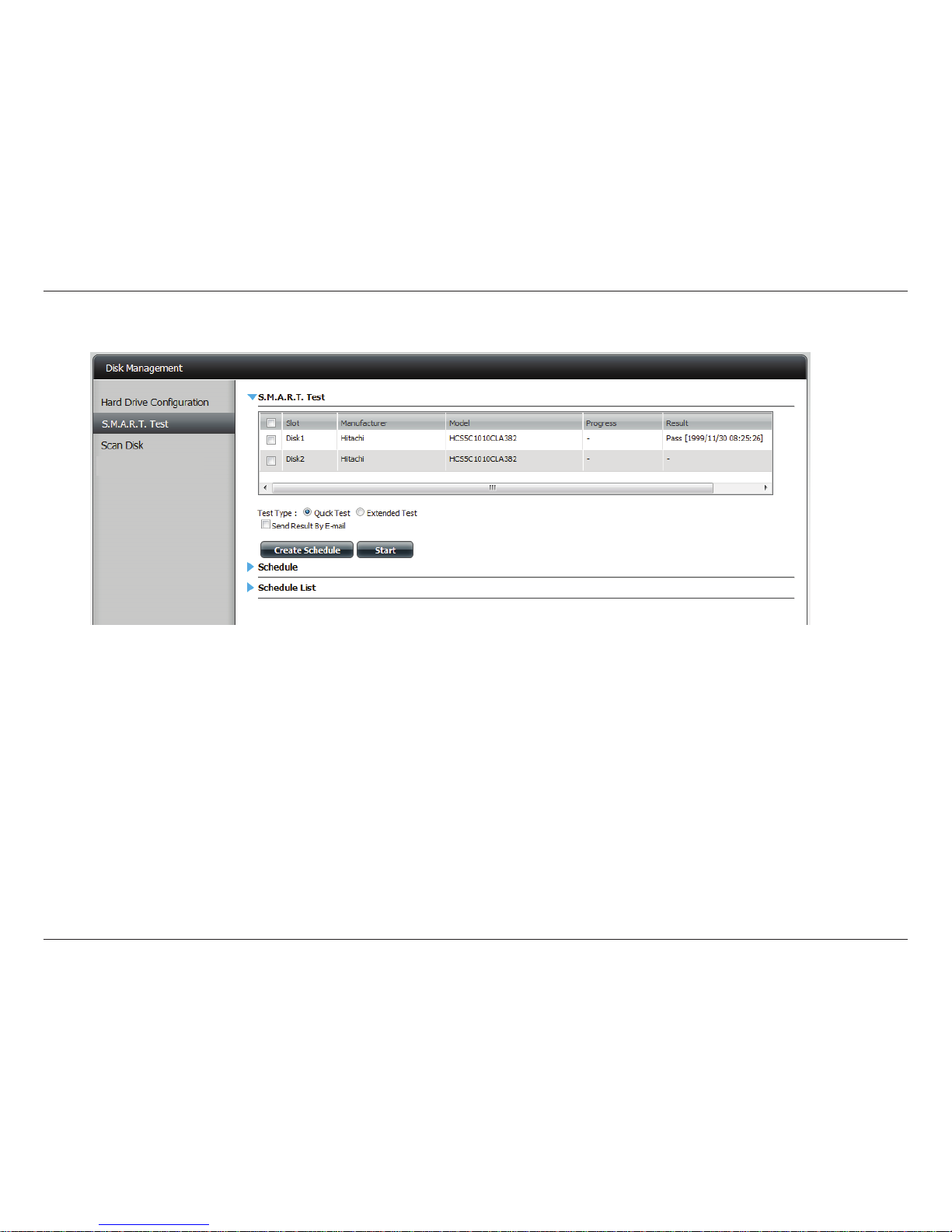

S.M.A.R.T. Test ............................................................78
Creating a Schedule ..........................................80

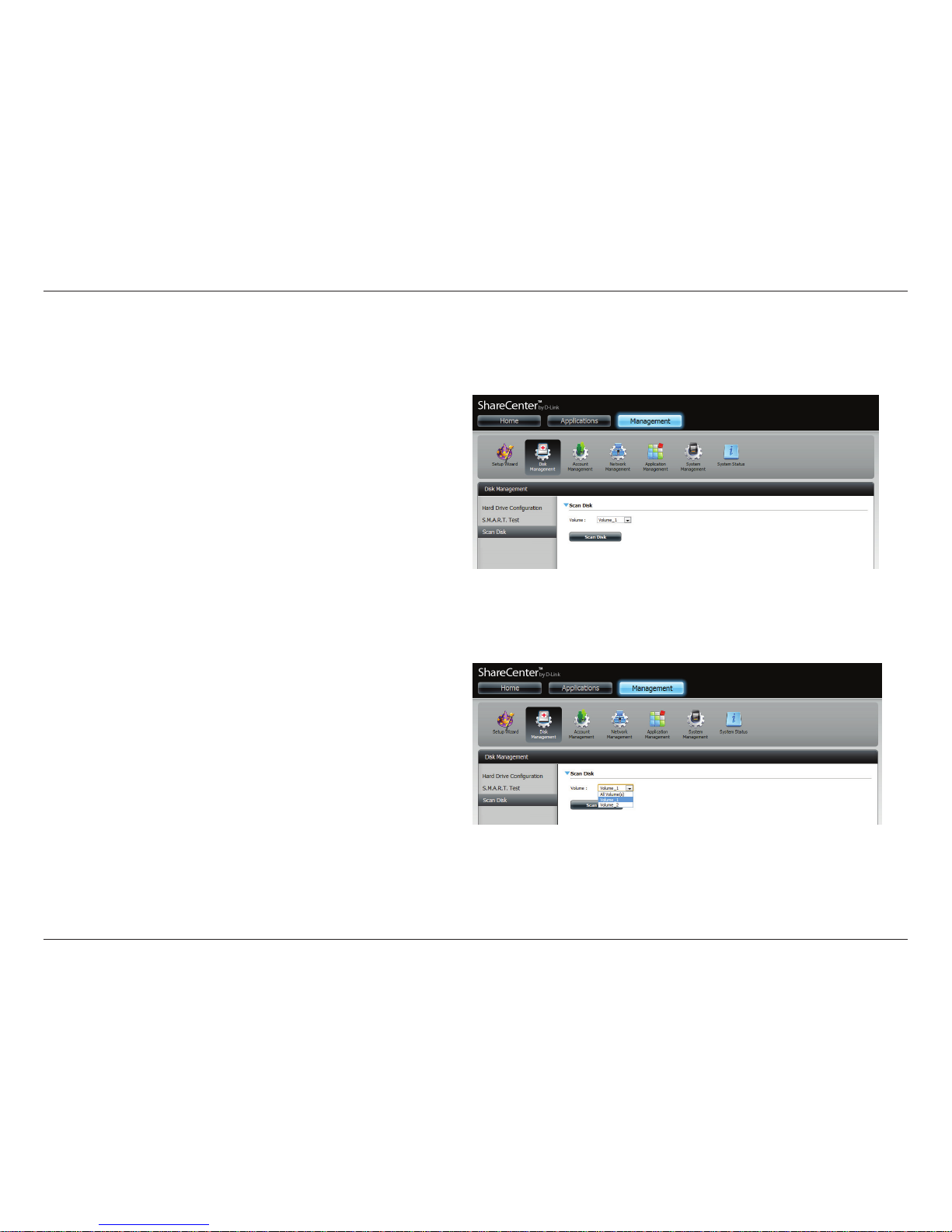

Scan Disk .....................................................................81
Account Management .................................................83
Users / Groups ...........................................................83
Creating a Single User ......................................83
Creating Multiple Users ...................................88
Modify Users ........................................................92
Deleting Users .....................................................96
Importing Users ..................................................97
Creating a Group ............................................. 100
Modifying a Group .......................................... 105
Deleting a Group ............................................. 110
Quotas ....................................................................... 111
Network Shares ...................................................... 116
Add/Modify Network Shares Wizard ........ 117
Deleting a Network Share ............................ 124
Page 3
iiD-Link ShareCenter DNS-320LW User Manual
Table of Contents
Resetting the Network Shares .................... 126
ISO Shares Setup Wizard ............................... 127
Creating an ISO Image ..................................131
ISO image Creation Wizard .......................... 132
ISO Name and File Path Settings ............... 133
ISO Tree Editing ................................................ 136
Verifying the ISO image ................................ 137
Admin Password .................................................... 138
Network Management .............................................. 139
LAN Setup ................................................................ 139
IPv6 Settings .....................................................142
IPv6 Setup .......................................................... 143
Link Speed and LLTD Settings .................... 145
DDNS .........................................................................146
Port Forwarding.....................................................147
Application Management ........................................ 151
FTP server ................................................................ 151
UPnP AV Server ...................................................... 155
iTunes Server .......................................................... 158
AFP Service .............................................................. 159
NFS Service .............................................................. 159
System Management ................................................160
Language ................................................................. 160
Time and Date ........................................................ 161
Device .......................................................................162
System Settings ..................................................... 163
Power Management ............................................ 164
Notications ............................................................ 166
Email Settings ................................................... 166
SMS Settings .....................................................167
Adding an SMS Service Provider ............... 168
Event Settings ..................................................169
Logs ............................................................................ 170
Firmware Upgrade ................................................ 171
USB Devices ............................................................172
UPS Settings ...................................................... 172
USB Storage Information .............................. 172
Printer Information ......................................... 173
System Status ............................................................... 174
System Info .............................................................. 174
Home .................................................................................... 176
My Photos ...................................................................... 177
Creating an Album ...............................................178
Photo Album Wizard ............................................ 179
Editing the Photo Album ...................................183
Moving a Photo ..................................................... 184
Deleting the Albums ............................................ 185
Sharing your Photos ............................................186
Refresh your Photos ............................................. 189
Conguring an Album ........................................190
Sharing Photos on Google+ .............................. 193
Slideshow ................................................................. 196
Slideshow Toolbar ........................................... 197
Cooliris ......................................................................198
Photo Album - Upload from NAS .................... 199
Photo Gallery .......................................................... 202
My Files ........................................................................... 203
Upload ......................................................................204
Page 4
iiiD-Link ShareCenter DNS-320LW User Manual
Table of Contents
Download ................................................................ 206
My Favorites Application.......................................... 207
Adding Applications ............................................ 208

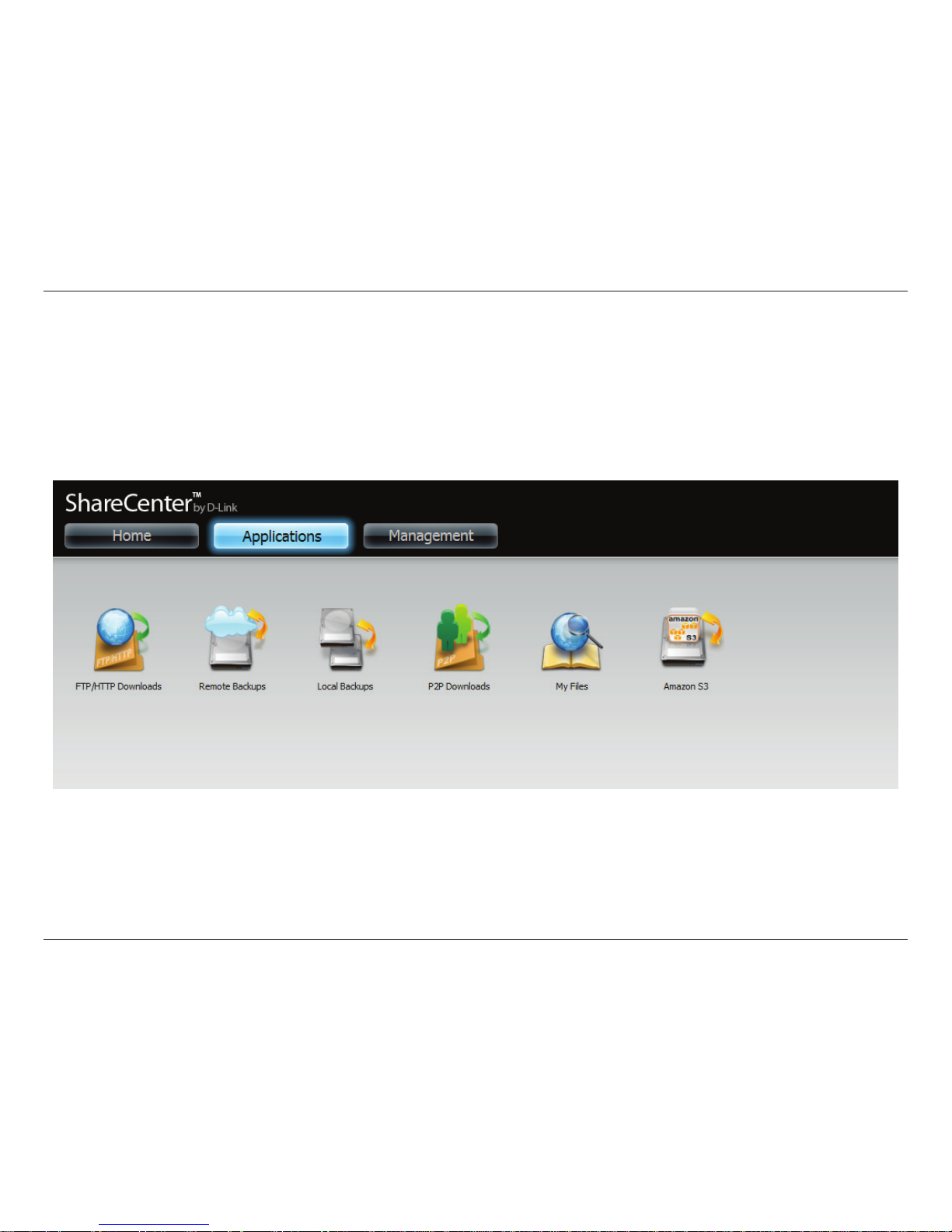

Applications ....................................................................... 209
FTP/HTTP Downloads ............................................... 209
Remote Backups .......................................................... 211
Create Wizard .........................................................212
Local Backups ......................................................... 216
Time Machine ......................................................... 217
USB Backups ...........................................................218
MTP Backups ..................................................... 219
USB Backups .....................................................219
MTP Backup Process.......................................220
USB Backup Process ....................................... 222
P2P Downloads ...................................................... 224
Settings ............................................................... 224
Downloads ........................................................225
My Files ..................................................................... 226
Amazon S3 ............................................................... 227
Creating an AWS Account ............................ 228
mydlink ..................................................................... 233
mydlink Verication ............................................. 234
mydlink Java Runtime Machine ....................... 236
Creating a New Folder ......................................... 241
mydlink Settings Details ..................................... 242
ShareCenter NAS Status ..................................... 243
Deleting a mydlink device ................................. 244
Deleting a mydlink account .............................. 245
Knowledge Base ............................................................247
What is RAID? ............................................................................ 247
RAID Options ..................................................................... 249
UPS Connectivity .....................................................................251
Deleting a UPS Slave ....................................................... 255
USB Print Server .......................................................................257
Page 5
1D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
SAFELY SHARE DIGITAL FILES LOCALLY AND OVER THE INTERNET
The D-Link DNS-320LW 2-Bay Network Storage, when used with internal SATA drives
1
, enables you to share documents, les,
and digital media such as music, photos, and video with everyone on the home or oce network. Remotely accessing les
through the Internet is also possible with the built-in FTP server. Whether you are allowing access locally or over the Internet,
keep data safe by only giving rights to specic users or groups. When conguring the DNS-320LW, you can create users and
groups and assign them to folders with either read, read/write or deny permissions.
This is ideal for an oce environment with employee-specic sensitive data or for the home where you can ensure your children
will only have access to age appropriate material. The DNS-320LW will be accessable from any computer (PC, MAC, or Linux)
on your network, without the need to install any software on the computer.
STREAM DIGITAL MEDIA CONTENT TO UPnP AV COMPATIBLE MEDIA PLAYERS
Back up your music, photo, and video collections to the DNS-320LW for safekeeping. Then, enjoy the benets of the built-in
UPnP AV media server as you stream digital content to compatible media players
2
(such as those found in D-Link’s MediaLounge
product line). This feature is highly convenient as it allows you to turn o a computer that would normally be needed for the
same function.
PROTECTION, PERFORMANCE, AND FLEXIBILITY
The availability of four dierent hard drive modes (Standard, JBOD, RAID 0, RAID1) allows you to choose the conguration
best suited to your needs. Standard mode creates two separately accessible hard drives. JBOD combines both drives in linear
fashion for maximum space eciency. RAID 0 combines both drives in a ‘striped’ conguration, which provides the highest
performance when using a Gigabit Ethernet connection. RAID 1 causes the drives to mirror each other, providing maximum
protection. If one drive fails while congured as RAID 1, the unaected drive continues to function as a single drive until the
failed drive is replaced. The new drive will then be re-mirrored, allowing the DNS-320LW to return to its full protection.
To further enhance your ShareCenter’s capabilities, the DNS-320LW supports a proprietary mydlink service, provided to D-Link
customers only, serves as a portal to those users who wish to access their data from any location. Mydlink service supports list,
download, upload or delete les/folders and can see the status of a ShareCenter from any location via web browser.
Product Overview
1 Hard Drive(s) not included.
2 D-Link cannot guarantee full compatibility or proper playback with all codecs. Playback capability depends on the codec support of the UPnP™ AV media player.
Page 6
2D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
• Check box contents
• Check system requirements
• Ensure that you have the hardware you need for your ShareCenter device
Before you Begin
System Requirements
For best results, the following minimum requirements are recommended on any system used to congure and use the
ShareCenter:
• Computer with: 1Ghz processor / 512MB RAM / 200MB available space / CD-ROM drive
• Internet Explorer® version 7, Mozilla® Firefox® 3, Google® Chrome 3, or Apple® Safari® 4 and above
• Windows® XP (with Service Pack 2), Windows Vista®, Windows® 7
• Mac OS® X 10.5.6 or greater
• 3.5” SATA Hard Drive(s)
• D-Link ShareCenter® DNS-320LW
• CD-ROM with Manual and Software
• Quick Installation Guide
• 12VDC 3A Output Power Adapter
• CAT5E Ethernet Cable
Package Contents
Page 7
3D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
Features
The ShareCenter® DNS-320LW is an easy to install data storage platform used for remote access through a local network or from the
Internet. This ShareCenter® supports up to 2 SATA hard drives and includes the product features listed below:
Equipped one 10/100/1000 Mbps auto-MDIX Gigabit Ethernet
LAN port, 1000BASE-T support Half duplex and Full duplex mode
Embedded two SATA II 3.5” HDD interface, support 3TB HDD
2-bay Serial ATA with RAID 0/1 and JBoD supported
Equipped Ultra Cooler (Plastic housing + FAN speed control)
Support Green Ethernet
Support Smart FAN
Support Real time clock (RTC)
Network Options
• DHCP Client or Static IP
• NTP Server
• Windows 7/ Vista x32/64 PnP-X/ LLTD
• Dynamic DNS
• Bonjour
• UPnP Port Forwarding
• IPv6*
Network File Services
• Supports Windows XP/ Vista/ 7, Mac OSX 10.5+, Linux clients
• CIFS/SMB for Windows and Mac OS X
• NFSv3 for Linux and UNIX
• AFP3.3 for Mac OS X
• HTTP and HTTP/S for web browsers
File System
• EXT4 for internal HDD
• FAT32, NTFS for USB external Storage
File System Management
• Unicode Support for both Samba and FTP server
• File sharing: Windows/ Mac/ Linux
FTP server
• FTP over explicit SSL/ TLS mode (FTPES)
• FTP bandwidth and connection control
• FTP support FXP
• IP Blocking
Download Management
• HTTP/FTP schedule download
• Peer to peer (P2P) downloader
Disk Management
• RAID: Standard, JBOD, 0,1
• Raid 1 Auto/manual Rebuild
• RAID migration: Normal to RAID 1
• Disk Status Monitoring (S.M.A.R.T.)
• HDD S.M.A.R.T test
• Scandisk
• Support Advanced Format HDD
Power Management
• Power Saving (Disk idle spin-down)
• Schedule power on/o
• Auto Power Recovery
• Smart Fan Control
Folder Management
Page 8
4D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
• Share Folder Level Permission
• Public Folder
• Supports ISO Mount
Remote File Sharing
• Web File Server (My Files)
- Allows user(s) to access les on the NAS using a web browser.
• FTP Server
• WebDAV
• Smart phone access
- Search and login to the NAS
- List, download, upload, rename or delete les from a NAS
- Play music, video, documents
- Photo slideshow with background music playing support
• Support mydlink portal
- Users can list, download, upload or delete les/folders from
a NAS
- Users can see the status of a NAS.
User/Group Management
• User/group assignment for Network sharing and FTP server
• Quota for user and group
• Users can assign to multiple Groups
• Batch User Creation/ Import Users
Backup Management
• Schedule Backup from PC to NAS (D-Link ShareCenter Sync)
• Apple Time Machine support
• Local Backup
• USB Backups (External storage and digital camera)
• Remote network backup (Rsync, Remote Snapshot)
• Cloud Backup (Amazon S3)
• USB Copy Button
System Management
• Support mydlink portal
• Support D-Link Storage Utility
• OS support: Windows XP, Vista, 7, and Mac OS X
• Two access modes supported: Open mode and Account mode,
• Support Conguration le save/load
• System status
• Email/ SMS notications
• Network Recycle bin
• System/FTP Log (Syslog Client)
• Resource Monitor
USB port support:
• External Storage device
Print server
• UPS monitoring
• MTP/PTP
Media Streaming
• UPnP AV server:
• Supports PS3/Xbox 360
• Supports UPnP AV le > 4 GB
• Complies with DLNA HNv1.5
• D-Link new Media Player (including Boxee) compatible
• iTunes Server
• My Photos
- Create albums and manage photos
- Share photos through social networks (Google+ & Cooliris)
- Slideshows
Page 9
5D-Link ShareCenter DNS-320LW User Manual
Table of Contents
Supports Multilingual GUI
Web Browsers Supported
• Internet Explorer 7+
• Mozilla Firefox 3+
• Apple Safari 4+
• Google Chrome3+
• Opera 10+
Page 10
6D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
Checking the Hardware Requirements
To use your DNS-320LW, you will need at least one hard drive. If you plan to use RAID 1, which protects your data against one
hard drive failure, you will need two hard drives.
This section will help you:
• Select the hard drives
• Determine hard disk space you will need
• Ensure your data is protected
• Understand the basic requirements for a router or switch
Selecting Hard Drives:
You can use hard drives from any manufacturer and with any capacity with your DNS-320LW. The D-Link ShareCenter supports
standard 3.5” internal SATA drives. If you are unsure, ask your administrator or hard drive retailer/manufacturer to verify that
your hard drives meet this standard
*Warning - Any pre-existing data on the drives will be erased during installation.
Determining How Much Hard Drive Space you Need:
In order to protect your data from hard drive failure, your DNS-320LW requires more space than what you will use for your
data, sometimes more than double the amount of space required.
Using a Router or Switch:
If you are connecting your ShareCenter to a router or switch, your router or switch needs to support Gigabit Ethernet
(1000Mbit/s) for maximum performance. The ShareCenter will auto-negotiate the highest connection speed available to your
router or switch. If you are using Port Bonding, use a managed switch.
Using an Uninterrupted Power Supply (UPS):
We highly recommend that you use your ShareCenter in conjunction with an uninterrupted power supply (UPS), which will
protect against sudden loss in power and power surges.
Page 11
7D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
Hardware Overview
Front Panel
LED Indicators
Power Button
Left HDD/ Right HDD
COMPONENT DESCRIPTION
Top Panel This panel unlatches simply by pressing the lever at the back. Unhook and lift up to insert or remove your hard drive(s).
Front Panel The casing of the entire NAS
Power Button Press once to power on the ShareCenter. Press and hold the button to power it down.
USB Button Press once to activate USB or press and hold to release USB activity.
Left HDD/
Right HDD
Indicates the position of the drive (Left or Right)
LED Indicators Illuminates blue or red depending on activity (see the next page for details)
Front Panel
Top Panel
USB Button
Page 12
8D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
Power On/O:
Blue Light - the device is on
Blinking Blue - the device is
booting or restarting
No Light - the device is o
LED Description
USB On/O:
Blue Light - the USB Storage is connected
Blinking Blue - transferring data, a USB device is being installed
or unmounted
Orange Light - USB storage failed to mount
No Light - No USB Storage or the device is o
HDD On/O:
Orange Light(s) - the hard drives are faulty
No Light(s) - the hard drives are inactive
HDD On/O:
Blue Light(s) - the hard drives are working
Blinking Blue Light(s) - the HDD(s) is writing/reading
Page 13
9D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
Rear Panel (Connections)
COMPONENT DESCRIPTION
Cooling Fan
The cooling fan is used to cool the hard drives and features speed control. When the unit is rst powered on, the
fans rotate at a low speed and later rotate at a high speed when the temperature rises above 49 °C.
Gigabit Ethernet Ports
Use the Gigabit Ethernet port to connect the ShareCenter to the local network. The port is equipped with 2 LEDs. The
LED on the right will illuminate solid green for a good connection and will blink during data transmission. If this LED
is o, check the connection/cable to the device you are connecting to. The LED on the left will light solid for a Gigabit
connection and will remain o when connected to a 10/100 device.
Power Receptacle
Connect the supplied power cord to the receptacle.
USB Port A single USB 2.0 (Type A) connector. The USB Host port is for Print Servers, USB memory disks, or USB UPS monitoring.
Latch Press the latch to release the Top Panel and insert or remove the hard drives
Security Lock Prevent theft by tying a lock to the ShareCenter NAS and a desk
Top Panel
Latch
Cooling Fan
Power Receptacle
Gigabit Ethernet Port
USB Port
Security Lock
Page 14
10D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview
Bottom Panel
COMPONENT DESCRIPTION
Product Details Information about the product - DNS-320LW. Serial Number, Part Number, Manufacturer Number
Reset Button Press and hold this button for more than 5 seconds to reset the unit to factory defaults.
Reset Button
Product Details
Page 15
11D-Link ShareCenter DNS-320LW User Manual
Section 1 - Product Overview

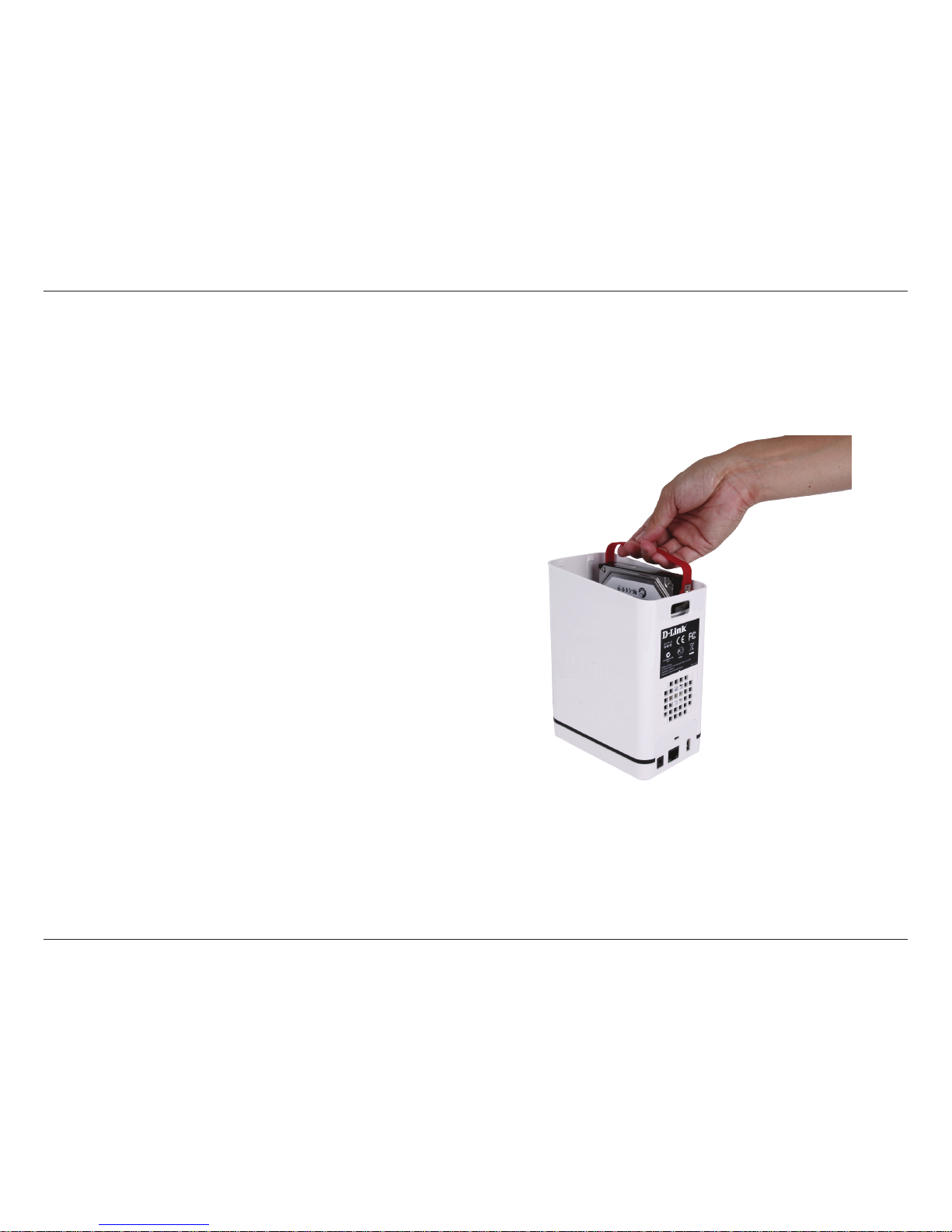

Top Panel (Levers)
Pull the handles to disconnect the hard drive(s) from the SATA sockets.
Note: Remove the top cover before releasing the latches.
Page 16
12D-Link ShareCenter DNS-320LW User Manual
Section 2 - Getting Started
This User Guide will help you get your ShareCenter set up in just a few steps. To install the ShareCenter on your local network,
refer to the steps below, or skip to page 17 to run the setup wizard which will show you how to install and congure your
DNS-320LW.
Getting Started
Hardware Setup
Step 1 - Remove the top panel by rmly
pressing the latch at the back.
Step 2 - Once the faceplate is unlatched,
pull it off the the device to expose the
devices’s bays.
Note: Make sure to align the drive connector to the SATA connector at the back edge inside the drive bay of the ShareCenter.
Gently push the drive in until it connects. When a drive is inserted properly, you will feel it “set” into the connector. Some hard
drives that are thin or oddly shaped may need to be inserted carefully into position. If a drive is not properly set in place, the
hard drive LED will not illuminate after powering on the device.
Page 17
13D-Link ShareCenter DNS-320LW User Manual
Section 2 - Getting Started
Step 3 - Attach the hard drive brackets
to the sides of your hard drives with the
included screws. Ensure the brackets are
aligned so that when the hard drive is
inserted, the arrow on the bracket points
to the front of the ShareCenter.
Step 4 - Insert up to two 3.5” SATA hard
drives into the drive bays.
Page 18
14D-Link ShareCenter DNS-320LW User Manual
Section 2 - Getting Started
Step 5 - Re-attach the top panel. Ensure the
latch is inserted inside the panel.
Step 6 - Connect an Ethernet cable to the
Ethernet port. This cable should connect
the ShareCenter to your local network via a
router, switch, or directly to a computer for
conguration (cross-over cable required).
Step 7 - Connect the power adapter to
the power receptacle.
Page 19
15D-Link ShareCenter DNS-320LW User Manual
Section 2 - Getting Started
When rst powered on, during the initial boot sequence, the ShareCenter will wait to be assigned an IP address via DHCP. If it
does not receive a DHCP assigned IP address, the ShareCenter will be automatically assigned a 169.254.xxx.xxx address. It is
recommended that you use the included D-Link Storage Utility software when accessing and conguring the ShareCenter for
the rst time. If you want to change the IP address before logging in or you are having trouble connecting to the ShareCenter
IP address, you can use the Storage Utility software included on the product CD to locate the device on your network and
make any necessary changes.
D-Link Storage Utility
Network Storage
Device:
The D-Link Storage Utility displays any ShareCenter
devices it detects on the network here.
Refresh: Click Refresh to refresh the device list.
Conguration: Click Conguration to access the Web based conguration
of the ShareCenter.
LAN: Congure the LAN Settings for the ShareCenter here.
Apply: Click Apply to save changes to the LAN Settings.
Drive Mapping: Volumes available for mapping are displayed here.
Available Drive
Letters:
Choose an available drive letter. Click Connect to map
the selected volume. Click Disconnect to disconnect the
selected mapped volume.
About: Click About to view the software version of the Easy
Search Utility.
Exit: Click Exit to close the utility.
Page 20
16D-Link ShareCenter DNS-320LW User Manual
Section 2 - Getting Started
Select the ShareCenter from the list and click the Conguration
button. This will launch the computer’s default web browser and
direct it to the IP address listed for the device. Make sure the browser
is not congured to use a proxy server.
Note: The computer used to access the ShareCenter web-based
configuration manager must be on the same subnet as the
ShareCenter. If your network is using a DHCP server and the
computer receives IP settings from DHCP server, the ShareCenter
will automatically be in the same subnet.
Page 21
17D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
To run the Setup Wizard, insert the ShareCenter CD into your CD-ROM drive.
Step 1 - When the autorun screen appears, click Install
Step 2 - Select the Language of your choice and then click the Start
button.
Note: Windows Firewall presents you with a warning message to
unblock the device. Click Unblock to give your computer access to
the NAS.
Installation
Setup Wizard
Page 22
18D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 3 - Follow the instructions to remove the top cover of your
ShareCenter.
Click Next to continue.
Install the Hard Drives
Step 4 - Attach the Hard Drives Bracket(s) to the side of the hard
drives as indicated.
Click Next to continue.
Page 23
19D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 5 - Slide one, or two hard drive into an available hard drive bay
of your ShareCenter.
Click Next to continue.
Page 24
20D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 6 - With the hard drives installed properly into each bay, close
the chassis by re-attaching the top panel into place.
Click Next to continue.
Step 7 - Connect a CAT5 Ethernet cable to your ShareCenter and
connect the other end to a switch or router (Local LAN).
Click Next to continue.
Connect to your Network
Page 25
21D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 8 - Connect the power adapter connector to the power
receptacle on the back of the ShareCenter. Then, power on the
ShareCenter by pressing the power button located in the front panel.
Click Next to continue.
Step 9 - With the power on, press the Next button on the device and
check and make sure the IP address of your ShareCenter matches
what you see on the screen.
Note: Allow 1-2 minutes for the DNS-320LW to be recognized.
Click Next to continue.
Power and Device Selection
Page 26
22D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 10 - Enter the administrator password. If this is the rst time
you are doing the installation on this NAS, leave the password blank.
Click Next to continue.
Step 11 - In this step you can create a new password for the Admin
username. It is recommended you set a password, however you may
also leave the elds blank.
Click Next to continue.
Admin Password
Page 27
23D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Networking Setup
Step 12 - You may either use Static IP or DHCP to congure the IP
network settings of the ShareCenter. If you select Static IP, then enter
the IP parameters as listed.
Click Next to continue.
Page 28
24D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 13 - If you want your ShareCenter to be part of a Windows
Workgroup network, enter the workgroup name, a name for the
device, and a description. The name you entered will be used
whenever you map one of the ShareCenter volumes as a Network
Drive.
Click Next to continue.
Step 14 - Click the Yes radio button if you already have a DDNS
account to use for the ShareCenter DDNS. Click the No radio button
and proceed to step 15 to obtain a new DDNS account.
Click Next to continue.
Device Information and Dynamic DNS
Page 29
25D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 15 - Enter the DDNS parameters requested in this window so
that your ShareCenter can be accessed by a URL over the Internet.
Click Next to continue.
Step 16 - Click Yes to go to a Wizard with instructions and links on
how to obtain a free DDNS account.
Click No skips the DDNS account setup wizard and transfers you
back to the ShareCenter Setup Wizard.
Dynamic DNS Account Setup
Page 30
26D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 17 - Follow the steps listed here in order to create a DDNS
account and congure your LAN equipment and ShareCenter to
work with the new settings.
Click Close to continue.
Step 18 - Select your time zone and then set the time and date. You
can set the time and date manually, from an NTP server, or from your
computer.
Click Next to continue.
DDNS Account and System Time
Page 31
27D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation

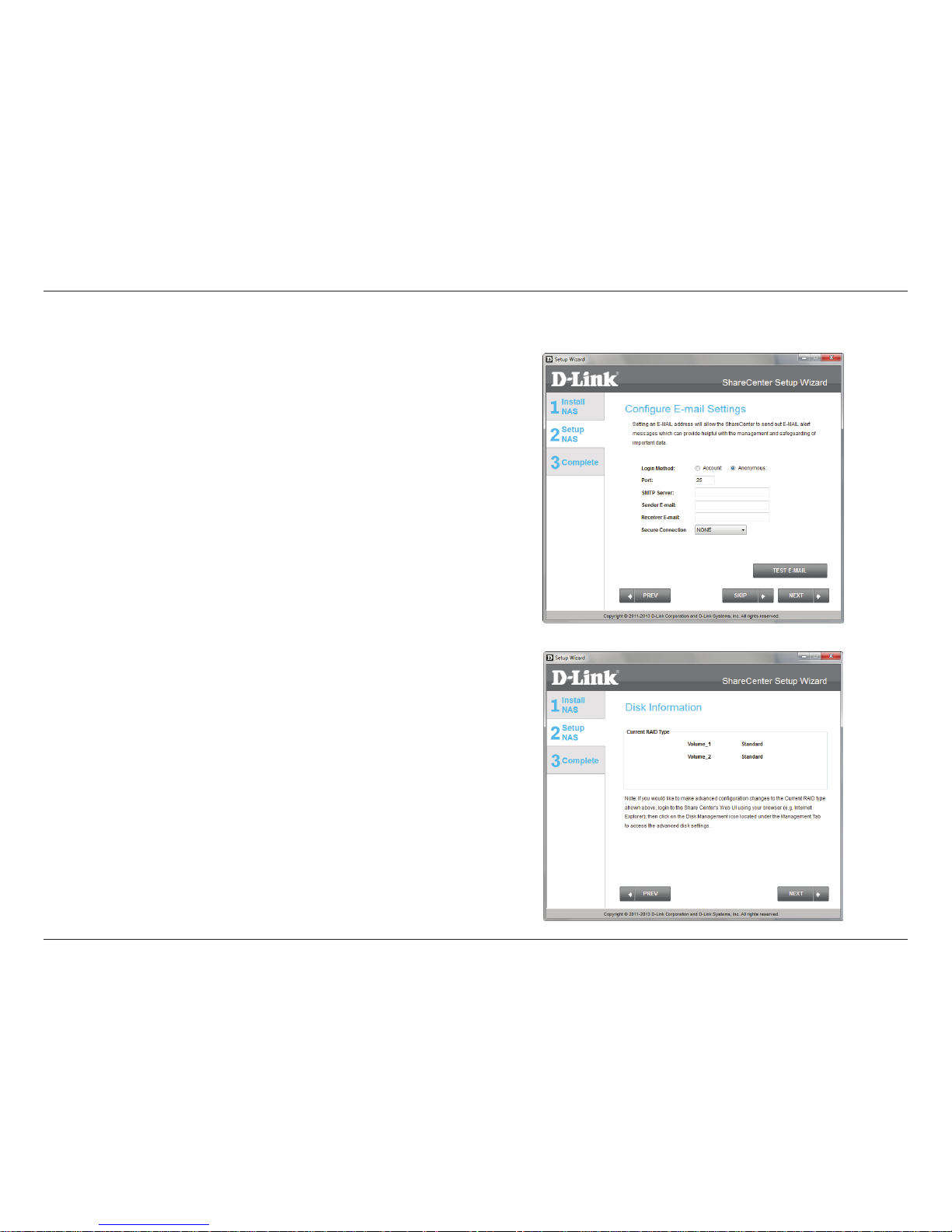

Step 19 - You can congure messages to be sent alerting you to
certain operational conditions and drive status conditions to your
e-mail account. These alerts can prove helpful with the management
and safeguarding of important data.
Enter your e-mail information and settings and then click Next to
continue. If you do not want to congure your e-mail settings, click
Skip to continue.
Step 20 - This step is informational and shows any currently
congured Volumes previously setup on the ShareCenter®.
Click Next to continue.
Email Settings and Volume Information
Page 32
28D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation

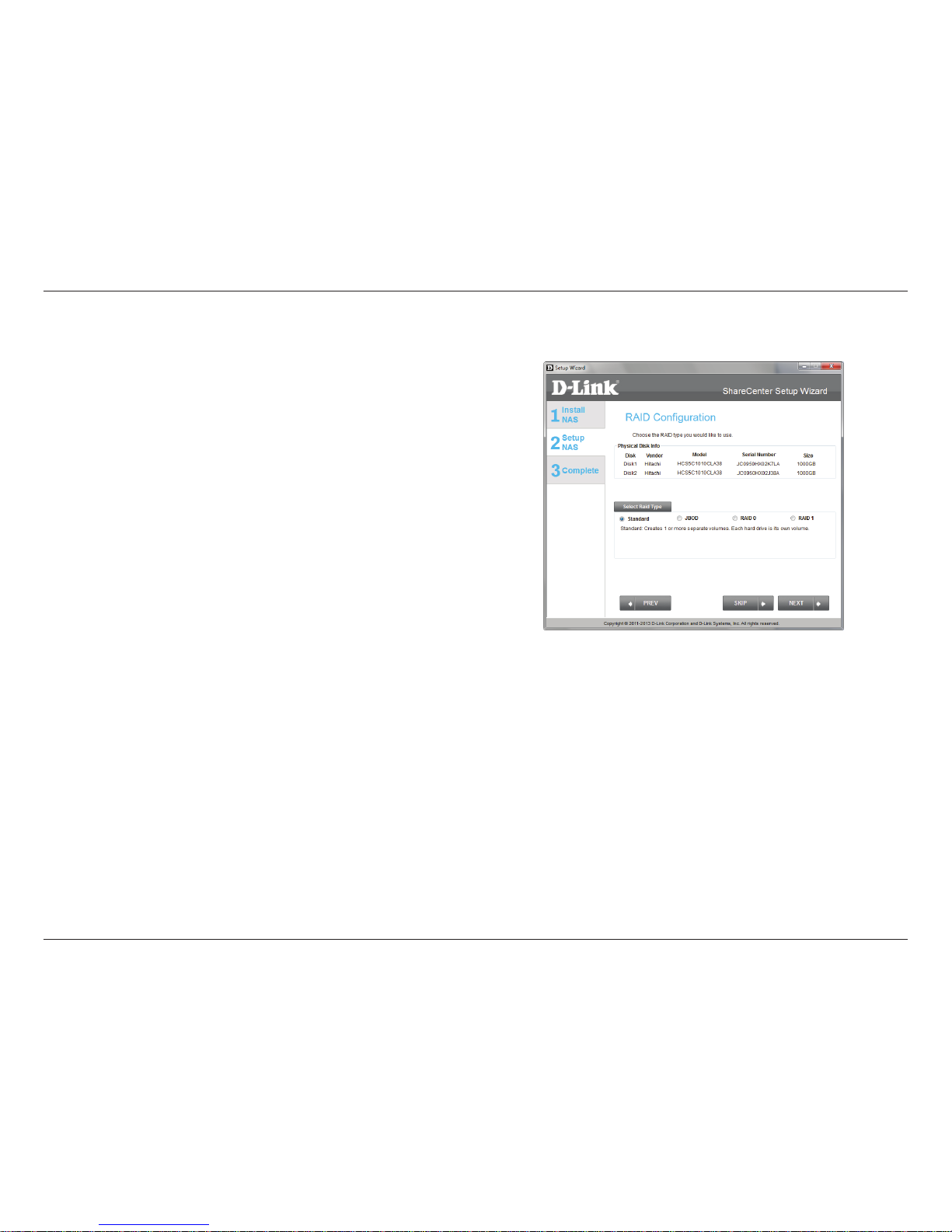

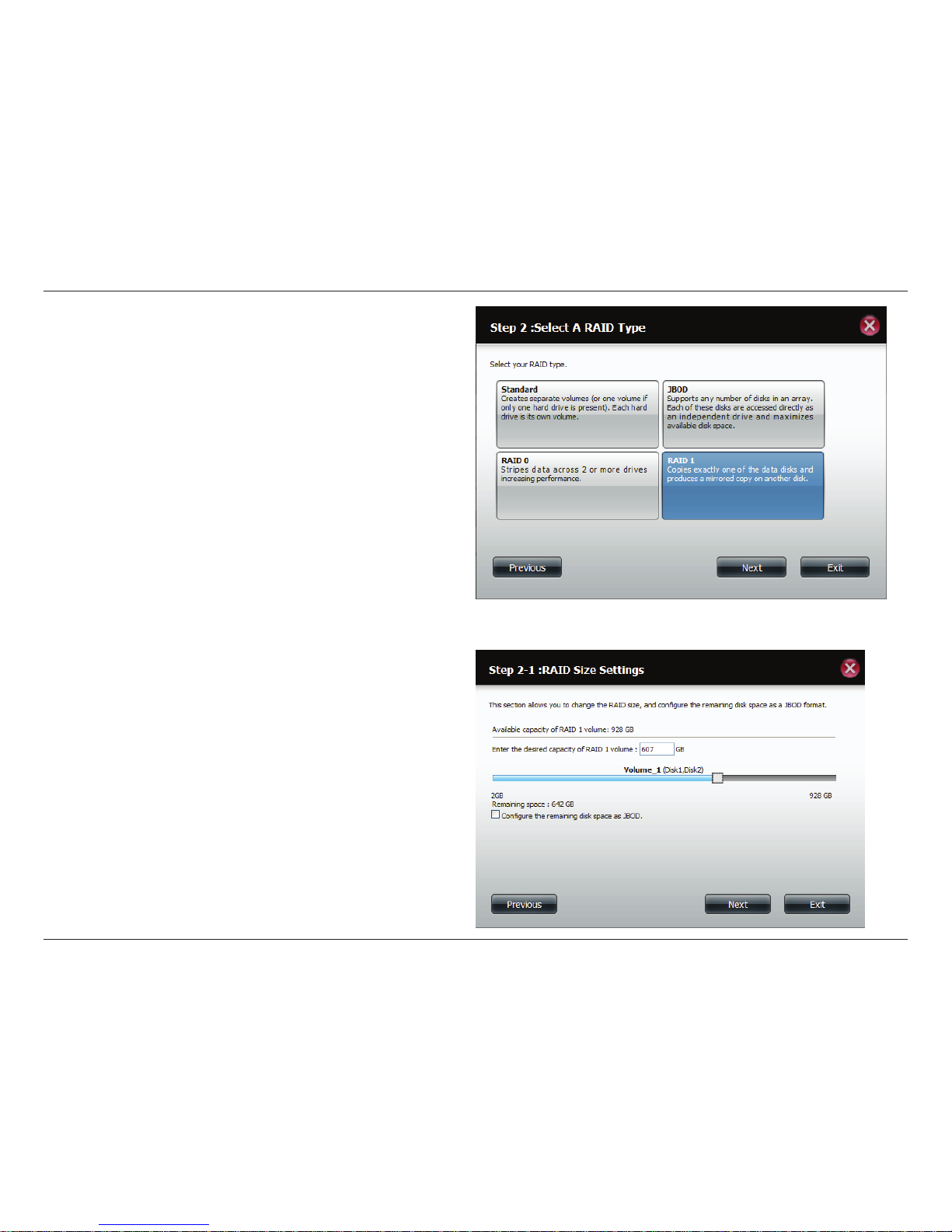

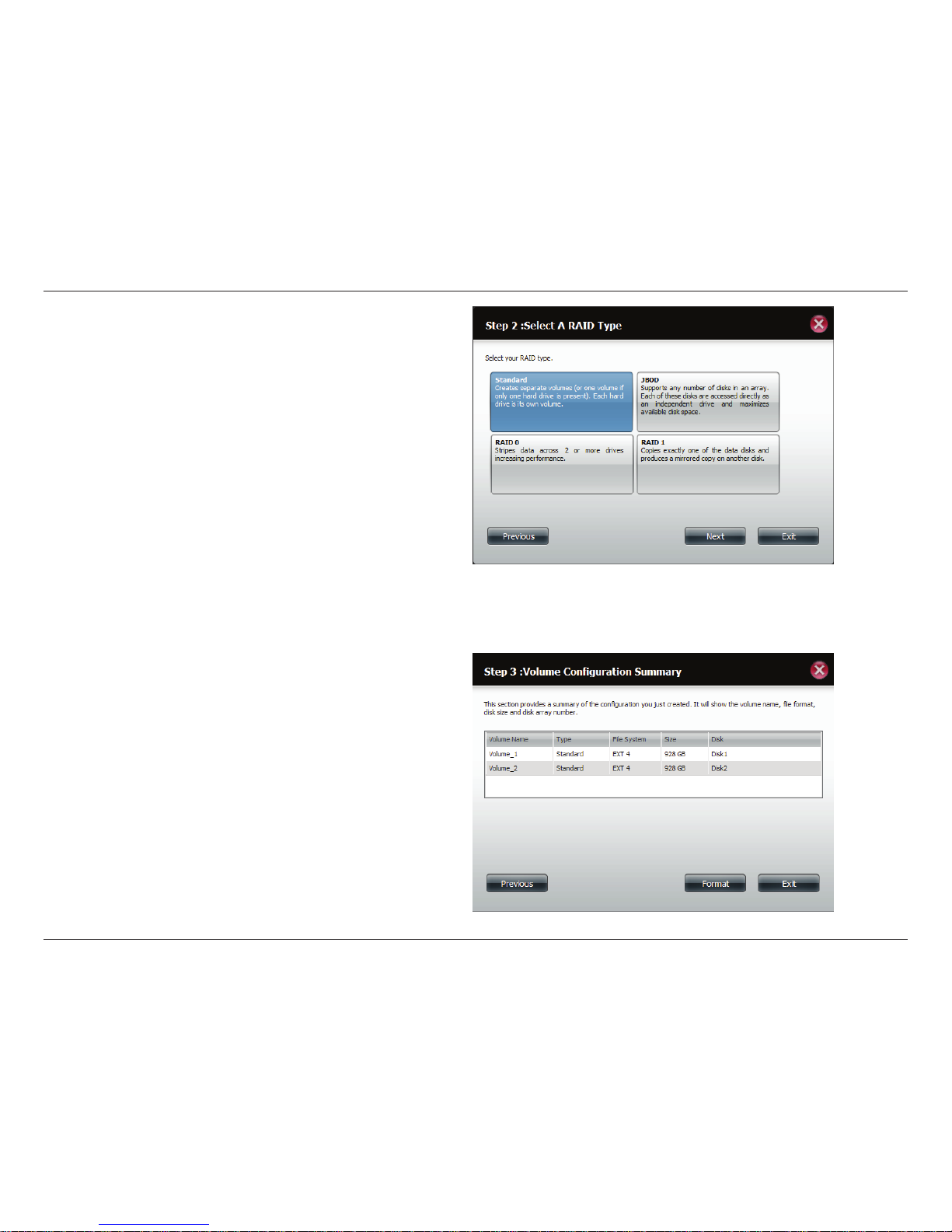

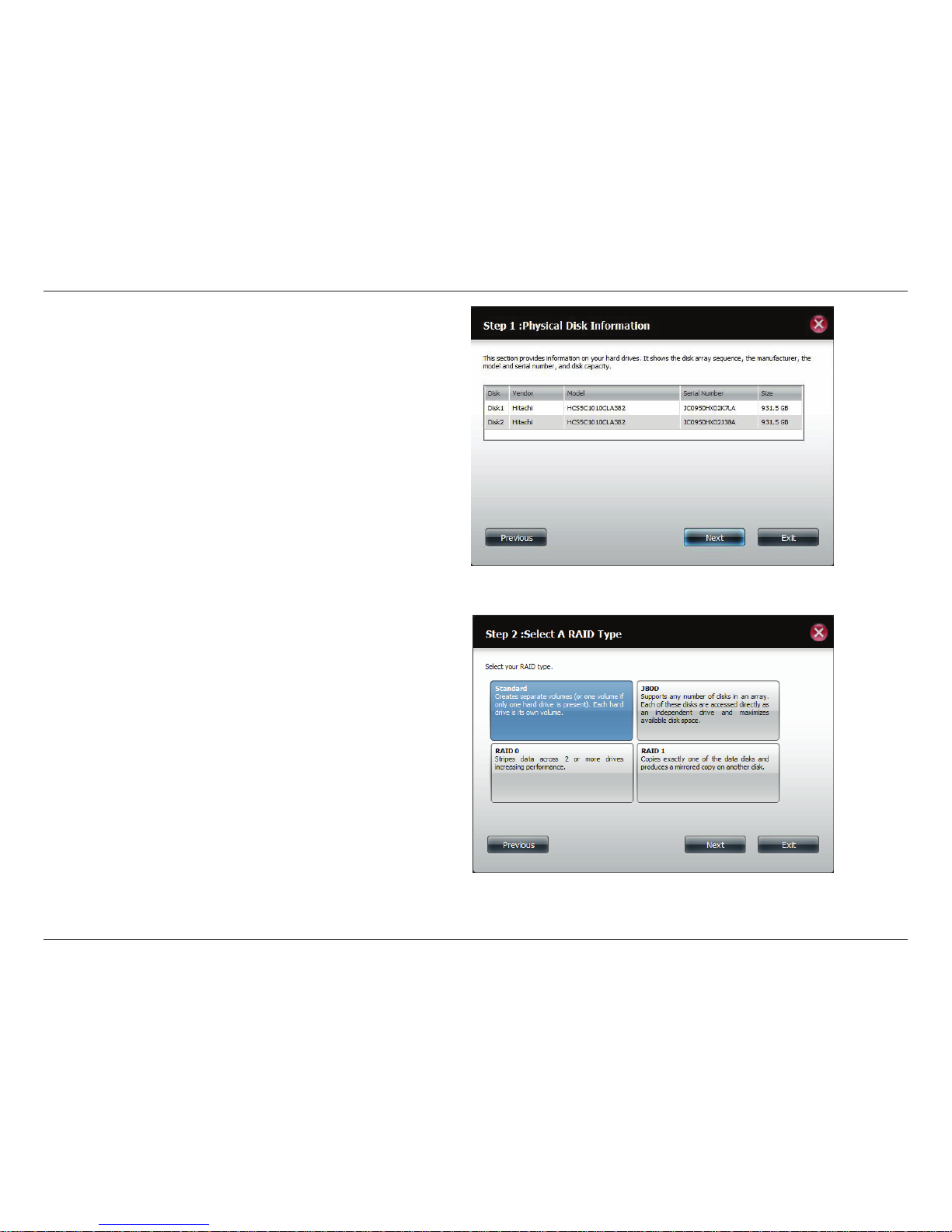

Step 21 - Select one of the volume RAID types. Clicking on each
RAID type radio button will display a description.
For more information concerning the dierent RAID Disk Formats
please refer to the Knowledge Base section in this manual.
Click Next to continue.
RAID Conguration
Page 33
29D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation

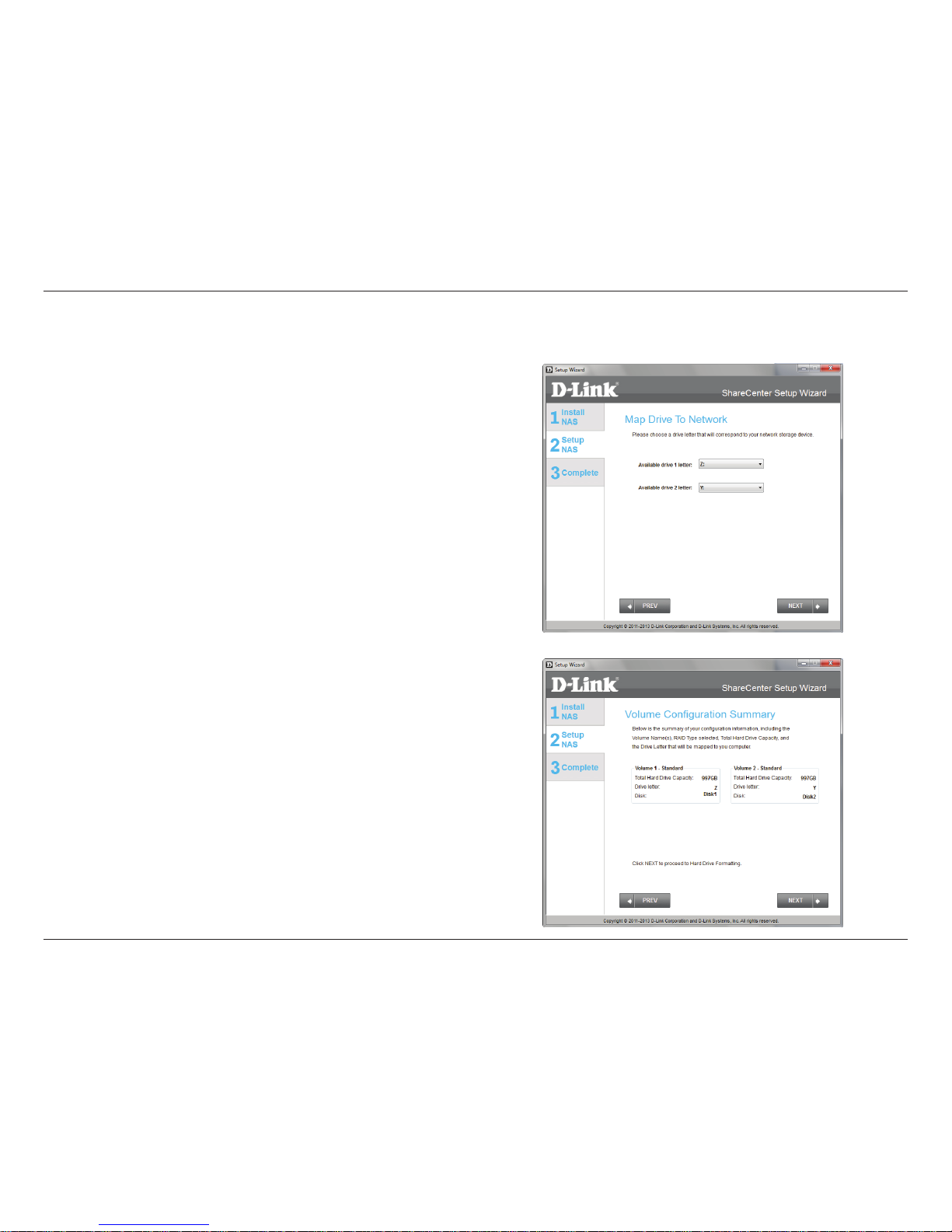

Step 22 - This step allows you to map the volume(s) created as
network drive(s) on your computer.
Click Next to continue.

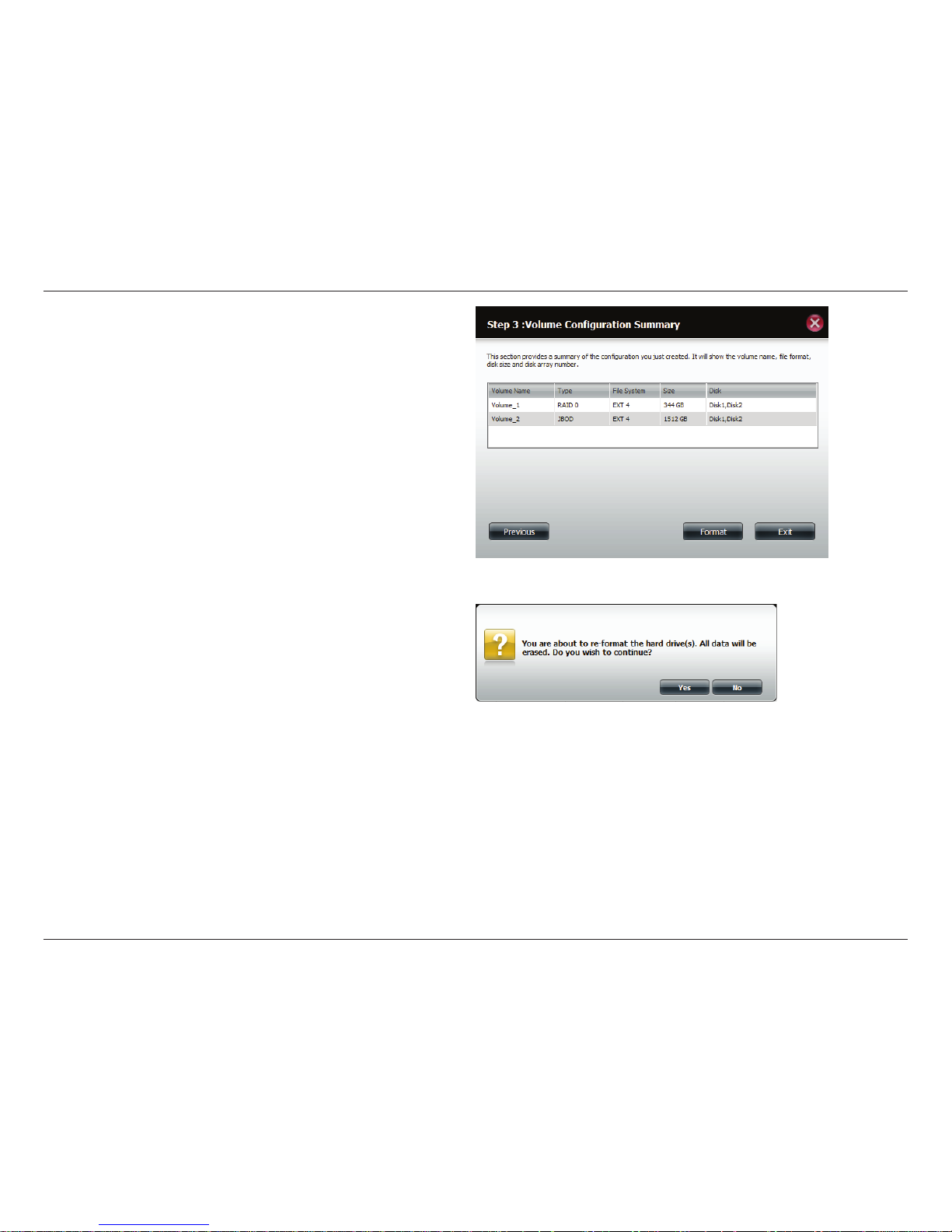

Step 23 - Review the detailed summary of your volume conguration
here before clicking next and starting the drive format. If necessary
use the PREV button to go back and reconfigure the RAID
conguration of the volume(s).
Click Next to continue.
Mapping a Drive and Checking Volume Summary
Page 34
30D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation

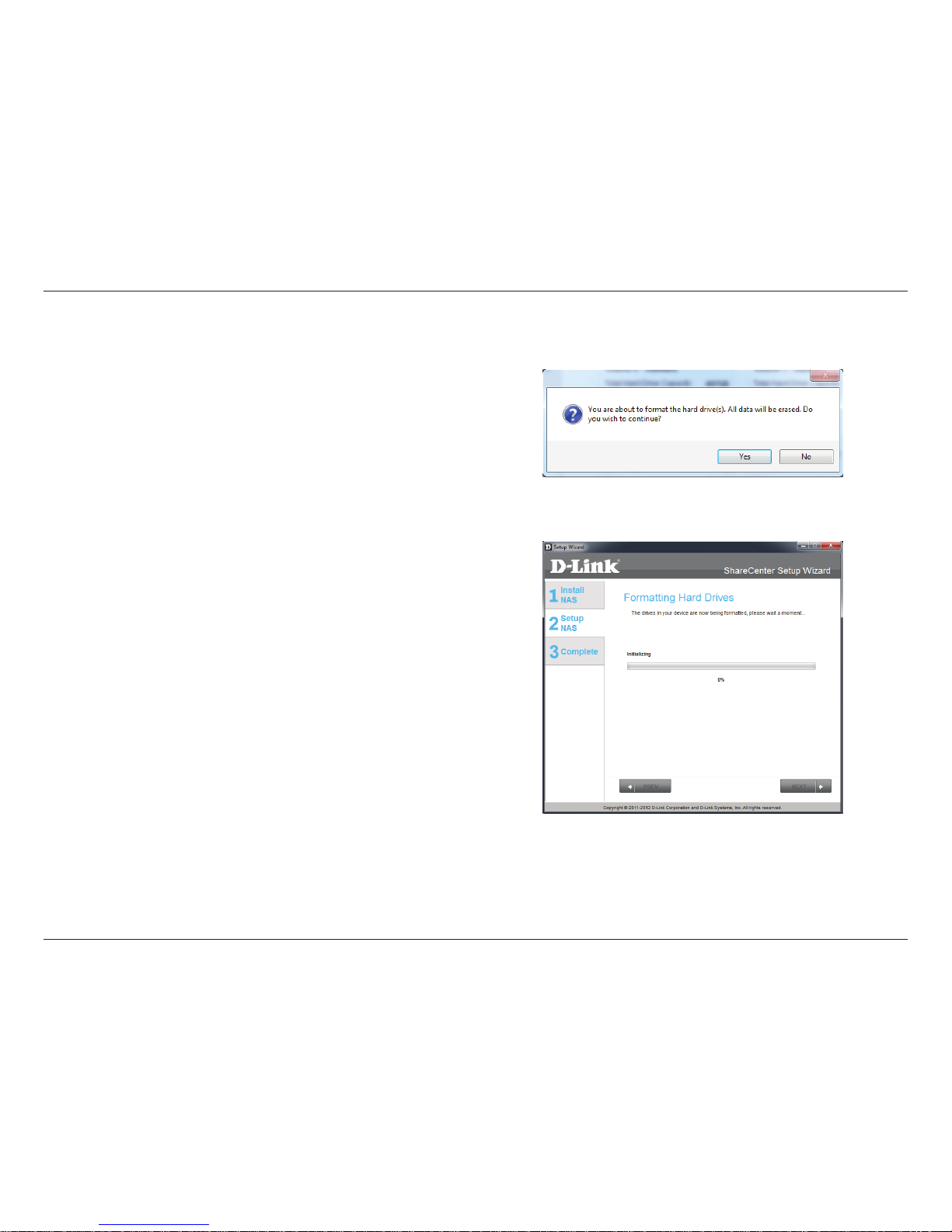

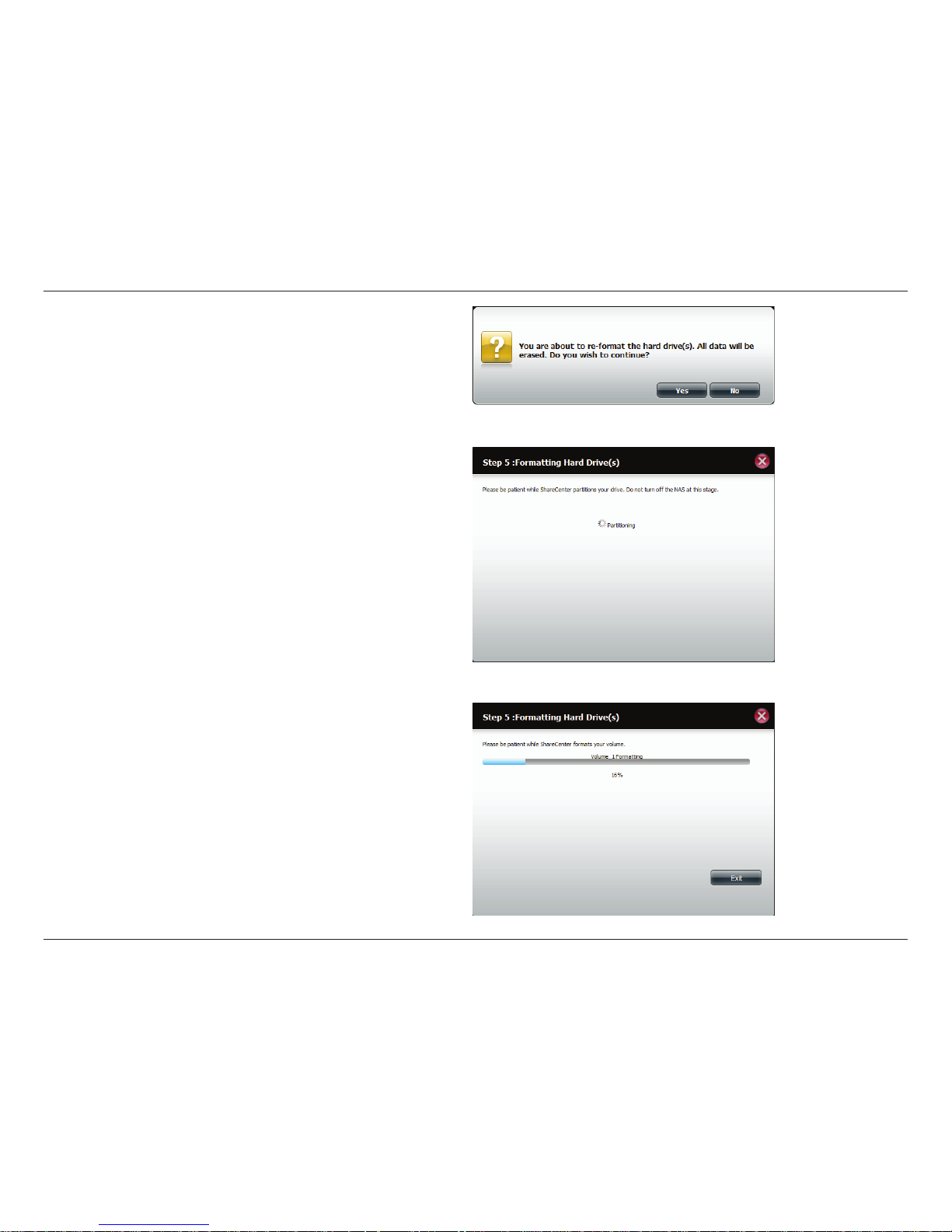

Step 24 - When you click Next, a warning message will appear
to inform you that all data on the drive(s) will be lost. Click Yes to
proceed or No to exit.
Click Next to continue.
Step 25 - During the formatting process the wizard displays a
percentage complete bar for each hard drive.
Click Next to continue.
Formatting Volumes
Page 35
31D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 26 - The wizard will notify you when formatting has completed
successfully.
Click Next to continue.
Formatting Hard Drives
Step 27 - The Format is complete.
Click Next to continue.
Page 36
32D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Connecting to the mydlink
Step 28 - D-Link has provided a mydlink service that allows you
to remotely access the les from your NAS through the mydlink
portal. Read the installation instructions and wait for the process
to complete.
Click Next to continue.
Page 37
33D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation

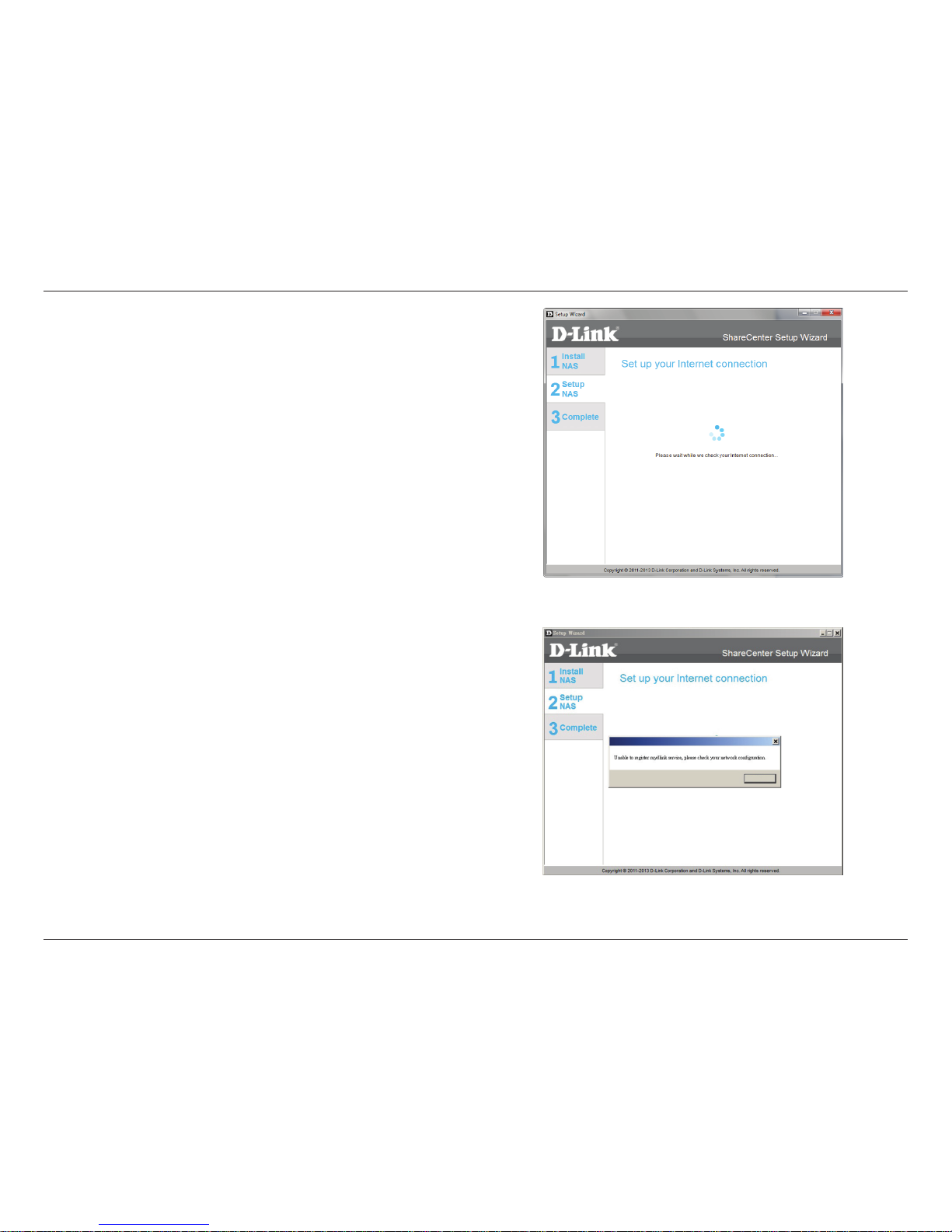

Step 29 - The wizard connects you to the mydlink servers and
congures your cloud service.
Click Next to continue.
Step 30 - When the wizard fails to connects you to the mydlink
servers and congures your cloud service, the following screen
appears to warn you of your network conguration.
Click Next to continue.
Page 38
34D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation

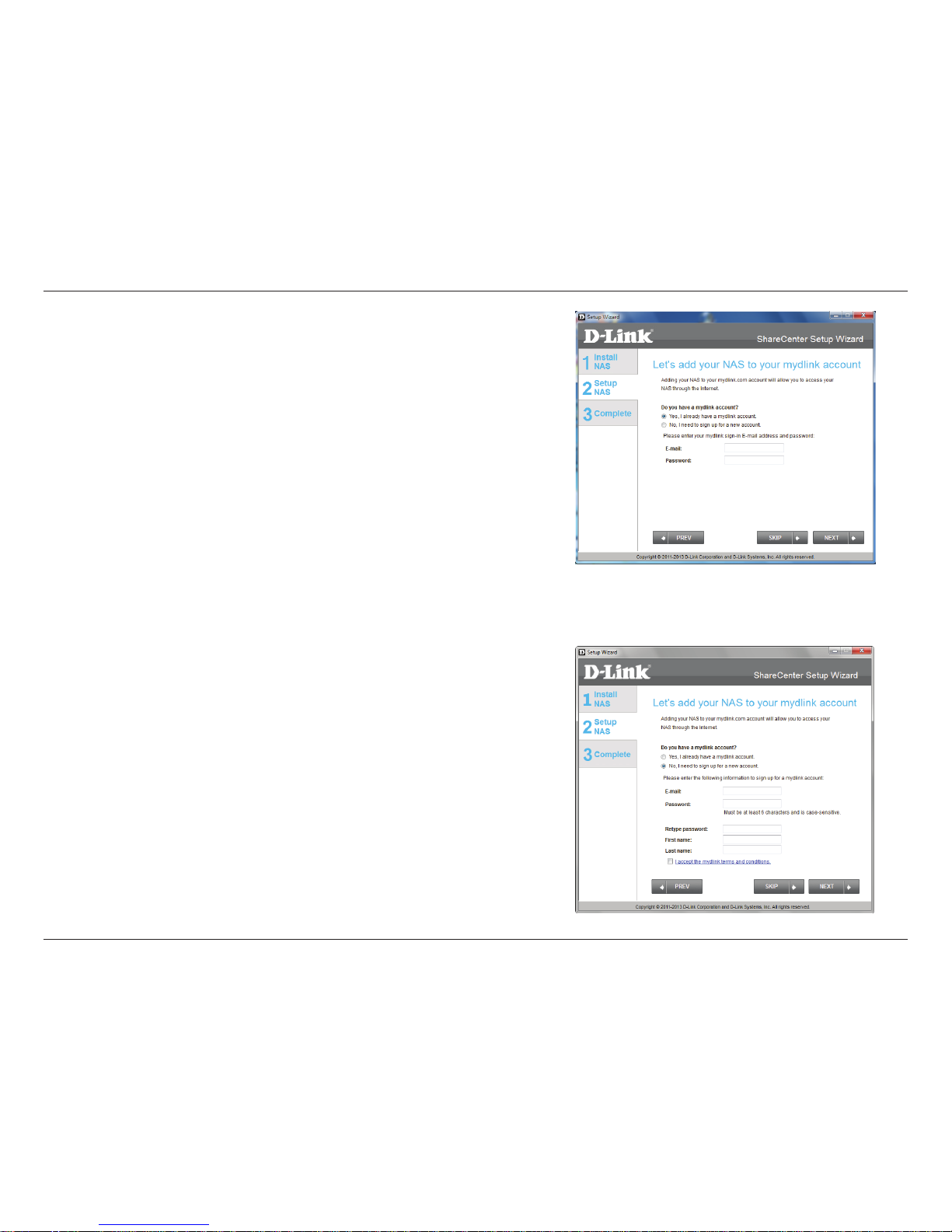

Step 31 - The next screen allows you to setup the remote mydlink
cloud service. Select the Yes radio button if you already have a
mydlink account.
Enter your email address and password.
Click Next to continue.
Step 32 - Alternatively, you can create a new account if you select
“No, I need to sign up for a new account.”
Enter your email address and a password that you can remember.
Then retype the password, enter a First Name and a Last Name. Then
click the checkbox that reads:
“I accept the mydlink terms and conditions.”
Click Next to continue.
Page 39
35D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation

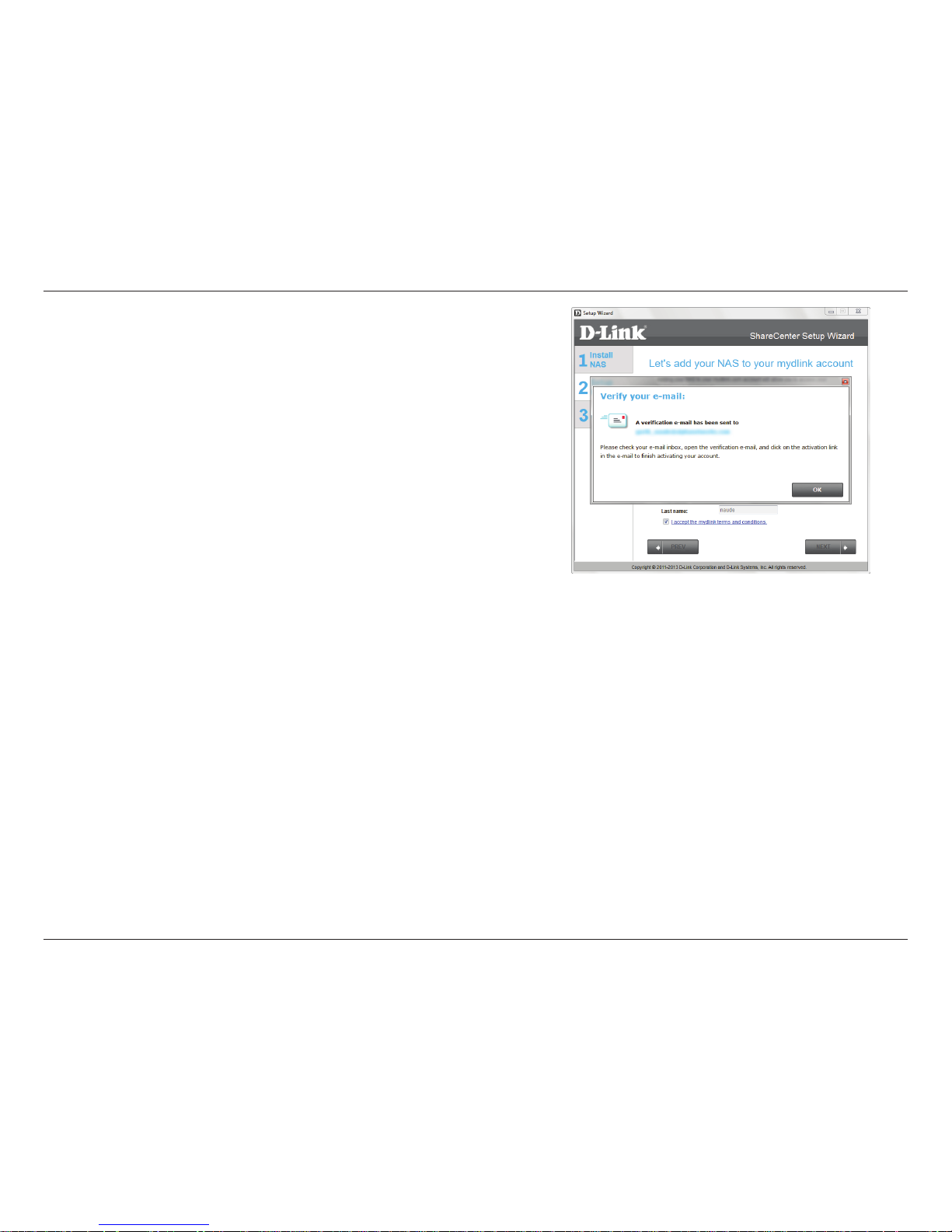

Step 33 - A message appears asking you to verify your email address
and account.
Click OK to continue.
Page 40
36D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 35 - The ShareCenter Setup Wizard is complete. Click Finish to
exit the wizard and start using your DNS-320LW.
Wizard Complete
Your ShareCenter is now installed and ready to use. If your drives
are mapped using the wizard, you will be able to access them under
your ‘My Computer’ icon.
If you did not use the wizard to map the drives, you can manually map
or access the created volumes through your computers operating
system. Detailed congurations using the Web UI is explained in the
conguration section of this manual.
Step 34 - The mydlink section of the wizard installation is complete.
The wizard provides you with a mydlink number. You can also tick
the Add mydlink to My Favorites checkbox, or Save a shortcut
to mydlink on my computer checkbox. You can use this mydlink
number for future reference.
Click Finish to continue.
Page 41
37D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Mapping a Drive
Map a drive to your ShareCenter using Windows® 7 to access it through Windows® Explorer.
Step 1 - Click Start, then Computer (the name of your computer).
On the right-side panel is a list of your hard drives, removable storage,
and network locations. If you do not have any network locations, this
may be the rst time you set up a network drive. Begin by clicking
on ‘Map network drive’.

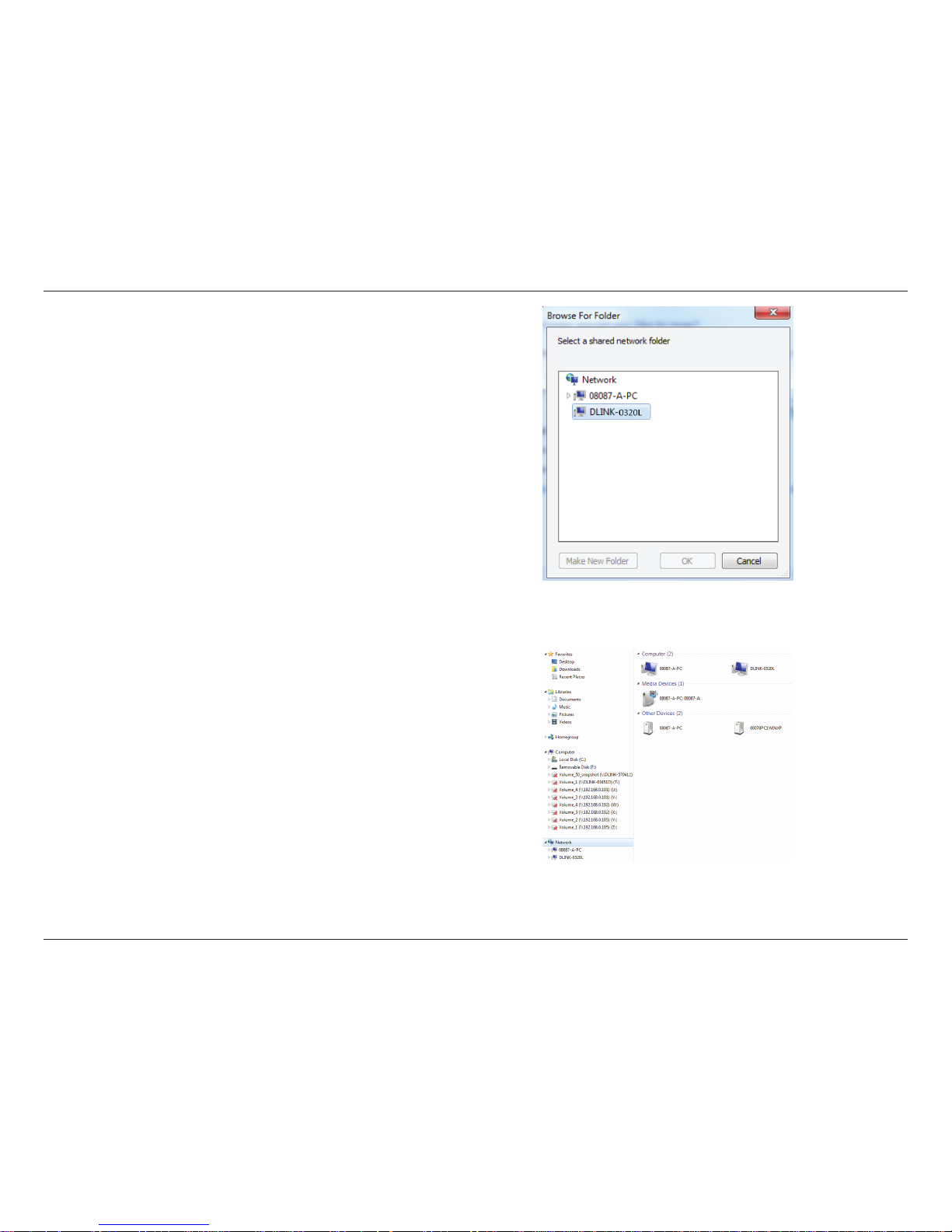

Step 2 - This screen shows some details on selecting a network drive.
Click Browse to nd your network.
Page 42
38D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 3 - Windows will automatically detect all devices on your
network including your ShareCenter.
Step 4 - Click on your ShareCenter to see the volumes you created
earlier. Then select the volume that you wish to access and click OK.
Page 43
39D-Link ShareCenter DNS-320LW User Manual
Section 3 - Installation
Step 5 - After selecting your volume, click Finish to proceed.
Step 6 - The drive will then appear in your Windows® Explorer under
Network. This means the drive is active and ready for use.
Page 44
40D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
ShareCenter Web UI (User Interface) is a browser-based utility that allows you to manage and congure the dierent tools and services. The Web
UI is divided into three main sections:
1. Home
2. Applications
3. Management
Managing your DNS-320LW
SECTION OPTION DESCRIPTION
Management Setup Wizard Step by step guide through password & time settings, connectivity, and device conguration
Disk Management Congures disk volumes, RAID, and performs disk diagnostics
Account Management Congures user and group management, network shares
Network Management Congures LAN, Dynamic DNS, and Port Forwarding
Application Management Congures FTP, UPnP, iTunes server congurations, AFP, and NFS services
System Management Congures language, time and date, device, and system settings. Also allows you to control
power, notications, view logs, do rmware upgrades, and manage USB devices.
System Status Displays system and hard drive information along with resource monitoring
SECTION OPTION DESCRIPTION
Applications FTP/HTTP Downloads Congure FTP and HTTP download settings
Remote Backup Congure remote backup services
Local Backups Congures local backups, Time Machine© settings, and USB backups
P2P Downloads Congure your P2P downloads and control your download schedules
My Files Access les on your NAS via a web browser
Amazon S3 Create, modify, and delete your Amazon S3© settings
SECTION OPTION DESCRIPTION
Home - My Folder My Photos Create albums and manage photos, share photos through social networking sites, and slideshows
My Files Access les on your NAS via a web browser
My Favorites Application Add the favorite applications you use on a regular basis to the Home page
Conguration
Page 45
41D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
The following screen will appear:
Note: The computer used to access the
ShareCenter
web-based conguration manager must be on the same subnet as the
ShareCenter.
If your network is using a DHCP server and the computer receives IP settings from the DHCP, the
ShareCenter®
will
automatically be in the same subnet.

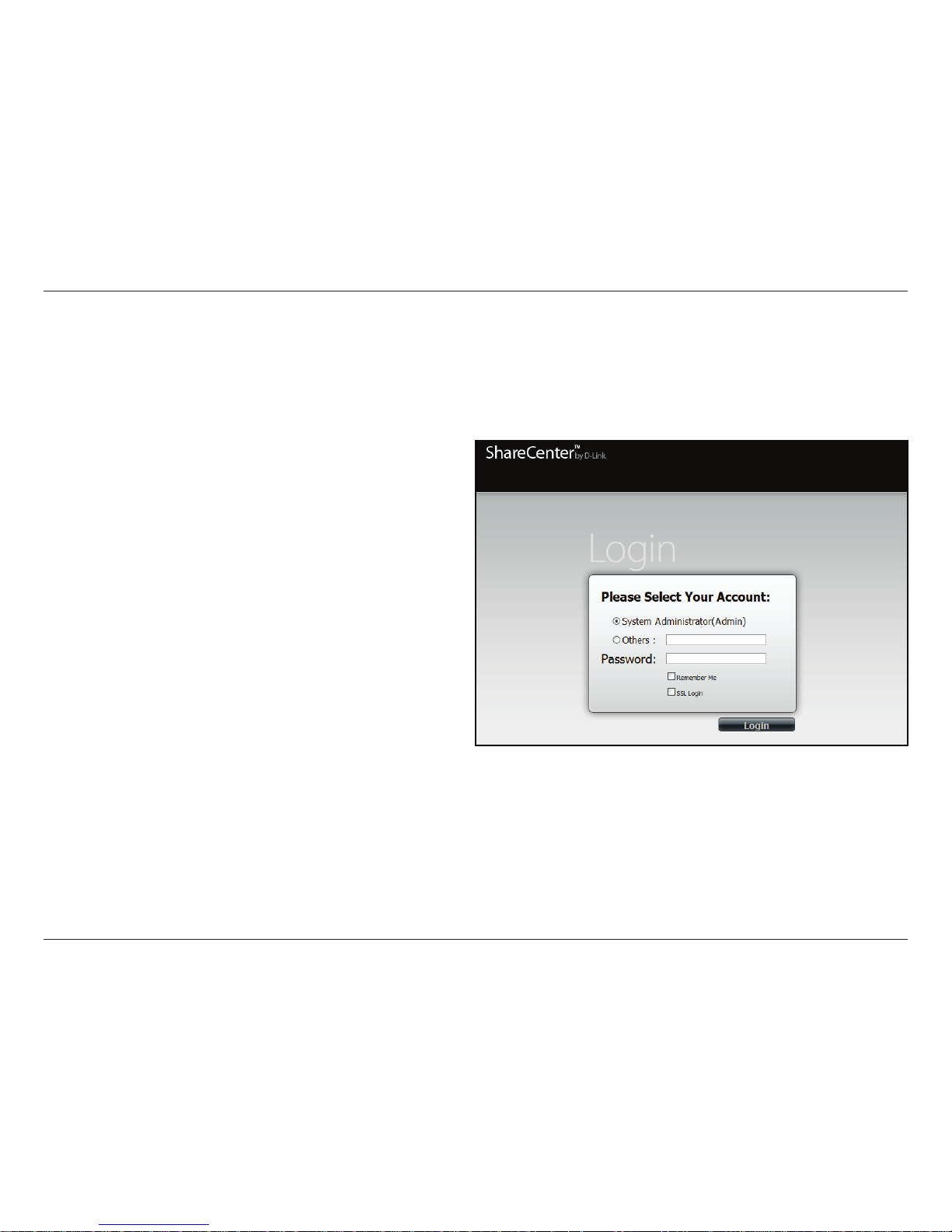

To access the Web UI, open a web browser, type in the IP address of your ShareCenter, and log in. You can nd the IP address
of your NAS by pressing the Next button on the front of the DNS-320LW.
Select System Administrator and enter the password created during
the Setup Wizard. Click Login.
Web UI Login
Page 46
42D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

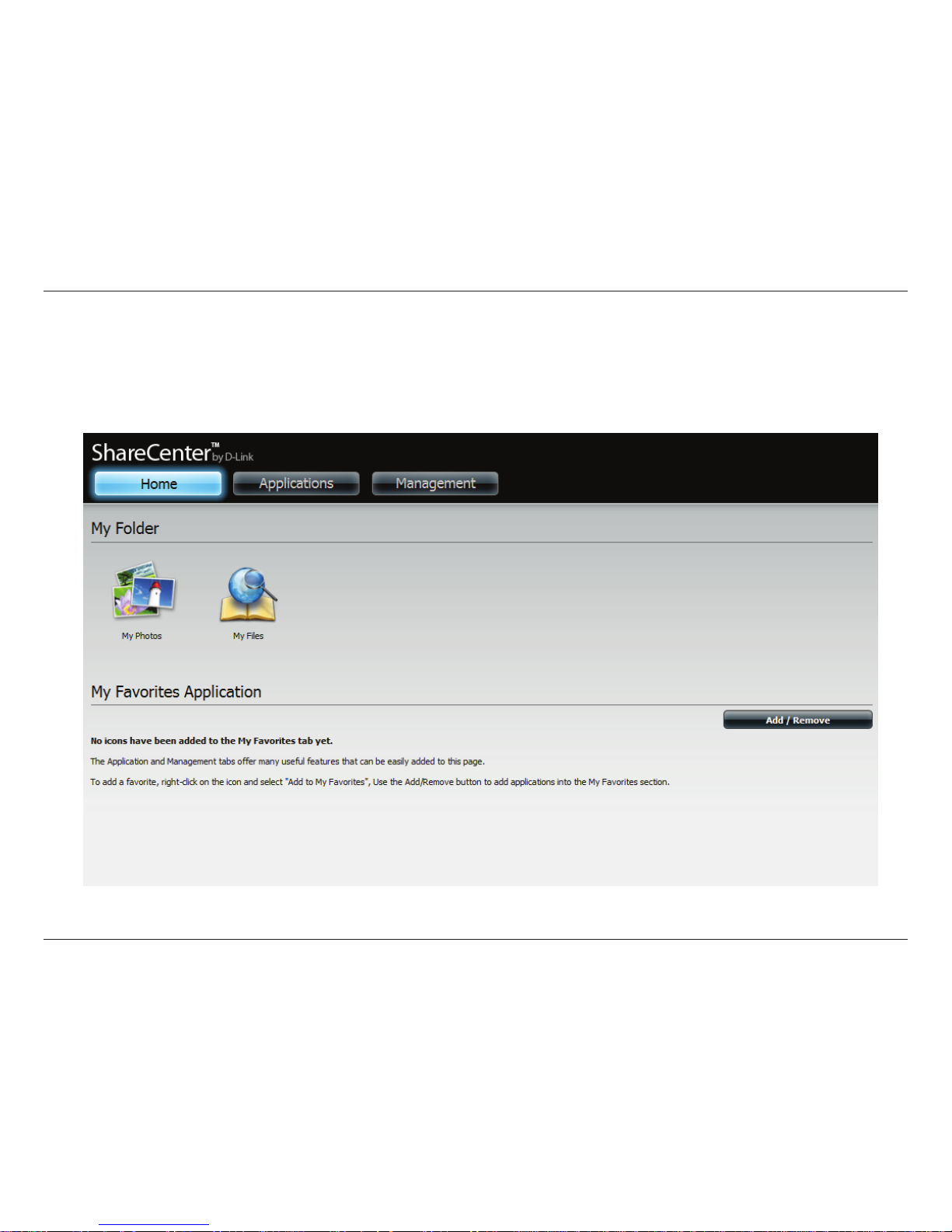

After logging in, the ShareCenter ‘Home’ tab will appear. You will see the Applications and Management tabs alongside of it.
Web UI General Layout
Home
Page 47
43D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Applications
The Applications tab contains FTP/HTTP Downloads, Remote Backups, Local Backups, P2P Downloads, My Files, and Amazon S3 icons. Click on
each icon to see the submenus.
Page 48
44D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

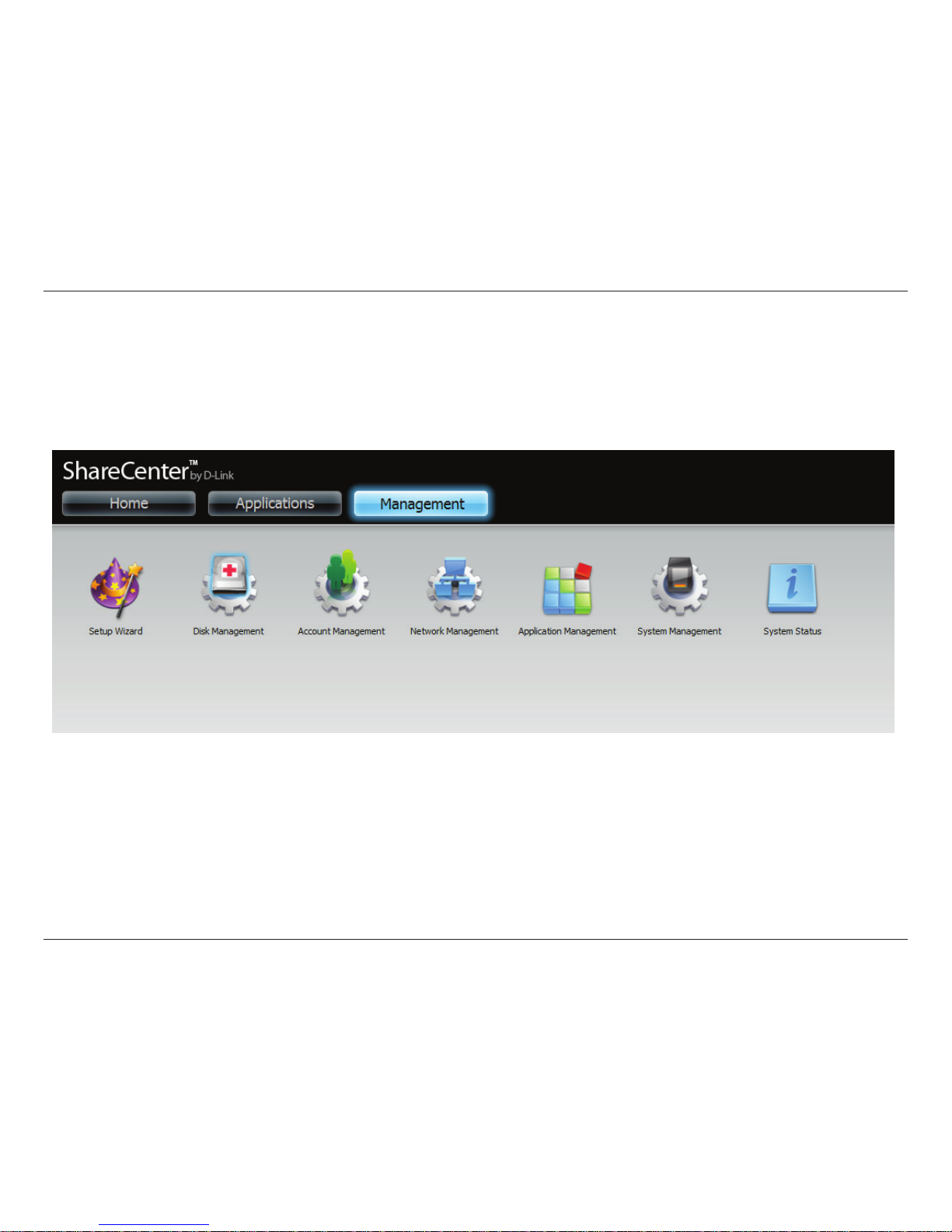

Management
The Management tab contains the Setup Wizard, Disk Management, Account Management, Network Management, Application Management,
System Management, and Status icons. Click on each icon to see the submenus.
Page 49
45D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Setup Wizard (Web UI)
The ShareCenter has a Setup Wizard that allows you to quickly congure some of the basic device settings. Click the Setup Wizard icon to start
the Setup Wizard.
Step 1 - Click the Run Wizard button to start the setup wizard.
Step 2 - Click Next to continue.
Management
Page 50
46D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

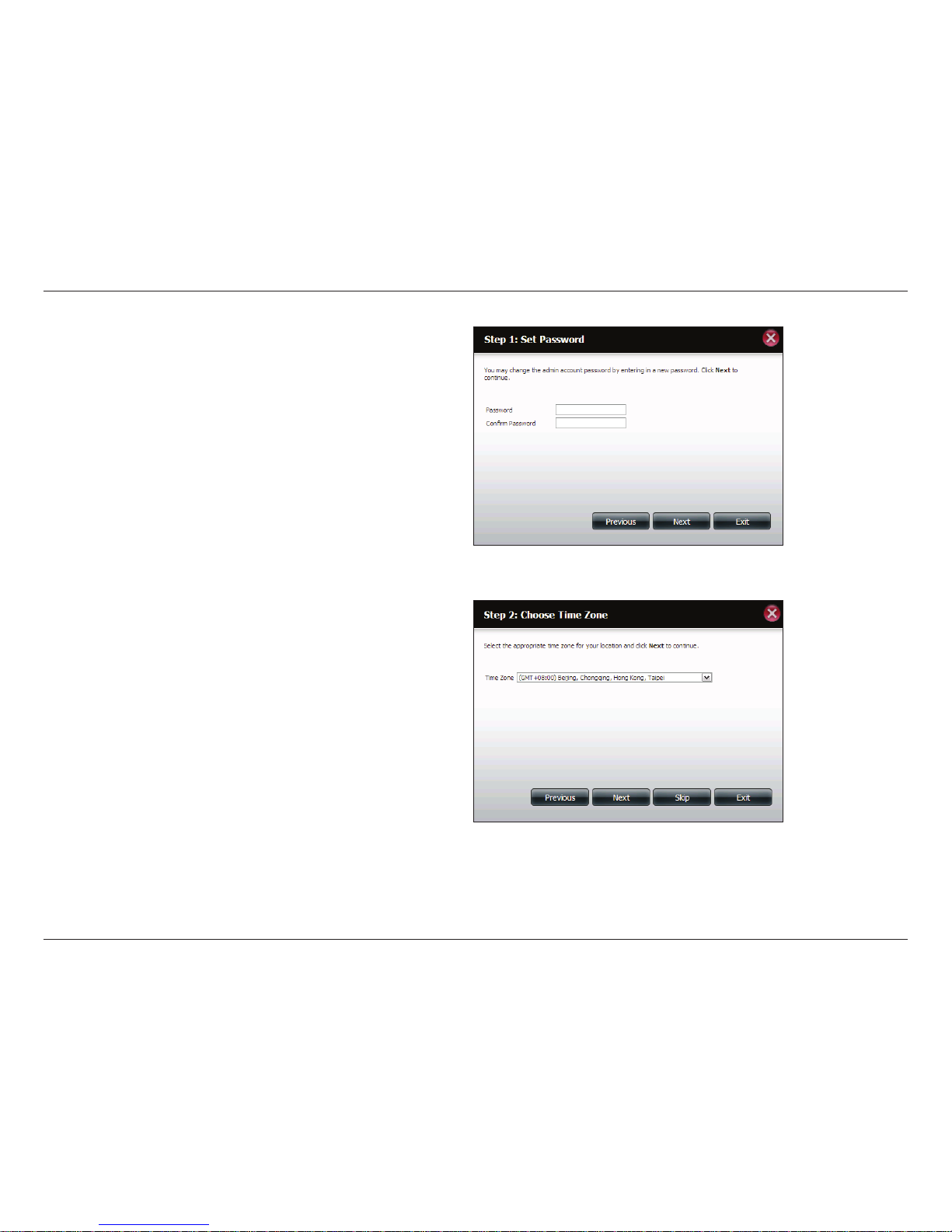

Step 3 - Update the administrator account password here and
conrm the password or leave it blank.
Click Next to continue.
Step 4 - Set the time zone from the drop-down menu to the
appropriate geographical zone closest to your location.
Click Next to continue or click Skip to ignore these settings.
Page 51
47D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 5 - Select DHCP to obtain IP settings automatically from a
DHCP server (router) or Static to assign the parameters below
manually.
IP Address: Enter an IP address for the DNS-320LW.
Subnet Mask: Enter the subnet mask of your network.
Gateway IP Address: Enter the IP address of your gateway
(usually the local IP of your router).
DNS Servers: Enter the IP address(es) of your DNS server(s).
DNS1 is usually the IP address of your router.
Click Next to continue or click Skip to ignore these settings.
Step 6 - Here you can assign a workgroup and name to the
ShareCenter with a short description.
Click Next to continue or click Skip to ignore these settings.
Page 52
48D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

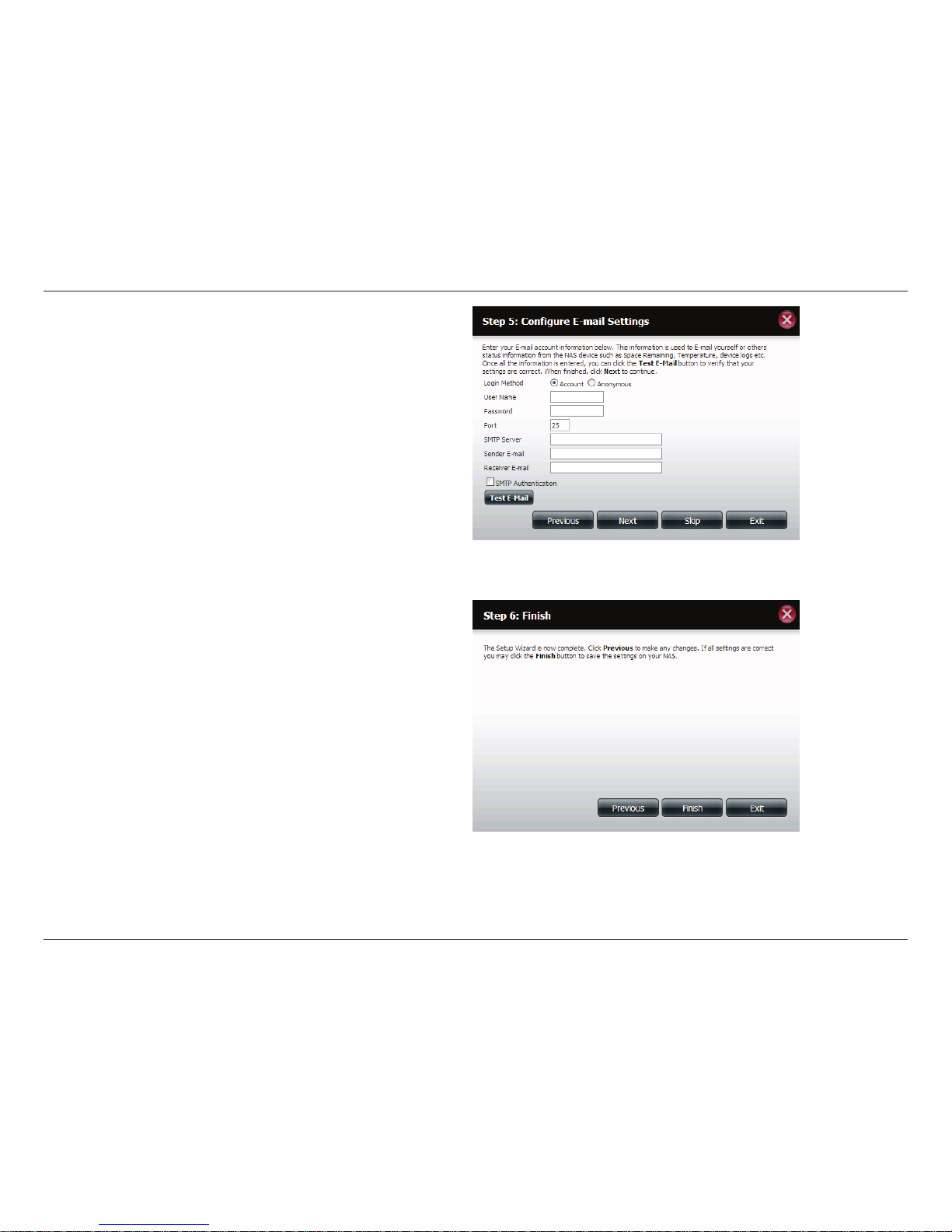

Step 7 - Click Account and enter your e-mail information in the
boxes provided to receive Event Alerts from the ShareCenter.
Click Anonymous to create a random account with no specic
settings.
Click Next to continue or click Skip to ignore these settings.
Step 8 - Click the Previous button to go back and check your
settings. If you are satised with the settings, click the Finish
button to save and complete the wizard. Click Exit to end the
wizard without saving the settings.
Page 53
49D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Disk Management
Hard Drive Conguration
To setup the Hard Drive RAID conguration of your ShareCenter, click on the Management tab and then the Disk Management icon. Select the
Hard Drive Conguration menu item on the left of the window. This menu will allow you to set the RAID type and format your hard drives.
Hard Drive
Conguration:
Your Share C e n ter hard d rive s ca n b e
congured here and formatted in various RAID
congurations.
Current Raid Type: If the drives are already formatted the RAID
conguration will be displayed here.
Set RAID type and
Reformat:
Click on this button to launch a wizard that
allows you to select the RAID conguration
and format the drives.
Auto-Rebuild
Conguration:
If you have chosen RAID 1 as the conguration
option, then set the Auto-Rebuild function
here using the radio buttons.
Enable Auto-Rebuild: Enabling Auto-Rebuild will rebuild a failed
RAID 1 drive when a new drive has replaced
the degraded one.
Disable Auto-Rebuild: If you do not want to automatically rebuild
drives after a failure when using the RAID 1
functionality then you can check this option.
Note: You can still rebuild a drive using the RAID
1 functionality however you must initiate the
rebuild manually.
Manual Rebuild Now: If Auto-Rebuild is disabled then you can use
the Manual Rebuild option by clicking this
button.
Page 54
50D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Hard Drive Conguration Wizard

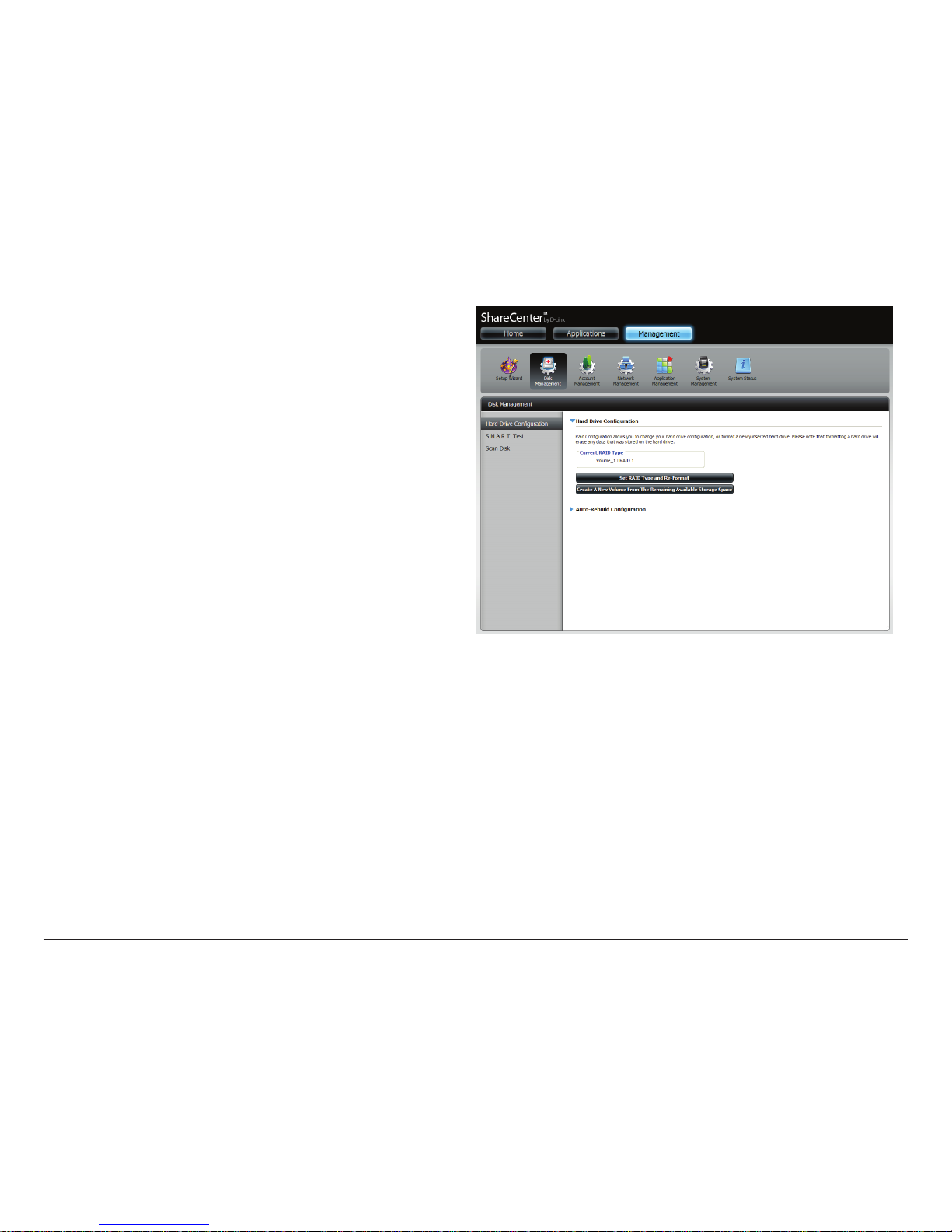

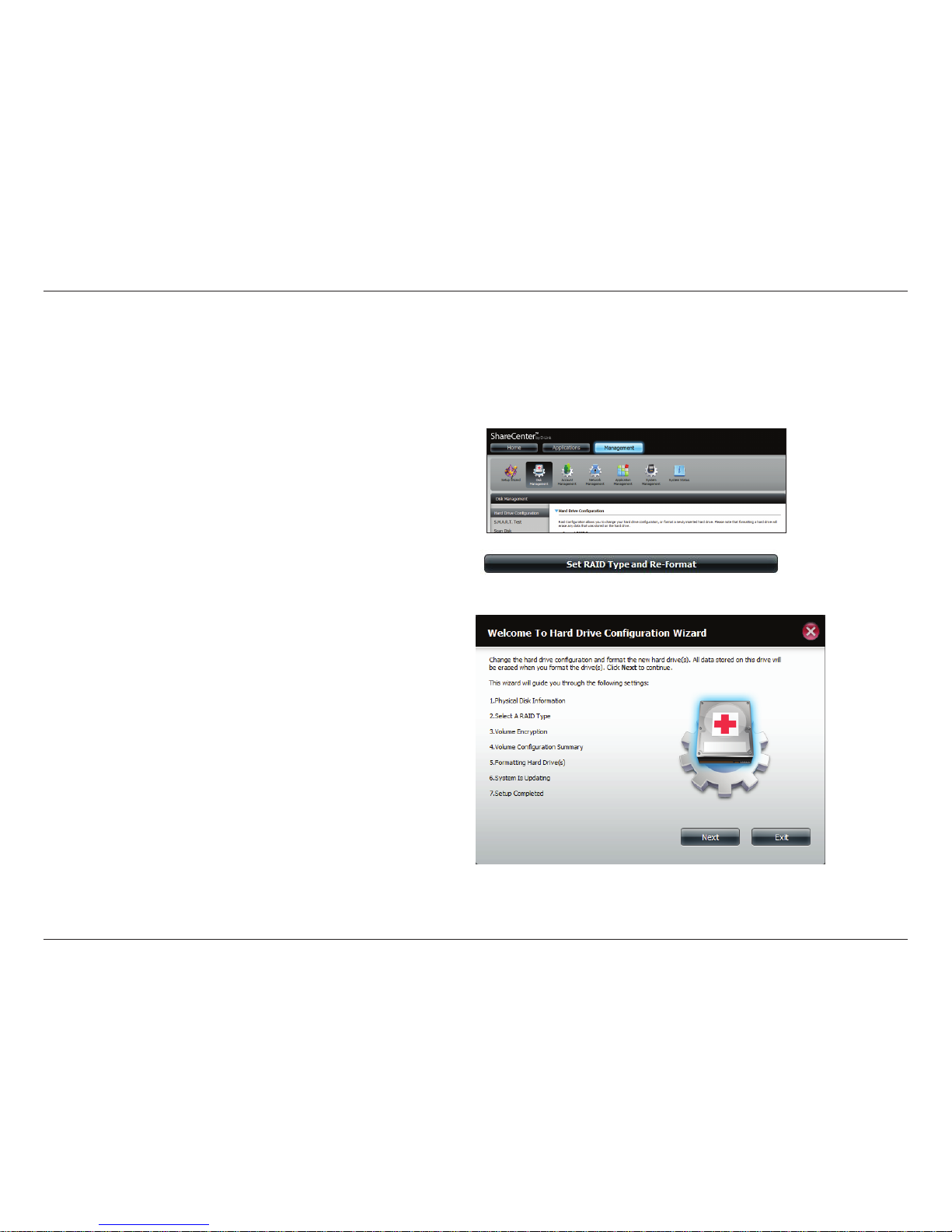

The Hard Drive Conguration page displays the current RAID
conguration under ‘Current RAID Type’.
Click Set RAID Type and Re-Format.
When you click on the Set RAID type and Re-Format button in the Disk Management-Hard Drive Conguration menu a wizard will start, allowing
you to format your drives and create the volume RAID format. The following is an example of a standard volume conguration:

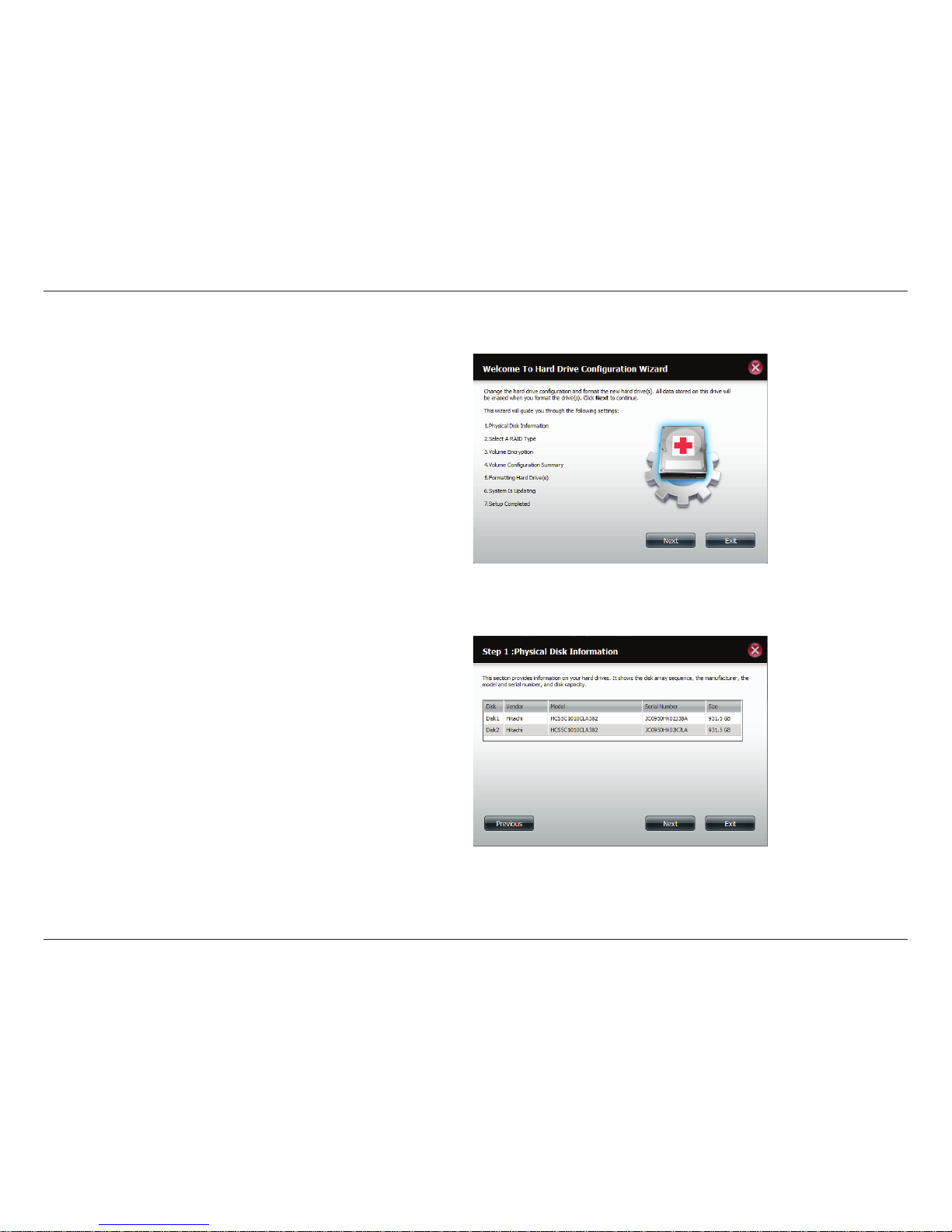

The Setup Wizard begins.
Page 55
51D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

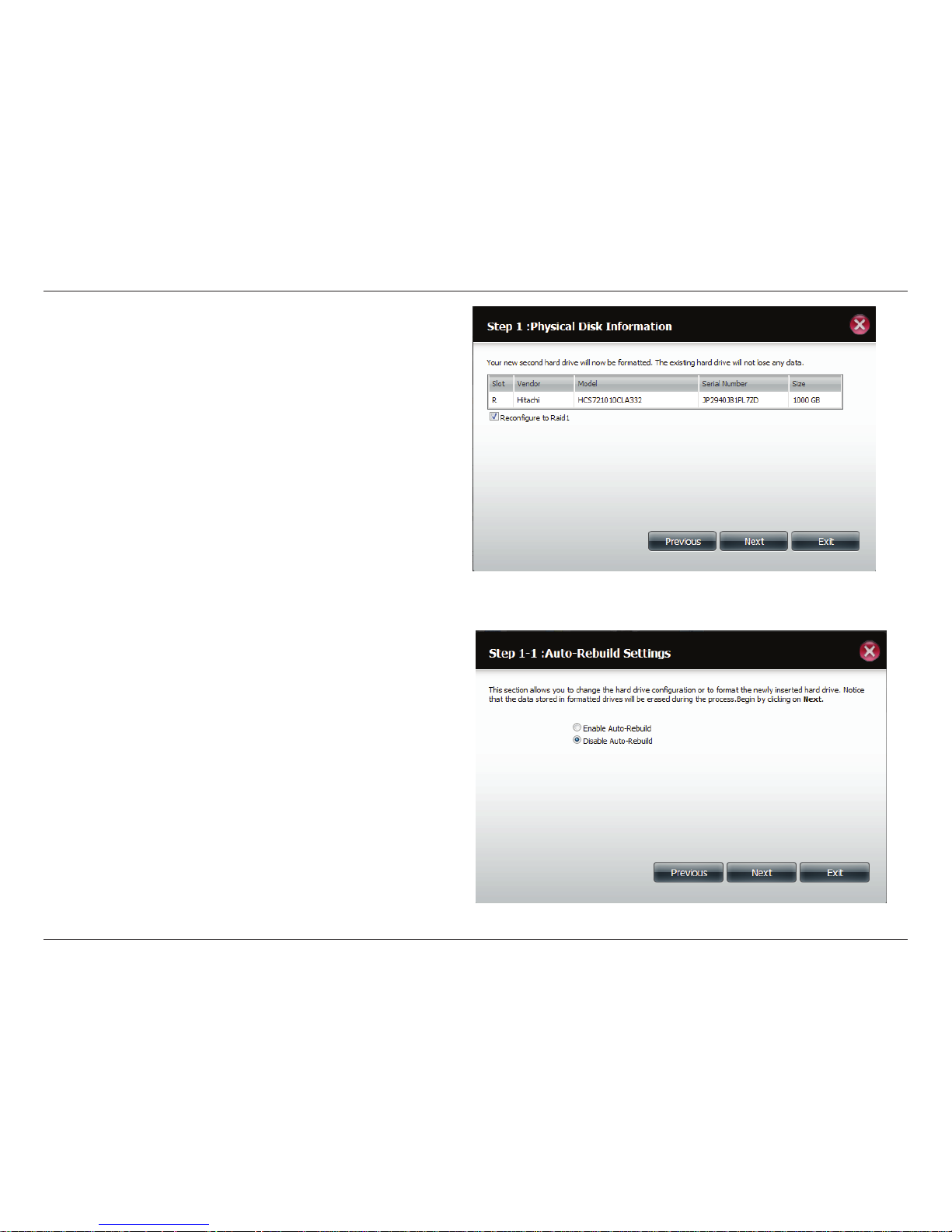

The ‘Physical Disk Information’ page displays all of the hard
drives on the DNS-320LW. It shows the array number, vendor,
model, serial number, and drive capacity.
Click Next to continue.
Select the format you want by clicking on the RAID type box
(highlight in blue).
Click Next to continue.
Page 56
52D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Select Standard to create separate volumes for each individual
drive.
Click Next to continue.
The ‘Volume Conguration Summary’ shows details on all of
the congured drives. Check the details on the list and click
Format to continue or click Previous to make changes.
Page 57
53D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

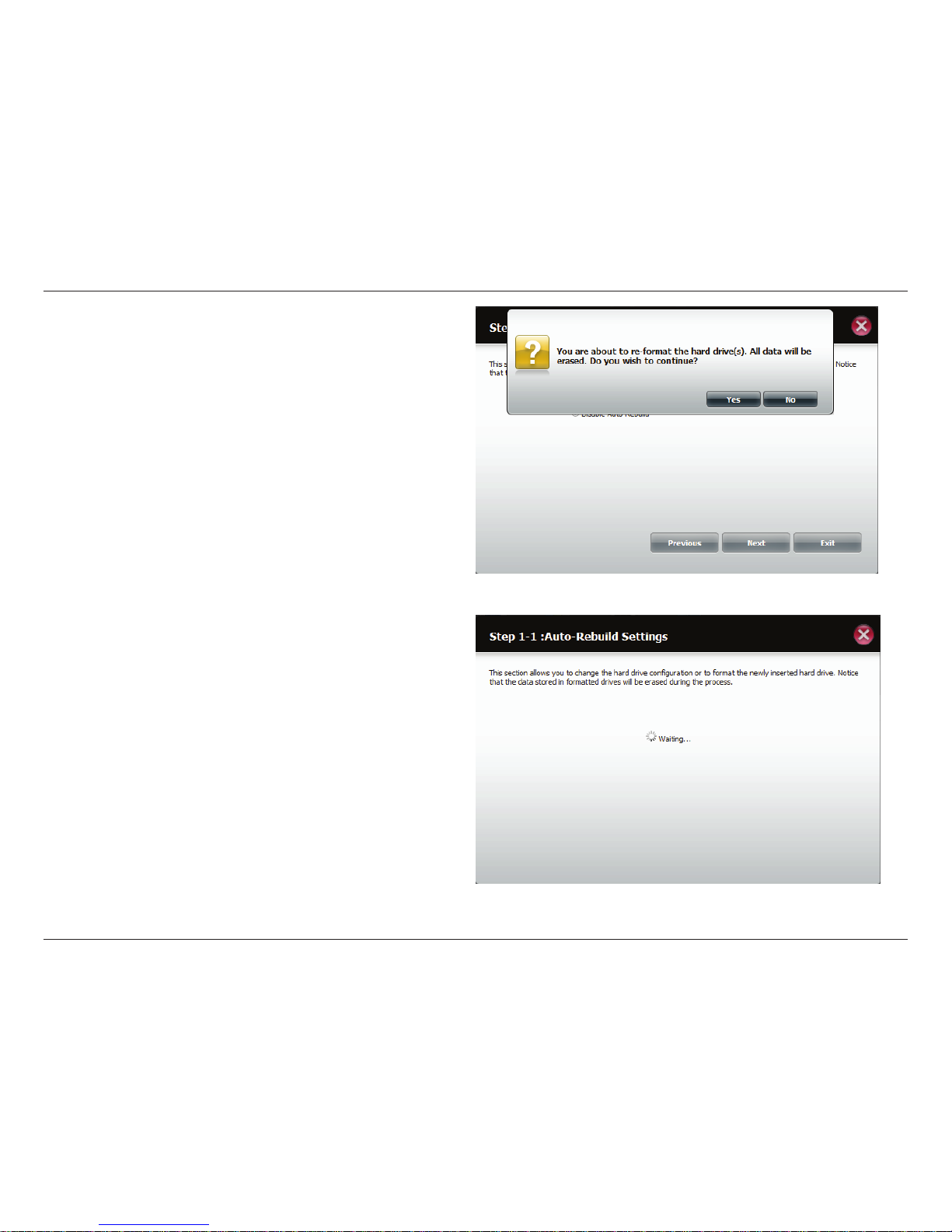

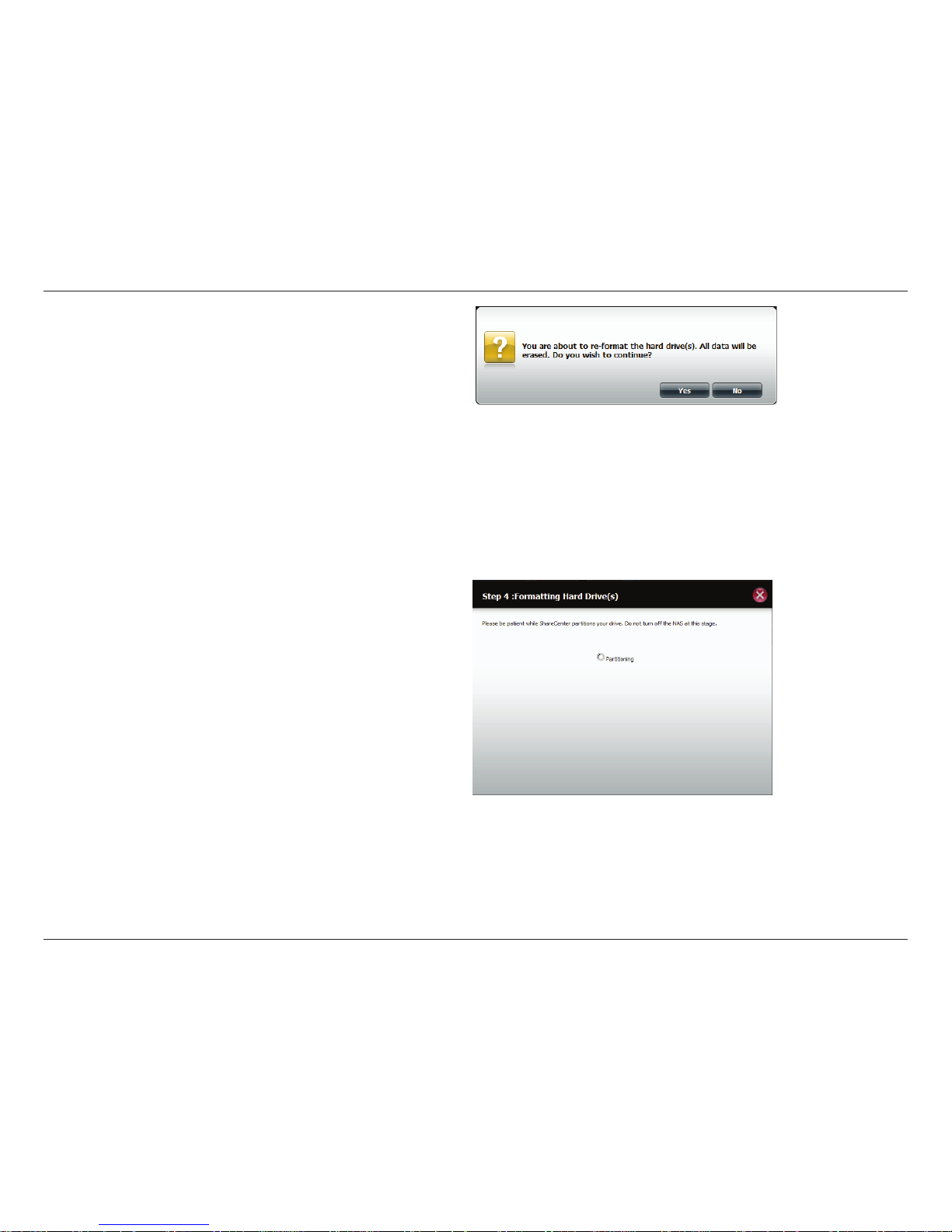

A warning message will appear to inform you that all volumes
and data will be formatted and erased.
Click Yes to continue.
Partitioning will now begin. Please be patient while this process
takes place. Do not turn o your NAS during this process.

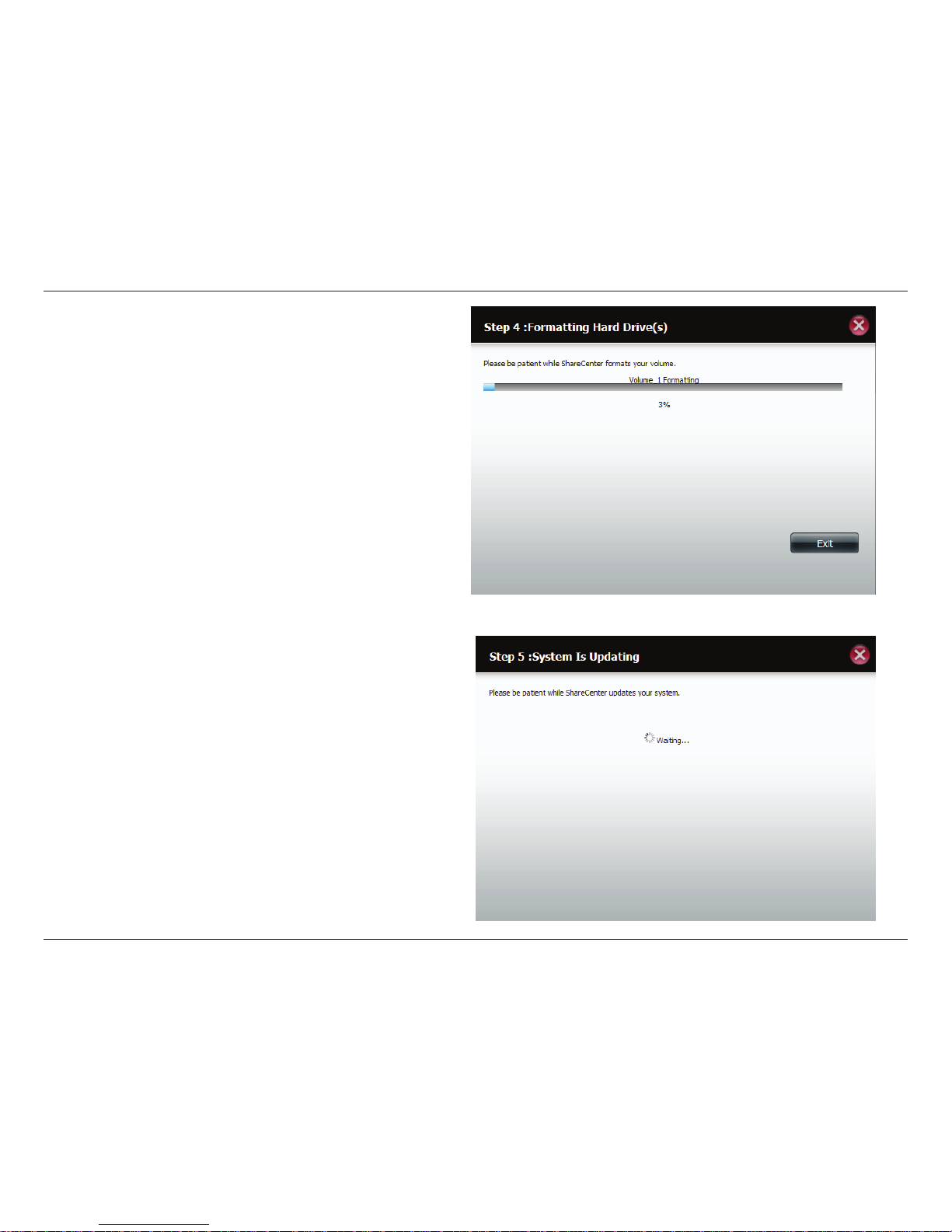

Once the partition is completed, the formatting process will
begin. A graphical bar will show the volume being formatted.
Do not turn o your NAS during this process.
If you would like to change your settings at this stage, click Exit.
Page 58
54D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
The system will now update all of the changes made.
Please be patient during this process. Do not turn o your NAS
during this process.
The Wizard starts to partition the second drive if you have
installed it.
If you would like to change your settings at this stage, click Exit.
Page 59
55D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

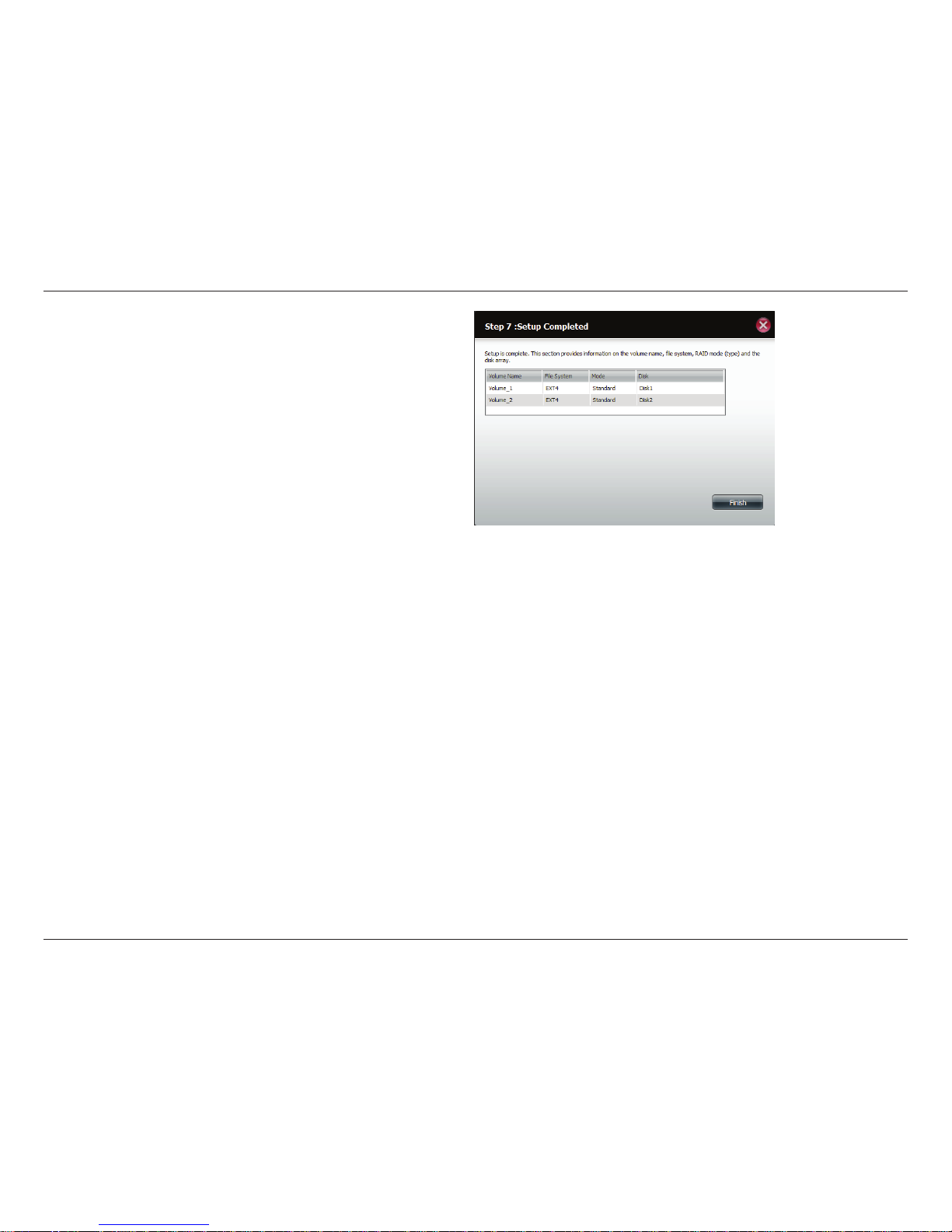

The wizard is now complete. It will show the volume number(s),
le system selected, the type of RAID, and the disk formation
in the RAID.
Click Finish to complete the process and start using your
DNS-320LW.
Page 60
56D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
JBOD
Select JBOD to create a single volume from all of the drives.
Click Next to continue.

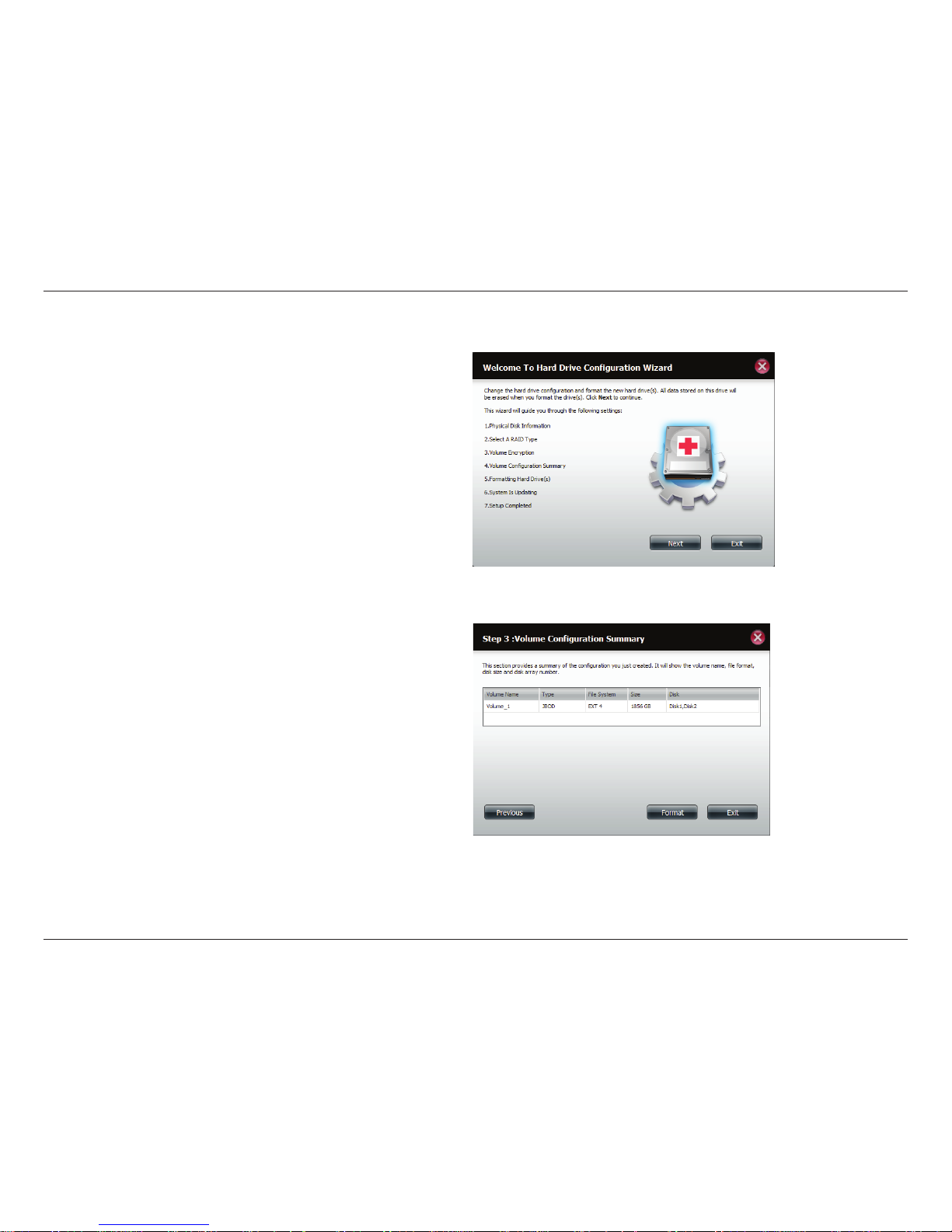

The wizard displays a Volume Conguration Summary of the
drive you want to convert to JBOD.
Click Format to continue or Previous make changes.
Page 61
57D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Wait for the Wizard to prepare the drive for conguration
A warning message will appear to inform you that all volumes
and data will be formatted and erased.
Click Yes to continue.
Page 62
58D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

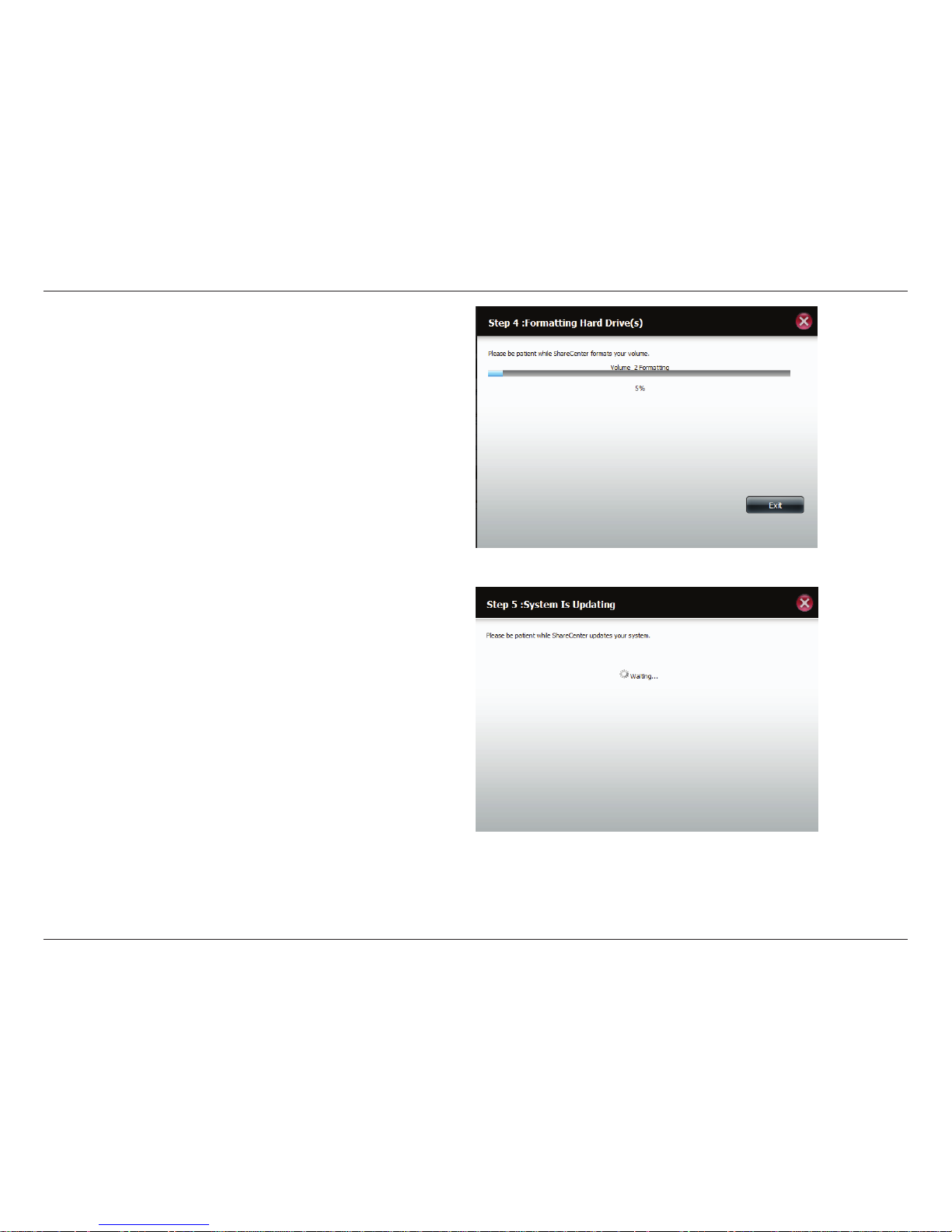

The Format process begins
The System Updates
Page 63
59D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

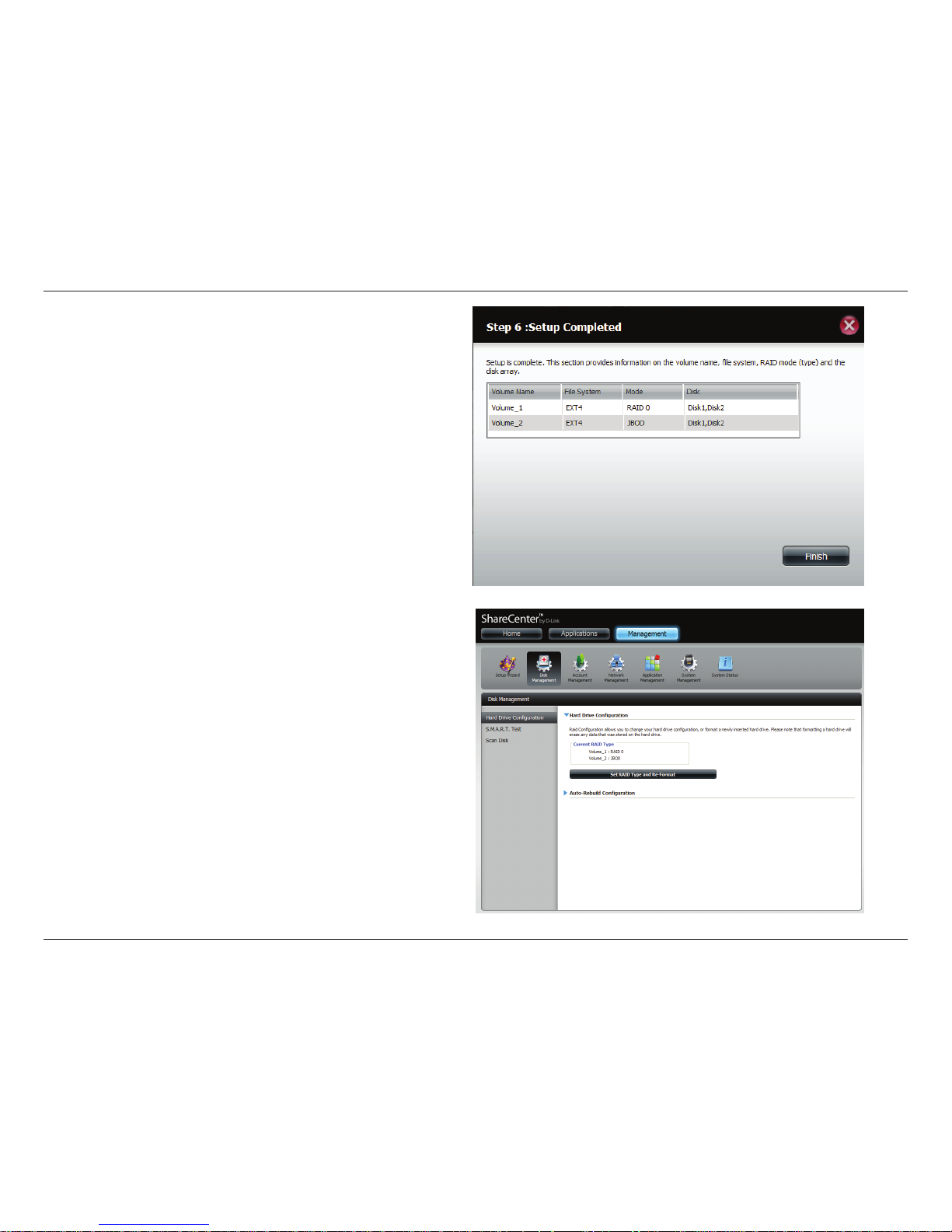

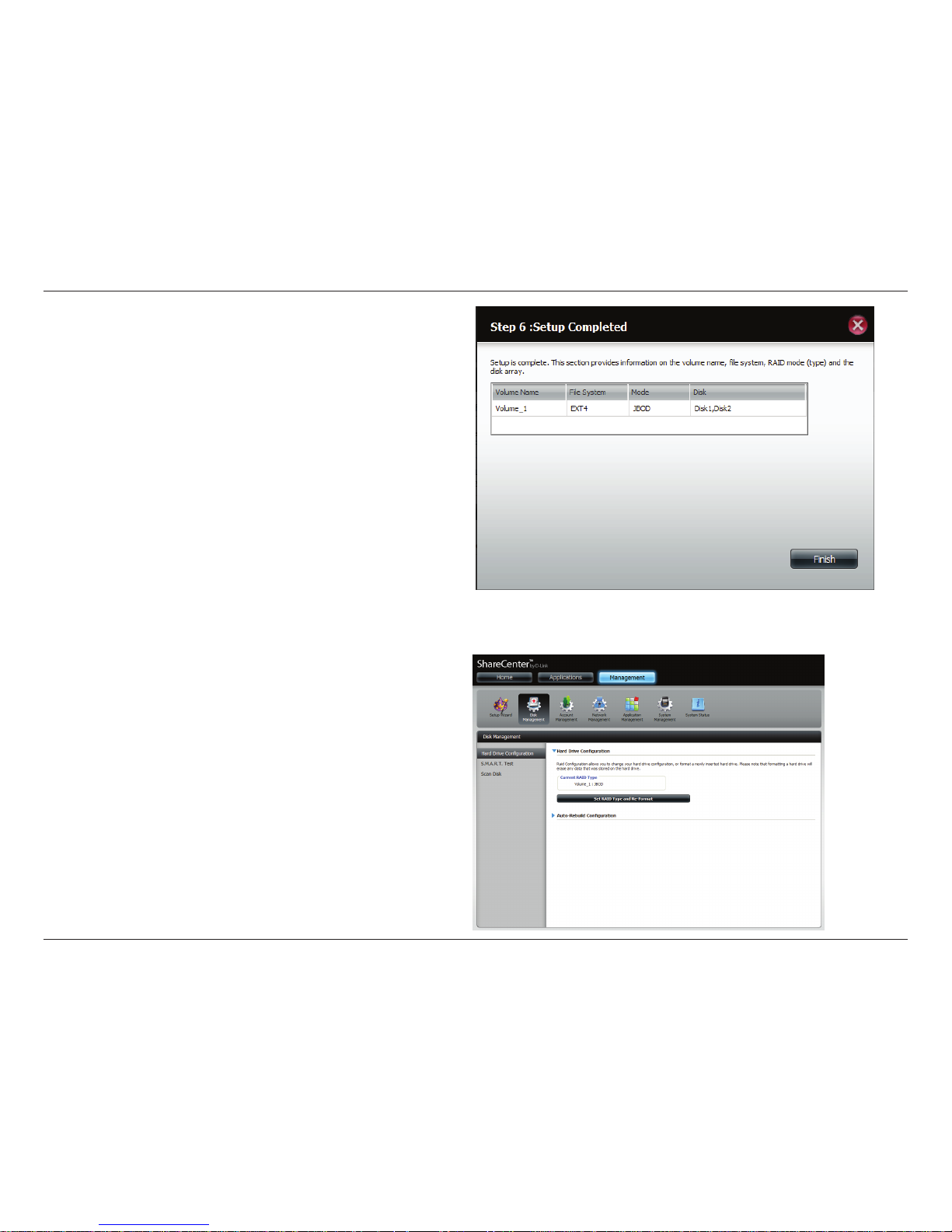

The wizard is now complete. It will show the volume name, le
system, and Mode.
Click Finish to complete the process and start using your
DNS-320LW.
The wizard returns you to the main screen. Here you can see
the current RAID Type.
Page 64
60D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
RAID 0
Select RAID 0 (stripes all of the drives).
Click Next to continue.
View the Physical Disk Information.
Click Next to continue.
Page 65
61D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Select the RAID Type. In this example it’s RAID 0
Click Next to continue.
Select the size of your RAID 0 conguration.
Click Next to continue.
Page 66
62D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
The ‘Volume Conguration Summary’ shows details on all of
the congured drives. Check the details on the list and click
Format to continue or click Previous to make changes.
A warning message will appear to inform you that all volumes
and data will be formatted and erased.
Click Yes to continue.
Page 67
63D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Partitioning will now begin. Please be patient while this process
takes place. Do not turn o your NAS during this process.
The system formats the First Volume.
If you would like to change your settings at this stage, click Exit.
Page 68
64D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
The system will now format the second Volume.
Please be patient during this process. Do not turn o your NAS
during this process.
The system will now update all of the changes made.
Please be patient during this process. Do not turn o your NAS
during this process.
Page 69
65D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
The wizard is now complete. It will show the volume number(s),
le system selected, the type of RAID, and the disk formation
in the RAID.
Click Finish to complete the process and start using your
DNS-320LW.
The wizard returns you to main Hardware Conguration page.
Under Current RAID Type, you can view your changes.
Page 70
66D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
RAID 1
Select RAID 1 to mirror all the hard drives.
Click Next to continue.
View the Physical Disk Information.
Click Next to continue.
Page 71
67D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Select the RAID TYPE you want
Click Next to continue.
Enter the amount of disk space you would like to assign to the
rst volume for RAID 1.
Click Next to continue.
Page 72
68D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

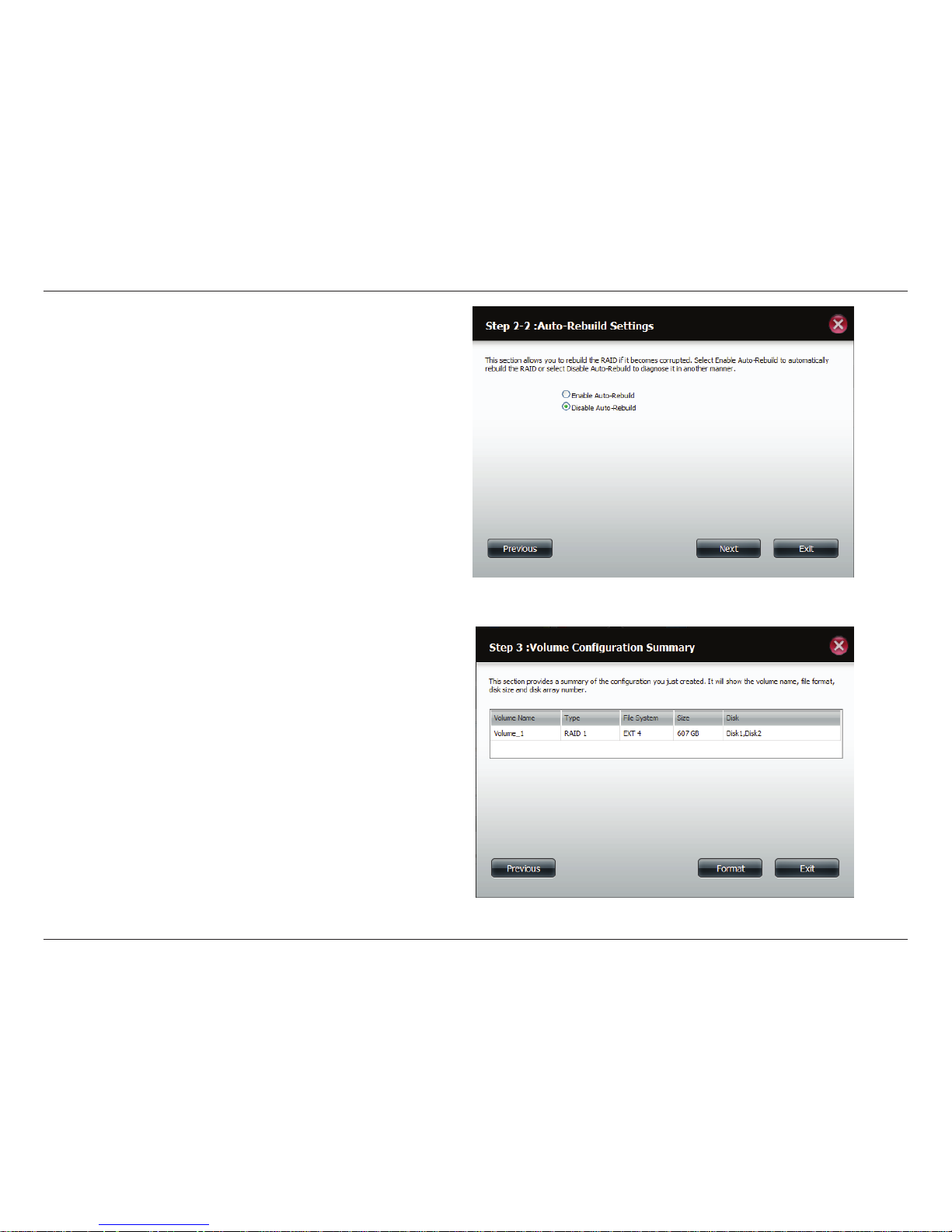

Click Enable Auto-Rebuild to automatically rebuild a failed
drive if it has been replaced with a new one.
Select Disable Auto-Rebuild if you want to start the rebuild
process manually after replacing a failed drive.
Click Next to continue.
The Volume Conguration Summary shows the Volume Name,
Type, File System, and size of the RAID volume.
Click Format to continue.
Page 73
69D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
A warning message will appear, stating that your device will
have some latency.
Click Yes to continue.
Partitioning will now begin. Please be patient while this process
takes place. Do not turn o your NAS during this process.
The system formats the First Volume.
If you would like to change your settings at this stage, click Exit.
Page 74
70D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
The system updates.
Click Next to continue.
Setup is complete. Setup provides a Volume Name, File System,
and Mode.
Page 75
71D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Once you have completed the wizard. ShareCenter will return
to the main screen.
The RAID 1 conguration you just set will be displayed.
Page 76
72D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Upgrade from Standard Mode to RAID 1
Standard Mode doesn’t oer any redundancy and security of data. It is best then to migrate from Standard Mode to RAID 1. To do this follow these
instructions:
Step 1 - Insert a second hard drive into the DNS-320LW.
Step 2 - Replace the top and restart the DNS-320LW.
Page 77
73D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 3 - Go to Management, Disk Management, Hard Drive
Conguration. There are two options available: Set RAID Type
and Re-Format or Format the new drive as Standard type.
If you select the latter option your Hard Drive Conguration
Wizard shows six procedures but if you select the Set RAID
Type and Re-Format, the Hard Drive Conguration Wizard
only has four procedures. Take a look at the two images below
to compare.
Click Next to continue.
Format the new drive as Standard type.
Set RAID Type and Re-Format.
Page 78
74D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 4 - Under Physical Disk Information, you will be able to
see the drive you just installed. It provides the slot location,
vendor, model number, serial number, and disk size.
Just below this informational box is a checkbox that oers
you the option to Recongure the drive to RAID 1. Click the
checkbox to proceed.
Click Next to continue.
Step 5 - Under Auto-Rebuild Settings, select whether you
want to enable auto rebuild or disable auto rebuild.
Click Next to continue.
Page 79
75D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 6 - A warning message will appear prompting you to
conrm whether you want to format your hard drive. Click Yes
to continue or No to exit.
Click Next to continue.
Step 7 - The software communicates with the hardware to
build a list.
Page 80
76D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 6 - The Wizard formats the hard drive.
Click Next to continue.
Step 7 - The System updates.
Click Next to continue.
Page 81
77D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 8 - Setup is completed when it shows nal information on
the slot, vendor, model number, and serial number.
Click Finish to continue.

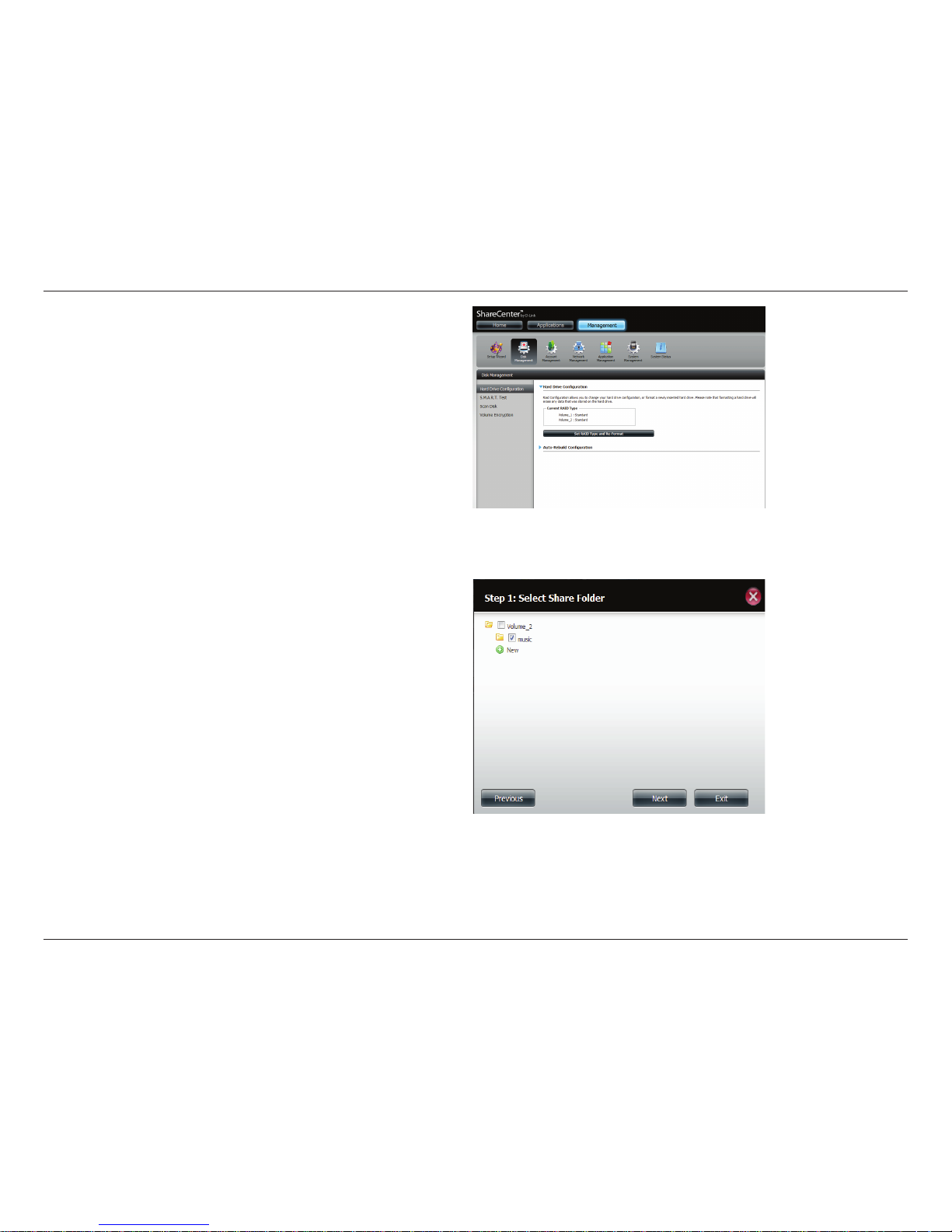

Step 9 - The wizard returns to the main Hard Drive Conguration
.
Page 82
78D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
S.M.A.R.T. Test

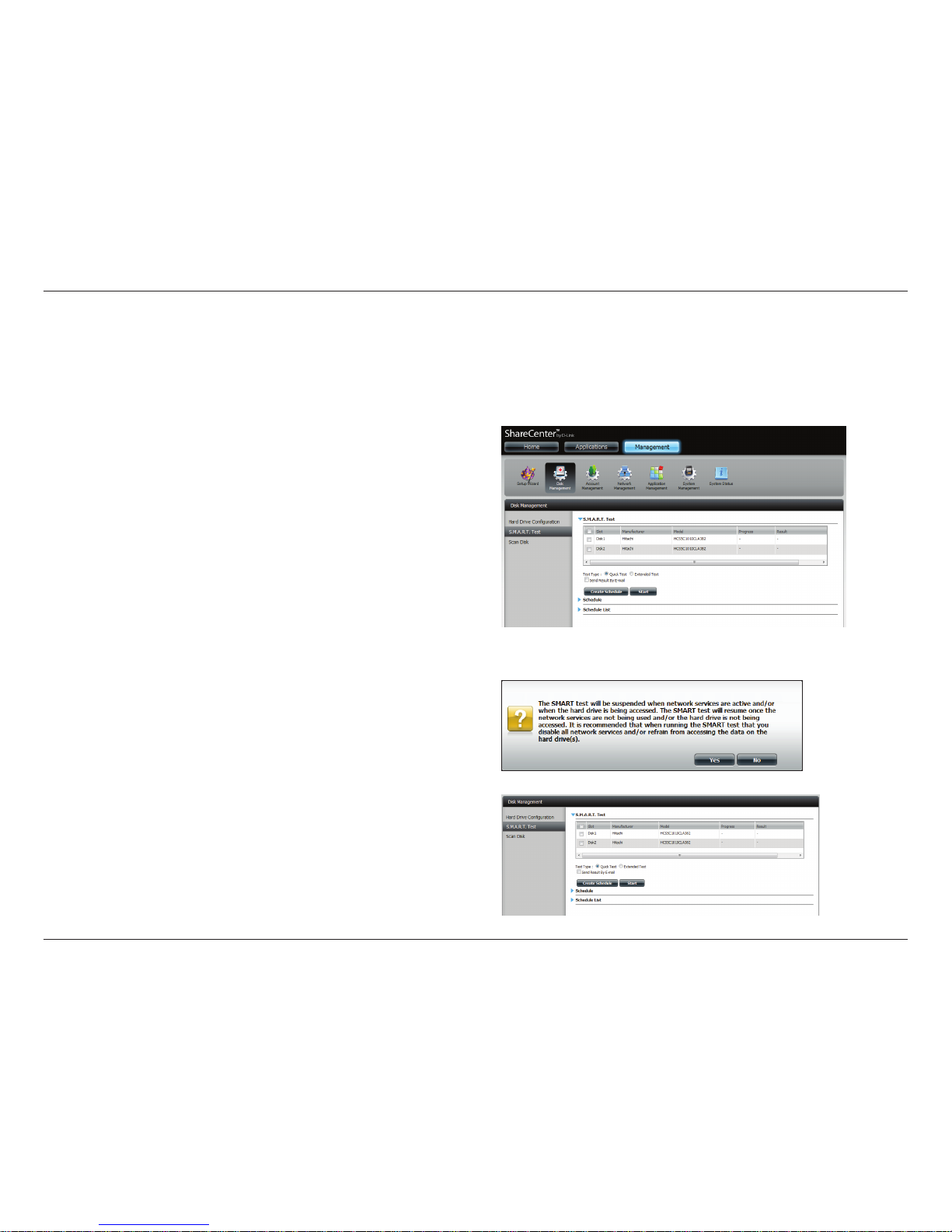

To run the S.M.A.R.T test, select the hard drive you wish to perform
the S.M.A.R.T test on. Select whether to run a Quick or Extended
S.M.A.R.T test. Then click Start to run the test. Click the Create
Schedule button to run the test at a pre-determined time and
date.
The Quick Test usually takes less than 10 minutes. This test will
check the electrical, mechanical, and read performance of the
hard drive. The results are displayed as Passed/Failed on the web
UI and can also be sent as an e-mail alert.
The Extended Test requires a lot more time to complete. However,
it is a more thorough when compared to the Quick Test
A warning message will prompt you to stop all services and
network activity.
Click Yes to continue the Quick S.M.A.R.T. test.
The test will run and a percentage completed will display under
the Progress Tab.
The Start button will change to a Stop button.
S.M.A.R.T stands for “Self-Monitoring, Analysis, and Reporting Technology”. This is a system on a hard drive used to monitor and report on the health
of the drive. If the HD is grayed out, then it does not support S.M.A.R.T.
Page 83
79D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
When the test is complete, the results will be displayed in the
Result column.
Page 84
80D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

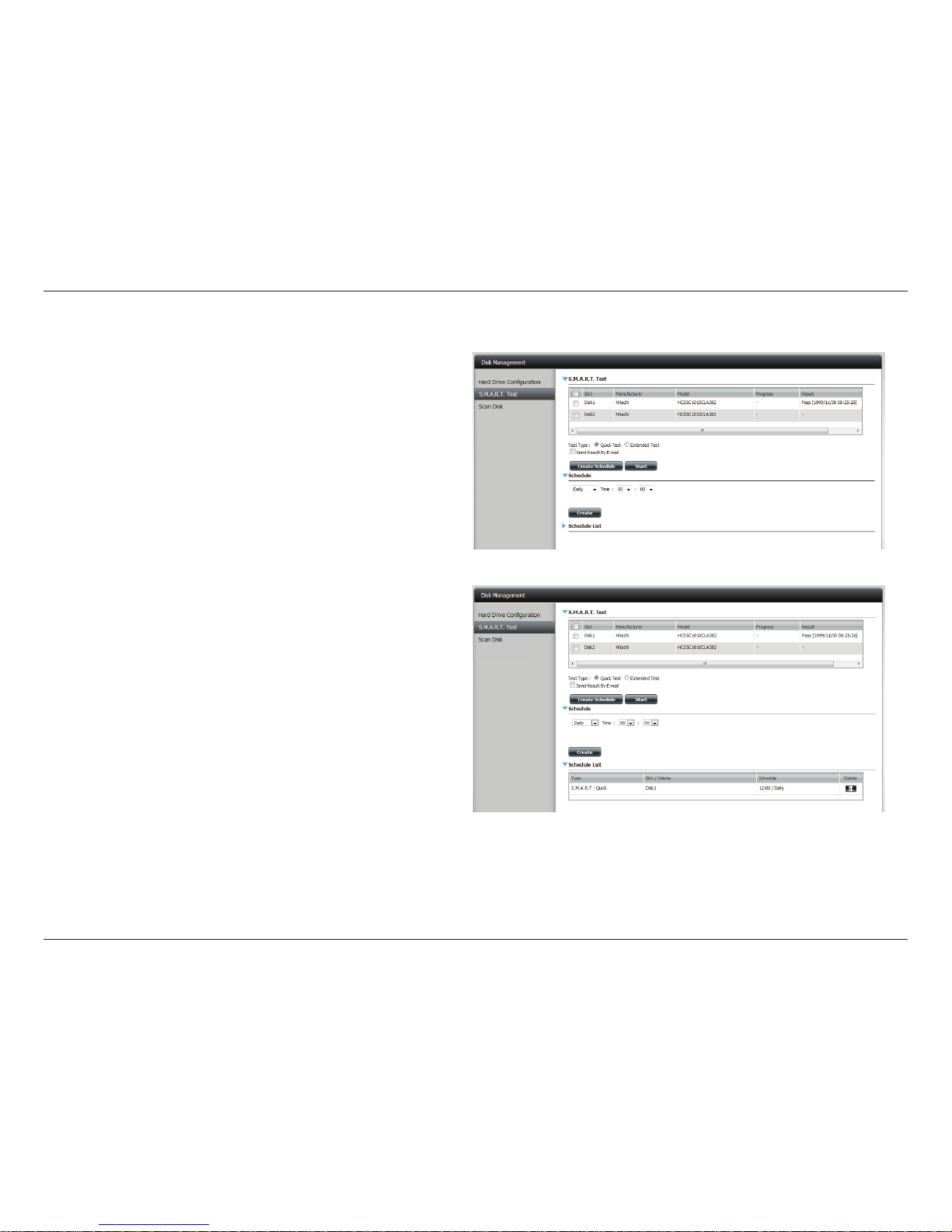

Creating a Schedule
To create a schedule, select the disks/volumes to run the test
on. Under Schedule, select the period (Daily/Weekly/Monthly)
and then select the time from the drop-down menu.
Click Create
To view the Schedule List, click on the Schedule List arrow.
A new table will appear showing details of the new schedule
created.
To delete a schedule, click on the Trash Can.
Page 85
81D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Scan Disk
Scan Disk provides a method to test the disk’s le system on your ShareCenter. Scan Disk scans your disks le system for errors and/or corruption.
Click Management, Disk Management, and then Scan Disk.
Select the volume from the drop-down list you wish to scan.
Click Scan Disk
Page 86
82D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

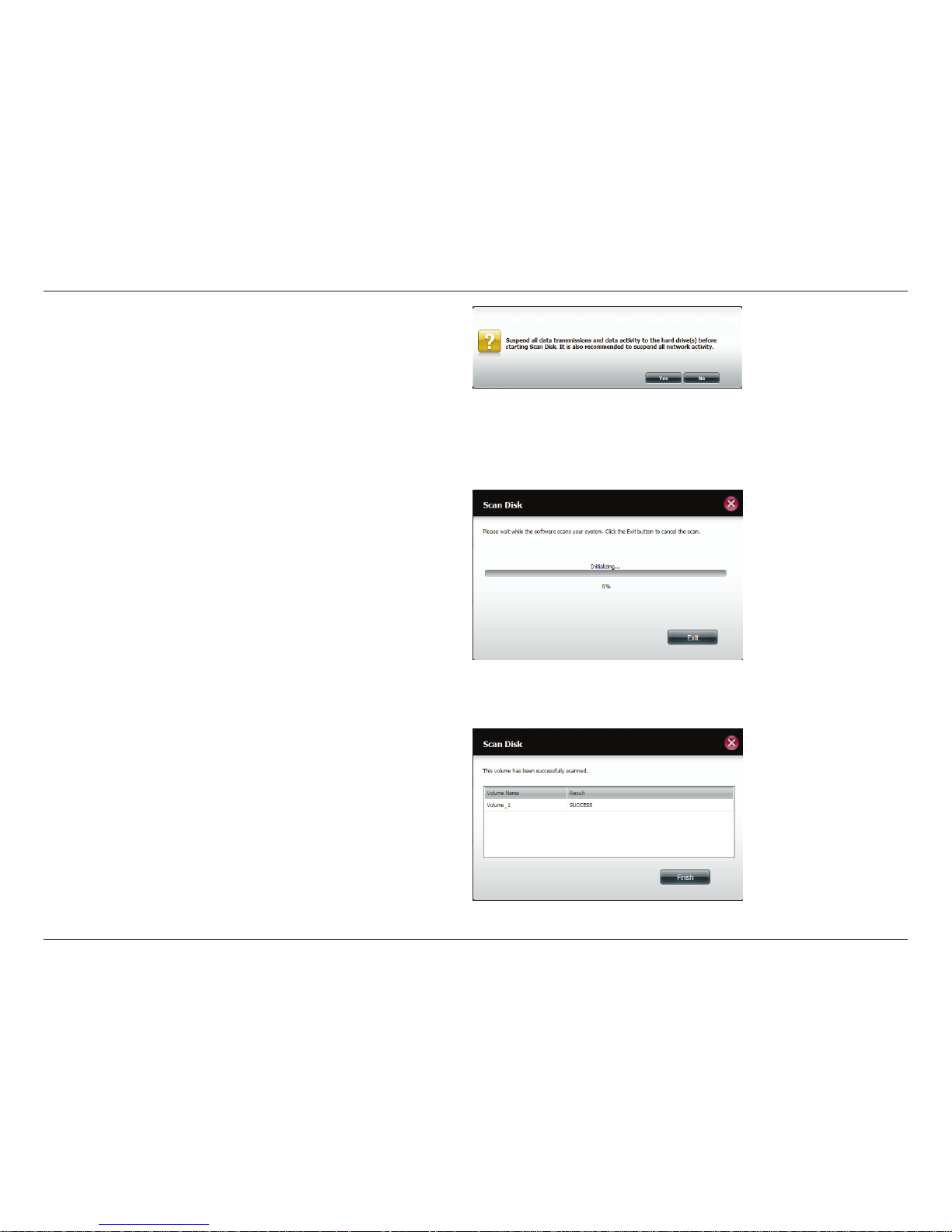

A warning message will prompt you to stop running all services
(hard drive and network activity).
Click Yes to proceed or No to cancel.
The DNS-320LW will initialize the volume(s) and begin scanning.
Please wait while the software scans the volume(s) or click Exit
to cancel the scan.
When the scan is complete, the table will either display Success
or Failure.
Click Finish to exit.
Page 87
83D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

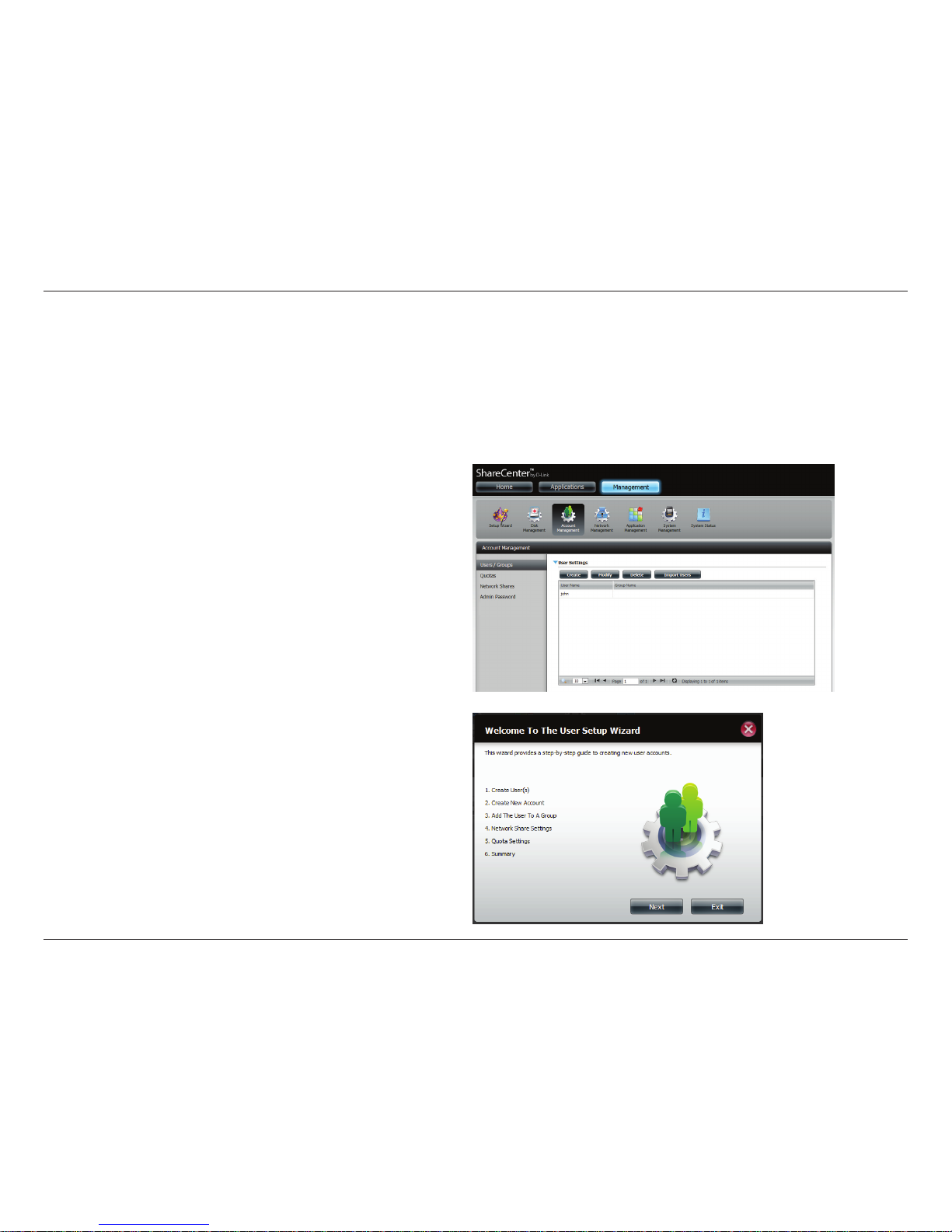

Account Management
The Users/Groups menu is used to create and manage user and group accounts. Up to 256 users and 32 groups can be created. By default, all users
have read and write access to all folders. However access rules can be created and edited in the Network Shares menu.
Click Management > Account Management.
Click Users/Groups on the left side and then click Create.
The User Setup Wizard will appear.
Click Next to continue.
Creating a Single User
Users / Groups
Page 88
84D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

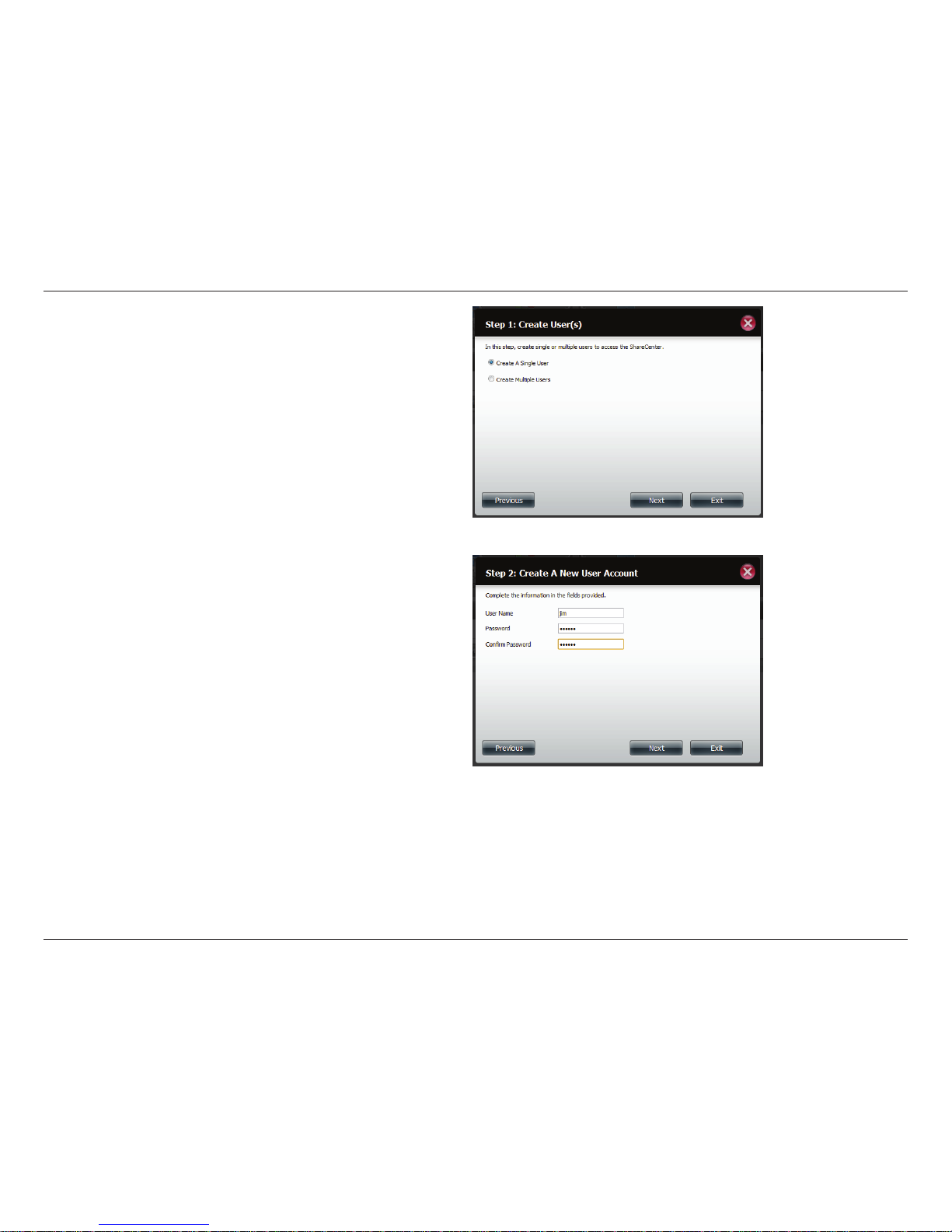

Step 1 - Select Create a Single User and then click Next to
continue.
Step 2 - Enter the user name and password for the new user
and then click Next to continue.
Page 89
85D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 3 - Add the user to a group by clicking the Group
checkbox. Click Next to continue.
Step 4 - Select the network share settings. Select Read Only,
Read/Write, or Deny Access. Click Next to continue.
Page 90
86D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Assign Privileges/Access Methods to the user. Select either FTP
or WebDAV. CIFS and AFP are set as default.
• CIFS is short for Common Internet File System.
• AFP is short for Apple Filing Protocol.
• FTP is short for File Transfer Protocol.
• WebDAV is short for Web-based Distribution, Authoring,
and Versioning.
•
Click Next to continue.
Select the volumes the user can have WebDAV access to and
then select whether to give Read Only or Read/Write rights.
Click Next to continue.
Page 91
87D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

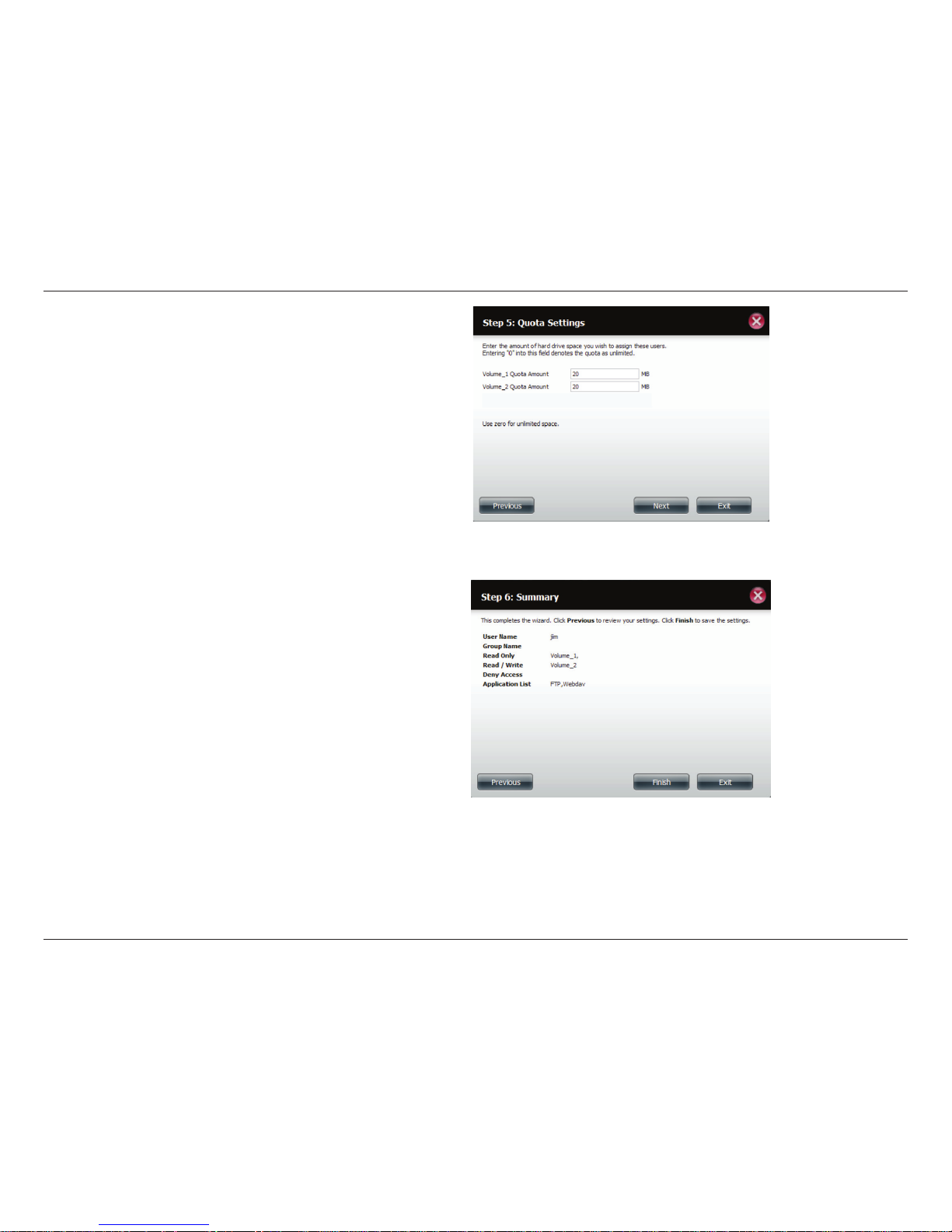

Step 5 - Enter the amount of disk space you wish to assign the
user on each volume. Enter zero to provide unlimited
disk space to the user. Click Next to continue.
Step 6 - The nal step is a summary of all the congurations
you made. Click Finish to accept the changes or click
Exit to cancel the changes.
Page 92
88D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Creating Multiple Users

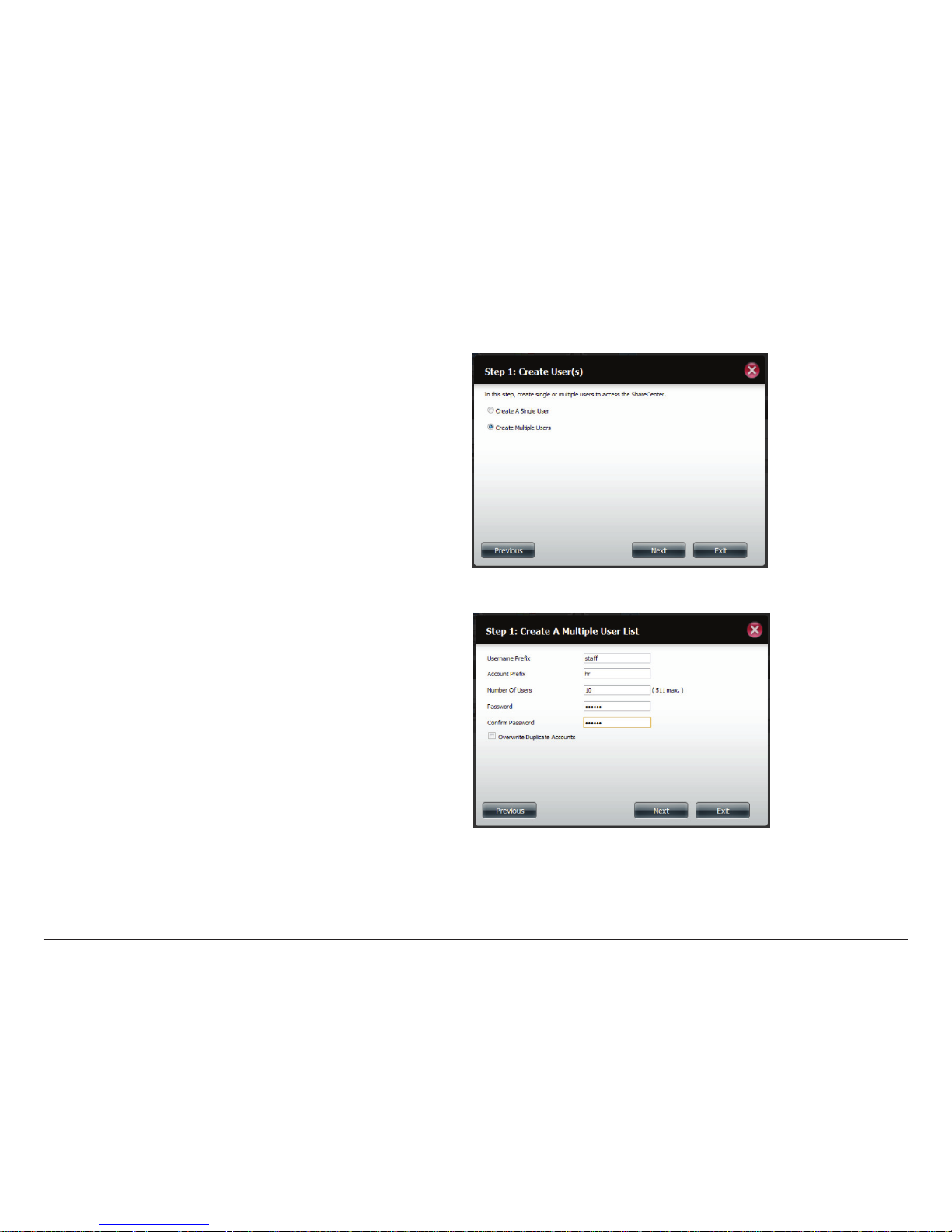

Step 1 - Select Create Multiple Users and then click Next to
continue.
Step 2 - Enter the following information:
Enter a username.
Enter the account prex (Eg. this could be a department in the
company).
Enter the amount of users you want to create. Next to the input
eld is the remaining amount of users you can add to the NAS.
Enter a password and conrm it.
Click Next to continue.
Page 93
89D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

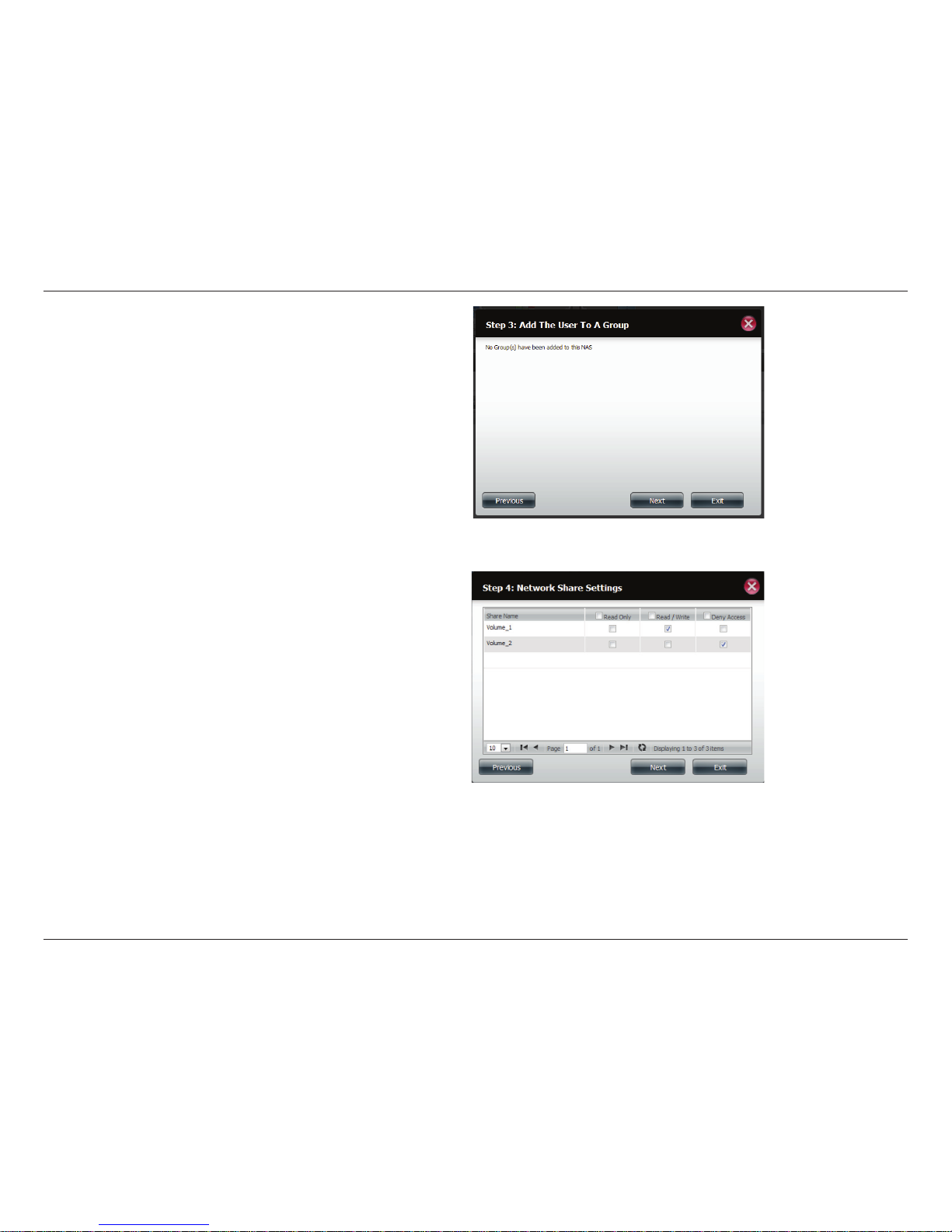

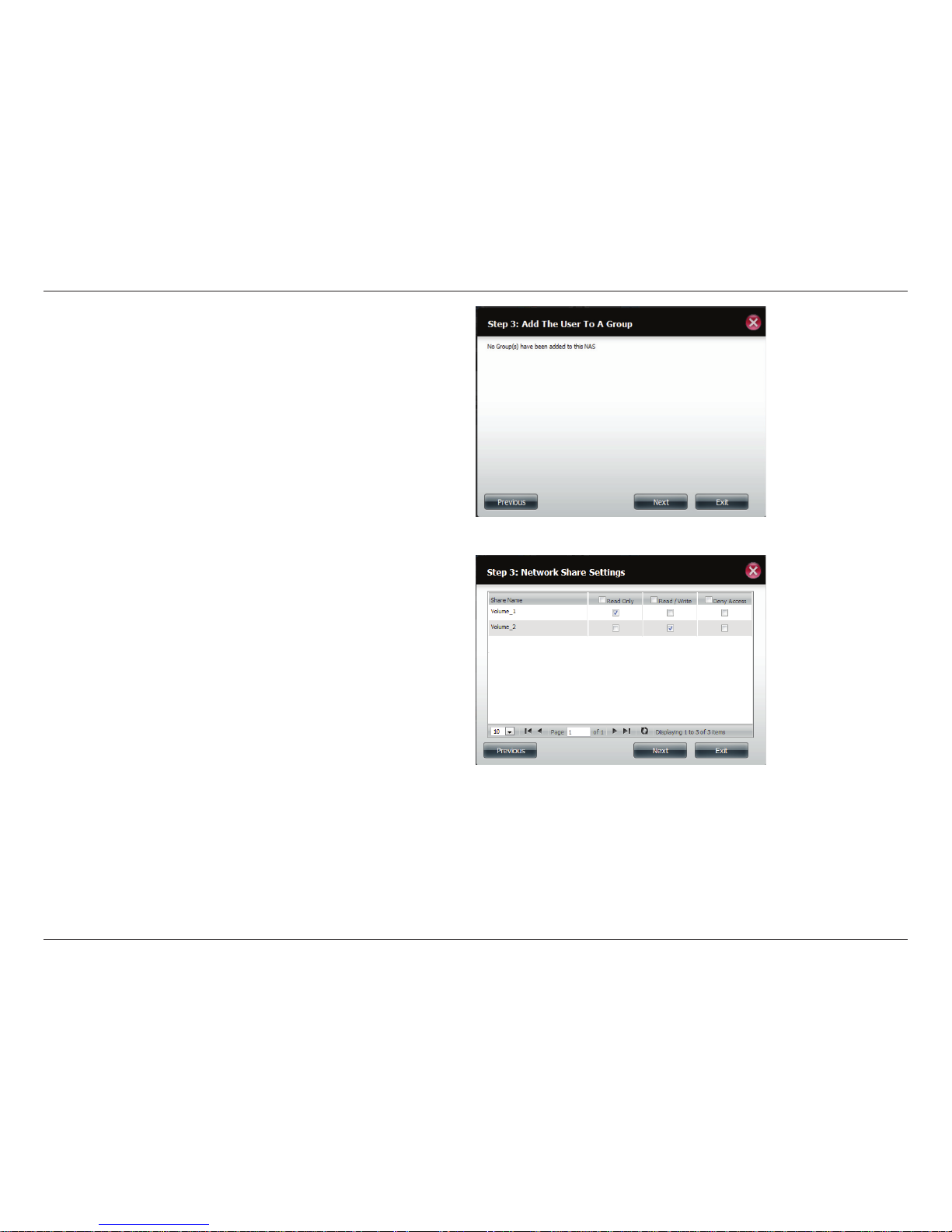

Step 3 - Add the user(s) to a group by clicking the Group
checkbox.
Click Next to continue.
Step 4 - Select the network share settings. Select Read Only,
Read/Write, or Deny Access. Click Next to continue.
Page 94
90D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

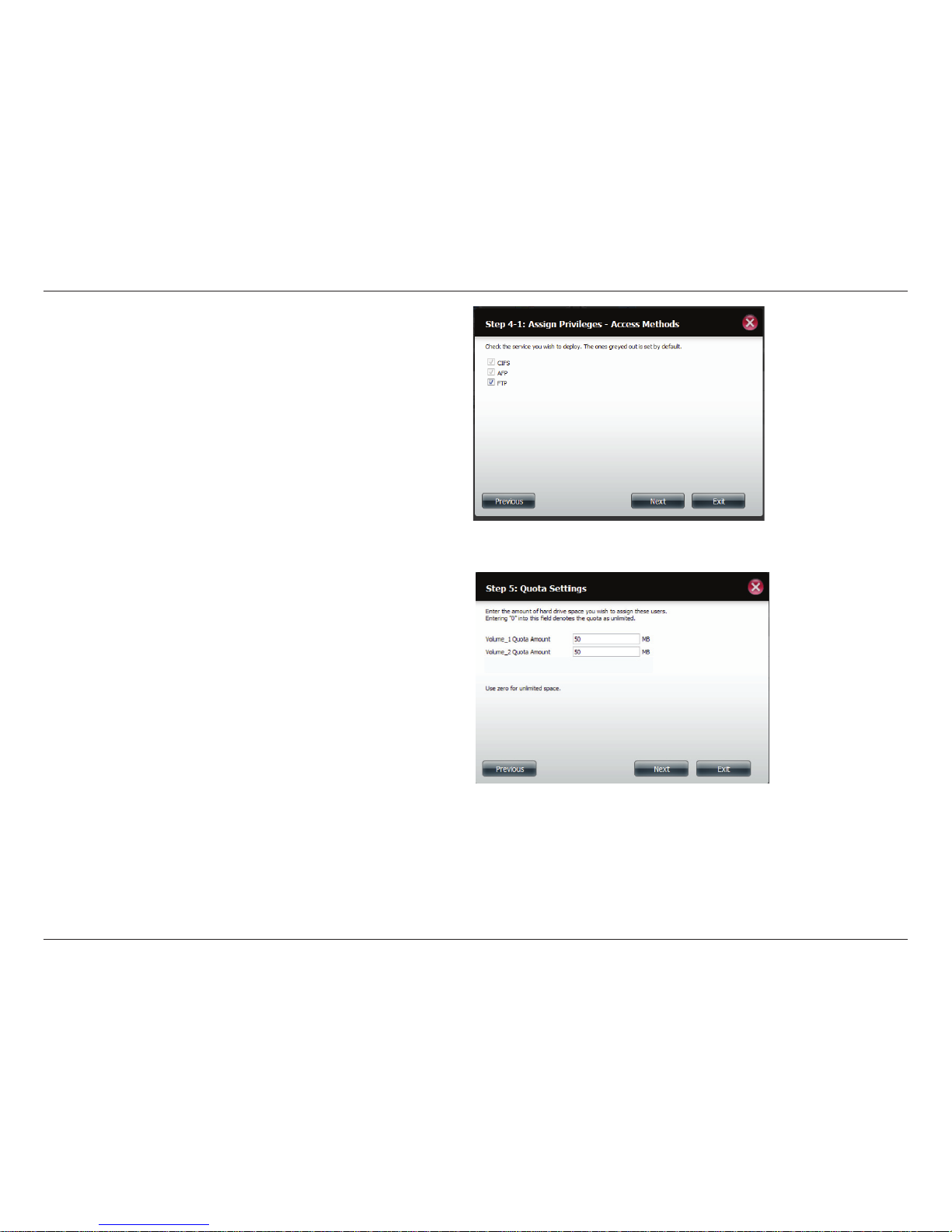

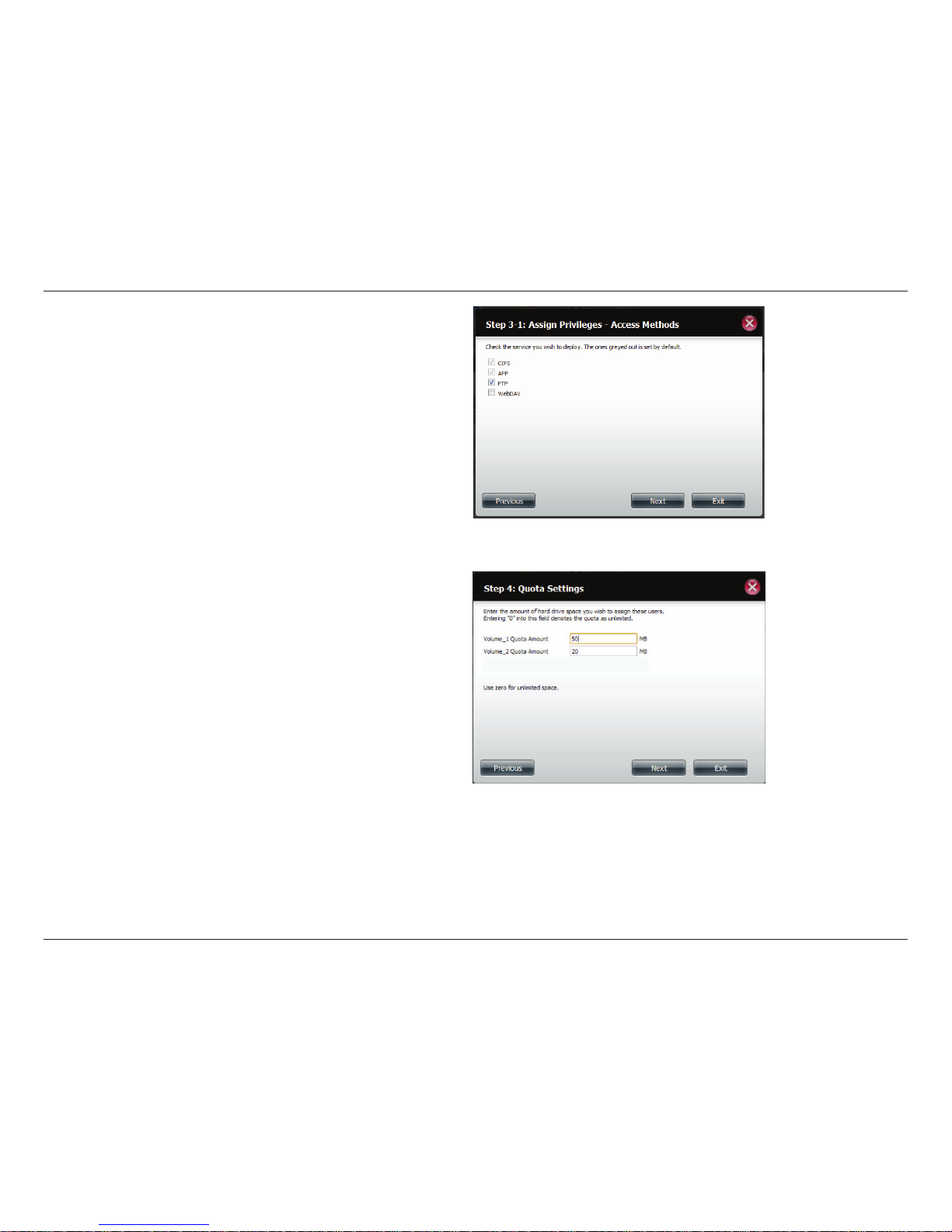

Assign Privileges/Access Methods to the user(s). Select FTP.
CIFS and AFP are set as default.
• CIFS is short for Common Internet File System.
• AFP is short for Apple Filing Protocol.
• FTP is short for File Transfer Protocol.
Click Next to continue.
Step 5 - Enter the amount of disk space you wish to assign the
user(s) on each volume. Type 0 to provide unlimited
disk space to the user(s).
Click Next to continue.
Page 95
91D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

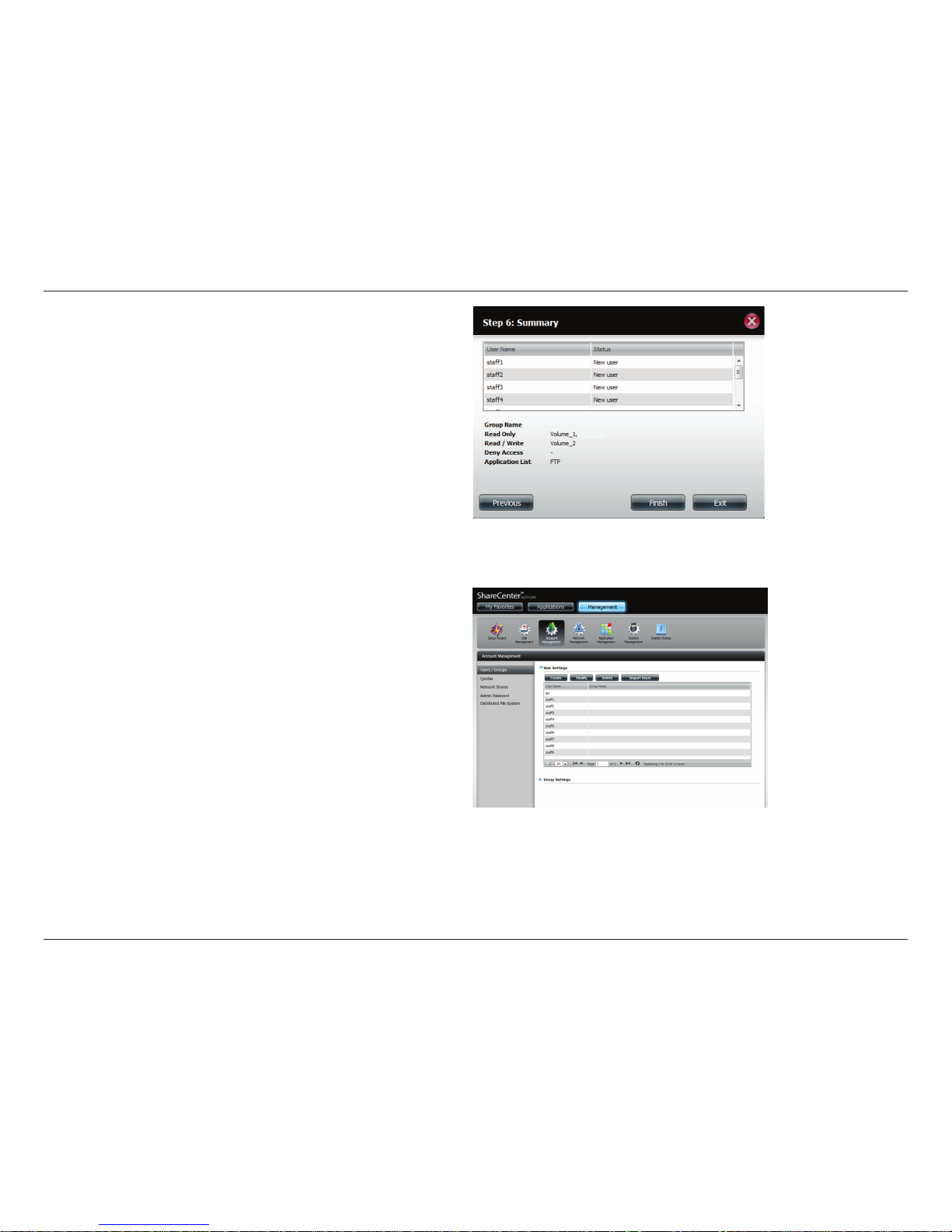

Step 6 - The nal step is a summary of all the congurations
you made. Click Finish to accept the changes or click
Exit to cancel the changes.
The User Settings window will show a list of the users created.
Page 96
92D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

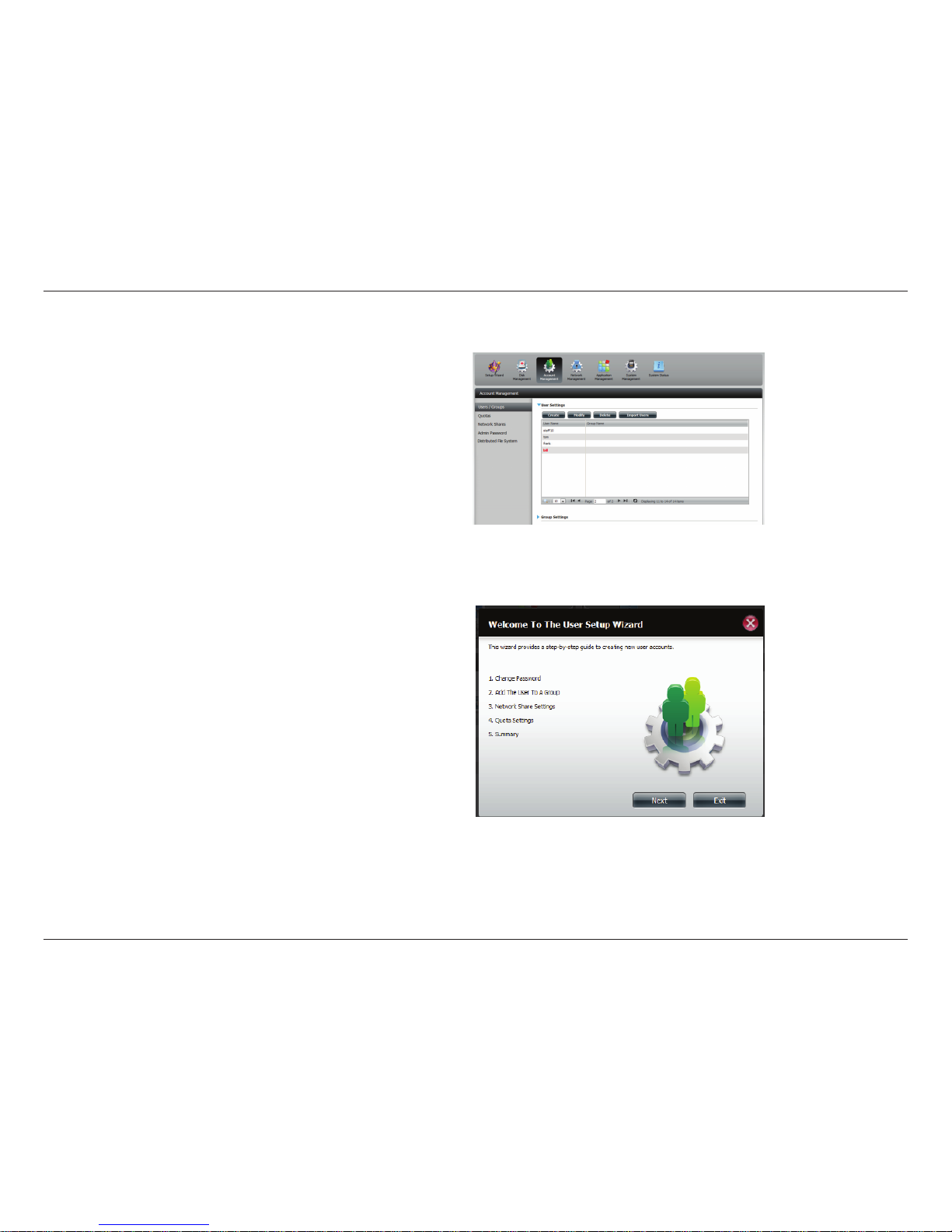

Modify Users
Step 1 - Click the user you wish to modify. The user will be
highlighted in red.
Click Modify to continue.
Step 2 - The User Setup Wizard will appear.
Click Next to continue.
Page 97
93D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

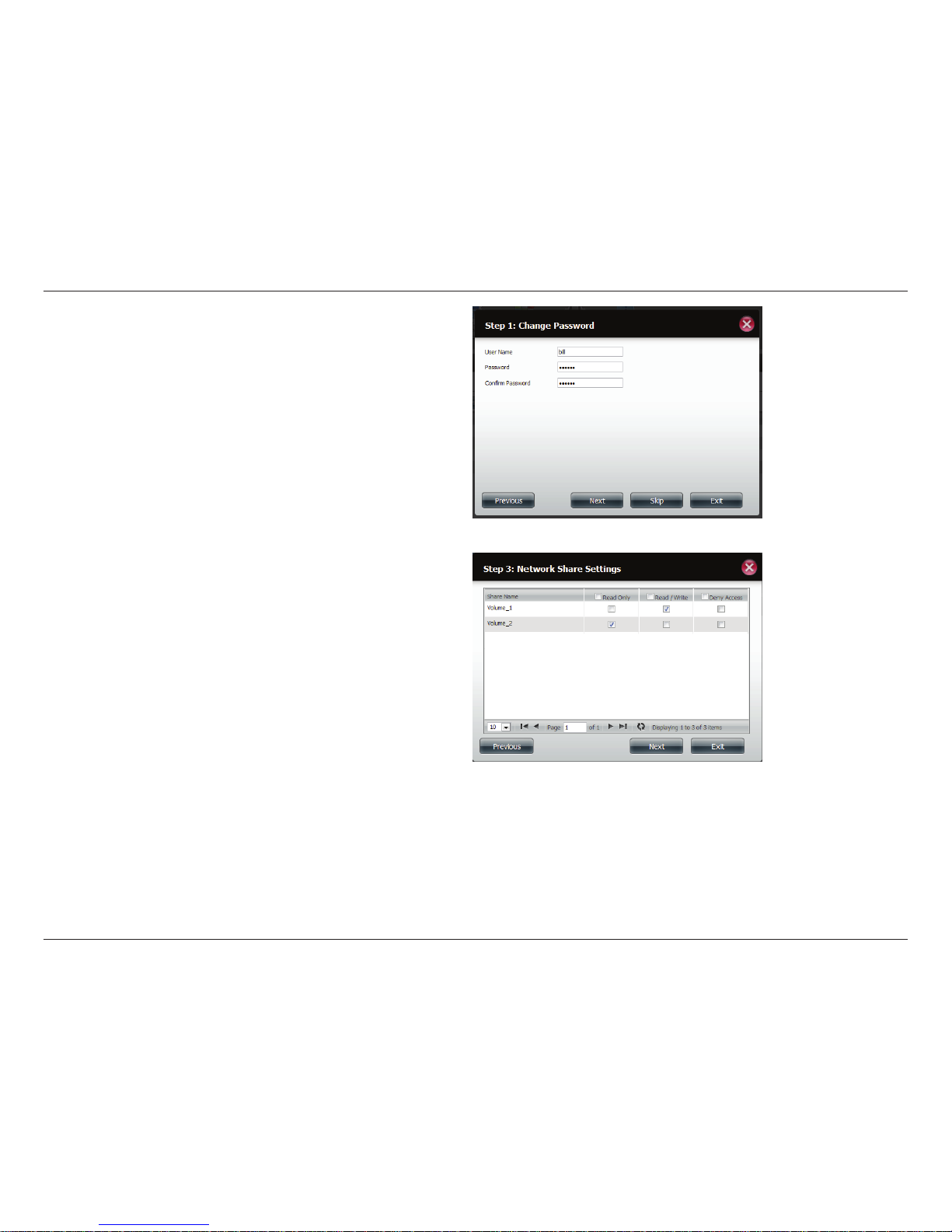

Step 3 - Change the username or password. Click Next to
continue.
Step 4 - Change the Network Share Settings. Click Next to
continue.
Page 98
94D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration
Step 6 - Enter the re-assigned amount of disk space you wish
to assign the user on each volume. Type 0 to provide unlimited
disk space to the user.
Click Next to continue.
Step 5 - Assign Privileges/Access Methods for the user. Select
either FTP or WebDAV. CIFS and AFP are set as default.
• CIFS is short for Common Internet File System.
• AFP is short for Apple Filing Protocol.
• FTP is short for File Transfer Protocol.
• WebDAV is short for Web-based Distribution, Authoring,
and Versioning.
Click Next to continue.
Page 99
95D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

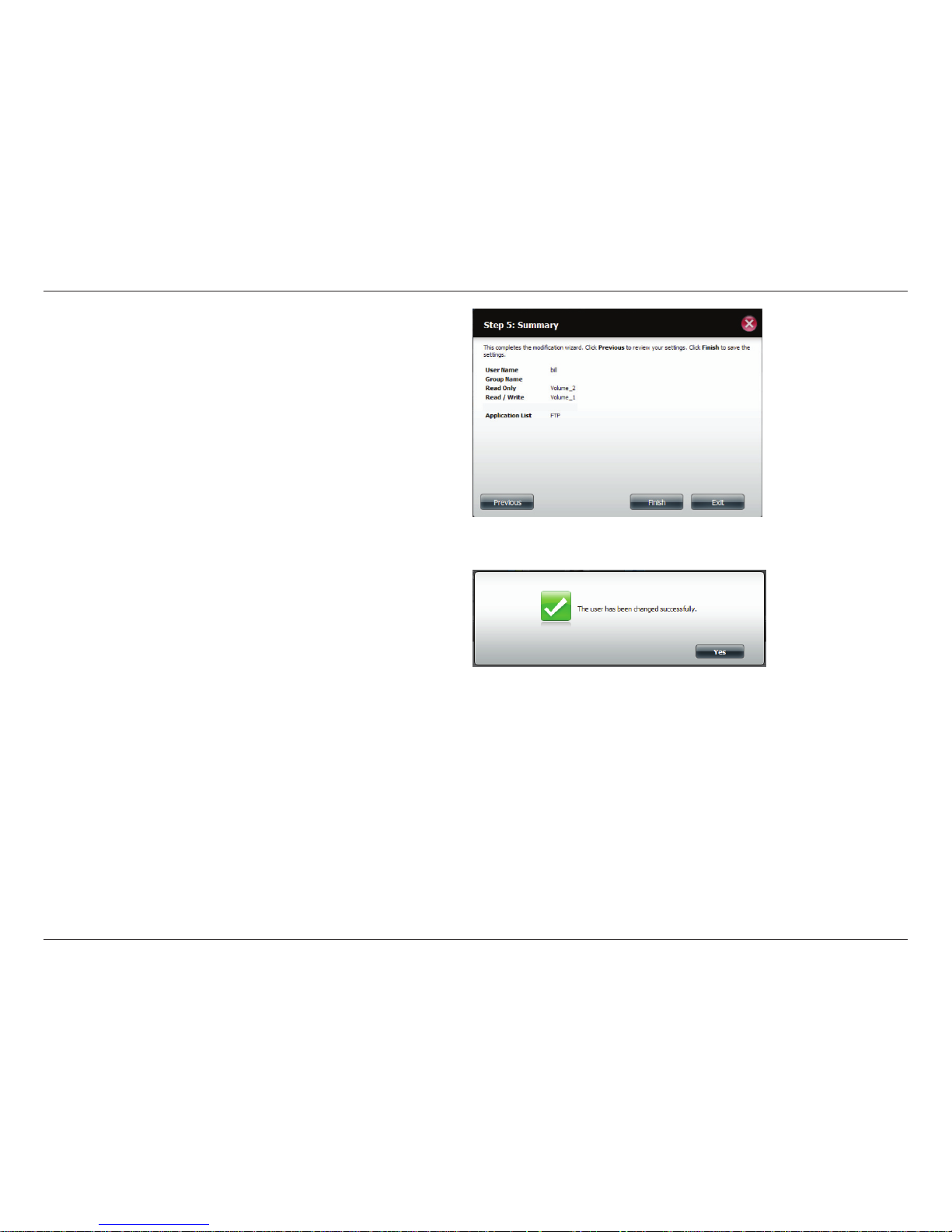

Step 7 - The nal step is a summary of all the congurations
you made. Click Finish to accept the changes or Exit to cancel
the changes.
Step 8 - A message will appear stating the user details have
been changed successfully. Click Yes to exit the wizard.
Page 100
96D-Link ShareCenter DNS-320LW User Manual
Section 4 - Conguration

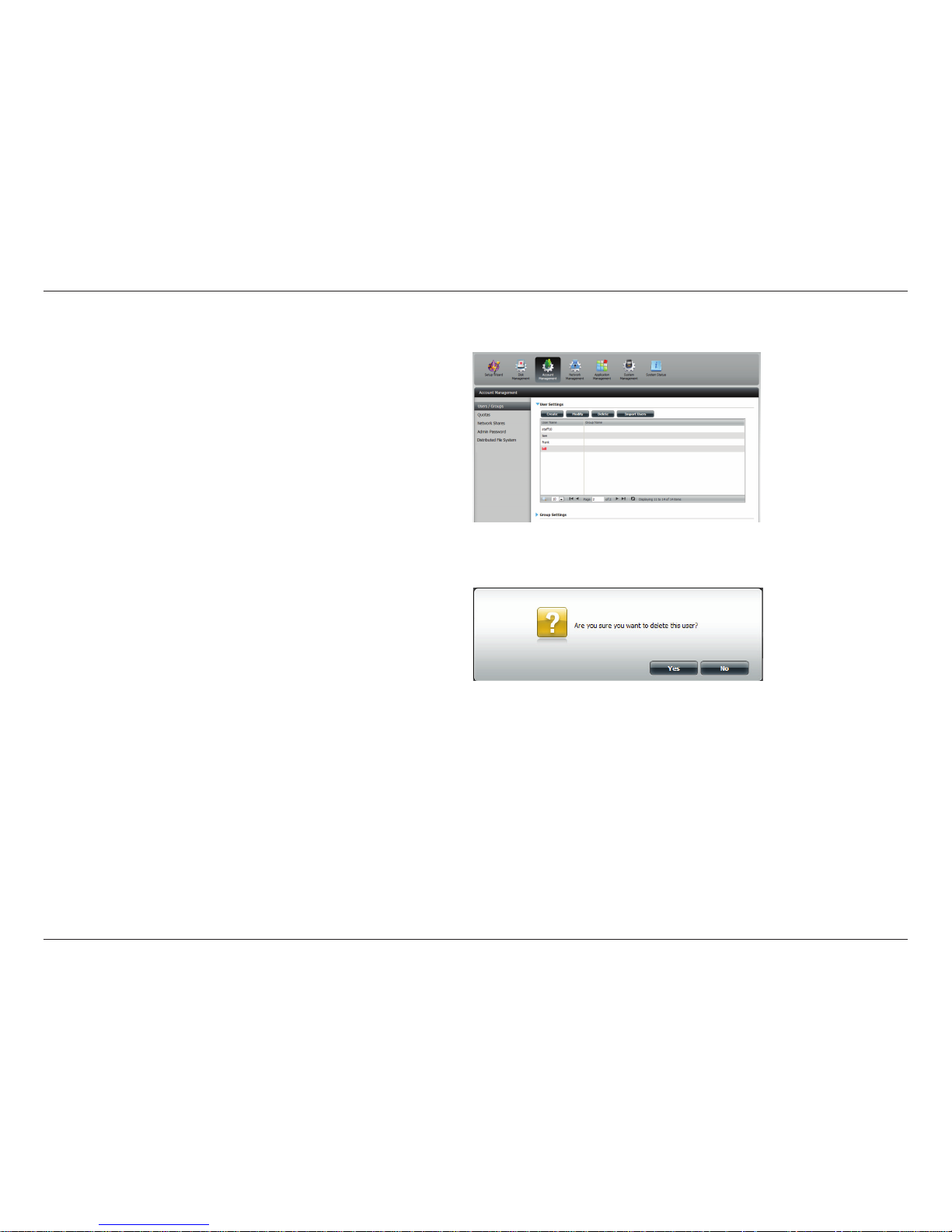

Deleting Users
Step 1 - Click the user you wish to delete. The user will be
highlighted in red. Click Delete to continue.
Step 2 - A message will appear prompting you to conrm
deleting the user. Click Yes to conrm.
The user is now removed from the list.
