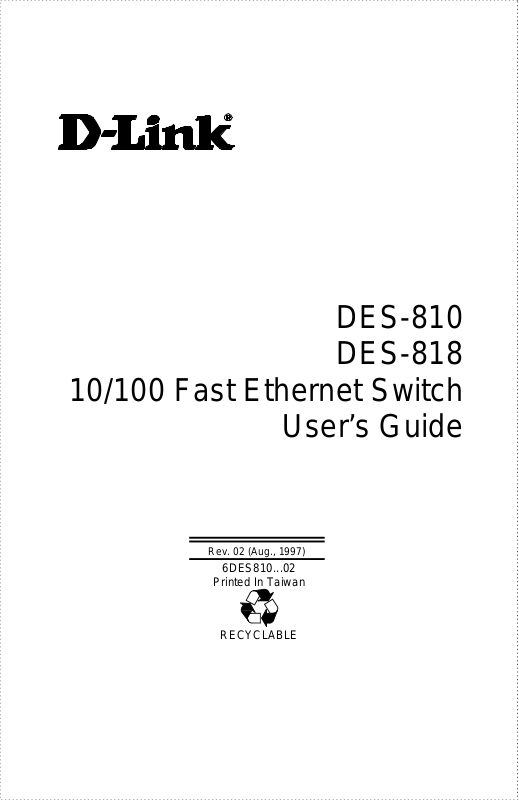

D-Link DES-818, DES-810 User Manual

DES-810
DES-818

10/100 Fast Ethernet Switch

User’s Guide

Rev. 02 (Aug., 1997)

6DES810...02

Printed In Taiwan

RECYCLABLE

Wichtige Sicherheitshinweise

1. Bitte lesen Sie sich diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den spätern Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder
Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung.

4. Um eine Beschädigung des Gerätes zu vermeiden sollten Sie nur Zubehörteile verwenden, die vom
Hersteller zugelassen sind.

5. Das Gerät is vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sichern Stand zu achten. Ein Kippen oder Fallen könnte
Verletzungen hervorrufen. Verwenden Sie nur sichere Standorte und beachten Sie die Aufstellhinweise
des Herstellers.

7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor Überhitzung schützt. Sorgen Sie
dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Die Netzanschlußsteckdose muß aus Gründen der elektrischen Sicherheit einen Schutzleiterkontakt
haben.

10. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollete auch nichts auf der
Leitung abgestellt werden.

11. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten.

12. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz trennen. Somit
wird im Falle einer Überspannung eine Beschädigung vermieden.

13. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät gelangen.
Dies könnte einen Brand bzw. Elektrischen Schlag auslösen.

14. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von
authorisiertem Servicepersonal geöffnet werden.

15. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer qualifizierten
Servicestelle zu überprüfen:

a– Netzkabel oder Netzstecker sint beschädigt.
b– Flüssigkeit ist in das Gerät eingedrungen.
c– Das Gerät war Feuchtigkeit ausgesetzt.
d– Wenn das Gerät nicht der Bedienungsanleitung ensprechend funktioniert oder Sie mit Hilfe dieser

Anleitung keine Verbesserung erzielen.
e– Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f– Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

16. Bei Reparaturen dürfen nur Orginalersatzteile bzw. den Orginalteilen entsprechende Teile verwendet
werden. Der Einsatz von ungeeigneten Ersatzteilen kann eine weitere Beschädigung hervorrufen.

17. Wenden Sie sich mit allen Fragen die Service und Repartur betreffen an Ihren Servicepartner. Somit
stellen Sie die Betriebssicherheit des Gerätes sicher.

WARRANTIES EXCLUSIVE

IF THE D-LINK PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S
SOLE REMEDY SHALL BE, AT D-LINK'S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW,
STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. D-LINK NEITHER ASSUMES NOR AUTHORIZES ANY OTHER
PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE,
INSTALLATION MAINTENANCE OR USE OF D-LINK'S PRODUCTS
D-LINK SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION
DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED
BY THE CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION
OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD.

LIMITATION OF LIABILITY

IN NO EVENT WILL D-LINK BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS OF DATA, LOSS
OF PROFITS, COST OF COVER OR OTHER INCIDENTAL, CONSEQUENTIAL OR INDIRECT
DAMAGES ARISING OUT THE INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE
OR INTERRUPTION OF A D- LINK PRODUCT, HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY. THIS LIMITATION WILL APPLY EVEN IF D-LINK HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
IF YOU PURCHASED A D-LINK PRODUCT IN THE UNITED STATES, SOME STATES DO NOT
ALLOW THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

Limited Warranty

Hardware:

D-Link warrants its hardware products to be free from defects in workmanship and materials, under normal use
and service, for the following lengths of time from the date of purchase from D-Link or its Authorized
Reseller:

Product Type Warranty Period
Managed Switch Three years*
Unmanaged Switch Lifetime*
*Power supply and fans in these devices One year

If a product does not operate as warranted during the applicable warranty period, D-Link shall, at its option and
expense, (1) repair the defective product or part, (2) deliver to Customer an equivalent product or part to
replace the defective item. All products that are replaced will become the property of D-Link. Replacement
products may be new or reconditioned. Any replaced or repaired product or part has a ninety (90) day
warranty or the remainder of the initial warranty period, whichever is longer.
D-Link shall not be responsible for any software, firmware, information, or memory data of Customer
contained in, stored on, or integrated with any products returned to D-Link pursuant to any warranty.
All products with lifetime warranty have a standard five-year warranty. To qualify for lifetime warranty, the
enclosed Product Registration Card must be completed and returned to D-Link within ninety (90) days of
purchase.
Warranty service may be obtained by contacting a D-Link office within the applicable warranty period for a
Return Material Authorization (RMA) number. If a Registration Card has not been previously sent, proof of
purchase, such as a copy of the dated purchase invoice, must be provided. Once an RMA number is issued,
the defective product must be shipped back to D-Link prepaid, insured and wrapped in the original or similar
shipping package to ensure that it will not be damaged during shipment. When returning the defective product
to D-Link for service, the RMA number must be marked on the outside of the shipping package. Any product
returned without an RMA number shall be rejected and sent back to the Customer, and D-Link reserves the
right to have Customer bear the cost of sending back such products. A service charge may or may not be levied
to Customer by D-Link. To find out if a service charge is levied or not, and the charged amount, read the
RMA that is returned to Customer, or ask the D-Link office when an RMA is requested.

D-Link Offices to Contact for Warranty Service:

To mail your Registration Card, or to obtain an RMA number or warranty service, see the following addresses:

In North, Central and South America:

D-Link Systems Inc.
5 Musick, Irvine CA 92618
Tel. [phone] Fax. [phone]

In Europe and Israel

D-Link Europe
D-Link House, 6 Garland Road, Stanmore, London HA7 1DP, U.K.
Tel. [phone] Fax. [phone]

In the Middle East (except Israel), Asia, Oceania and Africa:

D-Link Corporation
2F No. 233-2, Pao Chiao Road, Hsin Tien, Taipei, Taiwan
Tel. [phone] Fax. [phone]

Trademarks

Copyright 1997 D-Link Corporation.
Contents subject to change without prior notice.
D-Link is a registered trademark of D-Link Corporation/D-Link Systems,
Inc.

All other trademarks belong to their respective proprietors.

Copyright Statement

No part of this publication may be reproduced in any form or by any means
or used to make any derivative such as translation, transformation, or
adaptation without permission from D-Link Corporation/D-Link Systems
Inc., as stipulated by the United States Copyright Act of 1976.

FCC Warning

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user’s guide, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.

10/100 Fast Ethernet Switch User’s Guide

T

ABLE OF

PREFACE

Usage/Scope ............................................................................................. ix

Purpose..................................................................................................... ix

Audience................................................................................................... ix

Manual Organization ................................................................................ x

VERVIEW

1 O

Introduction...............................................................................................1

100Mbps Fast Ethernet Introduction.........................................................2

100BASE-TX Technology Overview..........................................................2

Cables and Connectors........................................................................................2

Topology.............................................................................................................3

Network...............................................................................................................3

Hubs....................................................................................................................4

Connectivity Rules..............................................................................................4

.........................................................................ix

.......................................................................1

C

ONTENTS

Switching Technology................................................................................5

Benefits of Switching..........................................................................................5

10/100 Switching Technology ............................................................................6

Product Features.......................................................................................6

Packing List...............................................................................................7

Front Panel................................................................................................ 8

Ports ....................................................................................................................8

LED Indicators..................................................................................................10

Rear Panel............................................................................................... 11

Preface vii

Duplex Mode Switch.........................................................................................12

NSTALLATION

2 I

Installation Site........................................................................................ 13

Installing on a Desktop or Shelf .............................................................. 14

Connecting Power ...................................................................................15

Network Connections...............................................................................15

10/100Mbps Ports.............................................................................................15

10Mbps Ports ....................................................................................................16

Cable Types.......................................................................................................16

Setting the Duplex Mode..........................................................................17

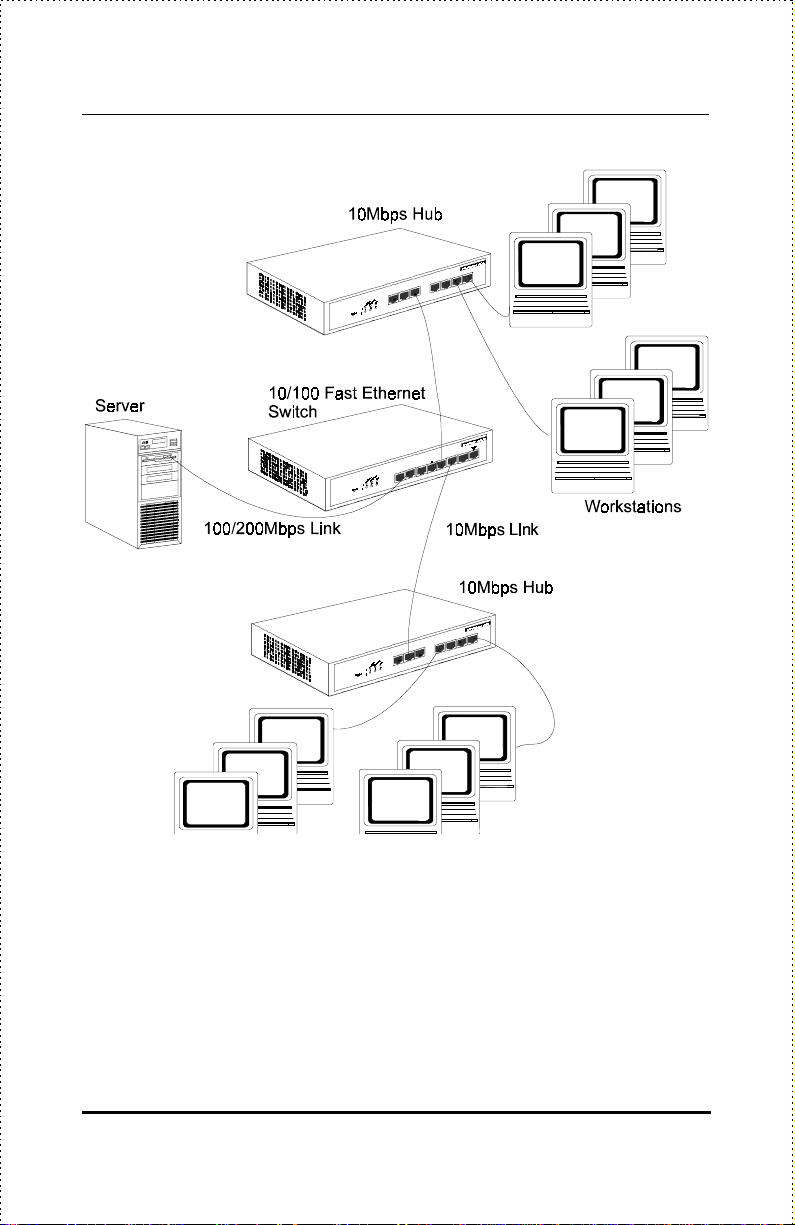

Network Configuration Examples............................................................ 18

LAN Microsegmentation...................................................................................19

Fast Ethernet Server Connection.......................................................................19

PECIFICATIONS

A S

ONNECTOR PINOUTS

B C

RJ-45 Connectors....................................................................................23

................................................................13

............................................................21

....................................................23

1

viii Preface

10/100 Fast Ethernet Switch User’s Guide

P

REFACE

Congratulations on your purchase of the 10/100 Fast Ethernet Switch. This
device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network
capabilities in a highly flexible desktop package.

Usage/Scope

This manual discusses two 10/100 Fast Ethernet Switch models (ten port and

eighteen port). Where necessary, the text distinguishes between them,
otherwise all information provided is applicable to either mo del. Please note

that figures throughout the manual depict the ten port model.

Purpose

This manual discusses how to install and use the 10/100 Fast Ethernet
Switch.

Audience

This manual is intended for network administrators with:

• Background in LAN bridge concepts.

• Understanding of IEEE 802.3 Ethernet and 100BASE-TX Fast Ethernet

networking concepts.

Preface ix

• Understanding of how to install local area networks (LANs).

Manual Organization

Chapter 1 Overview

Describes the product, its features, packing list, and the front and rear panels.

Chapter 2 Installation

Provides detailed instructions on installing the 10/100 Fast Ethernet Switch.
Chapter 2 includes information on installation, connecting power, network
connections, setting the communications mode, and provides some network
configuration examples.

Appendix A Specifications

Lists the technical specifications of the product.

Appendix B Connector Pinouts

Describes the connector pinouts of the 10/100 Fast Ethernet Switch ports.

x Preface

10/100 Fast Ethernet Switch User’s Guide

1

2 O

VERVIEW

Introduction

The DES-810 and DES-818 Fast Ethernet Switches are ideal for network
managers who want to boost workgroup performance easily by micro­segmenting a 10Mbps LAN while adding 100Mbps links. They are also
excellently suited to provide dedicated Fast Ethernet connections to key
network servers.

Each switch integrates 100Mbps Fast Ethernet with 10Mbps Ethernet
networks seamlessly. The speed migration design will brid ge high b andwidth
Fast Ethernet network segments to traditional 10Mbps Ethernet network
segments quickly and simply.

The 10/100 Fast Ethernet Switch complies with IEEE802.3u, 100BASE-TX,
IEEE802.3 and 10BASE-T standards. The DES-818 model has 16 10Mbps
twisted-pair ports and two 10/100Mbps N-Way twisted-pair ports. The DES­810 has eight 10Mbps twisted-pair ports and two 10/100Mbps N-Way
twisted-pair ports. The 10/100 Fast Ethernet Switch provides a store-and­forward passing scheme. Filtering and forwarding rates for the switch ru n at
wire-speed, reducing latency within and across segments.

The 10/100 Fast Ethernet Switch provides an easy, affordable, high­performance, seamless, and standard-based migration path to a 100BASE-TX

Overview 1

LAN while preserving your initial investment and use of 10Mbps Ethernet
LANs.

100Mbps Fast Ethernet Introduction

Computers today have beco me increasingly powerful, with the capability to
accommodate very sophisticated uses such as multimedia applications,
video-conferencing, and CAD/CAM. To utilize these technologically
advanced applications more efficiently, there is also a growing demand for
faster networks that can handle heavy network traffic.

Recognizing this need for greater bandwidth and lower latency, a variety of
technologies such as FDDI, ATM, and 100Mbps Fast Ethernet have been
adopted by many vendors. 100Mbps Fast Ethernet technology stands out as
the most inexpensive and smoothest migration path for existing 10Mbps
Ethernet users.

100Mbps Fast Ethernet is a relatively new standard specified by the IEEE

802.3 LAN committee. It is an extension of the 10Mbps Ethernet standard

with the ability to transmit and receive data at 100Mbps, while maintaining
the CSMA/CD Ethernet protocol. Since 100Mbps Fast Ethernet is
compatible with all 10Mbps Ethernet environments, it provides a straight­forward upgrade without wasting the company’s existing investment in
hardware, software, and trained personnel.

100BASE-TX Technology Overview

Cables and Connectors

Category 5 unshielded twisted-pair (UTP) cables are supported. UTP
category 5 cable uses the same RJ-45 connector used with 10BASE-T, wired

2 Overview
