Introduction
The DCS-8100LH HD 180 Degree Wi-Fi Camera boasts a wide angle lens that easily captures a large area in high-quality 720p. Its adjustable head
makes ceiling installations easy, and the built-in night vision, motion detection, and handy mobile app empower you with knowing exactly what
is happening, day or night.
Features
Wide Angle Lens
The DCS-8100LH provides large area coverage with a wide angle lens, eliminating the need for multiple cameras to cover a single room.
720p HD Video
The 720p HD sensor provides crisp detail and clarity for high-quality snapshots and video.
Comprehensive Day/Night Surveillance
The built-in infrared LEDs enable night time viewing of up to 16 feet (5 meters), giving you all-day surveillance. The microSD card slot allows the
camera to record snapshots and video directly to onboard storage for a complete surveillance solution.
Wireless N
The DCS-8100LH uses high-speed Wireless N to connect to your wireless router, and is backwards compatible with 802.11g.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
5D-Link DCS-8100LH User Manual
Section 1 - Product Overview
Front View Back View
Hardware Overview
Status LED
Micro-USB Port
Microphone
IR LED (hidden)
720p Lens
Light Sensor
Adjustable Base
microSD Card Slot
(on side)
Power Button
Reset Button
6D-Link DCS-8100LH User Manual
Section 2 - Installation
Installation
There are two ways to set up your camera:
mydlink Lite Mobile App: You can use the mydlink Lite mobile app to guide you through setup and initial conguration of your camera. Refer
to Mobile App Setup on page 11.
When placing your camera, you can use the wireless signal strength LED on the front of your camera to see whether your camera has a strong
wireless connection to your router.
Solid Green: Strong wireless connection
Solid Orange: Fair wireless connection
Flashing Orange: Weak wireless connection
If the wireless signal strength LED is ashing orange, try moving the camera to a location closer to your router, or you can try purchasing a wireless
extender to extend the range of your wireless network.
7D-Link DCS-8100LH User Manual
Section 2 - Installation
Wireless Installation Considerations
The DCS-8100LH lets you access your network using a wireless connection from anywhere within the operating range of your wireless network.
However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.
Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.
8D-Link DCS-8100LH User Manual
Section 2 - Installation
Mounting the Camera
To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.
Step 1
Hold the base of the camera with one hand placing your thumb on the tab, then press down on the release
buttons with your other hand and pull the camera from the camera base.
Step 2
Place the camera base where you want to position the camera and use a pencil to mark the holes. Make sure
that the cable channel on the camera base is facing in the direction you want.
1
2
Step 3
Depending on the material of the wall or ceiling, use proper tools to drill two holes 25 mm deep with a
6 mm drill bit where you marked. If the wall is made out of concrete, drill the holes rst, then insert the plastic
anchors to support the screws.
3
9D-Link DCS-8100LH User Manual
Section 2 - Installation
Step 4
Pull the power cable through the middle of the camera base and through the cable channel as shown.
Step 5
Place the camera base over the holes that are in the wall and use the supplied screws to attach the camera
base to the surface of the wall. Plug in the microUSB power cable to the camera.
4
5
Step 6
Attach the camera to the camera base and pull the power cable to remove the extra cable. Adjust the angle
of the camera as desired.
6
10D-Link DCS-8100LH User Manual
Section 2 - Installation
Mobile App Setup

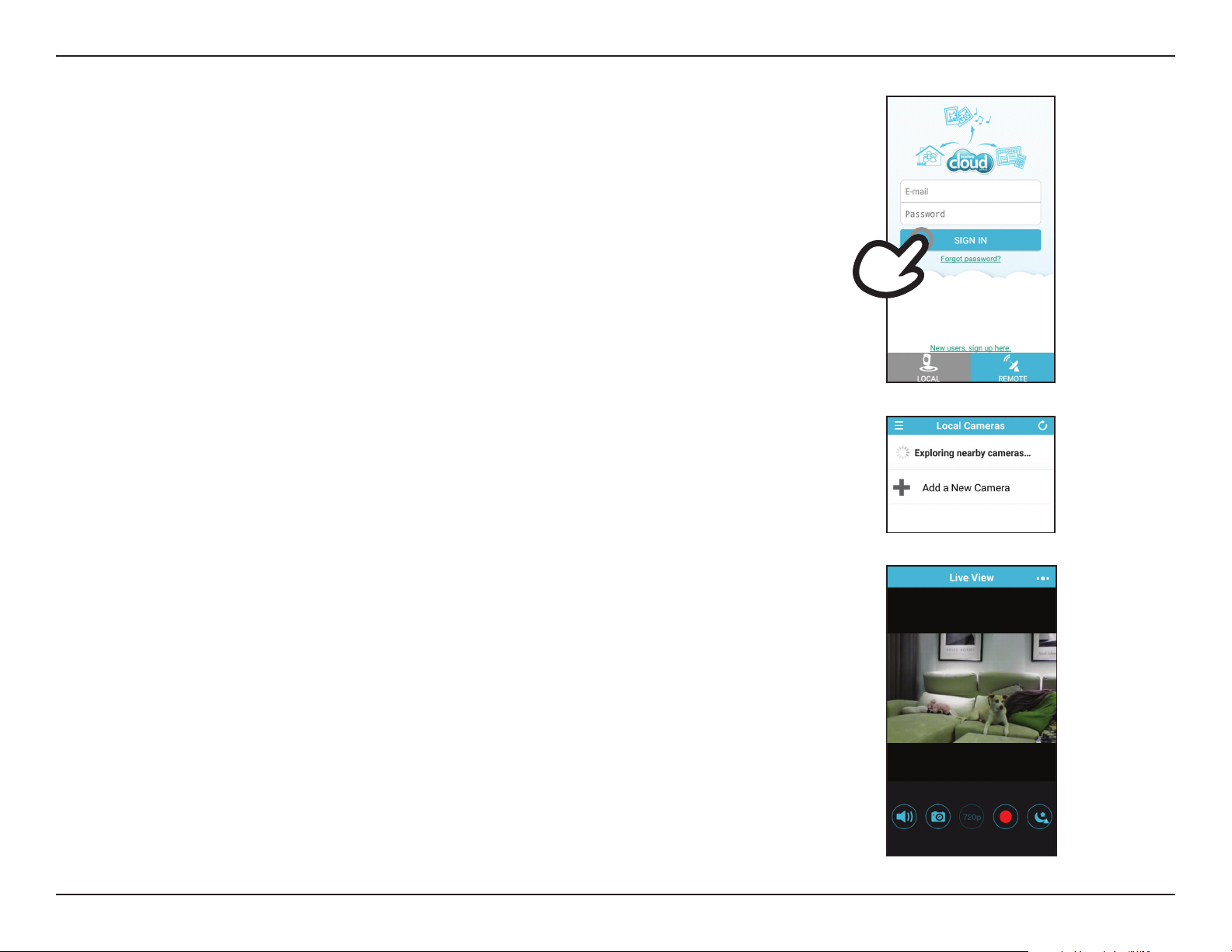

You can congure your camera through the mydlink Lite mobile app. On your mobile device, download mydlink Lite by searching for mydlink Lite
in the App Store or Google Play store.
Launch the mydlink Lite app and create a new account or sign in to your existing account. Follow the onscreen instructions to set up your camera.
11D-Link DCS-8100LH User Manual
