D Link CS6010LA1 User Manual
Version 1.0 | 2012/06/03
User Manual
Wireless N 360° Home Network Camera
DCS-6010L
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 June 6, 2012 DCS-6010L Revision A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2012 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
2D-Link DCS-6010L User Manual
Table of Contents
Product Overview .........................................................................4
Package Contents .................................................................4
Introduction ............................................................................ 5
System Requirements ......................................................... 5
Features .................................................................................... 6
Hardware Overview .............................................................7
Outside ................................................................................. 7
Internal Ports ...................................................................... 8
Installation ...................................................................................... 9
Wireless Installation Considerations ..............................9
Zero Conguration Setup ........................................................10

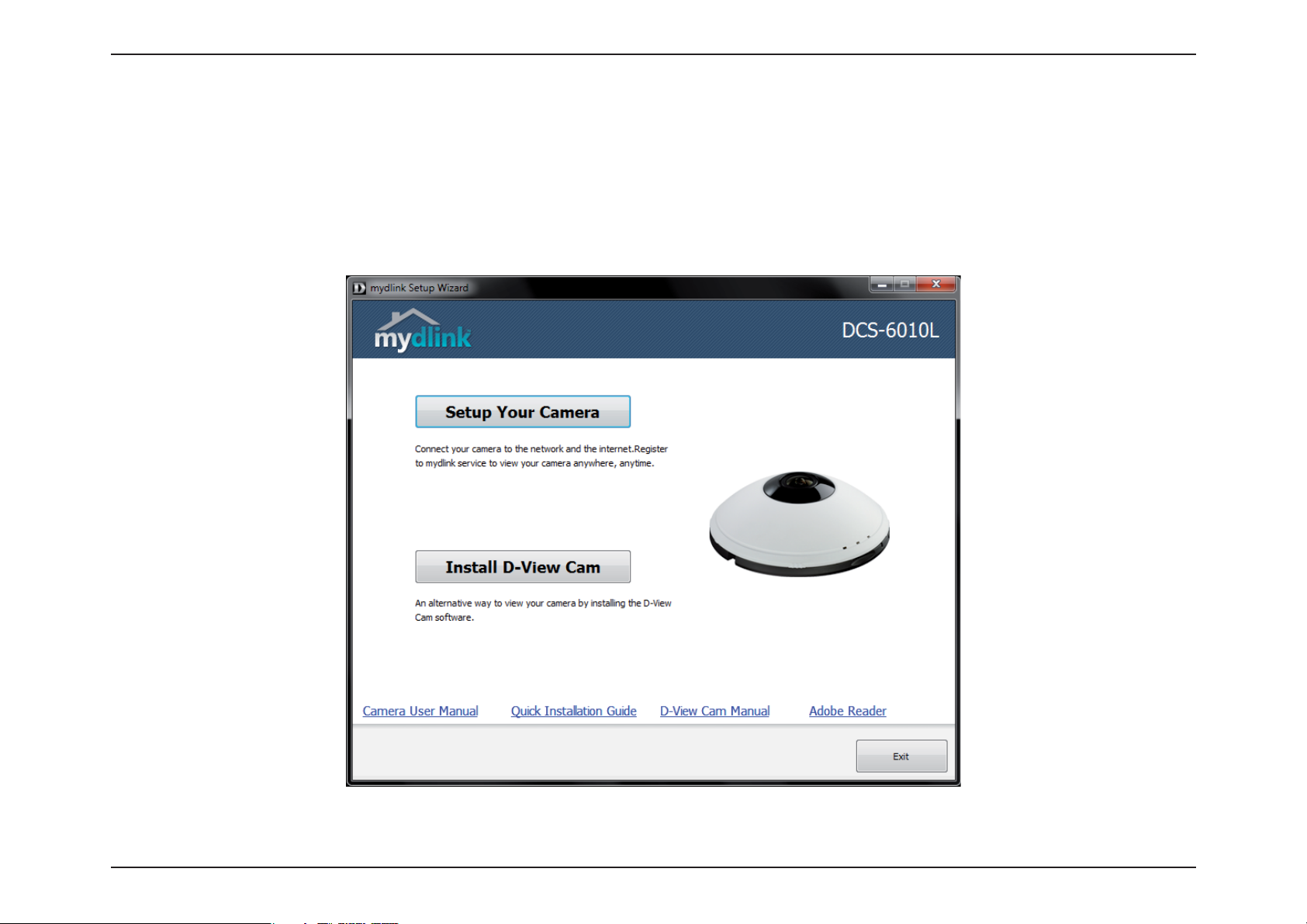

Camera Installation Wizard .............................................14
Manual Hardware Installation ........................................22
Focussing the Camera .......................................................23
Mounting the Camera .......................................................24
WPS - Push Button Setup .................................................25
mydlink ...........................................................................................26
Live Video ..............................................................................36
Setup .......................................................................................38
Setup Wizard ....................................................................38
Network Setup .................................................................44
Wireless Setup ..................................................................47
Dynamic DNS ...................................................................48
Image Setup .....................................................................49
Audio and Video ..............................................................51
Preset ...................................................................................53
Motion Detection ...........................................................55
Time and Date ..................................................................56
Event Setup .......................................................................57
SD Card ...............................................................................65
Advanced ...............................................................................66
HTTPS .................................................................................. 66
Access List ..........................................................................67
Maintenance .........................................................................68
Camera Status ......................................................................27
Live Video ..............................................................................28
Playback .................................................................................29
Settings ..................................................................................30
Recording Settings .........................................................31
Advanced Settings .........................................................33
Events ......................................................................................34
Conguration ...............................................................................35
Using the Conguration Interface ................................35
Device Management .....................................................68
Backup and Restore .......................................................69
Firmware Upgrade ..........................................................70
Status ......................................................................................71
Device Info ........................................................................71
Logs .....................................................................................72
Help......................................................................................73
Technical Specications ...........................................................74
Safety Statements ......................................................................77
3D-Link DCS-6010L User Manual
Section 1: Product Overview
DCS-6010L Wireless N 360° Home Network Camera
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
Product Overview
Package Contents
Quick Installation Guide
Mounting Bracket
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
4D-Link DCS-6010L User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-6010L Wireless N 360° Home Network Camera. The DCS-6010L is a versatile and
unique solution for your small oce or home. Unlike a standard webcam, the DCS-6010L is a complete system with a built-in
CPU and web server that transmits high quality video images for security and surveillance. The DCS-6010L can be accessed
remotely, and controlled from any PC/Notebook over your local network or through the Internet via a web browser. The simple
installation and intuitive web-based interface oers easy integration with your Ethernet/Fast Ethernet or 802.11n/g wireless
network. The DCS-6010L also comes with remote monitoring and motion detection features for a complete and cost-eective
home security solution.
System Requirements
• Computer with Microsoft Windows® 7, Vista®, or XP (for CD-ROM Setup Wizard), Mac OS or Linux
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 7 or above , Firefox 3.5 or above, Safari 4 and Chrome 8.0 or above
• Existing 10/100 Ethernet-based network or 802.11n wireless network
• A MicroSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
5D-Link DCS-6010L User Manual
Section 1: Product Overview
Features
360 Degree Surveillance
The built-in sheye lens gives you a full 360 degrees of coverage, allowing it to monitor an entire room with ease. It can also be placed on a wall for
180 degree coverage of a hallway. Distortion correction gives you a panoramic view or a normal corrected image that you can pan across easily.
Simple to Use
The DCS-6010L is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-6010L supports both ActiveX mode
for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-6010L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-6010L oers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-6010L easy to integrate into your existing
network environment. The DCS-6010L works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based network for traditional wired
environments, and works with 802.11n routers or access points for added exibility. The Site Survey feature also allows you to view and connect to
any available wireless networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or
Internet. This means you can access your DCS-6010L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
6D-Link DCS-6010L User Manual
Section 1: Product Overview
1
2
Hardware Overview
Outside
5
6
3
4
1 Camera Lens
2 Camera Cover
3 Microphone
4 MicroSD Card Slot
5 WPS Status LED
6 Status LED
7 WPS Button
7
8
Records video of the surrounding area
Rotate the cover counter-clockwise to remove it and access the Ethernet port
and power connecter
Caution: When removing the cover, remove it slowly to avoid disconnecting the
microphone.
Records audio from the surrounding area
Insert a MicroSD card for Local storage for storing recorded image and video
Indicates the WPS connection status of the camera
current status
Indicates the camera's current power and connectivity status.
Press this button, then press the WPS button for 5 seconds on your router to set up
a wireless connection automatically
Indicates the camera's
8 Reset Button
Press and hold this button for 10 seconds to reset the camera
7D-Link DCS-6010L User Manual
Section 1: Product Overview
Internal Ports
4
3
You can access the inside of the DCS-6010L by rotating the camera cover counter-clockwise, then lifting it o of the camera.
Caution: When re-attaching the cover, ensure that the cables are seated in the cable channel.
1 Power Receptor Power receptor for the provided power cable or PoE cable to connect to your network
2 Ethernet Port
3 Cable Channel
4 Cable Channel Guide
Connects to an RJ45 Ethernet
Channel for Ethernet and Power cables
Guide to assist correct casing alignment with the cable channel.
2
1
8D-Link DCS-6010L User Manual
Section 2: Installation
Installation
Wireless Installation Considerations
This D-Link device can connect to your wireless network from anywhere within the operating range of your wireless network. However, the number,
thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each wall or
ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points,
wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.
Note: The DCS-6010L has a metal underside and mounting bracket.
The metal underside and mounting bracket will aect directional WiFi signal strength adversely if not positioned correctly
9D-Link DCS-6010L User Manual
Section 2: Installation
Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-6010L
and automatically add the camera to your mydlink account. After the short time it takes to do this you can remotely access
your camera from the www.mydlink.com website to manage and monitor your DCS-6010L.
Connect the Ethernet Cable
Using the provided Ethernet cable connect one end to your camera and the
other-end to your network.
1
To install the provided Ethernet cable see "Internal Ports" on page 8 for detailed
instructions.
Attach the External Power Supply
Attach the external power supply to the power receptor and to your wall outlet
or power strip.
To install the provided power supply see "Internal Ports" on page 8 for detailed
instructions.
1 Ethernet Cable
2 Power Cable Power cable for the provided power adapter
Use an RJ45 Ethernet cable or PoE cable to connect to your network
2
10D-Link DCS-6010L User Manual
Section 2: Installation
Optional: WPS Wireless Connection
Alternatively, if your router supports WPS, you can use the WPS button on the
camera to easily create a secure wireless connection to your network.
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The WPS LED will
blink.
Step 2
Within 60 seconds press the WPS button on your router. On some routers, you
may need to log in to the web interface and click on an on-screen button to
activate the WPS feature. If you are not sure where the WPS button is on your
router, please refer to your router’s User Manual.
WPS ButtonWPS LED
The DCS-6010L will automatically create a wireless connection to your router.
While connecting, the status LED will ash. When the connection process is
complete, the status LED will turn solid.
You can now remove the Ethernet cable by removing the camera cover and
disconnecting the Ethernet cable. See "Internal Ports" on page 8 for more details.
Note: If your router does not support WPS, you can still use the wired connection
method on the previous page. After Zero Conguration setup is complete, your
router's wireless settings will be automatically transferred to the camera.
11D-Link DCS-6010L User Manual
Loading...
