CONTENTS

1.PRODUCT GENERAL INFORMATION..……………………………………………..….2

1.1.Product Description…………………………………………………………………………………….2

1.2.Product Feature…………………………………………...……………………………………………2

1.3.Product Application………………………………………………………….……………………………..2

2.PRODUCT GENERAL………………………………………………………………….….3

2.1.General Specifications………………………….………………..…………………………..… 3

2.2.LED Indicator………………………………………………………..…………..….………………3

2.3.Interface………………………………………………………….…….………………………..…..3

3.PRODUCT HARDWARE SPECIFICATION……………………….………………….….3

3.1.RF Specification…………………………………………………….………….….…………………..….3

3.1.1.General……………………………………………………….………………..………………..3

3.1.2.Transmitter…………………………………………………….…………..……………………3

3.1.3.Receiver…………………………………………………………………..……………………4

3.1.4.Antenna Type………………………………………………….…………..…………………...4

3.1.5.Typical Operating Range………………………………………….………..…………………4

3.2.H/W Specification………………………………………………………….…………………………....4

3.2.1.MAC Controller.…………………………………………………….……..……………………4

3.2.2.Memory.……………………………………………………………….…..…………………….4

3.2.3.Power……………………………………………………………………....……………………4

4.PRODUCT SOFTWARE SPECIFICATION………………………………….……...……4

4.1.Driver…………………………….……………………………...……………..……………………..…..4

4.2.Configuration Utility………………..…………………………….………..………………………..….4

5.PRODUCT COMPLIANCE………………………………………………………….……..5

6.OPERATING CONDITION……………………………………………………..……..5

6.1.Drop and Vibration test……………………………….……………………………...……….5

6.1.1.Anti-Static Voltage……………………………………………………………………..………..5

6.1.2.Vibration Test………………………………………………………..…………….….………..5

6.1.3.Package Drop Test……………………………………………………………….…..…………5

6.2.Operation Environment ……………………………………………………………………...……….…5

6.2.1.Temperature Range………………………………………………………………….…………5 6 . 2 . 2 . Reliability Test ………………… ………………………… ……….……………. 5

6.2.3.Humidity…….…………………………………………..…………………………………….….5

7.INSTALLATION AND CONFIGURATION……………………..………………..……..6

7.1. Installation………….……………………………….……………………………...……….6

7.2. Configuration……………………………………………………………………………...……….…6

1

WLAN 22Mbps MiniPCI Card

1.Product General Information

1.1.Product Description

GL2422MP, the wireless Ethernet adapter for mini PCI type IIIB compliant notebook PCs, set-top box and integrated device, is fully compatible with IEEE 802.11b standard and supporting higher data rate to 22Mbps. Using Direct Sequence spread spectrum technology for immunity from interference, it will automatically fallback to lower data rate in the environment of interference.

22Mbps data rate is designed by the Packet Binary Convolution Code (PBCC) modulation technique. The software supports Windows OS such as Win98, Win2000, Win ME, and Win XP. The Mini PCI card for any integrated device is designed with U.FL or MMCX connector to conduce high performance for integrated product.

1.2.Product Feature

IEEE 802.11b Direct Sequence high rate compatible.

Based on DSSS Technology and support the modulation of PBCC mode

High-Speed wireless connection up to 22Mbps data rate, and support 11/5.5/2/1 Mbps 802.11b standard

Advanced Power Management supports power saving mode for battery device

Auto fallback data rate in the environment of interference.

64/128/256 Bits WEP Encryption function

High through-put supports multi-Media data bandwidth requirement

Plug-and-play Installation

Support Mini PCI type IIIB interface

1.3.Product Application

Wireless Networking in Enterprise, SOHO and home environment

Wireless Networking Access in Hot Spot area such as Airport, Hotel, School, Convention center, Coffee shop, etc…

Mobile media through wireless LAN

Mobile networking for notebook PC, and mobile devices

Build system in Ad-Hoc for Host-Client appliance or Infrastructure mode for multi-access

2

2. PRODUCT GENERAL

2.1. General Specifications

Standards:

IEEE802.11b Compliant



Mini PCI standard Type-III-B

Data Rate:

22Mbps / 11Mbps / 5.5 Mbps / 2Mbps / 1 Mbps auto fallback

Security:

64/128/256 bit Wired Equivalent Privacy (WEP)

Dimension

59.75 mm (L) X 44.6 mm (W) X 4. 8 mm (H)

2.2. LED Signal Support

2 Pin (For Power/Status, Tx/Rx)--LED signal supporting

2.3. Interface Mini PCI Type – III- B

3. PRODUCT HARDWARE SPECIFICATIONS

3.1. RF Specification

3.1.1 General

Emission Type

Direct Sequence Spread Spectrum (DSSS)

RF Frequency

2400MHz – 2497 MHz – Japan Band



2400MHz – 2483.5MHz – North America, Europe



2446.5MHz – 2483.5MHz – France

Operating Channel

11 Channels (US, Canada)



13

Channels (Europe)



14

Channels (Japan)

Radio Chipset:

RFMD

Media Access

CSMA/CA (Collision Avoidance) with ACK

3.1.2 Transmitter

RF Output Power

18 dBm (Typ. )

Frequency Stability

Within + 25 ppm

Data modulation type

PBCC/CCK/QPSK/BPSK

Data modulation speed

22/11/5.5/2/1 Mbps with auto fallback

3.1.3 Receiver

Sensitivity

-80 dBm @ 22Mbps (Typically @25 +5 )



(Less than 8% of PER packet sizes is 1024 bytes)

3

3.1.4 Antenna Connecter

Built-in one or two HRS U.FL or MMCX type connector

3.1.5. Typical Operation Range

22Mbps

100M

11Mbps

150M

5.5Mbps

250M

2Mbps

300M

1Mbps

350M

3.2. Hardware Specification

3.2.1. Bus Interface

PCI I/O port 32 Bit

3.2.2. MAC Controller

MAC

ACX100A

3.2.3. Memory



EEPROM

8 Kbytes

3.2.4. Power



Power Voltage

3.3v + 5%

Power Consumption

650mA by TX (Max.)



350mA by RX



Stand by mode TBD



Sleeping mode TBD

4. PRODUCT SOFTWARE SPECIFICATION

4.1. Driver

NDIS 4.0 LAN driver Win98, NDIS5.0 LAN driver for Win2000 & Win ME, NDIS 5.1 LAN for Win XP

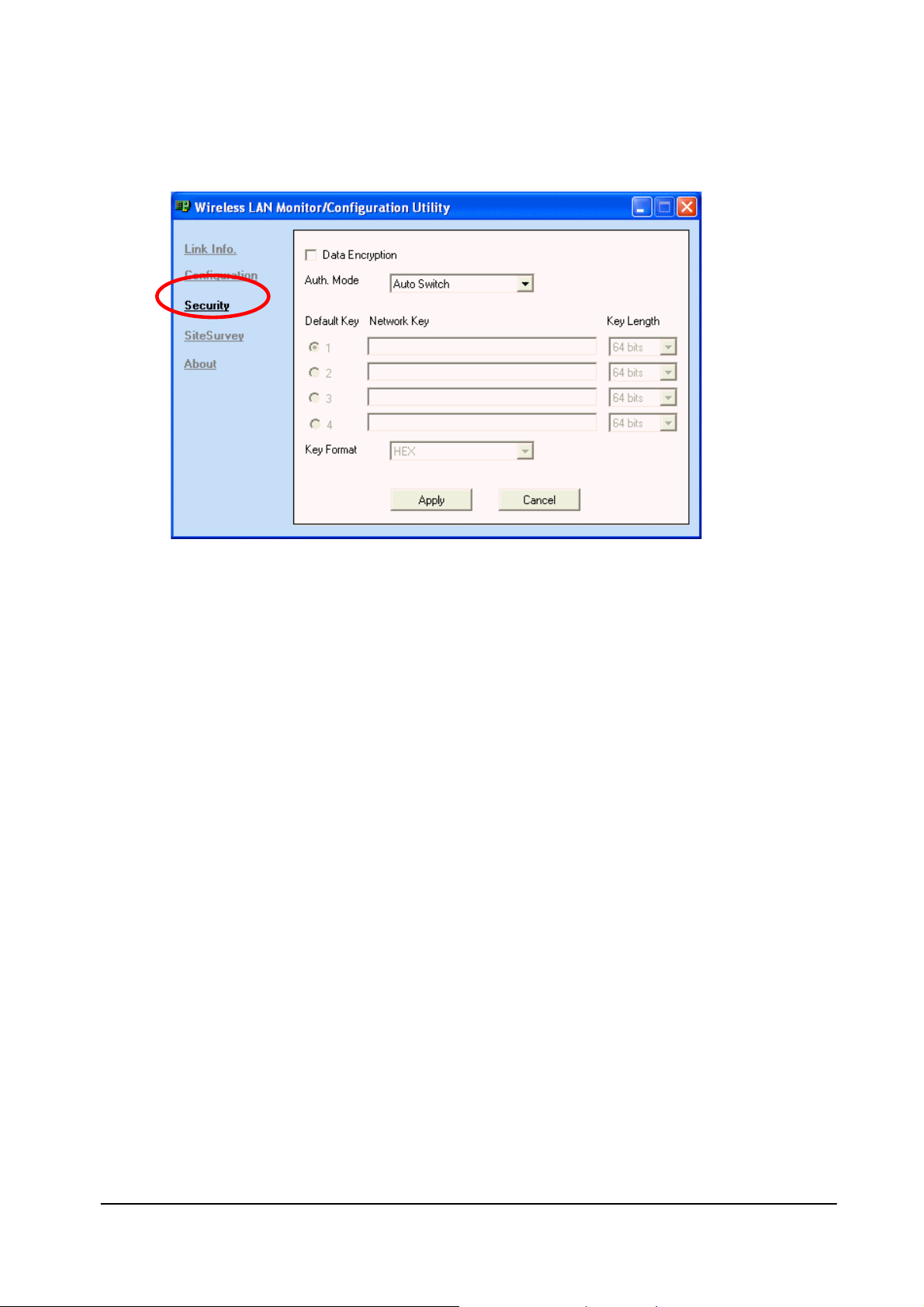

4.2. Configuration Utility

Configuration Utility software program for Win/98, Win2000, Win ME, Win XP



Configurable Parameters

Description













Networking Type

Infrastructure / Ad-Hoc













Channel

Channel number setting (14 channels available)













ESSID

ESSID setting













Rx Rate

Current Receiving data rate













TX Rate

Current Transmitting rate



















4

WEP

Disable, 64 bit, 128 bit and 256 bit





Link Quality

Receiving AP link quality on infrastructure





Signal Strength

Receiving AP signal strength on infrastructure





5. REGULATION COMPLIANCE

Compliant with

FCC Part 15 Class B and C

ETSI EN 300 328-2 and ETSI EN 301 489-1, -17, EN60950, CE-Mark

Telec (Japan, Customized)

WiFi Compliant

6. Environmental Requirement

6.1. Drop and Vibration

6.1.1. Anti-Static Voltage

Static voltage tests by 4 kV in card frame should not cause system fail.

6.1.2. Vibration Test

The vibration test is under the frequency and amplitude 10-25 Hz 1mm in vertical and horizontal direction by 30 minutes that should not cause any damage on product.

6.1.3. Package Drop Test

Dropping the package from the height of 50cm for each of the six (6) faces onto the hardwood floor should not cause any damage on product.

6.2. Operation Environment

6.2.1. Temperature Range

Operating:

-0 - +50 (Except RF output power and sensitivity)

Storage:

-20 - +70

6.2.2. Reliability Test

One cycle of reliability test is keeping at -30 by 2 hours, switching temperature up to +60 within one hour , and testing at +60 by 2 hours, and switching temperature to -30 within one hour. Three cycle should be tested and

5
