Section 3 - Configuration

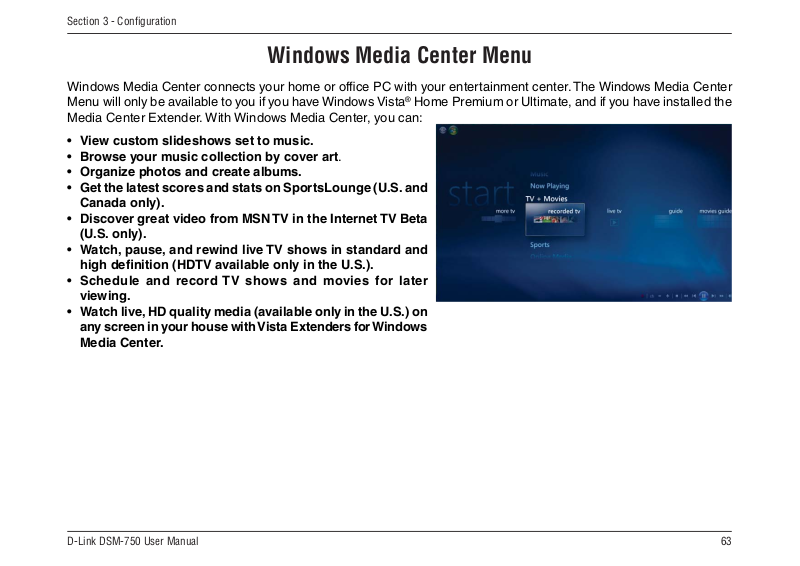

Windows Media Center Menu
Windows Media Center connects your home or office PC with your entertainment center. The Windows Media Center Menu will only be available to you if you have Windows Vista® Home Premium or Ultimate, and if you have installed the Media Center Extender. With Windows Media Center, you can:
•View custom slideshows set to music.
•Browse your music collection by cover art.
•Organize photos and create albums.
•Get the latest scores and stats on SportsLounge (U.S. and Canada only).
•Discover great video from MSN TV in the Internet TV Beta (U.S. only).
•Watch, pause, and rewind live TV shows in standard and high definition (HDTV available only in the U.S.).
•Schedule and record TV shows and movies for later viewing.
•Watch live, HD quality media (available only in the U.S.) on any screen in your house with Vista Extenders for Windows Media Center.
D-Link DSM-750 User Manual |
63 |
Section 3 - Configuration

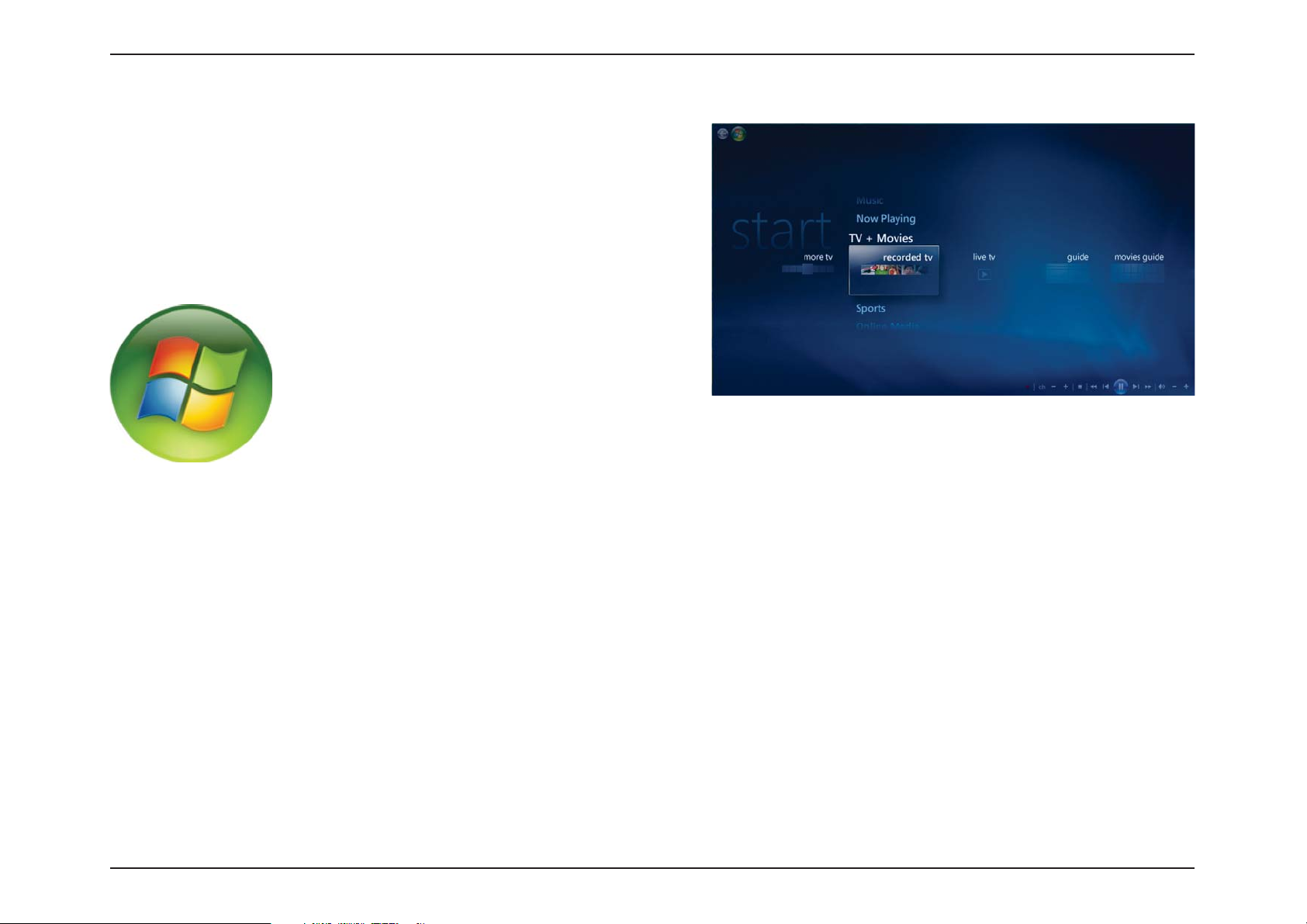

TV + Movies
Media Center can stream live and pre-recorded television to Windows Media Center Extenders. Once you have a PC with a TV tuner card installed, you can simply plug the cable, satellite, or antenna signal into the PC’s tuner card. To watch live TV, click the TV section of the Windows Media Center interface or click the Live TV button on your DSM-750 remote control. With your DSM-750 remote control, you can pause, rewind, and record live TV. The DSM-750 has a Record button located on the top-left part of the remote control (see image below).
Record - Starts recording live TV in Extender mode.
Live TV - Watch live TV in Extender mode.
Recorded TV - Watch recorded TV in Extender mode.
Guide - View the TV listings that are available to you.
If you have already recorded a TV program and you want to watch it, simply click the Recorded TV button on your DSM-750 remote control to view your recorded TV programs.
Clicking the Guide button will provide you with TV listings that are available to you. When the Guide menu appears (following image), select your TV program and enjoy.
D-Link DSM-750 User Manual |
64 |
Section 3 - Configuration
Music
Windows Media Center will organize and list your music files that are found on your media server. By default, albums are arranged in alphabetical order and contain album art.
You may use Windows Media Center to create playlists and to select your favorite songs to listen while wnjoying the comforts of your living room. Windows Media Center also allows you to watch a slideshow while listening to music.
Note: Album art can be downloaded from the Internet automatically, or it can be added manually into Media Center.
D-Link DSM-750 User Manual |
65 |
Section 3 - Configuration
Pictures + Videos
Windows Media Center allows you to organize your pictures and videos.
AOL Pictures - Access pictures others have stored online and upload your own photos for others to enjoy.
Picture Library - All your pictures stored on your PC in an easy to use interface and viewed as thumbnails.
Video Library - All your downloaded and personal videos can be accessed.
Online Media
Access numerous online providers for Internet videos, Internet radio, music downloads, movie and TV show downloads along with news and sports. Here you can find Vongo, Live365, MTV, Discovery Channel, XM, Napster, Yahoo Sports, Reuters and much more.
D-Link DSM-750 User Manual |
66 |
Section 3 - Configuration
Tasks > Settings
The Tasks > Settings menu allows you to set up, review and edit your
Media Center settings. These are the following options:
•General
•TV
•Pictures
•Music
•DVD
•Extender
•Library Setup
Allows you to burn a CD or DVD at your PC from your Extender. Add an Extender, and control key settings to control your Windows Media Center experience
Settings for how Media Center starts up and behaves and to configure Media Center.
Access other settings to configure your TV, speakers, online guide, parental controls, closed captions, photo displaying. media library and TV recordings.
D-Link DSM-750 User Manual |
67 |
Section 3 - Configuration
Settings Menu
The following options are available under the Settings menu:
A/V Output |
Slideshow |
Extender |
Network |
System |
A/V Output
Aspect Ratio
Under the A/V Output menu, you may change the Aspect Ratio to either 4:3 (Standard Televisions) or 16:9 (Widescreen Televisions). Please make sure you understand the ratio of your television screen before changing the aspect ratio, or you may get a distorted picture.
D-Link DSM-750 User Manual |
68 |
Section 3 - Configuration
Video Output

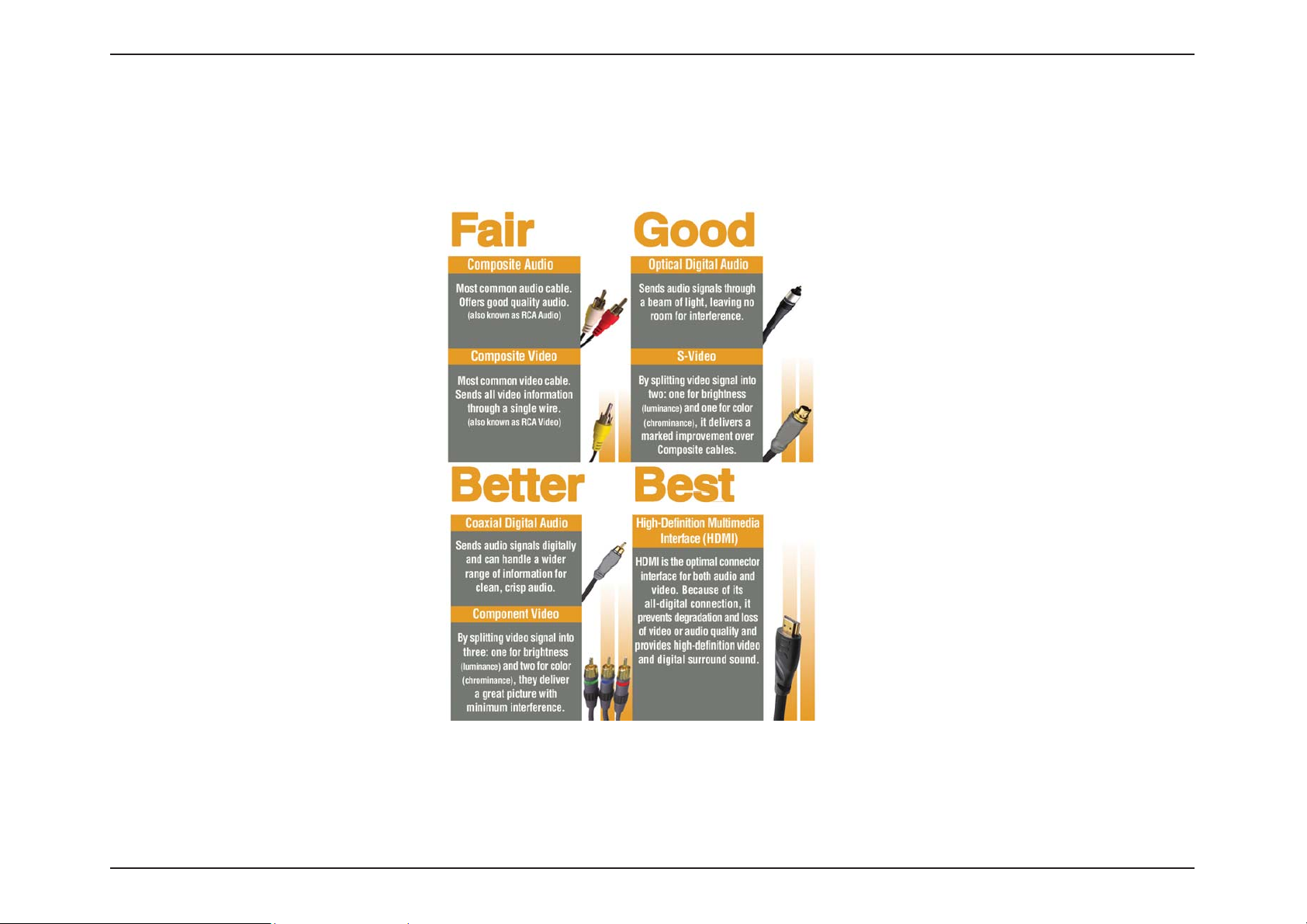

Under the A/V Output menu, you may change the Video Output to Composite, S-Video, Component, or HDMI. By default, the DSM-750 automatically detects your video connection.
Display Resolution
Depending on your video output connections (HDMI, Component, or Composite), you may manually change the resolution for your particular television.
Component display resolution can be set to 480i, 480p, 720p, or 1080i.
HDMI display resolution can be set to AUTO, 480p, 720p, or 1080i.
After you’ve made your changes, you will be asked to verify your changes. Click OK to proceed with your changes, or click Cancel to return to the menu.
D-Link DSM-750 User Manual |
69 |
Section 3 - Configuration
S/PDIF Audio Output
At the S/PDIF Audio Output menu, you may select between Stereo or 5.1 Channel Surround. Selecting Stereo is recommended for standard two to four speaker systems. Selecting 5.1 Channel Surround is recommended if you have a five speaker surround sound system with subwoofer.
S/PDIF = Sony/Philips Digital Interface.
This format is only supported when either the Coaxial Digital or Optical Digital audio connectors are connected to the DSM-750, or when an HDMI connector is connected to a compatible 5.1 audio receiver.
D-Link DSM-750 User Manual |
70 |
Section 3 - Configuration
Network
The Network menu will provide you with an overview of your current network configuration. If you choose to reconfigure your network, then use your DSM-750 remote control to select Configure Network.
If you are connected to your network with an Ethernet cable, continue to the “Wired Connection” section on page 72 of this manual. If you are connecting wirelessly, continue to the “Wireless Connection” section on page 76 of this manual.
Click Next
D-Link DSM-750 User Manual |
71 |
Section 3 - Configuration
Wired Connection
If DHCP is enabled on your network, select Auto (Recommended). If DHCP is not enabled on your network, select Advanced Setup to enter the wireless network settings manually.
If you selected Auto (Recommended), your DSM-750 will automatically setup the required network settings and display a “successfully connected” message (please skip to the “Wired Connection Complete” section on page 75).
If you selected Advanced Setup, you will need to setup your DSM-750 with the required wireless network settings (please continue to the following page).
D-Link DSM-750 User Manual |
72 |
Section 3 - Configuration
Advanced Setup
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wired network’s IP address.
Once you have entered your IP address, use your remote control to navigate to the Next option and press OK.
Click Next
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wired network’s Subnet mask.
Once you have entered your Subnet mask, use your remote control to navigate to the Next option and press OK.
Click Next
D-Link DSM-750 User Manual |
73 |
Section 3 - Configuration
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wired network’s Internet gateway.
Once you have entered your Internet gateway, use your remote control to navigate to the Next option and press OK.
Click Next
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wired network’s DNS server.
Once you have entered your DNS server, use your remote control to navigate to the Next option and press Enter.
Note: If you are unable to connect to your network, please check your network connections or contact your network administrator.
Click Next
D-Link DSM-750 User Manual |
74 |
Section 3 - Configuration
The next screen displays your current wired network configuration. Click Next to complete the setup.
Click Next
Wired Connection Complete
The “You have successfully set up your device on your home network” message should appear.Your DSM-750 is now configured for your wired network. Click Finish.
Note: If you did not receive the “successful” message mentioned here, please refer to the “Wireless Installation Considerations and
Troubleshooting” section starting on page 95. for more information.
Click Finish
D-Link DSM-750 User Manual |
75 |
Section 3 - Configuration
Wireless Connection
After clicking Next at the Welcome screen, please wait while the DSM-750 searches for available wireless networks.
Note: If your router’s SSID broadcast is turned off, please use your remote control to select Manual Setup. If you clicked Manual Setup, please continue to the following page. If you did not click Manual Setup, please skip to page 78.
D-Link DSM-750 User Manual |
76 |
Section 3 - Configuration
Manual Setup
Note: This page can be skipped by most users if SSID broadcast is enabled.
By using the remote control’s alphanumeric keypad, or the On Screen Keyboard, you may enter your wireless network’s name. When you have completed entering the network name, use the down arrow to select Next.
Note: If you your wireless network is not found, refer to the “Wireless Installation Considerations and Troubleshooting” section starting on page 95 for information as to why this may have happened.
Click Next
By using your remote control, navigate through the encryption type list by either pressing the up or down arrow. Once you find your network’s encryption type, use your remote control to click it. Please continue to the “Encryption” section on the following page.
D-Link DSM-750 User Manual |
77 |
Section 3 - Configuration
Select your wireless network from the list of networks that appear.
Note: If you do not see your wireless network, refer to the “Wireless Installation Considerations and Troubleshooting” section starting on page 95 for information as to why this may have happened.
Encryption
If your wireless home network is using wireless encryption, you will need to provide the DSM-750 with the network security passphrase. By using the On Screen Keyboard, you may enter the network security passphrase.
Click Next
D-Link DSM-750 User Manual |
78 |
Section 3 - Configuration
When you have completed entering the network security passphrase, use the down arrow to select Next.
Note: This passphrase must exactly match the network security passphrase, consult your network administrator for more information.
Click Next
If DHCP is enabled on your network, select Auto (Recommended). If DHCP is not enabled on your network, select Advanced Setup to enter the wireless network settings manually.
Note: If you selected Advanced Setup, please skip to “Advanced Setup” on the following page. If you selected Auto (Recommended), please skip to the “Wireless Connection Complete“ section on page 82.
D-Link DSM-750 User Manual |
79 |
Section 3 - Configuration
Advanced Setup
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wireless network’s IP address.
Once you have entered your IP address, use your remote control to navigate to the Next option and press OK.
Click Next
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wireless network’s Subnet mask.
Once you have entered your Subnet mask, use your remote control to navigate to the Next option and press OK.
Click Next
D-Link DSM-750 User Manual |
80 |
Section 3 - Configuration
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wireless network’s Internet gateway.
Once you have entered your Internet gateway, use your remote control to navigate to the Next option and press OK.
Click Next
Use your remote control number keypad, or select the numbers from the on screen number pad, to enter your wireless network’s DNS server.
Once you have entered your DNS server, use your remote control to navigate to the Next option and press Enter.
Note: If you are unable to connect to your network, please check your network connections or contact your network administrator.
Click Next
D-Link DSM-750 User Manual |
81 |
