Ronin

2014.11

V1.2

User Manual

Page 2

Disclaimers and Warnings

Congratulations on purchasing your new DJI product. Please read this manual and disclaimer carefully before using this product. By using this product, you hereby agree to this disclaimer and signify that you have read it in full. You agree that you are responsible for your own conduct and any content created while using this product, and for any consequence thereof. You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and any applicable polices and guidelines.

By reading this disclaimer, you also agree:

1. Any part of this disclaimer is subject to change without prior notice. Refer to www.dij.com for the latest version.

2. DJI reserves the right of nal interpretation of this disclaimer.

Do not modify or adjust the Ronin.

The Ronin has been calibrated before it leaves the factory. No modication or amending to the Ronin

is allowed. Make sure to use the original battery, otherwise performance may be hindered, and internal malfunctions and damage to the gimbal may be caused. Please download the corresponding Assistant software. As DJI has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. DJI assumes no liability for damage(s) or injuries incurred directly or indirectly from the use of this product. DJI and Ronin are registered trademarks of DJI as names of product, brand, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. This product and manual are copyrighted by DJI with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI.

Using Lithium Polymer (LiPo) Batteries

LiPo smart batteries can be extremely hazardous and require special attention when handled. Always follow these instructions when using LiPo batteries:

1. DJI smart batteries must be charged with a DJI charger.

2. DJI smart batteries are designed to stop charging when full. However, it is good practice to monitor the charging progress and disconnect the battery from the charger once fully charged.

3. Do not charge a smart battery near ammable materials or on ammable surfaces such as carpet or wood.

4. Never charge a swollen, leaky or damaged battery.

5. Examine charger regularly for damage to the cord, plug, enclosure or other parts. Never use a damaged charger.

6. Disconnect the charger when not in use.

7. Do not clean the charger with denatured alcohol or other ammable solvents.

Usage and Storage

Keep batteries out of the reach of children and pets. Never discharge batteries below 3V per cell. Do not heat the battery. Do not insert or remove batteries if the plastic cover has been torn or compromised in any way. Do not drop or strike batteries. Never use a swollen, leaky or damaged battery. Clean battery terminals with a clean, dry cloth.

Page 3

User Manual

Ronin

Do not expose batteries to extreme temperatures, including excessive heat. Do not leave the batteries inside vehicles on hot days. Do not allow batteries to come into contact with any kind of liquid. Do not leave batteries out in the rain or near a source of moisture. Do not leave batteries in a microwave oven or in a pressurized container. Do not attempt to dismantle, pierce or cut a battery. Do not attempt to repair batteries yourself. Do not place loose battery cells on any conductive surface, such as metal-toppled tables. Do not put the loose cells in a pocket, bag or drawer where they may short-circuit against other items or where battery terminals could be pressed against each other. Do not place or use batteries on strong electrostatic or electromagnetic surfaces or surrounding areas. This may result in battery damage. Do not place heavy objects on the batteries or charger. Avoid dropping batteries. Avoid direct contact with the electrolyte contained within the batteries. The electrolyte and electrolysis vapors are harmful to your health. Do not mix battery brands inside the controller. Do not attach the battery to wall or car charger sockets directly. Always use a DJI approved adapter.

Battery Disposal

Discarding batteries in general household waste is bad for the environment. Please dispose of batteries properly.

Do not dispose of batteries in re.

Damaged or unusable batteries must be disposed of in a container specially reserved for this purpose. When disposing of batteries, follow appropriate local guidelines and regulations. For further information, contact your local solid waste authority or a battery store. Only use the DJI smart battery. Always use the DJI smart battery charger.

FCC Compliance

Ronin complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) Ronin may not cause harmful interference, and (2) Ronin accepts any interference received, including interference that may cause undesired operation.

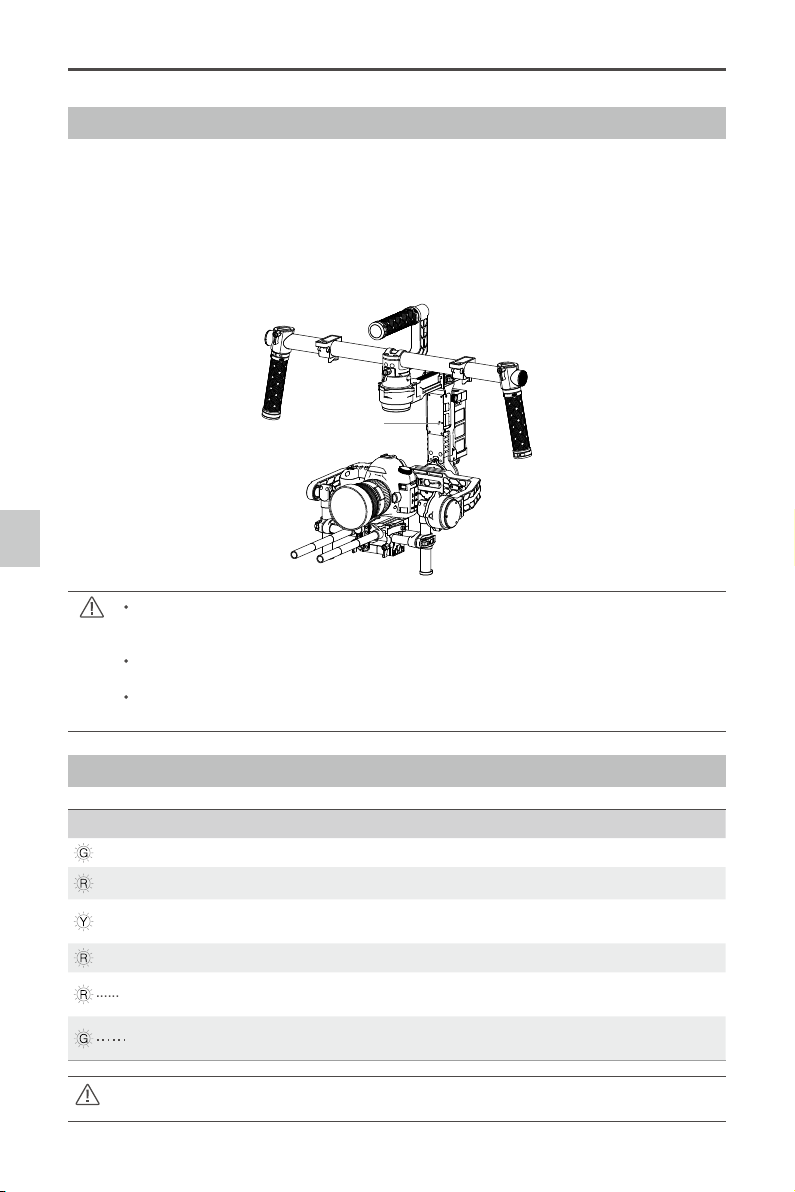

Using this Manual

Legend

Important Hints and Tips References or Denitions

Download DJI Ronin Assistant App

Download and install the DJI Ronin Assistant App.

Search "DJI Assistant" on the App Store and then follow the instructions for iOS installation.

iOS6.1 or above

Page 4

Contents

Disclaimers and Warnings

Using Lithium Polymer (LiPo) Batteries 2 Usage and Storage 2 Battery Disposal 3 FCC Compliance 3

Using this Manual

Legend 3 Download DJI Ronin Assistant App 3

Introduction Package & Instruction Sheet In the Box Gimbal Description Getting Started

Smart Battery 8 Tuning Stand 10 Installing the Handle Bar onto the Gimbal 11 Smart Battery Installation 12 Mounting the Camera 12 Handle Bar Adjustment 14

Balancing

Step 1: Balancing the Tilt Axis 15 Step 2: Balancing the Roll Axis 15 Step 3: Balancing the Vertical Tilt 15 Step 4: Balancing the Pan Axis 16 Advanced Roll Adjustment 16

DJI Ronin Assistant App Tuning

Download and Install 17 Basic Settings 17 Advanced Settings 18

DJI PC / MAC Assistant Tuning

Install DJI PC / MAC Assistant 23 Settings 25

Remote Control

Connecting the Remote Control to Ronin 30 Remote Control Power LED Indicator Status 30 Remote Control Battery Level Indicator Status 31 Remote Control Features 31 Adding 3rd Party Transmitter/Receiver 32

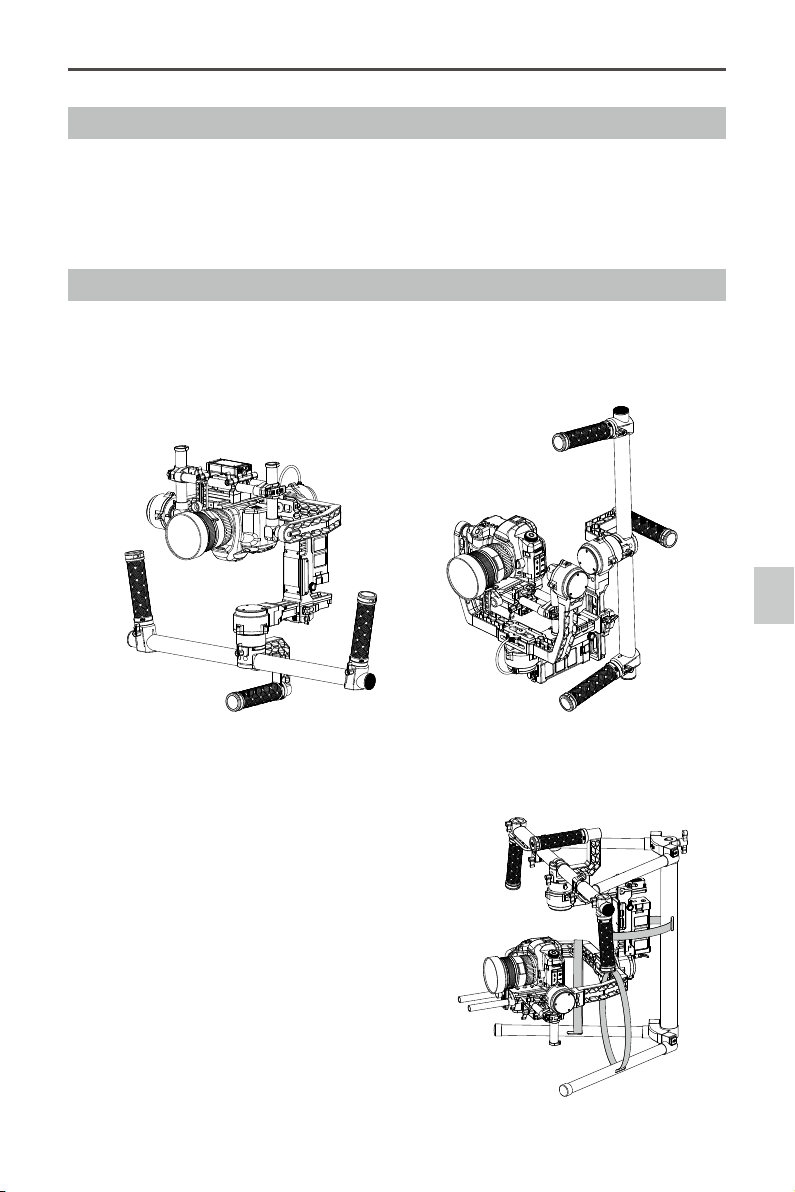

Operation Modes

Underslung Mode 32 Upright Mode 33 Briefcase Mode 33

Maintenance Troubleshooting

Specication 35

5 5 6 8 8

33 34

Page 5

Introduction

The DJI Ronin is the culmination of years of stabilization experience built into our most advanced camera stabilization platform to date. The technology built into the DJI Ronin allows a broad spectrum of cameras varying in size and weight to be mounted for class leading stabilization. We’ve put years of passion and excitement into the Ronin, bringing world-class movement translation and stability to the professional cinematographer’s market. A brushless gimbal stabilization system is not simply three brushless motors moving on three axes. The motors work with position feedback and the IMU (Inertial Measurement Unit) to communicate with our custom 32-bit processor, which processes movement calculations in milliseconds. This equates to control and stability accuracy down to 0.02 degrees of translated movement, meaning your images are going to be perfectly still in all three axes of movement. There are three operation modes in the Ronin: underslung mode, upright mode and briefcase mode.

Package & Instruction Sheet

Air pressure may be built up during air transportation or during extreme barometric pressure changes. Loosen the pressure valve knob on the side of the case prior to transportation in these circumstances to prevent pressure build up.

Below is the layout of the items inside the case. Not every item in this sheet is provided by DJI. There are pre-cut slots for some additional accessories. For more information regarding what's included, please refer to the "In the box" section of this manual.

Pressure Valve

Introduction / Package & Instruction Sheet

INSTRUCTION SHEET

UPPER LAYER

1 Gimbal

2 Smart Battery

3 Accessories

4 LCD Screen

5 DJI Lightbridge Air System (under the LCD Screen)

6 DJI Lightbridge Ground System (under the LCD Screen)

7 Remote Control -2.4 GHz

8 Adjustable Length Extension Rod

Battery

LOWER LAYER

Smart

9 Top Handle Bar

10 Camera Mounting Plate

11 Tuning Stand

12 Charger

Page 6

In the Box

Gimbal × 1

The gimbal includes built-in DJI motor drive modules, an independent IMU module, a 32-bit DSP processor, power supply module, Bluetooth, transmitter/receiver module,

In the Box

camera shelf, and power breakout box.

Handle Bar × 1

Customizable handle platform for the gimbal.

Remote Control -2.4 GHz × 1

Controls the movements of the gimbal, switches the work modes, and selects gimbal speed.

Tuning Stand × 1

For suspending or storing the gimbal.

Charger × 1

110-240V automatic switching charger.

Smart Battery × 1

Power source for the gimbal. Also supplies power for other external devices.

Page 7

Cables×3

ANSI & JIS & CE cables.

Plug Adaptors × 2

Ronin

User Manual

SAA & BS adaptors.

Micro-USB Cable × 1

For rmware upgrades.

Camera Mounting Plate × 1

For mounting your camera onto the gimbal.

Extension Rod Holder × 1

For installing extension accessories with the extension rods.

Adjustable Length Extension Rod × 6

For installing extension accessories with the extension rod holder.

Accessories Package

Camera Screw A (1/4”) ×2 Lens Support ×1

Camera Screw B (3/8”) ×2

M4*10 Screw ×2

Lens Support Screw ×1

Top Bar Quick Release Accessories Mount x 2

Allen Wrench ×3 (3mm, 4mm, & 3/16”)

In the Box

Page 8

Gimbal Description

[1]

[2]

Gimbal Description / Getting Started

[16]

[18]

[17]

[1] Top Handle Bar

[2] Side Handle

[3] Quick Release Mount

[4] Pan Motor

[5] Pan Adjustment Slider

[6] D-BUS/PPM Receiver Port

[7] USB Port & Can Bus Port

[8] Bind Button

[9] Gimbal LED Indicator Light

[10] Smart Battery

[11] Roll Motor

[14]

[3]

[4]

[8]

[9]

[13]

[15]

[12] Tilt Motor

[13] Fore and Aft Adjustment

[14] Tilt Vertical Adjustment

[15] Roll Adjustment

[16] IMU Port

[17] P-TAP Accessory Power Port

[18] USB Accessory Power Port

[19] P-TAP Port (rear side)

[20] DJI Lightbridge Port (rear side)

[21] GCU Port (rear side)

[5]

[6]

[7]

[10]

[11]

[12]

[19] [20]

[21]

Getting Started

Smart Battery

Before you start using your Ronin, be sure to charge the battery rst. The smart battery is specially

designed for the Ronin. It has a battery capacity of 3400mAh, voltage of 14.8V, and power management functionality. Charge the smart battery only with DJI approved chargers. When the battery is fully charged, it has a maximum run time of 4 hours.

Smart Battery Charger

Page 9

User Manual

Ronin

DJI Smart Battery Functions

Balance Charging Automatically balances the voltage of each battery cell during charging.

Capacity Display Displays current battery levels.

Overcharge Protection Charging stops automatically when the battery voltage reaches

16.8V to prevent overcharge damage.

Over Discharge Protection Discharging stops automatically when battery voltage reaches

12V to prevent over discharge damage.

Short Circuit Protection Automatically cuts power supply when a short circuit is detected.

Sleep Protection Sleep mode is activated after 10 minutes of inactivity to save power.

Charging Temperature Detection The battery will charge only when the temperature is between 0℃

and 55℃.

BatterySpecications

Type LiPo

Capacity 14.8V, 3400mAh

Charging Environment Temperature 0°C ~ 45°C

Operating Environment Temperature -15°C ~ 50°C

Charging/Discharging Environment Relative Humidity <80%

Getting Started

Read the user manual, disclaimer, and battery warnings before use. Users take full

responsibility for all operations and usage.

Always use DJI approved chargers. DJI takes no responsibility for any use of non-DJI

approved chargers.

Charging the Smart Battery

1. Connect the charger to a wall socket (100-240V, 50/60Hz), using the plug set if necessary.

2. Connect the battery to the charger.

3. The battery level indicator lights display current capacity level as the battery charges.

4. The battery is fully charged when the battery level indicator lights shut off and the indicator light on the charger turns green. Disconnect the battery from the charger when charging is completed.

Socket

Page 10

User Manual

Ronin

Using the Smart Battery

[1] [2] [3] [4] LED indicator lights

[6]

[1]

[2]

[3]

[4]

[5]

Getting Started

Checking the battery level: When the battery is powered off, pressing the battery power button once

[5] Power Button

(with one LED battery power indicator.)

[6] Thumb Screws

will display the current battery level.

Powering on: When the battery is powered off, press and hold for 1 second to turn on the smart battery. Powering off: When the battery is powered on, press and hold for 1 second to turn off the smart battery.

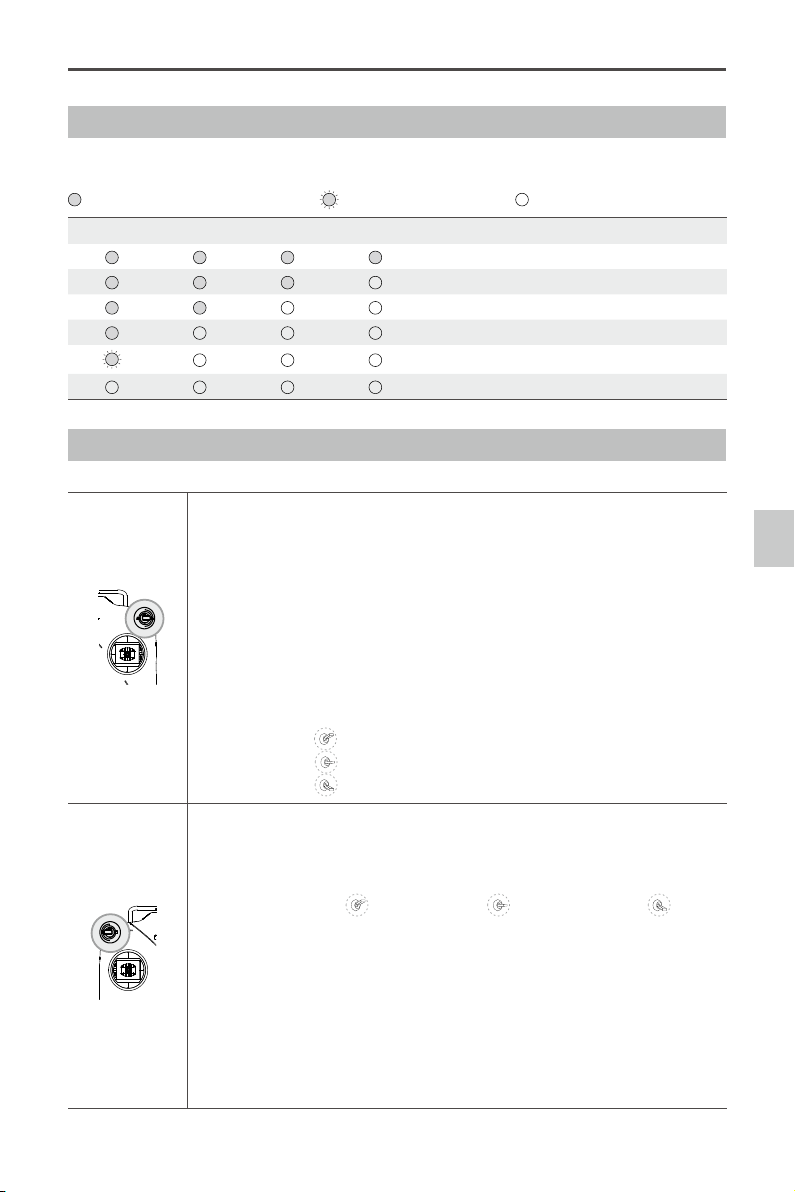

Description of the Smart Battery Level Indicators

The battery level indicators show the current battery level during both the charging and discharging process. The following is a description of the indicators.

: The LED is in a solid state on :The LED is blinking : The LED is off

Discharging process

LED1 LED2 LED3 LED4 Current battery level

87.5%~100%

75%~87.5%

62.5%~75%

50%~62.5%

37.5%~50%

25%~37.5%

12.5%~25%

0%~12.5%

<0%

Tuning Stand

You can use the tuning stand during setup or for storage of the gimbal. The following steps show how to use the tuning stand.

1. Put the stand in the upright position as shown in the picture below.

2. Press button [1] and pull the lower legs outward away from the stand, and then pull downward. Then press button [2] and pull the upper arms outward and upward.

3. The upper half of this tuning stand can be removed by loosening the knob [3]. You can use it with

any C-stand style stud that ts the hole [4]. When mounting on to a C-stand, be sure to check the

balance of the stand so as to not have the Ronin with a camera tilt over. When setting on a table,

make sure the table is a at and even surface.

Page 11

User Manual

Ronin

[2]

[3]

[4]

[1]

Installing the Handle Bar onto the Gimbal

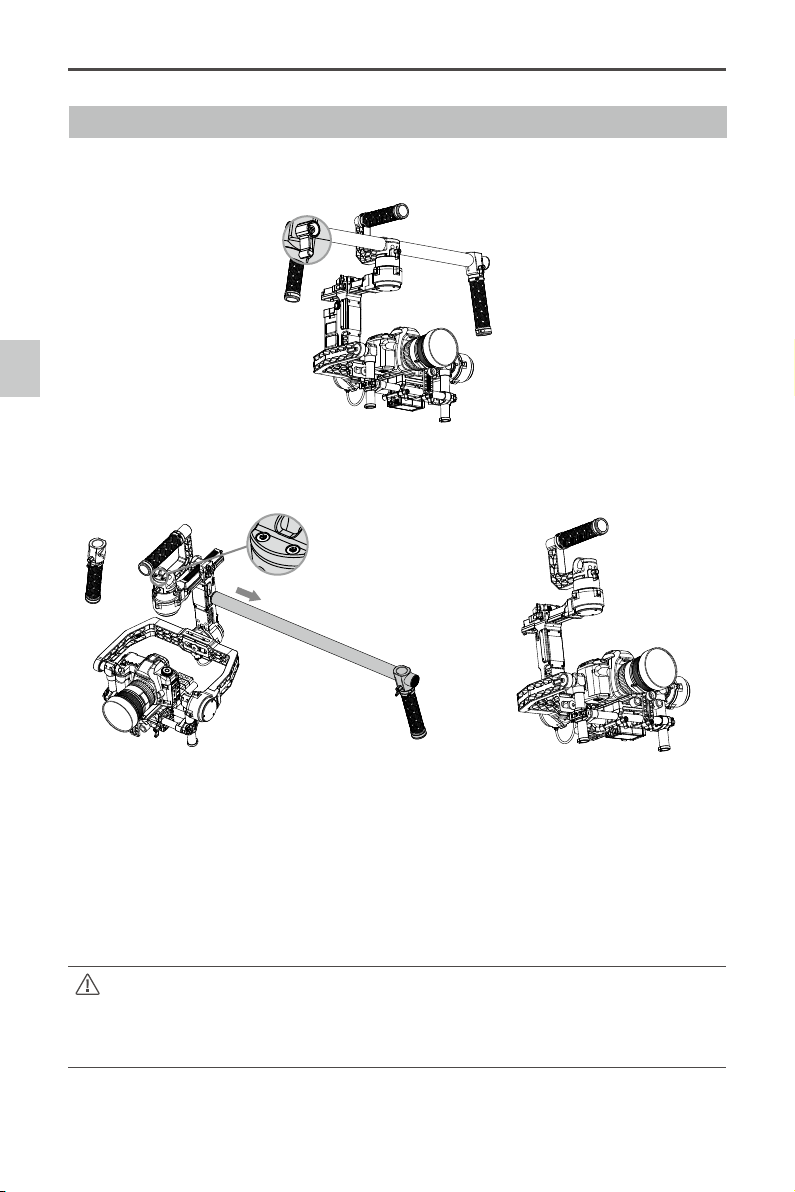

1. The turn knobs on the handles are loose by default. Adjust the grips to the desired position and tighten the screws to secure their position.

2. Place the handle bar in the position as shown below.

Getting Started

3. Push the lock [1]downward on the pan motor, and slide the handle bar into the gimbal. Then tighten the lock-knob [2].

4. With your hands on the handles, be sure the gimbal is not obstructed during a 360 degree pan. Installation is complete.

[2] [1]

Page 12

User Manual

Ronin

Smart Battery Installation

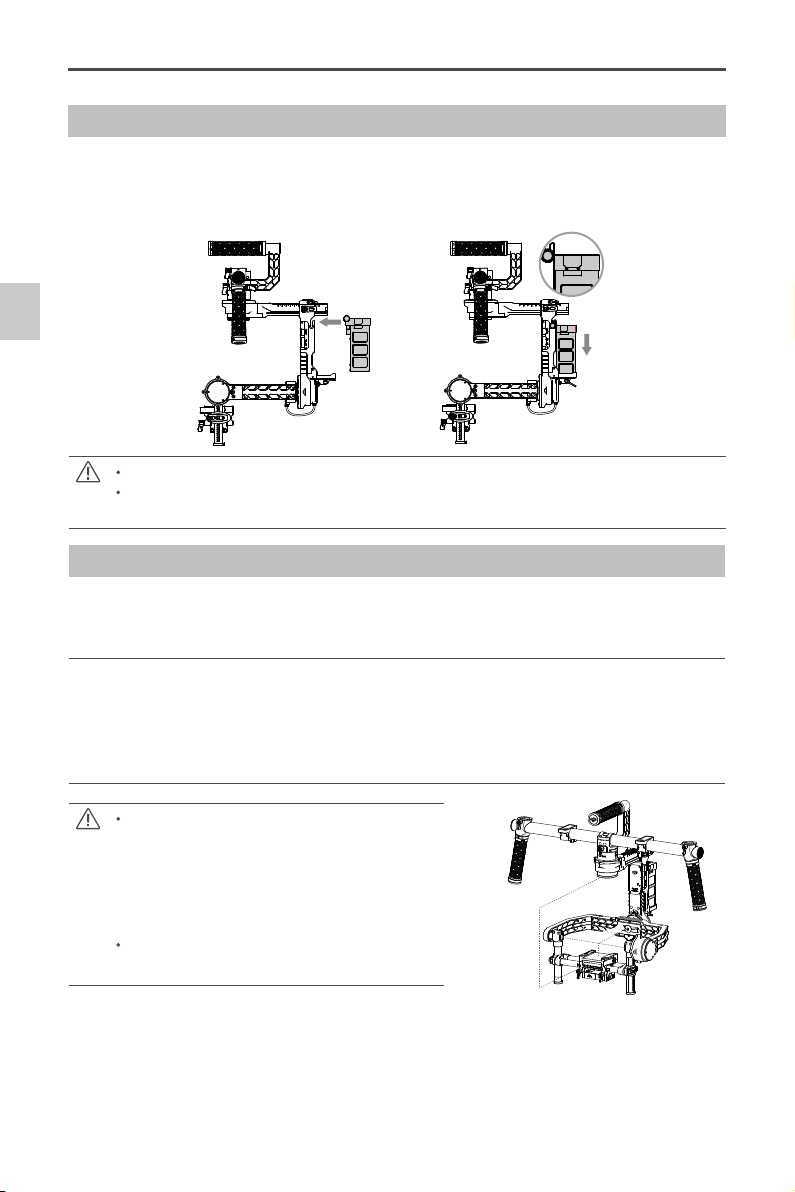

1. Loosen the thumb screws on either side of the battery. Slide the battery directly into the gimbal and then slide down. Be sure the battery’s thumb screws go down into their locating slots making full contact with the gimbal’s electrical leads.

2. Tighten the thumb screws on the battery to lock it in place.

Getting Started

Make sure the battery is powered off during the installation. An incorrectly installed battery may lead to (1) Poor battery connection, or (2) Unavailable

battery information.

Mounting the Camera

The Ronin uses an adjustable camera mounting plate to allow you to easily balance, install and remove your camera. The Ronin has been tested with the following types of cameras. Other cameras similar in size and weight may also work.

Black Magic Cinema Camera Canon 6D Nikon D800

Black Magic Pocket Cinema Camera Canon 7D Panasonic GH3

Canon 1Dc Canon C100 Panasonic GH4

Canon 5DMKII Canon C300 RED Epic/Scarlet

Canon 5DMKIII Canon C500 Sony NEX7

Camera Size Requirements: the maximum depth

from the center of gravity on the camera base plate is 140mm; the maximum height measured from the top of the camera base plate is 225mm; and the maximum width is 195mm.As shown in the picture on the right.

To avoid obstructing camera movement, the use

of soft connection cables is recommended.

225mm

195mm

140mm

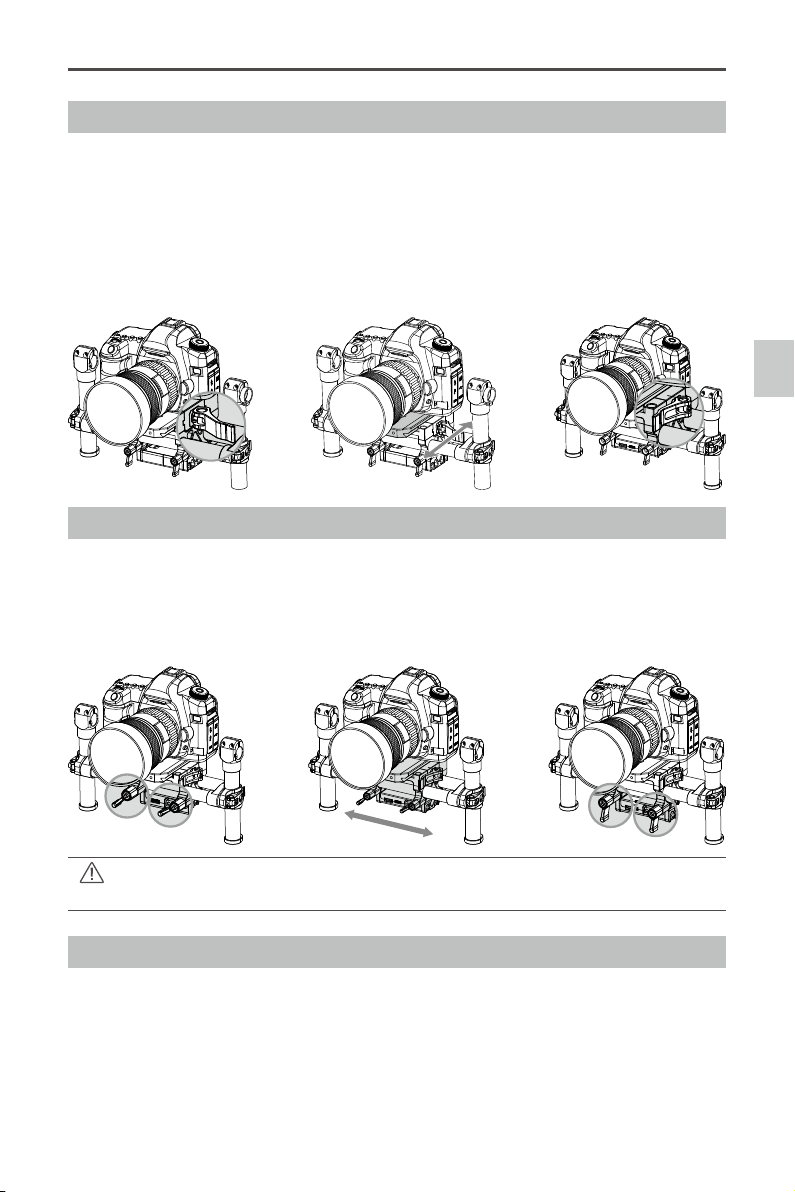

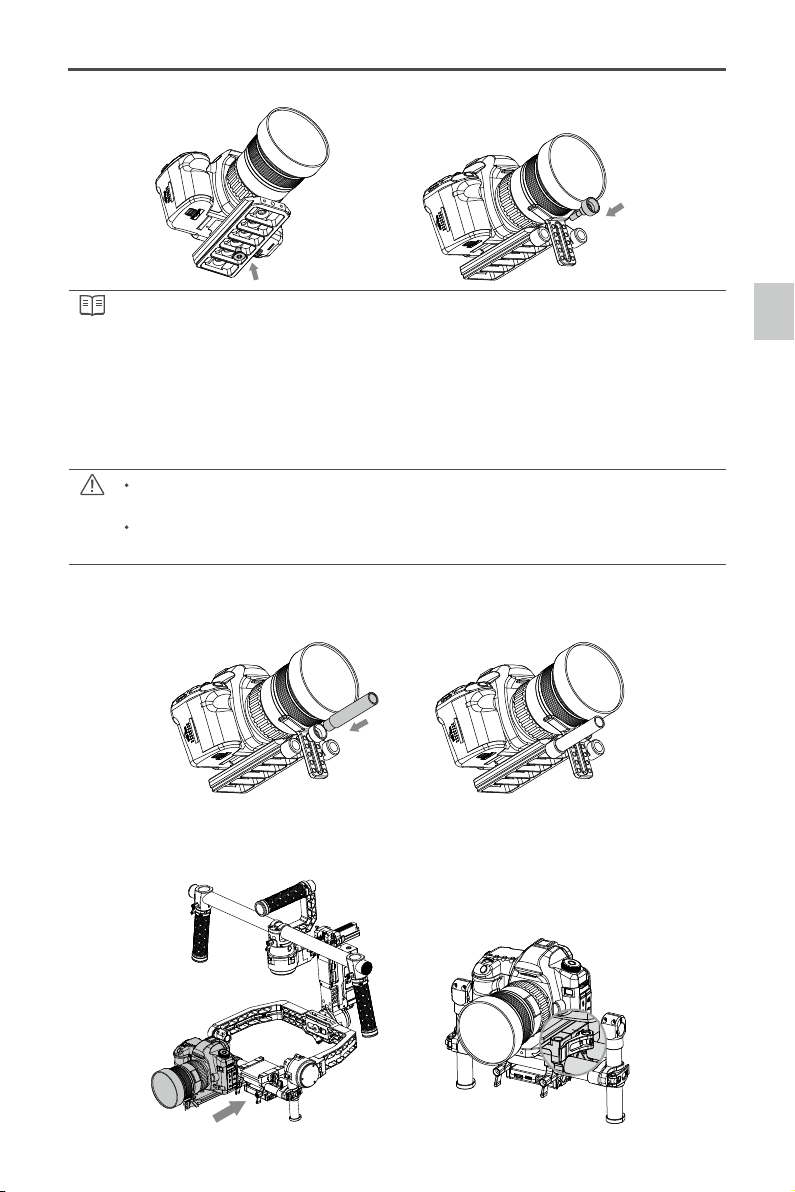

1. Attach the camera mounting plate to your camera using the provided screws. Choose the correct 1/4" or 3/8" screws. Some cameras have two tripod mounting holes. It’s best to secure the camera as tightly as possible. If two mounting holes are available on your camera, then use both mounting

holes. Choose the right screw holes according to your camera’s conguration.

2. Install the extension rod holder and lens support. Gently push up to apply a little pressure to the lens, then tighten the thumbscrew.

Page 13

User Manual

Ronin

Why do you need to use a lens support? Certain cameras have a very tight lens securing system, and some cameras like the Canon 5D MKII and MKIII have very loose lens securing systems. The Ronin balances the camera as one solid unit. If the mounted camera has a loose camera securing system, the lens support must be used. This is because if a loose connection between the lens and the camera body is apparent, vibrations could travel through to the camera but not directly to the lens, resulting in the two masses shaking at different frequencies. The resulting oscillation will translate to the

IMU, causing the whole gimbal to shake. If the lens support ts, it's best to use it at all times.

The lens support can be installed either facing outward or inward to accommodate different

lens types.

Ensure alignment of the camera plate and then tighten the screw prior to tightening the lens

support.

3. If using follow focus or other accessories, insert the extension rod into the extension rod holder and

tighten. Congure the length of the rods needs to accommodate for the length of the lens used.

Getting Started

4. With the gimbal on the tuning stand facing outward, insert the camera until the safety lock is engaged. Make sure the gimbal is not turned on when balancing the camera.

5. Tighten the camera base side clamp. You can adjust the tightness of the side clamp with the M3 allen wrench.

Page 14

User Manual

Ronin

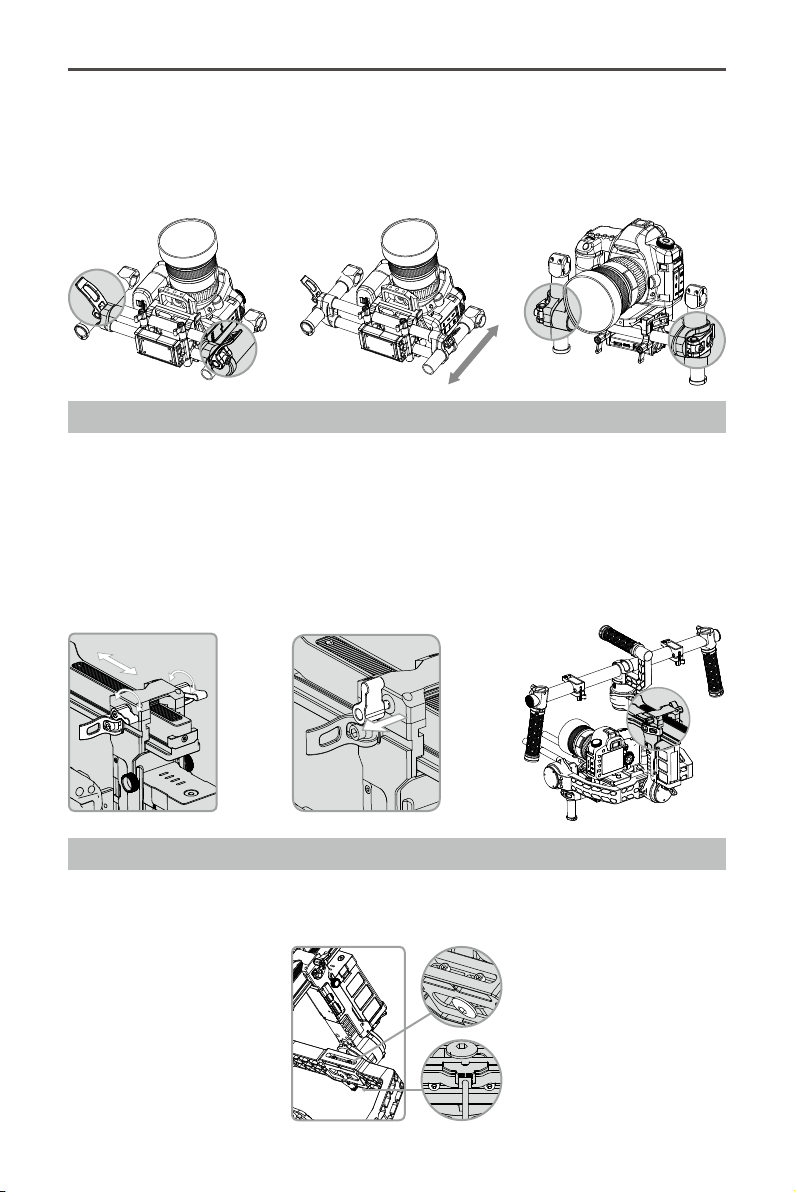

Handle Bar Adjustment

The customizable handle bar of the Ronin can be removed by following the steps below, if required.

1. Loosen screw on either grip.

Balancing

2. Remove the grip from the handle bar. Loosen the two screws and then the top bar can be removed.

3. The resulting setup is shown below.

Balancing

To achieve the best performance from the Ronin, proper balancing is necessary and a must. Accurate balance is critical in shots where the Ronin will be subjected to extreme movements or accelerations (running, horseback riding, biking, car mounts, helicopters, etc.) Proper balance will also offer a longer battery runtime. There are 3 axes that need to be accurately balanced prior to powering the Ronin on and setting up the software.

The camera needs to be fully setup with all accessories prior to installing and balancing the camera on the gimbal. If you are balancing the camera with a lens cap on, be sure to remove the lens cap prior to balancing. Be sure whenever balancing the camera that the Ronin’s power is turned off.

Page 15

User Manual

Ronin

Step 1: Balancing the Tilt Axis

First, we need to balance the camera fore and aft on the Tilt Axis. When the proper fore and aft tilt balance is achieved, the camera will stay level when you remove your hands.

1. Loosen the camera base's side clamp to allow the camera and mounting plate to slide forwards and backwards.

2. Slide the camera forwards or backwards until the Tilt Axis remains level. It takes very small adjustments to get the balance right.

3. Tighten the side clamp to lock the camera and mounting plate in position. If properly balanced, the camera should be able to remain steady in any given tilt angle.

Step 2: Balancing the Roll Axis

Balancing the camera left-to-right on the Roll Axis is also required. When the proper left/right roll balance is achieved, the camera will stay level.

1. Loosen the 2 lock-knobs to allow the camera and mounting plate to slide left and right.

2. Slide the camera left or right until the Roll Axis remains level.

3. Tighten the 2 lock-knobs to lock the camera mounting plate in position.

Balancing

When adjusting the roll balancing position of the camera, only loosen the 2 lock-knobs a few turns to allow the camera base to slide. Do not loosen the lock-knobs excessively.

Step3:BalancingtheVerticalTilt

To adjust the vertical balance, you will need to change the camera’s vertical position. When proper balance is achieved, you can rotate the camera to any tilt angle, and it will stay in that position. Adjust the height of the crossbar to achieve vertical tilt balance.

1. Rotate the Tilt Axis so that the camera lens is pointing skyward as much as your lens setup will allow and loosen the two vertical adjustment tabs.

2. Gently slide the camera mount crossbar forward or backward until the camera remains pointing skyward when released.

Page 16

User Manual

Ronin

3. Tighten the tabs and be sure the measurement marks match up on either side of the vertical bars. If they do not match up, the assembly could possibly be skewed higher or lower on one side, which would cause the tilt motor to bind. Once the tab is tightened, manually rotate the assembly simulating tilt to ensure there is no binding in the tilt motor. Sometimes you may need to go back

and balance the fore and aft tilt axis balance if the vertical balance required a signicant change.

Step 4: Balancing the Pan Axis

The entire mass below the pan motor must be balanced on the central axis line of the pan motor. To achieve this balance, you must slide the pan axis slider.

1. Loosen the two tabs on the pan axis knuckle and turn the knobs to slide the assembly.

2. Identify if the Ronin is front heavy or rear heavy. Turn the knobs and reposition them by pulling outwards to slide the pan slider forwards or backwards.

3. While the Ronin is resting on the tuning stand, try rotating the Ronin along the pan axis by lifting one side of the handle bar. If the camera does not swing, the pan axis is properly balanced. Ensure you tighten the two tabs after balancing is completed.

Advanced Roll Adjustment

If additional roll adjustment is needed in cases where the camera itself is too light in comparison to the tilt motor assembly, advanced roll adjustment can be achieved by loosening the indicated screws and pushing the assembly to the right or left.

Page 17

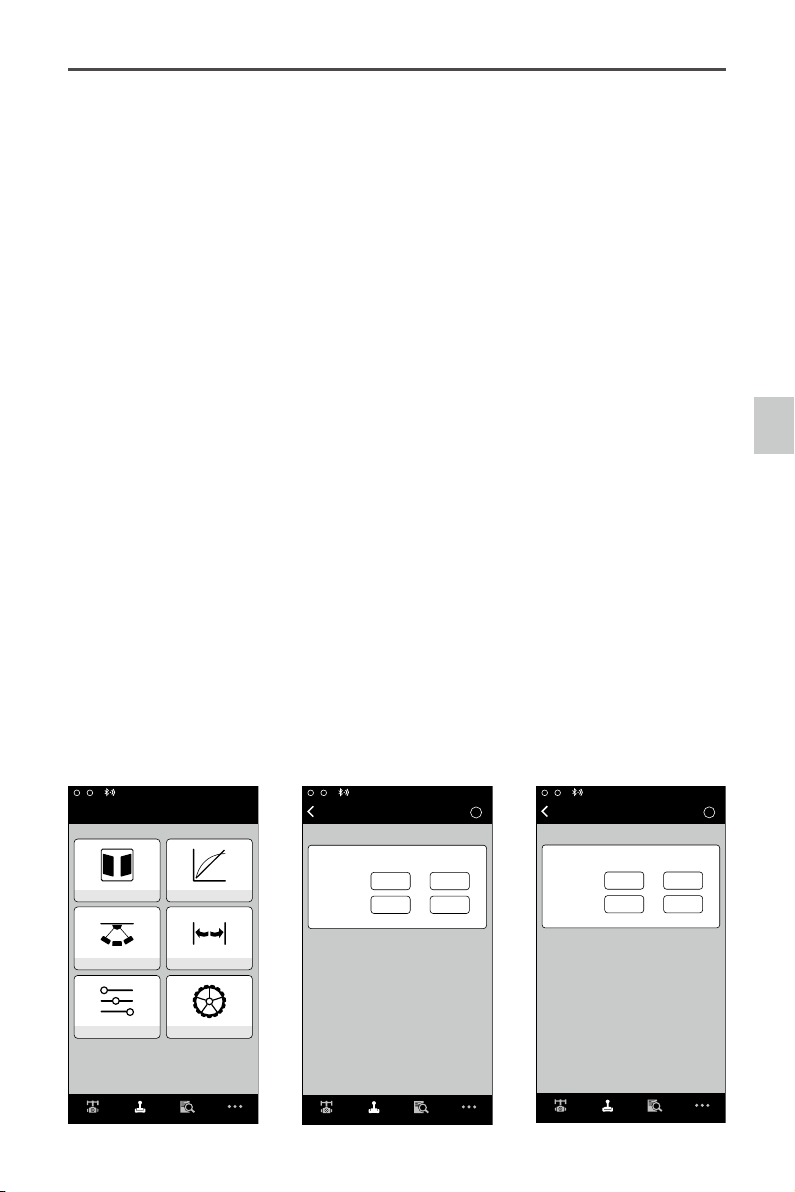

DJI Ronin Assistant App Tuning

N/A

Mode

N/A

Mode

After nishing the balancing portion, you can adjust software parameters through the DJI Assistant App.

Download and Install

1. Download the DJI Assistant App: Search “DJI Assistant” on the App Store then follow instructions for the iOS version.

2. Be sure Bluetooth is switched to the on position on your mobile device. Position the camera in the standard operating position. Power on your Ronin and then open the app to connect to the Ronin via Bluetooth.

3. Register your e-mail address when using the app for the very rst time.

4. Connect to your Ronin according to the tips in the app. After connecting to the main controller of the gimbal, you will see the Wizard menu. When the green light at the top in the App is steady and the blue light is blinking, the connection is complete. The green LED light on the Ronin will light up.

After switching on Bluetooth on your mobile device, go back to the Assistant App to connect

to the Ronin. The Ronin will not show up in the settings menu of your mobile device. It can only be connected to via the App.

There are two device types, choose "Ronin" to enter the gimbal assistant page. Choosing

"A2" will enter the DJI ight controller assistant page.

Basic Settings

The functionality in the Wizard are the most basic functions you may want to adjust upon receiving your Ronin. These options are also the most used functions during standard operation of the Ronin. You can complete all these settings in the Wizard menu.

：

In App help

Gimbal

Calibrate

Live Data

Briefcase Mode

SmoothTrack Mode

Control Speed Adjustment

Gimbal Control Viewer More

Wizard

Recognized by Bluetooth connection

Ronin is providing feedback

Auto Tune Stability

Tap this after setting up camera balance

Power

Pan

Tilt

Roll

Select between customizable options

Pan

Angle

？

Tilt

Gimbal

Calibrate

Live Data

Briefcase Mode

SmoothTrack Mode

SmoothTrack Adjustments

Gimbal Control Viewer More

1. Calibrate

Auto Tune Stability provides an easy one-touch button for automatic configuration of each axis.

Trajectory, speed, power and stiffness of motors are automatically tuned for the camera conguration that’s mounted. Auto Tune Stability should be tapped whenever there is a new camera conguration

mounted such as a lens change or accessories change. This will offer the best stability and the most optimal settings.

：

Wizard

Auto Tune Stability

Power

Pan

Tilt

Roll

Speed

Deadband

Angle

Accel

？

Gimbal

SmoothTrack Adjustments

Pan Axis

Tilt Axis

SmoothTrack Test

Control Speed Adjustment

Onboard Controller Remote Operator

Gimbal Control Viewer More

Wizard

Deadband Accel

Speed

15 15

Test Pan Speed

Test Tilt Speed

Pan

？

Tilt

1515

DJI Ronin Assistant App Tuning

Page 18

User Manual

Gimbal Control Viewer More

Ronin

2. Live Data

This monitors the feedback from each motor axis. If a particular motor axis indicates a power greater than 10, this often means the mechanical balancing of the camera hasn’t been properly adjusted. A properly balanced camera rig will have each axis indicating close to 0 power. Don’t worry if these settings are not always 0. The Angle indicates the current angle at which each axis is in relation to center.

3.BriefcaseMode

When Briefcase Mode is switched on, the Ronin will be able to seamlessly transform into this operation mode. With Briefcase Mode turned off, the Ronin will allow the Roll axis to follow if the Ronin is tilted past the standard roll axis travel.

4. SmoothTrack Mode

DJI Ronin Assistant App Tuning

deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s pan. Tilt Axis speed will determine how fast the camera will travel while translating a tilt movement. Tilt deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s tilt. The Pan and Tilt SmoothTrack speed can be tested. Ensure there is no obstruction of the camera when tapping these Test buttons.

5.ControlSpeedAdjustment

Remote control speed can be adjusted here. The adjustment represents the maximum speed of gimbal control in the Pan and Tilt axis when the control sticks are pushed to their endpoints.

Advanced Settings

There are more advanced functions you can adjust through the Assistant to meet your requirement.

Gimbal Menu

Auto Tune Stability

Tilt Axis

Pan

Tilt

Roll

Mode:N/A

Motor

Stiffness

0 0

Power Angle

？

Trim

Gimbal

SmoothTrack Mode

SmoothTrack Adjustments

Pan Axis

Tilt Axis

Test

Mode:N/A

Wizard

Gimbal Control Viewer More

Gimbal

Motor

Gimbal

Configuration

SmoothTrack

Pan Axis

Roll Axis

Live Data

SmoothTrack

Deadband Accel

Speed

0 0

15 15

Test Pan Speed

Test Tilt Speed

？

Page 19

User Manual

Gimbal Control Viewer More

Ronin

1. Gimbal Motor Adjustment

The Auto Tune Stability button allows for automatic adjustment of each motor’s stiffness settings (as relayed from the sensors and how the Ronin sees each axis’s interaction) to accomplish an optimized setting. Besides tuning stiffness, there are other electronic settings being tuned. It is highly recommended that the

Auto Tune Stability button be tapped whenever there is a new camera conguration mounted, including a

lens change or accessories change. This will offer the best stability and the most optimal settings.

Each axis has its own stiffness and trim adjustment. The motor stiffness adjustment allows ne tuning of the

amount of power applied to the motors as they react to the balancing of weight on each axis. The higher you can adjust the stiffness settings without having any vibrations or oscillations from the gimbal, the better. A majority of the time, the Auto Tuned settings will be suitable. The Trim adjustment controls the preset amount of trim applied to each axis off center. The default setting of 0 degrees represents center.

2. Gimbal SmoothTrack Mode

When SmoothTrack Mode is enabled, the Ronin will can be "steered" by the camera operator’s movements in the Pan and Tilt axis. This steering/translation speed can be adjusted for each axis independently. When the Ronin's top bar is rotated left or right, the camera will smoothly pan and slow down to a stop. Under the SmoothTrack options, the Pan Axis and the Tilt Axis can be independently adjusted. Pan Axis speed will determine how fast the camera will travel while translating a pan movement. Pan deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s pan. Tilt Axis speed will determine how fast the camera will travel while translating a tilt movement. Tilt deadband will determine how much movement the gimbal will tolerate prior to translating the camera’s tilt. The Pan and Tilt SmoothTrack speed can be tested. Ensure there is no obstruction of the camera when tapping these Test buttons.

DJI Ronin Assistant App Tuning

Control Menu

1. Controller Deadband

Onboard controller and the remote operator controller can have independent pan and tilt deadbands of movement. The larger the deadband, the more deadband there is in the stick movement prior to the input being translated to actual movement of the gimbal.

N/A

Mode：

Wizard

Control

Deadband Maximum Speed

Smoothing Endpoint

Channels Settings

Control

Deadband Adjustment

Onboard Controller Remote Operator

Deadband

Pan

？

Tilt

Maximum Speed

Control

Control Speed Adjustment

Onboard Controller Remote Operator

Gimbal Control Viewer More

？

Pan

Tilt

Page 20

User Manual

Gimbal Control Viewer More

Ronin

2. Controller Maximum Speed

Maximum Speed is a function that allows the controlled stick response from being a linear response to what is known as an increasing response curve. This means the amount of gimbal travel in the Pan or Tilt is not directly proportional to control stick travel. Control response can be adjusted to be milder

below the initial rst half of control stick travel and be increased to a higher speed towards the last

half of control stick travel. This preset exponential curve is selected based off the input of maximum speed. The onboard controller and the remote operator control sticks can have maximum speeds set independently from each other.

N/A

Control

Smoothing Adjustment

Onboard Controller Remote

DJI Ronin Assistant App Tuning

Operator

Smoothing

Pan

？

Endpoint Adjustments

Tilt

Test

Control

Pan Axis

Tilt Axis

Test Pan Endpoints

Test Tilt Endpoints

Mode：

Endpoint

Left Right

0 0

Up Down

0 0

？

Gimbal Control Viewer More

3.ControllerSmoothing

When the control stick input is released, the smoothing of the translated movement will come to a smooth slow down if the smoothing is increased. If the smoothing is 0, the slowdown will appear as an abrupt stop. The onboard controller and remote operator control sticks can be set independently. Pan and tilt smoothing can also be set independently.

4. Controller Endpoints Adjustment

Pan Axis endpoints can be adjusted independently for left and right movement when used with a remote control or the onboard controller. Pan Axis endpoints setting means during controller input, the maximum point in which the gimbal will rotate left or right. If the requirement to rotate 360 degrees on the Pan axis is needed, simply adjust the endpoints for pan to 0. If endpoints are set to 0 for 360 degree Pan ability, then "Test Pan Endpoint" will not move the pan axis. Tilt Axis endpoints can be adjusted independently for up and down movement when used with a remote control or the onboard controller. Tilt Axis endpoints setting means during controller input, the maximum point in which the gimbal will rotate up or down. The Pan and Tilt endpoints can be tested. Ensure there is no obstruction of the camera when tapping the Test buttons.

Page 21

User Manual

Gimbal Control Viewer More

N/A

Gimbal Control Viewer More

Ronin

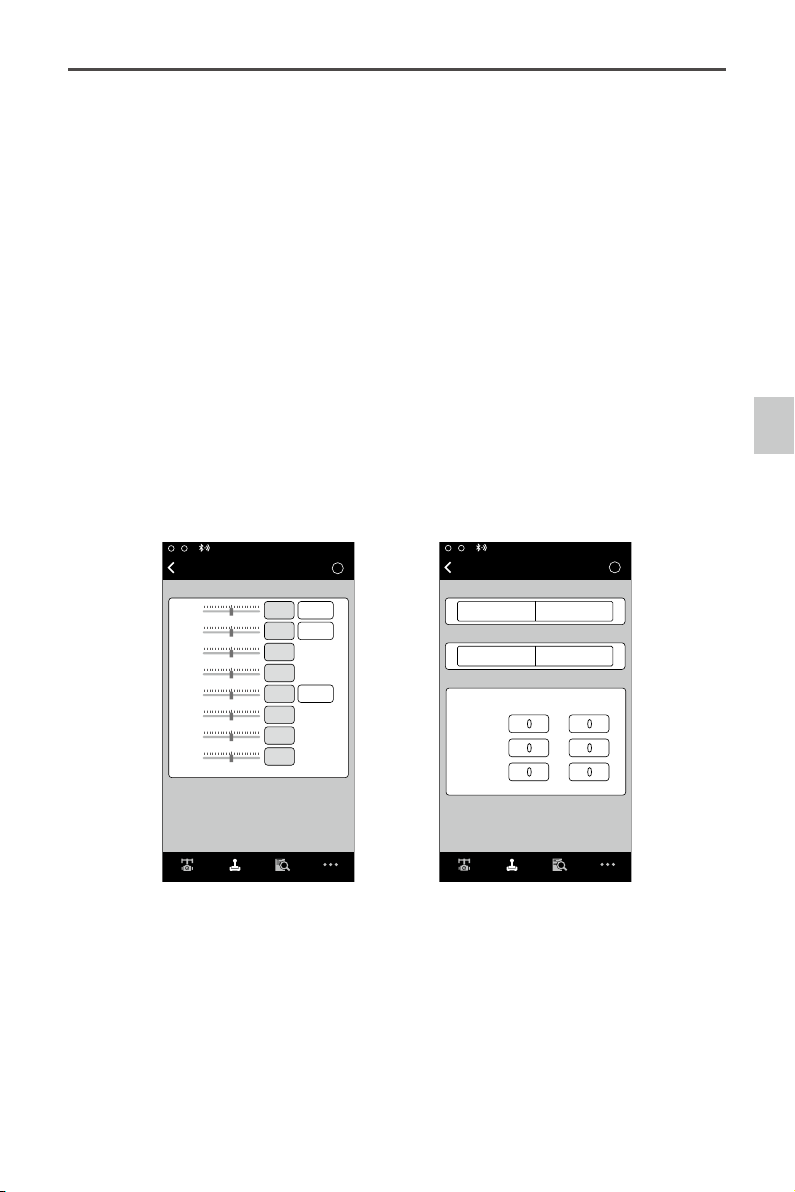

5.Channels

This is a channel indicator to provide feedback during remote operator conguration. Pan, Tilt, and

Roll can be re-assigned to either of the remote control sticks. The controlled axis can also be reversed.

6. Controller Settings

Controller Priority: If both input devices send control signals to the gimbal, the selected controller priority will be the only device to send a signal at that given time.

Pan/Tilt remote speed adjustments can be pre-congured to be selectable on the 2nd operator remote

control. The control speed settings for pan and tilt can be set independently from each other.

Setting Speed Toggle Presets, you are setting the Function switch (left switch) on the Ronin remote control. These presets will allow you to change the SmoothTrack speed remotely. If the remote control is turned on, the Speed Toggle Presets for SmoothTrack will take precedence over the App settings. Once the remote control is turned off, the SmoothTrack settings in the App will take over.

DJI Ronin Assistant App Tuning

Channels

Control

Channels

CH 0

CH 1

CH 2

CH 3

CH 4

CH 5

CH 6

CH 7

Normal

REV

Normal

？

Controller Priority

Pan

Tilt

Roll

Pan/Tilt Remote Speed Adjustment

Speed Toggle Presets

Control

Remote Operator

Combined

Fast

Normal

Slow

Mode：

Settings

Onboard Controller

Independent

Pan

？

Tilt

Page 22

User Manual

Control Viewer More

Gimbal

Ronin

ViewerMenu

The viewer provides all the essential live data for monitoring the gimbals electronics as well as feedback from the motors. Power is indicated for each axis. The current angle of each axis is also indicated. The voltage of the battery, temperature of the main electronics, and also current uptime can also be monitored via this menu.

N/A

Mode：

Briefcase Mode

Motor Kill

Calibrate Center

Calibrate System

Restore default settings

＊＊＊@

＊＊＊

Accounts

Device List

Information

Gimbal Control Viewer More

.com

？

Pan Axis

Tilt Axis

Roll Axis

Temperature

Power

Voltage

Power

Time

Viewer

-2 0

Angle

14.50V

。

35.40 0:01:59

Angle

1.89

-0.45

-0.01

？

。

More Menu

Briefcase Mode

When Briefcase Mode is switched on, the Ronin will be able to seamlessly transform into this operational mode. With Briefcase Mode turned off, the Ronin will continue to allow the Roll axis to follow.

Motor Kill Switch

When activated, the Ronin is still powered on, but the motors will be powered off. This will allow an adjustment to the gimbal or camera without having to turn off the gimbal. Prior to turning off the kill switch, make sure the gimbal is positioned in the standard operating position. The motor kill switch can also be used in case the gimbal operator runs into an issue, or you need to make a quick mechanical adjustment to the gimbal or camera setup.

Calibrate Center

If the Ronin’s Pan axis is off center, you can recalibrate the true center of the Ronin using this switch. Using a remote control, position the pan axis at dead center, then tap the Calibrate Center. Tap “Center”

again in the pop-up to conrm. Power cycle after calibrating center.

Calibrate System

Calibrate System is only used if you notice any kind of drift in any of the axes. To calibrate the system, place the Ronin on the tuning stand and make sure it is completely steady. Then tap the Calibrate System button

and let the process nish before picking up the Ronin.

Restore Default Settings

This will restore all the factory settings that are congurable through the app.

Device List

To force the App to nd the Ronin, select "Device List" to force the App to search for Bluetooth devices

it recognizes.

Page 23

DJI PC / MAC Assistant Tuning

You may also tune the Ronin and upgrade the rmware through the DJI PC / MAC Assistant.

The tuning settings of the DJI Assistant App and DJI PC / MAC Assistant are the same. There

is no need to repeat your settings in both Assistants.

The DJI Ronin Assistant App and the PC / MAC Assistant program cannot be simultaneously

launched and connected at the same time. If running the Assistant App on your mobile device, be sure to disconnect the micro USB cable.

Install DJI PC / MAC Assistant

Installing and Running on Windows

1. Download the DJI WIN DRIVER INSTALLER from the Ronin product page on DJI.com. Connect the Ronin to your PC via USB cable and be sure the Ronin is powered on prior to installing the DJI WIN Driver.

2. Download the appropriate Assistant installer from DJI.com.

3. Double click the Assistant installer and follow the steps to nish the installation.

4. Run Assistant.

5. Upgrade the rmware or congure parameters using Assistant as needed.

The Assistant installer can be used on Windows XP, Win7, and Win8 (32 or 64 bit)

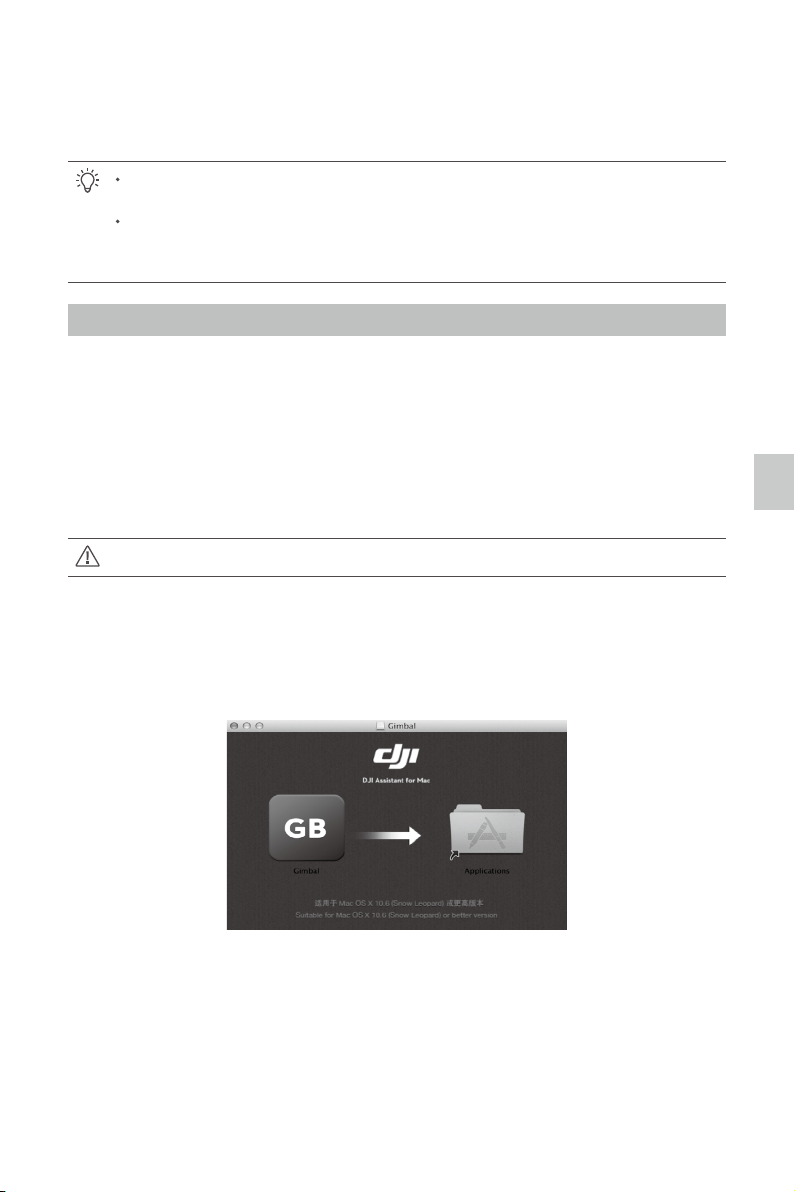

Installing and Running on Mac OS X

1. Download the Assistant installer (.DMG) format from the Ronin download page.

2. Run the installer and follow the prompts to nish installation.

DJI PC / MAC Assistant Tuning

Page 24

User Manual

Ronin

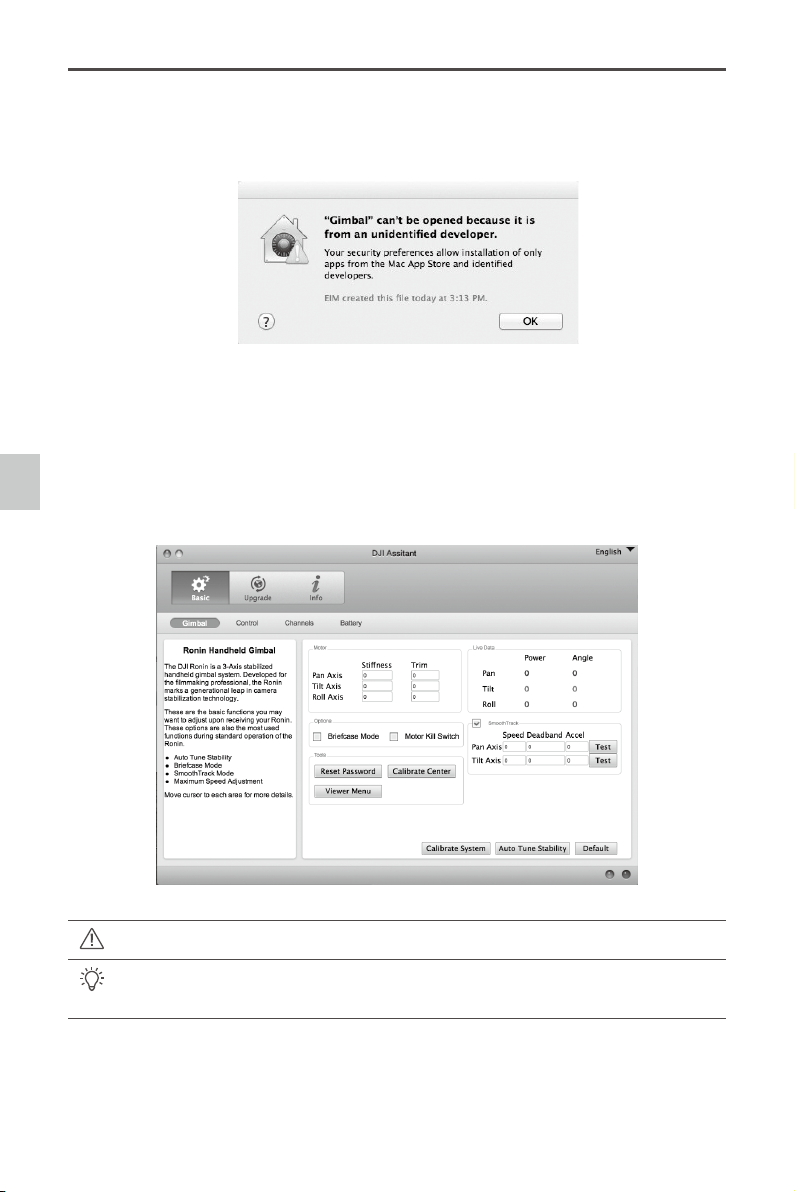

When launching for the rst time, if using Launchpad to run the Ronin Assistant, Launchpad

will not allow access because Assistant has not been reviewed by the Mac App Store.

4. Locate the Gimbal icon in Finder, press Control then click the icon (or right-click the icon using a mouse). Choose Open from the shortcut menu, then click Open in the prompt dialog box to launch.

5. After the first successful launch, double click the Gimbal icon as normal to launch using Finder or Launchpad.

DJI PC / MAC Assistant Tuning

DMG installer supports Mac OS X 10.9 or above.

Ronin Assistant on Mac OS X and Windows are the same. Assistant pages shown in this manual are from the Windows version.

Page 25

User Manual

Ronin

Settings

Adjust the following basic functions before using the Ronin: Auto Tune Stability, Briefcase Mode, SmoothTrack and Maximum Speed Adjustment.

The denition and function of every button in the DJI Assistant App and DJI PC Assistant are the same,

refer to the DJI Assistant App for more details.

Basic

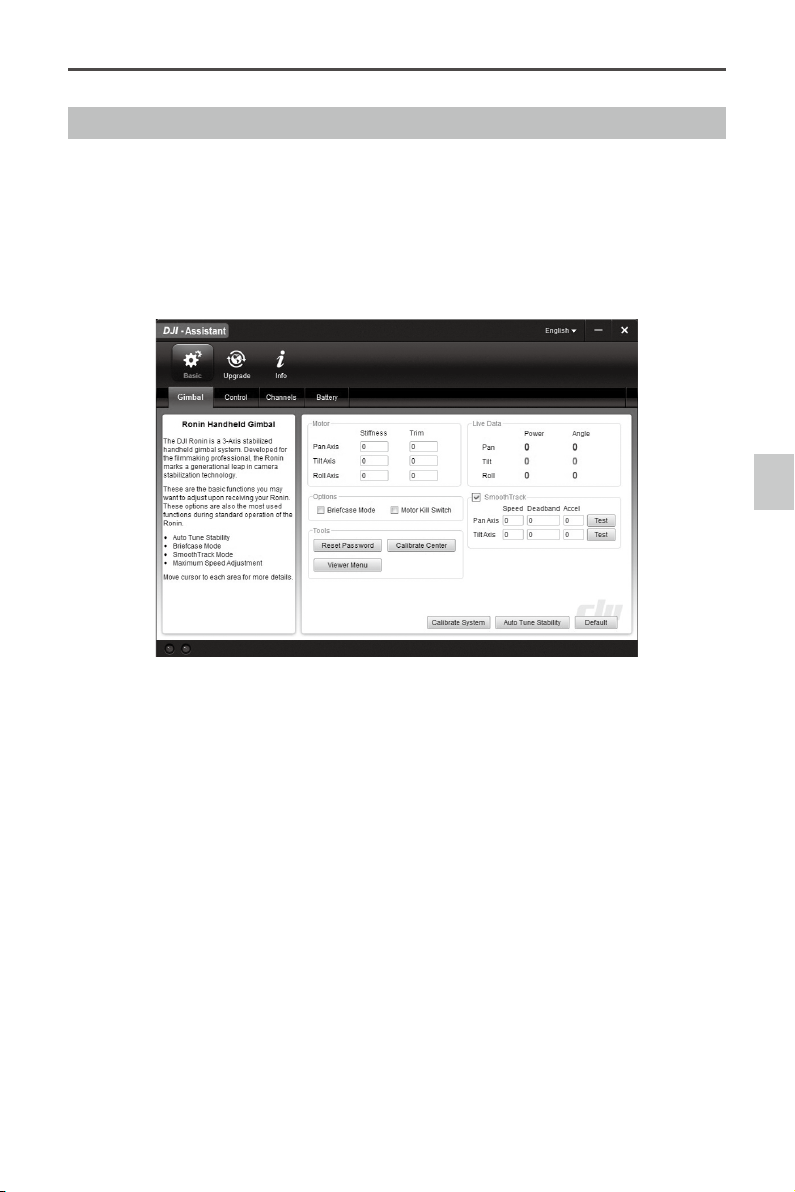

1. Gimbal

DJI PC / MAC Assistant Tuning

Motor: The Auto Tune Stability button allows for automatic adjustment of each motor’s stiffness settings (as relayed from the sensors and how the Ronin sees each axis’s interaction) to accomplish an optimized setting. Each axis has its own stiffness and trim adjustment.

Live Data: This monitors the feedback from the motors on each axis. Briefcase Mode: Select the checkbox to enable Briefcase Mode. Motor Kill Switch: Select the checkbox to enable the Motor Kill Switch. SmoothTrack: Select the checkbox to enable SmoothTrack. Note the Pan Axis and the Tilt Axis can be

independently adjusted. The Pan and Tilt SmoothTrack speed can be tested. Ensure there is no obstruction of the camera when clicking the Test buttons.

Reset Password: If you forgot your Bluetooth connection password, click here to reset your password. Calibrate Center: If the Ronin’s Pan axis is off center, you can recalibrate the true center of the Ronin using

this switch. Using a remote control, position the pan axis at dead center, then click the Calibrate Center. Click

“Center” again in the pop-up to conrm. Once calibrated, power cycle for the new center to take effect.

ViewerMenu: The Viewer provides essential live data for monitoring the Ronin’s electronics and feedback from the motors. Power is indicated for each axis. The current angle of each axis is also indicated.

Calibrate System: Calibrate System is only used if you notice any kind of drift in any of the axes. To calibrate the system, place the Ronin on the tuning stand and make sure it is completely steady. Then

click the Calibrate System button and let the process nish before picking up the Ronin.

Page 26

User Manual

Ronin

Auto Tune Stability: The Auto Tune Stability button allows for automatic adjustment of each motor’s stiffness settings (as relayed from the sensors and how the Ronin sees each axis’s interaction) to accomplish an optimized setting.

Default: Click here to restore all of the factory settings.

2. Control

DJI PC / MAC Assistant Tuning

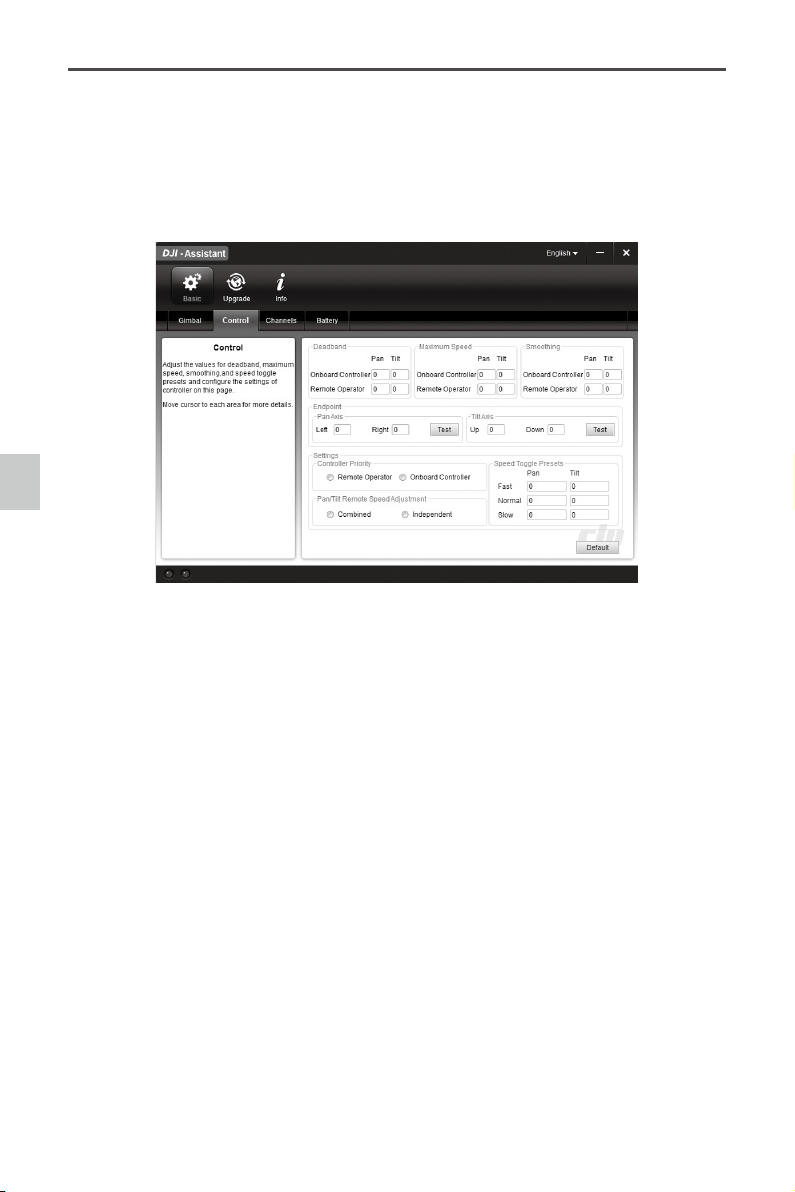

The onboard controller and the remote operator control sticks have a Deadband, Maximum Speed, and Smoothing, all of which can be set independently.

Endpoint: Pan Axis endpoints can be adjusted independently for left and right movement when used with a remote control or the onboard controller. Tilt Axis endpoints can be adjusted independently for up and down movement when used with a remote control or the onboard controller. If the requirement to rotate 360 degrees on the Pan axis is needed, simply adjust the endpoints for pan to 0. If endpoints are set to 0 for 360 degree Pan ability, then "Test Pan Endpoint" will not move the pan axis. The Pan and Tilt endpoints can be tested. Ensure the camera is unobstructed when clicking the Test buttons.

Controller Priority: If both input devices send control signals to the gimbal, the selected controller priority will be the only device to send a signal at that given time. Pan/Tilt Remote Speed Adjustment: Click to choose combined or independent settings.

Speed Toggle Presets: These presets will allow you to change the SmoothTrack speed remotely. If the remote control is turned on, the Speed Toggle Presets for SmoothTrack will take precedence over the Assistant settings. Once the remote control is turned off, the SmoothTrack settings in the Assistant will take over.

Page 27

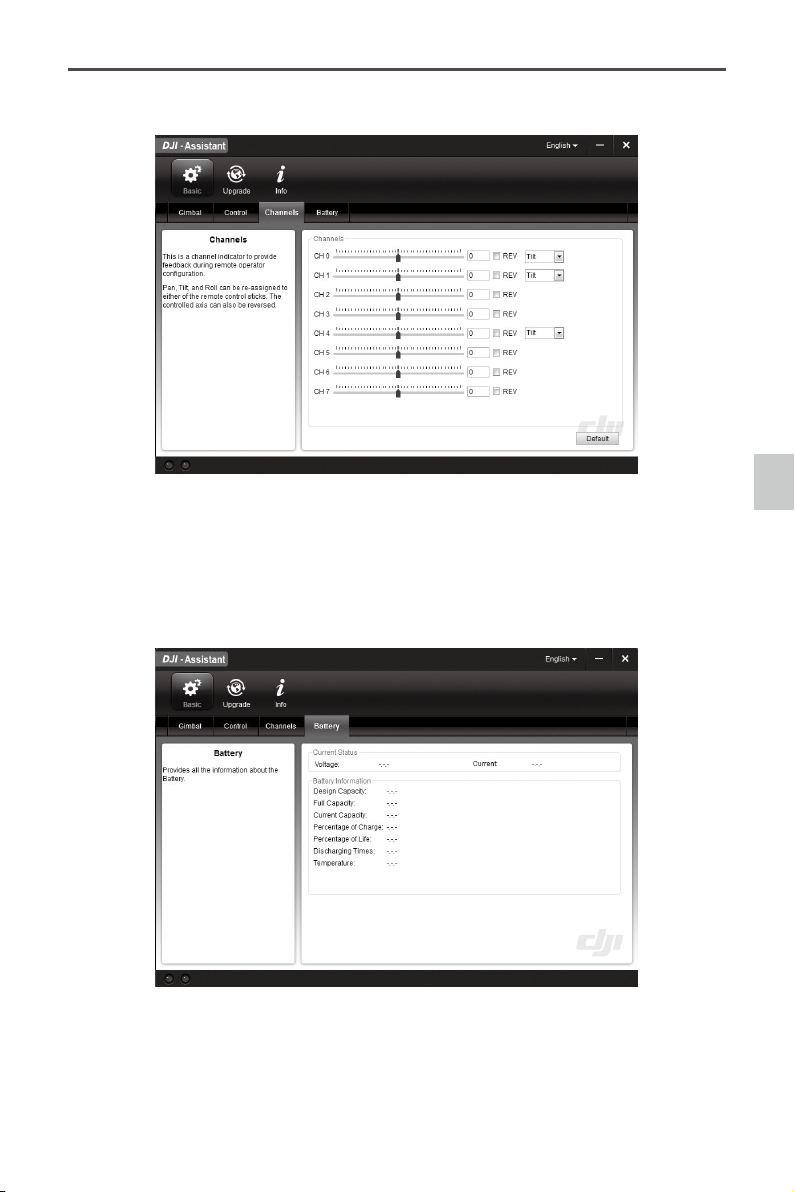

3.Channels

Ronin

User Manual

This is a channel indicator to provide feedback during remote operator conguration. Pan, Tilt, and

Roll can be re-assigned to either of the remote control sticks. The controlled axis can also be reversed.

4. Battery

*This page provides all of the essential information regarding the Ronin’s battery.

DJI PC / MAC Assistant Tuning

Page 28

User Manual

Ronin

Upgrade

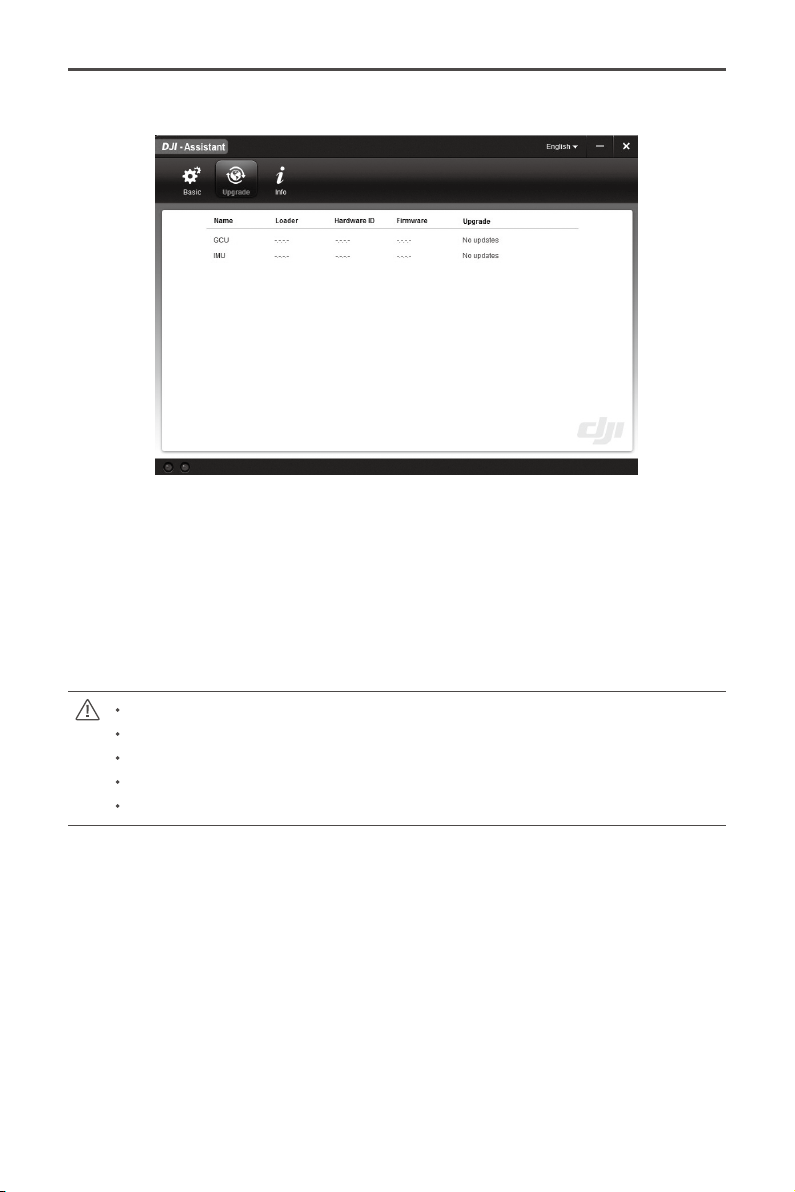

You can view the latest rmware version information on this page. Upgrade the rmware by following

the steps below:

1. Connect the Ronin to your computer via the Micro-USB cable and wait until the blue indicator LED in the PC Assistant blinks.

2. Click “Upgrade”.

3. Wait for the download to nish.

4. Click “Upgrade” again and then click “Conrm”.

5. Power the Ronin off and on after the upgrade is complete.

Ensure your computer is connected to the internet.

Close any antivirus programs and network rewalls during the upgrade.

Ensure the Ronin is powered on during the upgrade.

Do not disconnect the USB cable during the upgrade.

Do not power off the Ronin until the upgrade is completed.

Info

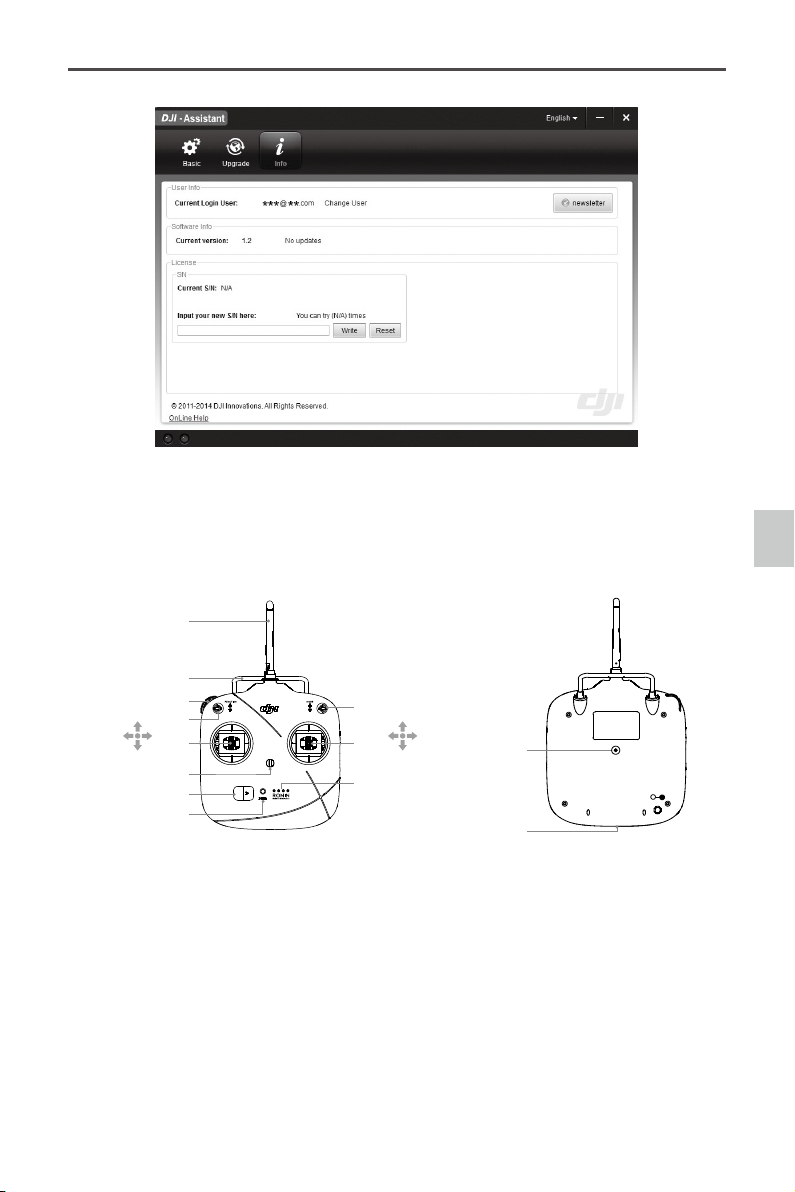

You can check the Assistant version via Info. S/N is a 32 digit authorization code for future function activations. The authorization code for your unit

is lled in after its been manufactured. In the future, you may be asked to ll in a new S/N if you require function upgrades. Fill in the S/N and then click the Write button. If you ll in an invalid S/N more than

30 times, your GCU will be locked and you will have to contact our customer support.

Page 29

Ronin

User Manual

Remote Control

[1]

[2]

[3]

[5]

[7]

[8]

[9]

[10]

[1] Antenna [2] Carrying Handle [3] Left Dial(reserved) [4] 3-Position Switch MODE [5] 3-Position Switch FUNCTION [6] Joystick 1(J1;J2) [7] Joystick 2(J3;J4)

[4]

[6]

[11]

Remote Control

[13]

[12]

[8] Neck Strap Attachment [9] Power Switch [10] Power Indicator [11] Battery Level Indicator [12] RC Assistant/ Charging Port (Micro-USB Port) [13] Reserved Port

Page 30

User Manual

Ronin

Connecting the Remote Control to Ronin

1. Turn on the Ronin.

2. Slide the power switch to the right to power on the remote control. If the power LED indicator is solid, the remote control is functioning normally. To the right, the battery level indicators display the current battery status. The LED indicator on the Ronin gimbal will blink red at this time.

3. Press and hold the Bind Button (shown below) for a few seconds until the LED blinks green three times. If the LED changes to a solid, red light, the remote control and the Ronin have been successfully bound. The binding process only needs to be done once unless the bind button is pressed or if the Ronin needs to be bound to another remote control.

Bind Button

Remote Control

Please make sure the battery level of remote control is enough before use. If the low voltage

warning alert sounds (refer to <Remote Control Power LED Indicator Status>), please recharge the battery as soon as possible.

Charge the remote control battery by using the included micro-USB cable. Using the

incorrect type of charging cable may cause damage.

Turn off the remote control before charging. The power LED indicator will display solid

green when the battery is fully charged.

Remote Control Power LED Indicator Status

Power LED Indicator Sound Remote Control Status

— Solid Green None Functioning normally.

— Solid Red None Charging( remote control is powered off)

— Solid Yellow None

— Solid Red

Quick Red ashing

Slow Green ashing

The remote control will power off automatically when battery voltage drops below 3.45V. Charge the battery as soon as possible when the low voltage alert occurs.

BB---BB---BB

......

B-B-B

B--B--B

Remote control joysticks calibration error. Needs to be re-calibrated.

Low voltage (from 3.5V-3.53V). Recharge the remote control.

Critical low voltage (from 3.45V-3.5V). Recharge the remote control immediately.

Alert will sound after 15 minutes of inactivity. It will stop

......

once you start using the remote control.

Page 31

User Manual

Ronin

Remote Control Battery Level Indicator Status

The battery level indicator displays the current battery level. The following is a description of the indicators.

The LED is in a solid state on : The LED is blinking : The LED is off

LED1 LED2 LED3 LED4 Current Battery Level

75%~100%

50%~75%

25%~50%

12.5%~25%

0%~12.5%

<0%

Remote Control Features

MODE: The MODE switch is used for toggling SmoothTrack.

1. In Position 1, SmoothTrack is off. Remote control will freely position pan axis stops and holds the last input position of the pan axis control stick.

2. In Position 2, SmoothTrack is on. Remote control will freely position pan axis stops and holds the last input position of the pan axis control stick.

3. In Position 3, SmoothTrack is on. The gimbal will always point and reset pan to the forward facing direction once the pan axis control stick is let go.

Remote Control

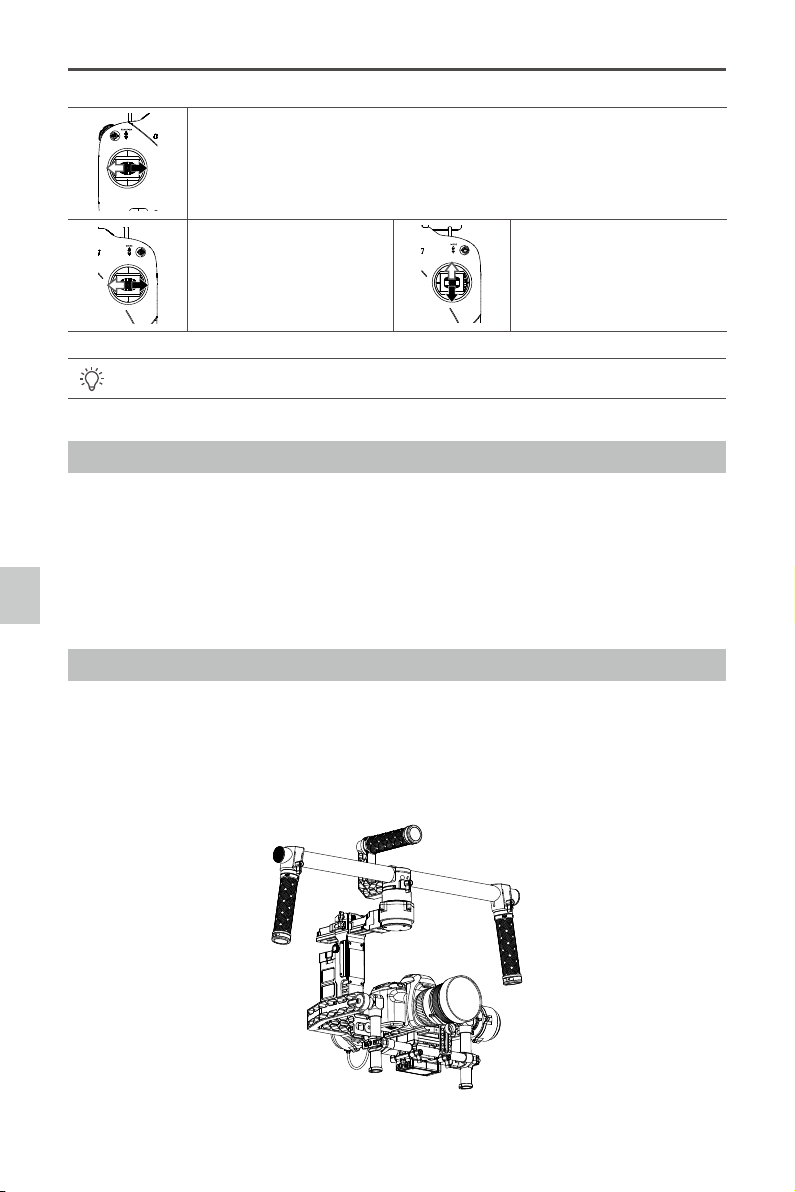

Position 1 -Free, SmoothTrack Off Position 2 -Free, SmoothTrack On

Position3

FUNCTION: 1. The FUNCTION switch is used to select the SmoothTrack speed.

-Reset to Center, SmoothTrack On

There are 3 possible selections: Fast, Normal and Slow. The value of each speed can be preset in the App or PC Assistant.

Position 1 -Fast Position 2 -Normal Position3 -Slow

2. Activating Motor Kill Switch.

Quickly ip the FUNCTION switch between Position 1 and Position

3 consecutively for 3 times and you will activate the motor kill switch. Do the same again to turn off the motor kill switch. Prior to re-activating the gimbal motors, be sure to position the camera in the standard operating position. The motor kill switch is useful in case the gimbal operator runs into an issue or you need to make a quick mechanical adjustment to the gimbal or camera setup.

Page 32

Ronin

User Manual

Left Stick: Horizontal movements on the left stick control the Roll axis. Vertical

movements have no denition.

Right Stick: Horizontal movements on the right stick control the Pan axis.

These stick settings can be customized in the DJI Ronin Assistant App or PC Assistant.

Right Stick:Vertical movements on the right stick control the Tilt axis.

Adding3rdPartyTransmitter/Receiver

Ronin supports 3rd party transmitters/receivers, such as D-Bus or PPM. Connect the transmitter through the port (refer to Page 8 for the location of D-Bus/PPM port ).

Operation Modes

There are three operation modes in the Ronin: underslung mode, upright mode and briefcase mode.

Underslung Mode

Underslung mode is the standard, default mode. It can be used without any user input.

Page 33

User Manual

Ronin

Upright Mode

Flip the gimbal forward 180 degrees and it will automatically change to upright mode. Alternatively, you can set the gimbal into upright mode before turning it on. Upright mode is ideal for car mounts or other high camera positions, as it allows you to shoot higher and/or at eye level. Upright mode can

be used without any user input. Do not ip the gimbal over sideways going left or right to convert to

upright mode.

Briefcase Mode

Briefcase mode allows you to hold the Ronin in a slim profile close to your body. To enter briefcase mode, tilt the gimbal on the roll axis 90 degrees to the left or right. You may turn briefcase mode off in the gimbal app, in which case the Ronin will never automatically transform into briefcase mode. In briefcase mode, the remote control does not have pan or roll control of the Ronin.

Maintenance

Upright Mode Briefcase Mode

Maintenance

The figure to the right shows the proper way to transport the Ronin with the stand. Using the hookand-loop straps, lock the Ronin gimbal in place as shown. Be sure to undo the straps prior to turning the Ronin on!

The Ronin is a precise machine and it is not water resistant. Keep it away from sand and dust during usage. After use, it is recommended to wipe the Ronin down with a soft dry cloth. Never spray any cleaning liquids onto the Ronin.

Page 34

Troubleshooting

NO. The Problem What to Do

1 Motors appear to be weak After camera balancing, launch the Assistant App or the PC

2 If after tapping the Auto

Tune Stability button and the gimbal is still vibrating

3 Pan axis seems off center Go into the Assistant App or PC Assistant, tap/click the

4 Ronin seems to be drifting Place the Ronin on the tuning stand and in the Assistant App

5 SmoothTrack doesn’t work (1) Turn on the Remote control and be sure the MODE switch

Troubleshooting

6 Motors seem to shutoff

automatically

7 Gimbal shuts off and

doesn’t come back on

8 Forgot the Bluetooth

password

9 Footage appears to

wobble side to side or up and down

Assistant and start the Auto Tune Stability. Wait for the process to complete and the stiffness settings will be populated on the screen.

(1) Check to make sure all knobs are very tight. Including the

pan motor knob.

(2) Check to make sure the camera securing screw is tight.

Push on the camera plate to make sure it is not loose and sliding in the camera mount.

(3) Try decreasing the stiffness of the each axis. You should

be able to tell if there is one particular axis being affected by looking at the "power" of the axes.

Calibrate Center and follow the on-screen instructions.

or the PC Assistant, tap/click the Calibrate System button. Let the process complete before picking up the Ronin.

is not at Position 1 (the uppermost position).

(2) SmoothTrack is turned off in the Assistant App or the PC

Assistant software.

(3) The SmoothTrack Deadband is turned up too high.

Reduce the Deadband size in the SmoothTrack Menu.

Check your camera balance. If the power indicated in the Gimbal Motors Menu indicates 10 or more on any of the 3 axes, please rebalance your camera.

Power cycle the gimbal. This is a motor protection algorithm that’s built into the Ronin to save its own electronic components. If any particular motor goes into a self protection mode (motor shuts off) 6 times within a 1 minute period, the Ronin will shut off power to the motors and will not come back to life unless power cycled.

Connect Ronin to the PC Assistant and click the "Reset Password" button to reset your password.

SmoothTrack speed is too high or SmoothTrack deadband is too low. Decrease the SmoothTrack speed or increase the deadband.

Page 35

Specication

General

Built-In Functions Three Operation Modes

Underslung Mode Upright Mode

Briefcase Mode Built-in independent IMU module DJI Specialized Gimbal Drive

Motors with Encoders

Peripheral

Camera Tray Dimensions Maximum depth at center of mass on camera base plate: 140mm

Maximum height measured from top of camera base plate: 225mm Maximum width: 195mm

Accessory Power Connections 12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1

GCU Input Power 4S Ronin Battery

Connections 2.4GHz Remote Control, Bluetooth, USB

PC Assistant Software Requirements

Mobile Assistant Software Requirements

Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)

iOS version 6.1 or above. Mobile devices: iPhone 4s, iPhone 5, iPhone 5s, iPod touch 5 , iPad 3, iPad 4, iPad mini

Mechanical & Electrical Characteristics

Working Current Static current: 300mA (@16V)

Dynamic current: 600mA (@16V)

Locked motor current: Max 10A (@16V)

Operating Temperature -15°C ~ 50°C (-5°F ~ 120°F)

Weight 4.20kg (9.26lbs) fully loaded with handlebar

Gimbal Dimensions 620mm(W) x 280-380mm (D) x 500mm(H)

Working Performance

Load Weight Capacity (Reference Value)

Control Angle Accuracy 0.02°

Maximum Control Rotation Speed

Control Rotation Range Pan axis control: 360°

7.25kg (16lbs)

Pan axis: 90°/sec Tilt axis: 100°/sec Roll axis: 30°/sec

Tilt axis control: Up 45° to Down 120° Roll axis control: ± 25°

Bluetooth Module USB Connection

2.4GHz Receiver Temperature Sensor

DJI Advanced 32-Bit DSP Processor

D-Bus/PPM Receiver Supported

Specication

Page 36

User manual is subject to change without prior notice.

You may visit DJI ofcal website to obtain the latest version of user manual.

http://www.dji.com/product/ronin/download

DJI Ronin User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Disclaimers and Warnings

Using Lithium Polymer (LiPo) Batteries

Usage and Storage

Battery Disposal

FCC Compliance

Using this Manual

Legend

Download DJI Ronin Assistant App

Introduction

Package & Instruction Sheet

In the Box

Gimbal Description

Getting Started

Smart Battery

Tuning Stand

Installing the Handle Bar onto the Gimbal

Smart Battery Installation

Mounting the Camera

Handle Bar Adjustment

Balancing

Step 1: Balancing the Tilt Axis

Step 2: Balancing the Roll Axis

Step 4: Balancing the Pan Axis

Advanced Roll Adjustment

DJI Ronin Assistant App Tuning

Download and Install

Basic Settings

Advanced Settings

DJI PC / MAC Assistant Tuning

Install DJI PC / MAC Assistant

Settings

Remote Control

Connecting the Remote Control to Ronin

Remote Control Power LED Indicator Status

Remote Control Battery Level Indicator Status

Remote Control Features

Operation Modes

Underslung Mode

Upright Mode

Briefcase Mode

Maintenance

Troubleshooting
