PHANTOM 2 VISION

User Manual

2014.11

V1.6

User Manual

Phantom 2 Vision +

V1.6

2014.10

Please read this manual carefully before using the product.

Important Safety Notice

Use your Phantom carefully. It contains sensitive electronic components and may be damaged when dropped, crashed or exposed to water. Never y a damaged Phantom.

Maintenance

Do not open or attempt to repair Phantom by yourself as doing so may cause damage to the Phantom or cause injury. If

the Phantom is not operating normally or has come into contact with liquid, contact a DJI authorized dealer or DJI customer

service. Learn more at www.dji.com/support

Battery

Never disassemble, pinch, crush, burn, drop or tread on the DJI smart ight battery. Never short or allow the metal contacts

on the battery terminal to touch. Do not expose batteries to extreme temperatures. Always use the DJI approved charger to

charge the battery. Keep the DJI battery away from children and store it in a cool, dry place.

Please read the Disclaimer before using your Phantom 2 Vision+.

Using This Manual

Key

Warning Important Hints and Tips References or Denitions

Important

Except when specically stated, all descriptions in this manual are for Phantom mode, not Naza-M mode.

Before Flight

The following tutorials and manuals have been produced to ensure you to make full use of your Phantom 2 Vision+. (1) Disclaimer (2) Phantom 2 Vision+ Quick Start Guide

(3) Phantom 2 Vision+ User Manual

(4) Phantom Pilot Training Guide

Watching all the tutorial videos and reading the Disclaimer before ight is recommended. Afterwards, prepare your rst ight using the Phantom 2 Vision+ Quick Start Guide. Improve your ying skills in subsequent ights using the Phantom Pilot Training Guide. Refer to this manual for more comprehensive information. Experienced users, particularly those with DJI Phantom 2 Vision experience should skip to the Phantom 2 Vision+ Quick Start Guide to begin preparing for ight.

Watch the Tutorial Videos

Please watch the tutorial videos below to learn how to use Phantom 2 Vision+ correctly and safely. http://www.dji.com/phantom2visionplus/training/

Phantom 2 Vision+ ofcial tutorial videos

Download DJI VISION App

Download and install the DJI VISION App. Choose one of the download methods below.

Search "DJI VISION" on the App Store then follow instructions for iOS version. Search "DJI VISION" on Google Play then follow instructions for Android version.

iOS6.1 or above

Android 4.0 or above

Contents

Important Safety Notice

Using This Manual

Key

Important

Before Flight

Watch the Tutorial Videos

Download DJI VISION App

Overview

1 In the Box

2 Introduction

Assembly and Use

1 Removing Gimbal Clamp

2 Preparing the Battery

2.1 DJI Smart Flight Battery 7

2.2 Usages 8

2.3 Charging the Flight Battery 9

2.4 Battery Installation 10

2.5 Correct Battery Usage Notes 10

3 Preparing the Phantom 2 Vision+

3.1 Introduction 11

3.2 Built-in Flight Control System 11

FC Assistant Port 11

3.3 LED Flight Indicator Descriptions 12

3.4 3-axial Stabilized Gimbal 12

Anti-drop Kit 13

Micro-SD Slot 13

Gimbal Error Warnings 13

3.5 Camera 14

Lens cap removal 14

Camera Function Buttons 14

Camera Data Port 14

Camera LED Indicator 15

4 Attaching the Propellers

4.1 Introduction 15

4.2 Assembly 15

4.3 Removing the Propellers 16

4.4 Notes 16

5 Preparing the Remote Control

5.1 The Remote Control 17

5.2 Power on the Remote Control 17

5.3 Remote Control Power LED Status

5.4 Battery Level Indicator 17

5.5 Antenna Orientation 17

5.6 Remote Control Operation 18

5. 7 Linking the Remote Control and Receiver 19

Linking Procedures 19

Link Indicator 19

5.8 Compliance Version Conguration 19

Information 17

6 Preparing the Range Extender

6.1 Introduction 20

SYSTEM Indicator 20

POWER Indicator 20

Binding Reset Button 20

6.2 Using Range Extender 20

Charging the Range Extender 20

Powering on the Range Extender 21

Checking the Battery Level 21

6.3 Rename Range Extender SSID 21

6.4 Binding the Phantom 2 Vision+ and

Range Extender 21

7 Downloading and Installing the

DJI VISION App

7.1 Download and Install 22

7.2 Register and Login 23

[1]

[2]

[3]

Usage tips 23

8 Connecting the Camera

8.1 Connecting Procedures 24

Wi-Fi Computer Connection Status

Description 24

Flight

Flight Environment Requirements 25

Preight Checklist 25

1 Calibrating the Compass

1.1Calibration Procedures 25

1.2 When to Recalibrate 26

2 Starting/Stopping the Motors

2.1 Starting Motors 26

2.2 Stopping Motors 26

3 Flight Test

3.1Take off/Landing Procedures 26

3.2 Video Suggestions and Tips 27

4 Failsafe Function

4.1 When Will Failsafe Activate? 27

4.2 Failsafe Procedure 27

Failsafe on the DJI VISION App 28

4.3 Regaining Control During Failsafe

Procedures 28

5 Low Battery Level Warning Function

Low Battery Level Warning on the DJI

VISION App 29

6 Flight Limits

6.1 Max Height & Radius Limits 30

6.2 Flight Restriction of Restricted Areas 30

6.3 Conditions of Flight Limits 32

6.4 Disclaimer 32

DJI VISION App Usage

1 DJI VISION App Main Menu 2 Camera Page

[1]

[2]

Normal Mode 33

Accelerometer Sensor Mode 33

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

[13]

[14]

Return 33

Camera Pitch Control 33

Flight Attitude and Radar Function 34

Flight Parameters 34

Wi-Fi Signal Intensity 34

Flight Battery Level 34

Aircraft GPS Status 34

Micro-SD Card Status 34

Range Extender Battery Level 34

Remaining Shots 34

Shutter Button 35

Video Recording Button 35

Camera Settings 35

Hide or Show Flight Parameters 35

3 Camera Settings

[1]

[2]

[3]

[4]

[5]

[7]

[8]

[9]

[10]

[11]

[12]

Capture Mode 35

Photo Size 36

Video Resolution 36

Photo Format 36

Selectable ISO 36

[6]

White Balance 36

Exposure Metering 36

Exposure Compensation 37

Sharpness 37

Anti-icker 37

Restore Defaults 37

Format Micro-SD Card 37

4 Album Page

4.1 SD Card Album 37

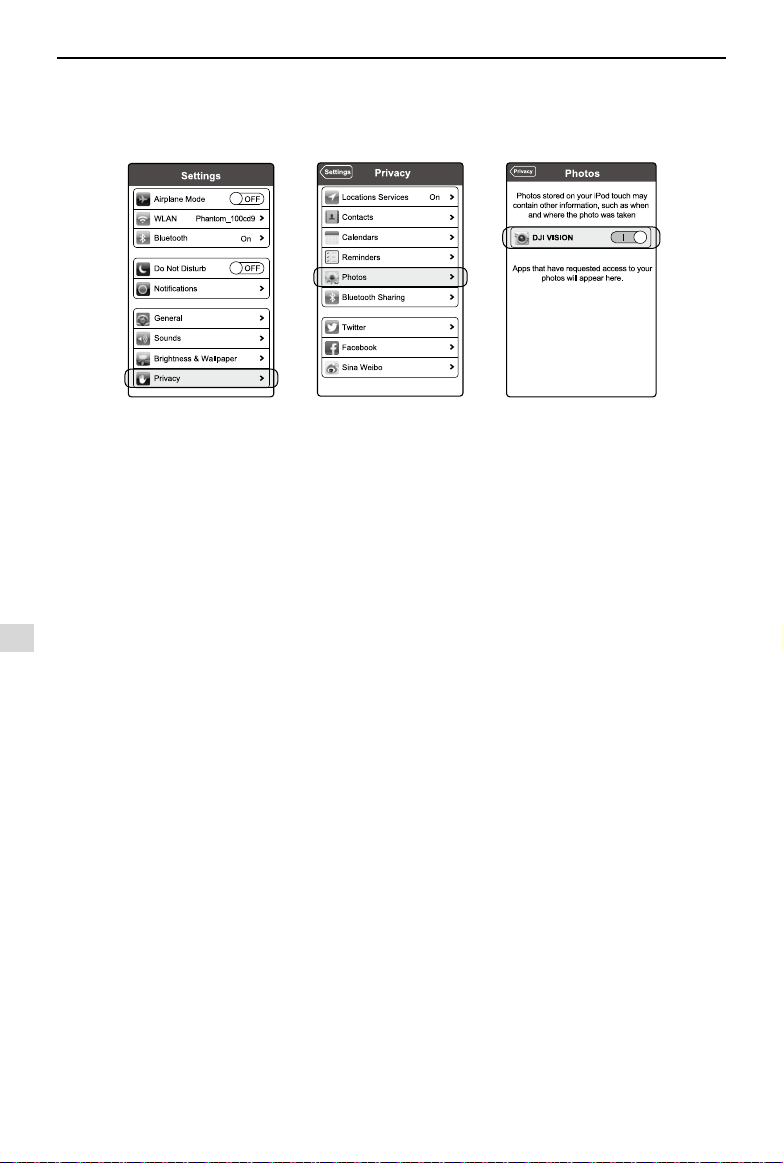

4.2 Mobile Device Photo Album 38

5 News Page

6 Settings Page

7 Ground Station

7.1 Ground Station GUI 42

7.2 Using Ground Station 43

PC / MAC Assistant

1 Installing Driver and Phantom 2 Vision+

Assistant

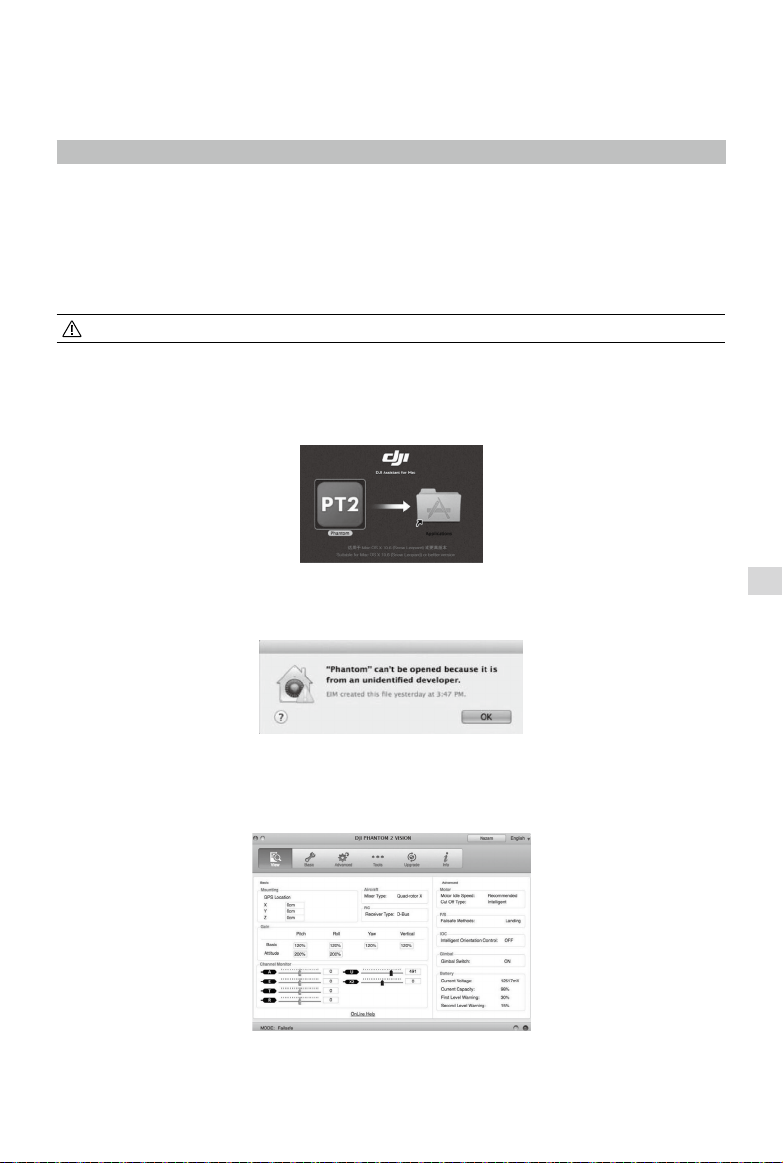

1.1 Installing and Running on Windows 45

1.2 Installing and Running on Mac OS X 45

2 Using Assistant

2.1 Using the Phantom 2 Vision+ Assistant 46

2.2

2.3 Using the Phantom RC Assistant 47

Firmware Upgrade of the Phantom 2 Vision+

Appendix

1 Rear LED Flight Indicator Status

2 Specications

3 Troubleshooting (FAQ)

Overview

The Phantom 2 Vision+ is the next evolution of the Phantom 2 Vision. It features the same App enabled First Person View

(FPV), high performance camera, remote camera control and in-ight content sharing, but adds to it a high performance 3- axial camera stabilization system. It is ideal for aerial creativity whether photo or video. In addition, it provides ground station function which allows users to plan the ight mission and enables aircraft to ight automatically.

FPV: First Person View, see the world from the perspective of the craft and feel a true ying experience.

1 In the Box

Check that all of the following items have been included in your package before use. If anything is missing, please

contact your local dealer.

NO. Name Picture Qty. Remarks

In the Box

1 Aircraft

2 Propeller Pairs

3 Micro-SD Card

4 Lens Cap 1 Fixed to camera lens

5 Gimbal Clamp

6 Prop Wrench

7 Remote Control 1

8 AA Batteries

DJI Smart Flight

Battery

10 Charger

1 Integrated gimbal and camera

4 4 with black nut, 4 with grey

1 Inserted in aircraft Micro-SD slot

1 Attached to the gimbal

1 In maintenance packet

Includes attached Phone Holder and Range Extender

4 For Remote Control

1 Inside aircraft

1 110-240V Adaptive

11 Power Cables

12 Plug Adaptors

13 Micro-USB Cable

2 GB & CE

2 SAA & BS

For range extender charging and

rmware upgrade

Overview

14 Manuals 4

15 Stickers

16 Vibration Absorber

17 Anti-drop Kit

18 Spare Screws

19 Landing Pad

Including: Disclaimer, Phantom Pilot Training Guide, Phantom 2 Vision+ Quick Start Guide, User Manual

2 Colors: Pink, Blue

4 In maintenance packet

2 In maintenance packet

In maintenance packet M3X5(6pcs);

M3X8(5pcs)

4 In maintenance packet

2 Introduction

The Phantom 2 Vision+ package includes: Phantom, Camera, Gimbal, Propulsion System, Flight Control System, Remote Control and Wi-Fi Communication System. 5.8 GHz Remote Control Receiver, Flight Control System and 2.4 GHz Wi-Fi Module are inside the Phantom.

Remote Control Outside Working Modes Inside

5.8GHz 2 sticks, 7 channels

3-axial Stabilized Gimbal Camera Motors and Props

Phantom-Ready to Fly and Ready to Fly(non-GPS) NAZA-M-GPS, ATTI, Manual and

Failsafe

Flight Control System

2.4GHz Wi-Fi Module

5.8GHz Receiver

Electronic Speed

Controls(ESCs)

Mobile Device, with DJI VISION App

Mobile Device Holder

Range Extender

Remote Control

Motor

Aircraft

Gimbal

Figure 1

Propeller

Camera

Assembly and Use

Choose between Phantom and Naza-M working modes using Phantom 2 Vision+ Assistant. If using Naza-M mode, please refer to the NAZA-M V2 Quick Start Manual for related instructions.

Phantom: Flight settings will be selected automatically depending on whether 6 or more satellites have been

found. This mode allows users to congure the Remote Control and gain values, and use Failsafe and battery

level warnings.

Naza-M: Flight settings will be identical to the Naza-M V2. Users can choose between GPS, Attitude, or Manual mode. They can also access advanced settings including Intelligent Orientation Control (IOC). Rear LED Flight Indicators will display the ight status according to the Naza-M indicator. Ready to Fly: When 6 or more GPS satellites have been found, the Flight Control System will lock its home point

and Rear LED Flight Indicators will blink a slow green (

Ready to Fly (non-GPS): When less than 6 GPS satellites have been found, the Flight Control System will

stabilize itself less than in full Ready to Fly mode and will require more skilled ying. Rear LED Flight Indicators

will blink a slow yellow (

). This mode is ideal for beginners.

Assembly and Use

Follow the below instructions to prepare for ight.

1 Removing Gimbal Clamp

Pull gimbal clamp in the direction indicated to remove.

To avoid damage to the gimbal, remove Gimbal Clamp

before powering up the Phantom.

Attach the Gimbal Clamp during transportation or long

term storage to avoid damage.

Figure 2

Removing Gimbal Clamp / Preparing the Battery

2 Preparing the Battery

Ensure all related devices are fully charged before ying the Phantom 2 Vision+.

Device Power supply

Remote Control 2000mAh rechargeable LiPo battery

Range Extender

Aircraft (including gimbal and

camera)

Mobile Device Fully charge before using the DJI VISION App.

Charge fully through Micro-USB slot. See Charging the Range Extender (Page

20) for details.

DJI Smart Flight Battery.

2.1 DJI Smart Flight Battery

This battery has been specially designed for the Phantom 2 series. It has a battery capacity of 5200mAh, voltage of

11.1V and charge-discharge management functionality. It can only be charged with a DJI charger or Phantom 2 Car Charger.

Smart Flight Battery DJI Charger

Figure 3 Figure 4

Assembly and Use

DJI Smart Flight Battery Functions

(1) Balance Charging Automatically balances the voltage of each battery cell during charging. (2) Capacity Display Displays current battery levels. (3) Communication Communicates with Flight Controller about battery voltage, capacity, current and

Preparing the Battery

(4) Overcharge Protection Charging stops automatically when battery voltage reaches 12.8V to prevent

(5) Over Discharge Protection Discharging stops automatically when battery voltage reaches 8.4V to prevent

(6) Short Circuit Protection Automatically cuts power supply when a short circuit is detected.

(7) Sleep Protection Sleep mode is entered after 10 minutes of inactivity to save power.

(8) Charging Temperature Detection The battery will charge only when the temperature is between 0℃ (32°F) and

other relevant information.

overcharge damage.

over discharge damage.

40℃ (104°F).

Battery Specications

Type LiPo

Capacity 11.1V, 5200mAh Charging Environment Temperature 0°C~40°C Discharging Environment Temperature - 20°C~50°C Charging/Discharging Environment Relative Humidity <80%

Please read the user manual, disclaimer, and battery warnings before use. Users take full responsibility for all

operations and usage.

2.2 Usages

Powering on/off

Powering on: Press Circular Power Button once, then press again and hold for 2 seconds to power on. Power Light will

Powering off: Press Circular Power Button once, then press again and hold for 2 seconds to turn off. Battery Level

go red and Battery Level Indicators will show the current battery level.

Indicators will all go out.

LED1

LED2

LED3

LED4

Circular Power Button (Built-in Power Light)

Figure 5

Battery Level Indicators

Checking the battery level

When the battery is powered off, press the Circular Power Button once. Battery Level Indicators will light up to show

battery level. See below for details.

Battery Level Indicators will show the current battery level during charging and discharging. The indicators are

dened below.

LED is on LED blinks

LED is off

Assembly and Use

Discharging process

LED1 LED2 LED3 LED4 Current battery level

87.5%~100%

75%~87.5%

62.5%~75%

50%~62.5%

37.5%~50%

25%~37.5%

12.5%~25%

0%~12.5%

<0%

Battery life

When the battery is powered off, press and hold the Circular Power Button for 5 seconds to check battery life. Battery

Level Indicators will show light up and the Battery Power Indicators will blink for 10 seconds. All lights will then turn off.

For details, please see below.

Battery life

LED1 LED2 LED3 LED4 Current battery life

90%~100%

80%~90%

70%~80%

60%~70%

50%~60%

40%~50%

30%~40%

20%~30%

Less than 20%

Preparing the Battery

When batter life reaches 0, it is no longer operational.

More battery information is available in the battery tab of the Phantom 2 Vision+ Assistant.

2.3 Charging the Flight Battery

(1) Connect charger to wall socket (100-240V, 50/60Hz, using the Plug Adaptors if necessary). (2) Connect battery to charger. If the current capacity of the battery is over 75%, you should turn it on before beginning

to charge. (3) Battery Level Indicators will display current capacity level as the battery charges. (4) Battery is fully charged when Battery Level indicator lights are off. Disconnect the charger and battery when charging

is complete.

Figure 6

Assembly and Use

Charging process

LED1 LED2 LED3 LED4 Current battery level

0%~25%

25%~50%

50%~75%

75%~100%

Fully charged

The Smart Flight Battery can be charged using an optional Phantom 2 Car Charger. This can charge the battery in-car or through 3S-6S Li-Po batteries. Contact your authorized dealer or DJI customer service for details.

Battery should only be charged with the charger provided by DJI. DJI does not take any responsibility for

damage caused by third party chargers.

If current battery level is over 75%, the battery should be turned on before charging.

2.4 Battery Installation

Push battery into battery compartment according to the below diagram. When you hear a click, the battery has been

properly installed.

An incorrectly installed battery may cause

Bad contact, Unavailable battery information, Unsafe ight,

Inability to take off.

Figure 7

2.5 Correct Battery Usage Notes

(1) When the battery is turned on, do not connect it to or disconnect it from the Phantom. (2) Charge and discharge the battery completely once every 20 charge/discharge cycles. Discharge the battery until

there is less than 8% power or until it can no longer be turned on, then recharge it to maximum capacity. This power cycling procedure will optimize the battery.

(3) For long term storage, place the battery with only a 40~50% charge in a strong battery box. Discharge and charge

the battery once every 3 months to keep it in good condition. Charge amount should be varied in these maintenance charges - (40%~50%)—0%—100%—(40%~50%).

(4) Purchase a new battery after your current battery has been discharged over 300 times. Completely discharge a

battery prior to disposal. Please dispose of batteries properly.

(5) Purchase a new battery if your current battery swells up or is damaged in any way.

(6) Never recharge or y with a battery that is swollen or damaged in any way. (7) Never charge batteries unattended. Always charge batteries on a non-ammable surface such as concrete and

never near any ammable materials.

(8) Safety is extremely important. For more information, please see the Disclaimer.

Discharging methods:

Slow: Place battery in Phantom and turn on. Leave on until there is less than 8% of power left or until the battery can no longer be turned on. See DJI VISION App for battery levels. Motors do not need to be turned on,

reducing wear.

Fast: Fly the Phantom outdoors until there is less than 8% of power left or until the battery can no longer be

turned on.

Assembly and Use

3 Preparing the Phantom 2 Vision+

The Phantom 2 Vision+ is a quadrotor with a built-in Flight Control System with integrated gimbal and camera. It features an FC Assistant Port, Camera Data Port and a specialized battery compartment for its ight battery. All these features make the Phantom 2 Vision+ easy to assemble and congure.

3.1 Introduction

[1]

Propeller (P15)

[2]

Motor

[3]

Front Sticker

[4]

Front LED (P12)

[5]

FC Assistant Port (Micro-USB slot) (P46)

[6]

Vibration Absorber

[7]

Camera LED Indicator (P15)

[8]

Camera Function Button (P14)

[9]

Anti-drop Kit (P13)

[10 ]

3-axial Stabilized Gimbal (P12)

[11 ]

Camera Lens (P14)

[

]

Rear LED Flight Indicator (P12)

[13 ]

DJI Smart Flight Battery (P7)

[14 ]

Receiver Antenna (P17)

[15 ]

Landing Gear

[16 ]

Camera Data Port (Micro-USB slot) (P14)

[17 ]

Compass (P25)

[18 ]

Micro-SD Slot (P13)

[2]

[4]

[6]

[8]

[13]

[14]

[15]

[3]

[5]

[7]

[1]

[9] [10] [11]

Figure 8

[12]

[16]

[17]

Figure 9

[18]

Figure 10

3.2 Built-in Flight Control System

The Phantom 2 Vision+ is equipped with a DJI Naza-M V2 Flight Control System. This provides incredible ease of use and stability. Pilots can control the Phantom’s movements in many directions, including pitch (forwards and backwards), roll (left and right), elevator (up and down) and yaw (turn left or right). The ight control system also can provide IOC,

Failsafe and battery level warnings.

Modules Functions

Flight Controller

IMU

GPS & Compass

LED Flight Indicators Indicates the status of ight control system.

Acts as the brains of the complete flight control system, responsible for connecting and

controlling all the modules together.

Has a built-in inertial sensor and a barometric altimeter that measures both attitude and

altitude.

The compass reads geomagnetic information and assists the GPS (Global Position System) to accurately calculate the position and height of the aircraft.

Preparing the Phantom 2 Vision+

FC Assistant Port

The ight control system communicates with the PC Assistant through a Micro-USB cable between the Phantom FC Assistant Port and the PC. Users can use Assistant to congure the aircraft and upgrade the Phantom rmware. Please

refer to Using the Phantom 2 Vision+ Assistant (Page 46) for details.

Assembly and Use

3.3 LED Flight Indicator Descriptions

LED ight indicators are found at the front and the rear of the Phantom. Front LEDs are for indicating where the nose of

the aircraft is. They light up solid red after motors have started spinning. Rear LED Flight Indicators light up to show the

aircraft’s current ight status once the ight battery is powered on. For details, please see the below table.

Preparing the Phantom 2 Vision+

Figure 11 Figure 12

Rear LED Flight Indicators Normal Notes

ashing in turn

Rear LED Flight Indicators Abnormal Notes

Quick Yellow ashing Remote Control Signal Lost

Slow Red ashing Low Battery Level Warning

Quick Red ashing

Three Red ashing off and on

— Solid red Error Cannot y.

Red, Green, Yellow

Yellow,Green ashing in turn Warming Up Aircraft cannot take off.

Slow Green ashing Ready to Fly More than 6 GPS satellites are found.

Slow Yellow ashing Ready to Fly (non-GPS) Less than 6 GPS satellites are found.

Red, Yellow ashing in turn Compass Needs Calibration

Front LEDs

Power On Self-Test

Critical Low Battery Level

Warning

Not Stationary or Sensor Bias is

too big

Rear LED Flight Indicators

Refer to Failsafe Function (Page27) for details.

DJI VISION App will also show warning

message.

DJI VISION App will show warning

message.

Keep aircraft stationary or perform IMU

calibration.

Refer to Calibrating the Compass (Page25) to get details.

If a solid red LED indicator appears, connect to the Phantom 2 Vision+ Assistant for details and resolution. This may be caused by:

IMU calibration required: Recalibrate IMU using Assistant. IMU is abnormal: Repair required. Compass is abnormal: Repair required. Remote Control mid-point is set abnormally: Refer to How to solve large margin(s) mid-point error? (Page 49)

3.4 3-axial Stabilized Gimbal

The 3-axial stabilized gimbal of the Phantom 2 Vision+ will power on and self-check each time the ight battery

is installed and powered on. Its pitch can be controlled

using the DJI VISION App. This gimbal has two working modes, Non-FPV mode and FPV mode, with the Non-FPV mode set as default. This can be congured in Phantom 2 Vision+ Assistant or the DJI VISION App.

Figure 13

Assembly and Use

Gimbal specications

Control accuracy ±0.03°

Controllable range Pitch : -90°~0°

Maximum angular velocity Pitch : 90°/s

Non-FPV Mode: the gimbal will stabilize across 3-axial for smooth aerial creativity. FPV Mode (First Person View Mode): Gimbal will lock to the movements of the Phantom for a FPV experience.

Preparing the Phantom 2 Vision+

Anti-drop Kit

The Anti-drop Kit helps keep the gimbal and camera

connected to the aircraft. Two have been mounted on

delivery. If new ones are required, take the gimbal and

press part [1] through the center hole of the Vibration Absorber the center hole of part [2]. Lock them together as shown in [3]. Mounting the Anti-drop Kit diagonally is recommended.

Once part [1] and part [2] are connected, the Anti-drop Kit cannot be disconnected and reused.

[1]

[2]

Figure 14

[3]

Micro-SD Slot

With ight battery powered off, make sure the Micro-SD card is inserted correctly into the Micro-SD Slot before

taking any photos or recording any video.

The Phantom 2 Vision+ comes with a 4GB Micro-SD card and can support cards up to 32GB. The DJI VISION App may not be able to read some Micro-SD cards. Using the DJI VISION App to reformat new Micro-SD cards is

recommended. Refer to Format Micro-SD Card (Page 37) for details.

Do not insert or remove Micro-SD card when ight battery is powered on.

Figure 15

Gimbal Error Warnings

Before the aircraft takes off, if a gimbal motor error is detected or the gimbal clamp is not removed, there will be a warning prompt on the camera page of the DJI VISION App. This will disappear after the problem is resolved.

Figure 16 Figure 17

Assembly and Use

Remove gimbal clamp before powering on ight battery.

Gimbal motor error may occur in these situations: (1) Gimbal is placed on uneven ground. (2) Gimbal has

received an excessive external force, e.g. a collision. Please take off from at, open ground and protect the

gimbal after powering up.

Flying in heavy fog or cloud may make the gimbal wet, leading to a temporary failure. The gimbal will recover

when it dries out.

3.5 Camera

The Phantom 2 Vision+ camera powers up when the ight battery has been installed and switched on. Photos and videos can be shot by pressing either the onboard button or the DJI VISION App. For aerial photography it supports burst shots, continuous capture and timed capture, and exports to both Adobe DNG Raw and JPEG. For aerial video, it

shoots in full HD at (1080p30/1080i60) and can even shoot 720p60 for internet ready slow motion.

Camera specications

Sensor Size 1/2.3”

Pixels 14 Megapixels

Resolution 4384×3288

HD Recording 1080p30 /1080i60/720p60

Recording FOV 110° / 85°

Lens cap removal

Remove lens cap before use and replace it when shooting is complete to protect the camera lens.

Camera Function Buttons

Capture: Press (hold less than 2 seconds) to take a single

capture.

Record: Press (hold more than 2 seconds) to begin

recording. Press again to stop.

Camera Data Port

Connect the Camera Data Port to a PC using a Micro-USB cable to copy les to a PC.

Figure 19

Photos and videos can only be copied when the ight battery is powered on.

Figure 18

Assembly and Use

Camera LED Indicator

Camera LED Indicator lights up after the ight battery is powered on. It provides information on the working status of the

camera.

Camera LED Indicator Wi-Fi status Camera status

Green Solid OFF Power On; Idle

Slow Green Blink (0.2s on, 1.8s off) ON Idle

Green Blink(0.1s on, 0.3s off, 0.1s on, 1.8s off) ON Micro-SD card connected to PC

Fast Green Blink (0.1s on, 0.3s off) ON Synchronizing

Orange Solid OFF Recording

Orange Blink Once (0.2s on, 0.3s off) ON / OFF Taking a single picture.

Orange Blink 3 Times(0.1s on, 0.1s off) ON / OFF Taking 3 or 5 photos per shot

Orange Fast Blink (0.1s on, 0.3s off) ON / OFF Firmware Upgrading

Green, Orange (0.2s green, 1.8s orange) ON Recording

Red Solid ON / OFF Critical error

Slow Red Blink (0.2s on, 1.8s off) ON / OFF CMOS sensor error

Red Blink Once (0.2s on, 0.3s off) ON / OFF Operation failed

Red Blink 3 Times(0.1s on, 0.1s off) ON / OFF Micro-SD card error

Fast Red Blinks (0.1s on, 0.3s off) ON / OFF Upgrade error

Fast Green, Orange and Red Blink

(0.1s on, 0.3s off)

ON / OFF Overheated Camera

4 Attaching the Propellers

Always use original 9-inch propellers, classied by the color of each central nut.

Attaching the Propellers

4.1 Introduction

Propellers Grey Nut (9450) Black Nut (9450 R)

Diagram

Assembly Location Attach to motor without black dot. Attach to motor with black dot.

Fastening/

Un-fastening

Instructions

Lock: Tighten propeller in this direction. Unlock: Loosen propeller in this direction.

4.2 Assembly

(1) (Figure 20) Remove warning cards from motors after you have read them.

(2) (Figure 21) Spin grey marked propellers clockwise onto unmarked motors and black marked propellers anti-

clockwise for black marked motors.

Figure 20 Figure 21

Assembly and Use

Propellers self tighten during ight. DO NOT use thread locker.

Always match marked props with the corresponding motor. Protective gloves are recommended during propeller assembly and removal.

4.3 Removing the Propellers

(Figure 22) Prevent motor rotation using the included wrench or a

hand, then remove propeller according to the un-fastening instructions.

Preparing the Remote Control

4.4 Notes

(1) Check that propellers and motors are installed correctly and rmly

before every ight.

(2) Ensure that all propellers are in good condition before each ight.

DO NOT use any ageing, chipped, or broken propellers.

(3) To avoid injury, STAND CLEAR of and DO NOT touch propellers or

motors when they are spinning.

(4) ONLY use original DJI propellers for a better and safer ight experience.

For beginner yers, Phantom 2 Prop Guards are recommended. Contact your authorized dealer or DJI customer

service to purchase if necessary.

Figure 22

Figure 23

5 Preparing the Remote Control

The Phantom 2 Vision+ Remote Control is a wireless communication device using the 5.8GHz frequency band. Remote Control and Phantom are paired before delivery. For upgraded remote control (models: NPVT581, NDJ6 or NRC900), select “Upgrade Version” in Phantom Assistant. For basic remote control (models: PVT581, DJ6 or RC900), select “Basic Version” in Phantom Assistant. The Remote Control is set to Mode 2 by default. This can be adjusted in the PHANTOM RC Assistant. See Using the PHANTOM RC Assistant (Page 47) for details. You can also adjust the power of your Remote Control according to

national regulations. Please refer to Compliance Version Conguration (Page 19).

Compliance Version: The Phantom 2 Vision+ Remote Control is compliant with CE and FCC (see the FCC ID)

regulations.

Operating Mode: Mode 1 and Mode 2 refer to different channel mappings. Mode 1: The right stick controls throttle. Mode 2: The left stick controls throttle.

The Range Extender and Phone Holder are already mounted on the Remote Control. Twist the Mobile Device Holder to face outwards and x it in position for mobile device installation.

Large smartphones and tablets are not recommended for the Phone Holder as they do not t.

Assembly and Use

[1]

5.1 The Remote Control

[1]

[2]

[4]

[6]

[7]

[8] [9]

[11]

Figure 24

[3]

[5]

[10]

[12]

Antenna

[2]

Left Dial

[3]

Switch S1

[4]

Switch S2 (Reserved)

[5]

Right Stick: J1, Roll [left & right],

J2, Pitch [front & back]

[6]

Left Stick: J3, Throttle [up & down],

J4, Yaw [rotation]

[7]

Neck Strap Attachment

[8]

Power Switch

[9]

Power Indicator

]

[

Battery Charge & RC Assistant Port (micro-USB port)

]

[

Battery Level Indicator

]

[

Training Port (on back)

5.2 Power on the Remote Control

(1) Set S1 and S2 switches to the upper most position and place all sticks in the mid-point.

(2) Toggle power switch to the right to switch on.

(3) There will be a power on indicator beep. If the remote control is set to be CE compliant, then

there will be one beep, while the FCC compliant version will emit two beeps. The battery level indicator displays the current battery level. The indicator will blink green quickly, indicating the remote control and receiver are linking. Once fully linked, the power indicator will change to a

solid green.

If the low voltage warning alert sounds (refer to Remote Control Power LED Status Information (Page 17) for

details), please recharge the battery as soon as possible.

Using the incorrect type of charging cable may cause damage.

Following long term storage, recharge the battery before use.

5.3 Remote Control Power LED Status Information

Power LED Indicator Sound Remote Control Status

— Solid Green None Functioning normally.

— Solid Red None Charging( remote control is powered off)

— Solid Yellow None Remote control joysticks calibration error, need to be re-calibrate.

— Solid Red BB---BB---BB Low voltage (from 3.5V-3.53V), recharge the remote control.

Quick Red ashing B-B-B......

Slow Green ashing B--B--B......

Critical low voltage (from 3.45V-3.5V). Recharge the remote

control immediately.

Alert will sound after 15 minutes of inactivity. It will stop once you start using the remote control.

Preparing the Remote Control

5.4 Battery Level Indicator

Built-in LiPo Battery: The remote control includes a rechargeable LiPo battery with

a capacity of 2000mAh. You can monitor the current battery level using the LED

indicators on the front panel of the remote control as the gure shown:

The remote control will show a blinking LED and sound an alert when the voltage drops below 3.45V, then

automatically power off after 3 seconds. This process will repeat even if you power cycle the remote control. If

this low voltage warning occurs during ight, the remote control will automatically power off, causing the aircraft to enter Failsafe mode, which cannot be interrupted (refer to Failsafe Function (Page27) for details). It is strongly recommended that you recharge the battery immediately when the 3.45V-3.5V low voltage warning occurs.

Battery Level Indicator

25％ 50％ 75％ 100％

5.5 Antenna Orientation

Keep the antennas pointing skyward, perpendicular to the ground for maximum remote control range during ight.

Assembly and Use

Figure 25

5.6 Remote Control Operation

The Remote Control is set to Mode 2 by default.

Preparing the Remote Control

Stick Neutral/ mid point: Control sticks of the Remote Control are placed at the central position. Move the Stick: The control stick is pushed away from the central position.

For maximum range and reliability, Remote Control antenna should

point skywards with no obstructions between it and the Phantom. Obstacles may cause Return to Home to trigger. Phone Holder and Range Extender should not block the antenna.

Remote Control

(Mode 2)

(

Position 1 Position 2 Position 3

Aircraft

indicates nose direction)

Operation details

Vertical movements on the left stick control elevation. Push the stick up to ascend and down to descend. When both sticks are centered the Phantom will hover in place. Push the throttle stick upward beyond the centered (neutral) position to take off. Push the throttle gently to prevent sudden and unexpected elevation.

Horizontal movements on the left stick control the rudder. Push left to rotate counter clock-wise and right for clockwise. If the stick is centered, the Phantom will fly

straight.

The more the stick is moved, the faster the Phantom will

rotate.

Vertical movements on the right stick control forward and backward pitch. Push up to fly forward and down to fly backward. The Phantom will hover in place if the stick is centered. Push the stick further for a larger pitch angle (maximum

35˚) and faster ight.

Horizontal movements on the right stick control left and

right pitch.

Push left to y left and right to y right. The Phantom will

hover in place if the stick is centered. Push the stick further for a larger pitch angle (maximum

35˚) and faster ight.

Left Dial: Turn the dial to the right, and the camera will shift to point upwards.Turn the dial to the left, and the

camera will shift to point downwards. The camera will keep its current position if the dial is static.

The S1 switch is used for compass calibration. Toggle the S1 from position 1 to position 3 and back approximately 5 times to enter into compass calibration mode.

In Naza-M mode, the S1 switch is used to switch

between control modes and enter compass calibration.

S2 is used to record a Home point manually. After a Home

point has been recorded automatically, flipping S2 from

position 1 to position 3 and back 5 times (or more) rapidly will move the Home point to the Phantom’s current location.

In addition, you can enable Dynamic Home Point feature in DJI VISION App. In Naza-M working mode, S2 is be used for IOC.

Assembly and Use

In ‘Ready to Fly’ mode, the Phantom will hover when all sticks are released. In ‘Ready to Fly (non-GPS)’ the Phantom will lock its altitude but will not have horizontal positioning.

5.7 Linking the Remote Control and Receiver

A 5.8G receiver is built in to the Phantom 2 Vision+. Its link button and indicator are located on the underside of the

phantom, as shown in Figure 26. The Remote Control and the receiver are paired before delivery. Only use this button if you have replaced your Remote Control or receiver.

Linking Procedures

(1) Power off the Remote Control, power on the aircraft.

You will see the link indicator blinking red.

(2) Press the link button with a thin object and hold

until the link indicator blinks yellow. Release the link button.

(3) Power on the Remote Control. Link indicator will

switch off, showing that a link has been successfully

established.

Figure 26

Link Button & Link

Indicator

Link Indicator

Link Indicator Description Next Operation

Red ashing No signal received. Switch on the Remote Control or perform a link procedure.

Yellow ashing Ready to link. Switch on the Remote Control.

5.8 Compliance Version Conguration

As power levels vary between regulators, the Phantom Remote Control’s power output can be adjusted by twisting the CE/FCC Control Knob (Figure 27) on the back of the Remote Control using a athead screwdriver. For CE compliance, set the Remote Control to CE with a full counterclockwise turn. For FCC compliance, set the Remote Control to FCC with

a full clockwise turn. Be sure to follow relevant local regulations.

Compliance can be congured using the PHANTOM RC Assistant. Select CE compliance version in Assistant to set it, or do the same with FCC compliance version.

Preparing the Remote Control

Figure 27

CE FCC

Turn the CE/FCC Control Knob gently to avoid

damage.

CE compliant devices have an effective remote

control range of 400 meters in open spaces due to power limitations.

FCC compliant devices have an effective range of

800 meters in open spaces.

Watch your flight distance as the Phantom 2

Vision+ will enter Failsafe mode (auto-landing or go home and land) if it ies beyond the relevant

range limits.

Always follow local laws and regulations.

It is recommended to use a Φ2.4mm flathead

screwdriver for adjustments.

There is another potentiometer for reserved use.

Assembly and Use

6 Preparing the Range Extender

The Phantom 2 Vision+ Range Extender is a wireless communication device that operates within the 2.4 GHz frequency

band. It is used to extending the effective range of communication between a Smartphone and the Phantom 2 Vision+.

In an open, unobstructed area, the transmission distance can reach up to 700 meters. This can be reduced by trees, buildings and other sources of the same frequency. Before every ight, it is suggested that you ensure the Range Extender is functioning properly; otherwise communication issues between the mobile device and the Phantom 2

Vision+ may occur.

Each Range Extender has a unique MAC address and network name (SSID), details of which are printed on the label as ‘Phantom_XXXXXX’. The ‘XXXXXX’ represents the last 6 letters or numbers of the MAC address for the Range Extender. This can be renamed in the DJI VISION App.

6.1 Introduction

Preparing the Range Extender

[1]

[1] [2]

[3]

Figure 28 Figure 29

[4]

[5]

[6]

[7]

SYSTEM Indicator

Shows Wi-Fi status of the Range Extender.

SYSTEM Indicator Description

Green ashing The Wi-Fi network is functioning normally.

Off The Wi-Fi network is functioning abnormally.

POWER Indicator

Shows power levels of the Range Extender.

POWER Indicator Description

Solid green Fully charged.

Solid red Low voltage alert, re-charge required.

Solid Yellow Charging.

SYSTEM Indicator

[2]

POWER Indicator

[3]

Locking Screw

[4]

Binding Reset Button

[5]

Power Switch

[6]

Charging Port(Micro-USB slot)

[7]

Mounting Bracket

If the power indicator is a solid red light, the Ranger Extender may stop working at any moment. Land and

recharge as soon as possible.

Binding Reset Button

When the Binding Reset Button is pressed, it will reset and restart the Range Extender. You will need to bind it with the Phantom 2 Vision+ again to recreate its Wi-Fi network. Failure to do so will cause the DJI VISION App to fail to connect

with the camera.

6.2 Using Range Extender

Charging the Range Extender

Charge the Range Extender by connecting the charging port to a power supply device such as a PC or a USB charger using a Micro-USB cable. Make sure to charge the Range Extender completely before using it for the rst time. This takes 3~4 hours depending on USB power output.

Make sure the Range Extender has enough power before each use.

Assembly and Use

Powering on the Range Extender

(1) Flick the power switch to the ON position. (2) Wait for approximately 30 seconds. The Wi-Fi signal indicator will blink green indicating the Range Extender is

communicating properly.

(3) Keep the Range Extender facing the aircraft during ight for the best communication link.

Power off the Range Extender after every ight to avoid discharging the battery.

Checking the Battery Level

The battery level of the Range Extender can be checked in the camera page of the DJI VISION App as shown below. When the battery level drops to 20% or lower, the battery level icon will go red as a charging reminder.

battery level under 20%,icon goes redbattery level above 20%, icon is blue

Preparing the Range Extender

Figure 30

Figure 31

6.3 Rename Range Extender SSID

Make your Range Extender SSID easier to remember by changing its name.

Figure 32 Figure 33 Figure 34

(1) Tap “Rename SSID of Range Extender” in the Settings page. Enter a new SSID name (e.g. Phantom_Tom) in the

textbox.

(2) Tap

(3) Tap “OK” to conrm the change. The Range Extender will automatically restart and the App will return to the settings

and you will be asked to enter the last six characters of your MAC address on the Range Extender to conrm the change. The MAC address can be found on the sticker on your Range Extender. If your MAC address is 60:60:1F:60:41:E7, then enter 6041E7.

page. Approximately 30 seconds later, the new network name can be found in the Wi-Fi list of your mobile device. Select and connect the renamed network to use the DJI VISION App.

6.4 Binding the Phantom 2 Vision+ and Range Extender

If the connection between the Phantom 2 Vision+ and the Range

Extender fails, or one of them needs to be repaired or replaced, a

camera and Range Extender binding will need to be performed through

the DJI VISION App.

Binding Reset Button

Figure 35

Assembly and Use

(1) Power on the camera and Range Extender.

(2) Approximately 30 seconds later, press the Binding Reset Button on the Range Extender with a pin until the SYSTEM

Indicator turns off. The Range Extender will then restart automatically.

(3) Approximately 30 seconds later, the SYSTEM Indicator will start to blink green, indicating that the Range Extender is

ready for binding.

(4) Enable Wi-Fi on your mobile device then select “Phantom_XXXXXX” the (SSIDof your Range Extender) from theWi-Fi

network list.

(5) Run the DJI VISION App then tap -> Settings -> General -> Binding (Figure 36). Select 'Scan QR Code' to scan

the camera QR code on the bottom of aircraft (Figure 37). Get the camera SSID (E.g. FC200_xxxxxx) and the MAC address (Figure 38). You can also skip the scan and enter the camera MAC address directly (Figure 39). The MAC

address can be found on the camera label.

(6) Tap the tick

Downloading and Installing the DJI VISION App

in the top right corner. The Range Extender should automatically restart. Binding is now complete.

Figure 36 Figure 37 Scan the camera QR code on

Figure 38 Figure 39

DO NOT push the Binding Reset Button of the Range Extender unless you are ready to rebind the Range

Extender and the camera. This will unbind your camera so you must follow the steps above for rebinding.

If both the Phantom 2 Vision+ and the Range Extender are powered on and working normally, you will be able to nd the SSID on the Wi-Fi list of your mobile device.

The QR code is located on the bottom cover of the Phantom 2 Vision+. If you cannot nd the QR code, please

contact DJI customer service and provide your camera serial number (printed on the label of the camera) so they can generate a new QR code for you.

Photographing and saving the QR code is recommended to prevent loss.

the bottom of aircraft

7 Downloading and Installing the DJI VISION App

7.1 Download and Install

Download DJI VISION App

Download and install the DJI VISION App. Choose one of the download methods below.

Search "DJI VISION" on the App Store then follow instructions for iOS version. Search "DJI VISION" on Google Play then follow instructions for Android version.

iOS6.1 or above Android 4.0 or above

Assembly and Use

Supported mobile devices

iOS (iOS6.1 or above) Recommended: iPhone4S, iPhone5, iPhone5S, iPhone5C, iPod Touch4, iPod Touch5; Available

Android (4.0 or above): Samsung Galaxy S3, S4, Note2, Note3 or mobile devices of similar conguration.

DJI continues to support many mobile devices and any information from users are welcome. Please send any

questions or queries to the following mailbox: phantom2vision@dji.com.

The DJI website is regularly updated. Check back often for latest App updates.

but not recommended: iPad3, iPad4, iPad mini, iPad Air.

7.2 Register and Login

Access the Internet to register and login.

[1]

[2]

Figure 40 Figure 41 Figure 42

[1]

Tap ‘Register’ to enter the registration page. Fill in your Email and Password information and then tap to create a new account.

Downloading and Installing the DJI VISION App

The DJI account works with all DJI Assistant and Apps.

[2]

Tap ‘Login’ to enter the login page. Fill in your registered Email and Password and then tap to login.

Tap “Forgot Password” if you have forgotten your login details.

[3]

Usage tips

Useful tips will display when you enter the welcome page. Tap the screen to display the next tip.

[3]

Figure 43

Assembly and Use

Enable the “Tutorial” switch in the Settings page to get hints and tips the rst time you use the DJI VISION App.

Figure 44

8 Connecting the Camera

Before ight, always connect your smartphone to the Phantom’s Wi-Fi network. This is required for the camera control

and FPV.

Connecting the Camera

8.1 Connecting Procedures

Follow these instructions to connect a mobile device to the Phantom 2 Vision+ camera.

(1) Power on the Remote Control and the Range Extender.

(2) Power on the Phantom 2 Vision+.

(3) Enable the Wi-Fi on your mobile device; wait for about 30 seconds, and then select “Phantom_XXXXXX” from theWi-

Fi network list (Figure45).

(4) Run the DJI VISION App on your mobile device. When the Wi-Fi Computer Connection status on the App main menu

goes green, the connection is good (Figure46).

(5) Tap the “CAMERA” icon and the DJI VISION App will begin a live camera preview (Figure47). This means everything

is functioning normally.

Enable Wi-Fi

Phantom_XXXXXX

Select

Figure 45 Figure 46

Wi-Fi Computer Connection status

Figure 47

Wi-Fi Computer Connection Status Description

Icon Description

Solid green Wi-Fi is connected to the Phantom 2 Vision+.

Solid blue Wi-Fi is connected to another Wi-Fi network, not to the Phantom 2 Vision+.

Off No Wi-Fi connection.

The SSID is unique for each Phantom 2 Vision+ It will appear as Phantom_XXXXXX in your Wi-Fi list. Android users can tap the SSID button on the main page to mobile device Wi-Fi settings directly.

Flight

Once pre-ight preparation is complete, it is recommended to carry out the tasks in the Phantom Pilot Training Guide to prepare for more complex ight maneuvers and learn to y safely. Ensure that all ights are carried out in a suitable

location.

Flight Environment Requirements

(1) Do not use the aircraft in severe weather conditions. These include wind speed exceeding category 4, snow, rain

and smog.

(2) Fly in open elds as high buildings or steel structures may affect the accuracy of the onboard compass. (3) Keep the Phantom away from obstacles, crowds, high voltage power lines, trees or bodies of water when in ight. (4) Reduce the chance of electromagnetic interference by not ying in areas with high levels of electromagnetism,

including base stations or radio transmission towers.

(5) The Phantom cannot operate within the polar areas.

(6) Do not y the aircraft within no-y zones specied by local laws and regulations.

Preight Checklist

(1) Remote Control, smart battery, Range Extender and smartphone are fully charged.

(2) Propellers are mounted correctly. (3) Gimbal clamp has been removed.

(4) Damping absorbers are in good condition, not broken or worn. (5) Anti-drop kits have been mounted correctly. (6) Camera lens cap has been removed. (7) Micro-SD card has been inserted if necessary.

(8) Gimbal is functioning as normal.

(9) Motors can start and are functioning as normal. (10) DJI VISION App can connect to the camera.

1 Calibrating the Compass

IMPORTANT: Make sure to calibrate the compass in every new flight location. The compass is very sensitive to electromagnetic interference, which can cause abnormal compass data leading to poor ight performance or even ight failure. Regular calibration is required for optimum performance.

DO NOT calibrate your compass where there is a chance of strong magnetic interference, such as magnetite,

parking structures, and steel reinforcements underground. DO NOT carry ferromagnetic materials with you during calibration such as keys or cellular phones. DO NOT calibrate beside massive metal objects.

1.1Calibration Procedures

Choose an open space to carry out the following procedures. Watch the Phantom 2 Vision+ quick start video for more

details.

360°Rotate the aircraft

vertically (Nose downward)

LED Flight

Indicator

Normal LED

Succeed

Re-calibrate

Red, Yellow ashing in turn

Fail

Start cali.

Quickly ip the switch S1

Position-1

Position-3

Position-1->Position-3->Position1 Flip 5 times or above, or tap "Compass Calibration" in DJI VISION APP

LED Flight Indicator

Solid Yellow

Start horizontal calibration

360°Rotate the aircraft

horizontally

LED Flight Indicator

Solid Green

Start vertical calibration

Position-1

Position-3

Positon-1->Positon-3

->Positon1 Flip once

Figure 48

Calibrating the Compass

Flight

If compass calibration is needed before ight, a prompt will appear on the DJI VISON App’s camera page. It will

disappear after successful calibration.

1.2 When to Recalibrate

(1) When compass data is abnormal, the rear LED ight indicator will blink red and yellow. (2) Flying in different location to last ight. (3) Mechanical structure of the Phantom has changed, i.e. changed mounting position of the compass. (4) Severe drifting occurs in ight, i.e. Phantom does not y in straight lines.

2 Starting/Stopping the Motors

2.1 Starting Motors

A Combination Stick Command (CSC) is used to start the motors instead of

simply pushing the stick up. Push both sticks to their bottom corners to start the

motors. Once the motors have spun up, release both sticks simultaneously.

Starting/Stopping the Motors / Flight Test

2.2 Stopping Motors

There are two methods to stop the motors. Method 1: When the Phantom has landed, push the throttle down, then conduct CSC. Motors will stop immediately.

Release both sticks once motors stop.

Method 2: When the aircraft has landed, push the throttle down and hold. Motors will stop after 3 seconds.

[1] [2]

Figure 50 Figure 51

Do not execute CSC during normal ight. This will stop the motors and cause the aircraft to drop without control.

Conduct the CSC as neatly as you can. Release the sticks once motors start/stop.

Pull down the throttle stick to descend. The stick will lock into place and the aircraft will descend steadily. Push

the throttle stick upward to release throttle lock.

Figure 49

3 Flight Test

3.1Take off/Landing Procedures

(1) Place the Phantom 2 Vision+ on open at ground with battery indicators facing towards you. (2) Power on the Remote Control and Range Extender, then the Smart Flight Battery. (3) Launch the DJI VISION App and start bind it with your smartphone then enter the camera preview page. (4) Wait until the Rear LED Flight Indicator blinks green. This means it has initialized and is Ready to Fly. If it ashes yellow,

it is in Ready to Fly (non-GPS) mode and will require more careful ight. Execute the CSC command to start motors. (5) Push the throttle up slowly to take off. Refer to Remote Control Operation (Page 18) for more details. (6) Shoot photos and videos using the DJI VISION App. Refer to DJI VISION App Usage (Page 32) for more details. (7) To land, hover over a level surface and gently pull down on the throttle gently to descend. (8) After landing, execute the CSC command or hold the throttle at its lowest position for 3 seconds or more until the

motors stop.

(9) Turn off the smart battery, Range Extender and Remote Control.

Flight

When the Rear LED Flight Indicator blinks yellow rapidly during ight, the aircraft has entered Failsafe mode.

Refer to Failsafe Function(Page 27) for details.

A low battery level warning is indicated by the Rear LED Flight Indicator blinking red slowly or rapidly during

ight. Refer to the Low Battery Level Warning Function(Page 28) for details.

View tutorials about ight for more ight information:www.dji.com/phantom2visionplus/training.

Aircraft and battery performance is subject to environmental factors such as air density and temperature. Be

very careful when ying 3000 meters (9800 feet) or more above sea level, as battery and aircraft performance

may be reduced.

3.2 Video Suggestions and Tips

(1) Work through the check list before each ight. (2) Set the gimbal working mode to Stabilized. (3) Aim to shoot when ying in Ready to Fly only. (4) Always y in good weather, such as sunny or windless days. (5) Change camera settings to suit you. These include FOV, photo format and exposure compensation. (6) Take ight tests to establish ight routes and scenes.

(7) Push the sticks gently to make aircraft movements stable and smooth.

4 Failsafe Function

The Phantom will enter Failsafe mode when its connection to the Remote Control is lost. The Flight Control System will

automatically control the aircraft to return to home and land to prevent injury or damage.

Home Point: When the Phantom enters ‘Ready to Fly’ from the ‘Ready to Fly status (non-GPS)’, the GPS

coordinates will be recorded and set as the home point.

When Remote Control signal is lost, the aircraft will return to the recorded home point coordinates and land. Home point coordinates are used to calculate the horizontal distance of the aircraft (shown as “Distance” on the

GUI of the DJI VISION App).

After successfully record the home point, rear LED ight indicators blink fast green.

Dynamic Home Point: The Home point will be reset to position of the mobile device at specic time intervals.

Enable dynamic home point in DJI Vision app or Phantom 2 Assistant.

Dynamic home point is only available to the GPS-enabled mobile device. Turn on GPS and data service to

obtain higher accuracy of the mobile device position.

Dynamic home point is useful in situations when you are in motion and require a Home point that is different

from the takeoff point.

Failsafe Function

4.1 When Will Failsafe Activate?

(1) The Remote Control is powered off. (2) The Phantom has own out of effective remote control range. (3) The signal between the Remote Control and the Phantom has been blocked. (4) There is interference causing a signal problem with the Remote Control.

4.2 Failsafe Procedure

Initiating the Failsafe mode from different ying statuses will results in different landing processes.

Ready to Fly(non-GPS)

The Flight Control System will keep the aircraft level during descent and landing. It may be drift during the descent and landing process.

Ready to Fly- Automatic go home and land

The Flight Control System will automatically control the aircraft to y back to the home point and land.

1 Record Home Point

LED Flight Indicator

Yellow ashing

4 Signal lost lasts 3s, begin to go home

LED Flight Indicator Yellow ashing

Automatic landing

Green ashing

2 Flying

LED Flight Indicator Green ashing

5 Fly back to home point

Height over home point>20m

Elevate to 20m

20m

LED Flight Indicator Yellow ashing

Height over home point<=20m

Figure 52

3 Remote Control signal lost

LED Flight Indicator Yellow ashing

6 Landing after hovering 15s

LED Flight Indicator Yellow ashing

Flight

To ensure the aircraft successful return to home after Failsafe activation, aim to only y in Ready to Fly mode.

The Phantom will automatically descend during the Failsafe process if there are less than 6 GPS satellites

detected for more than 20 seconds.

Aircraft cannot navigate around vertical obstacles on its return home course during Failsafe. However, you can set

return home altitude value in Phantom Assistant to avoid hitting vertical obstacles through DJI Phantom Assistant.

Quickly ipping the S2 switch of the Remote Control from top to bottom 5 times or more will reset the current aircraft position as a new home point. Rear LED ight indicators will blink green rapidly when successful.

Failsafe on the DJI VISION App

The DJI VISION App will provide information during Failsafe.

Low Battery Level Warning Function

Figure 53 Figure 54

4.3 Regaining Control During Failsafe Procedures

Position of Switch S1

How to regain control

When the S1 switch is switched to Position-1, toggle

the S1 switch to any other position once to regain

control. If the Remote Control signal is recovered,

control is returned to the pilot.

Position-1 Position-2 Position-3

Regain control as soon as signal is recovered.

5 Low Battery Level Warning Function

If the DJI smart battery is depleted to a point that may affect the safe return of the aircraft, the low battery level warning noties users to take action. Users are advised to land the aircraft immediately when they observe these warnings. The

thresholds for these warnings are automatically determined based on the current aircraft altitude and its distance from the Home point. Details of the battery level warning are listed below:

Critical Low

battery level warning(Red)

Low battery level warning(Yellow)

Sufcient battery

level(Green)

Battery level indicator

Figure 55

Current

battery level

Estimated remaining

ight time

Flight

Battery Level Warning

Sufficient battery level

Low battery level warning

Critical Low

battery level warning

Estimated

remaining ight

time

Remark

Sufcient battery

level

The battery power is low. Please land the aircraft.

The aircraft must land immediately.

Estimated

remaining ight

based on current battery level.

Rear LED Flight Indicator

Green LED blinks slowly

DJI VISION App Flight Instructions

No message prompts

Operating normally, no specic action needed

When “Go-Home” is

selected in the Phantom

Assistant, this message

will appear:

Go Home In 10 Seconds

If you cancel, there may not be enough

battery power to return to the home

Red LED blinks slowly.

point!

Cancel

Go Home

Tap “Go-home” to have

the aircraft return to the Home point and land

Fly the Phantom 2 Vision+ back and land

it as soon as possible,

then stop the motors and replace the battery.

automatically, or “Cancel” to resume normal ight. If no action is taken, the

aircraft will automatically go home and land after 10 seconds.

Red LED blinks

quickly.

The DJI Vision App screen

will ash red and aircraft

starts to descend.

The Phantom 2 Vision+ will begin to descend and land automatically.

N/A N/A N/A

Low Battery Level Warning Function

Color zones on the battery level indicator reect estimated remaining ight time and are adjusted automatically, according to the aircraft’s current status. When the critical battery level warning activates and the aircraft is descending to land automatically, you may

push the throttle upward to hover the aircraft and navigate it to a more appropriate location for landing.

When these warnings are triggered, please bring the aircraft back to the Home point or land to avoid losing power during ight.

Low Battery Level Warning on the DJI VISION App

Battery level warnings will show on the camera page of the DJI VISION App when the battery level is low. (1) A red light will ash along the edges of the app screen. (2) Audible alarm. Make sure sound is turned on and volume is turned up on your mobile device.

(3) The aircraft battery icon will turn red.

The aircraft battery icon will turn red

Figure 56

Flight

6 Flight Limits

All unmanned aerial vehicle (UAV) operators should abide by all regulations from such organizations as the ICAO (International Civil Aviation Organization) and their own national airspace regulations. For safety reasons, the ight limits function is enabled by default to help users use this product safely and legally. The ight limits function includes height, distance limits and No Fly Zones. In Ready to Fly mode, height, distance limits and No Fly Zones work together to manage ight. In Ready to Fly (non-GPS) status, only height limits work and ights cannot go higher than 120m.

Default parameters in Assistant are compliant within the denitions of class G ruled by ICAO. (Refer to Airspace Denition to get more details). As each country has its own rules, make sure to congure these parameters to comply with these rules before ying.

6.1 Max Height & Radius Limits

Max Height & Radius limits ying height and distance. Conguration can be done in the Phantom 2 Vision+ Assistant (Figure 57). Once complete, your Phantom will y in a restricted cylinder (Figure 58).

Flight Limits

Max Height

Figure 57 Figure 58

Ready to Fly Green ashing

Limits DJI VISION App Rear LED ight indicator

Max Height

Max Radius

Ready to Fly(non-GPS) Yellow ashing

Max Height Flight height restricted to 120m and under. Warning: Height limit reached. None.

Max Radius No limits

Flight height must be under the set height.

Flight distance must be within the max radius.

Flight Limits DJI VISION App Rear LED ight indicator

If you y out of the limit, you can still control the Phantom, but cannot y it further. If the Phantom flies out of the max radius in Ready to Fly (non-GPS) mode, it will fly back within range

automatically.

Warning: Height limit reached.

Warning: Distance limit reached.

None.

Rapid red ashing

the max radius limit.

Max Radius

Home Point

Height of aircraft when powered on

when close to

6.2 Flight Restriction of Restricted Areas

Restricted areas include airports worldwide. All restricted areas are listed on the DJI ofcial website at http://www.dji. com/y-safe/category-mc. Restricted areas are divided into category A and category B. Category A areas cover major international airport such as LAX and Heathrow, while category B areas includes smaller airports.

Flight

Category A Safety Zone

(1) The category A “safety zone” is comprised of a small “no-y zone” and a range of “restricted-altitude zones”. Flight

is prevented in the “no-y zone” but can continue with height restrictions in the restricted-altitude zone. (2) 1.5 miles (2.4 km) around a designated safety zone is a no-y zone, inside which takeoff is prevented. (3) 1.5 miles (2.4 km) to 5 miles (8 km) around restricted areas are altitude restricted, with maximum altitude going from

35 feet (10.5 m) at 1.5 miles (2.4 km) to 400 feet (120 m) at 5 miles (8 km).

(4) A “warning zone” has been set around the safety zone. When you y within 320 feet (100m) of the safety zone, a

warning message will appear on the DJI Vision app.

Category B Safety Zone

(1) Category B “safety zone” is comprised of a “no-y zone” and a “warning zone”. (2) 0.6 miles (1 km) around the safety zone is a designated “no-y zone”. (3) A “warning zone” has been set around the safety zone. When you y within 0.6 miles (1Km) of this zone, a warning

will appear on the DJI Vision app.

Figure 59:Category A Figure 60: Category B

Ready to Fly Green ashing

Zone Restriction DJI VISION App Notication

Warning: You are in a No-y zone. Take off

prohibited.

Warning: You are in a No-y zone, automatic

landing has begun. (If you are within 1.5 mile radius)

Warning: You are in a restricted zone.

Descending to safe altitude. (If you are between the range of 1.5 mile and 5 mile radius)

Warning: You are in a restricted zone. Max ight

height restricted to between 10.5m and 120m.

Fly Cautiously.

Warning: You are approaching a restricted

zone, Fly Cautiously.

No-y Zone

Restricted-altitude

ight zone

Warning zone

Free zone

Motors will not start.

If the Phantom enters the restricted

area in Ready to Fly (non-GPS) mode but Ready to Fly mode activates, the

Phantom will automatically descend to land then stop its motors after landing.

If the Phantom enters a restricted area

in Ready to Fly (non-GPS) mode and Ready to Fly mode activates, it will

descend to a safe altitude and hover 15 feet below the safe altitude.

No flight restriction applies, but there

will be warning message.

No restrictions. None. None.

Rear LED Flight Indicator

Red ashing

Flight Limits

Semi-automatic descent: All stick commands are available except the throttle stick command during the descent and landing process. Motors will stop automatically after landing. Users must toggle the S1 switch to

regain control. This is the same as regaining control during Failsafe. Please refer to Regaining Control During Failsafe Procedure (Page28).

When ying in the safety zone, LED ight indicators will blink red quickly and continue for 3 seconds,

then switch to indicate current ying status and continue for 5 seconds at which point it will switch back to red

blinking.

For safety reasons, please do not y close to airports, highways, railway stations, railway lines, city centers and

other special areas. Try to ensure the aircraft is visible.

DJI VISION App Usage

6.3 Conditions of Flight Limits

In different working modes and ight modes, ight limits will differ according to number of GPS satellites found. The following table demonstrates all the cases(√: available; ×:unavailable). All flights are restricted by height, distance and special areas simultaneously. The Failsafe and Ground Station operations are not restricted to ight limits, but if Ground Station function is used, the ight will be restricted the special

area limits built in to Ground Station. Refer to the Ground Station manual for details.

Phantom mode

Flight Status Limits of Special Area Max Height Max Radius

Ready to Fly √ √ √

Ready to Fly (non-GPS) × √ ×

Naza-M mode

Control Mode number of GPS found Limits of Special Area Max Height Max Radius

GPS

ATTI.

DJI VISION App Main Menu

Manual

≥6 √ √ √

<6 × √ ×

≥6 √ √ ×

<6 × √ ×

≥6 × × ×

<6 × × ×

6.4 Disclaimer

Please ensure that you are up to date with international and domestic airspace rules and regulations before using

this product. By using this product, you hereby agree to this disclaimer and signify that you have read this fully. You agree that you are responsible for your own conduct and content while using this product, and for any direct or indirect consequences caused by not following this manual, violating or disregarding other applicable local laws, administrative

rules and social habits thereof.

DJI VISION App Usage

The DJI VISION App controls the Phantom 2 Vision+ camera including capture, recording, settings and pitch angle. It also displays essential ight information including ight parameters and battery level.

1 DJI VISION App Main Menu

After logging in you will see the VISION App home screen. This shows current Wi-Fi connection status and the four main

features of the App.

Icons Description

Camera Tap to enter camera preview

Album Tap to enter album

News Tap to enter DJI news

Settings Tap to enter App settings

Checklist Tap to enter preight checklist.

When using the camera and the SD card album (Page 37), connect your

mobile device to the Phantom 2 Vision+ Wi-Fi network. Internet access is required for sharing photos, videos and reading DJI news. If you receive a phone call during a ight, the live camera preview screen may

be interrupted. It's recommended to ignore the call and pay attention to your

Figure 61

ight.

DJI VISION App Usage

2 Camera Page

[6]

[1]

[2]

[3]

[4]

[1]

Return [2] Camera Pitch Control [3] Flight Attitude and Radar Function [4] Flight Parameters [5] Wi-Fi Signal Strength [6 Flight Battery Level [7] Aircraft GPS Status [8] Micro-SD Card Status [9] Range Extender Battery Level [10] Remaining Shots [11] Shutter Button [12] Video Recording Button [13] Camera Settings [14] Hide or Show Flight Parameters

[1]

Return

-Return to the preview page

[2]

Camera Pitch Control

-Pitch Control switch is white tap once to highlight it and enter Accelerometer Sensor Mode. Tap again to

return to normal.

Figure 62

Normal Mode

Tap up arrow to pitch camera upwards and down arrow to pitch downwards. Green slider indicates current camera pitch.

Gimbal pitch movementGimbal pitch control (Normal Mode)

[5]

[7]

[8]

[9]

[10]

[11]

[12]

[13]

[14]

]

Camera Page

Accelerometer Sensor Mode

Figure 63 Figure 64

The gimbal pitch movement is controlled by moving your mobile device. Pitch forward to pitch camera down and backward to pitch camera up.

Gimbal pitch control (Accelerometer Sensor Mode) Gimbal pitch movement

Figure 65 Figure 66 Figure 67

In Accelerometer Sensor Mode, the pitch angle indicator will show a grey area. When the green pitch indicator is inside the grey area, the camera will move according to pitch gestures. When the indicator reaches the boundary of the grey area, pitch gestures will control the camera’s pitch speed at a constant rate.

DJI VISION App Usage

[3]

Flight Attitude and Radar Function

Flight attitude is indicated by the ight attitude icon.

(1) The red arrow shows which direction the Phantom 2 Vision+ is facing. (2) Light blue and dark blue areas indicate pitch. (3) Pitching of the boundary between light blue and dark blue area shows roll angle. (4) An orange circle around the radar indicates that the dynamic home point is not available.

A green circle around the radar indicates that the dynamic home point is available and

Figure 68

a new home point has been set.

Tap ight attitude icon to turn on the radar function. Home in the center of the radar and the red icon indicates the Phantom 2 Vision+’s current heading, direction, and approximate distance from home. Tap ight attitude icon again

to disable the radar.The current longitude and latitude of the aircraft is displayed on the bottom of the radar.

Aircraft Position

Home Point

Longitude & Latitude

200M

400M

600M

800M

113.94717E 113.94717E22.54053N 22.54053N

200M

400M

600M

800M

Figure 69 Figure 70

Mobile Device Position

Distance

By default, the center of the radar indicates the home point recorded by the Phantom 2 Vision+. Tap the

center of the radar to switch the center to your mobile device's current location.

If your mobile device contains a compass, the top portion of the Radar is the direction you are pointing. If

not, the radar will be oriented due north.

Distance units are metric in Figure 69 and Figure 70. Users can switch the unit to imperial in the settings page.

[4]

Flight Parameters

Tap to set return home (RTH) altitude.

Distance: Horizontal distance from home point.

Altitude: Vertical distance from home point.

Speed: Horizontal ying speed.

Go-Home Setting

Current Altitude

New Altitude

Set New Altitude

Distance value will show as N/A if the Phantom 2 Vision+ is not in “Ready to Fly” mode.

[5]

Wi-Fi Signal Intensity

Indicates camera is connected to your mobile device and Wi-Fi is working normally. The connection between the camera and mobile device may fail if Wi-Fi signal strength is low. Refer to Phantom 2 Vision+ CONNECTION BROKEN for more information.

[6]

Flight Battery Level

Show current ight battery level. When battery level is low and the battery icon turns red it is recommended to y the

aircraft back and land it as soon as possible. Please refer to Low Battery Level Warning Function (Page 28) to get more details.

[7]

Aircraft GPS Status

GPS status icon display the number of satellites found by the aircraft. The icon is highlighted when more than 6

satellites are found, allow the Phantom to y in “Ready to Fly” mode.

[8]

Micro-SD Card Status

Displays Micro-SD Card Status. Icon is highlighted when a valid Micro-SD card is inserted. If there is no Micro-SD card present, it is grayed out.

[9]

Range Extender Battery Level

Shows current battery level of the Range Extender. Refer to Checking the Battery Level (Page 21) for more details.

[10]

Remaining Shots

Displays estimated shots remaining, based on the current photo size setting and storage capacity of the Micro-SD

card. This shows ‘0’ if:

(1) Micro-SD card is not inserted. (2) Micro-SD card is full.

(3) Micro-SD card is damaged. (4) Connection between the DJI VISION App and camera is broken.

[11]

Shutter Button

Tap to take photos. Single capture: press once for a single capture.

Continuous capture: press once for 3 or 5 captures. Timed capture: press once to begin a timed capture, press again to stop.

Shutter button is disabled during video recording. Capture modes can be recongured in camera settings; refer to the Camera Settings (Page35).

[12]

Video Recording Button

Start and stop video recording. Tap once to start recording. A red dot will blink to indicate recording is in progress and a time code will appear in the top right corner of the preview screen. Press again to stop recording.

[13]

Camera Settings

Tap to open the camera settings menu, refer to Camera

Settings (Page 35).

[14]

Hide or Show Flight Parameters

Tap to hide ight parameters. Tap again to show.

DJI VISION App Usage

Figure 71

Camera Settings

Figure 72 Figure 73

3 Camera Settings

[1]

[2]

[3]

[4]

[5]

[6]

[7]

Figure 74 Figure 75

[1]

Capture Mode [2] Photo Size [3] Video Resolution [4] Photo Format [5]ISO [6] White Balance [7] Exposure Metering [8

Exposure Compensation [9] Sharpness [10] Anti-icker [11] Restore Defaults [12] Format Micro-SD Card

[1]

Capture Mode

Single capture.

3 captures.

5 captures.

Congurable timed capture:

a) Interval between shots (3~60 s) b) Number of shots (2~254, or number of picture is subject to the capacity of the memory card.)

[8]

[9]

[10]

[11]

[12]

]

DJI VISION App Usage

Capture Button will change according to the mode selected , , ,

[2]

Photo Size

[3]

Video Resolution

Three Field of View (FOV) options are supported when shooting in 1920x1080 60i, 1920x1080 30p and 1920x1080 25p: Medium (110°) and Narrow (85°).

[4]

Photo Format

JPEG

RAW

Large: 4384 x 3288, 4:3, 14.4MP

Medium: 4384 x 2922, 3:2, 12.8MP

Small: 4384 x 2466, 16:9, 10.8MP

1920x1080 60i, 16 : 9

1920x1080 30p, 16 : 9

1920x1080 25p, 16 : 9

1280x960 30p, 4 : 3

1280x960 25p, 4 : 3

1280x720 60p, 16 : 9

1280x720 30p, 16 : 9

640x480 30p, 4 : 3(VGA)

JPEG

RAW

The Phantom 2 Vision+ camera shoots in JPEG and RAW le formats simultaneously when this option is selected. See the following table for detailed specications. JPEG photo size: 4384×3288, 4384×2922, 4384×2466 RAWphoto size: 4384×3288, 4384×2920, 4384×2464

RAW can be edited using the most recent versions of Adobe Camera Raw for Photoshop and Adobe

Lightroom.

[5]

Selectable ISO

AUTO AWB (auto white balance)

100

200

400

[7]

Exposure Metering

Center

Average

Spot

Center: The meter concentrates most on the center of the scene.

Average: Averages out the light levels for the entire image. This mode is used when the scene has no

signicant light difference.

Spot: Measures a small area in the center of the scene. This mode is used in a high contrast scene where

the subject must be accurately exposed.

[6]

White Balance

Sunny

Cloudy

Incandescent lamp

DJI VISION App Usage

[8]

Exposure Compensation

-2.0(EV) 2.0(EV)

-1.7(EV) 1.7(EV)

-1.3(EV) 1.3(EV)

-1.0(EV) 1.0(EV)

-0.7(EV) 0.7(EV)

-0.3(EV) 0.3(EV)

0(EV)

[9]

Sharpness [10] Anti-icker

Standard Anti-icker

Hard 50Hz

Soft 60Hz

[11]

Restore Defaults

Restores all default camera settings. Flight battery restart is needed to allow restoration to take effect.

[12]

Format Micro-SD Card

Format the Micro-SD card. All data stored in the Micro-SD card will be lost after formatting. Remember to backup

before formatting.

4 Album Page

The DJI VISION App has an SD Card album and a Mobile Device Photo Album. Images and videos on the SD Card album can be synchronized to the Mobile Device Photo Album. In the DJI VISION App, tap to enter into the SD Card album and tap to enter into Mobile Device Photo Album.

SD CARD Album

Mobile Device Photo Album

Album Page

Figure 76

SD Card album is accessible when the mobile device is connected to Phantom 2 Vision+ Wi-Fi.

4.1 SD Card Album

Pictures stored in the camera are presented using Thumbnails. Tap the corresponding thumbnail to view the picture.

[1]

Photos and videos are listed and grouped by date.

[2]

All photos and videos that have been synced to your mobile

device are marked with

[3]

Tap any thumbnail for single view mode. Tap a Photo thumbnail

that hasn’t been synchronized to the mobile device to view the

photo. Swipe left or right to view the previous or next photo. Tap on a video thumbnail to play it and view the video length. A progress bar will appear at the bottom of the screen. Tap

to enter single synchronization mode to synchronize a

single photo or video, or to synchronize and play a video at the

same time.

[1]

[2]

Figure 77

[4]

[3]

DJI VISION App Usage

1/74 1/74

00:00:07 00:00:22

Figure 78 Figure 79

[4] Tap the

button to enter multiple synchronization mode (as shown in the following diagram). Tap thumbnails to select photos or videos to synchronize to your mobile device (selected thumbnails are marked with a tick). Select one or more groups to be synchronized by checking the box before the group, then tap During the synchronization process, users can tap

to cancel synchronization. Photos and videos that have

to start synchronizing.

been synchronized to the mobile device will remain.

Some mobile devices cannot support the synchronization of 1080i60 video les.

Select a group

Select a single photo or video

[5]

Figure 80 Figure 81

[5]

Tap “Cancel” or “Finished” to exit multiple synchronization mode and return to the SD Card page.

Connect camera data port to a PC via a Micro-USB cable to copy photos or videos on the SD card album from the Micro-SD card to the PC conveniently.

4.2 Mobile Device Photo Album

[2] [3]

Figure 82

[1]

[4]

[1]

Browse all synchronized photos and videos in the album. Tap to view selected

photos or videos.

[2]

Photos and videos are displayed using thumbnails and sorted by capture time.

[3]

Pictures and videos are sorted by captured/recorded geo-tagged locations.

Internet access is required for map downloads.

Figure 83

Items

Geo-tagged

locations

DJI VISION App Usage

[4]

Tap any thumbnail for single view; you can slide left or right to view the previous or next photo. Tap a video thumbnail

to play a single video.

47/54

67/81

00:00:05 00:00:08

Figure 84 Figure 85

[5]

Tap

to share your photos and videos to social networks.

Access to the Internet is required for photo and video sharing.

5 News Page

View the latest DJI news. (Internet access is required.)

News Page / Settings Page

6 Settings Page

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

Dynamic Home Point

Figure 88 Figure 90

Figure 86 Figure 87

Current RTH Altitude

[10]

Battery History Info

[11] [14]

[12]

When FPV(First Person Vision) mode is enabled, gimbal roll motion will synchronize with the aircraft for a real time FPV experience. When FPV mode is disabled, the gimbal will stabilize across three axes for smooth aerial creativity. This mode is only available on the Phantom 2 Vision+.

GENERAL

N/A

Figure 89

[13]

[15]

[16]

[17]

[18]

[19]

[20]

[21] [22]

DJI VISION App Usage

[1]

Toolbar Auto Hide

Slide the switch from left to right to enable this function. Toolbar will auto hide on the camera page.

Figure 91: Toolbar Auto Hide Disabled Figure 92: Toolbar Auto Hide Enabled

[2]

When Connection Lost

Stop Recording:

Enabled: Stop recording if the Wi-Fi connection between the

mobile device and the camera breaks while the camera is recording.

Disabled: Keeps recording if the Wi-Fi connection between

the mobile device and the camera breaks while the camera is recording.

Select the state the camera will enter in the event of a Wi-Fi Connection break between the mobile device and the camera.

Settings Page

[3]

Camera Settings

iOS users will see an enabled item display in the camera settings toolbar and disabled items will be hidden. This feature is not available on Android.

Figure 93

Use this function to ensure you can continue don’t miss out on a shot.

3 items displayed by default

[4]

Preview Quality

Figure 94 Figure 95

High: 640 x 480@30fps Medium: 640 x 480@15fps Medium: 320 x 240@30fps Low: 320 x 240@15fps (Recommended when there is a lot of interference.)

Figure 96

DJI VISION App Usage

[5]

Parameter Unit

Select imperial or metric units of measurement.

[6]

Ground Station

Slide to the right to enable ground station feature.

[7]

FPV Mode

Switched on, the gimbal will work in FPV mode. Switched off, the gimbal will work in Stabilize mode.

[8]

Compass Calibration

Tap to calibrate the compass. Do not calibrate the

compass during ight.

[9] Dynamic Home Point

When activated, the Home point will be reset to your current position at specic time intervals. The aircraft will return to the latest Home point as required.

[10] Current RTH Altitude

Default RTH altitude set to 20m. Raising the RTH altitude above 120m is not recommended.

[11] Battery History Info

Show the battery history warning records.

[12]

Low Battery Auto Go Home

Enable or disable auto go home feature when battery is low.

[19]

Find My PHANTOM 2 VISION

[13]

Rotation Lock

The user interface of the DJI VISION App will rotate

if rotation lock is enabled (for iOS device only).

[14]

Battery Low Warning

If enabled, an alarm will sound when the battery

level is too low.

We recommended adjusting the mobile device volume to the highest level.

[15]

Tutorial

Hints and Tips

[16]

Clear News Cache

Tap to ush news cache.

[17]

Binding

In the event that camera and Range Extender binding

is lost or an item has been repaired or replaced, binding must be performed using the DJI VISION App.

Refer to Binding the Phantom 2 Vision+ and Range Extender (Page 21) for details.

[18]

Rename SSID of Range Extender

Tap to rename the SSID of the Range Extender. Refer to Rename Range Extender SSID (Page 21) for details.

Settings Page

My location

Phantom 2 Vision's

location

Figure 97 Figure 98

[20]

Account

Tap to see user account information.

[21]

Rate

Tap to rate the DJI VISION App. Internet access required.

Android App does not include rating.

[22]

About

Tap to see the current version of the DJI VISION App and contact information.

DJI VISION App Usage

7 Ground Station

The DJI Vision app features an integrated ground station function. Using it you can create ight missions by placing waypoints and setting waypoint altitude and overall speed. When ight plan has been created, simply tap “GO” and your aircraft will execute the ight mission automatically. You may also abort the ight mission and bring aircraft home by

activating ”GoHome” feature.

Upgrade Phantom rmware to the latest version to enable ground station feature. Refer to “Firmware Upgrade of the Phantom 2 Vision+” (P46) for more information about how to upgrade the rmware.

7.1 Ground Station GUI

[1] [2] [3] [4] [5] [6]

[9]

[10]

[7] [8]

[1]

MODE

Ground Station

Modes include

Hover: Hovering

Waypoint: Mission in progress

GoHome: Returning to home point Take off: Taking off Landing: Landing

GPS: GPS ight Atti.: Atti. ight Manual: Manual ight

[2]

Approximated Flight Mission Distance

Planned mission distance. To achieve optimum battery

performance, max mission distance is 5km(3miles).

[3]

Speed

For flight safety concern, only three gears of flight speed are available. Choose from Fast (8m/ s), Mid(4m/s) and Slow (2m/s) for flight speeds.

Estimated 10 minutes flight is achievable when the

aircraft travels in “Fast” gear.

[4]

Wi-Fi Signal Strength

Wi-Fi signal strength display. Refer to [5] in “Using the

DJI Vision App” for details.

[5]

Battery Level

Battery level display. Refer to [6] in “Using the DJI

Vision app” for details.

[6] GPS

Number of satellites connected. Refer to [7] in “Using

the DJI Vision app” for details.

[7]

Flight Attitude and Radar

Figure 99

Attitude and Radar display. Refer to [3] in “Using the

DJI Vision app” for details.

[8]

Flight Parameters

Flight information display. Refer to [4] in “Using the

DJI Vision app” for details.

[9] Back

Return to camera GUI.

[10] Home Point Locator

Locate your Home point.

[11] Orientation Lock

Unlock to sync map orientation with aircraft movement.

[12] Map View

Select map view from standard, hybrid or satellite.

[13] Waypoint

Tap each waypoint to set altitude.

[14] Delete

Delete current waypoint.

[15] Go Home

Abort mission, return home and land.

[16] Done

Hit “Done” then tap “GO” to begin mission.

[17] Flight Area

The aircraft can fly in this area and return to the home point with the current battery level. This area is dependent on the current state of the aircraft and

will be refreshed at specic time intervals.

[11]

[12]

[13]

[14]

[15]

[16] [17]

DJI VISION App Usage

7.2 Using Ground Station

Step 1 Launching Ground Station:

Enable ground station in the Settings section of the DJI Vision app. A disclaimer for Ground Station will appear. Read this thoroughly before using Ground Station.

Figure 100

Ensure your mobile device has access to the Internet. Due to the map data required, Wi-Fi connection is recommended. Internet access is required to cache the ground station map, if Wi-Fi is unavailable, mobile data service is required. Open

the DJI Vision app camera GUI and swipe left to launch ground station(see Figure 101). DJI Vision app cannot connect

to your aircraft while it is accessing the Internet. Hence, you may prompt with the warning message such as “Connection to Phantom Failed”. This message will not appear when your aircraft is re-connected to DJI Vision app. Map data of your

current location will load. You can then drag the map to cache nearby areas for future use(see Figure 102).

Ground Station

ftft

Figure 101 Figure 102

Step 2 Setting a Waypoint:

Disconnect from the Internet and connect the DJI Vision app to your aircraft. Check that remote control S1 switch is in

position (position-1) and the upper left corner in ground station display and wait for the aircraft to enter “Ready-

to-Fly” mode (LED indicator blinking green) before swiping left into ground station. Tap on the map to place a waypoint.

You can place up to 16 waypoints including the Home point. Waypoints cannot be placed beyond 500m from the Home

point or inside No Waypoint Areas.

Figure 103

Figure 104

DJI VISION App Usage

A circle on the map, as shown in Figure 104, indicates a restricted, No Waypoint area. Waypoints cannot be

placed in this area. For more information, refer to “6.2 Flight Restriction of Restricted Areas (P30)”.

To achieve the optimal video transmission quality, the aircraft is set to operate within a 500m-radius area from Home point.

Tap on a waypoint to open a waypoint properties window. Slide the white dot right to adjust waypoint altitude. The

default altitude is set to 98 feet (30 m) and can be adjusted from 0 to 650 feet (200 m). Tap “OK” to save waypoint settings. To delete current waypoint, tap

. Modify longitude and latitude value using the input box.

waypoint1

Longitude

113.94984 22.54074

Height

Latitude

Step 3 Preview a Mission:

Figure 105

Tap “Done” to preview the mission when all waypoints are set. A prompt similar to the one below will appear. This prompt lists all waypoints and their altitudes. The aircraft will y to each waypoint listed. If there is a difference in altitude between waypoints, the aircraft will adjust its altitude as it ies between points. When ready, tap “GO” to begin mission.

Figure 106

Aircraft reacts differently to the “GO” command:

If aircraft is on the ground, the aircraft takes off automatically and ascend 16 feet (5m) then y to the rst waypoint. If aircraft is in the air, the aircraft ies to the rst waypoint.

Step 4 Executing Flight Mission

The aircraft ies to each waypoint in numerical order. As it ies, swipe back into the DJI Vision app camera GUI to

control camera tilt and capture photos or video. Tap hovering. Tap from

to resume mission. If you wish to regain control of the aircraft, toggle the S1 switch on remote control

(Position-1) to either (Position-2) or (Position-3) to discontinue the current mission.

to pause the mission during the ight, and aircraft will then start

Step 5 Landing

When all waypoints have been visited, the aircraft will return to its Home point and hover. Regain control of the aircraft

and land it manually. You may also tap

button to initiate “Go Home” procedure. Aircraft will abort current mission,

return to Home point and auto land.

Figure 107

PC / MAC Assistant

For better use of the Phantom 2 Vision+, Phantom 2 Vision+ Assistant and Phantom RC Assistant are required. Both run on Windows or Mac OS X operating systems.

1 Installing Driver and Phantom 2 Vision+ Assistant

1.1 Installing and Running on Windows

(1) Download the driver installer and Assistant installer (.EXE) from the Phantom 2 Vision+ download page. (2) Connect the Phantom 2 Vision+ to a PC using a Micro-USB cable. (3) Run the driver installer and follow the prompts to nish installation. (4) Run the Assistant installer and follow the prompts to nish installation.

(5) Double click the Phantom 2 Vision+ icon on your desktop to launch Assistant.

Supports Windows XP, Windows 7 and Windows 8 (32 or 64 bit).

1.2 Installing and Running on Mac OS X

(1) Download the Assistant installer (.DMG) format from the Phantom 2 Vision+ download page.

(2) Run the installer and follow the prompts to nish installation.

Figure 108

(3) When launching for the rst time, if using Launchpad to run the Phantom 2 Vision+ Assistant, Launchpad will not

allow access because Assistant has not been reviewed by the Mac App Store.

Installing Driver and Phantom 2 Vision+ Assistant

Figure 109

(4) Locate the Phantom 2 Vision+ icon in Finder, press Control then click the icon (or right-click the icon using a mouse).

Choose Open from the shortcut menu, then click Open in the prompt dialog box to launch.

(5) After the first successful launch, double click the Phantom 2 Vision+ icon as normal to launch using Finder or

Launchpad.

Figure 110

PC / MAC Assistant

DMG installer supports Mac OS X 10.9 or above.

Phantom 2 Vision+ Assistant on Mac OS X and Windows are the same. Assistant pages shown in this manual

are from the Windows version.

2 Using Assistant

The Phantom 2 Vision+ Assistant is used to congure the ight control system and upgrade rmware. The Phantom RC Assistant is used to congure the Remote Control and upgrade its rmware.

2.1 Using the Phantom 2 Vision+ Assistant

(1) Power on the PC and the Phantom 2 Vision+. Connect the Phantom 2 Vision+ to the PC with a Micro-USB cable. DO

NOT disconnect until conguration is nished.

(2) Run Phantom 2 Vision+ Assistant and wait for the Phantom 2 Vision+ to connect. Watch the indicators

bottom of the screen. When connected successfully, the Computer Connection status is

Indicator blinks

(3) Choose [Basic] or [Advanced] conguration pages. (4) View and check the current conguration in the [View] page.

Using Assistant

View congurations

Gimbal, Battery, Flight Limits

Data Exchange Indicator

Computer Connection status

Do not enable Naza-M mode before finishing “Advanced Flight Maneuvers” in the "Phantom Pilot Training

Guide”.

Enable Phantom mode by tapping the same button if Naza-M mode is enabled. Once changed to Phantom

working mode, all parameters will return to factory settings.

RC, Gain

Figure 111

Figure 112

and Data Exchange

Function switch between Phantom

and Naza-M working modo

Language swap

Account, software version

Firmware upgrade

IMU calibration

* This image is for reference

only. Please refer to the actual user interface.

2.2 Firmware Upgrade of the Phantom 2 Vision+

(1) Click [Upgrade] icon to check the current rmware version and whether the installed rmware is the latest version. If

not, click links to upgrade.

(2) Wait until the Assistant shows “nished”. Click OK and power cycle the Phantom 2 Vision+ after 5 seconds. Once

complete, rmware is up to date.

on the

PC / MAC Assistant

Firmware upgradable items

Current rmware version

Upgrade link

* This image is for reference

only. Please refer to the actual user interface.

Figure 113

An internet connection is required to upgrade the Phantom 2 Vision+ rmware. DO NOT power off until the upgrade is nished. If the rmware upgrade fails, the Flight Controller will enter a waiting for rmware upgrade status automatically.

If this happens, repeat the above procedures.

Firmware upgradable items: (1)Flight Controller (2)GPS (3)5.8G Receiver (4) Main Board (P330CB) (5)Battery (6) Gimbal IMU

2.3 Using the Phantom RC Assistant

Use the Phantom 2 Vision+ Assistant to install PHANTOM RC Assistant on your Windows PC or Mac, and then follow the below steps to congure the Remote Control.

Figure 114

(1) Turn off the Remote Control and nd its Micro-USB slot. (2) Power on PC and Remote Control then connect Remote Control to the PC with a Micro-USB cable. DO NOT

disconnect until conguration is nished.

(3) Run the PHANTOM RC Assistant and wait for the Remote Control to connect to Assistant. Watch the indicators

on the bottom left of the screen. When connected successfully, the Computer Connection status is and Data

Exchange Indicator blinks

(4) Finish conguration in the [Main] page.

(5) Finish upgrade in the [Info] page if necessary.

Main page

Language swap

Firmware upgrade, Account, Software version

Using Assistant

Data Exchange Indicator

Computer Connection status

Figure 115

*This image is for reference only.

Please refer to the actual user interface.

Appendix

1 Rear LED Flight Indicator Status

Rear LED Flight Indicators Normal status

(Red, Green, Yellow ashes in turn) Power On Self-Test

(Green, Yellow ashes in turn) Warming Up

(Slow Green ashes) Ready to Fly

(Slow Yellow ashes) Ready to Fly (non-GPS)

Rear LED Flight Indicators Abnormal status

(Quick Yellow ashes) Remote Control Signal Lost

(Slow Red ashes) Low Battery Level Warning

(Quick Red ashes) Critical Low Battery Level Warning

(Three Red ashes off and on) Not Stationary or Sensor Bias is too big

—— (Solid red) Error*

(Red, Yellow ashes in turn) Compass Needs Calibration

*You can learn more about error by connecting the Phantom 2 Vision+ to the Assistant.

2 Specications

Aircraft

Supported Battery DJI 5200mAh Li-Po Battery

Weight (Battery & Propellers included)

Recommend payload

Appendix

Maximum payload

Hovering Accuracy (Ready to Fly) Vertical: 0.8m; Horizontal: 2.5m

Max Yaw Angular Velocity 200°/s

Max Tiltable Angle 35°

Max Ascent / Descent Speed Ascent: 6m/s; Descent: 2m/s

Max Flight Speed 15m/s (Not Recommended)

Motor Diagonal Length 350mm

3-axial stabilized Gimbal

Working Current Static : 750mA; Dynamic : 900mA

Control Accuracy ±0.03°

Controllable Range Pitch :

Maximum Angular Speed Pitch : 90°/s

Camera

Operating Environment Temperature 0℃ - 40℃

Sensor Size 1/2.3”

Effective Pixels 14 Megapixels

Resolution 4384×3288

HD Recording 1080p30 /1080i60

Recording FOV 110° / 85°

1242g

≤1300g

1350g

90° - 0°

Appendix

Remote Control

Operating Frequency 5.728 GHz - 5.85 GHz

Communication Distance (open area) CE Compliance: 400m; FCC Compliance: 800m

Receiver Sensitivity (1%PER) -93dBm

Transmitting Power (EIRP) CE Compliance: 25mW; FCC Compliance: 100mW

Working Current/Voltage 120mA@3.7V

Battery 2000mAh rechargeable LiPo battery

Range Extender

Operating Frequency 2412MHz - 2462MHz

Communication Distance (open area) 500m - 700m

Transmitting Power 20dBm

Power Consumption 2W

3 Troubleshooting (FAQ)

3.1 How to solve large margin(s) mid-point error?

If the Remote Control stick(s) mid-point margin of error is too big, the motors will fail to start when you execute the CSC and the Phantom will not take off. The below are some possible xes for this. (1) One of the Remote Control’s stick positions (except the throttle stick) is not centered when powering on the Phantom

2 Vision+.

Solution: Place all Remote Control sticks at their mid-point positions and then power cycle the Phantom 2 Vision+ to

re-record the mid-point.

(2) The Remote Control sticks have been trimmed, leading to a deviation in the mid-point position. Solution: Use Assistant to perform a Remote Control calibration.

a) Connect to Assistant, tap Basic -> RC -> Command Sticks Calibration and push all Remote Control sticks through

their complete travel range to see if any stick cannot reach its outermost position.

b) Power cycle the Phantom 2 Vision+. Power cycling is required. c) Re-attempt Remote Control calibration in Assistant.

If the above solutions do not solve your issue, please send your Remote Control to DJI Customer service for repair.

Appendix

3.2 How to restore a video le if power is turned off during a recording session?

Solution: Keep or place the Micro-SD card back into the camera. Power cycle the camera and wait about 30 seconds for the video le to be restored.

3.3 Failure to acquire the SSID.

Solution: Double check whether both the camera and Range Extender are powered on and the power switch of the

camera is switched to “Wi-Fi ON.”

3.4 What to do if Phantom 2 Vision+ is out of sight and the Wi-Fi connections is lost?

Solution: Turn off the Remote Control to trigger the Failsafe mode and the aircraft will start to y back, descend, and land

at the Home point. Please make sure there are no obstacles between the Phantom and the home point and that you are familiar with the procedure for regaining control.

3.5 Wi-Fi connection fails all the time.

Solution: Double check the current Wi-Fi connection status of the mobile device. The mobile device may be connecting to other Wi-Fi networks after a connection breaks with the Phantom 2 Vision+.

3.6 Files fail to synchronize.

Solution: Video les that are too large (le sizes close to 4GB) cannot be synchronized to the mobile device. Some mobile devices do not support the synchronization of the 1080i60 video les.

Appendix

3.7 iOS Albums fail to synchronize.

Solution: Reset the settings of your mobile device as illustrated below. Enable the Settings -> Private -> Photos -> DJI VISION. Otherwise Albums will fail to synchronize with your mobile device.

Figure 116

Figure 117

Figure 118

3.8 Failure to share.

Solution: Make sure your mobile device has access to the Internet.

3.9 Some Android devices have a problem connecting to the Phantom 2 Vision+ Wi-Fi Extender.

Solution: Some Android devices do not allow for both a Wi-Fi connection and a mobile data connection at the same time. When trying to connect to the Phantom 2 Vision+ Wi-Fi network, most devices will check whether an Internet connection has a certain Wi-Fi setting enabled, e.g. Auto network switch or Test for Internet connection. If no Internet connection is found because the Phantom 2 Vision+ creates a non-routable connection it will drop the Phantom 2 Vision+ WiFi network connection and scan for the next available connection. Example: For the Samsung Note 3, carry out the following procedures to solve this issue. Tap Settings -> Wi-Fi, and then tap the “Menu” button. Select “Advanced” then uncheck the “Auto network switch”. You might see a warning that indicates the Internet connection is unstable this

message can be ignored.

Appendix

3.10 App tips for mobile devices.

Solution: If using the App on multiple mobile devices turn off the App on the rst mobile device then turn it on the second

one to ensure normal functions on the second mobile device.

3.11 How to land the aircraft more smoothly?

Solution: First pull the throttle stick position down to lower than 5%, then execute the CSC command to stop the motors.

3.12 Why is the discharge time of a battery not zero when unused?

Solution: A battery aging test is performed prior to delivery which affects the discharge time of the new battery. This is

why the discharge time of a new battery is not zero. The battery is okay to use.

3.13 Do I need extra hardware to utilize ground station?

Solution: No extra hardware is required.

3.14 Does ground station support caching map data ofine?

Solution: Yes, user can cache map data in ground station for future use.

3.15 What if I accidently exit DJI Vision App in ground station mode?

If DJI Vision App is closed when aircraft is executing ight mission, aircraft continues with the remaining ight mission. If DJI Vision App is closed and failed to re-connect with aircraft within 1 minute, aircraft returns home point automatically.

User manual is subject to change without prior notice.

Download the latest user manual from

www.dji.com/support

DJI Phantom 2 Vision Plus User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Safety Notice

Using This Manual

Important

Before Flight

Watch the Tutorial Videos

Download DJI VISION App

Overview

1 In the Box

2 Introduction

Assembly and Use

1 Removing Gimbal Clamp

2 Preparing the Battery

2.1 DJI Smart Flight Battery

2.2 Usages

2.3 Charging the Flight Battery

2.4 Battery Installation

2.5 Correct Battery Usage Notes

3 Preparing the Phantom 2 Vision+

3.1 Introduction

3.2 Built-in Flight Control System

FC Assistant Port

3.3 LED Flight Indicator Descriptions

3.4 3-axial Stabilized Gimbal

Anti-drop Kit

Micro-SD Slot

Gimbal Error Warnings

3.5 Camera

Lens cap removal

Camera Function Buttons

Camera Data Port

Camera LED Indicator

4 Attaching the Propellers

4.1 Introduction

4.2 Assembly

4.3 Removing the Propellers

4.4 Notes

5 Preparing the Remote Control

5.1 The Remote Control

5.2 Power on the Remote Control

5.3 Remote Control Power LED Status Information

5.4 Battery Level Indicator

5.5 Antenna Orientation

5.6 Remote Control Operation

5.7 Linking the Remote Control and Receiver

Linking Procedures

Link Indicator

6 Preparing the Range Extender

6.1 Introduction

SYSTEM Indicator

POWER Indicator

Binding Reset Button

6.2 Using Range Extender

Charging the Range Extender

Powering on the Range Extender

Checking the Battery Level

6.3 Rename Range Extender SSID

6.4 Binding the Phantom 2 Vision+ and Range Extender

7 Downloading and Installing the DJI VISION App

7.1 Download and Install

7.2 Register and Login

8 Connecting the Camera

8.1 Connecting Procedures

Wi-Fi Computer Connection Status Description

Flight

Flight Environment Requirements

1 Calibrating the Compass

1.1Calibration Procedures

1.2 When to Recalibrate

2 Starting/Stopping the Motors

2.1 Starting Motors

2.2 Stopping Motors

3 Flight Test

3.1Take off/Landing Procedures

3.2 Video Suggestions and Tips

4 Failsafe Function

4.1 When Will Failsafe Activate?
