Introduction

The D-RTK Handheld Mapper is specially designed for the AGRASTM MG-1S RTK.

When used with the D-RTK Base Station, it can obtain centimeter-level positioning

accuracy for more accurate field planning. The operation panel of the D-RTK

Handheld Mapper is equipped with buttons to make it easy to mark edges and

obstacles. The screen and indicator will show the system status during operation.

Measurement data can be transmitted to the DJI MG app for using the built-in

intelligent operation planning system.

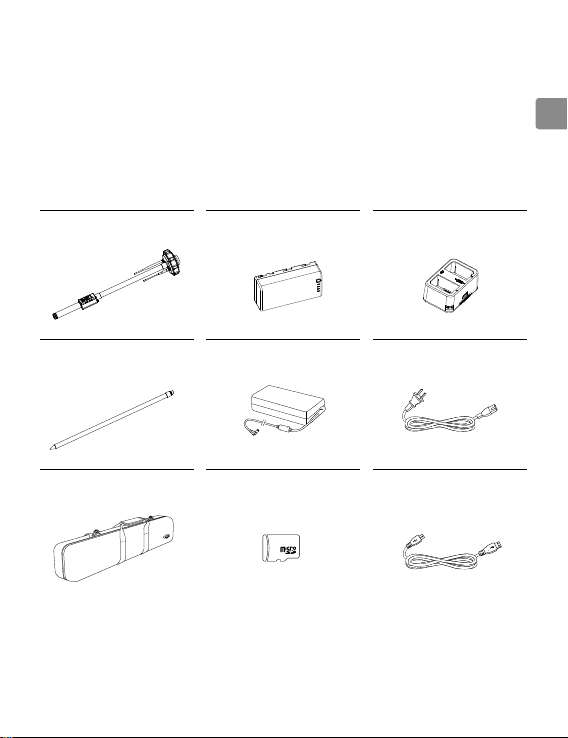

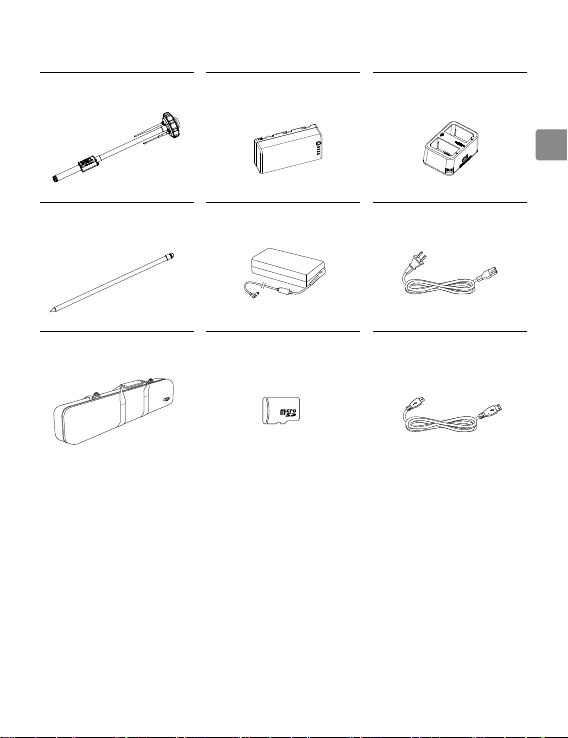

In the Box

Mapper × 1

Pole × 1

Carrying Case × 1

Intelligent Battery × 2

Charger × 1

Micro SD Card × 1 (16GB

Charging Hub × 1

Power Cable × 1

Micro USB Cable × 1

）

Overview

A B C

4 8 9

1. D-RTK Antenna

2. Datalink Pro Antenna

3. Datalink 3 Antenna

4. Bubble Level

5. Battery Compartment Cover

6. Micro SD Card Slot

7. Micro USB Port

8. Indicator

9. Screen

10. Operation Panel

A. Link Button

B. Power Button

C. Mode Button

D. Start/Stop Measurement Button

E. Add Waypoint Button

F. Obstacle Measurement Button

Installation

Battery Installation

Charging the Battery

Press the battery level button once to check the battery level. Fully charge the

batteries before rst-time use.

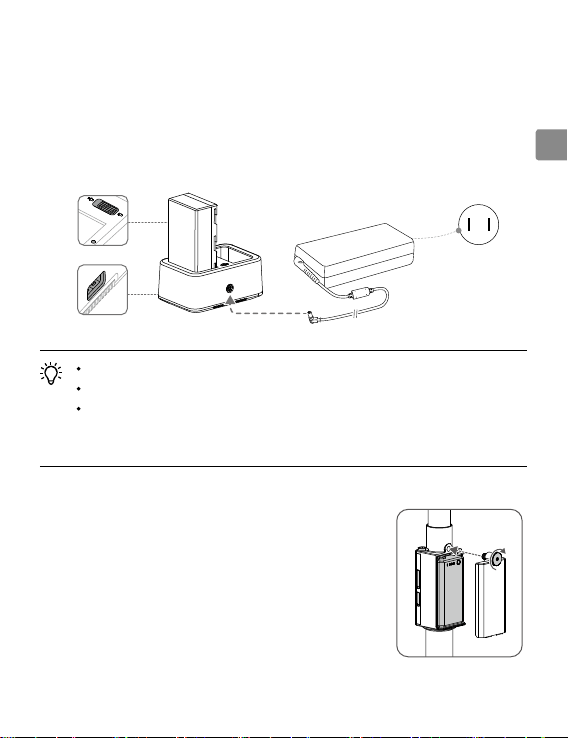

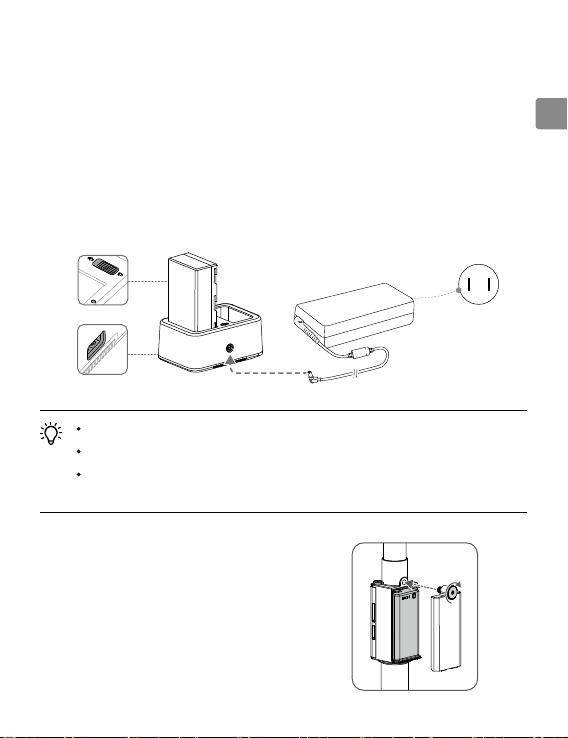

1. Place the battery into the Charging Hub, connect the charger to the Charging

Hub, and then connect the charger to a power outlet (100–240V, 50/60Hz).

2. The Charging Hub will intelligently charge batteries in sequence according to

battery power levels from high to low.

3. The Status LED blinks green when charging and turns solid green when fully

charged. The buzzer will begin beeping when charging is complete. Remove

the battery or turn off the buzzer to stop it.

The maximum run time of a fully charged battery is approximately ve hours.

USB power supply port can be used to charge a 5V/2A mobile device.

Refer to the Charging Hub (WCH2) User Guide and the Intelligent Battery

(WB37) Safety Guidelines for more details.

http://www.dji.com/crystalsky/info#downloads

Mounting the Battery

1. Loosen the screw on the battery compartment

cover, then remove the cover.

2. Place the battery into the battery compartment

securely.

3. Re-mount the cover and tighten the screw.

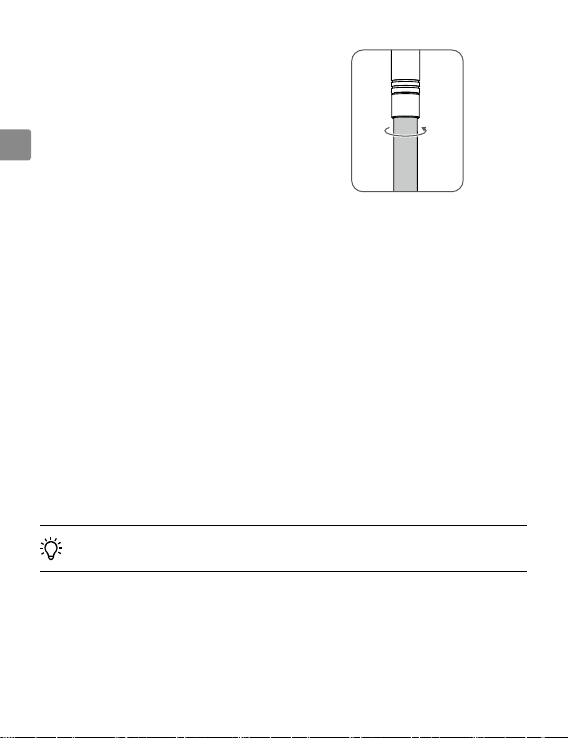

Pole Installation

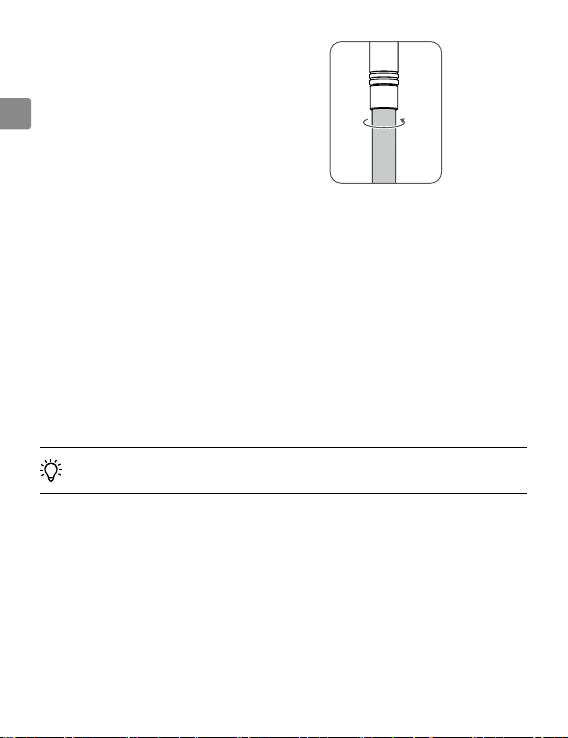

Insert the pole into the bottom of the mapper and rotate it until it tightens.

Turn the Mapper On/Off

Press the power button of the mapper, then again and hold to turn it on or off.

The mapper will turn off automatically if it is idle (i.e. there are no button inputs on

the operation panel) for 30 minutes.

Activation

Make sure to activate the mapper using DJI ASSISTANTTM 2 before rst-time use.

1. Visit the official DJI website. Download and install the latest version of the DJI

Assistant 2 software.

http://www.dji.com/mg-1s/info#downloads

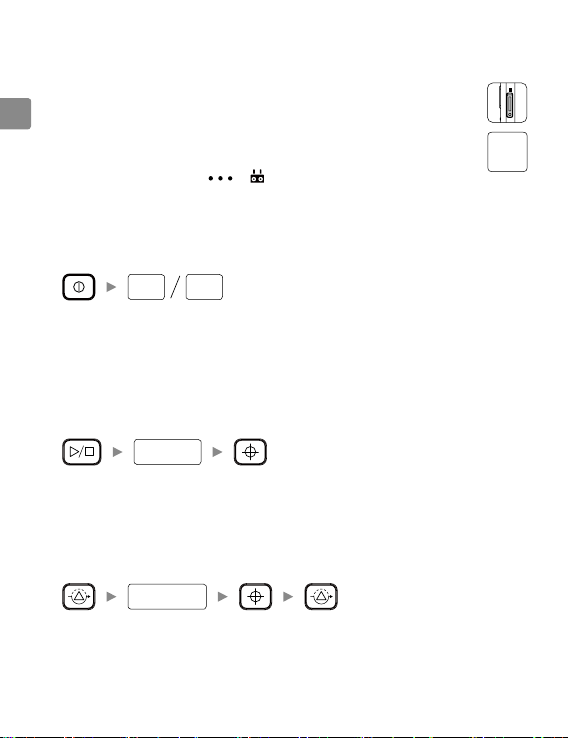

2. Turn on the mapper. Connect it to your computer via a Micro USB cable.

3. Run DJI Assistant 2 and click “MG-1S RTK”. Activate the device following the

instructions in the pop-up window.

4. Restart the mapper manually after activation.

DO NOT change any of the settings in DJI Assistant 2. Use the product

under the default settings.

Linking

1. Turn on the D-RTK Base Station. “GNSS” in the lower left corner of the screen

indicates a successful start.

2. Turn on the mapper. “GNSS” in the lower left corner of the screen indicates a

successful start.

3. Ensure that the upper left corner of the screen shows “BS”, which indicates Base

Station RTK Mode. If it shows “RC”, press and hold the Mode button to switch to

“BS”.

4. Press and hold the Link button on the mapper. “Linking with BS” on the screen

indicates that the mapper has initiated linking.

5. Press and hold the Link button on the base station and it will beep for ve seconds.

“Linking Successful” on the screen of the mapper during beeping indicates

successful linking.

If there is no device linked with the base station when beeping, it will exit

linking and stop beeping automatically.

Press the power button on the base station or mapper once to cancel when

linking is initiated.

Linking is required only for rst-time use with the same mapper and base

station. The two will connect to each other automatically during future use.

Usage

Field Planning

1. Ensure that the mapper has adequate power, sucient free space on the

Micro SD card (max capacity 16 GB) and that it is inserted into the slot on

the mapper correctly.

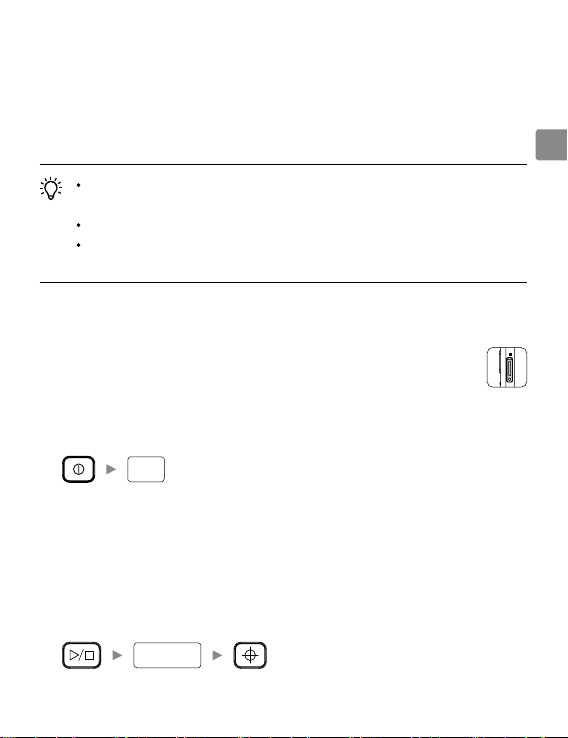

2. Press the power button once, then again, and hold to turn on the mapper.

3. Ensure that the upper left corner of the screen shows “BS”. If it shows “RC”, press

and hold the Mode button to switch to “BS”.

4. Wait for initialization to complete. The lower left corner of the screen shows "GNSS"

and the center shows “Ready” if RTK data is obtained and used.

5. Press and hold the Start/Stop Measurement button to start.

6. The center of the screen will show “Edge X-Y”. “X” means the recorded point

number for the edge measurement and “Y” means the recorded calibration point

number.

7. Walk alongside the boundary of the eld and press the Add Waypoint button once

to record a point. The corresponding number will increase by one.

8. If any obstacles are in the operating area, press the Obstacle Measurement button

once to enter Obstacle Measurement mode. The center of the screen will show

“Obstacle Z-N.” “Z” is for the recorded point number around the obstacle. Walk

alongside the boundary of the obstacle and press the Add Waypoint button once to

record a point. Z will increase by one.

“N” refers to the Nth obstacle being measured, meaning that each time you enter

Obstacle Measurement mode N will increase by one.

After obstacle measurement, press the Obstacle Measurement button once to exit

from the mode and continue edge measurement.

Edge 0-0

Obstacle 0-0

9. Calibration points are required to rectify measurement bias caused by the

positioning dierence between the mapper and aircraft.

Ensure that the screen displays “Edge”. If it displays “Obstacle”, press the Obstacle

Measurement button once to switch.

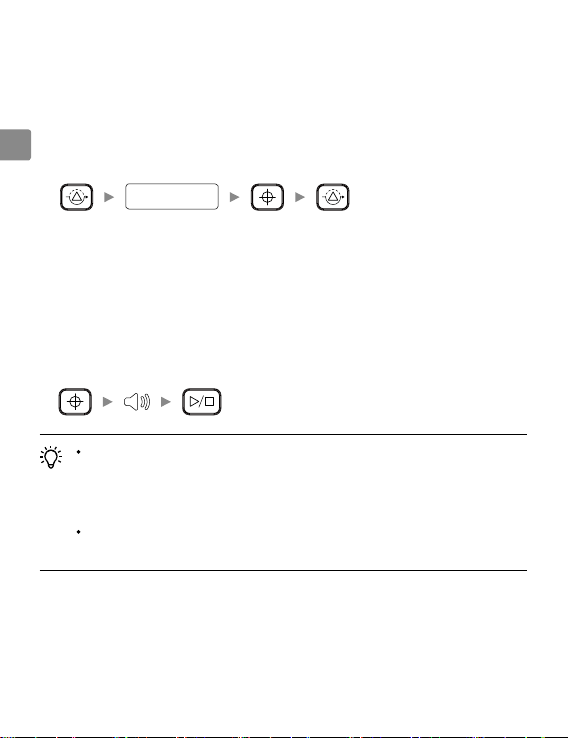

Choose at least one xed reference point for calibration like a metal peg or obvious

marker. Then press and hold the Add Waypoint button. The mapper will beep for

one second to indicate that the calibration point has been recorded.

10. After measurement complete, press and hold the Start/Stop Measurement button.

The screen will display “Ready”.

More than one calibration point can be recorded for the eld, but at least

one is required. Measurement cannot be stopped by pressing and holding

the Start/Stop Measurement button. The mapper will sound an alarm if no

calibration point is recorded. Record at least one calibration point and then

stop measurement by pressing and holding the button.

Try to keep the mapper upright and level during measurement by

monitoring the bubble level. When the bubble is within the black circle, the

mapper is vertical.

Importing Data

Measurement data is saved to the Micro SD card in the mapper. Export it to the

remote controller for use.

1. After a measurement is complete, turn o the mapper. Take out the Micro SD card

and insert it into the Micro SD card slot on the remote controller.

2. Power on the remote controller and go to the DJI MG app.

3. Select “RTK task” in the pop-up box. Data in the Micro SD card will be listed and

sorted by time. Select the data corresponding to the desired eld and tap “Import”.

4. After importing, enter Operation View. Tap the Task List and sort by time. Here you

can nd the last imported task.

Screen

Ready

Fixed

GNSS:16

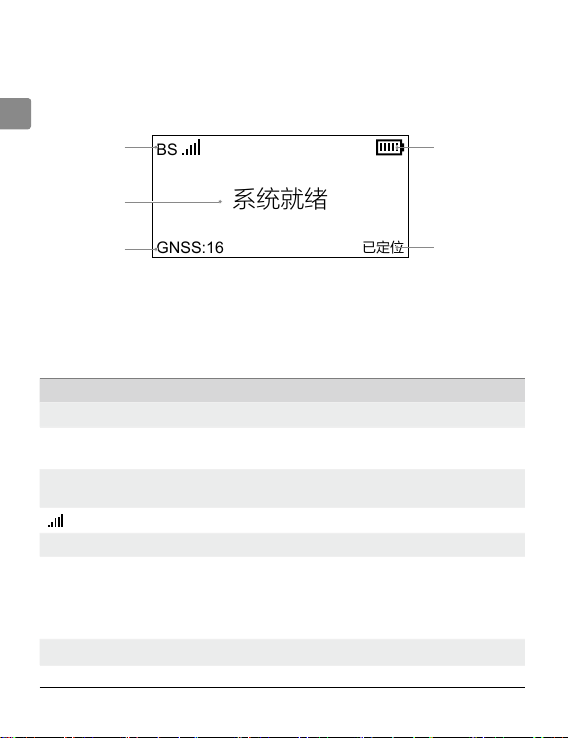

Interface Descriptions

The interface consists of ve parts:

Device Type

System Status

Battery Level

NoticationsGNSS Status

Display Descriptions

Determine the system status via prompts on the screen. Resolve any potential

issues if an abnormal status is displayed.

The language can be switched to English or Chinese using DJI Assistant 2.

Displays Descriptions

RTK Mode and Signal Strength

Base Station mode. Link and use the mapper in this

mode when used with D-RTK Base Station

Network RTK Mode via the remote controller. This mode is not supported yet.

Data transmission signal strength.

System Status

The system is initializing. The system will remain in

this state for an extended time if there are not enough

System Initializing

satellites for positioning. Make sure that the D-RTK Base

Station is working normally and move the mapper to a

location where there is a strong satellite signal within the

transmission range of the base station.

Ready The mapper is working normally.

Linking with BS Linking with the base station.

Linking Successful Linked with the base station.

Locating Satellites

Edge X-Y

Obstacle Z-N

No SD Card!

File Error!

Activate in Software

GNSS Status

GNSS: XX

N/A

Notications

>>>--

Fixed

Satellite signal is weak. Measurement cannot be continued

in this status. Check if there is any obstruction or

interference. Then wait for display on the screen back to

what it was before to continue measurement.

Measuring the edge of the eld. “X” means the recorded

point number for the edge measurement, and “Y” means

the recorded calibration point number.

Measuring obstacle. “Z” means the recorded point number

around the obstacle and “N” means the Nth obstacle being

measured.

No Micro SD card detected. Insert an available card

correctly.

File storage error. Check if the Micro SD card is damaged

or if it has enough free space. The max supported SD

card capacity is 16 GB. Check if the capacity is at or

below 16 GB.

Device not activated. Connect it to DJI Assistant 2 for

activation.

GNSS board initialization succeeds. XX indicates the

number of satellites.

GNSS board initialization failed. Please contact DJI

Support or an authorized dealer.

Arrows will appear and disappear to indicate system

initialization.

The position of the mapper is conrmed.

+ 30 hidden pages

dji D-RTK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
