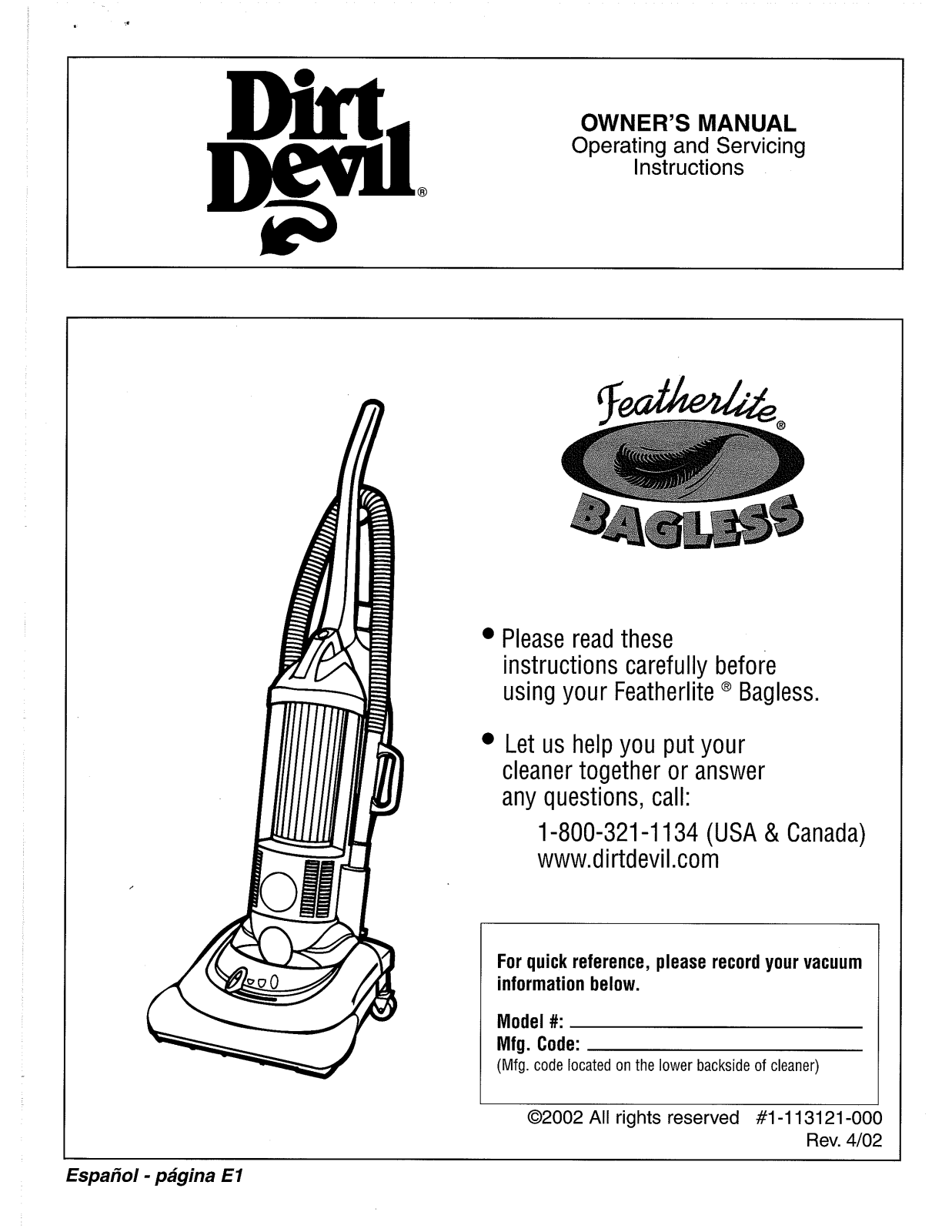

Dirtdevil M088500 User Manual

OWNER'S

MANUAL

Operating and Servicing

Instructions

Please read these instructions carefully before

using your Featherlite

Bagless.

Let us help you put your cleaner together or answer any questions, call:

1-800-321 -1 134

(USA & Canada)

www.dirtdeviI.com

For quick reference, please record your vacuum information below.

Model Mfg. Code:

(Mfg.

code located on the lower backside of cleaner)

3paiiol-

pagina

02002

All

rights reserved #l-ll3l2l-OOO

Rev. 4/02

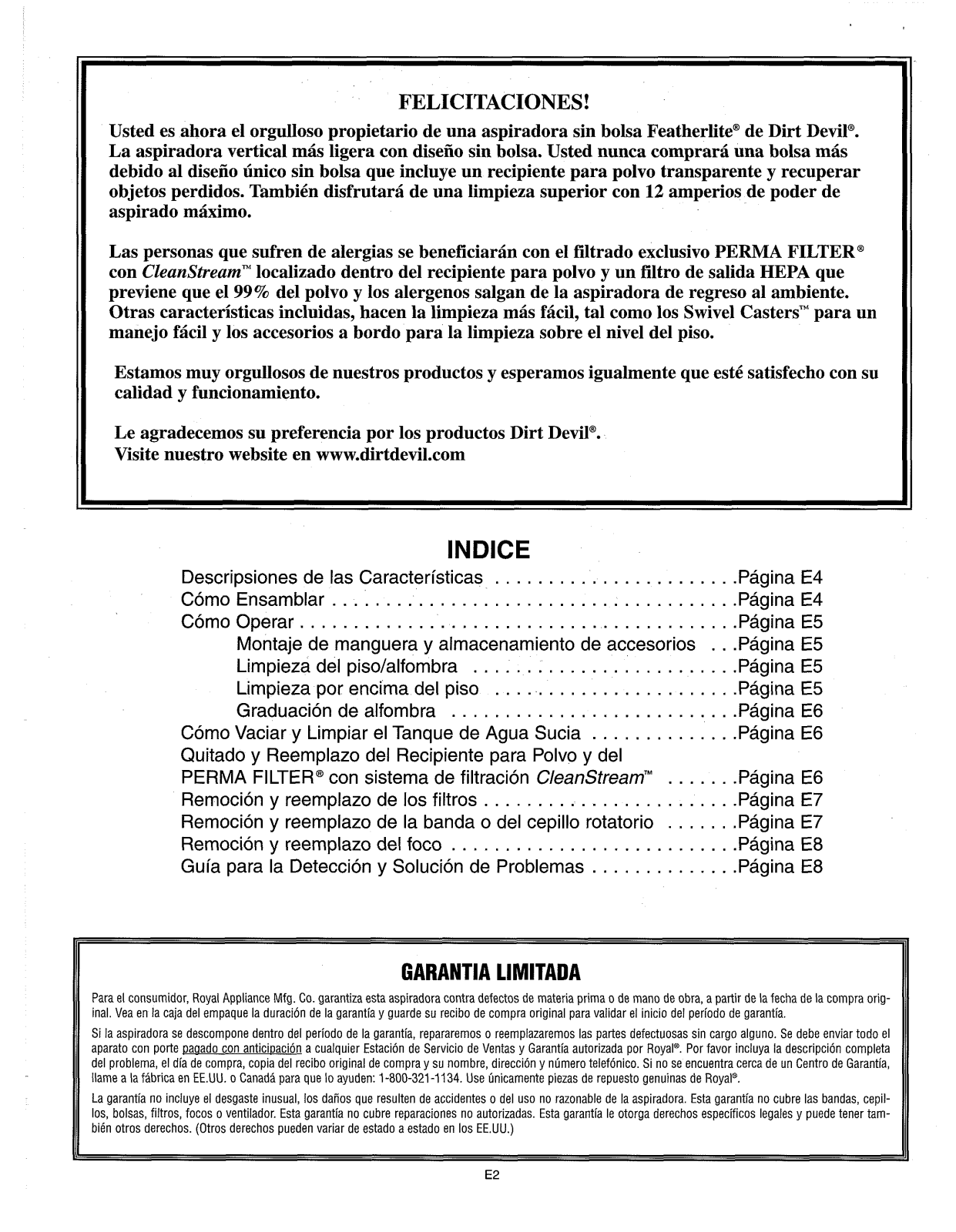

CONGRATULATIONS

You are now the proud owner of the Dirt Devila FeatherliteaBagless. The lightest upright with bagless design. You'll never buy another bag again with the unique bagless design that includes

a a

see-through dirt container for retrieving lost items. You'll also enjoy superior cleaning perfor-

mance with Allergen sufferers will benefit with the exclusive PERMA FILTERB with

located inside the dirt cup and HEPA exhaust filter that prevents over

amps of Maximum Vacuum Power.

CleanStreamTM

99%

of dust and allergens

Filtration

from escaping the vacuum and re-entering the room. Other features are included that make vacuuming easier such as the Swivel CastersT" for easy maneuvering, and tools-on-board for above floor cleaning.

We are very proud of our products and hope that you are equally satisfied with their quality and performance.

Thank you for your support of Dirt Devila products. Visit our

website at www.dirtdevil.com

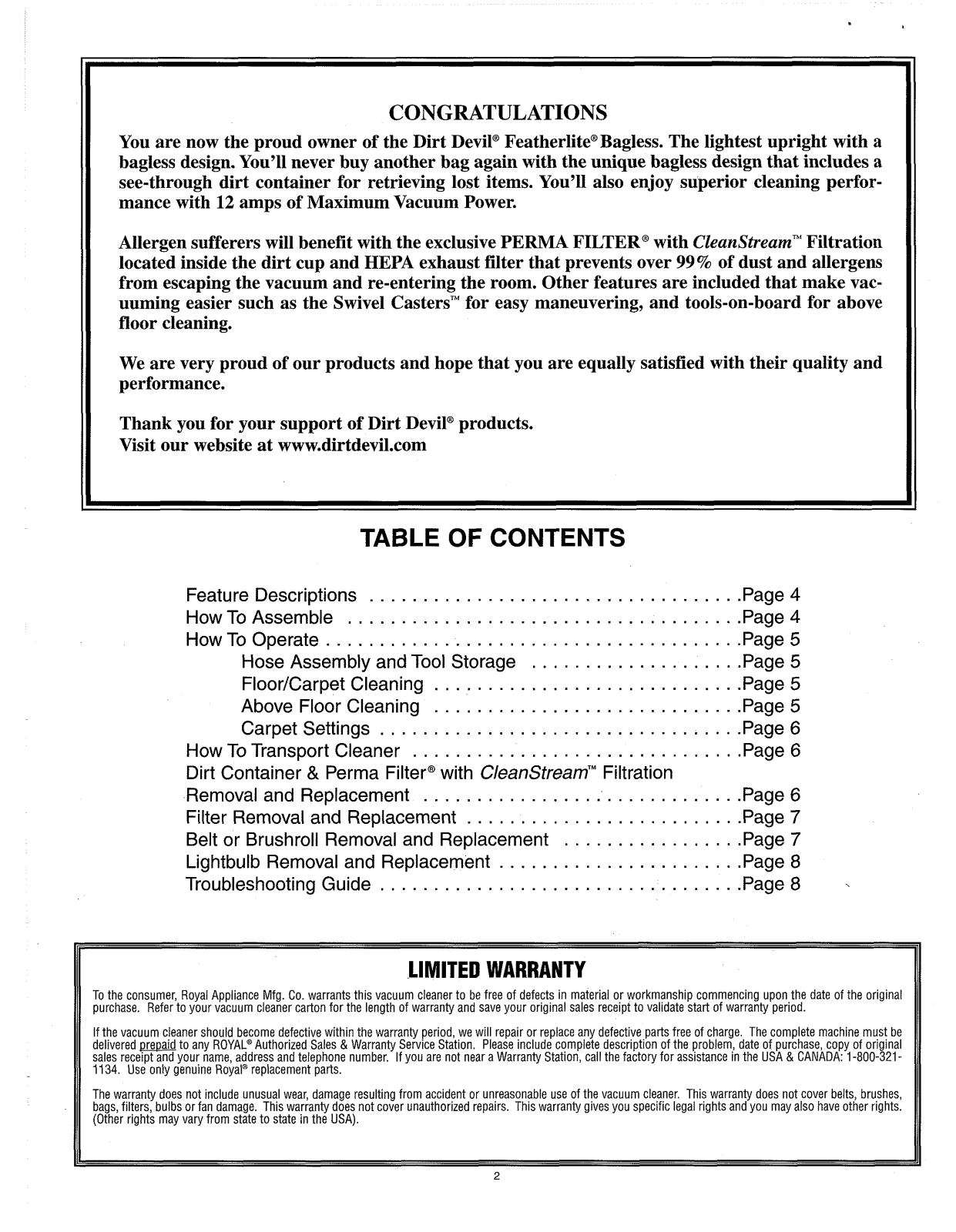

TABLE

CONTENTS

Feature Descriptions

How To Assemble .................................... .Page

How To Operate

Hose Assembly and Tool Storage

FloorICarpet Cleaning ............................ .Page

Above Floor Cleaning ............................ .Page

Carpet Settings ................................. .Page

How To Transport Cleaner Dirt Container

Removal and Replacement Filter Removal and Replacement Belt or Brushroll Removal and Replacement

..................................

......................................

...................

..............................

Perma Filtera with

CleanStreamTM

Filtration

.............................

.........................

................

.Page .Page

.Page

.Page 6 .Page

.Page .Page

5 5

6 7 7

Lightbulb Removal and Replacement ...................... .Page 8

Troubleshooting Guide

.................................

.Page

LIMITED WARRANTY

To the consumer, Royal Appliance Mfg. Go. warrants this vacuum cleaner to be free of defects in material o,r workmanship commencing upon,the date of the original purchase. Refer to your vacuum cleaner carton for the length of warranty and save your original sales receipt to validate start of warranty period.

If the vacuum cleaner should become defective within the warranty period, we will repair or replace any defective parts free of charge. The complete machine must be

DreDaid

delivered sales receipt and your: name, address and telephone number. If you are not near a Warranty Station, call the factory for assistance in the USA

1134.

Use only genuine Royal" replacement parts.

The warranty does not include unusual wear, damage resulting from accident or unreasonable use of the vacuum cleaner. This warranty does not cover belts, brushes, bags, filters, bulbs or fan damage. This warranty does not cover unauthorized repairs. This warranty gives you specific legal rights and you may also have other rights. (Other rights may vary from state to state in the USA).

to any ROYAL@Authorized Sales & Warranty Service Station. Please include complete description of the problem, date of purchase, copy of original

CANADA:

1-800-321-

THlS CLEANER IS INTENDED FOR HOUSEHOLD USE ONLY

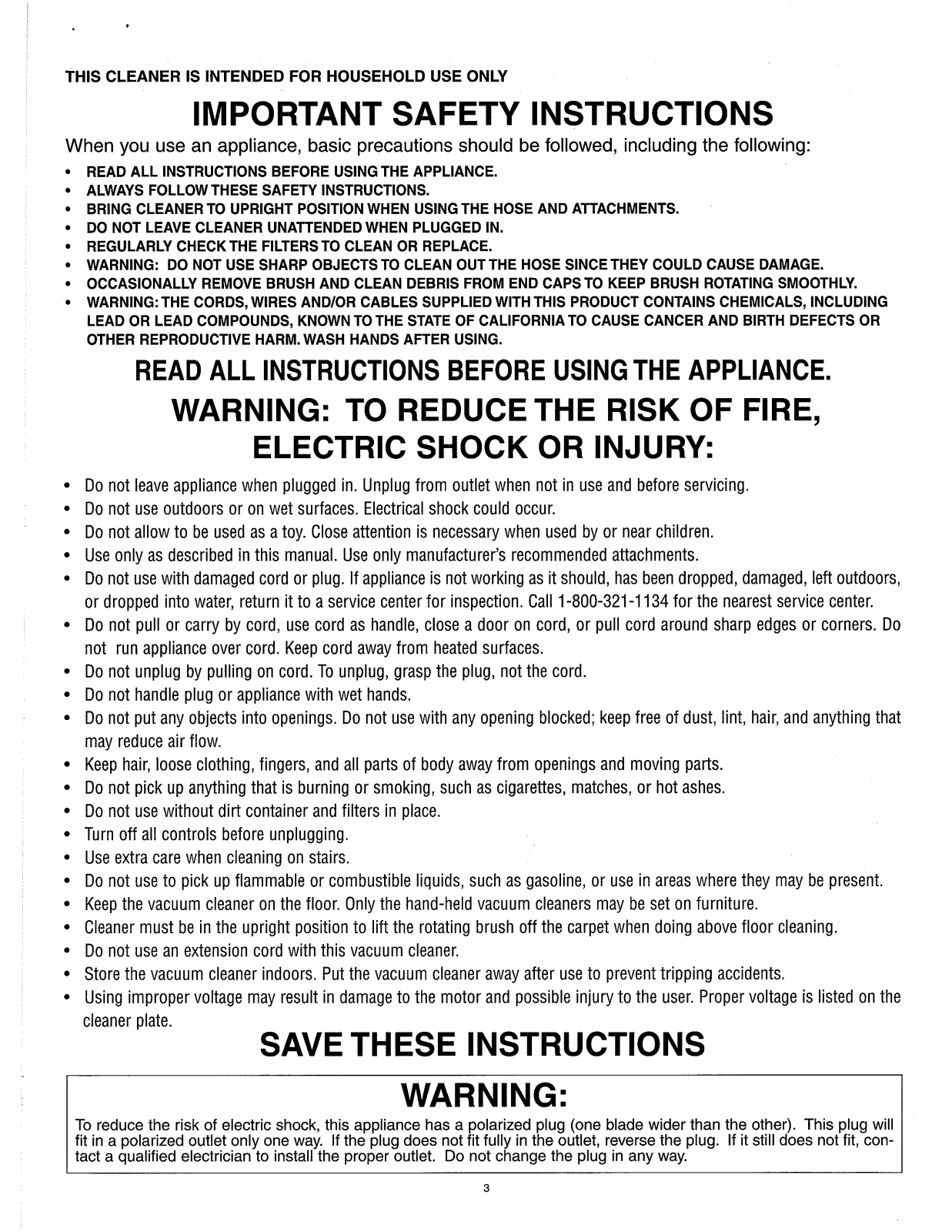

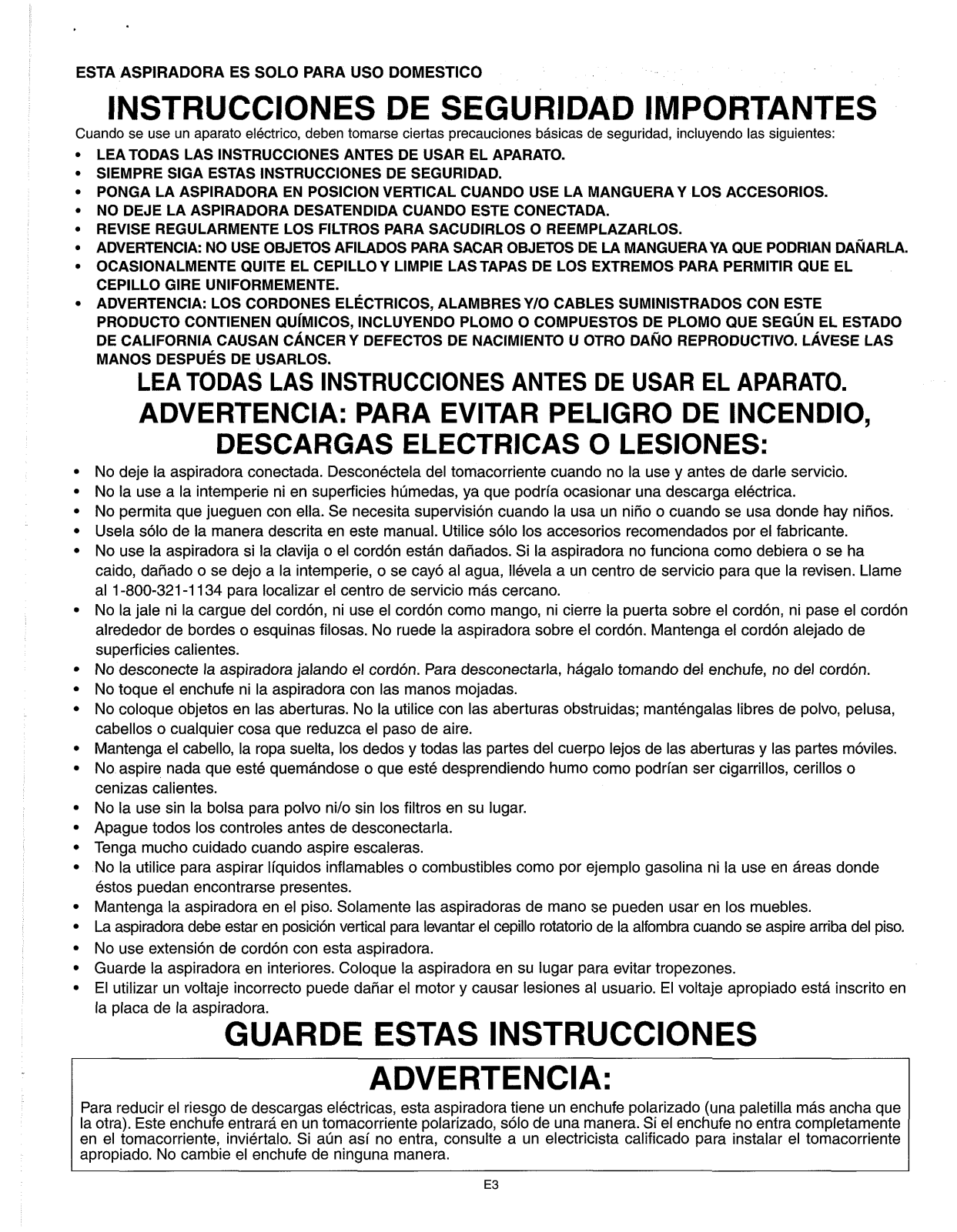

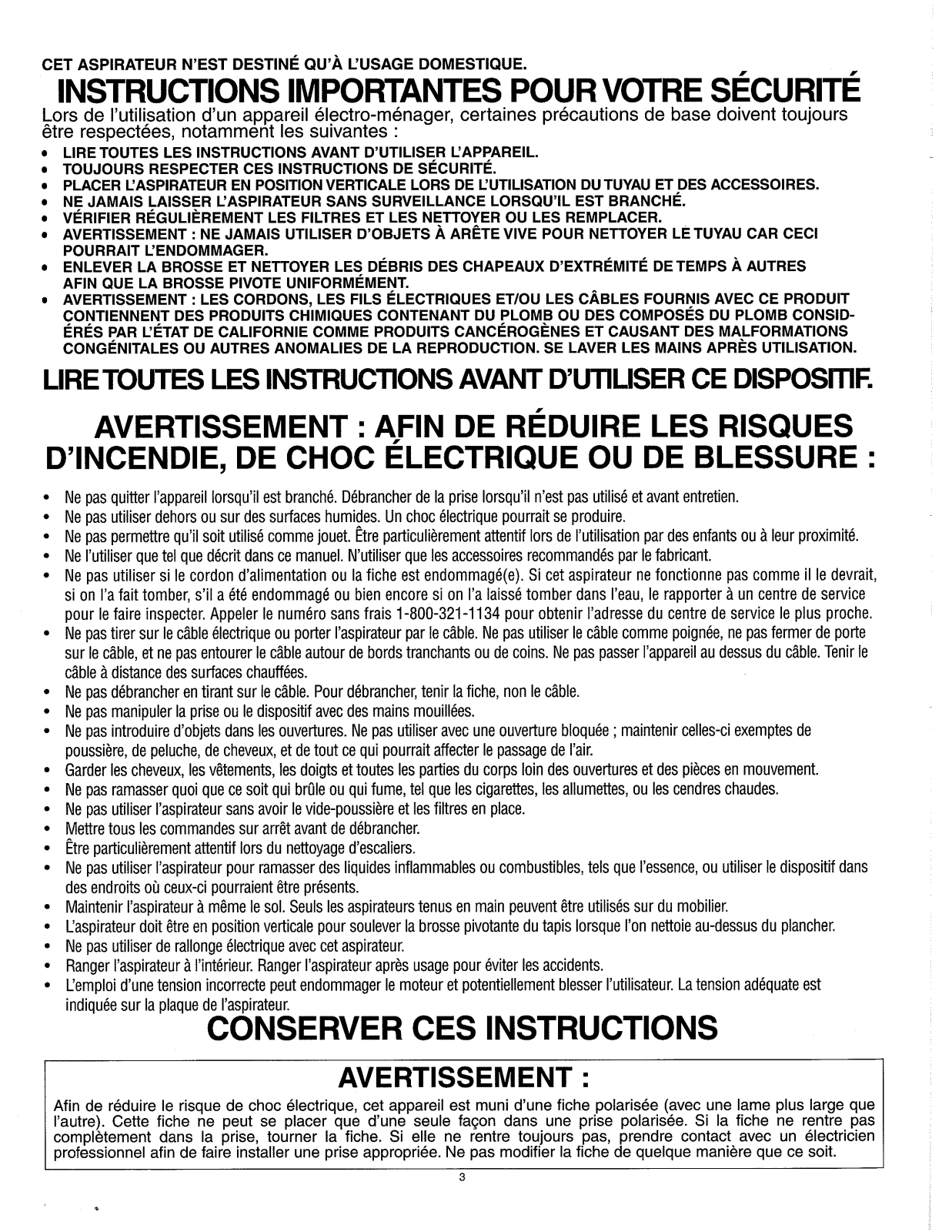

IMPORTANT SAFETY INSTRUCTIONS

When

you

use

appliance,

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS. BRING CLEANER TO UPRIGHT POSITION WHEN USING THE HOSE AND ATTACHMENTS. DO NOT LEAVE CLEANER UNATTENDED WHEN PLUGGED IN. REGULARLY WARNING: DO NOT USE SHARP OBJECTS TO CLEAN OUTTHE HOSE SINCE THEY COULD CAUSE DAMAGE. OCCASIONALLY REMOVE BRUSH AND CLEAN DEBRIS FROM END CAPS TO KEEP BRUSH ROTATING SMOOTHLY. WARNING: THE CORDS, WIRES LEAD OR LEAD COMPOUNDS, KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USING.

CHECKTHE FILTERS TO CLEAN OR REPLACE.

basic

AND/OR CABLES SUPPLIED WITH THlS PRODUCT CONTAINS CHEMICALS, INCLUDING

precautions

should

followed,

including

the

following:

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR INJURY:

Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. Do not use outdoors or on wet surfaces. Electrical shock could occur. Do not allow to be used as a toy. Close attention is necessary when used by or near children. Use only as described in this manual. Use only manufacturer's recommended attachments. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center for inspection. Call 1-800-321-1 134 for the nearest service center. Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Do not handle plug or appliance with wet hands. Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Do not use without dirt container and filters in place.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. Keep the vacuum cleaner on the floor. Only the hand-held vacuum cleaners may be set on furniture. Cleaner must be in the upright position to lift the rotating brush off the carpet when doing above floor cleaning. Do not use an extension cord with this vacuum cleaner. Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping accidents. Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the

cleaner

date.

SAVE THESE INSTRUCTIONS

WARNING:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. tact a qualified electrician to install the proper outlet. Do not change the plug in any way.

it still does not fit, con-

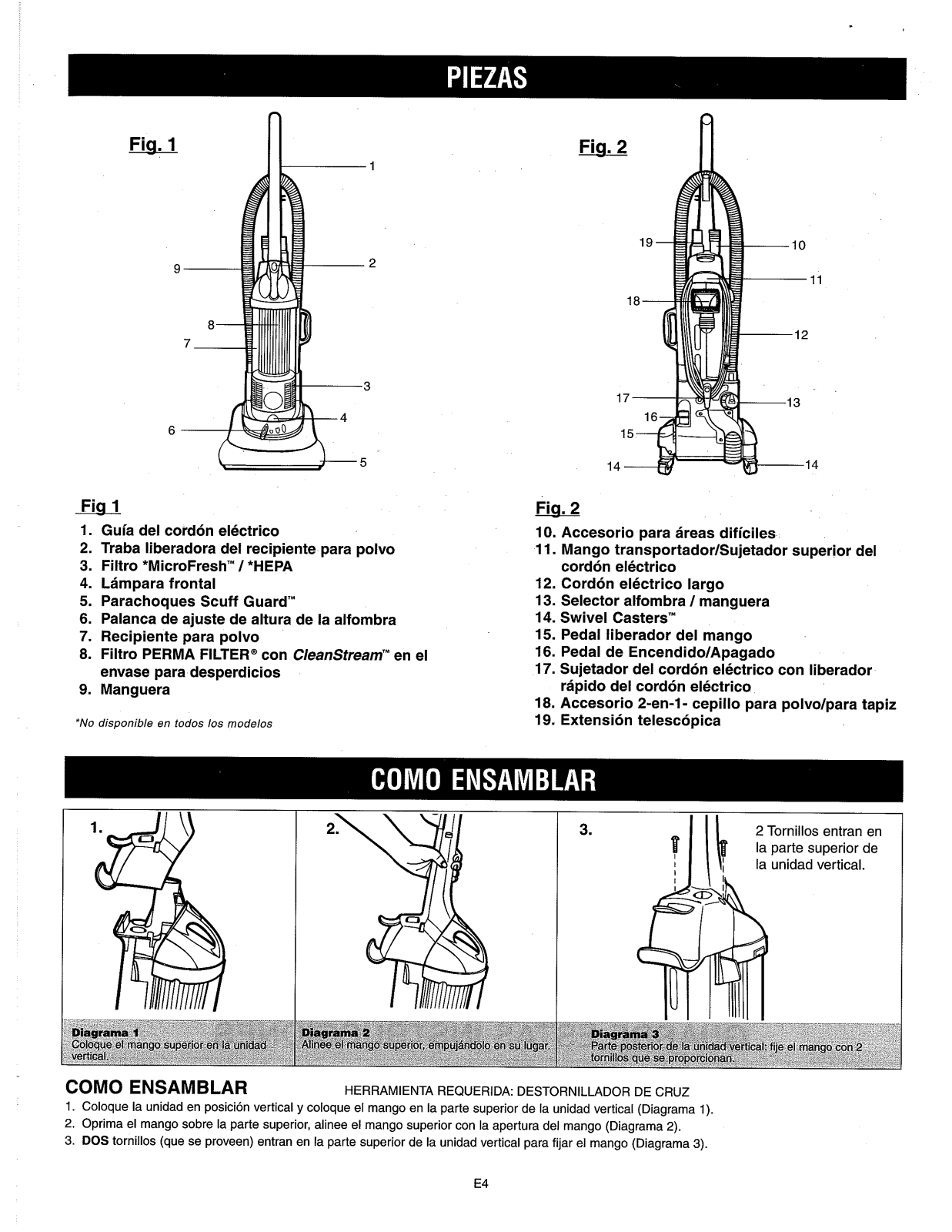

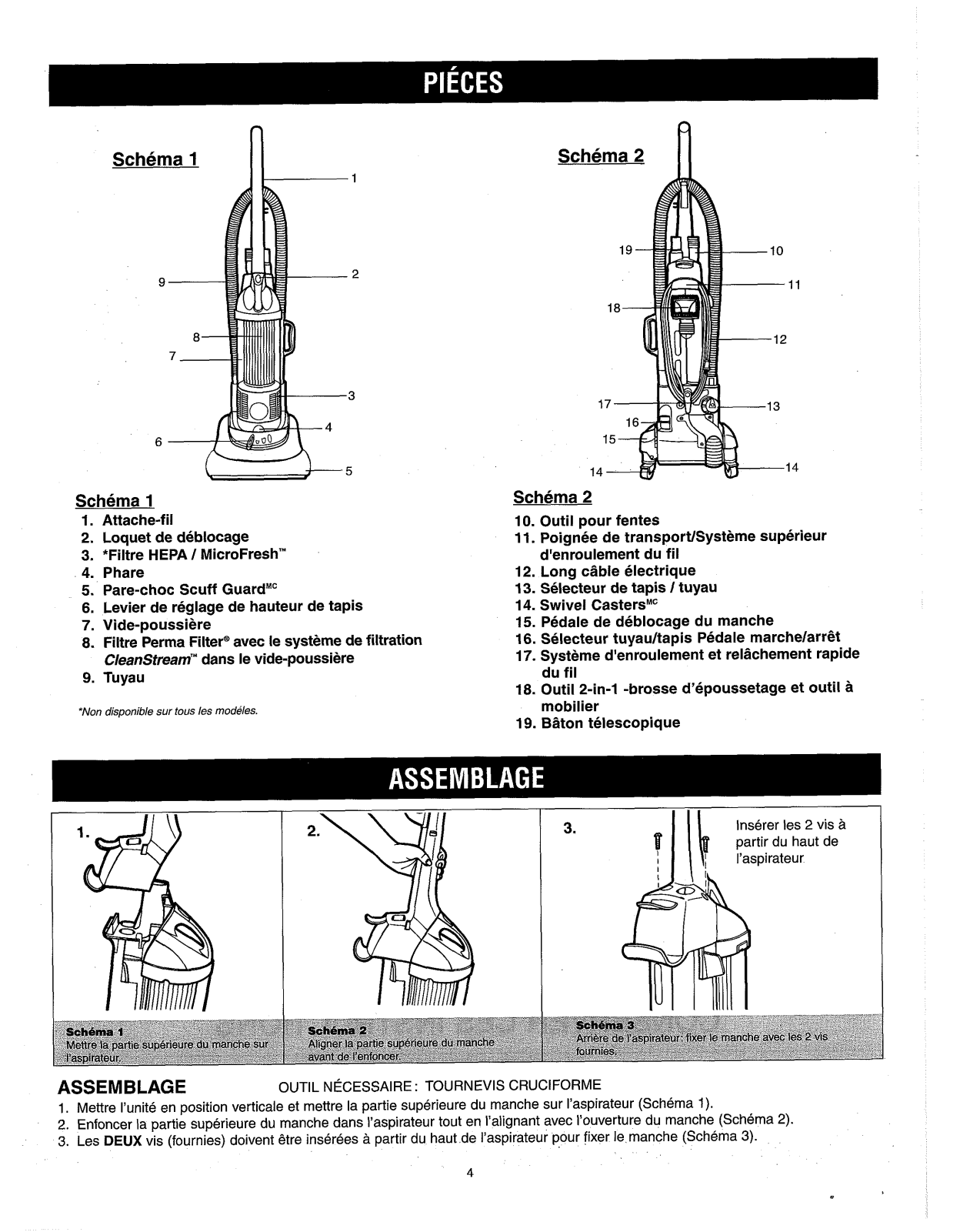

Fiu

Cord Guide

Dirt Container Release Latch

3. *MicroFreshl"/*HEPA Filter

4. Headlight

Scuff Guard" Bumper

6. Carpet Height Adjust Lever

Dirt Container

PERMA FILTERB with

CleanStreamTM

Filtration in Dirt Container

Hose

*Not available on all models

Fiu.

10. Crevice Tool

11. Carrying HandleIUpper Cord Wrap

12. Long Power Cord

13. CarpetIHose Selector

14. Swivel Casters'"

15.

Handle Release Pedal

16. OnIOff Pedal

17. Cord Wrap with Quick Cord Release

18.

2-in-1 Tool - Dust BrushIUpholstery Tool

19.

Telescopic Wand

Diagram

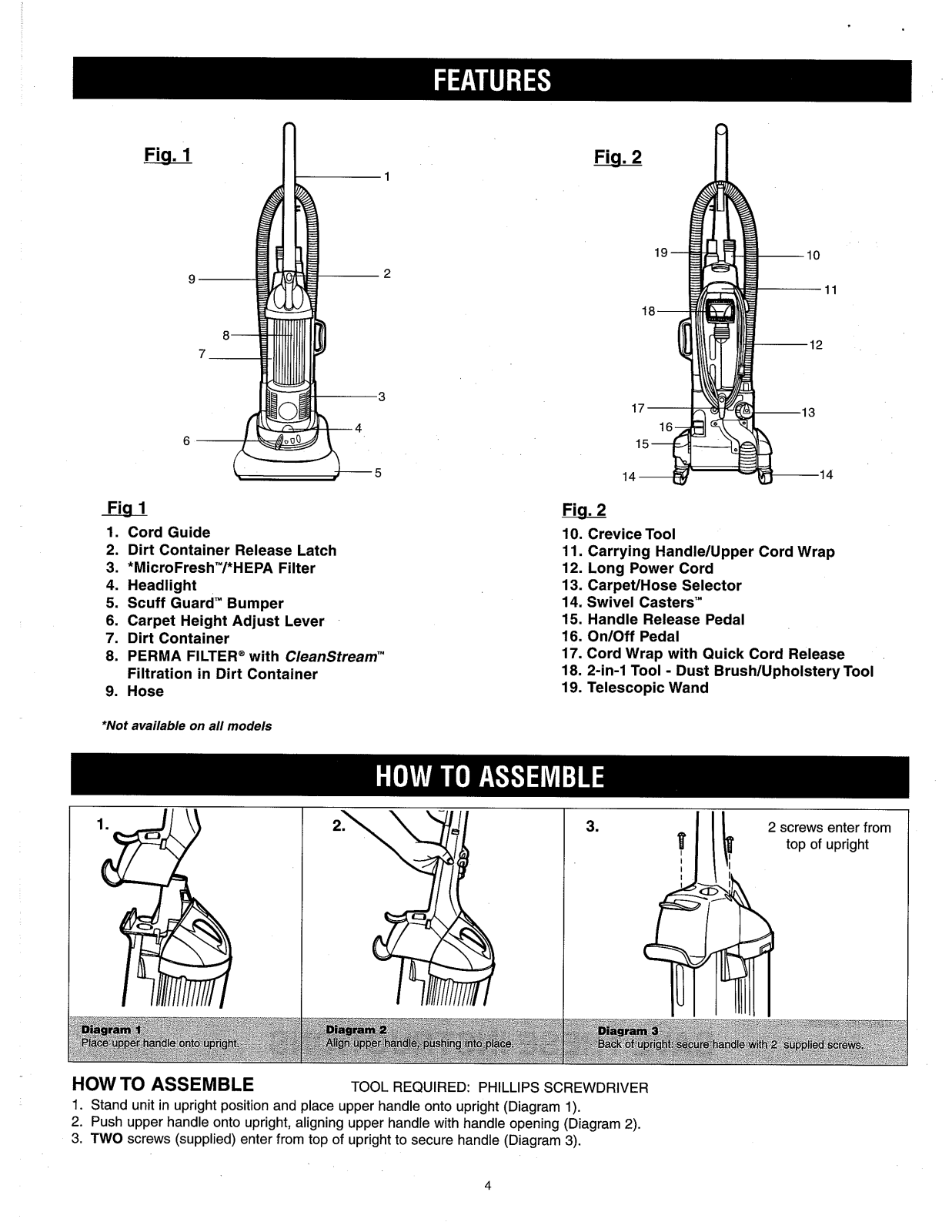

Place upper handle onto upright.

HOW

ASSEMBLE

Stand unit in upright position and place upper handle onto upright (Diagram Push upper handle onto upright, aligning upper handle with handle opening (Diagram

TWO

screws (supplied) enter from top of upright to secure handle (Diagram 3).

Diagram

Align upper handle, pushing into place.

TOOL REQUIRED: PHILLIPS SCREWDRIVER

1).

Diagram

Back of upright: secure handle

2).

screws enter from

top of upright

with 2 supplied screws.

Diagram

Attach

flexible

hose

cleaner.

Diagram

Insert

hose

Press

down

handle

firmly.

into

side

cleaner.

Diagram 3 Attach A.

Telescopic Wand

2-in-1

tool

Quick Cord

Crevice

Tools

Release.

Tool

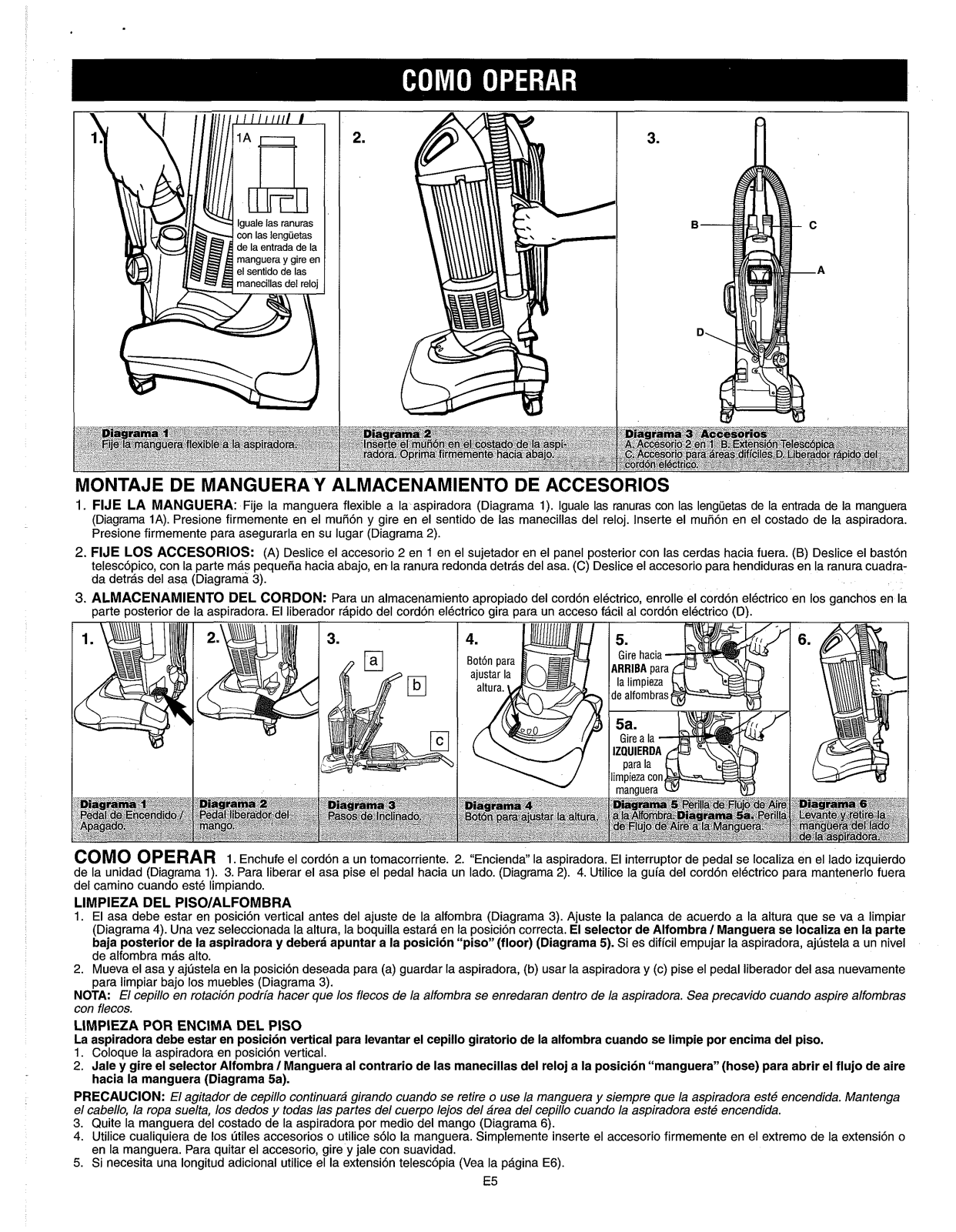

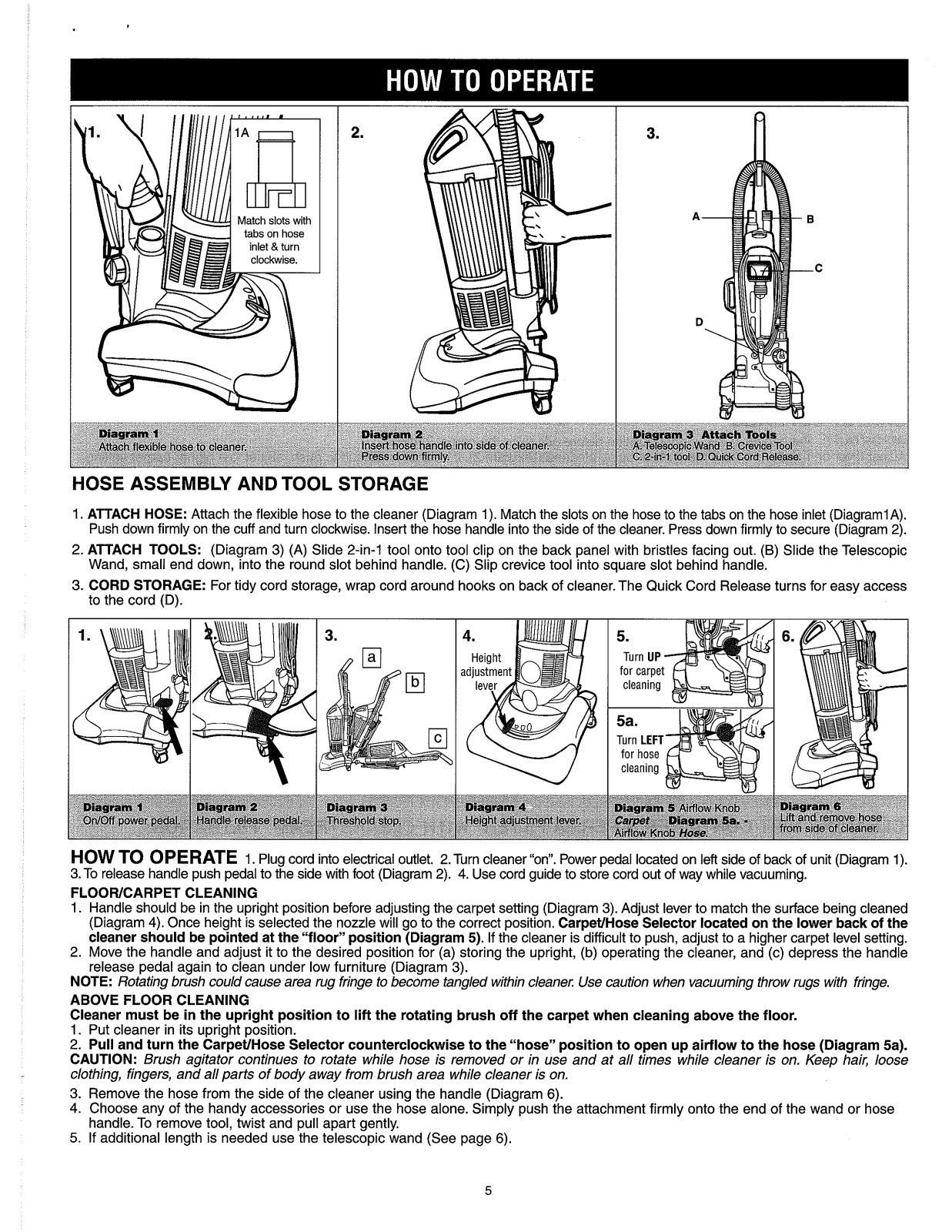

HOSE ASSEMBLY AND TOOL STORAGE

1. ATTACH HOSE: Attach the flexible hose to the cleaner (Diagram 1). Match the slots on the hose to the tabs on the hose inlet (DiagramlA). Push down firmly on the cuff and turn clockwise. Insert the hose handle into the side of the cleaner. Press down firmly to secure (Diagram

2. ATTACH TOOLS: (Diagram 3) (A) Slide 2-in-1 tool onto tool clip on the back panel with bristles facing out.

(B)

Slide the Telescopic

Wand, small end down, into the round slot behind handle. (C) Slip crevice tool into square slot behind handle.

3. CORD STORAGE: For tidy cord storage, wrap cord around hooks on back of cleaner. The Quick Cord Release turns for easy access to the cord (D).

2).

Diagram

OnIOff

HOW TO OPERATE

power

pedal.

Diagram

Handle

release pedal.

Plug cord into electrical outlet. 2.Turn cleaner "on". Power pedal located on left side of back of unit (Diagram 1).

Diagram

Threshold

stop.

3. To release handle push pedal to the side with foot (Diagram 2). 4. Use cord guide to store cord out of way while vacuuming. FLOORKARPET CLEANING

1. Handle should be in the upright position before adjusting the carpet setting (Diagram 3). Adjust lever to match the surface being cleaned (Diagram 4). Once height is selected the nozzle will go to the correct position. CarpetRfose Selector located on the lower back of the cleaner should be pointed at the "floor" position (Diagram 5). If the cleaner is difficult to push, adjust to a higher carpet level setting.

2. Move the handle and adjust it to the desired position for (a) storing the upright, (b) operating the cleaner, and (c) depress the handle release pedal again to clean under low furniture (Diagram 3).

NOTE:

Rotating brush could cause area rug fringe to become tangled within cleaner. Use caution when vacuuming throw rugs with fringe.

ABOVE FLOOR CLEANING Cleaner must be in the upright position to lift the rotating brush off the carpet when cleaning above the floor.

1. Put cleaner in its upright position.

2. Pull and turn the

CAUTION:

Brush agitator continues to rotate while hose is removed or in use and at all times while cleaner is on. Keep hair, loose

CarpetlHose Selector counterclockwise to the "hose" position to open up airflow to the hose (Diagram 5a).

clothing, fingers, and all parts of body away from brush area while cleaner is on.

3. Remove the hose from the side of the cleaner using the handle (Diagram 6).

Choose any of the handy accessories or use the hose alone. Simply push the attachment firmly onto the end of the wand or hose

handle. To remove tool, twist and pull apart gently.

If additional length is needed use the telescopic wand (See page 6).

Diagram

Remove wand from side of cleaner.

Telescopic

Wand

Diagram

Height adjust lever.

Diagram

Use carrymg handle on back of cleaner to move from room to room

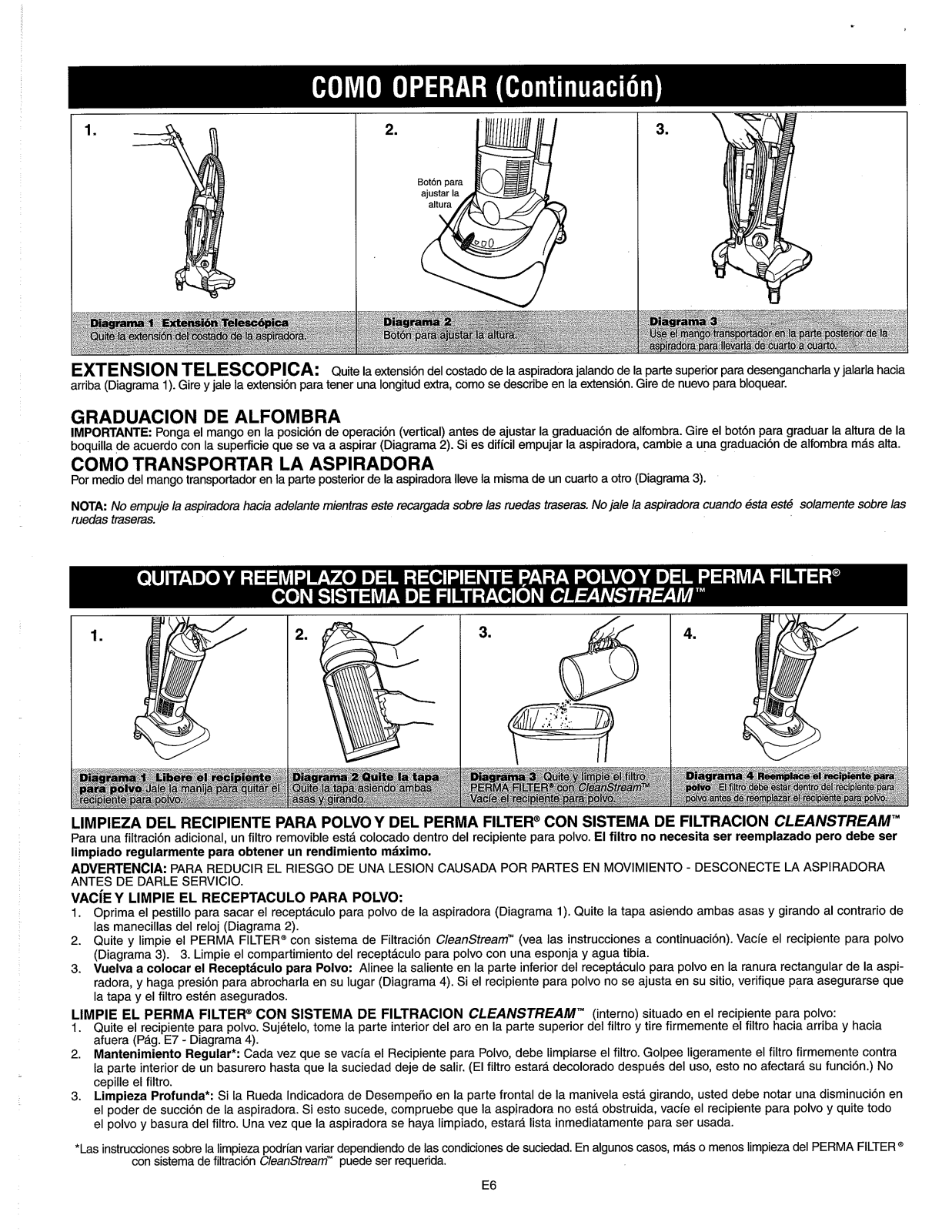

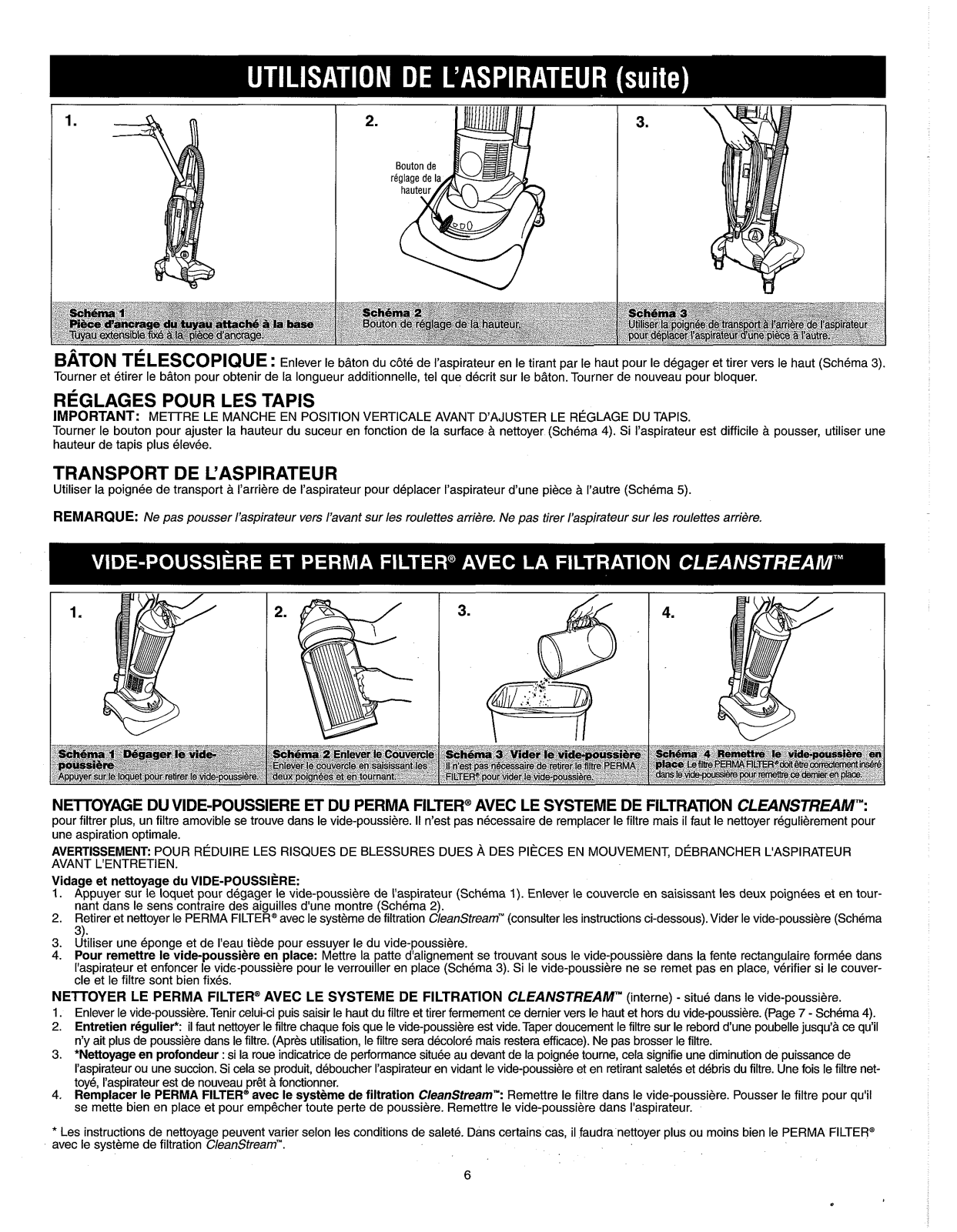

TELESCOPIC WAND:

Remove wand from cleaner by pulling out at the top (Diagram 1). Twist and pull wand apart for extra

length, as described on wand. Twist again to lock.

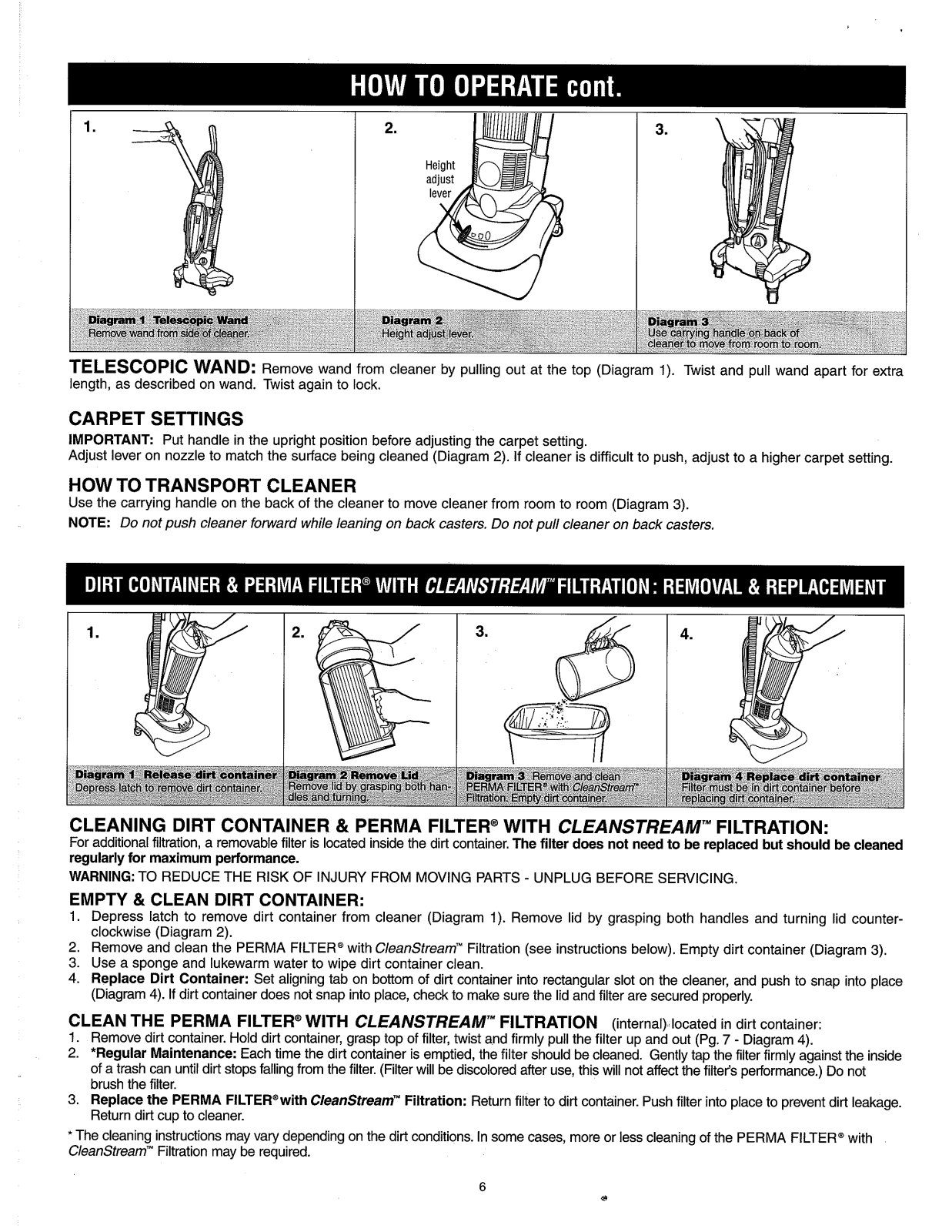

CARPET SETTINGS

IMPORTANT:

Adjust lever on nozzle to match the surface being cleaned (Diagram 2). If cleaner is difficult to push, adjust to a higher carpet setting.

Put handle in the upright position before adjusting the carpet setting.

HOW TO TRANSPORT CLEANER

Use the carrying handle on the back of the cleaner to move cleaner from room to room (Diagram 3).

NOTE:

Do not push cleaner forward while leaning on back casters. Do not pull cleaner on back casters.

Diagram I Release dirt container

Depress latch to remove dirt container.

Diagram 2 Remove

Remove lid by grasping both handles and turnmg.

Lid

Diagram

PERMA FILTERa with Fibration. Empty dirt container.

Remove and clean

CleanStream"

~kgram 4 Replace dirt container

Filter must be in dirt container before replacing dirt container.

CLEANING DlRT CONTAINER & PERMA FILTERa WlTH

For additional filtration, a removable filter is located inside the dirt container.

CLEANSTREAM"

FILTRATION:

The filter does not need to be replaced but should be cleaned

regularly for maximum performance. WARNING:

TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE SERVICING.

EMPTY & CLEAN DlRT CONTAINER:

Depress latch to remove dirt container from cleaner (Diagram 1). Remove lid by grasping both handles and turning lid counterclockwise (Diagram 2).

2. Remove and clean the PERMA FILTER" with

3. Use a sponge and lukewarm water to wipe dirt container clean.

Replace Dirt Container:

Set aligning tab on bottom of dirt container into rectangular slot on the cleaner, and push to snap into place

(Diagram 4). If dirt container does not snap into place, check to make sure the lid and filter are secured properly.

CLEAN THE PERMA FILTERG WlTH

1. Remove dirt container. Hold dirt container, grasp top of filter, twist and firmly pull the filter up and out (Pg.

*Regular Maintenance:

of a trash can until dirt stops falling from the filter. (Filter will be discolored after use, this will not affect the filter's performance.) Do not brush the filter.

Replace the PERMA FILTER@with

3. Return dirt cup to cleaner.

The cleaning instructions may vary depending on the dirt conditions. In some cases, more or less cleaning of the PERMA FILTER" with

Cleanstream"

Filtration may be required.

Each time the dirt container is emptied, the filter should be cleaned. Gently tap the filter firmly against the inside

CleanStreaml"

Cleanstream'"

Filtration (see instructions below). Empty dirt container (Diagram 3).

CLEANSTREAM"

Filtration:

Return filter to dirt container. Push filter into place to prevent dirt leakage.

FILTRATION

(internal) located in dirt container:

Diagram 4).

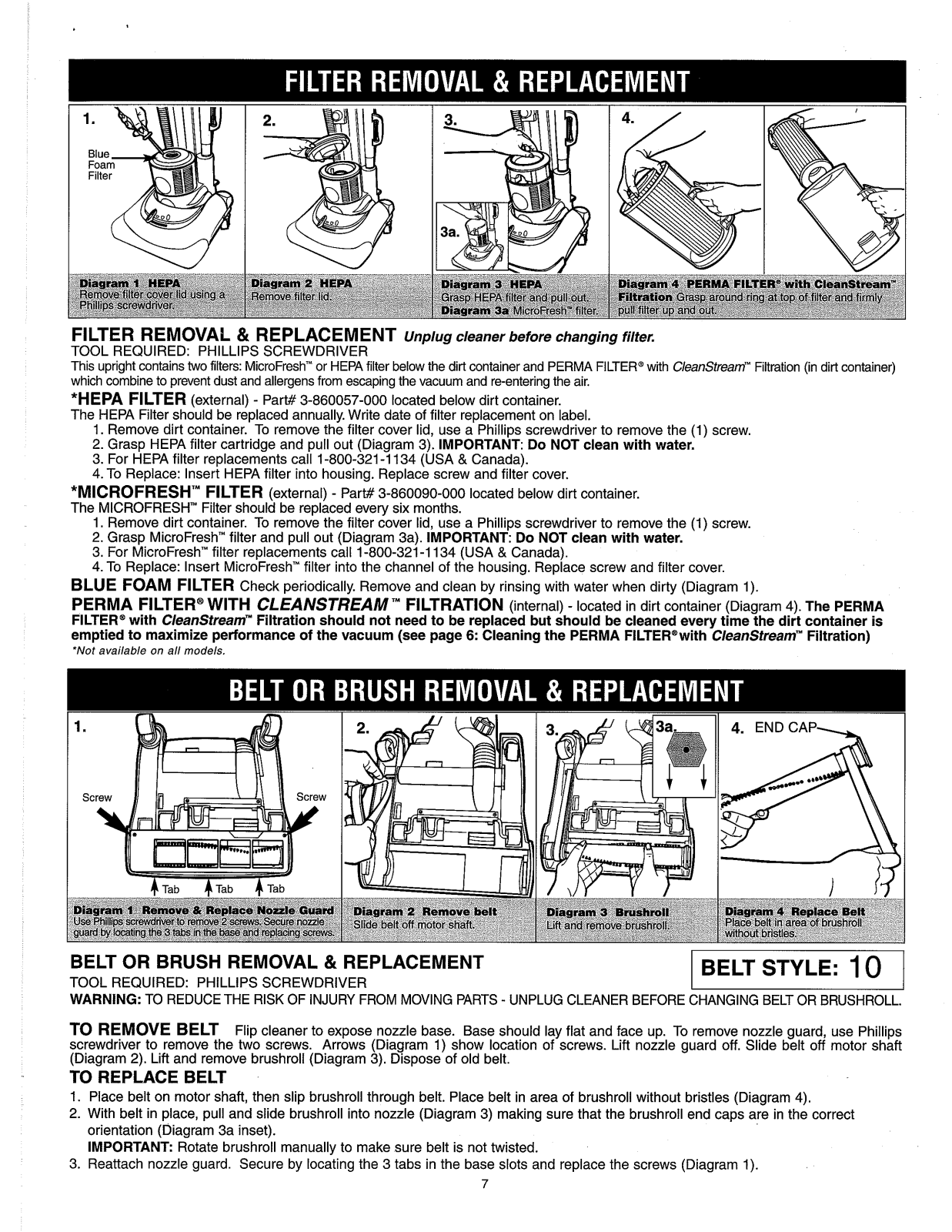

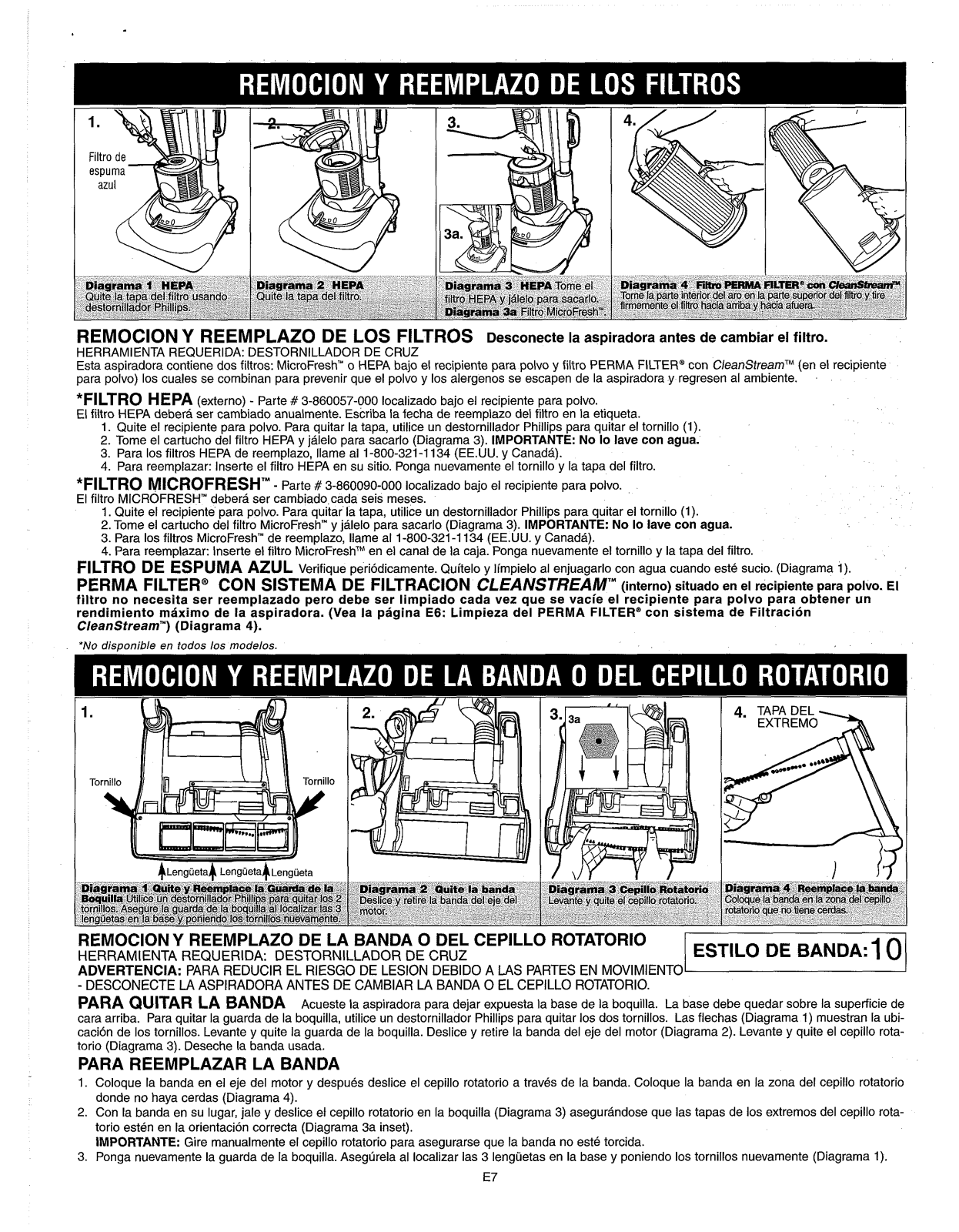

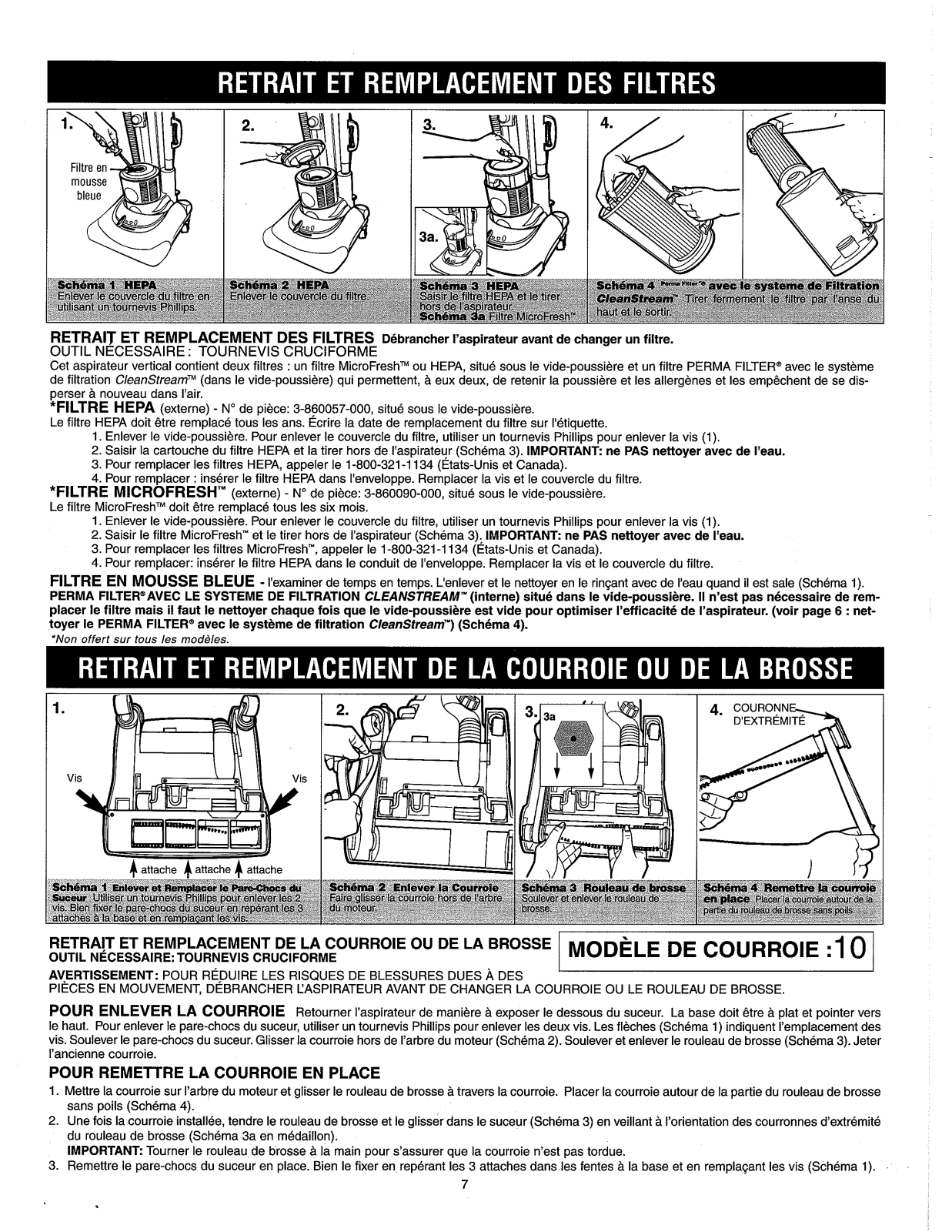

LTE R REMOVAL & REP LACE M E NT

TOOL REQUIRED: PHILLIPS SCREWDRIVER This upright contains two filters: MicroFresh'" or HEPA filter below the dirt container and PERMA which combine to prevent dust and allergens from escaping the vacuum and re-entering the air.

*HEPA FILTER

The HEPA Filter should be replaced annually. Write date of filter replacement on label.

1. Remove dirt container. To remove the filter cover lid, use a Phillips screwdriver to remove the (1) screw.

2. Grasp

3. For HEPA filter replacements call 1-800-321-1 134 (USA & Canada).

4. To Replace: Insert HEPA filter into housing. Replace screw and filter cover.

*MICROFRESH1" FILTER

The MICROFRESH" Filter should be replaced every six months.

1. Remove dirt container. To remove the filter cover lid, use a Phillips screwdriver to remove the (1) screw.

2. Grasp MicroFresh'" filter and pull out (Diagram 3a).

3. For MicroFresh'" filter replacements call 1-800-321-1 134 (USA & Canada).

4. To Replace: Insert MicroFresh'" filter into the channel of the housing. Replace screw and filter cover.

BLUE FOAM FILTER

PERMA FILTERB WITH CLEANSTREAM'" FILTRATION

FILTER" with

emptied to maximize performance of the vacuum (see page 6: Cleaning the PERMA FILTERmwith

'Not available on all models.

(external) - Part# 3-860057-000 located below dirt container.

HEPA filter cartridge and pull out (Diagram 3).

(external) - Part# 3-860090-000 located below dirt container.

Check periodically. Remove and clean by rinsing with water when dirty (Diagram 1).

Cleanstream'"

Filtration should not need to be replaced but should be cleaned every time the dirt container

unplug cleaner before changing filter.

FILTER" with

IMPORTANT: Do NOT clean with water.

(internal) - located in dirt container (Diagram 4).

CleanStreamT'"

Filtration (in dirt container)

CleanStreamm

The PERMA

Filtration)

BELT OR BRUSH REMOVAL & REPLACEMENT

TOOL REQUIRED: PHILLIPS SCREWDRIVER

WARNING:

TO REMOVE BELT

screwdriver to remove the two screws. Arrows (Diagram 1) show location of screws. Lift nozzle guard off. Slide belt off motor shaft (Diagram 2). Lift and remove brushroll (Diagram 3). Dispose of old belt.

TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG CLEANER BEFORE CHANGING BELT OR BRUSHROLL.

Flip cleaner to expose nozzle base. Base should lay flat and face up. To remove nozzle guard, use Phillips

BELT STYLE:

TO REPLACE BELT

1. Place belt on motor shaft, then slip brushroll through belt. Place belt in area of brushroll without bristles (Diagram 4).

With belt in place, pull and slide brushroll into nozzle (Diagram 3) making sure that the brushroll end caps are in the correct orientation (Diagram 3a inset).

IMPORTANT:

3. Reattach nozzle guard. Secure by locating the 3 tabs in the base slots and replace the screws (Diagram 1).

Rotate brushroll manually to make sure belt is not twisted.

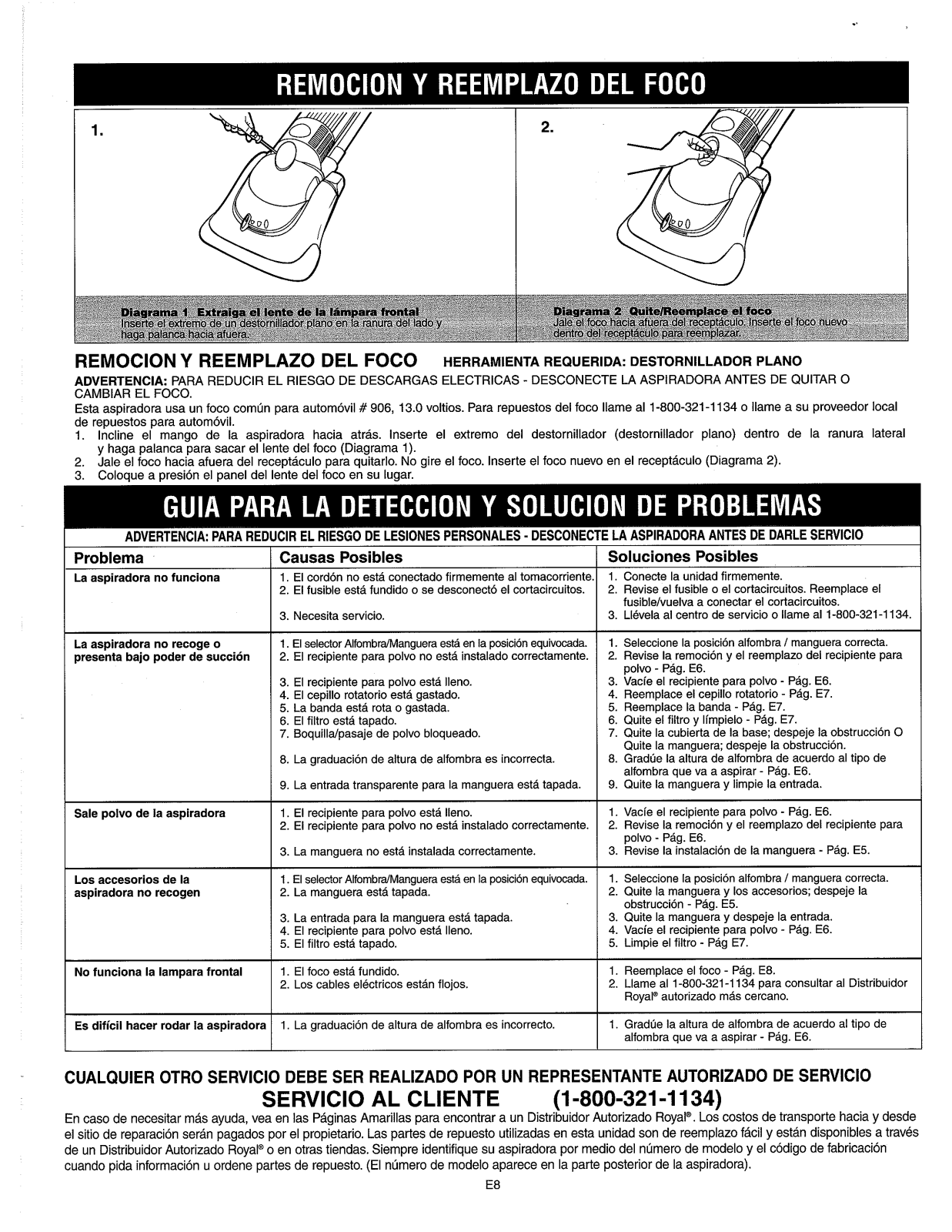

Diagram 1 Headlight

Insert flat head screwdriver into side slot and pry outward.

"-*

Lens

.-.

Wagram 2 RemovelReplace

Pull bulb out

socket to remove. Push bulb into socket to replace.

- -

Bulb

- -

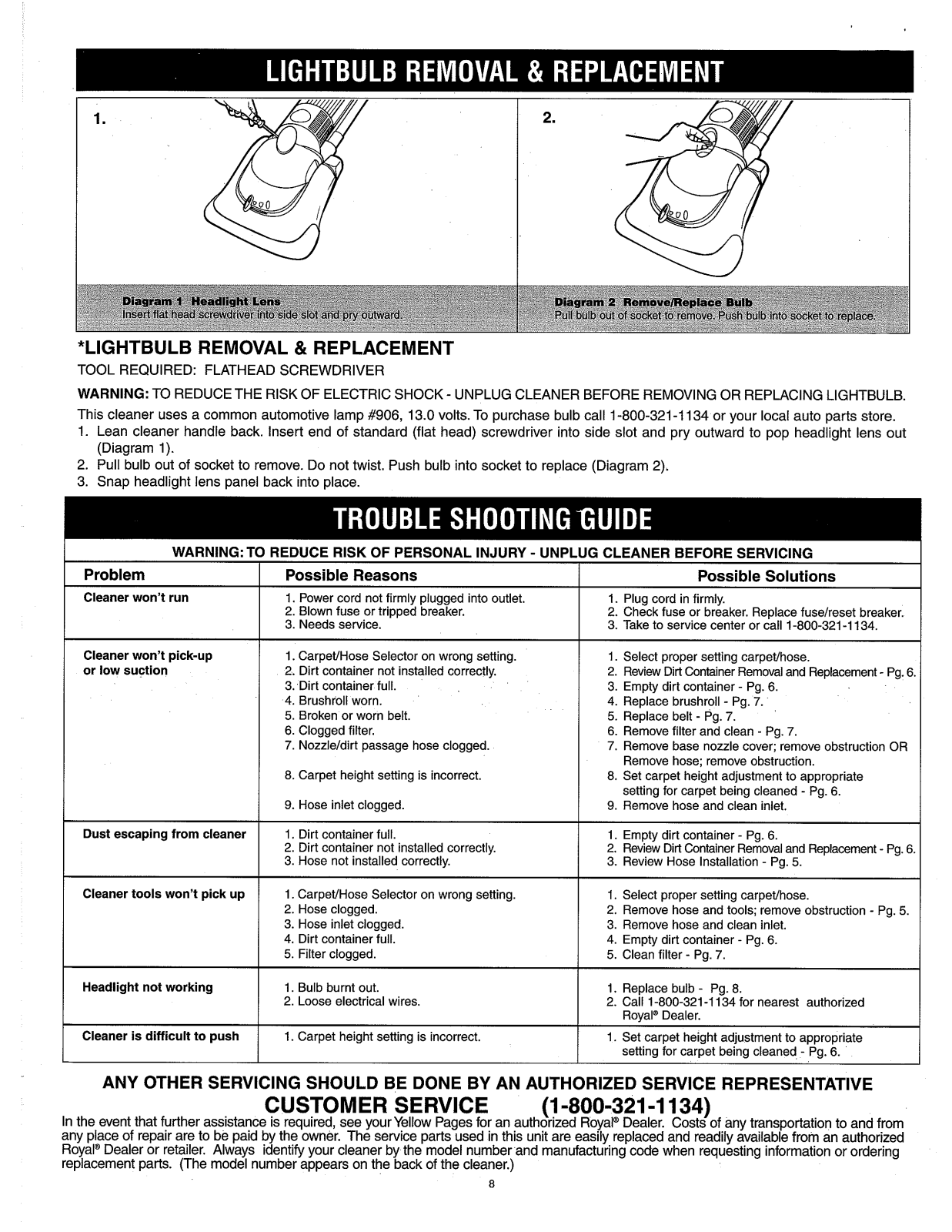

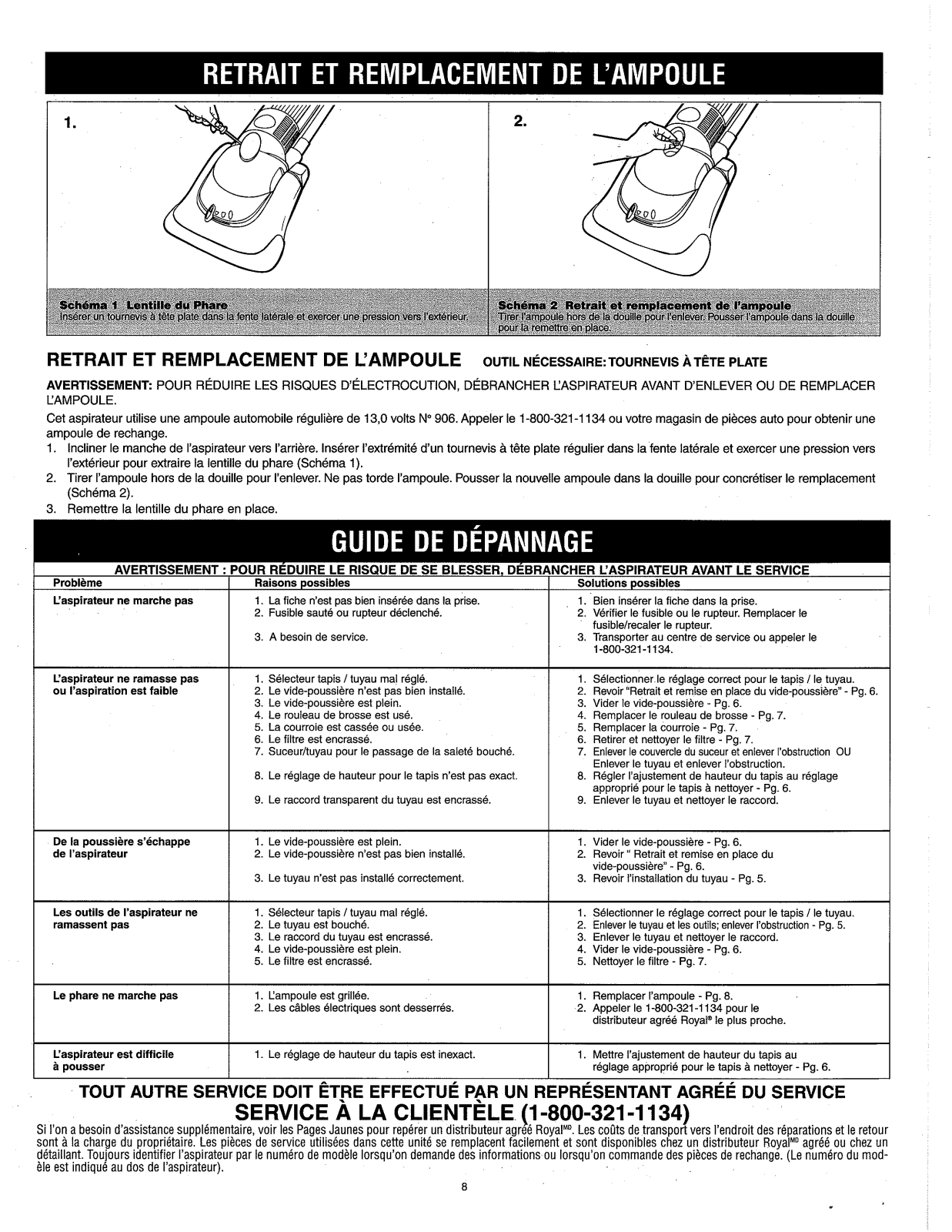

*LIGHTBULB REMOVAL & REPLACEMENT

TOOL REQUIRED: FLATHEAD SCREWDRIVER

WARNING:

This cleaner uses a common automotive lamp #906, 13.0 volts. To purchase bulb call 1-800-321-1 134 or your local auto parts store.

1. Lean cleaner handle back. Insert end of standard (flat head) screwdriver into side slot and pry outward to pop headlight lens out (Diagram 1).

2. Pull bulb out of socket to remove. Do not twist. Push bulb into socket to replace (Diagram 2).

3. Snap headlight lens panel back into place.

TO REDUCE THE RISK OF ELECTRIC SHOCK - UNPLUG CLEANER BEFORE REMOVING OR REPLACING LIGHTBULB.

WARNING: TO REDUCE RlSK

PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING

Problem Possible Reasons Possible Solutions

Cleaner won't run

Cleaner won't pick-up or low suction

Dust escaping from cleaner

Cleaner tools won't pick up

Headlight not working

Cleaner is difficult to push

1. Power cord not firmly plugged into outlet.

2. Blown fuse or tripped breaker.

3. Needs service.

1. CarpeVHose Selector on wrong setting.

2. Dirt container not installed correctly.

3. Dirt container full.

4. Brushroll worn.

Broken or worn belt.

Clogged filter.

Nozzleldirt passage hose clogged.

8. Carpet height setting is incorrect.

Hose inlet clogged.

Dirt container full.

Dirt container not installed correctly.

3. Hose not installed correctly.

CarpeVHose Selector on wrong setting.

2. Hose clogged.

3. Hose inlet clogged.

4. Dirt container full.

Filter clogged.

Bulb burnt out.

2. Loose electrical wires.

1. Carpet height setting is incorrect.

1. Plug cord in firmly.

2. Check fuse or breaker. Replace fuselreset breaker.

3. Take to service center or call 1-800-321

1. Select proper setting carpetlhose.

Review Dirt Container Removal and Replacement - Pg.

3. Empty dirt container

Replace brushroll - Pg.

Replace belt - Pg.

Remove filter and clean - Pg.

Remove base nozzle cover; remove obstruction OR Remove hose; remove obstruction.

8. Set carpet height adjustment to appropriate setting for carpet being cleaned

Remove hose and clean inlet.

Empty dirt container - Pg.

2. Review Dirt Container Removal and Replacement

3. Review Hose Installation

Select proper setting carpetlhose.

2. Remove hose and tools; remove obstruction

3. Remove hose and clean inlet.

4. Empty dirt container

Clean filter - Pg.

Replace bulb - Pg. 8.

2. Call 1-800-321 Royal@' Dealer.

1. Set carpet height adjustment to appropriate

setting for carpet being cleaned

Pg.

-1

134 for nearest authorized

Pg.

-1

134.

Pg.

ANY OTHER SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE

In the event that further assistance is required, see your Yellow Pages for an auth&ized Royal@ Dealer. ~ost;of any transportation to and from

CUSTOMER SERVICE

any place of repair are to be paid by the owner. The service parts used in this unit are easily replaced and readily available from an authorized RoyaP Dealer or retailer. Always identify your cleaner by the model number and manufacturing code when requesting information or ordering replacement parts. (The model number appears on the back of the cleaner.)

(1 -800-321 -1 134)

+ 16 hidden pages

Dirtdevil M088500 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
