MULTI-FUNCTION STEAM CLEANER

(5-in-1 and 11-in-1)

USER GUIDE

DDS04-E01/ D DS04-P01

WARNING

BASIC SAFETY PRECAUTIONS

This steamer is intended for household use only and NOT for commercial or industrial use.

• Only use the steamer indoors and keep the area you’re cleaning well lit.

• Keep ngers, hair and loose clothing away from moving parts and openings whilst using the steamer.

• This steamer can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the steamer. Cleaning and user maintenance shall not be performed by children without supervision

• Please refer to oor manufacturer’s care recommendations before use, and test your ooring/carpet/rugs by running the steamer over a small hidden area, if no pile distortion or no damage occurs continue cleaning. Not suitable for use on wax polished oors or furniture, acrylic surfaces and synthetic, velvet or steam/water sensitive materials

• This steamer should not be used to clean electrical appliances such as microwaves, televisions and electrical heating systems etc.

• Only Dirt Devil recommended cloths and accessories should be used with this steamer. This steamer is a water only product, using detergents will invalidate the guarantee.

• Don’t touch any hot areas/ accessories on your steamer. It’s normal for the steamer and accessories to heat up during use, always allow them to cool down before handling.

• Don’t leave the steamer turned on when unattended.

• Don’t use the steamer if it has been dropped, damaged, immersed in water or left outdoors.

DON'TS

• Don’t run over the power cord or use steamer if the power cord or plug is damaged. Please contact our Customer Care Line.

• Don’t handle the plug or use the steamer with wet hands. Don’t pull or carry the steamer by the power cord.

• Don’t use the power cord as a handle, don’t pull the power cord around corners or sharp edges or close a door over the power cord.

WARNING

DON'TS CONTINUE D...

• Don’t unplug the steamer by pulling on the power cord.

• Don’t attempt to remove blockages with sharp objects as this may cause damage to the steamer, remove blockages only as instructed in this guide.

• Don’t aim the steamer at people, animals, plants and electrical components or wires. Never

DO'S

• Always ll the water tank with water only. Never add perfume, stain remover or products containing alcohol. Filling the water tank with hot or boiling water will damage the steamer and invalidate the guarantee.

• Always vacuum your carpets thoroughly and ensure hard oor areas are free from grit and debris before using your steamer.

• Always unplug the steamer and allow to cool before carrying out any maintenance.

• Turn off all controls on the steamer before disconnecting or connecting the power cord, after use always wrap the power cord around the cord clips.

touch the steam jet (there is a risk of scalding).

• Don’t use the steamer with incorrect voltage as this may result in damage or injury to the user. The correct voltage is listed on the ratings label.

• Don’t use the steamer to clean or refresh any items of clothing that are still being worn on the body.

• Always replace the fuse in the plug with a British 13amp fuse. Always protect the power cord from heated surfaces and open ames.

• Use only CE approved 13amp extension cords, non-approved extension cords can overheat. Care should be taken to arrange the extension cord as it could be a trip hazard.

• Store the steamer in a cool, dry area away from children. Before storing the steamer please make sure the water tank is thoroughly clean and empty.

• Take extra care when cleaning on the stairs.

HI. WElCOm E.

Congrats on purchasing your new MULTI FUNCTION STEAM CLEANER. Inside, you’ll ﬁnd everything you want to know from tools to how to.

So what are you waiting for? LET’S GO.

™

PRODUCT REgISTRATION

Guarantee Registration

Be sure to register your product online at www.DirtDevil.co.uk

Hint: Attach your sales receipt to this User Guide. Veriﬁcation of date of purchase may be required for warranty service of your Dirt Devil® product.

For quick reference, please record your product information below.

Model #:

Serial number:

(serial number located on the back or bottom of product)

TAB lE OF CONTE NTS

Let's talk safety 3

Overview 6

Before use 8

Assembly 9

How to 10

Care & Maintenance 16

Troubleshooting 16

Guarantee 19

Handle

Quick cord

release hook

Handle release button

Handheld handle

Handheld steam trigger (hidden)

On / off and steam control dial

Power indicator Water tank cap Water tank (Part of unit)

Floorhead

Carpet glider

Quick cord

release hook

Accessory ﬂ oorhead

release button

TECHNICAL

x1 Microﬁ bre Pad

x2 Microﬁ bre Pad

DATA

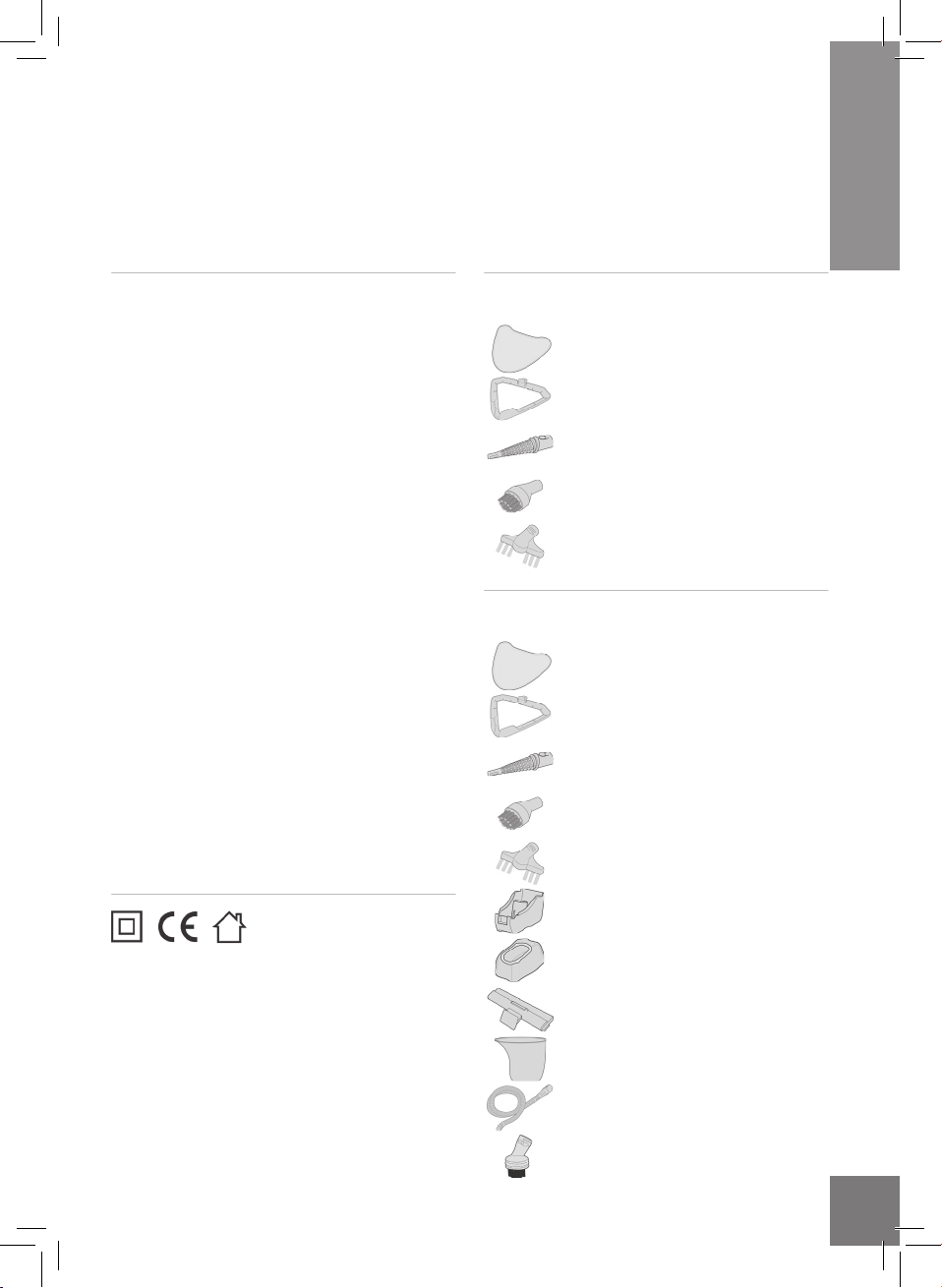

INCLUDED WITH YOUR MACHINE

OVERVIEW

Type of appliance: Multi function steam cleaner

Model name:

5-in-1 / 11-in-1

Model number:

DDS04-E01 / DDS04-P01

Voltage: 220-240V ~, 50 Hz

Power:

1500W

Water capacity:

330ml

Power cord length:

Heat up time:

30secs

Steam time:

15mins

Weight:

2.1kg

5-in-1

x1 Microﬁ bre Pad

x1 Carpet Glider / Cooling Tray

x1 Concentration Nozzle

x1 Small round brush

x1 Grout brush

11-in-1

x2 Microﬁ bre Pad

x1 Carpet Glider / Cooling Tray

x1 Concentration Nozzle

x1 Small round brush

x1 Grout brush

We reserve the right to make changes to technical and design speciﬁ cations in the interest of continuous product improvement. © Dirt Devil.

x1 Utility Head

x1 Utility Head Pad

x1 Window Squeegee

x1 Measuring Cup

x1 Hose

x1 Metal Brush

CAUTION

The steamer head gets very hot during use. Always switch off the steamer before emptying the water tank or changing the cleaning pads/accessories.

BEFORE YOU BEGIN CLEANING

1. Test for colour fastness in a small hidden area of upholstery/fabric to check for colour removal before use.

2. When using the steamer, basic safety precautions should always be observed.

3. Don’t aim the steamer at people, animals, plants and electrical components or wires. Never touch the steam jet or ﬂoorhead from a short distance (there is a risk of scalding).

4. The steamer is equipped with a thermostat and a thermal cut-out. If for any reason the steamer overheats it will switch off. If this happens turn off and unplug the steamer, allow to cool for at least 2 to 4 hours and re-try.

5. Don’t use hot or boiling water to ﬁll or clean water tank.

IMPORTANT: Please refer to ﬂoor manufacturer's care recommendations before use and test the

steamer on a hidden area of ﬂooring/surface to begin with.

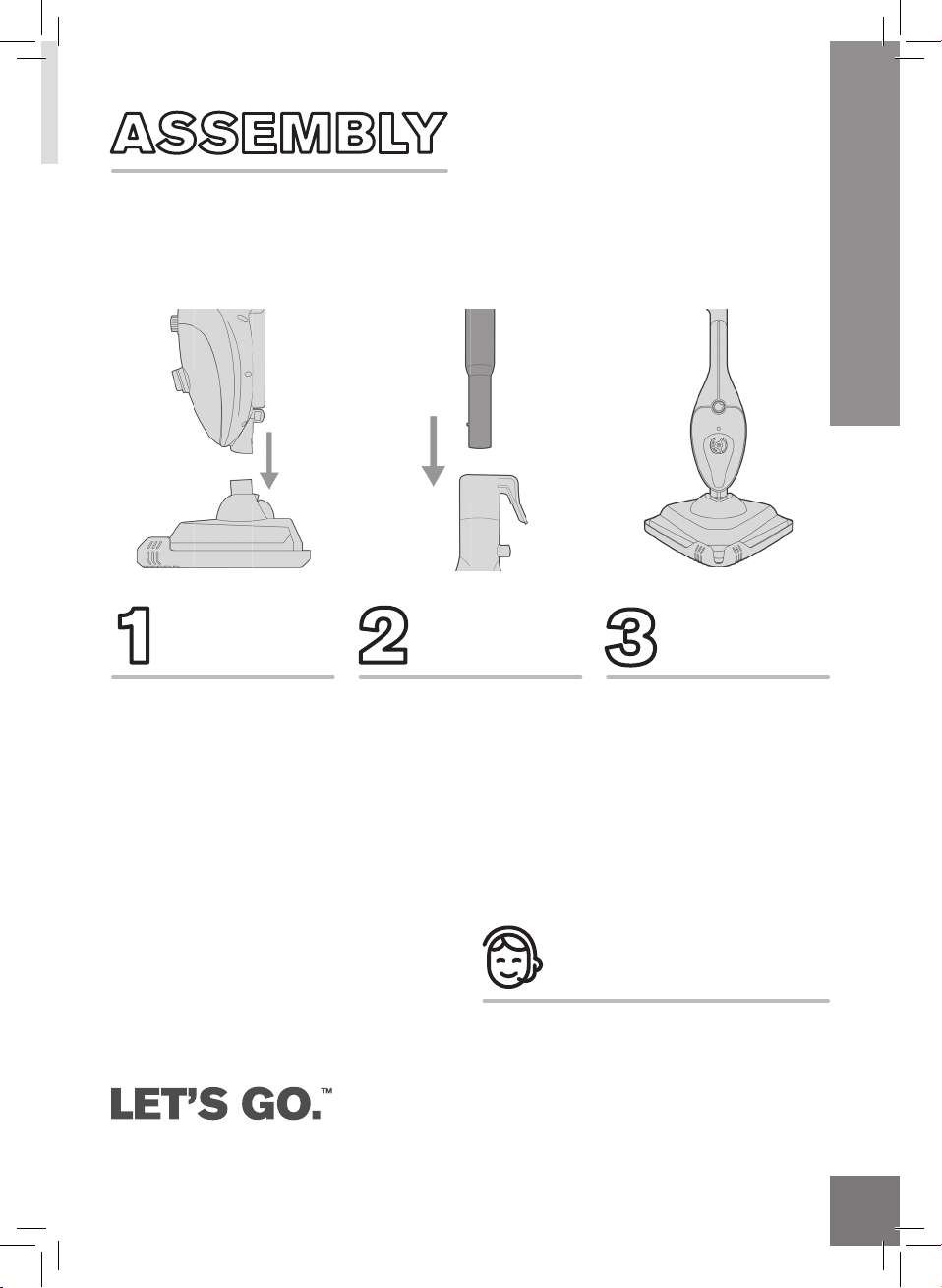

ASSEMBLING YOUR STEAMER

BEFORE USE / ASSEmBlY

Push the main body down into the ﬂ oorhead until it clicks into place.

Push the handle into main body until it clicks into place.

YOU R MULTI FUNCTION STEAM CLEANER IS READY TO CLEAN!

Stand the steamer upright by pushing the main body forward to lock into position.

NEED HELP?

Go to www.DirtDevil.co.uk or contact our Customer Service Department at 0330 026 2626 (Mon-Fri 9:00am to 5:00pm)

FILL THE WATER TANK

1. Remove ﬂ oorhead and handle and place steamer on ﬂ at surface. Twist water tank cap anti clockwise and lift to remove.

2. Do not ﬁ ll directly from tap or over sink. Keep steamer on ﬂ at surface. Use the measuring jug and ﬁ ll the tank with 330ml (2 x 165ml) of ﬁ ltered water.

3. Replace cap, align tabs and twist clockwise to tighten.

CLEAN HARD FLOORS

HOW TO

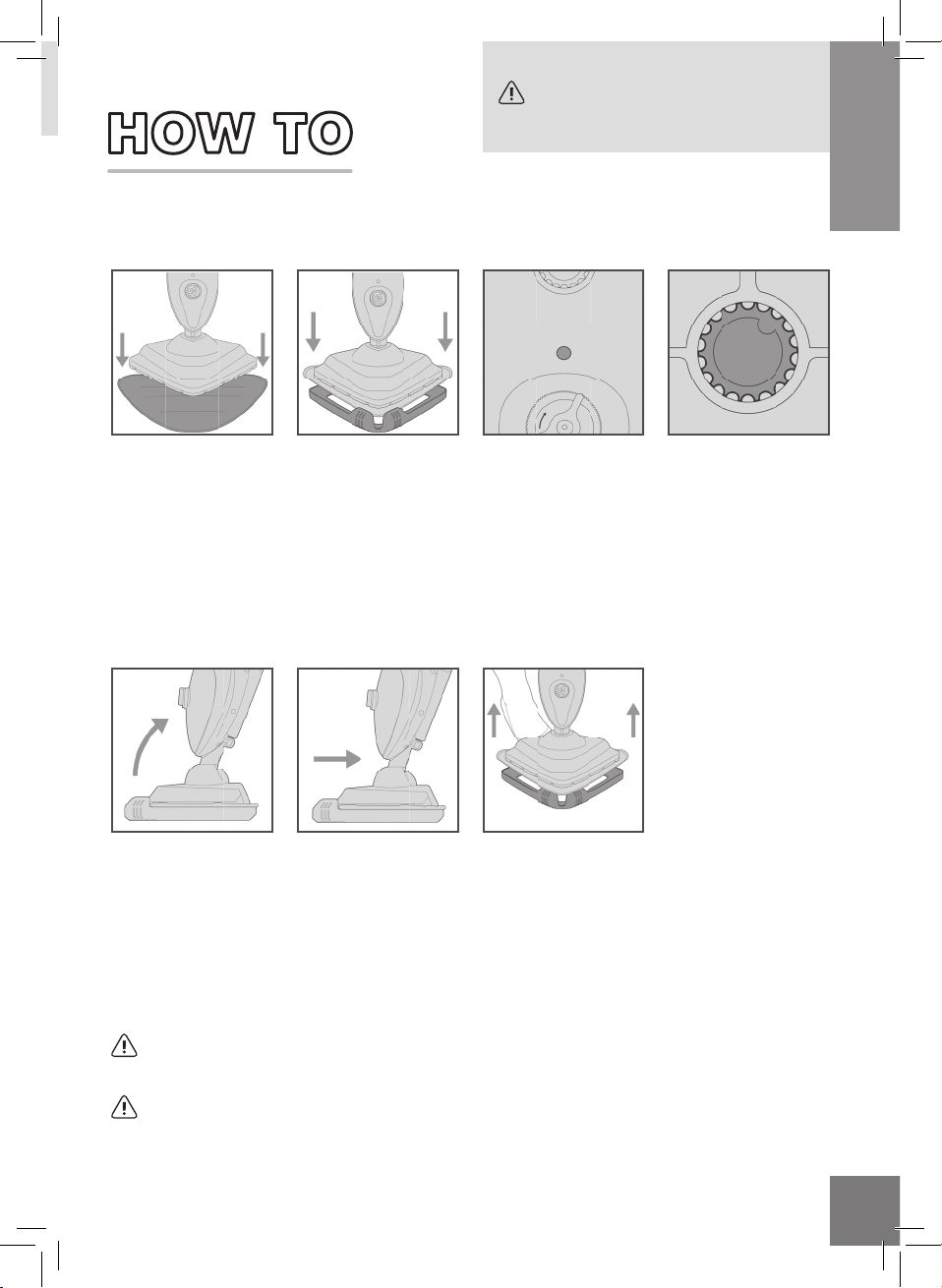

1. Place the microﬁ bre pad on the ﬂ oor white side facing up. Place the ﬂ oorhead onto microﬁ bre pad making sure the microﬁ bre pad covers the entire ﬂ oorhead.

TIP: Product needs to be assembled after ﬁ lling the tank. Attach the ﬂ oorhead and handle before cleaning ﬂ oors.

4. Place foot onto the ﬂ oorhead and pull handle backwards to recline.

2. Plug into mains, turn dial to ‘ON’; the amber light will illuminate to indicate power on. The steamer will be ready after approximately 30 seconds.

5. Move the steamer slowly backwards and forwards across the ﬂ oor paying particular attention to high trafﬁ c areas.

3. To steam your ﬂ oors twist the steam control dial to desired setting. Steam is activated automatically. Take care when changing settings during cleaning.

6. Turn dial to ‘OFF’ position and allow steamer to cool, the amber light will switch off. Hold corner of pad down with your foot and lift steamer to peel away.

IMPORTANT: Never use the steamer without a cleaning pad attached to the ﬂ oorhead.

IMPORTANT: Never leave the steamer on one spot for an extended period of time or with a damp or

wet microﬁ bre pad attached as this may damage the ﬂ oor surface.

USE THE MACHINE AS A HANDHELD

1. Push handle release button and lift handle to remove.

4. Plug into mains, turn the dial to ‘ON’ position. The amber light will illuminate to indicate power on. The steamer will be ready after approximately 30 seconds.

2. Press accessory release button and lift steamer to release ﬂ oorhead.

5. Twist the steam control dial to desired setting.

3. Push concentration nozzle into steamer until it clicks into place.

6. To produce steam squeeze the trigger in short bursts. Don’t hold the trigger continuously to prevent over wetting.

ATTACH THE ACCESSORIES

ATTACH THE BRUSHES

1. Small tools can be attached via the concentration nozzle. Push together to click into position and secure.

ATTACH THE ACCESSORY HOSE

CAUTION

Always allow tools and accessories to cool down before removing.

HOW TO

1. Push the accessory connector onto the steamer nozzle until it clicks into place.

5. Line up accessory with concentration nozzle, twist and push to lock into place.

2. Line up hose with the accessory connector, twist and push to lock into place.

6. Adjust the steam control dial to switch On/Off and for adjusting steam control.

3. Line up concentration nozzle with the hose, twist and push to lock into place.

7. To produce steam, squeeze the steam trigger.

4. Choose an accessory.

USE THE ACCESSORIES

CAUTION

Always allow tools and accessories to cool down before removing.

CONCENTRATION NOZZLE

Use to remove soap scum in baths and shower enclosures and to clean heavily soiled areas in kitchens.

UTILITY HEAD AND PAD

Attach utility pad to utility head for use on upholstery and clothes. Do not use detergent on fabrics and upholstery.

SMALL BRUSH

Ideal for any surface from tiles, sinks, toilets and oven tops.

SQUEEGEE

Great for leaving your windows, tiles and mirrors gleaming.

GROUT BRUSH

Lifts embedded dirt from in between tiles.

METAL BRUSH

Strong metal bristles to lift resilient grime from tough surfaces. Use when deep cleaning your oven, wire racks or BBQ to make light work of difﬁ cult cleaning tasks. Not for use on soft or delicate surfaces or material/ upholstery.

USE ON CARPETS

REFRESHING CARPETS

CAUTION

Always switch OFF the steamer when ﬁ tting and removing the microﬁ bre cleaning pads.

HOW TO

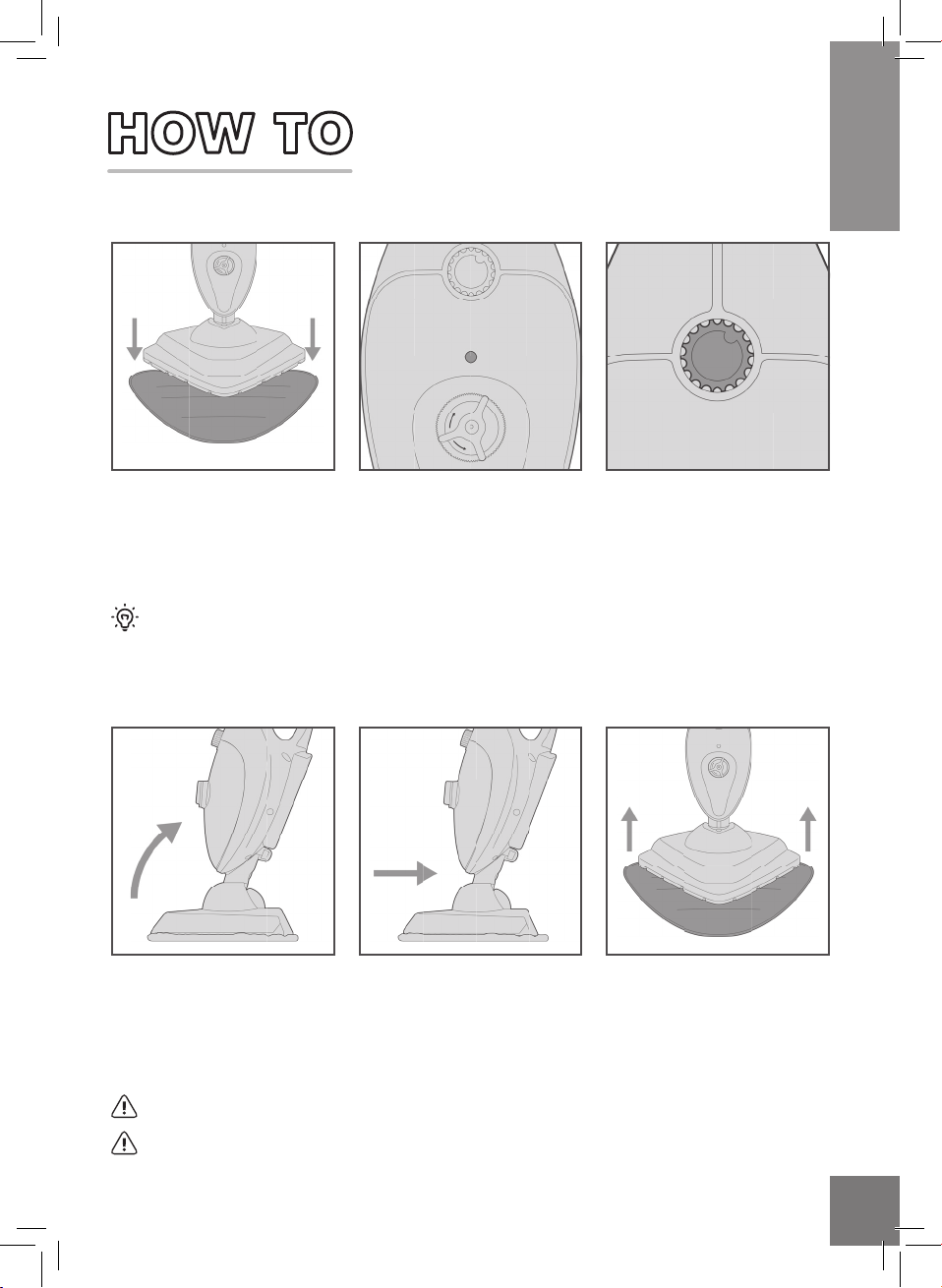

1. Place the microﬁ bre pad on the ﬂ oor white side facing up. Place steamer onto pad making sure the entire pad covers the ﬂ oorhead.

5. Place your foot on ﬂ oorhead and pull handle backwards to recline.

2. With microﬁ bre pad attached, push steamer into front of the carpet glider, then place back of the ﬂ oorhead into the clip. The carpet glider should only be used when refreshing carpets.

6. Move the steamer slowly backwards and forwards across the carpet paying particular attention to high trafﬁ c areas.

3. Plug into mains, turn dial to ‘ON’ position, the amber light will illuminate to indicate power on.

7. To release the carpet glider, place your foot on clip and push down. Lift steamer to remove.

4.Twist the steam control dial to desired setting. Steam is activated automatically. Take care when changing settings during cleaning.

IMPORTANT: Take care removing carpet glider with foot. Make sure steamer is OFF and

has cooled down.

IMPORTANT: Always allow the steamer to fully cool down before removing the microﬁ bre

cleaning pad.

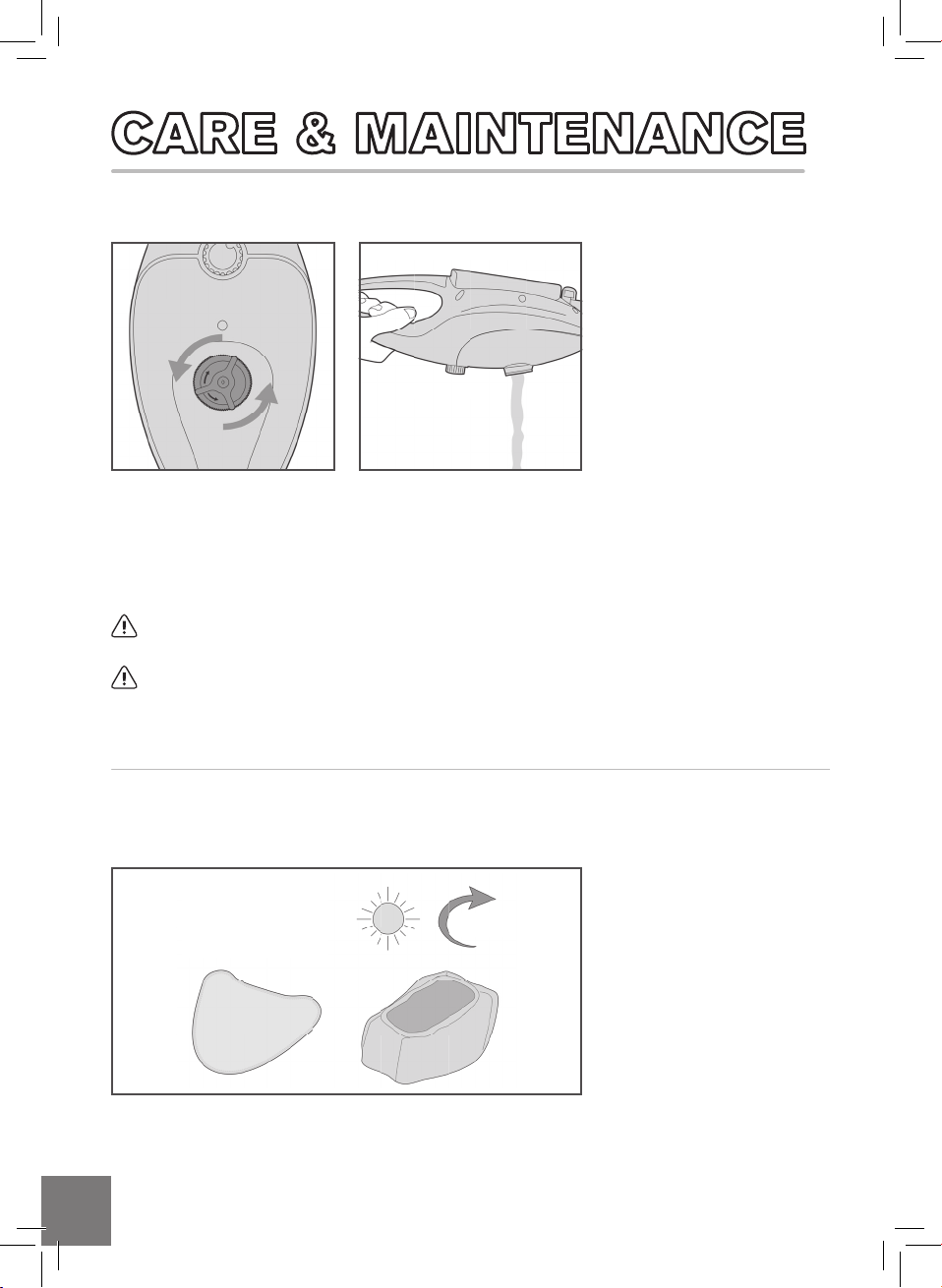

EMPTYING THE WATER TANK

1. Remove ﬂ oorhead and handle and place steamer on ﬂ at surface. Twist water tank cap anti clockwise and lift to remove.

IMPORTANT: Don’t use bleach or fabric softener when washing the microﬁ bre cleaning pad.

IMPORTANT: Never remove the water tank cap with the product upright as water could leak out – always remove the ﬂ oorhead and handle and place handheld on a ﬂ at surface before removing the water tank cap.

2. Empty any excess water over the sink.

CLEANING THE MICROFIBRE/ UTILITY CLEANING PAD

40C

MAX

24hr

The microﬁ bre/utility cleaning pads are machine washable (Max 40C) allow to fully dry before use.

CLEARING BLOCKAGES

IMPORTANT: Turn dial on steamer to ‘OFF’ position, switch off at mains and unplug safely. Allow to fully cool down before performing maintenance or troubleshooting checks.

CARE & mAI NTE NANCE

1. Push the ﬂ oorhead release button and lift the main body from the ﬂ oorhead to remove. Also remove the handle.

2. Use a small thin object such as a paper clip to insert into the nozzle and clear any blockage.

3. To clear a blockage in the ﬂ oorhead, remove the microﬁ bre pad from the ﬂ oorhead, insert a small thin object, such as a paper clip, into the steam holes to remove any blockage.

Problem

Solution

Is there an accessory missing?

Why does my steamer have no power?

Why is the steamer not producing steam?

Why won’t the microfibre pad pick up dirt?

Check the ‘This pack contains’ panel on the box to make sure the part is included with your steamer.

Check the on/off control dial position.

Check the amber light is illuminated.

The plug may not be fully pushed into the electrical socket.

Check the fuse in the plug if this needs replacing, always replace with a British 13amp fuse.

There may be no water in water tank, check the water tank has water.

Check the water tank cap is securely ﬁtted onto the water tank.

The water may not yet be at temperature. The steamer will take approximately 30 seconds to heat up.

Steam path may be blocked. Go to ‘Let’s talk technical’.

Check steam control dial has been turned to ‘on’.

Water tank level may be low, reﬁll with water.

The microﬁbre pad may already be saturated or dirty.

Wash the microﬁbre cleaning pad, go to ‘Taking care of your machine’.

NOTE:

If you were unable to solve the problem using the information in the table above, please contact our Customer Service (UK) 0330 026 2626.

LIMITED GUARANTEE

It’s quick and easy to register for your free 1 year guarantee online at www.DirtDevil.co.uk.

Please retain your original receipt for proof of purchase.

Please make a note of the serial number and model number of the product before calling.

TROUBlESHOOTINg / gUARANTEE

719

Call our Customer Service Department at 0330 026 2626

Monday-Friday 9:00am to 5:00pm.

www.DirtDevil.co.uk

Dirt Devil. 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN.

EEC Statement of Compliance: Manufacturer/EEC importer: Vax Ltd trading as Dirt Devil, hereby on our own

responsibility, declare that the DDS04-E01/DDS04-P01 series is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
