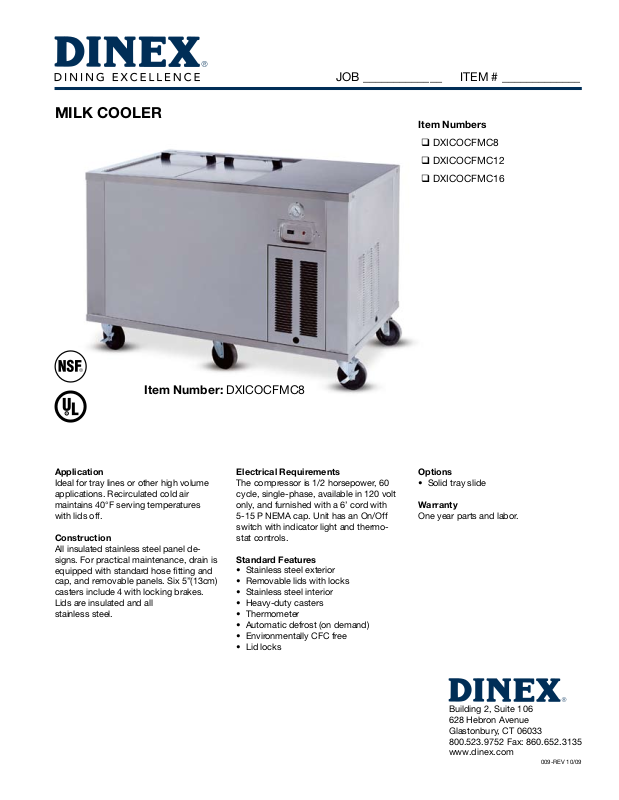

Dinex ICOCFMC12 User Manual
JOB _____________
ITEM # _____________
MILK COOLER
Item Number: DXICOCFMC8
Item Numbers
q DXICOCFMC8
q DXICOCFMC12
q DXICOCFMC16
Application
Ideal for tray lines or other high volume
applications. Recirculated cold air
maintains 40°F serving temperatures
with lids off.
Construction
All insulated stainless steel panel designs. For practical maintenance, drain is
equipped with standard hose fitting and
cap, and removable panels. Six 5”(13cm)
casters include 4 with locking brakes.
Lids are insulated and all
stainless steel.
Electrical Requirements
The compressor is 1/2 horsepower, 60
cycle, single-phase, available in 120 volt
only, and furnished with a 6’ cord with
5-15 P NEMA cap. Unit has an On/Off
switch with indicator light and thermostat controls.
Standard Features
• Stainless steel exterior
• Removable lids with locks
• Stainless steel interior
• Heavy-duty casters
• Thermometer
• Automatic defrost (on demand)
• Environmentally CFC free
• Lid locks
Options
• Solid tray slide
Warranty
One year parts and labor.
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
009-REV 10/09
MILK COOLER
PLUG CONFIGURATION
2 Pole, 3 Wire
120v, 1PH. 15 AMPS
Length
Specifications
ITEM
NUMBER
DXICOCFMC8 ICOCFMC8
DXICOCFMC12 ICOCFMC12
DXICOCFMC16 ICOCFMC16
Note: Units are single phase, 60 cycles, 120 volts.
MODEL
NUMBER
LENGTH DEPTH HEIGHT AMPS
52”
(132.1cm)
66”
(167.6cm)
80”
(203.2cm)
(83.2cm)
(83.2cm)
(83.2cm)
32.75”
32.75”
32.75”
34”
(86.4cm)
34”
(86.4cm)
34”
(86.4cm)
34”
(86.4cm)
10.5
10.5
10.5
INDIVIDUAL
SERVING
CAPACITY
400
0.5 Pint Cartons
600
0.5 Pint Cartons
800
0.5 Pint Cartons
NEMA 5-15P
32.75”
(83.2cm)
CAP.
CRATES
8
12
16
INTERIOR
DIMENSIONS
26.625” x 28.75”
(68cm) x (73cm)
26.625” x 43.125”
(68cm) x (110cm)
26.625” x 57.5”
(68cm) x (146cm)
SHIP
WEIGHT
475 lb.
(215.7kg)
515 lb.
(233.8kg)
555 lb.
(252kg)
SHIP
CUBE
42.6
54.2
64.8
Options
• 12” solid tray slides
• Legs in lieu of casters
• 32” high unit (uses 3” casters)
Please confirm that you have the most current specification sheet by visiting www.dinex.com.
Dinex® reserves the right to change specifications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
009-REV 10/09
