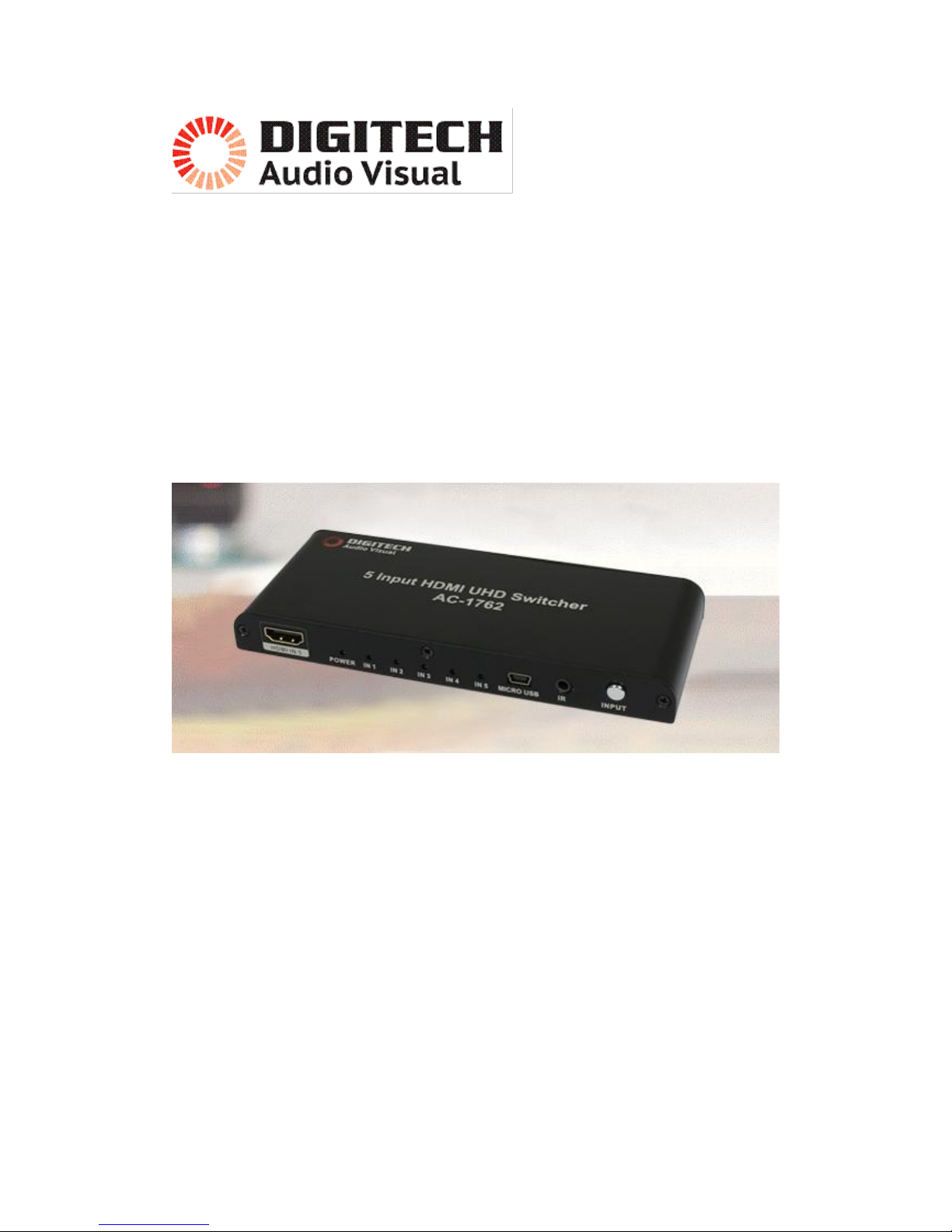

5 Input HDMI UHD Switcher
AC-1762
User Manual
Box Contents
1 x 5 Input HDMI UHD Switcher
1 x 5V/1A DC Power Supply Adaptor
1 x Remote Control
1 x IR Receiver cable
Connect and Operate
Connect the signal sources such as Blu-Ray Player, Play Station 3, satellite receivers and
computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the
HDMI Switcher input.
Connect the HDMI outputs from the HDMI Switcher to high-definition display devices such
as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. Use high-speed HDMI
cables that are recommended for the distances that are required for each connection.
The Switcher is powered by an external power supply which is included. Connect power first
to the source, then to the Switcher and then to each HD TV or projector.

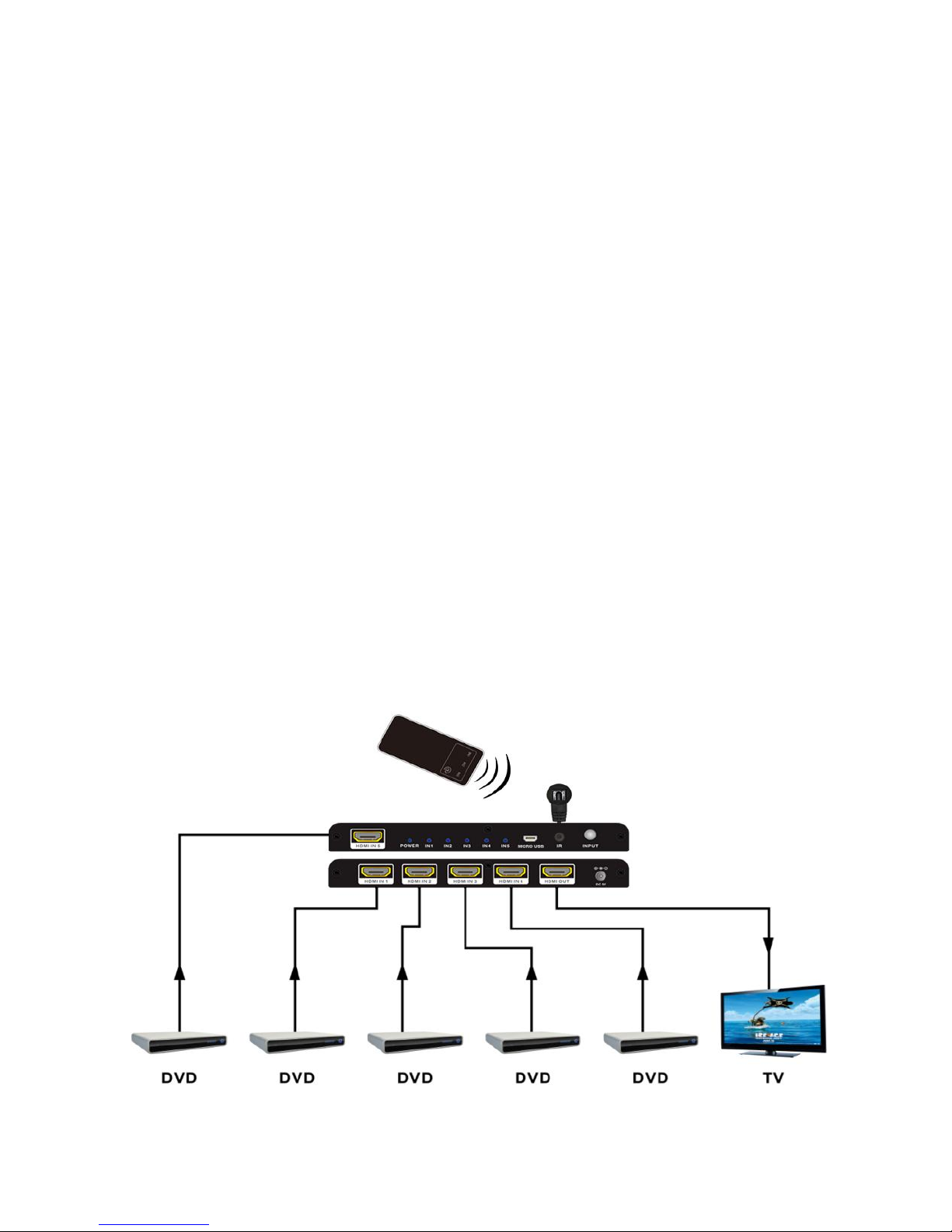

Connection Diagram
1. HDMI IN5: HDMI input 5 port.
2. POWER LED: This blue LED illuminates when the device is connected with power supply.
3. IN LED: These blue LED illuminate when the Source is selected.
4. MICRO USB: Socket for micro USB connection.
5 IR: Remote control receiver, the 3.5mm socket for HDMI switcher IR extension.
6. INPUT BUTTON: Press this button to select the input source.
1. HDMI IN1, 2,3,4: Connect the input port to the HDMI or DVI output of your source device
such as a DVD player or set-top box with HDMI cables.
2. HDMI OUT: Connect the HDMI output to an HDMI display.
3. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet.
Remote Control
Input source select buttons, the LED panel will indicate the input
source status.
Specification
Compatible with: HDMI2.0, HDCP2.2 and DVI 1.0 standards
Video Bandwidth 300MHz/10.2 Gbps
Input Ports 5 x HDMI (Female type)
Output Ports 1 x HDMI (Female type)
Output Resolution 480i ~1080p50/60, 4Kx2K@24/30,
4k2k@60Hz with 12bit YCBCR 4:2:0, VGA~UXGA
ESD Protection Human Body model: ±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 5 V/1A DC
Dimensions 64 mm (W) × 155mm (D) × 17 mm (H)
Weight 180 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 2W
Distributed by:
TechBrands by Electus Distribution Pty.Ltd.
NSW 2116 Australia
Ph: 1300 738 555
Int’l: +61 2 8832 3200
Fax: 1300 738 500
www.techbrands.com
Made in China
