Digitech AC-1715 User Manual

Digital to Analog Audio Converter

User Manual

AC-1715

Thank you for purchasing this Digital to Analogue Audio

Converter. For optimum performance and safety, please

read these instructions carefu lly before conn ectin g,

operating or adjusting this product. Please keep this

manual for future reference.

This Digital to Analog Audio Converter is designed for

either home or professional audio switching. It converts

Coaxial or Toslink digital audio signals to analog L/R audio

and available for connection to an external device such as

an amplifier via standard RCA-style jacks. This Converter

is small in size and quite easy to install.

FEATURES

This Converter has many features that enable it to perform

in a superior manner. Among those features you will find:

1. Converts Coaxial or Toslink digital audio signals to

analog L/R audio.

2. Supports sampling rate at 32, 44.1, 48,96 and 192 KHz.

3. 24-bit S/PDIF incoming bit stream on left and right

channels.

4. Provides electromagnetic-noise-free transmission.

5. Easy to install and simple to operate.

SPECIFICATIONS

Input Audio Coaxial or Toslink digital

audio

Output Audio L/R audio

Input audio
connector

Toslink, 1XRCA(Coaxial)

Output audio
connector

2XRCA（R/L）

Sampling rate 32, 44.1, 48,96 and 192KHz

Size(L-W-H) 51X41X26MM

Weight (Net) 78g

Operating
Temperature

0 ℃ to +70℃

Operating Humidity 10% to 85 % RH (no

condensation)
Storage
Temperature

-10℃ to +80℃

Storage Humidity 5% to 90 % RH (no

condensation)

External Power
Supply

5V DC@1A

Power
Consumption

0.5 watts (max)

Converter Unit FCC,CE,UL

Power Supply UL,CE,FCC

AC Power Adapter US standard, UK standard

and so on
User Manual English Version

Note: Specifications are subject to change without notice .

PACKAGE CONTENTS

Before attempting to use this unit, please check the

packa ging and make sure the f ollow ing items are

contained in the shipping carton:

1) Main unit (Digital to Analog Audio Converter)

2) 5V/1A DC POWER SUPPLY

3) User Manual

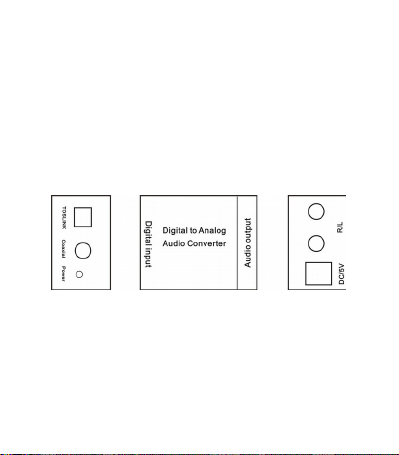

PANEL DESCRIPTIONS

Please study the panel drawings below and become

familiar with the signal input(s),output(s) and power

requirements.

Back Panel: upper Panel: Front Panel:

CONNECTION & OPERATION

Before installation, please make sure all devices you wish

to connect have been turned off.

1) Connect the audio source device to the Converter using

appropriate Toslink or Coaxial cables.

2) Connect the A/V Receivers or Amplifiers to the

Converter using appropriate L/R cable.

3) Insert the DC side of 5v power supply into the converter

and then connect the AC side of the power supply into the

wall outlet.

Note: When connected to the Toslink and Coaxial cables at

the same time, the product will give priority to Toslink input.

CONNECTION DIAGRAM

DISTRIBUTED BY:

TechBrands by Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere
NSW 2116 Australia
Ph: 1300 738 555
Int’l: [phone]
Fax: [phone]
www.techbrands.com
Made in China
