HIGHlite 12000Dsx+

HIGHlite 8000Dsx+

Super High Brightness Digital Video Projector

User’s Manual

E-1

104-018A

Declaration of Conformity

Directives covered by this Declaration

89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC & 93/68/EEC.

73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC.

Products covered by this Directive

Large Screen Projector type HIGHlite 12000Dsx

HIGHlite 8000Dsx

Basis on which Conformity is being declared

The products identified above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards:-

EN55022:1998 - Limits and Methods of Measurements of Radio Disturbance Characteristics of Information Technology Equipment.

EN 55024:1998 - Limits and Methods of Immunity Characteristics of Information Technology Equipment.

EN 61000-3-2:2000 - Harmonic Current Emissions.

EN 61000-3-3:1995 - Immunity to Voltage Fluctuations and Flicker.

The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage directive has been compiled by the signatory below and is available for inspection by the relevant enforcement authorities. The CE mark was first applied in July 2004.

Signed:

Authority: D.J. Quinn, Director - Product Development

Date: 26 July 2004

Attention!

The attention of the specifier, purchaser, installer, or user is drawn to special measures and limitations to use which must be observed when these products are taken into service to maintain compliance with the above directives. Details of these special measures are available on request, and are also contained in the product manuals.

E-2

Important Information

CAUTION: To turn off the main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB(A) according to ISO 3744 or ISO 7779.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT OPEN COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Precautions: Please read this manual carefully before using your HIGHlite 12000Dsx+ HIGHlite 8000Dsx+ Projector and keep the manual handy for future reference.

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

AVERTISSEMENT

POUR EVITER UN FEU OU UN RISQUE D’ELECTROCUTION NE PAS EXPOSER CET ENSEMBLE A LA PLUIE OU A L’HUMIDITE; DE MEME, NE PAS BRANCHER LA PRISE POLAIRE AVEC UNE RALLONGE A MOINS QUE LES DENTS DE LA PREMIERE NE S’Y INSERENT PLEINEMENT. EVITER D’OUVRIR LE COFFRET CAR IL Y A, A L’INTERIEUR, DES COMPOSANTS SOUMIS A UNE HAUTE-TENSION; POUR LES REPARATIONS, S’ADRESSER A UN PERSONNEL QUALIFIE.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

ATTENTION: POUR EVITER LES RISQUES

D’ELECTROCUTION, NE PAS OUVRIR LE COUVERCLE. AUCUN DES ELEMENTS INTERNES NE DOIT ETRE REPARE PAR L’ UTILISATEUR. NE CONFIER L’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

DOC compliance Notice

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

* In order to reduce any interference with radio and television reception use a signal cable with ferrite core attached.Use of signal

cables without a ferrite core attached may cause interference with radio and television reception.

* This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

DOC avis de conformation

Cet appareil numérique de la classe A respecte toutes les exigences du Réglement sur le Matériel D’interférence du Canada.

CAUTION

L’éclair fléché dans un triangle équilatéral est destiné à avertir l’utilisateur de la présence, dans l’appareil, d’une zone non-isolée soumise à une haute-tension dont l’intensité est suffisante pour constituer un risque d’electrocution.

Le point d’exclamation dans un triangle équilatéral est destiné à attirer l’attention de l’utilisateur sur la présence d’informations de fonctionnement et d’entretien importantes dans la brochure dccompagnant l’appareil.

E-3

Important Information

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1. Place the projector on a flat, level surface in a dry area away from dust and moisture. Tilting the front of the projector up or down from level could reduce lamp life. Do not put the projector on its side when the lamp is on. Doing so may cause damage to the projector.

2. Do not place the projector in direct sunlight, near heaters or heat radiating appliances.

3. Exposure to direct sunlight, smoke or steam could harm internal components.

4. Handle your projector carefully. Dropping or jarring your projector could damage internal components.

5. Do not place heavy objects on top of the projector.

6. If you wish to have the projector installed on the ceiling:

a Do not attempt to install the projector yourself. b The projector must be installed by qualified technicians in order to

ensure proper operation and reduce the risk of bodily injury.

c In addition, the ceiling must be strong enough to support the projec-

tor and the installation must be in accordance with any local build-

ing codes. d Please consult your dealer for more information. e Do not attempt to stack projectors on the ceiling.

To Dealer or Installer:

To prevent the projector from falling, install it in a place and fasten it in a way with sufficient strength to support the combined weight (94 kg/ 207.3 lb) of the projector (84 kg/185.3 lb) and the lens (10 kg/22 lb) for an extended period of time as well as to withstand earthquakes.

Power Supply

1. The projector is designed to operate on a power supply of 2.6 KW AC200-240V 50/60Hz. Ensure that your power supply fits this requirement before attempting to use your projector.

2. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.

3. If the projector will not be used for an extended period of time, disconnect the plug from the power outlet.

4. Do not touch the power plug with wet hand. Doing so can cause electrical shock or fire.

5. Do not touch the power plug during a thunder storm. Doing so can cause electrical shock or fire.

Cleaning

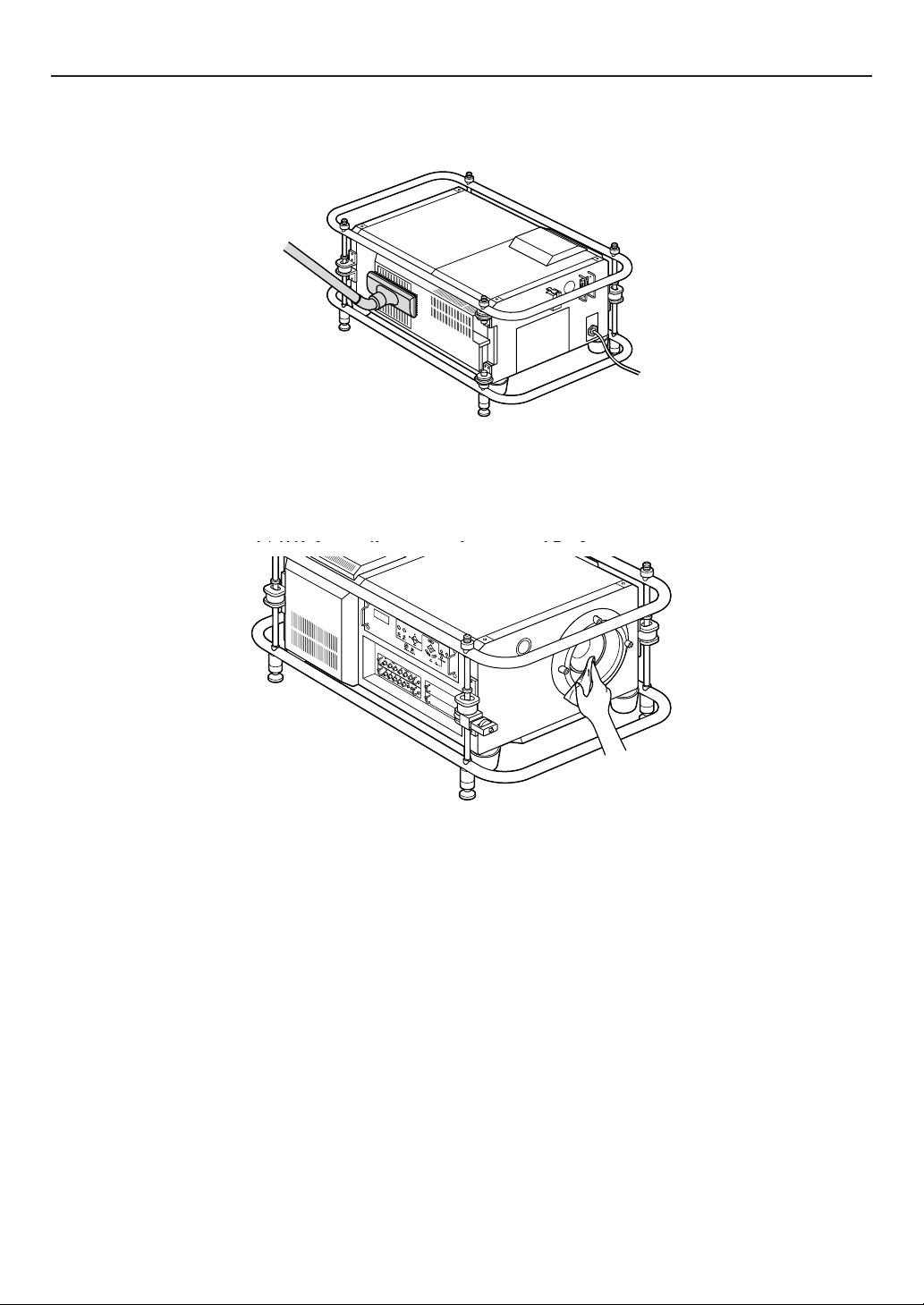

1. Unplug the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent potentially dangerous concentrations of ozone and the buildup of heat inside your projector. Allow at least 8 inches (20cm) of space between your projector and a wall. Allow at least 20 inches (50 cm) of space between the ventilation outlet and object.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified your service person.

3. Do not place any liquids on top of your projector.

4. When using a LAN cable: For safety, do not connect to the connector for peripheral device wiring that might have excessive Voltage.

CAUTION: High Pressure Lamp May Explode if Improperly Handled. Refer Servicing to Qualified Service Personnel.

Lamp Caution: Please read before operation

Due to the lamp being sealed in a pressurized environment, there is a small risk of explosion, if not operated correctly. There is minimal risk involved, if the unit is in proper working order, but if damaged or operated beyond the recommended 1000 hours, the risk of explosion increases. Please note that there is a warning system built in, that displays the following message when you reach 1000 hours of operation “The lamp has reached the end of its usable life. Please replace the lamp” When you see this message please contact your Dealer for a replacement. If the lamp does explode, smoke will be discharged from the vents located on the side of the unit. This smoke is comprised of glass in particulate form and Xenon gas, and will not cause harm if kept out of your eyes. If your eyes have been exposed to this gas, please flush your eyes out with water immediately and seek immediate medical attention. Do not rub

your eyes! This could cause serious injury.

WARNING:

• Do not look into the lens while the projector is on. Serious damage to your eyes could result.

• When main body is damaged, cooling fluids may come out of internal part. Please do not touch and drink the cooling fluid. When the cooling fluids are swallowed or contacted with your eyes, please consult with doctors immediately.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

• While the message “Please wait a moment” appears. This message will be displayed after the projector is turned off.

• Immediately after the power cable is plugged into the wall outlet (the POWER indicator has not changed to a steady orange glow).

• Immediately after the cooling fan stops working (After the projector is turned off with the POWER OFF button the cooling fan continues to work for 3 minutes while the Two Digit INDICATOR “—” flashes).

E-4

Important Information

Recommandations importantes

Ces instructions de sécurité ont pour but d’assurer une longue vie à votre projecteur et d’éviter un incendie ou une décharge électrique. Prière de les lire avec attention et de tenir compte de tous les avertissements.

Installation

1. Placer le projecteur sur une surface plane et de niveau dans un endroit sec et à l’abri de la poussière et des moisissures. Le fait d’incliner l’avant du projecteur vers le haut ou le bas peut réduire la durée de vie de la lampe. Ne pas placer le projecteur sur le côté lorsque la lampe est allumée. Cela pourrait endommager le projecteur.

2. Ne pas exposer le projecteur aux rayons directs du soleil, ni le placer près d’un chauffage ou de dispositifs de radiation de chaleur.

3. L’exposition aux rayons directs du soleil, à la fumée ou à la vapeur pourrait endommager des composants internes.

4. Manipuler le projecteur avec précautions. Laisser tomber le projecteur ou lui donner des chocs pourrait endommager des composants internes.

5. Ne pas poser d’objets lourds sur le dessus du projecteur.

6. Si vous voulez installer le projecteur au plafond:

a. N’essayez pas d’installer le projecteur vous-même. b. Le projecteur doit être installé par un technicien qualifié pour garantir

une installation réussie et réduire le risque d’éventuelles blessures corporelles.

c. De plus le plafond doit être suffisamment solide pour supporter le

projecteur et l’installation doit être conforme aux réglementations locales de construction.

d. Veuillez consulter votre revendeur pour de plus amples informa-

tions.

e. Ne pas superposer les projecteurs accrochés au plafond.

A l’attention du revendeur ou de l’installateur:

Afin d’empêcher une chute éventuelle du projecteur, veuillez prendre en compte lors de son placement et de sa fixation de la force nécessaire pour supporter le poids total (94 kg), celui du projecteur (84 kg) et de l’objectif (10 kg), pour de longues périodes et de façon à lui permettre de résister aux tremblements de terre.

projecteur. Laisser au moins 20 cm d’espace entre le projecteur et un mur. Veuillez laisser un espace libre d’au moins 50 cm (20 pouces) entre les orifices de ventilation et l’objet.

2. Empêcher tous objets étrangers tels que des attaches trombones ou des morceaux de papier de tomber à l’intérieur du projecteur. Ne pas essayer de récupérer des objets qui seraient tombés dans le projecteur. Ne pas introduire d’objets métalliques tels qu’un fil ou un tournevis dans le projecteur. Si quelque-chose doit tomber dans le projecteur, le débrancher immédiatement et faire enlever l’objet par un technicien agréé.

3. Ne pas poser de liquides sur le dessus du projecteur.

4. Lors de l’utilisation d’un câble LAN: Pour votre sécurité, ne raccordez pas au connecteur pour périphérique externe de câble pouvant avoir une tension excessive.

ATTENTION: La lampe à haute pression peut exploser si elle est manipulée incorrectement. Confier l’entretien à du personnel d’entretien qualifié.

Précautions avec la lampe : lire avant l’utilisation

La lampe a été scellée dans un environnement sous pression, et il y a donc un petit risque d’explosion, si elle n’est pas utilisée correctement. Le risque est minime si l’appareil est en bon ordre de marche, mais s’il est endommagé ou utilisé au-delà des 1000 heures recommandées, le risque d’explosion augmente alors. Il est à noter l’existence d’un système d’avertissement intégré, lequel affiche le message “La lampe a atteint sa durée de vie maximum, prière de la remplacer.” lorsque les 1000 heures de fonctionnement sont atteintes. Lorsque ce message apparaît, prière de contacter son revendeur pour un remplacement. Si la lampe explose, de la fumée peut être produite par les fentes d’aération situées sur le côté de l’appareil. Cette fumée est composée de verre sous forme de particules et de gaz de Xenon, et n’est pas nuisible si elle est maintenue à distance des yeux. Si les yeux sont exposés à ce gaz, les rincer immédiatement à l’eau courante et consulter tout de suite un médecin. Ne pas frotter les yeux ! Cela pourrait provoquer

une grave blessure.

Alimentation

1. Le projecteur est conçu pour fonctionner sous une tension d’alimentation de 2,6 KW CA 200-240 V 50/60 Hz. S’assurer que la tension du secteur soit conforme à ces caractéristiques avant d’utiliser le projecteur.

2. Manipuler le cordon d’alimentation avec précautions et éviter des flexions excessives. Un cordon endommagé peut occasionner une décharge électrique ou un incendie.

3. Si le projecteur ne doit pas être utilisé pendant une longue période, débrancher la fiche de la prise de courant.

4. Ne touchez pas la prise d’alimentation avec les mains mouillées. Ceci peut causer une électrocution ou un incendie.

5. Ne touchez pas la prise d’alimentation pendant les orages. Ceci peut causer une électrocution ou un incendie.

Nettoyage

1. Débrancher le projecteur avant de le nettoyer.

2. Nettoyer régulièrement le boîtier extérieur avec un chiffon humide. S’il est très sale, utiliser un détergent doux. Ne jamais utiliser de détergent forts ou de solvants tels que de l’alcool ou du diluant.

3. Utiliser un souffleur ou du papier pour objectif pour nettoyer l’objectif, et faire attention de ne pas griffer ou endommager l’objectif.

Précautions contre l’incendie ou la décharge

1. S’assurer qu’il y ait une ventilation suffisante et que les ouvertures ne soient pas obstruées afin d’éviter des concentrations potentiellement dangereuses d’ozone et l’accumulation de chaleur à l’intérieur du

AVERTISSEMENT:

• Ne pas regarder dans l’objectif lorsque le projecteur est allumé. De sérieux dommages aux yeux pourraient en résulter.

• Lorsque le corps principal est endommagé, du liquide de refroidissement peut s’échapper des pièces internes. Veuillez ne pas toucher ni boire le liquide de refroidissement. Si le liquide de refroidissement est ingéré ou qu’il rentre en contact avec vos yeux, consultez immédiatement un médecin.

ATTENTION

Ne pas débrancher le câble d’alimentation de la prise du secteur dans les circonstances suivantes car cela risque d’endommager le projecteur:

• Lorsque le message “Veuillez patientez un instant“ apparaît. Ce message sera affiché après que le projecteur soit éteint.

• Immédiatement après que le cordon d’alimentation électrique ait été branché sur la prise du mur (l’indicateur POWER n’est pas encore devenu orange).

• Immédiatement après que le ventilateur de refroidissement de soit arrêté de fonctionner. (Après que le projecteur ait été mis hors tension à l’aide du bouton POWER OFF, le ventilateur d’aération continue à tourner durant 3 minutes tandis que le INDICATOR à deux chiffres “—” clignote).

E-5

Important Information

Achtung: Um die Netzspannung komplett abzuschalten, stellen Sie sicher, daß der Netzstecker aus der Netzsteckdose gezogen wurde. Die Netzsteckdose sollte so nahe als möglich vom Gerät entfernt und leicht zugänglich sein.

3. GSGV Bestimmungen bzgl. der Geräuschabgabe

Der Schalldruckpegel entsprechend den Normen ISO 3744 oder ISO 7779 beträgt weniger als 70 dB (A).

WARNUNG

ZUR VERMEIDUNG VON FEUER UND ELEKTRISCHEN SCHLÄGEN DARF DAS GERÄT WEDER REGEN NOCH FEUCHTIGKEIT AUSGESETZT WERDEN. DER POLARISIERTE STECKER DIESES GERÄTES DARF NUR DANN IN EIN VERLÄNGERUNGSKABEL ODER IN EINE STECKDOSE EINGESTECKT WERDEN, WENN DIE STECKKONTAKTE VOLLSTÄNDIG EINGESTECKT WERDEN KÖNNEN. UNTERLASSEN SIE, DAS GERÄT ZU ÖFFNEN, DA DADURCH IM GERÄT FREILIEGENDE HOCHSPANNUNGSFÜHRENDE TEILE BERÜHRT WERDEN KÖNNEN. LASSEN SIE DEN KUNDENDIENST NUR VON HIERFÜR QUALIFIZIERTEN PERSONEN DURCHFÜHREN.

ACHTUNG

GEFAHR DURCH ELEKTRISCHEN

SCHLAG NICHT ÖFFNEN

Wichtige Sicherheitshinweise

Diese Sicherheitshinweise sollen eine lange Lebensdauer Ihres Projektors sicherstellen und vor Feuer und elektrischen Schlägen schützen. Lesen Sie diese Hinweise sorgfältig durch und beachten Sie alle Warnungen.

Installation

1. Stellen Sie den Projektor auf eine flache, waagerechte Oberfläche in einer trockenen Umgebung, frei von Staub und Feuchtigkeit. Das Ankippen des vorderen Teils des Projektors kann die Lebensdauer der Lampe verkürzen. Den Projektor bei eingeschalteter Lampe nicht auf die Seite legen. Dies könnte den Projektor beschädigen.

2. Stellen Sie den Projektor weder in direktes Sonnenlicht noch in die Nähe einer Heizung oder sonstiger Hitze abstrahlender Einrichtungen.

3. Wenn das Gerät direktem Sonnenlicht, Rauch oder Dampf ausgesetzt wird, können interne Komponenten beschädigt werden.

4. Behandeln Sie Ihren Projektor vorsichtig. Fallenlassen oder starkes Schütteln kann interne Komponenten beschädigen.

5. Legen Sie keine schweren Gegenstände auf den Projektor.

6. Wenn der Projektor an der Decke installiert werden soll:

aVersuchen Sie nicht, den Projektor selbst zu installieren. b Der Projektor muss von qualifizierten Technikern installiert werden,

um einen ordnungsgemäßen Betrieb sicherzustellen und die Ver letzungsgefahr zu reduzieren.

c Die Decke muss für das Gewicht des Projektors ausreichende

Festigkeit aufweisen, und die Installation muss entsprechend den

örtlichen Bauvorschriften ausgeführt werden. dWeitere Informationen erhalten Sie von Ihrem Fachhändler. eVersuchen Sie nicht, mehrere Projektoren an der Decke

übereinander zu stapeln.

ACHTUNG: ZUR VERMEIDUNG EINES ELEKTRISCHEN

SCHLAGES ÖFFNEN SIE NICHT DAS GEHÄUSE. INNERHALB DES GEHÄUSES BEFINDEN SICH KEINE FÜR DIE BEDIENUNG DES GERÄTES ERFORDERLICHEN TEILE. LASSEN SIE DEN KUNDENDIENST NUR VON HIERFÜR QUALIFIZIERTEN PERSONEN DURCHFÜHREN.

DIESES SYMBOL WARNT DEN BEDIENER, DASS INNERHALB DES GERÄTES UNISOLIERTE TEILE VORHANDEN SIND, DIE HOCHSPANNUNG FÜHREN UND DEREN BERÜHRUNG EINEN ELEKTRISCHEN SCHLAG VERURSACHEN KANN.

DIESES SYMBOL MACHT DEN BEDIENER DARAUF AUFMERKSAM, DASS WICHTIGE, DEN BETRIEB UND DIE WARTUNG DES GERÄTES BETREFFENDE SCHRIFTEN BEIGEFÜGT SIND. UM IRGENDWELCHE PROBLEME ZU VERMEIDEN, SOLLTEN DIESE BESCHREIBUNGEN SORGFÄLTIG GELESEN WERDEN.

WARNUNG!

Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen: in diesem Fall kann vom Betreiber veriangt werden, angemessene Maßnahmen durchzuführen und dafür aufzukommen.

Für den Händler oder Techniker:

Um ein Fallen des Projektors zu verhindern, installieren Sie den Projektor an einem sicheren Ort und befestigen Sie ihn auf eine geeignete Weise, damit das Gesamtgewicht (94kg) des Projektors (84kg), der Linse (10 kg) für einen langen Zeitraum sowie im Falle eines Erdbebens getragen werden kann.

Spannungsversorgung

1. Der Projektor wurde für eine Netzspannung von 2,6KW 200-240 V Wechselstrom/50/60 Hz konzipiert. Stellen Sie sicher, dass die vorhandene Spannungsversorgung diesen Vorgaben entspricht, bevor Sie versuchen, Ihren Projektor zu betreiben.

2. Behandeln Sie das Netzkabel vorsichtig und vermeiden Sie Knicke. Ein beschädigtes Netzkabel kann elektrische Schläge oder einen Brand verursachen.

3. Wenn der Projektor über eine längere Zeit nicht benutzt wird, ziehen Sie den Stecker aus der Netzsteckdose.

4. Berühren Sie nicht den Netzstecker mit feuchten Händen. Die Nichtbeachtung dessen könnte einen Stromschlag oder einen Brand zur Folge haben.

5. Berühren Sie den Netzstecker nicht während eines Gewitters. Die Nichtbeachtung dessen könnte einen Stromschlag oder einen Brend zur Folge haben.

Reinigung

1. Trennen Sie den Projektor vor der Reinigung von der Netzsteckdose ab.

2. Reinigen Sie das Gehäuse regelmäßig mit einem feuchten Tuch. Bei starker Verschmutzung verwenden Sie ein mildes Reinigungsmittel. Reinigen Sie das Gerät niemals mit starken Reinigungs- oder Lösungsmitteln wie z.B. Alkohol oder Verdünner.

3. Reinigen Sie die Linse mit einer Blaseinrichtung oder einem Linsentuch. Beachten Sie dabei, dass die Linsenoberfläche weder zerkratzt noch auf andere Weise beschädigt wird.

E-6

Important Information

Vorsichtsmaßnahmen zur Vermeidung von Bränden und elektrischen Schlägen

1. Sorgen Sie für ausreichende Belüftung und stellen Sie außerdem sicher, dass die Lüftungsschlitze frei bleiben, damit sich innerhalb des Projektors kein Hitzestau bilden kann. Lassen Sie mindestens 20 cm Abstand zwischen Ihrem Projektor und der Wand. Der Abstand zwischen den Belüftung und anderen Gegenständen sollte mindestens 50 cm betragen.

2. Ver meiden Sie, dass Fremdgegenstände wie Büroklammern und Papierschnipsel in den Projektor fallen. Versuchen Sie nicht, in den Projektor gefallene Gegenstände selbst zu entfernen. Stecken Sie keine Metallgegenstände wie einen Draht oder Schraubendreher in Ihren Projektor. Wenn etwas in den Projektor gefallen ist, müssen Sie sofort den Netzstecker ziehen und den Gegenstand von qualifiziertem Servicepersonal entfernen lassen.

3. Stellen Sie keine mit Flüssigkeit gefüllten Gefäße auf Ihren Projektor.

4. Wenn ein LAN-Kabel verwendet wird: Schließen Sie es aus Sicherheitsgründen nicht an den Anschluss der Peripheriegeräte-Verbindung an, das sie eine zu hohe Spannung führen könnte.

VORSICHT: Bei unsachgemäßer Handhabung kann die Hochdrucklampe explodieren. Überlassen Sie die Reparatur ausschließlich qualifiziertem Servicepersonal.

Vorsichtsmaßnahmen bezüglich der Lampe: Bitte vor dem Betrieb durchlesen

Aufgrund der unter Druck luftdicht verschlossenen Lampe besteht bei falscher Handhabung eine geringe Explosionsgefahr. Wenn sich das Gerät in einwandfreiem Zustand befindet, ist dieses Risiko minimal; es erhöht sich jedoch im Falle einer Beschädigung oder bei einer Benutzung über die empfohlenen 1000 Betriebsstunden hinaus. Beachten Sie bitte, dass im Gerät ein Warnsystem integriert ist, das bei Erreichen der 1000 Betriebsstunden die nachfolgende Meldung anzeigt: “Das Ende der Lampenlebensdauer ist erreicht. Bitte ersetzen Sie die Lampe”. Beauftragen Sie Ihren Händler, sofern diese Meldung auf dem Display erscheint. Im Falle einer Lampenexplosion tritt aus den seitlichen Lüftungsschlitzen des Gerätes Rauch aus. Dieser Rauch besteht aus einer ganz besonderen Form von Glas und aus Xenon-Gas. Solange dieser Rauch nicht in die Augen gelangt, bestehen keinerlei gesundheitliche Risiken. Wenn Ihre Augen dem Gas ausgesetzt worden sind, spülen Sie die Augen bitte sofort mit Wasser aus und konsultieren Sie einen Arzt.

Reiben Sie die Augen nicht! Dies könnte ernsthafte Verletzungen zur Folge haben.

VORSICHT

Unter den nachfolgend aufgeführten Umständen darf das Netzkabel nicht von der Netzsteckdose abgetrennt werden, da dies Beschädigungen des Projektors verursachen könnte:

• Während die Meldung “Bitte warten Sie einen Augenblick” erscheint. Diese Meldung erscheint nach dem Ausschalten des Projektors.

• Direkt nach dem Anschließen des Netzkabels an eine Netzsteckdose (die POWER-Anzeige leuchtet nicht ständig orange).

• Direkt nach dem Anhalten des Lüfters. (Nach dem Ausschalten des Projektors mit der POWER OFF-Taste läuft der Lüfter noch ca. 3 Minuten weiter, während die zweistellige Anzeige INDICATOR”—” blinkt).

WARNUNG:

• Schauen Sie nicht in die Linse, wenn der Projektor eingeschaltet ist. Dies könnte schwere Augenverletzungen zur Folge haben.

•Wenn die Haupteinheit beschädigt ist, kann Kühlflüssigkeit aus internen Komponenten austreten. Die Kühlflüssigkeit nicht berühren oder trinken. Wenn Kühlflüssigkeit geschluckt wird oder in Kontakt mit Ihren Augen kommt, konsultieren Sie bitte umgehend einen Arzt.

E-7

Table of Contents

1. Introduction ............................................ E-9

1 What's in the Box? ................................................................. E-10

2 Features .................................................................................. E-11

3 Getting to Know Your Projector ............................................ E-12

Control Panel ............................................................................ E-13

Control Terminals ...................................................................... E-14

Input Terminals ......................................................................... E-15

Option Boards ...........................................................................E-16

4 Remote Control Features ...................................................... E-17

Remote Control Precautions .................................................... E-19

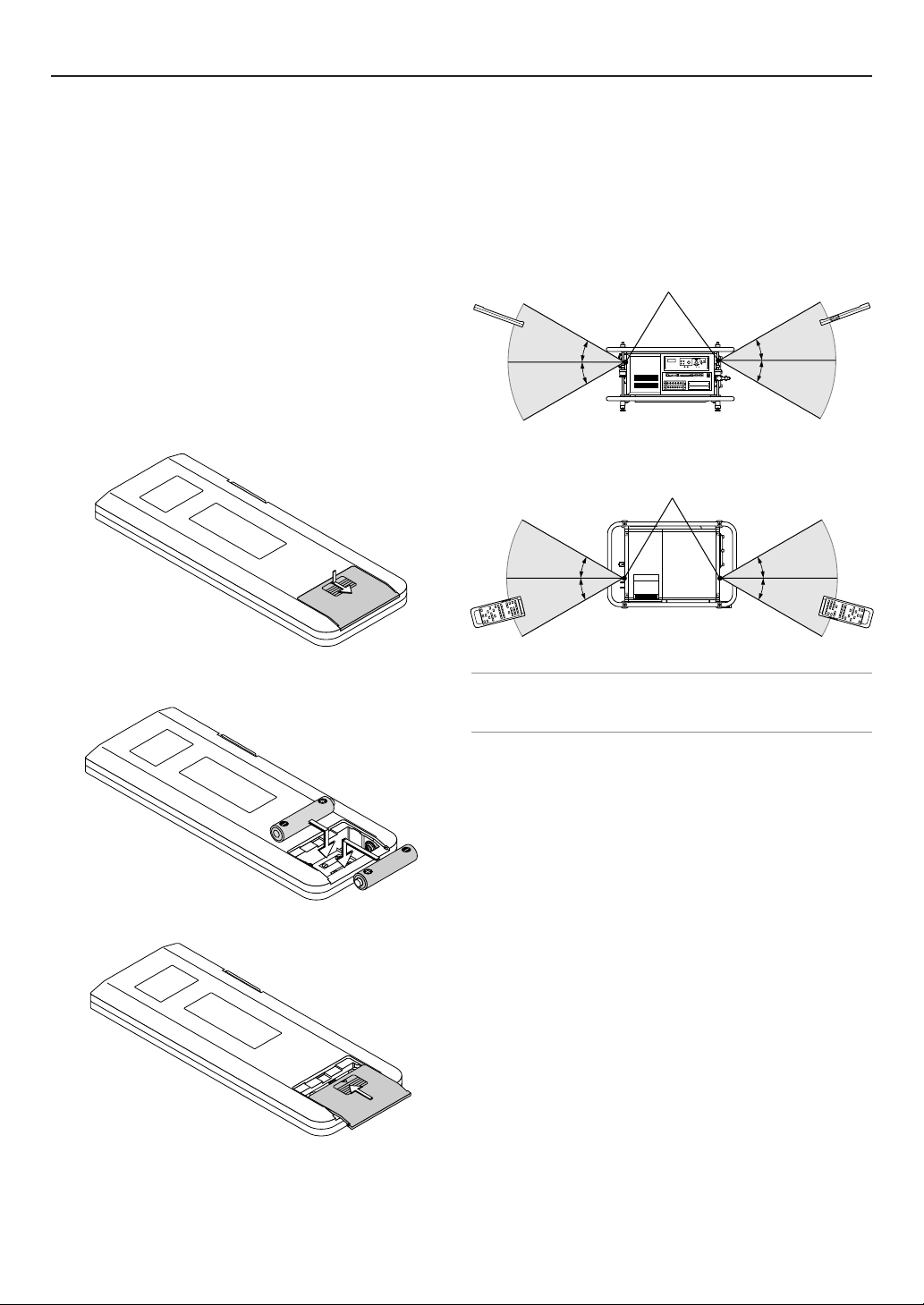

Remote Control Battery Installation .......................................... E-19

Operating Range for Wireless Remote Control ........................ E-19

Using the Remote Control in Wired Operation ......................... E-20

2. Installation ............................................ E-21

1 Setting Up Your Projector ...................................................... E-22

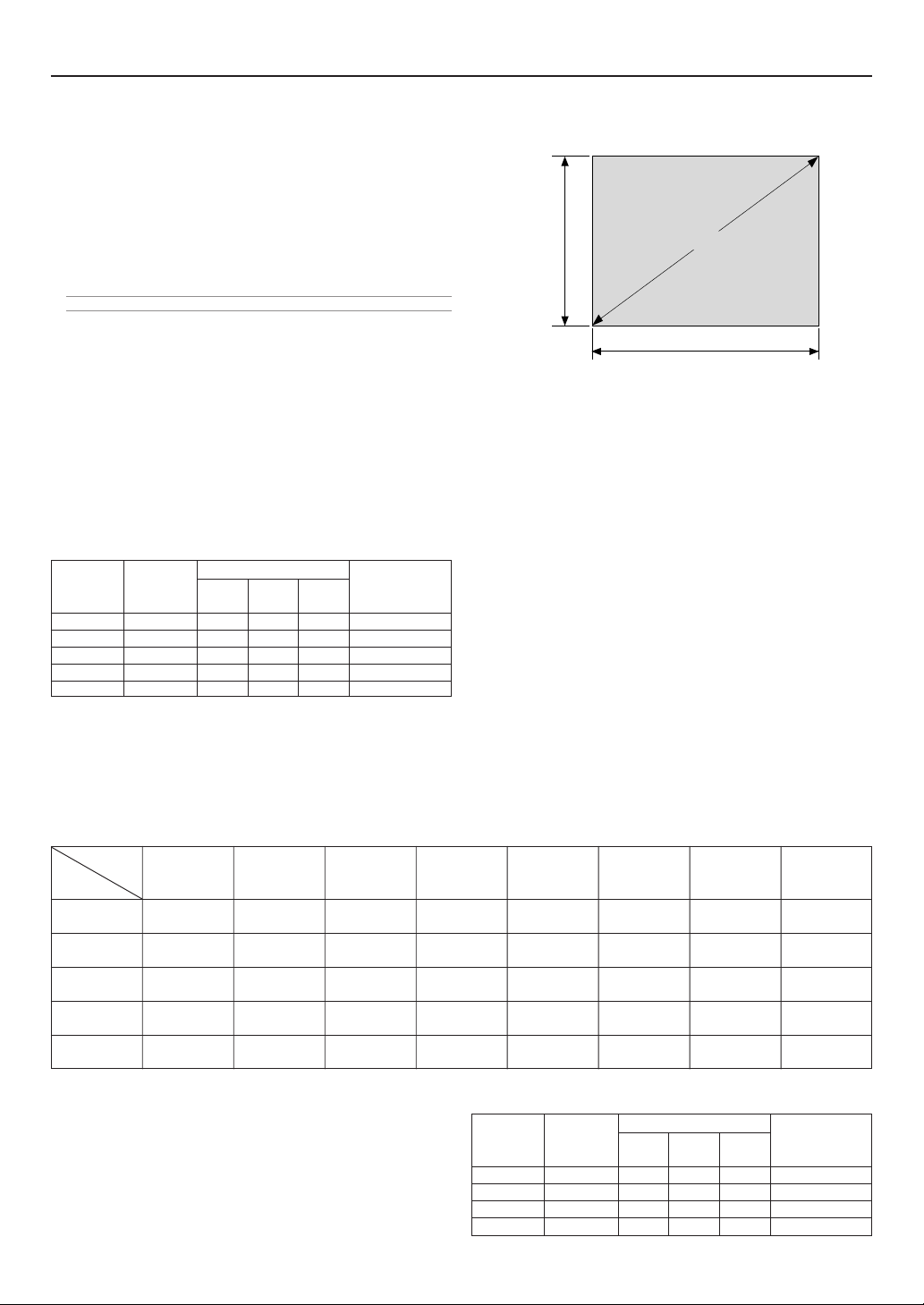

Screen Size and Projection Distance ....................................... E-22

Ta ble of Throw Distances and Image Sizes for Optional Lenses

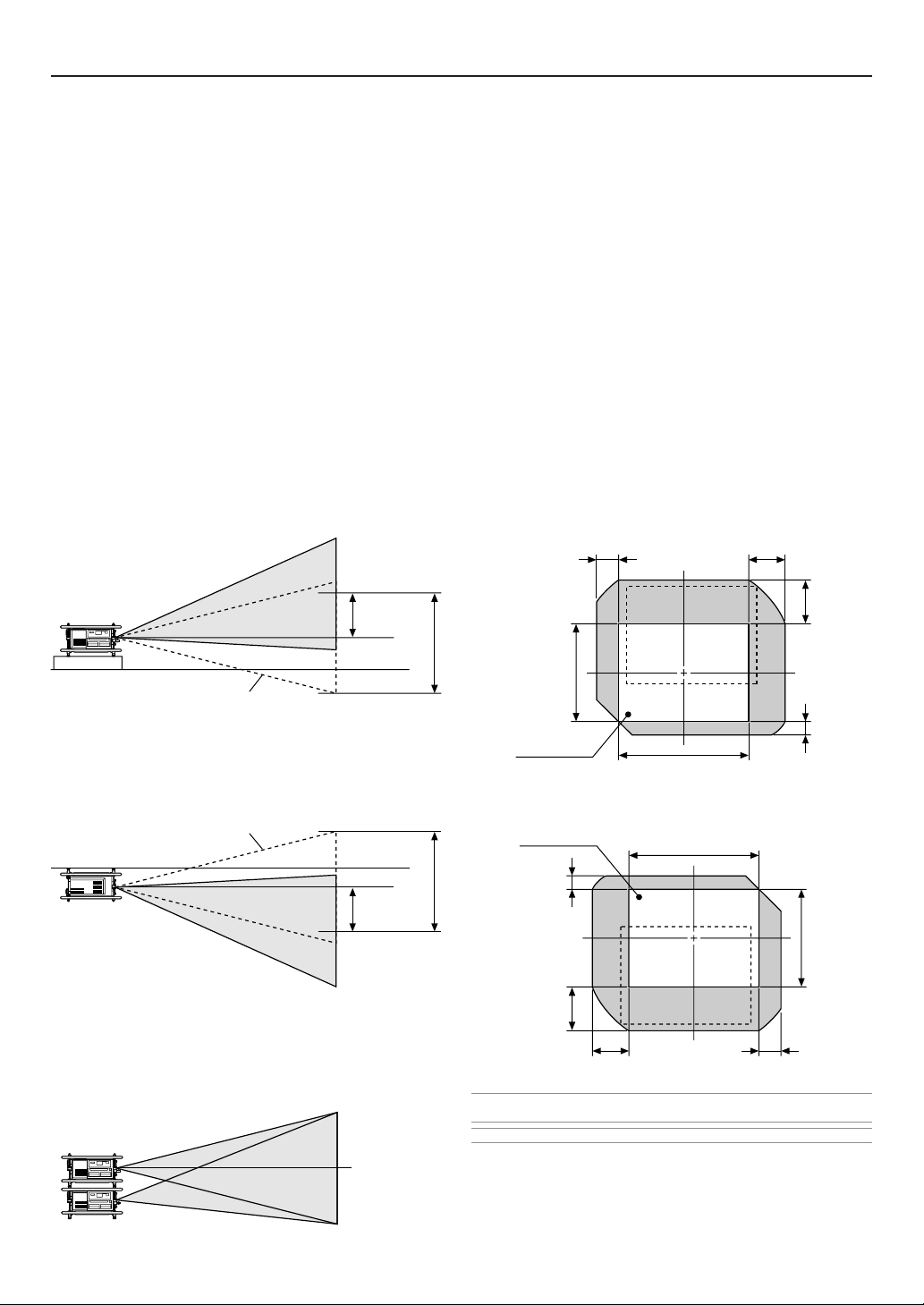

2 Lens Shift Adjus table Range ................................................ E-23

Maximum Possible Range for SL-14Z / SL-18Z / SL-25Z / SL-45Z

3 Making Connections .............................................................. E-24

Connecting to the Image Input Terminals ................................. E-24

Install the Option Boards and Expand the Image Input Terminals .......

Connecting to a Network .......................................................... E-26

Connecting the Power Cable .................................................... E-27

Inserting and Removing a PC Card .......................................... E-28

USB Memory Device or USB Memory Card Reader Support

....... E-22

.... E-23

E-25

....... E-28

3. Projecting an Image (Basic Operation) .. E-29

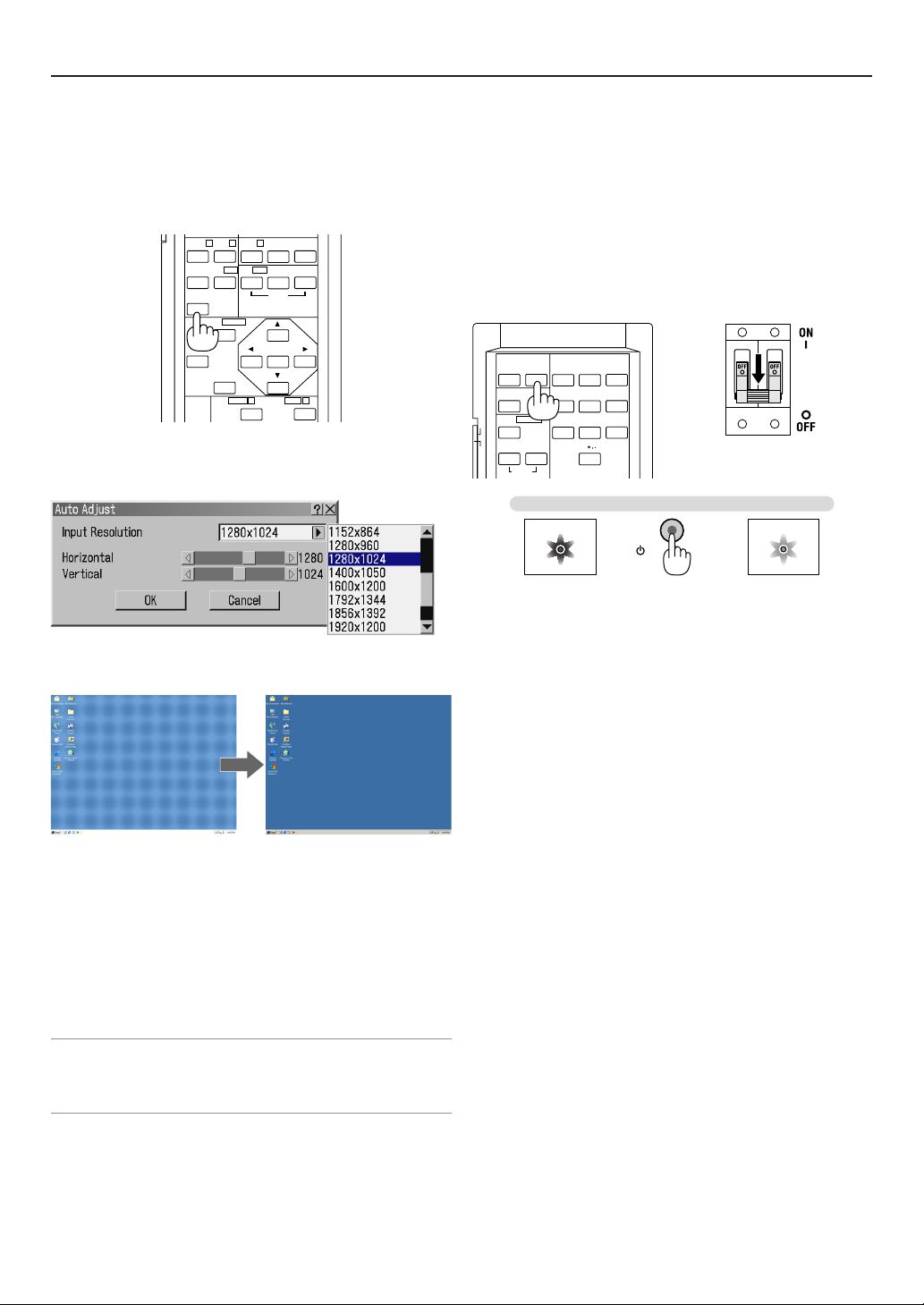

1 Turning on the Projector ........................................................ E-30

2 Selecting a Source ................................................................. E-31

3 Adjusting the Picture Size and Potition ............................... E-31

4 Optimizing RGB Picture Automatically ................................ E-33

5 Turning off the Projector........................................................ E-33

4. Convenient Features ............................. E-35

1 Turning Off the Image ............................................................ E-36

2 Getting the On-Line Help and Information ........................... E-36

3 Lens Memory .......................................................................... E-36

Ref. Adjust ................................................................................ E-55

3D Reform ......................................................................... E-55

Screen ............................................................................... E-56

Ref. Lens Memory ............................................................. E-56

Edge Blending ................................................................... E-57

Lamp Mode ....................................................................... E-58

Factory Default ......................................................................... E-58

Projector Options ...................................................................... E-58

Menu ................................................................................. E-58

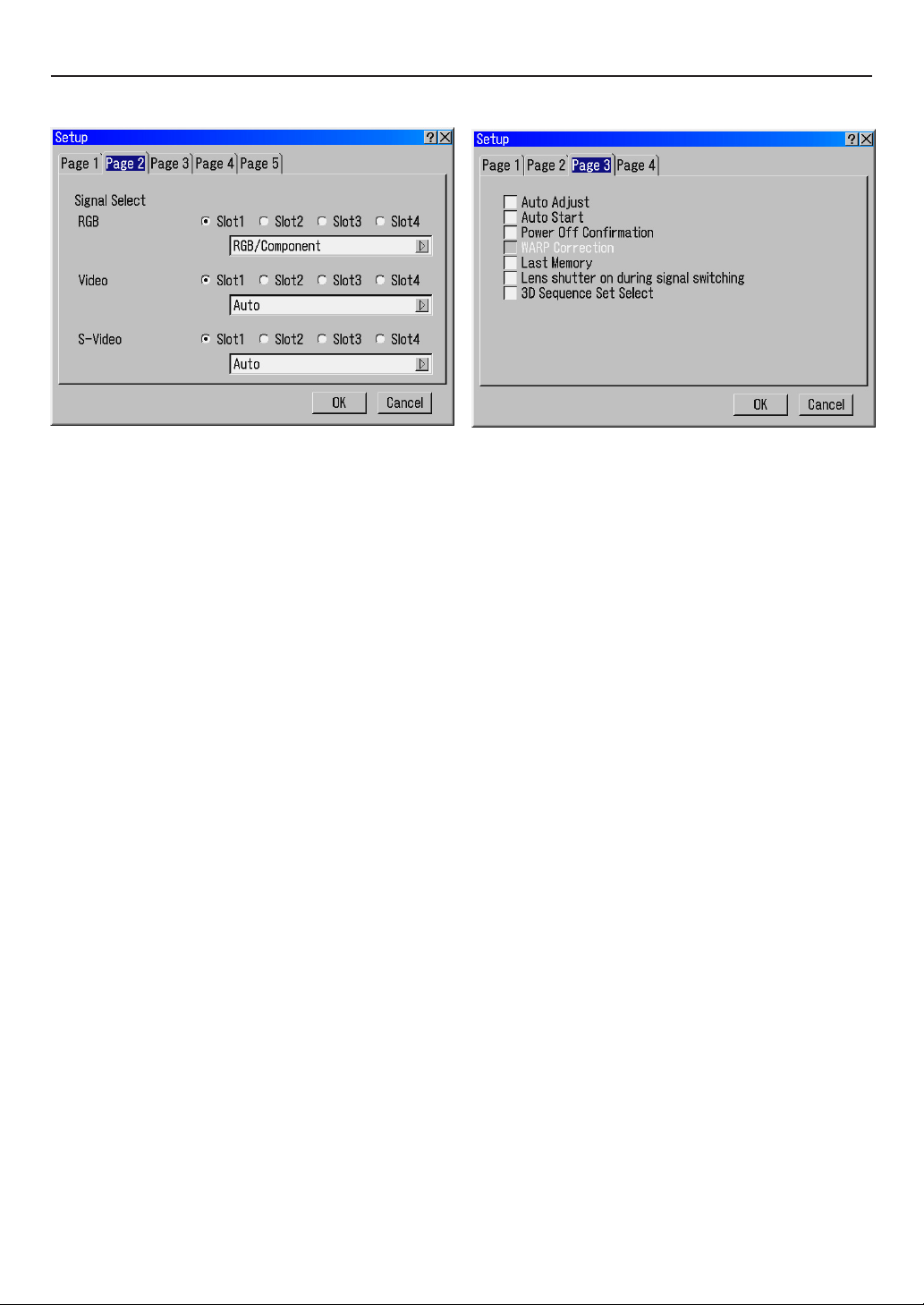

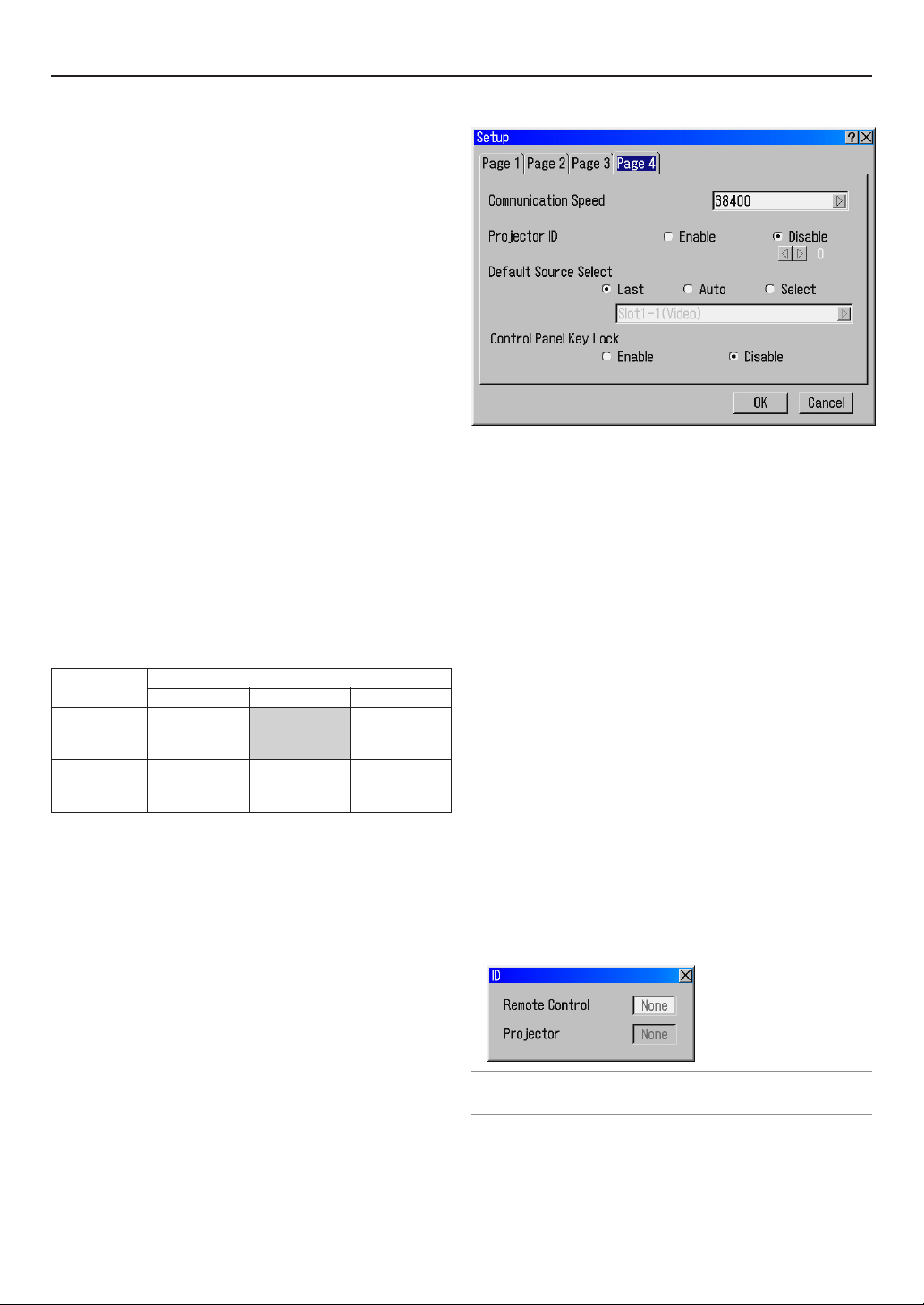

Setup ................................................................................. E-59

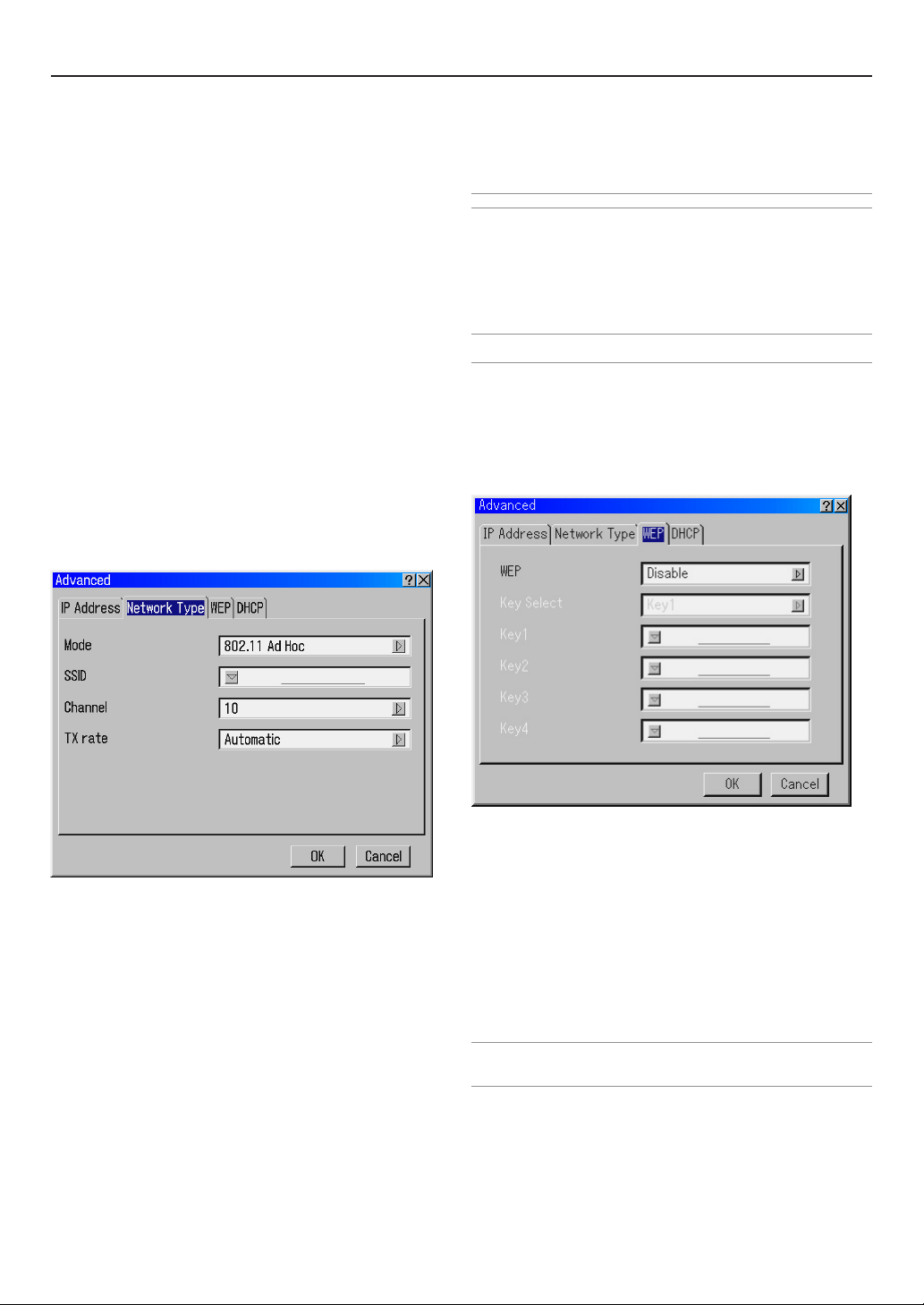

LAN Mode ......................................................................... E-62

Image Mode ...................................................................... E-65

Setting a Password ........................................................... E-65

Security ............................................................................. E-65

Tools ......................................................................................... E-67

Timer ................................................................................. E-67

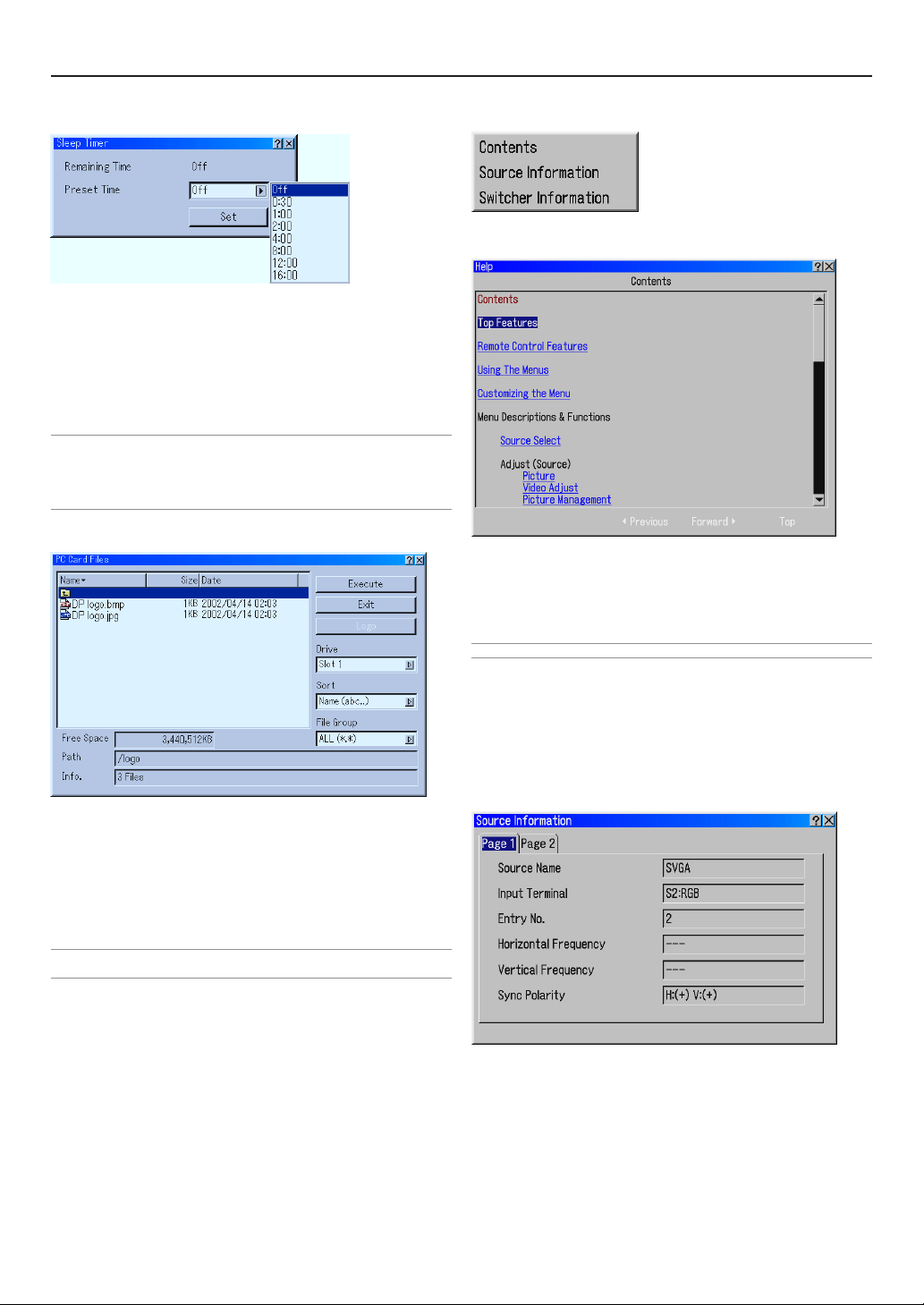

PC Card Files .................................................................... E-69

Help .......................................................................................... E-69

Contents ............................................................................ E-69

Source Information ............................................................ E-69

Projector Information ......................................................... E-70

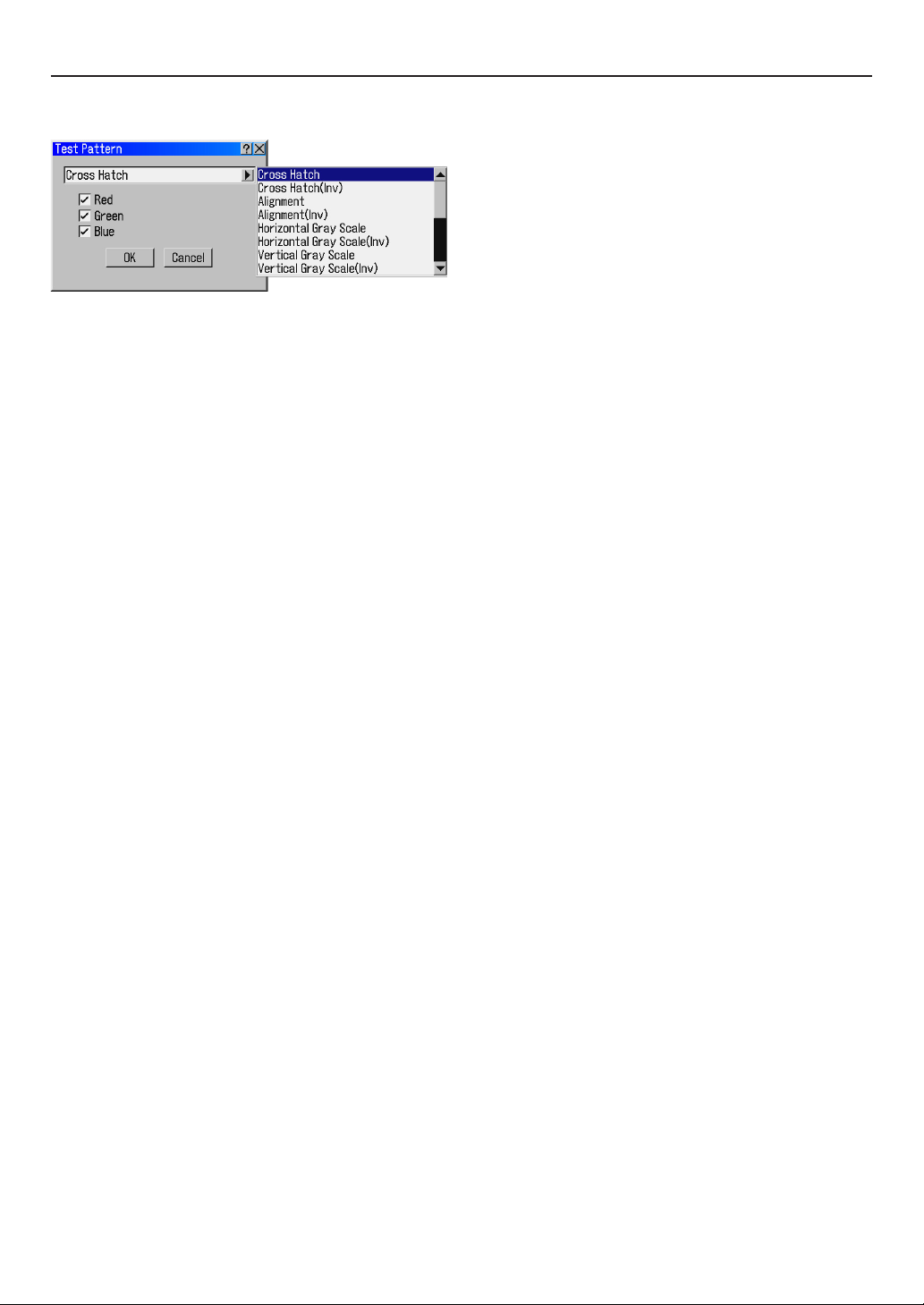

Test Pattern............................................................................... E-71

7. Maintenance ......................................... E-73

1 Cleaning the Cabinet and the Lens ...................................... E-74

8. Appendix ............................................... E-75

1 Troubleshooting ..................................................................... E-76

2 Specifications ......................................................................... E-78

3 Cabinet Dimensions ............................................................... E-80

4 Compatible Input Signal List ................................................. E-82

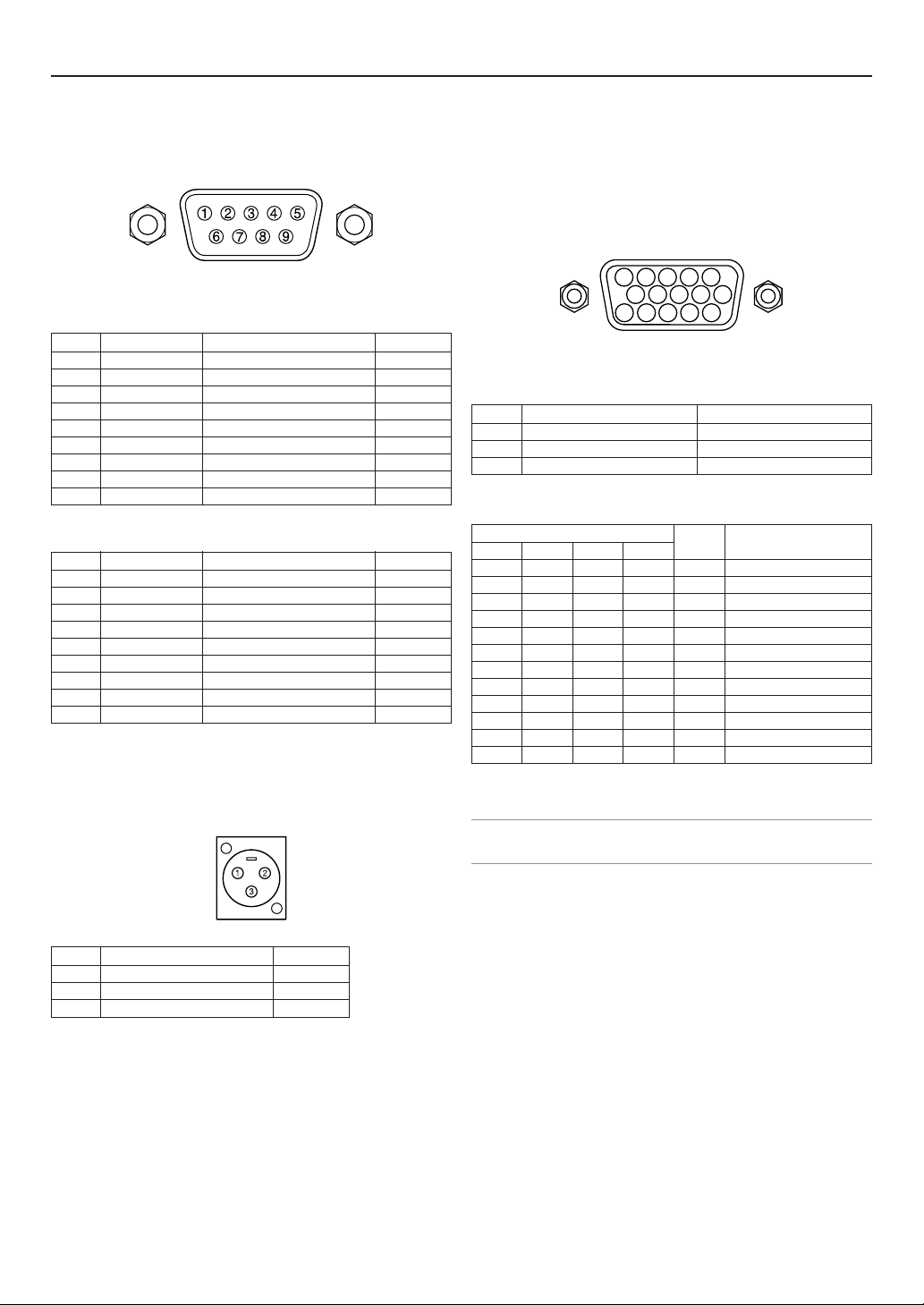

Pin Assignment of PC CONTROL IN Connector (D-Sub 9 Pin) .....

Pin Assignment of REMOTE IN 3 Connector (XLR connector) .....

Pin Assignment of EXT. I/O Connector (Mini D-Sub 15 Pin) ...

8 Using Software Keyboard ...................................................... E-84

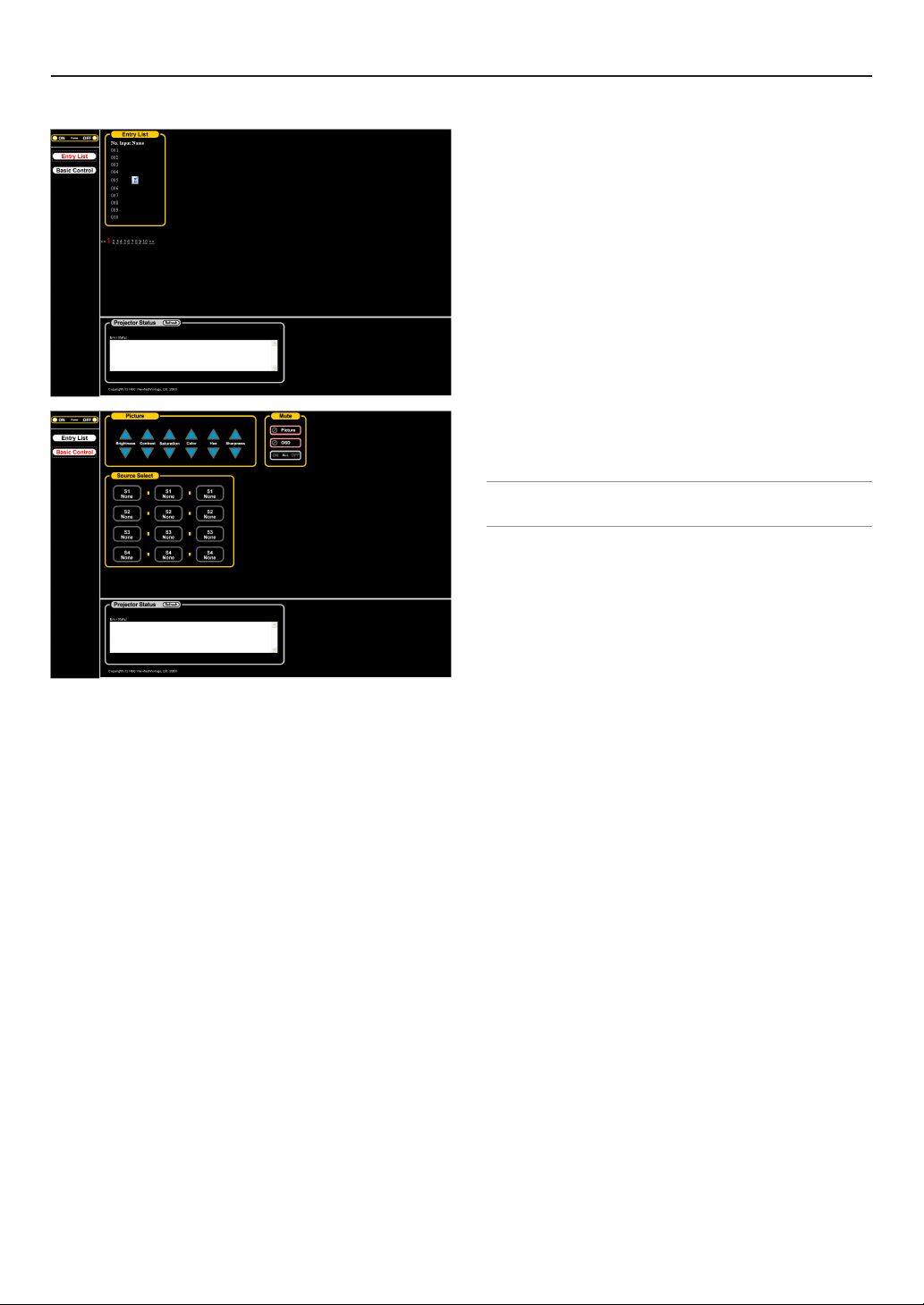

9 Operation Using an HTTP Browser ....................................... E-84

E-83 E-83 E-83

INDEX ....................................................... E-86

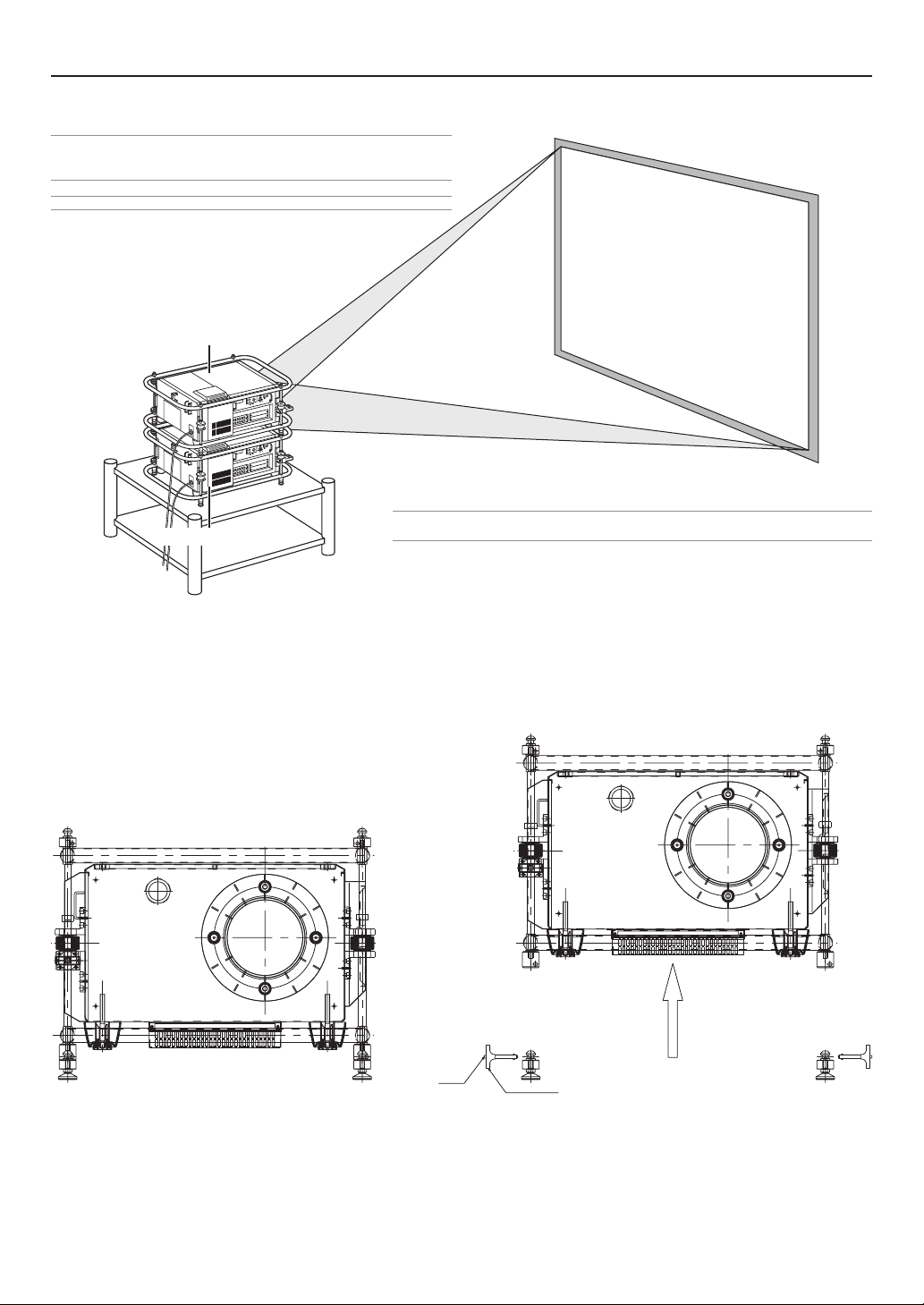

5. Setting Up for ouble Stacking ............... E-37

1 Stacking and Connecting the Projectors ............................. E-38

2 Adjusting and Registering Signals to Be Projected ............ E-41

3 Adjusting the Lens Shift, Zoom and Focus

to Clearly Display all projected patterns .............................. E-41

6. Using On-Screen Menu ......................... E-43

1 Basic Menu Operation ........................................................... E-44

2 List of Direct Button Combinations ...................................... E-45

3 Using the USB Mouse ............................................................ E-45

4 Menu Tree ................................................................................ E-46

5 Menu Descriptions & Functions ........................................... E-50

Source Select ........................................................................... E-50

Adjust (Source) ......................................................................... E-51

Picture ............................................................................... E-51

Video Adjust ...................................................................... E-51

Colour Management .......................................................... E-52

Gamma Correction ............................................................ E-52

Image Options ................................................................... E-53

Option Adjust ..................................................................... E-54

Lens Memory ..................................................................... E-54

Signal Type ........................................................................ E-55

E-8

Introduction

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 What's in the Box?................................................. E-10

2 Features .................................................................E-11

3 Getting to Know Your Projector ............................. E-12

Control Panel .................................................................................................... E-13

Control Terminals ............................................................................................. E-14

Input Terminals ................................................................................................. E-15

Option Boards .................................................................................................. E-16

4 Remote Control Features ...................................... E-17

Remote Control Precautions ............................................................................ E-19

Remote Control Battery Installation .................................................................. E-19

Operating Range for Wireless Remote Control ................................................ E-19

Using the Remote Control in Wired Operation ................................................. E-20

E-9

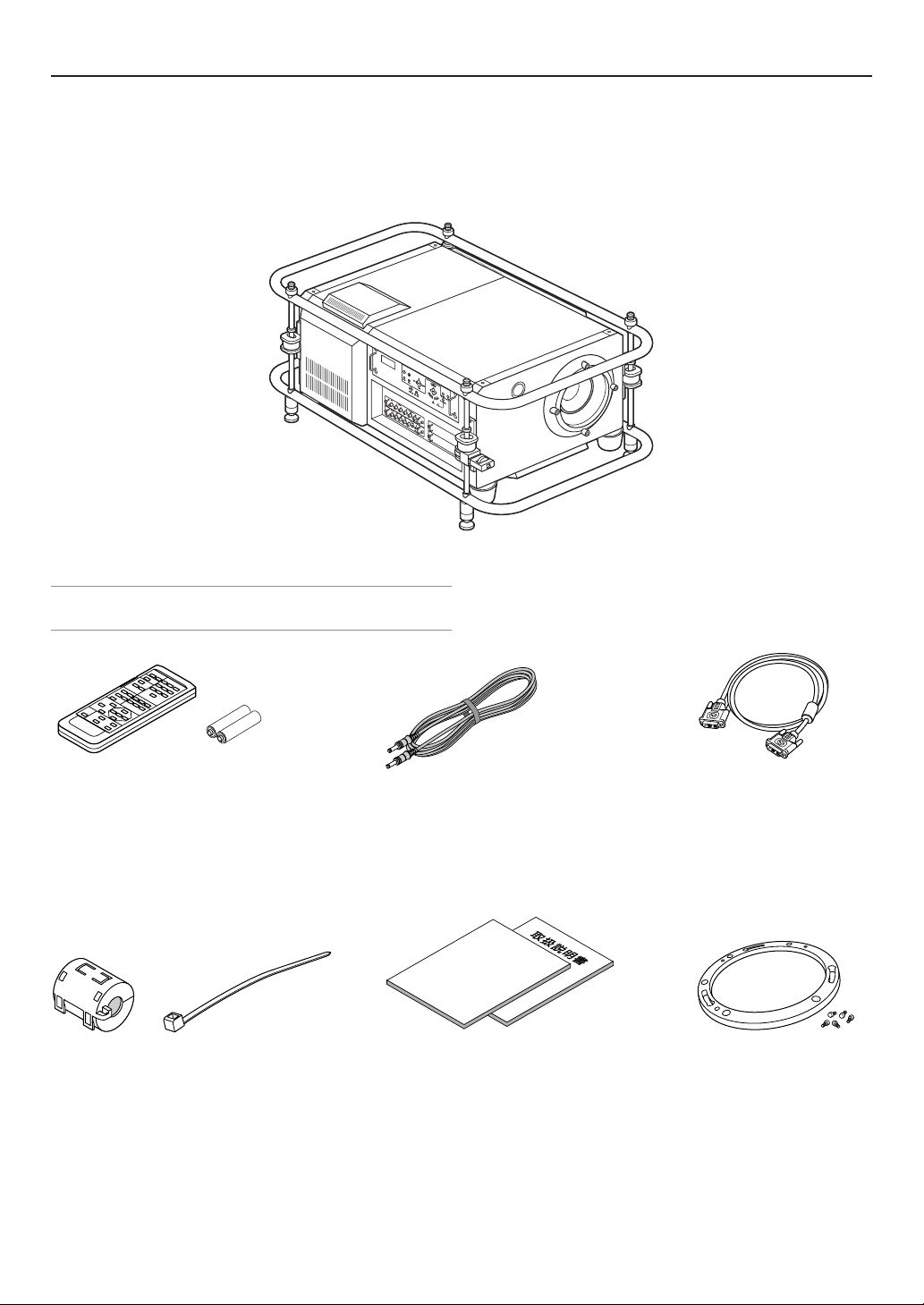

1 What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your Projector.

HIGHlite 12000Dsx+ Projector

(USA model 103-487, ROW model 103-488)

HIGHlite 8000Dsx+ Projector

(USA model 103-757, ROW model 103-758)

NOTE: The frame is not included on HIGHlite 8000Dsx+. Note: USA model is fitted with Hubbel type power cable ROW model is fitted with a CEE-Form cable.

1. Introduction

Remote control batteries (AA⳯2)

Ferrite clamp core with Band⳯6

(102-161)

and

Remote cable 102-162

User's Manual

User’s Manual CD (104-018) Important Information printed (104-019)

E-10

DVI-D signal cable (102-166)

TL Series Lens Spacer (including screws) (104-020)

1. Introduction

2 Features

• HDTV support, suited to 3D movement and telecine, with I/P conversion

I/P conversion processing using an interpolation circuit suited to 3D movement that supports HDTV and SDTV signal input as well as telecine signals permits reproduction of images having impressive definition.

• Full 10 bit image processing circuit

The image processing circuit features 10 bits for each color. As a result, there is complete 10 bit processing when the signal is input from the optional SDI interface slot which will provide image quality having a high tonal quality.

• Equipped with 4 slots which can accommodate 4 types of interface boards

This Projector is equipped with 4 slots which permit the insertion of the following 4 types of optional interface boards. Multiple interface boards of the same type can also be inserted.

Connectors of the Various Boards

MM-VIDEO* .... CVBS input connector (BNC), S-Video in-

put connector (BNC 2 conductors), Component video input connector (BNC 3 con-

ductors)

MM-RGB* ....... RGB input connector (BNC 5 conductors)

MM-DVI........... DVI-D input connector (DVI-D 24 pin)

MM-SDI........... SDI input connector (BNC)⳯2, monitor out-

put connector (BNC)

• DigiWarp - Geometric Warp Correction Function

In the case pictures are projected on particular shaped screens (cylindrical or spherical), geometric warp can be corrected by implementing MM-WARP (optional).

• Dust Control of DMD

Contamination of the DMD is prevented using a dust control system to stop the ingress of dust, oil and smoke particles in the air getting onto the DMD surface which can affect the quality of the projected image.

• Fluid Cooled DMD

The DMD temperature is controlled more efficiently by the use of fluid a cooling system.

• Tilt and PAN Function with Stacking frame

Projectors can be stacked vertically upto two high by built-in frame interface connectors. When projectors are stacked, image alignment can be adjusted for up/down tilt, left/right tilt and fine adjustment of PAN (left to right rotation).

NOTE: The frame is not included on HIGHlite 8000Dsx+.

* When shipped from the factory this Projector is loaded with

one MM-VIDEO board and one MM-RGB board.

• High contrast images with DigiView - SweetVisionTM function

This Projector is equipped with the DigiView - SweetVision function which utilizes the characteristics of the human eye to provide an image quality with a sense of contrast.

• LAN port is standard equipment and wireless LAN is supported

Connection of a commercially available LAN cable (Ethernet cable) to the LAN port (RJ-45) permits control of this Projector from the personal computer via the LAN.

• Seamless Switching Function

Mounting of the MM-IMGPRO and MM-SCALING options permits the switching of signals between two input interface boards. Alpha Blending, Wipe, and Box In/Out image effects can be selected at the time of switching.

• DigiBlend - Edge Blending Function

When two or more projectors are used to project images lined up horizontally or vertically, a blending adjustment can be performed to make the borders of the adjacent images less conspicuous. The gamma curve that is adjusted to the input source can be set between 1.0 and 3.0, and 256 gradations can be expressed.

E-11

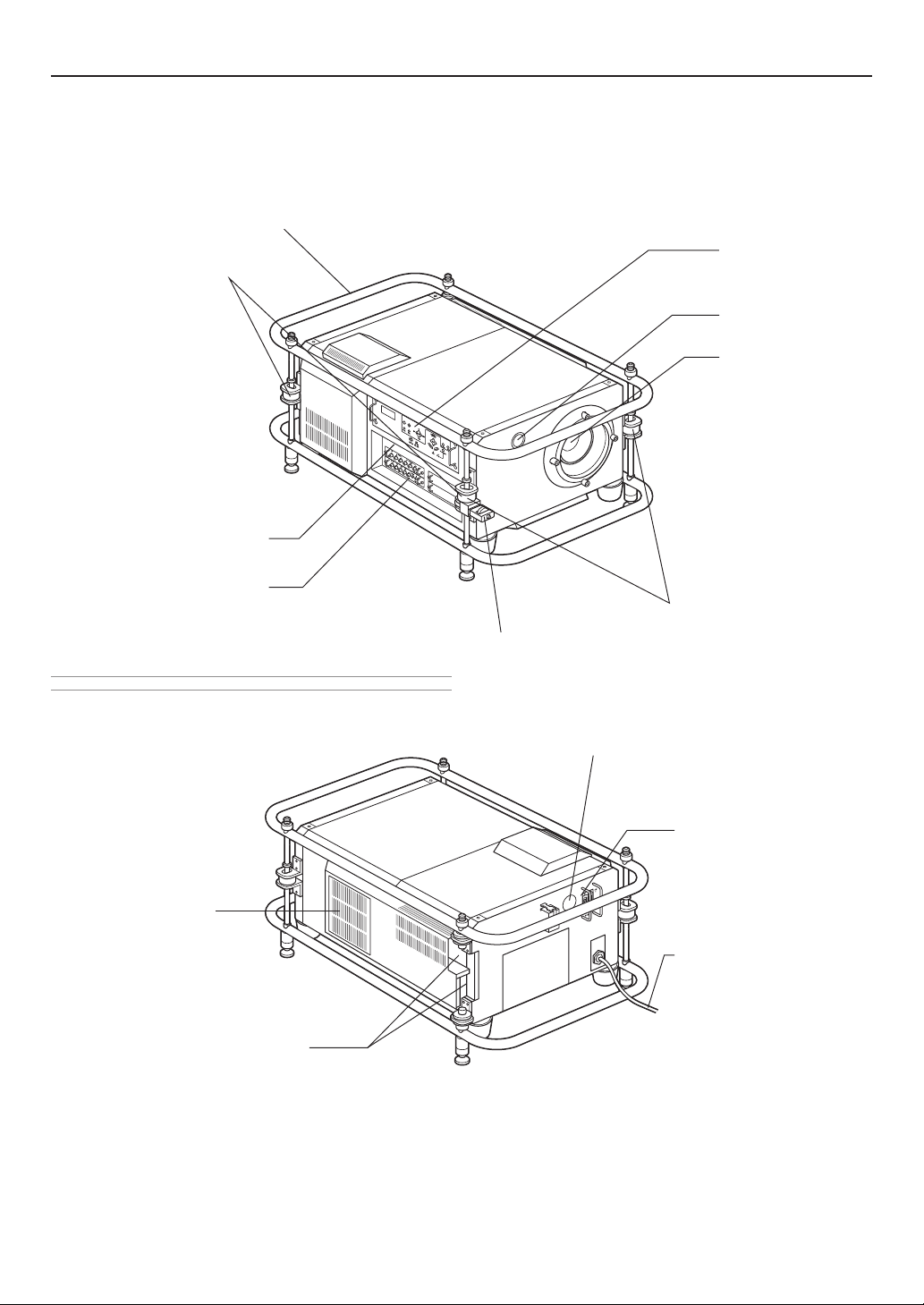

3 Getting to Know Your Projector

Frame

Tilt Adjustment Knob

Control terminals (See page E-14)

1. Introduction

Control panel (See page E-13)

Remote sensor

Lens (optional)

Input terminals (See page E-15)

NOTE: The frame is not included on HIGHlite 8000Dsx+.

Ventilation (inlet)

Ventilation (outlet)

Roll Adjustment Knob

PAN Adjustment Knob

Remote sensor

Main power switch (See page E-30)

Power cable

E-12

Control Panel

1. Introduction

123456

910

15 14 13 12 11

1. LCD Screen

The liquid crystal display screen shows the condition or the error message of the Projector.

2. FOCUS (+/-) Button

While pressing and holding CTL Button, pressing this button allows you to adjust the lens focus.

3. ZOOM (+/-) Button

While pressing and holding CTL Button, pressing this button allows you to zoom the lens in and out.

4. LENS SHIFT GHFE

While pressing and holding CTL Button, pressing this button allows you to adjust the lens offset by shifting the projected image position horizontally and / or vertically.

5. MENU Button

Displays the menu.

6. SELECT GHFE (+) (–)

GH : Use these buttons to select the menu of the item you

wish to adjust.

FE : Use these buttons to change the level of a selected menu

item. A press of the E button executes the selection.

7. ENTER Button

Executes your menu selection and activates items selected from the menu.

8. CANCEL Button

Press this button to exit "Menus". Press this button to return the adjustments to the last condition while you are in the adjustment or setting menu.

9. SHUTTER Button

While pressing and holding CTL Button, pressing this button shuts off the light completely.

10. CTL Button

Press the CTL Button together with the FOCUS (+/-) Button, ZOOM (+/-) Button, LENS SHIFT GHFE and SHUTTER Button.

The FOCUS (+/-), ZOOM (+/-), LENS SHIFT GHFE and SHUTTER Buttons do not function when pressed alone.

11. POWER Button (ON / STAND BY)( )

Use this button to turn the power on and off when the main power is supplied and the Projector is in standby mode.

NOTE: To turn on or off the Projector, press and hold this button for a minimum of 1 second.

12. POWER Indicator

When this indicator is green, the Projector is on; when this indicator is orange, it is in standby mode.

13. STATUS Indicator

This indicates the status of the Projector during standby. The indicator will be lit in green at time of normal operation. When there is a fault, the indicator will be a flashing or steadily lit red. Please check the display information of the LCD screen when there is a fault.

14. BACK LIGHT Switch

Use this switch to turn on the back light of the LCD screen.

15. LCD CONTRAST Adjustment Dial

Use this dial to adjust the contrast of the LCD screen.

E-13

Control Terminals

1. Introduction

9876521

1. USB Port (USB B)(Type B) Connect this port to the USB port (type A) of your PC using a USB cable. When USB cable is connected to this port, ferrite core, which attached to this equipment, is assembled to USB cable (near side of this equipment).

2. USB Port (USB A)(Type A) When working on “menu”, commercially available USB mouse is connected and used. See page E-45.

3. REMOTE IN 1 (Mini Jack) Wired remote control input.

4. REMOTE OUT (Mini Jack) For Daisy-chaining multiple projectors and operating them with the same remote control. To do so, connect to a second projector’s IN terminal to relay the input at the IN terminal of the first projector until all the projectors are connected. When Remote Control Cable is connected to this port, ferrite core, which attached to this equipment, is assembled to Remote Control Cable (near side of this equipment).

5. LAN Port (RJ-45) This port is typically used for UTP Ethernet/Fast Ethernet. Use this connector to control the Projector on a LAN. See page E-

26.

6. PC CARD Slot Insert a PC card, commercially available flash memory card or optional wireless LAN card here.

7. PC CONTROL IN (D-Sub 9 Pin) Connect to the external equipment such as a PC or control system. See page E-83 for information about the pin assignment of this connector.

8. PC CONTROL OUT (D-Sub 9 Pin) This connector is for future extension.

9. EXT. I/O (Mini D-Sub 15 Pin) It is used when controlling the Projector from the external device equipped with a parallel interface. See Page E-83 for information about the functions and logic table of the various pins.

10. REMOTE IN 2 (XLR connector) Using an extension cable such as an audio cable, permits remote control input. See page E-83 for information about the pin assignment of this connector.

E-14

Input Terminals

1. Introduction

1. SLOT 1 (MM-VIDEO) MM-VIDEO interface board is standard equipment.

(1) (4)(2) (3)

(1) CVBS Input Connector (BNC Type)

Use a 75 Ω coaxial cable and connect it to the Composite Video output connector of a DVD player, or to other equipment.

(2) S-VIDEO Input Connectors (2 BNC Type)

Use a 75 Ω coaxial cable (2-conductor type) and connect it to the S-Video output connector of a DVD player, or to other equipment.

(3) COMPONENT Input Connectors (3 BNC Type)

Use a 75 Ω coaxial cable (3-conductor type) and connect it to the Component output connector of a DVD player, or to other equipment. Standard definition only (525/60i, 625/50i).

2. SLOT 2 (MM-RGB) MM-RGB interface board is standard equipment.

(3)(2)(1)

(1) RGB Input Connectors (5 BNC Type)

Use a 75 Ω coaxial cable (5-conductor type) and connect it to the display output connector of a personal computer, the colour difference output connector of a Analog HDTV player, or to other equipment. When cable is connected to this port, ferrite core, which attached to this equipment, is assembled to the both sides of cable.

(2) Audio Input Jacks (RCA-Phono)

These Jacks have no function with the Switcher.

(3) ACT Indicator

Steady green light ..... Shows that this board is selected.

(4) ACT Indicator

Steady green light ..... Shows that this board is selected.

NOTE: MM-VIDEO interface board and MM-RGB interface board are also available as an option.

3. SLOT 3 Use to extend the input terminal. See page E-25.

4. SLOT 4 Use to extend the input terminal. See page E-25.

E-15

Option Boards

MM-DVI Interface Board (Option) The DVI digital signal input board is available as an option.

(1) (3)(2) (1) (4)(2) (3)

1. Introduction

MM-SDI Interface Board (Option) The SDI signal input board is available as an option.

(1) DVI-D Input Connector (DVI-D 24 Pin)

Use a DVI-D Signal cable and connect it to the DVI output connector of a computer. When cable is connected to this port, ferrite core, which attached to this equipment is assembled to the cable (the side ferrite core is not attached).

(2) AUDIO Input Connector (Stereo Mini Jack)

This jack has no function with the Projector.

(3) ACT Indicator

Steady green light ..... Shows that this board is selected.

When Viewing a DVI Digital Signal:

To project a DVI digital signal, be sure to connect the PC and the Projector using a DVI-D signal cable before turning on your PC or Projector. Turn on the Projector first and select DVI (DIGITAL) from the source menu before turning on your PC. Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC. Do not disconnect the DVI-D signal cable while the Projector is running. If the signal cable has been disconnected and then re-connected, an image may not be correctly displayed. Should this happen, restart your PC.

NOTE:

• Use the DVI-D signal cable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard. The DVI-D cable should be within 5 m (196") long.

• For details about the compatible input signals, see page E-82.

(1) STATUS Indicator

Steady green light ... Shows that a signal is present.

Steady red light ....... Shows that there is no signal or an error

occurs.

(2) SDI 1 and SDI 2 Input Connectors (BNC type)

Use a 75 Ω coaxial cable and connect it to a video server or video equipment.

(3) MONITOR OUT Connector (BNC type)

Outputs the signal from the SDI 1 or SDI 2 input you currently select. Connect this with a dedicated monitor and use it for checking the input signal. Use a 75 Ω coaxial cable.

(4) ACT Indicator

Steady green light ..... Shows that this board is selected.

NOTE:

• Use the 75

• For details about the compatible input signals, see page E-82.

Ω

Using a thinner cable than the above can degrade image quality or cause no image.

coaxial (5C-2V) cable or equivalent. Higher quality recommended.

E-16

1. Introduction

4 Remote Control Features

2 1

POWER INPUT

TEST

OFF

ABC1DEF2GHI

JKL4MNO5PQR

PROJECTOR

5 6

7 8

IMAGE/


OFF

ADJUST

KEY ST./

WHITE BAL.

AMP

STU7VWX

E-LIST/

HELP

LENS

14 15

POSI/

PIXEL SOUND

AUTO

MENU/

PICT/

ADDRESS

SHUT

MUTE

FOCUS

ENTER

MAGNIFY/

UNDO

CANCEL

CTL

ZOOM

INFO

OSD

1. POWER ON Press and hold this button for a minimum of 1 second to turn on the Projector when the main power is supplied and the Projector is in standby mode.

2. POWER OFF Press and hold this button for a minimum of 1 second to turn off the Projector.

3. Source / Input

YZ/

11 12

18 17 16

Press to select input or to name a signal.

1 Selects the input connector of Slot 1 (MM-VIDEO at time of factory

shipping). Each press of “1” button switches the input connector one step in the sequence of CVBS → S-Video → Component → CVBS → ...

2 Selects the input connector of Slot 2 (MM-RGB at time of factory

shipping).

3 Selects the input connector of Slot 3. Becomes valid when an op-

tion board has been inserted.

4 Selects the input connector of Slot 4. Becomes valid when an op-

tion board has been inserted.

* The aforementioned operation is for the Projector in the factory

shipping condition. The operation will differ depending on the insertion of interface boards.

* When multiple input connectors are available for a single slot, press-

ing the number buttons that correspond to that slot will switch the input connectors within that board.

NOTE: While pressing and holding CTL, pressing this button switches to the selected signal found in the Entry List.

4. TEST Press to display the test pattern. Pressing this button sequentially selects test patterns.

5. Backlight Switch When using the remote control wirelessly: Tums the backlight on and off. If no button operation is made within 30 seconds with the Backlight ON, the Backlight will turn off to conserve battery life. When using as the wired remote control: The light stays on in standby and power-on.

6. IMAGE/PROJECTOR Press to display the Image Option screen. Pressing this but-

PICT/

LENS

E-LIST/

POSI/

YZ/

PQR

GHI

DEF

INPUT

VWX

STU

MNO

ABC

JKL

POWER

AMP


ADJUST

KEY ST./

OFF

IMAGE/

ton sequentially selects Image Options screens. While pressing and holding CTL, pressing this button rotates Projector Options screens.

7. ADJUST PICTURE Press to display the Picture adjustment screen. Pressing this button sequentially selects adjustment screens.

8. ADJUST WHITE BAL. Press to display the Color Management screen.

9. KEYSTONE

• 3D Reform adjustment screen is shown. See page E-xx

• When optional MM-WARP is used, KEYSTONE screen and

Cornerstone screen will be switched one another each time KEYSTONE button is pressed.

• When KEYSTONE button is pressed for more than 2 sec-

onds, 3D Reform’s adjustment value will be bach to factory default setting.

10. AMPLITUDE Service personnel only.

E-17

1. Introduction

11. ENTRY LIST Press to display the Entry List screen. Pressing and holding CTL and then ENTRY LIST buttons simultaneously, enters a signal in the Entry List.

12. HELP Provides online help.

13. INFO Displays the "Source Information" or "Projector Information" window. This button toggles between these two windows.

14. PIXEL Displays the Position/Clock screen to adjust the clock and phase.

15. POSITION Press to display the Position screen; press again to display the Blanking screen.

16. MUTE PICTURE Press to turn off the picture for a short period of time. Press again to restore the picture.

17. MUTE SOUND This button has no function with the Projector.

18. MUTE OSD Press to turn off the on-screen display. Press again to restore the on-screen display.

NOTE: You can also turn off the on-screen display forcibly by pressing and holding CTL and then pressing MUTE OSD (Forced On-Screen Mute Mode) ; doing this again restores it. In this case any adjustment will still change the Projector's memory settings. This mode is available even when input is switched to another or the power is turned off the main power.

19. AUTO (RGB only) Press to adjust Position-H/V and Pixel Clock for an optimal picture.

20. MENU Press to display the main menu. While pressing and holding CTL, press this button to display the Remote Control ID dialog box to specify the remote control ID. See page E-61.

21. Select (Up/Down/Left/Right) GH: Use these buttons to select the menu of the item you

wish to adjust.

22. ENTER Executes the menu selection and activates items selected from the menu. When the slider or dialog box is displayed: Pressing this button confirms adjustments/setting and returns to the previous menu display. In seamless switching functions in which an option board has been mounted, press the ENTER button after the input signal switching preparation has been completed to finalize the switching. See Page E-65 for information about the seamless switching function.

23. CANCEL Press to exit the menu. Press this button with CTL to return to the previous menu without closing adjustment/setting screen while the menus appear. This feature allows you to adjust or set several items concurrently.

24. UNDO Press to return the adjustments and settings to the previous condition. While pressing and holding CTL, pressing this button clears the entire menus or adjustment/setting screen. At this time the adjustments/settings are stored in memory except the items on the setting screen with "OK" and "Cancel" buttons such as the Menu and the Setup screen.

25. FOCUS (+/–) While pressing and holding CTL, pressing this button allows you to adjust the lens focus.

26. MAGNIFY/ZOOM (+/–) While pressing and holding CTL, pressing this button allows you to zoom the lens in and out.

27. CTL Used in conjunction with other buttons, similar to a shift key on a computer.

28. Infrared Transmitter Direct the remote control toward the remote sensor on the Projector cabinet.

29. Remote Jack Connect your remote cable here for wired operation.

FE: Use these buttons to change the level of a selected menu

item. A press of the E button executes the selection.

Pressing and holding CTL, then pressing F button works as a Back Space key in the entry screen. Pressing and holding CTL, then pressing this button moves the menu or dialog box.

E-18

1. Introduction

Remote Control Precautions

• The remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor of the main unit, or when there is an obstacle in the path.

• When remote control buttons are pressed and held, Projector’s function keys may not operate.

• Do not subject to strong shock.

• Do not allow water or other liquid to splash on the remote control. If the remote control gets wet, wipe it dry immediately.

•Avoid exposure to heat and steam.

• Remove the batteries from the remote control when the remote control is not going to be used for a long period.

Remote Control Battery Installation

Installing the Remote Control Batteries When it comes time to replace the batteries, two "AA" type will be required.

1. Press and open the cover.

Operating Range for Wireless Remote Control

The infrared signal operates by line-of-sight up to a distance of approximately 7m (20 feet) and a 60 degree angle of the remote sensor. The Projector will not function if there are objects between the remote sensor and the remote control or if strong light falls on the remote sensor. Weak batteries will also prevent the Projector from operating properly.

Remote sensor on the

Remote control

Projector cabinet

Remote sensor on the Projector cabinet

Remote contorol

2. Align and insert the batteries according to the (+) and (-) indications inside the case.

3. Replace the cover.

Remote control

NOTE: You cannot operate the Projector using the remote control if:

• The remote control ID is not set to “None”.

• The remote control ID is not the same as the Projector ID. See page E-61 for setting remote control ID and Projector ID.

Remote control

E-19

Using the Remote Control in Wired Operation

Connect one end of the supplied remote cable to the REMOTE IN 1 mini jack and the other end to the remote jack on the remote control.

NOTE: Do not use this jack for anything other than intended use.

REMOTE

IN 1

Remote cable (supplied)

1. Introduction

E-20

Installation

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 Setting Up Your Projector ...................................... E-21

Screen Size and Projection Distance ............................................................... E-22

Ta ble of Throw Distances and Image Sizes for Optional Lenses ..................... E-22

2 Lens Shift Adjustable Range ................................. E-23

Maximum Possible Range for SL-14Z / SL-18Z / SL-25Z / SL-45Z ................. E-23

3 Making Connections .............................................. E-24

Connecting to the Image Input Terminals ......................................................... E-24

Install the Option Boards and Expand the Image Input Terminals ................... E-25

Connecting to a Network .................................................................................. E-26

Connecting the Power Cable............................................................................ E-27

Inserting and Removing a PC Card .................................................................. E-28

USB Memory Device or USB Memory Card Reader Support

E-21

.. E-28

2. Installation

This section describes how to set up your projector and how to connect video and audio sources.

Screen Size and Projection Distance

Applicable lens and throw distance/ List of screen sizes

1 Setting Up Your Projector

Your Projector is simple to set up and use. But before you get started, you must first:

1. Determine the image size

2. Set up a screen or select a non-glossy white wall onto which you can project your image.

3. Install the optional lens to the projector.

NOTE: The lens must be installed by service personnel only.

4. Connect a PC, VCR, DVD player, or other equipment.

5. Connect the supplied power cable.

6. Set up the projector.

7. Make settings or adjustments on the projector.

Separately sold Lenses and their projection distance (reference)

Lens Unit which can be used on this equipment as standard condition.

Model Product

Number Code

Magnifications

WIDE TELE

Fixing

SL-14Z 103-490 1.45 1.8 – Zoom Lens SL-18Z 103-491 1.8 2.5 – Zoom Lens SL-25Z 103-492 2.5 4.5 – Zoom Lens SL-45Z 103-493 4.5 7.3 – Zoom Lens SL-07F 103-489 – – 0.73

Calculation Method for Projection Distance & Screen Size Projection Distance is calculated by the following method.

Projection Distance (m) = Screen Width H (m) ⳯ Lens Magnification

Formulas: Screen Width H (5:4) (m) = Screen Height V x 5/4 x 0.0254

When SL-14Z Lens (Magnification ratio 1.45-1.8 : 1) is used to project on the 300” screen which diagonal length aspect ratio is

Remarks

4:3, the projection distance will be the following.

Because SL-14Z Lens (Magnification ratio 1.45-1.8 : 1) is zoom lens, there are WIDE and TELE.

Fixed Focus Lens

Therefore, 300” screen can be projected around the projection distance of 8.84m-10.97m with SL-14Z Lens.

Height

(V)

Screen size (Diagonal)

Width (H)

Screen Height V (5:4) (m) = Screen Width H x 4/5 x 0.0254 Screen Diagonal (5:4) (m) = Screen Height V x 6.4/4 x 0.0254 Screen Width H (5:4) (inch) = Screen Height V x 5/4 Screen Height V (5:4) (inch) = Screen Width H x 4/5 Screen Diagonal (5:4) (inch) = Screen Height V x 6.4/4

H (the screen width (m)) = Screen Size (model)

⳯

4/5 ⳯ 0.0254 = 6.096m

Projection Distance of WIDE = 6.096 ⳯ 1.45 = 8.839m Projection Distance of TELE = 6.096 ⳯ 1.8 = 10.967m

When zoom lens is used, the magnification differs according to the zoom condition.

Projection Distance for Screen Size and Each Lens Unit : m (inch)

Screen

Size

80” 100” 150” 200” 250” 300” 400” 500”

Lens

SL-14Z

SL-18Z

SL-25Z

SL-45Z

SL-07F

2.36~2.93 2.95~3.66 4.42~5.49 5.89~7.32 7.37~9.14 8.84~10.97 11.79~14.63 14.73~18.29 (92.9~115.4) (116.1~144.1) (174.0~216.1) (231.9~288.2) (290.2~359.8) (348.0~431.9) (464.2~576.0) (579.9~720.1)

2.93~4.06 3.66~5.08 5.49~7.62 7.32~10.16 9.14~12.70 10.97~15.24 14.63~20.32 18.29~25.40

(115.4~159.8) (144.1~200.0) (216.1~300.0) (288.2~400.0) (359.8~500.0) (431.9~600.0) (576.0~800.0) (720.1~1000.0)

4.06~7.32 5.08~9.14 7.62~13.72 10.16~18.29 12.70~22.86 15.24~27.43 20.32~36.58 25.40~45.72

(159.8~288.2) (200.0~359.8) (300.0~540.2) (400.0~720.1) (500.0~900.0) (600.0~1079.9) (800.0~1440.2) (1000.0~1800.0)

7.32~11.87 9.14~14.83 13.72~22.25 18.29~29.67 22.86~37.08 27.43~44.50 36.58~59.33 45.72~74.17 (288.1~467.3) (359.8~583.9) (540.2~876.0) (720.1~1168.1) (900.0~1459.8) (1079.9~1752.0) (1440.2~2335.8) (1800.0~2920.1)

1.19 1.48 2.23 2.97 3.71 4.45 5.93 7.42

(46.9) (58.3) (87.8) (116.9) (146.1) (175.2) (233.5) (292.1)

CAUTION: Distance tolerance ±5%.

In addition the following Lenses can be used (However, the TL Lens spacer included is required to attach these lenses is necessary. Please contact your dealer about how to mount the spacer.). Please refer to magnification ratio on the following chart to calculate the projection distance.

CAUTION: Distance tolerance ±5% .

Model Product

Number Code

Magnifications

WIDE TELE

Fixing

TL-1ZH LA00263 1.36 2.27 – Zoom Lens

TL-2Z LA00108 2.27 4.09 – Zoom Lens TL-4Z LA00109 4.09 6.36 – Zoom Lens

TL-08SF LA00111 – – 0.764

E-22

Remarks

Fixed Focus Lens

2. Installation

2 Lens Shift Adjustable Range

Lens Shift Adjustable Range for Desktop and Ceiling Mount Application The diagram below shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point.

Maximum Possible Range for SL-14Z / SL-18Z / SL-25Z / SL-45Z

Parenthesized values for the ceiling mount application

Up: 0.45 V (0.14 V) Right: 0.28 H (0.17 H) Down: 0.14 V (0.45 V) Left: 0.17 H (0.28 H)

(H: width of projected image, V: height of projected image)

For SL-07F

No shift available.

Maximum Possible Range for TL-1ZH / TL-2Z / TL-4Z / TL-08SF

Parenthesized values for the ceiling mount application For TL-08SF

No shift available.

For TL-1ZH,TL-2Z, 4Z

Up: 0.37 V (0.14 V) Right: 0.23 H (0.17 H) Down: 0.14 V (0.37 V) Left: 0.17 H (0.23 H)

(H: width of projected image, V: height of projected image)

Desktop / Front Vertical

Ceiling / Front Vertical

Example for Stack

Normal position

Max. 0.45V

0.17H

0.28H

(V)

Normal Projection position

(H)

Normal Projection position

0.1V

(H)

0.45V

0.28H

Note: Shift limit diagrams above show maximum limits of lens mount not the specific cababilities of lenses.

Note: For TL lenses there is a reduced shift. See ranges above.

0.17H

0.45V

0.1V

(V)

Screen center

E-23

2. Installation

3 Making Connections

Connecting to the Image Input Terminals

This Projector has two interface boards, MM-VIDEO and MM-RGB as standard equipment. See page E-11. Connect required video signals. Four interface boards can be inserted in the Projector at the same time. See Page E-25.

COMPONENT

HIGHlite 12000Dsx+

RCA(female)-to-BNC(male) adapter (not supplied)

Ferrite clamp core (supplied)

Component video RCA⳯3 cable (not supplied)

BNC⳯5 cable (not supplied)

PC DVD player

Information for Reducing Radiation of Electromagnetic Waves

To reduce unnecessary radiation of electromagnetic waves, use the supplied ferrite clamp core.

• When cable is for RGB signal, ferrite core is assembled to the both side of the cable.

• When cable is for DVI-D signal, ferrite core is assembled to the side where ferrite core is not attached.

• When cable is for USB or Remote Control, ferrite core is assembled to the near side of this equipment.

Installation Instructions

1. Opne the attach the ferrite clamp core to the cable as close as possible to end that goes to the Projector. * Push the catch to open the ferrite clamp core. * Loop the cable once around the ferrite clamp core.

NOTE: When cable is thick, ferrite core is assembled without making a ring.

AUDIO OUT

L R

2. Close the ferrite clamp core tightly.

3. Fix the supplied band to the Ethernet cable as a stopper. * Pull the end of the band to tighten it. Cut off the surplus of the band.

Component

YCbCr

E-24

band

2. Installation

Installing Additional Option Boards

Four types of option boards are available for the Projector. Please purchase as required.

Warning

Ensure main power is disconnected or by turning off the main power switch before installing or removing the board from the Projector. Failing to do so could result in electrical shock.

1. Turn off the main power switch of the Projector.

2. Use a flat-bladed screwdriver to loosen the 2 screws of the slot panel located at the input terminals portion of the Projector, then remove the screws and panel.

4. Tighten the 2 screws located at right and left of the board and fasten securely.

NOTE: The following 4 types of option boards can be inserted in the Projector. Multiple option boards of the same model can also be inserted.

* MM-VIDEO(See page E-15) * MM-RGB(See page E-15) * MM-DVI(See page E-16)

* MM-SDI(See page E-16)

NOTE:

• Keep the removed screws and panel in a safe place.

• Please do not use the Projector while the panel is disengaged. Foreign matter could enter the interior and cause breakdown.

3. Insert the board into the slot.

The example shown in the drawing is the MM-SDI board.

NOTE: When inserting the board into the slot, insert it so that it moves along the rails located at the right and left of the slot. If the board is not positioned between the rails the connector will not be engaged and the board will not be operational.

rail

E-25

2. Installation

Connecting to a Network

With the LAN connection, you can control the Projector over the network using a computer to turn the Projector on/off, select the input and others.

Example of LAN connection

Server

Hub

Ethernet cable (not supplied)

LAN

HIGHlite 12000Dsx+

Using the HTTP Server function

1. Configure your LAN settings such as IP address on the Projector. (See “LAN Mode” on page E-62)

2. Start the Web browser on the computer connected to the network and execute HTTP server functions. (See “Operation Using an HTTP Browser” on page E-84)

E-26

2. Installation

Connnecting the Power Cable

After making certain that the main power switch of your projector is OFF, connect the power cable to a 200 to 240 VAC three-prong outlet (grounded). Tw o versions of the projector are available: USA models are supplied with a Hubbel type connector, for Rest of World a CEE-Form connector is supplied.

CAUTION

• Please contact your dealer / distributor to perform the wiring for connection of the power cable to your projector.

• Be sure to ground the equipment to ensure safety.

200-240 VAC three-prong outlet

To avoid electric shocks, request a professional to carry out the grounding. Be sure to perform earth connection before inserting the power plug into the wall outlet.

NOTE:

• When disconnecting the power plug, first set the projector to the standby mode, and then turn off the main power switch before disconnecting the power plug. Disconnecting the power plug or turning off the main power switch without first setting the projector to the standby mode may result in the values that were set with the on-screen menu and other settings not being stored within the projector.

• Do not disconnect the power plug from the outlet in circumstances such as the following: * While the hourglass icon is displayed. * While a message to the effect of “Please wait a while” is displayed. (This message will be displayed if the power has been switched off.) * Immediately after the main power switch has been turned ON. (When the POWER indicator is not lit in orange, and before “Stand by” is displayed on the liquid crystal

display screen.)

* Immediately after the end of the cooling down period (during which the fan is running for 3 minutes after the POWER button has been switched OFF, and before “Stand

by” is displayed on the liquid crystal display screen).

E-27

2. Installation

Inserting and Removing a PC Card

NOTE:

• Do not try to force the PC card into the slot.

PC CARD eject button

Inserting the PC Card

• Hold the PC card horizontally and insert it slowly into PC card slot with its top facing up.

Removing the PC Card

Press the eject button slowly. The eject button card pops out a little. Press the eject button slowly again. Grasp the edges of the PC card and pull it out. Push and insert the eject button fully until it stops.

PC Card Type

The PC Card slot accepts PCMCIA Type II only.

NOTE: The projector does not support FAT32 or NTFS formatted flash memory card or USB memory device.

Be sure to use a flash memory card or USB memory device formatted with the FAT16 or FAT file system. To format your flash memory card or USB memory device in your comouter, refer to the document or help file that comes with your Windows.

4 USB Memory Device or USB Memory Card Reader Support

The projector is compatible with either a USB memory device or USB memory card reader which supports the security features.

•To use a USB memory device or USB memory card reader, connect the device to the USB port (type A).

•To use a USB memory device as a Protect key for Security function, select one from the Drive icons in the Security setting screen.

NOTE: Do not eject the PC card while its data is being accessed.

CAUTION: Make sure that the PC card or wireless LAN card is removed during Standby mode or with the main power off.Failure to do so may cause damage to the data on your PC card or wireless LAN card, or may cause the projector to malfunction.Should a malfunction occur, turn off the main power and turn it back on.

Direction for Inserting the PC Card

The PC card has a top and bottom and must be inserted into the PC card slot in a specific direction. It cannot be inserted backwards or upside-down. Attempting to force it into the slot in the wrong direction may break the internal pin and damage the card slot. Refer to the PC card's operating instructions for the proper direction of insertion.

NOTE:

• Some USB memory devices (brands) or USB memory card readers may not work.

•You cannot use USB memory device and a USB memory card reader when connecting a USB mouse to the projector. Using a USB HUB that allows multiple USB memory devices or card readers is not supported either.

• Do not do the following while the USB memory device or USB memory card reader’s access indicator is lit or flashing (while data is being accessed.) Doing so can damage your USB memory device or USB memory card in the reader. Back up your data in case it will need to be restored. * Pulling out the USB memory device or USB memory card reader

from the USB port of the projector. * Pulling out the memory card from the USB memory card reader. *Turning off the main power switch or unplugging the power cable.

• The drive for ”USB 1-4” is displayed only when the USB memory device or USB memory card reader is connected to the projector. The drive for “USB 1-4” may be displayed differently from the one in the USB memory card reader.

• Some USB memory devices (brands) or USB memory cards cannot be used as Protect key for the projector’s Security function.

E-28

Projecting an Image

(Basic Operation)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 Tur ning on the Projector ........................................ E-30

2 Selecting a Source ................................................ E-31

3 Adjusting the Picture Size and Position ................. E-31

4 Optimizing RGB Picture Automatically .................. E-33

5 Tur ning off the Projector ........................................ E-33

E-29

This chapter describes how to turn on the Projector and to project a picture onto the screen.

1 Turning on the Projector

NOTE:

• When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off[O] position. Failure to do so may cause damage to the Projector.

• The Projector has two power switches: main power switch and POWER button (POWER ON and OFF on the remote control)

3. Projecting an Image

To turn on the main power to the Projector, press the Main Power switch to the ON position ( I ).

Power ONStandby

POWER POWER

Steady orange light

ON/STAND BY

Steady green light

Before you turn on your Projector, ensure that the computer or video source is turned on. Only after you press the ON/STAND BY button on the Projector cabinet or POWER ON button on the remote control for a minimum of 1 second will the power indicator turn to green and the Projector become ready to use.

Note on Startup screen (Menu Language Select screen)

When you first turn on the Projector, you will get the Startup screen. This screen gives you the opportunity to select one of the seven menu languages: English, German, French, Italian, Spanish, Swedish and Japanese. To select a menu language, follow these steps:

1. Use the SELECT G or H button to select one of the seven languages

for the menu.

2. Press the ENTER button to execute the selection.

3. The Basic menu will be displayed in the language you have selected.

To close the menu, press the CANCEL button.

After this has been done, you can proceed to the advanced menu operation. If you want, you can select the menu language later. See "Language" on page E-58.

NOTE: To turn the Projector on by plugging in the power cable, first turn on the Main Power switch to ON and use the menu and enable the "Auto Start" feature. (See page E-60.)

E-30

3. Projecting an Image

2 Selecting a Source

Selecting the computer or video source

Using the Remote Control

POWER INPUT

OFF

TEST

PROJECTOR

IMAGE/


WHITE BAL.

OFF

ADJUST

KEY ST./

AMP

LENS

POSI/

PIXEL SOUND

AUTO

ADDRESS

MENU/

UNDO

CANCEL

FOCUS

CTL

ABC1DEF2GHI

JKL4MNO5PQR

STU7VWX

E-LIST/

HELP

SHUT

PICT/

MUTE

ENTER

MAGNIFY/

ZOOM

INFO

YZ/

OSD

Press the Source/Input button (1-4) to select input.

1 ...... Slot 1

2 ...... Slot 2

3 ...... Slot 3

4 ...... Slot 4

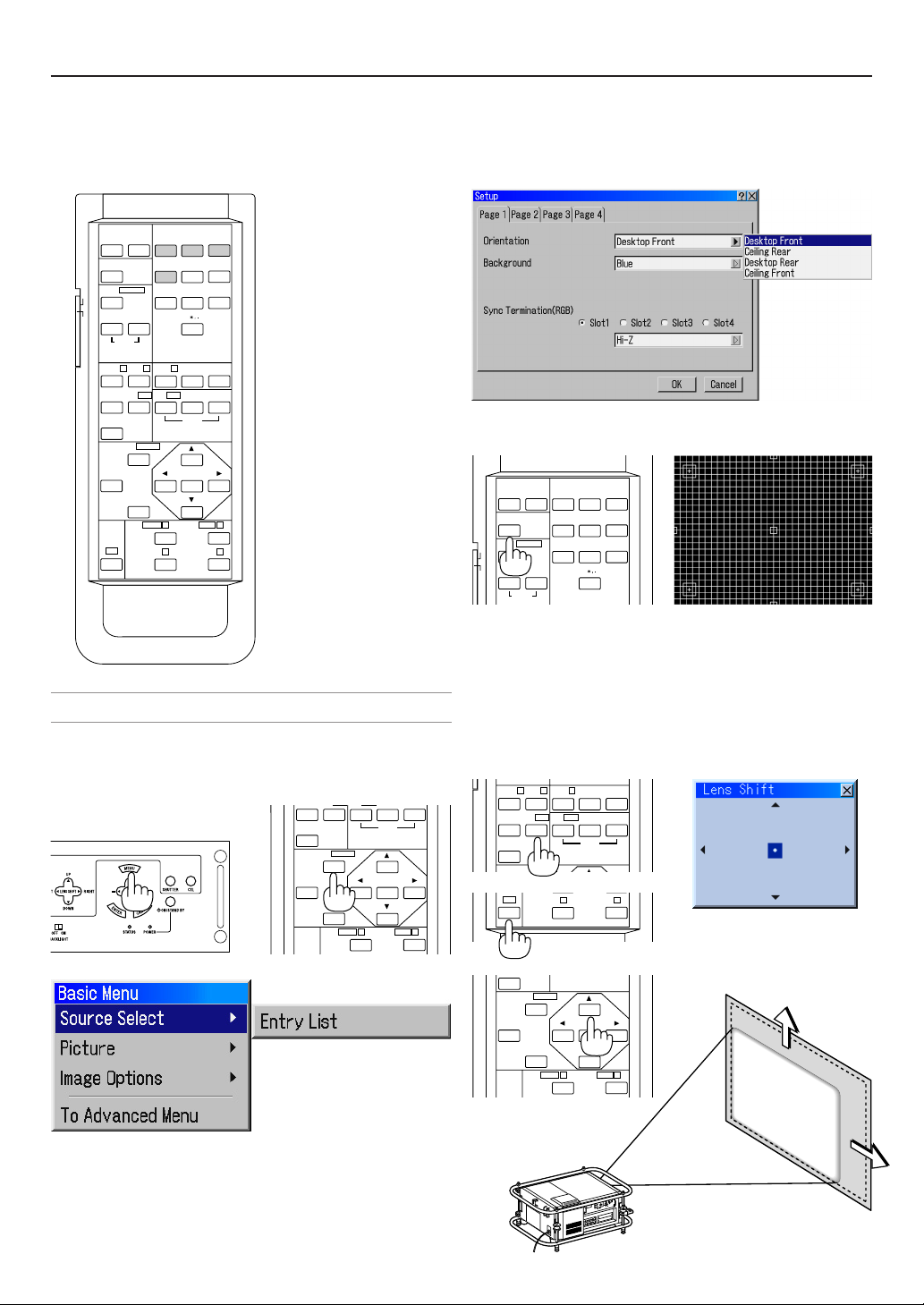

3 Adjusting the Picture Size and Position

1. Turn on the projector

2. Select your type of projector orientation. Desktop front, ceiling rear, desktop rear, and ceiling front.

3. Display the test pattern by pressing the TEST button on the remote control or using the menu.

POWER INPUT

TEST

IMAGE/


OFF

4. Adjust the image position and the image size.

PROJECTOR

WHITE BAL.

ADJUST

OFF

ABC1DEF2GHI

JKL4MNO5PQR

STU7VWX

YZ/

NOTE: If no input signal is available, the Projector will display a blue background (factory preset).

Using the menu

You can also select the computer or video source using the menu.

ADDRESS

FOCUS

MUTE

ENTER

MAGNIFY/

ZOOM

AUTO

MENU/

UNDO

CANCEL

(1) Press and hold the CTL button and press the POSITION button to

display the Lens Shift adjustment screen. Use the SELECT button on the remote control or the LENS SHIFT

button on the projector cabinet to move the image horizontally and vertically.

To close the Lens Shift adjustment screen, press the CANCEL button. See page E-23 for “Lens Shift Adjustable Range”.

KEY ST./RE-LIST/

AMP

HELP INFO

LENS

SHUT

POSI/

PICT/

PIXEL SOUND

AUTO

CTL

ADDRESS

MENU/

UNDO

CANCEL

FOCUS

MUTE

- -

ENTER

MAGNIFY/

ZOOM

OSD

E-31

(2) Press and hold the CTL and press the ZOOM + or - button to adjust

the image size. You can also adjust the image size by using the CTR button and the ZOOM + or - button on the projector cabinet.

CANCEL

FOCUS

ZOOM

MAGNIFY/

CTL

(3) Press and hold the CTL button and press the FOCUS + or - button

to obtain the best focus. You can also adjust the focus by using the CTR button and the FOCUS + or - button on the projector cabinet.

CANCEL

FOCUS

ZOOM

MAGNIFY/

CTL

3. Projecting an Image

Geometric Correction Tool

If you use a special shaped screen such as a cylindrical or spherical screen, a downloadable program, Geometric Correction Tool is available. This program (Geometric Correction Tool) enables the geometrical distortion correction of an image when projected onto a special shaped screen with the projector. Additionally, this program allows control of the projector via a computer. For additional information contact your dealer or Digital Projection: US : powerinfo@digitalprojection.com Europe : service@digitalprojection.co.uk Global : service@digitalprojection.co.uk

E-32

3. Projecting an Image

4 Optimizing RGB Picture Automatically

Adjusting the Image Using Auto Adjust

Optimizing RGB image automatically

1. Press the AUTO button on the remote control to optimize an RGB image automatically.

KEY ST./RE-LIST/

AMP

HELP INFO

LENS

SHUT

POSI/

PICT/

PIXEL SOUND

AUTO

ADDRESS

MENU/

UNDO

CANCEL

FOCUS

The Auto Adjust menu is displayed.

2. Select “Input Resolution” and change the “Horizontal” number of pixels and number of “Vertical” lines as required.

MUTE

ENTER

MAGNIFY/

ZOOM

OSD

5 Turning off the Projector

To turn off the Projector:

First press the POWER (ON/STAND BY) button on the Projector cabinet or the POWER OFF button on the remote control for a minimum of 1 second. The POWER indicator will glow orange.

Second, turn off the Main Power switch. The power indicator will go out.

Last unplug the power cable.

POWER INPUT

TEST

IMAGE/


OFF

ABC1 DEF2 GHI3

OFF

JKL4 MNO5 PQR6

PROJECTOR

STU7 VWX80YZ/9

WHITE BAL.

ADJUST

Steady green light

StandbyPower on

ON/STAND BY

POWERPOWER

Steady orange light

3. Align the cursor with “OK” and press the ENTER button.

[Poor picture] [Normal picture]

Press the AUTO button to fine-tune the computer image or to remove any vertical banding that might appear and to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be shimmering). This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) This adjustment may be necessary when you connect your computer for the first time.

NOTE:

• Some signals may not be displayed correctly or take time.

• The Auto Adjust function does not work for component and video signal.

• If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock

and Phase manually. See page E-53.

CAUTION

• When switching off the Main Power switch, set the Projector to the standby mode beforehand. Values that have been set with the on-screen menu or by other means might not be stored in the main unit if the Projector power supply is on when the Main Power switch is switched off.

• Do not unplug the power cable from the wall outlet or do not turn off the main power under any one of the following circumstances. Doing so can cause damage to the Projector:

* While the Hour Glass icon appears.

* While the message "Please wait a moment." appears. This mes-

sage will be displayed after the Projector is turned off.

* Immediately after the main power switch has been turned ON.

(When the POWER indicator is not lit in orange, and before “Stand by” is displayed on the liquid crystal display screen.)

* Immediately after the end of the cooling down period (during

which the fan is running for 3 minutes after the POWER button has been switched OFF, and before “Stand by” is displayed on the liquid crystal display screen).

E-33

E-34

Convenient Features

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 Tur ning Off the Image ............................................ E-36

2 Getting the On-line Help and Information .............. E-36

3 Lens Memory ......................................................... E-36

E-35

4. Convenient Features

1 Turning Off the Image

Press the MUTE PICTURE button to turn off the image for a short period of time. Press again to restore the image.

Press the MUTE OSD button to turn off the on-screen display. Press again to restore the on-screen display.

NOTE: You can also turn off the on-screen display forcibly by pressing and holding CTL and then pressing MUTE OSD (Forced On-Screen Mute Mode) ; doing this again restores it. In this case any adjustment will still change the projector's memory settings. This mode is available even when input is switched to another or the main power is turned off.

2 Getting the On-line Help and Information

You get the contents about Help.

KEY ST./RE-LIST/

AMP

HELP INFO

LENS

SHUT

POSI/

PICT/

PIXEL SOUND

AUTO

You get the source and projector information.

KEY ST./RE-LIST/

AMP

LENS

POSI/

PICT/

PIXEL SOUND

AUTO

Press this button once to display “Source Information” and press twice to display “Projector Information”. Press third time to close it.

OSD

MUTE

Display Help

HELP INFO

SHUT

OSD

MUTE

3 Lens Memory

This function serves to store the adjusted value when using the Shift, Focus, and Zoom buttons of the projector or the remote control.

Reference memory:

Reference Point ...... Adjusted settings are stored in memory

as a reference common to all the input sources. If no setting is stored in Custom Point, the adjusted settings in Reference Point will be applied.

Custom memory:

Custom Point ........... Adjusted settings are stored in memory

for each input signal.

Usage Example When you wish to display on a screen having a 4:3 aspect ratio an NTSC or other 4:3 aspect ratio signal and an SXGA or other 5:4 aspect ratio signal:

Perform shift, focus, and zoom adjustments to set the vertical screen size of the vertically tall 5:4 aspect ratio signal to standard. Both 4:3 apsect ratio signals and 5:4 aspect ratio signals can now be displayed. Note that with these shift, focus, and zoom adjustments, the 4:3 aspect ratio signal will become smaller on the screen. To eliminate this size reduction, adjust the shift, focus and zoom to the optimum condition for each of the 4:3 aspect ratio signal and the 5:4 aspect ratio signal. Memory (storage) of each of these values will permit projection at an optimum condition upon signal switching.

1. Perform Zoom, Focus and Lens Shift adjustments and store

them in memory using “Set Custom Point”. Another way to store your adjustments is to use the CTL and INFO buttons on the remote control.

2. When “Yes” is selected for “Use Point on Signal Change”, the

adjustment is applied to the signal you switched.

3. Select “OK” and press the ENTER button for the change to

take effect.

Picture Mute during Lens Shift? To turn off the image during lens shift, select "Yes".

NOTE: This option is only available when "Yes" is selected for "Use Point on Signal Change?".

E-36

Setting Up for Double Stacking

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 Stacking and Connecting the Projectors ............... E-38

Adjusting and Registering Signals to Be Projected

3 Adjusting the Lens Shift, Zoom and Focus

to Clearly Display all projected patterns ................ E-41

....... E-41

E-37

5. Setting Up for Double Stacking in Link Mode

1 Stacking and Connecting the Projectors

NOTE: Up to two units can be gravity stacked without external support. In some cases, however, two images will not align on the screen correctly. This will become more apparent when displaying small text and detailed graphics.

NOTE: The frame is not supplied on HIGHlite 8000Dsx+.

Master projector

CAUTION: To prevent the projectors from falling, install them in a place and fasten them in a

Slave projector

way with sufficient strength to support the two projectors.

1-1. Frame Connection (HIGHlite12000Dsx+)

Remove feet from projector to be mounted on top of stack.

Slave Projector

Button

1. Press Button to remove Ball-Lock Pin

Ball-lock Pin

Master Projector

2. Lift the projector of feet.

E-38

5. Setting Up for Double Stacking in Link Mode

Place projectors together.

Master Projector

3. Stack projectors

Join using stacking connectors

Connect projectors using Ball-lock Pins.

4. Insert all four Ball-lock Pins back into stacking connectors

Master Projector

Slave Projector

1-2. Frame Adjustment (HIGHlite12000Dsx+)

Knurled knob

Knurled knob(S)

Enlarged

Slave Projector

• Tilt Angle Adjustment Knurled knobs (A, B on the picture at the left) are turned to the same direction. (note 1)

• Roll Angle Adjustment Knurled knobs (B, C on the picture at the left) are turned to the same direction. (note 1)

•PAN Angle Adjustment Knurled knob (S) (Enlarged picture at the left) is turned.

note 1: when Knurled knobs at two locations are turned, the same charge should be turned.

1-3. Assigning Projector IDs

You can operate multiple projectors with the same remote control. To do so:

Screen

E-39

5. Setting Up for Double Stacking in Link Mode

13-1. Select “Projector Options” → “Setup” → “Page4” → “Pro-

jector ID” and assign an ID number to each projector. See also page 8-18.

1-3-3. On the remote control specify the ID number of the pro-

jector to be adjusted. Press and hold the CTL and press MENU (ADDRESS) button to enter the ID number. You can operate the projector assigned the same ID number as the remote control.

NOTE: Specifying "None" for projector ID allows you to operate multiple projectors concurrently. However, some projectors may not synchronize to the other projectors.

1-4. Stacking the Projectors

Place the projectors at the proper height for best screen to projector relationship. Make sure that all projectors have the same display orientation.

1-3-2. Select the same communication speed for both the pro-

jector.

NOTE: Do not turn on [Master] or [Slave] at this time.

1-5. Cable Connection

Example on Video Signal Picture signal is divided by commercial signal divider, and connected to both master projector’s and slave projector’s input ports.

Signal Divider

According to signal dividers, the port name, location and aspect are different. Please check the signal dividers' instruction manuals.

S-Video cable (not supplied)

S-VIDEO

INPUT

S-VIDEO OUTPUT

S-Video cable (not supplied)

L R

AUDIO OUT VIDEO OUT

Picture Device

According to picture devices, the port name, location and aspect are different. Please check the picture devices' instruction manuals.

VIDEO

S-VIDEO

Master projector

S-VIDEO

Slave projector

E-40

5. Setting Up for Double Stacking in Link Mode

1-6. Control Cable Connection

Example of Remote Controllers Control Remote controller and master projector’s remote controller input 1 port (REMOTE1 IN 1 )are connected by remote cable. Master projector’s remote output port (REMOTE OUT) and slave projector’s remote controller input 1 port (REMOTE IN 1) are connected by remote cable.

NOTE:

• When ID is not setup for the projector and remote controller, two projectors are controlled at the same time with one remote controllers. To control two projectors indivisually, setup IDs for each projector and each remote controller.

Remote cable (supplied)

REMOTE

IN 1

REMOTE

IN 1

REMOTE

Remote control

OUT

Ferrite clamp core(supplied)

Remote cable(supplied)

Master projector

Slave projector

Example of RS-232C Control The controller with RS-232C interface and each projector’s PC control-in port (PC CONTROL IN) are connected by cross cable and the individuals are controlled by serial-control-command. Please ask delivery outlets for serial-control-command.

Master projector

PC CONTROL

RS-232C Cross cable (not supplied)

Controller

PC CONTROL

Slave projector

E-41

5. Setting Up for Double Stacking in Link Mode

2 Adjusting and Registering Signals to Be Projected

2-1. Making Adjustments to the Master Projector

2-1-1. Display a desired input signal on the master projector.

2-1-2. Make adjustment to the signal, then save (register) ad-

justments on the master projector by pressing and holding CTL and pressing ENTRY LIST button on the remote control.

2-1-3. Repeat steps 2-1-1 and 2-1-2 for all signals you want

to project. Display all the signals you registered and check. To check, select “Source Select” → “Entry List”.

2-2. Making Adjustments to the Slave Projector

2-2-1. Display a desired input signal on the slave projector.

2-2-2. Make adjustment to the signal, then save (register) ad-

justments on the slave projector by pressing and holding CTL and pressing ENTRY LIST button on the remote control.

2-2-3. Repeat steps 2-1-2 and 2-1-2 for all signals you want

to project. Display all the signals you registered and check. To check, select “Source Select” → “Entry List”.

3 Adjusting the Lens Shift, Zoom and Focus to Clearly Display all projected patterns

3-1. Display the internal crosshatch test pattern.

NOTE: Use a different single colour for each projector. Example: Turn on Green of master projctor, then Red of the slave projector.

3-2. Adjust the Lens Shift by pressing and holding CTL and press-

ing the POSITION button on the remote control. For lens shift adjustable range, see page E-23. Lens Shift Adjustable Range.

3-3. Zoom the lens in and out by pressing and holding CTL and

pressing the MAGNIFY(ZOOM)+/- button on the remote control.

3-4. Adjust the lens focus by pressing and holding CTL and press-

ing the FOCUS +/- button on the remote control.

NOTE: If the physical (vertical) alignment of the projector is not correct, adjust the height of the feet. If there is any keystone distortion, use 3D-Reform (Keystone) adjustment to correct and save the settings on each projector. See page E-55 for 3D-Reform.

E-42

Using On-Screen Menu

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 Basic Menu Operation ............................. E-44

2 List of Direct Button Combinations .......... E-45

3 Using the USB Mouse ............................. E-45

4 Menu Tree ............................................... E-46

5 Menu Descriptions & Functions ............... E-50

Source Select.......................................... E-50

Adjust (Source) ....................................... E-51

Picture ................................................ E-51

Video Adjust ....................................... E-51

Colour Management .......................... E-52

Gamma Correction............................. E-52

Image Options.................................... E-53

Option Adjust...................................... E-54

Lens Memory ..................................... E-54

Signal Type ........................................ E-55

Edge Blending.................................... E-57

Lamp Mode ........................................ E-58

Factory Default........................................ E-58

Projector Options .................................... E-58

Menu .................................................. E-58

Setup.................................................. E-59

LAN Mode .......................................... E-62

Image Mode ....................................... E-65

Setting a Password ............................ E-65

Security .............................................. E-65

Tools........................................................ E-67

Timer .................................................. E-67

PC Card Files..................................... E-69

Help ......................................................... E-69

Contents............................................. E-69

Ref. Adjust............................................... E-55

3D Reform.......................................... E-55

Screen................................................ E-56

Ref. Lens Memory.............................. E-56

Source Information............................. E-69

Projector Information.......................... E-70

Test Pattern ............................................. E-71

E-43

6. Using On-Screen Menu

1 Basic Menu Operation

Using the Menus

1. Press the MENU button on the remote control or the Projector cabinet

to display the Basic, Advanced or Custom Menu.

ADDRESS

MENU/

2. Press the SELECT GH buttons on the remote control or the Projector

cabinet to highlight the menu for the item you want to adjust or set.

ENTER

3. Press the SELECT E button or the ENTER button on the remote con-

trol or the Projector cabinet to select a submenu or item.

ENTER

Customizing the Menu

The Custom menu can be customized to meet your requirements. Selecting a menu item from the "Custom Menu Edit" list, allows you to custom tailor the menu items to your needs.

1. Select "Custom Menu Edit" to display the "Custom Menu Edit" screen.

2. Use the SELECT the ENTER button to place a check mark next to an option.

This action enables that feature. Press the ENTER button again to clear the check box.

If you select an item with a solid triangle ton on the remote control or the Switcher cabinet, you can enable all the items within that submenu. Also you can turn on an item within the submenu without placing a check mark on the main menu item.

NOTE: Up to 12 main menu items (within Custom Menu Edit, not including submenu items) can be selected.

3. In order for the changes to take effect, use the SELECT on the remote control or the Switcher cabinet to highlight "OK", then press the ENTER button. To cancel the changes, use the SELECT or H buttons to highlight "Cancel" and press the ENTER button. To return to the factory default, select "Reset" then press the ENTER button.

NOTE: Once you have selected OK on the Custom Menu Edit screen, you cannot cancel the changes on the Menu screen. However, you can reedit the menu items over again as described in the steps above.

NOTE: If the "Advanced Menu" item has been selected on the Menu mode, you get the "Change Custom menu now?" upon completion of "Custom Menu" editing. In this case, selecting "Yes" then "ENTER" will close all the menus and apply the changes from the Advanced menu to the Custom Menu. If you select "No" then "ENTER" functions, then all menu items will return to the Advanced menu, but your changes will still be available within the "Custom Menu" selection. To display the previously tailored Custom Menu, select "Custom Menu" from the "Menu Mode".

or H buttons to highlight your selection and press

and press the ENTER but-

or E button

4. Adjust the level or turn the selected item on or off by using SELECT or E buttons on the remote control or the Projector cabinet.

The on-screen slide bar will show you the amount of increase or decrease.

ENTER

5. Changes are stored until you adjust it again.

ENTER

CANCEL

ENTER ........Stores the setting or adjustments.

CANCEL ...... Return to the previous screen without storing set-

tings or adjustments.

6. Repeat steps 2-5 to adjust an additional item, or press the CANCEL button on the Projector cabinet or the remote control to quit the menu display.

An item "To Advanced Menu" will be added to the bottom of the Custom Menu. Selecting this item and pressing the ENTER button will display the "Advanced Menu" features.

E-44

6. Using On-Screen Menu

2 List of Direct Button Combinations

CTL+ Input (1-10) Switches to any selected signal found in the Entry List.

To enable this combination, you must first assign specific remote buttons for direct input selection in the Entry Edit window.

CTL+ ENTER (While displaying Entry list) Displays the selected signal.

CTL+ CANCEL Returns to the previous menu without closing the slidebar or dialog.

CTL+ UNDO Clears all menus or adjustment/setting screens. All adjustments are saved

automatically.

CTL+ GHFE Moves the slidebar or dialog box horizontally or vertically.

CTL+ F (BS) Deletes one letter or numeral in the entry screen.

CTL+ MUTE OSD Turns off the on-screen display forcibly.

CTL+ MENU (ADDRESS) Displays the remote ID entry window.

CTL+ IMAGE (PROJECTOR) Sequentially selects the Projector Options sub menu.

CTL+ KEYSTONE This button has no function with the Projector.

CTL+ AMPLITUDE Service personnel only.

CTL+ ENTRY LIST Stores a signal in the Entry List.

3 Using the USB Mouse

Using a commercially available USB mouse gives you smooth operation.

USB A

HIGHlite 12000Dsx+

NOTE: There may be some brands of USB mouse that the projector does not support.

Operate the Menus using the USB mouse

Mouse Cursor

When connecting a USB mouse to the projector, you get a mouse cursor on the screen. Unless you use your USB mouse within 10 seconds, the mouse cursor disappears.

Menu Display

Clicking with a mouse button displays the menu. Clicking E displays the pull-down menu. To close the menu, click anywhere in the background.

Adjusting and Setting Display

You can select a menu item and click with a mouse button to make adjustments and setting.

Examples

Click (or press and hold) the mouse button F or E to adjust the brightness. Or click and drag the mouse button on the slide bar horizontally to adjust it.

To save the adjustments, click . This closes the menu. If you click anywhere in the background while displaying an adjustment and setting menu or dialog box, you will go to the main menu after clicking with the mouse.

Clicking displays help.

E-45

4 Menu Tree

NOTE: The shaded item indicates the default setting.

6. Using On-Screen Menu

Advanced Menu

Source Select

Adjust (Source)

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

S1: Video S1: S-Video S1: Component S2: RGB S3: None S4: None Entry List Load / Store / Cut / Copy / Paste / Edit / All Delete

Picture Video Adjust

Colour Management

Gamma Correction

Image Options

Option Adjust

Lens Memory Signal Type

* When the interface boards are installed at the factory.

Brightness / Contrast / Saturation / Colour / Hue /Sharpness /Setup Level Noise Reduction Off / Low / Medium / High Colour Matrix Select Colour Matrix HDTV / SDTV

Select Colour Matrix TypeB-Y/R-Y / U/V / Cb/Cr /

Pb/Pr / IVX Y/C Delay -15 to 15 YTR Adjustment 0 to 31 CTR Adjustment 0 to 31 SweetVision 0 to 63 Telecine Auto / 2:2 Off / Off 3D Y/C Separation Off / On Ver tical Detail Colour Correction Colour Temperature Low ←→ High White Balance Brightness R / Brightness G / Brightness B /

Return to Reference Ok / Cancel Set Custom / Set Reference / Cancel Graphics Enhanced / Graphics / NTSC / NTSC Enhanced / PAL / SECAM2.8 / PAL / SECAM Enhanced / Gamma1.0-3.0 Pixel Adjust Clock / Phase Position Horizontal / Vertical Aspect Ratio 1.25:1(5:4) / 1.33:1(4:3) / 1.78:1(16:9) / 1.85:1 /

Resolution Auto / Native Overscan 0% / 5% / 8% / 10% Synchronize Off / On / Adjust Video Filter Off / Less / More Blanking On / Off / Top / Bottom / Left / Right Input Resolution Horizontal / Vertical Input Position Horizontal / Vertical Clamp Timing Mode 0-4 / Adjust Sync Protection Upper / Lower VD Delay Adjustment / Field Invert (On/Off) Signal Level Red / Green / Blue Set Custom Point / Use Custom Point RGB / Component

Red / Green / Blue / Yellow / Magenta / Cyan / Colour Gain

Contrast R / Contrast G / Contrast B

2.35:1

E-46

NOTE: The shaded item indicates the default setting.

6. Using On-Screen Menu

Advanced Menu

Source Select

Adjust (Source)

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

3D Reform

Screen

Ref. Lens Memory Edge Blending

Lamp Mode

All Data (Including Entry List) / Current Signal

Page 1

Page 2 Page 3

Setup

Page 1

Page 2

Page 3

Page 4

Cornerstone 8 direction / close Keystone decrease ←→ increase

(When MM-WARP (optional) is inserted, horizontal / vertical) Screen Type Position -64 to 64 Set Reference Point / Use Reference Point / Return to Factory Default On / Off Gamma 1.0 to 3.0 Input Resolution Horizontal / Vertical Input Position Horizontal / Vertical Adjust 65%~100% / Auto Off / On

Language Menu Mode Basic / Custom Menu / Advanced Menu / Service Menu Custom Menu Edit Menu Display Time Manual / Auto 5 sec / Auto 15 sec / Auto 45 sec Date Format MM/DD/YYYY / MM/DD/YYYY ddd / DD/MM/YYYY /

Date, Time Preset Date (MM/DD/YYYY (ddd) ) / Time (HH:MM) Display Select Menu Colour Colour / Monochrome Orientation Background Blue / Black / Logo Sync Termination (RGB) Signal Select RGB (RGB/Component / RGB / Component)

Auto Adjust On / Off Auto Start On / Off Power Off Confirmation WARP Correction On / Off Last Memory On / Off Lens shutter on during signal switching 3D Sequence Set Select Communication Speed Projector ID Enable (1 to 64) / Disable Default Source Select

Control Panel Key Lock

1.25:1(5:4) / 1.33:1(4:3) / 1.78:1(16:9) / 1.85:1 / 2.35:1

English / Deutsch / Français / Italiano / Español / Svenska /

DD/MM/YYYY ddd / YYYY/MM/DD / YYYY/MM/DD ddd /

Month DD, YYYY / Month DD, YYYY ddd

Date / Time / Input Terminal / Source Name / Projector ID / Message

Desktop Front / Ceiling Rear / Desktop Rear / Ceiling Front

Hi-Z / 75 [Ω]

Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)

S-Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)

On / Off

4800 / 9600 / 19200 / 38400

Last / Auto / Select

Select: Slot1-1(Video) / Slot1-2(S-Video) /

* When the interface boards are installed at the factory.

Enable / Disable

(When optional MM-WARP is used, it can choose.)

Slot1-3(Component) / Slot2-1(RGB) / Slot3-1(None) / Slot4-1(None)

E-47

NOTE: The shaded item indicates the default setting.

Advanced Menu

Source Select

Adjust (Source)

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

LAN Mode

Image Mode

Password

Security

Status

Mail

6. Using On-Screen Menu

LAN Card Build-in / PC Card Projector Name IP Address Subnet Mask Gateway MAC Address Advanced IP Address Automatic / Manual

IP Address Subnet Mask Gateway DNS Configuration Domain Name

Network Type

WEP WEP

DHCP

Recconect Alert Mail On/Off Sender’s Address SMTP Server Name Recipient’s Adderss 1 to 3 Test Mail Seamless / Off Effect None / Wipe Down / Wipe Left /

Speed Fast / Medium / Slow Menu Entry / Delete Logo Entry / Delete Enable / Disable Keyword Use Protect key / Read / Register / Delete

Mode

SSID Channel 1 to 14 TX Rate

Key Select Key 1 to 4 Key 1 to 4 Host Name option None / Request /

Host Name Client-Identifer option

Use Mac Address Client-Identifer

Wipe Up / Wipe Right / Box In / Box Out / Alpha Blending

Infrastructure /

802.11 Ad Hoc / Ad Hoc

Automatic / 11M /

5.5M / 2M / 1M / 1M-2M-Automatic Disable / 64 bit / 128 bit

Discover/Request

None / Request / Discover/Request On / Off

Timer

PC Card Files

On / Off Timer Active / Inactive / Edit / Delete Sleep Timer Remaining Time / Preset Time Execute / Exit / Logo

E-48

6. Using On-Screen Menu

Advanced Menu

Source Select

Adjust (Source)

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

Contents Source Information

Projector Information

Cross Hatch / Cross Hatch(Inv) / Alignment / Alignment(Inv) / Horizontal Gray Scale / Horizontal Gray Scale(Inv) / Ver tical Gray Scale / Vertical Gray Scale(Inv) / Horizontal RAMP / Horizontal RAMP(Inv) / Vertical RAMP / Ver tical RAMP(Inv) / Raster(0%) / Raster(25%) / Raster(50%) / Raster(75%) / Raster(100%) Red On / Off Green On / Off Blue On / Off

Page 1 Source Name / Input Terminal / Entry No. /

Horizontal Frequency / Vertical Frequency / Sync Polarity Page 2 Signal Type / Video Type / Sync Type / Interlace / Direct Key Page 1 Serial Number / Remaining Lamp Time / Lamp Hour Meter /

Projector Usage / Projector ID Page 2 Version (BIOS / Firmware / Data / FPGA) Page 3 Version (Formatter Red)

(Boot App / Config / Degamma / Main App / Sequences) Page 4 Version (Formatter Green)

(Boot App / Config / Degamma / Main App / Sequences) Page 5 Version (Formatter Blue)

(Boot App / Config / Degamma / Main App / Sequences)

E-49

6. Using On-Screen Menu

Entering Alphanumeric Characters by Using the Menu

Alphabet or numeric characters are used for your IP address or Projector name. To enter IP Address or Projector name, use the software keyboard. For using the software keyboard, see page E-84.

Entering Alphanumeric Characters by Using the Remote Control Numeric Buttons

Input alphanumeric characters by selecting one character at a time with the numeric (Source/Input) buttons 1through 10(0) and by moving the cursor with the SELECT E button. After finishing the selection of the characters, press the ENTER button. Whenever one of the Source/Input buttons on the remote control is pressed, characters will be rotated.

5 Menu Descriptions & Functions

Source Select

Enables you to select a video source such as a VCR, DVD player or PC, etc. depending on what is connected to your inputs. Press the SELECT GH buttons on your remote control or the Projector cabinet to highlight the menu for the item you want to project.

NOTE: When switching the signal with the “Seamless Switch” set to “On” and the option board mounted, a little while after the signal has been switched “Transition Ready” will be displayed on the LCD screen of the Projector. Please press the ENTER button at this time. The seamless switching function will be activated. Please see Page E-65 for information about the image mode function.

Entry List

For example: A → B → C → 1 → A → ...

NOTE: When holding and pressing the CTL button and pressing one of the Source/ Input buttons, another group of characters will be rotated. For example: a → b → c → ! → a → ...

The alphanumeric characters corresponding to these Source/Input buttons are as follows:

Numeric buttons Press Press with CTL

1A → B → C → 1a → b → c → ! 2D → E → F → 2d → e → f → ” 3G → H → I → 3g → h → i → # 4J → K → L → 4j → k → l → $ 5M → N → O → 5m → n → o → % 6P → Q → R → 6p → q → r → & 7S → T → U → 7s → t → u → ' 8V → W → X → 8v → w → x → ( 9Y → Z → / → 9y → z → ? → ) 0* → , → . → 0; → : → + → -

* If you have made an error in the input of a character, use the

SELECT F button and enter the correct letter or number.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons while displaying the Software Keyboard.

Displays the list of the entry signals. Use the SELECT GH but- tons on your remote control or the Projector cabinet to select the signal and press the ENTER button on the remote control or the Projector cabinet to display the Entry Edit Command screen.

Using the Entry List

Making any adjustments to the current picture will automatically register its adjustments to the Entry List. The registered signal can be loaded any time from the Entry List.

NOTE: Up to 100 presets can be registered.

Entry Edit Command

You can edit signals on the Entry List.

Load ............ Enables you to select a signal from the list.

NOTE: This can be done by pressing CTL and ENTER buttons.

E-50

6. Using On-Screen Menu

Store ............Enables you to store the currently projected sig-

nal.

NOTE: This can be done by pressing CTL and ENTRY LIST buttons.

Cut ............... Enables you to remove a selected signal from

the list and place it on the "clipboard" in the Projector.

Copy ............Enables you to copy a selected signal from the

list and place it on the "clipboard" in the Projector.

Paste ........... Enables you to paste the signal placed on the

"clipboard" to any other line of the list. To do this, select "Paste" and then select the line number you want to paste to. Last press ENTER.

Edit .............. Enables you to change source names or assign

the direct key.

Source Name

Enter a signal name. Up to 18 alphanumeric characters can be used.

Input Terminal

Change the input terminal.

Direct key

You can assign specific remote keys for direct signal input selection.

Lock

Set so that the selected signal cannot be deleted when "All Delete" is executed. The changes cannot be saved.

Skip

Set so that the selected signal will be skipped during auto search.

When complete, select OK and press ENTER. To e xit without storing setting, select Cancel. Select "Source Name" and press ENTER to display the Source Name Edit window. You can change source name on this window. Press [H] to display the software keyboard, which you can enter alphanumeric characters. See page E-84 for the key function of the software keyboard.

All Delete .....This feature enables you to delete all the regis-

tered signals in the Entry List.

The following buttons are not available for the currently projecting signals:

Colour

Increases or decreases the colour saturation level (not available for RGB).

Hue

Var ies the colour level from +/- green to +/-blue. The red level is used as reference. This adjustment is only valid for Video and Component inputs (not available for RGB).

Sharpness

Controls the detail of the image for Video (not available for RGB).

Setup Level

“7.5 IRE” must be chosen to project products manufactured in USA.

Video Adjust (not available for RGB)

Noise Reduction

Select one of the three levels for reducing video noise: Low, Medium or High.

NOTE: The lower the Noise Reduction level, the better the image quality by way of higher video bandwidth.

Colour Matrix

Select an appropriate colour matrix for your input signal, either HDTV or SDTV.

Y/C Delay

Adjusts Y/C delay level.

YTR Adjustment

1) The Cut and Paste buttons on the Entry Edit Command screen

2) The Input Terminal button on the Entry Edit screen

Adjust (Source)


Brightness

Adjusts the brightness level or the back raster intensity.

Contrast

Adjusts the intensity of the image according to the incoming signal.

Saturation

Adjust saturation at the white peak.

Adjusts luminance transient time.

CTR Adjustment

Adjusts chroma transient time.

E-51

6. Using On-Screen Menu

DigiView - SweetVision

The SweetVision feature provides improvement of contrast using a proprietary detail enhancement technology. This is valid when there is signal input to MM-VIDEO and to the MM-SDI (option).

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Telecine

Use 3:2 pull down correction to eliminate jitter and artifacts in video.

Auto .............For film source such as a DVD player

2:2 Off .........The telecine signal detection and compensation

will be performed automatically only when the 2:3 pull-down signal is input. Select this when entrance is not desired to the 2:2 pull-down signal detection mode.

Off ............... For signals other than film sources

NOTE: This feature is not available for 480p and 576p signals.

3D Y/C Separation

This option turns on or off the 3 dimension separation feature.

NOTE: This feature is available for NTSC3.58 of Video signal only.

Vertical Detail Correction

Setup relating to picture colour will be done. Vivid palette, pastel vision, colour temprature and white balance can be adjusted as your choice. Each set value is saved as exclusive use of projected signal set value, and also those can be saved as default value for this equipment.

Colour Correction (Item relating to colour adjustment)

Adjusts red, green, blue, yellow, magenta, cyan and colour gain each independently to correct the tint on whole screen.

Colour Temperature (Item relating to colour adjustment)

This feature adjusts the colour temperature using the slide bar. Checking "Colour Temperature" enables the colour temperature slide bar.

White Balance (Item relating to colour adjustment)

Press the White Balance button to access the Contrast/Brightness adjustment for each R, G, and B.

Return to Reference (Item relating to colour adjustment)

• Each set value of colour correction, colour temperature and white balance is reset. (Set back to this equipment’s default value)

• Point the cursor to “Reset” and ENTER button is pressed, confirmation screen shows up. Point the cursor to “Confirm” and ENTER button is pressed, the set value is set back.

NOTE:

• Once the RESET is excuted, undo can’t be done even CANCEL on colour management screen is excuted.

Set Custom (Item relating to set value memory)

Each set value for colour correction, colour temperature and white balance can be saved to memory as exclusive use of currently projected signal set value. The screen is shut down after saving.

Set Reference (Item relating to set value memory)

Each set value for colour correction, colour temperature and white balance can be saved to memory as this equipment’s default value (the value set when reset). The screen is shut down after saving.

Horizontal line on picture signal can be sharpened by increasing setting value.

NOTE: This feature is not available for RGB signal.

Colour Management

Cancel (Item relating to set value memory)

Each set value for colour correction, colour temperature and white balance screen is shut down without saving set value to memory. Each set up is set back to status before colour management screen is opened.

Gamma Correction

Gradation of picture is selected. By doing this, dark parts can be expressed clearly.

Graphics Enhanced............. Correction fit to graphic signals

is done.

Graphics/NTSC ................... Corrections fit to graphic signals

and NTSC signals are done.

NTSC Enhanced ................. Correction fit to NTSC signals is

done.

PAL/SECAM2.8 ................... Gamma correction value 2.8 is

corrected.

E-52

6. Using On-Screen Menu

PAL/SECAM Enhanced ....... Correction fit to PAL signals and

SECAM signals are done.

Gamma 1.0 - 3.0 ................. Gamma value is set by 0.1 step.

Image Options

Pixel Adjust

Displays the Clock and Phase adjustments.

Clock ........... Use this item to fine tune the computer image or

to remove any vertical banding that might appear.

Phase ..........Use this item to adjust the clock phase or to re-

duce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) Use the SELECT F and E buttons to adjust the image.

Use "Phase" only after the "Clock" is complete.

Position

Adjusts the image location horizontally and vertically using the SELECT F and E buttons.

Aspect Ratio

You can select the aspect ratio for input signal. Select the appropriate aspect ratio using the SELECT F or E button.

Synchronize

Sets display vertical frequency to be synchronized with input signal. RGB signals only.

OFF ............. Display vertical frequency - is independent of in-

put signal - displayed picture is fixed at 75Hz.

ON ...............Display vertical frequency - is synchronized with

input signal. Frequency range of synchronization is from 24Hz to 96Hz. For optimum image quality - 3D Sequence Set Select should be set according to the following input types:

(3D Sequence Set Select may be found in - “Projector Options” → “Setup” → “Page 3” → “3D Se- quence Set Select” set up should be changed. See page E-61.)

Ver tical frequency of 24Hz to 75Hz, - remove the check mark “3D Sequence Set Select”. Ver tical frequency of 75Hz to 96Hz, set the check mark “3D Sequence Set Select”.

ADJUST ...... When a horizontal line (the edge of picture) is

displayed on the screen while Synchronize is “ON” it can be removed using SELECT F E button on the remote controller.

Note: Default is Synchronize ON for SDTV, HDTV, RGB 50Hz, 60Hz signals.

NOTE:

• When "Resolution" is set to "Native", this feature is not available, and the aspect ratio is set to “1.33:1 (4:3)”.

Resolution

This allows you to activate or deactivate the Advanced AccuBlend feature.

Auto .............Turns on the Advanced AccuBlend feature. The

projector automatically reduces or enlarges the current image to fit the full screen.

Native ..........Turns off the Advanced AccuBlend feature. The

projector displays the current image in its true resolution.

NOTE: * When "Resolution" is set to "Native", "Aspect Ratio", "Screen" and "Overscan" are

not available.

Overscan

Select overscan percentage (0%, 5%, 8% and 10%) for signal.

NOTE: When "Resolution" is set to "Native", this feature is not available, and the stored settings and adjustments are invalid.

Video Filter

This function reduces video noise.

Off ............... The filter is removed.

Less ............. The low-pass filter is applied partially.

More ............The low-pass filter is applied fully.

Blanking

This feature allows you to mask any unwanted area of the screen image. Adjust the Top, Bottom, Left or Right blanking with the SELECT F or E button.

Input Resolution

This adjusts the resolution of the video area of the signal that is input to the resolution conversion processing section. When the resolution of the input signal cannot be detected properly with Auto Adjust, this function can be used to manually set the correct resolution.

E-53

6. Using On-Screen Menu

Input Position

This adjusts the position of the video that is input to the resolution conversion processing section. It is the same function as “Input Position” within the “Edge Blending” screen.

Option Adjust

Clamp Timing

According to the signal, this function sets the detection position (i.e., clamp position) of the black level reproduction of the analog input signal. Normally this is not used.

Mode 0-4 .....Select the appropriate one.

Adjust ..........This permits the video clamp position for each

signal to be set. Use "Adjust" when a clamp timing error occurs at the time of special analog signal reception such as 1080P. Note that "Adjust" is not valid for doubler signals such as NTSC and PAL.

To delete the "Clamp Timing" setting screen, select the SELECT H button and press the ENTER button, or press the remote control CANCEL button.

Sync Protection

NOTE: When connecting with a scan converter: If an image from the scan converter is not correctly displayed, adjust to select the best level point so that the image is displayed correctly.

Field Invert: (Upgrade support scheduled) This feature is used to correct diagonal lines of a non-standard interlaced signal when they appear jaggy. Invert the odd or even field of a video signal.

Signal Level

R/G/B, Y/Cb/Cr or Y/Pb/Pr Gain: Adjust RGB, Component or HDTV Gain to match multiple projector colour uniformity.

Lens Memory

When a VCR, DVD, or some other equipment that supports Copyguard (a copy prevention system) is played back, the screen may be displayed in a curved manner. Adjustments are made in such circumstances. Use the SELECT F or E button to adjust the VD level.

VD Delay

Adjustment: This feature is used to correct vertical jitter of a signal.

This function serves to store or apply the adjusted value when using the Shift, Focus and Zoom buttons on the projector or the remote control.

Set Custom Point ........... Store the current adjusted values in

memory.

Use Custom Point .......... Apply the adjusted values to the cur-

rent signal.

NOTE:

•To enable the Lens Memory feature, select [Ref. Adjust] and place a check mark next to “Yes” for [Use Point on Signal Change?].

•To store adjusted values common to all the input sources, use the Ref. Lens Memory. See page E-56.

→

[Ref. Lens Memory]

E-54

6. Using On-Screen Menu

Signal Type

Select either the RGB signal type or the Component signal type.

RGB ............ RGB signal

Component .. Component signals such as Y/Cb/Cr, Y/Pb/Pr

NOTE: This feature is available on RGB only. If you do not get a better picture even when you set "Signal Select" to "Component" in Setup, set this to "Component".

Ref. Adjust

3D Reform

This feature corrects trapezoidal distortion so that the projected image is rectangular. Operation of 3D Reform is available whether MM-WARP (optional) is used or not.

MM-WARP- not installed or not active When MM-WARP is not installed (optional) or installed but not active only vertical adjustment in Keystone Correction is possible. (For de-activation set no check mark on “Projector Options” → “Setup” → “page 3” → “WARP Correction”.)

Keystone Correction

1. Press SELECT Button - Adjust screen size in horizontal direction.

2. Press SELECT Button - Choose “Vertical”.

3. Press SELECT Button - Adjust screen size in vertical direction.

4. Press ENTER after adjusting screen size. - Return to the menu.

Cornerstone

1. Press SELECT Button - Adjust screen size in vertial direction.

2. Press ENTER Button after adjusting screen size - Return to the menu.

MM-WARP - active When MM-WARP (optional) is installed and active both vertical and horizontal adjustment in Keystone Correction is possible. (To activate set check mark on “Projector Options” → “Setup” → “page 3” → “WARP Correction”.)

1. Project an image so that the screen is smaller than the area of the

raster.

2. Pick up any one of the corners and align the corner of the screen with

the one of the image.

Projected image

Screen

(The drawing shows the upper right corner.)

3. Use the SELECT

direction you wish to move the projected image frame.

GHFE

button to select one icon which points in the

Screen

E-55

6. Using On-Screen Menu

4. Press the ENTER button.

GHFE

5. Use the SELECT shown on the example.

6. Press the ENTER button.

7. Use the SELECT the direction.

8. Repeat 4-7.

9. On the Cornerstone adjustment screen, select “Exit” and then press the ENTER button. The confirmation screen is displayed.

button to move the projected image frame as

Screen

GHFE

button to select another icon which points in

Screen

• The indicated adjustment ranges are following;

Horizontal direction ....± 30 degrees (maximum)

Vertical direction ........± 40 degrees (maximum)

• When horizontal and vertical adjustment is occured at a time, the adjustment range will be narrower.

• Curved Line Warp Correction Only linear screen warp is adjusted by Cornerstone Correction. Curved screen adjustment to correct for lenses or screens (cylindical or spherical) can be adjusted by an application software, Geometric Correction Tool. The Geometric Correction Tool is available from Digital Projection please contact your dealer. Geometric Correction Tool version 2.0.3 or higher is recommended.

Screen

Screen Type

Select the correct aspect ratio for the screen to be used. See also "Aspect Ratio" on page E-53.

NOTE:

• When "Resolution" is set to "Native", this selection is inactive.

Position

This feature adjusts the vertical position of the image when viewing video with an aspect ratio selected. When some aspect ratios are selected in Image Options, the image is displayed with black borders on the top and bottom. You can adjust the vertical position between top and bottom.

.Press the SELECT F or E button to highlight the [OK] and press the

ENTER button. This completes the keystone correction. Selecting “Cancel” will return to the adjustment screen without saving changes (Step 3). Selecting "Reset" will return to the factory default. Selecting "Undo" will exit without saving changes.

NOTE:

• In the case “Resolution” is set as “Real”, “3D Reform” can’t be chosen.

• In the case keystone warp is adjusted by “3D Reform”, “Aspect” or “Screen Setup” can’t be changed in some case. In such a situation, “3D Reform” adjusting value must be reset first and each setup must be changed. After that keystone warp should be changed again.

• In the case using MM-WARP (optional), some internal part of picture signal will be 8 bit process.

• Ask the shop this equipment was purchased when MM-WARP (optional) implementation is necessary.

• In the case Keystone Correction’s vertical setup value is adjusted when MMWARP is not in use, the data will be reflected when MM-WARP is used, however, adjustment content will be different. Re-adjust setup value as circumstance demand.

• When 3D Reform is done, picture quality is degradated comparing to no adjustment done. Also, when screen is warped in a large scale, the noises occasionaly show up on the screen.

NOTE:

• “3D Reform”’s adjustment value is saved even this equipment is OFF. To restore

the adjustment value to factory default setting, press “Keystone Button” on the remote controller for more than 2 seconds.

•Press the remote controller’s “Keyston Button” while “3D Reform” screen is activated. Each time the button is pressed, [Cornerstone] screen and [Keystone] screen are shown one after another.

E-56

NOTE: This option is available only when "1.78:1 (16:9)", "1.85:1" and "2.35:1 " are selected in Screen Type and Aspect Ratio.

Ref. Lens Memory

This function serves to store the adjusted value common to all input sources when using the Shift, Focus, and Zoom buttons of the main unit or the remote control.

Set Reference Point ............. Stores the current adjusted val-

ues in memory as a reference.

Use Reference Point ............ Applies the adjusted values

stored in Set Reference Point to the current signal.

Return to Factory Default ..... Returns the adjusted values to

the factory default setting.

Use Point on Signal Change? ....

For change to take effect at the time of source selection, select “Yes”.

Picture Mute during Lens Shift? ...

To turn off the image and sound during lens shift, select "Yes".

6. Using On-Screen Menu

NOTE: This option is only available when "Yes" is selected for "Use Point on Signal Change?".

Even if “CANCEL” is executed, changes to “Set Reference Point”, “Use Reference Point” and “Return to Factory Default” will not be canceled.

* See "Tips on Adjusting Focus" on page E-31 for more information.

NOTE:

• Adjusted values in Ref. Lens Memory will not be returned to default by using the Factory Default.

•To store adjusted values for each input source, use the Lens Memory.

NOTE: In the Link mode the Lens Memory feature is not available.

Edge Blending

When two or more projectors are used to project images lined up horizontally or vertically, a blending adjustment can be performed to make the borders of the adjacent images less conspicuous.

1. Using the test pattern “Cross Hatch” of the Projector, superimpose the screens so that the height of the 2 projected screens is the same and the distortion disappears.

Overlapped cells

2. Select “On” in the “Edge Blending” screen.

• The gamma curve that is adjusted to the input screen can be ad-

justed between 1.0 and 3.0 in steps of 0.1. The gradation expression of this curve is 8 bits (256 gradations).

• Use the Projector’s test pattern “Horizontal Gray Scale” allows for an

easy adjustment of the gamma curve.

Adjust until the boundary area looks seamless and smooth

This description is of an adjustment example in which 2 Projectors are used to project images side-by-side.

Overlapping area

Projected area

Preparation: Set the lens position of each projector as close to center as possible. Making the picture quality of each projector as uniform as possible will allow the screen edges (boundaries) to be less conspicuous. For good results the Overlapping area should normally be between 15% and 25% of the image width projectors for landscape or between 15% to 25% of image height for portrait edge blends. This may vary depending upon screen size, lens distortion, and setting of Gamma.

3. From among the 4 locations of “G” marks on the “Edge Blending” screen, move the cursor to the “G” mark that is in the same direction as the side on which you would like to place the blending curve of the projector’s projection screen.

• Facing the screen, select the “E” mark at the left side screen, and

select the “F“ mark at the right side screen, then press the ENTER button.

4. Press the SELECT G button of the projector for the left side and move the adjustment bar so that the adjustment bar fits the left edge of the right screen which is superimposed on the left side screen. Determine the blending start position of the left side screen.

• Likewise, operate the Projector of the right side and determine the

blending starting position of the right side screen.

5. Press the “G” mark when the adjustment of the blending starting position has been completed. This will exit the adjustment mode.

6. Adjust “Input Resolution” and “Input Position” as required while viewing the input source and adjust so that the image is superimposed neatly.

7. Select “Adjust (Source)” → “Image Options” → “Blanking” of the Advanced Menu and delete the left and right unneeded portions of the screen as required.

NOTE:

• Edge blending is when SXGA+(1400x1050dots) is displayed in full size, the four

edge lines of screen are the standard (correction range value is 0) position to fix the blending correction range. Blending correction can’t be done when projected screen is smaller than full size screen according to setting of Screen Setup (Page E-56) and Aspect Setup (Page E-53)

E-57

6. Using On-Screen Menu

Lamp Mode

Lamp brightness can be adjusted to 8 levels or automatically adjusted.

Adjust .......... Choices of levels: 65%, 70%, 80%, 85%, 90%,

95%, 100%

Auto .............Automatic adjustment is made when “ON” is se-

lected.

Auto maintains same power after a power cycle.

Factory Default

All Data /Current Signal

The Factory Default feature allows you to change adjustments and setting to the factory preset for source.

All Data ........Reset all the adjustments and settings for all the

signals to the factory preset except Language, Background, Communication Speed, Projector ID, LAN Mode, Password and Security.

Including Entry List:

Also deletes all the signals in the Entry List and returns to the factory preset.

NOTE: Locked signals in Entry List cannot be deleted.

Current Signal

....................Resets the adjustments for the current signal to

the factory preset levels. All the items in "Adjust (Source)" can be reset.

NOTE: Locked signals in Entry List cannot be reset.

Projector Options

[Page 1]

Selecting Menu Language [Language]

You can choose one of seven languages for on-screen instructions. The options are: English, German, French, Italian, Spanish, Swedish and Japanese.

Selecting Menu Mode [Menu Mode]

This feature allows you to select 4 menu modes: Advanced, Custom, Basic and Service Menu.

Advanced Menu ...... This is the menu that contains all the

available menus and commands.

Basic Menu ............. This is the basic menu that contains mini-

mum essentials of menus and commands.

Custom Menu .......... This is the menu that you can customize

using the Custom Menu Edit to fit your needs.

Service Menu .......... For service personnel only.

Customizing the Menu [Custom Menu Edit]

See page E-44 for instructions about how to customize the Menu.

Selecting Menu Display Time

This option allows you to select how long the Projector waits after the last touch of a button to turn off the menu. The preset choices are "Manual", "Auto 5 sec", "Auto 15 sec", and "Auto 45 sec". The "Auto 45 sec" is the factory preset.

Manual ........ The menu can be turned off manually.

Auto 5 sec ...The menu will automatically be turned off in 5

Auto 15 sec .The menu will automatically be turned off in 15

Auto 45 sec .The menu will automatically be turned off in 45

seconds if no buttons are pressed within 5 seconds.

seconds if no buttons are pressed within 15 seconds.

seconds if no buttons are pressed within 45 seconds.

E-58

Selecting Date Format

Eight display formats can be selected. This date format sets the current date that appears on the upper left corner of the screen.

Setting the Current Date and Time [Date, Time Preset]

You can set the current time, month, date, and year.

1. Type in date. Enter month, date and year in this order using Source/Input buttons on the remote control. Month and date must be entered in two digits. For example, to display "February", press "0" and "2".

2. Type in time. Time is expressed in the 24-hour format. For example, 6:00 p.m. is entered as 18:00.

3. Select "OK" and press ENTER. Closing the window allows the clock to start. The current year, month, date and time are displayed on the top of the screen.

NOTE: The Projector has a built-in clock. The clock will keep working for about 3 days after the main power is turned off. If the main power is off for 3 days or more, the built-in clock will cease. If the built-in clock ceases, set the date and time again. The built-in clock will not cease while in the standby condition.

[Page 2]

6. Using On-Screen Menu

Selecting Menu Colour [Menu Colour]

You can choose between two colour modes for menu colour: colour and monochrome.

Setup

[Page 1]

Display Select

You can choose the desired status information to be displayed on the screen.

The information selections are: Date, Time, Input Terminal, Source Name, Projector ID and Message.

The Message selections are: “Wait a moment”.

[Page 3]

Selecting Projector Orientation [Orientation]

This reorients your image for your type of projection. The options are : desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

Selecting a Colour or Logo for Background [Background]

Use this feature to display a blue/ black screen or logo when no signal is available. The default background is "Blue".

NOTE:

• When “Logo” is selected, the “DIGITAL PROJECTION” logo is displayed.

• The background will not change when the Factory Default is performed.

Sync Termination (RGB)

This function is used to select the impedance of the sync signal. Select "75Ω" or "Hi-Z".

NOTE: This should be "75Ω" for normal use. Select the "Hi-Z" when inputting a TTL signal.

E-59

6. Using On-Screen Menu

[Page 2]

Selecting Signal Format [Signal Select]

RGB

Allows you to choose "RGB" for an RGB source such as a computer, or "Component" for a component video source such as a DVD player. Normally select "RGB/Component" and the Projector automatically detects an either incoming signal. However there may be some component signals that the Projector is unable to detect. If this is the case, select "Component".

Video, S-Video

This feature enables you to select composite video standards manually. Normally select "Auto". Select the video standard from the pulldown menu. Composite video standards are as follows:

NTSC .......... U.S. TV standard for video in U.S. and Canada.

NTSC4.43 ... TV standard used in Middle East countries.

PA L .............. TV standard used in Western Europe.

PAL-M ......... TV standard used in Brazil.

PAL-N ..........TV standard used in Argentine, Paraguay and

Uruguay.

PAL60 .......... TV standard used for NTSC playback on PAL

TVs.

SECAM ....... TV standard used in France and Eastern Europe.

[Page 3]

Enabling Auto Adjust [Auto Adjust]

When "Auto Adjust" is set to "On", the Projector automatically determines the best resolution for the current RGB input signal to project an image. The image can be automatically adjusted for position and stability; "Horizontal Position", "Vertical Position", "Clock", "Phase" and "Resolution".

On ............... Automatically adjusts image "Horizontal Posi-

tion", "Vertical Position", "Clock", "Phase" and "Resolution".

Off ............... User can adjust the image display functions

("Horizontal Position", "Vertical Position", "Clock", "Phase" and "Resolution") manually.

Enabling Auto Start [Auto Start]

Tu r ns the Projector on automatically when the power cable is inserted into an active power outlet and the main power switch is turned on. This eliminates the need to always use the "Power" button on the remote control or the Projector cabinet.

Enabling Power Off Confirmation [Power Off Confirmation]

This option determines whether a confirmation dialog for turning off the Projector will appear or not.

WARP Correction

This check box is valid when MM-WARP (optional) is installed. When check box is checked, more “3D Reform” functions will be able to be used as following.

• Cornerstone Correction

• Keystone Correction adjustment in horizontal direction

• Curved Warp Correction by Geometric Correction Tool

Enabling Last Memory [Last Memory]

The Projector stores the last signal data in memory for each input (Slot 1, Slot 2, Slot 3, Slot 4). This feature will reduce switching time between sources. If a commercially available switcher is connected, turning on this feature may cause the image to appear incorrectly. Should this happen, turn this feature off to mute the screen during switching.

E-60

6. Using On-Screen Menu

Lens Shutter on During Signal Switching

While switching the signals (screen image is muted), the light can be absolutely shut out from the lens simultaneously with shutter.

With Check Mark ................. While switching the signals and

Without Check Mark ............ While switching the signals and

3D Sequence Set Select

Use when displaying 3D images using a single projector OR signals with a high refresh rate with motion video content. This function optimizes the appearance of greyscale tones for 3D sources and signals which have high vertical frequencies.

Tu r n-on 3D Sequence Set Select for signals with a vertical frequency between 75 Hz and 96 Hz AND when Synchronise function is On.

Tu r n-off 3D Sequence Set Select for all other input frequencies OR when Synchronise function is Off.

- Also set Synchronize ON. (To set Synchronise ON see page E53.)

CAUTION

• Relationship between [Synchronize], [Input signal vertical frequency] and [3D Sequence]

Synchronize

OFF

Input Signals of Vertical Frequency Vf (Hz)

<=<

24 Vf 75 75 < Vf 96

Tu rn-off 3D Sequence setting

muting the images, shutter is simultaneously activated.

muting the images, shutter is deactivated.

= Tu r n-ON 3D Sequence setting

Tu rn-off 3D Sequence setting

98 < Vf 120

= Tur n-off 3D Sequence setting

Tur n-off 3D Sequence setting

[Page 4]

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC CONTROL port (DSub 9 Pin). It supports data rates from 4800 to 38400 bps. The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

Enabling and Disabling Projector ID

Each Projector needs its own unique addresses when used in serial communication mode. You can choose one of 64 unique address using the spin box. First select Enable. Keep pressing E button increases the number. To make your setting available, select OK.

Assigning Projector IDs

You can operate multiple projectors with the same remote control. To do so:

1. Select “Projector ID” and assign an ID number to each projector.

• When [3D Sequence] setting does not fit the setting above, greyscale tones will not be smooth.

• When operating within shaded box conditions and using the optional MM-WARP, signals cannot be displayed in their native resolution, they must be resized.

2. Select the same communication speed for both the projector.

3. On the remote control specify the ID number of the projector to be adjusted. Press and hold the CTL and press MENU (ADDRESS) button to enter the ID number. You can operate the switcher assigned the same ID number as the remote control.

NOTE: Specifying "None" for Projector ID allows you to operate multiple projectors concurrently. However, some projectors may not synchronize to the other projectors.

Selecting Default Source [Default Source Select]

You can set the Projector to default to any one of its inputs each time the Projector is turned on.

Last ............. Sets the Projector to default to the previous or

last active input each time the Projector is turned on.

E-61

6. Using On-Screen Menu

Auto .............Searches for an active source in order of Slot 1

→ Slot 2 → Slot 3 → Slot 4 → Slot 1 and displays the first found source.

Select .......... Displays the selected source input every time the

Projector is started up. Select an input from the pull-down menu.

Disabling the Cabinet Buttons [Control Panel Key Lock]

This option turns on or off the Control Panel Key Lock function.

NOTE:

• This Control Panel Key Lock does not affect the remote control functions.

• When the cabinet buttons are disabled, pressing and holding the CANCEL button for about 10 seconds will change the setting to enable.

LAN Mode

This feature allows you to set various setting items when the Projector is used on your network. Consult with your network administrator about these settings.

NOTE:

• Connect an Ethernet LAN cable to the LAN port (RJ-45) of the Projector for network connection. Optional wireless LAN card is available.

• The standard built-in LAN feature and a commercially LAN card are available for network connection, but only one can be used at a time (mutual exclusion).

CAUTION: Make sure that the LAN card is removed with the main power off. Failure to do so may cause damage to the LAN card, or may cause the Projector to malfunction. Should a malfunction occur, turn off the main power and turn it back on.

Projector Name

Specify a unique Projector name. Press H to display the software keyboard and type in. Up to 16 alphanumeric characters can be used.

IP Address ............... Indicates the IP address of the Projec-

tor.

Subnet Mask ........... Indicates the subnet mask of the Pro-

jector.

Gateway .................. Indicates the gateway of network con-

nected to the Projector.

MAC Address .......... Indicates the MAC address of the LAN

card.

Advanced ................ Displays the IP Address setting window.

Reconnect ............... Use this button to connect the Projector

to a network.

NOTE: Once you have selected "OK" on the Advanced screen, you cannot cancel the changes using "Cancel" on the LAN Mode screen.

Advanced

Status

LAN Card

This option selects to use either LAN feature between the standard LAN port (RJ-45) and an optional LAN card inserted in the PC CARD slot.

IP Address

An IP address can be automatically assigned to this Projector by your DHCP server. If your network does not automatically assign IP address, ask your network administrator for an address, and then register it manually.

Automatic .... Automatically assigns an IP address to the Pro-

jector from a DHCP server.

Manual ........ Provides a space for you to register the IP ad-

dress or subnet mask number obtained from your network administrator.

IP Address ...Set your IP address. Press H to display the soft-

ware keyboard and type in 12 numeric characters.

Subnet MaskSet your subnet mask number. Press H to dis-

play the software keyboard and type in 12 numeric characters.

E-62

6. Using On-Screen Menu

Gateway ......Set the default gateway of the network connected

to the Projector. Press H to display the software keyboard and type in 12 numeric characters.

Checking this box will make the set default route valid.

When data is sent from the LAN card, the transfer location will be searched according to the previously set routing information; however, when the transfer location has not been found as a result of the search, the data will be sent to the device that holds the IP address set here. The IP address that is set here must be one that can be identified by a search of the routing information.

DNS Configuration

.................... Type in the IP address of DNS server on the net-

work connected to the Projector. 12 numeric characters are used.

Domain Name

....................Type in domain name of the network connected

to the Projector. Up to 60 alphanumeric characters can be used.

Network Type (required for wireless only)

SSID (Network name):

Enter an identifier (SSID) for wireless LAN. Communication can be done only with equipment whose SSID matches SSID for your wireless LAN. Up to 32 alphanumeric characters can be used (Case sensitive).

NOTE: To disable SSID, select a space (null) or "ANY"(All caps).

Channel:

Set this option when selecting [802.11 Ad Hoc] or [Ad Hoc] in [Mode]. Select a channel number from the pull-down list. The channel must match for all wireless devices communicating on your wireless LAN.

NOTE: Channels in the pull-down list are different depending on which country you live in.

TX rate:

Select a wireless transmission speed. Normally leave it as Automatic. Tr y another transmission speed when the connection fails.

WEP (required for Wireless only)

Mode:

Select communication method when using wireless LAN.

Infrastructure

.................... Select this option when communicating with one

or more equipment connected to the wireless or wired LAN network via an access point.

802.11 Ad Hoc

....................Select this option when using the wireless LAN

to communicate with a computer in a one-to-one correspondence. This is a method that meets the IEEE802.11 wireless standard.

Ad Hoc ........ Select this option when using the wireless LAN

to communicate with a computer in a one-to-one correspondence.

Select this option whether using the WEP (Wired Equivalent Privacy) key for encryption or not. To use encryption, specify WEP key.

Disable ........ Will not turn on the encryption feature. Your com-

munications may be monitored by someone.

64bit ............ Uses 64-bit datalength for secure transmission.

128bit .......... Uses 128-bit datalength for secure transmission.

This option will increase privacy and security

when compared to use of 64bit datalength en-

cryption.

NOTE: The WEP settings must be the same as communication devices such as PC or access point in your wireless network. When you use WEP, your image transmission speed will slow down.

Key Select:

Selects one key from the four keys below when selecting [64bit] or [128bit] in [WEP].

E-63

6. Using On-Screen Menu

Key1-4:

Enter encryption key when selecting [64bit] or [128bit] in [WEP]. Up to 5 characters can be set in 64 bit and up to 13 characters in 128 bit. Press the “HEX” button to change to “ASCII” to set the key in ASCII digit. You can toggle this button between “ASCII” and “HEX”.

The key can also be set in hexadecimal digit. *Hexadecimal uses 0 to 9 and A to F. * Up to 10 characters can be set in 64 bit and up to 26

characters in 128 bit.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

DHCP

Mail

NOTE: To the Alert Mail feature on wireless LAN connection, select "Infrastructure" for "Mode" in "Network Type".

Alert Mail:

Checking this box enables Alert Mail feature. This option notifies your computer of an error message via email when using wireless or wired LAN.

Sender's Address:

Specify the senders address. Use the Software keyboard. Up to 60 alphanumeric and symbols characters can be used. See "Using Software Keyboard" in Appendix for more details.

Depending on your network environment, acquiring an IP address from a DHCP server may not be possible. Should this happen, consult your network administrator to make changes to the following settings.

Host Name option

Select whether or not to add option hostname for DHCP.

None ........................ Not add

Request ................... Add at the time of DHCP_REQUEST.

Discover/Request .... Add at the time of DHCP_DISCOVER

and DHCP_REQUEST.

Host Name

Type in a hostname. This field is available only when “Request” or “Discover/Request.”

Client-identifier option

Select whether or not to add option client identifier for DHCP.

None ........................ Not add

Request ................... Add at the time of DHCP_REQUEST.

Discover/Request .... Add at the time of DHCP_DISCOVER

and DHCP_REQUEST.

Use MAC address

Tu rn on to use MAC address for Client-identifier.

Client-identifier

Type in a client identifier.

SMTP Server Name:

Type in the SMTP server name to be connected to the Switcher. Up to 60 alphanumeric characters can be used.

Recipient's Address 1 to 3:

Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.

Test Mail:

Send a test mail to check if your settings are correct.

NOTE: If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's Address is correctly set.

NOTE: Unless any one of the "Sender's Address", "SMTP Server Name" or "Recipient's Address 1-3" is selected, "Test Mail" is not available.

NOTE: Be sure to highlight “OK” and press the ENTER button before executing “Test Mail”.

E-64

6. Using On-Screen Menu

Image Mode

Installation of the MM-IMGPRO and MM-SCALING options permits the instantaneous switching of signals between two input interface boards when “Seamless” of the “Image Mode” is selected.

• Seamless Mode - active

- Select an input

- Wait for “Transition Ready” to be displayed on the LCD screen

- Press the ENTER button to display the input.

- Next input appears immediately.

• Seamless operates between left and right input slots. The solid lines in the following diagram are seamless switching and the dotted lines are regular switching.

• Switching between slots on the same side is the same as Image Mode set to off.

SLOT1 SLOT3

Entry

To assign your password:

NOTE:

• Up to 15 alphanumeric characters can be assigned.

• Only numbers can be entered when you use the remote control Source/Input buttons.

1. Type a password.

Highlight “Entry” and press the ENTER button. The “Enter the Password” screen will be displayed.

Make sure that "H" is highlighted and then press the ENTER button. The Software keyboard appears. Use the Software keyboard to type a password and then highlight “OK” on the “Enter the Password” screen and press the ENTER button. The “Confirm Password” screen will be displayed.

2. Type the same password again. Highlight “OK” on the “Confirm Pass-

word” screen and press the ENTER button.

SLOT2 SLOT4

• Alpha Blending, Wipe, and Box In/Out image effects can be selected at the time of switching. When an effect is selected it is initiated on pressing ENTER as above.

[Before switching] [During switching] [After switching]

• The drawings show an example of how “Effect-Wipe Right” works.

NOTE: Please request installation of the MM-IMGPRO and MM-SCALING options from your dealer or service person. The customer should never open the cabinet under any circumstances.

Setting a Password

A password can be set for your Projector to avoid operation by an unauthorized person.

There are two password options: one for menu and the other for logo. When a password is set, doing any one of the following operations will display the Password input screen.

For Menu:

* Changing the menu to Advanced * Editing the custom menu

For Logo:

* Changing the background

Procedures for Password setting apply to both Menu and Logo.

E-65

Your password will be assigned.

Delete

To delete your password:

1. Highlight “Delete” and press the ENTER button. The “Current Password” screen will be displayed.

2. Use the Software keyboard to type your password. Highlight “OK” on the “Current Password” screen and then press the ENTER button.

Your password will be deleted.

In case you forget your password, follow the steps below to delete it.

1. Select the Advanced menu from the Basic menu. The “Password” entry screen will be displayed.

2. Use the Software keyboard to type “1111”. Highlight “OK” on the “Password” entry screen and then press the ENTER button. The “Password Warning!!” message will be displayed.

3. Use the Software keyboard to type “3333”. Highlight “OK” on the “Password” entry screen and then press the ENTER button. The “Password Warning!!” message will be displayed.

6. Using On-Screen Menu

4. Use the Software keyboard to type “5555”. Highlight “OK” on the “Password” entry screen and then press the ENTER button. The “Delete Password. Are you sure? Yes/No” dialog box will be displayed.

5. Use the SELECT F or E button to highlight “Yes” and press the ENTER button.

Your password will be deleted.

Security

The Security function enables you to protect your projector so that the projector will not project a signal unless you enter a keyword. There is also an option to lock the projector by using a registered PC card as a protect key. Once you have registered your PC card as a protect key, you are required to insert the registered PC card into the PC card slot of the projector each time you turn on the projector. You can enable the Security function by using a keyword only.

1. Use the SELECT keyboard to enter a keyword.

NOTE: Please make a note of your keyword.

2. Use the SELECT

button to select “OK”, then the Security function will be enabled. An “Are you sure?” message will appear. Use the SELECT FE button and press the ENTER button. The Security function takes effect.

button to select “Keyword” and use the software

button to select “Enable” and use the SELECT

To register a PC card as a protect key.

1. Insert a PC card into the PC card slot of the projector.

2. Use the SELECT ENTER button. A check mark will be placed.

3. Use the SELECT button.

Data of the PC card will be read into the projector.

4. Use the SELECT button.

Downloaded data will be registered and be displayed in the list window.

5. Use the SELECT keyboard to enter a keyword.

NOTE: To use a PC card as a protect key, you must also set up a keyword. Please make a note of your keyword.

button to select “Use Protect key” and press the

button to select "Read" and press the ENTER

button to select "Register" and press the ENTER

button to select "Keyword" and use the software

This completes registration of your PC card.

To enable Security, use the SELECT GH button to select "En- able" and use the SELECT GH button to select "OK" and "Security function will be enabled. An “Are you sure?" message will appear. Use the SELECT FE button and press the ENTER button. The Security function takes effect.

Enable/Disable ........ This turns the Security function on or off.

Keyword .................. Enter an appropriate keyword when you

use the Security function. (Up to 10 characters can be used.) The Security function is available only

when your keyword is entered.

Use Protect key ....... Check this box to lock your projector

when using a PC card. To use a keyword without a PC card, do not check

this box.

Drive ........................ Switches between PC Card slots.

Read ........................ Reads data of a PC card.

The Security function is not available un-

less at least one PC card is registered.

(if the “Use Protect key” check box is se-

lected)

Up to 5 PC cards can be registered.

Delete ...................... Deletes data of a registered PC card.

To set up a keyword to enable the Security function without using a registered PC card.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

To turn on the projector when Security is enabled (when using your keyword only).

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

1. Press and hold the POWER button for a minimum of two seconds. The projector will be turned on and display a message to the effect that

the projector is security-protected.

→

2. Select [Projector Options] ENTER button.

The Release Code input screen will be displayed.

3. Enter your keyword in the Release Code input screen. You can view the projected image.

NOTE: Do not forget your keyword. However, if you forget your keyword, your dealer will provide you with your Release Code. See more information at the end of this section.

[Security] from the menu and press the

To turn on the projector when Security is enabled (when using a PC card as a protect key).

NOTE: The projector does not support FAT32 or NTFS formatted flash memory card or USB memory device.

Be sure to use a flash memory card or USB memory device formatted with the FAT16 or FAT file system.

To format your flash memory card or USB memory device in your computer, refer to the document or help file that comes with your Windows.

1. Insert your registered PC card into the PC card slot.

2. Press and hold the POWER button for a minimum of two seconds. The projector will turn on and then recognize the PC card. Once the image has been projected, it will stay on without the PC card.

E-66

6. Using On-Screen Menu

• The security disable mode is maintained until the main power is turned off (by setting the main power switch to "O" or unplugging the power cable).

In the following cases you will be asked to check the protect key or input the keyword:

(1) When "OK" is selected at an image for which security is set and

the power is turned off then back on

(2) When the main power is turned off then back on while the security

function is enabled

(3) When you attempt to display an image for which security is set

while the security function is enabled

• Blanks (spaces) cannot be used in the Keyword section.

To delete PC card data you registered.

1. Use the SELECT GH button to select "Delete" and use the SELECT button to select the list window.

2. Use the SELECT delete.

3. Press the SELECT button.

The PC card data will be deleted.

button to select the PC card data you wish to

button to select "Delete" and press the ENTER

If you've lost your registered PC card, proceed as follows:

NOTE: your dealer will provide you with your Release Code in exchange for your registered keyword and Request Code. See URLs at the end of this section.

1. Press and hold the POWER button for a minimum of two seconds. The projector will be turned on and display a message to the effect that

the projector is security-protected.

→

2. Select [Projector Options] ENTER button.

The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric characters).

3. Enter your Release Code in the Release Code Input screen.

[Security] from the menu and press hte

Tools

Provides tools for setting On/Off timer, sleep timer, capturing images, displaying files or changing your background logo in a PC Card and drawing.

Timer

Enables you to turn on or off your projector automatically at a specified time. Two timer functions are available: On/Off Timer and Sleep Timer.

NOTE: The projector has a built-in clock. The clock will keep working for about three days after the main power is turned off. If the main power is not supplied to the projector for three days or more, the built-in clock stops working.

On/Off Timer

Up to 10 settings can be programmed.

• Before setting On/Off Timer, make sure that Date, Time Preset feature is set.

•Even after setting On/Off Timer, turning the projector on or off with the remote control is possible.

Setting the On or Off Timer

* If the projector is turned on by entering the Release Code, your Secu-

rity will be disabled.

NOTE: * Some types of PC cards cannot be registered as your protect key. * It is recommended that you register two or more PC cards in case you lose or

damage your registered PC card.

* Formatting your registered PC card will disable your protect key function.

NOTE: For additional information contact your dealer or Digital Projection

E-67

1. Open the On/Off Timer window.

2. Select a program number (No. 1 to 10) by using the SELECT G or button.

6. Using On-Screen Menu

3. Select “Edit” and press the ENTER button to open the Edit window.

4. Set the Day, Time (24 hours format), On-Time and Off-Time using the SELECT buttons and the Software keyboard (1 thru 10).

5. Select On Timer or Off Timer

Enabling the On or Off Timer

1. To execute the setting, select “Active” .

2. Select “OK” and press the ENTER button.

NOTE: When one program or more are specified, all the settings are active.

NOTE: The settings will be executed in numerical order. Finished settings will be automatically deleted.

NOTE: The On/Off Timer will not work while the cooling fans are running or an error message appears. Do not turn off the main power switch in this condition.

Disabling the On or Off Timer

To disable the setting, select “Inactive”. Select “OK” and press the ENTER button.

6. Repeat the Timer To repeat the On Timer or Off Timer program every week, place a check mark in “Repeat”.

7. Select “OK” and press the ENTER button on the remote control to complete the setting. To cancel this and return to its previous screen, select “Cancel”.

NOTE: If there is no operation for 4 hours or more after the projector is turned on with On-Timer function, the projector will enter the standby or idle mode.

Deleting the On or Off Timer settings

1. Select the setting you want to delete.

2. Select “Delete” and press the ENTER button.

3. Select “OK” and press the ENTER button to complete the deletion.

4. Select “Delete” again and press the ENTER button to return to the previous screen.

E-68

6. Using On-Screen Menu

Enabling Sleep Timer

1. Select your desired time between 30 minutes and 16 hours: Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.

2. Select “Set” and press the ENTER button on the remote control.

3. The remaining time starts counting down.

4. The projector will turn off after the countdown is complete.

NOTE:

•To cancel the preset time, set "Off" for the preset time or turn off the power.

• When the remaining time reaches 3 minutes before the projector is turned off,

the "Projector will turn off in 3 minutes" message will be displayed on the bottom of the screen.

PC Card Files

Help

Contents

Provides an online help about how to use the menus. An underlined link means that you can move to an adjustment item directly. Selecting the underlined link and pressing ENTER button moves to the corresponding adjustment item.

NOTE: The Help menu may not be displayed correctly when an image is overscanned.

The PC Card Files feature allows you to display a list of all the files stored in the PC card so that you can select a file you want to display. You can also sort files by file name or date, or display the file. See page E-28. Changing Background Logo: You can change the default background logo using the PC Card Files feature. See page E-28.

NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are not available. See page E-28.

Source Information

Information

Displays the status of the current signal. This dialog box has two pages.

Page 1

Source Name, Input Terminal, Entry No., Horizontal Frequency, Ver tical Frequency, Sync Polarity

E-69

6. Using On-Screen Menu

Page 2

Signal Type, Video Type, Sync Type, Interlace, Direct Key

Projector Information

Displays the information for your Projector such as Remaining Lamp Time, Lamp Hour Meter, Projector Usage, Projector ID, version number and others. This dialog box has five pages.

Page 1

Page 3

Version (Formatter Red) (Boot App / Config / Degamma / Main App / Sequences)

Page 4

Remaining Lamp Time, Lamp Hour Meter, Projector Usage, Projector ID

NOTE: Nothing is displayed on the item, “Serial Number”. Please confirm the serial number on label attached on the projector itself.

Page 2

Version (BIOS/Firmware/Data/FPGA)

Version (Formatter Green) (Boot App / Config / Degamma / Main App / Sequences)

Page 5

Version (Formatter Blue) (Boot App / Config / Degamma / Main App / Sequences)

E-70

Test Pattern

Press to display the test pattern. Pressing this button sequentially selects 17 test patterns for each red, green and blue.

6. Using On-Screen Menu

E-71

E-72

Maintenance

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 Cleaning the Cabinet and the Lens......................... E-74

E-73

7. Maintenance

1 Cleaning the Cabinet and the Lens

1. Turn off the Projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mark the lens.

E-74

Appendix

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1 Troubleshooting ...................................................... E-76

2 Specifications .......................................................... E-78

3 Cabinet Dimensions................................................ E-80

4 Compatible Input Signal List ................................... E-82

Pin Assignment of PC CONTROL IN Connector (D-Sub 9 Pin)

Pin Assignment of REMOTE IN 3 Connector (XLR connector)

...... E-83

....... E-83

Pin Assignment of EXT. I/O Connector (Mini D-Sub 15 Pin)

8 Using Software Keyboard ....................................... E-84

9 Operation Using an HTTP Browser......................... E-84

INDEX ........................................................................ E-86

E-75

..... E-83

1 Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the projector.

Power Indicator

Indicator Condition

Off

Blinking light

Steady light

Status Indicator

Blinking light

Steady light

Please ask your delivery outlets to handle the error codes.

Error No.

0001 0002 0003 0004

Green blinking

Orange blinking

Green Orange

Indicator Condition

Off

Red blinking

Red

Orange

Green

Error Messages Description

Cover Open Lamp Data Lamp Time Over FPGA JOE2P FPGA JOE2S FPGA DVIOUT FPGA WARPSEL FPGA WARP FPGA DVI1 FPGA DVI2 FPGA DVI3 FPGA DVI4 FPGA SDI1 FPGA SDI2 FPGA SDI3 FPGA SDI4 FPGA SLOTSEL FPGA OSD

0.5 sec ON,

0.5 sec OFF

2.5 sec ON,

0.5 sec OFF

0.5 sec ON,

0.5 sec OFF

2.5 sec ON,

0.5 sec OFF

1 cycle (0.5 sec ON,

2.5 sec OFF)

2 cycle (0.5 sec ON,

0.5 sec OFF)

3 cycle (0.5 sec ON,

0.5 sec OFF)

4 cycle (0.5 sec ON,

0.5 sec OFF)

6 cycle (0.5 sec ON,

0.5 sec OFF)

Cover open Malfunction on lamp data Lamp time over (power-off) FPGA configuration error

Projector Condition Note

The main power is off The projector is getting ready to turn on. The lens shutter is closed. Off Timer or Sleep Timer is active.

The projector is cooling down.

On Timer is active.

The projector is turned on. The projector is in Standby.

Projector Condition Note

Normal Lens hood or lamp cover error

Temperature error

Power error

Fan error

Lamp error

Circuit error

Control key locked

Idle condition

Error No.

0005

0006 0007

0008

0009 0010 0011

0012 0013 0014 0015

Set Temp.

Fan Stop Lamp PS Temp.

Lamp Temp.

Lamp Off DMD Status DMD Temp.

Lamp Fan Stop Pump Stop Power Supply Lamp Time Warn

– Wait for a moment.

–

Wait for a moment.

–

– –

– Replace the lens hood or the lamp cover correctly. The projector is overheated. Move the projector to a cooler location. Power unit will not work correctly.

Cooling fan has stopped. Contact your dealer. Lamp fails to light. Wait 3 minutes and then turn on again. An error occurs in the circuit. Consult your dealer. You have pressed control panel key when Control Key Lock is enabled. –

Error Messages Description

8. Appendix

Temprature malfunction in internal set Fan stop Temprature malfunction on Lamp PS Temprature malfunction on Lamp No lamp lighting DMD malfunction DMD temprature malfunction Lamp fan stop Pump stop malfunction Power supply mulfunction Lamp time over (warning)

E-76

Common Problems & Solutions

Problem Check These Items

8. Appendix

Does not turn on

Will turn off

No picture

Image isn’t square to the screen

• Check that the power cable is plugged in and that the main power switch on the projector is on. See pages E27 and E-30.

• Ensure that the lamp cover is installed correctly.

• Check to see if the projector has overheated or the lamp has reached the end of its usable life. If there is insufficient ventilation around the projector or if the room where you’re presenting is particularly warm, move the projector to a cooler location.

• The lamp may fail to light. Wait a full minute and then turn on the power again.

• The lamp has reached the end of its usable life. Replace the lamp.

• Ensure that the off Timer is off. See page E-67.

• Use the menu or Source/Input button to select your source. See page E-31 or E-50.

• Ensure your cables are connected properly.

• Use menus to adjust the brightness and contrast. See page E-51.

• Select correct option in the Signal Select for current signal. See page E-60.

• Select RGB/Component when connecting DVD player to RGB connector of the projector. See page E-60.

• Apply a standard RGB signal when using RGB connector.

• Adjust picture for RGB signal.

• Make sure each setting is correct.

• If the problem still persists, reset the settings or adjustments to factory preset levels using the Factory Default in the Adjustment Menu. See page E-58.

• If Security is enabled, a keyword or PC card as a protect key is required.

• Remove the lens cap.

• When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector.

* If the screen goes blank while using your remote control, it may be the result of the computer’s screen-saver

or power management software.

• Reposition the projector to improve its angle to the screen. See page E-31.

• Use the 3DReform function to correct the trapezoid distortion. See page E-55.

Picture is blurred

Image is scrolling vertically, horizontally or both

Remote control does not work

Indicator is lit or blinking

Cross color in RGB mode

USB mouse does not work

No on-screen menu

• Adjust the focus. See page E-32.

• Reposition the projector to improve its angle to the screen. See page E-31.

• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See page E-22.

• Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on. Should this happen, let the projector stand until there is no condensation on the lens.

• Use the menus or Source/Input button on the remote control or the cabinet to select the source you want to input. See page E-31 or E-50.

• Install new batteries. See page E-19.

• Make sure there are no obstacles between you and the projector. See page E-19.

• Stand within 22 feet (7 m) of the projector. See page E-19.

• If the remote control cable plug is inserted into the REMOTE 1 IN jack, the remote control does not function wirelessly. See page E-20.

• Make sure that the remote control’s ID corresponds with the projector’s ID. See page E-61.

• See the Power/Status Indicator on page E-76.

• If Auto Adjust is off, turn it on or adjust the image manually with the Position/Clock in the Image Options. See page E-53.

• Make sure that your USB mouse is properly connected to the projector. The projector may not support some brands of a USB mouse.

• Press MUTE OSD if the image is muted. Or press and hold CTL and press MUTE OSD button. See page E-36.

E-77

2 Specifications

Model Number HIGHlite 12000Dsx+ / HIGHlite 8000Dsx+

Panel

Output Resolution 14001050 native resolution

Lamp 2.0kW Bulb Type Short Arc Xenon

Light Output 11,000 Lumens (HIGHlite 12000Dsx+)

Brightness Uniformity >80% corner to center Contrast Ratio 1600 : 1 Full On / Off (HIGHlite 12000Dsx+)

Lens Movement Motorized Horizontal and Vertical Lens Shift

DMDTM 0.95”3

Compatible with input resolution up to 16001200 with DigiScale

Built in: Overheat Protection Lamp Over-Usage Protection

8000 Lumens (HIGHlite 8000Dsx+) Full Light Output at 200 - 240V

2000 : 1 Full On / Off (HIGHlite 8000Dsx+)

Motorized Zoom and Focus Built in Lens Shutter

8. Appendix

Lens Options

SL-14Z 103-490 1.45 – 1.8 : 1 (Zoom lens) SL-18Z 103-491 1.8 – 2.5 : 1 (Zoom lens) SL-25Z 103-492 2.5 – 4.5 : 1 (Zoom lens) SL-45Z 103-493 4.5 – 7.3 : 1 (Zoom lens) SL-07SF 103-489 0.73 : 1 (Fixed lens)

Image Size 80 - 500” diagonal at 4:3

Installation Orientation: Desktop / Front, Desktop / Rear, Ceiling / Front, Ceiling / Rear

Stacking: Up to 3 projectors can be gravity stacked

Scan Rate Horizontal: 15 – 107kHz (RGB: 31kHz or over)

Ver tical: 24 – 120Hz (Synchronous Input / Output mode : 24 – 96Hz)

Input Signal

MM-VIDEO Composite Video 75ohms 1.0Vp-p (with Sync) (Built-in) S-Video Y : 75ohms 1.0Vp-p (with Sync)

C:75ohms 286 – 300mVp-p

Component Video Y : 75ohms 1.0Vp-p (with Sync)

Cr,Cb : 75ohms +/-0.35Vp-p

(Standard Definition (15kHz) only)

MM-RGB R,G,B,H,V R,G,B : 75chms 0.7Vp-p positive polarity (Built-in) Y:75ohms 1.0Vp-p positive polarity (with Sync)

Cr,Cb : 75ohms +/-0.35Vp-p positive polarity

(Component accepts HDTV and >31kHz interlaced and progressive inc 1080i/60, 1080i50, 24sF, 25p, 24p 23.98p/sF, 720p/60 but not 60p, RGsB, RGBS, RGBHV accepts HD progressive and progressive computer)

H/V Sync : 1k ohms / 75ohms (Selectable)

0.7 – 4.0Vp-p / TTL positive / negative polarity Duty N/A

Composite Sync : 1kohms / 75ohms (Selectable)

0.7 - 4.0Vp-p / TTL Positive / negative polarity Duty N/A

Sync on Green :

75ohms 1.0Vp-p (including sync signal component of 0.3Vp-p)

MM-DVI Digital RGB Single Link : Pixel Clock Frequency 165MHz Max (Optional Board) Dual Link : Pixel Clock Frequency 202.5MHz Max

E-78

8. Appendix

MM-SDI SDI SDTV : SMPTE 259M Level-C (Optional Board) HDTV : SMPTE 292M (include 24sF,24p)

Input / Output Terminal Input Slot 4 slots (One board each for the VIDEO board and analog RGB input board are standard equipment;

2 slots are for expansion.)

MM-VIDEO Video Input BNC1 (Composite Video) (Built in) Input BNC2 (S-Video)

MM-RGB Analog RGB Input BNC5 (shared with the component input connectors) (Built in) Audio Input RCA (L/MONO,R)1 (No Function)

MM-DVI Digital RGB Input DVI-D1 (Optional Board) Audio Input Stereo Mini Jack1 (No Function)

MM-SDI SDI Input BNC2 (Optional Board) SDI Output BNC1

USB Port A Type1, B Type1 LAN Port RJ-451 Remote Control In Stereo Mini Jack1, XLR Connector1

Out Stereo Mini Jack1

PC Control In D-Sub 9pin1

Out D-Sub 9pin*31 PC Card TypeII1 Ex. Control Mini D-Sub15pin1

(includes

Input BNC3 (DVD Component)

1080i/60, 1080i50, 24sF, 25p, 24p 23.98p/sF, 720p/60 but not 60p)

Power Requirement 200 - 240VAC, 50 / 60Hz Power Consumption 2.8KW Input Current 14A

Dimensions HIGHlite 12000Dsx+: 27.2” (W)40.1” (D)20.4” (H)

HIGHlite 8000Dsx+ : 26.4” (W)36.5” (D)16.8” (H)

Net Weight HIGHlite 12000Dsx+: 185.2lbs (84kg) (without lens)

HIGHlite 8000Dsx+ : 150lbs (68kg) (without lens)

Environment Operational Temperature: 50° - 95°F (10° - 35°C)

Humidity: 20 – 80% non-condensing

Storage Temperature: 14° - 122°F (-10° - 50°C)

Humidity: 20 – 80% non-condensing

Regulations USA UL60950 FCC Class A

Canada CSA60950 ICES-003 Class A

Europe EN60950 EN55022 Class A

Oceania EN60950 AS/NZS CISPR.22 Class A

Japan J60950 VCCI Class A

Asia EN60950 CISPR.22 Class A

*1: Permissible deviation for RGB convergence (Pixel deviation) is 1/2 pixel or less at center; 1 pixel or less around the perimeter

(when projection upward angle is 0°).

*2: When using the zoom lens, it must be keep that the projector is positioned at an angle of from -15 to +15 degrees from the

horizontal.

*3: These connectors are for future extension.

690mm (W)1018mm (D)532mm (H)

670mm (W)926mm (D)425mm (H)

EN55024 EN61000-3-2 EN61000-3-3

Specifications are subject to change without notice.

Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments.

E-79

3 Cabinet Dimensions

HIGHlite 12000Dsx+

8. Appendix

80(3.2)

711(28.0)

150

(5.9)

532(20.9)

410(16.1 )

42(1.7)

134(5.3)

752(29.6)

1018(40.1)

134(5.3)

668(26.3)

690(27.2)

636(25.1)

108(4.3)

(5.3)

135

748(29.5)

(5.3)

135

Lens Center

115

60(2.4)

(4.5 )

E-80

296(11.7)

486(19.2)

Unit = mm (inch)

HIGHlite 8000Dsx+

8. Appendix

425(16.7)

400(15.8)

926(36.5)

670(26.4)

108

(4.3)

Lens Center

242(9.5)

Unit = mm (inch)

E-81

8. Appendix

4 Compatible Input Signal List

Signal Resolution Frequency H. Refresh Rate MM- MM-RGB MM- MM-

VIDEO NTSC – 15.7 60.0 A  (Composite PAL/SECAM – 15.6 50.0 A  S-Video) PAL60 – 15.7 60.0 A  SDTV 480i 720  483 15.7 60.0 A 

(Colour

) 575i 720  575 15.6 50.0 A 

480p 720  483 31.5 60.0 A F U U A  U 575p – 31.3 50.0 A F U U A  U

HDTV 1080i60 1920 1080 33.8 60.0  F  A 

Analogue 1080i50 1920  1080 28.1 50.0  F  A  or 1080sF24 1920 1080 27.0 48.0  F  A  via DVI 720p60 1280  720 45.0 60.0  FUUA U

1080p30 1920 1080 33.8 30.0  FUUA U

(Colour

) 1080p25 1920 1080 28.1 25.0  FUUA U

1080p24 1920 1080 27.0 25.0  FUUA U

SD-SDI * 480i 720  483 15.7 60.0 A 

575i 720  575 15.6 50.0  A 

HD-SDI * 1080i60 1920 1080 33.8 60.0 A 

1080i50 1920 1080 28.1 50.0 A  1080sF24 1920 1080 27.0 48.0 A  720p60 1280  720 45.0 60.0 A  1080p30 1920 1080 33.8 30.0 A  1080p25 1920 1080 28.1 25.0 A  1080p24 1920 1080 27.0 24.0 A 

RGB 640  480 31.5 60.0  AAAF A

(Analogue and DVI) 640  480 37.9 72.8  AAAF A

Code: A - Auto, projector detects and dsiplays correctly

F - Format change required see Projector Options/Setup/Page2/Signal Select (page E60) U - User setup required see Optimising RGB picture Automatically (Page E33), (U1 also requires separate syncs)

 - Not Supported

Colour space for SDTV and HDTV via DVI will be RGB colour space - can be changed using Colour Matrix function.

* SD-SDI and HD-SDI signals can be input when the optional MM-SDI has been installed.

• At the time of shipping, adjustment is made to the standard signal of the display resolution/frequency; however, adjustment may be required depending on the type of personal computer.

• SDTV and HDTV signals also support a vertical frequency of fV/1.001.

• RGB signals support analog and DVI.

• Please contact your dealer about details concerning the connection of signals other than the aforementioned.

• Composite sync and other signals might not be displayed properly.

• When the resolution has been converted for the display (and is not the real resolution of the display), the thickness and other aspects of the characters and ruled lines might not be uniform.

( Dots ) ( kHz ) ( Hz ) VIDEO RGsB RGBS RGBHV YCrCb SDI DVI

640  480 37.5 75.0  AAAF A 640  480 43.3 85.0  AAAF A 800  600 35.2 56.3  AAAF A 800  600 37.9 60.3  AAAF A 800  600 48.1 72.2  AAAF A 800  600 46.9 75.0  AAAF A 800  600 53.7 85.1  AAAF A 1024  768 48.4 60.0  AAAF A 1024  768 56.5 70.1  AAAF A 1024  768 60.0 75.0  AAAF A 1024  768 68.7 85.0  AAAF A 1152  864 67.5 75.0  AAAF A 1280  960 60.0 60.0  AAAF A 1280  960 85.9 85.0  AAAF A 1280 1024 64.0 60.0  AAAF A 1280 1024 80.0 75.0  AAAF A 1280 1024 91.1 85.0  AAAF A 1400 1050 65.2 60.0  AAAF A 1400 1050 64.0 60.0  AAAF A 1400 1050 82.2 75.0  AAAF A 1400 1050 93.6 85.0  AAAF A 1600 1200 75.0 60.0  AAAF A

E-82

8. Appendix

5 Pin Assignment of PC CONTROL IN Con-

nector (D-Sub 9 Pin)

Using RS-232C

Pin # Signal Name Function I/O

1NCNot used – 2 RxD Reception data Input 3 TxD Transmission data Output 4NCNot used – 5 GND Ground potential GND 6NCNot used – 7RTS Transmission request Output 8 CTS Transmission permission Input 9NCNot used –

Using RS-422

Pin # Signal Name Function I/O

1NCNot used – 2 RxD- Reception data - Input 3 TxD+ Transmission data + Output 4NCNot used – 5 GND Ground potential GND 6NCNot used – 7 RxD+ Reception data + Input 8 TxD- Transmission data - Output 9NCNot used –

6 Pin Assignment of REMOTE IN 3 Connec-

tor (XLR connector)

7 Pin Assignment of EXT. I/O Connector

(Mini D-Sub 15 Pin)

The various control and switching operations are enabled by either opening (OPEN) or short circuiting (SHORT) the pin number 15 (GND) of the external control connector (EXT. I/O) with the various pins listed in the table below.

51423

• Control Functions

Pin # OPEN SHORT

14 EXT CTL OFF EXT CTL ON

5 POWER OFF POWER ON

10 PICTURE MUTE OFF PICTURE MUTE ON

• Input Switching (0 = SHORT, 1 = OPEN)

Pin # (Bit)

11 (b3) 12 (b2) 8 (b1) 4 (b0)

00001-1 VIDEO1 (CV) 00011-2 VIDEO2 (S-Vid) 00101-3 VIDEO3 (CMP) 01002-1 RGB 01012-2 None 01102-3 None 10003-1 None 10013-2 None 10103-3 None 11004-1 None 11014-2 None 11104-3 None

* When there is no supported input channel, “None” is displayed on the LCD screen of the projector.

NOTE: When using the external control connector (EXT. I/O) to control the Projector, short circuit pin number 14 (EXT CTL ON/OFF) and pin number 15 (GND), and operate according to the above table with the external control (EXT CTL) set to ON.

6978

1112131415

SLOT Factory Default

Pin # Function I/O

1 Ground potentiul GND 2 DC+3.3V PWR 3 Remote Control Input I

E-83

8. Appendix

8 Using Software Keyboard

1 to 0 and Characters

........................Use to type in IP address or projector name

MODE ............. Selects one of three modes for alphabet and spe-

cial characters.

SP ................... Inserts a space

BS ................... Deletes one character backward

F ..................... Returns to the previous

E ..................... Advances to the next

OK ...................Executes the selection

Cancel .............Cancels the selection

9 Operation Using an HTTP Browser

Overview

The use of HTTP server functions will allow control of the Projector from a web browser without the installation of special software. Please be sure to use “Microsoft Internet Explorer 4.x” or a higher version for the web browser. (This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help files and the other information provided in your software.)

NOTE: * The use of HTTP server functions is not available during Standby mode. * The display’s or button’s response can be slowed down or operation may not be

accepted depending the settings of your network. Should this happen, consult your network administrator.

* The Projector may not respond if its buttons are repeatedly pressed in rapid

intervals. Should this happen, wait a moment and repeat. If you still can’t get any

response, pull out and then re-insert the LAN card. Access is gained to the HTTP server functions by specifying http:// <the Projector’s IP address> /index.html in the entry column of the URL.

Preparation Before Use

Make network connections and set up the Projector and confirm that it is complete before engaging in browser operations. (See “LAN Mode” on page E-62.) Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.

Handling of the Address for Operation via a Browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the Projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the Projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the Projector has been set in the “HOSTS” file of the computer being used.

Example: When the IP address of the Projector is “192.168.73.1”,

access is gained to the HTTP server functions by specifying http://192.168.73.1/index.html for the address or the entry column of the URL.

E-84

8. Appendix

Structure of the HTTP Server

Power: This controls the power of the Projector.

On ............... Power is switched on.

Off ............... Power is switched off.

Mute: This controls the mute function of the Projector.

All On .......... Mutes each of the video and on-screen display

functions.

All Off ..........Cancels the muting of each of the video and on-

screen display functions. Picture On ... Mutes the video. Picture Off ... Cancels the video muting.

OSD On....... Mutes the on-screen display.

OSD Off ....... Cancels the muting of the on-screen display.

Picture: Controls the video adjustment of the Projector.

Brightness G Increments the brightness adjustment value. Brightness H Decrements the brightness adjustment value. Contrast G ... Increments the contrast adjustment value. Contrast H ... Decrements the contrast adjustment value. Saturation G Increments the saturation adjustment value. Saturation H Decrements the saturation adjustment value.

Color G ........ Increments the color adjustment value.

Color H ........ Decrements the color adjustment value.

Hue G .......... Increments the hue adjustment value.

Hue H .......... Decrements the hue adjustment value.

Sharpness G Increments the sharpness adjustment value. Sharpness H Decrements the sharpness adjustment value.

* The functions that can be controlled will vary depending on the signal

being input to the Projector.

Source Select: This switches the input connector of the Projector.

Note: The operations that follow represent the Projector in the factory shipping condition. The operation will change depending on the insertion of interface boards.

S1 Video S1 S-Video

Selects the CVBS input connector of Slot 1. Selects the S-Video input connector of Slot 1.

S1 Component Selects the Component video input con-

nector of Slot 1.

S2 RGB

Selects the RGB input connector of Slot 2. S2 None No operation. S2 None No operation. S3 None No operation. S3 None No operation. S3 None No operation. S4 None No operation. S4 None No operation. S4 None No operation.

Switcher Status: This displays the condition of the Projector.

Error Status ............. Displays the status of errors occurring

within the Projector.

Refresh .................... Updates the display of the following con-

ditions.

E-85

INDEX

NUMBER

3D Reform .......................................................................... E-55

3D Sequence Set Select ....................................................E-61

3D Y/C Separation ............................................................. E-52

Adjust (Source) .................................................................. E-51

Advanced ...........................................................................E-62

Advanced Menu .................................................................E-44

Alert Mail ............................................................................E-64

Aspect Ratio ....................................................................... E-53

Auto Adjust .........................................................................E-60

Auto Start ...........................................................................E-60

BACK LIGHT Switch .......................................................... E-13

Background ........................................................................E-59

Band .......................................................................... E-10,E-24

Battery ....................................................................... E-10,E-19

Blanking ............................................................................. E-53

Brightness ..........................................................................E-51

Channel .............................................................................. E-63

Clamp Timing ..................................................................... E-54

Color .................................................................................. E-51

Color Correction .................................................................E-52

Color Management ............................................................ E-52

Color Matrix ........................................................................ E-51

Color Temperature ............................................................. E-52

Communication Speed ....................................................... E-61

Contrast ............................................................................. E-51

CONTRAST Adjustment Dial ............................................. E-13

Control panel ............................................................. E-12,E-13

Control Panel Key Lock ..................................................... E-62

Control terminals ....................................................... E-12,E-14

Cornerstone ....................................................................... E-55

CTR Adjustment .................................................................E-51

Custom menu ..................................................................... E-44

Custom Menu Edit .................................................... E-44,E-58

Date Format .......................................................................E-59

Date, Time Preset .............................................................. E-59

Default Source Select ........................................................ E-61

DHCP .................................................................................E-64

Display Select .................................................................... E-59

DNS Configuration .............................................................E-63

Domain Name ....................................................................E-63

DVI-D signal cable ............................................................. E-10

Edge Blending .................................................................... E-57

Entry Edit Command ..........................................................E-50

Entry List ............................................................................E-56

Factory Default ................................................................... E-58

Ferrite clamp core ..................................................... E-10,E-24

Frame ................................................................................. E-12

Gamma Correction ............................................................. E-52

Gateway .............................................................................E-62

Help .................................................................................... E-69

HTTP Server ...................................................................... E-85

Hue .................................................................................... E-51

Image Mode .......................................................................E-65

Image Options .................................................................... E-53

Input Position ..................................................................... E-54

Input Resolution .................................................................E-53

Input terminals .......................................................... E-12,E-15

IP Address ..........................................................................E-62

Key Select ..........................................................................E-63

Keystone ............................................................................E-55

Lamp Mode ........................................................................E-58

LAN Card ........................................................................... E-62

LAN Mode ..........................................................................E-62

Language ...........................................................................E-58

Last Memory ...................................................................... E-60

LCD Screen ....................................................................... E-13

Lens Memory ..................................................................... E-54

Lens shutter on during signal swiching ..............................E-61

MAC Address .....................................................................E-62

Mail .................................................................................... E-64

Main power switch .................................................... E-12,E-30

Menu ..................................................................................E-58

Menu Color ........................................................................ E-59

Menu Display Time ............................................................ E-58

Menu Mode ........................................................................E-58

MM-DVI ..............................................................................E-16

MM-RGB ............................................................................E-15

MM-SDI ..............................................................................E-16

MM-VIDEO ......................................................................... E-15

Mode ..................................................................................E-63

Network Type .....................................................................E-63

Noise Reduction ................................................................. E-51

E-86

INDEX

On / Off Timer..................................................................... E-67

Option Adjust ......................................................................E-54

Option Boards ....................................................................E-16

Orientation ......................................................................... E-59

Overscan ............................................................................ E-53

Password ........................................................................... E-65

PC Card Files ..................................................................... E-69

PC CARD Slot .................................................................... E-14

Picture ................................................................................E-51

Pixel Adjust ........................................................................ E-53

Position ..................................................................... E-53,E-56

Power cable .............................................................. E-12,E-27

POWER Indicator ............................................................... E-13

Power Off Confirmation ...................................................... E-60

Projector ID ........................................................................E-61

Projector Information .......................................................... E-70

Projector Name ..................................................................E-62

Projector Options ............................................................... E-58

Recipient’s Address............................................................ E-64

Reconnect ..........................................................................E-62

Ref. Adjust .......................................................................... E-55

Ref. Lens Memory .............................................................. E-56

Remote cable ............................................................ E-10,E-20

Remote control .......................................................... E-10,E-17

Remote Sensor ......................................................... E-12,E-19

Resolution ..........................................................................E-53

Telecine ..............................................................................E-52

Test Mail .............................................................................E-64

Test Pattern ........................................................................ E-71

Timer ..................................................................................E-67

Tools ................................................................................... E-67

TX rate ............................................................................... E-63

USB mouse ........................................................................E-45

User’s Manual ....................................................................E-10

VD Delay ............................................................................E-54

Ventilation (inlet) ................................................................E-12

Ventilation (outlet) ..............................................................E-12

Ver tical Detail Correction ................................................... E-52

Video Adjust ....................................................................... E-51

Video Filter .........................................................................E-53

WARP Correction ............................................................... E-60

WEP ...................................................................................E-63

White Balance ....................................................................E-52

Y/C Delay ...........................................................................E-51

YTR Adjustment ................................................................. E-51

Saturation ........................................................................... E-51

Screen ................................................................................ E-56

Screen Type .......................................................................E-56

Seamless ........................................................................... E-65

Security ..............................................................................E-66

Sender’s Address ............................................................... E-64

Setup .................................................................................. E-59

Setup Level ........................................................................E-51

Sharpness ..........................................................................E-51

Signal Level ....................................................................... E-54

Signal Select ......................................................................E-60

Signal Type ........................................................................E-55

Sleep Timer ........................................................................E-69

SMTP Server Name ...........................................................E-64

Source Information ............................................................. E-69

Source Select ..................................................................... E-56

SSID ................................................................................... E-63

Status .................................................................................E-62

STATUS Indicator............................................................... E-13

Subnet Mask ......................................................................E-62

SweetVision ....................................................................... E-52

Sync Protection ..................................................................E-54

Sync Termination (RGB) .................................................... E-59

Synchronize ....................................................................... E-53

E-87

E-88

E-89

E-90
