Page 1
Rev A December 2017
E-Vision Laser 5000 Series
High Brightness Digital Video Projector
4USER MANUAL
119-127A
Page 2
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
i
Copyright
This publication, including all photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may
be reproduced without written consent of the author.
© Copyright 2018
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no
representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued
registrations and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other
countries.
MHL, the MHL logo, and Mobile High-Definition Link are trademarks or registered
trademarks of MHL licensing, LLC.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
All other product names used in this manual are the properties of their respective owners and are
acknowledged.
Page 3
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
ii
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause
personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
Do not open the unit case. There are no user-serviceable parts inside the unit.
For servicing, contact qualified service personnel via your suppling dealer.
Follow all warnings and cautions in this manual and on the unit case.
To avoid damage to eyes, do not look into the lens when the light source is on.
Do not place the unit on an unstable surface.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects on the unit.
Notice
This product is intended for use by adults who are competent to operate this machine.
Please write down your projector model number and serial number and keep the information for
maintenance purposes in the future. Should the equipment be lost or stolen, the information could also be
used for a police/insurance report.
Model number:
Serial number:
Page 4
Digital Projection
Preface
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
iii
LASER WARNING
This symbol indicates that there is a potential hazard of eye exposure to laser
radiation unless the instructions are closely followed.
CLASS 3R LASER PRODUCT
This Laser Product is designated as Class 3R during all procedures of operation.
LASER LIGHT - AVOID DIRECT EYE EXPOSURE.
Do not point laser or allow laser light to be directed or reflected toward other people or
reflective objects.
Direct or scattered light can be hazardous to eyes and skin.
There is a potential hazard of eye exposure to laser radiation if the included instructions are not
followed.
Caution – use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Laser Parameters
Wavelength 450nm - 460nm (Blue)
Mode of operation Pulsed, due to frame rate
Pulse width 1.34ms
Pulse repetition rate 120Hz
Maximum laser energy 0.698mJ
Total internal power >100w
Apparent source size >10mm, at lens stop
Divergence >100 milliradian
CAUTION: Do not look into the lens
Caution – Possibly hazardous optical radiation emitted from this product.
Do not stare at operating light source.
May be harmful to eyes.
The non-laser emission from this projector is tested according to the IEC/EN 62471-5:2015
(“Photobiological safety of lamps and lamp systems – Part 5: Image projectors”) standard.
The projector is Risk Group 2 (low risk).
Page 5
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
iv
Product labels
Product Label locations
1.
Projector Hazard Warning Symbol
and Laser Aperture Label
2.
Projector Explanatory Labels
Complies with FDA performance standards fo r laser
products except for deviations pursuant to Laser
Notice No. 50, dated June 24, 2007
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
Emitted wavelength : 450-460 nm
Max. Pulse energy: 0.698 mJ, Pulse duration: 1.34 ms
激光輻射避免眼睛受到直接照射3R类激光產品
波長:450-460nm
最大脈衝能量:0. mJ,脈衝時間: . 4ms698 1 3
RAYONNEMENT LASER
EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX
APPAREIL LASER DE CLASSE 3RÀ
longueur d'onde : 450-460nm
maximum ergie de impulsion : 0. mJ,én 698
dur de impulsion : . 4 msée 1 3
GB 7247.1-2012 / IEC/EN 60825-1:2007
CLASS 1 LASER PRODUCT
IEC/EN 60825-1:2014
PRODUIT LASER DE CLASSE 1
IEC/EN 60825-1:2014
Page 6
Digital Projection Preface
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
v
3.

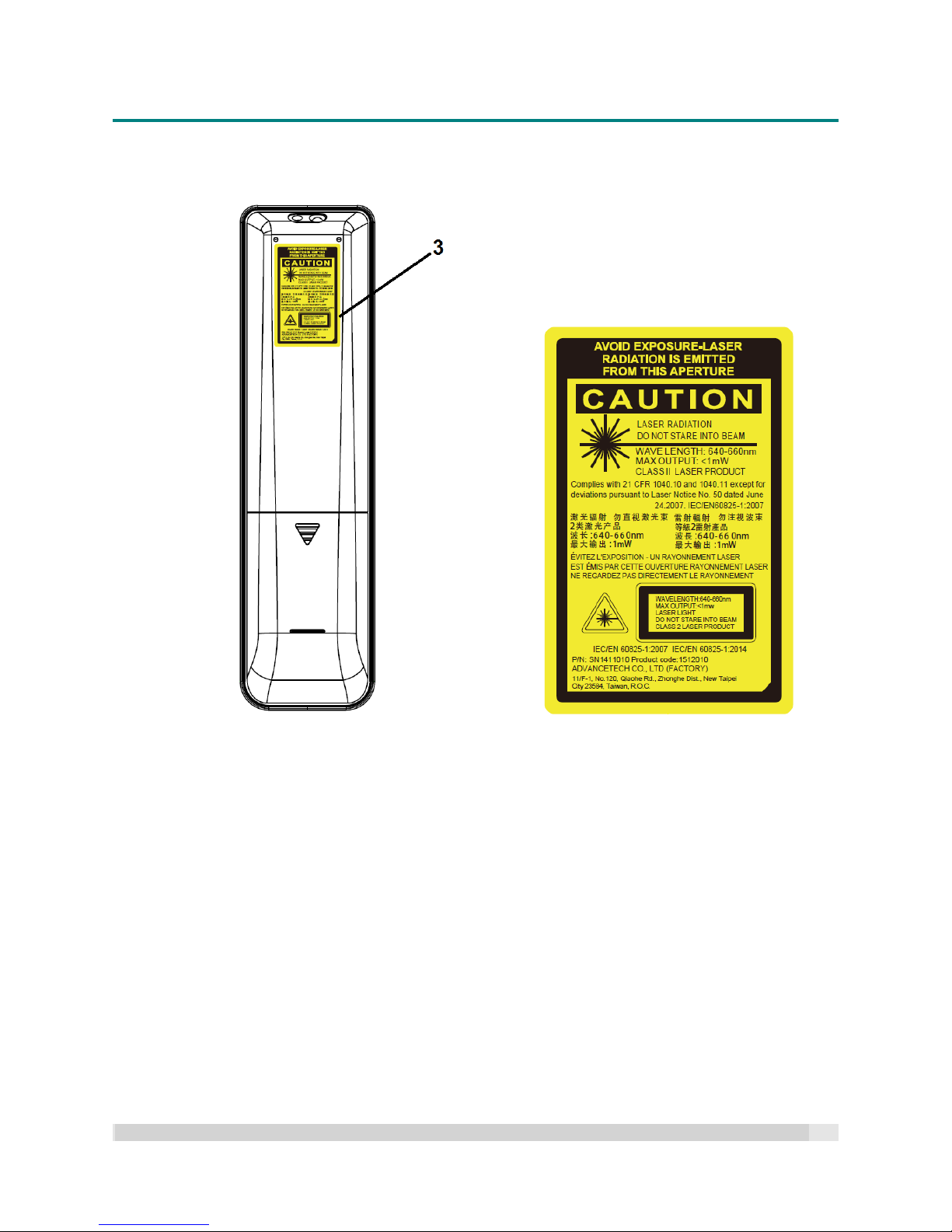

Laser Pointer Remote Control Explanatory Label
Page 7
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
vi
Location of laser aperture
The drawing below shows the laser aperture location.
Be careful not to look directly into the light emitted from the laser aperture.
Safety Interlock switch
The projector has a top cover safety interlock switch to protect the user from laser light Leakage.
This safety interlock will power-off the projector if the top cover is removed.
Page 8
Digital Projection Preface
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
vii
Projector Installation Notice
There is no limitation angle for projector installation.
Allow at least 50 cm clearance around the exhaust vent.
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed the projectors operational temperature range whilst the
projector is running, and that the air intake and exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the projector to shutdown even if the enclosure temperature
is with the acceptable operational temperature range.
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
Minimum 300mm
(11.81 inch)
Minimum 100mm
(3.94 inch)
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
Page 9
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
viii
Verify the Installation Location
To supply power, a 3-blade (with Earth) socket should be used to ensure proper grounding and an
equalized ground potential for all of the equipment in the Projector System.
The 3-blade power cord provided with the Projector should be used.
Other qualified 3-blade (with Earth lead) power cords can be used as a substitution for the supplied
power cord; however do not use a 2-blade power cord.
Verify if the voltage is stable, grounded properly and there is no electrical leakage.
Measure the total power consumption which should not higher than the safety capacity of the
system and avoid safety issues and short circuits.
Turn on “Altitude Mode” when the projector is located in high altitude areas.
When installed using a projector mounting bracket, make sure that the manufacturers certified
weight limit of the mounting bracket is not exceed and that the mounting bracket is firmly secured.
Avoid installing near an air conditioner duct or a subwoofer where airflow can be affected.
Avoid installing in high temperature, insufficient cooling and dusty locations.
Keep your product away from fluorescent lamps
(>1 Metre) to avoid any malfunctions
caused by Infrared (IR) interference
The VGA IN connector should be connected to the VGA IN port. Note that it should be inserted
tightly, with the screws on both sides securely fastened to ensure a proper connection of the signal
wire for achieving an optimal display.
The AUDIO IN connector should be connected to the AUDIO IN port only and CANNOT be
connected to the AUDIO OUT or other ports (BNC, RCA); otherwise, it will lead to a muted output
and can even DAMAGE the port.
The power cord and signal cables should be connected before powering on the projector.
During the projector starting and operating process, DO NOT insert or remove signal cables or the
power cord to avoid damaging the projector.
Cooling notes
Air outlet
Make sure the air exhaust outlet is 50 cm clear of any obstruction to ensure sufficent cooling.
The projectors air exhaust outlet locations should not be located in front of the lens of another
projector to avoid causing image distortions on the other projectors image.
Keep the air exhaust outlet at least 1 Metre away from the air inlets of other projectors
The projector generates heat during use. The internal fans continue to dissipate this heat during
the shutting down process, this process will continue for a period of time to ensure the projector
has cooled sufficiently. After the projector enters STANDBY mode you can then remove the power
cord from the projector.
DO NOT remove the power cord during the shutdown process, as it may cause damage to the
projector and the delayed heat radiating within the unit will also affect the service life of the
projector. The shutdown process may vary depending on the projector model used. Whatever the
case may be, be sure to not disconnect the power cord till until after the projector enters the
STANDBY mode.
Air inlet
Make sure there is no object blocking an air input within 30 cm.
Keep the air inlet away from other heat sources.
Avoid dusty environments.
Page 10
Digital Projection Preface
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
ix
Power Safety
Only use a 3-blade power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.
Cleaning the Projector
Unplug the power cord before cleaning. See section Cleaning the Projector.
Allow the light source to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in section Regulatory Compliance.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
Special Care for use with other Laser Beam equipment !
Special care should be considered when DLP projectors and high power laser equipment are used in the
same area, as the direct or indirect hit of a laser beam onto the projector lens can severely damage the
digital micromirror device (DMD™) within the projector.
Sun light Warning
Avoid using in direct sun light.
Sun light on the projector lens can severely damage the digital micromirror device (DMD™).
Page 11
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
x
Main Features
DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant
colorful images
Solid state laser phosphor light source for reliable performance
Environmentally friendly lamp-less design that is mercury-free and energy efficient
Almost maintenance-free with up to 20,000 hours of operating time
5,000 ANSI lumens with a dynamic 20,000:1 contrast ratio for amazing image quality
Manual zoom and focus for easy adjustment and positioning flexibility
Horizontal and vertical lens shift for greater installation convenience and flexibility
Distorted and trapezoid image issues are easily corrected with keystone, and 4-corner
adjustment
MHL device compatibility for the streaming and remote control of video and audio content
from a MHL compatible mobile device
Built-in HDBaseT receiver. HDBaseT™ interface with support for distribution of HD video,
digital audio content, RS232, RJ45 and IR function over standard CAT5e/6 LAN cable
Full suite of display connectivity inputs and outputs
10W of total stereo audio power (2 x 5W) with multiple audio-in and audio-out ports
3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
Designed for 360° operation and image projection; for set up in all angles
Portrait mode projection allows the projector to be easily setup and installed in a 90°
installation
Airtight sealed engine and filter-less design for improved performance against dust and
fibres
Network ready for integration and system administration via RJ45
Crestron® RoomView™ integration for network monitoring and management
Anti-theft security features include: Kensington® security slot, and security bar
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector.
Wherever possible, relevant information—such as an illustration and its description—has been kept on
one page. This printer-friendly format is both for your convenience and to help save paper, thereby
protecting the environment. It is suggested that you only print sections that are relevant to your needs.
Page 12
Digital Projection Preface
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
xi
Table of Contents
GETTING STARTED .............................................................................................................................................. 1
PACKING CHECKLIST ............................................................................................................................................. 1
VIEWS OF PROJECTOR PARTS ................................................................................................................................ 2
Front-right View ............................................................................................................................................... 2
Top view—On-screen Display (OSD) buttons and LEDs ................................................................................ 3
Rear view ......................................................................................................................................................... 4
Bottom view ..................................................................................................................................................... 6
REMOTE CONTROL ................................................................................................................................................ 8
PROJECTOR AND REMOTE CONTROL BUTTONS ..................................................................................................... 11
SETUP AND OPERATION ................................................................................................................................... 12
INSERTING THE REMOTE CONTROL BATTERIES ..................................................................................................... 12
STARTING AND SHUTTING DOWN THE PROJECTOR ................................................................................................ 13
SETTING AN ACCESS PASSWORD (SECURITY LOCK) .............................................................................................. 15
ADJUSTING THE PROJECTOR LEVEL ..................................................................................................................... 17
ADJUSTING THE PROJECTED IMAGE POSITION USING LENS SHIFT .......................................................................... 18
Lens Offset .................................................................................................................................................... 19
ADJUSTING THE ZOOM, FOCUS AND KEYSTONE ..................................................................................................... 20
ADJUSTING THE VOLUME ..................................................................................................................................... 21
ON-SCREEN DISPLAY (OSD) MENU SETTINGS.............................................................................................. 22
OSD MENU CONTROLS ....................................................................................................................................... 22
Navigating the OSD ....................................................................................................................................... 22
SETTING THE OSD LANGUAGE ............................................................................................................................. 23
OSD MENU OVERVIEW ........................................................................................................................................ 24
IMAGE MENU ....................................................................................................................................................... 27
Computer Menu ............................................................................................................................................. 28
Advanced Feature ......................................................................................................................................... 29
White Balance ............................................................................................................................................... 30
Color Manager ............................................................................................................................................... 31
SETTINGS 1 MENU ............................................................................................................................................... 32
Audio............................................................................................................................................................. 33
Alignment ..................................................................................................................................................... 34
Advanced 1 Feature ...................................................................................................................................... 37
Advanced 2 Feature ...................................................................................................................................... 39
SETTINGS 2 MENU ............................................................................................................................................... 40
Status............................................................................................................................................................. 41
Advanced 1 Feature ...................................................................................................................................... 42
Advanced 2 Feature ...................................................................................................................................... 56
MAINTENANCE AND SECURITY ....................................................................................................................... 58
CLEANING THE PROJECTOR ................................................................................................................................. 58
Cleaning the Lens .......................................................................................................................................... 58
Cleaning the Case ......................................................................................................................................... 58
USING THE PHYSICAL LOCK ................................................................................................................................. 59
Using the Kensington Security Slot ............................................................................................................... 59
Using the Security Bar Lock .......................................................................................................................... 59
TROUBLESHOOTING ......................................................................................................................................... 60
COMMON PROBLEMS AND SOLUTIONS .................................................................................................................. 60
TIPS FOR TROUBLESHOOTING .............................................................................................................................. 60
LED ERROR MESSAGES ...................................................................................................................................... 61
IMAGE PROBLEMS ............................................................................................................................................... 61
LIGHT SOURCE PROBLEMS .................................................................................................................................. 62
Page 13
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
xii
R
EMOTE CONTROL PROBLEMS ............................................................................................................................. 62
AUDIO PROBLEMS ............................................................................................................................................... 62
HAVING THE PROJECTOR SERVICED ..................................................................................................................... 63
SPECIFICATIONS ................................................................................................................................................ 64
SPECIFICATIONS .................................................................................................................................................. 64
PROJECTION DISTANCE VS. PROJECTION SIZE ...................................................................................................... 66
Projection Distance and Size Tables ............................................................................................................. 66
TIMING MODE TABLE ........................................................................................................................................... 67
Supported Frequencies ................................................................................................................................. 67
Supported Frequencies For 3D mode ........................................................................................................... 69
PROJECTOR DIMENSIONS .................................................................................................................................... 70
REGULATORY COMPLIANCE ........................................................................................................................... 71
FCC WARNING ................................................................................................................................................... 71
CANADA .............................................................................................................................................................. 71
SAFETY CERTIFICATIONS ..................................................................................................................................... 71
APPENDIX I ......................................................................................................................................................... 72
RS-232C PROTOCOL .......................................................................................................................................... 72
Page 14
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A DECEMBER
2017
1
G
ETTING STARTED
Packing Checklist
Carefully unpack the projector and check that the following items are included:
Projector
Remote Control
(Batteries Included)
VGA Cable Power Cord
CD-ROM
(This User Manual)
Quick Start Guide
Contact your supplying dealer immediately if any items are missing, appear damaged, or if the unit does not
work. It is recommended that you keep the original packing materials should you ever need to return the
equipment for warranty service.
Caution:
Avoid using the projector in dusty environments.
Page 15
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
2
Views of Projector Parts
Front-right View
ITEM LABEL DESCRIPTION SEE PAGE
1.
Zoom Ring Enlarges the projected image.
20
2.
Focus Ring Focuses the projected image.
20
3.
Lens Projection Lens.
4.
IR Receiver Receives the IR signal from the remote control.
11
5.
Tilt Adjuster Foot Rotate the adjuster to adjust angle of projection.
17
6.
Lens Shift Adjusts the image position vertically and horizontally.
18
7.
Vent Cool air intake.
8.
Function Keys On-Screen Display (OSD) buttons.
3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector light
source cool. Do not obstruct any of the ventilation openings.
Page 16
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
3
Top view—On-screen Display (OSD) buttons and LEDs
ITEM LABEL DESCRIPTION SEE PAGE
1.
AUTO Optimizes image size, position, and resolution.
2.
ENTER Enters or confirms a highlighted OSD menu item.
22
3.
Navigates and changes settings in the OSD.
Quick Menu – For Vertical Keystone.
22
4.
Navigates and changes settings in the OSD.
Quick Menu – For Vertical Keystone.
22
5.
SOURCE Enters the Source menu.
6.
Navigates and changes settings in the OSD.
Quick Menu – For Horizontal Keystone.
22
7.
Power Turns the projector on or off.
13
8.
Navigates and changes settings in the OSD.
Quick Menu – For Horizontal Keystone.
22
9.
MENU Opens and exits OSD menus.
22
10.
Power LED Displays the power on/off sequence status.
61
11.
Light source LED Displays the light source status.
61
12.
Temp LED Displays the thermal status.
61
13.
Vertical Lens Shift
(UP / DOWN)
Adjusts the image position vertically.
18
14.
Horizontal Lens Shift
(LEFT / RIGHT)
Adjusts the image position horizontally.
18
Page 17
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
4
Rear view
ITEM LABEL DESCRIPTION SEE PAGE
1.
HDMI 1 Connect a HDMI cable from a HDMI device.
2.
RJ45 Connect a LAN cable from Ethernet.
3.
HDMI 2 Connect a HDMI cable from a HDMI device.
4.
HDBaseT
Connect a Cat5e/Cat6 cable from a HDBaseT TX Box (VIDEO
EXTENDER) for reception of a HDBaseT signal.
5.
HDMI 3 / MHL
Connect a HDMI/MHL cable from a HDMI/MHL device.
Note: Set the Source to HDMI 3/MHL, this input will also charge the
connected MHL compatible device as long as the projector is
powered On.
6.
MONITOR OUT Connect an RGB cable to a display.
7.
COMPUTER Connect an RGB cable from a computer or a video enabled device.
8.
VIDEO Connect a composite cable from a video device.
9.
3D-SYNC Connect a 3D-sync in cable from a computer or an enabled device.
10.
SERVICE For service personnel use only.
11.
USB POWER (5V/1.5A)
Connect a USB cable for powering a USB powered device.
Note: Supports 5V/1.5A output as long as the projector power is On.
Page 18
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
5
ITEM LABEL DESCRIPTION SEE PAGE
12.
Kensington Security Slot
Secures the projector to a permanent object with a
Kensington Lock system.
59
13.
IR Receives the IR signal from the remote control.
14.
AUDIO IN L/R Connect audio cables from an audio device for VIDEO audio input.
15.
MIC IN Connect a microphone input device.
16.
AUDIO IN Connect an AUDIO cable from an audio device.
17.
AUDIO OUT Connect an AUDIO cable for audio loop through.
18.
RS-232C Connects a RS-232 serial port cable for remote control.
19.
AC IN Connect a POWER cable.
Warning:
As a safety precaution, disconnect all power to the projector and any connected devices before
making connections.
Page 19
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
6
Bottom view
ITEM LABEL DESCRIPTION SEE PAGE
1.
Ceiling Mount Holes
Contact your dealer for information on mounting the projector on a
ceiling.
2.
Tilt Adjuster Foot Rotate the adjuster to adjust angle of projection.
17
Note:
When installing the projector, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength.
The ceiling mount load capacity must exceed the weight of the installed equipment, and as an
additional precaution be capable of withstanding three times the weight of the equipment over a
period of 60 seconds.
135.0mm
[ 5.31" ]
135.0mm
[ 5.31" ]
160.0
[ 6.30" ]
130.0
[ 5.12" ]
111
2
2
Page 20
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
7

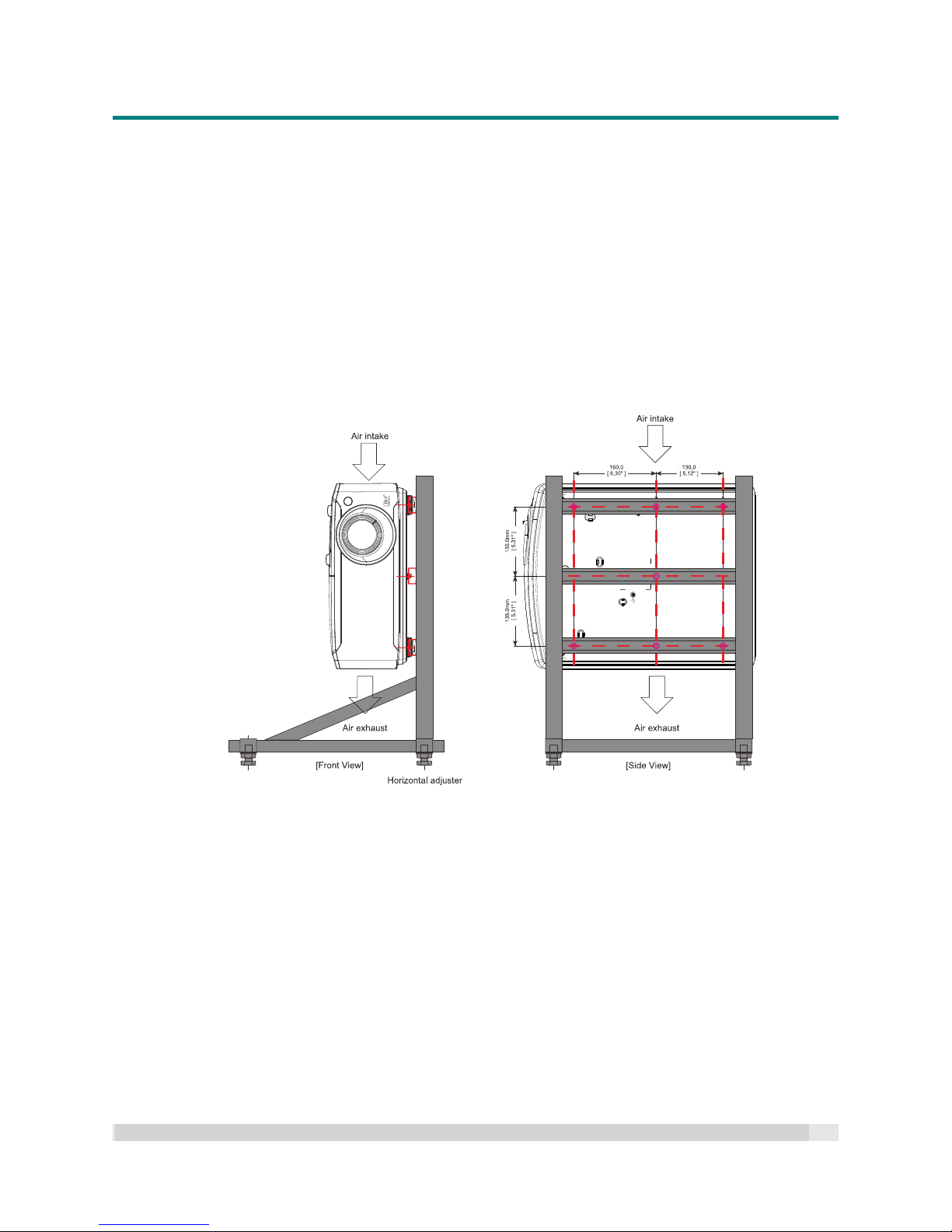

Reference drawings for stand
Please hire an installation service provider (for a fee) for the design and manufacture of a customized
stand to be used for portrait projection. Please ensure that the design complies with the following
conditions:
Use the 7 mounting screw holes at the back of the projector to secure it to the stand.
Screw hole center dimension: 290 (pitch = 160, 130) × 270 (pitch = 135) mm
Screw hole dimension on the projector: M4 with a maximum depth of 12 mm
Horizontal adjustment mechanism (for example, bolts and nuts in 4 places)
Please design the stand so that it does not topple over.
The drawing below illustrates the dimensional requirements; it is not an actual stand design drawing.
Page 21
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
8
Remote Control
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency
fluorescent lights can disrupt the remote control operation.
2. Ensure nothing obstructs the path between the remote control and the projector. If the path
between the remote control and the projector is obstructed, it is possible to bounce the signal off
certain reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
Note:
Complies with FDA performance standards for laser products except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007
Caution:
Use of controls, adjustments or performance of procedures other than those specified herein
may result in hazardous laser light exposure.
Page 22
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
9
ITEM LABEL DESCRIPTION SEE PAGE
1.
IR Transmitter Transmits Infrared control signals to the projector.
2.
Power On Turns the projector on.
13
3.
PC Displays the PC source selection.
4.
HDMI Displays the HDMI1/HDMI 2/DVI source selection (toggle).
5.
USB NA
6.
Navigates and changes settings in the OSD.
Quick Menu – For Vertical Keystone.
MHL - Up
22
7.
MENU
Opens the OSD menu. (and navigates back one OSD
menu page)
22
8.
Navigates and changes settings in the OSD.
Quick Menu – For Horizontal Keystone.
MHL - Left
22
9.
Keystone Opens the Keystone menu.
10.
Navigates and changes settings in the OSD.
Quick Menu – For Vertical Keystone.
MHL - Down
22
11.
Laser
Press to operate the on-screen Laser pointer.
DO NOT POINT INTO EYES.
12.
Play or pause video/music for MHL.
13.
Reverse in set increments for MHL.
14.
Play the previous item on the programming list for MHL.
15.
Stop video/music playing for MHL.
16.
Source/ID
Alternate input source.
Combo key function for Remote Control customer code
settings (Press ID button + Number for 3 seconds).
22
17.
Auto/0
Auto adjustment for frequency, phase, and position.
Number for Remote ID setting used.
22
18.
Brightness Displays the brightness setting bar.
19.
Lamp Displays the light source selections.
20.
Freeze Freezes/unfreezes the on-screen picture.
21.
Blank/6
Makes the screen blank.
Number for Remote ID setting used.
22.
Laser Emitter Laser Emitter for the on-screen pointer. DO NOT POINT INTO EYES.
23.
Power Off Turns the projector off.
13
24.
Video/S-Video Displays the Video source selection.
25.
Network Opens the OSD Network menu.
26.
HDBaseT
Displays the HDBaseT source selection.
27.
EXIT Navigates back one OSD menu page.
Page 23
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
10
ITEM LABEL DESCRIPTION SEE PAGE
28.
Enters and confirms settings in the OSD.
MHL – Enter/Select/OK
22
29.
Navigates and changes settings in the OSD.
Quick Menu – For Horizontal Keystone.
MHL - Right
22
30.
MHL
Enables the MHL (Mobile High-Definition Link) technology feature for
smart devices.
31.
Forward in set increments for MHL.
32.
Play the following item on the programming list for MHL.
33.
Volume/1
Displays the Volume setting bar.
Number for Remote ID setting used. (see Note)
34.
Contrast/2
Displays the Contrast settings bar.
Number for Remote ID setting used. (see Note)
35.
Mute/3
Mutes the built-in speaker.
Number for Remote ID setting used. (see Note)
36.
Zoom/4
Displays the digital zoom settings bar.
Number for Remote ID setting used. (see Note)
34
37.
3D/5
Opens the OSD 3D Setting menu.
Number for Remote ID setting used. (see Note)
38.
Status/7
Opens the OSD Status menu (the menu only opens when an input
device is detected).
Number for Remote ID setting used. (see Note)
39.
Wired Jack Socket For connecting a wired remote to the projector.
Note:
Remote Combo Key Settings:
ID+0: Reset Remote Control customer code to default settings.
ID+1: Set Remote Control customer code to "1".
~
ID+7: Set Remote Control customer code to "7".
The Projector also requires its ID setting for unique control. For projector ID settings see page 42.
Note:
When the projector is in MHL mode, The keypad on the projector will be the same definition as the
corresponding keys on the remote control.
Controlling your connected smart device with the Projector keypad in MHL Mode:
MENU for App settings, ▲ Up, ▼ Down, ◄ Left and ► Right are used as directional arrows,
ENTER and EXIT.
Controlling your connected smart device with the remote control in MHL model:
When the projector projects the contents from your MHL compatible smart device, you can use the
remote control to control your smart device.
MENU for App settings,
▲
Up, ▼ Down, ◄ Left and ► Right are used as directional arrows,
ENTER and EXIT.
Page 24
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
11
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the
rear of the projector, the remote will function well within a radius of approximately 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control, try
to move closer to the projector.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are limited in
use.
Page 25
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
12
SETUP AND OPERATION
Inserting the Remote Control Batteries
1.
Remove the battery compartment
cover by sliding the cover in the
direction of the arrow.
2.
Insert the batteries ensuring they are
inserted the correct way around.
3.
Replace the cover.
Caution:
1. Only use 2 x AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to the manufacturer’s instructions and local disposal
regulations.
3. Remove the batteries when not using the projector for prolonged periods.
4. RISK OF EXPLOSION IF BATTERIES ARE REPLACED WITH AN INCORRECT TYPE.
Page 26
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
13
Starting and Shutting down the Projector
1.
Securely connect the power cord and
signal cables. When AC power is
connected, the POWER LED will
illuminate green.
2.
Turn on the light source by pressing “
” button on the projector or “ ”
on the remote control.
The POWER LED will now flash green
until the startup screen displays in
approximately 30 seconds.
The first time you use the projector, you
can select your preferred language
choice from the quick menu after the
startup screen display. (See Setting the
OSD Language on page 23)
Startup screen display Logo:
See Setting an Access Password
(Security Lock) on page 15 if security lock
is required to be enabled.
Page 27
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
14
3.
If more than one input device is
connected, press the SOURCE button
and use to scroll among devices.
HDMI 1: High-Definition Multimedia Interface
compatible
HDMI 2: High-Definition Multimedia Interface
compatible
HDMI 3 / MHL: High-Definition Multimedia Interface
and Mobile High-Definition Link compatible
VGA: Analog RGB
DVD input YCbCr/ YPbPr, or HDTV input
YPbPr via D-sub connector
Composite Video: Traditional composite video
HDBaseT: Support for distribution of HD video,
digital audio content, RS232, RJ45 and IR
function over standard CAT5e/6 LAN cable.
Note:
Using a single HDBaseT CAT5e cable, the
projector supports HDBaseT connection
distances up to 100m/328ft.
4.
To turn the projector off, press the power
button. When the “Power Off? /Press
Power again” message appears on
screen, press the POWER button a
second time as confirmation. The
projector then turns off.
Caution:
Do not unplug the power cord until the POWER LED stops flashing – indicating that the projector
has cooled down.
Page 28
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
15
Setting an Access Password (Security Lock)
You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.
When enabled, the password must be entered after you power on the projector. (See Navigating the OSD
on page 22 and Setting the OSD Language on page 23 for help on using OSD menus.)
Important:
Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your suppling dealer for information on clearing the password.
1.
Press the MENU button to open the OSD
menu.
2.
Press the cursor button to move to the
Settings 1 menu, press the cursor
button to select Advanced 1.
3.
Press (Enter) / to enter the
Advanced 1 sub menu. Press the cursor
button to select Security Lock.
4.
Press the cursor button to enter and
enable or disable security lock function.
A password dialog box automatically
appears.
Page 29
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
16
5.
You can use the cursor buttons
either on keypad or IR remote control for
password entry. You can use any
combination including the same arrow five
times, but not less than five.
Press the cursor buttons in any order to set
the password. Push the MENU button to exit
the dialog box.
6.
With the Security Lock enabled, the
password confirm menu now appears when
a user presses the POWER-on key
Enter the password in the order set at step
5.
If you forget the password, please contact
your suppling dealer.
The suppling dealer can validate the owner
and help reset the password.
Page 30
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
17
Adjusting the Projector Level
Take note of the following when setting up the projector:
The projector table or stand should be level and sturdy.
Position the projector so that it is perpendicular to the screen.
Ensure the cables are in a safe location. Beware of trip hazards.
1.
To raise the level of the projector, twist
the Tilt Adjuster Feet counter clockwise.
2.
To lower the level of the projector, lift the
projector and twist the Tilt Adjuster Feet
clockwise.
Page 31
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
18
Adjusting the Projected Image Position Using Lens Shift
The Lens Shift feature provides a shift function that can be used to adjust the position of the projected
image either horizontally or vertically within the range detailed below.
Shift is a unique system that provides lens shift while maintaining a much higher ANSI contrast ratio than
traditional lens shift systems.
Note:
Do not rotate a lens shift knob any further after hearing a click sound (at the end of lens shift).
Lightly press the lens shift knob and rotate back.
Page 32
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
19
Lens Offset
This projector uses a fixed offset lens.
The fixed offset is +57.5% of screen height. Therefore the centre line of the projector lens would normally
be located either below the bottom on the screen or mounted inverted above the top of the screen.
A small amount of manual vertical and horizontal shift is also available see below.
Adjusting the vertical image position
The vertical image height can be adjusted around 14.5% for XGA and 12% for WUXGA of the offset
position.
Note that the maximum vertical image height adjustment can be limited by the horizontal image position.
For example it is not possible to achieve the maximum vertical image position height detailed above if the
horizontal image position is at maximum. Please consult the Shift Range diagram below for further
clarification.
Adjusting the horizontal image position
The horizontal image position can be adjusted to a maximum of 6.4% for XGA and 5% for WUXGA of the
image width. Note that the maximum horizontal image height adjustment can be limited by the vertical
image position. For example it is not possible to achieve the maximum horizontal image position if the
vertical image position is at maximum. Please consult the Shift Range diagram below for further
clarification.
Lens Shift Range Table
Offset (A)
Lens Shift V. (B)
Lens Shift H. (C)
XGA
21 % 14.5 % 6.4 %
WUXGA 15 % 12% 5 %
Page 33
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
20
Adjusting the Zoom, Focus and Keystone
1.
Use the Image-zoom control (on the
projector) to resize the projected image.
2.
Use the Image-focus control (on the
front of the lens) to sharpen the projected
image.
3.
Press the / / / buttons (on the
projector or the remote control) to correct
vertical or horizontal image-trapezoid or
press the Keystone button (on the
remote) to selected V (Vertical) or H
(Horizontal) keystone.
Remote control and OSD panel
4.
The keystone control appears on the
display.
Press / to set the V Keystone
image correction.
Press / to set the H Keystone
image correction.
B
A
Page 34
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
21

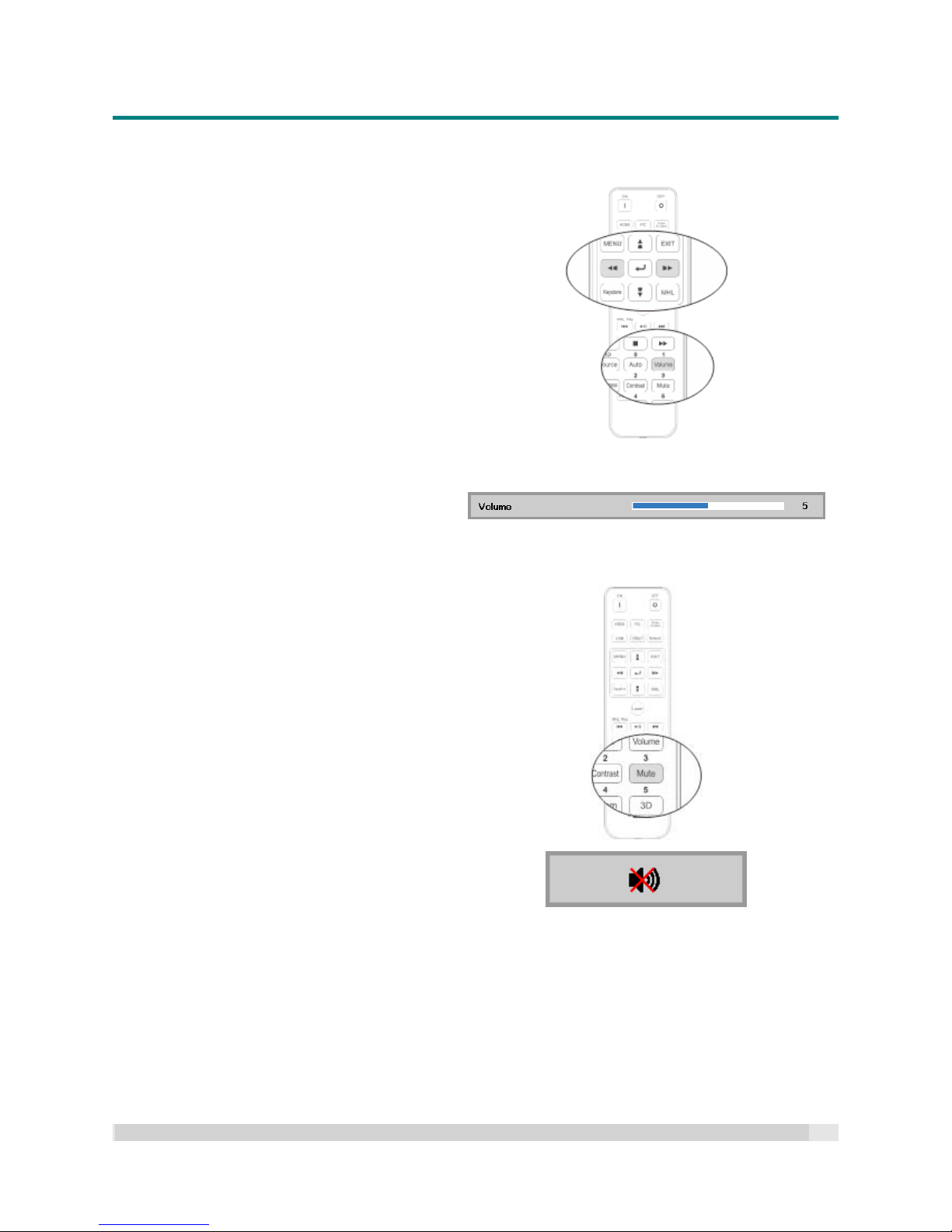

Adjusting the Volume
1.
Press the Volume button on the remote
control.
The volume control appears on the
display.
2.
Press the / buttons on the keypad
or the remote control to adjust Volume
+/-.
3.
Press the MUTE button to turn off the
volume (This feature is available only on
the remote).
Page 35
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
22
ON-SCREEN DISPLAY (OSD) MENU SETTINGS
OSD Menu Controls
The projector has an OSD that lets you make image adjustments and change various settings.
Navigating the OSD
You can use the remote control cursor buttons or the buttons on the projector to navigate and make
changes to the OSD. The following illustration shows the corresponding buttons on the projector.
1. To enter the OSD, press the MENU button.
2. There are three menus. Press the cursor /
buttons to move through the menus.
3. Press the cursor / buttons to move up
and down in a menu.
4. Press the cursor / buttons to change
values for settings.
5. Press the MENU button to close the OSD or
leave a submenu. Press the EXIT button to
return to the previous menu.
Note:
Depending on the video source, not all items in the OSD will be available.
For example, the Horizontal/Vertical Position items in the Computer menu can only be modified
when connected to a PC.
Items that are not available are grayed out and cannot be accessed.
Page 36
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
23
Setting the OSD Language
To set the OSD language to your preference.
1.
Press the MENU button. Press the cursor button to navigate to Settings 1. Press the cursor
button to move to the Advanced 1 menu.
2.
Press (Enter) / to enter the Advanced 1 sub menu. Press the cursor button until
Language is highlighted.
3.
Press the cursor button until the language you want is highlighted.
4.
Press the MENU button four times to close the OSD.
Page 37
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
24
OSD Menu Overview
Use the following illustration to quickly find a setting or determine the range for a setting.
Main
Menu Sub Menu
Settings
Image Display Mode Presentation, Bright, Game,
Movie, Vivid, TV, sRGB,
DICOM SIM, User, User2
Brightness 0~100
Contrast 0~100
Computer Horizontal Position -5~5 (depend on Auto Sync)
Vertical Position -5~5 (depend on Auto Sync)
Frequency 0~31
Tracking -5~5
Auto Sync On, Off
Auto Image
Advanced Brilliant Color 0~10
Sharpness 0~31
Gamma 1.8, 2.0, 2.2, 2.4, B&W, Linear
Color Temperature Warm, Normal, Cold
Video AGC Off, On
Video Saturation 0~100
Video Tint 0~100
White Balance R Gain 0~200
G Gain 0~200
B Gain 0~200
R Offset -100~100
G Offset -100~100
B Offset -100~100
Color Manager Red Hue, Saturation, Gain 0~100
Green Hue, Saturation, Gain 0~100
Blue Hue, Saturation, Gain 0~100
Cyan Hue, Saturation, Gain 0~100
Magenta Hue, Saturation, Gain 0~100
Yellow Hue, Saturation, Gain 0~100
White Red, Green, Blue 0~100
Page 38
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
25
Main
Menu
Sub Menu
Settings
Settings 1 Source Source reference Input Source Select (IR/Keypad)
Projection Normal, Real, Ceiling, Real+Ceiling
Audio Volume 0~10
Mute Off, On
MIC Off, On
MIC Volume 0~10
Alignment Aspect Ratio Fill, 4:3, 16:9, Letter Box, Native, 2.35:1
Digital Zoom -10~10
Keystone H: -30 ~ +30 V: -30 ~ +30
4 Corner Left-Top, Right-Top, Right-Bottom,
Left-Bottom
IR Setting All, Front IR, Rear IR
Advanced 1 Language English, Français, Deutsch, Español,
Português, 簡体中文, 繁體中文, Italiano,
Norsk, Svenska, Nederlands, ,
Polski, Suomi, , 한국어, Magyar,
eština, , Türkçe, Vit, 日本語, ไทย ,
, , Dansk, Fran. Can.
Security Lock Off, On
Blank Screen Blank, Red, Green, Blue, White
Splash Logo Std., Black, Blue
Closed Captioning Off, On
Keypad Lock Off, On
3D Setting 3D Off, DLP-Link, IR
3D Sync Invert Off, On
3D Format Frame Sequential, Top/Bottom,
Side-By-Side, Frame Packing (3D Frame
Packing HDMI source only)
Advanced 2 Test Pattern None, RGB Ramps, Color Bars, Step Bars,
CheckBoard, Grid, Horizontal Lines,
Vertical Lines, Diagonal Lines, Horizontal
Ramp, Vertical Ramp, White, Red, Green,
Blue, Black
H Image Shift -50~50
V Image Shift -50~50
Page 39
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
26
Main
Menu
Sub Menu
Settings
Settings 2 Auto Source Off, On
No Signal
Power Off
0~180
Auto Power
On
Off, On
Light Mode Normal, Eco, Eco Plus, Dimming,
Extreme Dimming, Custom Light
Reset All
Status Active Source
Video Information
Light Hours
Software Version
Remote ID
Serial Number
Advanced 1 Menu Position Center, Down, Up, Left, Right
Translucent Menu 0%, 25%, 50%, 75%, 100%
Low Power Mode On, On By Lan
Fan Speed Normal, High
Light Info Normal, Eco, Eco Plus, Dimming,
Extreme Dimming, Custom Light
Projector ID 0~98
Remote ID Default, 1, 2, 3, 4, 5, 6, 7
Network Network State Connect, Disconnect
DHCP On, Off
IP Address 0~255, 0~255, 0~255. 0~255
Subnet Mask 0~255, 0~255, 0~255. 0~255
Gateway 0~255, 0~255, 0~255. 0~255
DNS 0~255, 0~255, 0~255. 0~255
Apply Ok / Cancel
HDBaseT Setting (*) Off, On

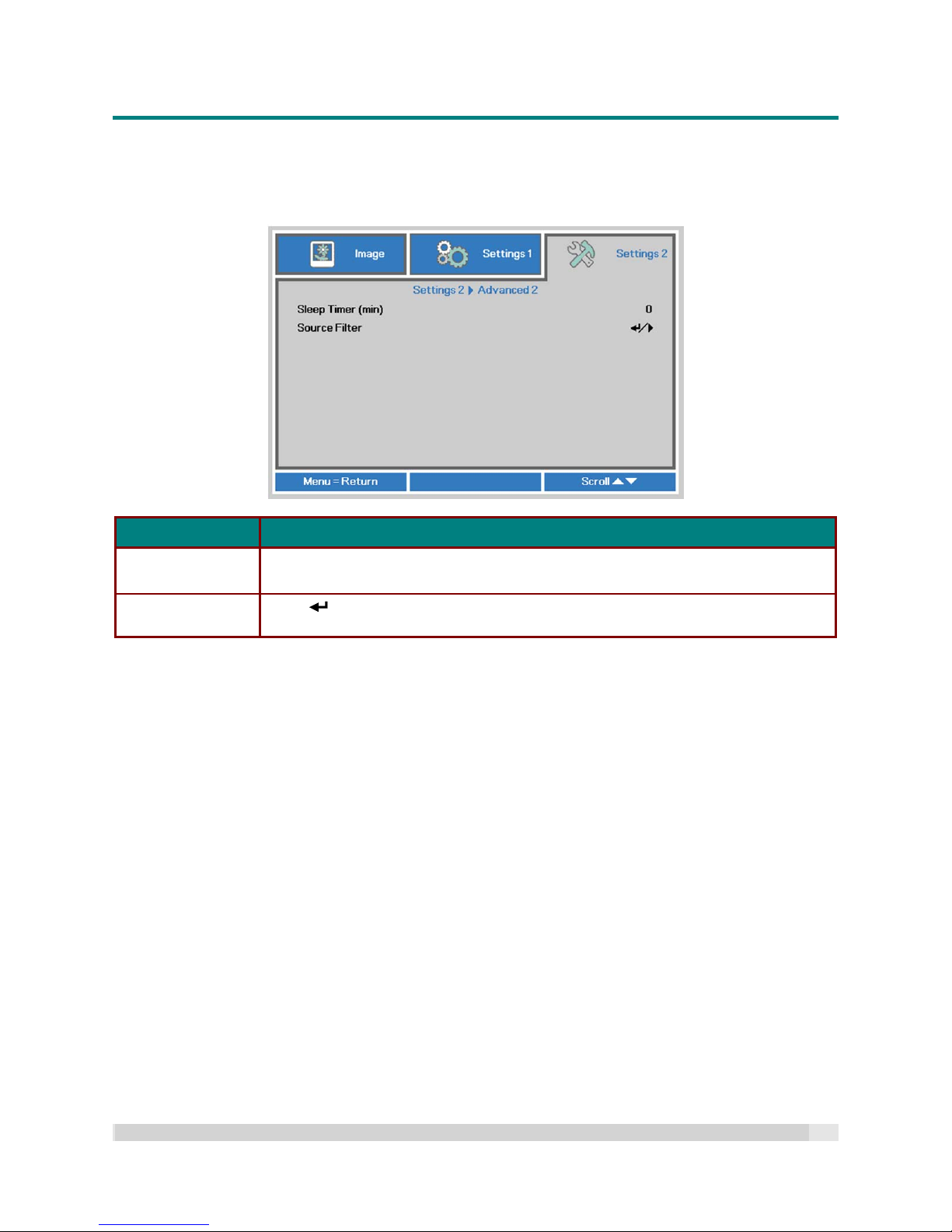

Advanced 2 Sleep Timer 0~600
Source Filter HDMI1 Disable, Enable
HDMI2 Disable, Enable
HDMI3/MHL Disable, Enable
VGA Disable, Enable
Composite Video Disable, Enable
HDBaseT Disable, Enable
Custom Light 25~100
Page 40
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
27
Image Menu
Attention !
Any Display Mode parameters when changed will be saved to user mode.
Press the MENU button to open the OSD menu. Press the cursor button to move to the Image Menu.
Press the cursor button to move up and down in the Image menu. Press to enter and change
values for settings.
ITEM DESCRIPTION
Display Mode Press the cursor button to enter and set the Display Mode.
Brightness Press the cursor button to enter and adjust the display brightness.
Contrast Press the cursor button to enter and adjust the display contrast.
Computer Press (Enter) / to enter the Computer menu. See Computer Menu on page 28.
Auto Image Press (Enter) / to automatically adjust for phase, tracking, size and position.
Advanced
Press (Enter) / to enter the Advanced menu. See Advanced Feature on page
29.
Color Manager
Press (Enter) / to enter the Color Manager menu. See page 31 for more
information on Color Manager
Page 41
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
28
Computer Menu
Press the MENU button to open the OSD menu. Press to move to the Image menu. Press to
move to the Computer menu and then press Enter or . Press to move up and down in the
Computer menu.
I
TEM
D
ESCRIPTION
Horizontal Position Press the cursor button to enter and adjust the display position to left or right.
Vertical Position Press the cursor button to enter and adjust the display position to up or down.
Frequency Press the cursor button to enter and adjust the A/D sampling clock.
Tracking Press the cursor button to enter and adjust the A/D sampling dot.
Auto Sync Press the cursor button to enter and adjust the Auto Sync Position to On or Off.
Page 42
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
29
Advanced Feature
Press the Menu button to open the OSD menu. Press to move to the Image menu. Press to
move to the Advanced menu and then press Enter or . Press to move up and down in the
Advanced menu.
I
TEM
D
ESCRIPTION
Brilliant Color Press the cursor button to enter and adjust the Brilliant Color value.
Sharpness Press the cursor button to enter and adjust the display sharpness.
Gamma Press the cursor button to enter and adjust the gamma correction of the display.
Color Temperature Press the cursor button to enter and adjust the color temperature.
Video AGC
Press the cursor button to enter and enable or disable the Automatic Gain Control
for video source.
Video Saturation Press the cursor button to enter and adjust the video saturation.
Video Tint Press the cursor button to enter and adjust the video tint/hue.
White Balance
Press the (Enter) / button to enter the White Balance sub menu. See White
Balance on page 30
Page 43
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
30
White Balance
Press the ENTER button to enter the White Balance sub menu.
I
TEM
D
ESCRIPTION
R Gain Press the buttons to adjust the Red Gain.
G Gain Press the buttons to adjust the Green Gain.
B Gain Press the buttons to adjust the Blue Gain.
R Offset Press the buttons to adjust the Red Offset.
G Offset Press the buttons to adjust the Green Offset.
B Offset Press the buttons to adjust the Blue Offset.
Page 44
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
31
Color Manager
Press the Menu button to open the OSD menu. Press to move to the Image menu. Press to
move to the Color Manager menu and then press Enter or . Press to move up and down in the
Color Manager menu.
ITEM DESCRIPTION
Red
Select to enter the Red Color Manager.
Press the buttons to adjust the Hue, Saturation, and Gain.
Green
Select to enter the Green Color Manager.
Press the buttons to adjust the Hue, Saturation, and Gain.
Blue
Select to enter the Blue Color Manager.
Press the buttons to adjust the Hue, Saturation, and Gain.
Cyan
Select to enter the Cyan Color Manager.
Press the buttons to adjust the Hue, Saturation, and Gain.
Magenta
Select to enter the Magenta Color Manager.
Press the buttons to adjust the Hue, Saturation, and Gain.
Yellow
Select to enter the Yellow Color Manager.
Press the buttons to adjust the Hue, Saturation, and Gain.
White
Select to enter the White Color Manager.
Press the buttons to adjust the Red, Green, and Blue.
Page 45
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
32
Settings 1 Menu
Press the MENU button to open the OSD menu. Press the cursor button to move to the Settings 1
menu. Press the cursor button to move up and down in the Settings 1 menu. Press to enter and
change values for settings.
I
TEM
D
ESCRIPTION
Source Press the cursor button to enter the Source menu.
Projection Press the cursor button to enter and choose from four projection orientations.
Audio Press (Enter) / to enter the Audio menu. See Audio on page 33.
Alignment Press (Enter) / to enter the Advanced 1 menu. See Alignment on page 34.
IR Setting Press the cursor button to enter and select a different IR Setting.
Advanced 1
Press (Enter) / to enter the Advanced 1 menu. See Advanced 1 Feature on
page 37.
Advanced 2
Press (Enter) / to enter the Advanced 2 menu. See Advanced 2 Feature on
page 39.
Page 46
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
33
Audio
Press the Menu button to open the OSD menu. Press to move to the Settings 1 menu. Press to
move to the Audio menu and then press Enter or . Press to move up and down in the Audio
menu.
I
TEM
D
ESCRIPTION
Volume Press the cursor button to enter and adjust the audio volume.
Mute Press the cursor button to enter and turn on or off the speaker.
MIC Press the cursor button to enter and turn on or off the MIC.
MIC Volume Press the cursor button to enter and adjust the MIC volume.
Page 47
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
34
Alignment
Press the Menu button to open the OSD menu. Press to move to the Settings 1 menu. Press to
move to the Alignment menu and then press Enter or . Press to move up and down in the
Alignment menu.
I
TEM
D
ESCRIPTION
Aspect Ratio Press the cursor button to enter and adjust the video aspect ratio.
Digital Zoom Press the cursor button to enter and adjust the Digital Zoom menu.
Keystone Press (Enter) / to enter the keystone menu. See Keystone on page 35.
4 Corner
Press (Enter) / to enter the 4 Corner sub menu. See 4 Corner on page 35.
Note: Does not function when 3D mode is activated.
Page 48
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
35
Keystone
Press the Menu button to open the OSD menu. Press to move to the Settings 1 menu. Press to
move to the Alignment menu and then press Enter or . Press to move to the Keystone menu and
then press Enter or . Press to adjust vertical values from -30 to 30. Press to adjust horizontal
values from -30 to 30.
4 Corner
Press the Menu button to open the OSD menu. Press to move to the Settings 1 menu. Press to
move to the Alignment menu and then press Enter or . Press to move to the 4 Corner menu and
then press Enter or .
1.
Press the cursor / buttons to select a corner and press ENTER.
Page 49
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
36
2.
Press the cursor / buttons to adjust the vertical axis or press the cursor / buttons to
adjust the horizontal axis.
3.
Press MENU to save and Exit the settings.
Page 50
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
37
Advanced 1 Feature
Press the Menu button to open the OSD menu. Press to move to the Settings 1 menu. Press to
move to the Advanced 1 menu and then press Enter or . Press to move up and down in the
Advanced 1 menu. Press to enter and change values for setting.
ITEM DESCRIPTION
Language Press the cursor button to enter and select a different localization Menu.
Security Lock Press the cursor button to enter and enable or disable the security lock function.
Blank Screen Press the cursor button to enter and select a different color to blank the screen.
Splash Logo Press the cursor button to enter and enable or disable the Splash Logo.
Closed Captioning Press the cursor button to enter and enable or disable Closed Captioning
Keypad Lock
Press the cursor button to enter and enable or disable keys on the keypad so that
they no longer function.
Note : Hold the cursor button on keypad for 5 seconds to unlock keypad
3D Setting
Press (Enter) / to enter the 3D menu.
See page 38 for more information on 3D Setting.
Note:
To enjoy the 3D function of the projector, first enable the “Play Movie in 3D” setting found in your 3D
DVD / 3D Blu-ray device within the 3D Disc Menu.
Page 51
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
38
3D Setting
I
TEM
D
ESCRIPTION
3D Press the cursor button to enter and select different 3D modes.
3D Sync Invert Press the cursor button to enter and enable or disable 3D Sync Invert.
3D Format Press the cursor button to enter and select different 3D Format.
Note:
1. The 3D OSD menu item is grayed out if there is no appropriate 3D source. This is the default setting.
2. When the projector is connected to an appropriate 3D source, the 3D OSD menu item is enabled for
selection.
3. Use 3D glasses to view a 3D image.
4. You need 3D content from a 3D DVD, 3D Blue-Ray or 3D media file.
5. You need to enable the 3D source (some 3D DVD / 3D Blu-Ray content may have a 3D on-off
selection feature).
6. You will require DLP link 3D or IR 3D shutter glasses. With the IR 3D shutter glasses, you will
require an IR emitter that is compatible with the IR 3D shutter glasses.
7. The 3D mode in the OSD menu needs to match the type of glasses (DLP link or IR 3D).
8. Power on the 3D glasses. Glasses normally have a power On-Off switch.
Each type of 3D glasses has their own configuration instructions. Please follow the configuration
instructions that come with your 3D glasses to finish the setup process.
9. Passive 3D is not supported through 3D Sync In/Out.
Note:
Since different types of 3D glasses (DLP link or IR shutter glasses) have their own set-up instructions,
Please follow the 3D glasses user guides to complete their setup process.
Page 52
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
39
Advanced 2 Feature
Press the Menu button to open the OSD menu. Press to move to the Settings 1 menu. Press to
move to the Advanced 2 menu and then press Enter or . Press to move up and down in the
Advanced 2 menu. Press to enter and change values for setting.
ITEM DESCRIPTION
Test Pattern Press the cursor button to enter and select an internal test pattern.
H Image Shift Press the cursor button to enter and set Horizontal Image Shift.
V Image Shift Press the cursor button to enter and set Vertical Image Shift.
Page 53
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
40
Settings 2 Menu
Press the MENU button to open the OSD menu. Press the cursor button to move to the Settings 2
menu. Press the cursor button to move up and down in the Settings 2 menu.
I
TEM
D
ESCRIPTION
Auto Source
Press the cursor button to enter and enable or disable the automatic source
detection function.
No Signal Power
Off (min.)
Press the cursor button to enter and set automatic shutdown of the Light source
when no signal is present.
Auto Power On
Press the cursor button to enter and enable or disable automatic power On when
AC power is supplied.
Light Mode
Press the cursor button to enter and select the Light mode for higher brightness
or lower brightness.
Reset All Press (Enter) / to reset all settings to default values.
Status
Press (Enter) / to enter the Status menu.
See page 41 for more information on Status.
Advanced 1
Press (Enter) / to enter the Advanced 1 menu.
See Advanced 1 Feature on page 42.
Advanced 2
Press (Enter) / to enter the Advanced 2 menu.
See Advanced 2 Feature on page 56.
Custom Light
In Custom Light mode press the cursor button to enter and adjust the brightness
of the projectors Light source.
Note: When Light Mode is set to Custom Light, the Custom Light function is Enabled.
Note :
In the Extreme Dimming mode you can save 50% of the light source power consumption by displaying
a blank screen (press the BLANK button)
Page 54
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
41
Status
Press the cursor button to move up and down in the Settings 2 menu. Select the Status menu and
press Enter or to enter.
I
TEM
D
ESCRIPTION
Active Source Shows the current activated source.
Video Information
Shows the current resolution/video information for RGB source and color standard for
Video source.
Light Hour Shows the amount of Light source hours that have been used.
Software Version Shows the system software version.
Remote ID Shows the Remote Controller ID
Serial Number Shows the serial number of the projector.
Page 55
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
42
Advanced 1 Feature
Press the Menu button to open the OSD menu. Press to move to the Settings 2 menu. Press to
move to the Advanced 1 menu and then press Enter or . Press to move up and down in the
Advanced 1 menu. Press to enter and change values for setting.
I
TEM
D
ESCRIPTION
Menu Position Press the cursor button to enter and select a different OSD location.
Translucent Menu Press the cursor button to enter and select OSD background translucent level.
Low Power Mode Press the cursor button to enter and turn Low Power Mode On or On By Lan.
Fan Speed
Press the cursor button to enter and toggle between Normal and High fan
speeds.
Note: We recommend selecting “high” speed in high temperatures, high humidity, or in
high altitude areas (higher than 1500m/4921ft).
Light Info
Press (Enter) / to enter the Light Info menu to display the light hours for each
light mode.
Projector ID
Press the cursor button to enter and adjust a two digit projector ID from 00
through 98.
Remote ID
Press the cursor buttons to select a remote ID to fit the current remote ID
settings.
Network
Press (Enter) / to enter the Network menu.
See page 44 for more information on Network.
HDBaseT Setting Press the cursor button to enter and enable or disable the HDBaseT setting.
Note:
When the “On By Lan” function is selected, the “RJ45” LAN port connection is enabled to support the
projector to be turned on via Ethernet.
Note:
1. A Remote control with the default code (0) will be available for any Remote ID setting in the OSD.
2. Status key will be available for any Remote ID setting on the OSD
3. If users forget the current Remote ID setting, please press the Status key to enter the
INFORMATION OSD to check the current Remote ID setting and then adjust the ID on the remote
control to match the OSD setting.
4. After adjusting the Remote ID in the OSD, then only if the OSD Menu has been closed will the new
ID value be effected and memorized.
5. The setting value “Default” means ID 0 on the remote control.
Page 56
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
43
Note:
1. Enable the HDBaseT control function when you desire to use a HDBaseT TX box. (Remove any
RS232 and RJ45/LAN control function from Projector to HDBaseT TX box.) See HDBaseT control
function table.
2. When HDBaseT is enabled, selecting Low Power Mode will auto set to On by HDBaseT.
3. HDBaseT control is disabled when a HDBaseT TX box signal is cutoff.
HDBaseT control function table
Control
Side
Function
Projector Mode
Remark
Low Power
Mode
On(<0.5W)
Low Power
Mode
On by
LAN(<3W)
HDBaseT control Enable
Low Power Mode
On by HDBaseT(<6W)
Projector
Front-IR (wireless) O O O (Can disable by OSD)
Rear-IR (wireless) O O O (Can disable by OSD)
RS-232 O O X
RJ45/LAN X O X
Wired remote O O O
HDBaseT TX Box
HDBT-IR(wireless) X X O
RS-232 X X O
RJ45/LAN X X O
Wired remote X X O
User can connect a wired
remote at the
HDBaseT TX
side to get the
wired remote
function.
O : Enable X : Disable
Page 57
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
44
Network
ITEM DESCRIPTION
Network State Displays the network connection status.
DHCP
Press to turn DHCP On or Off.
Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and
DNS fields.
IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Gateway Enter a valid Gateway address if DHCP is turned off.
DNS Enter a valid DNS name if DHCP is turned off.
Apply Press (Enter) / to confirm the settings.
Page 58
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
45
LAN_RJ45

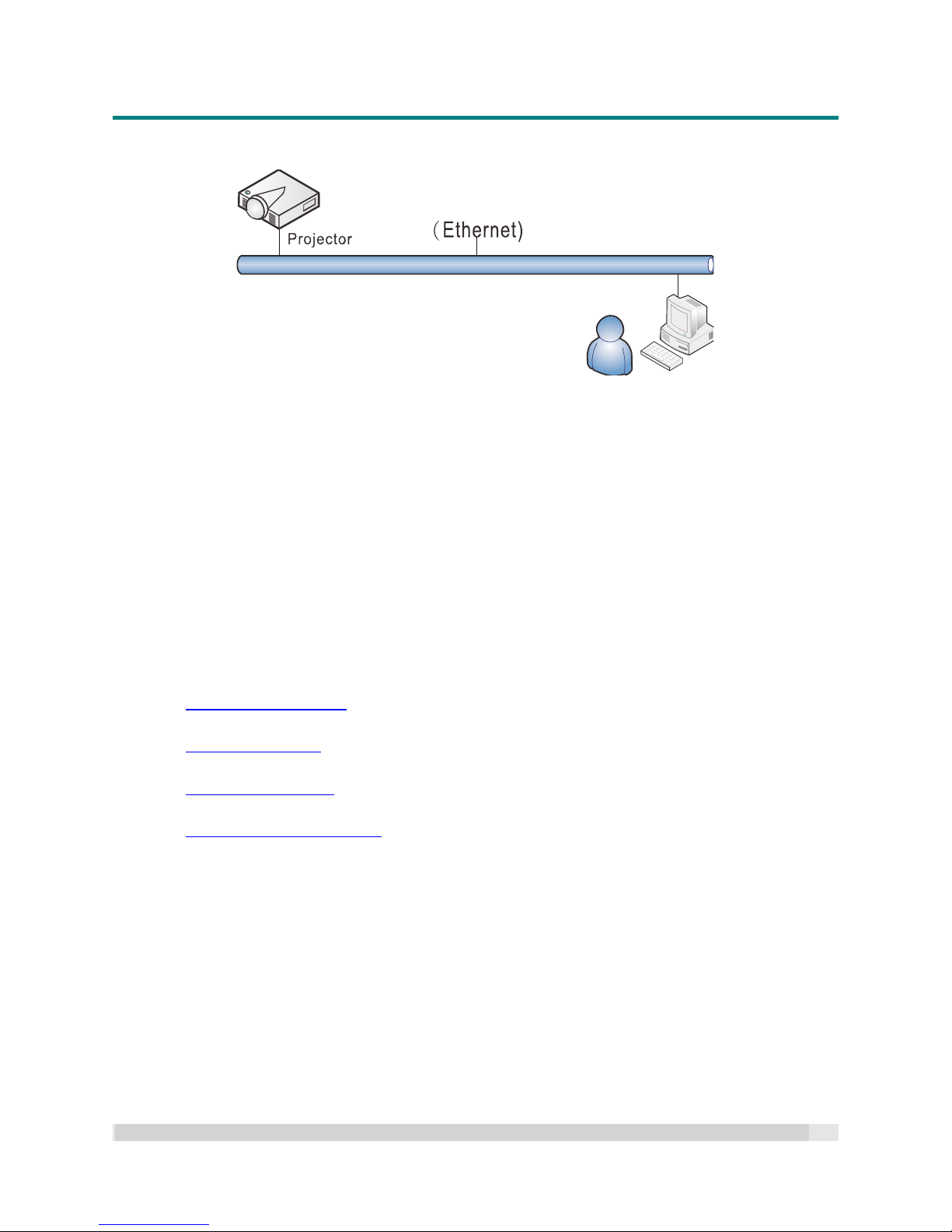

Wired LAN Terminal functionalites
Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible.
Compatibility with Crestron / AMX (Device Discovery) / Extron control boxes enables not only collective
projector management on a network but also management from a control panel on a PC (or Laptop)
browser screen.
Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
Extron is a registered trademark of Extron Electronics, Inc. of the United States.
AMX is a registered trademark of AMX LLC of the United States.
PJLink is an applied for trademark and logo registration in Japan, the United States of America,
and other countries by JBMIA.
Supported External Devices
This projector is supported by the specified commands of the Crestron Electronics controller and
related software (ex, RoomView ®).
http://www.crestron.com/
This projector is supported by AMX ( Device Discovery ).
http://www.amx.com/
This projector is compliant to support Extron device(s) for reference.
http://www.extron.com/
This projector supports all commands of PJLink Class1 (Version 1.00).
http://pjlink.jbmia.or.jp/english/
For more detail and information about the diverse types of external devices which can be connected to the
LAN/RJ45 port and used for remote control of the projector, as well as the related control commands
supported for each external device, Please contact your supplying dealer, or your local Digital Projection
Service support centre.
Page 59
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
46
LAN_RJ45
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2. On the PC (Laptop), select Start Control Panel Network and Internet.
Page 60
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
47
3. Right-click on Local Area Connection, and select Properties.
4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP).
5. Click Properties.
6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.
Page 61
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
48
7. Press the Menu button on the projector.
8. Select Settings2→ Advanced1 → Network
9. In Network, input the following example:
DHCP: Off
IP Address: 10.10.10.10
Subnet Mask: 255.255.255.0
Gateway: 0.0.0.0
DNS Server: 0.0.0.0
10. Press (Enter) / to confirm settings.
Open a web browser
(for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
11. In the web browsers address bar, input the IP address: 10.10.10.10.
12. Press (Enter)
The projector is now setup for remote management.
The projectors served webpages various functions display as follows within the browser.
Page 62
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
49
Projector Info:
Crestron (projector control):
Pressing the “Menu” button will display the projectors OSD menu on screen; you can navigate the OSD
menu by using the Crestron control screens Menu, Enter and ▲▼buttons
Note:
The Contrast, Brightness and Color controls can only be used in the Crestron control screen when
“User” Modes are selected in the projector.
Page 63
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
50
Crestron (setup options):
Crestron setup information
C
ATEGORY
I
TEM
I
NPUT-LENGTH
Crestron Control
IP Address 15
IP ID 3
Port 5
Projector
Projector Name 10
Location 10
Assigned To 10
Network Configuration
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
DNS Server 15
User Password
Enabled (N/A)
New Password 10
Confirm 10
Admin Password
Enabled (N/A)
New Password 10
Confirm 10
For more information, please visit http://www.crestron.com.
Page 64
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
51
Preparing Email Alerts
1. Ensure that there is access to the Projector Info homepage function by a web browser.
2. From the Homepage, click Alert Mail Settings.
3. In the Alert Mail Settings page, by default the input boxes are blank.
Page 65
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
52
4. To enable Alert mails to be sent, input the following:
The SMTP field is the mail server for sending out email (SMTP protocol). This is a required field.
The To field is the recipient’s email address (for example, the projector administrator). This is a
required field.
The Cc field sends a carbon copy of the alert to the specified email address. This is an optional field
(for example, the projector administrator’s assistant).
The From field is the sender’s email address (for example, the projector administrator). This is a
required field.
Select the alert conditions by checking the desired boxes.
Note: Fill in all fields as specified. You can click Send Test Mail to test if your settings are correct.
To successfully send an e-mail alert, you must select which alert conditions you require and enter a
correct e-mail address.
Page 66
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
53
RS232 by Telnet Function
The projector can be controlled by dedicated protocol commands via the RS232 interface with “HyperTerminal” communication.
There is also available an alternative RS232 control, so called “RS232 by TELNET” for the LAN/RJ45
interface.
Quick Start-Guide for “RS232 by TELNET”
Check and note the IP address from the projectors OSD.
Make sure that the connected laptop/PC can access the web-page of the projector via LAN.
Make sure that “Windows Firewall” settings are disabled in case of any “TELNET” function filtering by
the laptop/PC.
On the Laptop/PC choose: Start => All Programs => Accessories => Command Prompt
Page 67
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
54
At the command prompt, Input the command line format as below: (where ttt.xxx.yyy.zzz: is the actual
IP address of the projector).
telnet ttt.xxx.yyy.zzz 23 (and then press “Enter/Return”)
The Telnet-Connection is now ready for use on the projector; the user will be able to input RS232
commands to the projector via RJ45/LAN
How to enable TELNET in Windows 7 / 8 / 10
By default “TELNET” is not installed in Windows, but the end-user can enable it by way of “Turn
Windows features On or Off”.
Open “Control Panel” in Windows
Open “Programs”
Page 68
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
55
Select “Turn Windows features on or off” which will open the following window:
Tick the “Telnet Client” option, then press the “OK” button.
“RS232 by TELNET” information:
1. Telnet: TCP
2. Telnet port: 23
3. Telnet utility: Windows “TELNET.exe” (console mode)
4. To disconnect “RS232-by-Telnet” control: Close the Windows Telnet utility
5. Limitations for Telnet-Control:
1) There are less than 50 bytes available for each successive network payload for the TelnetControl application.
2) There are less than 26 bytes available for one complete RS232 command for Telnet-Control.
3) The minimum delay between sending RS232 commands via Telnet must be more than 200
(ms).
(N.B. In the Windows “TELNET.exe” utility, pressing the “Enter” key will also invoke a “CarriageReturn” and a “New-Line” code to be generated.)
Page 69
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
56
Advanced 2 Feature
Press the Menu button to open the OSD menu. Press to move to the Settings 2 menu. Press to
move to the Advanced 2 menu and then press Enter or . Press to move up and down in the
Advanced 2 menu. Press to enter and change values for setting.
I
TEM
D
ESCRIPTION
Sleep Timer
Press the cursor button to enter and set the Sleep Timer.
The projector automatically turns off after the preset period of time.
Source Filter
Press (Enter) / to enter the Source Filter menu. See page 57 for more
information on Source Filter.
Page 70
Digital Projection
E-V
ISION LASER
5000 S
ERIES USER MANUAL REV A JANUARY
2018
57
Source Filter
Press the ENTER button to enter the Source Filter sub menu.
I
TEM
D
ESCRIPTION
HDMI1 Press the cursor button to enter and enable or disable the HDMI1 source.
HDMI2 Press the cursor button to enter and enable or disable the HDMI2 source.
HDMI3/MHL
Press the cursor button to enter and enable or disable the HDMI3 /
MHL-compatible source.
VGA Press the cursor button to enter and enable or disable the VGA source.
Composite Video
Press the cursor button to enter and enable or disable the Composite Video
source.
HDBaseT Press the cursor button to enter and enable or disable the HDBaseT source.
Page 71
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
58
MAINTENANCE AND SECURITY
Cleaning the Projector
Periodically cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning, allowing time for
the projector to cool down. Failure to do so could result in injury.
2. Use only a damp cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.
3. If any water gets into the projector interior when cleaning, do not connect it to a power outlet,
but have the projector serviced.
Cleaning the Lens
You can purchase a quality optic lens cleaner from most good camera stores. Refer to the following to
clean the projector lens.
1. Apply a little of the optic lens cleaner to a clean soft lint-free cloth.
(Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
1. Do not use any abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting any lens cleaning product on the projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. First gently wipe off any loose dust with a clean damp cloth.
2. Rinse, wring out and then moisten the cloth with warm water with a small amount of mild
detergent, and then carefully wipe the case clean.
3. Rinse all the detergent from the cloth, thoroughly wring out the cloth and gently wipe the
projector over again.
4. Leave the projector to thoroughly dry.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
Page 72
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
59
Using the Physical Lock
Using the Kensington Security Slot
If you are concerned about security, attach the projector to a permanent object with the Kensington slot
and a security cable.
Note:
Contact your supplying dealer for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any
comment, contact:
Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242,
http://www.Kensington.com.
Using the Security Bar Lock
In addition to the password protection function and the Kensington lock, the Security Bar Opening can also
be used to secure the projector from unauthorized use.
See the following picture.
Page 73
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
60
TROUBLESHOOTING
Common Problems and Solutions
These guidelines provide tips to deal with problems you may encounter while using the projector.
If the problem remains unsolved, contact your supplying dealer for assistance.
Often, after some time spent troubleshooting, the problem is traced to something as simple as a loose
connection or faulty signal cable.
Please check the following before proceeding to the problem-specific solutions.
Use a different electrical device to confirm that the electrical power outlet is working.
Ensure the projector is turned on.
Ensure all signal/control connections are securely attached.
Ensure the attached device (e.g. DVD, Blu-Ray, Laptop) is turned on.
Ensure a connected PC/Laptop is not in a suspend/sleep mode.
Ensure a connected Laptop is configured for an external display.
(This is usually done by pressing a Fn-key combination on the Laptop.)
Tips for Troubleshooting
In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.
Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go to
the next step.
Keep a detailed record of the steps you take when troubleshooting: The information may be useful when
calling for technical support or for passing onto service personnel.
Page 74
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
61
LED Error Messages
ERROR CODE MESSAGES POWER LED LIGHT LED TEMP LED
Light Source Ready ON OFF OFF
Start Flashing OFF OFF
Cooling Flashing OFF OFF
Over Temperature T1 OFF 1 blinks ON
Over Temperature T2 OFF 2 blinks ON
Over Temperature T3 OFF 3 blinks ON
Over Temperature T4 OFF 4 blinks ON
Over Temperature T5 OFF 5 blinks ON
Thermal Break Sensor error 4 blinks OFF OFF
FAN1 error 6 blinks 1 blinks OFF
FAN2 error 6 blinks 2 blinks OFF
FAN3 error 6 blinks 3 blinks OFF
FAN4 error 6 blinks 4 blinks OFF
FAN5 error 6 blinks 5 blinks OFF
FAN6 error 6 blinks 6 blinks OFF
FAN7 error 6 blinks 7 blinks OFF
FAN8 error 6 blinks 8 blinks OFF
FAN9 error 6 blinks 9 blinks OFF
1W MCU detects scaler stops working 2 blinks OFF OFF
Case Open 7 blinks OFF OFF
Lens Open 7 blinks 1 blinks OFF
DMD error 8 blinks OFF OFF
Color wheel error 9 blinks OFF OFF
Phosphor wheel error 9 blinks 1 blinks OFF
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting
the projector. If the Power or Light source LEDs are still blinking or the Over Temp LED is lit, please
contact your supplying dealer.
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your Laptop or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the specified lens range.
4. Check that the projector lens is clean.
Problem: The image is wider at the top or bottom (trapezoid effect)
1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.
Page 75
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
62
Problem: The image is reversed
Check the Projection setting in the Settings 1 menu of the OSD.
Problem: The image is streaked
1. Set the Frequency and Tracking settings on the Image->Computer menu of the OSD to
the default settings.
2. To ensure the problem is not caused by a connected PC’s video card or poor quality signal
cable, connect to another computer.
Problem: The image is flat with no contrast
Adjust the Contrast setting on the Image menu of the OSD.
Problem: The color of the projected image does not match the source image.
Adjust the Color Temperature and Gamma settings on the Image->Advanced menu of the
OSD.
Light Source Problems
Problem: There is no light output from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is on.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards the IR remote sensor on the projector.
2. Ensure the path between the remote control and IR sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the remote control batteries polarity for correct insertion.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity (i.e. an IR emitter for 3D glasses).
7. Have the remote control serviced.
Audio Problems
Problem: There is no sound
1. Adjust the volume on the remote control.
2. Adjust the volume output of the audio source (is it on Mute?).
3. Check the audio cable connection.
4. Test the sources audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
1. Check the audio cable connection.
2. Test the sources audio output with other speakers.
3. Have the projector serviced.
Page 76
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
63
Having the Projector Serviced
If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the
original carton. Please include a description of the problem and a checklist of the steps you took when
trying to fix the problem: This information may be useful to service personnel.
For servicing, in the first instance, please contact your suppling dealer.
Page 77
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
64
SPECIFICATIONS
Specifications
Model Name
E-Vision Laser 5000 XGA E-Vision Laser 5000 WUXGA
Display Type
0.55” XGA, S450 0.67” WUXGA, S600
Resolution
XGA, 1024x768 WUXGA, 1920x1200
Throw Ratio
1.51~2.5 1.15~1.9
Zoom Ratio
1.65x Manual Zoom, Manual Focus
Image size (Width)
60cm ~ 330.2cm / 23.6" ~ 130" 79cm ~ 434.8cm / 31.1" ~ 171.2"
Projection distance
1.5 ~ 5m / 4.9ft ~ 16.4ft
Keystone Correction
Vertical ±30° for ±30 steps / Horizontal ±30° for ±30 steps
Projection Methods
Front, Rear, Desktop/Ceiling (Rear, Front)
Data Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
SDTV / EDTV / HDTV
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility
NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L)
H-Sync
15.31 ~ 102kHz
V-Sync
24 - 30Hz, 47 ~ 120 Hz
Certification
FCC-B, FDA, UL/cUL, CB, CE, CCC, China CECP
IEC 60825-1:2007 3R, IEC60825-1:2014 Class 1, IEC EN 62471-5 Risk Group 2
Operation Temperature
0°C ~ 40°C (32°F ~ 104°F), Humidity: 10% ~ 85% (Non condensing)
Environmental Storage
-20°C ~ 60°C (-4°F ~ 140°F), Humidity: 5% ~ 95% (Non condensing)
Maximum Dimensions
360mm / 14.2” (W) x 455mm / 17.9” (D) x 169mm / 6.7” (H)
AC Input
100-240VAC 50/60Hz single phase
Power Consumption
(Typical)
Normal Mode: 440W @ 230VAC, 460W@110VAC
Eco Mode: 340W @ 230VAC, 360W@110VAC
Standby Mode (On by LAN Enabled): <2W, (LAN Disabled): <0.5W
Light Source:
Laser-Phosphor (4 Banks)
Audio Speakers
Inbuilt 2 x 5 Watt speakers (10W Peak)
Input Terminals
VGA in x 1
Audio in (Stereo 3.5mm Jack) x 1
Composite video x 1
HDMI 1.4a (MHL) x 1, HDMI 1.4a x 2
Audio RCA (R/L) x 1
HDBaseT x 1
Output Terminals
VGA Monitor x 1
Audio out (Stereo 3.5mm Jack) x 1
USB Type A for power output (5V/1.5A) for WHDI x 1
3D-Sync x 1
Page 78
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
65
Control Terminals
RS-232 x 1
RJ45 x 1
USB mini B for service x 1
Security
Kensington Security Slot
Security Bar
Note: For questions regarding product specifications, please contact your supplying dealer.
Page 79
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
66
Projection Distance vs. Projection Size
Projection Distance and Size Tables
E-Vision Laser 5000 XGA: TR: 1.51~2.5, Minimum Offset=60.5%
WIDE TELE
Distance (m)
1.5 2.5 3 5 1.5 2.5 3 5
Diagonal (")
48.9 81.5 97.8 163.0 29.5 49.2 59.1 98.4
Image Width (mm)
993.4 1655.6 1986.8 3311.3 600.0 1000.0 1200.0 2000.0
Image Height (mm)
745.0 1241.7 1490.1 2483.4 450.0 750.0 900.0 1500.0
h (mm)
372.5 620.9 745.0 1241.7 225.0 375.0 450.0 750.0
O (mm)
529.0 881.6 1057.9 1763.2 319.5 532.5 639.0 1065.0
A (mm)
156.5 260.8 312.9 521.5 94.5 157.5 189.0 315.0
E-Vision Laser 5000 WUXGA: TR: 1.15~1.9, Minimum Offset=57.5%
WIDE TELE
Distance (m)
1.5 2.5 3 5 1.5 2.5 3 5
Diagonal (")
60.6 100.9 121.1 201.9 36.7 61.1 73.3 122.2
Image Width (mm)
1304.3 2173.9 2608.7 4347.8 789.5 1315.8 1578.9 2631.6
Image Height (mm)
815.2 1358.7 1630.4 2717.4 493.4 822.4 986.8 1644.7
h (mm)
407.6 679.3 815.2 1358.7 246.7 411.2 493.4 822.4
O (mm)
529.9 883.2 1059.8 1766.3 320.7 534.5 641.4 1069.1
A (mm)
122.3 203.8 244.6 407.6 74.0 123.4 148.0 246.7
Offset % = O/(2xh) × 100%
O=A+h
h=(1/2) × (image height)
Projection Distance
h
h
Image Height
A
Page 80
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
67
Timing Mode Table
Supported Frequencies
The unit automatically determines PC signals to select the appropriate resolution. Some signals may
require manual adjustment.
SIGNAL RESOLUTION
H-SYNC
( KHZ )
V-SYNC
( HZ )
COMPOSITE COMPONENT
RGB/BNC
(ANALOG)
DVI/HDMI/
HDBASET
(DIGITAL)
NTSC
－
15.734 60.0
－ － －
PAL/SECAM
－
15.625 50.0
－ － －
VESA
640 x 400 37.9 85.08
－ －
720 x 400 31.5 70.1
－ －
720 x 400 37.9 85.04
－ －
640 x 480 31.5 60.0
－ －
640 x 480 37.9 72.8
－ －
640 x 480 37.5 75.0
－ －
640 x 480 43.3 85.0
－ －
800 x 600 35.2 56.3
－ －
800 x 600 37.9 60.3
－ －
800 x 600 46.9 75.0
－ －
800 x 600 48.1 72.2
－ －
800 x 600 53.7 85.1
－ －
800 x 600 76.3 120.0
－ －
1024 x 576 35.8 60.0
－ －
1024 x 600 37.3 60.0
－ －
1024 x 600 41.5 65.0
－ －
1024 x 768 48.4 60.0
－ －
1024 x 768 56.5 70.1
－ －
1024 x 768 60.0 75.0
－ －
1024 x 768 68.7 85.0
－ －
1024 x 768 97.6 120.0
－ －
1024 x 768 99.0 120.0
－ －
1152 x 864 67.5 75.0
－ －
1280 x 720 45.0 60.0
－ －
1280 x 720 90.0 120.0
－ －
1280 x 768 47.4 60.0
－ －
1280 x 768 47.8 59.9
－ －
1280 x 800 49.7 59.8
－ －
1280 x 800 62.8 74.9
－ －
1280 x 800 71.6 84.9
－ －
1280 x 800 101.6 119.9
－ －
1280 x 1024 64.0 60.0
－ －
Page 81
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
68
SIGNAL RESOLUTION
H-SYNC
( KHZ )
V-SYNC
( HZ )
COMPOSITE COMPONENT
RGB/BNC
(ANALOG)
DVI/HDMI/
HDBASET
(DIGITAL)
1280 x 1024 80.0 75.0
－ －
1280 x 1024 91.1 85.0
－ －
1280 x 960 60.0 60.0
－ －
1280 x 960 85.9 85.0
－ －
1360 x 768 47.7 60.0
－ －
1400 x 1050 65.3 60.0
－ －
1440 x 900 55.5 59.9
－ －
1440 x 900 55.9 59.9
－ －
1440 x 900 70.6 75.0
－ －
1600 x1200 75.0 60
－ －
1680 x 1050 64.7 59.9
－ －
1680 x 1050 65.3 60.0
－ －
1920 x 1200 74.0 60.0
－ －
1920 x 1080 67.5 60.0
－ －
Apple
Macintosh
640 x 480 35.0 66.7
－ －
832 x 624 49.7 74.5
－ －
1024 x 768 60.2 74.9
－ －
1152 x 870 68.7 75.1
－ －
SDTV
480i 15.734 60.0
－
－
576i 15.625 50.0
－
－
EDTV
576p 31.3 50.0
－
－
480p 31.5 60.0
－
－
HDTV
720p 37.5 50.0
－
－
720p 45.0 60.0
－
－
1080i 33.8 60.0
－
－
1080i 28.1 50.0
－
－
1080p 27 24.0
－
－
1080p 28 25.0
－
－
1080p 33.7 30.0
－
－
1080p 56.3 50.0
－
－
1080p 67.5 60.0
－
－
O: Frequency supported
—: Frequency not supported
The native resolution of the XGA DMD panel is 1024x768
The native resolution of the WUXGA DMD panel is 1920x1200
Resolutions other than the native resolutions may display with uneven sizes of text or lines.
Timings highlighted are displayable only as a 4:3 aspect ratio.
Timings highlighted may have a small amount of acceptable noise.
Page 82
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
69
Supported Frequencies For 3D mode
The unit automatically determines PC signals to select the appropriate resolution. Some signals may
require manual adjustment.
Input Signal for D-SUB/HDMI/DVI-D
SIGNAL RESOLUTION REFRESH RATE(HZ)
SVGA 800 X 600 60/120
XGA 1024 X 768 60/120
HDTV(720P) 1280 X 720 60/120
WXGA 1280 X 800 60/120
True 3D Video Compatibility table
Input
Resolutions
HDMI 1.4a
3D Input
Input timing
1280 X 720P @ 50Hz Top - and - Bottom
1280 X 720P @ 60Hz Top - and - Bottom
1280 X 720P @ 50Hz Frame packing
1280 X 720P @ 60Hz Frame packing
1920 X 1080i @50 Hz Side- by-Side (Half)
1920 X 1080i @60 Hz Side- by-Side (Half)
1920 X 1080P @24 Hz Top - and – Bottom
1920 X 1080P @24 Hz Frame packing
HDMI 1.3
1920 x 1080i @ 50Hz
1920 x1080i @ 60Hz
1280 x 720P @50Hz
1280 x 720P @60Hz
Side-by-Side(Half) SBS mode is on
1920 x 1080i @ 50Hz
1920 x1080i @ 60Hz
1280 x 720P @50Hz
1280 x 720P @60Hz
Top-and-Bottom TAB mode is on
480i HQFS
3D format is Frame
sequential
Note:
3D glasses must support up to 144Hz.
Page 83
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
70
Projector Dimensions
Page 84
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
71
REGULATORY COMPLIANCE
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his/her own expense.
Changes or modifications not expressly approved by the parties responsible for compliance could void the
user’s authority to operate the equipment.
Canada
This Class B digital apparatus complies with Canadian ICES-003
Safety Certifications
FCC Class B
UL
cUL
CB
CE
CCC
China CECP
IEC 60825-1:2007 3R
IEC60825-1:2014 Class 1
IEC EN 62471-5 Risk Group 2
Page 85
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
72
APPENDIX I
RS-232C Protocol
RS232 Communications Settings
Baud rate: 9600
Parity check: None
Data bit: 8
Stop bit: 1
Flow Control None
UART16550 FIFO Disable
Minimum delay for next command: 1ms
Control Command Structure
Header code Command code Data code End code
HEX Command Data 0Dh
A
SCII ‘V’ Command Data CR
Operation Commands
Notes:
For ASCII commands, "CR" is a Carriage Return used at the end of the command string.
For ASCII commands, “XX” = 00-98, this is the individual projector ID that the command is
targeted at.
For ASCII commands, “XX” = 99, this is used to enable all projectors in an installation to
respond to the same command.
(e.g. the sent ASCII command V57S0001CR will only “Power On” Projector ID number 57)
For the variable “n”, contained within an ASCII command, this will have the value of 0~9999
that you wish a function to be set to, or depending on the command “0” =Disable,”1”=
Enable.
For the variable “n”, contained within a Returned Result, this will have a value of 0~9999
For a Returned Result “P” = Pass / “F” = Fail
(e.g. the sent ASCII command V57G0005CR will query Projector ID number 57 and return
a result of for example: “P00050”, where “P” is the “Pass” acknowledgement of the
command and “00050” is the total hours for Air Filter usage)
Page 86
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
73
Command Group 00
ASCII HEX Function Description Return Result
VXXS0001 56h Xh Xh 53h 30h 30h 30h 31h 0Dh
Power On P/F
VXXS0002 56h Xh Xh 53h 30h 30h 30h 32h 0Dh
Power Off P/F
VXXS0003 56h Xh Xh 53h 30h 30h 30h 33h 0Dh
Resync P/F
VXXG0004 56h Xh Xh 47h 30h 30h 30h 34h 0Dh
Get Light Hours Pn/F
VXXG0005 56h Xh Xh 47h 30h 30h 30h 35h 0Dh
Get Air filter timer
n=0~60000
Pn/F
VXXS0006 56h Xh Xh 53h 30h 30h 30h 36h 0Dh
System Reset P/F
VXXG0007 56h Xh Xh 47h 30h 30h 30h 37h 0Dh
Get System Status
0:Reset
1:Standby
2:Operation
3:Cooling
Pn/F
VXXG0008 56h Xh Xh 47h 30h 30h 30h 38h 0Dh
Get F/W Version Pn/F
Page 87
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
74
Command Group 01
ASCII HEX Function Description Return Value
VXXG0101 56h Xh Xh 47h 30h 31h 30h 31h 0Dh Get Brightness n=0~100 Pn/F
VXXS0101n 56h Xh Xh 53h 30h 31h 30h 31h nh 0Dh Set Brightness n=0~100 P/F
VXXG0102 56h Xh Xh 47h 30h 31h 30h 32h 0Dh Get Contrast n=0~100 Pn/F
VXXS0102n 56h Xh Xh 53h 30h 31h 30h 32h nh 0Dh Set Contrast n=0~100 P/F
VXXG0103 56h Xh Xh 47h 30h 31h 30h 33h 0Dh Get Color n=0~100 Pn/F
VXXS0103n 56h Xh Xh 53h 30h 31h 30h 33h nh 0Dh Set Color n=0~100 P/F
VXXG0104 56h Xh Xh 47h 30h 31h 30h 34h 0Dh Get Tint n=0~100 Pn/F
VXXS0104n 56h Xh Xh 53h 30h 31h 30h 34h nh 0Dh Set Tint n=0~100 P/F
VXXG0105 56h Xh Xh 47h 30h 31h 30h 35h 0Dh Get Sharpness 0~31 Pn/F
VXXS0105n 56h Xh Xh 53h 30h 31h 30h 35h nh 0Dh Set Sharpness 0~31 P/F
VXXG0106 56h Xh Xh 47h 30h 31h 30h 36h 0Dh
Get Color
Temperature
0=Warm
1=Normal
2=Cold
Pn/F
VXXS0106n 56h Xh Xh 53h 30h 31h 30h 36h nh 0Dh
Set Color
Temperature
0=Warm
1=Normal
2=Cold
P/F
VXXG0107 56h Xh Xh 47h 30h 31h 30h 37h 0Dh Get Gamma
0:1.8
1:2.0
2:2.2
3:2.4
4:B&W
5.Linear
Pn/F
VXXS0107n 56h Xh Xh 53h 30h 31h 30h 37h nh 0Dh Set Gamma
0:1.8
1:2.0
2:2.2
3:2.4
4:B&W
5.Linear
P/F
VXXG0108 56h Xh Xh 47h 30h 31h 30h 38h 0Dh Get Display Mode
0:Presentation
1:Bright
2:Game
3:Movie
4.Vivid
5:TV
6:sRGB
8:DICOM SIM
9:User
10:User2
Pn/F
VXXS0108n 56h Xh Xh 53h 30h 31h 30h 38h nh 0Dh Set Display Mode
0:Presentation
1:Bright
2:Game
3:Movie
4.Vivid
5:TV
6:sRGB
8:DICOM SIM
9:User
10:User2
P/F
Page 88
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
75
Command Group 02
ASCII HEX Function Description Return Value
VXXS0201 56h Xh Xh 53h 30h 32h 30h 31h 0Dh Select RGB
P/F
VXXS0203 56h Xh Xh 53h 30h 32h 30h 33h 0Dh Select DVI
P/F
VXXS0204 56h Xh Xh 53h 30h 32h 30h 34h 0Dh Select Video
P/F
VXXS0206 56h Xh Xh 53h 30h 32h 30h 36h 0Dh Select HDMI
P/F
VXXS0207 56h Xh Xh 53h 30h 32h 30h 37h 0Dh Select BNC
P/F
VXXS0209 56h Xh Xh 53h 30h 32h 30h 39h 0Dh Select HDMI 2 P/F
VXXS0212 56h Xh Xh 53h 30h 32h 31h 32h 0Dh Select HDMI 3/MHL P/F
VXXS0215 56h Xh Xh 53h 30h 32h 31h 35h 0Dh Select HDBaseT P/F
VXXG0220 56h Xh Xh 47h 30h 32h 32h 30h 0Dh Get Current Source
Return
1:RGB
3:DVI
4:Video
6:HDMI
7:BNC
9:HDMI2
12:HDMI3/MHL
15:HDBaseT
Pn/F
Command Group 03
ASCII HEX Function Description Return Value
VXXG0301 56h Xh Xh 47h 30h 33h 30h 31h 0Dh Get Scaling
0:Fill
1:4:3
2:16:9
3:Letter Box
4:Native
5:2.35:1
Pn/F
VXXS0301n 56h Xh Xh 53h 30h 33h 30h 31h nh 0Dh Set Scaling
0:Fill
1:4:3
2:16:9
3:Letter Box
4:Native
5:2.35:1
P/F
VXXG0302 56h Xh Xh 47h 30h 33h 30h 32h 0Dh Blank
Pn/F
VXXS0302n 56h Xh Xh 53h 30h 33h 30h 32h nh 0Dh Blank
P/F
VXXG0304 56h Xh Xh 47h 30h 33h 30h 34h 0Dh Freeze On
Pn/F
VXXS0304n 56h Xh Xh 53h 30h 33h 30h 34h nh 0Dh Freeze On
P/F
VXXG0305 56h Xh Xh 47h 30h 33h 30h 35h 0Dh Volume n=0~10 Pn/F
VXXS0305n 56h Xh Xh 53h 30h 33h 30h 35h nh 0Dh Volume n=0~10 P/F
VXXG0308 56h Xh Xh 47h 30h 33h 30h 38h 0Dh Projection Mode
0:Front
1:Rear
2:Ceiling
3:Rear+Ceiling
Pn/F
VXXS0308n 56h Xh Xh 53h 30h 33h 30h 38h nh 0Dh Projection Mode
0:Front
1:Rear
2:Ceiling
3:Rear+Ceiling
P/F
VXXG0309 56h Xh Xh 47h 30h 33h 30h 39h 0Dh
Get vertical
keystone value
n=-30~+30 Pn/F
Page 89
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
76
Command Group 03
ASCII HEX Function Description Return Value
VXXS0309n 56h Xh Xh 53h 30h 33h 30h 39h nh 0Dh Set vertical keystone
value
n=-30~+30 P/F
VXXG0310 56h Xh Xh 47h 30h 33h 31h 30h 0Dh
Get horizontal
keystone value
n=-30~+30 Pn/F
VXXS0310n 56h Xh Xh 53h 30h 33h 31h 30h nh 0Dh
Set horizontal
keystone value
n=-30~+30 P/F
VXXG0311 56h Xh Xh 47h 30h 33h 31h 31h 0Dh Adjust the zoom n=-10~+10 Pn/F
VXXS0311n 56h Xh Xh 53h 30h 33h 31h 31h nh 0Dh Adjust the zoom n=-10~+10 P/F
VXXG0315 56h Xh Xh 47h 30h 33h 31h 35h 0Dh 3D
0:Off
1:DLP-Link
2:IR
Pn/F
VXXS0315n 56h Xh Xh 53h 30h 33h 31h 35h nh 0Dh 3D
0:Off
1:DLP-Link
2:IR
P/F
VXXG0316 56h Xh Xh 47h 30h 33h 31h 36h 0Dh 3D Sync Invert
0:Off
1:On
Pn/F
VXXS0316n 56h Xh Xh 53h 30h 33h 31h 36h nh 0Dh 3D Sync Invert
0:Off
1:On
P/F
VXXG0317 56h Xh Xh 47h 30h 33h 31h 37h 0Dh 3D Format
0:Frame Sequential
1:Top/Bottom
2:Side-By-Side
3:Frame Packing
Pn/F
VXXS0317n 56h Xh Xh 53h 30h 33h 31h 36h nh 0Dh 3D Format
0:Frame Sequential
1:Top/Bottom
2:Side-By-Side
3:Frame Packing
P/F
VXXG0319 56h Xh Xh 47h 30h 33h 31h 38h 0Dh Light Mode
0:Normal
1:Eco
2.Eco Plus
3:Dimming
4.Extreme Dimming
5.Custom Light
Pn/F
VXXS0319n 56h Xh Xh 53h 30h 33h 31h 38h nh 0Dh Light Mode
0:Normal
1:Eco
2.Eco Plus
3:Dimming
4.Extreme Dimming
5.Custom Light
P/F
VXXG0321 56h Xh Xh 47h 30h 33h 32h 31h 0Dh Logo Select
0:Std
1:Black
2:Blue
Pn/F
VXXS0321n 56h Xh Xh 53h 30h 33h 32h 31h nh 0Dh Logo Select
0:Std
1:Black
2:Blue
P/F
VXXG0322 56h Xh Xh 47h 30h 33h 32h 32h 0Dh Fan Speed
0:Normal
1:High
Pn/F
VXXS0322n 56h Xh Xh 53h 30h 33h 32h 32h nh 0Dh Fan Speed
0:Normal
1:High
P/F
VXXG0330 56h Xh Xh 47h 30h 33h 33h 30h 0Dh
Sleep Timer
(min = n*5)
0~120
Pn/F
VXXS0330n 56h Xh Xh 53h 30h 33h 33h 30h nh 0Dh
Sleep Timer
(min = n*5)
0~120
P/F
VXXG0358
56h Xh Xh 47h 30h 33h 35h 38h 0Dh
Get IR On/Off
Control
0:Both IR turn on
1:Front IR turn on
2:Back IR turn on
Pn/F
Page 90
Digital Projection
E-VISION LASER 5000 SERIES USER MANUAL REV A JANUARY 2018
77
Command Group 03
ASCII HEX Function Description Return Value
VXXS0358n
56h Xh Xh 53h 30h 33h 35h 38h n 0Dh
Set IR On/Off
Control
0:Both IR turn on
1:Front IR turn on
2:Back IR turn on
P/F
Page 91
Contact Information:
Digital Projection Limited
Greenside Way, Middleton
Manchester M24 1XX, UK
Registered in England No. 2207264
Registered Ofce: as above
Tel (+44) 161 947 3300
Fax (+44) 161 684 7674
enquiries@digitalprojection.co.uk
service@digitalprojection.co.uk
www.digitalprojection.co.uk
Digital Projection Inc.
55 Chastain Road, Suite 115
Kennesaw, GA 30144, USA
Tel (+1) 770 420 1350
Fax (+1) 770 420 1360
powerinfo@digitalprojection.com
www.digitalprojection.com
Digital Projection China
中国 北京市 朝阳区 芍药居北里101号
世奥国际中心A座2011室(100029)
Rm A2011
ShaoYaoJu 101 North Lane
Shi Ao International Center
Chaoyang District
Beijing 100029, PR CHINA
Tel (+86) 10 84888566
Fax (+86) 10 84888566-805
techsupport@dp-china.com.cn
www.dp-china.com.cn
Digital Projection Asia
16 New Industrial Road
#02-10 Hudson Technocentre
Singapore 536204
Tel (+65) 6284-1138
Fax (+65) 6284-1238
www.digitalprojectionasia.com
119-127A E-Vision Laser 5000 Series User Manual
Loading...
