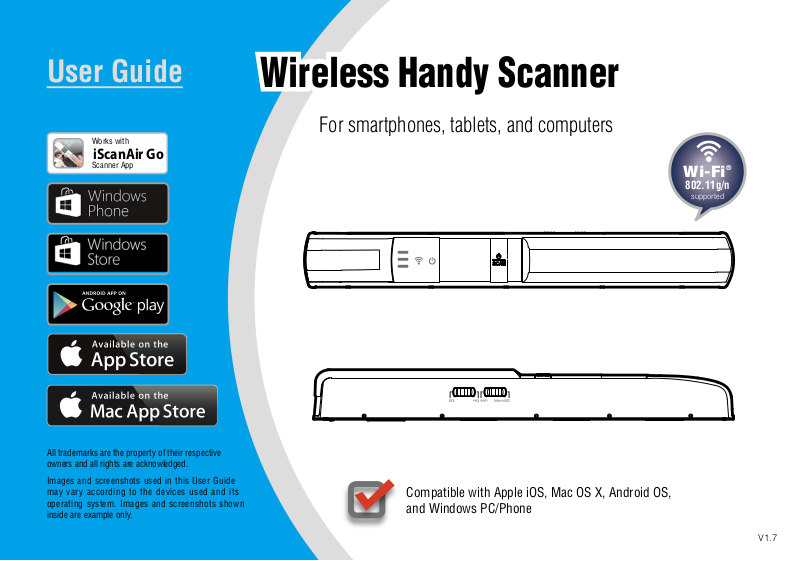

Digiframe DF-SCWF08w User Manual

User Guide
Works with
iScanAir Go
Scanner App
All trademarks are the property of their respective owners and all rights are acknowledged.
Images and screenshots used in this User Guide may vary according to the devices used and its operating system. Images and screenshots shown inside are example only.
Wireless Handy Scanner
For smartphones, tablets, and computers
Compatible with Apple iOS, Mac OS X, Android OS, and Windows PC/Phone
Wi-Fi
802.11g/n
supported
®
V1.7

Safety and Precautions

Never store the unit in hot, or very cold, or humid or dusty places.
•
For an ex tended storage period, we recommend storing the unit in a cool and dry place.
•
To help keep the scanning area clean, store the unit in a proper case when not in use.
•
If the unit is left in extreme cold or hot conditions, allow to adjust to normal room temperatures before use.
•
Only use accessories included with the unit.
•
When left unused for a long period of time, the unit should be disconnected from the power supply.
•
Always handle the unit with care. Avoid dropping and strong impact.
•
Keep the lens and roller clean and free from scratches.
•
Do not scan sharp objects or hard abrasive surfaces to avoid damage to the lens and other parts.
•
Do not scan objects with glue, grease, correction fluid, or wet ink on it which can cause malfunctions.
•
Operate the unit on a level, well-grounded work surface, and free of excessive vibration.
•
Don’t open the unit. Risk of electric shock.
•
Use only a soft damp cloth to clean the exterior areas of the unit.
•
Do not leave the unit within the reach of children.
•
Discarded electrical and electronic appliance are recyclable and should separate from the household waste. Please actively support in conserving resources and protecting the environment by returning this appliance to the collection centers (if available).
2

Contents

Safety and Precautions .......................................................................................................2
Contents .........................................................................................................................3
Supported Devices ............................................................................................................4
Unpack...........................................................................................................................5
Scanner Parts ..................................................................................................................6
LED Messages ..................................................................................................................7
Insert AAA Batteries ...........................................................................................................8
Set the Resolution .............................................................................................................9
Set the Scanner Mode ....................................................................................................... 10
Install the iScanAir Go app (WiFi Mode) ................................................................................. 11
Connect to Wireless Network (WiFi Mode) .............................................................................. 12
Scan, Save, and Share (WiFi Mode) ..................................................................................... 13
Scan the Object ........................................................................................................................................................................... 13
Save the Image ............................................................................................................................................................................ 14
Share the Image .......................................................................................................................................................................... 14
Use as the Standalone Scanner (MicroSD Mode) ...................................................................... 15
Browse and Transfer Images ....................................................................................................................................................... 15
Clean Lens and Rollers ..................................................................................................... 16
Calibrate ..................................................................................................................... 17
Calibrate in the WiFi Mode ......................................................................................................................................................... 17
Calibrate in the MicroSD Mode ................................................................................................................................................... 18
Helpful Hints .................................................................................................................. 19
Specications ................................................................................................................ 20
3

Supported Devices

The Scanner is compatible with following devices in the WiFi mode:
iPad (4th generation), iPad (3rd generation), iPad 2, iPad, iPad mini with iOS 5.0 or later.
iPhone 5, iPhone 4S, iPhone 4, iPod touch with iOS 5.0 or later.
Android mobile devices (smartphones and tablets) with OS 2.3.3 or later.
Mac computers with OS X 10.7 or later.
Windows PC devices (tablets, and computers) with Windows 8, Windows 8 Pro, or Windows RT.
Windows Phone 8.
4

Unpack

Make sure following items are included.
Scanner USB Cable
(See p.15)
Cleaning Cloth
(See p.16)
User Guide Carrying Bag
Calibration Sheet
(See p.17)
AAA battery x 4
(See p.8)
5

Scanner Parts

Guide
Mini USB Port
MicroSD Card Slot
Battery Cover
Rollers
Scanning Lens
WiFi/MicroSD Switch
SQ/HQ Switch
Power LED
Scanning LED
Guide
POWER/SCAN Button
WiFi LED
6

LED Messages

Symbol LED Light Message
Power LED
Solid green The power is turned on.
Blinking green The battery is low.
Solid red
Blinking orange The image is being saved in the MicroSD card on the scanner.
WiFi LED
Blinking blue The WiFi function is enabled.
Solid blue The scanner has connected to a WiFi enabled device.
Blinking purple The scanner is in operation.
Scanning LED
Green The scan speed is normal.
Orange Alerts the scan speed is fast.
Red Alerts the scan speed is very fast. (Note: The image distortion will occur.)
Memory is full or unknown error happen. (Note: The scanner will hang, Free up some memory and restart the scanner to solve the problem.)
7

Insert AAA Batteries

1. Push and slide the battery cover away to detach it from the base.
2. Place 4 alkaline batteries according to the polarity indicators inside the compartment.
3. Slide back the battery cover to close it.
Press and hold the
4. turn on or off the scanner.
NOTES
When a low battery alerts (a green Power LED blinks),
•
change the fresh batteries immediately. Never mix old and new batteries (replace all batteries at
•
the same time).
• Do not mix different types of batteries. Use the same or equivalent type of batteries as recommended.
• Alkaline batteries are recommended for best performance.
• Remove batteries when the scanner is not used for a long time.
• Dispose of batteries safely (Do not dispose of batteries in fire, batteries may explode or leak).
8
/SCAN button for 3 seconds to

Set the Resolution

Locate the SQ/HQ switch on the side of the Scanner. Slide the switch to “SQ” (Standard Quality) or “HQ” (High Quality) for scanning resolution.
NOTES
Scanning at “HQ” mode will take a longer time to scan
•
the image, and produce a larger files.
9

Set the Scanner Mode

Locate the WiFi/MicroSD switch on the side of the Scanner. Slide the switch to “WiFi” or “MicroSD” for setting the scanner mode.
In the WiFi mode, you can scan images directly to a supported device using direct WiFi connection. See p.11 for operations.
In the MicroSD mode, you can use it as a regular handy scanner and save the images in a MicroSD card located on the side of the scanner. See p.15 for operations.
10
Install the iScanAir Go app (WiFi Mode)
The Scanner includes free iScanAir Go apps to scan images directly to your devices. You need to install iScanAir Go from Internet to your device before use.
NOTES
• Ensure that your device has Internet access via your service provider or wireless connection.
• Do not perform other activities on your device while downloading
1. On your device, go to respective Apple App Store or Google Play Store or Windows Store.
2. Search for "iScanAir Go", press the install button to install it to your device.
3. Once installed, the iScanAir Go app will appear on your device's home screen.
iScanAir Go
app.
iScanAir Go
iScanAir Go
11
Connect to Wireless Network (WiFi Mode)
ON
You can make a direct wireless connection between the Scanner and your device in following steps.
1. Press and hold the
until the power LED emits green light.
* Wait about 20 seconds until the LED blinks blue light.
2. Enable the WiFi mode on your device, search the
DIRECT-xxxxxx_iScanAirGo” network for the Scanner, then select it.
* The "xxxxxx" in the network name is a 6-digit code randomly
assigned for your Scanner.
3. Input 8-digit password “
the Scanner.
* The LED will stop blinking and become a solid blue light
after connected.
NOTES
Be sure the Scanner is used within approximately 60 feet
•
~100 feet (18m~30m) from your WiFi enabled device in an obstacle free indoor environment.
• The Scanner will automatically shut down if there is no operation for 5 minutes for saving power. The Scanner allows connection up to 8 mobile devices at
•
once. To turn power off, press
•
until the Power LED indicator turns off.
12
/SCAN button for 3 seconds
12345678
/SCAN button for 4 seconds
” to connect
ConnectedWi-Fi On
Scan, Save, and Share (WiFi Mode)
NOTES
Ensure the Scanner is switched to the “WiFi” mode on the
•
side of the Scanner, and is connected to your device prior to use. (See p.10) Make sure your device is supported. (See p.4)
•

Scan

1. Press iScanAir Go app on your device to open it, then press Start.
* For Windows 8, swipe in or mouse in from the right edge of
the screen. Select "File Format" from the menu, and choose "Scan to JPG" or "Scan to PDF".
2. Place the Scanner on the object with the scanning lens facing down, making sure the scanned area is located between the two arrows on the scanner.
Press the
3.
* The LED will blink a purple light, and
will show real-time preview
4. Move the scanner slowly and steadily down towards the bottom of the object, press the again to end scanning.
* Ensure the Status LED ( ) blink green light at the normal
speed during scanning.
/SCAN button to start scanning.
the iScan Air app
.
/SCAN
(continued on the next page)
button
Press Start.
* The app looks slightly different
depending on your device's operating system
Press / SCAN to end.
13

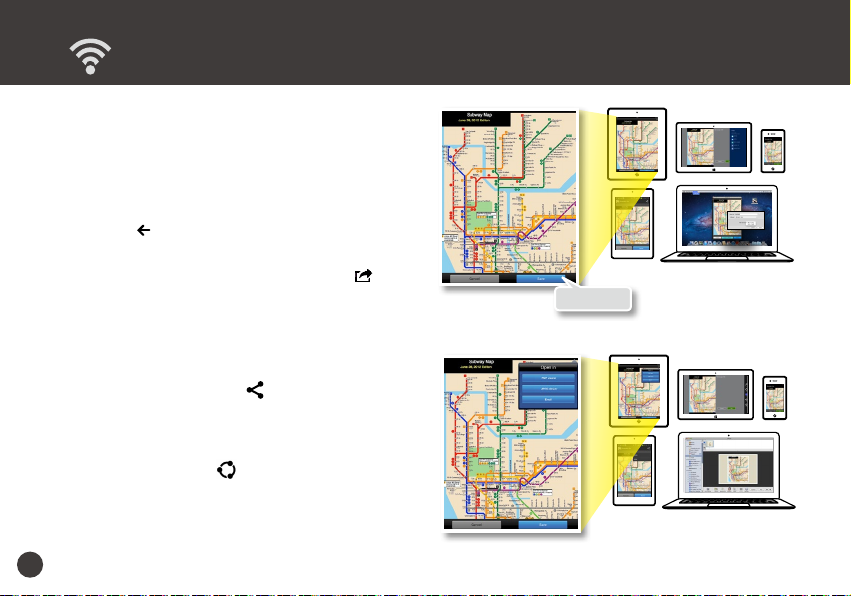

Scan, Save, and Share (WiFi Mode)

Save

Press Save to save the image to your device’s photo folder.
* For Mac, save the image with a chosen file name, directory, and file
format (JPG or PDF).
* Press Cancel to exit without save or to re-scan. For Windows
Phone, press

Share

• For iPad, iPhone, and iPod touch, press the icon
at the top-right corner to reveal the Open in menu. Open the image in JPEG or PDF format using other app, or send the image by email.
• For Mac,
to iPhoto.
• For Android devices, press (Share) to
image in JPG or PDF format using other app.
• For Windows Phone, press
using other app.
• For Windows 8, press
to share the image using other app.
* Swipe in from the right or move the mouse cursor to the top or
bottom right corner of the screen to
14
on the device to exit.
press Export to iPhoto
Share
icon from the Charms bar*
Share
reveal
to export the image
share the
to
share the image
the Charms bar.
(cont'd)
Press Save.

Use as the Standalone Scanner (MicroSD Mode)

NOTES
Ensure the Scanner is switched to the “MicroSD” mode on
•
the side of the Scanner. (See p.10)
1. Insert a microSD card into the card slot with the gold contacts facing up.
2. Place the Scanner on the object with the scanning lens facing down, making sure the scanned area is located between the two arrows on the scanner.
Press the
3. move the scanner slowly and steadily down towards the bottom of the object.
* Ensure the Status LED blink green light at the normal speed.
Press the /SCAN button again to end scanning
4. and save the image to the microSD card.
* The Power LED will blink orange light.
/SCAN button to start scanning, and

Browse and Transfer Images

Connect computer and the Scanner with the microSD card inside using the USB Cable. Turn on the Scanner. You can browse the Scanner as a portable hard disk, then transfer/copy scanned images to your computer.
* No battery is required if the Scanner is used as a portable hard disk.
Press / SCAN to start.
Press / SCAN to end.
ON
15

Clean Lens and Rollers

Dirt and residues can build up on the Scanner’s rollers and lens which can affect image quality. Clean Scanner’s lens and rollers periodically to get the best result.
NOTES
Make sure the Cleaning Cloth is clean before use.
•
Use
the Cleaning Cloth
•
remove dirt and residues easily.
1. Turn OFF the Scanner.
2. Turn over the Scanner so bottom side is facing up.
3. Gently rub the residues with the supplied Cleaning
Cloth. Repeat as many times as necessary to clean the lens and rollers until they are cleaned.
16
dampened with alcohol to help

Calibrate

NOTES
Always clean the Scanner’s rollers and lens first before
•
calibration. If cleaning rollers and lens did not improve image quality, then please perform calibration procedures.
If necessary, perform calibration few times until the image
•
quality is improved. Make sure the Calibration Sheet is clean and free of dust
•
before use. Mechanical sounds produced during the calibrating process
•
are normal.
Calibrate in the WiFi Mode
1. Slide the WiFi/Micro SD switch to “WiFi” and connect to wireless network. (See p.12)
2. Press iScanAir Go app on your device to open it.
3. Find the Settings icon or Menu button on your device to enter, then select the Calibrate.
Remove the plastic foil on the Calibration Sheet,
4. place it on the table with the white side facing up.
5. Place the scanner on the Calibration Sheet, then move it back and forth only in the white area few times until the "Calibration Done" message appears.
(continued on the next page)
Select
Calibrate
from the Settings menu.
17
Calibrate
(cont'd)

Calibrate in the MicroSD Mode

1. Slide the WiFi/Micro SD switch to “MicroSD”. Press and hold the
2. until the WiFi LED blinks a purple light.
Remove the plastic foil on the Calibration Sheet,
3. place it on the table with the white side facing up.
4. Place the scanner on the Calibration Sheet, then move it back and forth only in the white area few times until the Scanner turns off.
/SCAN button for 10 seconds
18

Helpful Hints

Scanner does not turn on
Press and hold the
•
Check if the Scanner’s battery has drained and no power is available.
•
Scanner cannot connect to your device
Try moving the Scanner closer to your device. The effective wireless transmission range is 60~100 feet (18~30m)
•
unobstructed. Make sure the WiFi LED of the Scanner is blinking blue.
•
Check that the network name on your device is matched to the Scanner. (See p.12)
•
Check if the Scanner is being used by another user, please wait and try again later.
•
Scanner operation interrupted
Check if the WiFi connection is disconnected. Reconnect or restart the Scanner.
•
Cannot save the scan images
Check if the Scanner and the mobile device has a low power.
•
Check if the storage memory is full.
•
Scanner hangs with red power LED
• Free up some memory and restart the scanner.
On the Apple device,
This is a privacy settings requested by your device.
•
‘Don’t Allow’, no image will be saved, and you will get an error message for the the next scan. Follow on-screen instructions to solve the problem: select Settings > Privacy > Photos > iScanAir Go > "ON".
Scan result is poor
Please clean the Scanner’s rollers and lens.
•
Images look distorted
The scanning speed is too fast. Scan again with a slow constant speed.
•
/SCAN button 3 seconds to turn on.
a message ‘iScanAir Go Would Like to Access Your Photos’ appears after pressing SAVE button
Press ‘OK’ button in order to save images to your device. If you select
If image quality is not improved, then please perform calibration procedures.
19

Specifications

Scanner Type A4 color handheld scanner Image Sensor Color CIS (Contact Image Sensor) Light Source LED (RGB) Scan Size (Max.) W 216mm x L 356 mm (W 8.5" x L 14") Scan Resolution SQ (300 dpi), HQ (600dpi) Scan Speed 4 seconds per page (A4 color) at 300 dpi
Interface USB mini-B port (for file transfer link); MiroSD card slot Buttons POWER/SCAN button, SQ/HQ switch, WiFi/MicroSD switch File Format JPG; PDF (for MAC and Windows PC only) Power Source AAA alkaline battery x 4 Scan Capacity Approx. 250 sheets of continuous use with fresh batteries. Auto Shutdown Auto power off after 5 minutes when not in use.
WiFi Capability
Dimensions 258 x 33 x 31 mm (10.2" x 1.3" x 1.2") (W x D x H) Weight 153g (0.34lbs) (without batteries) Operating Conditions 5°C ~ 35°C (41°F ~ 95°F), humidity range 35% ~ 80% RH; Non-condensing
20
12 seconds per page (A4 color) at 600 dpi
Radio Frequency 2.4GHz~2.472GHz compliant 802.11g/n protocol Configuration Soft AP (access point) supported Security WPA2
Loading...
