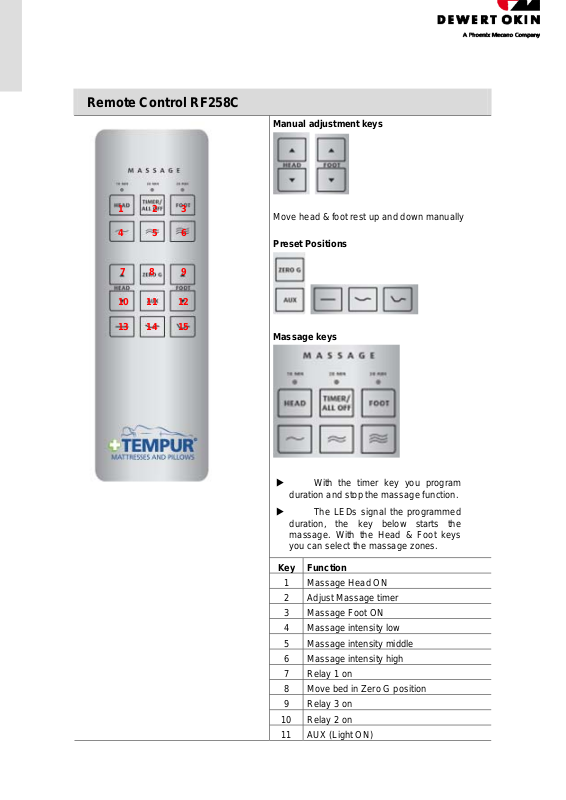

Remote Control RF258C
1 2 3
4 5 6
7 8 9
10 11 12
13 14 15
Manual adjustment keys
Move head & foot rest up and down manually
Preset Positions
Massage keys
X With the timer key you program
duration and stop the massage function.
X The LEDs signal the programmed
duration, the key below starts the
massage. With the Head & Foot keys
you can select the massage zones.
Key Function
1 Massage Head ON
2 Adjust Massage timer
3 Massage Foot ON
4 Massage intensity low
5 Massage intensity middle
6 Massage intensity high
7 Relay 1 on
8 Move bed in Zero G position
9 Relay 3 on
10 Relay 2 on
11 AUX (Light ON)
12 Relay 4 on
13 All flat
14 Lounge
15 TV
Performance data remote
(RF transmitter)
Modulation GFSK
Frequency Range 2.403-2.480GHz
Transmitted Power 0 dBm
Battery AAA
Working Current <40mA
Standby Current <8uA
Ambient Temperature
-40—85Ԩ
RC Dimension 145*50*14mm
PCB Material & Size FR4 1.6mm 79*42mm
Housing Material ABS+PC
