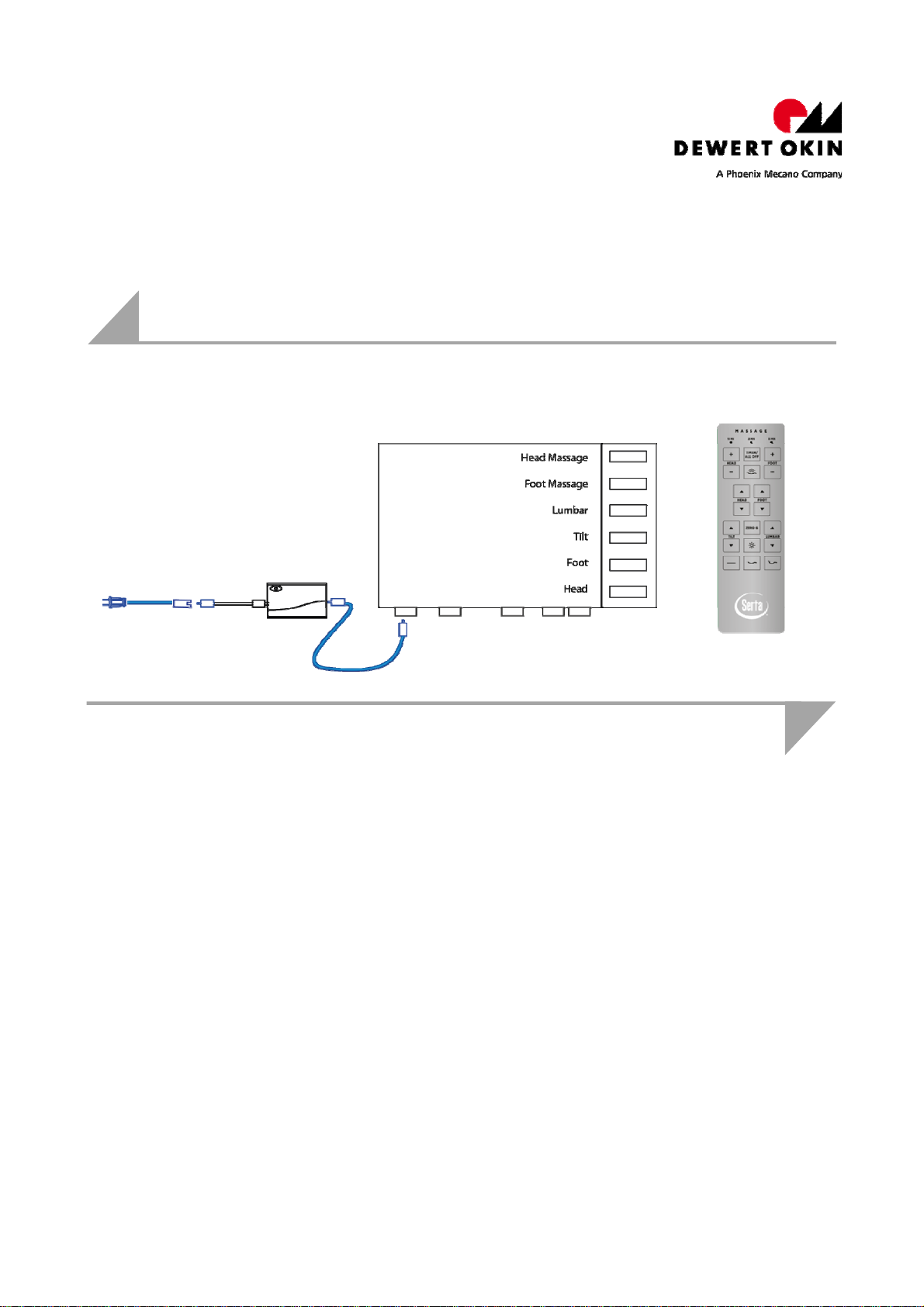

Control unit 900 Series
mounting + operating
1 Overview
This control unit is designated to operate an electrically driven bed with optional comfort
functions.
• Power supply is provided via SMPS so the control box has protection class III.
• The system is operated with an RF remote. The RF receiver is integrated into the
control unit.

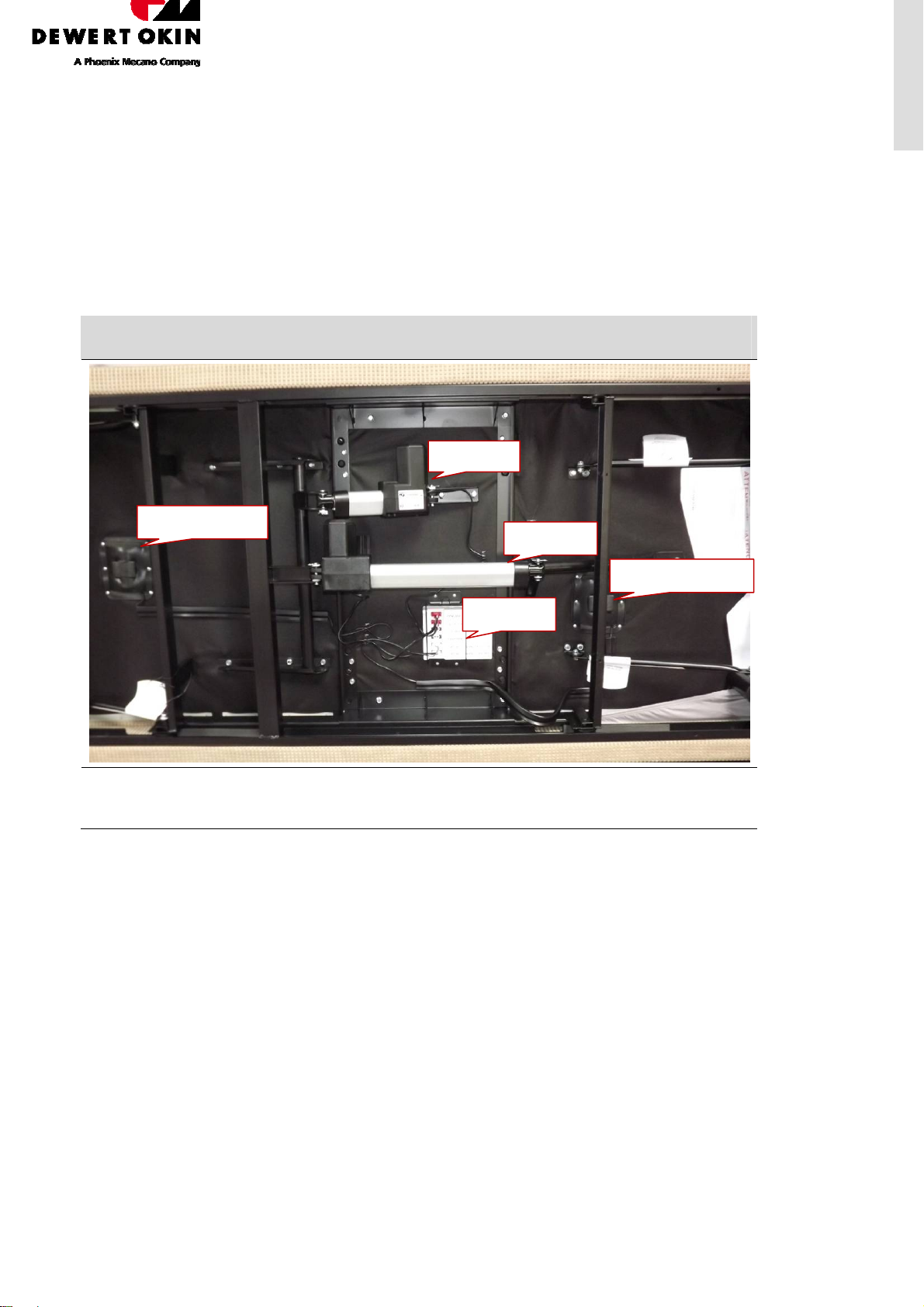

Bed view from beneath
Actuator 1
Massage motor 1
Actuator 2
Massage motor 2
Control unit
Here for example you can see a control unit with two actuators and two massage motors
connected
October 31, 2012 Page 2 of 12

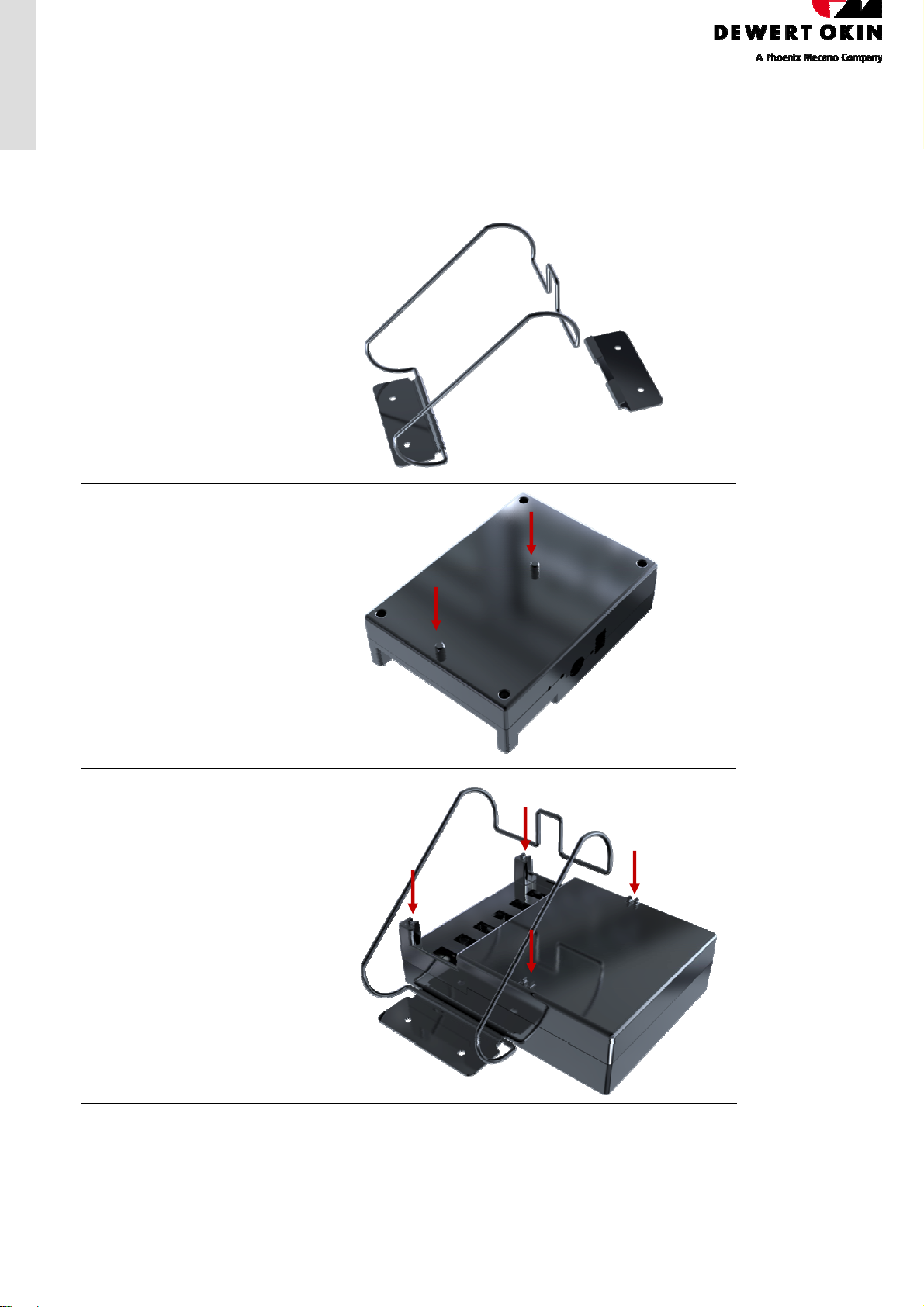

2 Mounting the control unit
This mounting bracket is fixed on
the flipside of the bed
These two bolts fix the position of
the control unit between the
mounting bracket.
The clip snaps in the holding
fixtures of the control unit
October 31, 2012 Page 3 of 12

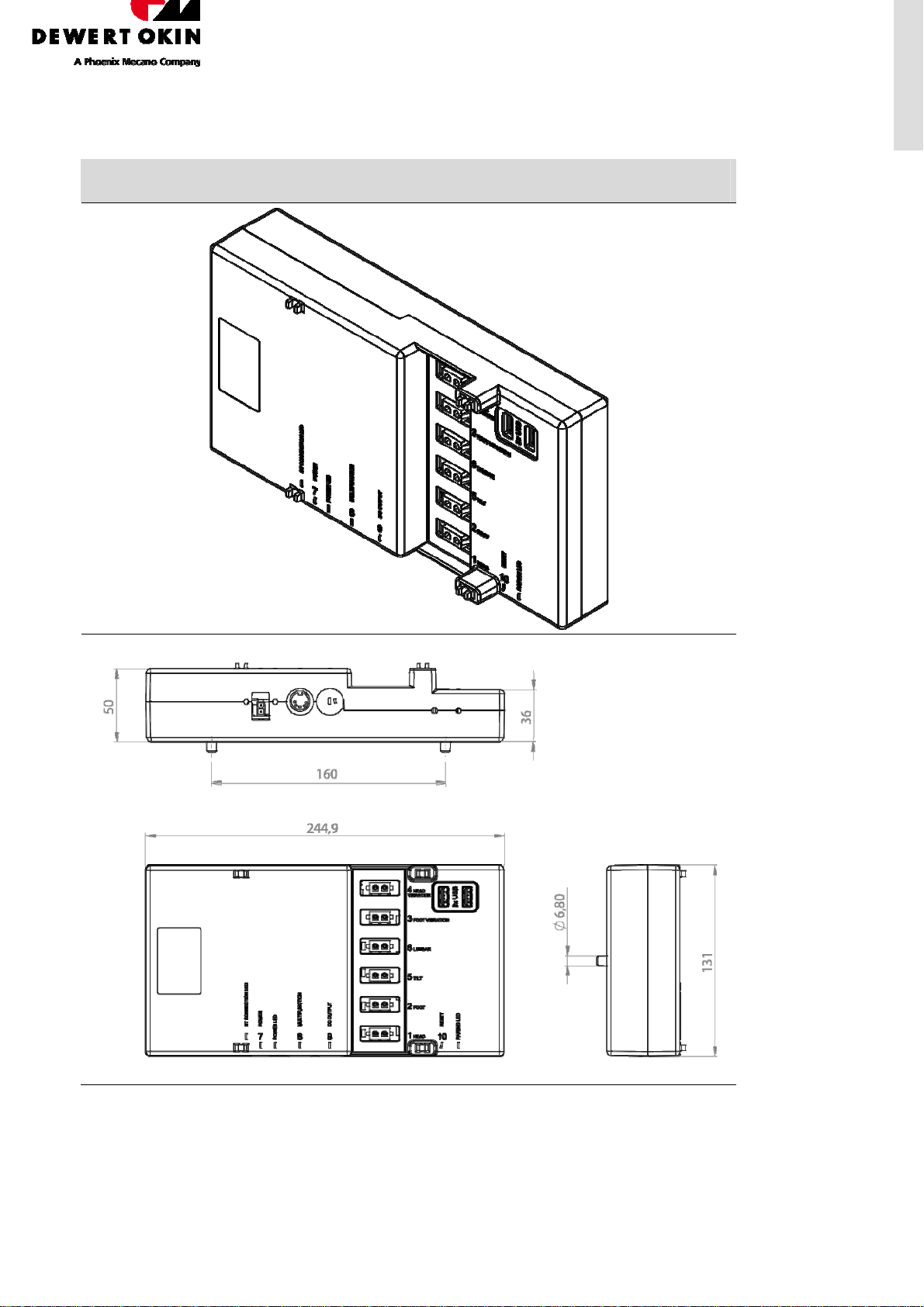

Control Unit 258-4
2.1 (with integrated Bluetooth® module)
October 31, 2012 Page 4 of 12
Performance data control unit
Duty cycle 2/18 min. or 10 %, max, 5 switching cycles per minute
Output voltage 29 V / 6A
Further features
Housing colour black RAL 9005
Housing material ABS + PC
Ports drives: 4 actuators / 2 vibration motors
Indicators + buttons Reset + pairing button / Pairing LED for RF
Protection type IP20
Protection class III
Relative humidity 30% - 75%
Ambient temperature +50°F - +104°F
Power supply external

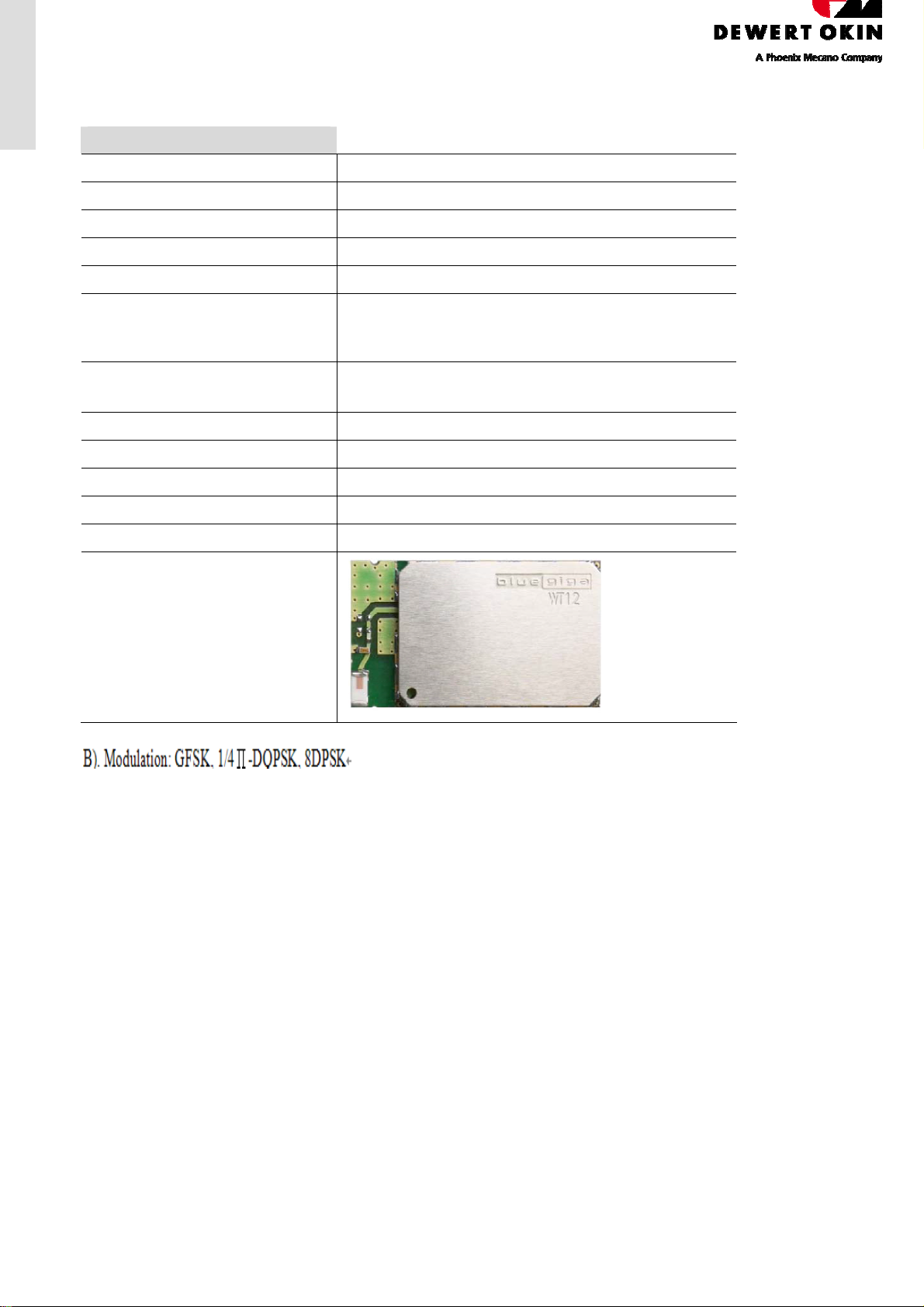

WT12 Bluetooth® module
This Bluetooth module has been granted
“Contains
FCC ID: QOQWT12A
“Contains
IC: 5123A-BGTWT12A”
A). Operation Frequency: 2402-2480MHz
1 power input / 1 multifunction output /
2 USB ports /1 DC output
Power LED
C). Number of Channel: 79
D). Channel space: 1MHz
E). BIT Rate of Transmission: 1Mbps, 2Mbps, 3Mbps
F). Antenna Type: PCB antenna
G). Antenna GAIN: 0.5dBi
October 31, 2012 Page 5 of 12
Integrated RF receiver
1
Key Function
1 Pairing enable
Performance data RF receiver
modulation GFSK
Frequency Range 2.403~2.480GHz
Battery 30V supply voltage
Working Current <60mA
Standby Current <20mA
Ambient Temperature
-40—85Ԩ
PCB Material & Size FR4 1.6mm 120*120mm
October 31, 2012 Page 6 of 12

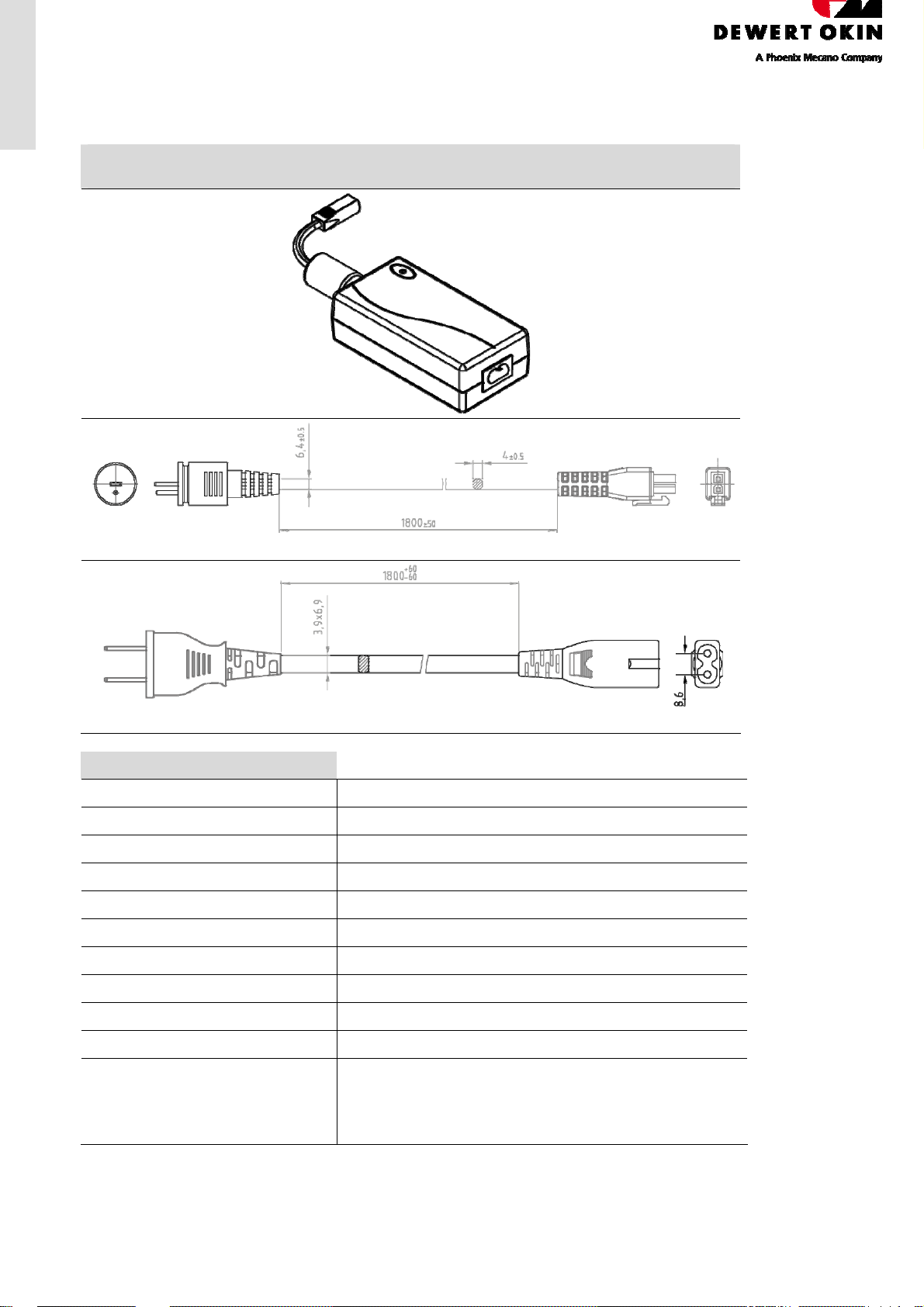

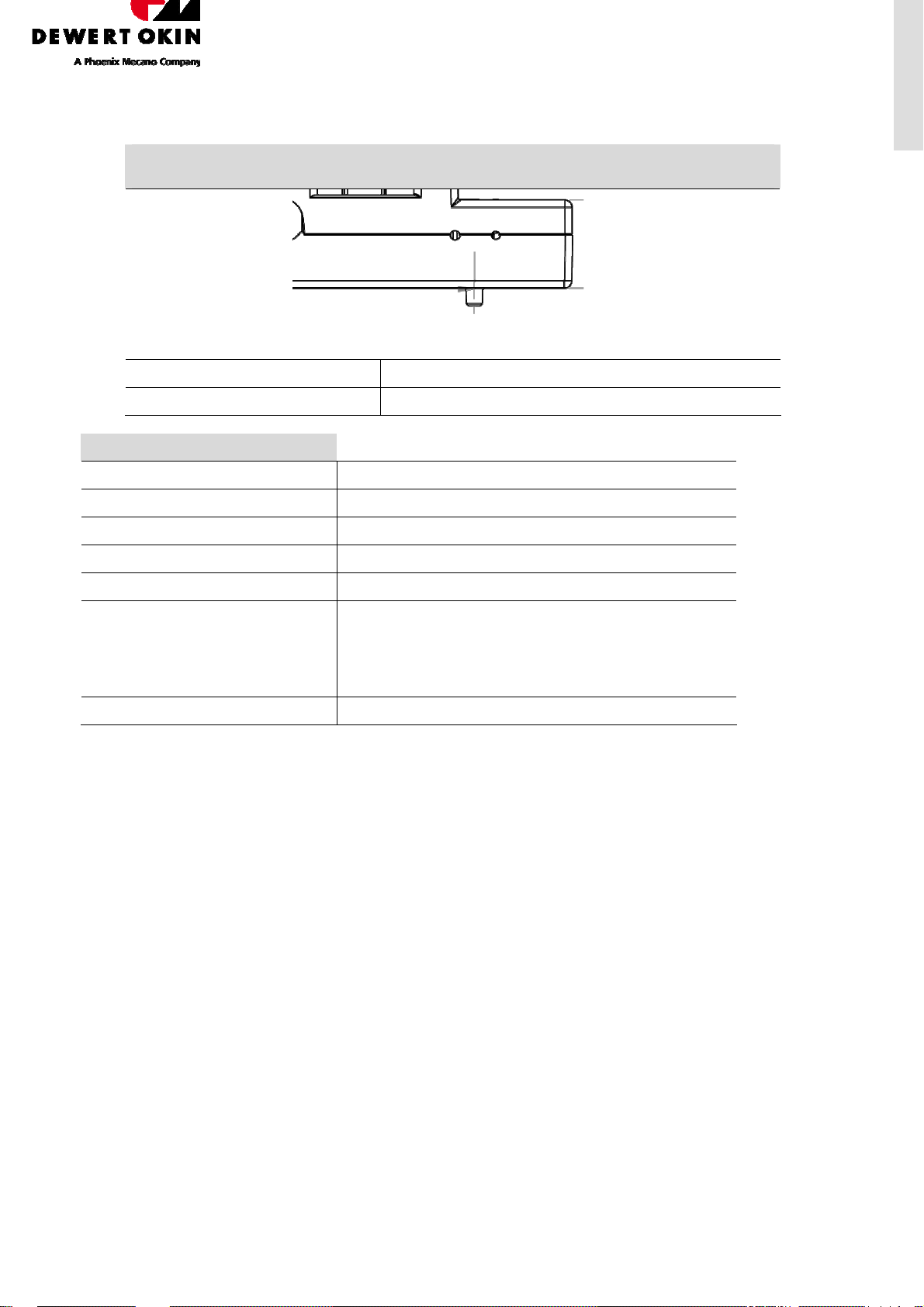

2.2 Power supply 3.00.209.033.00
Connecting cable73178 to control box
Power supply cable 3.00.401.151.30 to mains power
Performance data
Output voltage
Components
Indicators
Colour
Further data
Protection type
Protection class
29 V DC constant voltage output
LED operating status indication (green)
black RAL 9005
IP20
II
Relative humidity
Ambient temperature
Power supply
Safety
October 31, 2012 Page 7 of 12
30% - 75%
+50°F - +104°F
wide input voltage range 100-240 V AC
NTC temperature sensor, thermal fuse, current sensing
and limitation by control circuit, self resetting
current limiting fuse on primary side as double safety, not
self resetting

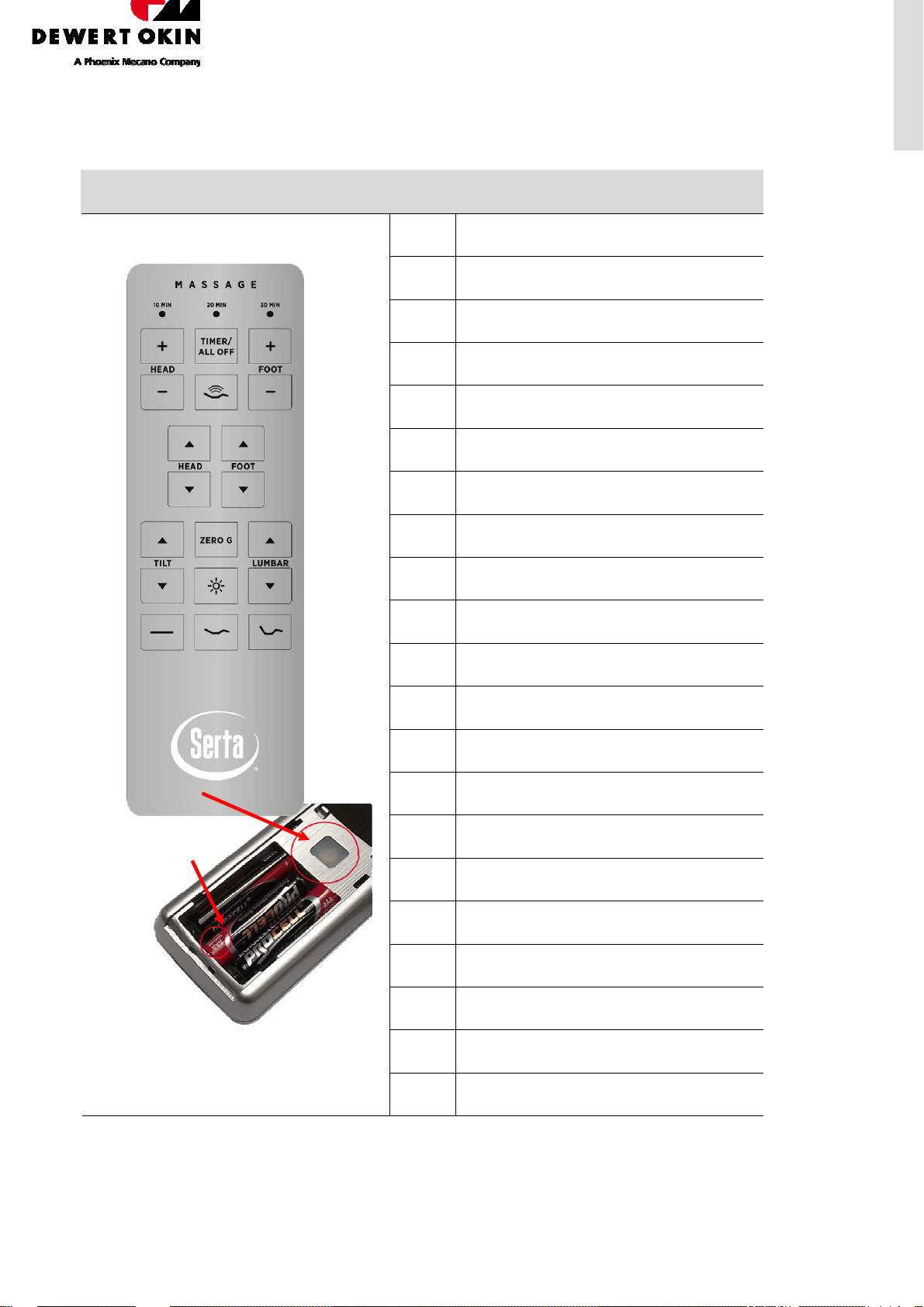

Remote Control 258D
Frontside
1 2 3
4 5 6
7 8
9 10
11 12 13
14 15 16
17 18 19
Pairing button
& battery box
(flipside)
Key Function
1 Massage Head +
2 Massage timer ON/OFF
3 Massage Foot +
4 Massage Head -
5 Start all Massage
6 Massage Foot -
7 Relay 1 on
8 Relay 3 on
9 Relay 2 on
10 Relay 4 on
11 Relay 5 on
12 Position Zero G
13 Relay 7 on
Insert 3x AAA
October 31, 2012 Page 8 of 12
20
14 Relay 6 on
15 Light ON/OFF
16 Relay 8 on
17 Position All flat
18 Position Lounge
19 Position TV/PC
20 Pairing
Performance data remote
(RF transmitter)
Modulation GFSK
Frequency Range 2.403~2.480GHz
Battery AAA
Working Current <40mA
Standby Current <8uA
Ambient Temperature
-40—85Ԩ
RC Dimension 145*50*14mm
PCB Material & Size FR4 1.6mm 79*42mm
Housing Material ABS+PC
October 31, 2012 Page 9 of 12

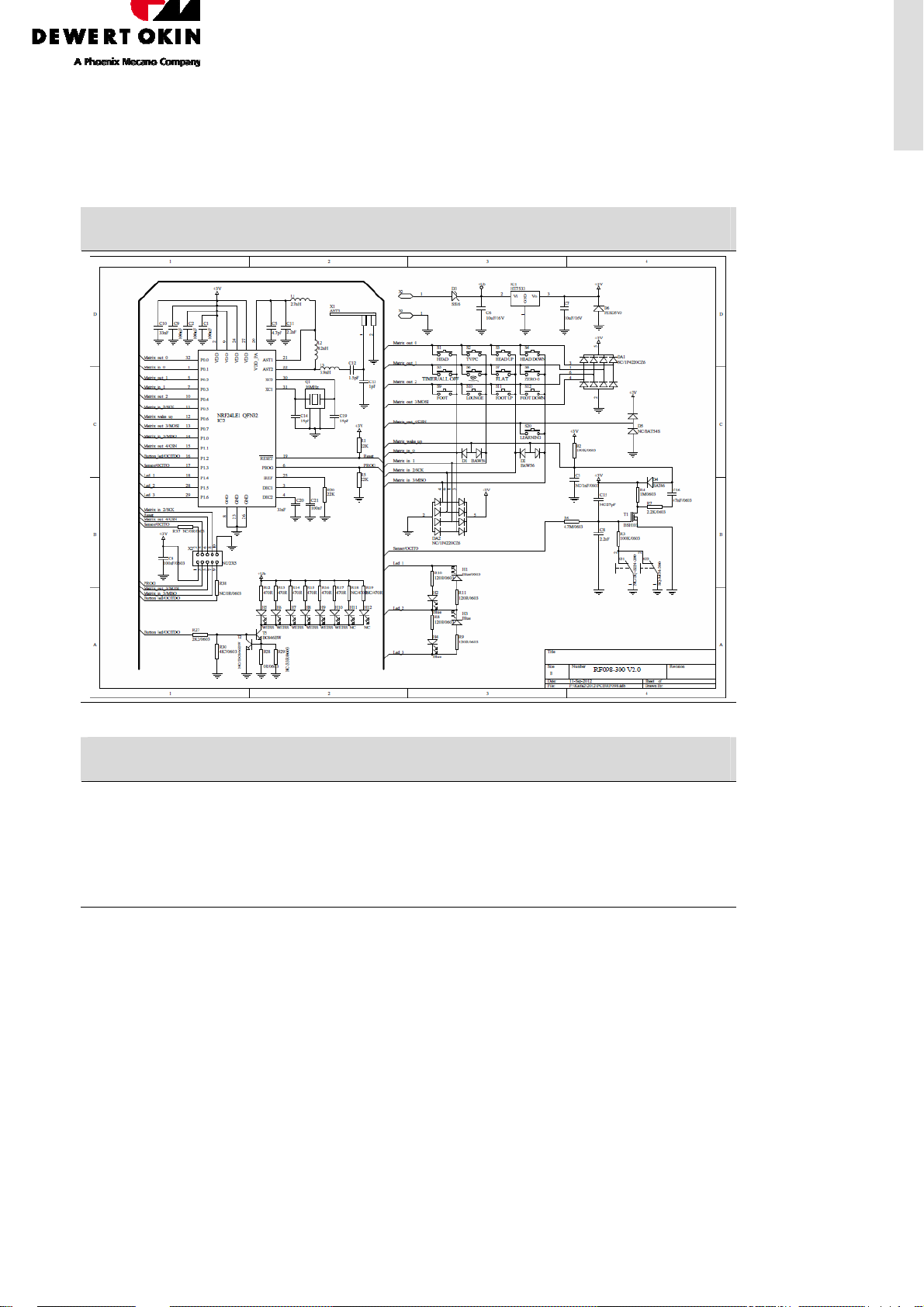

3 Board Schematics (remote)
3.1 Remote
3.2 RX module
Pls insert diagram
October 31, 2012 Page 10 of 12
4 Functional Description
Take cable 3.00.401.151.30 and connect it to mains supply.
The system is delivered paired!
You can test the functions of the system with the RF remote.

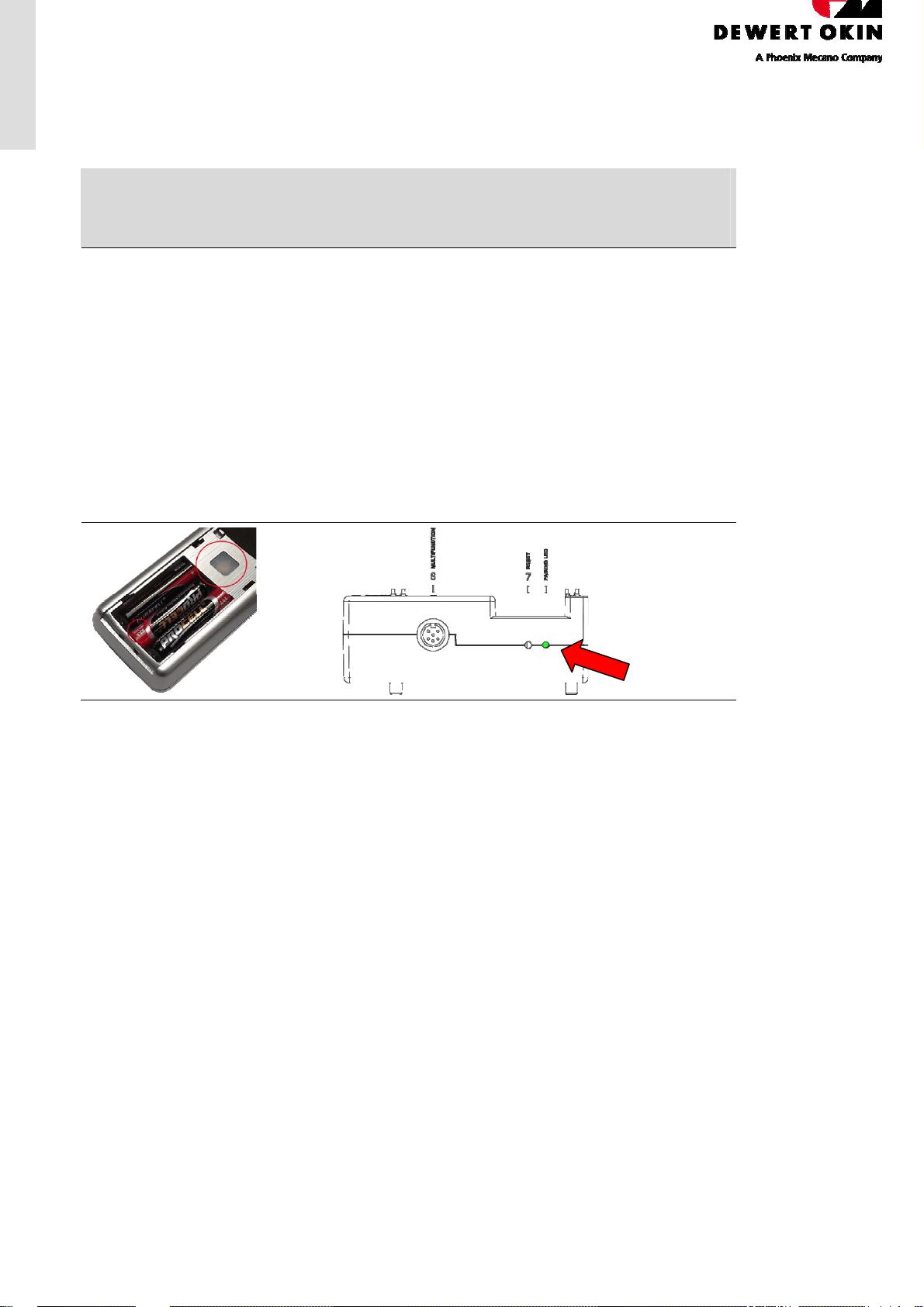

Pairing instruction (in case of trouble)
Pairing the remote with the control box.
The distance between remote and control box for pairing should be less than 2 meters!
1. Remove the battery cover on the flipside of the remote.
2. Insert/check existing 3x AAA batteries.
3. Push the reset button on the control box twice with something spiky.
The green pairing LED adjoining is lit.
Now you have 10 s to pair remote and receiver.
4. On the flipside of the remote is a silicone push button positioned above the batteries
(13).
A blue LED starts blinking as the button is pressed.
Keep it pressed until the blue LED is lit continuously, then pairing is completed, the
blue LED light fades away.
IC warning
- English:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
- French:
Le présent appareil est conforme aux CNR d'Industrie Canada applica bles aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement."
RSS-102 Statement: This equipment complies with Industry Canada radiation exposure limits set forth for an
uncontrolled environment.
Déclaration CNR-102: Cet équipement est conforme à l'exposition aux rayonnements Industry Canada
limites établies pour un environnement non contrôlé.
October 31, 2012 Page 11 of 12
FCC Warning:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
z
(1) this device may not cause harmful interference, and
z
z
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
z
the user's authority to operate the equipment.
z
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
z
-- Increase the separation between the equipment and receiver.
z
z
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z
-- Consult the dealer or an experienced radio/TV technician for help.
* RF warning for Portable device:
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
October 31, 2012 Page 12 of 12
