DeWalt DCBL770 Instruction Manual

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-4-DeWALT

Instruction Manual

Guide D’utilisation

Manual de instrucciones

DCBL770
60V Max* Lithium Handheld Blower

Souffleur portatif au lithium-ion de 60V max.*

Soplador de mano con batería de iones de litio de 60V Máx*

English 1

Français 10

Español 20

ENGLISH

1

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.



DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.



WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.



CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.



(Used without word) Indicates a safety related message.



NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING: Read all safety

warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire
and/or seriousinjury.

WARNING: To reduce the risk of

injury, read the instructionmanual.

If you have any questions or comments about this or
any

DeWALT tool, call us toll free at:

1-800-4-DeWALT (1-800-433-9258).

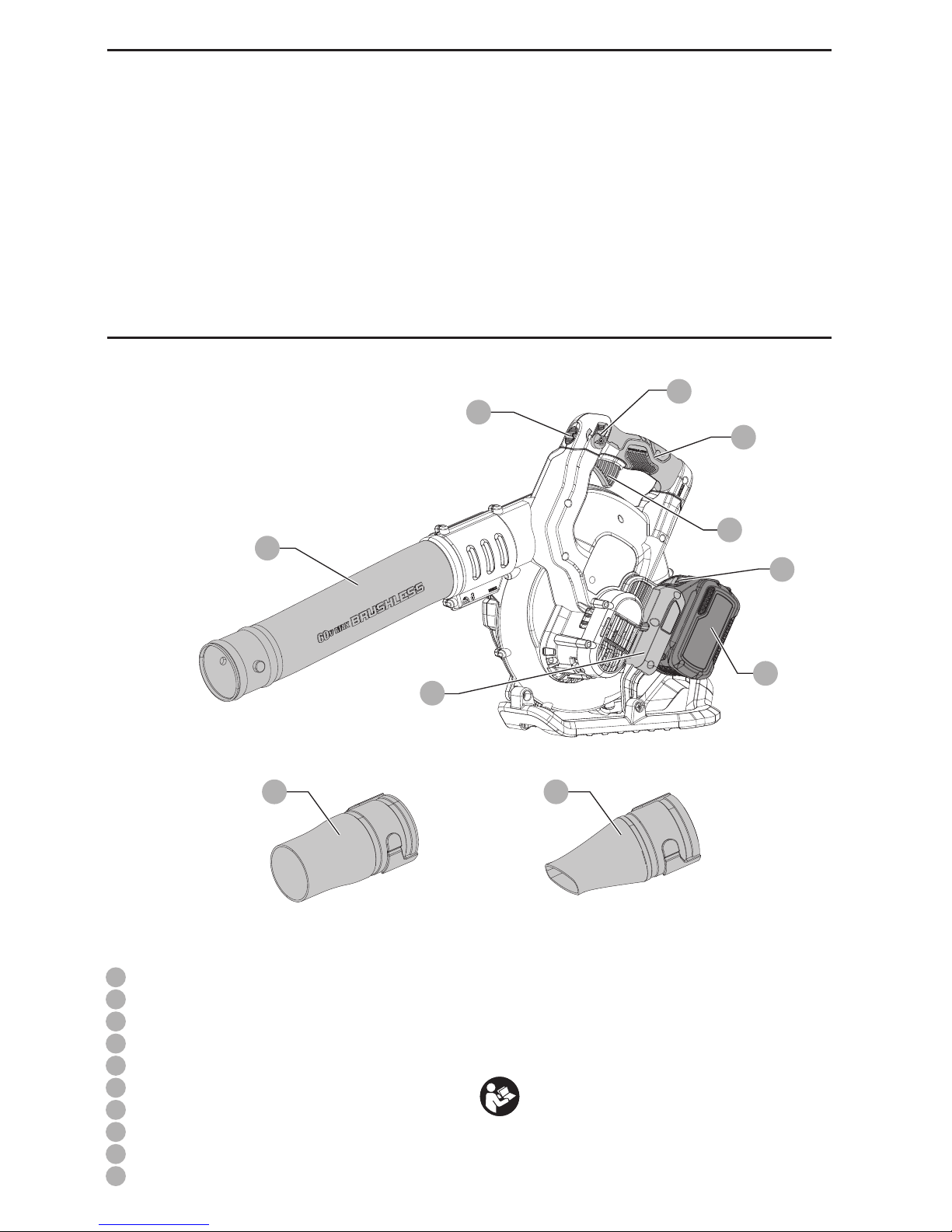

Fig. A

1

Trigger switch

2

Speed lock lever

3

Lock-off switch

4

Handle

5

Tube

6

Battery housing

7

Battery pack

8

Battery release button

9

Large end nozzle

10

Wide end nozzle

9

10

8

7

5

6

4

3

2

1

ENGLISH

2

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT
THIS OR ANY

DeWALT TOOL, CALL US TOLL FREE AT:

1–800–4-

DeWALT (1–800–433–9258).

WARNING: To reduce the risk of

injury, read the instruction manual.

Important Safety Warnings

WARNING: TO REDUCE RISK

OF INJURY:

• Before any use, be sure everyone using this unit reads and
understands all safety instructions and other information
contained in this manual.

• Save these instructions and review frequently prior to use
and in instructing others.

• Do not point unit discharge at self or bystanders.

• Keep long hair and loose clothing away from openings
and moving parts.

• This appliance is intended for commercial use.

WARNING: When using an electric tool,

basic safety precaution

s should always be followed to reduce
risk of fire, electric shock, and personal injury, including the
following.

WARNING:

This product contains
chemicals, including lead, known to the State of California to
cause cancer, and birth defects or other reproductive harm.

Wash hands after handling.

WARNING: Some dust dispersed

by this product contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

ʵ compounds in fertilizers
ʵ compounds in insecticides, herbicides and pesticides
ʵ crystalline silica in dust from sand blasting or cutting

bricks, mortar, concrete, and other masonry products, and

ʵ arsenic and chromium from chemically treated lumber

To reduce your exposure to these chemicals, wear approved
safety equipment such as dust masks that are specially
designed to filter out microscopic particles.

READ ALL AND UNDERSTAND ALL
INSTRUCTIONS BEFORE USING

General Safety Warnings and Instructions
for All Tools

WARNING: Read all safety warnings

and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.

• A battery operated unit with integral batteries or a

separate battery pack must be recharged only with the
specified charger for the battery. A charger that may be

suitable for one type of battery may create a risk of fire
when used with another battery.

• Use battery operated unit only with specifically designated
battery pack. Use of any other batteries may create a risk
of fire.

• Avoid accidental starting. Be sure switch is in the locked or
off position before inserting battery pack. Carrying units
with your finger on the switch or inserting the battery pack
into a unit with the switch on invites accidents.

• Do not use unit if switch does not turn it on or off. A unit
that cannot be controlled with the switch is dangerous
and must be repaired.

• Disconnect battery pack from unit or place the switch in
the locked or off position before making any adjustments,
changing accessories, or storing the unit. Such
preventative safety measures reduce the risk of starting the
unit accidentally.

• ALWAYS WEAR EYE PROTECTION – Wear safety glasses
or goggles that conforms to ANSI Z87.1 (CAN/CSA Z94.3)
at all times when this unit is in use. Also use face or dust
mask. Safety glasses are available at extra cost at your
local

DeWALT Service Center or authorized service facility.

• DO NOT place outlet of blower near eyes or ears when
operating.

• STORE IDLE UNITS. When not in use, the unit should be
stored in a dry, high or locked-up place - out of reach of
children.

• DON’T OVERREACH. Keep proper footing and balance at
all times.

• MAINTAIN UNIT WITH CARE. Keep unit clean for best
and safest performance. Follow instructions for proper
maintenance.

• DO NOT attempt to repair the blower. To assure product
safety and reliability, repairs, maintenance, and
adjustments should be performed by

DeWALT service
centers or authorized service centers, always using
DeWALT replacement parts.

• DO NOT operate blower in a gaseous or explosive
atmosphere. Motors in these units normally spark, and the
sparks might ignite fumes.

• AVOID DANGEROUS ENVIRONMENTAL CONDITIONS – Do
not use electric units in damp or wet locations. Don’t use
the unit in the rain.

• STAY ALERT - Watch what you are doing. Use common
sense. Do not operate unit when you are tired.

• USE THE RIGHT UNIT – Do not use this unit for any job
except that for which it is intended.

• USE EXTRA CARE when cleaning on stairs.

• DO NOT allow to be used as a toy. Close attention
is necessary when used by or near children. Not
recommended for use by children.

• DO NOT attempt to clear clogs from unit without first
removing battery.

• USE ONLY as described in this manual. Use only
manufacturer’s recommended attachments.

ENGLISH

3

• DO NOT put any objects into openings. Do not use with
any opening blocked; keep free of dust, lint, hair and
everything that may reduce air flow.

• KEEP hair, loose clothing, fingers, and all parts of body
away from openings and moving parts.

• DO NOT immerse any part of the unit in liquid.

• DO NOT handle charger, including charger plug, and
charger terminals with wet hands.

• KEEP CHILDREN, BYSTANDERS AND ANIMALS AWAY from
the work area a minimum of 30 feet (10 meters) when
starting or operating the unit.

• INSPECT THE AREA before using the unit. Remove all debris
and hard objects such as rocks, glass, wire, etc. that can
ricochet, be thrown, or otherwise cause injury or damage
during operation.

• USE ONLY charger supplied by the manufacturer to recharge.

• Exercise care in handling batteries in order not to short the
battery with conducting materials such as rings, bracelets
and keys. The battery or conductor may overheat and
cause burns.

• Do not open or mutilate the batteries. Released electrolyte
is corrosive and may cause damage to the eyes or skin. It
may be toxic if swallowed.

WARNING: Always wear proper

personal hearing protection that conforms to ANSI
S12.6 (S3.19) during use.

Under some conditions
and duration of use, noise from this product may
contribute to hearing loss.

WARNING: ALWAYS use safety

glasses. Everyday eyeglasses are NOT safety glasses. Also use

face or dust mask if cutting operation is dusty. ALWAYS WEAR
CERTIFIED SAFETY EQUIPMENT:

ʵ ANSI Z87.1 eye protection (CAN/CSA Z94.3),
ʵ ANSI S12.6 (S3.19) hearing protection,
ʵ NIOSH/OSHA/MSHA respiratory protection.

WARNING: To reduce the risk of

electrical shock; do not expose to rain, do not use on wet
surfaces. Store indoors.

The label on your tool may include the following symbols. The
symbols and their definitions are asfollows:

V ......................... volts

Hz ....................... hertz

min ..................... minutes

or DC ......direct current

...................... Class I Construction

(grounded)

…/min ..............per minute

BPM .................... beats per minute

IPM ..................... impacts per minute

RPM .................... revolutions per

minute

sfpm ................... surface feet per

minute

SPM .................... strokes per minute

A ......................... amperes

W ........................ watts

or AC ...........alternating current

or AC/DC .... alternating or

direct current

...................... Class II

Construction

(double insulated)

no ....................... no load speed

n ......................... rated speed

...................... earthing terminal

..................... safety alert symbol

..................... visible radiation

..................... wear respiratory

protection

..................... wear eye

protection

..................... wear hearing

protection

..................... read all

documentation

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below and then follow charging
proceduresoutlined. When ordering replacement battery
packs, be sure to include the catalog number andvoltage.

Your tool uses a

DeWALT charger. Be sure to read all safety
instructions before using your charger. Consult the chart
at the end of this manual for compatibility of chargers and
batterypacks.

READ ALL INSTRUCTIONS

Important Safety Instructions
for All Battery Packs

WARNING: Read all safety

warnings and all instructions for the battery pack,
charger and power tool. Failure to follow the warnings
and instructions may result in electric shock, fire and/or
serious injury.

• Do not charge or use the battery pack in explosive

atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery

pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO

NOT modify the battery pack in any way to fit into
a non-compatible charger as battery pack may
rupture causing serious personal injury. Consult

the chart at the end of this manual for compatibility of
batteries andchargers.

• Charge the battery packs only in designated

DeWALTchargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in

locations where the temperature may reach or
exceed 104°F (40°C) (such as outside sheds or metal
buildings in summer). For best life store battery packs in
a cool, drylocation.
NOTE: Do not store the battery packs in a tool with
the trigger switch locked on. Never tape the trigger
switch in the ONposition.

• Do not incinerate the battery pack even if it is

severely damaged or is completely worn out. The

battery pack can explode in a fire. Toxic fumes and
materials are created when lithium ion battery packs
areburned.

• If battery contents come into contact with the skin,

immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open

ENGLISH

4

eye for 15 minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of
a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persist, seek medicalattention.

WARNING: Burn hazard. Battery

liquid may be flammable if exposed to spark orflame.

WARNING: Fire hazard. Never

attempt to open the battery pack for any reason. If the battery
pack case is cracked or damaged, do not insert into the
charger. Do not crush, drop or damage the battery pack. Do
not use a battery pack or charger that has received a sharp
blow, been dropped, run over or damaged in any way (e.g.,
pierced with a nail, hit with a hammer, stepped on). Damaged
battery packs should be returned to the service center
forrecycling.

Transportation

WARNING: Fire hazard. Do not

store or carry the battery pack so that metal objects
can contact exposed battery terminals. For example,

do not place the battery pack in aprons, pockets, tool boxes,
product kit boxes, drawers, etc., with loose nails, screws, keys,
etc. Transporting batteries can possibly cause fires if the

battery terminals inadvertently come in contact with
conductive materials such as keys, coins, hand tools and
the like. The US Department of Transportation Hazardous

Material Regulations (HMR) actually prohibit transporting
batteries in commerce or on airplanes in carry-on baggage
UNLESS they are properly protected from short circuits. So
when transporting individual battery packs, make sure that
the battery terminals are protected and well insulated from
materials that could contact them and cause a short circuit.

Shipping the

DeWALT FLEXVOLT™ Battery

The D

eWALT FLEXVOLT™ battery has two modes: Use and

Shipping.
Use Mode: When the FLEXVOLT™ battery stands alone or is

in a D

eWALT 20V Max* product, it will operate as a 20V Max*

battery. When the FLEXVOLT™ battery is in a 60V Max* or a
120V Max* (two 60V Max* batteries) product, it will operate
as a 60V Max* battery.

Shipping Mode: When
the cap is attached to
the FLEXVOLT™ battery,
the battery is in Shipping
Mode. Strings of cells are
electrically disconnected within the pack resulting in three
batteries with a lower Watt hour (Wh) rating as compared
to one battery with a higher Watt hour rating. This increased
quantity of three batteries with the lower Watt hour rating
can exempt the pack from certain shipping regulations that
are imposed upon the higher Watt hour batteries.

The battery label indicates two Watt hour ratings (see
example). Depending on how the battery is shipped, the
appropriate Watt hour rating must be used to determine

the applicable shipping requirements. If utilizing the
shipping cap, the pack will be considered 3 batteries at
the Watt hour rating indicated for “Shipping”. If shipping
without the cap or in a tool, the pack will be considered one
battery at the Watt hour rating indicated next to “Use”.

USE: 120 Wh Shipping: 3 x 40 Wh

Example of Use and Shipping Label Marking

Shipping Watt hour rating indicates 3 x 40 Wh, meaning 3
batteries of 40 Watt hours each. The Use Watt hour rating

indicates 120 Watt hour (1 battery implied).

Fuel Gauge Battery Packs (Fig. B)

Some DeWALT battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.

The fuel gauge is an indication of approximate levels of
charge remaining in the battery pack according to the
followingindicators:

75–100% charged

51–74% charged

< 50% charged

Pack needs to be charged

To actuate the fuel gauge, press and hold the fuel gauge
button. A combination of the three green LED lights will
illuminate designating the level of charge left. When the
level of charge in the battery is below the usable limit, the
fuel gauge will not illuminate and the battery will need to
berecharged.

Fig. B

NOTE: The fuel gauge is only an indication of the charge left
on the battery pack. It does not indicate tool functionality
and is subject to variation based on product components,
temperature and end-userapplication.

For more information regarding fuel gauge battery packs,
please contact call 1-800-4-

DeWALT (1-800-433-9258) or

visit our website www.dewalt.com.

The RBRC® Seal

The RBRC® (Rechargeable Battery
Recycling Corporation) Seal on the nickel
cadmium, nickel metal hydride or lithium­ion batteries (or battery packs) indicates
that the costs to recycle these batteries
(or battery packs) at the end of their useful life have already
been paid by

DeWALT. In some areas, it is illegal to place
spent nickel cadmium, nickel metal hydride or lithium-ion
batteries in the trash or municipal solid waste stream and

ENGLISH

5

the Call2Recycle® program provides an environmentally
consciousalternative.

Call 2 Recycle, Inc., in cooperation with

DeWALT and other
battery users, has established the program in the United
States and Canada to facilitate the collection of spent nickel
cadmium, nickel metal hydride or lithium-ion batteries. Help
protect our environment and conserve natural resources by
returning the spent nickel cadmium, nickel metal hydride
or lithium-ion batteries to an authorized

DeWALT service
center or to your local retailer for recycling. You may also
contact your local recycling center for information on
where to drop off the spent battery. RBRC® is a registered
trademark of Call 2 Recycle,Inc.

Important Safety Instructions
for All Battery Chargers

WARNING: Read all safety

warnings and all instructions for the battery pack,
charger and power tool. Failure to follow the warnings
and instructions may result in electric shock, fire and/or
serious injury.

• DO NOT attempt to charge the battery pack with

any chargers other than the ones in this manual.

The charger and battery pack are specifically designed to
worktogether.

• These chargers are not intended for any uses other

than charging

DeWALT rechargeable batteries.

Any other uses may result in risk of fire, electric shock
orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when

disconnecting the charger. This will reduce the risk of
damage to the electric plug andcord.

• Make sure that the cord is located so that it will not

be stepped on, tripped over or otherwise subjected
to damage orstress.

• Do not use an extension cord unless it is absolutely

necessary. Use of improper extension cord could result in

risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide

a dry location and use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use

reduces the risk of electricshock.

• An extension cord must have adequate wire size

(AWG or American Wire Gauge) for safety. The smaller
the gauge number of the wire, the greater the capacity
of the cable, that is, 16 gauge has more capacity than 18
gauge. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. When using
more than one extension to make up the total length,
be sure each individual extension contains at least the
minimum wire size. The following table shows the correct
size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The
lower the gauge number, the heavier thecord.

Minimum Gauge for Cord Sets

Volts

Total Length of Cord in Feet

(meters)

120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)

Ampere Rating

American Wire Gauge

More
Than

Not

More

Than

0 6 18 16 16 14

6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

• Do not place any object on top of the charger or
place the charger on a soft surface that might block
the ventilation slots and result in excessive internal
heat. Place the charger in a position away from any heat

source. The charger is ventilated through slots in the top
and the bottom of thehousing.

• Do not operate the charger with a damaged cord

orplug.

• Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an
authorized service center when service or repair
is required. Incorrect reassembly may result in a risk of

electric shock, electrocution orfire.

• Disconnect the charger from the outlet before

attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce

thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard

120V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the

vehicularcharger.

WARNING: Shock hazard. Do not allow

any liquid to get inside the charger. Electric shock mayresult.

WARNING: Burn hazard. Do not

submerge the battery pack in any liquid or allow any liquid to
enter the battery pack. Never attempt to open the battery pack
for any reason. If the plastic housing of the battery pack breaks
or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the

risk of injury, charge only DeWALT rechargeable battery packs.
Other types of batteries may overheat and burst resulting in
personal injury and propertydamage.

NOTICE: Under certain conditions, with the charger
plugged into the power supply, the charger can
be shorted by foreign material. Foreign materials
of a conductive nature, such as, but not limited to,
grinding dust, metal chips, steel wool, aluminum
foil or any buildup of metallic particles should be
kept away from the charger cavities. Always unplug
the charger from the power supply when there is no

ENGLISH

6

battery pack in the cavity. Unplug the charger before
attempting toclean.

Charging a Battery

1. Plug the charger into an appropriate outlet before
inserting battery pack.

2. Insert the battery pack

7

into the charger, making sure
the battery pack is fully seated in the charger. The red
(charging) light will blink continuously indicating that
the charging process has started.

3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is
fully charged and may be used at this time or left in the
charger. To remove the battery pack from the charger,
push the battery release button (8) on the battery pack.

NOTE: To ensure maximum performance and life of lithium­ion battery packs, charge the battery pack fully before first use.

Charger Operation

Refer to the indicators below for the charge status of the
battery pack.

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132

Charging

Fully Charged

Hot/Cold Pack Delay*

The red light will continue to blink, but a yellow indicator
light will be illuminated during this operation. Once the
battery pack has reached an appropriate temperature, the
yellow light will turn off and the charger will resume the
charging procedure.

The compatible charger(s) will not charge a faulty battery pack.
The charger will indicate faulty battery pack by refusing to light
or by displaying a problem pack or charger blink pattern.

NOTE: This could also mean a problem with a charger.
If the charger indicates a problem, take the charger and

battery pack to be tested at an authorized service center.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery pack life.

A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery pack warms.

The DCB118 charger is equipped with an internal fan
designed to cool the battery pack. The fan will turn on
automatically when the battery pack needs to be cooled.

Never operate the charger if the fan does not operate
properly or if ventilation slots are blocked. Do not permit
foreign objects to enter the interior of the charger.

Electronic Protection System

Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against
overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic
Protection System engages. If this occurs, place the lithium­ion battery pack on the charger until it is fully charged.

Wall Mounting

These chargers are designed to be wall mountable or to
sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet,
and away from a corner or other obstructions which may
impede air flow. Use the back of the charger as a template
for the location of the mounting screws on the wall. Mount
the charger securely using drywall screws (purchased
separately) at least 1" (25.4 mm) long, with a screw head
diameter of 0.28–0.35" (7–9mm), screwed into wood to an
optimal depth leaving approximately 7/32" (5.5 mm) of the
screw exposed. Align the slots on the back of the charger
with the exposed screws and fully engage them in the slots.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect

the charger from the AC outlet before cleaning. Dirt and
grease may be removed from the exterior of the charger using
a cloth or soft non-metallic brush. Do not use water or any
cleaning solutions.

Important Charging Notes

1. Longest life and best performance can be obtained if
the battery pack is charged when the air temperature is
between 65°F and 75°F (18° – 24°C). DO NOT charge
the battery pack in an air temperature below +40°F
(+4.5°C), or above +104°F (+40°C). This is important
and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and
does not indicate a problem. To facilitate the cooling of
the battery pack after use, avoid placing the charger or
battery pack in a warm environment such as in a metal
shed or an uninsulated trailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp

or other appliance;

b. Check to see if receptacle is connected to a light switch

which turns power off when you turn out the lights;

c. Move the charger and battery pack to a location

where the surrounding air temperature is
approximately 65°F – 75°F (18° – 24°C);

d. If charging problems persist, take the tool, battery

pack and charger to your local service center.

4. The battery pack should be recharged when it fails to
produce sufficient power on jobs which were easily
done previously. DO NOT CONTINUE to use under these
conditions. Follow the charging procedure. You may
also charge a partially used pack whenever you desire
with no adverse effect on the battery pack.

ENGLISH

7

5. Foreign materials of a conductive nature such as, but
not limited to, grinding dust, metal chips, steel wool,
aluminum foil, or any buildup of metallic particles
should be kept away from charger cavities. Always
unplug the charger from the power supply when there
is no battery pack in the cavity. Unplug the charger
before attempting to clean.

6. Do not freeze or immerse the charger in water or any
other liquid.

Storage Recommendations

1. The best storage place is one that is cool and dry, away
from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully
charged battery pack in a cool dry place out of the
charger for optimal results.

NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged before use.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

COMPONENTS (FIG. A)

WARNING: Never modify the power

tool or any part of it. Damage or personal injury couldresult.

Refer to Figure A at the beginning of this manual for a
complete list ofcomponents.

INTENDED USE

This appliance is designed for professional outdoor
blowerapplications.

DO NOT use under wet conditions or in presence of
flammable liquids orgases.

This appliance is a professional power tool. DO NOT let
children come into contact with the tool. Supervision is
required when inexperienced operators use thistool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk

of serious personal injury, turn unit off and remove
the battery pack before making any adjustments or
removing/installing attachments or accessories. An

accidental start-up can causeinjury.

CAUTION: Ensure the lock-off switch

3

is in the locked position to prevent the trigger switch

1

from moving and the battery pack

7

is removed before

attaching or removing the tube

5

. The tube must be attached

to the housing

11

before use.

1. TUBE ASSEMBLY: To attach the tube to the blower,
line up the pegs

12

on the bottom of the tube with

the notch

13

on the bottom of the housing opening
as shown in figureC. Push the tube into the blower
housing until the lock engages the tube.

2. Pull on the tube to ensure it is securely in place.

3. To remove the tube, insert a screwdriver into the
unlocking hole

14

on the side of the housing. Lift the

tab inside and pull tube out.

fig. C

14

13

11

12

Attaching Nozzles (Fig. D)

1. Line up the channels

15

of the desired nozzle

9

or

10

with the nubs

16

on the tube

5

.

2. Slide the nozzle onto the tube.

3. Firmly twist the nozzle to lock the nubs completely into the
recess of the nozzle. Ensure the nozzle is securely attached.

fig. D

16 15

9

OPERATION

WARNING: To reduce the risk

of serious personal injury, turn unit off and remove
the battery pack before making any adjustments or
removing/installing attachments or accessories. An

accidental start-up can causeinjury.

WARNING: Do not operate blower

without tube securely in place. Never reach down into housing
through tube hole.

WARNING: Always slide the lock-off

switch to the locked position and remove the battery when:

ʵ You leave blower unattended.

ʵ Checking, adjusting, cleaning, or working on blower.

Installing and Removing the Battery Pack
(Fig. E, F)

NOTE: For best results, make sure your battery pack is
fullycharged.

WARNING: Before removing or

installing battery, make certain the lock-off switch

3

is in the

locked position to prevent switch actuation.

To install battery pack: Insert battery pack

7

into battery

housing

6

as shown in figureE until fully seated and an
audible click is heard. Make sure battery pack is fully seated
and fully latched into position.

ENGLISH

8

To remove battery pack: Depress the battery release
button

8

in the top of the battery housing and pull battery

pack out of appliance as shown in figureF.

fig. E

fig. F

Proper Hand Position (Fig. G)

WARNING: To reduce the risk of serious

personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious

personal injury, ALWAYS hold securely in anticipation of a
sudden reaction.

Proper hand position requires one hand on the main
handle(4).

fig. G

4

Switching On (Fig. A, H, I)

CAUTION: Do not point unit

discharge at self or bystanders.

CAUTION:Always wear safety glasses.

Wear a filter mask if the operation is dusty. Use of gloves, long
pants and substantial footwear is recommended. Keep long
hair and loose clothing away from openings and moving parts.

• To turn the blower on, ensure the lock-off switch

3

is in

the unlocked position and depress the trigger switch

1

.

• To lock the blower on, pull back on the speed lock lever

2

, as shown in figureH. The blower runs at higher
speeds as the lever is moved further. The speed lock
lever can also be pulled back to start the blower without
needing to first depress the trigger switch.

• Hold the sweeper with one hand as shown in figureG
and sweep from side to side with the tube

5

several

inches above the hard surface. Slowly advance keeping
the accumulated pile of debris in front of you.

fig. H

MAINTENANCE



WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An

accidental start-up can causeinjury.

Cleaning

WARNING: Blow dirt and dust

out of all air vents with clean, dry air at least once a week.
To minimize the risk of eye injury, always wear ANSI Z87.1
approved eye protection when performingthis.

WARNING: Never use solvents or

other harsh chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic materials
used in these parts. Use a cloth dampened only with water
and mild soap. Never let any liquid get inside the tool; never
immerse any part of the tool into aliquid.

Accessories

WARNING: DO NOT use the blower

with any type of accessory or attachment. Such usage
might be hazardous.

WARNING: Since accessories, other

than those offered by DeWALT, have not been tested with
this product, use of such accessories with this tool could
be hazardous. To reduce the risk of injury, only

DeWALT

recommended accessories should be used with thisproduct.

Recommended accessories for use with your tool
are available at extra cost from your local dealer or
authorized service center. If you need assistance in
locating any accessory, please contact

DeWALT Industrial
Tool Co., 701East Joppa Road, Towson, MD 21286, call
1-800-4-DeWALT (1-800-433-9258) or visit our website:
www.dewalt.com.

Repairs

The charger and battery pack are notserviceable.



WARNING: To assure product SAFETY and
RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement) should
be performed by a

DeWALT factory service center

or a

DeWALT authorized service center. Always use

identical replacementparts.
