Devolo dLAN LiveCam User Manual

The Network Innovation
dLAN® LiveCam
devolo dLAN® LiveCam
© 2012 devolo AG Aachen (Germany)
While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from devolo. We reserve the right to make any alterations that arise as the result of technical development.
Trademarks
TM
Android
HomePlug
Linux
Ubuntu
Mac
iPhone
is a registered trademark of Open Handset Alliance.
®
is a registered trademark of HomePlug Powerline Alliance.
®
is a registered trademark of Linus Torvalds.
®
is a registered trademark of Canonical Ltd.
®
and Mac OS X® are registered trademarks of Apple Computer, Inc.
®
and iPad® are registered trademarks of Apple Computer, Inc.
Windows® and Microsoft® are registered trademarks of Microsoft, Corp.
®
, Wi-Fi Protected AccessTM, WPATM, WPA2TM and Wi-Fi Protected SetupTM are registered trademarks of the Wi-Fi Alliance®.
Wi-Fi
devolo, dLAN
®
, Vianect® and the devolo logo are registered trademarks of devolo AG.
All other names mentioned may be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors or omissions.
devolo AG
Charlottenburger Allee 60
52068 Aachen
Germany
www.devolo.com
Aachen, October 2012

Contents

Contents
1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Thank you for placing your trust in this devolo product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 What exactly is dLAN? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 dLAN LiveCam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1 dLAN Cockpit App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.2 Sample applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4.3 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3.1 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3.2 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.3 Encryption button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.4 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.5 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Setup instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5 Connecting the dLAN LiveCam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5.1 Installing the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5 dLAN network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Security in the dLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Encryption at the touch of a button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.3 dLAN Cockpit App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.3.1 Installing dLAN Cockpit and adding dLAN LiveCam . . . . . . . . . . . . . . . . . . . . . . . 23
5.3.2 Overview page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
devolo dLAN LiveCam
Contents
5.3.3 Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.3.4 Menu on the bottom edge of the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

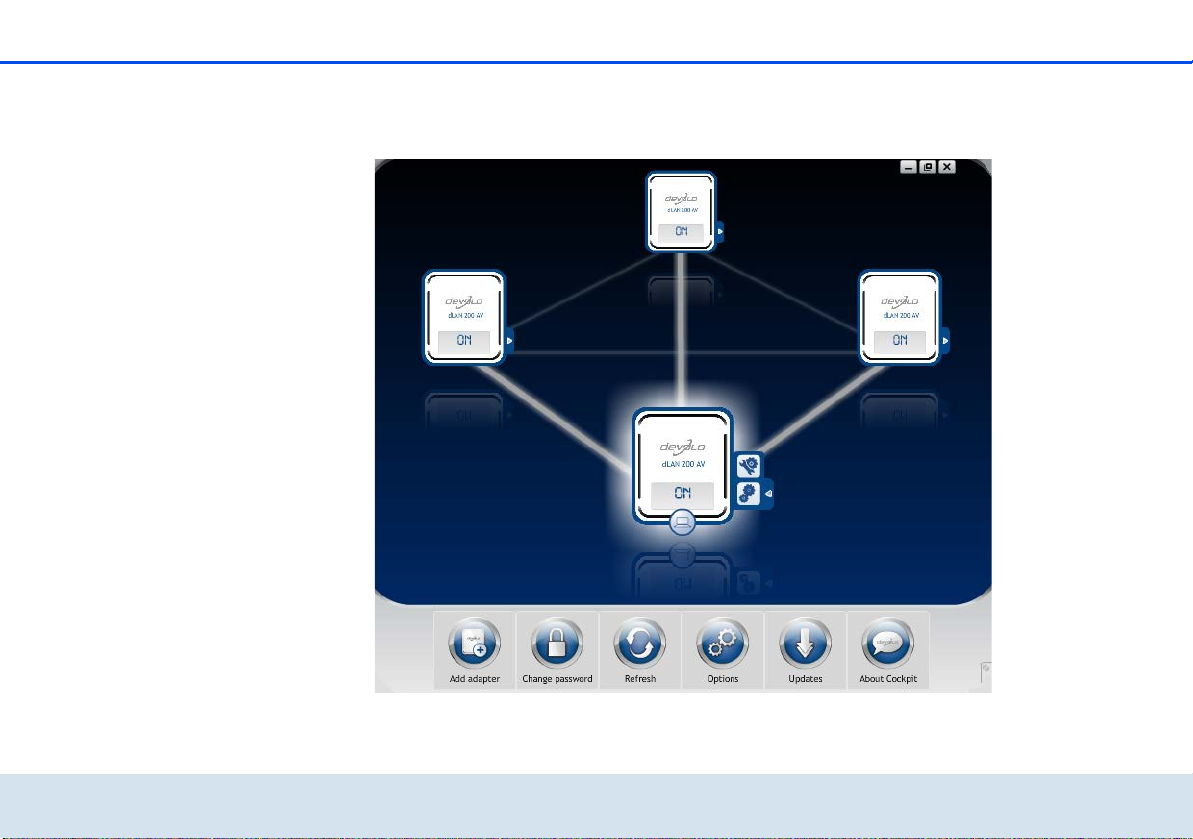

5.4 dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.4.1 Encrypting a network with dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.1 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.2 Disposal of old devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
6.3 Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
devolo dLAN LiveCam
Preface 5

1Preface

1.1 Thank you for placing your trust in this devolo product.

The dLAN LiveCam from devolo lets you always have your home in sight – even when you're out and about. Thanks to the integrated dLAN AV adapter, with dLAN technology from devolo, only a power ca­ble is required for the connection to integrate the dLAN LiveCam into your dLAN network flexibly and quickly via any power outlet in the house. Using the direct Internet connection and the free devolo dLAN Cockpit App for smartphones and tablets, individual monitoring is possible anywhere in the world.
To protect your data, simply and conveniently enable secure 128-bit "AES (Advanced Encryption Stand­ard)" encryption on the dLAN LiveCam at the push of a button.

1.1.1 About this manual

Along with a short introduction to the basics of the "dLAN" and a presentation of the devolo dLAN Cockpit App and the dLAN LiveCam in Chapter 2, Chapter 3 describes how to quickly set up the dLAN LiveCam with default values. In Chapter 4, you will then learn in detail how you can successfully bring
the dLAN LiveCam into operation. While Chapter 5 describes the configuration of the dLAN AV network as well as everything you need to know about dLAN Cockpit, in Chapter 6 notes on product safety and environmental compatibility of the device and our warranty terms form the end of the manual.
Description of the symbols
Here we briefly describe the meaning of the symbols used in this manual.
Very important note. Failure to ob­serve this note may result in damage.
Important note that should be ob­served.
Additional information, background material and configuration tips for your device.
devolo dLAN LiveCam
6 Preface
If you have any further ideas or suggestions related to our products, we would be delighted to hear from you at support@devolo.com
devolo on the Internet
For detailed information on our products or "dLAN", visit www.devolo.com tains downloadable product descriptions and docu­mentation, as well as updates to devolo software and device firmware.
!
. The Service Centre area con-
devolo dLAN LiveCam
Introduction 7

2Introduction

dLAN is an intelligent, secure technology that lets you set up a home network easily, quickly and economical­ly via your household electrical wiring, without the need for complex and expensive dedicated cabling.

2.1 What exactly is dLAN?

dLAN (direct Local Area Network) uses the household power grid to transfer data between computers equipped with suitable adapters and other network components. As a result, any power outlet can be used as a network access point. The data is modulated prior to transfer and sent as a signal via household power lines. State-of-the-art technology ensures that the power and data networks do not interfere with one an­other. Networking via dLAN is fast and secure. The data is encrypted using a key to prevent easy intercep­tion by third parties.

2.2 dLAN LiveCam

Greater security in your home!
Easy to set up and connect throughout the house Easy installation: Insert the camera, download
and install dLAN Cockpit App to your smart­phone or tablet—finished!
Secure video transmission via the household
power line
The live video is accessible over the Internet from
any smartphone or tablet (Apple/Android 2.3 or later)
The integrated power supply makes the camera
available 24 hours a day
Top image quality with transmission of up to 7
frames per second
Perfect visibility, even in poor lighting conditions
using integrated infrared LEDs
Six additional dLAN LiveCams can be added easily
When setting up the camera, make ABSOLUTELY certain that neighbouring public or private property or strangers are not be­ing recorded. Only your property and private space may be moni­tored with the camera.

2.2.1 dLAN Cockpit App

dLAN Cockpit App is devolo's free app for keeping an eye on your dLAN home network at all times via smartphone or tablet even when you're away. Smart­phones and tablet can connect to the dLAN LiveCam at home via the mobile phone network (3G/4G) or wire­less LAN.
devolo dLAN LiveCam
8 Introduction
Fig. 1
devolo dLAN LiveCam
Introduction 9
Fig. 2: From the workplace
Fig. 3: From out and about
Fig. 4: While on holiday

2.2.2 Sample applications

Using the dLAN LiveCam and the free dLAN Cockpit App, monitoring your private valua-
bles is possible from anywhere via smartphone or tab­let.
devolo dLAN LiveCam
10 Introduction
devolo dLAN LiveCam
Quick start 11

3Quick start

Follow the steps listed below to quickly set up the dLAN LiveCam in the standard environment. The de­fault settings for the dLAN LiveCam are:
Resolution: 640*480 pixelView: Interior Image orientation: NormalInfrared mode: Automatic
Setting up/installing the dLAN LiveCam
The dLAN LiveCam can be installed and set up in vari­ous ways:
Wall mountingInstallation on a camera base Setting up the dLAN LiveCam on a level surface
For more information on setup and installa­tion, refer to Chapter 4.4 Setup instruc- tions.
When setting up the camera, make ABSOLUTELY certain that neighbouring public or private property or strangers are not be-
ing recorded. Only your property and private space may be monitored with the camera.

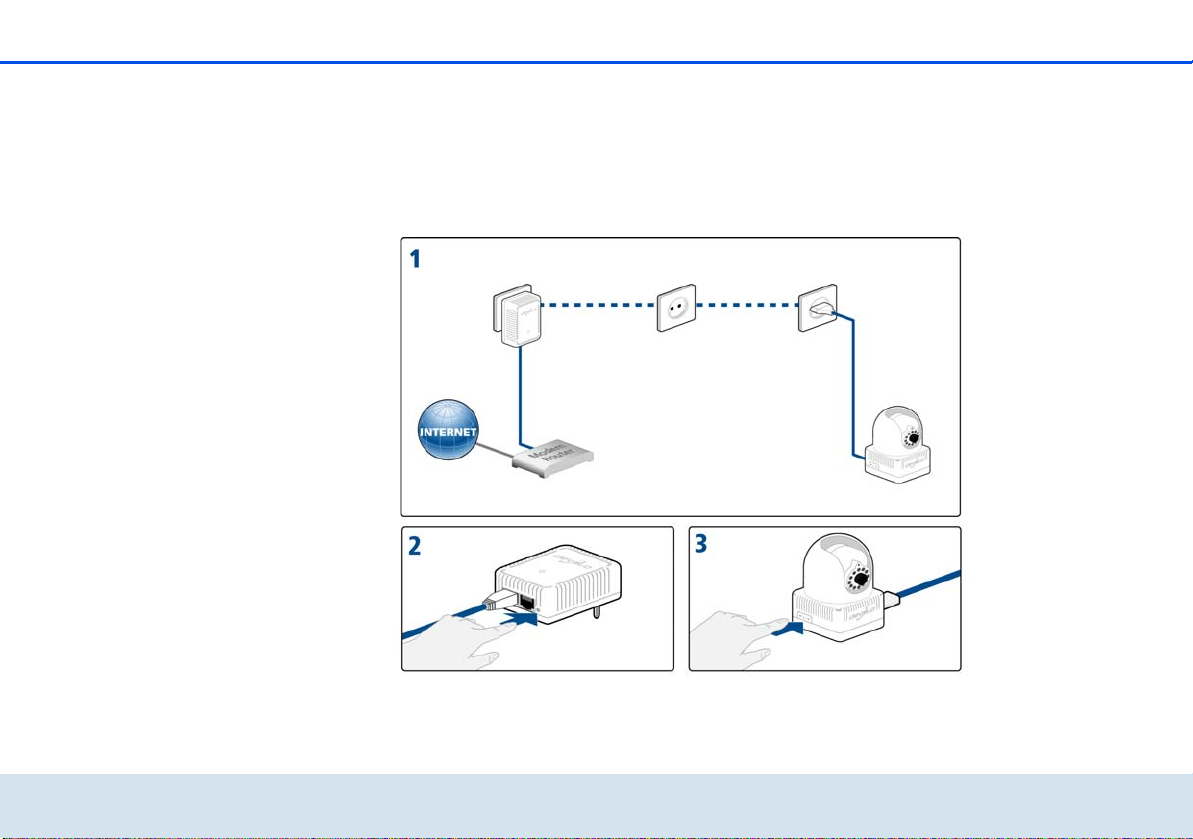

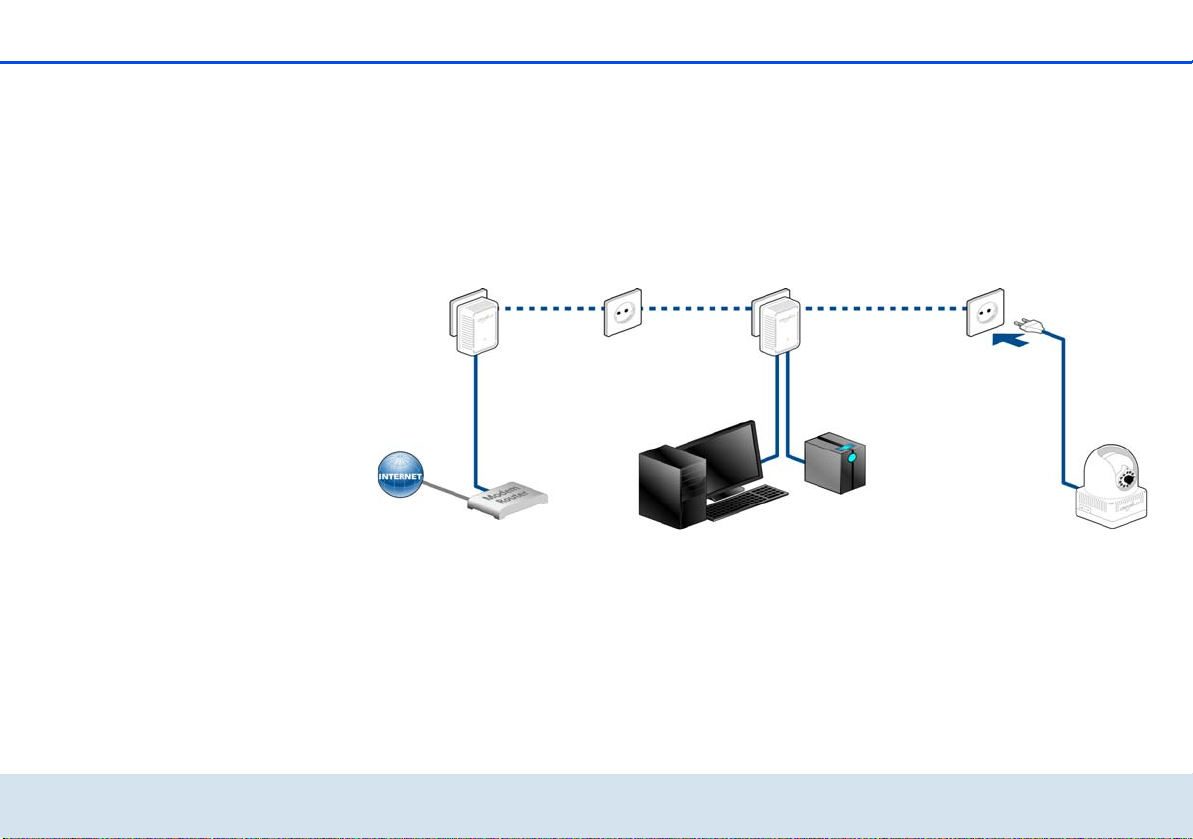

Connecting the dLAN LiveCam
Connect the dLAN LiveCam to the mains supply
using the included power cable.
In order to set up a dLAN AV network or add
another dLAN AV adapter, proceed as follows:
Connect the dLAN AV adapter via the
included network cable to a network jack on your router or to another network component.
Plug the dLAN AV adapter into an available
electrical outlet.
Once you have connected the dLAN LiveCam and
at least one dLAN AV adapter as described above, your dLAN AV network has been set up. To secure your dLAN AV network, continue with the config­uration of your network. To do so, continue read­ing in Chapters 4.5.1 Installing the software and 5 dLAN network.
Installing the devolo app and adding the camera
Download dLAN Cockpit to your smartphone or
tablet from the corresponding store.
devolo dLAN LiveCam
12 Quick start
You can find the devolo app quickest by click­ing on the magnifying glass in the store and searching directly for dLAN Cockpit.
On the screen, the app link to dLAN Cockpit
appears. Tapping on it takes you to the dLAN Cockpit start menu.
Now, to connect the camera to your smartphone
or tablet, tap the My dLAN LiveCams symbol.
During initial installation of the camera, select the
Add dLAN LiveCam option on the bottom edge of the screen.
Enter the corresponding string of characters and
numbers in the LiveCAM ID and Password fields. You can find the CAM-ID and the default access password for the dLAN LiveCam on the label on the bottom of the device. Confirm your entry with Add.
For security reasons, we recommend setting an individualised access pass­word. To assign an individualised ac­cess password, continue reading in Chapter 5.3.3 Settings menu.
name or on the preview of the dLAN LiveCam takes you to the live image.
Tapping the symbol takes you to the settings menu of the dLAN LiveCam.
devolo dLAN LiveCam
As soon as your smartphone or tablet is connected
to the dLAN LiveCam, the camera appears in the My dLAN LiveCams overview. Tapping on the
Initial use 13
Fig. 5

4Initial use

In this chapter, you will learn everything useful to know about initial use of your dLAN LiveCam. It will explain
how to connect the dLAN LiveCam and its functions. We will also briefly introduce the included devolo software and then guide you through its installation.
devolo dLAN LiveCam
14 Initial use

4.1 Package contents

Please ensure that your delivery is not missing anything before beginning to install your dLAN LiveCam:
Single kit
dLAN LiveCam Power cable Hard copy of installation guideCD containing software and online documen-
tation
or
Starter kit
dLAN LiveCam Power cabledLAN 200 AVduo or dLAN 200 AVmini Network cable Hard copy of installation guideCD containing software and online documen-
tation
devolo AG reserves the right to change the package contents without prior notice.

4.2 System requirements

dLAN LiveCam
Smartphone OS:
iOS 4.x, 5 and 6 Android: version 2.3 or later
dLAN 200 AVduo or dLAN 200 AVmini (see
Starter kit)
Operating systems: Windows XP (32-bit),
Windows Vista Home Premium (32-bit/64-bit), Windows 7 Home Premium (32-bit), Linux (Ubuntu), Mac (OS X) and all operating sys­tems with network support
Network connection
Please note that your computer or oth­er device must have a network adapter with a network port.
To set up a dLAN AV network, you need two dLAN AV devices (200 Mbps or 500 Mbps).
devolo dLAN LiveCam
Initial use 15
Fig. 6

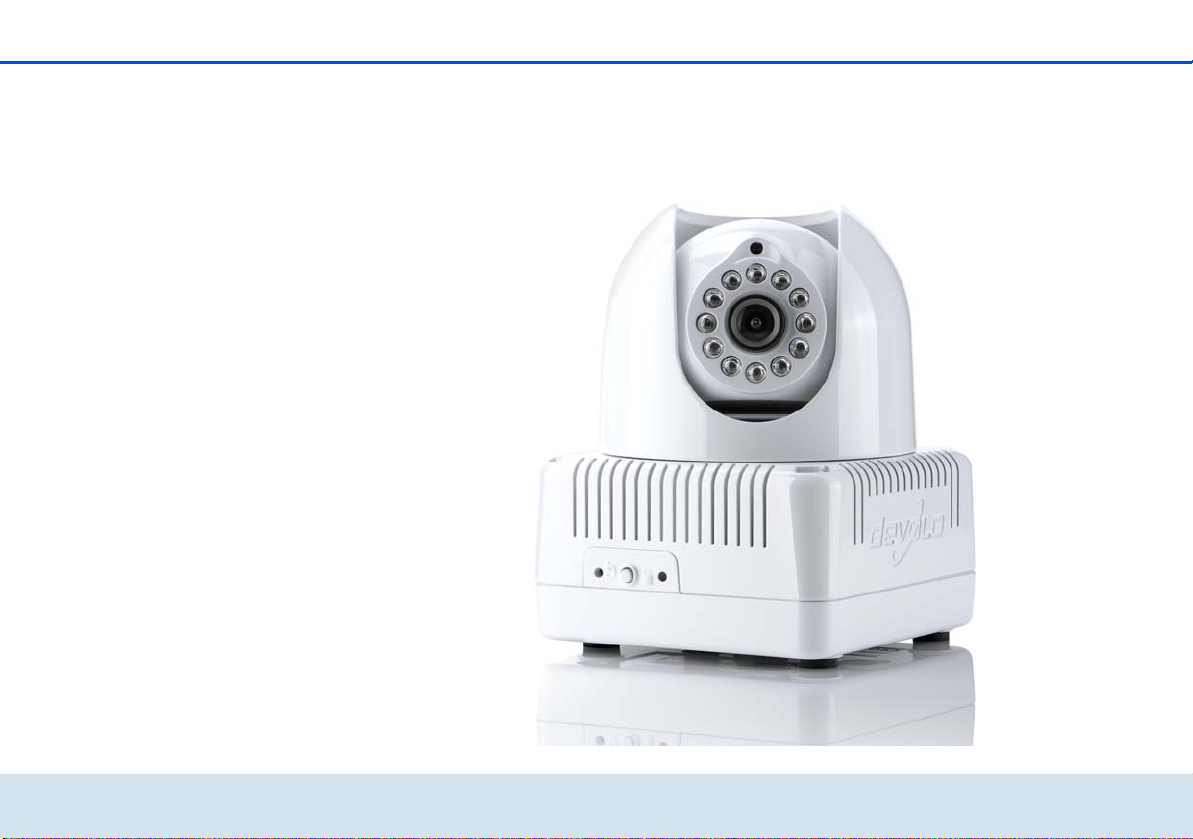

4.3 Functions

The dLAN LiveCam has a lens, an indicator light (LED), a power outlet, a reset button and an encryption but­ton.

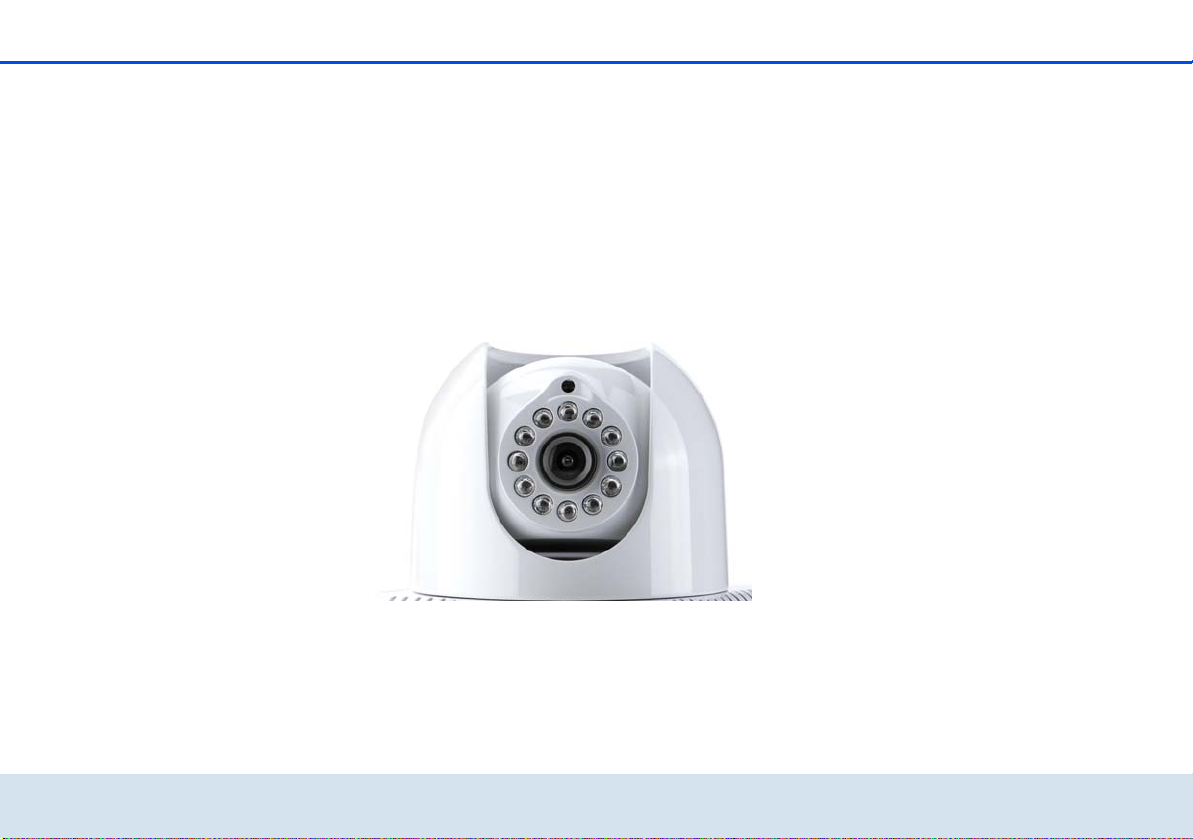

4.3.1 Camera

In order to allow you to align the camera precisely tailored to your objective, the outer camera head can be turned by 270° and the internal camera head can be tilted by 90°.
By turning the lens, you align the sharpness of the picture and change the focus of the dLAN LiveCam.
the dLAN LiveCam. Additional information can be found in Chapter 5.3.3 Settings menu.
The infrared LEDs arranged around the lens improve the view in poor lighting conditions (e.g. darkness). The infrared mode is defined in the settings menu of
devolo dLAN LiveCam
16 Initial use
Fig. 7

4.3.2 Indicator light

The indicator light (LED) shows all of the statuses for the dLAN LiveCam by illuminating and/or flashing in different ways:
Green flashing and illumination behaviour:
The LED flashes at regular, quick intervals
(0.5 s) if the dLAN LiveCam is connecting to the dLAN network (pairing).
The LED illuminates if the dLAN LiveCam is
accessing the server.
The LED flashes at irregular, quick inter-
vals (0.1 s/0.2 s) if data is being transferred
and a smartphone or tablet is accessing the dLAN LiveCam.
The LED lights up in orange if the
dLAN LiveCam is ready to operate and a dLAN connection exists.
The LED flashes red at irregular intervals
(0.5 s/2 s) if there is no dLAN connection.
The light function of the LED can be switched off in the settings menu of the dLAN LiveCam for safety reasons (see 5.3.3 Settings menu).

4.3.3 Encryption button

Data encryption at the touch of a button; for a func­tional description of the encryption button, please con­tinue reading in chapter 5.2 Encryption at the touch of a button.

4.3.4 Reset

To reset the dLAN LiveCam camera settings to the factory default, press the Reset button.
Keep in mind that all settings that have already been made will be lost! In this case, the dLAN password is re­set to the default password.
The reset button can be pressed using the tip
of a ball-point pen.

4.3.5 Power supply

devolo dLAN LiveCam
You can connect the dLAN LiveCam to the mains sup­ply here.
Initial use 17
Make sure that all dLAN AV devices that are to be connected to your net­work are also connected to the mains supply. A dLAN AV device switches into standby mode after a short time if no network device (e.g. a computer) connected to the network interface is switched on. In Standby mode, the dLAN AV device cannot be accessed over the mains supply network. As soon as the network device (e.g. com­puter) connected to the network inter­face is switched on again, your dLAN AV device can also be accessed via the electrical wiring.

4.4 Setup instructions

The dLAN LiveCam can be installed and set up in vari­ous ways:
Wall mounting to the sockets incorporated on the
side and underside of the housing
Installation on a camera base with the help of the
threaded hole in a common size on the underside of the housing
Setting up the dLAN LiveCam on a level surface
Align the camera according to what you wish to re­cord.
When setting up the camera, make ABSOLUTELY certain that neighbouring public or private property or strangers are not be­ing recorded. Only your property and private space may be moni­tored using the camera.

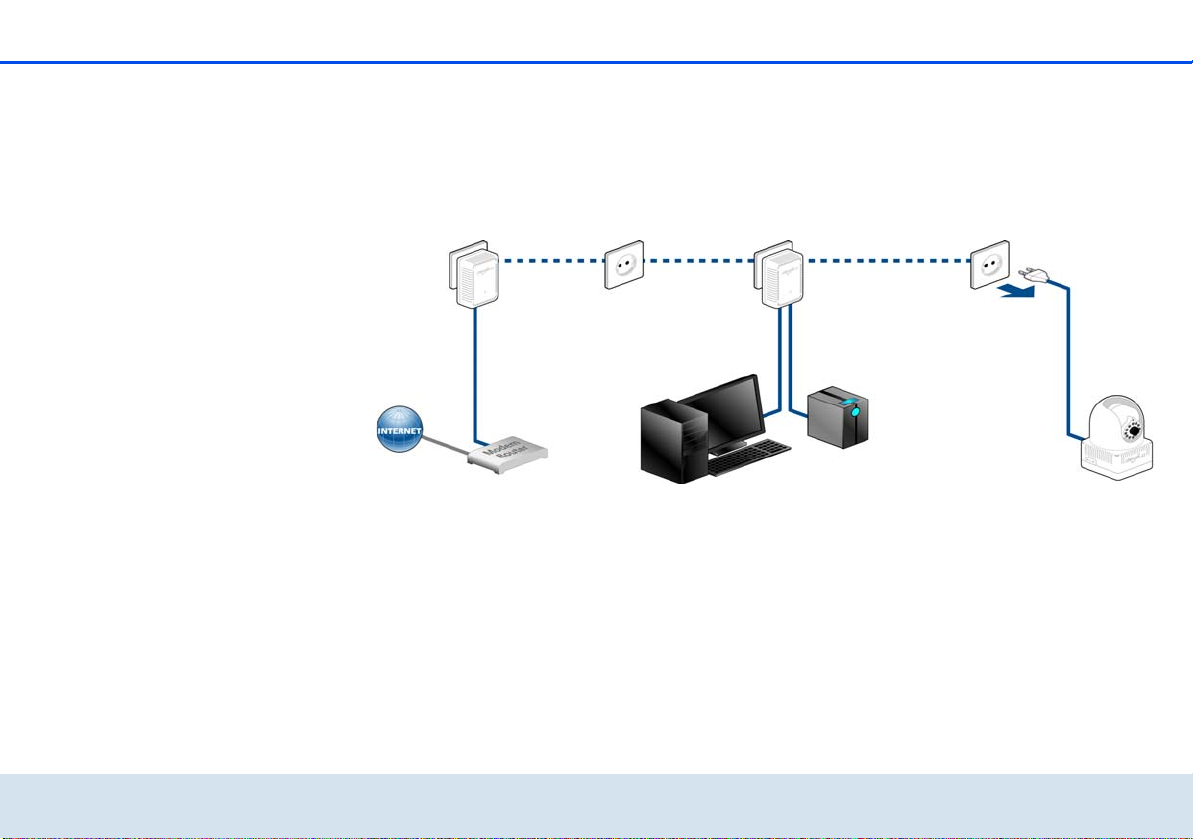

4.5 Connecting the dLAN LiveCam

Connect the dLAN LiveCam to the mains supply
using the included power cable.
In order to set up a dLAN AV network or add
another dLAN AV adapter, proceed as follows:
Connect the dLAN AV adapter via the
included network cable to a network jack on your router or to another network component.
Plug the dLAN AV adapter into an available
electrical outlet.
Once you have connected the dLAN LiveCam and
at least one dLAN AV adapter as described above, your dLAN AV network has been set up. To secure your dLAN AV network, continue with the config­uration of your network. To do so, continue read-
devolo dLAN LiveCam
18 Initial use
ing in Chapter 4.5.1 Installing the software and 5 dLAN network.
Finally, download the devolo dLAN Cockpit app
to your smartphone or tablet from the correspond­ing store. A detailed description for this can be found in Chapter 5.3 dLAN Cockpit App.

4.5.1 Installing the software

Software for Windows
Using the installation wizard, install the devolo dLAN Cockpit software for operating the dLAN AV adapter
on the Windows operating system on your computer:
dLAN Cockpit finds all reachable dLAN adapters in your dLAN AV network, displays information about these devices and encrypts your dLAN AV network in­dividually.
To install the software, insert the included CD-ROM in the CD drive of your computer.
If AutoPlay is active on your computer, the in­stallation will start automatically. Otherwise, open the directory with the Windows Explor­er by right-clicking on Start (or the Win- dows logo) and selecting Explorer from the context menu. Then start the installation wiz­ard manually.
During the installation process, you will be given the choice of installing all software components (Stand-
ard installation) or selecting individual ones (Cus­tom installation).
To take full advantage of the functions of your device, we recommend installing all of the applications.
You will be asked for permission to transfer anonymous performance data related to your dLAN adapter to devolo. The data sent to devolo pertains only to the performance values of your dLAN devices. The data is anonymised and will be used exclusively for statistical purposes. By providing it, you can help us improve our products. You can find the installed software applications in the Start All Programs devolo program group.
Software for Mac (OS X)
The software mac folder contains the dLAN config- uration software.
Software for Linux (Ubuntu)
The software linux folder contains the dLAN con­figuration software.
devolo dLAN LiveCam
dLAN network 19

5dLAN network

5.1 Security in the dLAN

Before you can use the dLAN LiveCam in your dLAN network, first you have to connect it to other dLAN AV devices as a home network. Two specific pieces of in­formation are especially important for this:
Shared use of a dLAN password results in a delim-
ited dLAN network.
Shared use of the dLAN password serves as access
control to the dLAN network as well as the encryption, and thereby the interception protec­tion, of the transmitted data.
Please note the following basic principle when choos­ing your encryption method:
The dLAN password can be specified automati-
cally via the encryption button (see
or manually using the dLAN Cockpit program
(see

5.2 Encryption at the touch of a button

press the encryption button that is located on the de­vice. Pressing this button will encrypt your dLAN AV network with a randomly generated password.
Adapters cannot be configured while in Standby mode.
The following section contains exact instructions on the basis of possible network scenarios:
To encrypt a dLAN AV network, in which all associated devices are equipped with an encryption button, simply
devolo dLAN LiveCam
20 dLAN network
Fig. 8 is country-specific
Encrypting a new dLAN AV network consisting of a dLAN LiveCam and another dLAN AV adapter (fig. 8)
Once the dLAN LiveCam and the other dLAN AV adapt­er have been successfully connected, press each en-
cryption button for 1 second within two minutes of one another.
That's it! Your dLAN AV network is now protected against unauthorized access.
devolo dLAN LiveCam
dLAN network 21
Fig. 9 is country-specific
Expanding an existing dLAN AV network with a new dLAN LiveCam (fig. 9)
If you have already secured your existing dLAN AV net­work using the encryption button, use the same meth­od to integrate other adapters. Once you have successfully connected the new dLAN LiveCam, first press the encryption button of one of your network’s existing adapters (1 second), then press the encryption
button of your new dLAN LiveCam (1 second) within two minutes.
That's it! The new dLAN LiveCam is now integrated in your network. To integrate additional adapters in your network, repeat the above steps.
devolo dLAN LiveCam
22 dLAN network
Fig. 10 is country-specific
Excluding a dLAN LiveCam from your network (fig. 10)
To exclude a dLAN LiveCam from an existing network, press its encryption button for at least ten seconds. The device will be assigned a new randomly generated password and will thus no longer be able to access the
network. To integrate the device in a different dLAN AV network, follow the steps described above, depending on whether you are setting up a new network or add­ing the adapter to an existing one.
devolo dLAN LiveCam
dLAN network 23

5.3 dLAN Cockpit App

dLAN Cockpit App is devolo's free app for keeping an eye on your dLAN LiveCams via smartphone or tablet.
5.3.1 Installing dLAN Cockpit and adding
dLAN LiveCam
After you have successfully connected the
dLAN LiveCam and another dLAN AV adapter and integrated them into your dLAN network, down­load the dLAN Cockpit App to your smartphone or tablet from the corresponding store.
You can find the devolo app quickest by click­ing on the magnifying glass in the store and searching directly for dLAN Cockpit.
On the screen, the app link to dLAN Cockpit
appears. Tapping on it takes you to the dLAN Cockpit start menu.
Now, to connect the camera to your smartphone
or tablet, tap the My dLAN LiveCams symbol.
During initial installation of the camera, select the
Add dLAN LiveCam option on the bottom edge of the screen.
Enter the corresponding string of characters and
numbers in the LiveCAM ID and Password fields. You can find the CAM ID and the default
access password on the label on the bottom of the device of the dLAN LiveCam. Confirm your entries with Add.
Tap on the password line so that a keyboard is displayed on the smartphone or tablet. You can ensure upper-case letters remain activat­ed by tapping the arrow key twice (shift lock).
For security reasons, we recommend setting an individualised access pass­word.
devolo dLAN LiveCam
24 dLAN network
As soon as your smartphone or tablet is connected
to the dLAN LiveCam, the camera appears in the My dLAN LiveCams overview. Tapping on the name of the dLAN LiveCam takes you to the live image.
The screen interface and the camera image in the dLAN Cockpit App are automatically adapted to the alignment (horizontal/vertical) of the smartphone or tablet.

5.3.2 Overview page

You can page through the list of adapters by swiping across the screen (left/right or up/down).
Tapping the camera image changes the image size from regular to full-screen and vice versa.
The house icon displays the connection over LAN.
The globe indicates a public Internet connec­tion between the smartphone and the camera.
Using this symbol takes you to the settings menu of the dLAN LiveCam.

5.3.3 Settings menu

By tapping on Camera, you can cause the camera to take a picture, which is stored as a preview image under My
dLAN LiveCams (see 5.3.4 Menu on the bottom edge of the screen), if you have activated the option Use the image as preview of this dLAN LiveCam.
Here, you determine the image quality. You can choose from three different image res­olutions. You can set the image quality of your recordings from low to high. Confirm this entry with Apply.
devolo dLAN LiveCam
dLAN network 25
Define and change the access password for the dLAN LiveCam under Password. For
security reasons, we recommend al­ways setting an individualised access password. Confirm your entries with Add.
Tap on the password line so that a key­board is displayed on the smartphone or tablet. You can ensure upper-case letters remain activated by tapping the arrow key twice (shift lock).
Furthermore, the status LED can be switched on or off. In darkness, the LED lighting can be disruptive.
Tapping the camera with the arrow stores the picture in the photo gallery so that you can also easily send it by e-mail (e. g. via Bluetooth, Skype, Google Mail).
Here, you determine the lighting options. Select Indoor if the camera is recording in­doors, select Outdoor if the camera is re­cording outdoors. Select Improve contrast if you would like to record in the dark or outdoors in poor lighting condi­tions. The infrared mode can be turned on or off or set to automatic. Confirm your entries with Apply.
Here, you reset the camera settings to the factory defaults.
The dLAN password is not affected by this.
Tapping this symbol turns the view of the camera image horizontally or vertically. En­able the Mirror image function for mirror- ing the image depending on the positioning of the camera (e.g. camera head pointing downward).
Here, you can assign an individual name to your camera. Confirm your entry with Ap- ply.
Tapping the recycle bin deletes the con­nected camera.
devolo dLAN LiveCam
26 dLAN network
In order to apply all of the modified settings, you have to save changes with Apply changes before you leave the settings menu. If you have made chang­es in the settings menu but have not yet saved them via this menu item, a red exclamation point appears above the menu item.
This save process also causes the dLAN LiveCam to restart each time. This operation can take a short amount of time.
5.3.4 Menu on the bottom edge of the
screen
The functions of the menu on the bottom edge of the screen are self-explanatory and can be operated intui­tively. Depending on which submenu you are in, the following functions appear:
Start: dLAN Cockpit App start menu To update the camera image, tap Refresh. During initial installation of the camera, select the
Add dLAN LiveCam option.
In the Help menu you can found more installa-
tions tips and answers to frequently questions (FAQs).
All connected cameras are listed with correspond-
ing preview images under My dLAN LiveCams.
You can switch to the next connected camera
using the Forward/Backward arrow keys.
In order to apply all of the modified settings, you
have to save changes with Apply changes before you leave the settings menu. If you
have made changes in the settings menu but have not yet saved them via this menu item, a red exclamation point appears above the menu item.
This save process also causes the dLAN LiveCam to restart. This opera­tion can take a short amount of time.

5.4 dLAN Cockpit

devolo dLAN Cockpit is a monitoring and encryption program that detects all reachable dLAN AV devices in your home network and combines them in a secure network. Due to its logical graphic design, the dLAN Cockpit is easy and intuitive to operate. After
devolo dLAN LiveCam
dLAN network 27
installing the devolo software, it can be found in the Start Programs devolo program group.
After starting the dLAN Cockpit, all reachable dLAN devices in your home network will appear. This may
devolo dLAN LiveCam
take a moment.
28 dLAN network
All adapters found in the network appear with as adapter icon with a corresponding product name. The adapter in the middle of the dLAN network identified with the symbol shown here symbolises your locally connected device. If you have multiple dLAN devices connected locally, you can jump back and forth between them. Clicking an adapter icon with the mouse enables the corresponding dLAN AV device and highlights it.
The coloured connecting lines of the adapters illustrate the current transmission quality:
Green: the network connection is suitable for HD
video streaming.
Orange: the network connection is suitable for
SD video streaming and online gaming.
Red: the network connection is suitable for simple
data transfer and Internet access.
If data transmission from one device to another is ac­tually taking place, the data rate is displayed on the re­spectively highlighted adapter.
Settings and functions
You can configure settings for the respectively high­lighted device or for the network
You can always use the Refresh button to display the current status of devices that have been found (if this hasn't happened automatically).
By means of the Options button or the corresponding tabs of the respective adapter, you can learn device in­formation such as the firmware version used and the individual MAC address.
Options are given like assigning an additional name, resetting the respective device to the factory default settings or removing a device from the existing dLAN network.
The above-mentioned setting options vary depending on the function and features of your device.
You can also specify whether information on the per­formance of your dLAN adapters will be transferred to devolo.
The data sent to devolo pertains only to the performance values of your dLAN devices. The data is anonymised and will be used ex­clusively for statistical purposes. By providing it, you can help us improve our products.
devolo dLAN LiveCam
via the buttons at the bottom edge of the screen or via tabs arranged at the side of each adapter.
dLAN network 29
The Troubleshooting Guide includes installation in­structions and information about how to connect your devices optimally with one another.
5.4.1 Encrypting a network with
dLAN Cockpit
If you use dLAN AV devices without an encryption button, data can be encrypted only via dLAN Cockpit.
Before the networking procedure, note the security IDs of all dLAN AV adapt­ers. This unique identifier of each dLAN device is located on the label on the housing. It consists of 4 x 4 letters sep­arated by dashes (e.g. ANJR-KMOR­KSHT-QRUV). Ensure that all dLAN adapters are connected to the power grid and computers or other network components as appropriate.
Scan for local adapter
After dLAN Cockpit is started, it searches for the dLAN adapter connected directly to your computer first.
Adding an adapter
Add all the dLAN devices you want to your dLAN network by selecting the Add adapter button. You will need the 16-character security IDs of the adapters
from the label on the housing. Enter it now in the Security ID field and confirm with OK. If a security ID is correct and the device can be reached in the dLAN network, it will be added to your network of configured adapters and also displayed in the program.
Entering a network password
After you have added all the dLAN devices you want to your dLAN network, select the Change password button to assign a shared network password that will apply for all registered adapters in your personal home network.
You can choose between your own password, a ran­dom password and the default password. To define your own password with a length of at least eight char­acters, enter this into the Network password text field. Alternatively, you can have a randomly selected, highly secure password assigned using the Generate
secure password button. Use the Factory default password button to reset the dLAN adapter to the de-
fault password. Normally, the display of the password is hidden for security reasons. If you enable the option Show characters, the current password is displayed in legible form in the text field.
devolo dLAN LiveCam
30 dLAN network
The factory default password is HomePlugAV. Assigning a specific password to a single adapter will exclude it from the remaining dLAN network.
If dLAN Cockpit is called up again later after a suc­cessful initial installation, for example to integrate a new adapter into a network, the application remem­bers the devices that were entered earlier. Enter the new device as described in the Adding an adapter section. The current network password is assigned automatically to the newly added device.
devolo dLAN LiveCam
Appendix 31

6 Appendix

6.1 Important safety instructions

All safety and operating instructions should be read and understood before using the device, and should be kept for future reference.
Never open the device. There are no user-servi-
ceable parts inside the device.
Do not try to service this product yourself! Contact qualified technicians each and every time your device needs maintenance. There is a risk of electric shock!
Use the device in a dry location only. Always use the included network cable to connect
the device.
The outlet must be within reach of the connected network devices. The adap­ter and the network devices must be easily accessible.
To switch the device off, pull the power plug.To disconnect the device from the power supply
grid, pull the power plug.
Do not insert any objects into the openings of the
device.
Do not keep the device in direct sunlight.Slots and openings on the case serve as ventila-
tion. Never block or cover them.
Never set up the device near a heater or radiator. The device should be located only where sufficient
ventilation can be ensured.
Disconnect the device from the power supply grid
before cleaning. Use a moist towel to clean the device. Never use water, paint thinner, benzene, alcohol or other strong cleaning agents when cleaning the device, as these could damage the case.
Never use the device with a power supply that
does not meet the specifications provided on the rating plate. If you do not know what type of power supply you have at home, contact your dealer or energy supplier.
In the event of damage, disconnect the device
from the power supply grid and contact customer service. This applies, for example, if
the power cable or plug is damaged.liquid has been spilled on the device or
objects have fallen into the device.
the device has been exposed to rain or water.
devolo dLAN LiveCam
32 Appendix
the device does not work, even though the
operating instructions have been followed properly.
the device’s case is damaged.

6.2 Disposal of old devices

To be used in the countries of the European Union and other European countries with a separate collecting sy­stem:
The icon with crossed-out wastebasket on the device means that this adapter is an electrical or electronic device that falls within the scope of application of the German Electrical and Electronic Equipment Act ("Elektrogesetz"). Since 24 March 2006, these types of devices may no longer be disposed of with household waste. Rather, in Germany, they can be given to a municipal collection point free of charge. Contact your municipal government to find out the address and hours of the nearest collection point.

6.3 Warranty conditions

The devolo AG warranty is given to purchasers of devolo products in addition to the warranty conditions provided by law and in accor­dance with the following conditions:
1 Warranty coverage
a) The warranty covers the equipment delivered and all its parts.
Parts will, at devolo's sole discretion, be replaced or repaired free of charge if, despite proven proper handling and adherence to the operating instructions, these parts became defective due to fabrication and/or material defects. Alterna­tively, devolo reserves the right to replace the defective pro­duct with a comparable product with the same specifications and features. Operating manuals and possibly supplied soft­ware are excluded from the warranty.
b) Material and service charges shall be covered by devolo, but
not shipping and handling costs involved in transport from the buyer to the service station and/or to devolo.
c) Replaced parts become property of devolo.
d) devolo is authorized to carry out technical changes (e.g. firm-
ware updates) beyond repair and replacement of defective parts in order to bring the equipment up to the current techni­cal state. This does not result in any additional charge for the customer. A legal claim to this service does not exist.
2Warranty period
The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. War­ranty services carried out by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period. The warranty period for installed replacement parts ends with the war­ranty period of the device as a whole.
devolo dLAN LiveCam
Appendix 33
3Warranty procedure
a) If defects appear during the warranty period, the warranty
claims must be made immediately, at the latest within a period of 7 days.
b) In the case of any externally visible damage arising from trans-
port (e.g. damage to the housing), the person carrying out the transportation and the sender should be informed immedi­ately. On discovery of damage which is not externally visible, the transport company and the sender are to be immediately informed in writing, at the latest within 3 days of delivery.
c) Transport to and from the location where the warranty claim is
accepted and/or the repaired device is exchanged, is at the purchaser's own risk and cost.
d) Warranty claims are only valid if a copy of the original
purchase receipt is returned with the device. devolo reserves the right to require the submission of the original purchase receipt.
4 Suspension of the warranty
All warranty claims will be deemed invalid
a) if the label with the serial number has been removed from the
device,
b) if the device is damaged or destroyed as a result of acts of
nature or by environmental influences (moisture, electric shock, dust, etc.),
c) if the device was stored or operated under conditions not in
compliance with the technical specifications,
d) if the damage occurred due to incorrect handling, especially to
non-observance of the system description and the operating instructions,
e) if the device was opened, repaired or modified by persons not
contracted by devolo,
f) if the device shows any kind of mechanical damage, or
g) if the warranty claim has not been reported in accordance with
3a) or 3b).
5Operating mistakes
If it becomes apparent that the reported malfunction of the device has been caused by unsuitable hardware, software, installation or operation, devolo reserves the right to charge the purchaser for the resulting testing costs.
6 Additional regulations
The above conditions define the complete scope of devolo's legal liability.
a) The warranty gives no entitlement to additional claims, such as
any refund in full or in part. Compensation claims, regardless of the legal basis, are excluded. This does not apply if e.g. injury to persons or damage to private property are specifically covered by the product liability law, or in cases of intentional act or culpable negligence.
b) Claims for compensation of lost profits, indirect or consequen-
tial detriments, are excluded.
c) devolo is not liable for lost data or retrieval of lost data in
cases of slight and ordinary negligence.
d) In the case that the intentional or culpable negligence of
devolo employees has caused a loss of data, devolo will be liable for those costs typical to the recovery of data where peri­odic security data back-ups have been made.
e) The warranty is valid only for the first purchaser and is not
transferable.
f) The court of jurisdiction is located in Aachen, Germany in the
case that the purchaser is a merchant. If the purchaser does not have a court of jurisdiction in the Federal Republic of Ger­many or if he moves his domicile out of Germany after conclu­sion of the contract, devolo's court of jurisdiction applies. This is also applicable if the purchaser's domicile is not known at the time of institution of proceedings.
g) The law of the Federal Republic of Germany is applicable. The
UN commercial law does not apply to dealings between devolo and the purchaser.
devolo dLAN LiveCam
34 Appendix
devolo dLAN LiveCam

Index

A
Access password 23
AES encryption (128-bit)
23
App
C
Camera 24
Camera base
17
D
Disposal of old devices 32
dLAN AV network
E
Encryption button 16, 19
F
Factory default password 29
Factory default settings
G
Generate secure password 29
24
Globe
H
House icon 24
I
Image quality 24
Image resolution Indicator light (LED) Infrared LEDs
15, 25
5
19
16
24
15
Integrating the new adapter into the network
L
Lens 15
18
Linux
M
Mac (OS X) 18
N
Network password 29
R
Recycle bin 25
S
Security ID 29
Show image System requirements
25
14
T
Turning the view 25
W
Wall mounting 17
Warranty Windows
32 18
30
devolo dLAN LiveCam
devolo dLAN LiveCam
Loading...
