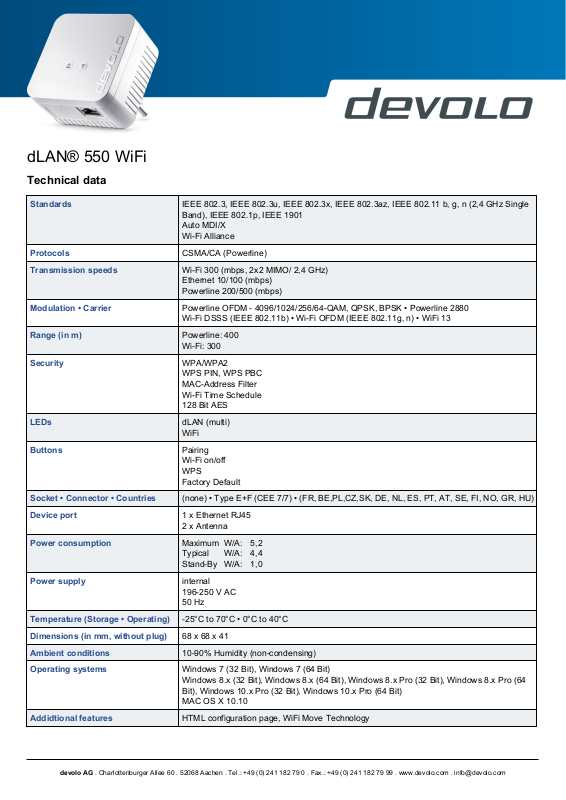

dLAN® 550 WiFi

Technical data

Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.11 b, g, n (2,4 GHz Single

Band), IEEE 802.1p, IEEE 1901
Auto MDI/X
Wi-Fi Alliance

Protocols CSMA/CA (Powerline)
Transmission speeds Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)

Ethernet 10/100 (mbps)
Powerline 200/500 (mbps)

Modulation • Carrier Powerline OFDM - 4096/1024/256/64-QAM, QPSK, BPSK • Powerline 2880

Wi-Fi DSSS (IEEE 802.11b) • Wi-Fi OFDM (IEEE 802.11g, n) • WiFi 13

Range (in m) Powerline: 400

Wi-Fi: 300

Security WPA/WPA2

WPS PIN, WPS PBC
MAC-Address Filter
Wi-Fi Time Schedule
128 Bit AES

LEDs dLAN (multi)

WiFi

Buttons Pairing

Wi-Fi on/off
WPS
Factory Default

Socket • Connector • Countries (none) • Type E+F (CEE 7/7) • (FR, BE,PL,CZ,SK, DE, NL, ES, PT, AT, SE, FI, NO, GR, HU)
Device port 1 x Ethernet RJ45

2 x Antenna

Power consumption Maximum W/A: 5,2

Typical W/A: 4,4
Stand-By W/A: 1,0

Power supply internal

196-250 V AC
50 Hz

Temperature (Storage • Operating) -25°C to 70°C • 0°C to 40°C
Dimensions (in mm, without plug) 68 x 68 x 41
Ambient conditions 10-90% Humidity (non-condensing)
Operating systems Windows 7 (32 Bit), Windows 7 (64 Bit)

Windows 8.x (32 Bit), Windows 8.x (64 Bit), Windows 8.x Pro (32 Bit), Windows 8.x Pro (64
Bit), Windows 10.x Pro (32 Bit), Windows 10.x Pro (64 Bit)
MAC OS X 10.10

Addidtional features HTML configuration page, WiFi Move Technology

devolo AG . Charlottenburger Allee 60 . 52068 Aachen . Tel.: [phone] . Fax.: [phone] . www.devolo.com . [e-mail]

dLAN® 550 WiFi

Sales information

Warranty (in years) 3
Accessories Printed Install Flyer

Ethernet Cable(s)

Single adapter Starter Kit Network Kit

9631 (EU)

EAN: 4250059696310
Weight: 300 g
Dimensions: 115 x 190 x 81 mm

WEEE additional information:

Weight WEEE: 181 g
Paper (Green Dot): 114 g
Plastic (Green Dot): 2 g
other (Green Dot): 0.2 g

9638 (EU)

EAN: 4250059696389
Weight: 570 g
Dimensions: 188.5 x 231 x 78.5 mm

WEEE additional information:

Weight WEEE: 381 g
Paper (Green Dot): 185 g
Plastic (Green Dot): 4 g
other (Green Dot): 0.2 g

9645 (EU)

EAN: 4250059696457
Weight: 700 g
Dimensions: 188.5 x 231 x 78.5 mm

WEEE additional information:

Weight WEEE: 517 g
Paper (Green Dot): 185 g
Plastic (Green Dot): 4 g
other (Green Dot): 0.2 g

© 2015 devolo AG, Germany. All rights reserved.
Technical data subject to change without notice.

Version: en_EU 12.10.2015
