Preface 5
devolo dLAN 500 AVmini
1Preface
1.1 Thank you!
The dLAN 500 AVmini from devolo is the home
plug-in device for high requirements: The fast transfer rate of up to 500 Mbps makes every bandwidthintensive Internet application a real multimedia
treat. The integrated "Quality of Service" function
measures the bandwidth requirement, optimises the
data flow and ensures excellent quality—particularly
for voice and video data. Whether in the office or at
home—devices such as modem, router, set-top box
or the computer can be connected with the
dLAN 500 AVmini using the available Ethernet interface. On top of that, the range of 300 meters creates
a high degree of flexibility.
1.1.1 About this manual
After a brief introduction to "dLAN" basics and "Green
IT" in Chapter 2, Chapter 3 will cover successfully setting up your dLAN 500 AVmini. Chapter 4 explains
how to configure your dLAN 500 AVmini network. For
safety notes and our warranty terms, see Chapter 5.
Description of the symbols
Here we briefly describe the meaning of the symbols
used in this manual.
Very important note. Failure to observe this note may result in damage.
Important note that should be observed.
Additional information, background material
and configuration tips for your device.
If you have any further ideas or suggestions related to
our products, we would be delighted to hear from you
at support@devolo.com
!
devolo on the Internet
For detailed information on our products, visit
www.devolo.com
. The Service centre area not only
contains product descriptions and documentation, but
also updates of devolo software and your device's
firmware.
Page 7
6 Preface
devolo dLAN 500 AVmini
Page 8
Introduction 7
devolo dLAN 500 AVmini
2Introduction
dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economically via your household electrical wiring, without the
need for complex and expensive dedicated cabling.
The available performance and effort required for the
installation also compares favourably to traditional
methods—dLAN technology now attains speeds you
would expect from other LAN technologies, and installing it is a breeze!
Page 9
8 Introduction
devolo dLAN 500 AVmini
2.1 What exactly is dLAN?
dLAN (direct Local Area Network) uses the household
power grid to transfer data between computers equipped with suitable adapters and other network components. As a result, any power outlet can be used as a
network access point. The data is modulated prior to
transfer and sent as a signal via household power lines.
State-of-the-art technology ensures that the power
and data networks do not interfere with one another.
Networking via dLAN is fast and secure. The data is encrypted using a key to prevent easy interception by
third parties.
2.2 devolo—Up to speed on green
IT
The topic everyone is talking about is green IT. devolo
has an easy solution: the power saving mode, which
comes standard with the home network adapters, sets
the company apart from many competitors in the IT industry. And that has been the case even before global
warming and the scarcity of resources have become
concerns on everyone's mind.
Developers at devolo, have for a long time kept a close
eye on how much power dLAN adapters may consume.
After all, a devolo network via electrical sockets should
not only be convenient, but also require as little energy
as possible—particularly during times when it is not
being used.
That devolo can satisfy the demand for energy efficiency is evidenced by the patented power saving mode
in the devices. It automatically lowers energy con-
sumption by more than 80 percent when the computers in the dLAN network or connected equipment
are switched off.
The power saving mode in the adapters is not only a tribute to environmental protection but also a real
service to the customer. Most people tend to forget to
regularly press the standby button on the hardware.
The patented technology in devolo adapters allows you to save energy without having to do
anything. And if less energy is consumed, your elec-
tric meter will turn more slowly. In other words, every
minute the adapter is in power saving mode, you will
save money.
Page 10
Introduction 9
devolo dLAN 500 AVmini
A dLAN adapter connected to a computer can only go into power saving
mode if the network card of the switched-off computer is also inactive. If
you are using a network card that
remains active even when the computer is switched off, we recommend
connecting the computer to an on/off
switch using a multiple socket so that
both the computer and the integrated
network card are de-energised.
2.3 What does the dLAN adapter
have to offer?
The dLAN 500 AVmini offers a transfer rate of up to
500 Mbps which makes it ideal for high requirements,
such as HDTV streaming, Internet telephony and fast
Internet. When connected to an electrical outlet, it
changes the home-based electrical system in no time
into a fast network with high data throughput. And all
of that with optimum transfer and maximum data security using the powerful 128-bit AES encryption. In
addition, the patented power saving mode, which comes standard, automatically uses more than 80% less
power.
Simply press the encryption button on the
dLAN 500 AVmini or use the dLAN Cockpit to set up
custom encryption for your network. Whether in the office or at home—devices such as modem, router, settop box or the computer can be connected with the
dLAN 500 AVmini using the available Ethernet interface. On top of that, the range of 300 meters creates a
high degree of flexibility.
2.4 Sample applications
This chapter contains examples for possible network
designs in home or in office.

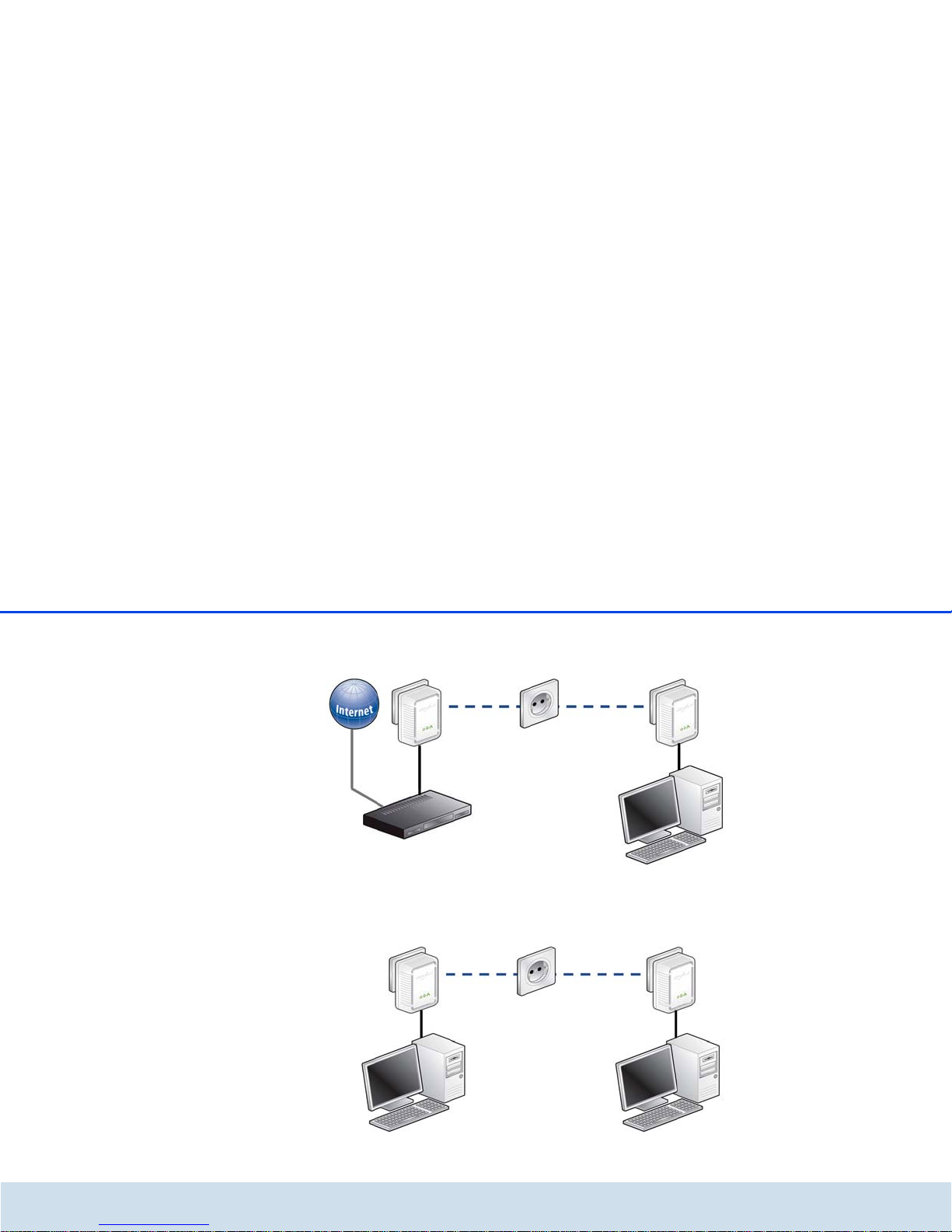

Internet standalone solution (fig 1)
Workstation with Internet connection over a DSL modem (Ethernet interface)
Page 11
10 Introduction
devolo dLAN 500 AVmini
Networking of two workstations (fig 2)
fig 1
fig 2
Page 12
Introduction 11
devolo dLAN 500 AVmini

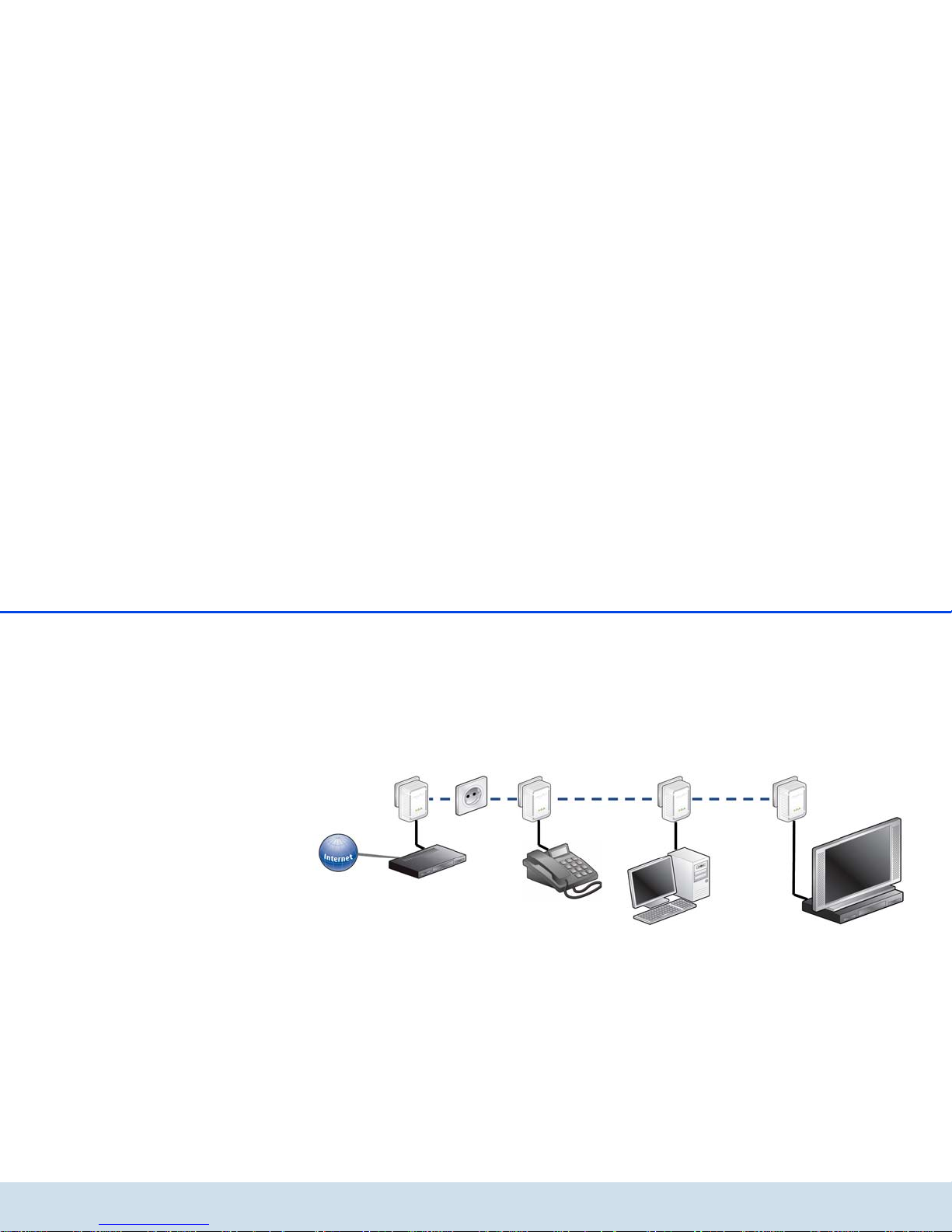

Distributed Internet access solution (fig 3)
Connection of an IP telephone, a high-speed Internet
application and an IP-TV application with Internet access via a DSL modem router
fig 3
Page 13
12 Introduction
devolo dLAN 500 AVmini
Page 14
Initial use 13
devolo dLAN 500 AVmini
3Initial use
This chapter covers everything you need to know to set
up your dLAN 500 AVmini. It will explain connecting
the dLAN 500 AVmini and its functions. We will also
briefly introduce the included devolo software and guide you through its installation.
3.1 Package contents
Please ensure that the delivery is complete before beginning with the installation of your dLAN 500 AVmini:
쎲 Single Kit:
쑗 dLAN 500 AVmini
쑗 Network cable
쑗 Hard copy of installation guide
쑗 CD containing software and online documen-
tation
or
쎲 Starter Kit:
쑗 Two dLAN 500 AVmini
쑗 Two network cables
쑗 Hard copy of installation guide
쑗 CD containing software and online documen-
tation
or
쎲 Network Kit:
쑗 Three dLAN 500 AVmini
쑗 Three network cables
쑗 Hard copy of installation guide
쑗 CD containing software and online documen-
tation
devolo AG reserves the right to change the package
contents without prior notice.
3.2 System requirements
쎲 Operating systems: Windows XP (32 bit), Win-
dows Vista Home Premium (32 bit/64 bit), Windows 7 Home Premium (32 bit), Linux (Ubuntu),
Mac (OS X) and any other operating system with
network support
쎲 Network connection
Please note that your computer or other device must feature a network adapter with a
network port.
Page 15
14 Initial use
devolo dLAN 500 AVmini
Please note that dLAN devices such as
the devolo dLAN duo (14 Mbps) and
devolo dLAN Highspeed Ethernet II
(85 Mbps) can be used on the same
household electrical wiring as
dLAN AV devices (200 Mbps/
500 Mbps) without interference, but
they will not be able to communicate
directly with one another. Hence, to
set up a dLAN AV network, you need
two dLAN AV devices (200 Mbps/
500 Mbps). More valuable information
about dLAN or dLAN AV is available in
the Service Centre section of our website at www.devolo.com
.
Page 16
Initial use 15
devolo dLAN 500 AVmini
3.3 Functions

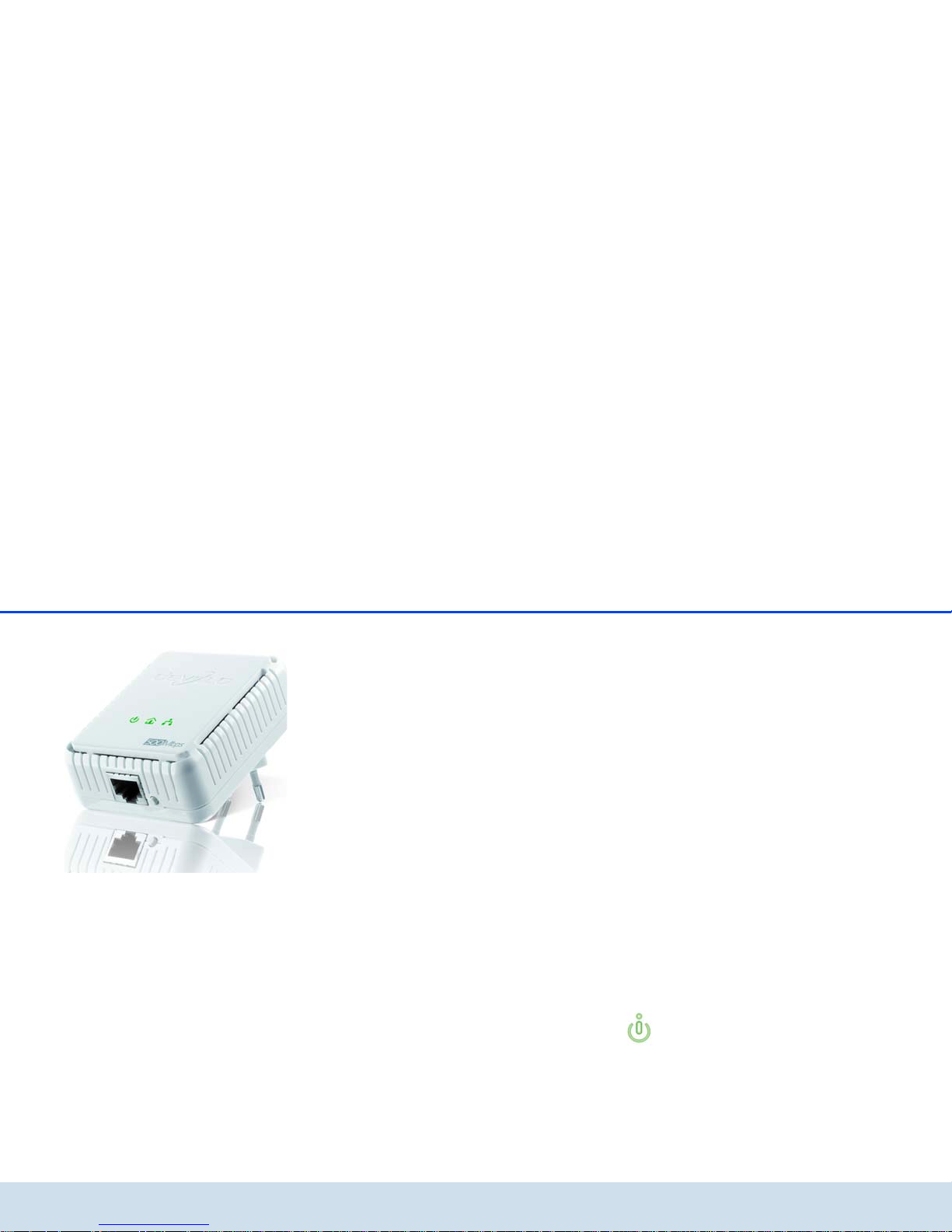

The dLAN 500 AVmini features 3 control LEDs as well
as a network port and an encryption button:
Power
green: Lit steady when dLAN 500 AVmini is ready for
operation; flashes when it is in standby mode.
dLAN
green: The network connection is suitable for HD video
streaming; flashes when data is being transmitted.
orange: The network connection is suitable for SD video streaming and online gaming; flashes when data
is being transmitted.
red: The network connection is suitable for simple data
transfer and Internet access; flashes when data is
being transmitted.
Ethernet
green: A connection to the Ethernet network exists;
flashes when data is being transmitted.
Network connection
This is the connection point on the dLAN 500 AVmini
for connecting it to a computer or another network device with the network cable (included).

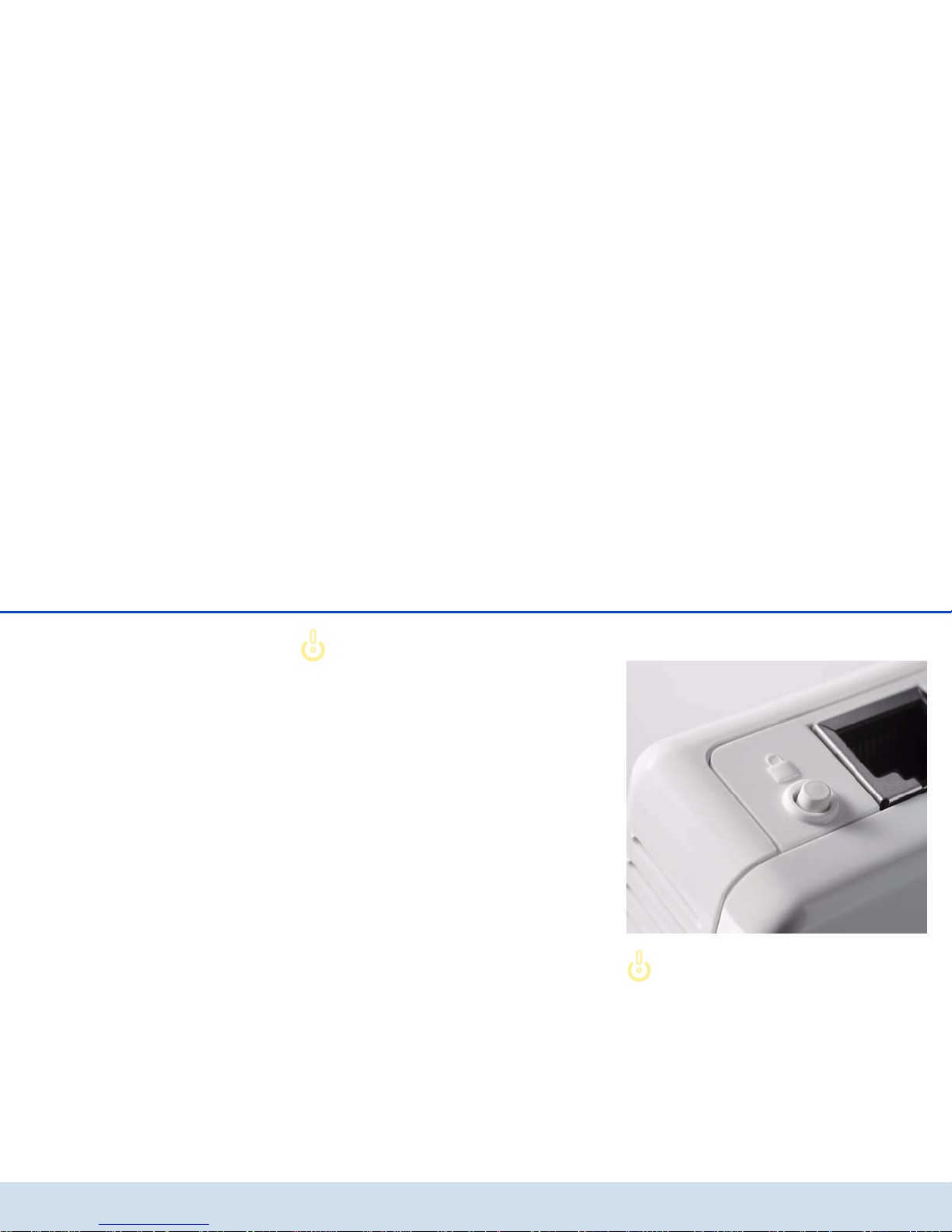

Encryption button
Data encryption at the touch of a button; For more information on the functions of the encryption button,
please see the chapter 4.3 dLAN AV network en-
cryption at the touch of a button.
Please note that all dLAN AV devices
to be connected to your network are
also connected to your household
electrical wiring. A dLAN AV device
switches to Standby mode after a
short while if no active network device such as a computer is connected
to the network port. In Standby mode,
the dLAN AV device cannot be accessed via the power supply grid. As soon
as the network device (e.g. computer)
connected to the network interface is
switched on again, your dLAN AV device can also be reached again via the
electrical wiring.
Page 17
16 Initial use
devolo dLAN 500 AVmini
3.4 Connecting the
dLAN 500 AVmini
This section describes how to connect your
dLAN 500 AVmini to a computer or other network device.
햲 Use the included network cable to connect the
dLAN 500 AVmini to the network port of your running computer or other network device.
햳 Plug the dLAN 500 AVmini into a free electrical
outlet.
햴 Once you have connected at least two
dLAN 500 AVmini adapters as described above,
your dLAN 500 AVmini network has been set up.
To secure your dLAN AV network, continue with
the configuration as described in chapter 4 dLAN
network.
3.5 Software installation
3.5.1 Software for Windows
Use the installation wizard to install the devolo software for using the adapter with the Windows operating system:
쎲 devolo dLAN Cockpit finds all reachable dLAN
adapters in your dLAN AV network, displays information about these devices and encrypts your
dLAN AV network individually.
To install the software, insert the included CD-ROM in
the CD drive of your computer.
If autoplay is installed on your computer, the
installation will start automatically. Otherwise, open the folder with the Windows Explorer by right-clicking on Start (or the Windows
logo) and selecting Explorer from the con-
text menu. Double-click to start the installation wizard manually.
During the installation process, you will be given the
choice of installing all software components (Standard
installation) or selecting individual ones (Custom installation).
To take full advantage of the functions of
your device, we recommend installing all of
the applications.
You will be asked for permission to transfer anonymous
performance data related to your dLAN 500 AVmini to
devolo. The data sent to devolo pertains only to the
performance values of your dLAN 500 AVmini devices.
The data is anonymized and will be used exclusively for
Page 18
Initial use 17
devolo dLAN 500 AVmini
statistical purposes. By providing it, you can help us
improve our products. You can find the installed software applications in the Start Programs devolo
program group.
3.5.2 Software for Mac (OS X)
The software mac folder contains the dLAN configu-
ration software.
3.5.3 Software for Linux (Ubuntu)
The software linux folder contains the dLAN configuration software.
Page 19
18 Initial use
devolo dLAN 500 AVmini
Page 20
dLAN network 19
devolo dLAN 500 AVmini
4dLAN network
4.1 Security in the dLAN
Before you can use the dLAN 500 AVmini in your dLAN
network, first you have to connect it to other dLAN AV
devices as a home network. Two specific pieces of information are especially important for this:
쎲 Shared use of a dLAN password results in a delim-
ited dLAN network.
쎲 Shared use of the dLAN password serves as access
control to the dLAN network as well as the
encryption, and thereby the interception protection, of the transmitted data.
The dLAN password can be specified automatically via
the encryption button or manually using the
dLAN Cockpit program. Please note the following basic principle when choosing your encryption method:
쎲 In dLAN AV networks, data encryption is as sim-
ple as touching a button, since all corresponding dLAN AV devices are equipped with an
encryption button.
쎲 For dLAN AV networks that include devices with
and without encryption buttons, data encryp-
tion must be set up using the dLAN Cockpit.
4.2 dLAN Cockpit
devolo dLAN Cockpit is a monitoring and encryption
program that detects all reachable dLAN AV devices in
your home network and combines them in a secure
network. Due to its logical graphic design, the dLAN
Cockpit is easy and intuitive to operate. After installing
the devolo software, it can be found in the Start
Programs devolo program group.
Page 21
20 dLAN network
devolo dLAN 500 AVmini
After starting the dLAN Cockpit, all reachable dLAN
devices in your home network will appear. This may
take a moment.
Page 22
dLAN network 21
devolo dLAN 500 AVmini

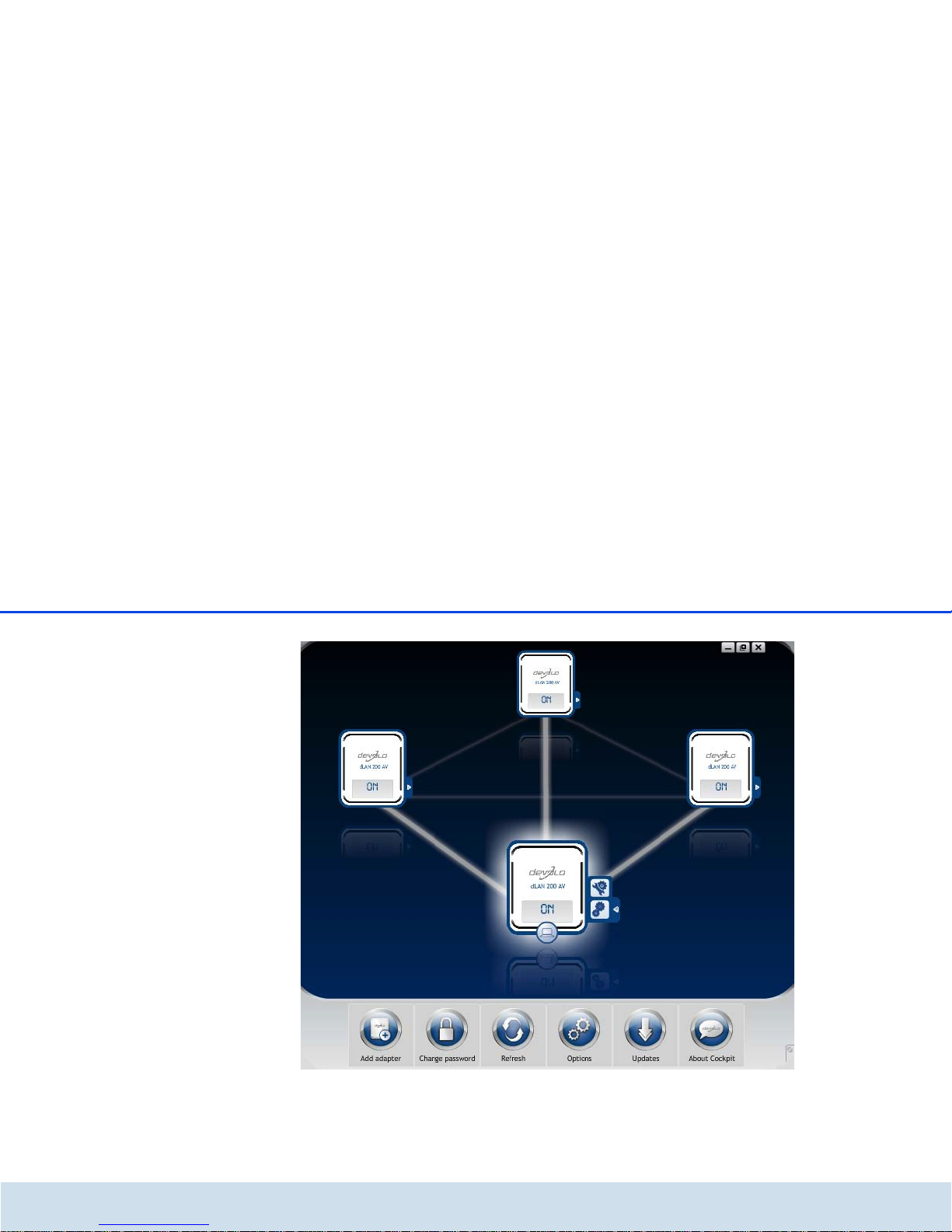

All adapters found in the network appear with as
adapter icon with a corresponding product name. The
adapter in the middle of the dLAN network identified
with the symbol shown here symbolises your locally
connected device. If you have multiple dLAN devices
connected locally, you can jump back and forth
between them. Clicking an adapter icon with the
mouse enables the corresponding dLAN AV device and
highlights it.
The coloured connecting lines of the adapters illustrate
the current transmission quality:
쎲 Green: the network connection is suitable for HD
video streaming.
쎲 Orange: the network connection is suitable for
SD video streaming and online gaming.
쎲 Red: the network connection is suitable for simple
data transfer and Internet access.
If data transmission from one device to another is actually taking place, the data rate is displayed on the respectively highlighted adapter.
Settings and functions
You can configure settings for the respectively highlighted device or for the network
쎲 via the buttons at the bottom edge of the screen
쎲 or via tabs arranged at the side of each adapter.
You can always use the Refresh button to display the
current status of devices that have been found (if this
hasn't happened automatically).
By means of the Options button or the corresponding
tabs of the respective adapter, you can learn device information such as the firmware version used and the
individual MAC address.
Options are given like assigning an additional name,
resetting the respective device to the factory default
settings or removing a device from the existing
dLAN network.
The above-mentioned setting options
vary depending on the function and
features of your device.
You can also specify whether information on the performance of your dLAN adapters will be transferred to
devolo.
The data sent to devolo pertains only to the
performance values of your dLAN devices.
The data is anonymised and will be used exclusively for statistical purposes. By providing
it, you can help us improve our products.
Page 23
22 dLAN network
devolo dLAN 500 AVmini
The Troubleshooting Guide includes installation instructions and information about how to connect your
devices optimally with one another.
4.2.1 Encrypting a network with dLAN
Cockpit
If you use dLAN AV devices without an encryption
button, data can be encrypted only via dLAN Cockpit.
Before the networking procedure, note
the security IDs of all dLAN AV adapters. This unique identifier of each dLAN
device is located on the label on the
housing. It consists of 4 x 4 letters separated by dashes (e.g. ANJR-KMORKSHT-QRUV). Ensure that all dLAN
adapters are connected to the power
grid and computers or other network
components as appropriate.
Scan for local adapter
After dLAN Cockpit is started, it searches for the dLAN
adapter connected directly to your computer first.
Adding an adapter
Add all the dLAN devices you want to your dLAN
network by selecting the Add adapter button. You
will need the 16-character security IDs of the adapters
from the label on the housing. Enter it now in the
Security ID field and confirm with OK. If a security ID
is correct and the device can be reached in the dLAN
network, it will be added to your network of configured
adapters and also displayed in the program.
Entering a network password
After you have added all the dLAN devices you want to
your dLAN network, select the Change password
button to assign a shared network password that will
apply for all registered adapters in your personal home
network.
You can choose between your own password, a random password and the default password. To define
your own password with a length of at least eight characters, enter this into the Network password (min. 8
characters) text field. Alternatively, you can have a randomly selected, highly secure password assigned using
the Generate secure password button. Use the
Factory default password button to reset the dLAN
adapter to the default password. Normally, the display
of the password is hidden for security reasons. If you
enable the option Show characters, the current password is displayed in legible form in the text field.
Page 24
dLAN network 23
devolo dLAN 500 AVmini
The factory default password is
HomePlugAV. Assigning a specific
password to a single adapter will
exclude it from the remaining dLAN
network.
If dLAN Cockpit is called up again later after a successful initial installation, for example to integrate a
new adapter into a network, the application remembers the devices that were entered earlier. Enter the
new device as described in the Adding an adapter
section. The current network password is assigned
automatically to the newly added device.
4.3 dLAN AV network encryption at
the touch of a button
To encrypt a dLAN AV network, in which all associated
devices are equipped with an encryption button, simply
press the encryption button that is located on the de-
vice. Pressing this button will encrypt your dLAN AV
network with a randomly generated password.
Adapters cannot be configured while
in Standby mode.
The following section contains exact instructions on
the basis of possible network scenarios:
Page 25
24 dLAN network
devolo dLAN 500 AVmini
Encrypting a new dLAN 500 AVmini network consisting of two dLAN 500 AVmini adapters (fig 4)
Once both dLAN 500 AVmini adapters have been successfully connected, press each encryption button for 1
second within two minutes of one another.
That's it! Your dLAN AV network is now protected
against unauthorized access.
fig 4
Page 26
dLAN network 25
devolo dLAN 500 AVmini

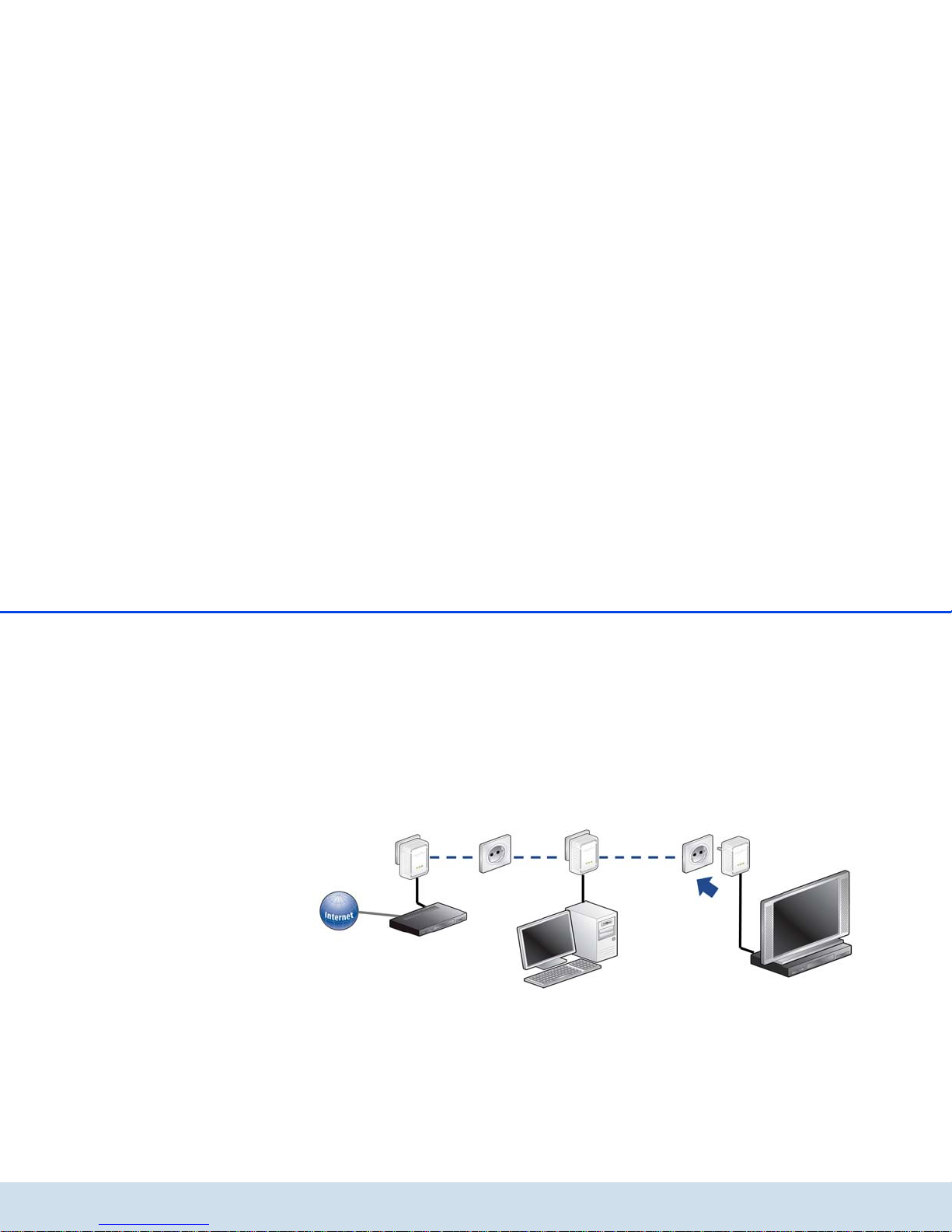

Expanding an existing dLAN AV network with a
new dLAN 500 AVmini (fig. 5)
If you have already secured your existing
dLAN 500 AVmini network using the encryption button, use the same method to integrate other adapters.
Once you have successfully connected the new
dLAN 500 AVmini, first press the encryption button of
one of your network’s existing adapters (1 second),
then press the encryption button of your new
dLAN 500 AVmini (1 second) within two minutes.
That's it! The new dLAN 500 AVmini is now integrated
in your network. To integrate additional
dLAN 500 AVminiy adapters in your network, repeat
the above steps.
fig 5
Page 27
26 dLAN network
devolo dLAN 500 AVmini
Excluding a dLAN 500 AVmini from your network
(fig. 6)
To exclude a dLAN 500 AVmini adapter from an existing network, press its encryption button for at least
ten seconds. The device will be assigned a new randomly generated password and will thus no longer be
able to access the network. To integrate the adapter in
a different dLAN 500 AVmini network, follow the steps
described above, depending on whether you are setting up a new network or adding the adapter to an existing one.
fig 6
Page 28
Appendix 27
devolo dLAN 500 AVmini
5 Appendix
For the permitted voltage range for
operating the device and the power
consumption, refer to the label on the
rear side of the device.
For the CE declaration for this product, refer
to the accompanying product CD under CE.
Additional technical information is available
at www.devolo.com
.
5.1 Important safety instructions
All safety and operating instructions should be read
and understood before using the device, and should be
kept for future reference.
쎲 Never open the device. There are no user-service-
able parts inside the device.
Do not try to service this product
yourself! Contact qualified technicians
each and every time your device needs
maintenance. There is a risk of electric
shock!
쎲 Use the device in a dry location only.
쎲 Always use the included network cable to connect
the device.
쎲 Do not insert any objects into the openings of the
device.
쎲 To disconnect the device from the power supply
grid, pull the power plug.
쎲 Do not keep the device in direct sunlight.
쎲 Slots and openings on the case serve as ventila-
tion. Never block or cover them.
쎲 Never set up the device near a heater or radiator.
쎲 The device should be located only where sufficient
ventilation can be ensured.
쎲 Disconnect the device from the power supply grid
before cleaning. Use a moist towel to clean the
device. Never use water, paint thinner, benzene,
alcohol or other strong cleaning agents when cleaning the device, as these could damage the case.
쎲 Never use the device with a power supply that
does not meet the specifications provided on the
rating plate. If you do not know what type of
power supply you have at home, contact your
dealer or energy supplier.
쎲 In the event of damage, disconnect the device
from the power supply grid and contact customer
service. This applies, for example, if
쑗 the power cable or plug is damaged.
쑗 liquid has been spilled on the device or
objects have fallen into the device.
Page 29
28 Appendix
devolo dLAN 500 AVmini
쑗 the device has been exposed to rain or water.
쑗 the device does not work, even though the
operating instructions have been followed
properly.
쑗 the device’s case is damaged.
5.2 Disposal of old devices
The icon with crossed-out wastebasket on the device
means that this adapter is an electrical or electronic
device that falls within the scope of application of the
German Electrical and Electronic Equipment Act. Since
24 March 2006, these types of devices may no longer
be disposed of with household waste. Rather, in Germany, they can be given to a municipal collection point
free of charge. Contact your municipal government to
find out the address and hours of the nearest collection
point.
5.3 Warranty conditions
The devolo AG warranty is given to purchasers of devolo products in
addition to the warranty conditions provided by law and in accordance with the following conditions:
1 Warranty coverage
a) The warranty covers the equipment delivered and all its parts.
Parts will, at devolo's sole discretion, be replaced or repaired
free of charge if, despite proven proper handling and adherence to the operating instructions, these parts became defec-
tive due to fabrication and/or material defects. Alternatively,
devolo reserves the right to replace the defective product with
a comparable product with the same specifications and features. Operating manuals and possibly supplied software are
excluded from the warranty.
b) Material and service charges shall be covered by devolo, but
not shipping and handling costs involved in transport from the
buyer to the service station and/or to devolo.
c) Replaced parts become property of devolo.
d) devolo is authorized to carry out technical changes (e.g. firm-
ware updates) beyond repair and replacement of defective
parts in order to bring the equipment up to the current technical state. This does not result in any additional charge for the
customer. A legal claim to this service does not exist.
2Warranty period
The warranty period for this devolo product is three years. This
period begins at the day of delivery from the devolo dealer. Warranty services carried out by devolo do not result in an extension of
the warranty period nor do they initiate a new warranty period. The
warranty period for installed replacement parts ends with the warranty period of the device as a whole.
Page 30
Appendix 29
devolo dLAN 500 AVmini
3Warranty procedure
a) If defects appear during the warranty period, the warranty
claims must be made immediately, at the latest within a period
of 7 days.
b) In the case of any externally visible damage arising from trans-
port (e.g. damage to the housing), the person carrying out the
transportation and the sender should be informed immediately. On discovery of damage which is not externally visible,
the transport company and the sender are to be immediately
informed in writing, at the latest within 3 days of delivery.
c) Transport to and from the location where the warranty claim is
accepted and/or the repaired device is exchanged, is at the
purchaser's own risk and cost.
d) Warranty claims are only valid if a copy of the original
purchase receipt is returned with the device. devolo reserves
the right to require the submission of the original purchase
receipt.
4 Suspension of the warranty
All warranty claims will be deemed invalid
a) if the label with the serial number has been removed from the
device,
b) if the device is damaged or destroyed as a result of acts of
nature or by environmental influences (moisture, electric
shock, dust, etc.),
c) if the device was stored or operated under conditions not in
compliance with the technical specifications,
d) if the damage occurred due to incorrect handling, especially to
non-observance of the system description and the operating
instructions,
e) if the device was opened, repaired or modified by persons not
contracted by devolo,
f) if the device shows any kind of mechanical damage, or
g) if the warranty claim has not been reported in accordance with
3a) or 3b).
5Operating mistakes
If it becomes apparent that the reported malfunction of the device
has been caused by unsuitable hardware, software, installation or
operation, devolo reserves the right to charge the purchaser for the
resulting testing costs.
6 Additional regulations
The above conditions define the complete scope of devolo's legal
liability.
a) The warranty gives no entitlement to additional claims, such as
any refund in full or in part. Compensation claims, regardless
of the legal basis, are excluded. This does not apply if e.g.
injury to persons or damage to private property are specifically
covered by the product liability law, or in cases of intentional
act or culpable negligence.
b) Claims for compensation of lost profits, indirect or consequen-
tial detriments, are excluded.
c) devolo is not liable for lost data or retrieval of lost data in
cases of slight and ordinary negligence.
d) In the case that the intentional or culpable negligence of
devolo employees has caused a loss of data, devolo will be liable for those costs typical to the recovery of data where periodic security data back-ups have been made.
e) The warranty is valid only for the first purchaser and is not
transferable.
f) The court of jurisdiction is located in Aachen, Germany in the
case that the purchaser is a merchant. If the purchaser does
not have a court of jurisdiction in the Federal Republic of Germany or if he moves his domicile out of Germany after conclusion of the contract, devolo's court of jurisdiction applies. This
is also applicable if the purchaser's domicile is not known at
the time of institution of proceedings.
g) The law of the Federal Republic of Germany is applicable. The
UN commercial law does not apply to dealings between devolo
and the purchaser.
Page 31
30 Appendix
devolo dLAN 500 AVmini
Page 32
Index
devolo dLAN 500 AVmini
Index
Numerics
3 control LEDs 15
C
CE declaration 27
D
Disposal of old devices 28
dLAN AV network
19, 23
E
Encryption button 15, 23
F
Factory default password 22
G
Generate secure password 22
Green IT
8
I
Important safety instructions 27
Integrating the new adapter into the network
23
L
Linux 17
M
Mac (OS X) 17
N
Network connection 15
Network password
22
P
Package contents 13
Power saving mode
8
S
Security ID 22
Software installation
16
T
Transfer rate 9
W
Warranty 28
Windows
16
Page 33
Index
devolo dLAN 500 AVmini
Loading...
