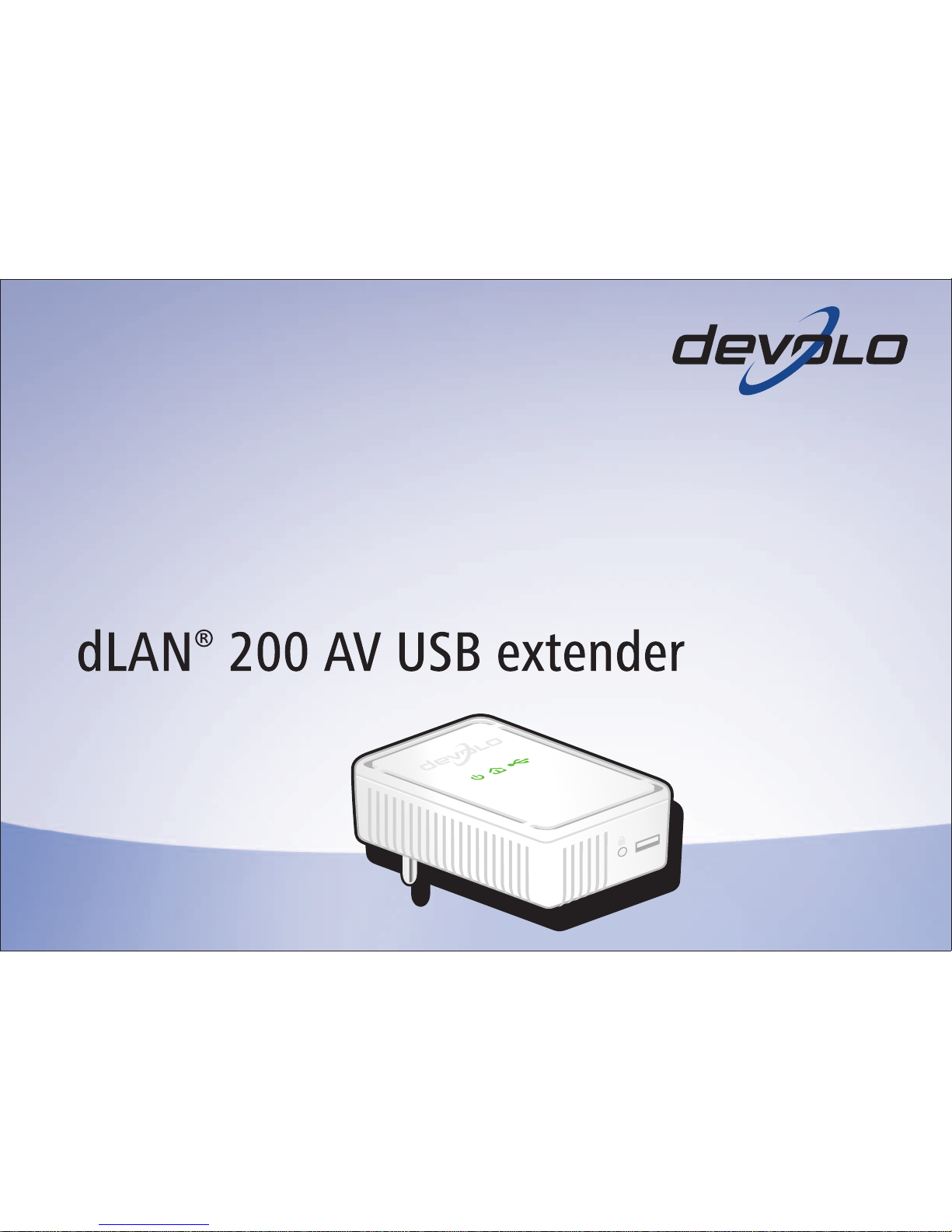

devolo dLAN® 200 AV USB extender
Page 3
© 2010 devolo AG Aachen (Germany)
While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only
to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from
devolo. We reserve the right to make any alterations that arise as the result of technical development.
Trademarks
HomePlug
®
is a registered trademark of HomePlug Powerline Alliance.
Mac
®
and Mac OS X® are registered trademarks of Apple Computer, Inc.
Windows
®
and Microsoft® are registered trademarks of Microsoft, Corp.
devolo, dLAN
®
, Vianect® and the devolo logo are registered trademarks of devolo AG.
All other names mentioned may be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors
or omissions.
devolo AG
Charlottenburger Allee 60
52068 Aachen
Germany
www.devolo.com
Aachen, November 2010
Page 4
Contents
de vol o dLA N 20 0 AV USB extender
Contents
1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 What exactly is dLAN? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Highlights of the dLAN 200 AV USB extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Sample applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.3 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4.1 Software for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.5 Connecting the dLAN 200 AV USB extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 dLAN network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 Security in the dLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2.1 Encrypting a network with dLAN Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2.2 Encrypting a network at the touch of a button . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3 dLAN Cockpit and dLAN 200 AV USB extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3.1 Settings and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.3.2 Highlights of the dLAN 200 AV USB extender . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.1 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.2 Disposal of old devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
5.3 Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Page 5
Contents
devolo dLAN 200 AV USB extender
Page 6
Preface 5
de vol o dLA N 20 0 AV USB extender
1Preface
The dLAN 200 AV USB extender makes it easy to
share the use of USB devices intelligently, as this
adapter is the first product to enable terminal devices with USB connection to be connected via the
powerline. The dLAN 200 AV USB extender is the
ideal solution if USB cables are simply not long
enough – dLAN works up to 300 metres. Every power outlet in the house becomes a USB port. It is as
easy as child's play to connect USB products such as
hard drives or (multifunctional) printers to the
dLAN 200 AV USB extender. This saves space and
money: one printer is enough for the whole family,
and the USB hard drive with music, photos, movies
and documents becomes the centralised data store
for all.
To ensure high security of your home network, the
dLAN 200 AV USB extender has an encryption button. This ensures an encrypted connection to the
network at the touch of a button.
1.1 About this manual
After a brief introduction to the subject of "dLAN" as
well as illustrations of sample applications in chapter
2, chapter 3 shows you how to operate the
dLAN200AVUSBextender successfully. Chapter 4
explains how to configure your dLAN network and how
to operate the dLAN 200 AV USB extender. Information about product safety and environmental compatibility of the device and our warranty terms can be
found in chapter 5 and conclude the manual.
Description of the symbols
Here we briefly describe the meaning of the symbols
used in this manual.
Very important note. Failure to observe this note may result in damage.
Important note that should be observed.
Additional information, background material
and configuration tips for your device.
Page 7
6 Preface
devolo dLAN 200 AV USB extender
If you have any further ideas or suggestions related to
our products, we would be delighted to hear from you
at support@devolo.com
!
devolo on the Internet
For detailed information on our products, visit
www.devolo.com
. The Service centre area not only
contains product descriptions and documentation, but
also updates of devolo software and your device's
firmware.
Page 8
Introduction 7
de vol o dLA N 20 0 AV USB extender
2Introduction
dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economically via your household electrical wiring, without the
need for complex and expensive dedicated cabling.
The available performance and effort required for the
installation also compares favourably to traditional
methods—dLAN technology now attains speeds you
would expect from other LAN technologies, and installing it is a breeze!
Page 9
8 Introduction
devolo dLAN 200 AV USB extender
2.1 What exactly is dLAN?
dLAN (direct Local Area Network) uses the household
power grid to transfer data between computers
equipped with suitable adapters and other network
components. As a result, any power outlet can be used
as a network access point. The data is modulated prior
to transfer and sent as a signal via household power
lines. State-of-the-art technology ensures that the
power and data networks do not interfere with one another. Networking via dLAN is fast and secure. The
data is encrypted using a key to prevent easy interception by third parties.
2.2 Highlights of the
dLAN 200 AV USB extender
쎲 For the first time, you can connect and control
USB devices via the powerline; dLAN uses the
powerline as if it were a long USB cable—up to a
length of 300 metres
쎲 Versatile placement of devices in the household.
Independent of cable lengths. The printer is now
placed where it should be, not where the USB
cable ends.
쎲 Store music, photos and videos on a USB hard
drive and retrieve them from everywhere in the
home.
쎲 Works with USB devices such as (multifunctional)
printers or hard drives
쎲 Easy installation and integration into any dLAN
200 AV home network
쎲 Encryption at the touch of a button directly on the
adapter—for a fast and secure connection
쎲 "Device sharing" in the dLAN 200 AV home net-
work saves procurement costs
쎲 Easy monitoring and configuration of the dLAN
200 AV home network via the intuitive
dLAN Cockpit software
Page 10
Introduction 9
de vol o dLA N 20 0 AV USB extender
2.3 Sample applications

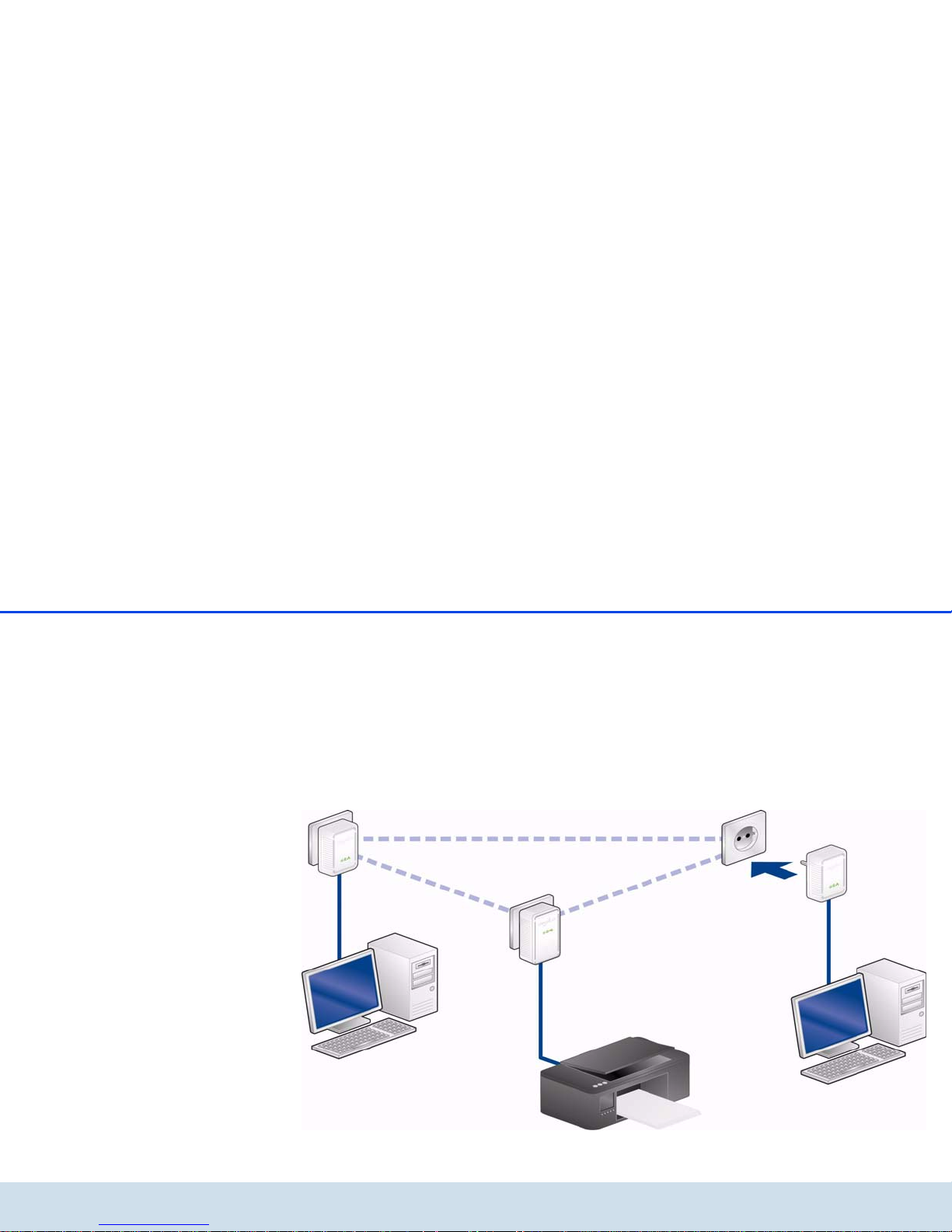

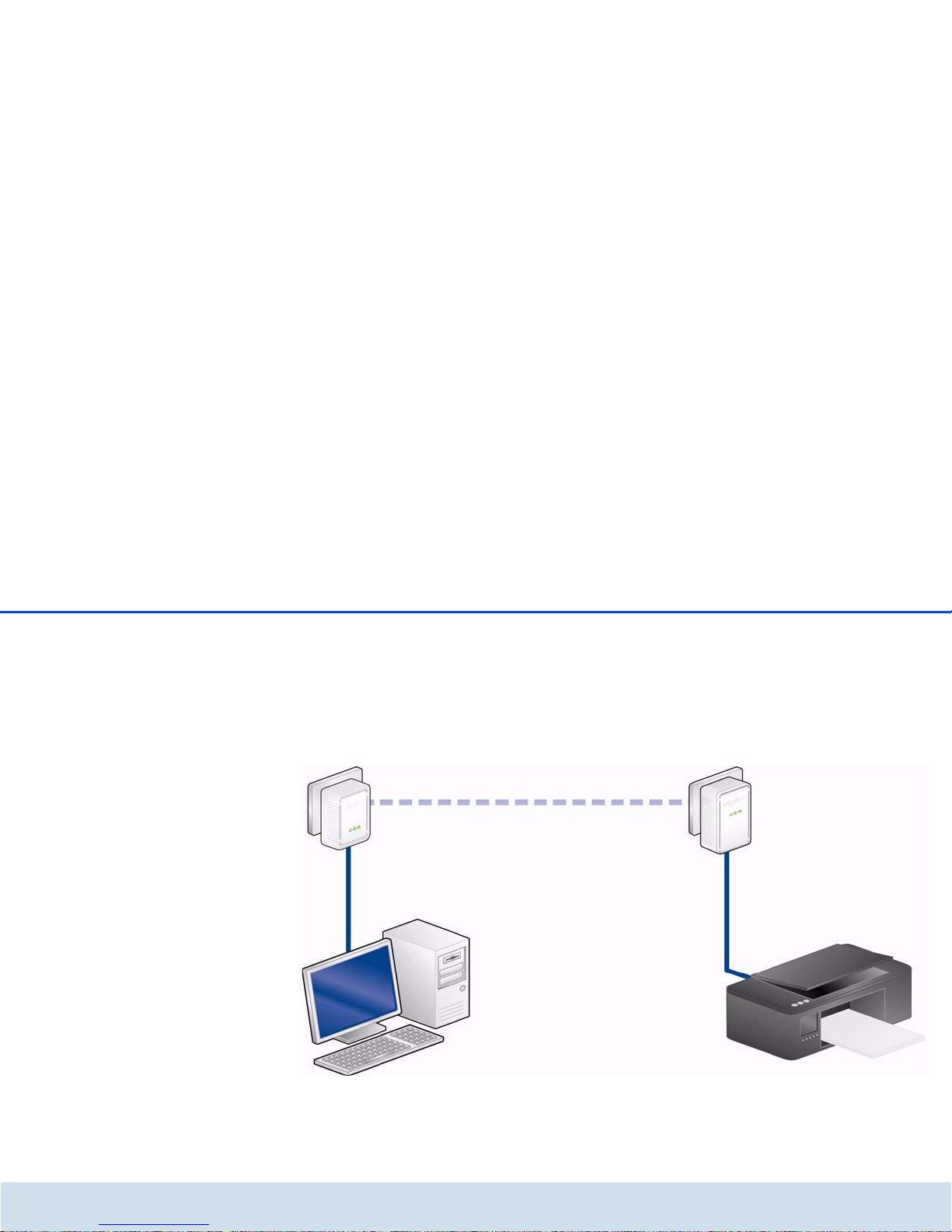

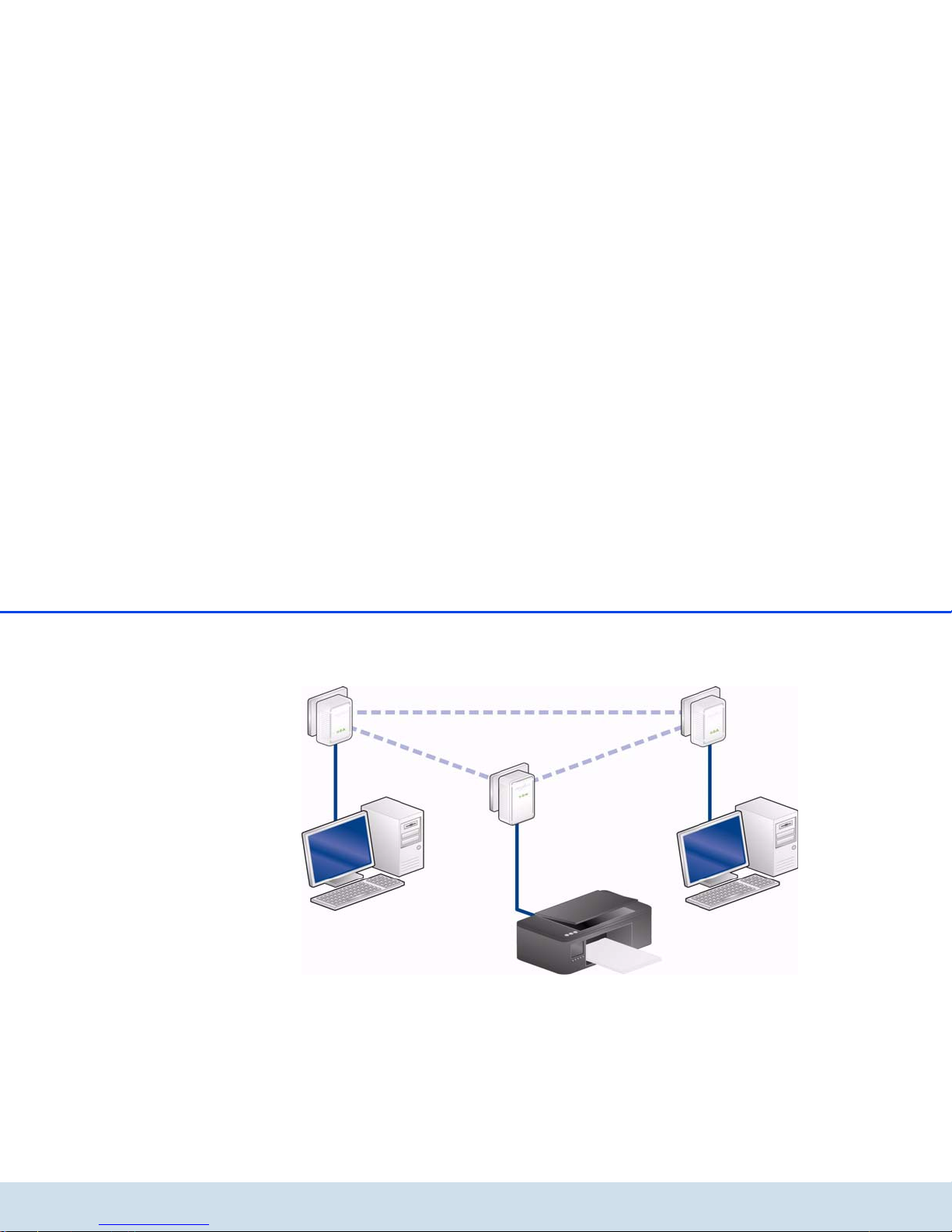

Access to a printer
Page 11
10 Introduction
devolo dLAN 200 AV USB extender

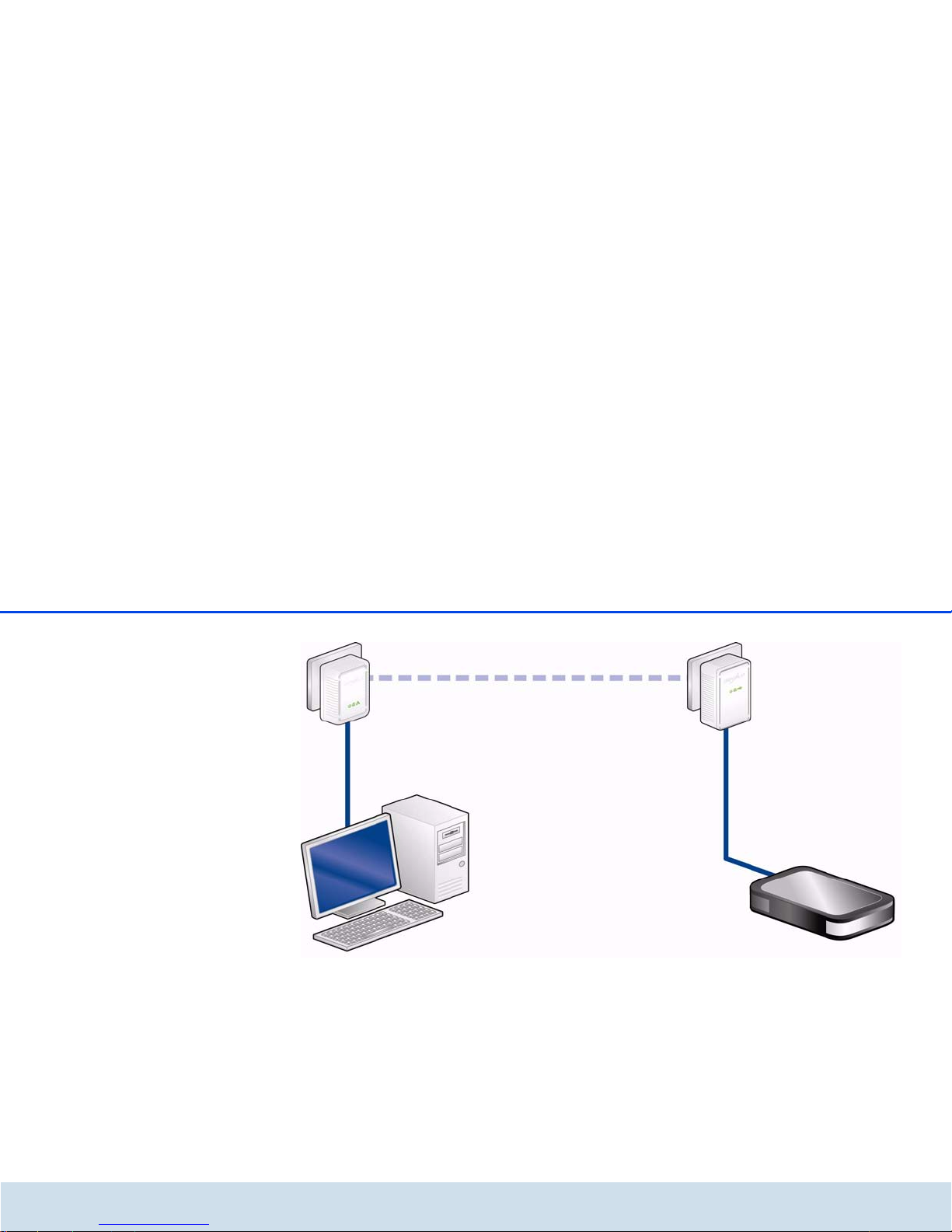

Central data storage on an external USB hard drive
Page 12
Initial use 11
de vol o dLA N 20 0 AV USB extender
3Initial use
This chapter covers everything you need to know to set
up your dLAN 200 AV USB extender. It will explain
connecting the dLAN 200 AV USB extender and its
functions. We will also briefly introduce the included
devolo software and then guide you through its installation.
3.1 Package contents
Please ensure that the delivery is complete before beginning with the installation of your
dLAN200AVUSBextender.
쎲 Single Kit:
쑗 dLAN 200 AV USB extender
쑗 Hard copy of installation guide
쑗 CD containing software and online documen-
tation
or
쎲 Starter Kit:
쑗 dLAN 200 AV USB extender
쑗 dLAN 200 AVmini
쑗 Network cable
쑗 Hard copy of installation guide
쑗 CD containing software and online documen-
tation
devolo AG reserves the right to change the package
contents without prior notice.
3.2 System requirements
쎲 Operating systems: Windows XP (32-bit), Win-
dows Vista Home Premium (32-bit/64-bit), Win-
Page 13
12 Initial use
devolo dLAN 200 AV USB extender
dows 7 Home Premium (32-bit/64-bit) and all
operating systems with network support
쎲 Network connection
To set up a dLAN 200 AV network using additional devolo dLAN 200 AV adapters, your
PC or the respective device must have a network card or a network adapter with a network port.
쎲 USB port
The dLAN 200 AV USB extender is intended for
connection to USB devices such as (multifunctional) printers or hard drives.
The adapter only ever supports one
USB device.
Page 14
Initial use 13
de vol o dLA N 20 0 AV USB extender
3.3 Functions

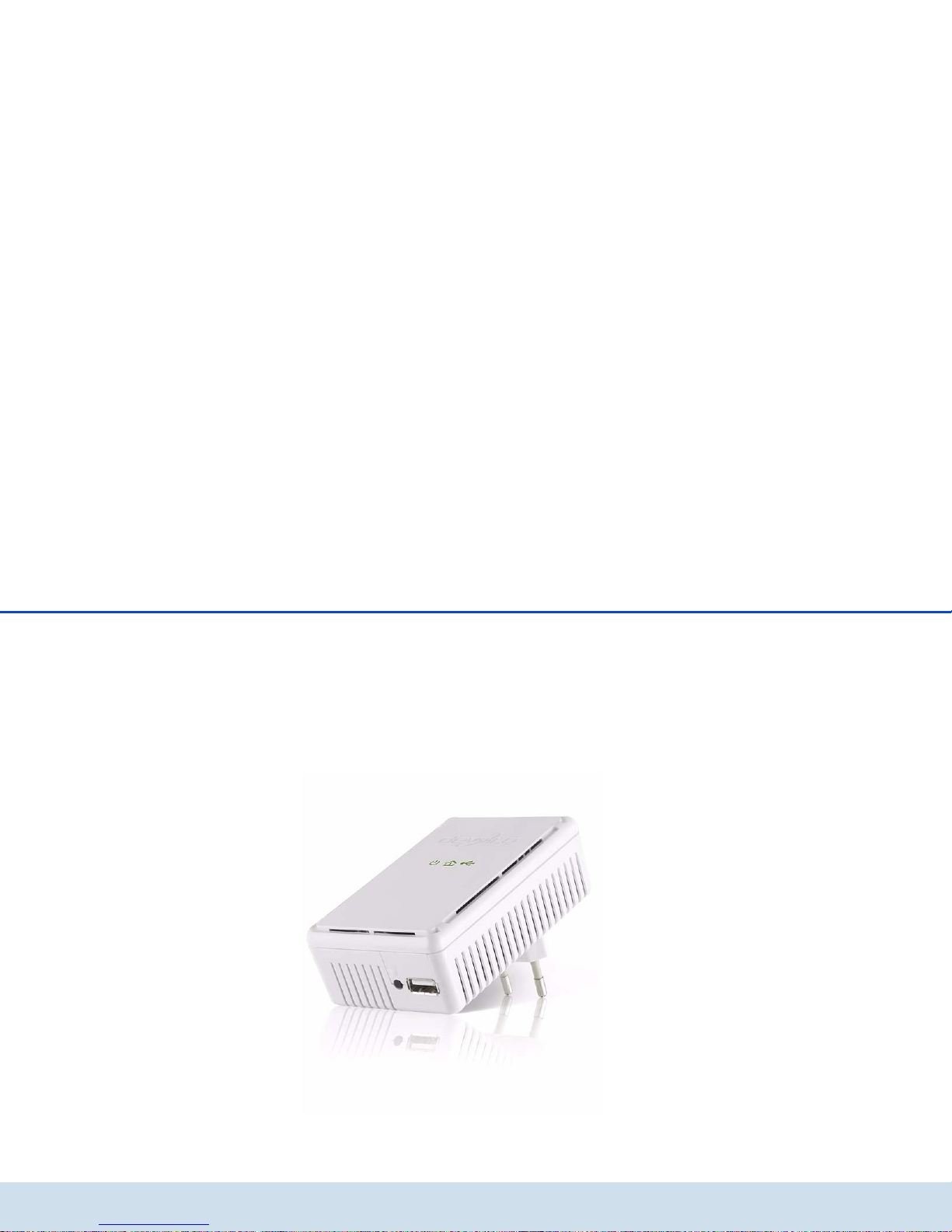

The dLAN 200 AV USB extender has three control
lamps (LEDs) as well as a USB port and the encryption
button.
Power
Flashes green during start-up of the
dLAN200AVUSBextender; lights up green when the
dLAN 200 AV USB extender is ready for operation.
dLAN
Lights up green when there is a dLAN connection;
flashes during data transfer.
USB
Lights up green when there is a connection to the USB
device; flashes during data transfer.
USB connection
This is where you connect the
dLAN 200 AV USB extender to a USB device using a
USB cable.

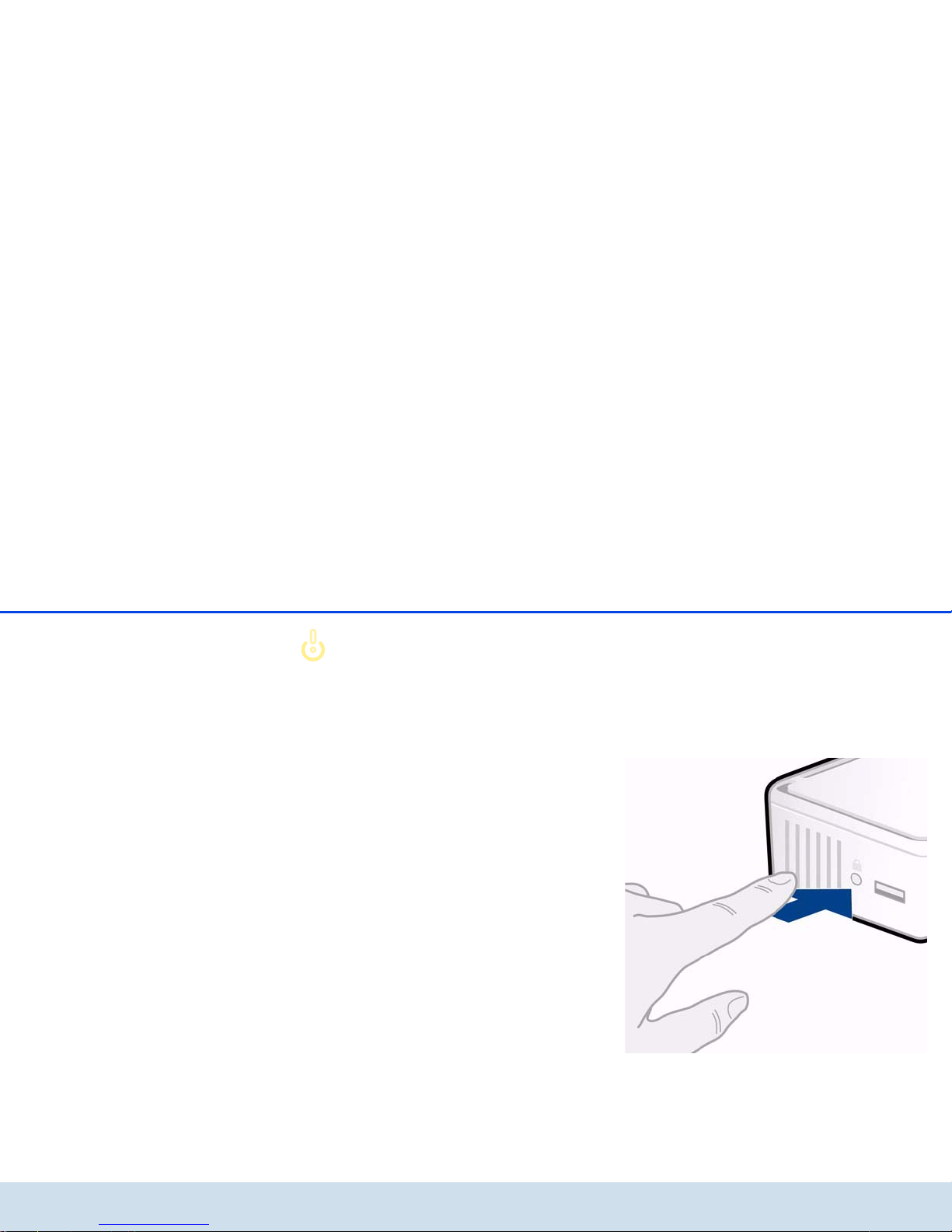

Encryption button
Network encryption at the touch of a button; for a
functional description of the encryption button, please
continue reading in chapter 4.2.2 Encrypting a net-
work at the touch of a button.
3.4 Software installation
3.4.1 Software for Windows
Use the installation wizard to install the devolo software dLAN Cockpit for using the
dLAN200AVUSBextender with the Windows operating system:

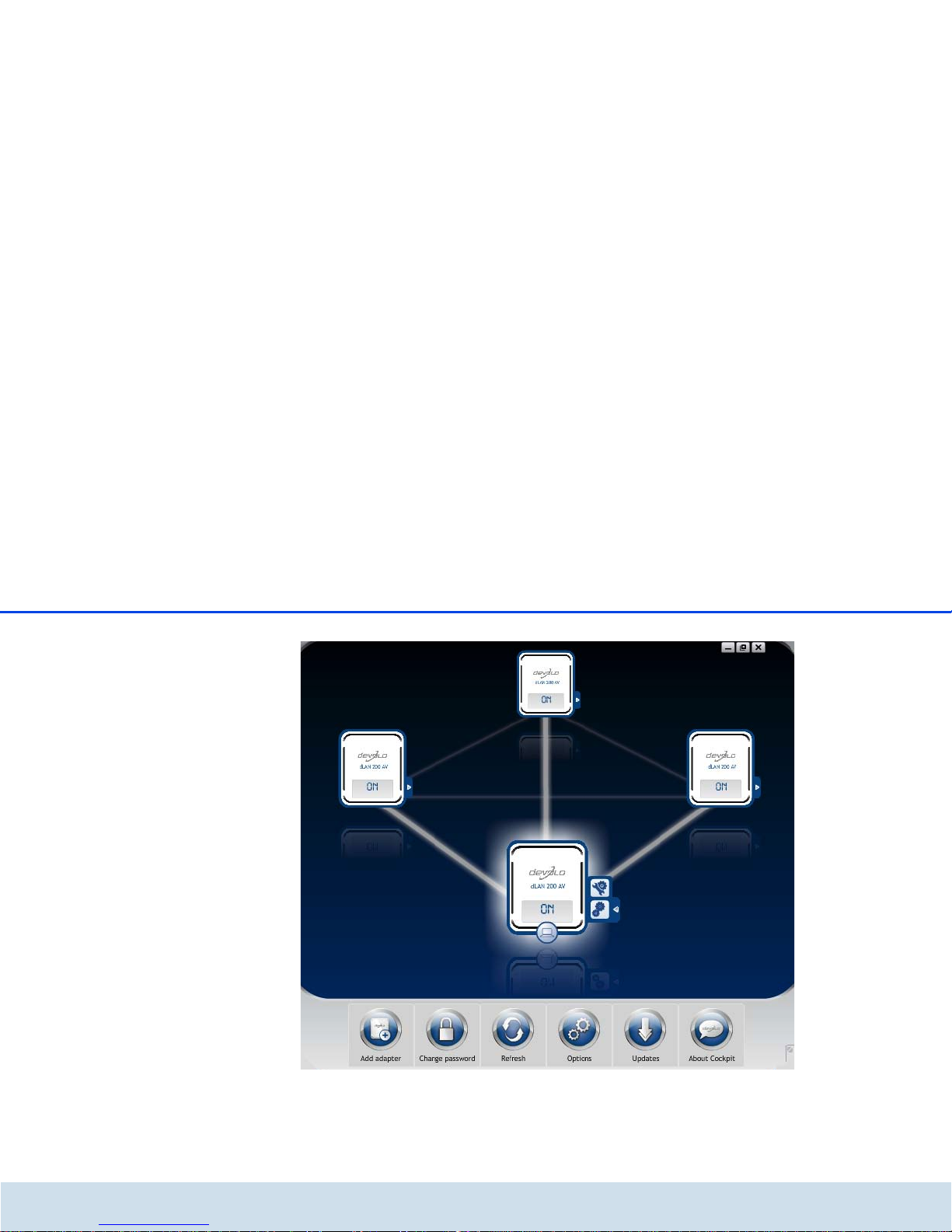

dLAN Cockpit finds all reachable dLAN adapters in
your dLAN 200 AV network, displays information
about these devices and encrypts your dLAN 200 AV
network individually. In addition, you control access to
the shared USB devices in your dLAN network using
the dLAN Cockpit.
햲 To install the software, insert the included CD-
ROM in the CD drive of your computer. If autoplay is installed on your computer, the installation
will start automatically. Otherwise, open the
folder with the Windows Explorer by right-clicking
on Start (or the Windows logo) and selecting
Explorer from the context menu. Double-click to
start the installation wizard manually. Then select
the option Install
dLAN 200 AV USB extender.
햳 You can find the installed software applications in
the Start 쒁 All Programs 쒁 devolo program
group.
Page 15
14 Initial use
devolo dLAN 200 AV USB extender
If not already detected by your operating system, install the relevant driver
for your USB device in accordance with
the respective manufacturer's instructions.
햴 After you have successfully installed the complete
software, continue by installing the
dLAN 200 AV USB extender hardware. (see 3.5
Connecting the dLAN 200 AV USB extender)
3.5 Connecting the
dLAN 200 AV USB extender
This section describes how to connect your
dLAN 200 AV USB extender to a USB device in your
dLAN 200 AV network.
The dLAN 200 AV USB extender is intended for connection to devices such
as (multifunctional) printers or hard
drives. The adapter only ever supports
one USB device.
햲 Connect the dLAN 200 AV USB extender to the
USB device to be connected within your dLAN 200
AV network using a USB cable at the USB port.
햳 Plug the dLAN200AVUSBextender into an
available power outlet.
When connecting an external USB hard
drive, delayed hardware detection may
occur depending on the manufacturer,
due to the automatic hard drive test.
This may take a few minutes.
햴 Once you have connected a
dLAN 200 AV USB extender and another devolo
dLAN 200 AV adapter, your dLAN 200 AV network has been set up.
You can find information on the respective
devolo dLAN 200 AV adapter on our website
www.devolo.com
.
In chapter 4 dLAN network you can find out
쑗 how to protect your dLAN 200 AV net-
work individually and
쑗 how to control access to the USB devices
connected via the
dLAN 200 AV USB extender.
Page 16
dLAN network 15
de vol o dLA N 20 0 AV USB extender
4dLAN network
4.1 Security in the dLAN
Before you can use the dLAN 200 AV USB extender in
your dLAN network, first you have to connect it to other
dLAN 200 AV devices as a home network. Two specific
pieces of information are especially important for this:
쎲 Shared use of a dLAN password results in a delim-
ited dLAN network.
쎲 Shared use of the dLAN password serves as access
control to the dLAN network as well as the
encryption, and thereby the interception protection, of the transmitted data.
The dLAN password can be specified automatically via
the encryption button or manually using the
dLAN Cockpit program. Please note the following basic principle when choosing your encryption method:
쎲 In dLAN 200 AV networks, data encryption is as
simple as touching a button, since all corresponding dLAN 200 AV devices are
equipped with an encryption button.
쎲 For dLAN 200 AV networks that include devices
with and without encryption buttons, data
encryption must be set up using the
dLAN Cockpit.
4.2 dLAN Cockpit
devolo dLAN Cockpit is a monitoring and encryption
program that detects all reachable dLAN 200 AV
devices in your home network and combines them in a
secure network. Due to its logical graphic design, the
dLAN Cockpit is easy and intuitive to operate. After
installing the devolo software, it can be found in the
Start 쒁 Programs 쒁 devolo program group.
Page 17
16 dLAN network
devolo dLAN 200 AV USB extender
After starting the dLAN Cockpit, all reachable dLAN
devices in your home network will appear. This may
take a moment.
Page 18
dLAN network 17
de vol o dLA N 20 0 AV USB extender
All adapters found in the network appear with as
adapter icon with a corresponding product name. The
adapter in the middle of the dLAN network identified
with the symbol shown here symbolises your locally
connected device. If you have multiple dLAN devices
connected locally, you can jump back and forth
between them. Clicking an adapter icon with the
mouse enables the corresponding dLAN 200 AV device
and highlights it.
The coloured connecting lines of the adapters illustrate
the current transmission quality:
쎲 Green: the network connection is suitable for HD
video streaming.
쎲 Orange: the network connection is suitable for
SD video streaming and online gaming.
쎲 Red: the network connection is suitable for simple
data transfer and Internet access.
If data transmission from one device to another is actually taking place, the data rate is displayed on the respectively highlighted adapter.
Settings and functions
You can configure settings for the respectively highlighted device or for the network
쎲 via the buttons at the bottom edge of the screen
쎲 or via tabs arranged at the side of each adapter.
You can always use the Refresh button to display the
current status of devices that have been found (if this
hasn't happened automatically).
By means of the Options button or the corresponding
tabs of the respective adapter, you can learn device information such as the firmware version used and the
individual MAC address.
Options are given like assigning an additional name,
resetting the respective device to the factory default
settings or removing a device from the existing
dLAN network.
The above-mentioned setting options
vary depending on the function and
features of your device.
You can also specify whether information on the performance of your dLAN adapters will be transferred to
devolo.
The data sent to devolo pertains only to the
performance values of your dLAN devices.
The data is anonymised and will be used exclusively for statistical purposes. By providing
it, you can help us improve our products.
Page 19
18 dLAN network
devolo dLAN 200 AV USB extender
The Troubleshooting Guide includes installation instructions and information about how to connect your
devices optimally with one another.
4.2.1 Encrypting a network with
dLAN Cockpit
If you use dLAN 200 AV devices without an encryption button, data can be encrypted only via
dLAN Cockpit.
Before the networking procedure, note
the security IDs of all dLAN 200 AV
adapters. This unique identifier of each
dLAN device is located on the label on
the housing. It consists of 4 x 4 letters
separated by dashes (e.g. ANJR-KMORKSHT-QRUV). Ensure that all dLAN
adapters are connected to the power
grid and computers or other network
components as appropriate.

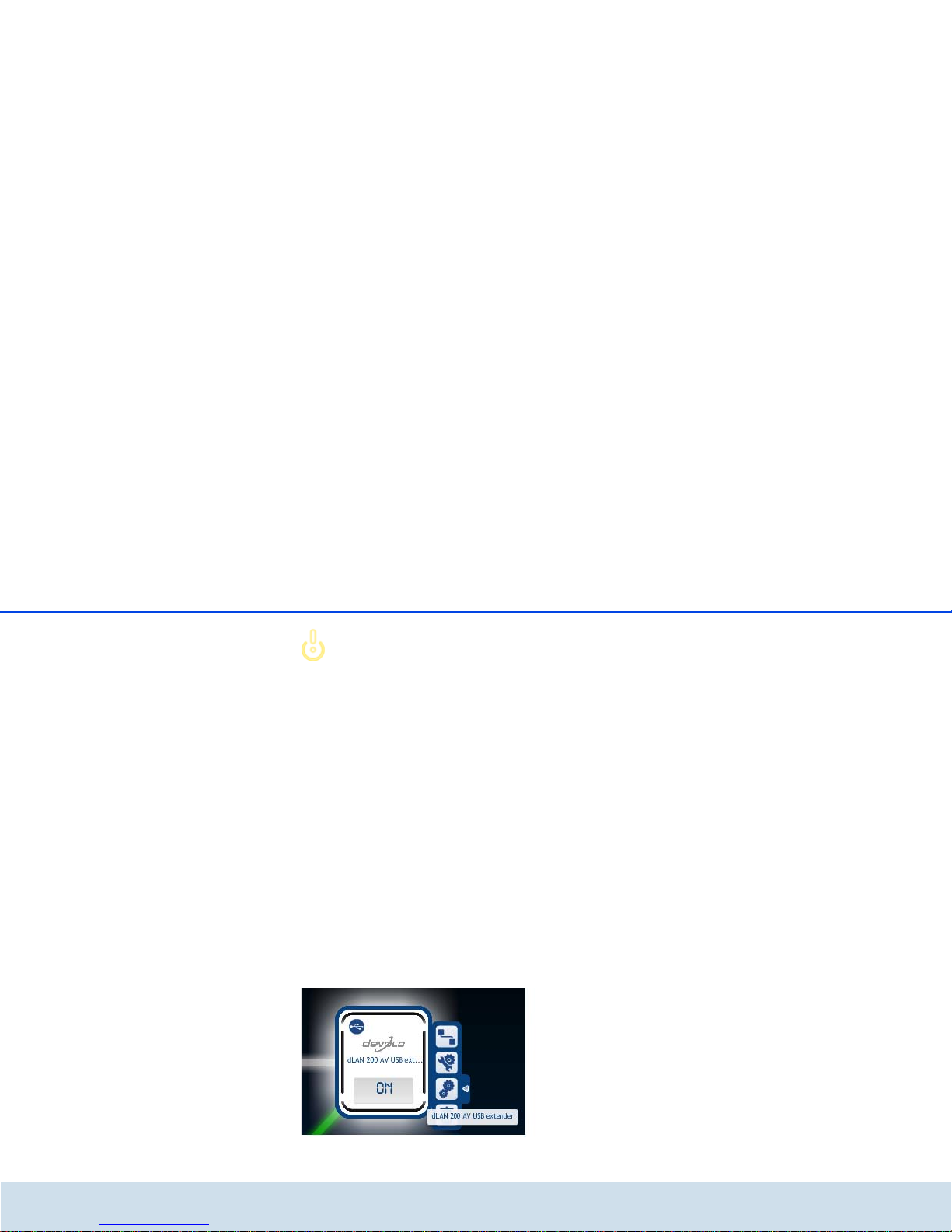

Scan for local adapter
After dLAN Cockpit is started, it searches for the dLAN
adapter connected directly to your computer first.
Adding an adapter
Add all the dLAN devices you want to your dLAN
network by selecting the Add adapter button. You
will need the 16-character security IDs of the adapters
from the label on the housing. Enter it now in the
Security ID field and confirm with OK. If a security ID
is correct and the device can be reached in the dLAN
network, it will be added to your network of configured
adapters and also displayed in the program.
Entering a network password
After you have added all the dLAN devices you want to
your dLAN network, select the Change password
button to assign a shared network password that will
apply for all registered adapters in your personal home
network.
You can choose between your own password, a random password and the default password. To define
your own password with a length of at least eight characters, enter this into the Network password (min. 8
characters) text field. Alternatively, you can have a randomly selected, highly secure password assigned using
the Generate secure password button. Use the
Factory default password button to reset the dLAN
adapter to the default password. Normally, the display
of the password is hidden for security reasons. If you
enable the option Show characters, the current password is displayed in legible form in the text field.
Page 20
dLAN network 19
de vol o dLA N 20 0 AV USB extender
The factory default password is
HomePlugAV. Assigning a specific
password to a single adapter will
exclude it from the remaining dLAN
network.
If dLAN Cockpit is called up again later after a successful initial installation, for example to integrate a
new adapter into a network, the application remembers the devices that were entered earlier. Enter the
new device as described in the Adding an adapter
section. The current network password is assigned
automatically to the newly added device.
4.2.2 Encrypting a network at the touch
of a button
To encrypt a dLAN 200 AV network, in which all associated devices are equipped with an encryption button,
simply press the encryption button that is located on
the device. Pressing this button will encrypt your dLAN
200 AV network with a randomly generated password.
The following section contains exact instructions on
the basis of possible network scenarios:
Page 21
20 dLAN network
devolo dLAN 200 AV USB extender
Encrypting a new network with a
dLAN 200 AV USB extender and a devolo dLAN
200 AV adapter (Fig. 1)
Once both adapters have been successfully connected,
press each encryption button for approx. one sec-
ond within two minutes of one another.
That's it! Your dLAN 200 AV network is now protected
against unauthorised access.

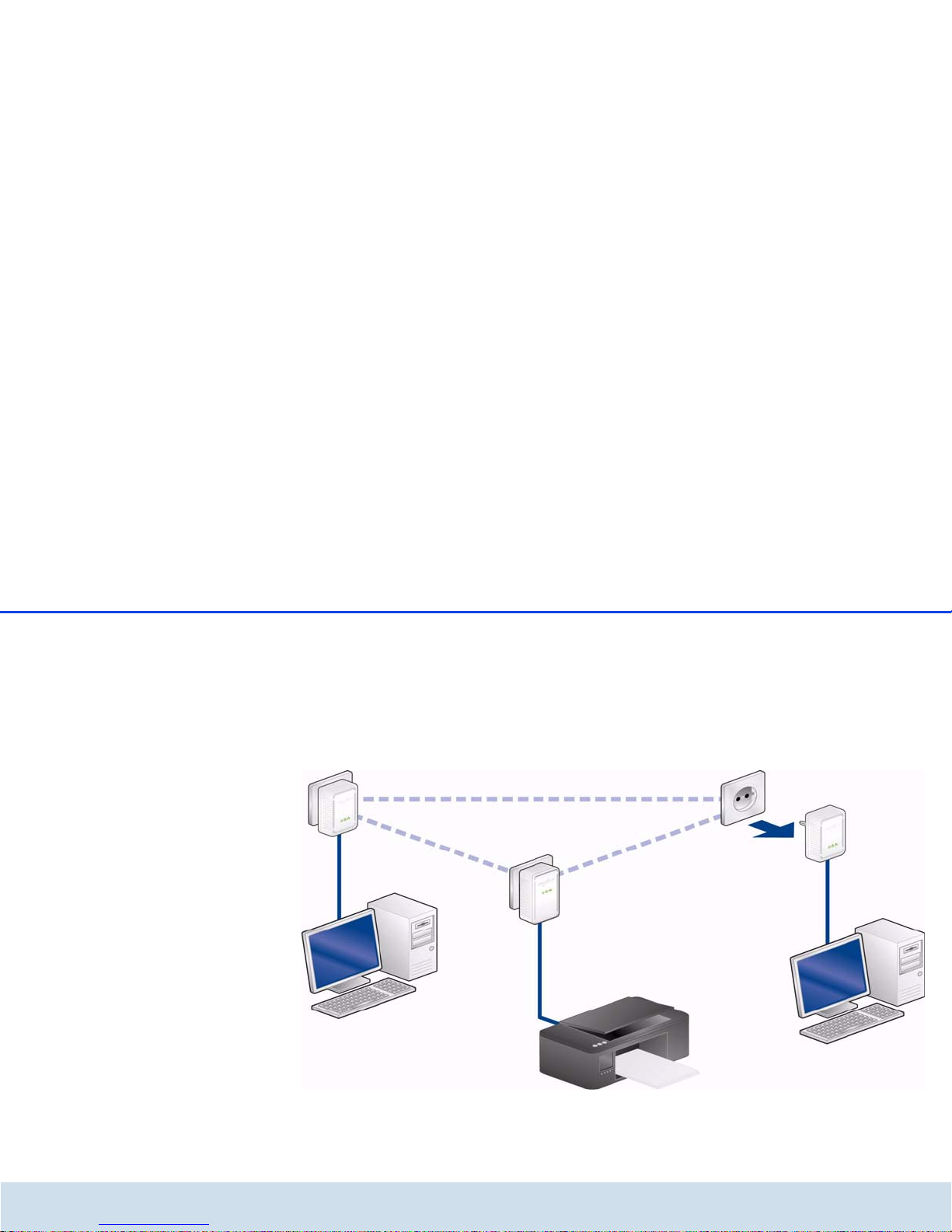

fig. 1
Page 22
dLAN network 21
de vol o dLA N 20 0 AV USB extender
Expanding an existing dLAN 200 AV network by
adding a new dLAN 200 AV USB extender (Fig. 2)
If you have already secured your existing dLAN 200 AV
network using the encryption button, use the same
method to integrate further adapters. Once you have
successfully connected the new
dLAN 200 AV USB extender, first press the encryption
button (approx. one second) of one of your network’s
existing adapters, then press the encryption button
(approx. one second) of your new
dLAN200AVUSBextender within two minutes.
That's it! The new dLAN 200 AV USB extender is now
integrated in your network. To integrate additional
adapters in your network, repeat the above steps.
fig. 2
Page 23
22 dLAN network
devolo dLAN 200 AV USB extender
Removing a dLAN 200 AV USB extender from a
network (Fig. 3)
To remove a dLAN 200 AV USB extender adapter from
an existing network, press its encryption button for at
least 10 seconds. The device will be assigned a new
randomly generated password and will thus no longer
be able to access the network. To integrate the device
into a different dLAN 200 AV network, follow the steps
described above, depending on whether you are setting up a new network or adding the adapter to an existing one.

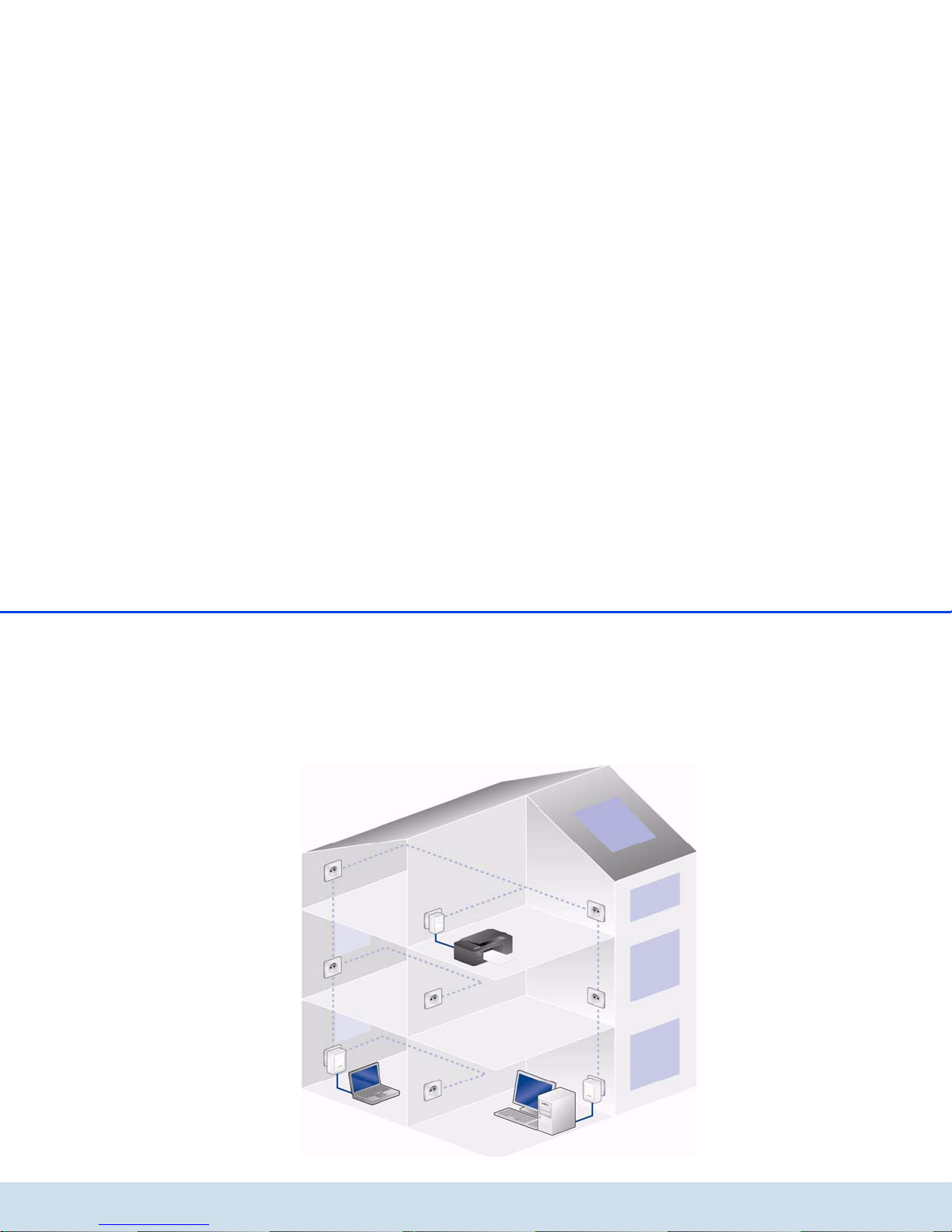

fig. 3
Page 24
dLAN network 23
de vol o dLA N 20 0 AV USB extender
4.3 dLAN Cockpit and
dLAN 200 AV USB extender
Using the dLAN Cockpit you can control access to the
dLAN 200 AV USB extender and thus to the connected
USB device. After the installation, the dLAN Cockpit
can be found in the Start 쒁 Programs 쒁 devolo pro-
gram group.
4.3.1 Settings and functions

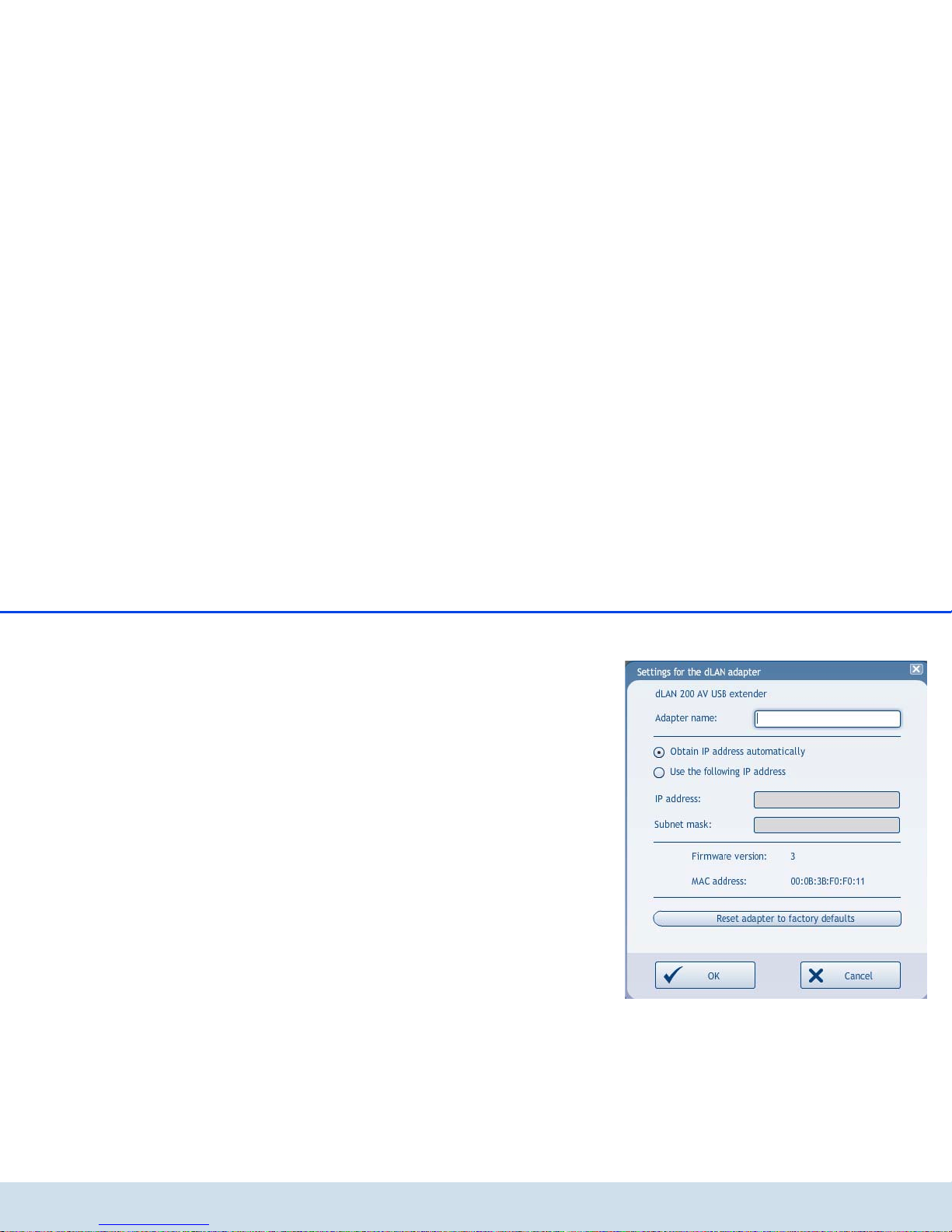

Click on the Options button or tab page to find infor-
mation on IP address assignment. The
dLAN 200 AV USB extender communicates via the
TCP/IP protocol as a component of your home network.
The IP address required for this can either be entered
manually as a static address or obtained automatical-
ly from a DHCP server. In the delivery status, the
Otain IP address automatically option is activated.
If a DHCP server is already available in the network for
assignment of IP addresses (e.g. a PC), you should
leave the Obtain IP addresse automatically option
activated so that the dLAN 200 AV USB extender automatically receives and is found an address by this server.
Page 25
24 dLAN network
devolo dLAN 200 AV USB extender
When assigning fixed IP addresses,
please note that they must be in the
same IP address range, since you will
otherwise exclude devices from your
dLAN network (unintentionally).
4.3.2 Highlights of the
dLAN 200 AV USB extender
dLAN Cockpit only ever displays the symbols for possible actions which can be performed logically as a result
of the current connection status. The statuses of a
dLAN 200 AV USB extender are described below.
The dLAN 200 AV USB extender is free.
The device connected to the
dLAN 200 AV USB extender is currently being used by
no subscribers in the dLAN network. This status is illustrated by the blue USB symbol in the top left-hand
corner of the dLAN200AVUSBextender.
Page 26
dLAN network 25
de vol o dLA N 20 0 AV USB extender

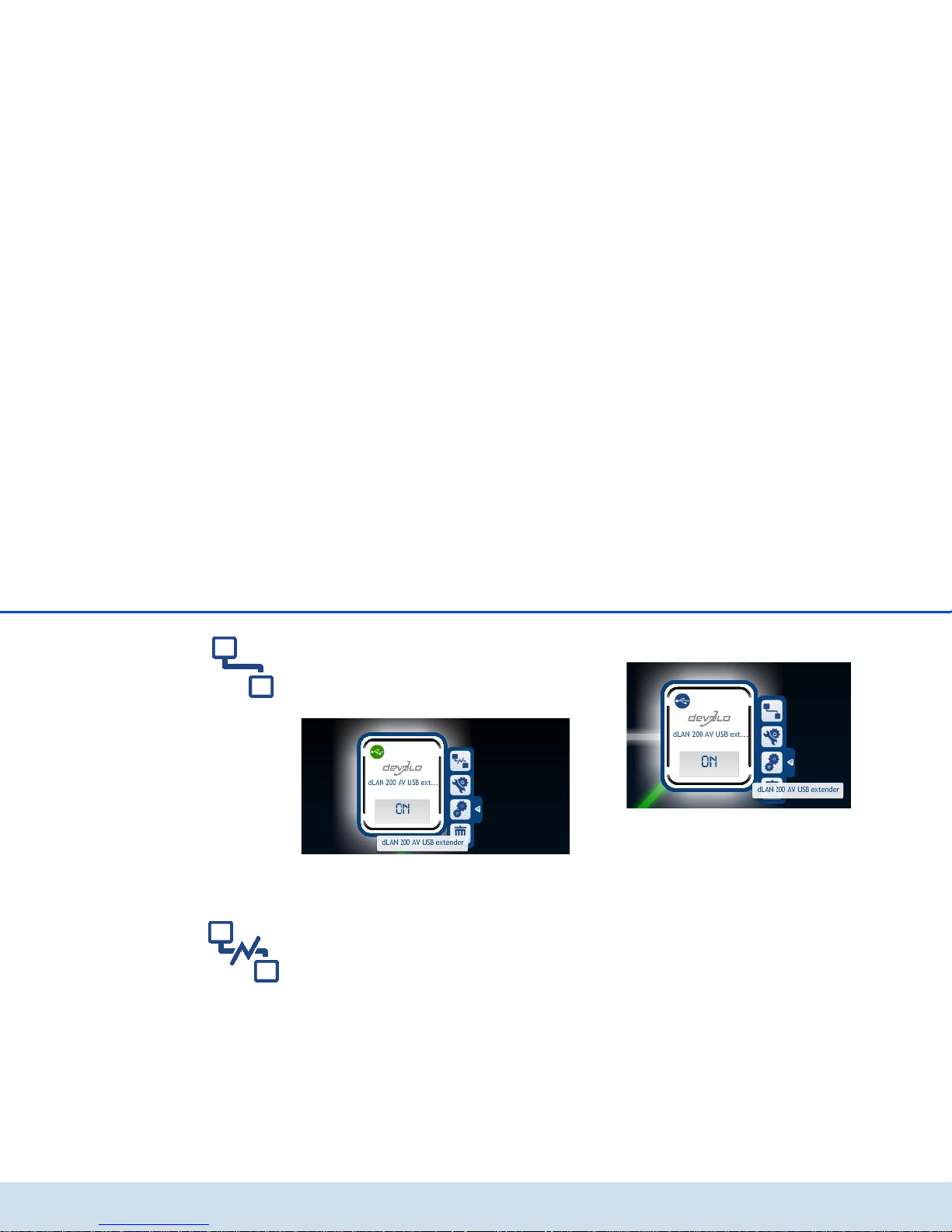

Click on the Connect USB device tab page to access
the dLAN 200 AV USB extender directly. The green
USB symbol in the top left-hand corner of the
dLAN200AVUSBextender signals the now exist-
ing connection to the USB device.
The dLAN 200 AV USB extender is occupied by
your own PC and is released for use.
To release the dLAN 200 AV USB extender for use by
the other subscribers in the dLAN network, click on the
Disconnect USB device tab page. The blue USB
symbol in the top left-hand corner of the
dLAN200AVUSBextender now signals that the
USB device has been released.
Page 27
26 dLAN network
devolo dLAN 200 AV USB extender

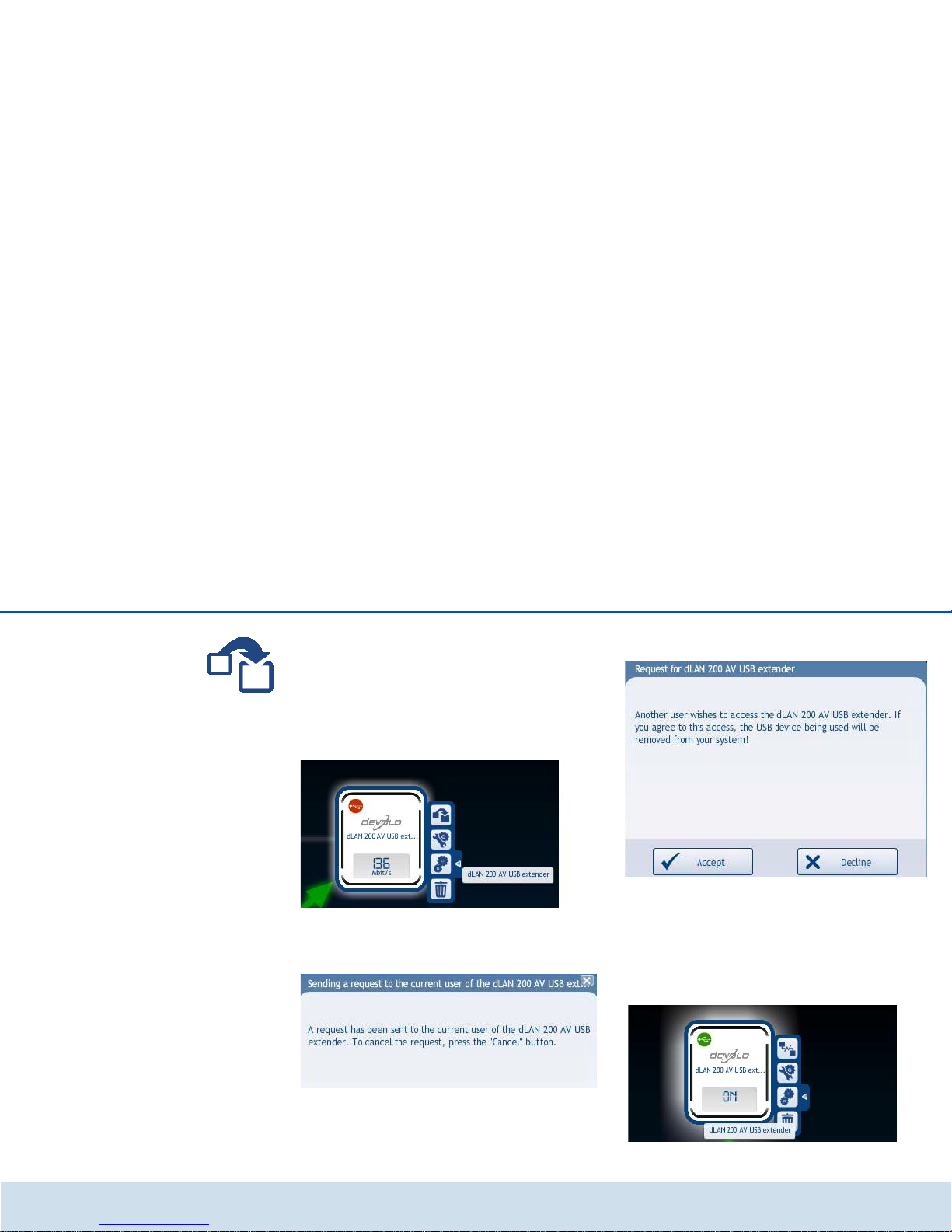

The dLAN 200 AV USB extender is already occupied by another computer in the network.
The dLAN 200 AV USB extender is currently being
used by another subscriber in the dLAN network. The
red USB symbol in the top left-hand corner of the
dLAN200AVUSBextender signals this occupied
connection to the USB device.
Request another user to release the USB device by
clicking on the Take over USB device tab page. The
request you have sent is displayed on your screen:
The other user now has the opportunity to accept or
decline your request:
쎲 If the other user accepts your request, you will
automatically be connected with the
dLAN200AVUSBextender. The green USB
symbol in the top left-hand corner of the
dLAN200AVUSBextender signals the now
existing connection to the USB device.
Page 28
dLAN network 27
de vol o dLA N 20 0 AV USB extender

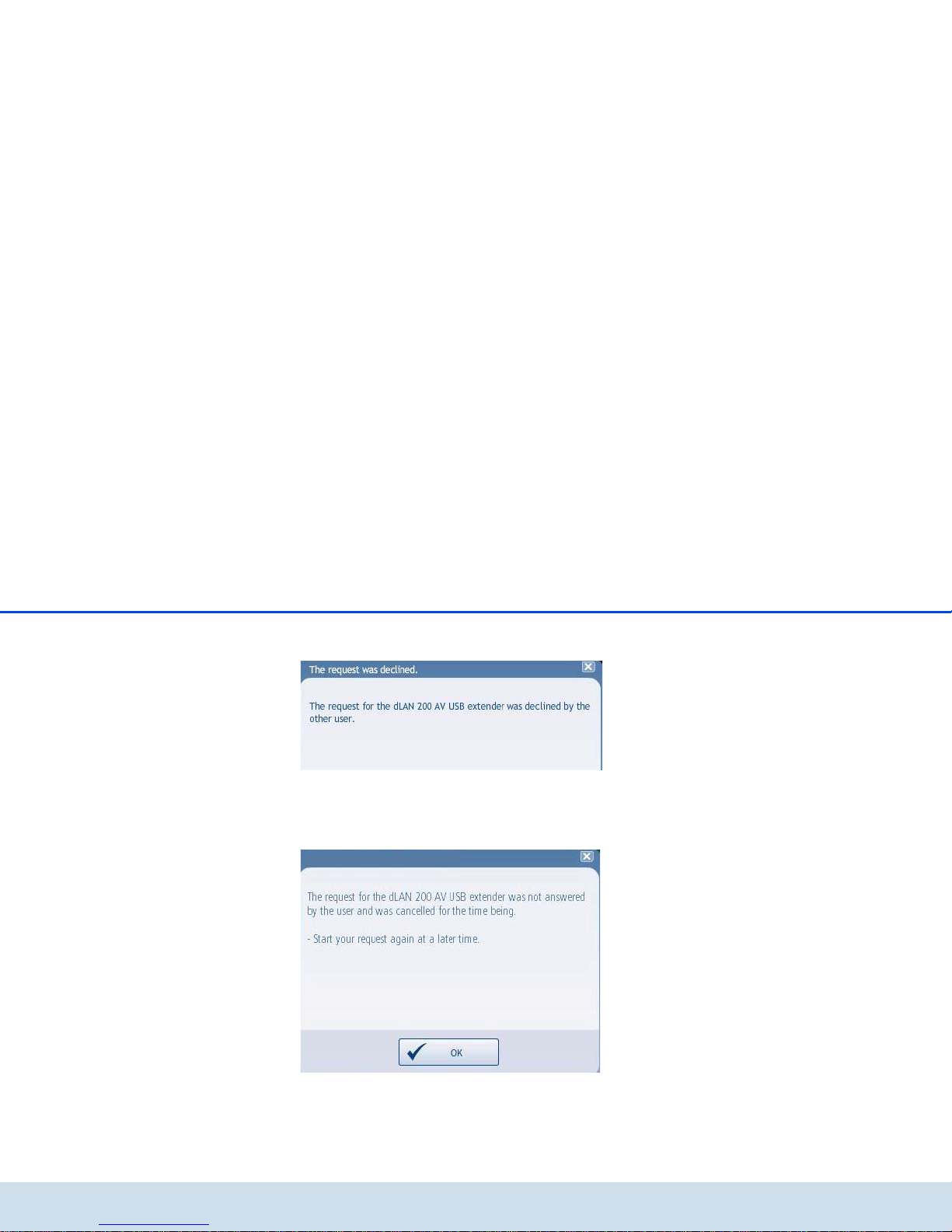

쎲 If the other user declines your request, you will
receive a negative message on your PC.
쎲 If the other user does not respond to your
request, you can cancel your request prematurely
or it will be cancelled automatically after 2 minutes.
Page 29
28 dLAN network
devolo dLAN 200 AV USB extender
Page 30
Appendix 29
de vol o dLA N 20 0 AV USB extender
5 Appendix
For the permitted voltage range for
operating the device and the power
consumption, refer to the label on the
rear side of the device.
For the CE declaration for this product, refer
to the accompanying product CD under CE.
Additional technical information is available
at www.devolo.com
.
5.1 Important safety instructions
All safety and operating instructions should be read
and understood before using the device, and should be
kept for future reference.
쎲 Never open the device. There are no user-service-
able parts inside the device.
Do not try to service this product yourself! Contact qualified technicians
each and every time your device needs
maintenance. There is a risk of electric
shock!
쎲 Use the device in a dry location only.
쎲 Do not insert any objects into the openings of the
device.
쎲 To disconnect the device from the power supply
grid, pull the power plug.
쎲 Do not keep the device in direct sunlight.
쎲 Slots and openings on the case serve as ventila-
tion. Never block or cover them.
쎲 Never set up the device near a heater or radiator.
쎲 The device should be located only where sufficient
ventilation can be ensured.
쎲 Disconnect the device from the power supply grid
before cleaning. Use a moist towel to clean the
device. Never use water, paint thinner, benzene,
alcohol or other strong cleaning agents when
cleaning the device, as these could damage the
case.
쎲 Never use the device with a power supply that
does not meet the specifications provided on the
rating plate. If you do not know what type of
power supply you have at home, contact your
dealer or energy supplier.
쎲 In the event of damage, disconnect the device
from the power supply grid and contact customer
service. This applies, for example, if
쑗 the power cable or plug is damaged.
쑗 liquid has been spilled on the device or
objects have fallen into the device.
쑗 the device has been exposed to rain or water.
Page 31
30 Appendix
devolo dLAN 200 AV USB extender
쑗 the device does not work, even though the
operating instructions have been followed
properly.
쑗 the device’s case is damaged.
5.2 Disposal of old devices
The icon with crossed-out wastebasket on the device
means that this adapter is an electrical or electronic
device that falls within the scope of application of the
German Electrical and Electronic Equipment Act. Since
24 March 2006, these types of devices may no longer
be disposed of with household waste. Rather, in Germany, they can be given to a municipal collection point
free of charge. Contact your municipal government to
find out the address and hours of the nearest collection
point.
5.3 Warranty conditions
The devolo AG warranty is given to purchasers of devolo products in
addition to the warranty conditions provided by law and in accordance with the following conditions:
1 Warranty coverage
a) The warranty covers the equipment delivered and all its parts.
Parts will, at devolo's sole discretion, be replaced or repaired
free of charge if, despite proven proper handling and adherence to the operating instructions, these parts became defective due to fabrication and/or material defects. Alternatively,
devolo reserves the right to replace the defective product with
a comparable product with the same specifications and features. Operating manuals and possibly supplied software are
excluded from the warranty.
b) Material and service charges shall be covered by devolo, but
not shipping and handling costs involved in transport from the
buyer to the service station and/or to devolo.
c) Replaced parts become property of devolo.
d) devolo is authorized to carry out technical changes (e.g. firm-
ware updates) beyond repair and replacement of defective
parts in order to bring the equipment up to the current technical state. This does not result in any additional charge for the
customer. A legal claim to this service does not exist.
2Warranty period
The warranty period for this devolo product is three years. This
period begins at the day of delivery from the devolo dealer. Warranty services carried out by devolo do not result in an extension of
the warranty period nor do they initiate a new warranty period. The
warranty period for installed replacement parts ends with the warranty period of the device as a whole.
Page 32
Appendix 31
de vol o dLA N 20 0 AV USB extender
3Warranty procedure
a) If defects appear during the warranty period, the warranty
claims must be made immediately, at the latest within a period
of 7 days.
b) In the case of any externally visible damage arising from trans-
port (e.g. damage to the housing), the person carrying out the
transportation and the sender should be informed immediately. On discovery of damage which is not externally visible,
the transport company and the sender are to be immediately
informed in writing, at the latest within 3 days of delivery.
c) Transport to and from the location where the warranty claim is
accepted and/or the repaired device is exchanged, is at the
purchaser's own risk and cost.
d) Warranty claims are only valid if a copy of the original pur-
chase receipt is returned with the device. devolo reserves the
right to require the submission of the original purchase receipt.
4 Suspension of the warranty
All warranty claims will be deemed invalid
a) if the label with the serial number has been removed from the
device,
b) if the device is damaged or destroyed as a result of acts of
nature or by environmental influences (moisture, electric
shock, dust, etc.),
c) if the device was stored or operated under conditions not in
compliance with the technical specifications,
d) if the damage occurred due to incorrect handling, especially to
non-observance of the system description and the operating
instructions,
e) if the device was opened, repaired or modified by persons not
contracted by devolo,
f) if the device shows any kind of mechanical damage, or
g) if the warranty claim has not been reported in accordance with
3a) or 3b).
5Operating mistakes
If it becomes apparent that the reported malfunction of the device
has been caused by unsuitable hardware, software, installation or
operation, devolo reserves the right to charge the purchaser for the
resulting testing costs.
6 Additional regulations
The above conditions define the complete scope of devolo's legal
liability.
a) The warranty gives no entitlement to additional claims, such as
any refund in full or in part. Compensation claims, regardless
of the legal basis, are excluded. This does not apply if e.g.
injury to persons or damage to private property are specifically
covered by the product liability law, or in cases of intentional
act or culpable negligence.
b) Claims for compensation of lost profits, indirect or consequen-
tial detriments, are excluded.
c) devolo is not liable for lost data or retrieval of lost data in
cases of slight and ordinary negligence.
d) In the case that the intentional or culpable negligence of
devolo employees has caused a loss of data, devolo will be liable for those costs typical to the recovery of data where periodic security data back-ups have been made.
e) The warranty is valid only for the first purchaser and is not
transferable.
f) The court of jurisdiction is located in Aachen, Germany in the
case that the purchaser is a merchant. If the purchaser does
not have a court of jurisdiction in the Federal Republic of Germany or if he moves his domicile out of Germany after conclusion of the contract, devolo's court of jurisdiction applies. This
is also applicable if the purchaser's domicile is not known at
the time of institution of proceedings.
g) The law of the Federal Republic of Germany is applicable. The
UN commercial law does not apply to dealings between devolo
and the purchaser.
Page 33
32 Appendix
devolo dLAN 200 AV USB extender
Page 34
Index
de vol o dLA N 20 0 AV USB extender
Index
C
CE declaration 29
Connecting with USB device
25
Control lamps (LEDs)
13
D
Disposal of old devices 30
dLAN 200 AV network
15
E
Encryption button 13
F
Factory default password 18
G
Generate secure password 18
I
Important safety instructions 29
Integrating the new adapter into the network
19
IP address
23
N
Network password 18
P
Package contents 11
R
Releasing the USB device 25
S
Safety instructions 29
Security ID
18
System requirements
11
T
Taking over the USB device 26
U
USB connection 13
USB hard drive
14
W
Warranty 30
Windows
13
Page 35
Index
devolo dLAN 200 AV USB extender
Loading...
