Page 1
dLAN® 1200 triple +
The Network Innovation
Manual
Page 2
devolo dLAN® 1200 triple+
Page 3
© 2017 devolo AG Aachen (Germany)
While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only
to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorisation from
devolo. We reserve the right to make any alterations that arise as the result of technical development.
Trademarks
Android
TM
is a registered trademark of the Open Handset Alliance.
Linux
®
is a registered trademark of Linus Torvalds.
Ubuntu
®
is a registered trademark of Canonical Ltd.
Mac
®
and Mac OS X® are registered trademarks of Apple Computer, Inc.
iPhone
®
,iPad® and iPod® are registered trademarks of Apple Computer, Inc.
Windows® and Microsoft® are registered trademarks of Microsoft Corp.
Wi-Fi
®
, Wi-Fi Protected Access
TM
, WPA
TM
, WPA2TM and Wi-Fi Protected SetupTM are registered trademarks of the Wi-Fi Alliance®.
devolo, dLAN
®
, Vianect® and the devolo logo are registered trademarks of devolo AG.
All other names mentioned may be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors
or omissions.
devolo AG
Charlottenburger Allee 67
52068 Aachen
Germany
www.devolo.com
Aachen, September 2017
Version: 1.1
Page 4
Contents
Contents
1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1.2 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1.3 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2 devolo on the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 What exactly is dLAN? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 The dLAN 1200 triple+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.1 Encryption button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.2 Network jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.2.3 Integrated electrical socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.3 Connecting the dLAN 1200 triple+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3.1 Starter Kit – Setting up a new dLAN network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3.2 Addition – Expanding an additional network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Removing a dLAN 1200 triple+ from the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Network configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Security in the dLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 dLAN network encryption at the touch of a button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 devolo Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.4 Installation of devolo software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.5 Activate encryption by means of devolo Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
devolo dLAN 1200 triple+
Page 5
Contents
devolo dLAN 120 0 triple+
5 Annex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Bandwidth optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.3 Disposal of old devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.4 Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Page 6
5 Preface
devolo dLAN 1200 triple+
1Preface
Thank you for placing your trust in this devolo
product.
In just a few easy steps, you can set up your own
network with the dLAN 1200 triple+. devolo dLAN
adapters transmit the Internet data over the
household electrical wiring, making every electrical
socket a network access point.
1.1 About this manual
Carefully read all safety and operating instructions before setting up the device and store the manual and installation guide for later reference.
After a brief introduction to the dLAN® topic and an
introduction to the dLAN 1200 triple+ in Chapter 2,
Chapter 3 will teach you how to start using the adapter effectively in your network. Chapter 4 describes the
configuration options for the integrated configuration
interface in detail. Tips for bandwidth optimisation, information about product safety and environmental
compatibility of the device, as well as our warranty
terms, can be found in Chapter 5 at the end of the
manual.
Icons
This section contains a brief description of the icons
used in this manual and/or on the rating plate, the
device connector, as well as the icons used on the
package:
Icon Description
Very important safety symbol that
warns you of imminent electrical
voltage which if not observed can
result in serious injury or death.
An important safety symbol that
warns you of a potentially dangerous situation involving a burn
hazard which can result in minor
injuries or damage to property.
An important note that should be
observed which can potentially
lead to material damages.
The device may only be used
indoors in dry conditions.
Page 7
Preface 6
devolo dLAN 120 0 triple+
The device is a Class I product. All
electrically conductive (made of
metal) housing parts where a
voltage can be applied during
operation or maintenance in the
event of an error must be continuously connected to the earth
wire.
The manufacturer/distributing
company uses the CE marking to
declare that the product meets all
applicable European regulations
and has been subjected to the
prescribed conformity assessment procedures.
Icon Description
It is used to prevent the occurrence of waste electrical and electronic equipment and to reduce
this type of waste through reuse,
recycling and other forms of utilisation. The European Community
WEEE Directive establishes minimum standards for handling
waste electrical and electronic
equipment in the EU.
Additional information, background material and configuration tips for your device.
Indicates a completed course of
action
Icon Description
Page 8
7 Preface
devolo dLAN 1200 triple+
1.1.1 Intended use
Use the adapter as described in these instructions to
prevent damage and injuries.
DANGER!
Electric shock caused by
electricity
Device must be plugged into a power socket
with a connected earth wire
CAUTION!
Damage to the device caused by
ambient conditions
Only use device indoors in dry conditions
1.1.2 CE conformity
The product conforms to the basic requirements of directives 2014/35/EU, 2014/30/
EU, 2011/65/EU and 2009/125/EC.
The product is intended for operation in the
EU, Switzerland and Norway.
The product is a Class B device.
A printout of the simplified CE declaration is included with the product. You can also find it
online at www.devolo.com
.
1.1.3 Safety notes
It is essential to have read and understood all safety
and operating instructions before the devolo device is
used for the first time; keep them safe for future reference.
DANGER!
Electrical shock caused by
electricity
Do not reach into the electrical socket, do
not open the device and do not insert any
objects into the electrical socket or into the
ventilation openings
Users do not need to carry out any maintenance on
devolo devices. In the event of damage, disconnect the
devolo device from the mains supply by pulling it or its
plug out of the electrical socket. Then contact qualified
specialist personnel (after-sales service) exclusively.
Damage is deemed to have occurred, for example,
쎲 if the power plug is damaged.
쎲 if the devolo device has been showered with liq-
uid (such as rain or other water).
쎲 if the devolo device is inoperable.
쎲 if the housing of the devolo device is damaged.
Do not plug devolo devices directly into each
other. Devices that are plugged into each other
can experience a decrease in transmission rate.
Page 9
Preface 8
devolo dLAN 120 0 triple+
DANGER!
Electric shock caused by
electricity
Device must be plugged into a power socket
with a connected earth wire
devolo devices may be operated only on a mains
power supply as described on the rating plate.
To disconnect devolo devices from the mains supply,
unplug the device from the electrical socket.
The power socket and all connected network devices
should be easily accessible so that you can pull the
power plug quickly if needed.
CAUTION!
Heat development during
operation
Certain housing components can become
very hot in certain situations. Attach device
so that it is touch-proof, observing optimal
positioning
devolo devices should only be installed at locations
that guarantee adequate ventilation. Slots and openings on the housing are used for ventilation:
쎲 Do not cover devolo devices during operation.
쎲 Do not place any objects on devolo devices.
쎲 Do not insert any objects into the openings of
devolo devices.
쎲 devolo devices must not be placed directly next
to a naked flame (such as fire or candles).
쎲 devolo devices must not be exposed to direct
heat radiation (e.g. radiator, direct sunlight).
CAUTION!
Damage to housing from cleaning agents containing solvents
Clean only electroless and with dry cloth
1.2 devolo on the Internet
For detailed information on our products and dLAN,
visit www.devolo.com
. The Powerline area not only
contains product descriptions and documentation, but
also updates of devolo software and your device's
firmware.
If you have any further ideas or suggestions related to
our products, please don't hesitate to contact us at
support@devolo.com
!
Page 10
9 Introduction
devolo dLAN 1200 triple+
2Introduction
dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economically via your household electrical wiring, without the
need for complex and expensive dedicated cabling.

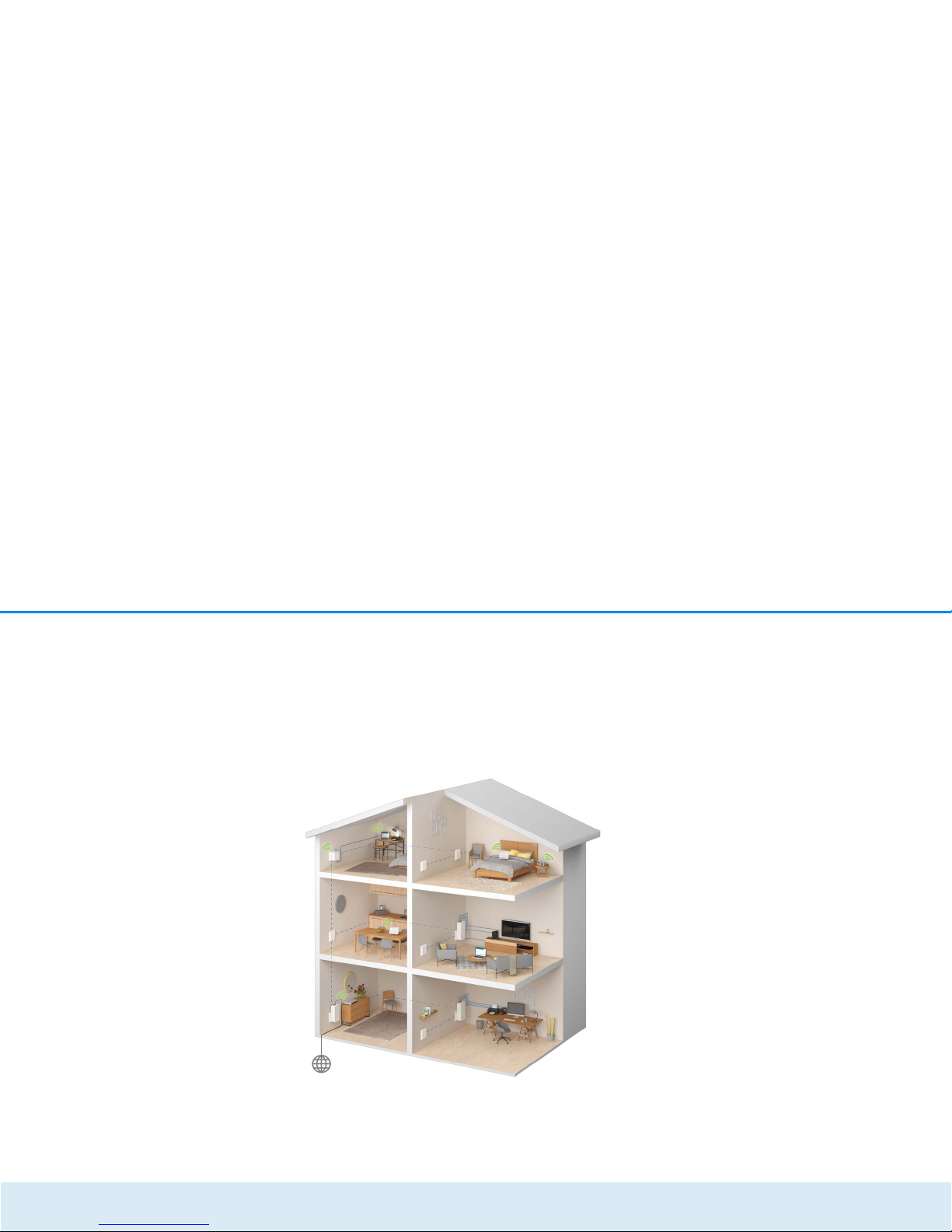

Fig. 1 devolo dLAN throughout the home
2.1 What exactly is dLAN?
The dLAN (direct Local Area Network) uses the household power grid to transfer data between computers
and other network components equipped with suitable
adapters. As a result, any electrical socket can be used
as a network access point. The data is modulated prior
to transfer and sent as a signal via household power
lines. State-of-the-art technology ensures that the
power and data networks do not interfere with one another. Networking via dLAN is fast and secure. The
data is encrypted using a key to prevent interception by
third parties.
Page 11
Introduction 10
devolo dLAN 120 0 triple+

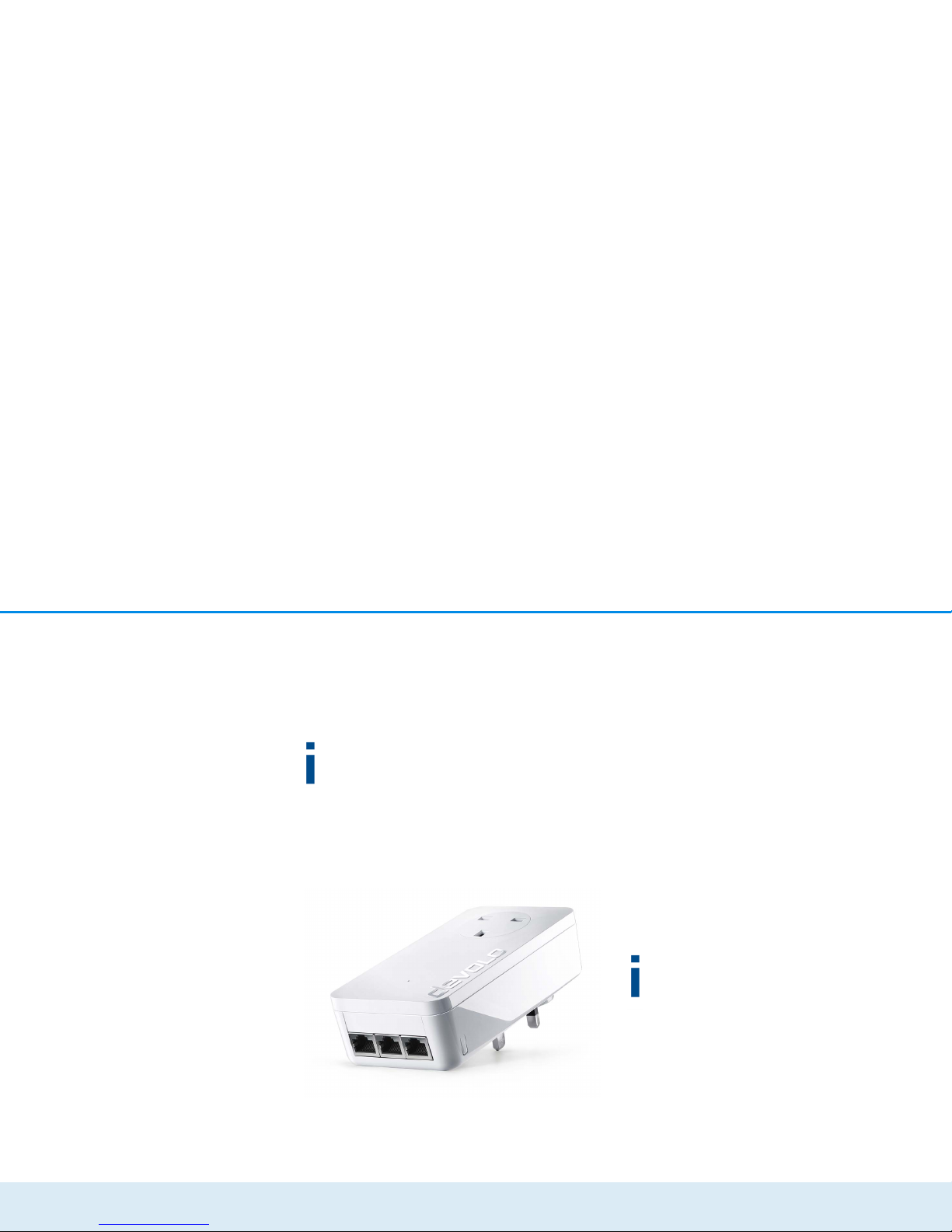

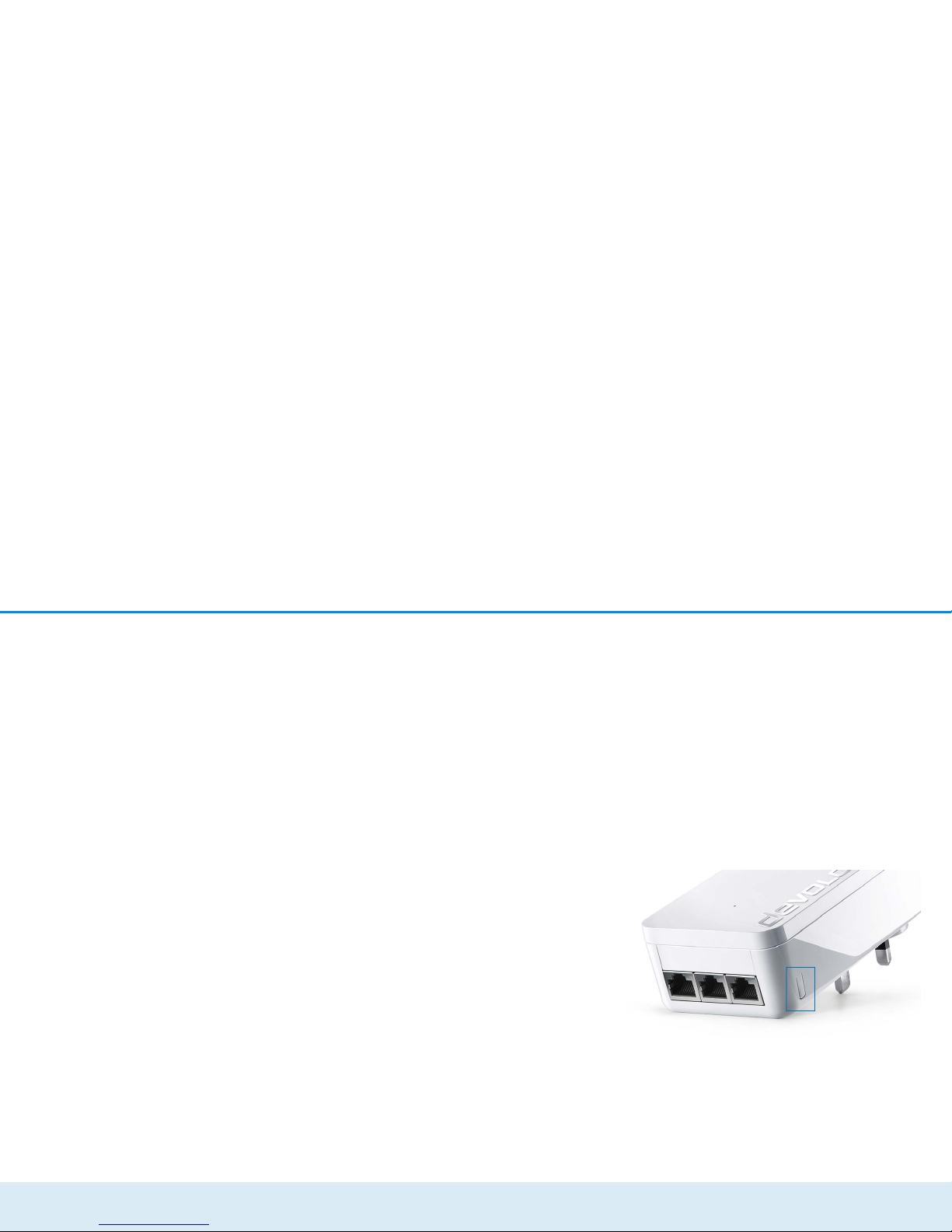

2.2 The dLAN 1200 triple+
The dLAN 1200 triple+ is equipped with
쎲 three gigabit network connectors,
쎲 one dLAN indicator light,
The LED status display can be deactivated with
the devolo Cockpit-Software (see 4.3
devolo Cockpit).
쎲 an encryption button with reset function (next to
the network connectors),
쎲 One integrated electrical socket.
2.2.1 Encryption button
This button has the following functions:
Encrypting the dLAN network
쎲 To encrypt your dLAN network individually, press
each encryption button on the connected
devices within 2 minutes, for approximately 1
second each.
쎲 To remove a dLAN device from your network,
press the encryption button on the corresponding device and hold for at least 10 seconds.
Reading the dLAN indicator light
The integrated indicator light (LED) shows the dLAN
status for the dLAN 1200 triple+ by illuminating and/
or flashing:
Check whether the adapter is connected to the
mains supply correctly and whether the encryption process has been carried out successfully.
For more information about this, refer to 3.3
Connecting the dLAN 1200 triple+.
Fig. 2 dLAN 1200 triple+ with country-specific connector
and corresponding electrical socket
Page 12
11 Introduction
devolo dLAN 1200 triple+
Flashing behaviour of the dLAN LED
* For information on improving transmission rate, refer
to Chapter 5.2 Bandwidth optimisation.
2.2.2 Network jacks
Using the three network connectors of the dLAN 1200
triple+, you can connect a computer, a game console
and your television to the dLAN 1200 triple+ using a
commercially available network cable.
2.2.3 Integrated electrical socket
To connect other network devices to your mains
supply, use the electrical socket of the dLAN 1200 triple+. The mains filter integrated into the dLAN 1200
triple+ eliminates any noise of connected devices and
significantly improves data transmission in the
network.
LED
Flashing
behaviour
Meaning
Red LED Flashes at
intervals of 0.5
sec.
(on/off)
No dLAN connection exists
Red LED Flashes at
intervals of 2
sec.
(on/off)
Data transmission rate not in
optimum range *
White
LED
Lights up
steady
An encrypted
dLAN connection
exists and the
adapter is ready
to operate
White
LED
Flashes at
intervals of 0.5
sec.
(on/off)
dLAN encryption
being established
White
LED
Flashing at
intervals of
0.5/50-60 sec.
(On/off)
Adapter is in
PowerSave mode
LED
Flashing
behaviour
Meaning
Page 13
Initial use 12
devolo dLAN 120 0 triple+
3Initial use
This chapter tells you everything you need to know to
set up and use your dLAN 1200 triple+. We describe
how to connect the adapter and briefly describe the
devolo software. Further, detailed information is
available at www.devolo.com
.
3.1 Package contents
Please ensure that the delivery is complete before beginning with the installation of your dLAN 1200 triple+.
쎲 Starter Kit:
쑗 dLAN 1200 triple+
쑗 dLAN 1200+
쑗 Two network cables
쑗 Hard copy of installation guide
쑗 CE declaration
or
쎲 Extension:
쑗 dLAN 1200 triple+
쑗 Network cable
쑗 Hard copy of installation guide
쑗 CE declaration
devolo AG reserves the right to change the package
contents without prior notice.
3.2 System requirements
쎲 Supported operating systems of the devolo
Cockpit: Windows 7 (32 bit/64 bit), Windows 8
(32 bit/64 bit), Windows 8 Pro (32 bit/64 bit),
Windows 10 (32 bit/64 bit), Windows 10 Pro
(32 bit/64 bit), Ubuntu Linux (32 bit/64 bit), Mac
(from OS X 10.6)
쎲 Network connection
Please note that your computer or other device
must have a network adapter with a network
port.
To set up a dLAN network, you need at least two
dLAN devices (200 Mbps, 500 Mbps, 600 Mbps
or 1200 Mbps).
Page 14
13 Initial use
devolo dLAN 1200 triple+
3.3 Connecting the dLAN 1200 triple+
CAUTION! Damage to the device caused by
ambient conditions
Only use device indoors in dry conditions
In the following sections we describe how to connect
the dLAN 1200 triple+ and integrate it into the network. We clarify the exact procedures based on potential network scenarios.
For the permitted voltage range for operating
the device and the power consumption, refer to
the label on the rear of the device. For additional technical information on our products, refer
to the Service Centre area at www.devolo.com
.
3.3.1 Starter Kit – Setting up a new dLAN
network
햲 Connect the dLAN 1200+ to your Internet access
device's network jack (e.g. WiFi router).
CAUTION!
Tripping hazard
Lay the network cable in a barrier-free
manner and ensure that the electrical
socket and the connected network devices
are easily accessible
햳 Plug the dLAN 1200 triple+ into a wall socket. As
soon as the LED indicator light flashes red at regular intervals of 0.5 sec., the adapter is ready to
operate but not yet integrated into the dLAN network.
Connecting the dLAN 1200+ and dLAN 1200 triple+ to a dLAN network
Before you can use the adapter in a dLAN network, first
you have to connect it as a network. This is accomplished by using a shared dLAN password. This forms
a delimited dLAN network. Shared use of the dLAN
password serves both as access control to the dLAN
network as well as the encryption, and thereby the
interception protection, of the transmitted data.
The dLAN password can be set in different ways:
햴
dLAN network encryption:
쎲 dLAN network encryption: at the touch of a but-
ton: First press the encryption button of the
dLAN 1200+ for approx. 1 second, and then
within 2 minutes press the encryption button of
the dLAN 1200 triple+ for approx.1 second.
or
Page 15
Initial use 14
devolo dLAN 120 0 triple+
쎲 dLAN network encryption by entering the dLAN
password in the devolo Cockpit: More information
can be found in Chapter 4.3 devolo Cockpit.
As soon as the white LED lights up steady on
both devices, your dLAN network is set up
and protected from unauthorised access.
3.3.2 Addition – Expanding an additional
network
햲 Plug the dLAN 1200 triple+ into a wall socket. As
soon as the LED indicator light flashes red at regular intervals of 0.5 sec., the adapter is ready to
operate but not yet integrated into the dLAN
network.
Integrating the dLAN 1200 triple+ into an existing
dLAN network
Before you can use the dLAN 1200 triple+ in your
dLAN network, first you have to connect it to your
existing dLAN devices as a network. This is accomplished by using a shared dLAN password. The dLAN
password can be set in different ways:
햳
dLAN network encryption:
쎲 dLAN network encryption: at the touch of a but-
ton: First press the encryption button on a device
in your existing network for approx. 1 second
and within 2 minutes, press the encryption but-
ton of the new dLAN 1200 triple+ for approx. 1
second.
or
쎲 dLAN network encryption by entering the dLAN
password in the devolo Cockpit: More information
can be found in Chapter 4.3 devolo Cockpit.
As soon as the white LED lights up steady,
the new dLAN 1200 triple+ is integrated into
your existing, encrypted dLAN network.
Page 16
15 Initial use
devolo dLAN 1200 triple+
3.4 Removing a dLAN 1200 triple+
from the network
To remove a dLAN 1200 triple+ adapter from an existing network, press the encryption button on the corresponding adapter for at least 10 seconds. The
adapter will automatically be assigned a new randomly
generated password and will thus no longer be able to
access the network. To integrate the device into a different network after this, follow the steps described in
Chapter 3.3 Connecting the dLAN 1200 triple+,
depending on whether you are setting up a new network or adding the device to an existing one.
Page 17
Network configuration 16
devolo dLAN 120 0 triple+
4 Network configuration
4.1 Security in the dLAN
Before you can use the dLAN 1200 triple+ in your
dLAN network, you must first connect it to other dLAN
devices as a network. Two specific pieces of information are especially important for this:
쎲 The joint use of the dLAN password is for access
control purposes; it results in a delimited dLAN
network.
쎲 The joint use of the dLAN password is for network
encryption purposes, protecting against interception of the transmitted data.
The dLAN password can be specified automatically by
means of the encryption button or manually using
the devolo Cockpit program. Please note the following basic principle when choosing your encryption
method:
쎲 For dLAN networks in which all associated
dLAN devices are equipped with an encryption button, a dLAN password can be easily gen-
erated at the touch of a button.
쎲 For dLAN networks that include a combination of
devices with and without encryption but-
tons, the password must be specified with the
devolo Cockpit.
4.2 dLAN network encryption
at the touch of a button
To encrypt a dLAN network in which all associated devices are equipped with an encryption button, simply
press the encryption button located on the device.
Pressing this button will encrypt your dLAN network
with a randomly generated password.
Fig. 3 dLAN encryption by means of an encryption button
Page 18
17 Network configuration
devolo dLAN 1200 triple+

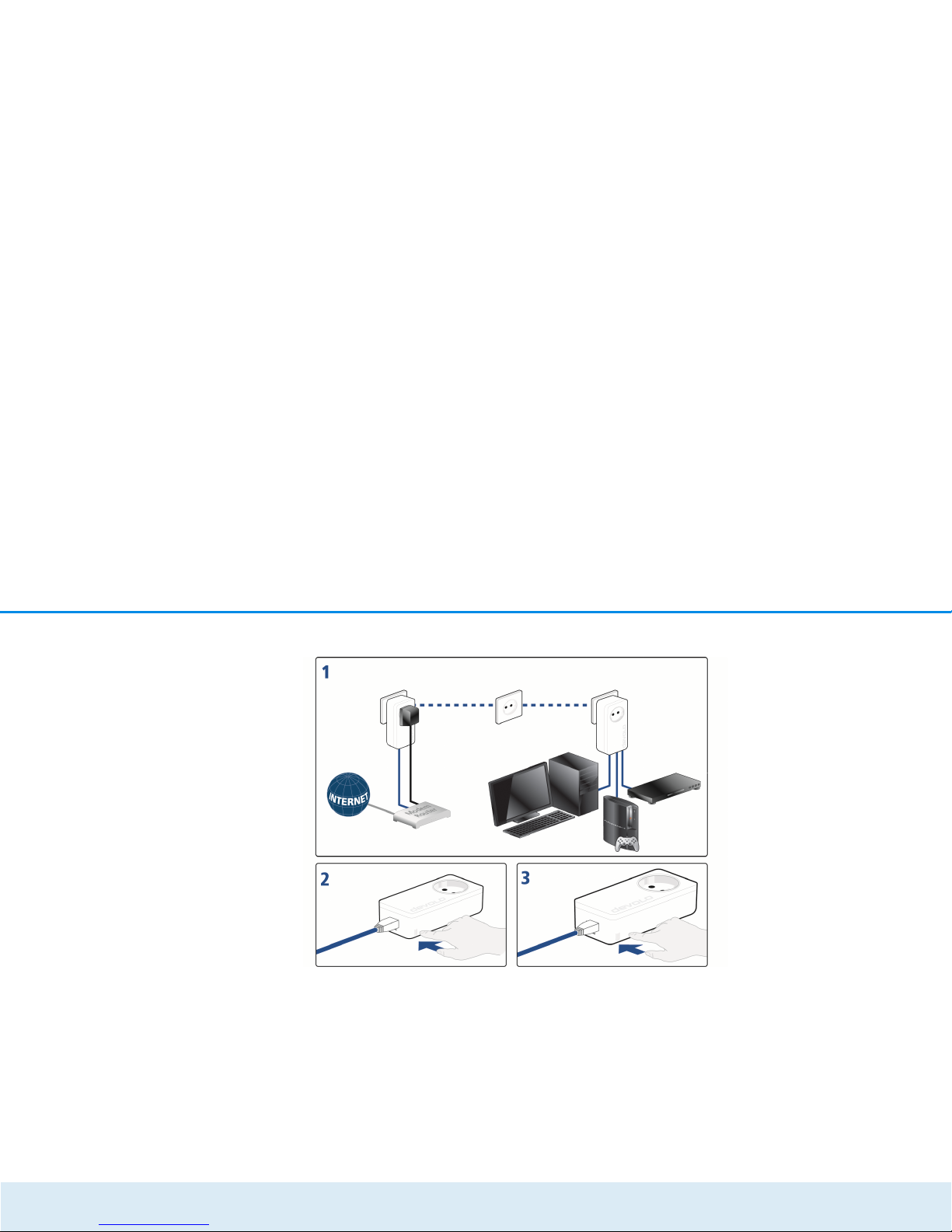

Fig. 4 Setting up dLAN encryption by means of the encryption button
Page 19
Network configuration 18
devolo dLAN 120 0 triple+
4.3 devolo Cockpit
The devolo Cockpit is a monitoring program that
detects all accessible dLAN devices in your home
network and combines them into one secure network.

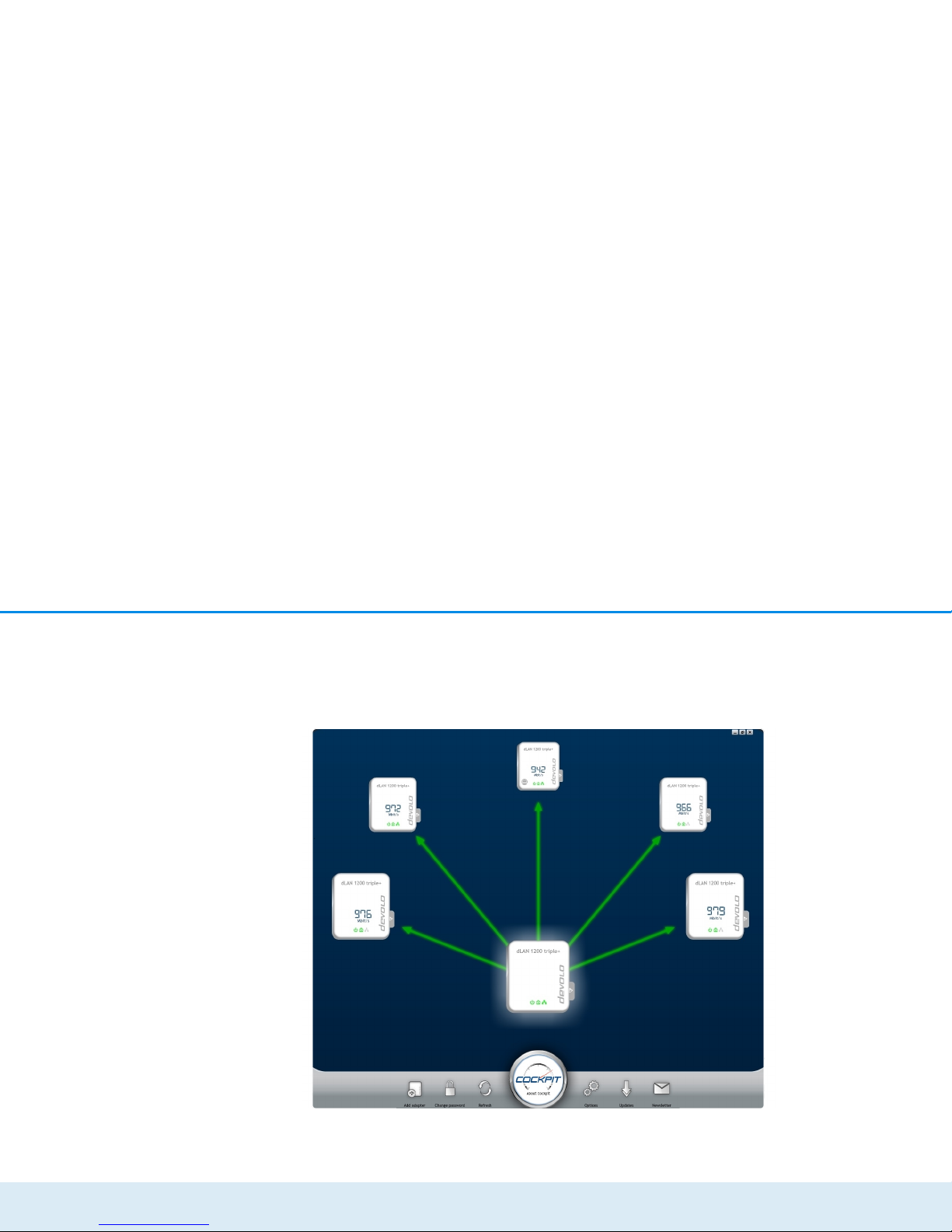

Fig. 5 The devolo Cockpit in action
Page 20
19 Network configuration
devolo dLAN 1200 triple+
4.4 Installation of devolo software
Installing devolo Cockpit software
The devolo Cockpit computer program finds all
accessible dLAN adapters in your dLAN network, displays information about these devices and encrypts
your dLAN network individually. For WiFi devices, the
software takes you to the configuration interface to
configure your WiFi network on a computer.
The devolo Cockpit software is available at
www.devolo.com/cockpit
for the following operating
systems:
쎲 Windows (from Win 7, 32 bit/64 bit)
쎲 Mac (from OS X 10.6)
쎲 Ubuntu Linux (32 bit/64 bit)
You can find more information about the
devolo Cockpit software online at www.devo-
lo.com/cockpit.
Downloading my devolo App
The my devolo App is devolo's free app also for
checking and configuring WiFi, dLAN and LAN connections for the dLAN 1200 triple+ (via smartphone or
tablet). The smartphone or tablet connects to the
dLAN 1200 triple+ at home via WiFi.
햲 Download the my devolo App to your smart-
phone or tablet computer from the corresponding
store.
The quickest way to find the app is by clicking
the magnifying glass in the store and searching
directly for devolo.
햳 my devolo App is placed in your smartphone's
or tablet's app list as usual. Tapping on the my
devolo App icon brings you to the start menu.
You can find more information about my
devolo App online at
www.devolo.co.uk/service/my-devolo-app/
.
Page 21
Network configuration 20
devolo dLAN 120 0 triple+
Starting devolo Cockpit software
All accessible dLAN devices in your home network
appear after starting the devolo Cockpit. This may
take a moment.
All adapters found in the network appear as an icon
with a corresponding product name. The adapter
displayed in the middle of the dLAN network
symbolises the devices connected to the computer. The
devolo Cockpit also offers you the option to centre
the display of the adapter connected to the router. If
you have multiple dLAN devices connected, you can
switch between them. Clicking an adapter icon
highlights the corresponding dLAN device.
The coloured connecting lines between the adapters illustrate the current transmission quality:
쎲 Green: the network connection is suitable for HD
video streaming.
쎲 Orange: the network connection is suitable for
SD video streaming and online gaming.
쎲 Red: the network connection is suitable for simple
data transfer and Internet access.
If data transmission from one adapter to another is in
fact taking place, the outgoing data rate from the centred adapter is displayed. If a different adapter is selected, the data rate outgoing from this adapter is
displayed.
Settings and functions
You can configure settings for the respectively highlighted device or for the network via
쎲 the buttons at the lower edge of the screen (Net-
work settings)
and
쎲 using the tabs positioned on the side of each
adapter (Adapter settings).
Page 22
21 Network configuration
devolo dLAN 1200 triple+
devolo Cockpit setting options on the lower
edge of the screen:
You can add a new dLAN adapter to your
present network using Add adapter. Follow
the instructions on the screen to connect the
dLAN adapters to each other.
You can replace the default password with
your own password using Change pass-
word. This is valid for your entire dLAN network. In addition, you can also generate a
secure password here.
The newly integrated dLAN adapter will be
detected by means of Refresh and displayed
in the Cockpit interface.
You can use Options to select whether you
would like the transmission capacity of the
connected dLAN adapter to be recorded and
sent to devolo. Here, you can also disable all
future updates for your adapter and reset the
entire dLAN network to the factory defaults.
A troubleshooting guide provides remedies
for bandwidth problems. The option to centre
the devolo Cockpit on the dLAN adapter
that is connected to the router results in a
clearer arrangement of all dLAN adapters.
The data sent to devolo pertains only to the performance values of your dLAN devices. The information is anonymised, statistically evaluated
and used exclusively for the improvement of our
products.
The devolo Cockpit checks if a new firmware version is available for the integrated
dLAN adapter using Updates. These can
then be installed automatically.
Newsletter takes you to the devolo website,
where you can sign up to receive our free
newsletter.
Configuration options on the tabs positioned on
the side:
The FAQ display button takes you to the devolo website. Here you can find useful information, as well as some tips and tricks
related to the product.
Page 23
Network configuration 22
devolo dLAN 120 0 triple+
You can find out device information, such as
the firmware version used and the specific
MAC address, using the Display Options
button.
Furthermore, other options are available,
such as the following:
쎲 Turn off LEDs,
쎲 Disable data communication,
쎲 Activate/ deactivate power saving mode,
쎲 Assign device names,
쎲 Reset device to factory defaults
and
쎲 View manual for the dLAN device
The selected dLAN adapter can be removed
from the available dLAN network using Re-
move Device.
The above-mentioned setting options vary depending on the function and features of your
device.
Error states of the adapter are displayed even
though the LED is switched off.
4.5 Activate encryption by means
of devolo Cockpit
If you are using dLAN devices without encryption
buttons, encryption can only take place through
devolo Cockpit.
Before the networking procedure, note the security IDs of all dLAN adapters. This unique
identifier of each dLAN device can be found on
the rating plate on the housing. It consists of 4
x 4 letters separated by dashes (e.g. ANJRKMOR-KSHT-QRUV). Ensure that all dLAN
adapters are connected to the mains supply and
computers or other network components as appropriate.
Scan for local adapter
After devolo Cockpit is started, it starts by searching
for the dLAN adapter connected directly to your
computer.
Adding an adapter
Add all the dLAN devices you want to your dLAN
network by selecting the Add button. You will need the
16 digit security ID of the adapter, which can be
found on the label on the rear side of the housing.
Enter it now into the Security ID field and confirm
with OK. If a security ID is correct and the device can
Page 24
23 Network configuration
devolo dLAN 1200 triple+
be reached in the dLAN network, it will be added to
your network and displayed in the program.
Changing the network password
After you have added all desired dLAN devices to your
dLAN network, select the Change Password button
to assign a new joint network password. All adapters
present in your dLAN network are updated with the
new password automatically.
You can choose between your own password or a random password. To define your own password, enter it
into the Network password text field (8 character
minimum). Alternatively, you can have a randomly selected and highly secure password assigned using the
Generate secure password button. All present
adapters in your dLAN network will receive the new
password automatically.
The entered or automatically created password
can be shown in the text field in readable form
by activating the option "Show characters".
If devolo Cockpit is called up again later after a successful initial installation, for example to integrate a
new adapter into a network, the application remembers the devices that were entered earlier. Enter the
new device as described in the Adding an adapter
section.
Page 25
Annex 24
devolo dLAN 120 0 triple+
5 Annex

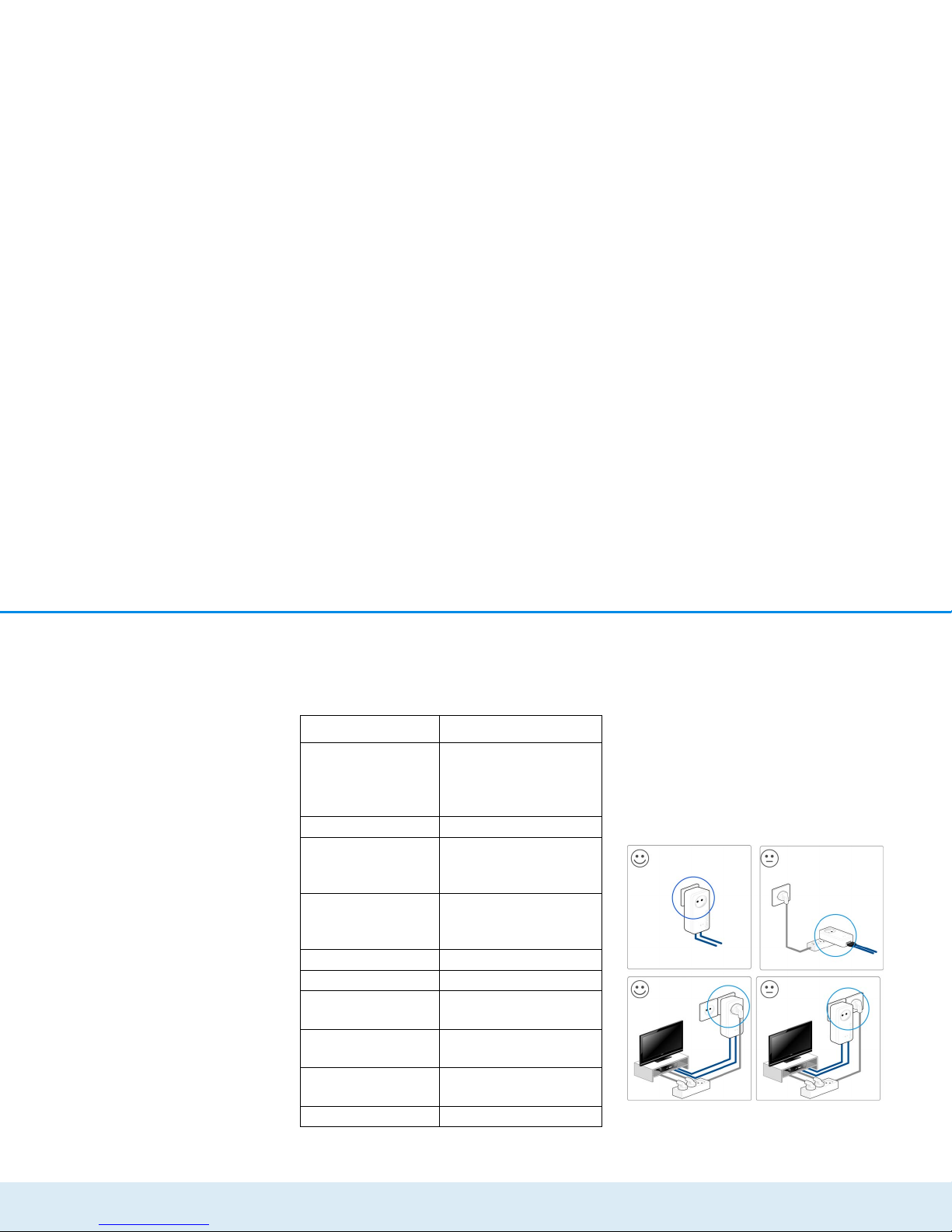

5.1 Technical data
5.2 Bandwidth optimisation
To significantly improve the transmission capacity of
the network, we recommend that you comply with the
following "connection rules":
쎲 Plug the dLAN 1200 triple+ directly into a wall
socket. Avoid using power strips. This may impair
the transmission of the dLAN signals.
쎲 If there are several sockets in the wall directly next
to each other, they behave like a power strip. Individual sockets are optimal.
Security
128 Bit AES
Max. power output to
integrated socket
Plug-Type E: 16 A / 3500 W
Plug-Type F: 16 A / 3600 W
Plug-Type G: 13 A / 3000 W
Plug-Type J: 10 A / 2300 W
Device port 3x Ethernet RJ45
Power consumptionMaximum: 4,6 W
Typical: 3,7 W
Stand-by: 0,8 W
Power supply internal
196-250 V AC
50 Hz
Attenuation filter 2 – 68 MHz
Filter characteristics -22 db to -45 db
Temperature (Storage/
Operating
-25°C to 70 °C / 0°C to 40°C
Dimensions (in mm, without plug)
143x72x41 (HxWxD)
Ambient conditions 10-90% Humidity, non-con-
densing
Certifications CE Class B (EU, CH, NO)
Fig. 6 dLAN bandwidth optimisation
