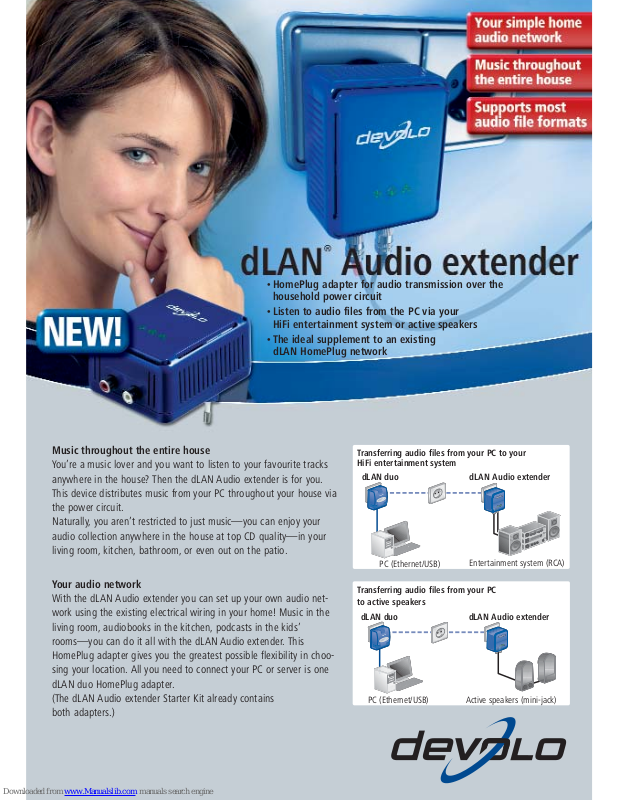

Devolo Audio Extender Supplementary Manual
Music throughout the entire house
You’re a music lover and you want to listen to your favourite tracks
anywhere in the house? Then the dLAN Audio extender is for you.
This device distributes music from your PC throughout your house via
the power circuit.
Naturally, you aren’t restricted to just music—you can enjoy your
audio collection anywhere in the house at top CD quality—in your
living room, kitchen, bathroom, or even out on the patio.
Your audio network
With the dLAN Audio extender you can set up your own audio network using the existing electrical wiring in your home! Music in the
living room, audiobooks in the kitchen, podcasts in the kids’
rooms—you can do it all with the dLAN Audio extender. This
HomePlug adapter gives you the greatest possible flexibility in choosing your location. All you need to connect your PC or server is one
dLAN duo HomePlug adapter.
(The dLAN Audio extender Starter Kit already contains
both adapters.)
dLAN duo
dLAN duo
•HomePlug adapter for audio transmission over the
household power circuit
•Listen to audio files from the PC via your
HiFi entertainment system or active speakers
•The ideal supplement to an existing
dLAN HomePlug network
PC (Ethernet/USB)
PC (Ethernet/USB)
Entertainment system (RCA)
Active speakers (mini-jack)
dLAN duo
Transferring audio files from your PC to your
HiFi entertainment system
Transferring audio files from your PC
to active speakers
dLAN Audio extender
dLAN duo dLAN Audio extender
Overview of specifications
Product highlights
•
Connect your PC to your HiFi entertainment system
or active speakers over the household power circuit.
•
Listen to music on your hard drive anywhere in the house
•
Playback via HiFi system or active speakers
•
Connect your HiFi system or active speakers to the dLAN
Audio extender using an RCA or mini-jack cable
•
Share the sound of any audio media throughout the house:
songs, voice, audiobooks etc.
•
Transmission of most audio file formats, e.g. MP3, WMA,
WAV and AAC
•
Supports a wide range of music servers such as Windows
Media Player, Apple iTunes or Winamp.
•
Audio transmission range: 200m over the power circuit
Simple installation and operation
•
Just plug the dLAN Audio extender into an electrical
power socket
•
Connect cable to your HiFi system or active speakers
•
Easy installation of software on included CD in only one
minute
•
3 year manufacturer’s warranty
Security features
•
dLAN Audio extender guarantees maximum data security
via the power circuit thanks to the powerful DES
pro
encryption.
Complete scope of delivery
•
dLAN Audio extender to enhance your dLAN network for
audio applications
•
Hard copy of installation guide
•
CD containing configuration software and documentation
supporting Windows®XP 32-bit/Vista 32-bit
•
Available as a Starter Kit including a dLAN duo HomePlug
adapter (to connect to PC or server)
The dLAN Audio extender enhances your dLAN
HomePlug network for a wide variety of audio
applications. You can now keep your favourite
tracks on a music server and play them on your
HiFi system anywhere within range of your household mains circuit. Naturally, the PC or server with
your digital music archive must be integrated within the network. Simply plug the dLAN duo
HomePlug adapter (included in the Starter Kit) into
a free power socket and connect it to the PC using
either an Ethernet or USB cable.
Listen to audio files from the PC via your HiFi entertainment system
Connecting the dLAN Audio extender
dLAN®Audio extender
DSL Modem-Router
dLAN duo
Connect
Power
DSL
ETH
USB
dsl
+
110
0 du
o
dLAN duo
dLAN Audio
extender
Entertainment system
dLAN Audio
extender
Active speakers
d
L
A
N
d
u
o
d
LA
N
d
u
o
The dLAN Audio extender also provides music or
other audio files from a central PC or music server
to your active speakers via your household mains
circuit. Take advantage of even greater flexibility
and enjoy your music or audiobooks in any room
using your active speakers.
Listen to audio files from the PC via the active speakers
The perfect audio network with dLAN Audio extender
1234
1. Unpack the dLAN Audio extender,
plug the stereo RCA cable into it and
2. Plug the device into a free power socket next to
your HiFi system. Use the RCA cable to connect the
adapter to your HiFi. Additionally, your dLAN
Audio extender supports active speakers—simply
use a mini-jack cable to connect them to the adapter.
3. Plug the dLAN duo into a free power socket
next to your PC and connect the adapter to the PC
using an Ethernet or USB cable.
4. Insert the included CD into your PC and install
the software. This will take less than a minute.
Once the installation is complete, you can use the
application immediately. Play your tracks on the PC
and listen to them on the speakers of your desired
HiFi system or active speaker set.
dLAN Audio extender
dLAN Audio extender
Starter Kit
devolo AG Deutschland
Sonnenweg 11, 52070 Aachen
Tel. : +49 (0)241-18279-79
Fax : +49 (0)241-18279-99
E-Mail: info@devolo.de
Web: www.devolo.com
